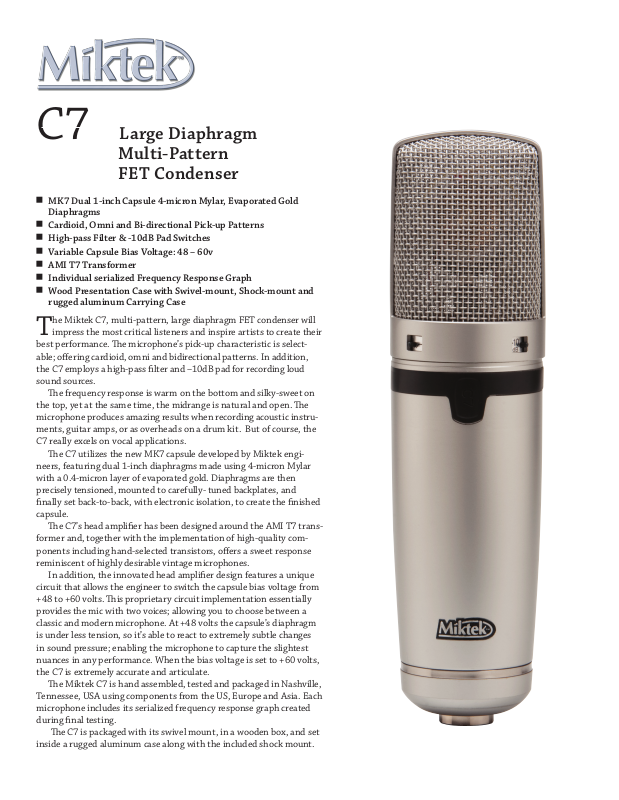

Page 1
C7 Large Diaphragm
Multi-Pattern
FET Condenser
MK7 Dual 1-inch Capsule 4-micron Mylar, Evaporated Gold 7
Diaphragms
Cardioid, Omni and Bi-directional Pick-up Patterns 7
High-pass Filter & -10dB Pad Switches 7
Variable Capsule Bias Voltage: 48 – 60v 7
AMI T7 Transformer 7
Individual serialized Frequency Response Graph 7
Wood Presentation Case with Swivel-mount, Shock-mount and 7
rugged aluminum Carrying Case
he Miktek C7, multi-pattern, large diaphragm FET condenser will
T
impress the most critical listeners and inspire artists to create their
best performance. e microphone’s pick-up characteristic is selectable; offering cardioid, omni and bidirectional patterns. In addition,
the C7 employs a high-pass filter and –10dB pad for recording loud
sound sources.
e frequency response is warm on the bottom and silky-sweet on
the top, yet at the same time, the midrange is natural and open. e
microphone produces amazing results when recording acoustic instruments, guitar amps, or as overheads on a drum kit. But of course, the
C7 really excels on vocal applications.
e C7 utilizes the new MK7 capsule developed by Miktek engineers, featuring dual 1-inch diaphragms made using 4-micron Mylar
with a 0.4-micron layer of evaporated gold. Diaphragms are then
precisely tensioned, mounted to carefully- tuned backplates, and
finally set back-to-back, with electronic isolation, to create the finished
capsule.
e C7’s head amplifier has been designed around the AMI T7 transformer and, together with the implementation of high-quality components including hand-selected transistors, offers a sweet response
reminiscent of highly desirable vintage microphones.
In addition, the innovated head amplifier design features a unique
circuit that allows the engineer to switch the capsule bias voltage from
+48 to +60 volts. is proprietary circuit implementation essentially
provides the mic with two voices; allowing you to choose between a
classic and modern microphone. At +48 volts the capsule’s diaphragm
is under less tension, so it’s able to react to extremely subtle changes
in sound pressure; enabling the microphone to capture the slightest
nuances in any performance. When the bias voltage is set to +60 volts,
the C7 is extremely accurate and articulate.
e Miktek C7 is hand assembled, tested and packaged in Nashville,
Tennessee, USA using components from the US, Europe and Asia. Each
microphone includes its serialized frequency response graph created
during final testing.
e C7 is packaged with its swivel mount, in a wooden box, and set
inside a rugged aluminum case along with the included shock mount.
Page 2
C7 Large Diaphragm
Multi-Pattern
FET Condenser
Type 7 . . . . . . . . . . . . . . Large Diaphragm Multi-Pattern
FET Condenser
Polar Pattern 7 . . . . . . . . . Cardioid, Figure-8 and Omni
Frequency Response 7 . . . . . 20~20000Hz
Sensitivity 7 . . . . . . . . . . -29, - 34, -38 dBV/Pa
Equivalent Noise Level 7 . . . 13, 18, 22 dB
Dynamic range 7 . . . . . . . . 105dB
S/N Ratio 7 . . . . . . . . . . . 81, 76, 72dB
Max. SPL 7 . . . . . . . . . . . 127 dB
Power Supply 7 . . . . . . . . . 48V phantom
C7 Polar Response
C7 Frequency Response
Specifications subject to change
www. miktekaudio.com
1200 Clinton Street, Suite 15 • Nashville, TN 37203
tel 615.250.2434 • fax 615.346.9298
