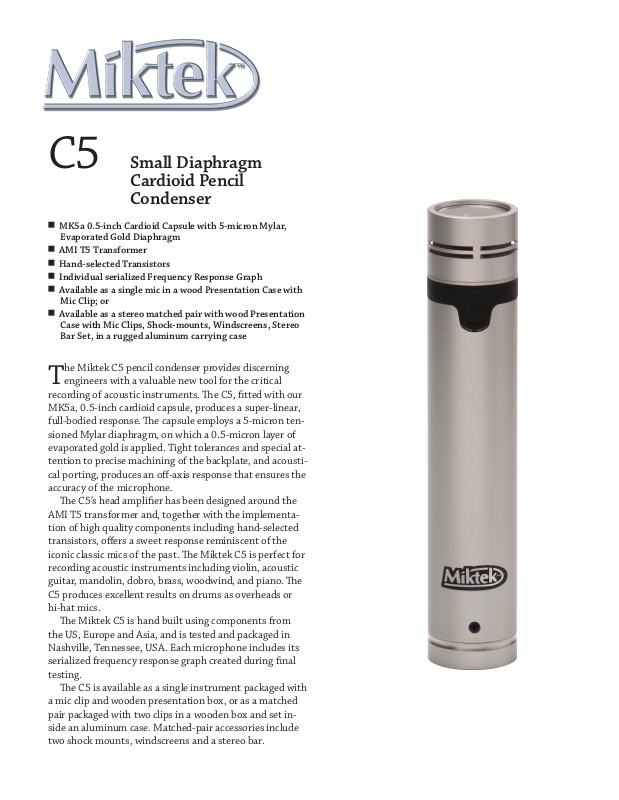

Page 1
C5 Small Diaphragm
Cardioid Pencil
Condenser
MK5a 0.5-inch Cardioid Capsule with 5-micron Mylar, 7
Evaporated Gold Diaphragm
AMI T5 Transformer 7
Hand-selected Transistors 7
Individual serialized Frequency Response Graph 7
Available as a single mic in a wood Presentation Case with 7
Mic Clip; or
Available as a stereo matched pair with wood Presentation 7
Case with Mic Clips, Shock-mounts, Windscreens, Stereo
Bar Set, in a rugged aluminum carrying case
he Miktek C5 pencil condenser provides discerning
T
engineers with a valuable new tool for the critical
recording of acoustic instruments. e C5, fitted with our
MK5a, 0.5-inch cardioid capsule, produces a super-linear,
full-bodied response. e capsule employs a 5-micron tensioned Mylar diaphragm, on which a 0.5-micron layer of
evaporated gold is applied. Tight tolerances and special attention to precise machining of the backplate, and acoustical porting, produces an off-axis response that ensures the
accuracy of the microphone.
e C5’s head amplifier has been designed around the
AMI T5 transformer and, together with the implementation of high quality components including hand-selected
transistors, offers a sweet response reminiscent of the
iconic classic mics of the past. e Miktek C5 is perfect for
recording acoustic instruments including violin, acoustic
guitar, mandolin, dobro, brass, woodwind, and piano. e
C5 produces excellent results on drums as overheads or
hi-hat mics.
e Miktek C5 is hand built using components from
the US, Europe and Asia, and is tested and packaged in
Nashville, Tennessee, USA. Each microphone includes its
serialized frequency response graph created during final
testing.
e C5 is available as a single instrument packaged with
a mic clip and wooden presentation box, or as a matched
pair packaged with two clips in a wooden box and set inside an aluminum case. Matched-pair accessories include
two shock mounts, windscreens and a stereo bar.
Page 2
C5 Small Diaphragm
Cardioid Pencil
Condenser
Type 7 . . . . . . . . . . . . . Small diaphram Condenser
Polar Pattern 7 . . . . . . . . Cardioid
Frequency Response 7 . . . . 20~20000Hz
Sensitivity 7 . . . . . . . . . - 32.4 dBV/Pa
Equivalent Noise Level 7 . . 17dB
Dynamic range 7 . . . . . . . 109dB
S/N Ratio 7 . . . . . . . . . . 77dB
Max. SPL 7 . . . . . . . . . . 126dB
Power Supply 7 . . . . . . . . 48V phantom
Power Consumption 7 . . . . 0.5mA

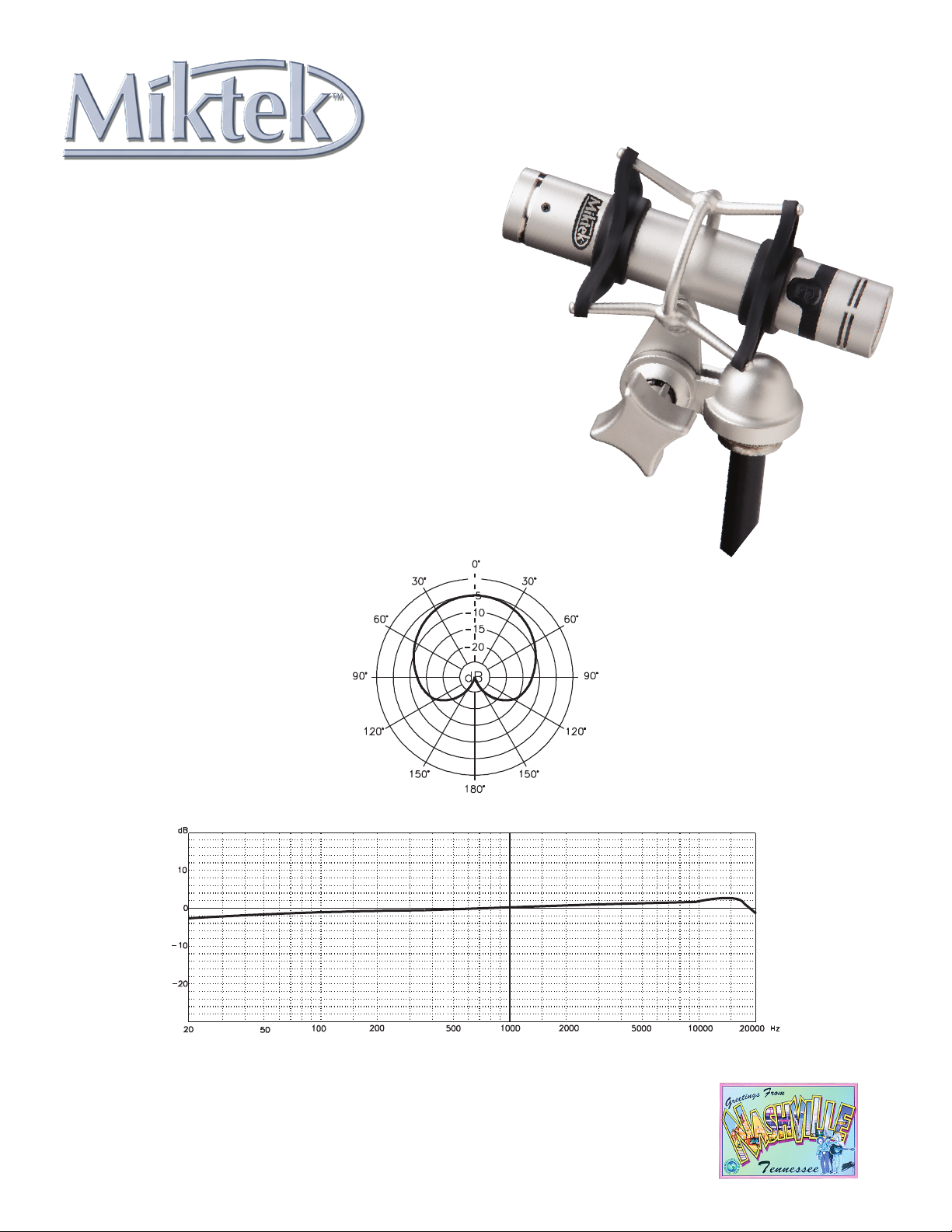

C5 Polar Response
C5 Frequency Response
Specifications subject to change
www. miktekaudio.com
1200 Clinton Street, Suite 15 • Nashville, TN 37203
tel 615.250.2434 • fax 615.346.9298
©2009 All Rights Reserved, Miktek. Printed in USA v1.2
