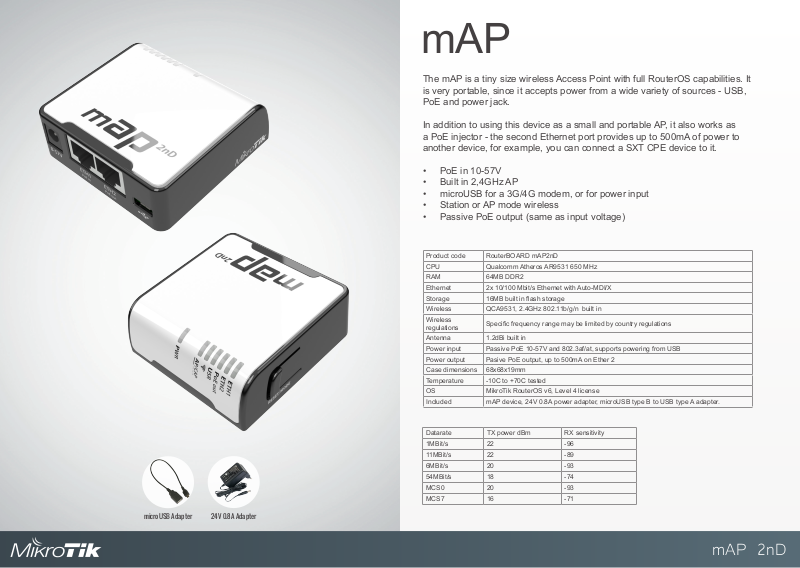

mAP
The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It
is very portable, since it accepts power from a wide variety of sources - USB,
PoE and power jack.
In addition to using this device as a small and portable AP, it also works as
a PoE injector - the second Ethernet port provides up to 500mA of power to
another device, for example, you can connect a SXT CPE device to it.
• PoE in 10-57V
• Built in 2,4GHz AP
• microUSB for a 3G/4G modem, or for power input
• Station or AP mode wireless
• Passive PoE output (same as input voltage)
Product code RouterBOARD mAP2nD
CPU Qualcomm Atheros AR9531 650 MHz
RAM 64MB DDR2
Ethernet 2x 10/100 Mbit/s Ethernet with Auto-MDI/X
Storage 16MB built in ash storage
Wireless QCA9531, 2.4GHz 802.11b/g/n built in
Wireless
regulations
Antenna 1.2dBi built in
Power input Passive PoE 10-57V and 802.3af/at, supports powering from USB
Power output Pasive PoE output, up to 500mA on Ether 2
Case dimensions 68x68x19mm
Temperature -10C to +70C tested
OS MikroTik RouterOS v6, Level 4 license
Included mAP device, 24V 0.8A power adapter, microUSB type B to USB type A adapter.
Specic frequency range may be limited by country regulations
microUSB Adapter
Datarate TX power dBm RX sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
24V 0.8A Adapter
mAP 2nD
