MikroTik RBcAP2n Quick Install Guide

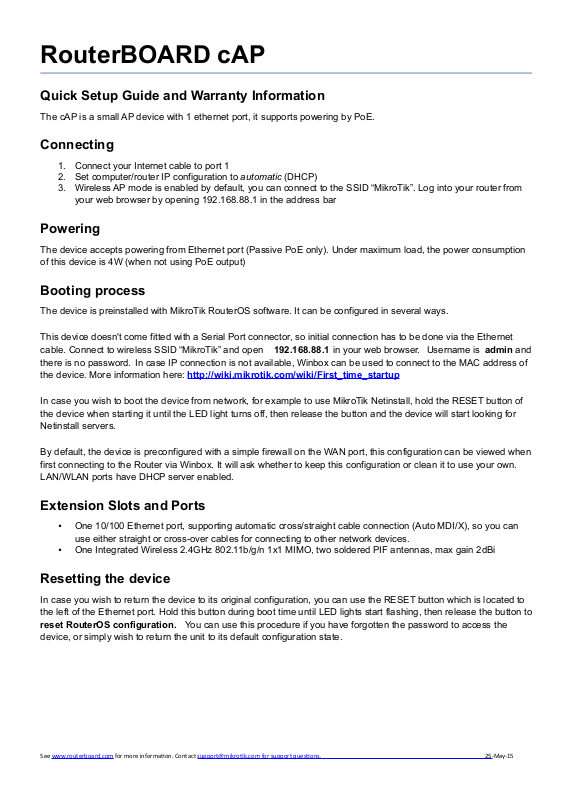

RouterBOARD cAP

Quick Setup Guide and Warranty Information

The cAP is a small AP device with 1 ethernet port, it supports powering by PoE.

Connecting

1. Connect your Internet cable to port 1

2. Set computer/router IP configuration to automatic (DHCP)

3. Wireless AP mode is enabled by default, you can connect to the SSID “MikroTik”. Log into your router from
your web browser by opening 192.168.88.1 in the address bar

Powering

The device accepts powering from Ethernet port (Passive PoE only). Under maximum load, the power consumption
of this device is 4W (when not using PoE output)

Booting process

The device is preinstalled with MikroTik RouterOS software. It can be configured in several ways.

This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet
cable. Connect to wireless SSID “MikroTik” and open 192.168.88.1 in your web browser. Username is admin and
there is no password. In case IP connection is not available, Winbox can be used to connect to the MAC address of
the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup

In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of
the device when starting it until the LED light turns off, then release the button and the device will start looking for
Netinstall servers.

By default, the device is preconfigured with a simple firewall on the WAN port, this configuration can be viewed when
first connecting to the Router via Winbox. It will ask whether to keep this configuration or clean it to use your own.
LAN/WLAN ports have DHCP server enabled.

Extension Slots and Ports

 One 10/100 Ethernet port, supporting automatic cross/straight cable connection (Auto MDI/X), so you can

use either straight or cross-over cables for connecting to other network devices.

 One Integrated Wireless 2.4GHz 802.11b/g/n 1x1 MIMO, two soldered PIF antennas, max gain 2dBi

Resetting the device

In case you wish to return the device to its original configuration, you can use the RESET button which is located to
the left of the Ethernet port. Hold this button during boot time until LED lights start flashing, then release the button to
reset RouterOS configuration. You can use this procedure if you have forgotten the password to access the
device, or simply wish to return the unit to its default configuration state.

See www.routerboard.com for more informaon. Contact support@mikrok.com for support quesons. 25-May-15

Buttons and Jumpers

The reset button has three functions:

 Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS

configuration (total 5 seconds)

 Keep holding for 5 more seconds, LED turns solid, release now to turn on CAPs mode (total 10 seconds)
 Or Keep holding the button for 5 more seconds until until LED turns off, then release it to make the

RouterBOARD look for Netinstall servers (total 15 seconds)

Operating System Support

Currently tested operating system is MikroTik RouterOS starting from version 6.20. It is not suggested to downgrade
below the software version the unit was delivered with.

Copyright and Warranty information

Copyright MikroTikls SIA. This document contains information protected by copyright law. No part of it may be
reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD,
RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks
appearing in this document are the property of their respective holders.

Hardware. MikroTik warrants all RouterBOARD series equipment for the term of twelve (12) months from the
shipping date to be free of defects in materials and workmanship under normal use and service, except in case of
damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to
wind, rain, fire or other acts of nature.

To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization)
procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA
process.

1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all
warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from
MikroTik in Latvia.

2. MikroTik does not offer repairs for products that are not covered by warranty. Exceptions can be made for:
CCR1016-12G, CCR1016-12G-BU, CCR1036-12G-4S, RB1100, RB1100AH, RB1100AHx2, RB1200, RB600,
RB600A and RB800 as a paid service (fees apply).

3. Out-of-warranty devices and devices not covered by warranty sent to Mikrotik will be returned to the sender
at sender's cost. If the customer has not organized return of such rejected devices within 12 months from the day
of arrival, MikroTik has the right to discard them.

RMA Instructions are located on our webpage here: http://rma.mikrotik.com

This document is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to,
the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort
to ensure the accuracy of the contents of this document, however, it is possible that it may contain technical
inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for
direct or indirect, incidental, consequential or other damages that may result from such an inaccuracy, including, but
not limited to, loss of data or profits. Please report any inaccuracies found to [e-mail]

See www.routerboard.com for more informaon. Contact support@mikrok.com for support quesons. 25-May-15

Federal Communication Commission Interference Statement (FCC ID: TV7RBCM2N)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

This device and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter.

IMPORTANT: Exposure to Radio Frequency Radiation.

23 cm minimum distance has to be maintained between the antenna and the occupational user and 75 cm to general
public. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled
environment can be satisfied.

See www.routerboard.com for more informaon. Contact support@mikrok.com for support quesons. 25-May-15

CE Declaration of Conformity

Full Declaration of Conformity (DoC) may be obtained by visiting this web page: http://routerboard.com/doc/

[EN] English Hereby, MIKROTĪKLS SIA declares that this ROUTERBOARD is in compliance with the essential requirements and other relevant provisions of

Directive 1999/5/EC.

[BG] Bulgarian С настоящето, MIKROTĪKLS SIA декларира, че ROUTERBOARD е в съответствие със съществените изисквания и другитеприложими

разпоредби на Директива 1999/5/EC.
[CZ] Czech MIKROTĪKLS SIA tímto prohlašuje, že ROUTERBOARD splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 1999/5/ES.
[DK] Danish Undertegnede MIKROTĪKLS SIA erklærer herved, at følgende udstyr ROUTERBOARD overholder de væsentlige krav og øvrige relevante krav i

direktiv 1999/5/EF.
[DE] German Hiermit erklärt MIKROTĪKLS SIA dass sich das Gerät ROUTERBOARD in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen

einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
[EE] Estonian Käesolevaga kinnitab MIKROTĪKLS SIA seadme ROUTERBOARD vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

teistele asjakohastele sätetele.
[GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ MIKROTĪKLS SIA ΔΗΛΩΝΕΙ ΟΤΙ ROUTERBOARD ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ

ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ
[ES] Spanish Por la presente, MIKROTĪKLS SIA declara que este ROUTERBOARD cumple con los requisitos esenciales y otras exigencias relevantes de la

Directiva 1999/5/EC.
[IT] Italian Con la presente MIKROTĪKLS SIA dichiara che questo ROUTERBOARD è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite

dalla direttiva 1999/5/CE.
[LV] Latvian Ar šo MIKROTĪKLS SIA deklarē, ka ROUTERBOARD atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] Lithuanian Šiuo MIKROTĪKLS SIA deklaruoja, kad šis ROUTERBOARD atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas
[HU] Hungarian A MIKROTĪKLS SIA ezzennel kijelenti, hogy a ROUTERBOARD típusú beren-dezés teljesíti az alapvető követelményeket és más 1999/5/EK

irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] Dutch Hierbij verklaart MIKROTĪKLS SIA dat het toestel l ROUTERBOARD in overeenstemming is met de essentiële eisen en de andere relevante bepalin-

gen van richtlijn 1999/5/EG.
[PL] Polish Niniejszym MIKROTĪKLS SIA deklaruje że ROUTERBOARD jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami

Dyrektywy 1999/5/EC.
[PT] Portuguese Eu, MIKROTĪKLS SIA declaro que o ROUTERBOARD cumpre os requisitos essenciais e outras provisões relevantes da Directiva 1999/5/EC.
[RO] Romanian Prin prezenta, MIKROTĪKLS SIA declară că aparatul ROUTERBOARD este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale

Directivei 1999/5/CE..
[SK] Slovak MIKROTĪKLS SIA týmto vyhlasuje, že ROUTERBOARD spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
[SI] Slovenian MIKROTĪKLS SIA izjavlja, da je ta ROUTERBOARD v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 1999/5/ES.
[FI] Finish MIKROTĪKLS SIA vakuuttaa täten että ROUTERBOARD tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin

muiden ehtojen mukainen.
[SE] Swedish Härmed intygar MIKROTĪKLS SIA att denna RouterBOARD är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta

bestämmelser som framgår av direktiv 1999/5/EG.
[NO] Norwegian MIKROTĪKLS SIA Erklærer herved at ROUTERBOARD er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

EN. Instruction manual: Connect the power adapter to turn on the device. Open 192.168.88.1 in your web browser, to configure it. More

information on http://wiki.mikrotik.com BG. Инструкция: Свържете адаптера на захранване , за да включите устройството. Отворете

192.168.88.1 в уеб браузър , за да настроите продукта. Повече информация в http://wiki.mikrotik.com CZ. Návod k použití : Připojte
napájecí adaptér k zapnutí přístroje. Otevřete 192.168.88.1 ve webovém prohlížeči pro konfiguraci produktu. Více informací najdete v

http://wiki.mikrotik.com DK. Instruktionsbog: Tilslut strømadapteren for at tænde for enheden . Åbn 192.168.88.1 i en webbrowser til at

konfigurere produktet . Mere information i http://wiki.mikrotik.com FR. Mode d'emploi : Connectez l'adaptateur d'alimentation pour allumer
l'appareil. Ouvrez 192.168.88.1 dans un navigateur Web pour configurer le produit. Plus d'informations dans http://wiki.mikrotik.com DE.

Bedienungsanleitung: Verbinden Sie das Netzteil, um das Gerät einzuschalten. Öffnen Sie 192.168.88.1 in einem Web- Browser, um das

Produkt zu konfigurieren . Weitere Informationen im http://wiki.mikrotik.com EE. Kasutusjuhend : Ühendage toiteadapter seadme
sisselülitamiseks. Avatud 192.168.88.1 in veebilehitseja seadistada toodet. Rohkem teavet http://wiki.mikrotik.com ES. Manual de

instrucciones: Conecte el adaptador de alimentación para encender la unidad. Abra 192.168.88.1 en un navegador web para configurar el

producto. Más información en http://wiki.mikrotik.com IT. Manuale di istruzioni: Collegare l'adattatore di alimentazione per accendere l'unità.
Aprire 192.168.88.1 in un browser Web per configurare il prodotto . Maggiori informazioni in http://wiki.mikrotik.com LV. Lietošanas

instrukcija: Pievienojiet Strāvas adapteri, lai ieslēgtu ierīci. Atvērt 192.168.88.1 ar interneta pārlūku, lai konfigurētu produktu. Plašāka informācija

http://wiki.mikrotik.com LT. Naudojimosi instrukcija : Prijunkite maitinimo adapterį įjunkite įrenginį. Į interneto naršyklę 192.168.88.1 Atidarykite

galite konfigūruoti gaminį. Daugiau informacijos rasite http://wiki.mikrotik.com HU. Használati utasítás: Csatlakoztassa a hálózati adaptert a
készülék bekapcsolásához. Megnyitása 192.168.88.1 egy webböngészőben beállítani a terméket. Több információ http://wiki.mikrotik.com

NL. H andleiding: Sluit voedingsadapter aan op het apparaat in te schakelen . Open 192.168.88.1 in een webbrowser om het product te

configureren. Meer informatie in http://wiki.mikrotik.com PL. Instrukcja obsługi: Podłącz adapter zasilania, aby włączyć urządzenie. Otwórz

192.168.88.1 w przeglądarce internetowej , aby skonfigurować urządzenie . Więcej informacji w http://wiki.mikrotik.com PT. Manual de

instruções: Conecte o adaptador de alimentação para ligar o aparelho. Abra 192.168.88.1 em um navegador da web para configurar o produto.

Mais informações em http://wiki.mikrotik.com RO. Instrucțiuni de utilizare : Conectați adaptorul de alimentare pentru a porni aparatul. Deschide

192.168.88.1 într-un browser web pentru a configura produsul . Mai multe informații în http://wiki.mikrotik.com SK. Návod na použitie:
Pripojte napájací adaptér k zapnutiu prístroja. Otvorte 192.168.88.1 vo webovom prehliadači pre konfiguráciu produktu. Viac informácií nájdete v

http://wiki.mikrotik.com SI. Navodila: Priključite napajalnik za vklop naprave. Odprite 192.168.88.1 v spletnem brskalniku nastaviti izdelek.

Več informacij v http://wiki.mikrotik.com FI. Käyttöohje: Kytke virtalähde päälle laitteen. Avaa 192.168.88.1 in selaimen määrittää tuotteen .
Lisää tietoa http://wiki.mikrotik.com SE. Instruktionsmanual: Anslut nätadaptern för att slå på enheten . Öppna 192.168.88.1 i en
webbläsare för att konfigurera produkten. Mer information på http://wiki.mikrotik.com NO. Bruksanvisningen: Koble strømadapteren for å

slå på enheten. Åpne 192.168.88.1 i en nettleser for å konfigurere produktet. Mer informasjon på http://wiki.mikrotik.com GR. εγχειρίδιο οδηγιών:
Συνδέστε τον προσαρμογέα τροφοδοσίας για να ενεργοποιήσετε τη μονάδα. Ανοίξτε 192.168.88.1 σε ένα πρόγραμμα περιήγησης στο Web για να
διαμορφώσετε το προϊόν. Περισσότερες πληροφορίες στο http://wiki.mikrotik.com

See www.routerboard.com for more informaon. Contact support@mikrok.com for support quesons. 25-May-15
