Page 1
Operating instructions
for condenser tumble dryer
Paragon Sensor
To avoid the risk of accidents
or damage to the appliance
it is essential to read these
instructions before it is installed
and used for the first time.
en-GB
M.-Nr. 07 328 030
Page 2
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
appliance with your household waste.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
Make sure that your laundry is
–
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
Load according to the optimum
–
amount of laundry recommended for
the programme being used (see
Programme chart).
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
– Make sure the room in which the
dryer is located is well ventilated.
– Make sure the fluff filters are clean
before using the dryer.
– Check the condenser unit from time
to time and clean it when necessary.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
2
Page 3
Contents
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Guide to the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel ......................................................9
Features .........................................................10
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Care symbols.....................................................11
Tips on drying ....................................................11
How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Brief instructions ..................................................12
Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Low temperature ..................................................16
Short............................................................16
Cool air..........................................................16
Anti-crease.......................................................16
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Once a programme has started ......................................20
- changing the programme........................................20
- cancelling the programme and then selecting a different programme .....20
- cancelling the programme and then removing the laundry ..............20
Adding or removing laundry after a programme has started ................20
Time remaining ...................................................20
Electronic system lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

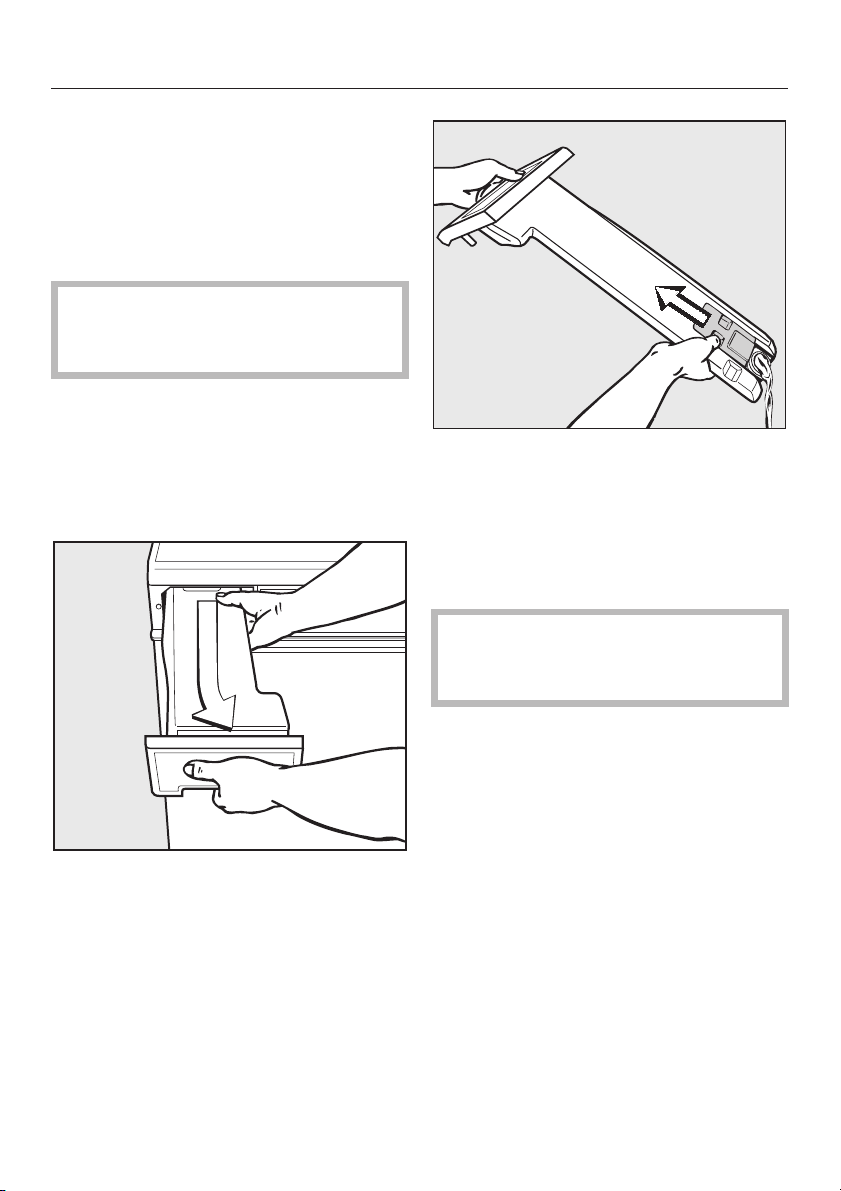

Emptying the condensed water container...............................22

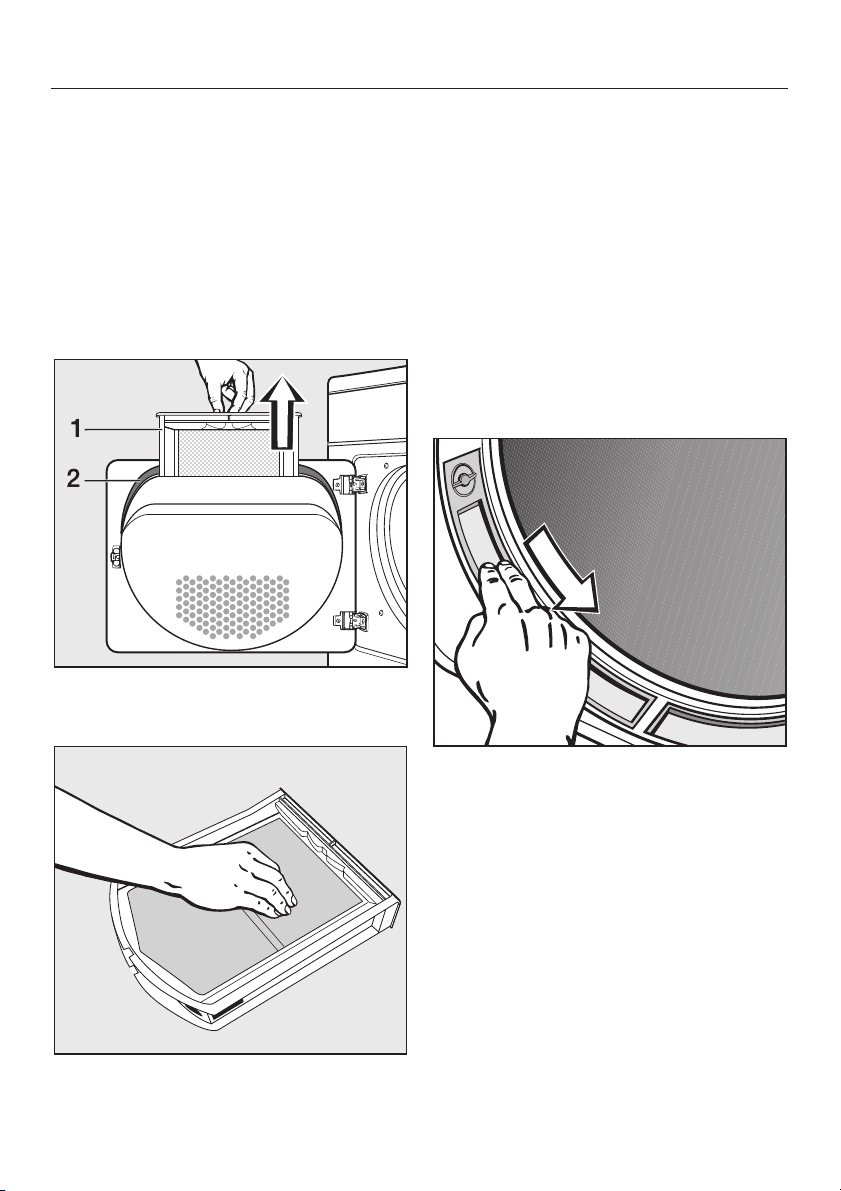

Cleaning the fluff filters .............................................23
Cleaning them whilst dry .........................................23

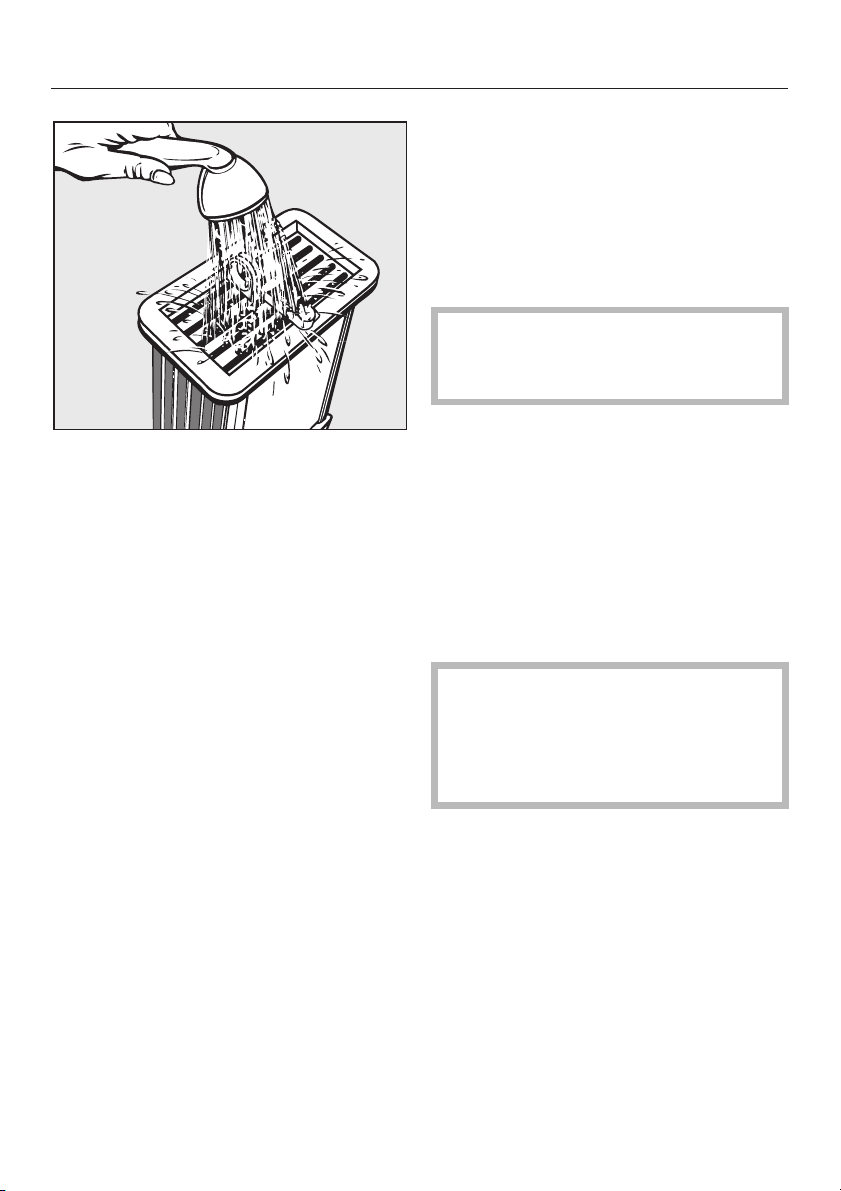

Cleaning them with water .........................................24
Cleaning the tumble dryer ...........................................25

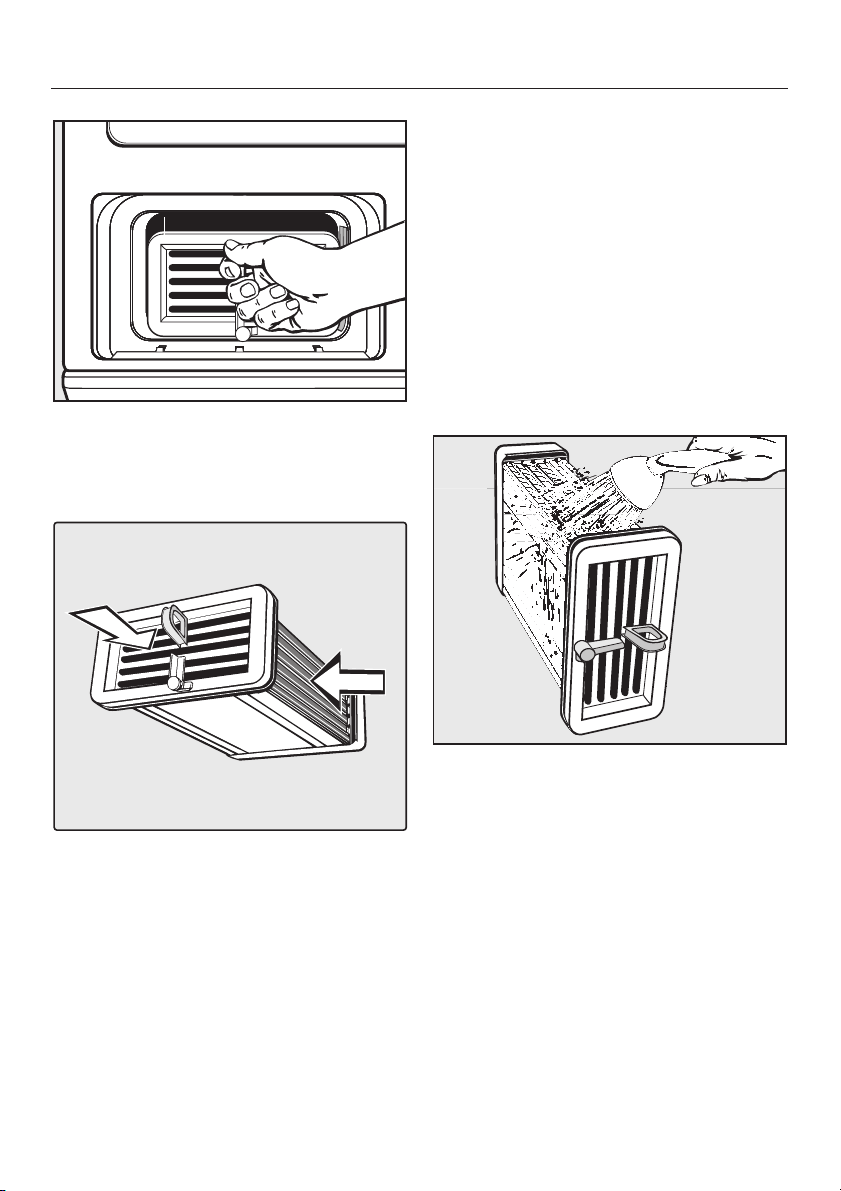

Cleaning the condenser unit .........................................26
Removing the condenser unit......................................26
Checking the condenser unit ......................................27
Cleaning the condenser unit.......................................27
Replacing the condenser unit......................................28
3
Page 4
Contents
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
General problems .................................................29
Check and fault indicator lights .......................................33
Changing the lamp ................................................35
After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Future updates (PC) ...............................................36
Appliance guarantee ...............................................36
Optional accessories ...............................................36
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front view........................................................37

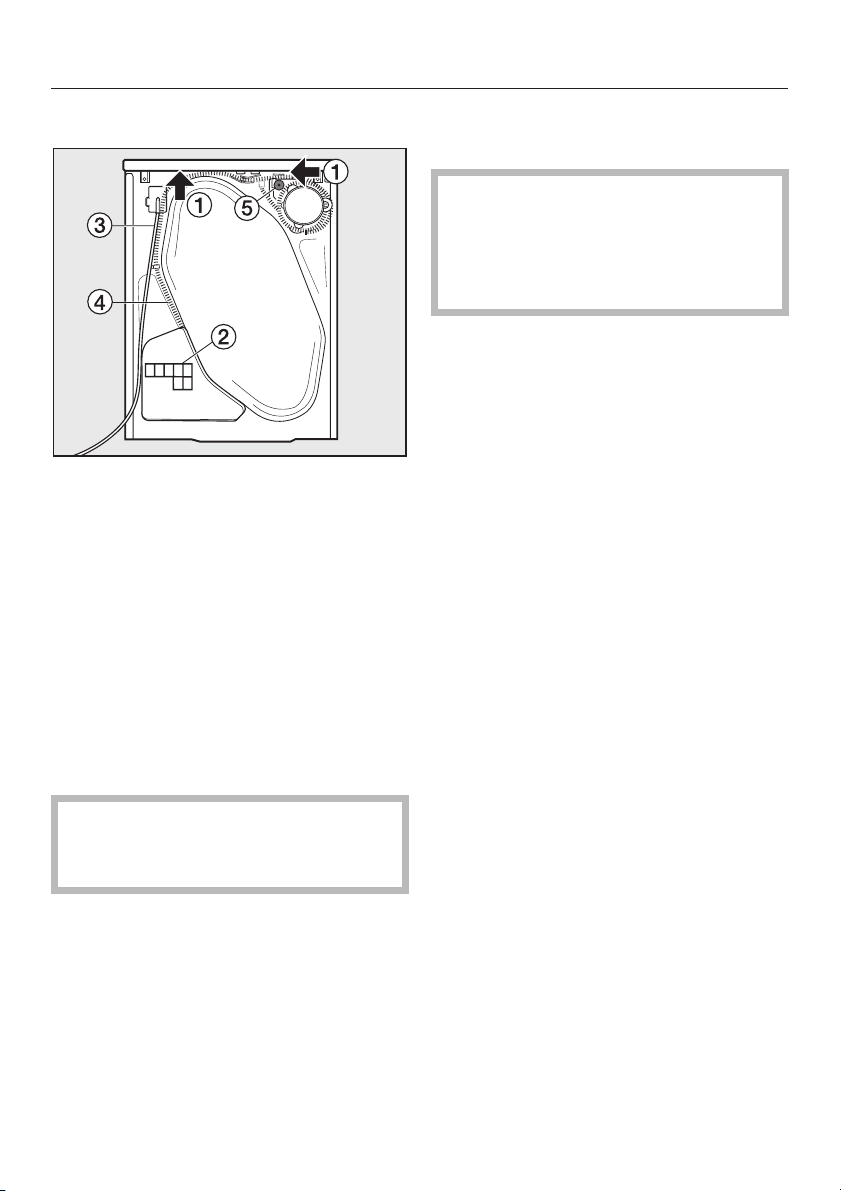

Rear view ........................................................38
Installation site ....................................................38
Transporting the tumble dryer to its installation site .....................38
Building under a continous worktop / in a kitchen run ...................38

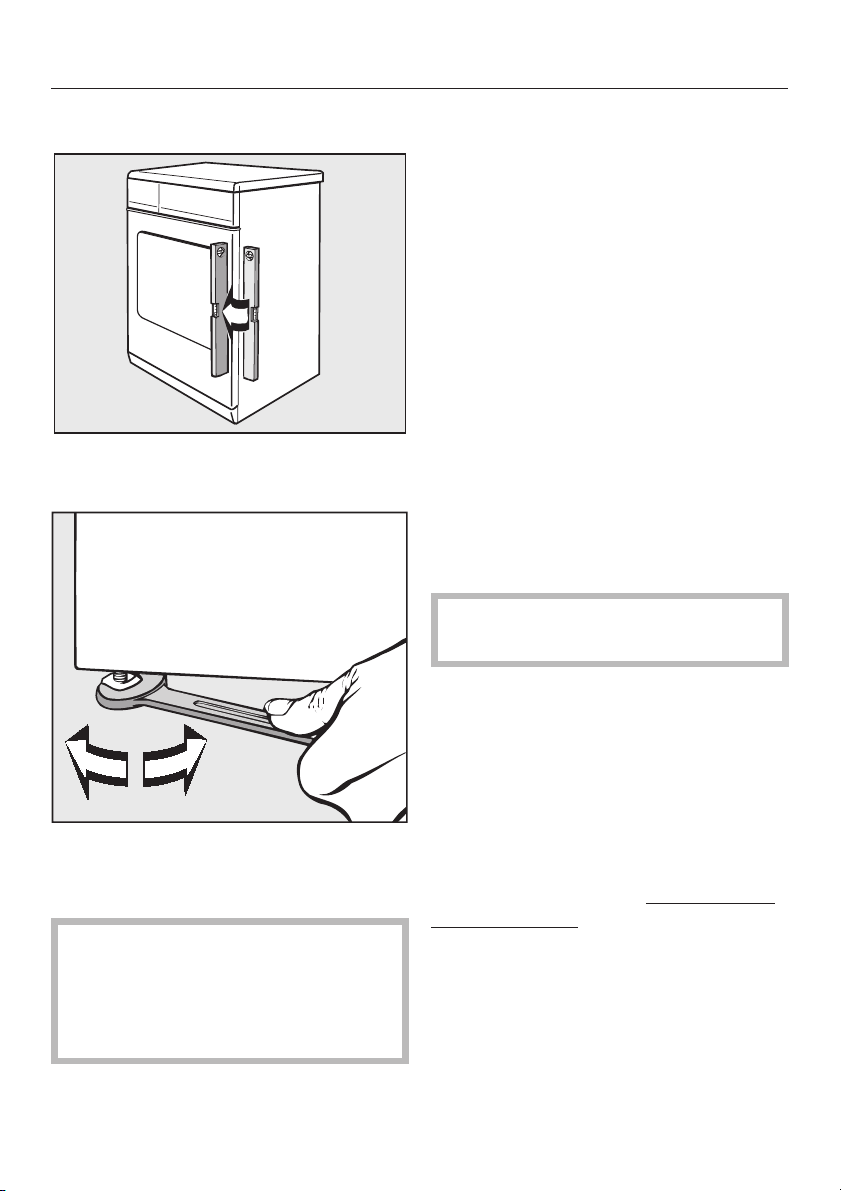

Levelling the tumble dryer ........................................39
Room in which the dryer is located .................................39
Washer-dryer stack..............................................39
Before moving the tumble dryer again (e.g. when moving house) .........39
External condensed water outlet ......................................40

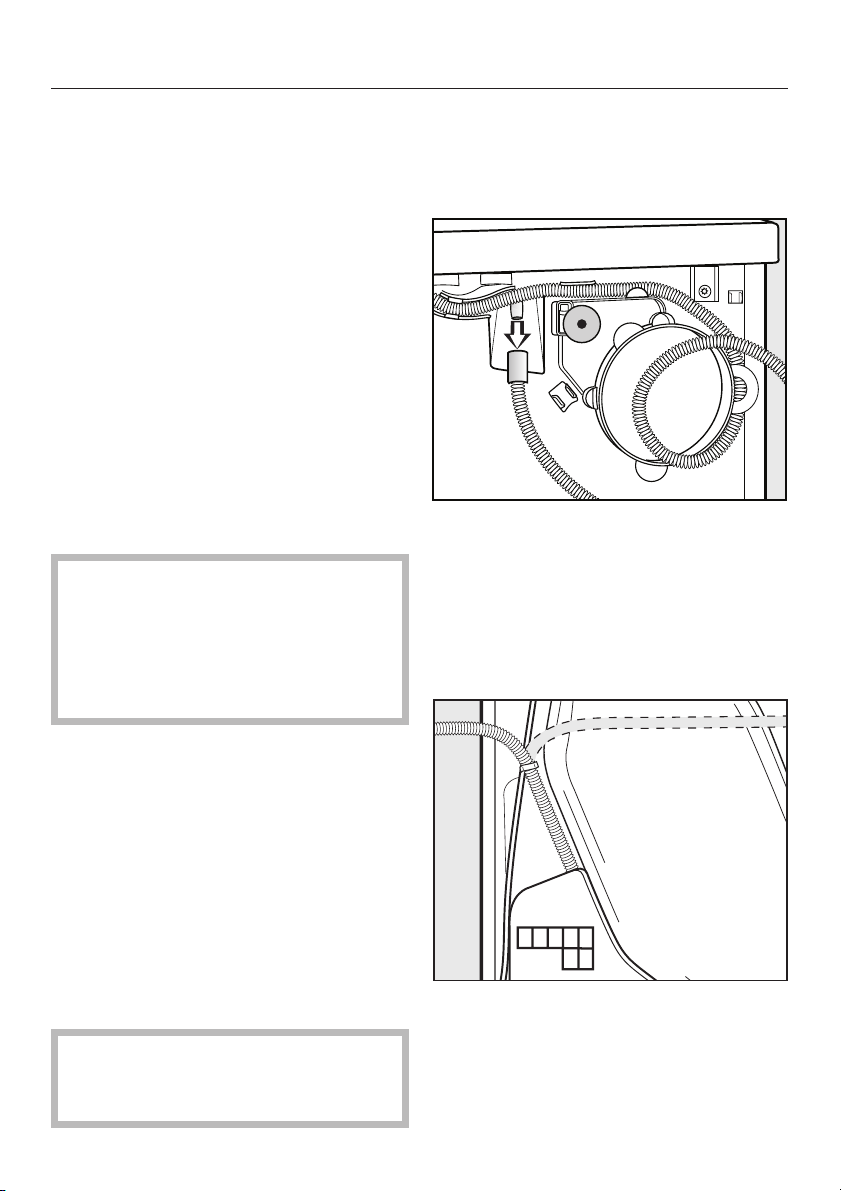

Arranging the drain hose .........................................40
External drainage via a sink or gully ................................41
Installation conditions requiring a non-return valve .....................41
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Electrical connection U.K. ...........................................43
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Altering the residual moisture level in the Cottons programme...............47
Altering the residual moisture level in the Minimum iron/Delicates programme . . 48
Memory function ..................................................49
Extending the cooling down time .....................................50
Airways indicator ..................................................51
Keypad tone .....................................................52
4
Page 5
It is essential to read these
~
instructions.
This tumble dryer conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the tumble dryer, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Warning and Safety instructions
Correct application
This tumble dryer is only intended
~
for drying fabrics which have been
washed in a water solution, and marked
on the manufacturer's care label as
being suitable for tumble drying.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation.
This appliance is not intended for
~
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been shown how to use it by a person
responsible for their safety.
Safety with children
Keep children away from the tumble
~
dryer at all times. It is not a toy! To
avoid the risk of injury do not allow
them to play on or near it or to play with
its controls. Supervise children whilst
you are using it.
Older children may only use it if its
~
operation has been clearly explained to
them, and they are able to use it safely,
recognising the dangers of incorrect
use.
5
Page 6
Warning and Safety instructions
Technical safety
Before setting up the tumble dryer,
~
check it for any externally visible
damage.
Do not install or use a damaged tumble
dryer.
Before connecting the tumble dryer,
~
ensure that the connection data on the
data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this tumble
~
dryer can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. Miele cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Do not connect the tumble dryer to
~
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
tumble dryer (e.g. danger of
overheating).
Unauthorised repairs could result in
~
unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
tumble dryer until after maintenance or
repair work has been carried out.
Faulty components must only be
~
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
tumble dryer be guaranteed.
If the connection cable is faulty it
~
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In the event of a fault or for cleaning
~
purposes, the tumble dryer is only
completely isolated from the electricity
supply when:
– it is switched off at the wall socket
and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is disconnected, or
the screw-out fuse is removed (in
countries where this is applicable).
This tumble dryer may only be used
~
in mobile installations such as ships if a
risk assessment of the installation has
been carried out by a suitably qualified
engineer.
In countries where there are areas
~
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
tumble dryer and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Do not make any alterations to the
~
tumble dryer, unless authorised to do
so by Miele.
6
Page 7
Warning and Safety instructions
Correct use
To prevent the risk of fire, the
~
following textiles must not be dried in
this tumble dryer:
items which have not been washed.
–
items, such as workwear, which have
–
not been thoroughly cleaned and
which are still soiled with grease, oil
or other desposits (such as
cosmetics, lotions etc).
If items have not been thoroughly
cleaned there is a danger that these
might ignite when heated, even after
they have been removed from the
dryer at the end of the programme.
– items which have been treated with
inflamable cleaning agents or
contain residues of acetone, alcohol,
benzine, petrol, stain remover,
turpentine, wax, wax remover or
other chemicals (e.g. mops and floor
cloths).
– items which have been splashed with
hair lacquer, hair spray, nail varnish
remover or similar substances.
When washing such heavily soiled
items ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
To prevent the risk of fire, the
~
following must not be dried in this
tumble dryer:
fabrics which contain a large
–
proportion of rubber, foam rubber or
rubber-like materials. For example,
products made from latex foam
rubber, shower caps, waterproof
textiles, rubberised articles and items
of clothing and pillows with foam
rubber filling.
items which contain padding or
–
fillings (e.g. pillows, jackets). If these
were damaged the filling could get
out with the risk of igniting in the
dryer.
In many programmes, the heating
~
phase is followed by a cooling down
phase to ensure that the items are not
too hot to handle when you remove
them (this also avoids the danger of the
laundry self-igniting). The programme is
not finished until the cooling down
phase is complete.
Ensure that you always wait until the
end of the programme before removing
the laundry.
Warning: Do not switch the tumble
~
dryer off before the end of the drying
programme. If this was done and the
laundry was then removed immediately,
it could give off a great amount of heat.
Fabric conditioner and similar
~
products must be used according to
the instructions on the manufacturer's
packaging.
7
Page 8
Warning and Safety instructions
The dryer must not be used without
~
the fluff filters in place or if the fluff
filters are damaged in any way.
The fluff filters must be cleaned
~
regularly.

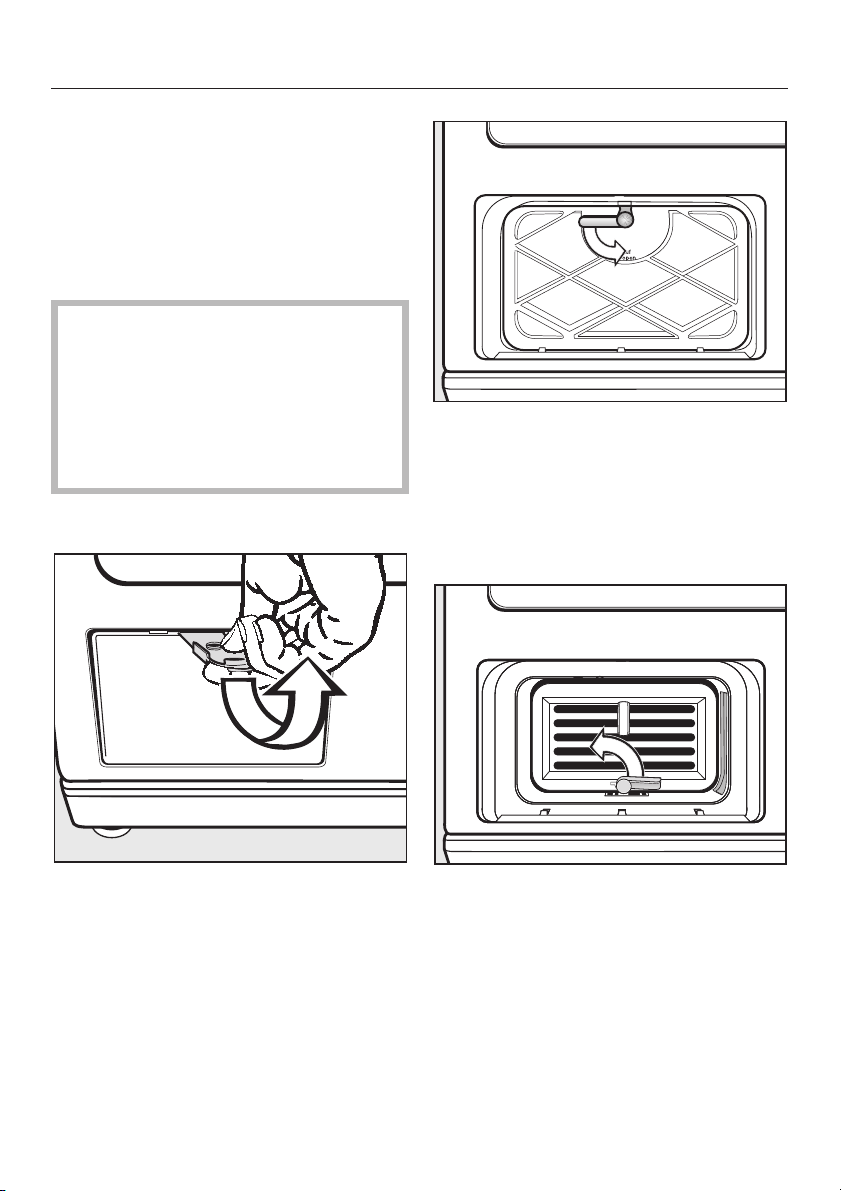

The dryer must not be used without
~
the condenser unit in place.
The fluff filters must be thoroughly
~
dried after cleaning. Damp or wet filters
could cause operational faults.
Do not install the tumble dryer in a
~
room where there is a risk of frost
occurring. At temperatures around
freezing point the tumble dryer may not
be able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.

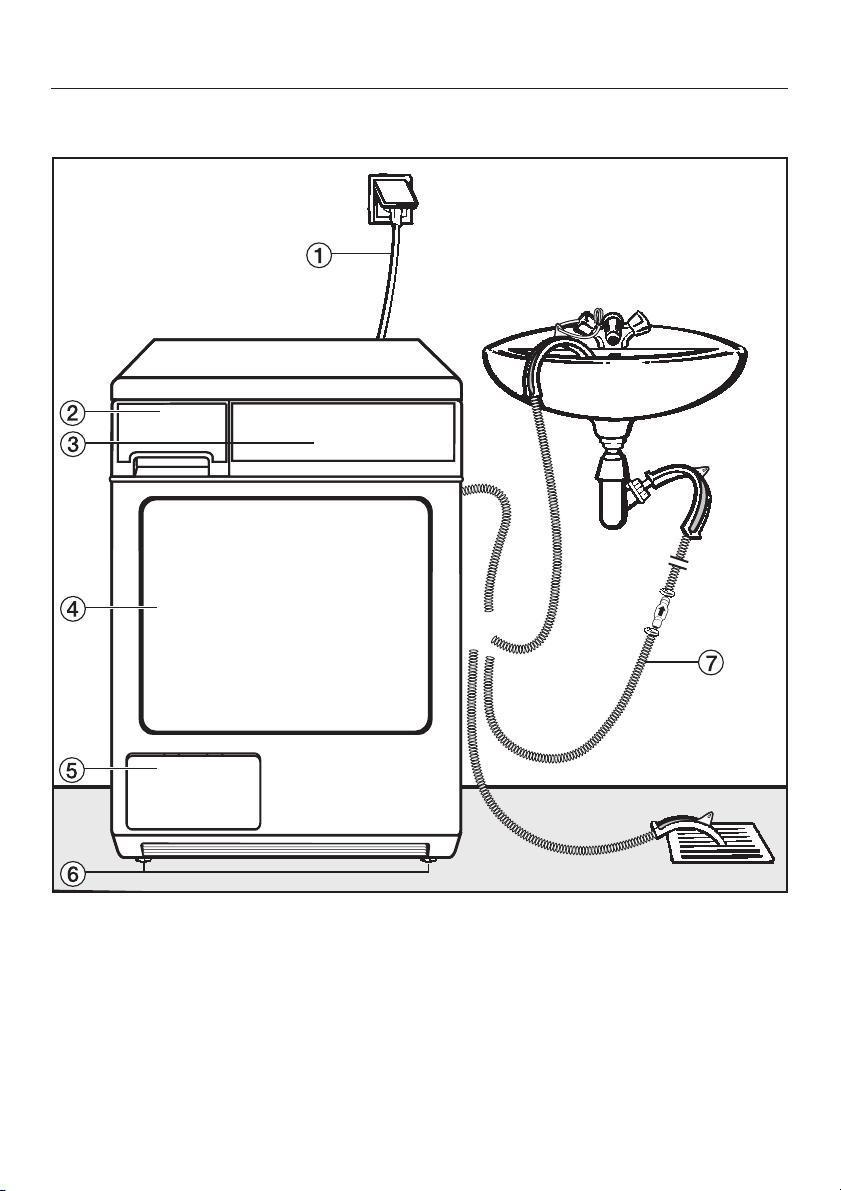

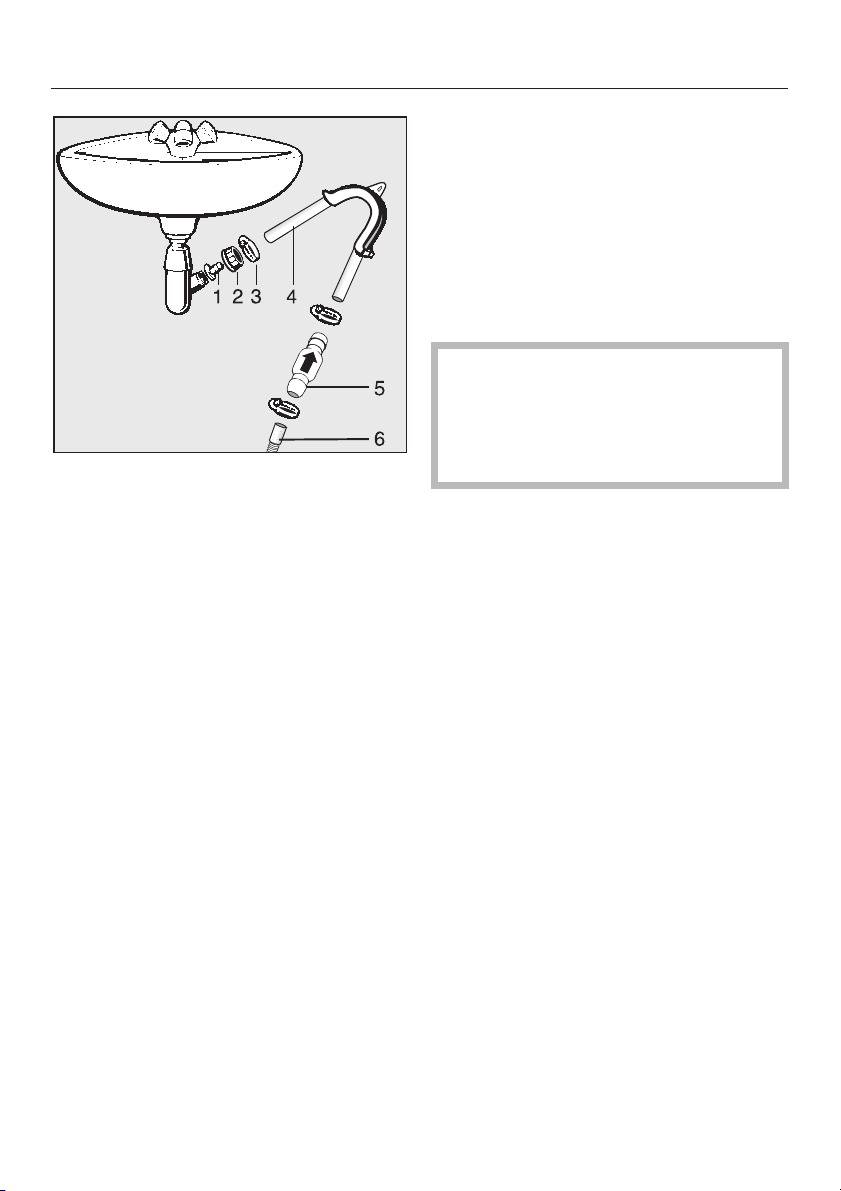

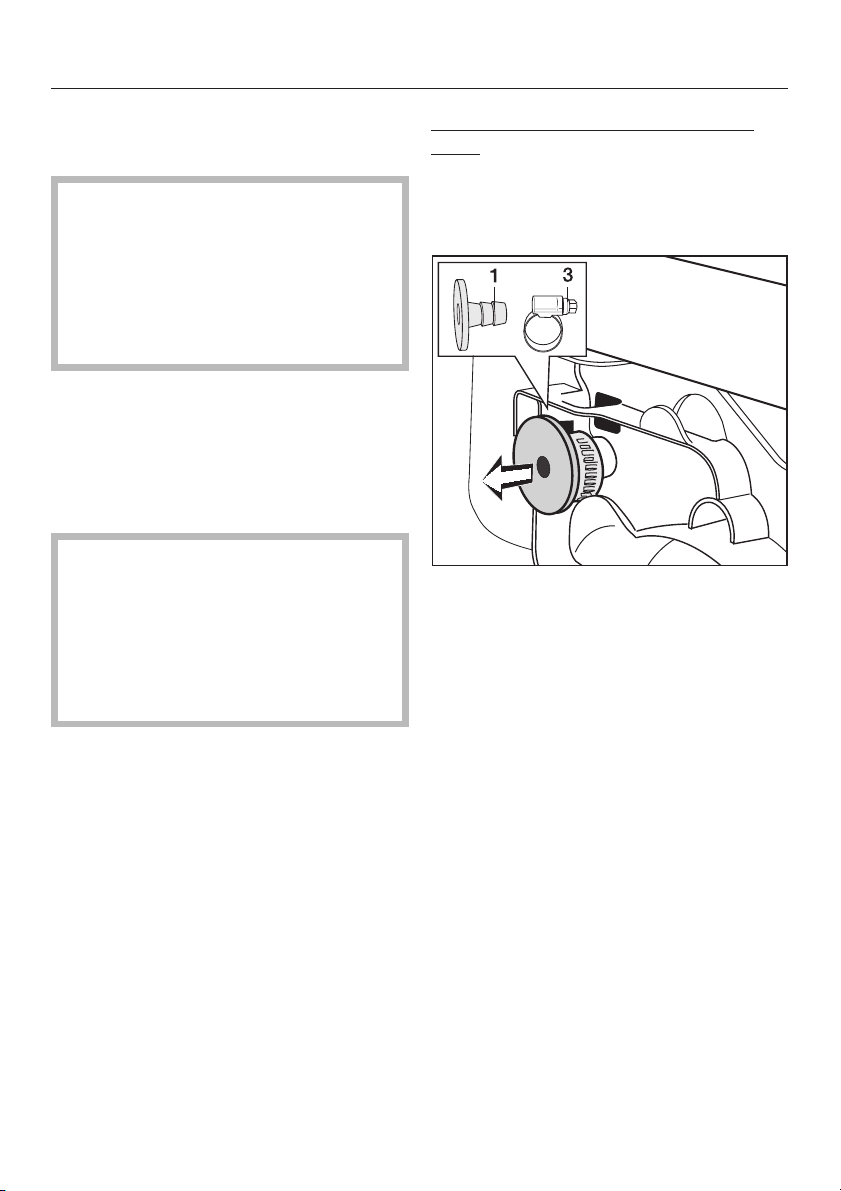

If the water is drained externally
~
through the drain hose instead of being
collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
and the water causing damage.
Condensed water is not drinking
~
water.
It can cause health problems in both
people and animals.
Always keep the area around the
~
tumble dryer free of dust and fluff. Dust
drawn into the tumble dryer can cause
blockages in the condenser unit over
time.
Do not let anyone sit or lean on the
~
door, as this can cause the tumble
dryer to tip up.
Always close the door after use. This
~
way you will avoid the danger of:
children climbing onto or into the
–
dryer or hiding things in it.
pets or other small animals climbing
–
into it.
The tumble dryer must not be hosed
~
down.
Accessories
Only use genuine Miele spare parts
~
and accessories with this appliance.
If non-Miele parts are used, guarantee,
performance and product liability
claims may be invalidated.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
8
Page 9
Control panel
Guide to the machine
a PROGRAMME buttons e-
with indicator lights
For selecting a drying programme.
b Extra option buttons
with indicator lights
Various extra options can be added
to the drying programmes.
c Drying level button
with indicator lights
For selecting the drying level.
d Drying sequence indicator lights
Show which stage the programme is
at.
e Buzzer button
An audible tone sounds at the end of
the programme.
f Check lights
These indicator lights have various
functions. See Problem solving
guide.
g Start/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
The indicator light flashes while a
programme is being selected and
then is on constantly when the
programme has started.
Pressing this button while drying is in
progress will cancel the programme.
h Delay start button
You can delay the start of a
programme (by up to 24 hours).
The indicator light flashes while the
delay start time is being selected,
and is on constantly after it has
started.
i Door button
Pressing this button will open the
door, even if the machine is switched
off at the mains.
j I-On/0-Off button
For switching the dryer on and off.
k Display
The display fulfils several functions.
See next page for details.
9
Page 10
Guide to the machine
Features
Display
The display shows:
the programme duration (time
–
remaining);
the delay start time;
–
check messages;
–
programmable functions.
–
Estimated time remaining
When a programme is selected the
estimated duration (time remaining) will
appear in the display. Please be aware
that it is only an estimate!
The following factors all affect the
estimated time remaining: Residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
The electronics continually assess
conditions in the machine and adjust
the estimated time remaining for a more
accurate reading. Because of this the
time displayed can alter during the
course of a programme.
Buttons and check lights
The relevant indicator light comes on
each time a button is pressed.
PC / Optical interface
The indicator light marked PC can be
used by Miele Service technicians as
an optical interface to update your
machine in future years.
Electronic system lock
Prevents the machine being used
–
without your knowledge.
Programmable functions
– For changing the default settings.
Drum lighting
If the dryer is switched on, the drum
lighting will come on when the door is
opened. It will go out after a short while
if the door is left open to save energy.
In the same way, the Woollens hand
care and Smoothing programmes can
finish earlier than expected if a certain
temperature is reached. This can
happen with particularly fine fabrics,
very small loads or if items were partly
dry beforehand.
10
Page 11
Notes on laundry care
Care symbols
Before drying check the drying symbol
on the care label. If there are no
symbols, dry at your own risk!
q .........Dryatnormal temperature
r............Dryatlowtemperature
s ...............Donottumble dry
Tips on drying
Always observe the maximum
–
recommended loads given in the
"Programme chart". Never overload
the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– Do not put soaking wet items into the
tumble dryer. Spin them thoroughly
after washing using the appropriate
spin speed.
–
For delicates and fabrics
following care label r select Low
temperature.
–
Use the Automatic programme for
drying mixed loads of cottons and
minimum iron fabrics.
–
Open jackets
evenly.
–
Woollens and wool blends
become matted and shrink if dried in
a tumble dryer. They can, however,
be partially dried using the Woollens
handcare programme.
so that they can dry
with the
tend to
Down-filled garments
–
which have a tendency to shrink,
depending on the quality of the item.
They can be partially dried using the
Smoothing programme.
Pure linen
–
dried if specified as suitable by the
manufacturer on the care label, as
the surface of the fabric may
otherwise become rough. They can
be partially dried using the
Smoothing programme.
Loopknit garments
–
underwear) tend to shrink depending
on their quality. Do not over-dry
these textiles. When purchasing
these garments it is advisable to take
their shrinkage properties into
account.
– For garments made from very fine
weave fibres, such as shirts or
blouses, only use the Shirts or
Minimum iron/Delicates programme
to avoid creasing. If in doubt, reduce
the load.
–
Starched laundry
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
–
New dark coloured garments
be washed and dried separately
from light coloured garments to avoid
the danger of colours running and
discolouring other garments or even
plastic components in the machine.
Dark coloured fibres can also settle
on light coloured garments and vice
versa.
should only be machine
have linings
(e.g. T-shirts and
can be dried in the
should
11
Page 12
How to dry correctly
Brief instructions
The headings numbered (A, B, C ...)
show the operating sequence and can
be used as a brief guide to using your
dryer.
A Sort the laundry
To ensure an even drying result
separate out the washed laundry and
sort it according to:
. . . the drying level required
. . . the type of fibre or weave
. . . size
. . . the moisture content after spinning.
Make sure that objects e.g.
,
detergent dispensing balls have
been removed from the laundry.
They could melt, and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
– Fasten duvet covers and pillow
cases to prevent small items from
being trapped inside them.
C Load the tumble dryer
Press the Door button to open the
^
door.
Load the laundry loosely into the
^
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^ Before closing the door make sure
the fluff filter is correctly positioned.
–
Fasten hooks and eyes etc.
–
Tie fabric belts and apron strings.
–
Sew in or remove underwiring from
bras.
B Turn on the tumble dryer
^
Switch the dryer on by pressing the
I-On/0-Off button in.
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
12
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^
Shut the door either with a gentle
swing, or lean against it and push it
shut.
Page 13
How to dry correctly
D Select a programme
^ You can change to another
programme by pressing the e or button.
– the appropriate programme indicator
light will come on under Programme
selection.
– the Extra options or Drying level
indicator lights will also come on.
Automatic, Cottons, Minimum
iron/Delicates, Shirts and Denim
programmes
^ Press the button underneath Drying
level repeatedly until the indicator
light for the drying level you want
lights up.
– Any of the drying levels can be
selected for the Cottons programme.
A more limited range is available
when using other programmes.
–
The duration of the programme
selected will depend on the residual
moisture of the laundry, fabric type
and the load size. This may mean
that the duration will be different
each time.
Warm/cool air timed drying
programme
–
The programme duration is fixed at
20 minutes.
Woollens handcare and Smoothing
programmes
–
The programme duration is fixed for
these programmes.
13
Page 14
How to dry correctly
E Select any extra options
Selecting/deselecting
Indicator light on = Extra option is
selected
(see "Extra options" for more details)
^ Each press of the top button selects
the Extra option - indicator light on
(and deselects the previous option)
or no option is selected.
Select the buzzer if wished
A buzzer sounds (at intervals for a
maximum of 1 hr) to let you know the
programme has finished.
The buzzer can be switched on or off
even after a programme has started.
The buzzer will still sound if there is a
fault, even if it has been switched off.
You can alter the pitch of the buzzer:
Select a programme.
^
Press the Buzzer button (the Buzzer
^
indicator light will light up), until the
desired pitch is reached. Then
release the button.
F Select Delay start if wished
^ The start of a programme can be
delayed by up to 24 hours (24^). See
"Delay start " for more details.
On some programmes Low
temperature is a standard part of the
programme and so cannot be
deselected.
^
Pressing the lower button selects or
deselects Anti-crease.
Cool air:
^
First select the 20 min warm air
programme and then press the top
extra option button until the Cool air
indicator light comes on.
14
Page 15
How to dry correctly
E Start the programme
Press the Start/Stop button.
^
The indicator light for the Start/Stop
–
button will then change from flashing
to being on constantly.
The programme duration will appear
–
in the display.
The Sequence indicator light for the
–
drying stage reached will come on.
Memory function (for Programme
selection)
The electronics will store in memory the
drying level and any extra options
selected for the current drying
programme.
The next time you chose that
programme, the indicator lights for
these settings will come on. You can
either accept these or change them by
pressing the appropriate button.
The memory function is deactivated if
the programme is cancelled. If the
buzzer has been selected, this
selection will be saved automatically,
whether or not the memory function has
been activated.
Before the end of a programme
There is a cooling down phase at the
end of the drying sequence (the Cool
air indicator light will come on). The
programme will not finish until the
cooling down phase has been
completed.
There is no cooling down phase at the
end of the Woollens handcare and
Smoothing programmes.
F Remove the laundry when the
programme has finished
The Anti-crease/Finish indicator light
will come on to indicate that the
programme has finished. The indicator
light for the drying stage reached
(depending on the programme
selected) will also come on.
Press the Door button.
^
Open the door.
^
Remove the laundry.
^
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
^ Switch the dryer off by pressing the
l-On/0-Off button.
^ Clean the fluff filters.
^ Close the door.
^
Empty the condensed water
container (unless the dryer has been
connected for external drainage).
^
The condenser unit should be
checked and cleaned on a regular
basis.
15
Page 16
Extra options
It is not possible to select a
–
combination of the Low temperature,
Short, Cool air options at the same
time.
Short
For drying fabrics which can
withstand higher temperatures and
fabrics with the q symbol on the
care label. Do not use on minimum
iron or delicate fabrics.
The programme duration is shorter.
–
Cool air
Select this option when you only want
to air garments with cool air.
– You need to press the 20 min warm
air button first, and then select the
Cool air extra option.
– See the programme chart for details
of the extra options which are
suitable for a particular programme.
Low temperature
For drying delicates and fabrics with
the r symbol on the care label at a
lower temperature.
–
For all delicate or minimum iron
fabrics with the r symbol on the
care label (e.g. acrylic garments).
–
The programme duration is longer.
–
On some programmes Low
temperature is a standard part of the
programme and so cannot be
deselected.
Anti-crease
Helps prevent creasing, if laundry is
not normally removed immediately
after the end of a programme.
– The drum will turn at intervals for an
hour.
16
Page 17
Delay start
To select Delay start
The start of a programme can be
delayed by up to 24 hours (24^).
After selecting a programme:
Press the Delay start button
^
repeatedly until the required delay
period shows in the display.
The Delay start indicator light will
–
flash.
Times of:
–
up to 10^ are selected in 30 minute
steps
more than 10^ in 1 hour steps
– If you keep the Delay start button
pressed in, the time will continue to
increase up to 24^.
To begin Delay start
^ Press the Start/Stop button.
– The delay start time will begin to
count down and the Delay start
indicator light will come on.
While the delay start time is counting
down, you can still add laundry to the
drum:
To do this, first switch the dryer off
^
and open the door.
Add the laundry.
^
Close the door and switch the dryer
^
back on again.
To cancel Delay start
Press the Start/Stop button.
^
Press the Start/Stop button again to
^
start the programme.
The delay start time counts down
towards the start of the programme as
follows:
–
more than 10^ by the hour
–
less than 10^ in minutes
The drum will turn briefly every hour to
help prevent creasing.
17
Page 18
Programme chart
Automatic Max. load: 3.5 kg*
Normal+, Normal, Hand iron r
Fabric type Mixed loads of cotton and minimum iron fabrics. Sort according to
colour.
Extra option Anti-crease
Cottons Max. load: 6 kg*
Extra dry, Normal+, Normal**
Fabric type Single and multi-layered cotton fabrics such as: e.g.: towelling,
jerseywear, T-shirts, underwear.
Notes
Extra options Low temperature (select this option for delicate fabrics with the r
Hand iron r, Hand iron rr**, Machine iron
Fabric type Cottons or linen fabrics, e.g.: table linen, bed linen, starched
Note – To prevent laundry from drying out it should be rolled up until
Extra options Low temperature (select this option for delicate fabrics with the r
Minimum iron/Delicates Max. load: 3 kg*
Normal+, Normal**, Hand iron r
Fabric type Minimum iron items made of cotton, synthetic or blended fabrics,
Extra options Low temperature (select this option for delicate fabrics with the r
* Weight of dry laundry
** Note for test institutes:
Use this programme without any extra options when testing according
to EN 61121 Standard.
Select Extra dry for multi-layered and very thick fabrics.
–
Do not use Extra dry for jersey fabrics (e.g. T-shirts,
–
underwear), as they have a tendency to shrink.
symbol on the care label), Short, Anti-crease
laundry.
you are ready for ironing.
symbol on the care label), Short, Anti-crease
e.g.: shirts, blouses, skirts and table cloths.
symbol on the care label), Short, Anti-crease
18
Page 19
Programme chart
Woollens handcare Max. load: 2 kg*
Fabric type Woollen fabrics
Note
Extra option Low temperature. (Low temperature cannot be deselected).
Shirts Max. load: 2 kg*
Normal+, Normal, Hand iron r
Garment Shirts and blouses.
Extra options Low temperature. (Low temperature cannot be deselected),
Denim Max. load: 3 kg*
Normal, Hand iron r
Fabric type Denim garments, e.g. jeans, jackets, skirts, shirts.
Extra options Low temperature. (Low temperature cannot be deselected),
Smoothing Max. load: 3 kg*
Fabric type – Cotton and linen fabrics.
Notes – Smooths out creasing caused during the spin cycle in the
Extra options Low temperature. (Low temperature cannot be deselected),
Warm air Max. load: 6 kg*
Fabric type
Extra options
* Weight of dry laundry
This programme only fluffs up woollen garments. They are not
–
dried completely by this programme.
Remove garments as soon as the programme has finished and
–
leave to finish drying at room temperature.
Anti-crease
Anti-crease
– Minimum iron items made of mixed fibres, cottons or
synthetics, e.g.: trousers, jackets, shirts.
washing machine.
–
Fabrics are not completely dried in this programme. Remove
garments as soon as the programme has finished and leave to
finish drying at room temperature.
Anti-crease
–
"Voluminous" and multi-layered fabrics whose layers have
different drying characteristics, e.g. jackets, pillows.
–
For drying individual items, e.g. bath towels, bathing
costumes, tea-towels and small loads.
–
Low temperature (select this option for delicate fabrics with the
r symbol on the care label), Anti-crease.
–
Press the Cool air extra option button if you only wish items to
be aired with cool air.
19
Page 20
Changing the programme sequence
Once a programme has started
- changing the programme
You cannot change to another
programme once a programme has
started (this prevents unintentional
alterations).
It is still possible to select or deselect
the Buzzer and the Anti-crease extra
option.
You will need to cancel the current
programme before you can select a
new one.
- cancelling the programme and then
selecting a different programme
^ Press the Start/Stop button.
The items will be cooled down,
depending on the temperature
reached and how long they have
been dried for.
The programme will be cancelled if
you press the Start/Stop button again
during the cooling down phase.
Adding or removing laundry
after a programme has started
Press the Door button.
^
Open the door.
^
Danger of burning:
,
Do not touch the back of the drum
when adding or removing items. The
drum and the items can get very hot.
Add or remove items as required.
^
Close the door.
^
^ Press the Start/Stop button.
Time remaining
The time left shown in the display may
now vary from the actual drying time.
^
Switch the dryer off.
^
Switch the dryer on.
^
Select another programme and start
it.
- cancelling the programme and then
removing the laundry
^
Proceed as described in "Adding or
removing laundry after a programme
has started" below.
^
Switch the dryer off after closing the
door.
20
Page 21
The system lock prevents your
machine being used without your
knowledge.
It can be activated if wished.
The dryer's electronics are locked. The
dryer can still be switched on but a
programme cannot be started. The
Locked indicator light will flash if an
attempt is made to start a programme.
The door is not locked and can be
opened at any time.
Electronic system lock
To deactivate the lock
Before you begin, first ensure that
The tumble dryer is switched off.
–
The door is closed.
–
A Press the Anti-crease and Drying
level buttons at the same time and
hold them pressed in until you reach
step D below.
B Press in the I-On/0-Off button.
Wait until the indicator light for the
Start/Stop button starts flashing ...
:
To activate the lock
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
A Press the Anti-crease and Drying
level buttons at the same time and
hold them pressed in until you reach
step D below.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button starts flashing ...
C ... and then press the Low
temperature/Short/Cool air button
three times.
D Then release the Anti-crease and
Drying level buttons.
The Locked indicator light will flash.
The electronics have now been locked.
E Switch the dryer off with the I-On /
0-Off button.
:
C ... and then press the Low
temperature/Short/Cool air button
three times.
D Then release the Anti-crease and
Drying level buttons.
The Locked indicator light will go out.
The electronics are no longer locked.
E You can now use the dryer or switch
it off with the I-On/0-Off button.
21
Page 22
Cleaning and care
Emptying the condensed
water container
The condensed water will be collected
in the condensed water container
unless the appliance has been fitted
with a drain hose (see "Installation").
Empty the condensed water
container after every drying
programme.
The Container indicator light will come
on if the maximum level of the
condensed water container is reached.
The indicator light will go out when the
door is opened and closed again.
^ Open the shutter and empty out the
water.
^ To replace the container, hold it at a
slight angle (as when removing it)
and push it in gently until you feel it
click into position.
Condensed water should not be
consumed. It could lead to health
problems for people and animals.
^
Holding the container firmly in both
hands, as shown, pull it out slightly
towards the right-hand side.
^
Hold it at the front and towards the
back and keep it in a horizontal
position when carrying it.
22
Condensed water can be put to
household use (e.g. used in a steam
iron or humidifier). To ensure that any
residual particles of fluff in the
condensed water are removed before
use, pass it through a fine sieve or
paper filter first.
Page 23
Cleaning and care
Cleaning the fluff filters
The fluff which is created by the drying
process is collected by the fluff filters in
the door and the door opening. Clean
the filters after each drying programme.
Cleaning them whilst dry
Tip: You can also use a vacuum
cleaner.
^ Open the door and pull the fluff filter
(1) out of the door as illustrated.
Remove any fluff from the hollow part
^
of the door holder. A cleaning brush
is available as an optional extra from
your Miele dealer or the Miele Spare
Parts Department, or use a vacuum
cleaner.
Once clean, push the filter back into
^
the door holder until it clicks into
position. Ensure it is facing the
correct way.
Also clean the door seal (2) with a
^
damp cloth.
^
Use your fingers to remove the fluff
from the surface of the filter.
^
Use your fingers to remove the fluff
from the two fluff filters in the door
opening.
^
Close the door.
23
Page 24
Cleaning and care
Cleaning them with water
If there is a great deal of compacted
fluff on any of the filters, they can be
removed and cleaned under hot
running water.
Open the door and pull the fluff filter
^
out of the door as described
previously.
The two filters in the door opening can
also be removed if you need to clean
them with water.
Do not replace them if they are
,
damp or wet. Damp or wet filters
could cause operational faults.
Push the large filter back into the
^
door holder until it clicks into position.
Ensure it is facing the correct way.
Replace the filters in the door
^
opening by first inserting them at the
bottom and then pressing them into
place at the top.
Lock both dials.
^
^

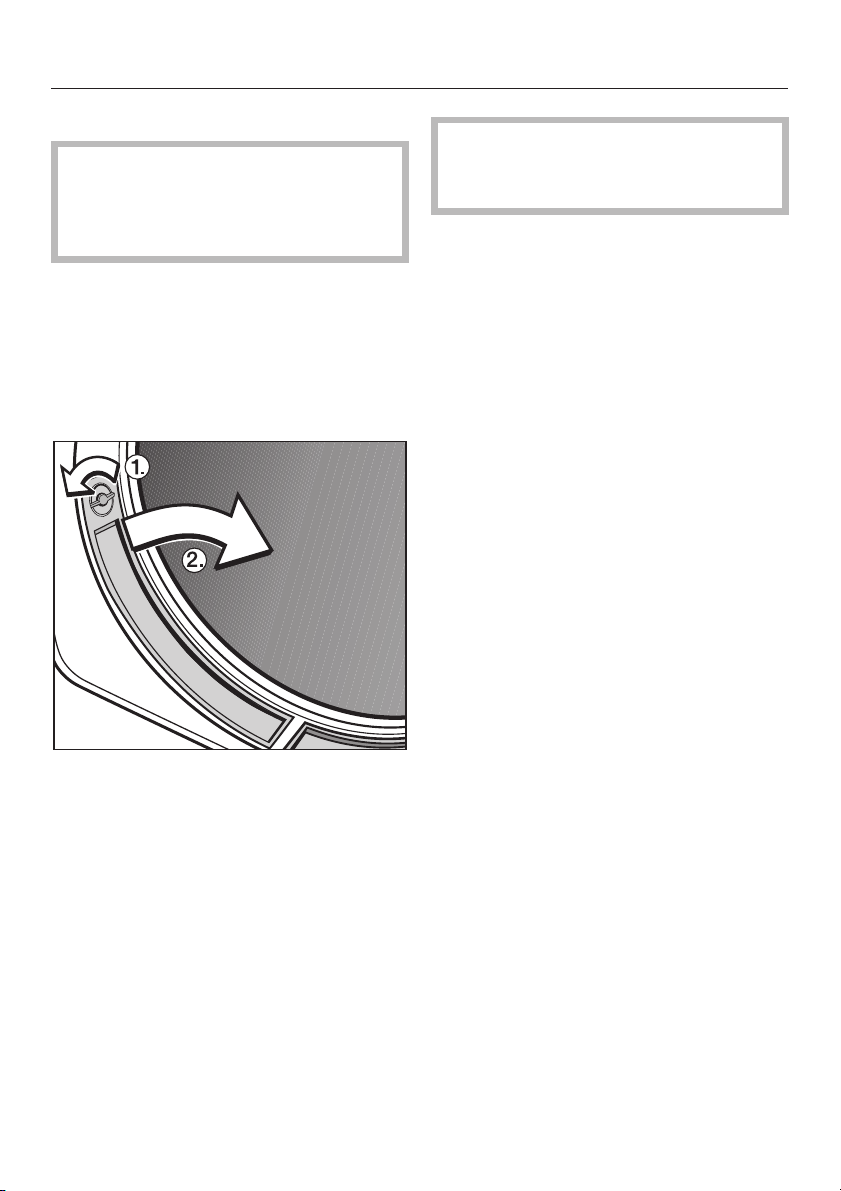

Turn dial a and pull the filter by the
dial out of the door opening as shown
b. Do the same on the other side.
^
Rinse all the filters under hot, running
water.
^
Then shake the filters until no more
water droplets are visible.
^
Dry the filters thoroughly with care.
^
Clean the area underneath these
filters, e.g. with a vacuum cleaner.
24
Page 25
Cleaning the tumble dryer
Disconnect the tumble dryer from
the mains electricity supply.
Miele branded cleaning and
conditioning products are available to
order from your Dealer, the Miele Spare
Parts Department or via the internet on
www.miele-shop.com.
Clean the housing and control panel
^
with a slightly damp cloth and a mild
detergent or soapy water.
The drum and other stainless steel
^
parts can be cleaned with a suitable
propietary stainless steel cleaner
following the manufacturer's
instructions.
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic sufaces and other
parts. The tumble dryer must never
be hosed down.
Cleaning and care
^
Dry all parts with a soft cloth.
25
Page 26
Cleaning and care
Cleaning the condenser unit
Detergent residue, hair and fine fluff
from the dryer can get through the fluff
filters and block the condenser unit.
Dust from the room in which the dryer is
installed can also get into the
condenser unit and cause a blockage.
Check the condenser unit at least
twice a year. Always check it if the
Airways indicator light comes on. If
the dryer is used frequently then
check the condenser unit after
approx. 100 drying cycles. Clean it if
necessary.
Removing the condenser unit
Turn the lever on the inner cover
^
downwards to the vertical position.
^ Pull the cover forwards.
^ Remove it by pulling it diagonally
upwards.
^
Open the service panel. Hold the
panel securely when doing this.
^
Now remove the panel by pulling it
diagonally upwards and place it to
one side.
26
^
Turn the lever on the condenser unit
upwards to the vertical position.
Page 27
Pull the condenser unit out of its
^
housing by the handle.
Checking the condenser unit
Cleaning and care
If you cannot see any fluff:
Replace the condenser unit (see
^
following page).
If you can see some fluff:
Clean the condenser unit as
^
described below.
Cleaning the condenser unit
When rinsing the condenser unit,
^
make sure you position it as
shown in the next two illustrations.
^
Hold the condenser unit up to the
light as shown.
^
Check to see if there is any fluff
inside it.
The arrows in the illustration above
indicate where to look.
^
Use a shower head or similar to rinse
the unit out as shown.
27
Page 28
Cleaning and care
Then flush the unit through from the
^
front.
^ Check the condenser unit again for
any visible fluff and if necessary flush
it through again until it has all gone.
^ Remove any soiling still visible inside
the housing unit by hand using a
damp cloth. Do not try and access
areas you cannot reach by hand!
^ Also make sure the rubber seals are
clean.
The rubber seals must not be
removed and must be free of kinks.
Replacing the condenser unit
With the handle facing upwards,
^
push the condenser unit back into
position in its housing.
Turn the lever down to the horizontal
^
position, making sure that the hook
on the lever clicks into the groove.
When replacing the inner cover after
cleaning, ensure that the rubber seal
fits correctly into the groove.
Replace the inner cover making sure
^
the hooks locate correctly. Hold it at
an angle and push it gently
downwards.
^ Then turn the lever upwards into the
horizontal position to lock the cover.
^ Replace the service panel and press
the upper edge until it clicks into
position.
,
It is important to ensure that both
the condenser unit and the cover
are correctly positioned and locked
otherwise water may leak from the
dryer.
28
Page 29
Problem solving guide
With the help of the following notes minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be put right
without contacting the Service Department.
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in strict accordance with current local and national
safety regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.
General problems
Problem Possible cause Remedy
The tumble dryer fails to
start when switched on.
Items made of synthetic
fibres are charged with
static electricity after
drying.
No obvious cause.
Synthetic fibres tend to
attract static charge.
Have you followed the
–
switch-on procedure
correctly (see “How to
dry correctly”)?
– Is the plug correctly
inserted in the socket
and switched on?
– Is the door closed
properly?
– Has the fuse or circuit
breaker tripped?
Static charge can be
reduced by adding a
fabric conditioner to the
final rinse in the washing
machine or a fabric
conditioner sheet to the
load in the dryer.
29
Page 30
Problem solving guide
Problem Possible cause Remedy
There is a build
up of fluff.
The laundry is
not sufficiently
dry.
The interior
drum lighting
does not come
on.
Fluff is principally the result of
friction when garments are
being worn and washed.
Machine drying hardly
causes any fluff to form and
has been established by
research institutes to have no
appreciable effect on the
lifetime of the garment.
The load consisted of
different fabrics.
The lighting switches off
automatically (to save
energy).
The lamp needs changing. Change the lamp as
Fluff is collected by the fluff
filters and can be easily
removed (see "Cleaning and
care").
Finish drying using "Warm
–
air" (timed drying).
Select a more suitable
–
drying programme next
time (see "Programme
chart").
Switch the dryer off and then
on again.
described at the end of this
section.
30
Page 31
Problem solving guide
Problem Possible cause Remedy
The drying process
goes on too long or
even switches off.
Important: Before attempting to remedy one of the
following causes, switch the dryer off and switch on again
to start the programme again.
Ventilation to and from the
dryer may be insufficient
(e.g. because it is installed
in a small room). This has
caused the temperature in
the room to rise sharply.
The vents below the door
are blocked.
The fluff filters are clogged
up with fluff or were still wet
when they were replaced.
Detergent residues, hair and
fine fibres can block up the
condenser unit.
The laundry has not been
spun sufficiently.
The tumble dryer has been
overloaded.
Metallic components, e.g.
zips have prevented the
dryer from registering the
correct moisture level in the
laundry.
Open a door or window
while the machine is in
operation for increased air
flow.
Remove any objects that
–
are blocking the vents.
Remove any fluff.
–
– The fluff filters must be
completely dry.
Check the condenser unit
from time to time and clean
it if necessary (see
"Cleaning and care").
Make sure that your laundry
is thoroughly spun at the
appropriate spin speed.
Do not exceed the maximum
load for the programme
selected.
–
Open zips next time.
If the problem occurs again,
dry garments with long zips
using "Warm air" (timed
drying).
31
Page 32
Problem solving guide
Problem Possible cause Remedy
Water leaks from the
machine after the
condenser unit has
been cleaned.
The inner cover of the
–
condenser unit has not
been locked properly
and/or the condenser
unit has not been
positioned correctly.
Fluff has collected in
–
the condenser unit
housing.
Ensure that the
–
condenser unit is
positioned correctly
and lock the inner
cover.
Check the rubber
–
seals.
Use a cloth to remove
–
any visible fluff from the
inside of the condenser
unit housing.
32
Page 33
Problem solving guide
Check and fault indicator lights
Problem Possible cause Remedy
The Airways
indicator light
comes on.
The programme
stops.
The Airways
indicator light
comes on.
The Container
indicator light
comes on.
This indicator light
comes on to warn you
that the dryer is not
working efficiently.
No obvious cause. – First of all check if the filters
The condensed water
container is full or
there is kink in the
drain hose.
Cleaning the fluff filters is usually
all that is required.
However, if the Airways indicator
does not go out after you have
cleaned them, then also check all
the possible causes described
under "The drying process goes
on too long or even switches off".
The indicator light will go out
–
when you open the door, if the
dryer is switched on.
– The Airways indicator light can
be deactivated (see
"Programmable functions").
need to be cleaned.
– The indicator light will go out
when you open the door, if the
dryer is switched on.
– Then start the programme
again.
If the programme stops again and
the indicator light flashes again
there is a fault. Contact the Miele
Service Department.
–
Empty out the condensed water
container.
–
Check the drain hose.
–
The indicator light will go out
when the door is opened and
closed again.
33
Page 34
Problem solving guide
Problem Possible cause Remedy
The programme
stops and the
Anti-crease/Finish
indicator light
comes on.
0 appears in the
display.
The buzzer sounds.
The programme
stops and the
Machine iron or
Hand iron indicator
light flashes.
The buzzer sounds.
The time remaining
pauses.
Bars =...-... appear in
the display.
The Locked
indicator starts
flashing after the
dryer has been
switched on.
A programme
cannot be started.
This is not a fault.
The electronic unit has
recognised that there
is no laundry in the
drum and cancelled
the programme.
Drying individual
garments or items
which are already dry
can also cause the
programme to be
cancelled.
No obvious cause.
This is not a fault.
The drying process is
not yet complete.
The system lock is
activated.
Use the Warm air programme
–
(timed drying) to dry
individual items.
The indicator light will go out
–
when you open and close the
door, if the dryer is switched
on.
Switch the dryer off and then
–
on again.
– Then start the programme
again.
If the programme stops again
and the indicator light flashes
again there is a fault. Contact the
Miele Service Department.
The programme has taken
longer than was estimated at the
beginning.
The adjusted time remaining will
appear in the display after a
while.
You will need to deactivate the
system lock before the dryer can
be used (see "Electronic system
lock").
34
Page 35
Changing the lamp
Disconnect the tumble dryer from
the mains electricity supply.
Problem solving guide
The lamp specification and
maximum wattage is stated on the
data plate and on the lamp cover.
Open the door.
^
You will find the interior lamp cover at
the top of the drum aperture.

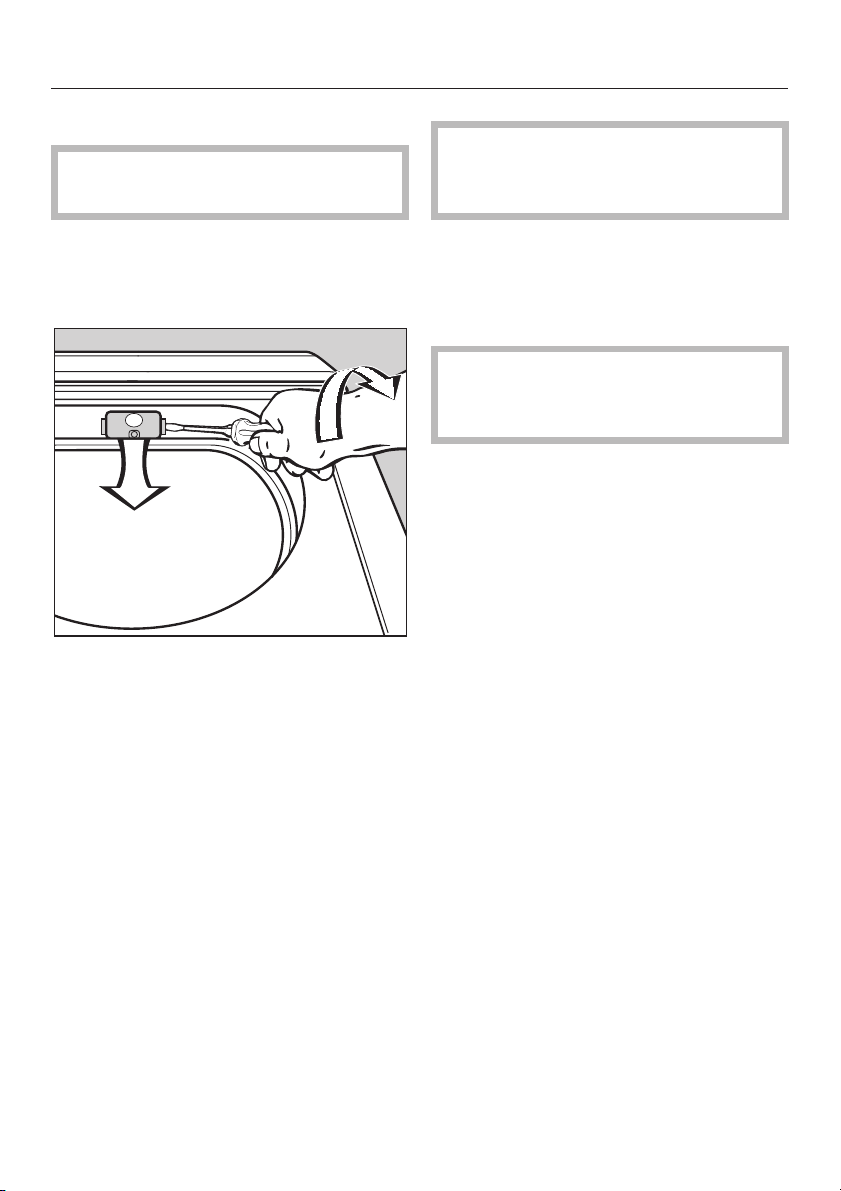

^ Insert a suitable tool, such as a wide
bladed screwdriver, under the side
edge of the lamp cover as illustrated.
^
Apply a little pressure and whilst
doing so turn your wrist in the
direction of the arrow to open the
cover.
Replace the lamp.
^
To close the cover push it upwards
^
and press it on the left and right until
you hear it click into position.
Ensure that it is fitted into
,
position securely, as any moisture
could cause a short circuit.
The cover will open downwards.
The temperature resistant lamp should
only be ordered from your Miele Dealer
or the Miele Spare Parts Department.
35
Page 36
After Sales service
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or
–
the Miele Service Department (see
–
back cover for contact details).
When contacting your dealer or the
Service Department, please quote the
model and serial number of your

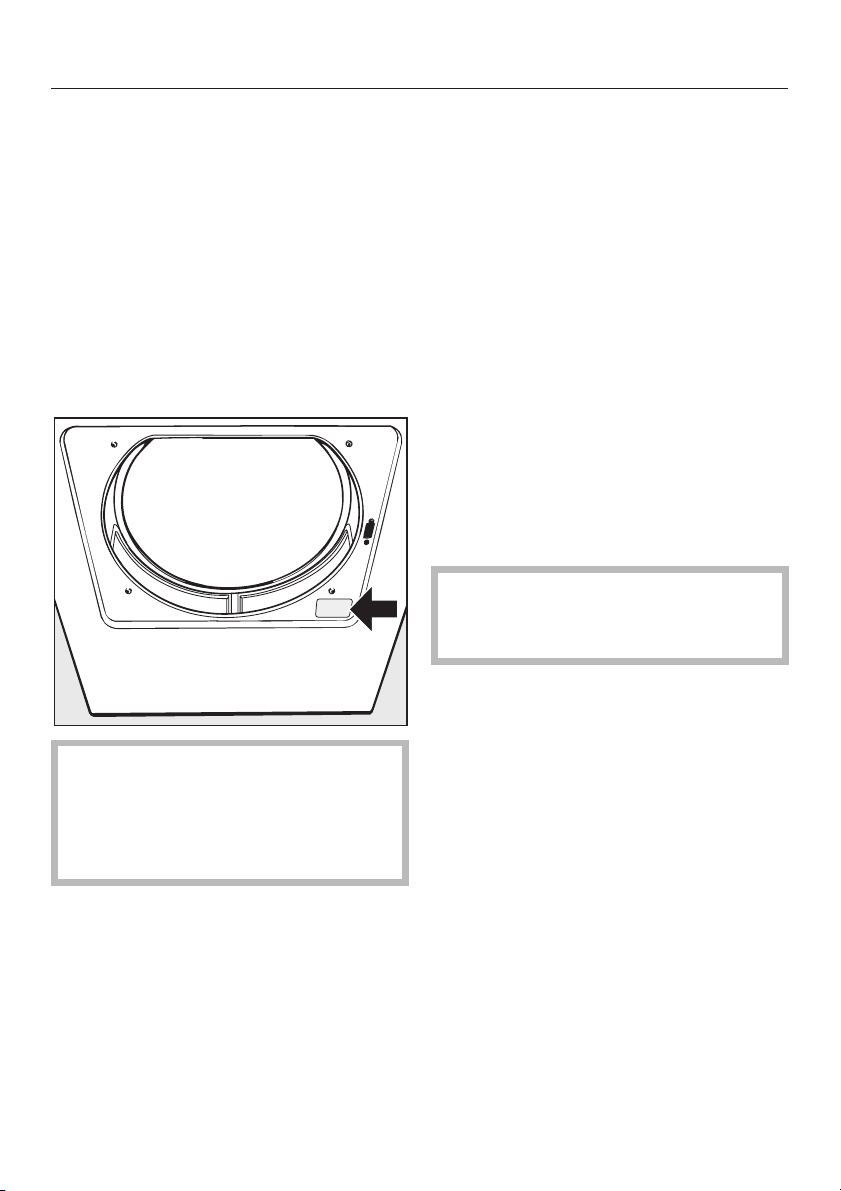

appliance, both of which are shown on
the data plate situated on the right
hand side below the drum aperture.
Future updates (PC)
The indicator or check light marked PC
on the fascia panel is the interface used
by the Miele service technicians during
service work for testing purposes and
for updating the appliance's
programme data.
Appliance guarantee
Please see the guarantee card
supplied with your appliance.
Optional accessories
Optional accessories for this dryer are
available from your Miele Dealer, the
Miele Spare Parts Department or via the
internet at www.miele-shop.com.
Please note that telephone calls may
be monitored and recorded for
training purposes.
N.B. A call-out charge will be
applied for unnecessary service
visits where the problem could have
been rectified as described in this
instruction manual.
36
Page 37
Front view
Installation
a Mains connection cable
b Condensed water container
c Control panel
d Door
e Service panel for condenser unit
f Four height-adjustable screw feet
g External drainage options (e.g. via
wash basin, wash basin drain outlet,
or gully).
37
Page 38
Installation
Rear view
a Protruding lid for holding when
moving the appliance (see arrows)
b Air inlet vent for cooling the
condenser unit
c Mains connection cable
d External drainage of the condensed
water
e Accessories for connection to a sink
drain outlet
Installation site
,
Make sure the dryer door can be
opened without hindrance after
installation.
Transporting the tumble dryer to its
installation site
When moving the appliance, you can
hold it by the lid where it protrudes to
the rear of the dryer. To manoeuvre the
dryer out of its packing case to its
installation site you will also need to
hold it by the front feet. Do not lift the
appliance by the drum door.
Building under a continous worktop /
in a kitchen run
A building-under kit* with a
,
coverplate to replace the appliance
lid is required. It must be fitted by a
suitably qualified person to ensure
electrical safety.
N.B. If you wish to push your appliance
under a worktop and there is space to
do this without removing the lid the
building under kit is not necessary.
Otherwise the building under kit is
essential.
– The building-under kit is supplied
with its own installation instructions.
– N.B. When built under drying times
may be longer.
– The electrical socket must be
located in an accessible position
near the tumble dryer.
With niche heights of:
–
830-840 mm, longer screw feet* are
required.
–
870-885 / 915-930 mm, one or two
raising kits* are required.
* accessory available to order.
Replacing the lid
If the lid has been removed in order to
fit a coverplate, ensure that, if the lid is
ever replaced, it fits securely into the
rear holders. Otherwise, it is not
properly secure for transport.
38
Page 39
Installation
Levelling the tumble dryer
The appliance must be perfectly level
to ensure safe and proper operation.
Room in which the dryer is located
Air taken in for use in the drying
process will be warm when it is
expelled from the front of the dryer. This
expelled air heats up the air in the
room. It is therefore very important to
ensure that the room is adequately
ventilated, particularly if the dryer is
located in a small room. Otherwise
running times and energy consumption
could be increased.
Washer-dryer stack
The tumble dryer can also be
combined with a Miele washing
machine in a washer-dryer stack. The
appropriate "WTV" stacking kit
(available to order) to match your dryer
is required.
,
Stacking kits must only be
installed by a suitably qualified fitter.
Before moving the tumble dryer
again (e.g. when moving house)
^
The screw feet can be adjusted to
compensate for any unevenness in
the floor.
,
The air inlet and outlet vents on
the front of the tumble dryer must
not be covered as this would
prevent sufficient ventilation for
cooling the condenser unit.
After each use a small quantity of
condensed water will collect in the area
around the pump. This water can run
out if the tumble dryer is tipped up
when it is being moved. It is a good
idea to run the Cool air programme for
approximately 1 minute before moving
the tumble dryer. Any remaining
condensed water will then be fed into
the condensed water container or out
through the drain hose.
39
Page 40
Installation
External condensed water
outlet
General notes
When drying is in progress, condensed
water is pumped into the condensed
water container through the drain hose at
the back of the dryer. The condensed
water can also be drained off directly if
the tumble dryer is installed near a sink,
drain outlet etc. so that the condensed
water container does not have to be
emptied.
Drain hose length ............1.50 m
Maximum delivery head .......1.50 m
Maximum drain hose length ....4.00 m
,If the on-site water drainage
system is not fitted with a non-return
valve or an appropriate air gap, one
must be fitted to prevent the risk of
back-flow. (See "Installation conditions
requiring a non-return valve").
There will be a small amount of
^
residual water in the drain hose.
Have a container ready to collect
this.
^ Pull the hose off its connection (see
arrow).
^ Allow any residual water to run into
the container.
^ Unwind the hose and pull it carefully
out of the holders.
The following optional accessories are
available:
–
an extension hose
–
a non-return valve kit for connection
to an external condensed water
outlet
(includes an extension hose).
Maximum delivery head with
non-return valve fitted: 1.00 m
Arranging the drain hose
,
Do not pull on the drain hose and
do not stretch it or allow it to become
kinked as it could get damaged.
40
^
Position the hose to the right or left
hand side as necessary.
Leave the hose in the middle holder to
prevent it from becoming kinked
inadvertently.
Page 41
Installation
External drainage via a sink or gully
See "Front view" illustration.
^
If you want to drain the water off
,
into a sink you will need to secure
the hose carefully, e.g. by tying it to
a tap to make sure it cannot slip
during use. Otherwise there is a risk
of overflowing water which could
cause damage.
Use the bow-shaped guide to
^
prevent the drain hose from
becoming kinked.
Installation conditions requiring a
non-return valve
Certain installation conditions
,
require the fitting of a non-return
valve (available as an optional
accessory). A non-return valve will
prevent the risk of back-flow out of
the dryer which could cause
damage.
Example: Connection to a sink drain
outlet
The drain hose with non-return valve
fitted can be connected directly to a
suitable sink drain outlet.
^ Remove the following from the back
of the dryer at the top:
Adapter 1 and hose clip 3 behind it.
A non-return valve is required:
–
If the tumble dryer is connected to a
sink drain outlet (see the following
section).
–
If the tumble dryer is connected to a
drainage system already in use by
another appliance, e.g. a dishwasher
or washing machine.
41
Page 42
Installation
1 Adapter
2 Nut
3 Hose clip
4 End of the hose
5 Non-return valve
6 Tumble dryer drain hose
Fit adapter 1 to the sink drain outlet
^
using nut 2.
If this nut has a flat disc in it you
should take the disc out first.
Attach the end of the hose 4 to
^
adapter 1.
Use a screwdriver to tighten hose
^
clip 3 up close to the nut.
Non-return valve 5 has to be
,
fitted with the arrow pointing in the
direction of flow (i.e. towards the
sink). Otherwise water will not drain
out of the appliance.
^ Fit non-return valve 5 to the tumble
dryer drain hose 6 (make sure it is
fitted in the correct direction (see
arrow on non-return valve).
^ Secure the non-return valve using
hose clips.
42
Page 43
Electrical connection
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. Please ensure the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to install
a suitable residual current device
(RCD). Contact a qualified electrician
for advice.
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
43
Page 44
Consumption data
Programme Load Final spin speed
in a domestic washing machine
kg* rpm kWh Minutes
Cottons Normal 6.0 1000 (60 % residual moisture)**
1200
1400
1600
1800
Cottons Hand iron rr 6,0 1000 (60 % residual moisture)**
1200
1400
1600
1800
Minimum iron/Delicates Normal 3.0 1200 (40 % residual moisture)** 1.20 37
Minimum iron/Delicates Hand iron 3.0 1200 1.00 32
Automatic Normal r 3.5 800 2.10 85
Shirts Normal 2.0 600 1.15 41
Denim Normal 3.0 900 2.00 96
Woollens handcare 2.0 1000 0.15 4
Smoothing 3.0 1000 0.30 8
* Weight of dry laundry
** EN 61121:2005 test programme
All data without a "star" against it was calculated using EN 61121:2005.
Before testing in accordance with EN 61121, drya3kgload of cotton laundry with 70% residual
moisture as per the above standard using the Cottons Normal programme without any extra options.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity
supply and any extra options selected.
Energy Duration
3.30
3.00
2.85
2.55
2.50
2.65
2.35
2.20
1.85
1.80
89
81
78
70
69
71
63
60
52
51
44
Page 45
Technical data
Height 850 mm
Height for building under 820 mm
Width 595 mm
Depth 580 mm
Depth with door open 1060 mm
Suitable for pushing under a worktop Yes
Suitable for stacking Yes
Weight 51 kg
Drum volume 111 litres
Maximum capacity 6 kg dry weight
Capacity of condensed water container approx. 3.5 litres
Drain hose length 1.5 m
Maximum delivery head 1.5 m
Maximum drain hose length 4 m
Length of connection cable 2 m
Voltage see data plate
Connected load see data plate
Fuse rating see data plate / plug
Lamp wattage see data plate
Energy consumption see "Consumption data"
Test certificates awarded see data plate
45
Page 46
Programmable functions
for changing default settings
The programmable functions are
used to alter the tumble dryer´s
electronics to suit changing
requirements.
Programmable functions can be
altered at any time.
46
Page 47
Programmable functions
Altering the residual moisture
level in the Cottons
programme
The machine is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier, it is possible to reduce the
default residual moisture level in the
Cottons programme. Please note that
programme durations will be longer if
this option is activated.
Follow steps A to E to programme and
store in memory.
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
The Buzzer indicator light will briefly
–
flash on and off twice.
P and 0 (default setting) will flash
–
alternately in the display.
The number which appears alternately
in the display with P means:
0 Default setting
i Drier setting (the Drying indicator
light will also flash)
D Pressing the Start/Stop button
switches from one to the other.
E Switch the machine off with the
I-On/0-Off button.
...
The setting you have selected is now
stored in memory. You can change it
again at any time.
47
Page 48
Programmable functions
Altering the residual moisture
level in the Minimum
iron/Delicates programme
The machine is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier, it is possible to reduce the
default residual moisture level in the
Minimum iron/Delicates programme.
Please note that programme
durations will be longer if this option
is activated.
Follow steps A to F to programme and
store in memory.
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Buzzer button once.
The Buzzer indicator light will briefly
–
flash on and off three times.
P and 0 (default setting) will flash
–
alternately in the display.
The number which appears alternately
in the display with P means:
0 Default setting
i Drier setting (the Drying indicator
light will also flash)
E Pressing the Start/Stop button
switches from one to the other.
...
48
F Switch the machine off with the
I-On/0-Off button.
The setting you have selected is now
stored in memory. You can change it
again at any time.
Page 49
Programmable functions
Memory function
The electronics will memorise the
drying level and any extra options
selected for the current drying
programme.
The Memory function
is activated when the machine is
–
delivered. You can deactivate it if
wished.
does not work if a programme is
–
cancelled or if Delay start has been
selected.
Follow steps A to F to programme and
store in memory.
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Buzzer button twice.
The Buzzer indicator light will briefly
–
flash on and off six times.
P and i (default setting) will flash
–
alternately in the display.
The number which appears alternately
in the display with P means:
i Memory activated
(the Drying indicator light will also
flash)
0 Memory deactivated
E Pressing the Start/Stop button
switches from one to the other.
...
F Switch the machine off with the
I-On/0-Off button.
The setting you have selected is now
stored in memory. You can change it
again at any time.
49
Page 50
Programmable functions
Extending the cooling down
time
The cooling down phase which takes
place before the end of a programme
can be lengthened if required. This
makes the garments easier to handle.
The dryer is delivered with the
extended cooling down time option
deactivated. You can extend the
cooling down time by 5 minutes or 10
minutes.
The option of extending the cooling
down time is available with the Auto-
matic, Cottons, Minimum iron/Delicates,
Shirts and Denim programmes.
Follow steps A to F to programme and
store in memory.
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Buzzer button three times.
The Buzzer indicator light will briefly
–
flash on and off seven times.
P and 0 (default settting) will flash
–
alternately in the display.
The number which appears alternately
in the display with P means:
0 The cooling down time is not
extended (default setting).
i The cooling down time will be five
minutes longer.
(The Drying indicator light will also
flash once).
...
50
2 The cooling down time will be ten
minutes longer.
(The Drying indicator light will also
flash twice).
E Pressing the Start/Stop button
switches from one to the other.
F Switch the machine off with the
I-On/0-Off button.
The setting you have selected is now
stored in memory. You can change it
again at any time.
Page 51
Programmable functions
Airways indicator
Fluff should be removed after drying.
The Airways indicator will remind you
to clean the filters when a certain
amount of fluff has collected in the
filters. You can decide at what level
of fluff this reminder should be given.
You will have an idea of which of the
four options to select after a few drying
programmes.
Follow steps A to F to programme and
store in memory.
Before you begin, first ensure that
– The tumble dryer is switched off.
– The door is closed.
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
:
...
D Press the Buzzer button four times.
The Buzzer indicator light will flash
–
on and off slowly once.
P and 2 (default setting) will flash
–
alternately in the display.
The number which appears alternately
in the display with P means:
0 the Airways indicator light is
deactivated
I the Airways indicator light will
come on when there is a heavy
build-up of fluff
(The Drying indicator light will also
flash once).
2 Default setting
(the Drying indicator light will also
flash twice).
3 the Airways indicator light will
come on when there is only a light
build-up of fluff
(The Drying indicator light will also
flash three times).
E Pressing the Start/Stop button
switches from one to the other.
F Switch the machine off with the
I-On/0-Off button.
The setting you have selected is now
stored in memory. You can change it
again at any time.
51
Page 52
Programmable functions
Keypad tone
An audible tone sounds each time a
button is pressed.
The machine is delivered with the
keypad tone deactivated. You can
activate it if wished.
Follow steps A to F to programme and
store in memory.
Before you begin, first ensure that
The tumble dryer is switched off.
–
The door is closed.
–
:
A Press the Start/Stop button and keep
it pressed in whilst carrying out steps
B-C.
B Press the I-On/0-Off button in.
Wait until the indicator light for the
Start/Stop button lights up constantly
C . . . and then release the Start/Stop
button.
D Press the Buzzer button five times.
The Buzzer indicator light will flash
–
on and off slowly once and will then
flash on and off quickly once.
– P and 0 (default setting) will flash
alternately in the display.
The number which appears alternately
in the display with P means:
0 Key pad tone is deactivated
(Default setting)
i Key pad tone is activated
(the Drying indicator light will also
flash)
...
525354
E Pressing the Start/Stop button
switches from one to the other.
F Switch the machine off with the
I-On/0-Off button.
The setting you have selected is now
stored in memory. You can change it
again at any time.
