Operating instructions
for vented tumble dryer
T 4162
To avoid the risk of accidents
or damage to the machine
it is essential to read these
instructions before it is installed
and used for the first time.
G
M.-Nr. 06 619 190
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
Make sure that your laundry is
–
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
– Load according to the optimum
amount of laundry recommended for
the programme being used (see
"Programme chart").
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
–
Make sure the room in which the
dryer is located is well ventilated.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
2
–
Make sure the fluff filter is clean
before using the dryer.
–
Check all parts of the ventilation
system on a regular basis and
remove any build up of fluff etc.
–
The vent ducting should be as short,
straight and smooth as possible to
minimise any resistance to the air
throughflow.
This helps to reduce running times
and energy consumption levels.
Contents
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Low temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Changing the programme sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Check and fault indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3
Contents
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 25
Building under a continous worktop / in a kitchen run . . . . . . . . . . . . . . . . . . . 25
Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installation - venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Calculating the effective duct length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation to the left or right side of the machine . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
a Venting system with flexible ducting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
b Venting system with plastic piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
c Connecting directly to a wall vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Washer dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Altering the residual moisture level in the Cottons programmes. . . . . . . . . . . . . . 40
Altering the residual moisture level in the Minimum iron programmes . . . . . . . . . 41
Activating and deactivating the buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Extending the cooling down time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing the standard drying level in the Minimum iron - Normal programme . . 44
Changing the standard drying level in the Automatic programme . . . . . . . . . . . . 45
4
Warning and Safety instructions
To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner of the
machine.
Correct use
The tumble dryer is only intended
for drying fabrics which have been
washed in a water solution, marked on
the manufacturer's care label as being
suitable for tumble drying.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
Technical safety
Before setting up the machine,
check it for any externally visible
damage.
Do not install or use a damaged
machine.
Before connecting the machine,
ensure that the connection data on
the data plate match the mains
electricity supply. If in any doubt,
consult a qualified electrician.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Do not connect the machine to the
mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
5
Warning and Safety instructions
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
6
Warning and Safety instructions
In the event of a fault or for
cleaning purposes, the machine is
only completely isolated from the
electricity supply when:
it is switched off at the wall socket
–
and the plug is withdrawn, or
it is switched off at the mains, or
–
the mains fuse is withdrawn, or
–
the screw-out fuse is removed (in
–
countries where this is applicable).
Use
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
This dryer must not be:
– connected to a chimney or vent flue
which is in use.
–
used without exhaust ducting.
–
used without the fluff filter in place or
if the fluff filter is damaged in any
way.
Check all parts of the extraction
system on a regular basis (e.g. wall
vent, external grille, bends in the
ducting etc.) and make sure they are all
free of any hindrance. A build-up of fluff
will prevent a free-flow of air through the
system. If the dryer is to be connected
to an existing ducting system this must
be checked for suitability beforehand.
Adequate ventilation is essential to
avoid the danger of asphyxia and
toxic fumes where another appliance
which also uses the room air (e.g. gas,
oil or coal fired heater, continuous flow
or other water heater) is installed in the
same or an adjacent room.
To ensure safe operation, and to
prevent gases given off by these
appliances being drawn back into the
room, an underpressure of 0.04 mbar is
the maximum permissible.
Ventilation can be maintained by air
–
inlets which cannot be blocked, in
windows, doors and outside wall
vents, or by fitting a window contact
switch which ensures that the tumble
dryer can only be operated when the
window is opened wide enough.
If in doubt, the advice of a competent
builder, or for gas, a "Corgi" registered
installer (in the UK) must be sought.
The exhaust air must not be vented
into a chimney or vent flue which is
in use, nor should it be connnected to
ducting which ventilates rooms with
fireplaces. It would be dangerous if
smoke or exhaust fumes were drawn
back into the room.
Do not install the machine in a
room where there is a risk of frost
occurring. At temperatures around
freezing point the machine may not be
able to operate properly.
The ambient room temperature should
be between +2°C and +35°C.
7
Warning and Safety instructions
To prevent the risk of fire the
following textiles must not be
dried in this machine:
fabrics which contain a large
–
proportion of rubber, foam rubber or
rubber like materials.
items which contain damaged
–
padding or fillings (e.g. pillows,
jackets).
items which have been treated with
–
inflammable cleaning agents.
items which have been splashed with
–
hair lacquer, hair spray, nail varnish
remover or similar substances.
– items which have been soiled with
oils or residues containing grease
(kitchen oils, cosmetics etc.).
– items soiled with wax or other
chemicals (e.g. mops and floor
cloths).
– items which have not been
thoroughly cleaned and which are
still soiled with grease or oil, e.g.
workwear. Such clothing may require
a heavy duty detergent to get them
clean. If necessary consult the
detergent manufacturer for advice.
Do not let anyone sit or lean on the
door, as this can cause the
machine to tip up.
Safety with children
This machine is not a toy. To avoid
the risk of injury keep children
away from the machine at all times and
supervise them whilst you are using it.
Do not allow children to play on or near
it or to play with its controls. Supervise
its use by the elderly or infirm.
Using accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If non-Miele parts are used with this
machine, guarantee, performance and
product liability claims may be
invalidated.
Disposal of your old machine
Before discarding an old machine,
switch it off at the wall socket and
unplug it. Render the plug useless and
cut off the cable directly behind the
machine. This should be done by a
competent person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Always close the door after use.
This way you will avoid the danger
of:
–
children climbing onto or into the
dryer or hiding things in it.
–
pets or other small animals climbing
into it.
8
Control panel
a Programme selector
The programme selector can be
turned clockwise or anti-clockwise.
b Programme sequence and check
lamps
c Start button
Press the
programme.
The
soon as a programme can be
started. It lights up constantly once
the programme has started.
d I-On/0-Off button
To switch the machine on or off / to
interrupt a programme.
The Anti-crease/Finish lamp will light
up as confirmation that the machine
has been switched on.
Start
button to start a
Start
indicator lamp will flash as
e Door Button
To open the door / to cancel a
programme.
Pressing this button will open the
door even when the machine is
switched off at the mains.
If the machine is switched on at the
mains and the door is opened the
drum lighting will come on. It will go
out a few minutes later to save
energy.
PC indicator light
The indicator light marked PC is used
by Miele Service technicians as an
optical interface.
9
Notes on laundry care
Care symbols
Before drying check the drying symbol
on the care label. If there are no
symbols, dry at your own risk!
q. . . . . . . . . Dry at normal temperature
r . . . . . . . . . . Dry at a low temperature
s . . . . . . . . . . . . . . . Do not tumble dry
For delicates and fabrics with the
–
following care label r select
temperature
.
Low
Tips on drying
– Always observe the maximum
recommended loads given in the
"Programme chart". Never overload
the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– Do not put soaking wet items into the
tumble dryer. Spin them thoroughly
after washing using the appropriate
spin speed.
–
Use the
drying mixed loads of cottons and
minimum iron fabrics.
–
Open jackets
evenly.
–
Woollens and wool blends
become matted and shrink if dried in
a tumble dryer. They can, however,
be partially dried using the
hand care
Automatic
programme.
programme for
so that they can dry
tend to
Woollens
Down-filled garments
–
which have a tendency to shrink,
depending on the quality of the item.
They can be partially dried using the
Smoothing
Pure linen
–
dried if specified as suitable by the
manufacturer on the care label, as
the surface of the fabric may
otherwise become rough. They can
be partially dried using the
Smoothing
Loopknit garments
–
underwear) tend to shrink depending
on their quality. Do not over-dry these
textiles. When purchasing these
garments it is advisable to take their
shrinkage properties into account.
– Minimum iron fabrics
cotton shirts or blouses tend to
crease more, the greater the load.
This is especially true of very fine
weaves.
Reduce the load or use the
programme.
should only be machine
programme.
iron - Hand iron
–
Starched laundry
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
–
New dark coloured garments
be washed and dried separately
from light coloured garments to avoid
the danger of colours running and
discolouring other garments or even
plastic components in the machine.
Dark coloured fibres can also settle
on light coloured garments and vice
versa.
have linings
(e.g. T-shirts and
and 100%
Minimum
programme.
can be dried in the
should
10
How to dry correctly
Brief instructions
The headings numbered (A, B, C ...)
show the operating sequence and can
be used as a brief guide to using your
machine.
A Sort the laundry
To ensure an even drying result
separate out the washed laundry and
sort it according to: . .
. . . the drying level required
. . . the type of fibre or weave
. . size
. . the moisture content after spinning.
Make sure that objects e.g.
,
detergent dispensing balls have
been removed from the laundry.
They could melt, and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
– Fasten duvet covers and pillow
cases to prevent small items from
being trapped inside them.
C Load the tumble dryer
Door
Press the
^
door.
Load the laundry loosely into the
^
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^ Before closing the door make sure
the fluff filter is correctly positioned.
button to open the
–
Fasten hooks and eyes etc.
–
Tie fabric belts and apron strings.
–
Sew in or remove underwiring from
bras.
B Turn on the tumble dryer
^
Switch the dryer on by pressing the
I-On/0-Off
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
button in.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^
Shut the door either with a gentle
swing, or lean against it and push it
shut.
11
How to dry correctly
D Select a programme
^ Turn the programme selector to the
required programme.
Low temperature
^ For drying particularly sensitive
fabrics (care symbol r) e.g. acrylics
turn the programme selector to the
Low temperature
Because the heater rating is reduced
for the
dry more slowly thus lengthening drying
times.
Low temperature
position.
setting clothes
E Start the programme
Start
Press the
^
The indicator lamp for the
will then change from flashing to being
on constantly.
The drying cycle begins.
Depending on the programme
selected, the drying stage reached is
shown by the sequence indicator lamps
on the right hand side of the control
panel.
Before the end of a programme
The cooling down phase takes place
before the end of a programme so that
the garments are not too hot to handle
(the
Cool air
on). The programme is not finished until
the cooling down phase is complete.
The
Woollens handcare
programmes do not include a cooling
down phase.
At the end of a programme
The
Anti-crease/Finish
comes on.
button.
Start
button
indicator lamp will come
and
Smoothing
indicator lamp
12
The drum will continue to rotate at
intervals to prevent laundry creasing, if
you do not wish to remove it immediate
ly. The anti-crease phase lasts for an
hour. There is no anti-crease phase on
the
Woollens handcare
During the anti-crease phase . . .
. . . (depending on the programme
selected) the indicator lamp for the
drying stage reached will also light up.
. . . the buzzer will sound at intervals.
programme.
-
How to dry correctly
F Remove the laundry
Door
Press the
^
Open the door.
^
Remove the laundry.
^
Make sure that the drum is empty. If
items are left in the dryer, they could
be damaged by overdrying when
the dryer is next used.
Switch the dryer off by pressing the
^
l-On/0-Off
Clean the fluff filter in the door.
^
^ Close the door.
button.
button.
Changing the programme
sequence
Changing a programme while it is
running
As long as the cooling down phase or
the anti-crease phase has not been
reached, it is possible to change a
programme after it has started by
turning the programme selector to a
different programme position.
Other programmes:
Start
Door
Start
button.
button.
button.
Press the
^
To cancel a programme
Turn the programme selector to
^
Finish
or open the door .
Adding or removing laundry after a
programme has started
Press the
^
Open the door.
^
Do not touch the back of the
,
drum when adding or removing
items. The drum could be very hot danger of burning.
^ Add or remove items.
^ Close the door.
^ Press the
To interrupt a programme
^
Switch the machine off with the
I-On/0-Off
To continue drying:
^
Switch the dryer on with the
I-On/0-Off
The programme will continue (only with
the
Cottons, Minimum iron and Auto
matic
programmes).
button.
button.
-
13
Programme chart
Cottons Max. load: 6 kg*
Normal+, Normal**, Low temperature
Fabric
type
Note
Hand iron**, Machine iron
Fabric
type
Note To prevent laundry from drying out it should be rolled up until you are
Minimum iron Max. load: 3 kg*
Normal**, Low temperature, Hand iron
Fabric
type
Notes – Select
* Weight of dry laundry
** Note for test institutes:
Programme setting for testing in accordance with EN 61121
Single and multi-layered cottons fabrics such as towelling, jerseywear,
underwear, flannelette bed linen.
Select
–
dried at a lower temperature.
Cottons and linen fabrics, e.g. table linen, bedlinen, starched laundry.
ready for ironing.
Minimum iron items made of cotton, synthetic or blended fabrics, e.g.
shirts, blouses, skirts and table cloths.
garments). Laundry is dried at a lower temperature.
– Select
more, reduce the load to 1.5 kg*.
– In the Miniumum iron
very little creasing, depending on fabric type and amount of load.
Low temperature
Low temperature
Hand iron
for delicate fabrics and to reduce creasing even
Hand iron
for fabrics with the r symbol. Laundry is
for fabrics with the r symbol (e.g. acrylic
programme, items are dried with
14
Programme chart
Automatic Max. load: 3 kg*
Fabric
type
Timed drying Max. load: 6 kg*
Warm air
Fabric
type
Cool air
Fabric
type
Woollens handcare Max. load: 2 kg*
Fabric
type
Notes – To refresh and fluff up woollen garments quickly. Woollen fabrics
Smoothing Max. load: 3 kg*
Fabric
type
Notes
* Weight of dry laundry
Mixed load of cotton and minimum iron fabrics.
Multi-layered fabrics whose layers have different drying
–
characteristics, e.g. jackets, pillows.
For drying individual items, e.g. bath towels, bathing costumes,
–
tea-towels.
Any item which only needs airing.
Woollen fabrics
are not dried completely by this programme.
– Remove garments as soon as the programme has finished and
leave to finish drying at room temperature.
– Cottons and linen fabrics.
– Minimum iron items made of mixed fibres, cottons or synthetics e.g.
trousers, jackets, shirts.
–
Smooths out creasing caused during the spin cycle in the washing
machine.
–
Fabrics are not completely dried in this programme. Remove
garments as soon as the programme has finished and leave to
finish drying at room temperature.
15
Cleaning and care
Cleaning the fluff filter
The fluff which is created by the
drying process is collected in the fluff
filter in the door. Clean the filter after
every drying cycle.
^ Open the door and pull the fluff
filter (1) out of the door as illustrated.
Remove any fluff from the hollow part
^
of the door holder.
A cleaning brush is available as an
optional extra from your Miele dealer
or the Miele Spare Parts Department.
You can also use a vacuum cleaner.
Also clean the door seal (2) with a
^
damp cloth.
If there is a great deal of compacted
fluff on the filter, it can be cleaned
under running water.
^ After cleaning shake thoroughly until
no more water droplets are visible.
^ Dry the filter carefully.
^ Once clean, push the filter back into
the door holder until it clicks into
position. Ensure it is facing the
correct way. Close the door.
^
Use your fingers to remove the fluff
from the surface of the filter.
16
Tumble dryer
Disconnect the machine from the
power supply.
Clean the housing and control panel
^
with a mild cleaning agent or soapy
water.
Clean the drum and other stainless
steel parts with a suitable proprietary
stainless steel cleaner following the
manufacturer’s instructions.
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic surfaces and other
parts. The machine must never be
hosed down.
^ Dry all parts with a soft cloth.
Cleaning and care
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals.
17
Problem solving guide
With the help of the following notes minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting the Service Department.
Repair work to electrical appliances should only be carried out by a
,
suitably qualified person in strict accordance with local and national safety
regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.
General problems
Problem Possible cause Remedy
The tumble dryer fails to
start when switched on.
Items made of synthetic
fibres are charged with
static electricity after
drying.
No obvious cause.
Synthetic fibres tend to
attract static charge.
Have you followed the
–
switch-on procedure
correctly (see “How to
dry correctly”)?
– Is the plug correctly
inserted in the socket
and switched on?
– Is the door closed
properly?
– Has the fuse or circuit
breaker tripped?
Static charge can be
reduced by adding a
fabric conditioner to the
final rinse in the washing
machine or a fabric
conditioner sheet to the
load in the dryer.
18
Problem solving guide
Problem Possible cause Remedy
There is a build
up of fluff.
The laundry is
not sufficiently
dry.
The interior drum
lighting does not
come on.
Fluff is principally the result of
friction when garments are
being worn and washed.
Machine drying hardly
causes any fluff to form and
has been established by
research institutes to have no
appreciable effect on the
lifetime of the garment.
The load consisted of
different fabrics.
The lighting switches off
automatically (to save
energy).
The lamp needs changing. Change the lamp as
Fluff is collected by the fluff
filter and can be easily
removed (see "Cleaning and
Care").
Finish drying using "Timed
–
drying - Warm air".
Select a more suitable
–
drying programme next
time (see "Programme
chart").
Switch the dryer off and then
on again.
described at the end of this
section.
19
Problem solving guide
Problem Possible cause Remedy
The drying
process goes on
too long or even
switches off.
Important: Before attempting to remedy one of the following
causes, switch the dryer off and switch on again to start the
programme again.
Ventilation to the dryer is
insufficient (e.g. because it
is installed in a room which
is too small).
The fluff filter may be
blocked.
The vent ducting or the
ventilation outlet is blocked.
The laundry has not been
spun sufficiently.
The tumble dryer has been
overloaded.
Metallic components, e.g.
zips have prevented the
dryer from registering the
correct moisture level in the
laundry.
Open a door or window while
the machine is in operation for
increased air flow.
Remove any fluff.
Check all parts of the
–
extraction system on a
regular basis (e.g. wall vent,
external grille, bends in the
ducting etc.) and make sure
they are all free of any
hindrance.
– Remove any fluff.
Make sure that your laundry is
thoroughly spun at the
appropriate spin speed.
Do not exceed the maximum
load for the programme
selected.
–
Close zips and fasten any
hooks next time.
If the problem occurs again,
dry garments with long zips
using "Timed drying - Warm
air".
20
Problem solving guide
Check and fault indicator lamps
Problem Possible cause Remedy
The programme has
stopped. The
Anti-crease/Finish
lamp has come on in
the sequence display
and the buzzer is
sounding.
The programme has
been interrupted. The
indicator lamp for
Hand iron or Machine
iron is flashing, and
the buzzer sounds.
This is not a fault.
The electronic unit has
recognised that there is no
laundry in the drum and
cancelled the programme.
Drying individual garments
or items which are already
dry can also cause the
programme to be stopped.
No obvious cause.
Use the "Timed drying Warm air" programme to
dry individual items.
Before changing a
programme: Open and
close the drum door.
Switch the dryer off and
–
then on again.
– Then start the
programme again.
If the programme stops
again and the fault
message reappears there
is a fault. Contact the
Miele Service
Department.
21
Problem solving guide
Changing the lamp
Disconnect the machine from the
mains electricity supply.
The lamp specification and
maximum wattage is stated on the
data plate and on the lamp cover.
Open the door.
^
You will find the interior lamp cover at
the top of the drum aperture.

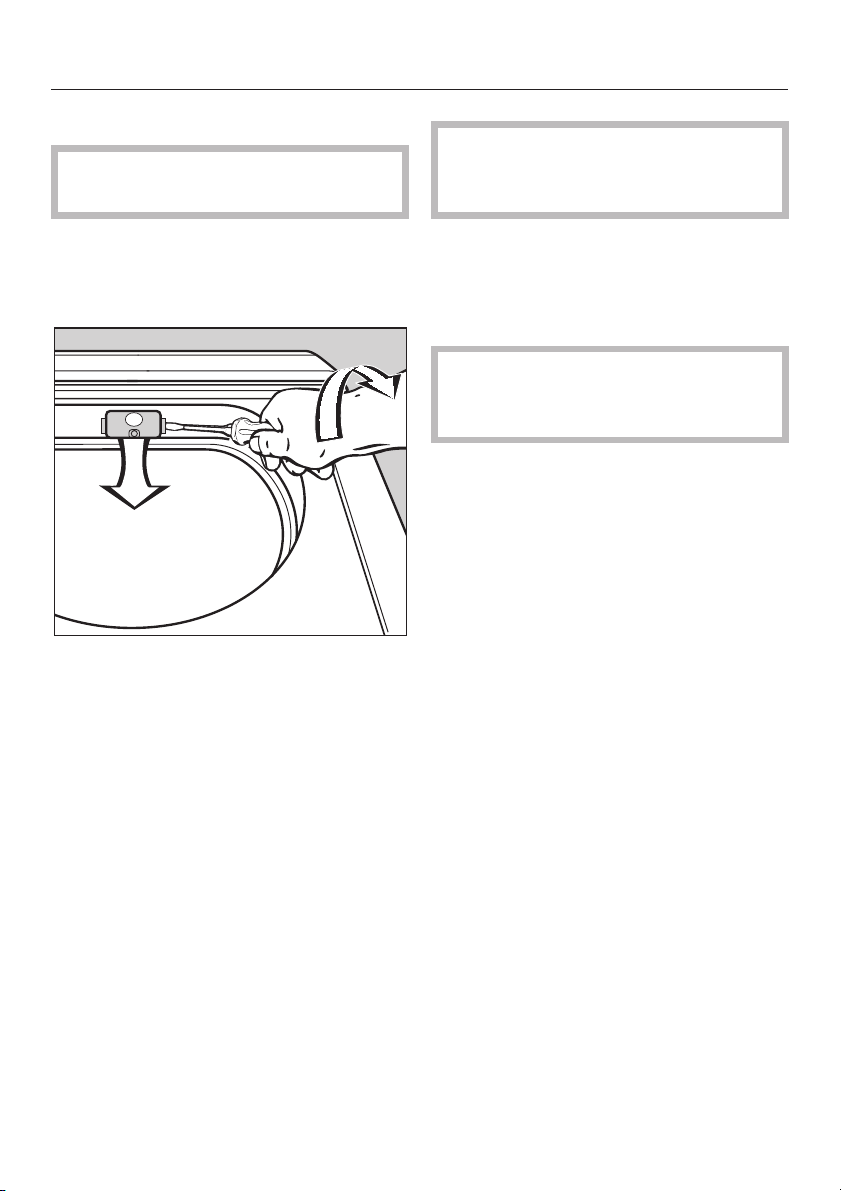

^ Insert a suitable tool, such as a wide
bladed screwdriver, under the side
edge of the lamp cover as illustrated.
^
Apply a little pressure and whilst
doing so turn your wrist in the
direction of the arrow to open the
cover.
Replace the lamp.
^
To close the cover push it upwards
^
and press it on the left and right until
you hear it click into position.
Ensure that it is fitted into
,
position securely, as any moisture
could cause a short circuit.
The cover will open downwards.
The temperature resistant lamp should
only be ordered from your Miele dealer
or the Miele Spare Parts Department.
22
After sales service
Repairs
In the event of any faults which you
cannot remedy yourself, or if the
machine is under guarantee, please
contact
your Miele dealer, or
–
the Miele Service Department
–
(see back cover for contact details).
When contacting your Dealer or the
Service Department, please quote the
model and serial number of your
machine, both of which are shown on
the data plate situated on the right
hand side below the drum aperture.
Appliance guarantee
Please see the guarantee card
supplied with your machine.
Optional accessories
Optional accessories for this dryer is
available from your Miele Dealer or from
the Miele Spare Parts Department.
Please note that telephone calls may
be monitored and recorded to
improve our service.
23
Installation and connection
Front view
a Venting connection: rear, right or left
(supplied with the rear socket open)
b Mains connection cable
c Control panel
d Door
e Four height adjustable screw feet
24
Installation and connection
Installation site
Make sure the dryer door can be
,
opened without hindrance after
installation.
Transporting the machine to its
installation site
When moving the machine you can
hold it by the lid where it protrudes to
the rear of the dryer. To manoeuvre the
dryer out of its packing case to its
installation site you will also need to
hold it by the front feet.
Building under a continous worktop /
in a kitchen run
The space required by the vent duct
must be taken into consideration when
calculating the distance between the
machine and a wall or other appliances
or furniture on either side.
,
A building under kit* is required
which must be fitted by a suitably
qualified person.
The machine lid is replaced by a
coverplate.
It must be fitted by suitably qualified
person to ensure electrical safety.
With niche heights of:
840 mm, longer screw feet* are
–
required.
870/885 mm - 915/930 mm, one or
–
two height adjustment frames* are
required.
* Available as an optional accessory
from your Miele dealer or the Miele
Spare Parts Department.
If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the building
under kit is not necessary. Otherwise
the building under kit is essential.
Replacing the lid
If the lid has been removed in order to
fit a coverplate, ensure that, if the lid is
ever replaced, it fits securely into the
rear holders. Otherwise, it is not
properly secure for transport.
The building-under kit is supplied with
its own installation instructions.
N.B. When built under drying times may
be longer.
–
The electrical socket must be
located in an accessible position
near the machine.
25
Installation and connection
Levelling the machine
The machine must be perfectly level to
ensure safe and proper operation.
A ventilation gap of 10 mm must
,
be maintained between the base of
the machine and the floor. It must
not be blocked by deep pile
carpets, plinths, etc as this would
prevent a sufficient intake of air.
Washer-dryer stack
The tumble dryer can also be
combined with a Miele washing
machine in a washer-dryer stack. To do
this the appropriate stacking kit* (WTV)
to match your washing machine is
required.
* Available as an optional accessory
from your Miele dealer or the Miele
Spare Parts Department.
,Stacking kits must only be
installed by a suitably qualified fitter.
^
The screw feet can be adjusted to
compensate for any unevenness in
the floor.
26
Electrical connection
Electrical connection U.K.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. Please ensure the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
27
Installation - venting
General
Important
Before operating the tumble dryer, a
suitable ducting system must be
installed to carry the moist air from
the dryer to the outside. This can be:
. . . flexible ducting hose, or plastic
piping connected to the dryer, or
. . . the dryer may be connected
directly to the wall vent.
Before installing the ducting system,
–
ensure that the machine is not
connected to the power supply.
– The ducting outlet (e.g. wall pipe)
should be installed in such a way
that the moist expelled air . . .
. . . cannot be drawn back into the
room in which the dryer is installed;
. . . cannot cause any damage to the
building or other nuisance.
– The dryer uses the room air. It is
therefore essential to ensure
adequate ventilation to avoid the
danger of asphyxia caused by gases
given off by other appliances being
drawn back into the room.
Insufficient ventilation will also cause
drying times to be considerably
longer.
Ventilation can be maintained by:
- an open window;
- an air inlet which cannot be
blocked in windows, doors and
outside wall vents;
- a window switch which prevents
the dryer being used when the
window is closed.
Avoid:
very long ducting systems
–
too many bends or corners, tight
–
corners
Otherwise the drying result will be less
effective and it will take longer and use
more energy.
Suitable materials
for the ventilation ducting:
–
flexible ducting* or plastic piping
with a diameter of at least 100 mm.
– for venting to the outside:
a wall pipe kit* or a window vent kit*.
* Available as an optional accessory
from your Miele dealer or the Miele
Spare Parts Department.
Procedure
^ First measure the duct length
required. Calculate the effective duct
length and establish the internal duct
diameter required (use the tables on
the next page).
^
Then decide which type of ducting
you want to use (see "Venting
systems" in this section).
28
Installation - venting
Calculating the effective duct
length:
Friction against the inner walls of the
ducting will slow down the expelled air
as it passes through. An elbow, bend,
non-return flap or wall vent creates
more friction than a straight duct. The
friction created by each of these is
expressed as an additional duct
length factor. The additional length
factors are calculated by comparing
the friction created by, for example, an
elbow to that created by 1 metre of
straight plastic piping (Table I).
The additional duct length factor for
each item needs to be added together
to ascertain the effective duct length
required.
A larger internal duct diameter also
helps reduce friction. If the effective
duct length is more than 20 m the
duct diameter should be increased
(Table II).
1. To calculate the effective duct
length required:
^
First measure the distance which will
require straight ducting
amount by the corresponding
additional duct length factor in Tabl e I.
^
Establish the number of angles,
bends etc. necessary and add their
additional duct length factors
together with the help of Table I.
. Multiply this
2. Internal duct diameter
Refer to Table II for the appropriate
^
duct diameter required.
Table I
Additional
duct length
factor
Flexible ducting*
1 m laid straight
–
45° angle
–
(Bend radius = 0.25 m)
90° angle
–
(Bend radius = 0.25 m)
Flexible aluminium ducting* / plastic
piping
1 m laid straight / or 1 m straight
–
pipe
45° angle / elbow
–
(Bend radius = 0.25 m)
90° angle / elbow
–
(Bend radius = 0.25 m)
Wall vent kit* or window vent kit*
–
with louvred grille
–
with non-return flap (hinged flap)
Non-return flap* to be integrated into
the vent ducting
Flat ducting (for washer dryer
stack)*
Venting connection to the left/right 1.0 m
* optional accessory from Miele
1.8 m
1.5 m
2.5 m
1.0 m
0.6 m
0.8 m
3.8 m
1.5 m
14.3 m
11.0 m
Table II
Maximum effective
duct length allowable
10 m with
20 m without
40 m without
100 m without
Ring adapter
Ring adapter
Ring adapter
Ring adapter
Internal duct
diameter
required
100 mm
100 mm
125 mm
150 mm
^
Add all the additional duct length
factors together to get the effective
duct length.
29
Installation - venting
3. Example
A Wall pipe, with louvred vent
= 1 x 3.8 m Additional duct
length
B/D 2 Elbows, 90°
= 2 x 0.8 m Additional duct
length
C 0.5 m plastic piping
= 0.5 x 1 m Additional duct
length
E Side connection, left
= 1 m Additional duct length = 1.0 m
Effective duct length = 6.9 m
= 3.8 m
= 1.6 m
= 0.5 m
Result: A duct diameter of 100 mm is
adequate as the effective duct length is
less than the 20 m specified in Table II.
Installation to the left or right
side of the machine
At the rear
The connection is opened at the
factory.
Fit one of the venting systems
^
described on the following pages.
Left or right side of the machine
^
Remove the left or right hand side
cover cap. Do not remove the frame.
Refit it in the rear outlet.
^
Ensure it is securely in position so
that it cannot fall out when the dryer
is in operation.
30
^
Fit one of the venting systems
described on the following pages.
Installation - venting
Venting systems overview
The various venting systems which are
possible (a b c) are described on
the following pages.
Adapter
A ring adapter** (1) is installed in
adapter (2) for the installation of a
flexible vent duct. It reduces time and
energy requirements during drying
when used in combination with a short
vent duct (maximum 10 m total
length). The ring adapter is removable
and designed for use with all venting
systems.
** Note for test institutes: EN 61121 Standard
testing is carried out with the ring adapter.
a Venting system with flexible
ducting
This is a simple, cost effective
method of directing the moist air
outside. The adapter is fitted into the
vent opening on the dryer and the
ducting hose is then connected to
the adapter.
The following items are required:
^
... flexible ducting hose
... a wall vent kit* or window vent kit*.
* (Miele optional accessory).
^
Ring adapter (1) must be taken out of
adapter (2), if the total duct length is
longer than 10 m.
If the total duct length is less than 10
m the ring adapter should be left in
the adapter.
^
Fit adapter (2) into the vent opening
on the dryer, and connect vent hose
(3).
^
See next page for examples.
31
Installation - venting
Installation examples
Window vent
1. Window vent kit (fitted in a
"plexiglass" pane)
(separate fitting instructions are
supplied with the Miele window vent
kit)
Connection to an exhaust flue
1. Pipe with connection piece
(= supplied with the Miele wall vent
kit)
2. Adapter for flexible hose
3. Exhaust flue insulated against damp
2. Adapter for flexible hose
32
,
The ducting must not be vented
into a chimney or vent flue which is
in use, nor should it be connected to
ducting which ventilates rooms with
fireplaces.
Installation - venting
b Venting system with
plastic piping
Plastic piping is a good option where
the vented air has to ducted for some
distance. The smooth walls of the
pipe are less resistant to the vented
air than the walls of a flexible vent
hose, for example. Time and energy
consumption are better with plastic
piping.
The following items are required: . .
^
. . . an adapter* (dia. 100 mm)* with
rib on the inside.
. . . a wall vent kit* or window vent
kit*.
* (Miele optional accessory)
. . . Suitable plastic piping is
available from your dealer or builder’s
merchant. If a pipe diameter greater
than 100 mm is required, additional
adapters are necessary (e.g. to
increase from C 100 to 125 mm) to
connect the pipe to the dryer.
If the total duct length is greater than
10 m the ring adapter is not required.
B Fit Miele adapter (2) into the vent
opening on the dryer.
C Attach the pipe (3).
Example
1. Wall vent kit
(Separate fitting instructions are
supplied with the Miele wall vent kit).
2. Adapter
3. Plastic piping, diameter DN 100
A The ring adapter (1) only needs to be
fitted into the Miele adapter (2), if the
total duct length is less than 10 m.
33
Installation - venting
c Connecting directly to a wall
vent
The best method of venting the dryer
is to connect it directly to the outside
wall of a room. However, it is
necessary to insert the wall vent right
through the wall.
Because the vented air is blown
directly outside, and has only a short
distance to go, this system is very
efficient in terms of time and energy
consumption.
A wall pipe and a flexible foam
^
gasket must be used (both Miele
optional accessories).
A Before drilling into the wall . . .
. . . please read the installation
instructions supplied with the Miele
wall pipe.
. . . and study the following
diagrams.
View from above:
Side view:
1. Wall pipe
2. Flexible foam gasket
1. Wall pipe
2. Flexible foam gasket
34
B Insert the ring adapter (1) into the
wall pipe.
C Fit the foam gasket (3) on to the
connecting piece (2) on the wall pipe
and push the dryer up against the
wall.
Installation - venting
Washer dryer stack
Height of venting outlet for washer
dryer stack
Miele washing machine with straight or
sloping fascia
Stacking kit* without pull-out shelf:
A = 94.2 cm
B = 170.0 cm
Stacking kit* with pull-out shelf:
A = 92.8 cm
Miele washing machine with Comfort
line angled fascia
Stacking kit* without pull-out shelf:
C = 94.2 cm
D = 170.0 cm
Stacking kit* with pull-out shelf:
C = 96.0 cm
D = 171.8 cm
* Miele optional accessories
B = 168.6 cm
* Miele optional accessories
35
Consumption data
Programme Load Final spin speed
in a domestic washing machine
kg* rpm kWh Minutes
Cottons Normal 6.0 800 (70 % residual moisture)**
1200
1400
1600
1800
Cottons Hand iron 6.0 800 (70 % residual moisture)**
1200
1400
1600
1800
Minimum iron Normal 3.0 1000 (50 % residual moisture)** 1.35 38
Minimum iron Hand iron 3.0 1000 1.20 33
Automatic 3.0 900 1.75 49
Woollens handcare 2.0 - 0.15 3
Smoothing 3.0 - 0.30 8
* Weight of dry laundry
** EN 61121 Standard testing is carried out with the ring adapter.
All data established in accordance with EN 61121.
Before testing in accordance with EN 61121, dry a 3 kg load of cotton laundry with 70% residual
moisture as per the above standard using the Cottons Normal programme.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity
supply and any additional options selected.
Energy Time
3.90
3.05
2.90
2.80
2.55
3.00
2.20
2.05
1.95
1.70
107
85
81
78
71
82
61
57
55
48
36
Technical data
Height 850 mm (adjustable +7 / -7 mm)
Height for building under 820 mm
Width 595 mm
Depth 580 mm
Depth with door open 1,060 mm
Weight 48 kg
Drum volume 100 litres
Maximum capacity 6 kg dry weight
Length of connection cable 2 m
Voltage see data plate
Connected load see data plate
Fuse rating (UK) see plug
Lamp wattage see data plate
Energy consumption see "Consumption data" section
Test certificates awarded Radio / TV suppression, VDE
37
38
Programmable functions
for changing default settings
The programmable functions are
used to alter the machine's
electronics to suit changing
requirements.
Programmable functions can be
altered at any time.
39
Programmable functions
Altering the residual moisture
level in the Cottons
programmes
The machine is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier, it is possible to reduce the
default residual moisture level in the
Cottons programmes.
Please note that programme
durations will be longer if this option
is activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The tumble dryer is switched off.
– The door is closed.
– The programme selector is at
Finish
A Press the
pressed in whilst carrying out steps
B-C.
B Switch the dryer on with the
I-On/0-Off
C Wait until the
comes on . . .
D . . . and then release the
E Turn the programme selector to the
Cottons Normal
F Pressing the
between activating and deactivating
the drier setting.
– If the
flashing: the drier setting is
activated
– If the
flashing, the drier setting is not
activated and the residual moisture
level is on the standard default
.
setting.
Start
button.
Drying
Drying
button and keep it
Start
indicator lamp
Start
position.
Start
button switches
indicator lamp is
indicator lamp is not
button.
40
G Switch the machine off with the
I-On/0-Off
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check:
^
Make sure the dryer is switched off,
the door is closed and the
programme selector is at Finish and
then carry out steps A to E.
The
Drying
if the drier setting has been selected.
^
Switch off the dryer.
The check is complete.
button.
indicator lamp will show you
Programmable functions
Altering the residual moisture
level in the Minimum iron
programmes
The machine is designed to dry
effectively using as little energy as
possible.
However, if you require the laundry to
be drier, it is possible to reduce the
default residual moisture level in the
Minimum iron programmes.
Please note that programme
durations will be longer if this option
is activated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The tumble dryer is switched off.
– The door is closed.
– The programme selector is at
Finish
A Press the
pressed in whilst carrying out steps
B-C.
B Switch the dryer on with the
I-On/0-Off
C Wait until the
comes on . . .
D . . . and then release the
E Turn the programme selector to the
Start
button and keep it
button.
Start
indicator lamp
Start
Cottons Low temperature
F Pressing the
between activating and deactivating
the drier setting.
– If the
– If the
.
Drying
flashing, the drier setting is
activated
Drying
flashing, the drier setting is not
activated and the residual moisture
level is on the standard default
setting.
Start
button switches
indicator lamp is
indicator lamp is not
button.
position.
G Switch the machine off with the
I-On/0-Off
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check:
^
Make sure the dryer is switched off,
the door is closed and the
programme selector is at Finish and
then carry out steps A to E.
The
Drying
if the drier setting has been selected.
^
Switch off the dryer.
The check is complete.
button.
indicator lamp will show you
41
Programmable functions
Activating and deactivating the
buzzer
A buzzer sounds (at intervals for a
maximum of 1 hr) to let you know the
programme has finished.
The machine is delivered with the
buzzer activated but you can
deactivate it if wished.
The buzzer will still sound if there is a
fault, even if it has been deactivated.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The tumble dryer is switched off.
– The door is closed.
– The programme selector is at
Finish
A Press the
pressed in whilst carrying out steps
B-C.
B Switch the dryer on with the
I-On/0-Off
C Wait until the
comes on . . .
D . . . and then release the
E Turn the programme selector to the
Cottons Hand iron
F Pressing the
between activating and deactivating
the buzzer.
– If the
flashing:
the buzzer is deactivated
– If the
flashing:
.
the buzzer is activated
G Switch the machine off with the
I-On/0-Off
Start
button.
Drying
Drying
button.
button and keep it
Start
indicator lamp
Start
position.
Start
button switches
indicator lamp is not
indicator lamp is
button.
42
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check:
^
Make sure the dryer is switched off,
the door is closed and the
programme selector is at Finish and
then carry out steps A to E.
The
Drying
if the buzzer is activated.
^
Switch off the dryer.
The check is complete.
indicator lamp will show you
Programmable functions
Extending the cooling down
time
The cooling down phase which takes
place before the end of a programme
can be lengthened if required. This
makes the garments easier to
handle.
The dryer is delivered with the
extended cooling down time option
deactivated. You can extend the
cooling down time by 5 minutes or 10
minutes.
The option of extending the cooling
down time is available with the
Minimum iron and Automatic
programmes.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The tumble dryer is switched off.
–
The door is closed.
–
The programme selector is at
A Press the
pressed in whilst carrying out steps
B-C.
B Switch the dryer on with the
I-On/0-Off
Start
button and keep it
button.
Cottons,
Finish
If the
–
–
–
G Switch the machine off with the
Drying
once:
The cooling down time will be five
miinutes longer.
If the
Drying
twice:
The cooling down time will be ten
minutes longer.
If the
Drying
flashing:
The cooling down time is not
extended.
I-On/0-Off
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check:
^ Make sure the dryer is switched off,
the door is closed and the
programme selector is at Finish and
then carry out steps A to E.
The
Drying
.
if the cooling down time has been
extended.
^
Switch off the dryer.
The check is complete.
indicator lamp flashes
indicator lamp flashes
indicator lamp is not
button.
indicator lamp will show you
C Wait until the
comes on . . .
D . . . and then release the
E Turn the programme selector to the
Cottons Machine iron
F Pressing the
cooling down time.
Start
indicator lamp
position.
Start
button alters the
Start
button.
43
Programmable functions
Changing the standard drying
level in the Minimum iron Normal programme
The drying level for this programme
is set at a standard level.
You have the option of changing this
to an increased drying level.
The machine is delivered with the
drying level set at
You can change this to
than the standard drying level).
Important: the "Normal+" drying level
will work in addition to the "Altering the
residual moisture level in the
iron programmes
function, if you have already set this.
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
–
The tumble dryer is switched off.
–
The door is closed.
–
The programme selector is at
A Press the
pressed in whilst carrying out steps
B-C.
Normal
Normal+
" programmable
Start
button and keep it
(drier
Minimum
Finish
Start
F Pressing the
drying level.
Drying
If the
–
flashing:
the standard drying level is
Normal+
If the
–
G Switch the machine off with the
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check:
^ Make sure the dryer is switched off,
The
if the Normal+ drying level has been
set.
.
^
The check is complete.
Drying
flashing, the increased drying level
is not activated and the drying level
will remain on the standard setting
(
I-On/0-Off
the door is closed and the
programme selector is at Finish and
then carry out steps A to E.
Switch off the dryer.
Drying
).
button.
indicator lamp will show you
button alters the
indicator lamp is
indicator lamp is not
B Switch the dryer on with the
I-On/0-Off
C Wait until the
comes on . . .
D . . . and then release the
E Turn the programme selector to
Minimum iron - Normal
44
button.
Start
indicator lamp
Start
.
button.
Programmable functions
Changing the standard drying
level in the Automatic
programme
The drying level for this programme
is set at a standard level.
You have the option of changing this
to an increased drying level.
The machine is delivered with the
drying level set at
You can change this to
(damper) or
standard drying level).
Follow steps A to G to programme
and store in memory.
Before you begin, first ensure that:
– The tumble dryer is switched off.
– The door is closed.
– The programme selector is at
A Press the
pressed in whilst carrying out steps
B-C.
B Switch the dryer on with the
I-On/0-Off
C Wait until the
comes on . . .
D . . . and then release the
Normal
Hand iron
Normal+
Start
button.
(drier than the
button and keep it
Start
indicator lamp
Start
Finish
button.
Start
F Pressing the
drying level.
Drying
If the
–
twice:
the standard drying level is
Normal+
If the
–
–
G Switch the machine off with the
The setting you have selected is now
stored in memory. You can change it
again at any time.
To check:
.
^ Make sure the dryer is switched off,
The
if the drying level has been changed.
^
The check is complete.
Drying
flashing:
the standard drying level is Hand
iron
If the
Drying
once, the drying level has not been
changed and will remain on the stan
dard setting (
I-On/0-Off
the door is closed and the
programme selector is at Finish and
then carry out steps A to E.
Drying
Switch off the dryer.
button.
indicator lamp will show you
button alters the
indicator lamp flashes
indicator lamp is not
indicator lamp flashes
).
-
E Turn the programme selector to the
Automatic
position.
454647
Alteration rights reserved/1306
M.-Nr. 06 619 190 / 01
en-GB
Loading...
