Miele T 230 C User Manual
Operating instructions
for condenser tumble dryer
T 230 C
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed or used for the first time.
G
M.-Nr. 05 993 020
Contents
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
A Prepare the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
B Load the drum and switch on the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C Select a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
D Start the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Selecting a different programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Interrupting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Adding or removing items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To cancel a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
E At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Emptying the condensed
water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Removing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Checking the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cleaning the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Replacing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2
Contents
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Check and fault indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To change the interior drum lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
PC indicator lamp (interface for service technicians). . . . . . . . . . . . . . . . . . . . 29
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 31
Building under a continous worktop / in a row of kitchen units . . . . . . . . . . . . 31
Replacing the lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Washer - dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Before moving the machine again (e.g. when moving house) . . . . . . . . . . . . . 32
External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Setting up the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Connection to a sink drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
If you no longer wish to use an external condensed water outlet . . . . . . . . . . 34
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Increased drying level in the COTTONS programmes . . . . . . . . . . . . . . . . . . . . . 39
Increased drying level in the MINIMUM IRON programmes. . . . . . . . . . . . . . . . . 40
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3
Warning and Safety instructions
Technical safety
To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner of the
machine.
damage.
Do not install or use a damaged
machine.
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
Before setting up the machine,
check it for any externally visible
Before connecting the machine,
ensure that the connection data on
Correct use
The tumble dryer is only intended
for drying fabrics which have been
washed in a water solution, marked on
the manufacturer's care label as being
suitable for tumble drying.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
4
Warning and Safety instructions
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
5
Warning and Safety instructions
In the event of a fault or for
cleaning purposes, the machine is
only completely isolated from the
electiricty supply when:
it is switched off at the wall socket
–
and the plug is withdrawn, or
it is switched off at the mains, or
–
the mains fuse is withdrawn.
–
Operation
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
The dryer must not be used without
the fluff filters in place or if the fluff
filters are damaged in any way.
The fluff filters must be thoroughly
dried after cleaning. If they are still
damp or wet when replaced there is a
risk of faults occurring when the
machine is used.
If the water is drained externally
through the drain hose instead of
being collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
and the water causing damage.
Condensed water is not drinking
water. It can cause health
problems in both people and animals.
Always keep the area around the
machine free of dust and fluff. Dust
drawn into the machine can, over time,
cause blockages in the condenser unit.
The dryer must not be used without
the condenser unit in place.
Do not install the machine in a
room where there is a risk of frost
occurring. At temperatures around
freezing point the machine may not be
able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.
6
Warning and Safety instructions
Do not let anyone sit or lean on the
door, as this can cause the
machine to tip up.
Always close the door after use.
This way you will avoid the danger
of:
children climbing onto or into the
–
dryer or hiding things in it.
pets or other small animals climbing
–
into it.
To prevent the risk of fire the
following textiles must not be
dried in this machine:
– fabrics which contain a large
proportion of rubber, foam rubber or
rubber like materials.
– items which contain padding or
fillings (e.g. pillows, jackets).
– items which have been treated with
inflammable cleaning agents.
– items which have been splashed with
hair lacquer, hair spray, nail varnish
remover or similar substances.
–
items which have been soiled with
oils or residues containing grease
(kitchen oils, cosmetics etc.).
–
items soiled with wax or other
chemicals (e.g. mops and floor
cloths).
Safety with children
Keep children away from the
machine at all times and supervise
them whilst you are using it. This
machine is not a toy. To avoid the risk of
injury, do not allow children to play on
or near it or to play with its controls.
Supervise its use by the elderly or
infirm.
Using accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If non-Miele parts are used with this
machine, guarantee, performance and
product liability claims may be
invalidated.
Disposal of your old machine
Before discarding an old machine,
switch it off at the wall socket and
unplug it. Render the plug useless and
cut off the cable directly behind the
machine. This should be done by a
competent person.
The manufacturer cannot be held
liable for damage caused by noncompliance with these Warning and
Safety instructions.
–
items which have not been
thoroughly cleaned and which are
still soiled with grease or oil, e.g.
workwear. Such clothing may require
a heavy duty detergent to get them
clean. If necessary consult the
detergent manufacturer for advice.
7
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
appliance with your household waste.
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
Make sure that your laundry is
–
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
– Load according to the optimum
amount of laundry recommended for
the programme being used (see
Programme chart).
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
–
Make sure the room in which the
dryer is located is well ventilated.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
8
–
Make sure the fluff filters are clean
before using the dryer.
–
Check the condenser unit from time
to time and clean it when necessary.
Control panel

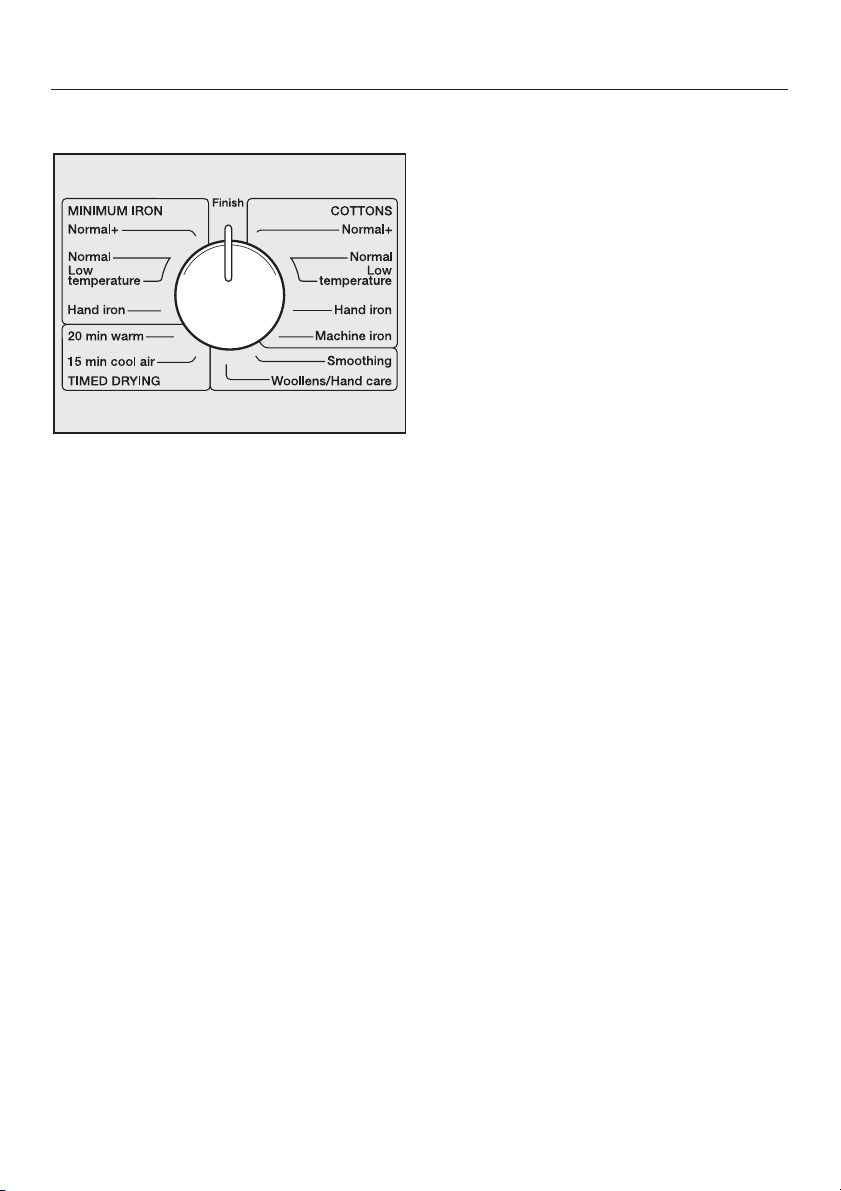

a Programme selector
The programme selector can be
turned clockwise or anti-clockwise.
b Programme sequence and check
lamps
c Start button
Press the
programme.
The
soon as a programme can be
started. It lights up constantly once
the programme has started.
d I-On/0-Off button
To switch the machine on or off / to
interrupt a programme.
The Anti-crease/Finish lamp will light
up as confirmation that the machine
has been switched on.
Start
button to start a
Start
indicator lamp will flash as
e Door Button
To open the door / to cancel a
programme.
Pressing this button will open the
door even when the machine is
switched off at the mains.
If the machine is switched on at the
mains and the door is opened the
drum lighting will come on. It will go
out a few minutes later to save
energy.
PC indicator light
The indicator light marked PC is used
by Miele Service technicians as an
optical interface.
9
Notes on laundry care
Wash care labels
Before drying check the drying
symbol on the wash care label.
Significance of symbols:
q Dry at normal temperature
r Dry at low temperature
sDo not tumble dry
If no symbol is featured, dry at your
own risk applying the following
principles:
Cotton and minimum iron
be dried using the appropriate
programme for the degree of drying
required. See programme chart.
For delicates and fabrics with the
following wash care label r dry using
the
Low temperature
Never overload the drum. Do not
exceed the maximum recommended
loads given in the "Programme
chart". Overloading can cause
unnecessary wear and tear to the
laundry, give a disappointing drying
result and cause more creasing.
Do not put soaking wet items into
the tumble dryer. Spin them
thoroughly after washing using the
appropriate spin speed.
items should
option.
Items filled with down.
The fabric lining on these garments
may shrink depending on the quality.
They can be partially dried using the
Smoothing
Pure linen
dried if specified as suitable by the
manufacturer on the wash care label,
as the surface of the fabric may
otherwise "roughen". These items can
be partially dried using the
programme.
Woven and loopknit materials
T-shirts, knitted garments) have a
tendency to shrink, depending on their
quality and this is made worse by overdrying. When purchasing these
garments it is advisable to take their
shrinkage properties into account.
Minimum iron
shirts or blouses tend to crease more,
the larger the load being dried,
particulary when the weave of the
fabric is very fine. Reduce the load or
use the MINIMUM IRON programme with a max. load of 1 kg. If
this is unsatisfactory use the Special
care "Smoothing" setting, then hang the
garments on a hanger to dry.
Starched laundry
tumble dryer. In order to achieve the
usual finish, double the amount of
starch should be used.
programme.
should only be machine
Smoothing
(e.g.
fabrics and 100% cotton
Hand iron
can be dried in the
Tips on drying
Woollens and wool blends tend to
become matted and shrink if dried in a
tumble dryer. They can, however, be
partially dried using the
care
programme.
10
Woollens hand
New dark coloured garments
dried separately from light coloured
garments to avoid the danger of colours running.
should be
Programme chart
Programmes Fabric type Special notes
COTTONS
Drying levels
Normal+ Single and multi-layered
fabrics, e.g. mixed load of
cotton fabrics (e.g.
towelling, jerseywear).
Normal
(2)
Load of similar cotton
fabrics (jersey wear,
flannelette sheets,
towelling).
Low temperature For drying delicate fabrics
with the symbol r (e.g.
acrylic garments).
Hand iron
(2)
Cotton or linen fabrics (e.g.
table linen, bed linen,
starched laundry etc.).
Machine iron Cotton or linen fabrics,
including starched laundry
for machine ironing.
maximum load:
(1)
5 kg
-
If laundry is still too damp,
then:
- finish drying using Timed
drying
- use the
Warm air
Normal+
programme next time.
Laundry is dried using the
Normal
programme, but at a
lower temperature.
-
The laundry should be rolled
up to prevent it from drying
out before it can be ironed.
.
(1)
Weight of dry laundry
(2)
Note for test institutes:
Programme setting for testing according to EN 61121 standard
11
Programme chart
Programmes Fabric type Special notes
MINIMUM IRON
Drying levels
Normal+ Minimum iron items which
are made of synthetic or
blended fabrics (e.g.
pullovers, dresses, trousers)
which are not dried
adequately in the
Normal
programme.
Normal
(2)
Minimum iron shirts, table
cloths etc. made of mixed
fibres, e.g. cottons /
synthetics.
Low temperature For drying delicate fabrics
with the symbol r (e.g.
acrylic garments).
Hand iron Minimum iron shirts, table
cloths etc. made of mixed
fibres, e.g. cottons /
synthetics, which are still to
be hand ironed.
maximum load:
2.5 kg
(1)
Spin minimum iron fabrics
for at least 30 seconds in the
washing machine before
drying them.
Spin minimum iron fabrics
for at least 30 seconds in the
washing machine before
drying them.
Laundry is dried using the
Normal
programme, but at a
lower temperature.
Spin minimum iron fabrics
for at least 30 seconds in the
washing machine before
drying them.
Spin minimum iron fabrics
for at least 30 seconds in the
washing machine before
drying them.
For extra special care of
delicate fabrics and to
reduce creasing even more,
reduce the load to 1 kg. See
also "Special care
programmes".
(1)
Weight of dry laundry
(2)
Note for test institutes:
Programme setting for testing according to EN 61121 standard
12
Programme chart
Programme Fabric type Special notes
Special care programmes
Woollens
hand care
Woollen fabrics To refresh and fluff up woollen
garments quickly. Remove garments
Smoothing maximum load: 2.5 kg
maximum load: 2 kg
immediately at the end of the
programme. Do not repeat.
Woollen fabrics are not dried
completely by this programme.
(1)
(1)
Cottons and linen fabrics.
Minimum iron items made
of cotton, blended fabrics
or synthetics, e.g. cotton
trousers, shirts.
Smooths out creasing caused during
the spin cycle in the washing
machine.
Fabrics are not completely dried in
this programme.
Remove garments immediately at the
end of the programme and place on
a line or hangers to dry.
TIMED DRYING maximum load: 5 kg
Warm air Individual items
-
(e.g. bathing costumes,
bath towels, tea-towels).
Multi-layered fabric whose
layers have different drying
characteristics.
Cool air Items which are to be aired
-
only.
(1)
Weight of dry laundry
(1)
13
How to dry correctly
A Prepare the laundry
As far as possible, sort laundry for:
^
- the type of fibre or weave,
- the degree of dryness required,
- similar size of items,
- the moisture content after
spinning.
This will help towards achieving an
even drying result.
Fasten duvet covers etc. to prevent
small items from being rolled up inside
them.
Do up zips, hooks and eyes etc.
Tie fabric belts, apron strings.
Sew in or remove underwiring from
bras.
Make sure there is no detergent
dispenser ball etc. in with the
laundry, as this could melt and
damage the machine and the
laundry.
Do not overload the drum.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
See the "Programme chart" for
maximum recommended loads.
Before closing the door check that
^
the fluff filter is correctly positioned in
the door.
B Load the drum and switch
on the dryer
^
Press the door button and open the
door.
^
Load the laundry loosely into the
drum.
14
When closing the door make sure
items of laundry cannot be trapped
by the door, as this will cause
damage to the laundry.
^
Shut the door either with a gentle
swing or lean against it and push it
shut.
^
Switch the dryer on by pressing the
"l-On/0-Off" button.
Loading...
