Operating Instructions
Condenser Dryer
T 1570 C
To prevent accidents
and machine damage
read these instructions
before installation or use.
U
M.-Nr. 03 719 550
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Before loading the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1. Turn on the dryer and load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Select a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. Select the Buzzer to signal the end of the program (if desired) . . . . . . . . . . . . . 9
4. Select a lower temperature (if necessary) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. Start the program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Emptying the condensed water container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power failure - Emergency door release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal of the packing materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal of an old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Leveling the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing the decor panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fitting a toekick panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting to an external drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Make the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2
,
WARNING - To reduce the risk of
fire, electric shock, or injury when
using your appliance, follow basic
precautions, including the following:
Read all instructions before using
the appliance.
Do not dry articles that have been
previously cleaned, washed,
soaked in, or spotted with gasoline,
dry-cleaning solvents, or other
flammable or explosive substances.
They give off vapors that could ignite or
explode.
Do not allow children to play on or
in the appliance. Close supervision
is necessary when the appliance is
used near children. Always close the
door after use to prevent child hazards.
Before this appliance is removed
from service or discarded remove
the door to the drying compartment.
Do not reach into the dryer if the
drum is moving.
Do not install or store this
appliance where it will be exposed
to the weather.
Do not tamper
with the controls.
Do not use fabric softener sheets
to eliminate static in the dryer. Best
results occur when a liquid softener is
used in the washing machine.
Do not use heat to dry articles
containing foam rubber or similarly
textured rubber-like materials and items
containing, hairspray, nail polish
remover or similar substances.
Clean the lint filter before or after
each load.
Keep the area around the air intake
(toekick) and adjacent surrounding
areas free from lint, dust and dirt.
The interior of the machine and
exhaust duct should be cleaned
periodically by qualified personnel.
Do not place items exposed to oils
in your dryer. Items contaminated
with oils may contribute to a chemical
reaction that could cause the laundry to
catch fire.
IMPORTANT SAFETY INSTRUCTIONS
3
Do not repair or replace any part of
the appliance or attempt any
servicing unless specifically
recommended in these Operating
Instructions. Repairs to electrical
appliances should only be performed
by qualified personnel. Incorrectly
repaired machines may pose a
considerable risk to the user.
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or
breakdown, grounding will reduce the
risk of electric shock by providing a
path of least resistance for electric
current. This appliance is equipped
with a cord having an equipment
grounding conductor and a grounding
plug. The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
WARNING – Improper connection
of the equipment grounding
conductor can result in a risk of electric
shock. Check with a qualified
electrician or service representative or
personnel if you are in doubt as to
whether the appliance is properly
grounded.
Do not modify the plug provided
with the appliance: if it will not fit
the outlet, have a proper outlet installed
by a qualified electrician.
SAVE THESE INSTRUCTIONS
This dryer is intended for
residential use only!
IMPORTANT SAFETY INSTRUCTIONS
4
1 Supply cable with plug
2 Control panel
3 Drum door
4 Exhaust connection (right, left or rear)
5 Four height-adjustable legs
Guide to the dryer
5
Push buttons
–
Door
Opens the door or can be used to
cancel a program (does not stay
pushed in).
– ON / OFF
Turns the machine on and off or
cancels a program. When the
machine is turned on, the “On”
indicator will light up if the door is
closed. If the door is open the drum
light, located inside the machine, will
be on.
–
Buzzer
Allows the buzzer to sound as the
drum rotates during the anti-crease
cycle.
–
Low temp.
Lower drying temperatures for
delicate fabrics, e.g. acrylics, nylon.
–
Start
Starts the selected program (it does
not stay pushed in).
Indicators
–
Empty out container
The condensed water container
should be emptied.
– PROGRAM SEQUENCE
The program sequence indicator
lamps show the current status of the
drying program.
– DRYING STAGE REACHED
These indicator lamps show which
drying stage the program has
reached. For program stages
“Normal” and “Extra dry” the
indicator lamp remains at the
“Normal” position.
PROGRAM SETTING
Set the desired program by turning the
knob either clockwise or
counterclockwise.
–
COTTONS
–
PERMANENT PRESS
–
TIMED DRYING
Items can be either dried for 20
minutes (incl. a cooling-down phase)
or cool air fluffed for 15 minutes.
Guide to the dryer
6
The appliance must be correctly
installed and connected before the
first use. Please see the "Installation
instructions".
^
Check the dryer drum for any residue
that may have deposited during the
manufacturing process. If necessary
clean out with a cloth.
Before drying, check fabric care
labels for special drying instructions.
q = Dry with normal temperature
r = Dry with low temperature
(select "Low temp." option)
s = do not dry in tumble dryer
If no symbol is present:
Dry cottons and permanent press
laundry in their corresponding
programs.
Dry delicate fabrics like polyester, in
one of the "PERMANENT PRESS"
programs.
Wool, wool blends, linen and down
filled items should not be machine
dried.
Drying tips
Knitted fabrics and flannel tend to
shrink when washed and dried for the
first time. Do not over dry these fabrics.
Permanent press and delicate fabrics
tend to crease.
For better drying results reduce the
load size and select the "PERMANENT
PRESS/Hand iron" program.
To prevent discoloration, do not dry
new dark-colored fabrics with
light-colored items.
Do not overload the drum!
Overloading the dryer will result in poor
drying and wrinkling.
Close zippers and tie up fabric belts
and apron ties.
Do not dry items that may melt or ignite
in the dryer such as plastics, rubber or
sneakers.
Before loading the dryer
7
1. Turn on the dryer and load
the laundry
^
Press the "On/Off" button to turn on
the dryer.
^ Press the "Door" button to open the
door.
^ Load the laundry loosely into the
drum.
^
Close the door with a firm swing - do
not push it shut.
Do not use fabric softener sheets in
this dryer. Silicates contained in
these sheets could cause the dryer
to overheat.
To prevent fabric damage, check
that laundry will not be caught in the
closed door.
Using the dryer
8
2. Select a program
^ Turn the program selector clockwise
or counterclockwise to the desired
program.
Please refer to the "Programs" chart.
The program status will be stored for 30
minutes in the event of a power failure.
3. Select the Buzzer to signal
the end of the program
(if desired)
^
Press the "Buzzer" button.
4. Select a lower temperature
(if necessary)
^
Press the "Low temp." button to
reduce the temperature when drying
delicate fabrics.
Using the dryer
9
Program Fabric Note
COTTONS
Extra dry For drying laundry that will be
stored away, such as linens or
seasonal clothing.
The "Extra dry" program should
not be selected for jersey
materials. Items may shrink.
Normal Uniform loads of cotton e.g.
sheets, underwear, socks.
–
Normal- Knitted cotton fabrics that may
shrink, e.g. jersey material or
lightweight cottons.
If items are still damp, redry
using "Normal+".
Hand iron r Cotton or linen fabrics to be
left damp for easier ironing.
–
Hand iron rr If fabrics are too damp for
ironing, redry using "Hand iron
r".
Machine iron Cotton or linen fabrics, which
will be ironed with a rotary iron.
To prevent moisture loss, roll up
the laundry until ironing.
PERMANENT PRESS
Normal+ Permanent press items.
Normal Permanent press and blended
fabrics made of blended
woven or knitted fabrics, e.g.
cotton/synthetic.
Hand iron Permanent press and blended
fabrics, requiring an ironed
finish.
Reduce load size for fabrics that
wrinkle easily.
TIMED DRYING
20 mins.
warm
Individual items or very small
loads.
–
15 mins.
cool air
Individual items to be
freshened and fluffed with cool
air.
–
Programs
10

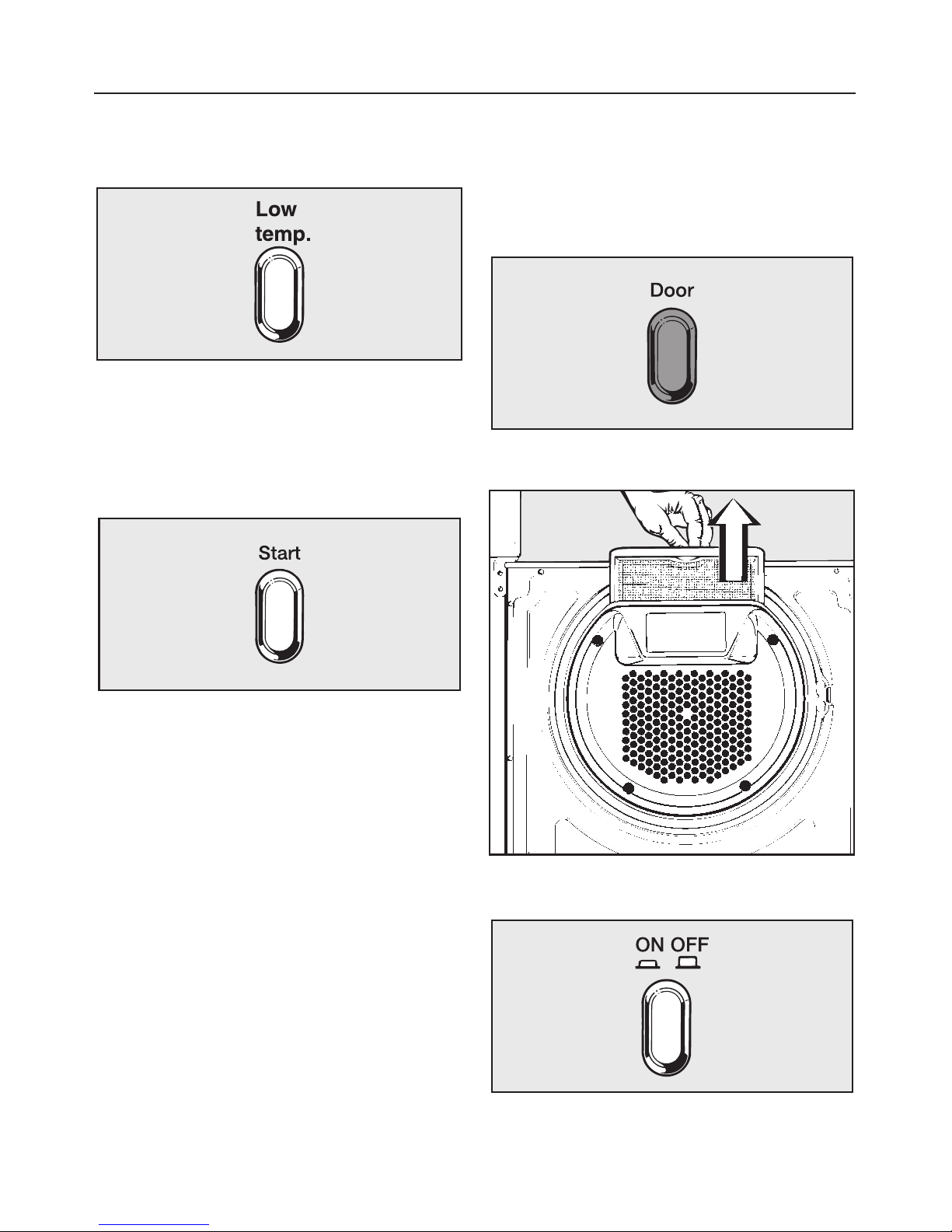

5. Start the program
^
Press the "START" button.
6. At the end of a program
The "Anti-crease/Finish" indicator will
light at the end of a program.
^
Turn the program selector to "Finish".
^
Press the "Door" button to open the
door.
^ Remove the laundry.
^ Check that the drum is empty.
^ Clean the lint filter before or after
each use (see "Cleaning the lint
filter".)
^
Press the "On/Off" button to turn off
the dryer.
Using the dryer
11
Cleaning the lint filter
The lint filter must be cleaned before
or after every program.
^ Open the door and remove the lint
filter.
^ Wipe the lint off the filter with your
hand, do not use any sharp objects!
^
Any lint remaining in the hollow part
of the door can be removed through
the gap at the bottom with a dust
brush or vacuum.
^
Return the lint filter and close the
door.
The lint filter can be rinsed with hot
water if necessary.
^
Dry the lint filter before putting it back
in place.
Before cleaning the tumble dryer,
disconnect the machine from the
power supply.
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the dryer. They
will damage the surface.
Cleaning the exterior and the
control panel
^
The exterior and the control panel
can be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^ Wipe dry using a soft cloth.
Cleaning the drum and
stainless steel parts
^ Stainless steel surfaces can be
cleaned using a non-abrasive
stainless steel cleaner.
^
Wipe dry using a soft cloth.
Dryer care
12
Emptying the condensed water
container
Depending on your type of installation,
the condensed water will either be
pumped to a drain, or collected in the
condensed water container, located in
the upper left corner of the machine.
The container holds approximately
1 gallon of water.
The container should be emptied
weekly.
Should the container be full when the
tumble dryer is started, or if it becomes
full during normal operation:
– The “Empty out container” indicator
will light.
– The buzzer will sound.
– The drying program will stop.
– The machine will enter the cooling
down cycle.

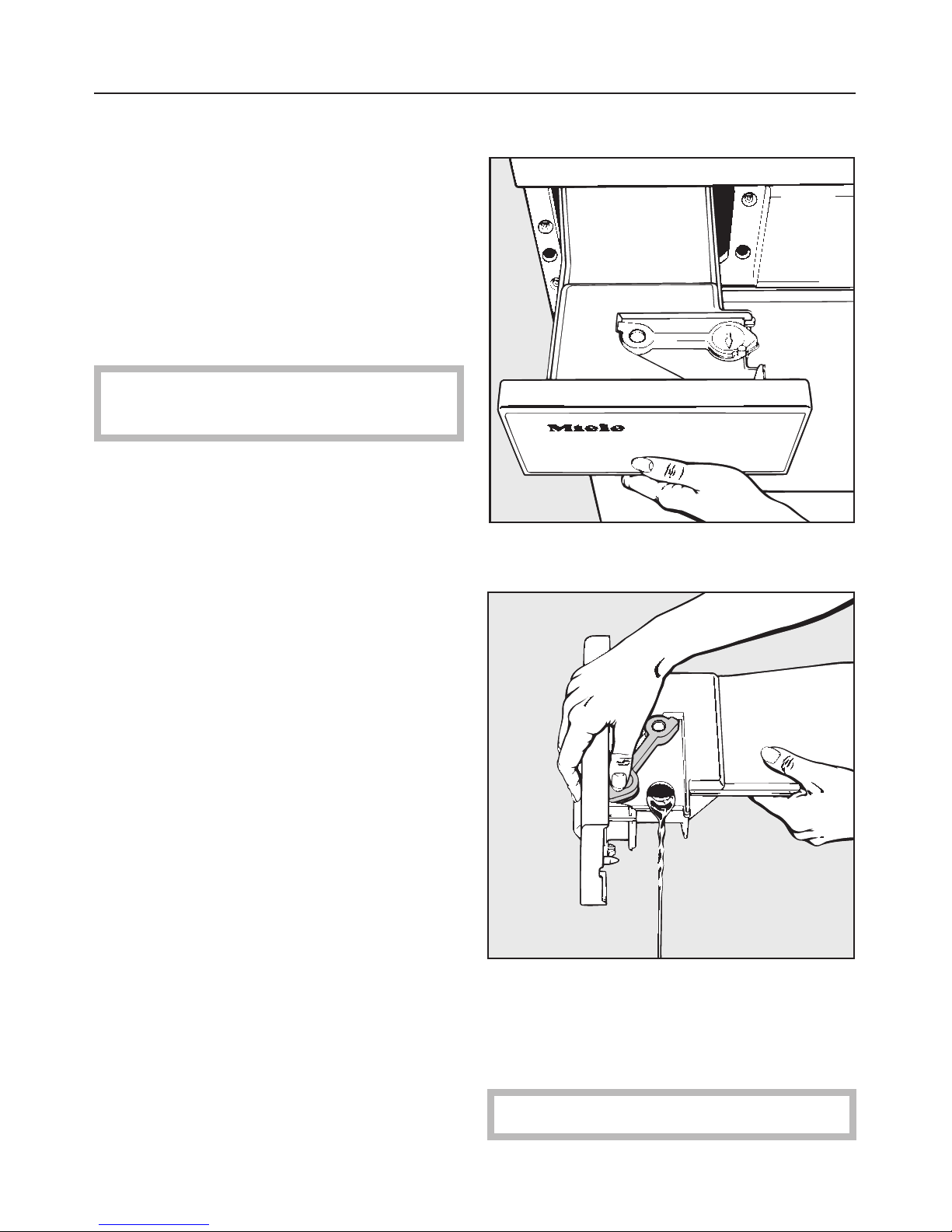

To empty the container
^ Pull out the container with both
hands.
^
Hold the cap open while emptying
the container.
^
When the container is empty, push it
into its recess until it clicks into place.
Do not drink the condensed water.
Dryer care
13
Cleaning the heat exchanger
Disconnect the machine from the
power supply.
^
The heat exchanger should be
cleaned every 6 months.
^
Open the door.
^ Turn the lever so that it is vertical.
^ Remove the cover.
^
Turn both levers, on the heat
exchanger, so that they are vertical.
Dryer care
14
^ Pull out the heat exchanger.
^ Clean the heat exchanger:
–
at both ends (front and back)
– and along the two long sides
^ Stand the heat exchanger lengthwise
on a towel until it dries.
^ Replace the heat exchanger in the
reverse order.
^ Make certain the heat exchanger is
pushed in all the way and that the
cover is firmly closed. Otherwise
water may leak from the machine.
Dryer care
15
Changing the light bulb
,
WARNING
To reduce the risk of electric shock,
disconnect this appliance from the
power supply by unplugging or
tripping the circuit breaker.

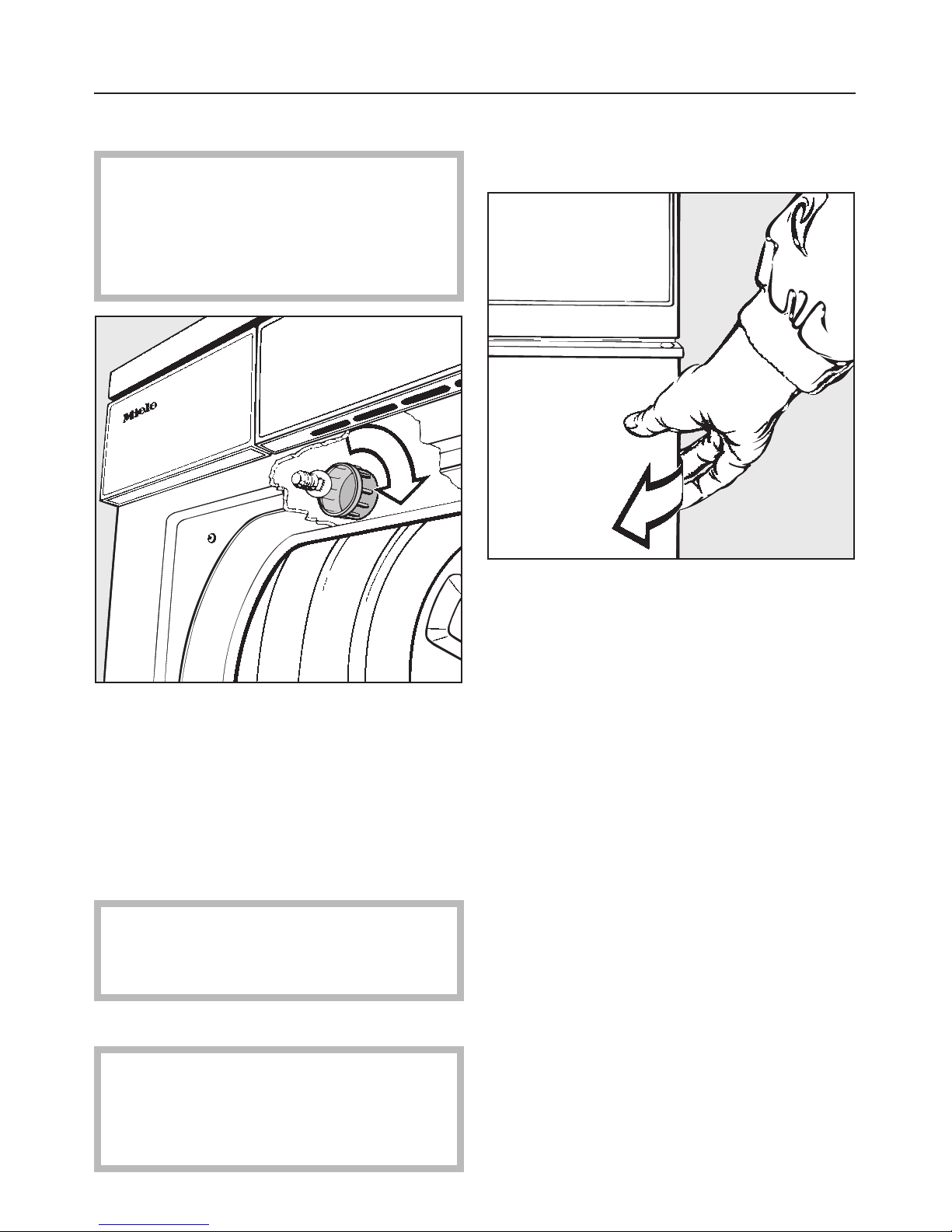

^ Unscrew the plastic bulb cover
located inside the drum and above
the door (see illustration.)
^
Replace the light bulb with a
temperature proof bulb (part # 02
150 900) available from Miele’s
Technical Service Department.
The light bulb must not exceed the
maximum wattage quoted on the
data plate.
^
Refit the plastic bulb cover.
Take care that the bulb cover is
tightened into place. Otherwise
moisture may penetrate the socket
and cause a short circuit.
Power failure - Emergency
door release
^ Pull forward on the unhinged side of
the door.
Dryer care
16
Quick Guide
Remove this guide for easy reference
Please read all
instructions, especially
the "Important Safety Instructions",
before using the dryer.
1. Turn on the dryer and load the
laundry
^
Press the "On/Off" button to turn on
the dryer.
^ Press the "Door" button to open the
door.
^ Load the laundry into the drum. Make
sure that there is enough space in the
drum for clothes to tumble freely.
To prevent fabric damage, check
that laundry will not be caught in the
closed door.
^
Close the door with a firm swing - do
not push it shut.
2. Select a program
^
Turn the program selector clockwise
or counterclockwise to the desired
program.
3. Select the Buzzer to signal the end
of the program (if desired)
^
Press the "Buzzer" button.
Quick Guide
4. Select a lower temperature
(if necessary)
^
Press the "Low temp." button to
reduce the temperature when drying
delicate fabrics.
5. Start the program
^ Press "START".
6. At the end of a program
The "Anti-crease / Finish" indicator will
light.
^
Turn the program selector to "Finish".
^
Press "Door" and remove the laundry.
^
Clean the lint filter.
^
Press the "On/Off" button to turn off
the dryer.
Quick Guide
Program Fabric Note
COTTONS
Extra dry For drying laundry that will be
stored away, such as linens or
seasonal clothing.
The "Extra dry" program should
not be selected for jersey
materials. Items may shrink.
Normal Uniform loads of cotton e.g.
sheets, underwear, socks.
–
Normal- Knitted cotton fabrics that may
shrink, e.g. jersey material or
lightweight cottons.
If items are still damp, redry
using "Normal+".
Hand iron r Cotton or linen fabrics to be
left damp for easier ironing.
–
Hand iron rr If fabrics are too damp for
ironing, redry using "Hand iron
r".
Machine iron Cotton or linen fabrics, which
will be ironed with a rotary iron.
To prevent moisture loss, roll up
the laundry until ironing.
PERMANENT PRESS
Normal+ Permanent press items.
Normal Permanent press and blended
fabrics made of blended
woven or knitted fabrics, e.g.
cotton/synthetic.
Hand iron Permanent press and blended
fabrics, requiring an ironed
finish.
Reduce load size for fabrics that
wrinkle easily.
TIMED DRYING
20 mins.
warm
Individual items or very small
loads.
–
15 mins.
cool air
Individual items to be
freshened and fluffed with cool
air.
–
Quick Guide
With the following guide, minor problems can be fixed without a service call.
What if Possible fault Fix
. . . the tumble
dryer fails to start
when turned on?
Check whether the "On"
indicator lights up. If so,
failure to start may be due
to an incorrect program
selection procedure.
Repeat the program selection
procedure in the correct
sequence, see "Using the
dryer".
If the "On" indicator lamp
does not illuminate, check
that:
–
The "ON/OFF" button is
pressed in.
–
The door is properly closed.
–
The machine is plugged in
and the fuse or circuit
breaker has not tripped.
. . . the laundry is
not dry enough?
The load consisted of
dissimilar items (size and
fabrics).
Select a longer drying
program.
Small loads or individual
items may cause the
program to terminate
prematurely.
Use a timed drying program.
The load was too large for
the "Load size - Half"
position.
Press the "Load size - Full"
button when drying larger
loads.
. . . the drying
times are too
long?
The lint filter is clogged. Clean the lint filter in the door.
The laundry was not spun
in the washer for a
sufficient time.
Make sure that the laundry is
thoroughly spun before drying.
Frequently asked questions
17
What if,...? Possible fault Fix
. . . the "anti-crease"
indicator lamp in the
sequence indicator
display starts flashing?
–
Turn the program
selector to "finish".
–
Turn the machine off
and then on again.
–
Select a program..
–
Press the "Start" button.
If the indicator lamp starts
flashing again, this
indicates a fault in the
machine.
Please contact the Miele
Service Dept.
. . . the drum door opens
during the drying cycle?
The machine has
overheated. The
temperature limiter
opened the drum door
and caused the machine
to turn off automatically.
Possible reasons for
overheating:
– The lint filter in the door
is clogged.
–
The vent duct is
blocked.
–
The vent aperture (e.g.
louvred window vent,
wall vent) is blocked.
Before restarting the
program, proceed as
follows:
– Release the ON/OFF
button.
– Clean the affected part
of the machine.
– Turn on the machine
again.
–
Reselect the
terminated program.
–
Press the “Start”
button.
If the drum door opens
again, the Miele Service
Dept. should be
contacted.
Frequently asked questions
18
What to do if,...? Cause . . . Remedy . . .
...drops of water
appear along the upper
edge of the drum door?
This may not be a
problem. A dual filter
system with two seals is
used to prevent lint from
becoming deposited in
the heat exchanger.
These two seals may
occasionally cause
condensed water to form
on the door.
Laundry coming into
contact with these drops
of water will dry within a
few minutes.
. . . after cleaning the
heat exchanger, water
leaks from the machine?
Check that the heat
exchanger door has been
replaced correctly. If
necessary, remove and
replace it.
. . . the interior drum
light fails to function?
See "Changing the light
bulb".
...you have to open the
door in the event of a
power failure?
See "Power failure –
Emergency door release".
Frequently asked questions
19
In the event of a problem which you
cannot fix yourself, or to order spare
parts please contact:
–
Your Miele Dealer
or
–
The Miele Technical Service
Department
USA 1-800-999-1360
techserv@mieleusa.com
CDN 1-800-565-6435
service@miele.ca
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance.
They can be found on the data plate
located below the drum opening.
After Sales service
20
Installation Instructions
To prevent accidents
and machine damage
read these instructions
before
installation or use.
Installation, repair and
maintenance work should be
performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and could
void the warranty.
Before installation, disconnect the
tumble dryer from the electrical
supply by unplugging the power cord
or tripping the circuit breaker.
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or
breakdown, grounding will reduce the
risk of electric shock by providing a
path of least resistance for electric
current. This appliance is equipped
with a cord having an
equipment-grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
WARNING – Improper connection
of the equipment-grounding
conductor can result in a risk of electric
shock. Check with a qualified
electrician or service representative or
personnel if you are in doubt as to
whether the appliance is properly
grounded.
Do not modify the plug provided
with the appliance: if it will not fit
the outlet, have a proper outlet installed
by a qualified electrician.
If there is any doubt concerning
installation contact Miele’s
Technical Service Department.
USA 1-800-999-1360
techserv@mieleusa.com
CDN 1-800-565-6435
service@miele.ca
IMPORTANT SAFETY INSTRUCTIONS
22
Disposal of the packing
materials
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
To prevent suffocation ensure that any
plastic wrappings, bags etc. are
disposed of safely and kept out of the
reach of children.
Please recycle.
Disposal of an old appliance
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet and
cut off its power cord and remove any
doors to prevent hazards.
INSTALLATION INSTRUCTIONS
23
Leveling the dryer
The machine should be perfectly level
to ensure safe and proper operation.
Minor discrepancies do not, however,
have an adverse effect on operation.
^
The machine can be leveled by
turning the legs clockwise or
counterclockwise as necessary.
Installation site
An air flow gap of3/8" (10 mm) must
be provided between the machine
and the floor. This air flow gap must
not be blocked by a toekick or thickpiled carpets.
It is possible to install this appliance
under a continuous countertop. The
machine lid can be removed, if
necessary.
The tumble dryer can also be placed
on top of a Miele washing machine for a
stacked installation. An appropriate
stacking kit is required.
The stacking kit, part # 12 996 026, is
available from your Miele dealer or the
Miele Technical Service Department.
Installation
24
Changing the decor panel
Note: The door should be closed
when installing the decor panel.
^
On the door lock side remove the
4 screws (3 on the side and 1
underneath) and the door strip.
^
Loosen the remaining 7 screws on
the lower and side decor strips until
the decor panel can be bowed
slightly and taken out.
^
Insert the new panel.
^ Reassemble in the reverse order and
tighten the screws.
Decor panel dimensions
Width: 23
11
/
16
Height: 231/
8
Thickness:1/
16
Panels between1/16and1/8thick
require an adapter strip available from
the Technical Service Department.
Fitting a toekick panel
The appliance toekick below the door
can be concealed using a toekick
panel.
The height and depth of the appliance
toekick cannot be altered.
A cut-out must be made in the toekick
panel around the ventilation slots. If the
ventilation slots are blocked the
machine will not dry efficiently.
Installation
25
Connecting to an external
drain
The condensed water can be sent
directly to a drain if the machine is
installed near a sink or standpipe.
The machine is equipped with a nonreturn valve that will prevent water from
flowing back into the machine if there is
a problem in the drainage system.
Max. drain hose length: 10 ft
Max. drain height: 4 ft.
Supplied accessories:
- 6 ft drain hose
- Hose clamp
- Hose elbow
To make a direct drain connection,
proceed as follows:
^
Loosen the hose clamp at the drain
outlet at the rear lower left of the
machine and remove the rubber
plug.
^ Remove the clamp from the plug and
place it over the drain hose.
^ Push the drain hose onto the drain
outlet. Make sure that the hose is not
kinked and firmly secured by the
hose clamp.
Installation
26
^ Close the water inlet port above the
condensed water container with the
bottom part of the rubber plug. The
plug must face towards the interior of
the machine so that the condensed
water container can be easily
inserted.
^ Attach the elbow to the hose and
secure it to the sink or into the drain
pipe. If room is available, it can be
inserted into the stand pipe used by
the washing machine.
The water will now be drained
automatically and the container will not
need to be emptied.
Installation
27
Make the electrical connection
GROUNDING INSTRUCTIONS
This appliance must be grounded. In
the event of malfunction or
breakdown, grounding will reduce
the risk of electric shock by
providing a path of least resistance
for electric current. This appliance is
equipped with a cord having an
equipment grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet
that is properly installed and
grounded in accordance with all
local codes and ordinances.
WARNING – Improper connection of
the equipment grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
service representative or personnel
if you are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug provided with
the appliance: if it will not fit the
outlet, have a proper outlet installed
by a qualified electrician.
Electrical connection
The dryer comes with a 5 ft long, 12/4
AWG cord and a NEMA 14-30 P plug.
It should be connected to a
120/208-240 V, 15 A, 60 Hz AC power
supply. A 3 pole-4 wire grounding
power outlet (NEMA type 14-30 R) is
necessary.
EASY INSTALLATION KIT
If you do not have a dedicated 15 Amp
line for this appliance, but you have the
standard, 120/208-240 V - 30 Amp,
60 Hz AC outlet, you can use the "Easy
Installation Kit", which allows you to use
that line to connect this appliance.
057B for on-site outlet NEMA 10-30 R
060B for on-site outlet NEMA 14-30 R
For more information on the "Easy
Installation Kit" or if you have questions
concerning the electrical connection
please contact:
USA 1-800-999-1360
techserv@mieleusa.com
CDN 1-800-565-6435
service@miele.ca
Installation
28
29
30
31
All rights reserved / 4503
For the most updated manual check the Miele website.
M.-Nr. 03 719 550 / 04
Loading...
