Operations Manual for
the T 1570 C
Condenser Dryer
In order to protect yourself and
avoid damage to your machine,
it is absolutely necessary to read
the operating instructions prior
to installation and operation. M.-Nr. 03 719 540
]
Contents
Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Your contribution to the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OPERATING INSTRUCTIONS
Loading the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unloading the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Program selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
USER MAINTENANCE INSTRUCTIONS
Emptying the condensed water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
After-sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
INSTALLATION INSTRUCTIONS
Grounding and Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting to an external drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2
Guide to the machine
1 Supply cable with plug
2 Condensed water container
3 Drum door
4 Control panel
5 Drain hose for condensed water
6 Four height-adjustable legs
3
Guide to the machine
Pushbuttons
– Door
This button is used to open the door
(does not stay pushed in).
– jON / kOFF
When the machine is turned on, the
“On” indicator will light up if the door is
closed. If the door is open, the drum
light will be on.
– Buzzer
Allows the buzzer to sound as the
drum rotates during the anti-crease
cycle.
– Low temp.
Lower drying temperatures for delicate fabrics, e.g. acrylics, nylon.
– Start
Starts the selected program (it does
not stay pushed in).
Indicator lamps
– Empty out container
The water container should be emptied.
– PROGRAM SEQUENCE
The program sequence indicator
lamps show the current status of the
drying program.
– DRYING STAGE REACHED
These indicator lamps show which
drying stage the program has
reached.For program stages “Normal” and “Extra dry” the indicator
lamp remains at the “Normal” position.
PROGRAM SETTING-SELECTOR
Set the required program by turning the
knob either clockwise or counterclockwise.
– COTTONS
– PERMANENT PRESS
– TIMED DRYING
Items can be either dried for 20
minutes (incl. a cooling-down phase)
or cool air fluffed in for 15 minutes.
4
IMPORTANT SAFETY INSTRUCTIONS
W ARNING - To reduce the risk of fire,
electric shock, or injury to persons
when using your appliance, follow
basic precautions, including the following:
1. For your own safety and for the protection of your machine read these
operating instructions carefully before using your dryer for the first time.
2. Remember to remove the door when
disposing of an old machine to prevent children from accidently locking
themselves in.
3. Do not install or store this appliance
where it will be exposed to the
weather.
4. Do not install your dryer in rooms
where freezing temperatures may
occur. The reliability of the electronic
control system may be impaired.
5. This machine should only be used for
drying the following fabrics:
– Items which can be machine dried
as specified by the laundry care
label.
– Items which have been washed in
water.
6. The following fabrics pose a fire hazard:
– Items which contain foam rubber,
rubber or rubberlike components.
– Items which have been treated with
flammable cleaning agents, such as
gasoline or dry-cleaning solvents.
– Items containing hair lacquer, hair-
spray, nail polish remover or similar
substances.
7. Clean the lint filter before and after
each load.
8. Do not dry articles that have been
previously cleaned, washed, soaked
in, or spotted with gasoline, drycleaning solvents, or other flammable or explosive substances. They
give off vapors that could ignite or
explode.
9. Do not allow children to play on or in
the appliance. Close supervision of
children is necessary when the appliance is used near children.
10.Always close the door after use to
prevent children from leaning on the
door and causing the dryer to tilt.
11.Do not drink the condensed water.
12..Ke e p t he a re a ar o un d t h e ai r i n t a ke
(toekick) and surrounding areas free
from lint, dust and dirt.
5
IMPORTANT SAFETY INSTRUCTIONS
13.The interior of the machine should be
cleaned periodically by qualified personnel.
14.Do not reach into the dryer if the
drum is moving.
15.Do not tamper with the controls.
16.Do not repair or replace any part of
the appliance, or attempt any servicing unless specifically recommended in this operations manual.
Repairs to electrical appliances
should only carried out by qualified
personnel.
Incorrectly repaired machines may
pose a considerable risk to the user.
17.Lint is principally the result of friction
caused by items being worn and
washed.
Machine drying causes insignificant
amounts of lint to form and, as has
been established by research institutes, has no detrimental effect on
the lifetime of fabrics.
18.Warning - Do not use fabric softener/anti static dryer sheets.
Residues from these products blockup (clog) the lint filter causing premature failure of the dryer.
Miele dryers are designed to dry
laundry without static cling. However, should fabric softener be required, use liquid fabric softener in
the wash cycle.
Clean lint filter mesh monthly by washing/scrubbing with hot soap and
water.
19.Do not place items exposed to
oils in your dryer. Items contaimed
with oils may contribute to a
chemical reaction that could
cause a load to catch fire.
SA VE THESE INSTR UCTIONS
For grounding and electrical
connection instructions, refer
to the electrical connection
section.
This dryer is only intended for
residential use!
6
Your contribution to the environment
Disposal of the packing material.
The transport and protective packing is
mostly manufactured from the following
recycled or re-useable materials:
– corrugated paper/cardboard
– polystyrene - CFC-free
– polyethylene foil (transparent)
– untreated wood
– fiber board
Please check local environmental regu-
lations before disposing of packing materials and discarding the appliance.
Disposal of your old machine.
Old machines contain materials which
can be recycled. Please contact your
recycling center or scrap merchant
and render the machine inoperative as
per the “Important Safety Instructions”
before disposing of the appliance.
7
OPERATING INSTR UCTIONS
Loading the machine
W ARNING - To reduce the risk
of fire, electric shock, or injury
to persons, read the IMPORTANT SAFETY INSTRUCTIONS
before operating this appliance.
Load the laundry loosely into the
drum.
Duvet covers and pillowcases
should be fastened before drying in
order to prevent small items from rolling inside of them.
Unloading the machine
If the wash is not removed at the end
of the drying program, the machine
will automatically enter the anticrease cycle for 60 minutes. This entails the drum being rotated at short
intervals in order to reduce the formation of creases.
Once the laundry has been
removed, check that the drum is
empty. Any items left in the drum
could be damaged through overdrying during the next program.
Clean the lint filter after each drying
cycle to prevent excessive energy
consumption, longer program times
and the risk of fire.
The door should always be closed
after use.
Important: Check that laundry cannot be trapped by the door as this
may cause damage to the fabric.
8
Notes on laundry care
Before drying, c hec k the instructions
on the fabric care label.
The following fabrics should not be
dried in a tumble dryer:
– Woollens and wool blends
These fabrics tend to become matted
and shrink.
– Items filled with down
The fine fabric interior tends to shrink,
depending on the quality of the item
involved.
– Pure linen
These items should only be machinedried if specified as suitable by the
manufacturer on the textile care label.
The surface of the fabric may otherwise tend to become “rough”.
Miele dryers have been designed to
dry laundry free of static cling, without
the use of dryer softener sheets or similar products. The dryer continuously
monitors the moisture content of the
laundry, and automatically shuts off the
heat when the selected degree of dryness is reached. Through the use of a
cool down period, (where the machine
operates without heat), cool, static free
laundry is the end result. Dryer softener
sheets perform the same function by
depositing a chemical residue on both
the clothes and the interior of the dryer.
Over time, this coating may lead to performance reductions in the dryer.
Notes:
Knitted fabrics and flannel sheets tend
to shrink when washed for the first time
and also when dried. They should not
be overdried (Extra dry)!
Starched laundry can also be dried in
the tumble dryer.
Permanent press items should be
briefly spun in the washing machine before drying. Items which are prone to
creasing should not be dried in the
“PERMANENT PRESS- Normal +” - Program.
Drip-dry shirts made of pure cotton
may tend to crease, depending on the
quality of their finish.
These items should be dried in a
“Hand iron”program.
Permanent press fabrics tend to crease
more as the size of the load increases.
This is particularly true of very delicate
fabrics. The load should be reduced to
1.5 kg or, if necessary, to 1 kg.
Do not dry new dark-colored fabrics
together with light-colored items as
they may discolor.
If fabric softening is desired, it is more
convenient, economical and beneficial to
the clothing if a liquid softener is automatically dispensed while the clothes are
in the washing machine. Please see the
washing machine operating instructions
for directions on how to automatically dispense a liquid softener.
9
Program selection
Functional description
An electronic sensor system monitors
the moisture content of the laundry.
Once the required degree of dryness is
reached, cold air then enters the drum
to cool the laundry.
The drying program is then terminated.
Function of the pushbuttons
– Door
This button is used to open the door.
– ON/OFF
When the machine is turned on, the
“On” indicator lamp illuminates when
the door is closed. When the door is
open, the drum is illuminated.
– Low temp.
Uses lower drying temperatures for
delicate fabrics, e.g. acrylic fibers.
To gently dry delicate fabrics, press
this button before starting the cycle.
– Start
Starts the selected program.
“PROGRAM SEQUENCE”
indicator
The program sequence indicator lamps
show the current status of the drying
program.
“DRYING STAGE REACHED”
indicator
This indicator shows which drying
stage the program has reached.

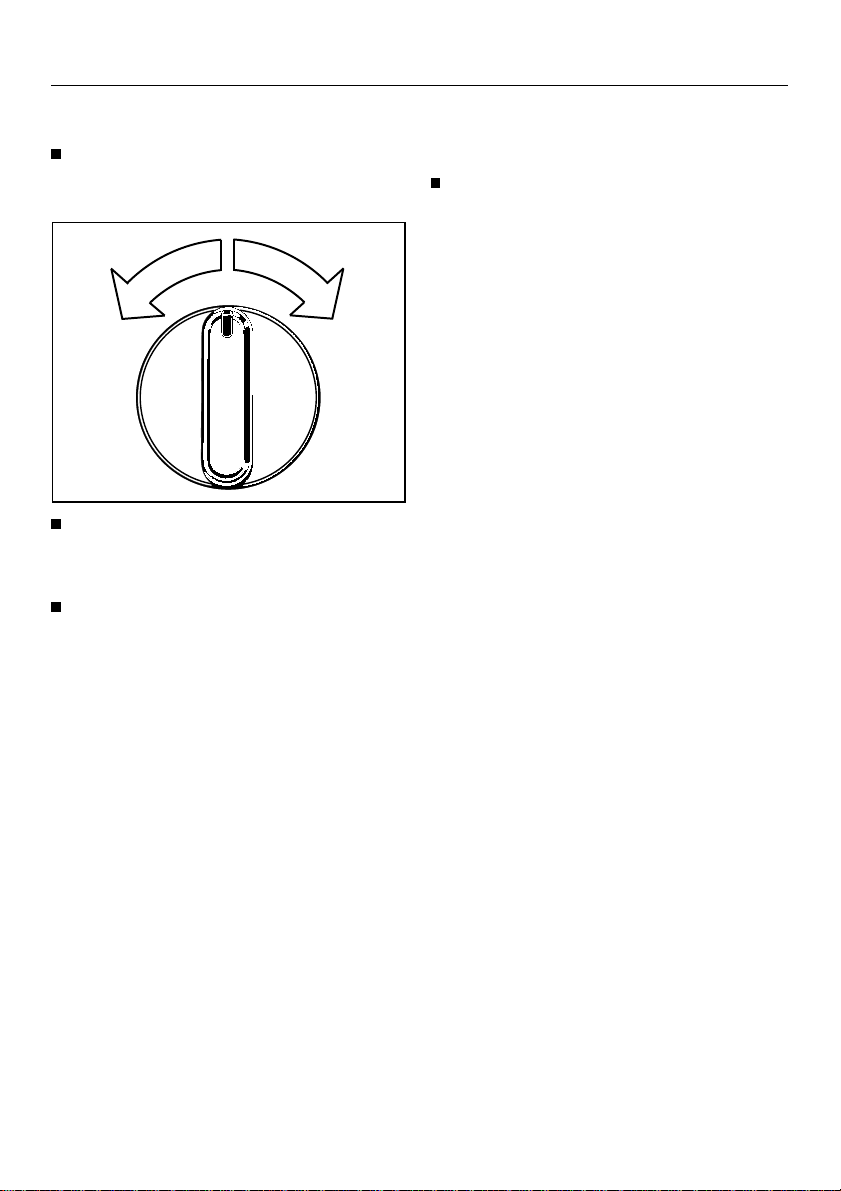

“PROGRAM SETTING”
selector
There is a range of settings for both
“Cottons” and “Permanent Press”.
In addition, items can be either dried
for 20 minutes (incl. a cooling-down
phase lasting 8 mins.) or fluffed in a
cool air cycle for 15 minutes.
– Buzzer
When activated, the buzzer will sound
as the drum rotates during the anticrease cycle.
10
Program selection
To select a program
A program can only be selected
when the machine is turned on.
Set the desired program by turning
the program selector either clockwise or counterclockwise.
Press the “Start” button.
The program status will be stored for
30 minutes in the event of a power
failure.
To change a program during
drying:
Set the program selector to the
desired program.
The new program will start from the beginning.
The tables following on the next two
pages list the range of applications for
the different programs.
Correct procedure:
1
Press the “On/Off” button.
2 Press the “Door” button and load the
drum.
3 Close the door with a firm swing - do
not push it shut.
4 Select “Low temp.” and “Buzzer” if
so desired.
5 Select a program.
6 Press the “Start” button.
The program is cancelled if:
– There is a power failure lasting more
than 30 minutes.
– The program has already reached
the “Cooling down” or “Anti-crease”
stage.
After the program has finished:
1 Set the program selector
to “Finish”.
2 Remove the laundry.
Clean the lint filter.
3
4 Turn off the machine.
5 Empty the condensed water con-
tainer.
(Omit this step if dryer has been set
up for external drainage of condensed water)
11
Programs
COTTONS
Extra dry
Normal
Normal- *
Hand iron rr *
Machine iron
* These are the programs that should be tested according to the EN 61121/A11 Standard.
Type of laundry/fabric Max. load Special instructions
Multi-layer fabrics, mixed
load of cotton fabrics,
e.g.jeans, towels,
sweatsuits.
Homogeneous loads of
cotton fabrics e.g. flannel
items, underwear, socks.
Knitted cotton fabrics
particularly suspectible to
shrinkage, e.g. jersey
wear or lightweight cotton
fabrics.
Cotton or linen fabrics,
e.g. linens, bedding,
starched items left damp
for easier ironing.
Cotton or linen fabrics,
including starched
laundry, for the rotary iron,
(B865E).
5 kg The “Extra dry” program
should not be selected for
jersey wear items.
5 kg Should items still be
damp, select the “Extra
dry” program.
5 kg Should items still be
damp, select the “Normal“
program.
5 kg Moisture can be
increased or decreased
by using “Hand iron rr”
or “Hand iron r”
respectively.
5 kg The laundry can be rolled
up to prevent it from
drying out until it can be
ironed.
12
PERMANENT
PRESS
Programs
Type of laundry/fabric Max. load Special instructions
Normal +
Normal *
Hand iron
* This is the program that should be tested according to the EN 61121/A11 Standard.
TIMED DR YING
warm
cool
Permanent press items
made of synthetic or
blended fabrics, e.g.
pullovers, dresses, pants,
etc., which are not dried
adequately in the
“Normal” program.
Permanent press shirts,
table cloths, bedding etc.
made of blended woven
or knitted fabrics, e.g.
cotton/synthetic.
Permanent press shirts,
table cloths, pillowcases
etc. cotton/synthetics,
which are still to pressed.
Type of laundry/fabric Max. load Special instructions
Individual items, e.g.
comforters, or very small
loads.
Items which are only to be
aired.
2.5 kg With blended fabrics
2.5 kg
2.5 kg
- This setting will run the full
5 kg -
consisting of wool and
synthetics, consult the
manufacturer’s
instructions, as the wool
component may cause
the fabric to become
matted and shrink.
length of time regardless
if the item is dry
beforehand.
13
USER MAINTENANCE INSTRUCTIONS
Emptying the condensed water container
Depending on your type of installation,
the condensed water will either be
pumped to a drain, or collected in the
condensed water container, located in
the upper left corner of the machine.
The container should be emptied
after each drying program.
Should the container be full when the
tumble dryer is started, or if it becomes
full during normal operation:
– The “Empty out container” indicator
lamp will light
– The buzzer will sound
– The drying program will stop
– The machine will enter the cooling
down cycle
Hold the cap open while emptying
the container.
When the container is empty, push it
into its recess until it clicks into place.
To empty the container:
Pull out the container with both
hands.
14
Do not drink the condensed water.
Note:
The water collected in the container
has been distilled by evaporation and
can be used in a steam iron or humidifier, for example. The following points
should be remembered:
As a precautionary measure, the
water should be passed through a
fine sieve or coffee filter in order to
strain out any small particles of lint
which might otherwise cause damage.
Cleaning the lint filters
The lint is collected by the lint filter in
the door.
Clean the filter after every program.
Grip the filter by the recessed
handle and pull up to remove.
Any remaining lint in the hollow part
of the door can be removed through
the gap at the bottom.
Remove any accumulated lint from
the filters in the door opening.
All filters can be rinsed with water if
necessary.
Cleaning and care
Dry the filters before putting them
back in place if they were rinsed.
Before cleaning the tumble dryer;
disconnect the machine from the
power supply.
Cleaning the dryer
The dryer can be cleaned using
soapy water or a mild non-abrasive
detergent (not scouring powder)
and dried with a soft cloth.
The drum may be cleaned using a
suitable stainless steel cleaner following the manufacturer’s instructions.
Do not hose down the machine or
use abrasive cleaners.
15
Cleaning and care
Cleaning the heat exchanger
The heat exchanger should be
cleaned once or twice a year.
Open the door.
Turn the lever so that it is vertical.
Remove the cover.
16
Turn both levers on the heat exchanger so that they are vertical.
Cleaning and care
Pull out the heat exchanger.
Clean the heat exchanger:
– at both ends (front and back).
– and along the two long sides.
Stand the heat exchanger
lengthwise on a towel until it dries.
Replace the heat exchanger in the
reverse order.
Make certain the heat exchanger is
pushed in all the way and that the
cover is firmly closed. Otherwise
water may leak from the machine.
17
Problem solving guide
Electrical appliances should only be repaired by qualified personnel. Incorrectly repaired machines may put the user at risk. There are, however, minor
problems which can be corrected without contacting the Service Department.
What to do if, . . . ? Cause . . . Remedy . . .
. . . the tumble dryer fails to
start when turned on?
. . . the laundry is not
sufficiently dry?
. . . the drying times are too
long?
. . . the “anti-crease”
indicator lamp in the
sequence indicator display
starts flashing?
Check whether the “On”
indicator lights up. If so, failure
to start may be due to an
incorrect program selection
procedure.
If the “On” indicator lamp does
not illuminate, check that:
The load consisted of dissimilar
items (size and fabrics).
Small loads or individual items
may cause the program to
terminate prematurely.
The lint filter is clogged. Clean the lint filter in the door.
The laundry was not spun in
the water for a sufficient time.
Repeat the switch-on
procedure in the correct
sequence, as outlined in the
“Program Selection” section.
– The “ON/OFF” button is
depressed.
– The door is properly closed.
– The machine is plugged in
and the fuse or circuit breaker
has not tripped.
Select a longer drying
program.
Small loads can be time-dried.
Make sure that the laundry is
thoroughly spun before drying.
– Turn the program selector
to “finish”.
– Turn the machine off and
then on again.
– Select a program.
– Press the “Start” button.
If the indicator lamp starts
flashing again, this indicates a
fault in the machine.
Please contact the Miele
Service Dept.
18
Correcting minor faults Problem solving guide
What to do if, . . . ? Cause . . . Remedy . . .
. . . the drum door opens
during the drying cycle?
. . . drops of the water appear
along the upper edge of the
drum door?
. . . after cleaning the heat
exchanger, water leaks from
the machine?
. . . the interior drum light
fails to function?
. . . you have to open the
door in the event of a power
failure?
The machine has overheated.
The temperature limiter
opened the drum door and
caused the machine to turn off
automatically.
Possible reasons for
overheating:
– The lint filter in the door is
clogged.
– The vent duct is blocked.
This may not be a problem. A
dual filter system with two
seals is used to prevent lint
from becoming deposited in
the heat exchanger.
Before restarting the program,
proceed as follows:
– Release the ON/OFF button.
– Clean the affected part of the
machine.
– Turn on the machine again.
– Reselect the terminated
program.
– Press the “Start” button.
If the drum door opens again,
the Miele Service Dept. should
be contacted.
These two seals may
occasionally cause
condensed water to form on
the door.
Laundry coming into contact
with these drops of water will
dry within in a few minutes.
Check that the heat exchanger
door has been replaced
correctly. If necessary, remove
and replace it.
See next page.
See next page.
19
Problem solving guide

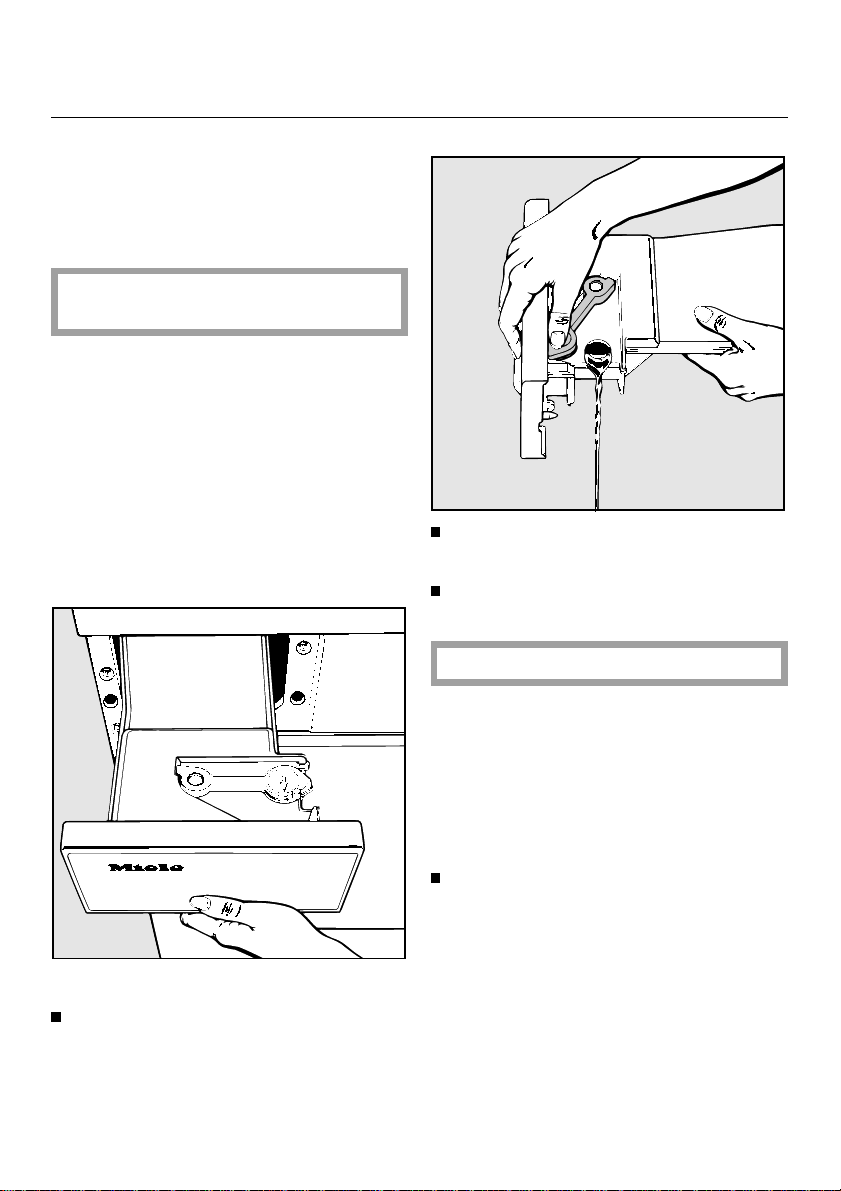

The interior drum light fails to function: The b ulb ma y be defective.
Replace it as follows:
Turn off the machine or disconnect
it from the power supply.
Open the door.
Use a 3/4’’ wrench to unscrew the
plastic bulb cover located inside the
drum and above the door (see illustration).
This is a temperature-resistant bulb
and should only be ordered from your
Miele Service Dept.
To open the door in the event of a
power failure
Pull forward on the un-hinged side of
the door.
The light bulb must not exceed the
maximum wattage quoted on the
data plate.
Replace the bulb and the plastic
cover.
The cover must be correctly installed
and tightened, otherwise moisture may
seep in and cause the socket to corrode.
20
After-sales service
In the event of problems which cannot
be solved, please contact:
– Your Miele Dealer
– The nearest Miele Service Depart-
ment (see back cover for the adress).
When contacting the Service Department, please quote the Model and Serial numbers of your appliance, both of
which can be found on the right side
after the door is opened.
Specimen:
21
INSTALLATION INSTRUCTIONS
Grounding and Electrical connection
Grounding instructions
This appliance must be grounded.
In the event of a malfunction, grounding will reduce the risk of electric shock
by providing a path of least resistance
for the electric current. This appliance
is equipped with a cord having an
equipment grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and ordinances.
Warning
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or
serviceman if you are in doubt as to
whether the appliance is properly
grounded.
Do not modify the plug provided
with the appliance; if it will not fit the
outlet, have a proper outlet installed
by a qualified electrician.
Electrical connection
This installation should be done by an
experienced and qualified person, in
most cases a licensed electrician, in accordance with local codes and regulations.
This dryer is supplied with a 1.5 m power
cord with a 3-pole, 4 wire grounding plug,
14-30P (regular Canadian dryer plug).
This plug has to be plugged into a 3-pole,
4 wire grounding receptacle, 14-30R
(regular Canadian dryer receptacle).
The receptacle has to be connected to
Line 1, Line 2, Neutral and Ground wires.
The voltage is 120/240 V AC or 120/208 V AC.
“EASY INSTALLATION KIT”
If you do not have a designated line,
4 wire, 120/240 V – 15 or 30 Amps, for
this appliance, but you have the 4 wire,
120/(208)240 V – 30 Amp Canadian
dryer wall receptacle (14-30 R) you can
use the Miele Double Receptacle Box.
This consists of two standard receptacles 14-30 R, 4 fuses, box and plug
cord, which allows you to use that
single dryer wall receptacle to supply
power to a Miele washer and Miele
dryer. Both machines may operate at
the same time because each uses
maximum about 15 A current.
22
For more information on the electrical
connection on the Miele Double Receptacle Box please contact:
– your Miele dealer
– the nearest Miele Service Depart-
ment.
The machine should be perfectly level
to ensure safe and proper operation.
Minor discrepancies do not, however,
have an adverse effect on operation.
Installation
The grill below the drum door
should never be blocked, as this
will prevent a sufficient intake of
cold air.
Where to install the machine
Installation
It is possible to install this appliance
under a continuous countertop. The machine lid can be removed, if necessary.
The tumble dryer can also be placed
on top of a Miele washing machine for
a stacked installation. An appropriate
stacking kit * to match your washing
machine is required.
The machine can be leveled by turning the legs clockwise or counterclocwise as necessary.
Turn the counternuts up and tighten
against the bottom.
* These items are available from the
Miele Parts Dept.
23
Installation
Changing the decor panel
Note: The door should be closed
when installing the decor panel.
On the door lock side remove the 4
screws (3 on the side and 1 underneath) and the door strip.
Loosen the remaining 7 screws on
the lower and side decor strips until
the decor panel can be bowed
slightly and taken out.
Reassemble in the reverse order and
tighten the screws.
Decor panel dimensions
(Values in bracket demote tolerances in mm)
Width: 587 mm (- 1)
Height: 602 mm (- 1.5)
Thickness: 1 mm (+ 0.5)
Panels which are thicker than 1.5 mm
require a 4 mm adapter strip available
from Miele specialist dealers or the
Miele Spares Dept.
Note:
When using the adapter strip, the
height of the panel should not exceed
596.5 mm (- 1.5).
24
Fitting a toekick panel
The appliance toekick below the door
can be concealed using a toekick
panel.
The height and depth of the appliance
toekick cannot be altered.
A cut-out must be made in the toekick
panel around the ventilation slots as
otherwise the airflow to the appliance
will be blocked and the machine will
not dry efficiently.
Installation
25
Installation
Connecting to an external
drain
The condensed water can be drained
directly if the machine is installed near
a sink or drain outlet.
The machine is equipped with a non-return valve as standard to prevent water
from flowing back into the machine (eg. if
the machine is connected to a siphon).
Max. drain hose length: (3.0 m) 10 ft
Max. drain height: (1.0 m) 4 ft.
Accessories supplied:
- (2 m) 6 ft drain hose
- Hose clamp
- Hose elbow
Loosen the hose clamp from the
drain outlet at the lower left rear of
the machine and remove the rubber
plug.
Remove the clamp from the plug
and place it over the drain hose.
Push the drain hose onto the drain
outlet. Make sure that the hose is
firmly secured by the hose clamp
and not kinked.
26
Close the water inlet port above the
condensed water container with the
bottom part of the rubber plug. The
plug must face towards the interior
of the machine so that the condensed water container can easily
be inserted.
Installation
Attach the elbow to the hose and secure it to the sink or drain pipe. If
room is available, it can be inserted
into the stamp pipe used by the
washing machine.
The water will now be drained automatically and the container will not need to
be emptied.
27
Consumption data
Cottons
Extra dry
Normal
Normal-*
Hand iron rr*
Machine iron
load
(kg)
51200
51200
5800
5800
51200
Final spin speed
in washer*
(rpm)
1400
1550
1400
1550
1200
1400
1550
1200
1400
1550
1400
1550
Electrical
consumption
(kwh)
3.44
3.28
3.17
3.17
3.02
2.91
3.60
2.82
2.68
2.58
2.80
2.05
1.91
1.82
1.65
1.51
1.41
Drying time incl.
cooling down time
(mins)
87
83
81
81
77
75
92
74
71
69
74
56
53
51
47
43
41
Permanent Press
Normal +
Normal*
Hand iron
The specified program running times and electrical consumption values were established under
standard conditions (*EN 61121/A11).
Different types of fabrics, load size and residual moisture after spinning may effect the specified
values.
*These values apply if the laundry is spun in a Miele washing machine before drying.
28
2.5 1000 1.68 50
2.5 1000 1.38 45
2.5 1000 1.21 37
Technical data
Height. . . . . . . . . . . . . . . . . . . . . . . . . .
Height with lid removed . . . . . . . . . . . .
Width . . . . . . . . . . . . . . . . . . . . . . . . . .
Depth (incl. distance from wall) . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . .
Drum volume . . . . . . . . . . . . . . . . . . . .
Capacity. . . . . . . . . . . . . . . . . . . . . . . .
Rated load . . . . . . . . . . . . . . . . . . . . . .
Fuse rating . . . . . . . . . . . . . . . . . . . . . .
85 cm (adjustable)
82 cm
59.5 cm
without lid 56
with lid 60
55 kg
103 l
5 kg dry laundry
2.85 kW
15 A minimum, or 30 A
293031
All rights reserved/002 4503
This paper is made from 100% chlorine-free bleached cellulose and therefore protects the environment.
Loading...
