Miele K 622 Ui-1 Operating instructions

Operating and installation instructions

Refrigerator K 621 Ui-1 K 622 Ui-1

It is essential to read these operating instructions before installing or using the machine, to avoid the risk of accident or damage to the machine.

en-GB

M.-Nr. 06 657 310

Contents

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching off for longer periods of time .................................12

The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

...intherefrigerator ...............................................13

...inthefreezer compartment .......................................13

Temperature selection ..............................................13

Using the refrigerator efficiently . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Different storage zones .............................................14

Food which should not be stored in a refrigerator.........................14

Storing food correctly ..............................................15

Unpacked meats and vegetables ..................................15

Protein rich foods ...............................................15

Meat .........................................................15

Adjusting the interior fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Moving the shelves ................................................16

Split shelf ........................................................16

Adjusting door shelves .............................................16

Moving the bottle divider ............................................16

Freezing and storing food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Storing frozen food ................................................17

Home freezing ....................................................17

Hints on home freezing...........................................17

Packing .......................................................18

Placing food in the freezer ........................................18

Defrosting .......................................................18

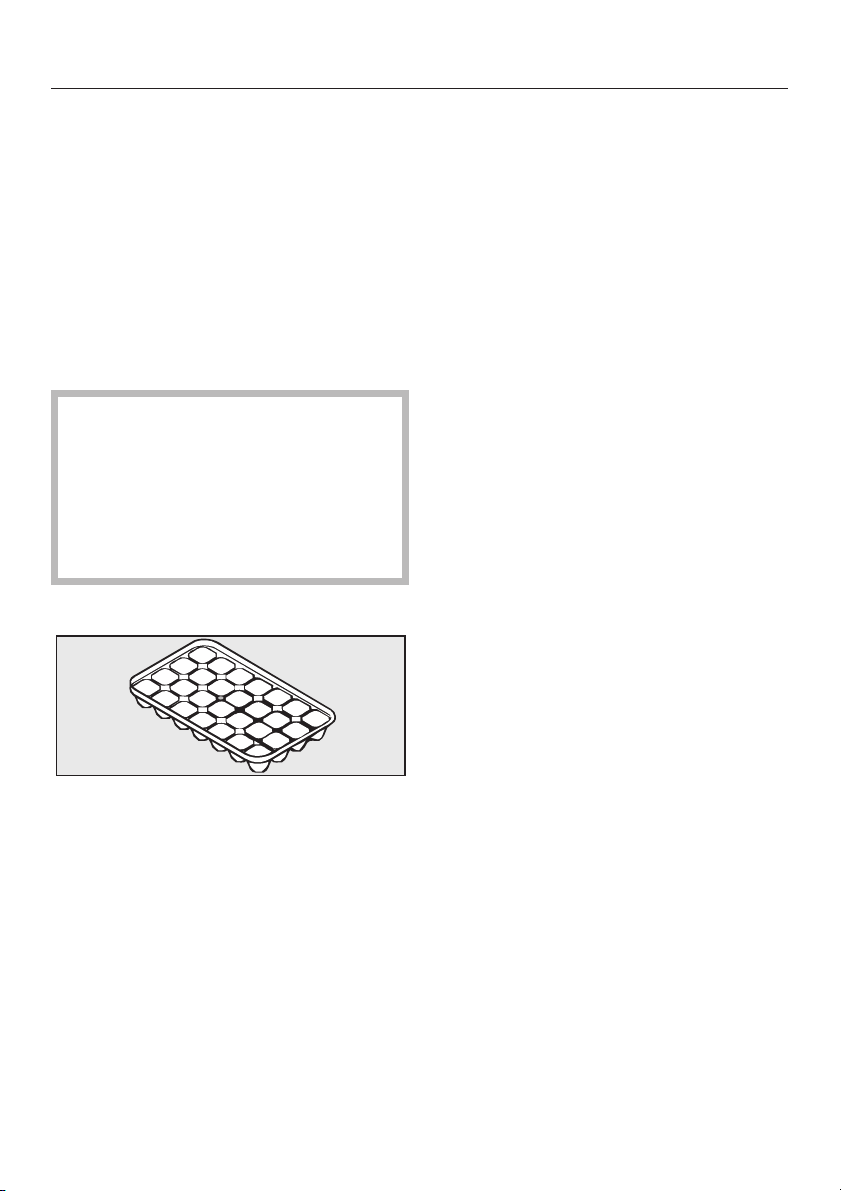

Ice cubes ........................................................19

Cooling drinks ....................................................19

Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Refrigerator section ................................................20

Freezer compartment ..............................................20

Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cleaning the interior and accessories ..................................22

Ventilation gaps ...................................................23

Door seal ........................................................23

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

After Sales / Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Electrical connection U.K. ...........................................29

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Location .........................................................30

Climate range ..................................................30

Ventilation .......................................................31

Before installation .................................................31

Building in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Changing the door hinging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Appliance door ...................................................33

Freezer compartment door ..........................................33

Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Building under ....................................................34

Adjusting the plinth depth ...........................................34

Fitting a furniture door ..............................................35

Description of the appliance

a Freezer compartment *

b Adjustable shelves (glass or racks *)

c Condensate channel and

drain hole

d Fruit and vegetable containers

e Ventilation gap

f Butter and cheese compartment

g Egg trays

h Temperature selector and

interior light with contact switch

i Divider

j Door shelves

* depending on model

Caring for the environment

Disposal of the packing material

The transport and protective packing has been selected from materials which are environmentally friendly for disposal, and can normally be recycled.

Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!

Rather than just throwing these materials away, please ensure that they are recycled.

Disposal of your old appliance

Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste.

Please dispose of it at your local community waste collection / recycling centre or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.

It should be unplugged or disconnected from the mains electricity supply by a competent person.

Take care not to damage the pipework at the back of it before or during transportation to an authorised collection depot. In this way, refrigerant in the pipework and oil in the compressor will be contained, and will not leak out into the environment.

Warning and Safety instructions

Correct application

This appliance complies with all relevant legal safety requirements. Improper use of the appliance can, however, present a risk of both personal injury and material damage.

To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before installation and before using it for the first time. They contain important notes on the installation, safety, operation and care of the appliance.

Keep these instructions in a safe place and pass them on to any future user.

This appliance is intended for

domestic use only for the cool storage of food and drinks as well as for storing deep frozen food, freezing fresh food and for preparing ice. Any other usage is not supported by the manufacturer and could be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation.

This appliance is not intended for

use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowldege, unless they have been shown how to use it by a person responsible for their safety.

Safety with children

This appliance is not a toy! To avoid

the risk of injury, do not allow children to play on or near it or to play with the controls. Older children may only use the appliance if its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.

Keep children away from the

appliance at all times and supervise them whilst you are using it.

Warning and Safety instructions

Technical safety

Before setting up the appliance,

check it for any externally visible damage. Do not install and use a damaged appliance.

This appliance contains the coolant

Isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this environmentally friendly coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, but does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and installation of the appliance that no parts of the coolant system are damaged. Leaking coolant can damage the eyes. In the event of any damage:

- avoid open fires and anything which

creates a spark,

- disconnect from the mains,

- air the room in which the appliance is

located for several minutes and

- contact the Service Department for

advice.

The more coolant there is in an

appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For every8gofcoolant at least 1 m room space is required. The amount of coolant in the appliance is stated on the data plate inside the appliance.

Before connecting the appliance to

the mains supply, make sure that the rating on the data plate corresponds to the voltage and frequency of the household supply. This data must correspond in order to avoid the risk of damage to the appliance. Consult a qualified electrician if in any doubt.

The electrical safety of this

appliance can only be guaranteed when continuity is complete between it and an effective earthing system which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and tested regularly, and where there is any doubt, the household wiring system should be inspected by a qualified electrician. The manufacturer cannot be held liable for damage or injury caused by the lack of or inadequacy of an effective earthing system (e.g. electric shock).

If the connection cable is faulty it

must only be replaced by a Miele approved service technician to protect the user from danger.

Warning and Safety instructions

Safe operation of the appliance is

only assured if it has been installed and connected in accordance with these operating and installation instructions.

This appliance may only be used in

mobile installations such as ships etc. if a risk assessment of the installation has been carried out by a suitably qualified engineer.

Installation work, maintenance and

repairs may only be carried out by suitably qualified and competent persons in accordance with national and local safety regulations. Repairs and other work by unqualified persons could be dangerous and the manufacturer will not be held liable. Ensure current is not supplied to the appliance until after maintenance or repair work has been carried out.

The appliance is only completely

isolated from the electricity supply when:

–

it has been switched off at the socket and the plug has been withdrawn.

–

the fuse from the fused spur connection unit has been withdrawn, or

–

the mains fuse has been withdrawn, or the screw-out fuse removed (in countries where this is applicable).

Do not connect the appliance to the

mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).

In countries where there are areas

which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee.

Correct use

Never handle frozen food with wet

hands. Your hands may freeze to the frozen food. Danger of frost burn.

Do not take ice cubes out with your

bare hands and never place ice cubes or ice lollies in your mouth straight from the freezer. The very low temperature of the frozen ice or lollies can cause frost burn to the lips and tongue.

Do not refreeze thawed or partially

thawed food. Defrosted food should be used up as quickly as possible, as food soon loses it nutritional value and goes off. Defrosted food may only be re-frozen after it has been cooked.

Never store explosive materials in

the appliance. Thermostats switching on may produce sparks which could present a fire hazard. Flammable compounds could explode.

Do not operate any electrical

equipment (e.g. electric ice-cream maker) inside the appliance. Danger of sparking and explosion.

Warning and Safety instructions

If storing alcohol with a high

percentage proof, make sure it is tightly closed and stored upright. Danger of explosion.

Do not store cans or bottles

containing carbonated drinks or liquids which could freeze in the freezer. The cans or bottles could explode. Danger of injury and damage to the appliance.

When cooling drinks quickly in the

freezer, make sure bottles are not left in for more than one hour, otherwise they could burst, resulting in injury or damage.

Observe the "use by" dates given on

food to avoid the risk of food poisoning. Storage times will depend on several factors, including the freshness and quality of the food as well as the temperature at which it is stored. Follow the instructions given on the food manufacturer’s packaging on storage conditions required.

Do not use sharp edged objects to

–

remove frost and ice,

–

separate frozen foods or remove ice trays.

They will damage the evaporator, causing irreversible damage to the appliance.

Never place electric heaters or

candles in the appliance to defrost it. These can damage the plastic parts.

Do not use defrosting sprays or

de-icers, as they might contain substances which could damage the plastic parts or which could cause a build-up of gases and pose a danger to health.

Do not use any oils or grease on the

door seal, as these will cause the seal to deteriorate and become porous with time.

Do not store cooking oil in the

refrigerator door. Traces of oil can cause stress cracks to occur in the plastic components in the door.

Do not block the ventilation gaps in

the plinth or the top of the appliance housing unit as this would impair the efficiency of the appliance, increase the electricity consumption and could cause damage to the appliance.

The appliance is designed for use

within certain climate ranges (ambient temperatures), and should not be used outside this range. The climate range for your appliance is stated on the data plate inside the appliance. Installing it in a room with too low an ambient temperature, e.g. a garage, will lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.

Never use a steam-cleaning

appliance to defrost or clean this appliance. Pressurised steam could reach the electrical components and cause a short circuit.

Warning and Safety instructions

Disposal of your old appliance

Before disposing of an old

appliance, first make the door latch or lock unusable. This way you will prevent children from accidentally locking themselves in and endangering their lives.

Be careful not to damage any part of

the pipework whilst awaiting disposal, e.g. by

puncturing the refrigerant channels

–

in the evaporator.

bending any pipework.

–

– scratching the surface coating.

Splashes of refrigerant can damage the eyes.

The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

How to save energy

Normal energy consumption

Installation site In a ventilated room. In an enclosed, unventilated room.

Protected from direct sunlight. In direct sunlight.

Not situated near to a heat source (radiator, oven).

Where the ideal ambient room temperature is approx. 20°C.

Temperature setting with a thermostat which is approximate (set in stages).

Temperature setting with a thermostat which is exact to the degree (digital display).

Use Only open the doors when

Defrosting Defrost the freezer compartment

With a medium setting of 2 to 3. With a high setting: the lower the

Cellar section 8 to 12°C

Refrigerator section 4 to 5 °C

PerfectFresh zone just above 0 °C

Freezer section -18°C

Wine storage section 10 to 12 °C

necessary and for as short a time as possible.

Store food in an organised way. If food is not stored in an

Allow hot food and drinks to cool down before placing them in the appliance.

Store food covered or packaged. The evaporation or condensation

Place frozen food in the refrigerator to defrost.

Do not over-fill the appliance to allow air to circulate.

when a layer of ice 0.5 cm thick has built up.

Increased energy consumption

Situated near to a heat source (radiator, oven).

Where there is a high ambient room temperature.

temperature in the compartment, the higher the energy consumption.

On appliances with winter setting, please make sure that the winter setting is switched off when the ambient temperature is warmer than 16 °C.

Frequent opening of the doors for long periods will cause a loss of coldness.

organised way, searching for an item will mean the door is open for longer.

Placing hot food in the appliance will cause the compressor to run for a long time, as the appliance will have to work harder to lower the temperature.

of liquids will cause a loss of coldness in the refrigerator.

A layer of ice hinders the cold from reaching the frozen food, and causes an increase in energy consumption.

Switching on and off

Before using for the first time

Clean the inside of the appliance and

the accessories with warm water and a little washing up liquid, and then dry with a soft cloth.

Important: To ensure correct functioning of the appliance, let it stand for between 1½ and 2 hours after transporting it to its final location before connecting it to the mains.

Switching on

^ Turn the temperature selector in a

clockwise direction away from "0".

Switching off for longer periods of time

If the appliance is not going to be used for a longer period of time, e.g. whilst on holiday,

switch the appliance off,

switch off at the wall socket and

withdraw the plug,

defrost the freezer compartment,

clean the appliance out and

leave the doors ajar to air the

appliance.

If, during a long absence, the appliance is switched off but not cleaned out and the doors are left shut, there is a danger of mould and odours building up inside the appliance.

The appliance starts cooling, and the interior light will come on when the door is opened.

The higher the setting, the lower the temperature in the appliance.

Switching off

Turn the temperature selector in an anti-clockwise direction from "1" back to the "0" position.

The cooling system and the interior light are now switched off.

The correct temperature

It is very important to set the correct temperature for storing food in the appliance. Micro organisms will cause food which is not stored at the correct temperature to deteriorate rapidly. Temperature influences the growth rate of these micro organisms. Reducing the temperature reduces their growth rate.

The temperature in the appliance will rise:

the more often the door is opened

–

and the longer it is kept open,

– if too much food is stored in it at

once,

– the warmer the food is which is put

into it,

– the higher the ambient temperature

surrounding the appliance. The appliance is designed for use in specific ambient temperatures (climate ranges). Do not use in ambient temperatures for which it is not designed.

...intherefrigerator

We recommend a temperature of

5°Cin the middle of the appliance.

...inthefreezer compartment

(depending on model)

For freezing fresh food and storing frozen food for a long time a temperature of at least -18 °C is needed. At this temperature the growth of micro organisms is generally halted. As soon as the temperature rises to above -10 °C , the micro organisms become active in the food again so that it cannot be kept as long. Partially defrosted or defrosted food must not be re-frozen once it has been cooked as the high temperatures achieved when cooking destroy most organisms.

Temperature selection

Use the temperature selector to select the temperature.

^ Turn the temperature selector to a

setting between 1 and 7.

The higher the setting the lower the temperature in the appliance. A middle range setting is usually sufficient.

However, if frozen food is to be stored in the freezer compartment then a setting between 4 and 7 is recommended to ensure that the required temperature in the freezer compartment is maintained.

It is advisable to select a higher setting (between 4 and 7) if the door is opened frequently, large quantities of food are stored in the refrigerator or there is a high ambient temperature.

Using the refrigerator efficiently

Different storage zones

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator. Cold, heavy air sinks to the lowest section of the appliance. Make use of the different zones when placing food in the appliance.

Do not store explosive materials in the appliance or any products containing propellants (e.g. spray cans). Danger of explosion.

If storing alcohol with a high percentage proof, make sure it is tightly closed, and store upright.

Warmest area

The warmest area is in the top section of the door. Use this for storing butter and cheese.

Coldest area

The coldest area in a refrigerator is directly above the vegetable containers.

Use this for all delicate and highly perishable food, e.g.

– fish, meat, poultry,

– sausage products, ready meals,

–

dishes or baked goods containing eggs or cream,

–

fresh dough, cake mixtures, pizza or quiche dough,

–

soft cheese and other dairy products,

–

pre-packed vegetables and other fresh food with a label stating it should be kept at a temperature of approx. 4 °C.

If storing bottles of oil or food containing high levels of fat or oil in the appliance, take care not to let the fat or oil come into contact with plastic components. These can cause stress cracks to occur in the plastic components.

Food must not touch the back wall of the appliance, as it may freeze to the back wall.

Food which should not be stored in a refrigerator

Not all food is suitable for storing in the refrigerator. These include:

–

Fruit and vegetables which are sensitive to cold, such as bananas, avocado pears, papaya, passion fruit, aubergines/eggplant, peppers/capsicum, tomatoes and cucumbers

–

Fruit which is not yet ripe

–

Potatoes

–

Some hard cheeses, e.g. Parmesan

Using the refrigerator efficiently

Storing food correctly

Store food covered or packaged. This will prevent food smells or tastes from affecting other foods, and prevent food from drying out and also any cross-contamination of bacteria. The growth of bacteria, such as salmonella, can be avoided by setting the correct temperature and maintaining good standards of hygiene.

Fruit and vegetables

Fruit and vegetables can be stored loose in the vegetable containers. However, you should bear in mind that some types of vegetables give off a natural gas which speeds up the rate at which food perishes. Some fruit and vegetables react strongly to this gas and should not be stored together.

Examples of fruit which produce a large amount of this natural gas are:

Apples, apricots, pears, nectarines, peaches, plums, avocado pears and figs.

Unpacked meats and vegetables

Different types of unpacked meats and vegetables must be kept separate. To avoid any microbiological cross-contamination, these foods may only be stored together if they are wrapped.

Protein rich foods

Please note that foods rich in protein deteriorate faster than others. Shell fish, for example, deteriorates faster than fish, and fish deteriorates faster than meat.

Meat

Meat should be stored loosely covered in suitable containers or packaging. Allowing the surface of the meat to dry slightly helps to prevent the growth of bacteria. To prevent the risk of bacterial cross-contamination meat should not be allowed to come into contact with other foods.

Examples of fruit and vegetables which react strongly to the natural gases given off by other types of fruit and vegetables are:

Kiwis, broccoli, cauliflower, Brussels sprouts, mangos, honeydew melons, apples, apricots, cucumbers, tomatoes, pears, nectarines and peaches.

Adjusting the interior fittings

Moving the shelves

The shelves can be adjusted according to the height of the food.

Pull the shelves forward as far as

they will go then lift them upwards to remove them.

With the rear barrier facing upwards

place the shelf at the required position. The rear barrier must face upwards to prevent food from touching the back of the appliance and freezing to it.

Split shelf

(depending on model)

In order to accommodate tall items in the appliance one of the shelves is divided. The front section can be taken out to allow space for tall items standing on the shelf below.

Adjusting door shelves

Push the door shelf upwards then

remove it by pulling it forwards.

Replace the door shelf at the

required position. Ensure that it is securely pushed back into position.

Moving the bottle divider

(depending on model)

The bottle divider can be moved to the left or right to ensure that bottles are held securely in position when the door is opened and shut.

Freezing and storing food

Using the freezer compartment

Use the freezer compartment to:

store frozen food,

–

make ice cubes,

–

freeze small quantities of fresh food.

–

Storing frozen food

When buying frozen food to store in your freezer check

that the packaging is not damaged,

–

the use by date,

–

– the temperature at which the frozen

food is being stored in the shop. The length of time it can be kept is reduced if it has been stored at a temperaure warmer than -18 °C.

^ Buy frozen food once you have

finished the rest of your shopping and wrap it in newspaper or use a cool bag or box to transport it.

Store it in the freezer compartment as soon as possible.

Never re-freeze partially or fully defrosted food. Consume defrosted food as soon as possible as it will lose its nutritional value and spoil if left for too long. Defrosted food may only be re-frozen after it has been cooked.

Home freezing

Only freeze fresh food which is in a good condition.

Hints on home freezing

The following types of food are

–

suitable for freezing: Fresh meat, poultry, game, fish, vegetables, herbs, fresh fruit, dairy products, pastry, leftovers, egg yolks, egg whites and a range of pre-cooked meals.

The following types of food are not

–

suitable for freezing: Grapes, lettuces, radishes, sour cream, mayonnaise, eggs in their shells, onions, whole raw apples and pears.

– To retain colour, taste and vitamin C,

vegetables should be blanched after they have been trimmed and washed. To blanch: bring a large saucepan of water to the boil, immerse the vegetables in the fast boiling water for 2-3 minutes, depending on variety. Remove and cool quickly in cold water. Drain and pack ready for freezing.

–

Lean meat freezes better than fatty meat and can be stored for considerably longer.

–

To prevent chops, steaks, cutlets or rolled meat from freezing together in solid blocks when packed, separate with a sheet of plastic freezer film.

Freezing and storing food

Do not season fresh foods or

–

blanched vegetables before freezing. Only season cooked food lightly before freezing but care should be taken as the taste of some spices alters when frozen.

Do not place hot foods or drinks in

–

the freezer compartment. This causes already frozen food to thaw and increases the energy consumption considerably. Allow hot foods and drinks to cool down before placing them in the freezer compartment.

Packing

^ Freeze food in portions.

Suitable packing material

- plastic freezer film

- freezer bags

- aluminium foil

- freezer containers

Unsuitable packing material

- wrapping paper

- grease-proof paper

- cellophane

- bin bags

- plastic carrier bags

Placing food in the freezer

Place the food flat on the bottom of

the freezer compartment so that it freezes through to the core as quickly as possible.

Make sure that the packaging and

containers are dry to prevent them sticking together when frozen.

When freezing, make sure that food already frozen does not come into contact with fresh food being frozen as this could cause the frozen food to begin to defrost.

Defrosting

Freezer bags may also be sealed using home heat sealing kits.

Expel as much air as possible from bags etc. before sealing them to prevent freezer burn on food.

Close the packaging tightly with

- rubber bands

- plastic clips

- string or bag ties

- freezer tape.

Make a note of the contents and the date of freezing on the packaging.

Frozen food can be defrosted in different ways:

–

in the microwave oven,

–

in the oven using the "Fan" or "Defrost" setting,

–

at room temperature,

–

in the fridge.

Fruit should be defrosted at room temperature in its packing or in a covered bowl.

Freezing and storing food

Most vegetables can be cooked while

still frozen. Just put straight into boiling water or hot fat. The cooking time is slightly less than that of fresh vegetables.

Poultry It is particularly important to observe food hygiene rules when defrosting poultry. Do not use the liquid from defrosted poultry. Pour it away and wash the container it was in, the sink and your hands.

Ice cubes

Cooling drinks

When cooling drinks quickly, make sure bottles are not left in the freezer compartment for more than one hour, as they could burst.

Fill the ice tray three quarters full with water and place it on the bottom of the freezer.

Once frozen use a blunt instrument, for example a spoon handle, to remove the ice tray from the freezer.

Ice cubes can be removed easily from the tray by holding it under cold running water for a short while.

Defrosting

Refrigerator section

The refrigerator defrosts automatically.

Condensate and frost can build up on the back wall of the refrigerator section whilst it is in use. You do not need to remove this, as it will defrost and evaporate automatically with the warmth generated by the refrigerator.

The condensate is drained away via a channel and drain hole into an evaporation system at the back of the appliance.

Ensure that the condensate channel and drain hole are kept clean and are never blocked so that condensate can flow away without hindrance.

Freezer compartment

(depending on model)

The freezer compartment does not defrost automatically because frozen food must not be allowed to defrost.

In normal use, ice and frost will form on the evaporator. If allowed to accumulate, this will impair the efficiency of the freezer and increase the consumption of electricity.

Do not scrape ice and frost off the evaporator as this can damage it and render the appliance unusable.

The freezer compartment should be defrosted from time to time. It must be defrosted if a layer of ice approx. 0.5 cm thick has accumulated. It is best to defrost when only very little food or no food at all is left in the freezer compartment.

Before defrosting

Remove the frozen food from the freezer compartment and place it in another freezer or cool box, or wrap it in several layers of newspaper or cloths,

and store it in a cool place until the freezer compartment is ready for use again.

Defrosting

To defrost

Carry out the defrosting procedure as quickly as possible if food has not been placed in another freezer. The longer the food is left out at room temperature, the faster it defrosts.

Switch the appliance off at the wall

socket and remove the plug.

Open the freezer compartment door.

Use a sponge or towel to soak up the

defrosted water.

To speed up defrosting, a bowl with hot water (not boiling) can be placed in the freezer compartment. Closing the door in this instance will help retain warmth and speed up the defrosting process.

We do not recommend the use of hot air blowers such as hairdryers for defrosting your freezer.

After defrosting

Clean the appliance, and then dry it

thoroughly. Do not let water get into the condensate channel and drain hole.

Insert the plug in the appliance, and

switch the appliance back on.

Place the frozen food into the freezer

compartment again.

Never place electric heaters or candles in the appliance to defrost it. These can damage the plastic parts.

Do not use defrosting sprays or de-icers, as they could contain substances which may damage the plastic parts and which may cause a build-up of gases and pose a danger to health.

Cleaning and care

Never use cleaning agents containing abrasive substances such as sand, soda, acids or chemical solvents. "Non-abrasive" cleaning agents are also unsuitable as they can cause matt areas to appear.

Before cleaning

^ Switch the appliance off by turning

the temperature selector to the "0" position.

^ Take any food out of the appliance

and store it in a cool place.

^ Defrost the freezer compartment.

Door fronts should be cleaned using a solution of warm water with mild detergent applied with a soft cloth or with a suitable cleaning agent for the type of door panel fitted.

Make sure that no water can penetrate into the temperature selector or into the light.

Do not let water get into the drainage channel and drain hole when cleaning.

Never use steam cleaning apparatus to defrost or clean the appliance. The steam could attack the electrical components and cause a short circuit.

The data plate located inside the appliance must not be removed. It contains information which is required in the event of a service call.

^ Take out any removable parts e.g.

shelves for cleaning.

Cleaning the interior and accessories

Use lukewarm water with a little mild detergent. Accessories and shelves should all be hand washed. The butter dish is, however, dishwasher safe.

^ Clean the refrigerator at least once a

month and the freezer compartment each time it is defrosted.

^ Clean the condensate channel and

drain hole frequently, so that condensate can drain away unhindered. Use a straw or similar to clear the drain if necessary.

^ After cleaning wipe the interior and

accessories with a damp cloth and dry with a soft cloth. Leave the doors open to air for a short while.

If you are unsure about a particular product or need further advice please contact your nearest Miele Sales office. See back page for address.

Ventilation gaps

The ventilation gaps should be

cleaned on a regular basis with a brush or vacuum cleaner. A build up of dust will increase the appliance’s energy consumption.

Door seal

Do not use any oils or grease on the door seals as these will cause the seals to deteriorate and become porous with time.

The door seals should be cleaned regularly with clean water and then wiped dry with a soft cloth.

After cleaning

^ Replace all shelves and accessories

in the appliance.

Cleaning and care

^ Switch the appliance on with the

temperature selector.

Place food back in the appliance and close the door.

Problem solving guide

Repairs to electrical appliances should only be carried out by a suitably qualified and competent person in accordance with local and national safety regulations. Unauthorised repairs could be dangerous.

What to do if...

. . . the appliance does not get cool.

Make sure the temperature selector

is not set at "0".

Check that the plug is correctly

inserted in the socket.

Check that the fuse is not defective

and that the mains fuse has not blown. If it has contact the Miele Ser vice Department.

. . . strange noises can be heard after switching on the appliance, especially after it has just been installed.

^ Check to see whether any pieces of

furniture next to the appliance are vibrating whilst the appliance is in operation. Switch the appliance off then:

^ Check whether the appliance is

aligned correctly.

^ Check whether all parts at the rear of

the appliance are free from hinderance. Remove any hinderance.

Check whether the cable clips were unclipped from the back of the appliance before installation. They could vibrate when the appliance is operating.

Are all removable parts securely located in the appliance?

Are bottles or containers touching each other?

Remember that the noise of the compressor and the coolant circulating in the system is unavoidable.

. . . the temperature in the refrigerator is too low.

Turn the temperature selector to a

setting closer to "0".

^ Check that the freezer compartment

door is closed properly.

^ Has a large abount of fresh food

been put in at once for freezing? This makes the compressor run for longer causing the temperature in the refrigerator to fall automatically. No more that 2 kg of fresh food should be frozen at one time.

. . . the appliance is switching in too frequently and for too long.

Check whether ventilation gaps in the plinth and in the housing unit at the top have been covered over or become too dusty.

The appliance door and the freezer compartment door have been opened too frequenly, or large amounts of fresh food have been put in at once for freezing.

Problem solving guide

Check that the doors have been

closed properly.

Check to see whether there is a thick

layer of ice in the freezer compartment. If there is, defrost the freezer compartment.

. . . the frozen food is thawing because the freezer compartment is too warm.

The room temperature is lower than

the ambient temperature for which the appliance was designed.

Increase the temperature in the room.

Operating in a room which is too cold will cause the cooling system to switch off for too long causing the freezer compartment to become too warm.

. . . food has frozen together.

Use a blunt instrument, e.g. a spoon handle or plastic scraper to carefully prise it apart.

. . . the interior light in the refrigerator does not work.

Has the contact switch got stuck?

Is the temperature selector at a

setting other than "0"? If it is then the bulb may be defective and need replacing.

Disconnect the appliance from the

mains. Switch off at the wall and withdraw the plug from the socket (pull by the plug not the cable), or disconnect the mains fuse or remove the screw-out fuse in countries where this is applicable.

^ Reach under the back of the light

cover and unscrew the bulb (see illustration).

. . . there is a thick layer of ice in the freezer compartment.

Check whether the door to the freezer compartment closes properly.

Defrost and then clean the freezer compartment.

Too thick a layer of ice reduces efficiency and increases energy consumption.

Replace it with a new one.

Bulb specification: 220 – 240 V, max. 15 W, E 14 fitting

Problem solving guide

. . . the floor of the appliance is wet.

The drain hole has become blocked.

Clean the condensate channel and

drain hole.

If you still cannot remedy the fault having followed these suggestions, then contact the Service Department.

To prevent unecessary loss of temperature it is advisable not to open the door whilst waiting for the appliance to be serviced.

Noises

Normal noises What causes them

Brrrrr... Humming noise made by the motor (compressor). This noise can

Blubb, blubb.... A gurgling noise can be heard when coolant is circulating

Click.... Clicking sounds are made when the thermostat switches the

Sssrrrrr.... On multi-zone and frost-free appliances you can sometimes just

Remember that the noise of the compressor and the coolant circulating in the system is unavoidable.

get louder for brief periods when the motor is switching on.

through the pipes.

motor on and off.

hear the movement of air circulating inside the appliance.

Noises that you can easily rectify

Rattling, vibrating The appliance is uneven: Realign the appliance using a spirit

What causes them, and what can you do about them?

level, by raising or lowering the screw feet underneath the appliance.

The appliance is touching another appliance or piece of furniture: Move it away.

Drawers, baskets or shelves are unstable or sticking: Check

all removable items and refit them correctly.

Are any bottles or containers unstable or knocking against each other? Separate them.

The transport cable clips are hanging loose at the back of the appliance: Remove the clips.

After Sales / Guarantee

In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee, please contact:

your Miele Dealer

–

Miele

–

(see back cover for contact details).

When contacting your Dealer or Miele, please quote the model and serial number of your appliance. This information is given on the data plate inside your appliance.

Please note that telephone calls may be monitored and recorded for training purposes.

N.B. A call-out charge will be applied for service visits where the problem could have been resolved as described in these instructions.

Guarantee

For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details.

In the U.K. your appliance is guaranteed for 2 years from the date of delivery. However, you must activate your cover by calling 08706 080028 or registering online at www.miele.co.uk.

Electrical connection

Electrical connection U.K.

All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current local and national safety (BS 7671 in the UK).

The appliance is supplied with a mains cable and moulded plug ready for connection to an a.c. single phase 220-240 V 50 Hz supply.

The voltage and frequency are given on the data plate. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug.

Connection should be made via a suitable switched socket which is easily accessible. For extra safety it is advisable to protect the appliance with a suitable residual current device (RCD).

Do not connect the appliance to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).

Non-rewireable plugs (BS 1363)

The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost, the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is embossed in words in the base of the plug (as applicable to the design of the plug fitted).

Replacement fuses should be ASTA approved to BS 1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.

WARNING THIS APPLIANCE MUST BE EARTHED

The appliance must not be connected to an inverter and must not be used with a plug adapter as these can cause damage to the appliance’s electronic unit.

Installation

This appliance must be built in, otherwise it could tip up.

Location

The appliance should be installed in a dry well ventilated room. The room temperature should not go above or below the climate range for which the appliance is designed. The higher the ambient temperature of the room the more energy the appliance requires to operate. It should not be installed where it is exposed to direct sunlight or directly adjacent to a heat-producing appliance such as an oven or a radiator.

Important: tropical / humid environments

During periods of high humidity, some condensation may appear on outside surfaces of cooling appliances. This condensation will disappear when humidity levels drop. For prevention, it is advisable to install the appliance with sufficient ventilation in a dry and/or an air-conditioned room. Please ensure that doors are closing and sealing properly. Please ensure that the appliance is installed in accordance with these installation instructions and that the handle is fitted correctly. Should you require further assistance please contact your Miele customer service centre.

Climate range

The appliance is designed for a particular climate range (ambient room temperature), and should not be used outside this range. The climate range of this appliance is stated on the data plate inside the appliance.

Climate range Ambient room

temperature

+10 °C to + 32 °C +16 °C to + 32 °C +16 °C to + 38 °C +16 °C to + 43 °C

Operating in a room which is too cold will cause the cooling system to switch off for too long causing the internal temperature in the appliance to rise with the risk of food deteriorating and going off.

Ventilation

Air at the rear of the appliance gets warm. For the appliance to operate efficiently it is important that it is installed in such a way that energy loss is kept to a minimum. The niche must either be sealed at the back with a kitchen furniture panel or the sides of adjacent cabinetry and the worktop above the appliance must abut the kitchen wall behind the appliance. The top of the appliance must be fitted close to the worktop. The hole for the plug and cable to pass through must be made as small as possible.

Ventilation into and out of the appliance is through the appliance plinth. It must not be covered or blocked in any way. It should be dusted on a regular basis.

Installation

Before installation

Remove any cable clips from the rear of the appliance.

Check that all parts at the rear of the appliance are unhindered.

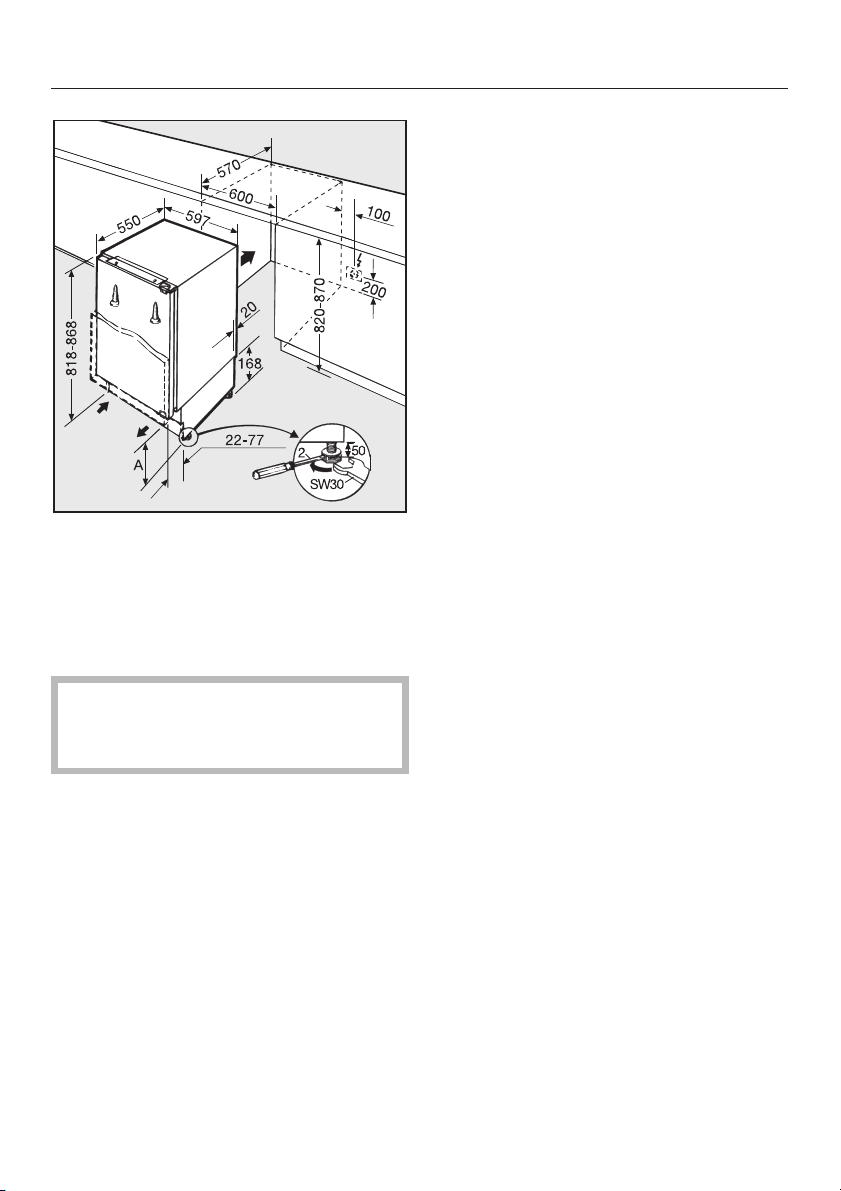

Building in dimensions

Plinth height A depends on the building under height:

With a building under height of 820 mm the plinth height will be between 100 – 170 mm.

Appliances in climate range ST or T require a minimum plinth height of 120 mm.

The plinth height is affected by the height of the furniture front panel on the appliance.

With a building under height of 870 mm the plinth height will be between 150 – 220 mm. The plinth height is affected by the height of the furniture front panel on the appliance and by the height of the adjustable appliance feet.

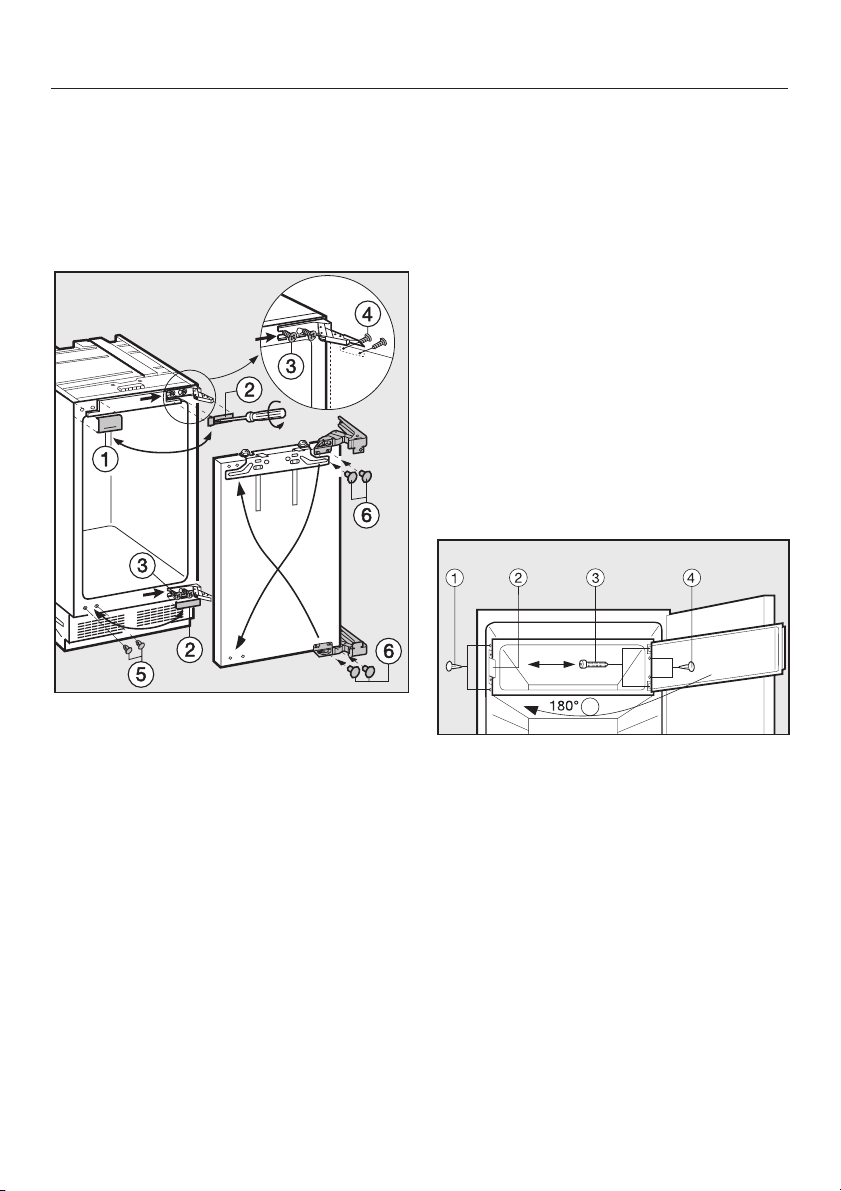

Changing the door hinging

Before building the appliance in decide on the door hinging. If left hand door hinging is required follow the instructions below.

Appliance door

Unscrew the hinges at the top and

bottom of the appliance door d and refit them on the diagonally opposite side. Warning: Do not allow the hinges to close. Danger of injury.

Tighten the hinges on the appliance

door and fit stoppers f in the holes which are now open.

Refit the appliance door onto

pre-fitted screws c, then tighten the screws.

Clip covers a and b on to the

hinges.

Freezer compartment door

Remove cover a by hand, and remove cover b using a screwdriver.

Loosen screws c in the top and bottom hinges.

Remove the appliance door.

Remove stoppers e from the appliance housing and replace them with screws c. Now plug the holes on the opposite side with stoppers e.

Remove stoppers a.

Unscrew catch b.

Unscrew the freezer compartment door c, turn it around and refit it on the opposite side.

Remove stoppers d and fit catch c into this position.

Plug the holes with the stoppers.

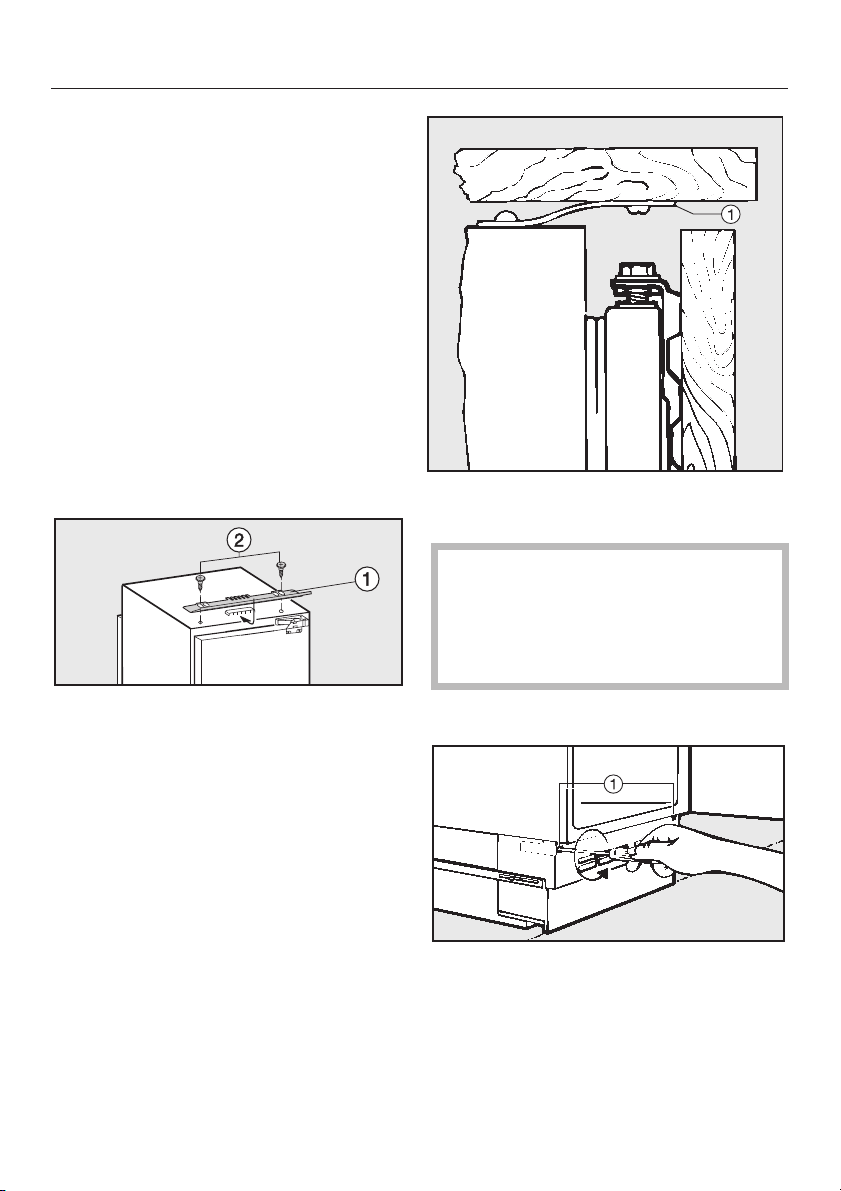

Building in the appliance

Building under

Where the building under height is 820 mm the appliance can be pushed

straight into the niche. Align the appliance beforehand using the adjustable feet.

Where the building under height is 870 mm the adjustable feet will first have to be extended by approx. 50 mm using a spanner (SW 30) or suitable screwdriver. Then align the appliance.

Position the power supply cable so

that it can easily be connected to the electricity socket once the appliance has been built in.

^ Loosely secure the appliance to the

worktop through fixing bracket a.

The appliance is properly secured to the worktop only after the plinth depth has been adjusted and the furniture door has been fitted to the appliance.

Fit fixing bracket a into position and secure it with self-tapping screws b.

Place the appliance on the slides supplied and push it into the niche. These make it easier to push the appliance in or pull it out.

Align the appliance with neighbouring furniture housing units.

Adjusting the plinth depth

Loosen screws a by turning them approx. 8 to 10 times.

Align the plinth fascia to neighbouring furniture plinths.

Building in the appliance

Then tighten screws a in a clockwise

direction until a resistance is felt.

If there is a continuous plinth in the kitchen, a ventilation gap will need to be made in the plinth for the appliance:

Building-under

height [mm]

820 870

The ventilation gaps must not be covered over.

Dimension H

[mm]

60+1

110+1

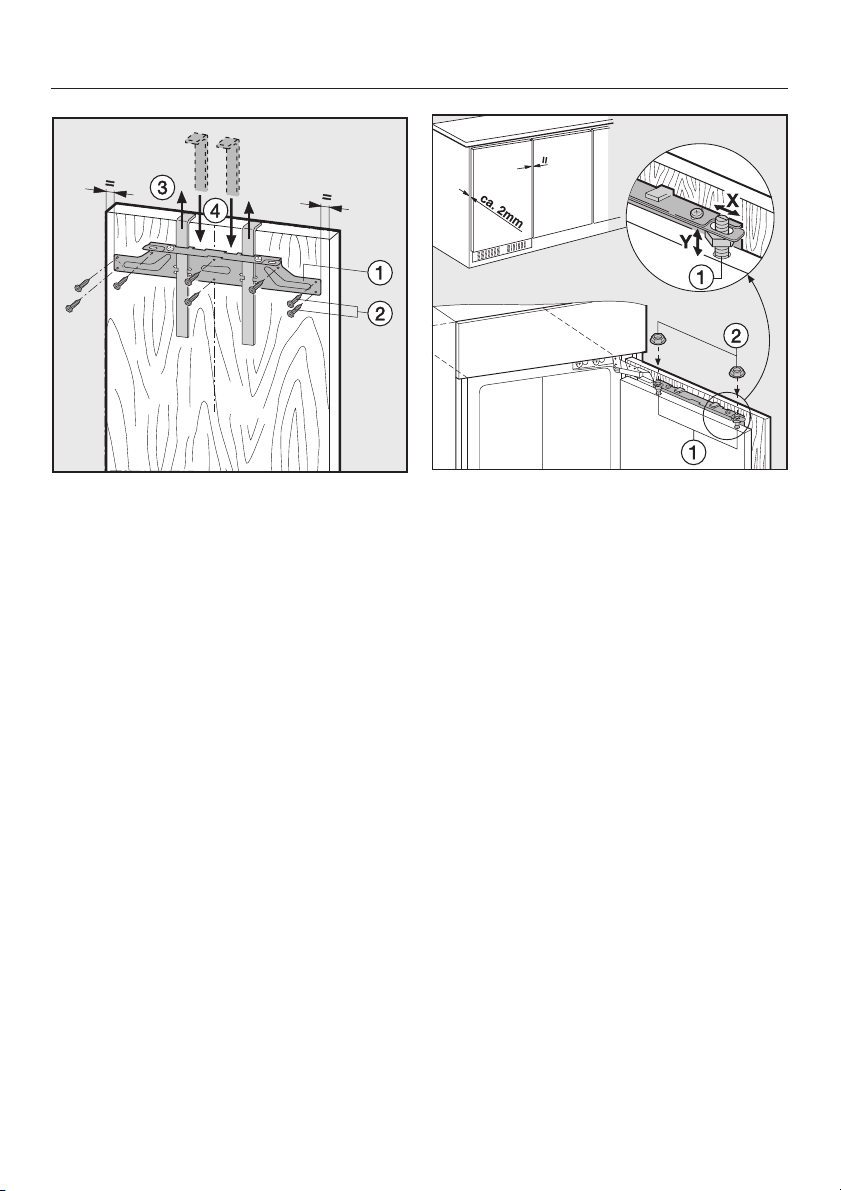

Fitting a furniture door

^ A gap of 8 mm must be maintained

between the appliance door and the fixing bracket.

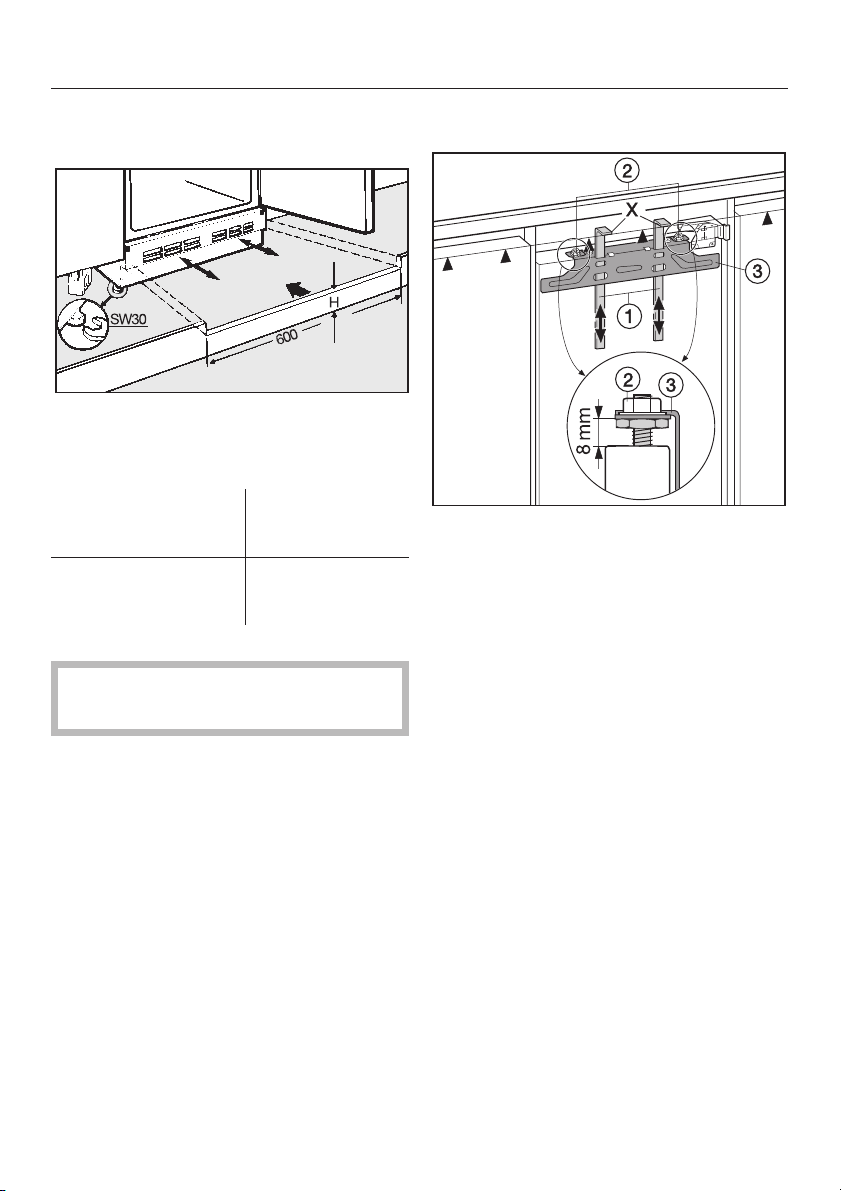

^ Push fitting aids a up to the height of

the furniture door: the lower edge "X" of the fitting aids must be at the same height as the upper edge of the furniture door being fitted (see - on the diagram).

Undo nuts b, and take fixing bracket c off together with the fitting aids.

Building in the appliance

^ Using a pencil, lightly mark a line

down the centre of the inside of the furniture door.

^ Hang the fixing bracket with the

fitting aids a onto the inside of the furniture door. Align the fixing bracket centrally.

^ Attach the fixing bracket securely

using at least 6 short4x14mm chipboard screws b. (On cassette doors only use 4 screws on the edges).

Pull the fitting aids upwards to remove them c.

Turn them around and fit them into the middle slots on fixing bracket d.

^ Hang the furniture door onto

adjusting bolts a.

^ Loosely attach the nuts b on the

adjusting bolts.

^ Close the door and check the

distance between the door and neighbouring furniture doors.

^ Align to match neigbouring doors if

necessary: Side adjustments "X" are made by sliding the furniture door, and height adjustments "Y" by turning the adjusting bolts a with a screwdriver.

Tighten the nuts b slightly.

Building in the appliance

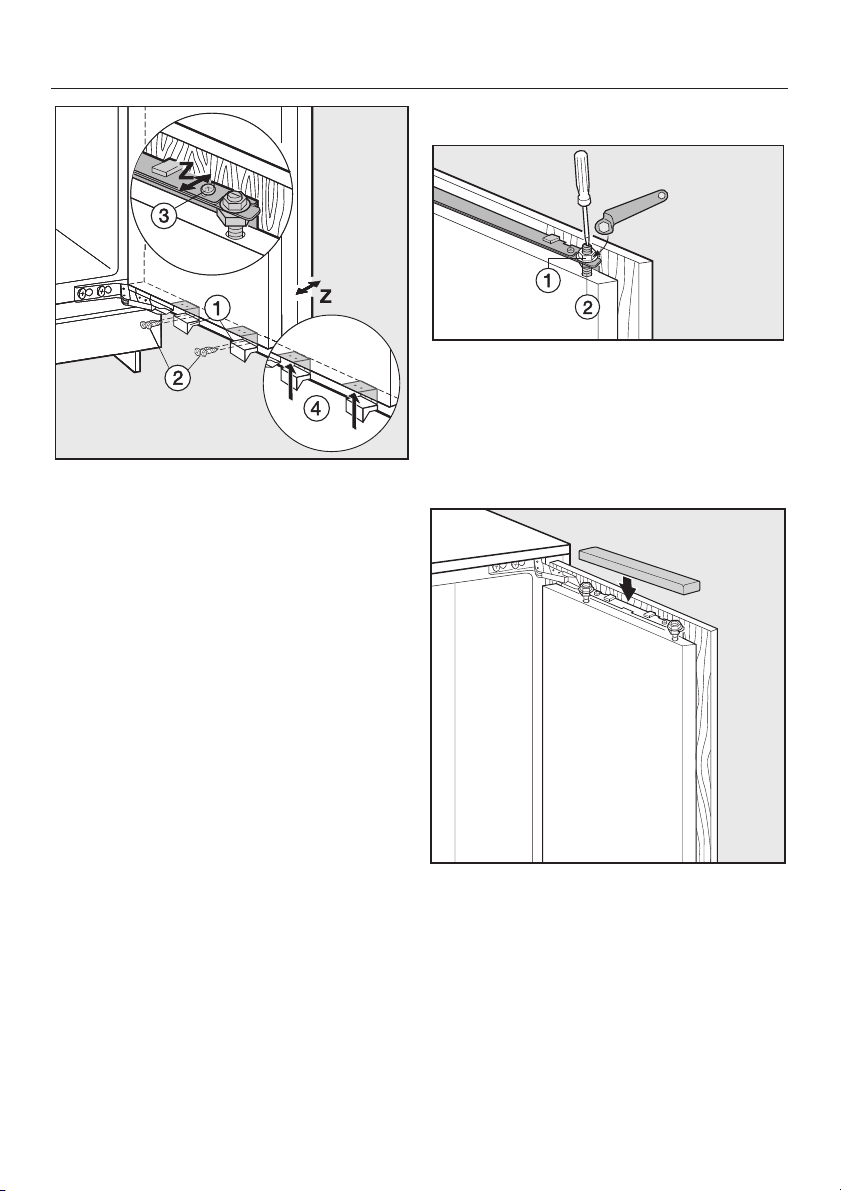

Securing the appliance

Whilst counterholding the adjusting

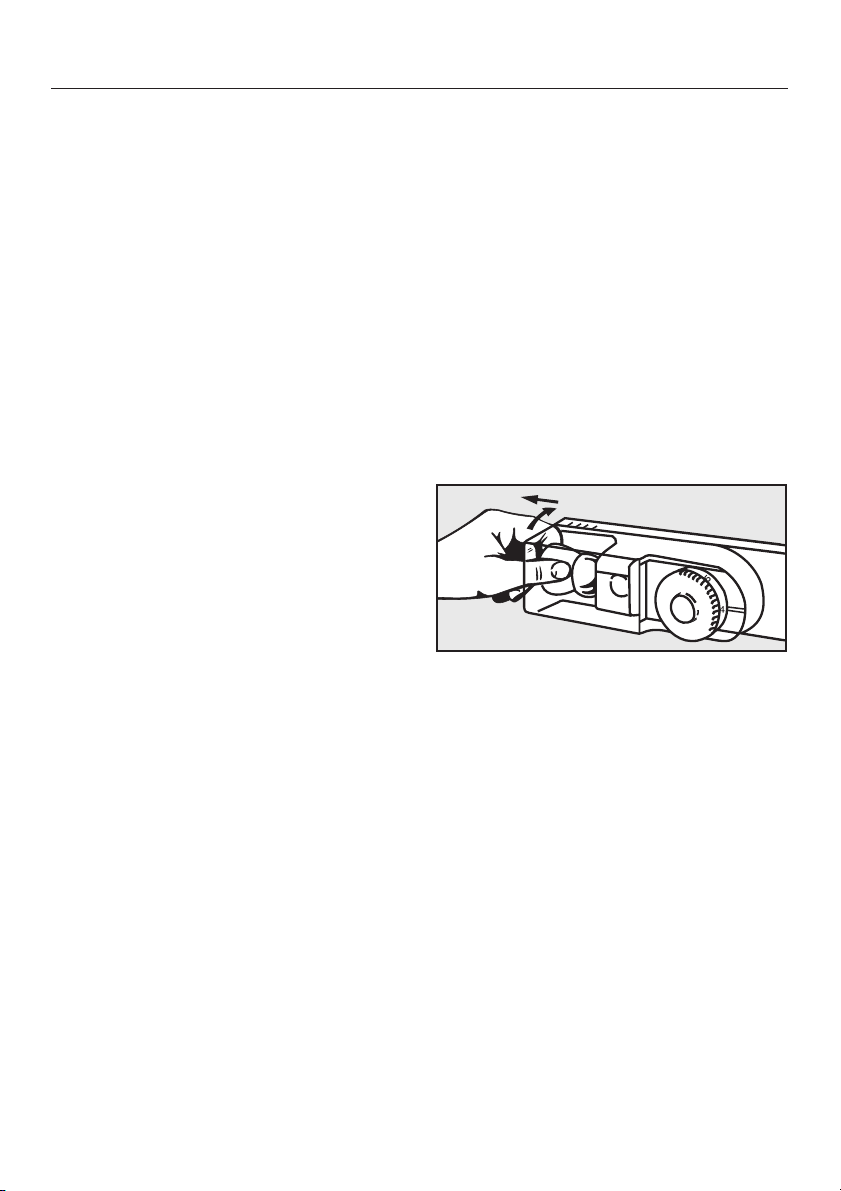

bolts b with a screwdriver, tighten nuts a at the top of the appliance door.

^ Securing the appliance door to the

furniture door:

– Open out plastic brackets a using a

screwdriver.

– Drill fixing holes and screw in the

short4x14mmchipboard screws b.

^ Align depth "Z" on the furniture door:

Loosen the screws in the long slots at the top c and bottom d of the appliance door. By moving the furniture door, create a gap of 2 mm between the furniture door and the front edge of the niche. Close the door and align it with neighbouring furniture doors.

Close plastic brackets a again.

^ Tighten all screws.

Place the cover in position.

373839

Alteration rights reserved / 2909

K 621 Ui-1, K 622 Ui-1

M.-Nr. 06 657 310 / 02

Miele K 622 Ui-1 Operating instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
