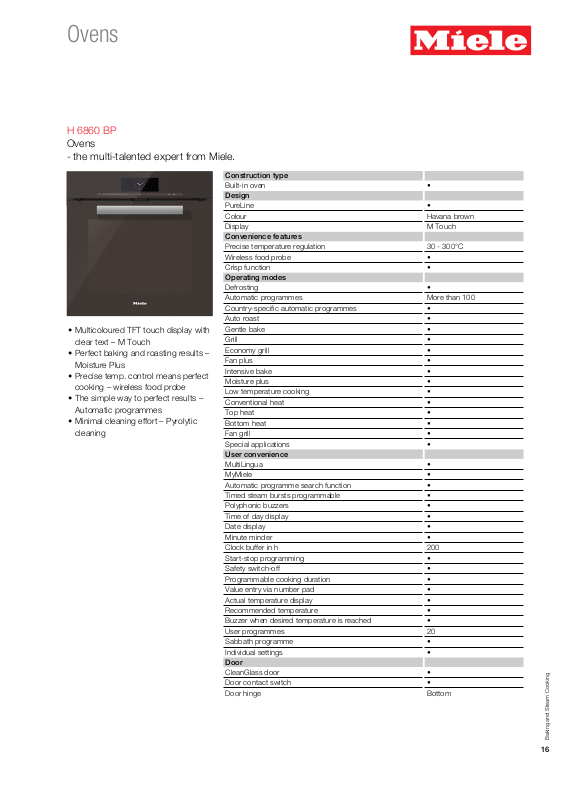

Page 1
Ovens
H 6860 BP
Ovens
- the multi-talented expert from Miele.
Construction type
Built-in oven •
Design
PureLine •
Colour Havana brown
Display M Touch
Convenience features
Precise temperature regulation 30 - 300°C
Wireless food probe •
Crisp function •
Operating modes
Defrosting •
Automatic programmes More than 100
Country-specific automatic programmes •
Auto roast •
• Multicoloured TFT touch display with
clear text – M Touch
• Perfect baking and roasting results –
Moisture Plus
• Precise temp. control means perfect
cooking – wireless food probe
• The simple way to perfect results –
Automatic programmes
• Minimal cleaning effort – Pyrolytic
cleaning
Gentle bake •
Grill •
Economy grill •
Fan plus •
Intensive bake •
Moisture plus •
Low temperature cooking •
Conventional heat •
Top heat •
Bottom heat •
Fan grill •
Special applications •
User convenience
MultiLingua •
MyMiele •
Automatic programme search function •
Timed steam bursts programmable •
Polyphonic buzzers •
Time of day display •
Date display •
Minute minder •
Clock buffer in h 200
Start-stop programming •
Safety switch-off •
Programmable cooking duration •
Value entry via number pad •
Actual temperature display •
Recommended temperature •
Buzzer when desired temperature is reached •
User programmes 20
Sabbath programme •
Individual settings •
Door
CleanGlass door •
Door contact switch •
Door hinge Bottom
Baking and Steam Cooking
16
Page 2
Ovens
H 6860 BP
Ovens
- the multi-talented expert from Miele.
Oven compartment
Oven compartment volume in l 76
No. of shelf levels 5
Numbered shelf levels •
No. of halogen lamps 3x
Cleaning convenience
Pyrolytic self-cleaning •
Heated catalyser •
Hinged grill heater element •
Efficiency and sustainability
Energy-saving lighting •
Residual heat utilisation •
Rapid heat-up •
Safety
Appliance cooling system and touch-cool fronts •
Safety switch-off •
System lock •
Door lock during pyrolytic cleaning •
Technical data
Niche width in mm 560
Niche height in mm 593
Niche depth in mm 550
Appliance width in mm 554
Appliance height in mm 579
Appliance depth in mm 547
Weight in kg 47.0
Total rated load in kW 3.7
Voltage in V 230
Fuse rating in A 16
Number of phases 1
Standard accessories
Universal tray with PerfectClean 1
Baking tray with PerfectClean 1
Baking and roasting rack PyroFit 1
FlexiClip runners PyroFit 1 pair
Recipe booklet •
Mains cable •
Descaling tablets •
Baking and Steam Cooking
17
Page 3
Ovens
H 6860 BP
Ovens
- the multi-talented expert from Miele.

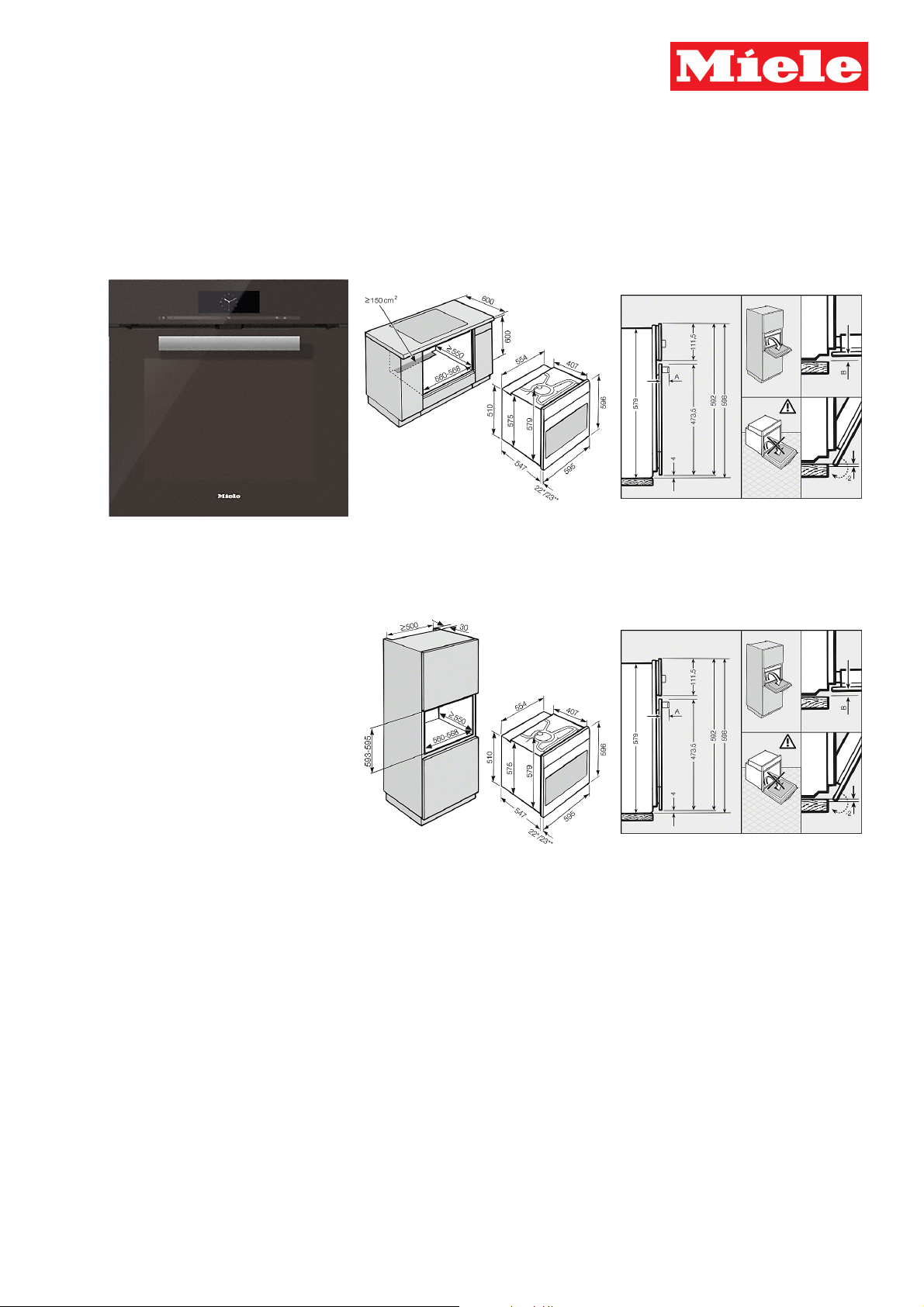

H 5000 EP/BP - 60 cm (Installation drawing)
* Appliances with glass front
** Appliances with metal front
H 5000 BP; H 6000 BP; H 2000 BP; 60 cm (Installation
drawing)
* Appliances with glass front
** Appliances with metal front
Detailed installation drawing H 6000,H 5000, H 4000, E/B,
EP/BP, 76 litres, (Installation drawing)
A = Design "ContourLine": 45 mm
Design "PureLine": 42 mm
B = Appliances with glass front: 2,2
Appliances with metal front: 1,2
Detailed drawing H 6000, H 5000, H 4000, E/B, EP/BP, 76
litres, (Installation drawing) VG AUS, VG GB
A = Design "ContourLine": 45 mm
Design "PureLine": 42 mm
B = Appliances with glass front: 2,2
Appliances with metal front: 1,2
Baking and Steam Cooking
18
