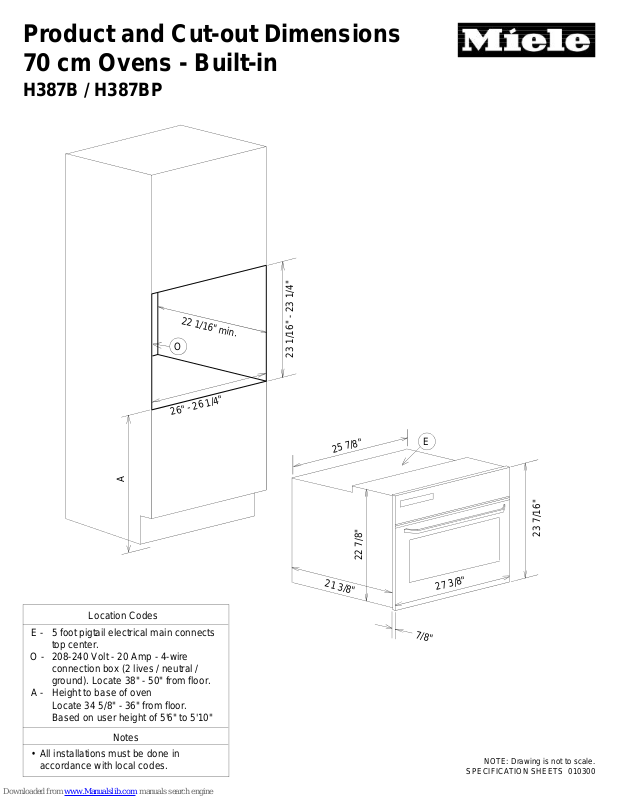

Page 1
Product and Cut-out Dimensions
70 cm Ovens - Built-in
H387B / H387BP
22 1/16" min.
A
Location Codes
5 foot pigtail electrical main connects
E -
top center.
208-240 Volt - 20 Amp - 4-wire
O -
connection box (2 lives / neutral /
ground). Locate 38" - 50" from floor.
Height to base of oven
A -
Locate 34 5/8" - 36" from floor.
Based on user height of 5'6" to 5'10"
O
26" - 26 1/4"
23 1/16" - 23 1/4"
25 7/8"
21 3/8"
E
23 7/16"
22 7/8"
27 3/8"
7/8"
Notes
• All installations must be done in
accordance with local codes.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010300

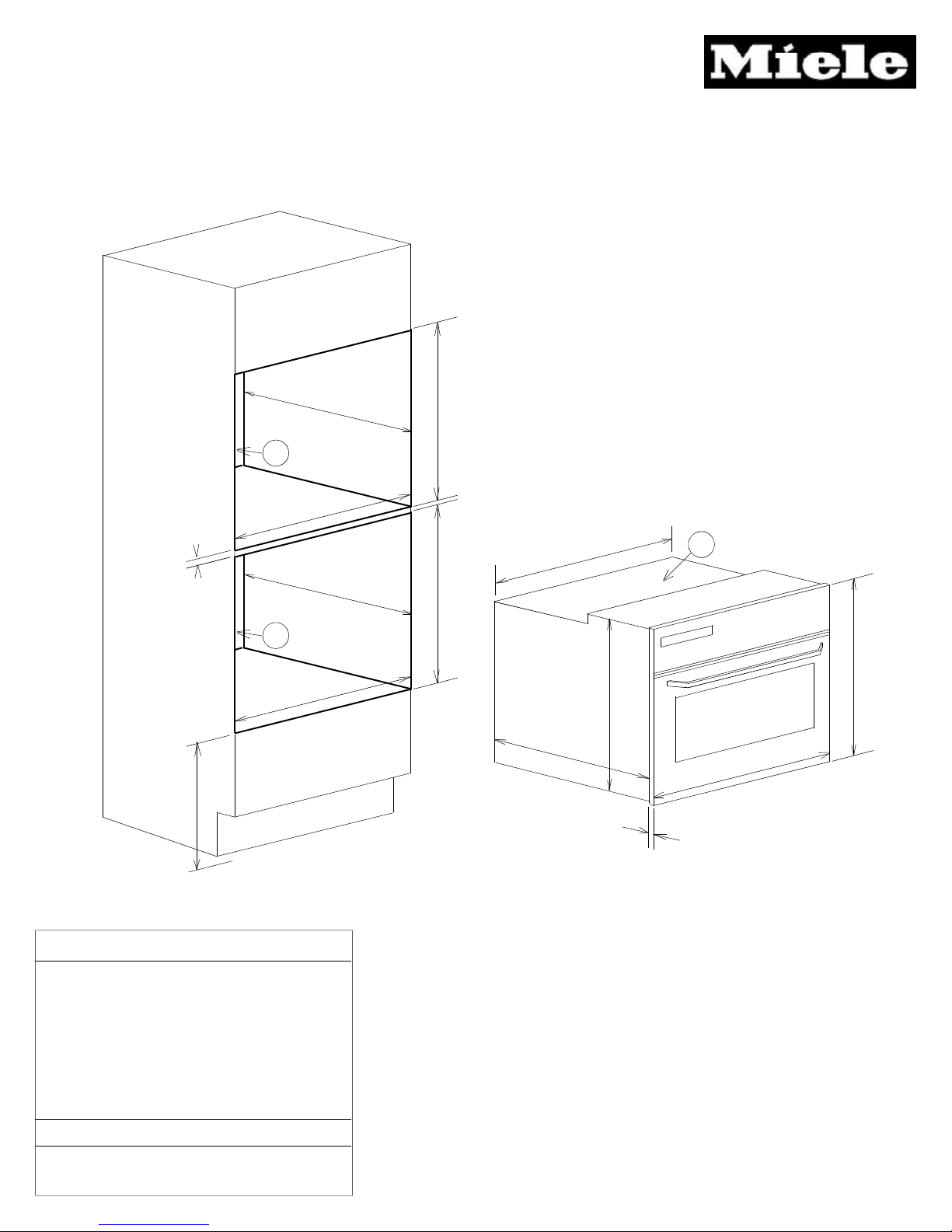

Page 2
Product and Cut-out Dimensions
Stacked 70 cm Ovens - Built-in
Two H387B / Two H387BP
22 1/16" min.
A
3/4"
O
22 1/16" min.
O
26" - 26 1/4"
23 1/16" - 23 1/4"
25 7/8"
23 1/16" - 23 1/4"
21 3/8"
E
23 7/16"
22 7/8"
27 3/8"
7/8"
Location Codes
5 foot pigtail electrical main connects
E -
top center.
208-240 Volt - 20 Amp - 4-wire
O -
connection box (2 lives / neutral /
ground). Locate 38" - 50" from floor.
Height to base of oven
A -
Locate 15" - 20" from floor.
Based on user height of 5'6" to 5'10"
Notes
• All installations must be done in
accordance with local codes.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010300
Page 3
Product and Cut-out Dimensions
70 cm Oven & Micro Housing
H387B or H387BP / MLT72
27 3/8"
3/4"
A
16 3/4" min.
M
22 1/16" min.
O
26" - 26 1/4"
17 11/16"
23 1/16" - 23 1/4"
25 7/8"
18 1/8"
E
23 7/16"
22 7/8"
Location Codes
E -
5 foot pigtail electrical main connects
top center.
O -
208-240 Volt - 20 Amp - 4-wire
connection box (2 lives / neutral /
ground). Locate 30" - 42" from floor.
M -
110 Volt - 15 Amp - 3-wire device.
(1 live / neutral / ground).
Locate 51" - 60" from floor.
A -
Height to base of oven.
Locate 22 1/2" - 26 1/2" from floor.
Based on user height of 5'6" to 5'10".
Notes
• All installations must be done in
accordance with local codes.
21 3/8"
27 3/8"
7/8"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010300
