Futura Diamond Dishwasher
G 6915 SCi CLST
Features:
• 3D cutlery tray
• FlexiCare Deluxe basket design
• AutoSensor technology
• 14 wash programs
• 7 program options
• ExtraQuiet program
• AutoOpen drying
• Perfect GlassCare system
• SensorDry
• Extra Dry option
• Intensive option
• FlexiTimer
3D cutlery tray
FlexiCare Deluxe basket design
Pricing:
MODEL UMRP/MAP RETAIL
G 6915 SCi CLST - Futura Diamond $2299 $2399
Intensive option
• Water softening unit
• 42 dBa
• 16 place settings
Quiet & Clean Guarantee
MODEL OVERVIEW
Width: 24"
Color: Intergrated, CleanTouch Steel™ control
panel, requires custom panel
Item Numbers:
21691557USA
EAN Numbers:
4002515546529
Dimensions:
9
23
/16"W, 3311/16 - 361/4"H, 227/16"D
Futura Series
Integrated Dishwashers
LUMEN G 6505 SCi
DIAMOND G 6915 SCi
Specication Sheet TRS 04132015
8mieleusa.com
Futura Series
Integrated Dishwashers
SPECIFICATIONS
9
Overall Unit Width 23
Overall Unit Height 33
Overall Unit Depth 22
/16” (598mm)
11
/16” - 361/4” (855 - 920mm)
7
/16” (570mm)
Niche
5
/8 ” (600mm)
Minimum Cabinet Opening Width
Minimum Cabinet Opening Height 33
Minimum Cabinet Opening Depth 22
23
3
/4” (857mm)
7
/16” (570mm)
Plumbing
May be connected to a cold or hot water
supply up to a maximum of 140°F/60°C.
Must be connected to a shut-off valve with
a male 3/8” NPT. The water shut-off valve
Water Supply Requirements
must be accessible after installation. The
water pressure must be between 4.35 psi
(0.3 bar) and may not exceed 145 psi (10
bar). If the pressure is higher than 145 psi
(10 bar), a pressure reducing valve must be
installed.
Water Connection Line
4’ 11” (1.5m) flexible water intake hose is
supplied with a 3/8 NPT connection.
Drain Hose 4’ 11” (1.5m) flexible drain hose is supplied.
Electrical
Electrical Requirements - Volts/Amps 110V / 120V, 60Hz, 15 Amps
Power Cord - Plug and length
Yes - NEMA 5-15 plug, 5’ 6” (1.7m),
Convertible to Hardwire
Shipping
Shipping Weight 118 lbs (53.5kg)
Support
Call Miele 800.843.7231
Miele Website
20/20 Link
8www.mieleusa.com
82020technologies.com
Futura Series Integrated Dishwashers
Page 2 of 5
Specication Sheet TRS 04132015
Futura Series
Integrated Dishwashers

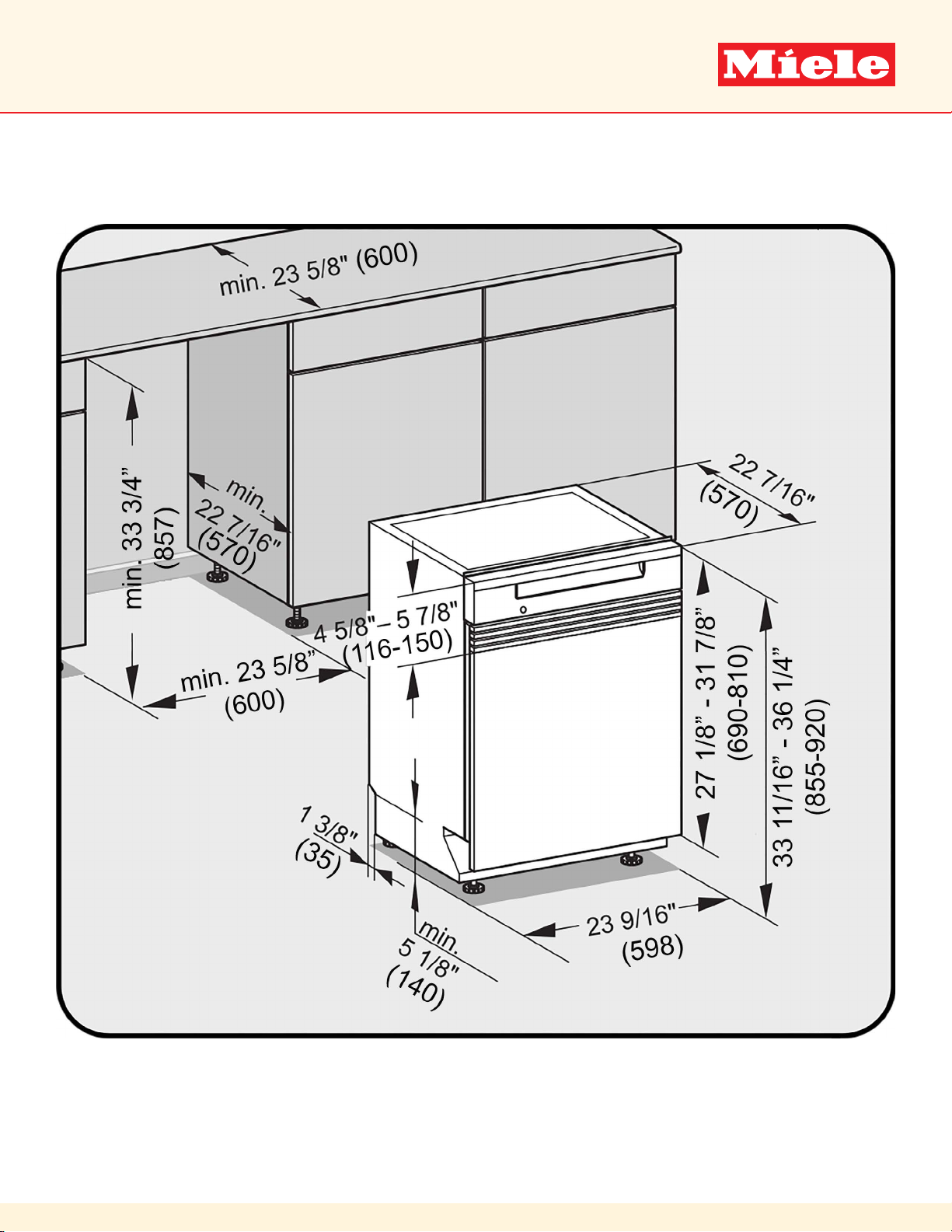

INSTALLATION SPECIFICATIONS
Futura Series Integrated Dishwashers
Specication Sheet TRS 04132015
Page 3 of 5
Futura Series
Integrated Dishwashers
Custom Panel Istallation
Futura Series Integrated Dishwashers
Specication Sheet TRS 04132015
Page 4 of 5
Futura Series
Integrated Dishwashers
Futura Series Integrated Dishwashers
Specication Sheet TRS 04132015
Page 5 of 5
