Miele G611-3 Plus Operating instructions

Page 1

Operating instructions

for dishwashers

It is essential to read the operating and installation instructions before installing, commissioning or using the machine, to avoid the risk of accidents or damage to the machine.

M.-Nr. 06 022 840

Page 2

Contents

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using the appliance for the first time you require. . . . . . . . . . . . . . . . . . . . 11

To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 15

Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

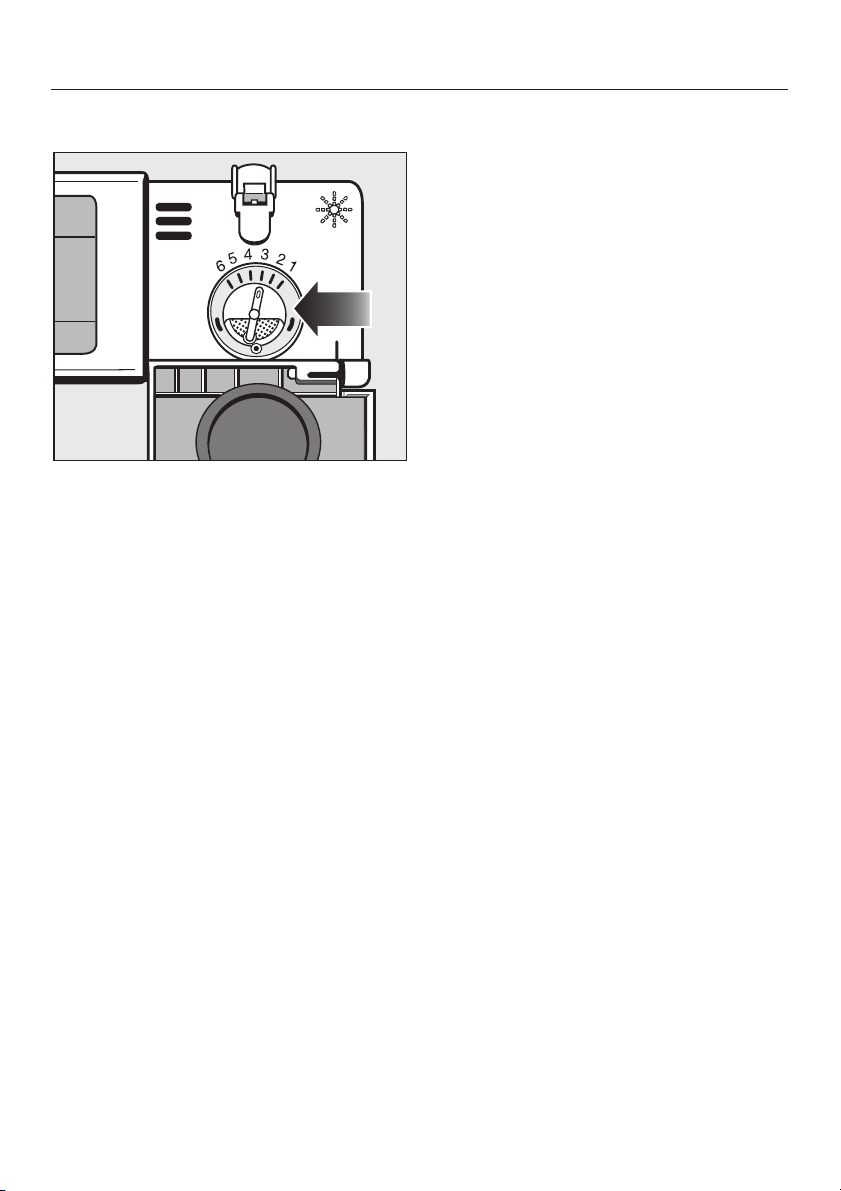

Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

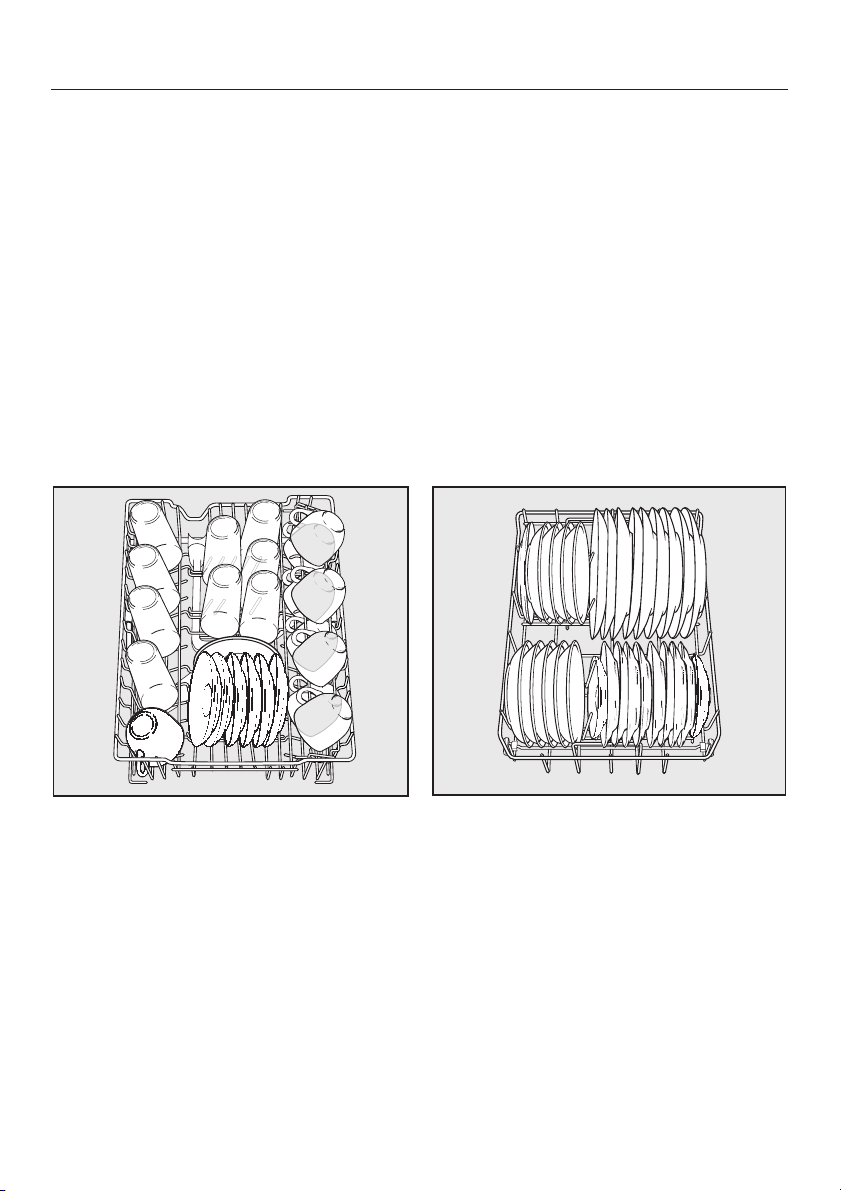

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Hinged spikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

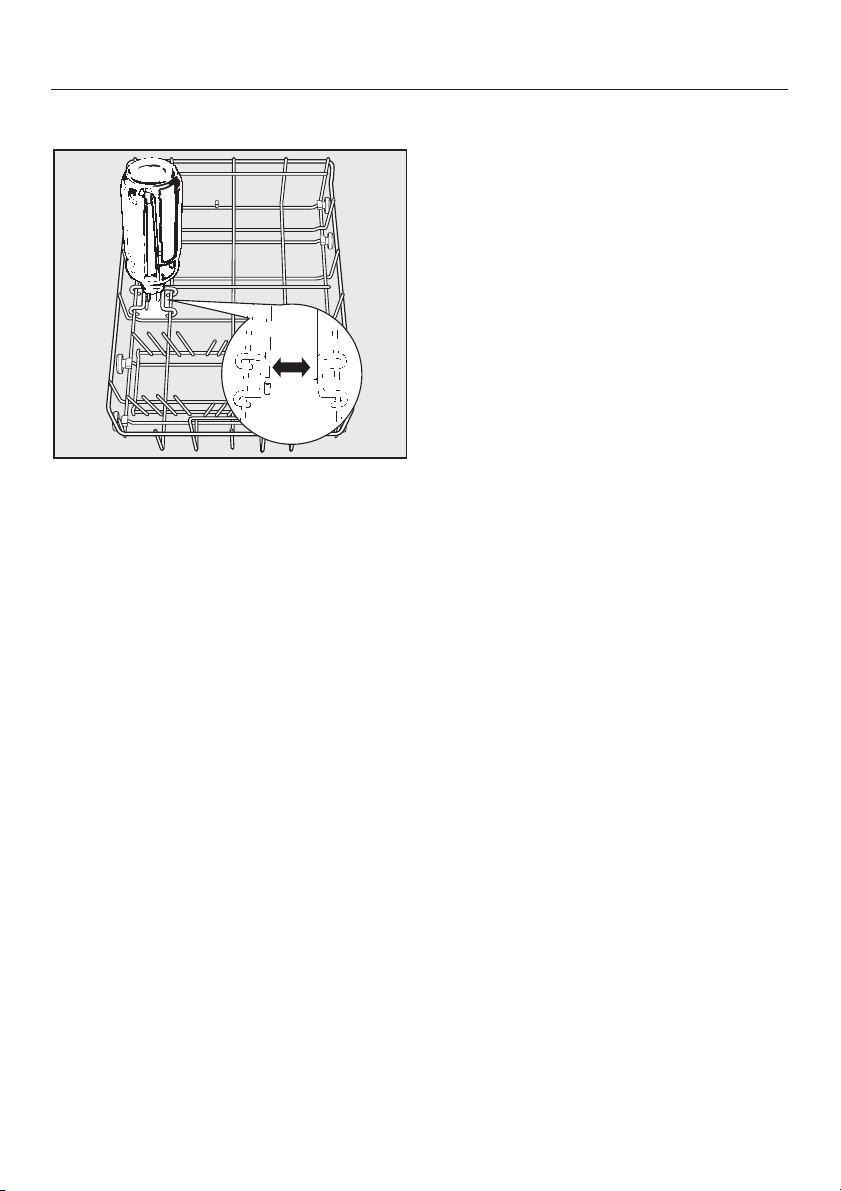

Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

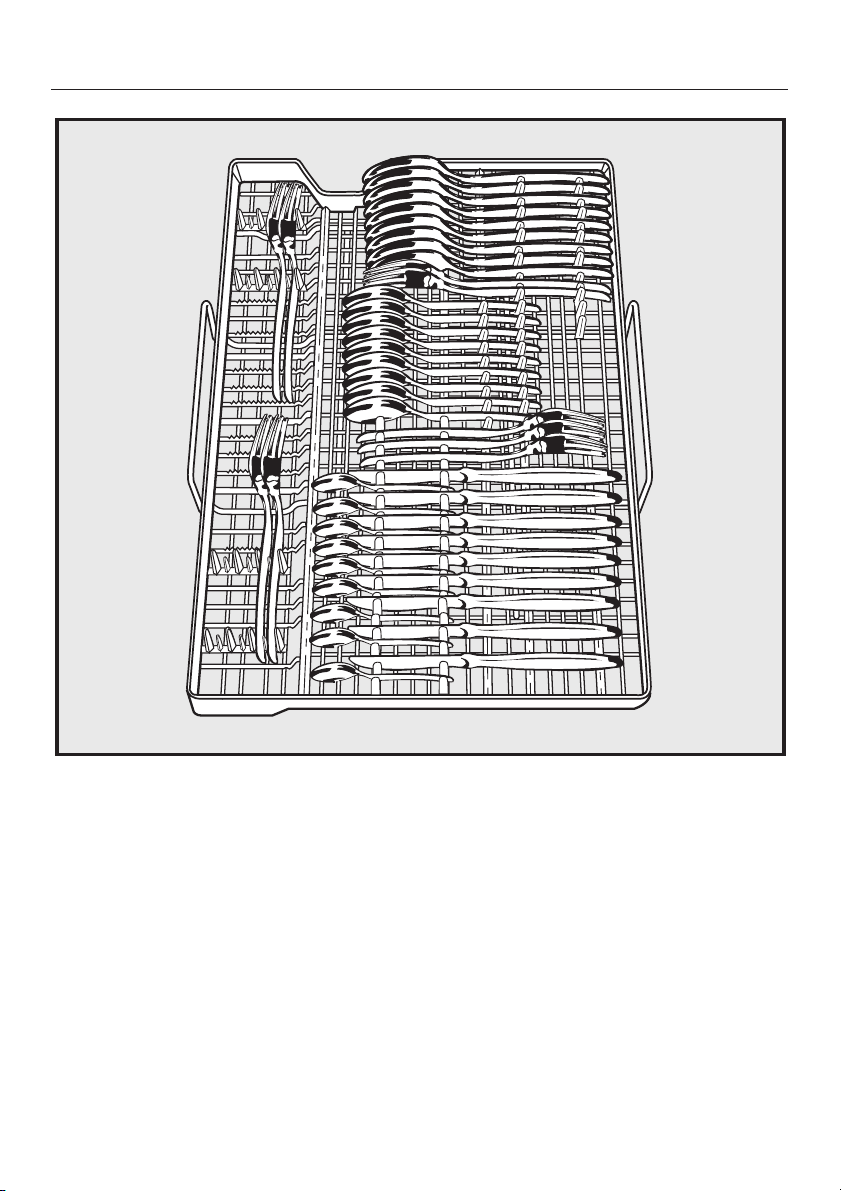

Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Items not suitable for dishwashers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Page 3

Contents

Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Programme sequence indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

"Top Solo" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Drying fan running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

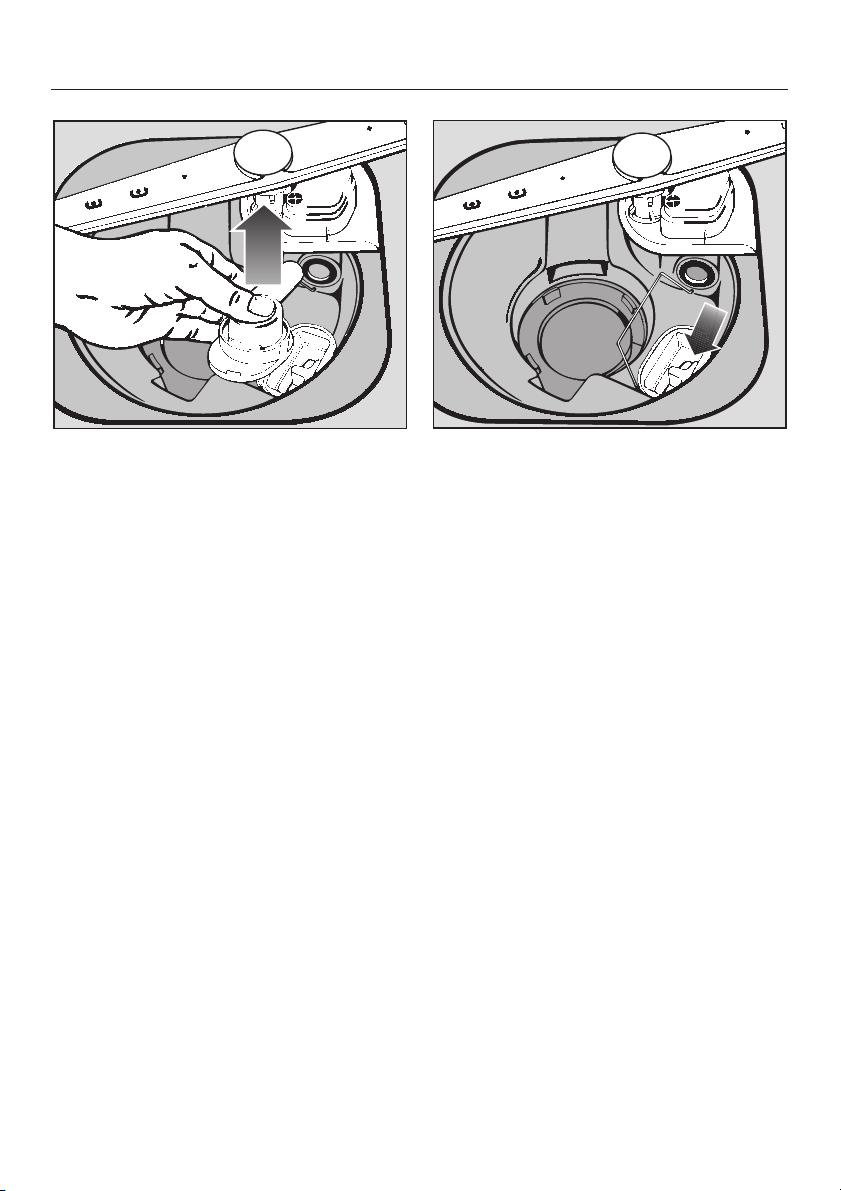

Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

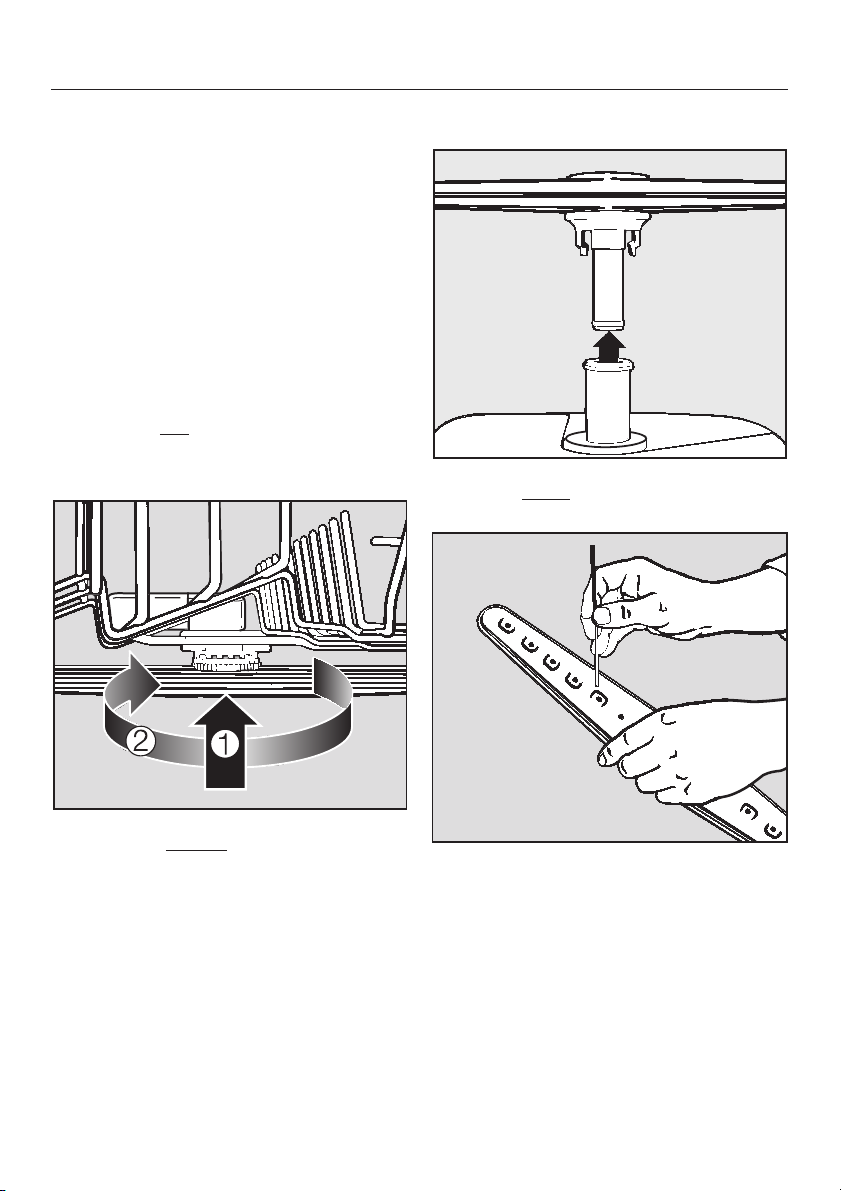

Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Cleaning the control panel and door front panel. . . . . . . . . . . . . . . . . . . . . . . . . . 41

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Solving problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

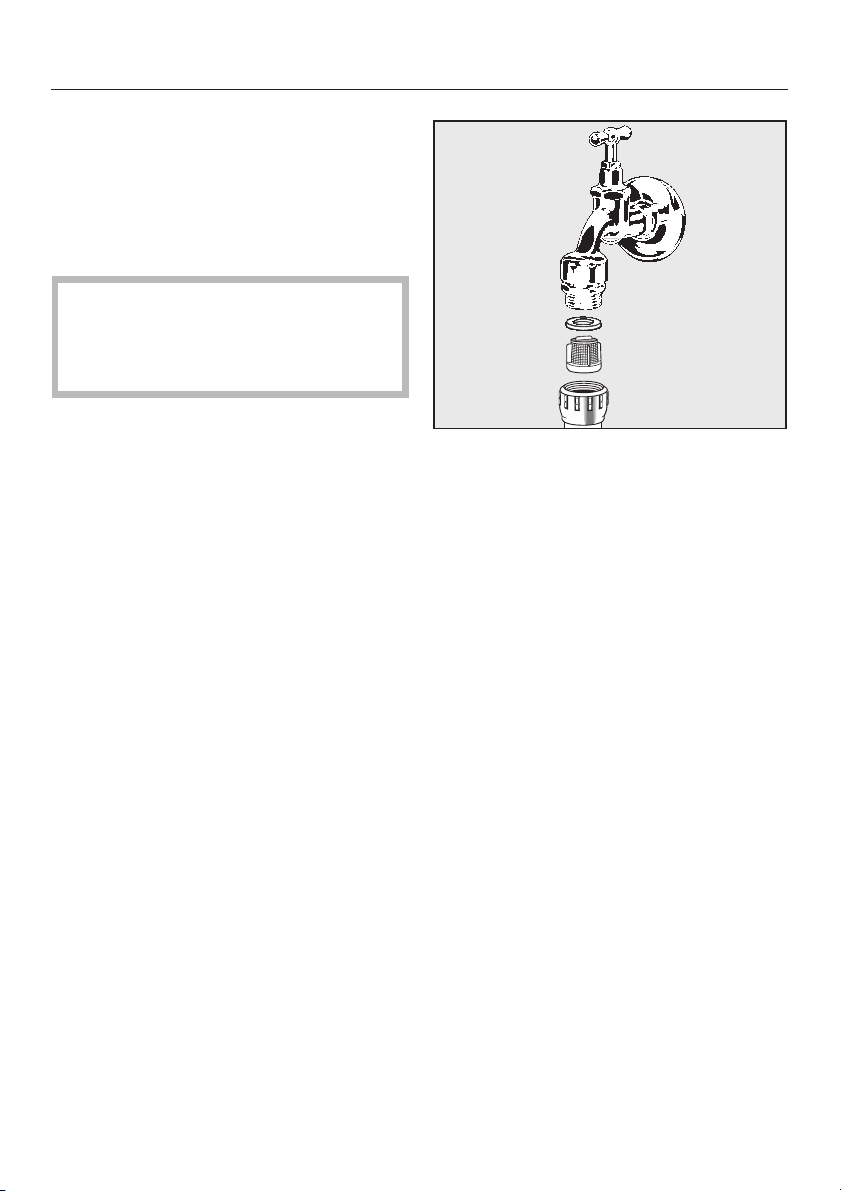

Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

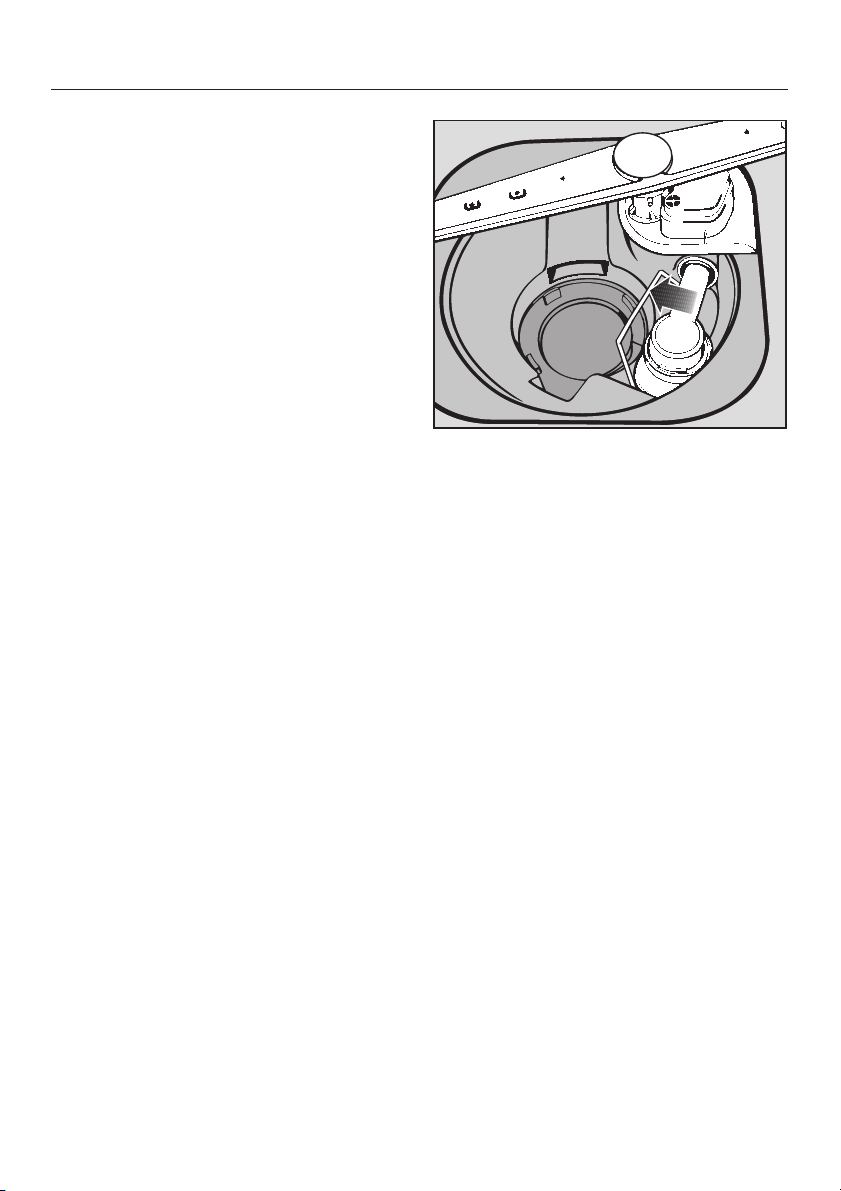

Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 51

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see Installation Instructions

Page 4

Guide to the appliance

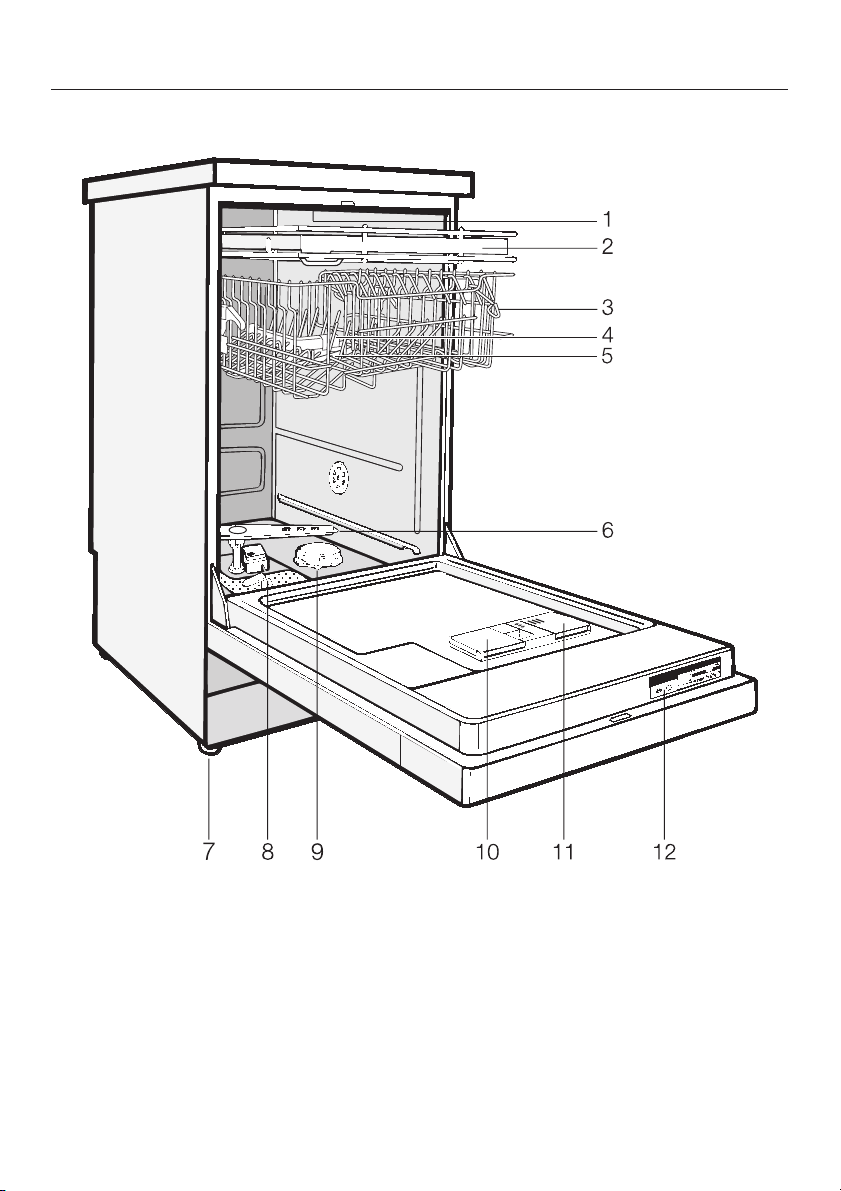

Appliance overview

1 Upper spray arm (not visible) 2 Cutlery tray 3 Upper basket 4 Water feed for middle spray arm 5 Middle spray arm 6 Lower spray arm

7 Four height adjustable screw feet 8 Filter combination 9 Salt reservoir

10 Dual compartment detergent

dispenser

11 Rinse aid reservoir

(with dosage selector)

12 Data Plate

Page 5

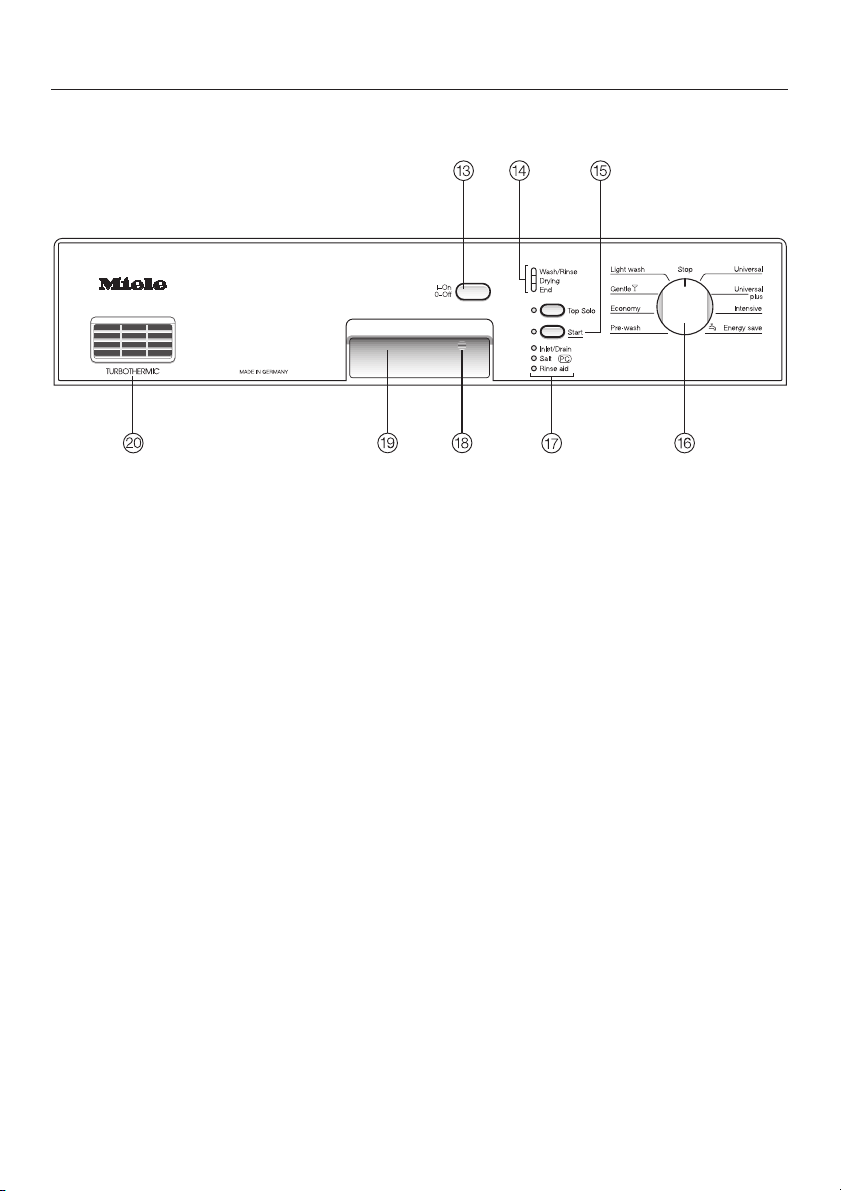

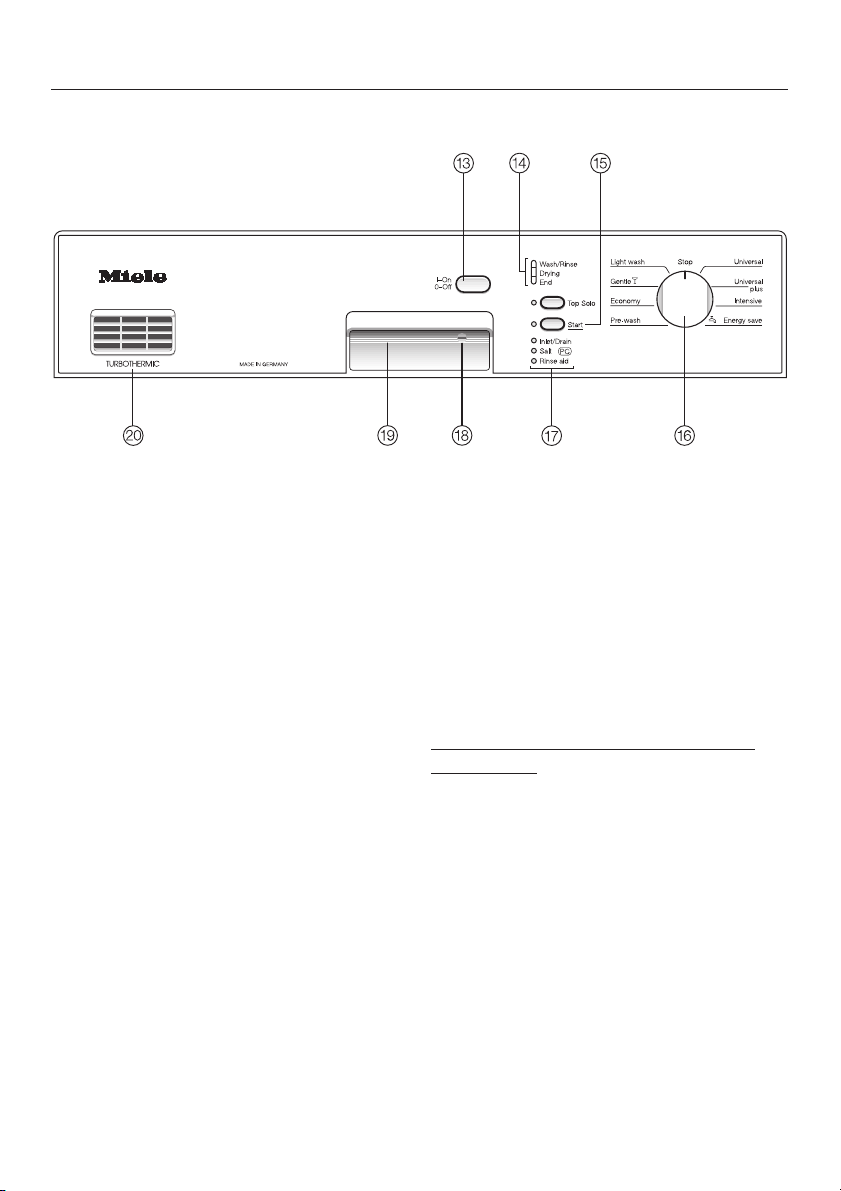

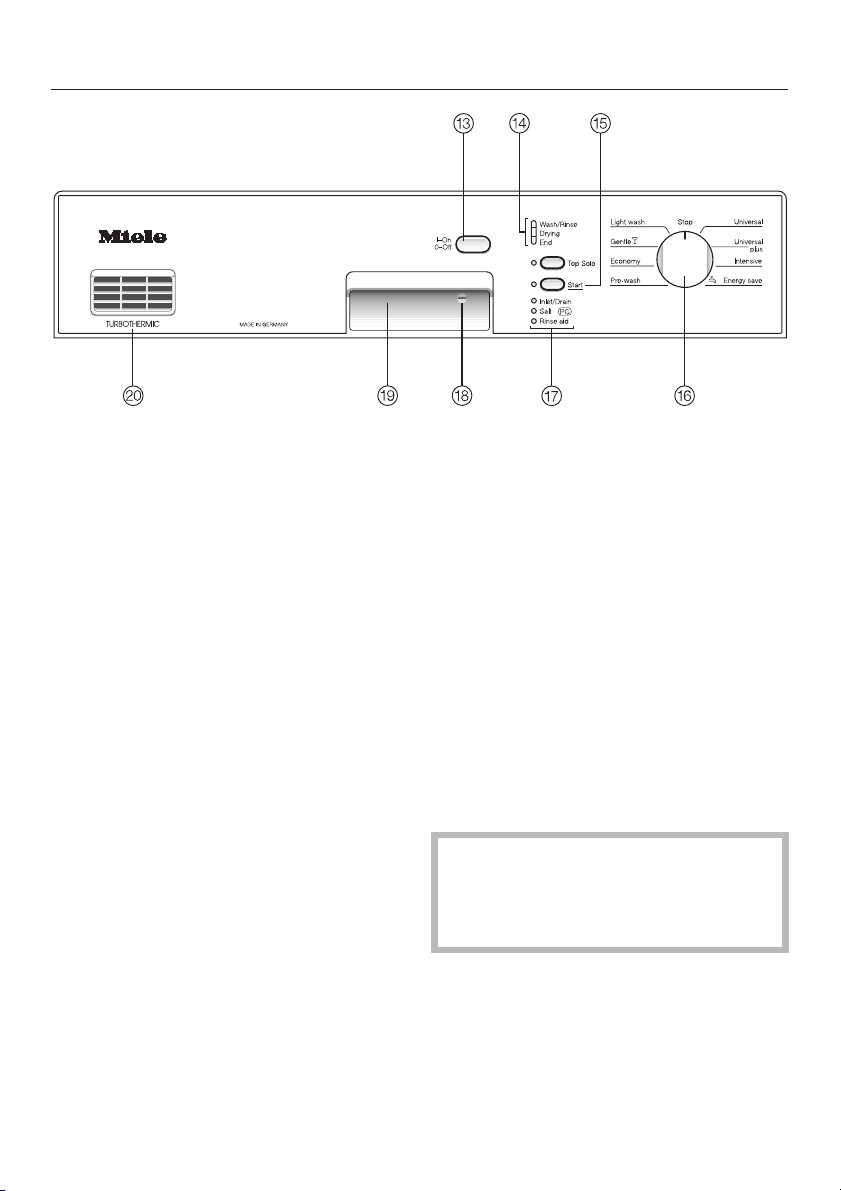

Control panel

Guide to the appliance

13 "On/Off" button 14 Programme sequence display 15 "Top Solo" button 16 Programme selector 17 "Start" button

18 Check/Refill indicators 19 Child safety lock 20 Door release 21 Ventilation outlet for drying fan

Page 6

Warning and Safety instructions

Installation

This appliance conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. Read the operating instructions carefully before starting to use this appliance. This way you will avoid the risk of accidents and damage to the appliance. Keep these instructions in a safe place for future reference, and pass them on to any future user.

the installation instructions.

dishwasher has been installed.

Danger of overheating and fire risk if the dishwasher were to be pushed up against a plug.

The dishwasher must be installed and connected in compliance with

The electrical socket must be easily accessible after the

There must be no electrical sockets behind the dishwasher.

Correct usage

This dishwasher is intended

exclusively for cleaning domestic crockery and cutlery in a domestic household. Using it for purposes other than those for which it was designed, as well as any alterations or conversions to the machine would be unauthorised and could cause harm. The manufacturer cannot be held liable for damage resulting from improper or incorrect use of the appliance.

Delivery

Before setting up the machine

check it for any externally visible damage. Under no circumstances should you use a damaged machine. A damaged machine is dangerous.

Please ensure that the packaging

material is offered for recycling.

In order to ensure stability,

built-under and integrated dishwashers must only be installed under a continuous worktop which is secured to adjacent cabinetry.

The dishwasher must not be

installed under a hob. The high radiant temperatures which are sometimes generated by a hob could damage the dishwasher. For the same reason it should not be installed next to open fires or other appliances which give off heat, such as heaters etc.

Do not connect the dishwasher to

the mains supply until it has been installed.

Check that the voltage, frequency

and fuse rating shown on the data plate match the household mains supply.

Page 7

Warning and Safety instructions

The electrical safety of this

appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system. It is most important that this basic safety requirement is tested and where there is any doubt, the electrical system in the house should be checked by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

This equipment is not designed for

maritime use or for use in mobile installations such as caravans, aircraft etc. However it may be suitable for such usage subject to a risk assessment of the installation being carried out by a suitably qualified engineer.

A damaged machine is dangerous.

Switch off at the mains and call your Miele supplier or the Miele Service Department.

The plastic housing of the water

connection contains an electrical component. The housing must therefore not be dipped in water.

Daily use

Do not use solvents in the dishwasher. Danger of explosion.

Water in the dishwasher must not be used as drinking water. This wa

ter is not drinking water.

Avoid inhalation of powder

detergents. Do not ingest dishwasher detergent! Dishwasher detergents contain irritant or corrosive ingredients. They can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled.

Do not sit or lean on the opened

door. This could cause the dishwasher to tip and be damaged and you could get injured.

In an appliance with a cutlery

basket (depending on model) cutlery is cleaned and dried more efficiently if placed in the basket with the handles downwards. However, to avoid the risk of injury place cutlery with sharp points with the handles upwards.

There are live wires in the water inlet hose. Never cut the water inlet

hose, even if it is too long.

For safety reasons do not operate this appliance on an extension

cable. (Danger of overheating).

Only use detergents formulated for

domestic dishwashers. Do not use washing-up liquid.

Only use rinse aid formulated for

domestic dishwashers.

Only use special coarse grained

dishwasher salt for reactivation. Do not use other salts such as cooking salt, agricultural grade or gritting salt. These may contain insoluble additives which can impair the functioning of the water softener.

Page 8

Warning and Safety instructions

Plastic items which cannot with

stand being washed in hot water, such as disposable plastic containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.

Take care on dishwashers with a visible heater element

(depending on model)

Do not touch the heating element

during or directly after the end of a programme. It will be hot. Danger of burning!

Some plastic items could melt or

catch fire if they were to come into contact with the heating element. Therefore always place plastic items or any other items which may not be completely heat resistant in the upper basket and ensure they cannot drop down onto the heater element. Any items which are too small to be lodged securely in the upper basket should not be cleaned in the dishwasher.

Safety with children

Do not allow children to play in or

around the dishwasher, or to operate it. There is a danger that children playing might shut themselves in the dishwasher.

Keep children away from dete

rgents. Dishwasher detergents contain irritant or corrosive ingredients. They can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing. Consult a doctor immediate ly if your child has swallowed or inhaled detergent.

To avoid the danger of children

coming into contact with the dishwasher detergent: only add detergent just before starting the programme and close the door, activating the child safety lock (depending on model). Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet.

To ensure children do not come

into contact with detergent on models with the "Delay start" function make sure the dispenser is dry before adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly dispersed. If the door is open at the end of a programme, children may come into contact with this residue.

To avoid machine and material damage

Do not fill the rinse aid reservoir

with powder or liquid detergent. This will cause serious damage to the reservoir.

Inadvertently filling the salt

reservoir with powder or liquid dishwasher detergent always leads to serious damage to the water softener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt reservoir!

Do not use commercial or industrial

detergents as these may damage material and there is a risk of severe chemical reaction.

Page 9

Warning and Safety instructions

The Miele Waterproof System offers

protection from water damage, provided the following conditions are met:

The dishwasher is correctly installed

–

and plumbed in. The dishwasher is properly

–

maintained and parts are replaced where it can be seen that this is necessary.

The stopcock has been turned off

–

when the appliance is not used for a longer period of time (e.g. during holidays).

In countries where there are areas

which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the appliance guarantee.

Disposal of your old appliance

When disposing of an old

dishwasher first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative by unscrewing 2 cross-slotted screws, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the appliance.

The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

Repairs and maintenance

Repairs may only be carried out by

suitably qualified and competent engineers in accordance with local and national safety requirements. Repairs and other work by unqualified persons could be dangerous.

Always disconnect the appliance

from the electrical supply for maintenance work (switch off at wall socket and remove the plug, or remove the screw out fuse in countries where this is applicable).

Page 10

Caring for the environment

Disposal of the packing material

The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled.

Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!

Rather than just throwing these materials away, please ensure that they are recycled.

Disposal of your old appliance

Old appliances contain materials which can be recycled. Please contact your dealer, your local waste collection centre or scrap merchant about potential recycling schemes.

Ensure that the appliance presents no danger to children while being stored for disposal. See the appropriate section in the Warning and Safety instructions.

Energy saving washing

This dishwasher is exceptionally economical in its use of water and electricity. You can make the most of your appliance by following these tips:

If your household water system is

suitable, this dishwasher can be connected to a hot water supply, for further economies. Although all stages of the wash then take place with hot water, savings are made in:

- the use of primary energy,

- costs,

- programme running times. If, however, your water is heated by electricity we would still recommend connection to cold water.

^ For most economical dishwashing

make full use of the baskets without overloading the dishwasher.

^ Choose the programme to suit the

type of crockery being washed and the degree of soiling.

The "Top Solo" function should only be selected for washing very small loads of crockery (see "Additional functions").

Select the Economy programme for energy-saving dishwashing.

Use the correct amounts of detergent.

Use only 2/3 of the given dosage if baskets are only half full.

Page 11

Before using the appliance for the first time you require:

approx. 1 litre of water,

–

approx. 1.2 kg dishwasher

–

reactivation salt, domestic dishwasher detergent,

–

rinse aid formulated for domestic

–

dishwashers.

Every dishwasher is tested at the factory. There will be residual water in the appliance from this test. It is not an indication that it has been previously used.

Before using for the first time

Page 12

Before using for the first time

To open the door

^ Press the release catch inside the

door grip and pull forward.

If the door is opened during operation all functions are automatically interrupted.

To close the door

^ Push the baskets right in, lift the door

and push until it clicks into position.

Child safety lock

The yellow key for the child safety lock is on one of the spikes at the front of the upper basket. Remove the key before switching on the dishwasher and keep it in a safe place away from the dishwasher.

To prevent children opening the dishwasher door during operation, use the key to lock the door:

Horizontal setting: The door is locked.

Vertical setting: The door can be opened.

Page 13

Before using for the first time

Water softener

In order to achieve good cleaning results, the dishwasher needs to operate with soft water. Hard water results in the build-up of calcium deposits on crockery and in the dishwasher. Mains water with a hardness level higher than 0.7 mmol/l (4° d - German scale) needs to be softened. This takes place automatically in the integrated water softener.

The water softener must be filled with

–

dishwasher salt for reactivation.

– The dishwasher must be

programmed to correspond to the water hardness in your area.

– Your local water authority will be able

to advise you of the water hardness level in your area.

Where the water hardness fluctuates e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d German scale) always programme the dishwasher to the higher value (3.1 mmol/l in this example).

In the event of a fault, it will help the service technician if you know the hardness of your local water supply.

Enter the water hardness below:

mmol/l or °d

Page 14

Before using for the first time

Programming the water hardness level

Switch the dishwasher off.

Turn the programme selector to the

"Stop" position. Press the "Top Solo" button in and

whilst holding it in dishwasher on using the "On/Off" button. Release the "Top Solo" button within two seconds.

The "Salt" indicator light will flash.

switch the

Note:

If a different indicator light comes on or flashes, the process must be repeated.

Exception:

The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.

^ Turn the programme selector to the

position that corresponds to your water hardness level (see chart below).

°d

German

scale

1 - 4 0.2 - 0.7 "1 o’clock" position

5 - 7 0.9 - 0.3 "2 o’clock" position

8 - 11 1.4 - 2.0 "3 o’clock" position 12 - 16 2.2 - 2.9 "4 o’clock" position 17 - 21 3.1 - 3.8 "5 o’clock" position 22 - 24 4.0 - 4.3 "6 o’clock" position 25 - 31 4.5 - 5.6 "7 o’clock" position 32 - 70 5.8 - 12.6 "8 o’clock" position

mmol/l Programme selector

setting

The dishwasher is set at the factory for a hardness level of 0.2 -0.7 mmol/l (1 - 4 °d ).

Example:

For a water hardnesss of 1.6 mmol/l, turn the programme selector to the "3 o’clock" position.

Page 15

Before using for the first time

Press the "Top Solo" button.

The "Top Solo" indicator light will come on.

Turn the programme selector to the

"Stop" position. Switch the dishwasher off.

The programmed water hardness level is now stored in memory.

Checking the programmed water hardness level

Switch the dishwasher off.

Turn the programme selector to the

"Stop" position. Press the "Top Solo" button in and

whilst holding it in dishwasher on using the "On/Off" button. Release the "Top Solo" button within two seconds.

The "Salt" indicator light will flash.

Note:

If a different indicator light comes on or flashes, the process must be repeated.

Exception:

The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.

^ Turn the progamme selector from the

"1 o’clock" position as far as the "8 o’clock" position until the "Top Solo" indicator light comes on.

switch the

When the programme selector is at the position which corresponds to the water hardness setting already programmed, the "Start" indicator light will come on (see chart "Programming and setting the water hardness level").

Turn the programme selector to the "Stop" position.

Switch the dishwasher off.

Page 16

Before using for the first time

Filling the salt reservoir

If the water in your area is very soft and constantly lower than

0.7 mmol/l (4 °d) you do not need to add dishwasher salt. The dishwasher must, however, still be programmed to correspond to the water hardness level in your area.

Important: Before filling the salt reservoir with dishwasher salt for the first time 1 litre of water to enable the salt to dissolve. Once the dishwasher has been used, there is always sufficient water in the reservoir.

, you must fill it with approx.

Inadvertently filling the salt

Only use special coarse grained

Remove the lower basket and

unscrew the salt reservoir cap. Fill the reservoir with approx. 1 litre of

water (first use).

^ Place the funnel provided over the

salt reservoir and carefully fill with salt until the reservoir is full. The salt reservoir holds approx. 1.2 kg of salt depending on the brand used.

As the salt reservoir is filled, displaced water will overflow.

Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.

Run the "Pre-wash" programme im mediately to remove any traces of salt water from the cabinet.

Page 17

Before using for the first time

Salt indicator

The salt indicator light comes on to notify you that the reservoir is empty.

^ The reservoir should then be refilled

with dishwasher salt for reactivation. (See: Filling the salt reservoir).

After the reservoir has been filled, the water softener is automatically reactivated the next time the dishwasher is run. The salt indicator light may still be illuminated during this process. It will go out once the salt concentration has reached the correct level.

Note

If the water in your area is very soft and constantly lower than 0.7 mmol (4 °d) you do not need to add salt to the reservoir. The salt indicator light, however, will still come on, but should be ignored.

(See "After sales service" for definition of "PC").

Page 18

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water does not cling and leave marks on crockery during the drying phase. Rinse aid is poured into the storage reservoir and the amount set is dispensed automatically.

Inadvertently filling the rinse aid

reservoir with powder or liquid dishwasher detergent always causes serious damage to the reservoir. Only pour rinse aid formulated for domestic dishwashers into the reservoir.

Alternatively, it is possible to use – Household vinegar with a max. 5%

acid content or – Liquid citric acid up to 50% acid

content.

Adding rinse aid

^ Press the button in the direction of

the arrow until the flap springs open.

The resulting rinsing and drying quality will not, however, be as good as when rinse aid is used.

Do not use vinegar with a higher acid content (e.g. vinegar essence 25% acid). This must not be used as its use would damage the dishwasher.

Page 19

Add rinse aid only until it is visible on

the surface of the filter in the opening.

Before using for the first time

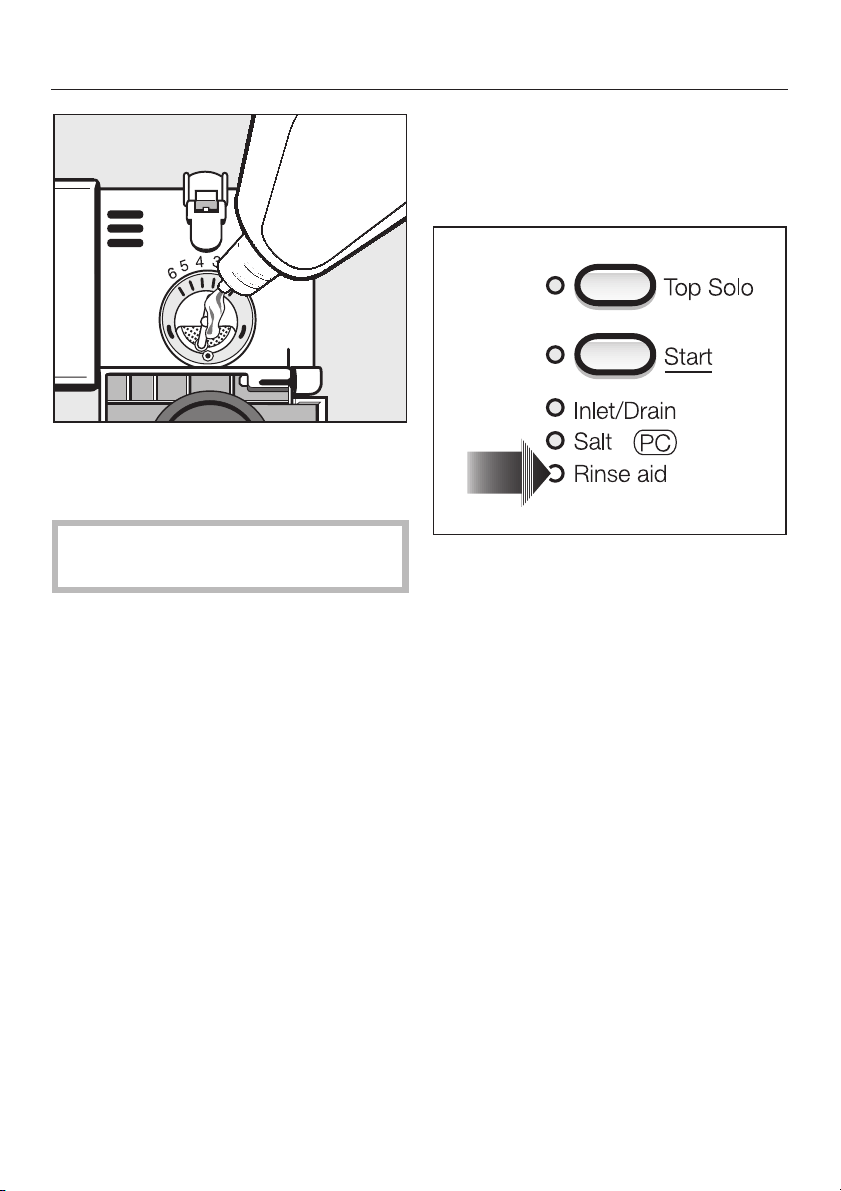

Rinse aid indicator

The Rinse aid indicator light on the fascia comes on when the rinse aid reservoir needs to be replenished.

The rinse aid reservoir holds approx. 130 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water would enter the rinse aid reservoir during a programme.

Wipe up any spilled rinse aid. This prevents over-foaming occurring during the next programme.

When the light comes on the reservoir still contains sufficient rinse aid for 2 - 3 programmes.

^ Add rinse aid in plenty of time.

Page 20

Before using for the first time

Setting the rinse aid dosage

The dosage selector has settings from 1-6. It is set to "3" (3 ml) at the factory. Approx. 3 ml of rinse aid are then used per programme. This is a recommended setting.

If spots appear on crockery and glassware:

^ Use a higher setting. If clouding or smearing appears on

crockery and glassware:

Use a lower setting.

Page 21

Loading the dishwasher

Note

Remove coarse food residues from

crockery.

There is no need to rinse items under running water.

Do not wash items soiled with

ash, sand, wax, lubricating grease or paint in the dishwasher. Ash does not dissolve and is distributed in the wash cabinet. Wax, sand, lubricating grease and paint cause damage to the dishwasher.

Crockery can be loaded anywhere in the baskets, but the following notes should be observed:

^ Do not place crockery and cutlery

inside other pieces where they may be concealed.

^ Load the crockery so that water can

access all surfaces. This ensures that it is properly cleaned.

Deep based items should be placed

at an angle so that water can run off them freely.

The spray arms must not be blocked

by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.

Make sure that small items do not fall

through the holders in the baskets. Small items, e.g. lids, should therefore be placed in the cutlery tray or cutlery basket.

Some foodstuffs may contain natural dyes, e.g. carrots, tomatoes or ketchup. Plastic items in the dishwasher may discolour if large quantities of these foodstuffs find their way into the appliance on the crockery. The stability of plastic items is not affected by this discolouration.

Make sure that all items are securely positioned.

Hollow items such as cups, glasses, pans, etc. must be inverted in the basket.

Tall, narrow, hollow items, e.g. champagne glasses, should be placed in the centre of the basket to ensure better water coverage.

When the dishwasher is being loaded food and drink residue may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Food residue should therefore be wiped away before the dishwasher door is closed.

Page 22

Loading the dishwasher

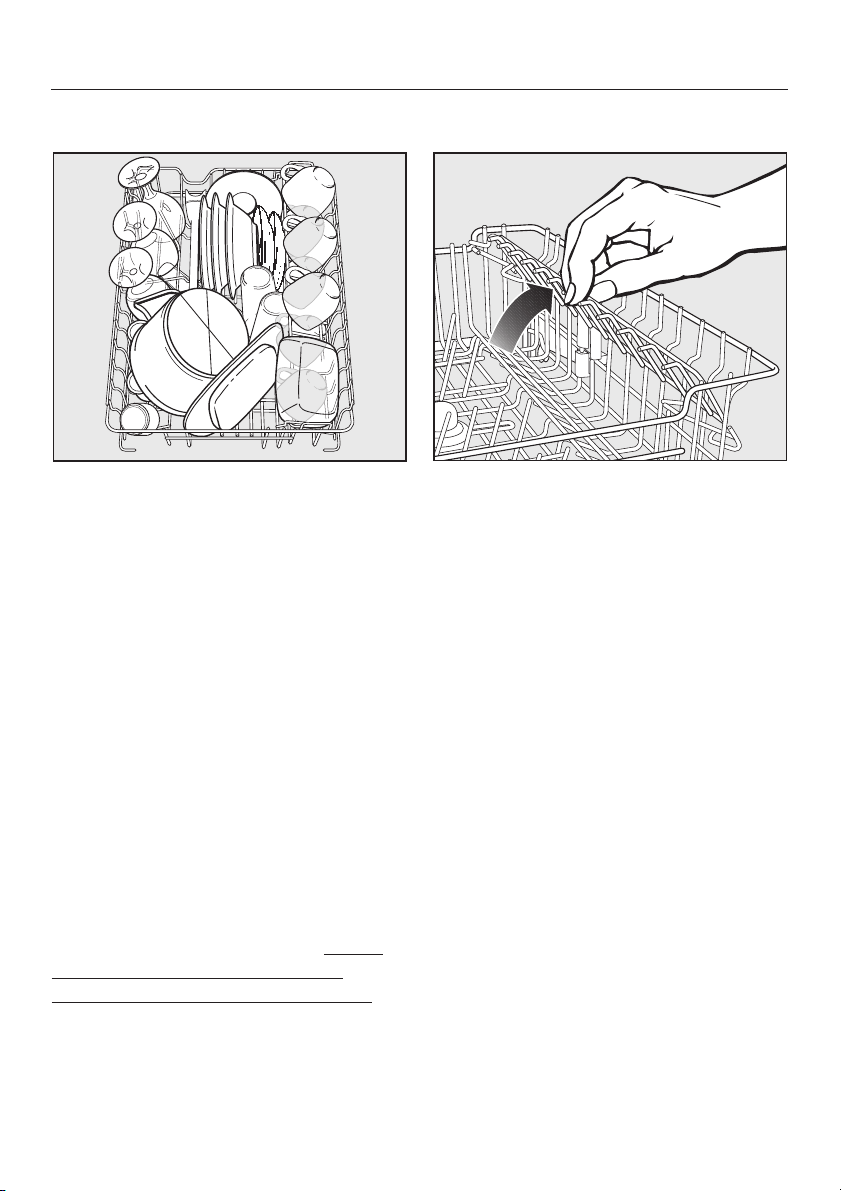

Upper basket

For small, lightweight, delicate items such as cups, saucers, glasses, dessert bowls, etc.

Shallow saucepans or casserole dishes can also be placed in the upper basket.

Note for "Top Solo"

Flap up rack

To make room for tall items raise the rack upwards.

If a wash programme has been selected with the additional function "Top Solo", all crockery must be loaded in the upper basket and cutlery tray.

As the middle spray arms also directs water downwards, it is possible to wash lightly soiled plates (with a large diameter) and serving platters in the lower basket, however plenty of space must be left in between items. Do not wash pots, bowls or other hollow containers when using this function.

Page 23

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller pieces of crockery in the bottom or upper basket, the upper basket can be adjusted on three levels with 2 cm between each level.

The upper basket can also be set at an angle with one side high and the other side low. Ensure however, that the basket can be inserted smoothly into the cabinet. It is best to adjust the basket before loading it.

Pull out the upper basket.

Depending on the setting of the upper basket, the following plate dimensions can be accommodated.

Upper

basket

level

To p 1 5 3 0

Middle 17 28

Bottom 19 26

Plate Ø in cm

Upper basket

Lower

basket

Pull upwards on the levers at either side of the upper basket.

Adjust the basket to the desired height.

Then push the levers securely back down into position.

Page 24

Loading the dishwasher

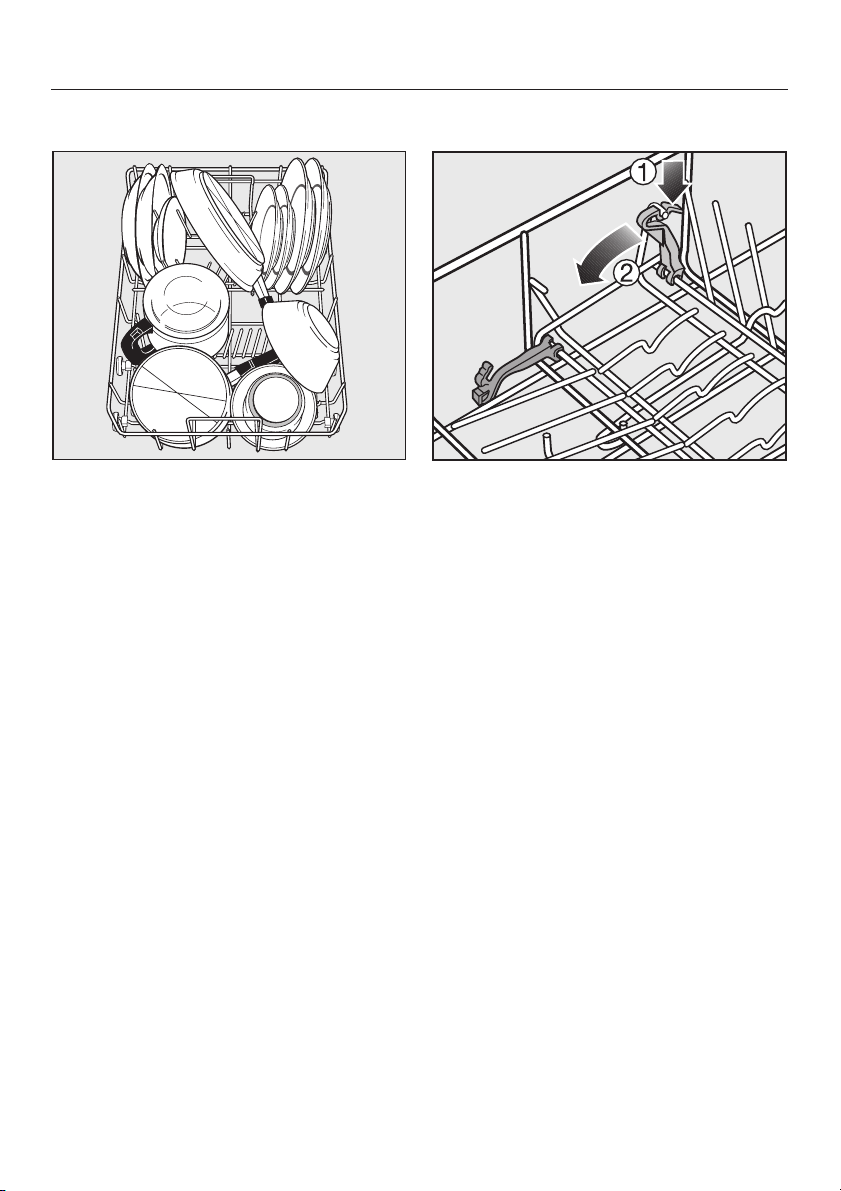

Lower basket

For larger and heavier items such as plates, serving platters, saucepans, bowls, etc. Small items such as saucers can also be placed in the lower basket.

Hinged spikes

Both sides of the front section can be lowered to make more room for large items, e.g. pots, pans and dishes.

^ Press the yellow lever downwards

and then fold the spikes towards the middle of the basket.

Page 25

Bottle holder

The bottle holder, e.g. for milk and baby bottles, must be inserted into the lower basket as shown in the illustration. If placed anywhere else, water will not be able to access the bottles properly, and cleaning results will be impaired.

Loading the dishwasher

Page 26

Loading the dishwasher

Cutlery

For best results cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc. This makes unloading much easier.

Place the blades of knives and the prongs of forks between the holders. Spoons, on the other hand, should be placed with the handles between the holders.

Spoon heads should be placed in contact with at least one of the serrated retainers on the base of the cutlery tray to ensure that water runs off them freely.

Longer items such as soup ladles, cake slices, mixing spoons and long knives should be placed lengthwise in the indentation at the side of the cutlery tray.

The upper spray arm must not be blocked by items which are too big (e.g. cake slices).

The cutlery tray insert is removable.

The deeper section (for large items of cutlery) must be on the left hand side. The flap up rack cannot be lifted up if the deeper section is on the right hand side.

If spoon handles do not fit between the holders then lay them the other way round making sure that the head of the spoon is in contact with the support on the bottom of the tray.

Page 27

Loading the dishwasher

Items not suitable for dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also not suitable for dishwashers.

Plastic items which are not heat

–

resistant. The high temperatures in the dishwasher may cause them to melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze may

fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash glassware containing lead crystal in a dishwasher.

Please note

Silverware silver polish spotted at the end of a programme, where water has not run off smoothly. It may need rubbing dry with a soft cloth. Silver treated in a silver immersion dip is usually dry at the end of a programme but may discolour.

Silver which has been in contact with foods containing sulphur can discolour. These include egg yolk, onions, mayonnaise, mustard, pulses, fish, fish brine and marinades.

grease filter) must not be cleaned with caustic alkaline commercial or industrial cleaning agents. These may damage material, or in extreme cases, cause severe chemical reaction. See section "Adding detergent" for information on suitable detergents.

previously cleaned with a

may still be damp or

Aluminium components (e.g. a

We recommend: –

When purchasing new crockery and cutlery, make sure they are dishwasher-proof.

–

There are no standard guidelines for washing glassware. When in doubt, wash glassware by hand.

–

If delicate glassware is washed in the dishwasher ensure that only very low temperatures are used (see programme chart). This will reduce the risk of clouding.

Page 28

Operating the dishwasher

Detergent

Only use detergents formulated

for domestic dishwashers. Do not use washing up liquid.

You can use conventional powder

detergent, tablets or liquid dishwasher detergent. Refer to the dosing instructions given by the manufacturer on the packaging.

Put powder or liquid detergent into

the dispenser compartment.

^ Detergent tablets should only be put

into compartment II if this is recommended by the manufacturer. If the manufacturer recommends inserting tablets in the cutlery basket do not do so. Instead place them on the inside of the door or directly into the wash cabinet to help them dissolve properly.

Detergent manufacturers give the required amount of detergent for a particular programme on their packaging.

Use at least 20 ml of detergent for a

full load in the following programmes:

- Intensive,

- Universal plus,

- Universal,

- Light wash,

- Economy. If the manufacturer recommends a larger amount of detergent, use the amount recommended.

Failure to dispense the recommended amount of detergent may impair cleaning results.

If you are using 2 in 1 or 3 in 1 combination tablets, please continue to replenish the salt and rinse aid reservoirs as described in this booklet. Otherwise the cleaning and drying performance of the machine may deteriorate over time.

Page 29

Adding detergent

Avoid inhalation of powder

detergents and do not ingest dishwasher detergent! Dishwasher detergents contain irritant or corrosive ingredients. They can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immedi ately if detergent has been swallowed or inhaled. Keep children away from detergents and from the dishwasher when the door is open. There could still be detergent residues in the cabinet. To avoid the danger of children coming into contact with the dishwasher detergent only add detergent just before starting the programme and close the door, activating the child safety lock.

Operating the dishwasher

^ Press the opening catch on the

detergent dispenser. The flap will spring open.

The flap is always open at the end of a programme.

It is essential to follow the instructions given in the programme chart at the end of the operating instructions.

For information

Compartment I holds max. 20 ml, Compartment II holds max. 70 ml.

There are markings in compartment II to assist with dispensing. The marks indicate a level of approx. 20, 25, 30 ml when the door is open in a horizontal position.

Add the required amount of detergent and close the flap.

Ensure that the detergent package is properly sealed after use. Otherwise the detergent can lose its effectiveness.

Page 30

Operating the dishwasher

Programme selection

Choose your programme according to the type of load and how dirty it is.

In most cases this will be a Universal programme or a Universal plus programme.

These programmes are ideally suited to everyday mixed loads with varying degrees of soiling.

The different programmes and their uses are described in the programme chart at the end of this booklet.

The additional function "Top Solo" can be selected with each programme. See "Additional functions/Top Solo" for more details.

"Energy Save" programme

A hot water intake (temperature of the incoming water) of at least 45 °C and max. 60 °C is necessary for this programme.

Use this programme for lightly

normally

Water is not heated up for the wash programme. Only approx. 0.10 kWh of electricity is used during this cycle.

As water is not heated, the drying results may not match those of other programmes.

The higher the temperature of the intake water, the better the cleaning and drying results.

Open the door of the dishwasher at the end of the programme to speed up the drying process.

soiled dishes.

Page 31

Operating the dishwasher

Switching on

^ Make sure the spray arms are not

obstructed.

^ Close the door. ^ Open the stopcock, if it is closed. ^ Press the "On/Off" button (13).

The "Start" indicator light (17) will flash.

Starting a programme

^ When selecting a programme, refer

to the programme chart at the end of the operating instructions.

^ Turn the programme selector (16)

clockwise or anti-clockwise to the required programme.

^ If wished, you can select the

additional function "Top Solo" now (see section "Additional functions").

Press the "Start" button (17).

The programme cycle begins. The "Start" (17) and "Wash/Rinse" (14) indicator lights come on.

Do not finish a programme prematurely. Important programme stages (e. g. reactivating the water softener) could be omitted.

Page 32

Operating the dishwasher

Programme sequence indicator lights (14)

The "Wash/Rinse" indicator light comes on in the pre-wash, main wash, interim rinse and final rinse stages of a programme.

The "Drying" indicator light during the drying stage of a programme.

The "End" indicator light when the programme has finished.

comes on

At the end of a programme

A programme has finished when the "End" indicator light comes on in the programme sequence display (14).

The dishwasher can now be opened and unloaded (see "Unloading the dishwasher").

For safety’s sake it is advisable to always switch the dishwasher off if you do not wish to start another programme immediately.

Switching off

At the end of a programme:

Turn the programme selector (16) to

the "Stop" position.

The "End" indicator light (14) goes out and the "Start" indicator light (17) flashes.

Press the On/Off button (13).

The "Start" indicator light (17) goes out.

The dishwasher continues to use electricity until switched off using the "On/Off" button.

If the dishwasher is not to be used for a longer period of time, e. g. whilst on holiday, the stopcock should be turned off.

Page 33

Operating the dishwasher

Interrupting a programme

A programme is interrupted as soon as the door is opened. If the door is closed again, the programme will continue from the point it was at before the door was opened.

Water in the dishwasher may be

hot. Danger of scalding! Only open the door if absolutely necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. 20 secs. This will enable the temperature in the wash cabinet to settle. Close the door firmly making sure that it clicks into place.

Changing a programme

Important: If the detergent dispenser flap has already opened, do not change the programme.

If a programme has already started and you wish to change it proceed as follows:

Turn the programme selector (16) to

the "Stop" position. Leave the programme selector (16) in

this position for at least one second.

^ Then turn the programme selector

(16) to the programme you wish to use.

^ Select additional function "Top Solo"

again if wished (see "Additional

functions"). ^ Press the "Start" button (17). The programme cycle begins.

Page 34

Operating the dishwasher

Additional functions

"Top Solo" (15)

The "Top Solo" additional function is recommended when there is only a small amount of crockery and cutlery to clean. With this function the majority of the water is directed to the top and middle spray arms in the dishwasher. This means that the water jets are aimed at items in the upper basket and the cutlery tray if the dishwasher has one.

As the middle spray arm also directs water downwards, lightly soiled plates or platters can be placed in the bottom basket, and cutlery may be placed in the cutlery basket if there are large spaces between items. Do not place dishes, bowls or other hollow containers in the bottom basket.

Because smaller amounts of crockery are being washed the amount of detergent recommended by the manufacturer can be reduced to approx. 2/3 of the total amount for the full load. Make sure, however, when reducing the amount dispensed that the cleaning result is not affected.

Using "Top Solo" will also save water and energy. For example, if using this function with the "Economy" programme only 10 litres of water and approx. 0.6 kWh of electricity are used.

The "Top Solo" function can be selected with all programmes.

Page 35

Switch the dishwasher on using the

"On/Off" button (13).

The "Start" indicator light (17) will flash.

Turn the programme selector (16)

clockwise or anti-clockwise to the required programme.

Press the "Top Solo" button (15).

The "Top Solo" indicator light (15) will come on.

Press the "Start" button (17).

The programme cycle begins. The "Start", "Wash/Rinse" and "Top Solo" indicator lights come on.

The additional function is automatically deleted from memory at the end of the programme cycle.

Operating the dishwasher

Page 36

Operating the dishwasher

Drying fan running time

During the drying phase, as long as the door of the dishwasher remains closed, moist air is expelled through the ventilation outlet for the drying fan. The drying fan running time can be increased to avoid the risk of damage to a worktop fitted above the dishwasher. If this option is selected, the fan will continue to run for approx. 14 minutes after the end of a programme.

Activating and deactivating increased drying fan running time:

^ Switch the dishwasher off using the

"On/Off" button.

^ Turn the programme selector to the

"Stop" position.

^ Press the "Top Solo" button in and

whilst holding it in dishwasher on using the "On/Off" button. Release the "Top Solo" button within two seconds.

switch the

Turn the programme selector to the "9

o’clock" position.

If the "Top Solo" indicator light does

–

not come on: the fan running time is not increased,

If the "Top Solo" indicator light does

–

come on: the fan running time is increased.

Press the "Top Solo" button to change

the setting. Depending on the previous setting the

"Top Solo" indicator light will either come on or go out.

^ Turn the programme selector to the

"Stop" position. ^ Switch the dishwasher off using the

"On/Off" button. The change is now stored in memory.

The "Salt" indicator light will flash.

Note:

If a different indicator light comes on or flashes, the process must be repeated.

Exception:

The "Rinse aid" indicator light will come on if you have not yet added rinse aid or if rinse aid needs replenishing.

Page 37

Unloading the dishwasher

Dishes tend to break and chip more

easily when they are hot. Allow the dishes to cool until they are comfortable enough to handle before unloading them.

If you open the door fully after

switching off, the dishes will cool much faster.

First unload the lower basket, then

the upper basket and cutlery tray. This will prevent water drops from the upper basket and cutlery tray from falling onto the dishes in the lower basket.

Operating the dishwasher

Page 38

Cleaning and care

Check your dishwasher regularly (approx. every 4 - 6 months). This way faults and problems can be avoided.

Cleaning the filters in the wash cabinet

The filter combination in the base of the wash cabinet retains coarse soil from the suds solution, preventing it accessing the circulation system and re-entering the cabinet through the spray arms.

The dishwasher must not be

used without all the filters in place.

Collection of coarse soil may cause the filters to clog. Check the filter combination regularly (every 4 - 6 months) and clean if necessary.

Turn the handle anti-clockwise to

release the filter combination.

^ Switch the dishwasher off

beforehand.

Lift the filter combination out of the

dishwasher. Remove any coarse

particles and rinse the filter under

running water. Use a nylon brush if

necessary.

Page 39

Cleaning and care

To clean the underside of the filter, the flap must be opened:

^ Pull back the yellow clip to do this. ^ Rinse all parts under running water,

using a nylon brush if necessary.

^ Then close the flap so that the clip

engages. Important: After cleaning make sure that the clip has properly engaged.

Replace the filter combination so that

it lies flat in the base of the wash

cabinet. ^ Secure the filter by turning the handle

in a clockwise direction.

Take care when you are fitting the filter combination that it is secured in position correctly. Otherwise coarse soil could get into the circulation system and cause a blockage.

Page 40

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be inspected and cleaned regularly (approx. every 4 - 6 months).

Switch the dishwasher off

beforehand.

Remove the spray arms as follows:

Take out the cutlery tray.

Press the top

engage the inner ratchet. Then unscrew the spray arm.

spray arm upwards to

Remove the lower basket.

^ Pull the lower

upwards to remove it.

spray arm firmly

Lift up the middle engage the ratchet. Then unscrew the spray arm b.

spray arm a to

Use a pointed object to push food particles into the spray arm jets.

Rinse thoroughly under running wa ter.

Replace the spray arms and check that they rotate freely.

Page 41

Cleaning and care

Cleaning the wash cabinet

The wash cabinet is largely self-cleaning, provided that the correct amount of detergent is always used.

If, however, there are limescale or grease deposits in the cabinet these can be removed with a proprietary dishwasher cleaner.

Cleaning the door and the door seal

Wipe the door seals regularly with a

damp cloth to remove food deposits.

^ When the dishwasher is being loaded

food and drink residue may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any soiling should be wiped off these surfaces before the door is closed.

Cleaning the control panel and door front panel

Plastic panels:

This type of panel should only be wiped with a damp cloth or suitable cleaning agent designed for use on plastic.

Stainless steel panels:

Please contact your local Spare Parts

department for information on the appropriate cleaning product.

To prevent re-soiling (fingerprints

etc.), you can then use a stainless steel cleaning product (e.g. Neo blank, which is available from Miele Spare Parts.)

Aluminium panels: Aluminium is affected by the way that light falls on it, by the surrounding environment and by the angle you observe it from. Aluminium is susceptible to scratching and abrasion and must be treated with due care.

^ Soiling should be removed as soon

as possible using a damp cloth and a little washing up liquid.

Stainless steel and aluminium surfaces and controls may suffer discolouration or damage if soiling is left on them for too long. Soiling should therefore be removed as soon as possible, taking care not to scratch or damage the surface material.

Wood door front panels:

Do not use abrasive cleaning agents, glass cleaning agents or all-purpose cleaners. Because of their chemical composition they could cause serious damage to plastic surfaces.

Door fronts made from wood should only be cleaned using a damp chamois leather and then dried with a soft cloth.

Do not use any cleaning agents

containing ammonia or thinners.

These would damage the surface

structure.

Page 42

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected without calling in a Miele service technician, saving you both time and money.

You should, however, note the following:

Repairs should only be carried out by a suitably qualified and trained

person in accordance with local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage the appliance.

Problem Possible cause Remedy

The "Start" indicator light does not flash after the appliance has been switched on with the "On/Off" button.

The dishwasher does not start after the "Start" button has been pressed; the "Start" indicator light is flashing.

The dishwasher stops during a programme.

The indicator light "Inlet/Drain" lights up during the "Energy save" programme.

The door is not properly closed.

The appliance is not plugged in.

The fuse is defective or has tripped.

The programme selector is at the "Stop" position.

The fuse is defective or has tripped.

The intake water has not reached the required temperature of 45 °C, the hot water system may be overloaded (see "Programme selection").

Close the door firmly.

Insert the plug.

Replace the fuse (see data plate for minimum fuse rating).

– Turn the programme

selector to the required programme.

– Press the "Start" button.

Replace the fuse (see data plate for minimum fuse rating).

–

Start the programme again.

–

If the indicator light comes on again select a different programme.

Page 43

Problem solving guide

Problem Possible cause Remedy

The indicator light "Inlet/Drain" lights up and flashes alternately.

The stopcock is closed. Open the stopcock fully. The water inlet filter is

blocked.

The Waterproof system has reacted.

Before rectifying the problem you must:

Turn the programme

–

selector to the "Stop" position.

Switch the dishwasher

–

off using the "On/Off" button.

then:

Clean the water inlet

–

filter, see "Solving problems".

Call the Miele Service Department.

Page 44

Problem solving guide

Problem Possible cause Remedy

The indicator light "Inlet/Drain" is flashing and the programme does not continue.

Water intake is restricted.

Water outlet is restricted, water remains in the wash cabinet at the end of a programme.

Before rectifying the problem you must:

Turn the programme

–

selector to the "Stop" position.

Switch the dishwasher

–

off using the "On/Off" button.

Open the stopcock

–

fully. Check the water inlet

–

filter and clean if necessary, see "Cleaning the water inlet filter".

– The water pressure at

the intake is lower than

0.3 bar. Seek professional advice.

– Clean the filter

combination, see "Cleaning and Care".

–

Clean the drain pump, see "Cleaning the drain pump and non-return valve".

–

Clean the non-return valve, see "Cleaning the drain pump and non-return valve".

–

Remove any kink in the drain hose.

Page 45

Problem solving guide

Problem Possible cause Remedy

The "End", "Start" and "Top Solo" indicator lights flash simultaneously.

Knocking noise in the wash cabinet.

Rattling noise. Items of crockery are

Knocking noise in the water pipes.

There may be a technical fault.

The spray arm is knocking against an item in the basket.

insecure in the wash cabinet.

This may be caused by the on-site installation or the cross-section of the piping.

Turn the programme

–

selector to the "Stop" position.

Switch the dishwasher

–

off using the "On/Off" button.

After a few seconds:

Switch the dishwasher

–

on using the "On/Off" button.

Turn the programme

–

selector to the required

programme. – Press the "Start" button. If the indicator lights flash

again, there is a technical fault.

– Call the Miele Service

Department. Interrupt the programme,

rearrange items which are obstructing the spray arm.

Interrupt the programme, rearrange the items of crockery.

This has no influence on dishwasher function. If in doubt contact a suitably qualified plumber.

Page 46

Problem solving guide

Problem Possible cause Remedy

The dishes are not clean.

The dishes were not loaded correctly. Dishes were placed inside other pieces, water could not access all surfaces.

The outlet of the water intake pipe for the middle spray arm was covered. An insufficient amount of water flowed into the middle spray arm.

The programme was not powerful enough.

Not enough detergent was dispensed.

Tall items are blocking the path of the spray arms.

The spray arm jets are blocked.

The filter combination in the base of the wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.

See notes in "Loading the dishwasher".

Make sure that dishes placed in the rear section of the upper basket do not cover the opening.

Select a more intensive programme, see "Programme chart" at the end of these operating instructions.

Use more detergent, see "Operating the dishwasher".

Rearrange the items so that the spray arms can rotate freely.

Clean the spray arm jets, see "Cleaning and Care".

Clean and/or replace the filter combination correctly. Clean the spray arm jets, see "Cleaning and Care".

Page 47

Problem solving guide

Problem Possible cause Remedy

Dishes and glasses are not dry or are flecked.

White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.

Smearing appears on glassware and cutlery, there is a bluish sheen on the surface of glassware; film can be wiped off.

The rinse aid amount may be insufficient or the rinse aid reservoir empty.

Crockery was taken out of the cabinet too soon.

Not enough rinse aid was used.

There is no salt in the salt reservoir.

The salt reservoir cap has not been screwed on correctly.

The water softener is programmed to a setting which is too low.

Combination dishwasher detergent tablets containing rinse aid and/or salt may have been used. These are unsuitable as long term use can impair the softener unit.

The rinse aid dosage is set too high.

Increase the dosage or replenish the reservoir, see "Before using for the first time".

Leave it in for longer, see "Operating the dishwasher".

Increase the dosage, see "Before using for the first time".

Add dishwasher reactivation salt, see "Before using for the first time".

Replace it making sure it screws back on correctly.

Programme a higher setting, see "Before using for the first time".

Use a standard liquid, tablet or powder detergent.

Reduce the dosage, see "Before using for the first time".

Page 48

Problem solving guide

Problem Possible cause Remedy

Glassware is dull and discoloured; film cannot be wiped off.

Tea or lipstick stains have not been completely removed.

Plastic items are discoloured.

There are rust stains on cutlery.

Glassware is not dishwasherproof. The surfaces are affected.

The wash temperature of the selected programme was too low.

The bleaching effect of the detergent used is too low.

Natural dyes e.g. from carrots, tomatoes or ketchup may be the cause. The amount of detergent used or its bleaching effect was not sufficient to deal with natural dyes.

The salt reservoir cap has not been screwed on correctly.

The affected items are not corrosion resistant.

The "Pre-wash" programme was not run after dishwasher salt was added. Traces of salt have got into the wash cycle.

There is no remedy. Purchase glassware which is dishwasher-proof.

Select a programme with a higher wash temperature.

Use a different type of detergent.

Use more detergent, see "Operating the dishwasher". Discolouration is irreversi ble.

Replace it making sure it screws back on correctly.

There is no remedy. Purchase cutlery which is dishwasher-proof.

Always run the "Pre-wash" programme after adding dishwasher salt.

Page 49

Problem solving guide

Problem Possible cause Remedy

The detergent lid cannot be closed properly.

Detergent residue is left in the dispenser at the end of a programme.

Water remains in the wash cabinet at the end of a programme.

Clogged detergent residue is blocking the catch.

The dispenser was still damp when detergent was added.

The filter combination in the wash cabinet is clogged.

The drain pump or non-return valve may be blocked.

The drain hose is kinked. Remove any kink in the

Remove the residue.

Make sure the dispenser is dry before adding detergent.

Before rectifying the problem you must:

Turn the programme

–

selector to the "Stop"

position.

Switch the dishwasher

–

off using the "On/Off"

button. Clean the filter

combination, see "Cleaning and Care".

Clean the drain pump and the non-return valve, see "Cleaning the drain pump and non-return valve".

drain hose.

Page 50

Solving problems

Cleaning the water inlet filter

A filter is incorporated in the screw connection of the valve on the water inlet hose. The filter must be cleaned when dirty, otherwise insufficient water flows into the wash cabinet.

The plastic housing of the water

connection contains an electrical component. It must not be dipped in water.

Recommendation

If the mains water contains a large number of insoluble substances, we recommend fitting a large-area filter in the connection between the stopcock and the water inlet hose threaded union. This filter is available from the Miele Spares Dept.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply (switch off at the mains socket, pull out the plug , switch off the appropriate circuit at the fuse box or withdraw the mains fuse).

Turn off the stopcock.

Unscrew the inlet hose.

^ Carefully remove the rubber seal. ^ Withdraw the filter using pointed

pliers and rinse clean under running water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the

stopcock, making sure it goes on correctly and is not cross-threaded.

Turn on the stopcock gradually to test for leaks. If there is a leak, the inlet hose might not be on securely, or it may have been screwed on at an angle. Unscrew and reconnect the water inlet valve correctly.

Page 51

Cleaning the drain pump and non-return valve

If the water has not been pumped away at the end of a programme the drain pump or the non-return valve might be blocked. They are, however, easy to clean. Watch out for glass or bone splinters which could cause injury.

Take the filter combination out of the

wash cabinet (see "Cleaning and care", "Cleaning the filters in the wash cabinet").

Scoop the water out of the cabinet

using a suitable container.

Solving problems

^ Raise the locking clamp for the

non-return valve.

Page 52

Solving problems

Lift up the non-return valve and rinse

well under running water.

^ Remove all foreign objects from the

non-return valve.

The drain pump is situated under the non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or bone splinters which are particularly difficult to detect and could cause injury). Turn the drain pump impeller by hand to check that there are no more obstructions.

^ Carefully replace the non-return valve

and secure it with the locking clamp.

Page 53

After sales service

Should you still have any difficulties, please contact:

Your Miele Dealer

– or

The Miele Service Department (see

–

back cover for address).

Please quote the model type and

number of your appliance.

This information is given on the data plate at the top of the door.

Please note that telephone calls may be monitored and recorded to improve our service.

Programme update function - PC

The programme update function (PC = Programme correction) is designed to enable a service technician to update your machine’s electronics in keeping with advances in technology.

The indicator or check light marked "Salt PC" is used as the interface for this programming.

Information regarding programme updates will be made known by the Miele Company as and when such developments become available.

Page 54

Optional accessories

To make the most of your dishwasher

If you would like ... you will need to order ...

... to wash bottles, e. g. milk or baby bottles

... to wash long-stemmed glassware ... a glassware insert for the upper

... a bottle holder

basket

Page 55

Comparison tests

Test standard: AS/NZS 2007.1 : 2003

AS/NZS 2007.2 : 2003

Programme tested: Universal Amount washed: 9 place settings Amount of detergent: 5 g in compartment I + 20 g in compartment II Rinse aid dispensing: Setting 3 (approx. 3 ml, set at factory) Drying measurements: Door ajar using a block of approximately 50 mm

upon completion of dry test

Noise measurements: Before starting a programme to measure noise,

the dishwasher door must first be opened completely, and then closed. Doing this will automatically close the ventilation outlet for the Turbothermic process.

Upper basket

These illustration show how 9 place settings can be loaded. For normal mixed loads see "Loading the dishwasher".

Lower basket

Page 56

Comparison tests

Cutlery tray

Page 57

Should you ever need to move the dishwasher, e.g. when moving house, note the following:

Empty the dishwasher,

–

Secure any loose parts, e. g. hoses,

–

mains cable, cutlery basket, lower basket

Transport the dishwasher in the

–

upright position. If unavoidable, it may be transported on its back. Do not transport it on its side or on the door as residual water still in the appliance will leak out of it. This residual water could get into the electronic unit and cause a fault.

Transport

Page 58

Programme chart

Programme When to use Detergent

Compartment

(Wash cycle)

Intensive

Universal Plus

Universal

Light wash

Economy

Gentle o

Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet

Energy save for lightly to normally soiled crockery.

1) Standard programme for comparison tests (see section "Comparison tests").

2) Turbidity sensor (Eco sensor) is active.

N.B. Data obtained from a machine tested in Germany.

1) 2)

The consumption data and programme duration figures quoted may vary depending on the soiling level of the crockery being washed.

for normally soiled pots, pans, dishes etc with dried on soiling; for very heavy soiling, add 20% more detergent to compartment I

with a longer wash time for normally soiled crockery with dried on soiling,

for normal everyday loads with a longer wash time 100 %

for normal everyday loads with a shorter wash time 100 %

for normal everyday loads, energy saving programme 100 %

Gentle programme for lightly soiled and temperature sensitive crockery and glassware

needed.

This programme should only be selected if the dishwasher is connected to a hot water supply (minimum 45 °C) see "Programme selection"

100 %

50 %

100 %

Page 59

Programme chart

Programme cycle Consumption Duration

Energy kWh Water h:min

Litres Cold

Pre-

wash

XX X

Main

wash

75 °

55 °

35 °

50 °

45 °

X 0.06 0.06 4 0:11 0:11

Interim

rinse

XX X

Final rinse

70 °

65 °

45 °

65 °

55 °

Drying Cold

water

connec

tion

(20 °C)

X 1.50 1.20 20 2:14 1:48

X 1.15 0.55 16 1:54 1:36

X 0.65 0.15 16 1:49 1:38

X 1.10 0.55 12 1:14 1:07

X 0.74 0.30 12 2:14 2:02

X 0.90 0.40 16 1:15 1:05

Hot

water

connec

tion

(60 °C)

water

connec

(20 °C)

tion

Hot

water

connec

tion

(60 °C)

X X X X X X - 0.10 20 - 1:05

When washing a full load in the Intensive Programme, the Universal Plus Programme, the Universal Programme, the Light wash Programme and the Economy Programme at least 20 ml of detergent are required. If the detergent manufacturer recommends using more than this you should dispense the amount they suggest. For the Intensive Programme add an additional 4-6 ml to compartment I.

For the additional function "Top Solo" add detergent according to the soiling level of the crockery to compartment II only (approx. 2/3 of the total amount required for a full load).

Page 60

Alteration rights reserved G611-3 Plus / 0305

M.-Nr. 06 022 840 / 01
