Page 1
Fully Integrated Dishwasher
CLASSIC PLUS G 4977 Vi SF, G 4977 SCVi SF
CLASSIC PLUS 3D G 4998 Vi, G 4998 Vi SF, G 4998 SCVi, G 4998 SCVi SF
CRYSTAL G 6665 SCVi, G 6665 SCVi SF
DIMENSION G 6785 SCVi, G 6785 SCVi SF
LUMEN G 6875 SCVi, G 6875 SCVi SF, G 6885 SCVi K2o
DIAMOND G 6987 SCVi K2o
Shown: G 6885 SCVi K2o
Please note: This information is subject to change
Specification Sheets TRS 06162018
8mieleusa.com
Page 2
Fully Integrated Dishwasher
SPECIFICATIONS
Overall Unit Dimensions 239/16” (598mm) W x 3311/16” - 361/4” (855 - 920mm) H x 227/16” (570mm) D
Niche
Minimum Cabinet Opening Dimensions
Plumbing
May be connected to a cold or hot water supply up to a maximum of 140°F/60°C. Must be connected
Water Supply Requirements
Water Connection Line 4’ 11” (1.5 m) flexible water intake hose is supplied with a 3/8” compression connection.
Drain Hose
Electrical
Electrical Requirements 110V / 120V, 60Hz, 15 Amps
Power Cord NEMA 5-15 plug, 3’ 11” (1.2 m) (Measured from back of unit, convertible to hardwire)
Shipping
Shipping Weight 121 lbs (55 kg)
Shipping Dimensions 271/8” W x 381/8” H x 263/8” D
Support
Call Miele (800) 999-1360
Miele Website
20/20 Link
to a shut-off valve with a male 3/8” compression. The water shut-off valve must be accessible after
installation. The water pressure must be between 7.25 psi (0.5 bar) and 145 psi (10 bar). If the
pressure is higher than 145 psi (10 bar), a pressure reducing valve must be installed.
4’ 11” (1.5 m) flexible drain hose with a 7/8” (22 mm) internal diameter is supplied.The drain hose
length must not be longer than 13’ 1 1/2” (4 m) and the delivery head must not exceed 3’ 3 3/8” (1 m).
235/8 ” (600mm) W x 333/4” (857mm) H X 227/16” (570mm) D
8www.mieleusa.com
82020technologies.com
Classic Plus 3D
G 4998 Vi
Item 21499861USA
G4998 SCVi
Item 21499862USA
Classic Plus
Crystal
G 6665 SCVi
Item 21666562USA
Classic Plus 3D
Custom Panel Ready
Dimension Lumen
G 6785 SCVi
Item 21678562USA
Pre-Finished
Crystal Dimension Lumen
G 6875 SCVi
Item 21687562USA
G 6885 SCVi K2o
Item 21688562USA
Diamond
G 6987 SCVi K2o
Item 21698762USA
G 4977 Vi SF
Item 21497763USA
G4977 SCVi SF
Item 21497764USA
G 4998 Vi SF
Item 21499863USA
G4998 SCVi SF
Item 21499864USA
G 6665 SCVi SF
Item 21666563USA
G 6785 SCVi SF
Item 21678563USA
G 6875 SCVi SF
Item 21687563USA
Page 2 of 5
Page 3
INSTALLATION SPECIFICATIONS
Fully Integrated Dishwasher
Drain - 4 ft 11 in (1.5 m) exible drain hose.
(Connects from lower center rear)
Water - 4 ft 11 in (1.5 m) exible water intake hose with 3/8” compression tting.
(Connects from lower center rear)
Electric - 4 ft 11 in (1.5 m) 120V 15 A 3 wire molded NEMA 5-15 plug power
supply. (Connects via Front End Supply or may be hardwired)
Page 3 of 5
Page 4
CUSTOM PANEL DETAILS
Fully Integrated Dishwasher
Miele Stainless Steel GFVi Panels
Miele offers pre-fabricated stainless steel panels for all fully integrated units. These panels are designed for various
toe-kick heights and offer a choice of handle options. See Miele Product Brochure for more info.
For Knock2open (K2o) models, an additional kit is required for use with stainless steel panel. Please contact Miele for
further details.
Page 4 of 5
Page 5

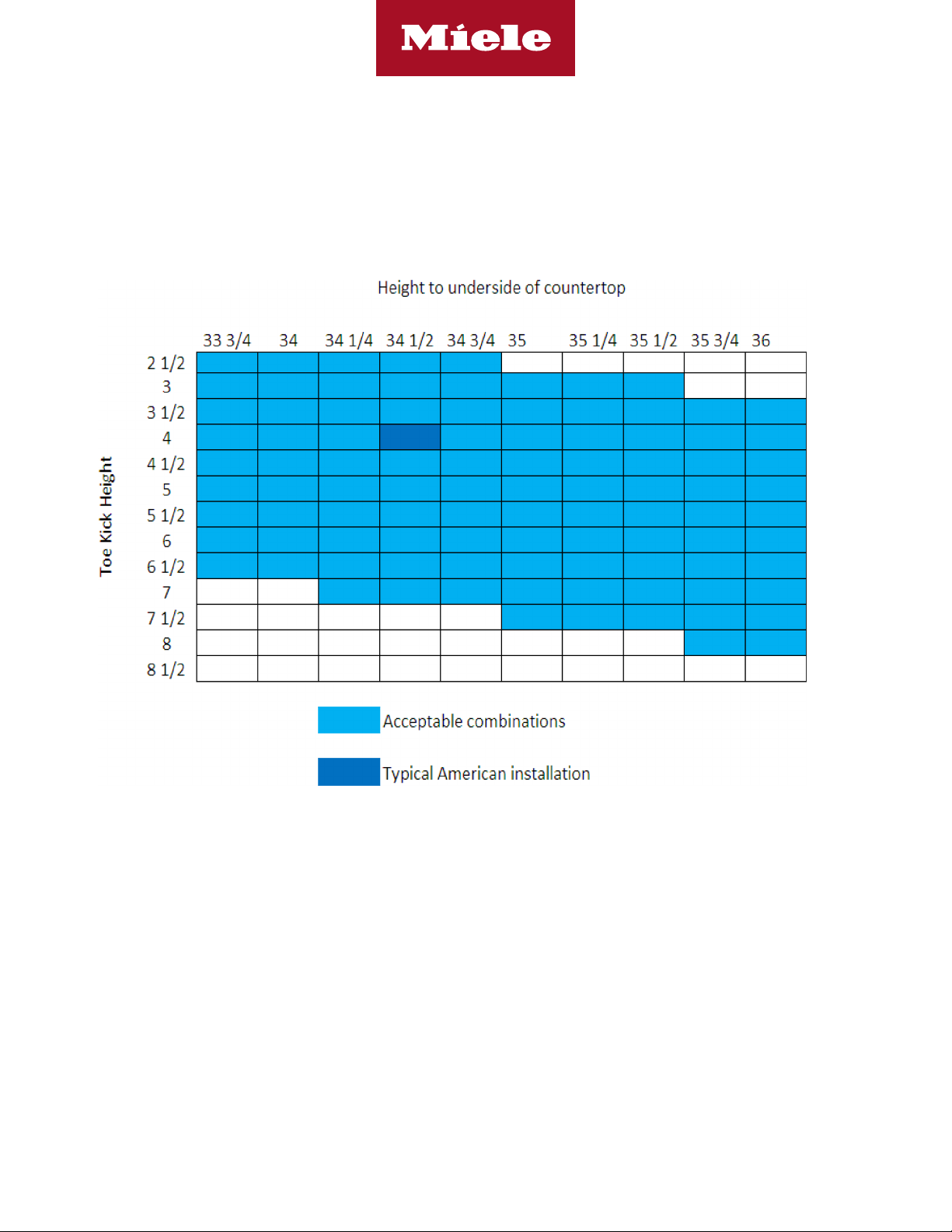

POSSIBLE TOEKICK HEIGHT +
CABINET HEIGHT COMBINATION
Fully Integrated Dishwasher
Specification Sheets TRS 06162018
Page 5 of 5
