Miele G 4580 Operating instructions

Operating Instructions

Dishwasher G 4580

To prevent accidents and appliance damage read these instructions

before

installation or use.

en - US, CA

M.-Nr. 09 510 271

Contents

IMPORTANT SAFETY INSTRUCTIONS.......4

Guide to the dishwasher ............................................7

Control panel ......................................................8

Caring for the environment..........................................9

Before using for the first time.......................................10

To open the door ..................................................10

To close the door ..................................................10

Water softener ....................................................11

Filling the salt container .............................................14

Refill salt message.................................................15

Rinse aid ........................................................16

Adding rinse aid ..................................................16

Rinse aid indicator .................................................16

Adjusting the dosage...............................................17

Loading the dishwasher ...........................................18

Items not recommended for dishwashing ...............................19

Typical load for 10 place settings .....................................20

Upper basket .....................................................21

Adjusting the upper basket ..........................................22

Lower basket .....................................................23

Foldable spikes.................................................23

Bottle holder (depending on the model)..............................24

Cutlery tray.......................................................25

Optional accessories..............................................26

Use ............................................................27

Detergent ........................................................27

Adding detergent..................................................28

Turning on .......................................................29

Selecting a program ...............................................29

Starting a program.................................................29

Program Guide ...................................................30

Standby .........................................................31

At the end of a program.............................................31

Turning off .......................................................31

Unloading the dishwasher ...........................................31

Contents

Interrupting a program..............................................32

Changing a program ...............................................32

Additional options ................................................33

Buzzer ..........................................................33

Factory default ....................................................34

Frequently Asked Questions .......................................35

Technical faults ...................................................35

Faults in the water intake/water drain ..................................36

General problems with the dishwasher .................................37

Sounds..........................................................38

Poor cleaning results ...............................................39

After sales service ................................................42

User Maintenance Instructions......................................43

Cleaning and Care ................................................44

Triple filter system .................................................45

Cleaning the drain pump and non-return valve...........................49

Installation instructions ...........................................51

Electrical connection..............................................52

Plumbing........................................................53

Waterproof system.................................................53

Connection to the water supply .......................................53

Drainage ........................................................55

Noise measurement...............................................56

General requirements for measuring noise ..............................56

Installation requirements for measuring noise............................56

IMPORTANT SAFETY INSTRUCTIONS

WARNING –

When using your dishwasher, follow basic precautions, including the following:

Read the operating instructions and installation diagram carefully before installation or use of the dishwasher to prevent injury and machine damage.

Use the dishwasher only for its intended purpose. This appliance is intended for residential use only.

Keep these operating instructions in a safe place and pass them on to any future user.

Correct usage

The dishwasher is not designed for

commercial use. It is intended for use in domestic households and in similar working and residential environments such as, shops, offices and showrooms or guest houses.

The dishwasher is not intended for

outdoor use.

It must only be used as a domestic

appliance as specified in these operating instructions, for cleaning domestic cookware and cutlery. Any other usage is not supported by the manufacturer and could be dangerous.

Persons who lack physical, sensory

or mental abilities, or experience with the appliance should not use the dishwasher without supervision or instruction by a responsible person.

Electrical Safety

Before installation, make sure that

the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualified electrician if in doubt.

Before installation or service,

disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.

Do not use an extension cord to

connect this appliance to electricity. Extension cords do not guarantee the required safety of the appliance (e.g. danger of overheating).

Be certain your appliance is

properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician.

If the supplied power cord is

damaged it must only be replaced by a Miele Service technician with a genuine Miele power cord.

The outlet must be accessible at all

times after installation to disconnect the dishwasher.

IMPORTANT SAFETY INSTRUCTIONS

Installation

The dishwasher must be installed

and connected in accordance with the installation instructions.

Installation and repair work should

be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty.

Do not install or use a damaged

dishwasher. A damaged appliance is dangerous. Unplug the machine and contact Miele Technical Service Department.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

This appliance must not be used in

a non-stationary location (e.g. on a boat).

, WARNING - Fire hazard!

Do not cover or crush the plug of the appliance. Ensure that the cabinet opening for the dishwasher provides ample space for the plug and cord. Installing the dishwasher in a tight space may crimp the power cord or put pressure on the plug which could cause overheating.

This dishwasher should only be

installed under a continuous counter top secured to adjacent cabinetry.

Do not install this dishwasher

beneath a cooking surface, oven or any appliance that radiates heat. High temperatures from these units may damage the dishwasher.

A toe-kick must be used with the

dishwasher. If the supplied toe-kick is not used, a cabinet matching toe-kick must be installed.

Do not install the dishwasher in an

area where it will be exposed to temperatures below freezing.

Do not cut the intake hose or

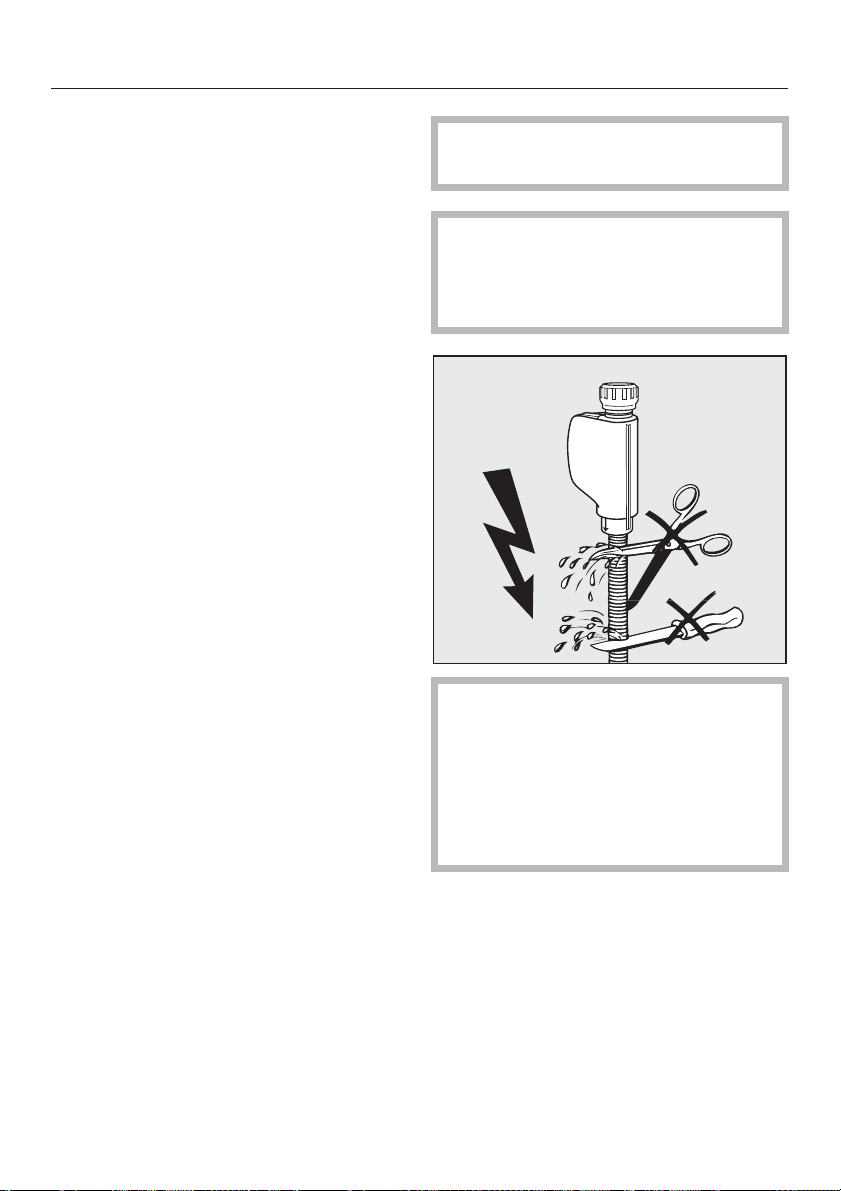

submerge it in liquid. This hose contains electrical components that could cause injury or property damage if cut or submerged.

Only power up the dishwasher when

all installation and plumbing work is complete.

Do not place hose or power cord

next to a heat source e.g. hot water pipes. Do not expose hose or power cord to corrosive substances. Damage of hose or power cord could cause electrical shock or water damage!

IMPORTANT SAFETY INSTRUCTIONS

Use

To reduce the risk of injury, do not

allow children to play in, on or near the dishwasher. It is possible for small fingers may be pinched in the door.

Only use the dishwasher if all panels

are properly in place.

Do not tamper with the controls.

Do not sit or stand on the door or

baskets of the dishwasher. Close the door when not in use.

Under certain conditions, hydrogen

gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, turn on all hot water faucets and let water flow from each for several minutes before using the dishwasher. This will release any accumulated hydrogen gas. Do not smoke or use an open flame during this time.

Be sure that all items placed in the

dishwasher are "dishwasher safe". For items not labeled, check the manufacturer’s recommendations.

When loading tableware, place

sharp items away from the door to prevent damage to the seal. Load sharp items pointing downwards to prevent injuries.

Only use detergents and rinse aids

recommended for residential dishwashers. Keep all detergents and rinse aids out of the reach of children.

Do not inhale or swallow detergents.

Dishwasher detergents contain irritant and corrosive ingredients. They can cause burning in the mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled.

Do not drink water from the

dishwasher! Harmful residues could be present.

Do not fill the rinse aid reservoir or

salt container with detergent. It will destroy the rinse aid compartment and water softener.

Dishes can be very hot at the end of

a program. Allow the dishes to cool until they are cool enough to handle before unloading them.

The water supply must be turned off

when the appliance is not used for a longer period of time (e.g. during vacations).

Disposal of an appliance

If the appliance is removed from its

installation site and will not be used, remove the doorlock to the wash cabinet to prevent children from locking themselves in the machine.

SAVE THESE

INSTRUCTIONS

Guide to the dishwasher

a Upper spray arm (not visible)

b Cutlery tray (depending on model)

c Upper basket

d Middle spray arm

e Air inlet for drying

(depending on model)

f Lower spray arm

g Triple filter system

h Data plate

i Rinse aid reservoir

j Dual compartment detergent

dispenser

k Salt container

Guide to the dishwasher

Control panel

a Check / Refill indicators

b Program selection

c Program button

d U (On) button with indicator

e V (Off) button

Caring for the environment

Energy saving washing

This dishwasher is economical in the use of water and electricity. For best results follow these tips:

For lowest energy consumption you

may connect the dishwasher to a hot water source.

For fastest possible wash times, with

slightly higher energy consumption, connect the dishwasher to a hot water source.

Make full use of the baskets without

overloading for the most economical washing.

^ Use the correct amount of detergent

and rinse aid. Detergent dosage is dependent upon the amount of soiling and type of dishware being washed. See the "Program Guide" for more information.

^ When using powder or liquid

detergent, reduce the amount to of the normal amount when washing a small load.

Disposal of the packing material

The cardboard box and packaging protect the appliance during shipping. These materials are biodegradable and recyclable. Please recycle.

Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

Disposal of an old machine

Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Ensure that the appliance presents no danger to children while being stored for disposal. Before discarding an old appliance, unplug it from the outlet, cut off its power cord and remove any doors to prevent hazards.

Choose a program that best suits the degree of soiling and the type of dishes being washed.

Before using for the first time

To open the door

^ Pull the handle to open the door.

If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will continue.

To close the door

Push the baskets in.

Lift the door and push until it clicks

into position.

Before using for the first time

Water softener

To achieve good cleaning results, the dishwasher needs soft water (water that is low in minerals). Hard water results in calcium deposits on dishware and in the dishwasher. If your tap water hardness is above 4 °d (4 gr/gal) the water should be softened. The built-in water softener is designed for this purpose. The water softener is suitable for a water hardness up to 70 °d (73 gr/gal).

The water softener requires

–

dishwasher salt. If using "Tab" products which include salt, you should still add salt to the machine to achieve optimal cleaning results.

– The dishwasher must be correctly

programmed to match the hardness of your water.

– Your local water authority will be able

to advise you of the exact water hardness level in your area.

In areas where the water hardness fluctuates (e.g. 37-50 °d [39-52 gr/gal]) always program the machine to the higher value (in this example 50 °d [52 gr/gal]).

If there is a fault, it will help the service technician to know the hardness of your local water supply.

Please note your water hardness below:

°d (gr/gal)

The water hardness was programmed at 1-4 °d (1-4 gr/gal) by factory default.

If the hardness of your local supply is constantly lower than 4 °d (4 gr/gal), you do not need to add water softener salt. However the water hardness level must still be programmed.

Before using for the first time

Programming the water softener

During programming, other indicator lights flash and light up each time you press a button. Only the indicator lights in the following operating steps are important for the programming.

To exit the programming mode at any time and start over again, turn the dishwasher off with the V button.

Press the V button to turn the

dishwasher off.

Press and hold the "Program" button

and turn the dishwasher on simultaneously using the U button. Keep the "Program" button pressed for at least four seconds until the lower right program indicator lights up.

If it does not come on, start over.

^ Now press the program button briefly

twice.

The "Intake/Drain" indicator flashes twice at a short interval and the upper right program indicator flashes once at a short interval (factory default).

Press the "Program" button (for at least one second) until the "Intake/Drain" indicator lights up.

The set value is indicated by the flashing rhythm of the upper right

program indicator (see Table).

°d gr/gal Flashing rhythm

1 - 4 1 - 4 Once short

5 - 7 5 - 7 2 short

8 - 11 8 - 11 3 times short

12 - 15 12 - 16 4 times short

16 - 20 17 - 21 5 times short

21 - 25 22 - 26 6 times short

26 - 30 27 - 31 7 times short

31 - 36 32 - 38 8 times short

37 - 45 39 - 47 9 times short

46 - 70 48 - 73 Once long

^ Press the "Program" button briefly to

select the flashing rhythm corresponding to the water hardness in your area. With each press of the button the value will go up one level. Once the highest value is reached the setting will start again from the beginning.

Example:

The water hardness is 22 °d. The upper right program indicator flashes 6 times at a short interval.

Press the V button to turn the dishwasher off.

Checking the programmed water hardness

Press the V button to turn the

dishwasher off.

Press and hold the "Program" button

and turn the dishwasher on simultaneously using the U button. Keep the "Program" button pressed for at least four seconds until the lower right program indicator lights up.

Now press the program button briefly

twice.

The set water hardness value is indicated by the flashing rhythm of the upper right program indicator light (see Table).

^ Press the V button to turn the

dishwasher off.

Before using for the first time

Every dishwasher is tested before leaving the factory. Any water remaining in the machine is from the final factory test and does not indicate that the machine has been used.

Filling the salt container

Inadvertently filling the salt

container with dishwashing detergent (including liquid detergent) will damage the water softener.

Only use water softener salt

specially formulated for dishwashers. Other salts may contain insoluble additives which can impair the water softener.

If using "Tab" products which include salt, still add salt to the machine to achieve optimal cleaning results and ensure long-term functioning of the water softener.

Remove the lower basket from the wash cabinet and unscrew the salt container lid.

When opening the salt container, water will run out. Open the container only to refill salt.

Important: The salt container must be filled with 1 quart (1 l) of water

before adding salt for the first time

so the salt can dissolve properly. Water does not have to be added with subsequent refills.

^ Place the provided funnel over the

salt container and carefully fill it with salt. The salt container holds approx.

2.2 lbs (1 kg) of salt, depending on the type of salt.

Clean any excess salt from the threads of the container opening. Screw the lid on firmly.

Immediately after each refill, run the " Express" program without a load. This will remove any traces of salt from inside the wash cabinet.

Refill salt message

When the "Salt" indicator light comes

on, refill the salt after the program has finished.

After the container has been filled, the "Salt" indicator light can remain on for a short time. It will go out once the reactivation process is complete.

The "Salt" indicator light is turned off if you have programmed the dishwasher to a water hardness below 4 °d (4 gr/gal)).

Immediately after each refill, run

the "Express" program without a load. This will remove any traces of salt from inside the wash cabinet.

Before using for the first time

Rinse aid

Rinse aid helps to prevent spotting on dishes and glassware. The rinse aid is filled in the reservoir and the set amount will be automatically dosed.

Filling the rinse aid reservoir with

detergent will damage the reservoir. Only pour rinse aid formulated for residential dishwashers into the reservoir.

When using "Tab" detergents rinse aid is not needed.

Pour liquid rinse aid into the reservoir

until it is visible on the surface of the screen.

Adding rinse aid

Press the button in the direction of the arrow until the flap springs open.

The rinse aid reservoir holds approx.

3.7 oz (110 ml).

^ Press on the flap until you hear it

click shut. Failure to close it all the way allows water to enter the reservoir during the wash program.

^ Clean any spilled rinse aid. The flap

will remain closed during normal operation.

Rinse aid indicator

When the rinse aid indicator first comes on, there will be enough rinse aid left for2-3washes.

The rinse aid indicator on the control panel will light when the rinse aid reservoir needs refilling.

Before using for the first time

Adjusting the dosage

The dosage selector is preset to 3. This dispenses approximately 3 ml of rinse aid per program. It can be adjusted from 0 to 6.

Use a higher setting if spots appear

–

on dry glassware.

Use a lower setting if streaking

appears on dishes or glasses.

Turn the dishwasher off "V".

Press and hold the "Program" button

and at the same time turn the dishwasher on g. Hold the "Program" button until the "Rinse & Hold" indicator comes on.

If it does not come on start over.

^ Press the "Program" button three

times.

The "Intake / Drain" indicator flashes three times in intervals.

The "SaniWash" indicator flashes 3 times in intervals. The rinse aid dosage is adjusted to 3 ml by default.

The amount set can be recognized by the flashing rhythm of the "SaniWash" indicator (see table):

Dosage in ml Flashing rhythm

1 Once

2 Twice

3 3 times

4 4 times

5 5 times

6 6 times

^ Press and hold the "Program" button

until the "Intake / Drain" indicator lights up.

^ Select the desired setting with the

"Program" button. Every touch of the button increases the level.

The programmed dosage is saved.

^ Turn the dishwasher off "V".

Loading the dishwasher

Do not wash items soiled with

ash, sand, wax, grease or paint in the dishwasher. Ash and sand do not dissolve and will be distributed throughout the inside of the dishwasher. Wax, grease and paint will cause permanent discoloration and damage to the dishwasher.

Scrape food from dishes before

placing them in the dishwasher, rinsing is not necessary.

^ Some foods contain natural dyes,

e.g. carrots or tomatoes. Plastic items may discolor permanently if they come in contact with food dyes.

^ All items can be placed anywhere in

the baskets.

^ Load dishes so that water can reach

all surfaces. Do not place dishes or cutlery inside other pieces.

The spray arms must not be blocked

by items that are too tall or hang through the baskets. Check clearance by manually rotating the spray arms.

Place very small items in the cutlery

tray or basket so they do not fall to the bottom of the wash cabinet.

Food residue and spilled liquids

should be cleaned from the sides of the dishwasher door. These are outside of the wash cabinet and are not cleaned by water from the spray arms.

Make sure that all items are securely positioned.

Hollow items such as cups and glasses should be placed upside down in the baskets.

To ensure good water coverage, tall, narrow and hollow items, i.e. vases or champagne glasses, should be placed in the center of the basket rather than in the corners.

Concave based items such as mugs or bowls, should be placed at an angle so that water does not pool.

+ 42 hidden pages
