Operating instructions

for dishwashers

To avoid the risk of accidents or damage to the appliance it is essential to read these instructions as well as the installation plan before it is installed and used for the first time.

M.-Nr. 06 702 740

Page 2

Contents

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting the language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 16

External water softening system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

"Insufficient salt" message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Rinse aid low message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Spiked insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hinged cup rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Positioning rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Support rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Multi-function basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Variable inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Vario inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Cutlery tray (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Cutlery basket (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Page 3

Contents

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Selecting an Extra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Starting a programme before the start time has been reached: . . . . . . . . . . . 41

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the reflector panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the door front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Checking the filters in the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

The dishwasher does not fill/drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Unsatisfactory washing result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 58

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

For testing institutes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Page 4

Contents

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

To open the "Settings J" menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Language J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Detergent type menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

External water softening system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Check filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Adjust sensor wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Change main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Save extras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Keypad tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Miele{home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Showroom prog.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Factory default setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

To close the "Settings J" menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Page 5

Appliance overview

Description of the appliance

a Upper spray arm (not visible) b Cutlery tray (depending on model) c Upper basket d Middle spray arm e Air inlet for drying

(depending on model)

f Lower spray arm

g Filter combination h Data plate i In-operation indicator light j Rinse aid reservoir k Dual compartment detergent

dispenser

l Salt reservoir

Page 6

Description of the appliance

Control panel

a Selector buttons

For selecting options displayed next to a particular button. For altering the values displayed (+/-). For moving to other menus.

b Display

See the following pages for more information.

c +C (Clear) button

For returning to the previous level or deleting values which have been set previously.

d Delay start button d with indicator

light

For selecting the delay start function.

e Information button K

For displaying additional information about the option selected.

f On button g with indicator light

For switching the dishwasher on.

g Off button o

For switching the dishwasher off.

h PC interface

Used by service technicians to run diagnostic checks, or to update programming data in the future.

i In-operation indicator light

Shows a programme is running when the door is shut.

j Miele{home

The appliance is compatible with the Miele|home system.

This instruction book applies to several different dishwasher models. The specific dishwasher models below are referred to as follows: G 1870 = G 1XXX G 2870 = G 2XXX

The model numbers G 1XXX and G 2XXX used in this book refer to the model designation specified on the data plate of the appliance (and not the description on the control panel). The data plate is located at the top right hand side of the door.

Page 7

Display

Description of the appliance

The display is used to select the following:

the programme

–

extras

–

the delay start time

–

the "Settings J" menu

– During a programme, the display

shows the following: – the name of the programme

– the current time of day – the stage the programme is at – the estimated time left for the

programme to run

– any relevant fault messages and

notes

To save energy the display goes out after 10 minutes if you do not press any buttons during this time. Pressing any button will switch the display back on again.

A dot in the display next to a button indicates that a function can be selected with that button.

The arrows on the right hand side of the display indicate that more options or more text can be displayed by pressing the relevant button.

The

OK function is used to confirm a

message or setting and also to move to the next menu or to another level.

The "Settings J" menu is used to alter the dishwasher’s electronics to suit different requirements. See "Settings menu" for more details.

Page 8

Warning and Safety instructions

Delivery

This appliance conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important information on its safety, use and maintenance. Keep these instructions in a safe place for future reference, and pass them on to any future user.

Correct usage

This dishwasher is intended

exclusively for cleaning domestic

crockery and cutlery in a domestic household. Using it for purposes other

than those for which it was designed, as well as any alterations or conversions to the appliance would be unauthorised and could cause harm. The manufacturer cannot be held liable for damage resulting from improper or incorrect use of the appliance.

Transport

Should you ever need to move the dishwasher, e.g. when moving

house, note the following: –

Empty the dishwasher,

–

Secure any loose parts, e. g. hoses, mains cable, cutlery baskets, lower basket

damage. Under no circumstances should you use a damaged appliance. A damaged appliance could be dangerous.

Installation

the installation plan.

via a suitable switched socket. The electrical socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time. (See "Electrical connection").

Danger of overheating and fire risk if the dishwasher were to be pushed up against a plug.

dishwashers must only be installed under a continuous worktop which is secured to adjacent cabinetry.

Before setting up the appliance, check it for any externally visible

Please ensure that the packaging material is offered for recycling.

The dishwasher must be installed and connected in compliance with

The dishwasher must only be plugged into the electricity supply

There must be no electrical sockets behind the dishwasher.

In order to ensure stability, built-under and integrated

–

Transport the dishwasher in the upright position only.

Page 9

Warning and Safety instructions

The dishwasher must not be

installed under a hob. The high radiant temperatures which are sometimes generated by a hob could damage the dishwasher. For the same reason it should not be installed next to open fires or other appliances which give off heat, such as heaters etc.

If you want to convert your

freestanding dishwasher to a built-under ("U") model, you will need to order the appropriate conversion kit. If you remove the existing plinth, you must replace it with a U-model plinth. This is necessary to avoid the risk of injury caused by protruding metal parts.

Do not connect the dishwasher to

the mains supply until it has been fully installed.

Before connecting the appliance,

check that the connection data on the data plate (voltage and connected load) match the mains electricity supply. If in any doubt, consult a qualified electrician.

The electrical safety of this

appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system. It is most important that this basic safety requirement is regularly tested and where there is any doubt, the electrical system in the house should be checked by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

This equipment may only be used

in mobile installations such as ships, caravans, aircraft etc. if a risk assessment of the installation has been carried out by a suitably qualified engineer.

A damaged appliance could be

dangerous. Switch off at the mains and call your Miele supplier or the Miele Service Department.

The plastic housing of the water

connection contains an electrical component. The housing must therefore not be dipped in water.

There are live wires in the water

inlet hose. Never cut the water inlet hose, even if it is too long.

Do not connect the appliance to

the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).

Use

Do not use solvents in the

dishwasher. Danger of explosion.

Do not inhale or ingest dishwasher

detergent! Dishwasher detergents can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediate ly if detergent has been swallowed or inhaled.

Page 10

Warning and Safety instructions

Avoid leaving the door open unnecessarily, as you could trip

over it.

Do not sit or lean on the opened

door. This could cause the dishwasher to tip and be damaged and you could get injured.

Only use detergent and rinse aid

formulated for domestic dishwashers. Do not use washing-up liquid.

In an appliance with a cutlery

basket (depending on model) cutlery is cleaned and dried more efficiently if placed in the basket with the handles downwards. However, to avoid the risk of injury place knives and forks etc. with the handles upwards.

Please only use special coarse

grained dishwasher salt for reactivation, as other salts may contain insoluble additives which can impair the functioning of the softener.

Plastic items which cannot

withstand being washed in hot water, such as disposable plastic containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape.

On models with "Delay start", make

sure that the dispenser is dry before adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly dispensed. Do not use liquid detergent when selecting Delay start, as it can run into the dishwasher before it is required.

Safety with children

This appliance is not a toy! To

avoid the risk of injury do not allow children to play in or around the dishwasher, or to operate it. There is also a danger that children playing might shut themselves in the dishwasher.

Keep children away from

detergents. Dishwasher detergents can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing. Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet. Consult a doctor immediately if your child has swallowed or inhaled detergent.

Page 11

Warning and Safety instructions

To avoid damage to the appliance and other materials

Do not fill the rinse aid reservoir

with powder or liquid detergent. This will cause serious damage to the reservoir.

Inadvertently filling the salt

reservoir with powder or liquid dishwasher detergent always leads to serious damage to the water softener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt reservoir!

Do not use commercial or industrial

detergents as these may damage material and there is a risk of severe chemical reaction.

The Miele Waterproof System offers

protection from water damage, provided the following conditions are met:

– The dishwasher is correctly installed

and plumbed in.

–

The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary.

–

The stopcock has been turned off when the appliance is not used for a longer period of time (e.g. during holidays).

The Waterproof system will work even if the appliance is switched off. However, the appliance must remain connected to the electricity supply.

In countries where there are areas

which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage caused by cockroaches or other vermin will not be covered by the guarantee.

Repairs and maintenance

Repairs may only be carried out by

suitably qualified and competent technicians in accordance with current local and national safety requirements. Repairs and other work by unqualified persons could be dangerous.

Always disconnect the appliance

from the electrical supply for maintenance work (switch off at the wall socket and remove the plug).

If the connection cable is damaged

it must be replaced with a Miele cable by a Miele approved service technician only.

Disposal of your old appliance

When disposing of an old

dishwasher first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative by unscrewing the Torx screw, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the appliance.

The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

Page 12

Caring for the environment

Disposal of the packing material

The transport and protective packing has been selected from materials which are environmentally friendly for disposal and can normally be recycled. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation! Rather than just throwing these materials away, please ensure that they are recycled.

Disposal of your old appliance

Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of your old appliance with your household waste.

It should be unplugged or disconnected from the mains electricity supply by a competent person. The plug must be rendered useless and the cable cut off directly behind it to prevent misuse. See the "Warning and Safety" section of this booklet for further details.

Energy saving washing

This dishwasher is exceptionally economical in its use of water and electricity. You can make the most of your appliance by following these tips:

^ For most economical dishwashing

make full use of the baskets without overloading the dishwasher.

^ Choose the programme to suit the

type of crockery being washed and the degree of soiling.

^ Select the Energy save programme

for energy-saving dishwashing.

If your household water system is suitable, this dishwasher can be connected to a hot water supply. Select "Without heater" when washing lightly to normally soiled dishes. However, because the water is not heated in this programme, drying results may not match those of other programmes.

Please dispose of it at your local community waste collection / recycling centre and ensure that it presents no danger to children while being stored for disposal.

Follow the detergent manufacturer’s recommendations on detergent dosage.

When using powder or liquid detergent you can use detergent if baskets are only half full.

/3less

Page 13

Before using for the first time

To open the door

^ Pull the handle. If the door is opened during operation

all functions are automatically interrupted.

To close the door

Push the baskets right in.

Then lift the door upwards and push

until it clicks into position.

Page 14

Before using for the first time

Welcome screen

Switch the dishwasher on with the On button g.

If the dishwasher is being switched on for the first time, the welcome screen will appear.

Setting the language

The display will then change automatically to the screen for setting the language.

A tick L will appear beside the language that has been set.

} deutsch B } english (GB)

^ Select the language you want and confirm this with

Setting the time of day

The display will then change to the screen for setting the time of day.

} + } -

These settings will be saved in memory after the dishwasher has been through one complete programme.

Language F

:00

Please set the time OK }

Set the hours with

+/- and confirm with OK.

Then set and confirm the minutes.

OK }

OK.

Page 15

Before using for the first time

After you have confirmed the minute entry with OK, the language setting and time of day, as well as two messages and the applicable - see relevant instructions for how to fill the salt and rinse aid reservoirs), will appear in the display.

Insufficient salt and Rinse aid low messages (if

After you have confirmed these messages with

OK, the

display will change to show the main menu.

} Sensor wash

Main menu

r} Quick wash d 40°C

You can now select a programme and start it or switch the dishwasher off.

Page 16

Before using for the first time

Before using the appliance for the first time you require:

approx. 1 kg dishwasher salt,

–

domestic dishwasher detergent,

–

rinse aid formulated for domestic

–

dishwashers.

Every dishwasher is tested at the factory. There will be residual water in the appliance from this test. It is not an indication that it has been used previously.

This dishwasher is fitted with a water softener sensor which automatically sets the water softener unit for the local water hardness level.

External water softening system

Filling the salt reservoir

In order to achieve good cleaning results, the dishwasher needs to operate with soft water. Hard water results in the build-up of calcium deposits on crockery and in the dishwasher. Mains water with a hardness level higher than 0.7 mmol/l (4 °d - German scale) needs to be softened. This takes place automatically in the integrated softener unit. The softener unit is suitable for a water hardness level of up to 12.6 mmol/l (70 °d). It requires dishwasher salt.

If you use "3 in 1" tabs in your dishwasher you should still add salt in order to achieve optimum results. The amount of salt used is reduced to between amount if the "3 in 1" detergent type is selected.

/4and1/3of the normal

If your dishwasher is connected to an external water softening system which uses salt to reactivate, you will still need to programme the dishwasher to the correct water hardness level to achieve good cleaning results.

Set the water softener unit of the dishwasher to the water hardness level of the water which is supplied from the external water softening system. If you do not know what this is, then set the value at 1.4 mmol/l (8 °d) (see "Settings menu J, External softener").

Page 17

Before using for the first time

You can check the water hardness level measured by the water softener sensor in the display (see "Settings menu J, Water hardness").

If the water in your area is very soft and constantly lower than

0.7 mmol/l (4 °d) you do not need to add dishwasher salt. The

"Insufficient salt" indicator light will come on the first time you switch the dishwasher on. It will go out automatically once the sensor has detected that the water is softer than

0.7 mmol/l.

Inadvertently filling the salt

When filling the salt reservoir only

open the door half-way to ensure that all the salt gets into the reservoir.

^ Press the button on the lid of the salt

reservoir in the direction of the arrow until the flap springs open.

Only use special coarse grained dishwasher salt for reactivation. Do not use other salts such as cooking salt, agricultural grade or gritting salt. These may contain insoluble additives which can impair the functioning of the water softener.

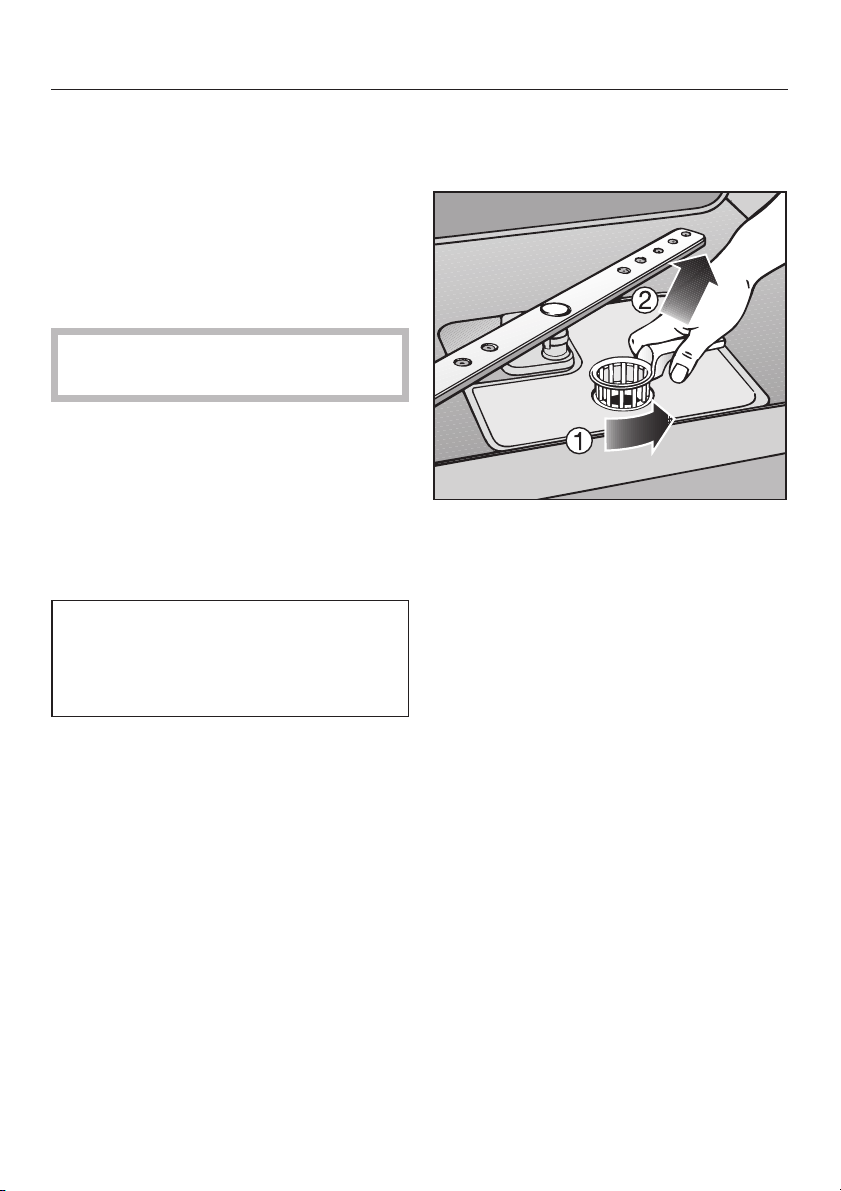

Lift up the funnel.

Page 18

Before using for the first time

Do not fill the salt reservoir with water.

"Insufficient salt" message

Fill the salt reservoir with dishwasher

salt for reactivation when the

Insufficient salt message appears.

(If it appears during a programme, wait until the end of the programme).

^ Add salt only until the reservoir is full

or until water runs out of the opening. The salt reservoir holds approx. 1 kg of salt depending on the brand used.

Do not add any more than 1 kg of salt.

As the salt reservoir is filled, displaced water may overflow.

Clean any excess salt from around the reservoir opening and then close the flap.

Confirm with

The "Insufficient salt" message will go out.

After the salt reservoir has been filled, the "Insufficient salt" message may still appear in the display if the salt concentration has not yet reached the correct level. If this is the case, confirm again with

OK.

,After filling the salt reservoir, run

the Quick wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt water from the cabinet.

Run the Quick wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt water from the cabinet.

Page 19

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Rinse aid is poured into the storage reservoir and the amount set is dispensed automatically.

Inadvertently filling the rinse aid

reservoir with powder or liquid detergent always causes serious damage to the reservoir. Only pour rinse aid formulated for domestic dishwashers into the reservoir.

Alternatively, it is possible to use – Household vinegar with a max. 5%

acid content or – Liquid citric acid up to 50% acid

content.

Adding rinse aid

^ Press the button on the lid of the

rinse aid reservoir in the direction of the arrow until the flap springs open.

The resulting rinsing and drying quality will not, however, be as good as when rinse aid is used.

Do not use vinegar with a higher acid content (e.g. vinegar essence 25% acid). This would damage the dishwasher.

If you only ever use "2 in 1" or "3 in 1" products in your dishwasher you do not need to add rinse aid.

Page 20

Before using for the first time

Rinse aid low message

When the Rinse aid low message appears, the reservoir contains sufficient rinse aid for 2 - 3 programmes only.

Add rinse aid in plenty of time.

If the "2 in 1" or "3 in 1" Tab function has been selected, the "Rinse aid low" message will not appear (see "Settings menu J, Detergent type").

Add rinse aid only until it is visible in

the opening.

The rinse aid reservoir holds approx. 110 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water would enter the rinse aid reservoir during a programme.

^ Wipe up any spilled rinse aid. This

prevents over-foaming occurring during the next programme.

You can adjust the rinse aid dosage for best results (see "Settings menu J, Rinse aid").

Confirm with

The

Rinse aid low message will go out.

OK.

Page 21

Loading the dishwasher

Note

Remove coarse food residues from crockery.

There is no need to rinse items under running water.

Do not wash items soiled with

ash, sand, wax, lubricating grease or paint in the dishwasher. Ash does not dissolve and is distributed in the wash cabinet. Wax, sand, lubricating grease and paint cause damage to the dishwasher.

Crockery can be loaded anywhere in the baskets, but the following notes should be observed:

– Do not place crockery and cutlery

inside other pieces where they may be concealed.

– Load the crockery so that water can

access all surfaces. This ensures that it is properly cleaned.

–

Make sure that all items are securely positioned.

Deep based items should be placed

–

at an angle so that water can run off them freely.

The spray arms must not be blocked

–

by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.

Make sure that small items cannot

–

fall through the holders in the baskets. Small items, e.g. lids, should therefore be placed in the cutlery tray or cutlery basket (depending on model).

Some foodstuffs may contain natural dyes, e.g. carrots, tomatoes or ketchup. Plastic items in the dishwasher may discolour if large quantities of these foodstuffs find their way into the appliance on the crockery. The stability of plastic items is not affected by this discolouration.

–

Hollow items such as cups, glasses, pans, etc. must be inverted in the basket.

–

Tall, narrow, hollow items, e.g. champagne glasses, should be placed in the centre of the basket to ensure better water coverage.

Page 22

Loading the dishwasher

Items not suitable for dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also not suitable for dishwashers.

Plastic items which are not heat

–

resistant. The high temperatures in the dishwasher may cause them to melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze may

fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash delicate glassware, or glassware containing lead crystal in a dishwasher.

We recommend:

When purchasing new crockery and

–

cutlery, make sure they are dishwasher-proof.

If delicate glassware is washed in the

–

dishwasher ensure that only very low temperatures are used (see programme chart), or a special glass-care programme is used (depending on model). This will reduce the risk of clouding.

Wash particularly delicate glassware

–

by hand.

Please note Silverware previously cleaned with a

silver polish may still be damp or

spotted at the end of a programme, where water has not run off smoothly. It may need rubbing dry with a soft cloth.

Silver which has been in contact with foods containing sulphur can discolour. These include egg yolk, onions, mayonnaise, mustard, pulses, fish, fish brine and marinades.

Aluminium components (e.g. grease filters) must not be cleaned with caustic alkaline commercial or industrial cleaning agents. These may damage the material, or in extreme cases, cause a severe chemical reaction. See section "Adding detergent" for information on suitable detergents.

Page 23

Loading the dishwasher

Upper basket

For safey reasons, do not

operate the dishwasher without the upper and lower baskets in place (except when using the Tall items 45 °C and Tall items 65 °C programmes).

^ Use the upper basket for small,

lightweight and delicate items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket.

Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket.

Spiked insert

The spiked insert can be removed to make more room for larger items such as casserole dishes.

To remove it a

^ Pull it upwards by the handle as

shown.

To refit it b

Fit the insert into the lower basket with the hooks going under the cross piece as illustrated.

Press down on the handle until the insert is securely held in position.

Page 24

Loading the dishwasher

Hinged cup rack

To make room for tall items raise the rack upwards.

G 2XXX models:

You can set the cup rack at two different heights.

^ Pull the cup rack upwards and click it

back into position at the required height.

Positioning rail (depending on model) Glasses can be arranged along the

positioning rail to give them some support during the programme.

^ Raise the rail, and lean the glasses

against it.

The positioning rail can be flipped over to the middle of the basket for easy sorting and removing of crockery.

Page 25

Support rail (depending on model) This support is designed to hold tall

glasses and glasses with stems securely.

^ Lower the rail and lean tall glasses

against it.

^ You can also remove a section of the

cutlery tray to make more room for tall glasses.

Loading the dishwasher

Page 26

Loading the dishwasher

Multi-function basket

This basket can be used for washing baby bottles, saucers and small items.

When washing baby bottles place the

teats in the small round holders as shown a.

^ Remove the spiked insert from the

right-hand side of the upper basket.

^ Then place the multi-function basket

in its place.

^ To secure a bottle, open one of the

small round flaps as shown b and place the neck of the bottle into the hole.

^ Position small items, such as bottle

caps and sealing rings in the spaces in between.

You can also use this basket to wash other kinds of small items.

Close the flaps when washing saucers and small plates.

Page 27

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller pieces of crockery in the bottom or upper basket, the upper basket can be adjusted on three levels with 2 cm between each level.

The upper basket can also be set at an angle with one side high and the other side low. Ensure however, that the basket can slide smoothly into the cabinet. It is better to adjust the basket before loading it.

Pull out the upper basket.

Depending on the setting of the upper basket, the following plate dimensions can be accommodated.

Dishwasher with cutlery tray

(see data plate for model number)

Upper basket

level

G1XXX G2XXX

To p 1 5 1 9 3 1

Middle 17 21 29

Bottom 19 23 27

Dishwasher with cutlery basket

(see data plate for model number)

Upper basket

level

G1XXX G2XXX

To p 2 0 2 4 3 1

Plate Ø in cm

Upper basket Lower

basket

Plate Ø in cm

Upper basket Lower

basket

Pull upwards on the levers at either side of the upper basket.

Adjust the basket to the desired height.

Then push the levers securely back down into position.

Middle 22 26 29 Bottom 24 28 27

Page 28

Loading the dishwasher

Lower basket

^ For larger and heavier items such as

plates, serving platters, saucepans, bowls, etc. Small items such as saucers can also be placed in the lower basket. Do not place thin, delicate glassware in the lower basket.

Page 29

Loading the dishwasher

Variable inserts

A variety of inserts are available for washing cups, glasses, plates, saucers, pots and pans in the lower basket.

Vario inserts

^ The cup rack can be raised to make

more room for tall items.

^ Stem glassware e.g. wine glasses or

champagne flutes can be leaned against the cup rack or suspended from it.

Wide vario insert

Removing the wide vario insert a

^ Pull upwards by the handle to

remove.

To fit an insert b

^ The wide vario insert fits in the area

at the left hand side of the lower basket and the narrow vario insert fits in the area at the back right hand side.

Fit the insert into the lower basket with the hooks going under the long cross piece as illustrated.

Press down on the insert until it clicks into position

Page 30

Loading the dishwasher

Removing the narrow vario insert

^ Press the insert downwards a and

the catch inwards b at the same time.

Bottle holder

The bottle holder can be used to wash narrow items, e.g. milk and baby bottles.

^ Place the bottle holder as shown in

the bottom basket. If placed anywhere else, water will not be able to access the bottle properly, and cleaning results will be impaired.

Page 31

Cutlery

Cutlery tray (depending on model)

^ Arrange the cutlery in the tray as

shown.

To make unloading much easier, cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc.

Loading the dishwasher

If spoon handles do not fit between the holders, place them the other way round.

Spoon heads should be placed in contact with at least one of the serrated retainers on the base of the cutlery tray to ensure that water runs off them freely.

The upper spray arm must not be blocked by items which are too big (e.g. cake slices).

The cutlery tray inserts are removable. For example, you can remove one insert to make room for larger items of crockery in the upper basket.

Page 32

Loading the dishwasher

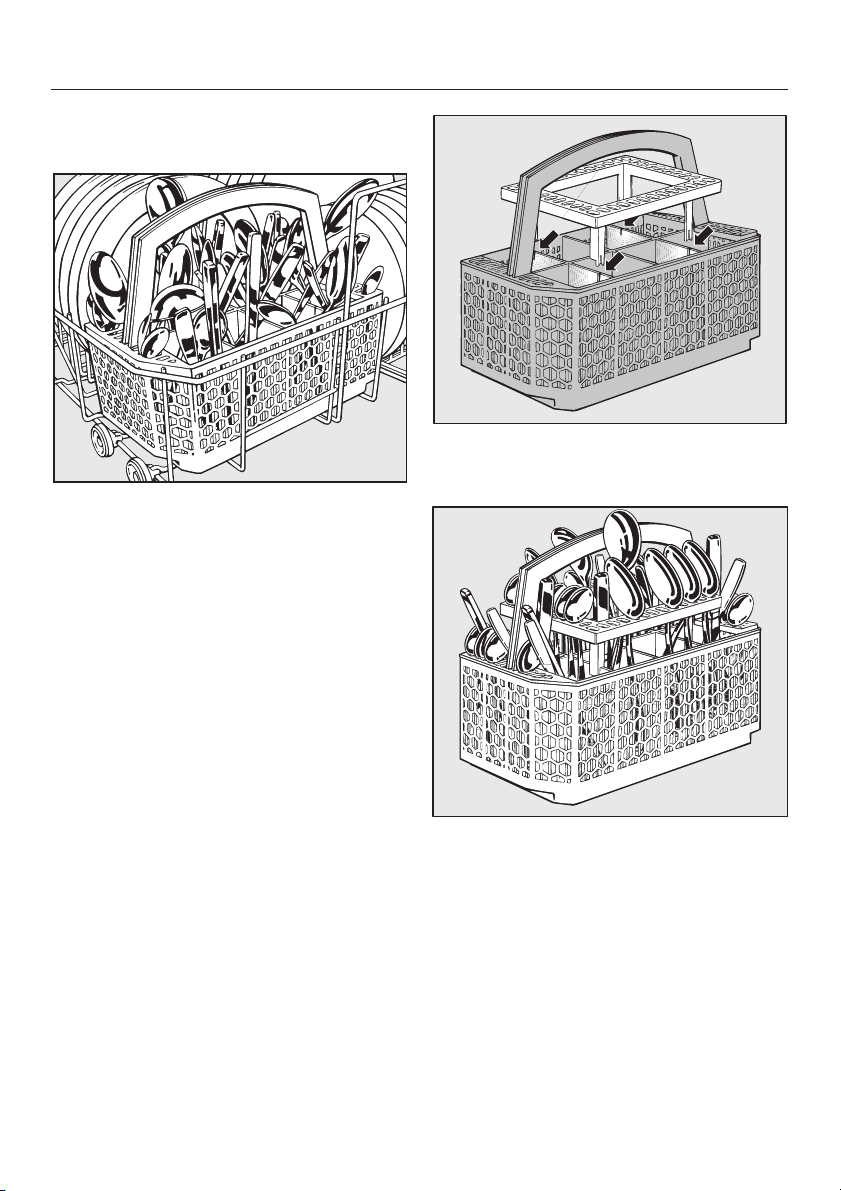

Cutlery basket (depending on model)

To avoid the risk of injury, knives and

forks should be placed with the handles upwards in the basket. However, cutlery placed handle down in the basket will come out cleaner and drier.

^ Place small spoons in the individual

slots to either side of the cutlery basket.

Fit it into the cutlery basket if

required.

Cutlery insert for the cutlery basket

Use the insert supplied for heavily soiled spoons. The insert separates the items so that they can be more easily accessed by water.

Insert cutlery with the handles facing downwards, and distribute them evenly along the insert.

Page 33

Detergent

Only use detergents formulated

for domestic dishwashers. Do not use washing up liquid.

You can use conventional powder

detergent, tablets or liquid dishwasher detergent. Refer to the dosing instructions given by the manufacturer on the packaging.

Put the detergent into the dispenser

compartment.

^ Do not use tablet detergent on the

"Quick" programme, as the tablets will not dissolve properly.

Failure to dispense the recommended amount of detergent may impair cleaning results.

Operation

Avoid inhalation of powder

detergents and do not ingest dishwasher detergent. Dishwasher detergents can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled. Keep detergent and other household agents out of the reach of children at all times. Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet. To avoid the danger of children coming into contact with the dishwasher detergent, only add detergent just before starting the programme and close the door, activating the child safety lock (if your dishwasher is fitted with one).

Page 34

Operation

Adding detergent

^ Press the opening catch on the

detergent dispenser. The flap will spring open.

The flap is always open at the end of a programme.

For information

Compartment I holds max. 10 ml, Compartment II holds max. 50 ml.

There are markings in compartment II to assist with dispensing: 20, 30. The marks indicate a level of approx. 20 or 30 ml when the door is open in a horizontal position.

Add the required amount of detergent and close the flap.

Make sure that the detergent packaging is properly closed after use to avoid it getting damp and becoming lumpy.

Page 35

Operation

Switching on

Open the stopcock, if it is closed.

Open the door.

Make sure the spray arms are not obstructed.

Switch the dishwasher on using the On button g.

The main menu will appear in the display. If the memory function is activated, the programme menu for the programme last selected will be displayed instead (see "Settings menu J, Memory").

} Sensor wash } Quick wash d 40°C

Main menu

Selecting a programme

Choose your programme according to the type of load and how dirty it is.

The different programmes and their uses are described in the programme chart later on in this booklet.

Press the K button to call up more information about the programme currently selected.

Use the selector buttons to select the programme you want.

The display will change to show the programme menu.

Sensor wash 1:32h } Extras

12:00

Start }

Page 36

Operation

Selecting an Extra

You can now select Extras for the programme selected.

Select the

Extras option.

The Extras available for the programme selected will appear in the display.

The Extras are:

Pre-wash:

For rinsing crockery to avoid smells if a complete cycle is

–

not yet needed.

Soak:

For loosening very stubborn food residues from pots, pans

–

and casserole dishes. If you are using powder dishwasher detergent, add approx. 5 g to compartment I.

Longer drying:

– For improved drying of awkwardly shaped dishes and also

plastic items.

} § Longer drying

Select the Extra you want and confirm with

Extras

OK }

OK.

A tick L will appear beside the Extra to show that it has been set.

To cancel the selection of an Extra, press the appropriate

button again. When you have finished selecting Extras, confirm with The display will change back to the programme menu.

The message

Extras selected will appear in the display.

OK.

Page 37

You can now set the type of dishwasher detergent. You can choose normal detergent, liquid detergent, 2 in 1 tabs or 3 in 1 tabs (see "Settings menu J, Detergent type").

Operation

Display

The duration of the programme selected appears in hours and minutes in the Display before the programme begins. During the programme the time left until the end of the programme is displayed.

Starting a programme

Select

The message will appear. If you want to select a different programme or make other changes, select the programme with the

^ Close the door. The In-operation indicator lights up to

show that a programme has been started.

A programme can only be cancelled in the first few minutes. Otherwise the programme must continue to the end so that important programme stages (e.g. reactivating the water softener) are not omitted.

Start.

Please close the door

Back option and cancel the

Cancel function.

The time displayed may vary with the same programme. This is partly because of the water inlet temperature at each intake, and partly because of the amount and soiling level of the crockery.

When a programme is selected for the first time, the display shows an average time for a cold water intake.

The times shown in the programme chart refer to standard test loads and temperatures.

Each time a programme is run, the electronic unit takes the new conditions into account, and calculates the time required.

Page 38

Operation

At the end of a programme

At the end of a programme, the In-operation indicator light will be visible flashing slowly with the door shut.

The In-operation indicator light will go out one hour after the end of the programme.

Programme finished will appear in the

display when the programme has finished.

You can then empty the dishwasher.

To prevent the risk of steam

damage to the worktop edging above the dishwasher, it is advisable to leave the door closed until you are ready to unload the crockery. Alternatively you can open the door fully until the crockery is cool enough to unload. Do not leave the door only partially open.

Unloading the dishwasher

Dishes tend to break and chip more easily when they are hot. Allow the dishes to cool until they are comfortable enough to handle before unloading them.

If you open the door fully after switching off, the dishes will cool much faster.

First unload the lower basket, then the upper basket and cutlery tray (depending on model). This will prevent water drops from the upper basket and cutlery tray from falling onto the dishes in the lower basket.

Interrupting a programme

A programme is interrupted as soon as the door is opened. If the door is closed again, the programme will continue from the point it was at before the door was opened.

Switching off

At the end of a programme:

Open the door.

Switch the dishwasher off using the Off button o.

The dishwasher will continue to use electricity until the Off button o is switched off.

If the dishwasher is not to be used for a longer period of time, e. g. whilst on holiday, the stopcock should be turned off.

Water in the dishwasher may be hot. Danger of scalding! Only open the door if absolutely necessary and exercise extreme caution when doing so. Before closing the door again, leave it ajar for approx. 20 seconds. This will enable the temperature in the wash cabinet to settle. Then close the door firmly making sure that it clicks into place.

Page 39

Changing a programme

Important: If the detergent dispenser flap has already opened, do not change the programme.

If a programme has already started and you wish to change it, proceed as follows:

Open the door.

Operation

Sensor wash 1:32h Main wash

^ Select the

Cancel function and confirm with OK.

The programme will be cancelled.

Sensor wash Programme finished

^ Select the

Main menu option.

Main menu }

The display will change back to the main menu.

Select the programme you want.

Select

Close the door.

Start.

The In-operation indicator lights up. The programme starts.

12:00

Cancel }

12:00

Page 40

Operation

Additional functions

Delay start

The start time of a programme can be delayed, e.g. to benefit from economy rates of electricity. A delay start time of between 15 minutes and 24 hours can be selected. The delay start time is set in 15 minute steps.

detergent compartment is dry before adding detergent. Wipe dry with a cloth if necessary. If the compartment is wet, powder detergent can become lumpy and stick to the dispenser, with the result that it is not fully dispensed. Do not use liquid detergent when selecting Delay start, as it can run into the dishwasher before it is required.

dishwasher detergent do not fill the detergent dispenser until just before starting the programme, i.e. before pressing the Start button.

When using the Delay start function, make sure that the

To prevent children coming into contact with

^ Open the door. ^ Switch the dishwasher on using the On button g. The On indicator light g comes on. ^

Select the programme you want from the main menu.

Select the "Delay start d" function.

The current time of day and the last start time selected will appear in the display. The display will also show the end time for the programme. The d indicator light will come on.

} + } -

+/- to set the time you want the programme to start at.

Use

Start time

Finish at

12:00

13:32

12:00

OK }

If the button is kept pressed in, the time will automatically decrease or increase. The end time alters accordingly automatically.

Page 41

Operation

Confirm the start time with

OK.

The display will change to show the programme menu.

Select

Close the door.

Start.

When the set time is reached, the programme selected will begin automatically. The d indicator light will go out.

Starting a programme before the start time has been reached:

You can start a programme before the set start time has been reached. Proceed as follows:

Open the door.

^ ^ Select the

Cancel function and confirm with OK.

The d indicator light will go out.

Sensor wash Programme finished

^ Select the

Main menu option.

12:00

Main menu }

^ Select the programme you want. ^

Select

Close the door.

Start.

The In-operation indicator lights up. The programme starts.

Page 42

Cleaning and care

Check your dishwasher regularly (approx. every 4 - 6 months). This way faults and problems can be avoided.

Cleaning the wash cabinet

The wash cabinet is largely self-cleaning, provided that the correct amount of detergent is always used.

If, however, there are limescale or grease deposits in the cabinet these can be removed with a proprietary dishwasher cleaner, such as the Miele dishwasher cleaner (available from the Miele UK Spare Parts Department).

Cleaning the door and the door seal

^ Wipe the door seals regularly with a

damp cloth to remove food deposits.

^ When the dishwasher is being

loaded, food and drink residue may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any soiling should be wiped off these surfaces before the door is closed.

Cleaning the reflector panel

The reflector panel for the In-operation indicator light is situated in the coverplate underneath the worktop.

It can be taken out of its plastic holder to be cleaned.

Open the door and carefully remove

the reflector panel from the holder. The reflector panel and its plastic

holder should only be wiped with a damp cloth or a suitable cleaning agent designed for use on plastic.

^ Replace the reflector panel in its

holder.

Do not use abrasive cleaning

agents, glass cleaning agents or all-purpose cleaners. Because of their chemical composition, they could cause serious damage to surfaces.

E-Cloth

A microfibre "E-Cloth" is available from the Miele UK Spare Parts Department, which is suitable for cleaning surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals.

Page 43

Cleaning and care

Cleaning the control panel

Do not use abrasive cleaning

agents, glass cleaning agents or all-purpose cleaners. Because of their chemical composition, they could cause serious damage to surfaces.

This should only be wiped with a

damp cloth.

Cleaning the door front

Do not use any cleaning agents

containing ammonia or thinners. These would damage the surface structure.

Clean the front using a Miele E-Cloth

or with a suitable cleaning agent for the type of material the front is made of. Follow the manufacturer's instructions.

Door fronts made from wood should

only be cleaned using a damp cloth, and then dried with a soft cloth.

^ Door fronts made of stainless steel

should be cleaned using a damp cloth and a little washing up liquid, or a proprietary non-abrasive cleaning agent designed specifically for use on stainless steel.

^ To help prevent re-soiling, a

proprietary conditioning agent for stainless steel, such as Neoblank (available from the Miele UK Spare Parts Department) can also be used. Follow the manufacturer's instructions on the label and apply sparingly with an even pressure following the direction of the grain.

Page 44

Cleaning and care

Checking the filters in the wash cabinet

The filter combination in the base of the wash cabinet retains coarse soil from the suds solution, preventing it accessing the circulation system and re-entering the cabinet through the spray arms.

The dishwasher must not be

used without all the filters in place.

Collection of coarse soil may cause the filters to clog. The level of soiling and time it takes before the filters need cleaning will vary depending on use.

The message in the display after every 40 programme cycles (factory default setting).

You can set the interval for this message to appear to between 30 and 60 programme cycles (see "Settings menu J, Check filters").

Check filters will appear

Cleaning the filters

Switch the dishwasher off.

^ Turn the handle anti-clockwise to

release the filter combination a.

^ Lift the filter combination out of the

dishwasher b. Remove any coarse particles and rinse the filter well under running water. Use a nylon brush if necessary.

Check the filter combination.

Clean it, if necessary.

Then confirm the message with

The display will change to show the main menu.

OK.

Page 45

Cleaning and care

To clean the inside of the filter, the flap must be opened:

^ Press together the catches a in the

direction of the arrows as shown, and open the filter b.

^ Rinse all the filters under running

water.

^ Then close the flap so that the catch

engages.

Replace the filter combination so that

it lies flat in the base of the wash cabinet.

^ Then turn the handle clockwise to

lock the filter combination in place.

Take care when you are fitting the filter combination that it is secured in position correctly. Otherwise coarse soil could get into the circulation system and cause a blockage.

Page 46

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be inspected and cleaned regularly (approx. every 4 - 6 months).

Switch the dishwasher off.

Remove the spray arms as follows:

Take out the cutlery tray (if your

dishwasher is fitted with one). Push the top spray arm upwards to

engage the inner ratchet. Then unscrew the spray arm.

Remove the lower basket.

^ Pull the lower spray arm firmly

upwards to remove it.

Push the middle spray arm upwards a to engage the ratchet. Then unscrew the spray arm b.

Use a pointed object to push food particles into the spray arm jets.

Rinse thoroughly under running water.

Replace the spray arms and check that they rotate freely.

Page 47

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected without calling in a Miele service technician, saving you both time and money.

The following guide may help you to find the reason for a fault, and to correct it. You should, however, note the following:

Repairs should only be carried out by a suitably qualified and trained

person in accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage the appliance.

Technical problems

Problem Possible cause Remedy The appliance does not

start.

The dishwasher stops during a programme.

After the programme has started, the In-operation indicator light is not visible.

The door is not properly closed.

The appliance is not plugged in.

The fuse is defective or has tripped.

The appliance is not switched on.

A programme has not been selected.

The fuse is defective or has tripped.

The reflector panel was not correctly fitted.

Push the door firmly shut.

Insert the plug and switch on at the socket.

Reset or replace the fuse.

Press the On button g, and select a programme.

Select the programme you want.

Reset or replace the fuse.

Re-fit the reflector panel correctly (see Installation diagram).

Page 48

Problem solving guide

Problem Possible cause Remedy The In-operation

indicator is flashing quickly. The buzzer is sounding. One of the following messages appears in the display:

Technical fault FXX. Call the Service Department.

Waterproof fault F70

There may be a technical fault.

The Waterproof system has reacted.

Switch the dishwasher off

–

with the Off button o.

After a few seconds:

Switch the dishwasher

–

back on. Select the programme you

–

want. – Close the door. If the fault message appears

again, there is a technical fault.

– Call the Service

Department.

– Close the stopcock. – Call the Service

Department.

Page 49

Problem solving guide

The dishwasher does not fill/drain

Problem Possible cause Remedy The In-operation

indicator is flashing quickly. The buzzer is sounding. One of the following messages appears in the display:

Please shut the door and open the stopcock.

Water inlet fault FXX

The stopcock is closed. Open the stopcock fully.

Before rectifying the problem you must:

– Switch the dishwasher off

with the Off button o.

Fault F12/F13: Water inlet restricted.

– Open the stopcock fully. – Check the water inlet filter

and clean it if necessary

(see "Problem solving"). – The water pressure at the

intake is lower than

30 kPa (0.3 bar).

Seek professional advice.

Page 50

Problem solving guide

Problem Possible cause Remedy The In-operation

indicator is flashing quickly. In the display for the "Without heater" programme the following fault message appears:

Water intake temp. too low

The In-operation indicator is flashing quickly. The buzzer is sounding. The following message appears in the display:

Drain fault FXX

The intake water has not reached the required temperature of 45°C (see "Connection to the water supply").

Fault F11: Water outlet is restricted, water remains in the wash cabinet at the end of a programme.

Start the programme again.

–

If the fault message

–

appears again, select a different programme.

Before rectifying the problem you must:

Switch the dishwasher off

–

with the Off button o.

– Clean the filter

combination. See "Cleaning and care".

– Clean the drain pump. See

"Problem solving".

– Clean the non-return valve.

See "Problem solving".

– Remove any kink in the

drain hose and make sure it is laid correctly.

Page 51

Problem solving guide

General problems

Problem Possible cause Remedy The display is dark. The display has

switched off automatically to save energy (Stand-by mode).

The buzzer sounds during a programme. The following fault

The salt reservoir has not been closed properly.

message appears in the display:

Close the salt reservoir

The following fault message appears in the display:

Middle spray arm blocked

Bottom spray arm blocked

Items are blocking the path of the middle or the bottom spray arm.

The middle or bottom spray arm jets are blocked.

Press any button. Stand-by comes to an end.

Close it.

–

If the salt reservoir has opened during a programme you must also:

Switch the dishwasher off

–

with the Off button o and then back on again.

– Start the programme again. Open the dishwasher door

and rearrange the items which are obstructing the spray arm.

– Switch the dishwasher off

with the Off button o.

Then:

–

Clean the spray arm. See "Cleaning and care".

Page 52

Problem solving guide

Problem Possible cause Remedy Detergent residue is

left in the dispenser at the end of a programme.

The detergent lid cannot be closed properly.

At the end of a programme there is a film of moisture on the inside of the door and the interior walls.

Water remains in the wash cabinet at the end of a programme.

The dispenser was still damp when detergent was added.

Clogged detergent residue is blocking the catch.

This is caused by the drying system and does not indicate a fault.

The filter combination in the wash cabinet is clogged.

The drain pump or non-return valve may be blocked.

The drain hose is kinked. Remove any kink from the

Make sure the dispenser is dry before adding detergent.

Clean the detergent from the catch.

The moisture will dissipate after a short while.

Before rectifying the problem you must:

– Switch the dishwasher

off with the Off button o.

Clean the filter combination. See "Cleaning and care".

Clean the drain pump or the non-return valve. See "Problem solving".

drain hose.

Page 53

Problem solving guide

Noises

Problem Possible cause Remedy Knocking noise in the

wash cabinet.

Rattling noise in the wash cabinet.

Knocking noise in the water pipes.

A spray arm is knocking against an item in a basket.

Items of crockery are insecure in the wash cabinet.

This may be caused by the on-site installation or the cross-section of the piping.

Interrupt the programme, and rearrange the items which are obstructing the spray arm.

Interrupt the programme, and rearrange the items of crockery.

This has no influence on dishwasher function. If in doubt, contact a suitably qualified plumber.

Page 54

Problem solving guide

Unsatisfactory washing result

Problem Possible cause Remedy The dishes are not

clean.

Smearing appears on glassware and cutlery, there is a bluish sheen on the surface of glassware; film can be wiped off.

The dishes were not loaded correctly.

The programme was not powerful enough.

There is some stubborn soiling although most of the crockery is only lightly soiled (e.g. with tea stains).

Not enough detergent was dispensed.

Items are blocking the path of the spray arms.

The filter combination in the base of the wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.

The non-return valve is open and blocked. Dirty water has flowed back into the wash cabinet.

The rinse aid dosage is set too high.

See notes in "Loading the dishwasher"

Select a more intensive programme. See "Programme chart".

Use the "Adjust sensor wash" setting (see "Settings menu" J).

Use more detergent, or change your detergent.

Rearrange the items so that the spray arms can rotate freely.

Clean and/or fit the filter combination correctly. Clean the spray arm jets. See "Cleaning and care".

Clean the drain pump and the non-return valve. See "Cleaning the drain pump and non-return valve".

Reduce the dosage (see "Settings menu J, Rinse aid").

Page 55

Problem solving guide

Problem Possible cause Remedy Dishes, cutlery and

glasses are not dry or are flecked.

White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.

The rinse aid amount may be insufficient or the rinse aid reservoir empty.

Crockery was taken out of the cabinet too soon.

You are using "2 in 1" or "3 in 1" tablets, which do not have a strong enough drying performance.

The dishwasher has been set for 2 in 1 or 3 in 1 tablets, even though this type of detergent has not been used.

Not enough rinse aid was used.

There is no salt in the salt reservoir.

An unsuitable "2 in 1" or "3 in 1" tablet has been used.

There is a fault with the automatic water softening system.

Replenish the reservoir, increase the dosage or change the brand of rinse aid. See "Before using for the first time".

Leave it in for longer. See "Operation".

Set the Detergent type to "Normal", and fill the rinse aid reservoir with rinse aid (see "Settings menu J, Detergent type").

Set the Detergent type for the product being used (see "Settings menu J, Detergent type").

Increase the dosage (see "Settings menu J, Rinse aid").

Fill the salt reservoir. See "Before using for the first time".

Change your detergent. Use a standard liquid, tablet or powder detergent and fill the salt and rinse aid reservoirs in the dishwasher.

Call the Service Department.

Page 56

Problem solving guide

Problem Possible cause Remedy Glassware has a

brown or blue tinge, and film cannot be wiped off.

Glassware is dull and discoloured; film cannot be wiped off.

Tea or lipstick stains have not been completely removed.

Plastic items are discoloured.

There are rust stains on cutlery.

This may be caused by the detergent.

The glassware is not dishwasher-proof. The surfaces are affected.

The wash temperature of the selected programme was too low.

The bleaching effect of the detergent used is too low.

Natural dyes e.g. from carrots, tomatoes or ketchup may be the cause. The amount of detergent used or its bleaching effect was not sufficient to deal with natural dyes.

The affected items are not corrosion resistant.

The "Quick wash" programme was not run after dishwasher salt was added. Traces of salt have got into the wash cycle.

Change your detergent.

There is no remedy. Purchase glassware which is dishwasher-proof.

Select a programme with a higher wash temperature.

Change your detergent.

Use more detergent. See "Operation". Discolouration is irrevers

-ible.

There is no remedy. Purchase cutlery which is dishwasher-proof.

Always run the "Quick wash" programme, without any crockery in the dishwasher, after adding dishwasher salt.

Page 57

Cleaning the water inlet filter

A filter is incorporated in the screw connection of the valve on the water inlet hose. The filter must be cleaned when dirty, otherwise insufficient water flows into the wash cabinet.

The plastic housing of the water

connection contains an electrical component. It must not be dipped in water.

Recommendation

Problem solving

If the mains water contains a large number of insoluble substances, we recommend fitting a large-area filter in the connection between the stopcock and the water inlet hose threaded union. This filter is available from the Miele Spares Parts dept.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply. Switch off at the mains socket and withdraw the plug.

Turn off the stopcock.

Unscrew the inlet hose.

Carefully remove the seal.

^ ^ Withdraw the filter using pointed

pliers and rinse clean under running water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the

stopcock, making sure it goes on correctly and is not cross-threaded.

Turn on the stopcock gradually to test for leaks. If there is a leak, the inlet hose might not be on securely, or it may have been screwed on at an angle. Unscrew and reconnect the water inlet valve correctly.

Page 58

Problem solving

Cleaning the drain pump and non-return valve

If the water has not been pumped away at the end of a programme the drain pump or the non-return valve might be blocked. They are, however, easy to clean. Watch out for glass or bone splinters which could cause injury.

Disconnect the dishwasher from the

mains supply. Switch off at the mains socket and withdraw the plug.

Take the filter combination out of the

wash cabinet (see "Cleaning and care", "Cleaning the filters in the wash cabinet").

^ Scoop the water out of the cabinet

using a suitable container or utensil.

The drain pump is situated under the non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or bone splinters which are particularly difficult to detect and could cause injury). Turn the drain pump impeller by hand to check that there are no more obstructions. You will feel a little resistance when you turn the impeller.

Press the catch for the non-return valve inwards a.

Lift out the non-return valve b and rinse well under running water.

Remove all foreign objects from the non-return valve.

Carefully replace the non-return valve, and secure it with the catch.

Ensure that the catch engages.

Page 59

After sales service

Repairs

In the event of any faults that you cannot remedy yourself, please contact:

your Miele dealer, or

–

the Miele Service Department

–

(see back cover for contact details).

When contacting your Dealer or the

Miele Service Department, please quote the model type and number of your appliance, both of which are shown on the data plate on the right hand side of the door.

Please note that telephone calls may be monitored and recorded for training purposes.

Future updates (PC)

The programme update function (PC) is designed to enable a service technician to update your appliance’s electronics in keeping with advances in technology.

The "PC" indicator light is used as the interface for this programming.

For testing institutes

The "Comparison tests" document gives information regarding loads and programmes used for comparison testing. This document can be ordered by e-mail from:

– testinfo|miele.de ^ Please give your postal address, as

well as the model type and number of your dishwasher (see data plate).

Page 60

Programme chart

Programme When to use

Sensor wash Sensor controlled programme

Quick wash o 40 °C

Sensor wash gentle :

Energy save o

Normal 55 °C o for normally soiled crockery

Intensive 65 °C for heavily soiled crockery with dried on soiling containing starch.

Pots & pans 75 °C

Without heater o Only for use with hot water connection of at least 45 °C/115 °F;

Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet needed

Water save o for lightly to normally soiled crockery where soiling has not dried on;

1) Standard programme for energy labelling.

2) See "Operation, Display".

for normally soiled crockery Quick wash programme for lightly soiled items, e.g. party crockery;

flushing out salt residues after replenishing salt; includes the sensor controlled glass care system; Tabs are not suitable for use with this programme.

Sensor controlled "Glass care" programme for lightly soiled heat-sensitive glassware and crockery; use 50% less detergent than required for a full load

for normally soiled crockery. Energy saving programme using low temperatures and a longer wash duration; includes sensor controlled glass care system

with dried on soiling; includes sensor controlled glass care system

for normally soiled pots, pans, and utensils with dried on soiling; also suitable for heavily soiled crockery, use 20% more detergent than recommended for a full load

for lightly to normally soiled crockery; includes sensor controlled glass care system

this programme uses water sparingly; includes the sensor-controlled glass care system

Page 61

Programme sequence Consumption Duration

Pre-

wash

requiredX45 °- 65 °ifrequiredX65 °

Main

wash

40 °

Interim

rinse

Final

rinse

50 °

Programme chart

water

connec

(55 °C)

Energy kWh Water h:min

Litres Cold

Hot

water

connec

tion

(55 °C)

water

connec

tion

(15 °C)

Drying Cold

water

connec

tion

(15 °C)

X 0.95-1.35 0.6-0.8 10-17 1:36-2:38 1:34-2:23

0.6 0.3 10 0:30 0:22

Hot

tion

requiredX37 °- 48 °ifrequiredX55 °

45 °

55 °

65 °

75 °

XX X

min 45 °

X 0.01 0.01 4 0:13 0:13

55 °

On G 2XXX models (see data plate). the max. energy consumption is 0.1 kWh and the water consumption is up to 1litre higher. except in the "Pre-wash" and "Without heater" programmes. The durations given can vary depending on individual circumstances.

Values quoted are in accordance with EN 50242. Results may differ. depending on individual conditions and the level of soiling.

60 °

65 °

min 45 °

65 °

X 0.7-0.95 0.4-0.5 10-17 1:26-2:02 1:17-1:43

X 1.05 0.7 10 2:54 2:37

X 1.2 0.8 13 2:17 2:02

X 1.35 0.9 13 2:20 2:08

X 1.6 1.05 13 2:44 2:31

X - 0.01 20 - 1:25

X 1.15 0.8 10 1:37 1:29

Page 62

Programme chart

Programme When to use

Pasta for removing dried on pasta/paella residues;

Fondue for removing dried on fondue and raclette residues;

Hygiene programme with special parameters for hygienic removal of bacteria from

Plastics o for gentle cleaning of dishwasher-proof plastic items including toys;

Tall items 65 °C

Tall items o 45 °C

Glasses warm o for cleaning glassware without rinse aid and without detergent;

Glasses quick o for rapid cleaning of glasses for immediate use again;

Pre-wash o 30 °C A warm rinse without rinse aid or detergent;

1) See "Operation, Display".

use 20% more detergent than recommended for a full load

add 20% more detergent than recommended for a full load

baby bottles, chopping boards, utensils etc.

includes the sensor controlled glass care system For very large heat-resistant items,

e.g. tall vases For very large items which are sensitive to high temperatures,

e.g. large plastic items; includes the sensor controlled glass care system

includes the sensor controlled glass care system

without rinse aid or detergent; includes the sensor controlled glass care system

includes the sensor controlled glass care system

Page 63

Programme sequence Consumption Duration

Pre-

wash

Main

wash

75 °

70 °

48 °

65 °

45 °

Interim

rinse

XX X

Final rinse

65 °

70 °

65 °

55 °

Programme chart

Energy kWh Water h:min

Litres Cold

Drying Cold

water

connec

tion

(15 °C)

X 1.55 1.05 13 2:26 2:11

X 1.55 1.05 13 2:23 2:12

X 1.5 1.15 13 2:18 2:07

X 0.85 0.6 13 2:05 1:55

X 1.0 0.65 13 1:53 1:40

X 0.75 0.3 13 1:38 1:29

Hot

water

connec-

tion

(55 °C)

water

connec

tion

(15 °C)

Hot

water

connec

tion

(55 °C)

35 °

25 °

X 0.2 0.01 4 0:15 0:09

On G 2XXX models (see data plate), the max. energy consumption is 0.1 kWh and the water consumption is up to 1litre higher, except in the "Pre-wash" and "Without heater" programmes. The durations given can vary depending on individual circumstances.

Values quoted are in accordance with EN 50242. Results may differ, depending on individual conditions and the level of soiling.

55 °

20 °

0.5 0.3 10 0:50 0:42

0.2 10 0:17

Page 64

Optional accessories

To make the most of your dishwasher

Optional accessories for particular purposes are available from your Miele dealer or from the Spare Parts Department (some may be supplied as standard, depending on model).

If you would like to … you will need to order …

… wash long-stemmed glassware … a glassware insert for the upper

basket

... wash a Miele Cappuccinatore … a Cappuccinatore insert for the

upper basket

... small plates, baby bottles and small items in the upper basket

... different sized plates, cups and glasses in the upper basket

... wash bottles, e. g. milk or baby bottles

… wash additional items of cutlery … a small cutlery basket for the lower

... wash a lot of glasses … a glassware insert for the bottom

... wash large plates ... an insert for plates up to:

... be kept informed about your dishwasher

… a multi-function basket for the upper basket

… a vario insert for the upper basket

… a bottle holder

basket

- 33 cm diameter

- 35 cm diameter

... the Miele|home Communication module and the Miele|home InfoControl

Page 65

Electrical connection

Electrical connection U.K.

All electrical work must be

carried out by a suitably qualified and competent person, in accordance with current local and national safety regulations (BS 7671 in the UK).

Ensure power is not supplied to the appliance until after installation work has been carried out.

The appliance is supplied with a mains cable with moulded plug ready for connection to a 230-240V mains supply. Please ensure the connection data quoted on the data plate match the household mains supply.

Connection should be made via a suitable switched socket which is easily accessible after installation.

For extra safety it is advisable to install a residual current device (RCD), with a trip current of 30 mA (in accordance with DIN VDE 0664, VDE 0100 Section

739).

Non-rewireable plugs BS 1363

The fuse cover must be refitted when changing the fuse, and if the fuse cover is lost, the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is embossed in words on the base of the plug (as applicable to the design of plug fitted).

Replacement fuses should be ASTA approved to BS 1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.

WARNING: THIS APPLIANCE MUST BE EARTHED

Do not connect via an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).

Page 66

Plumbing

Connection to the water supply

Water in the dishwasher must

not be used as drinking water.

The dishwasher may be connected

–

to a cold or hot water supply, max. 60 °C. We would only recommend connection to a hot water supply if it is economical, e.g. a solar powered supply. When connected to a hot water supply all programme stages which would otherwise be carried out with cold water will be carried out with hot wa ter.

– The "Without heater" programme (if

available) requires a hot water supply of between 45 °C (minimum) and 60 °C (maximum). The higher the water intake temperature, the better the cleaning and drying results.

The water pressure (flow pressure at

–

the take-off point) must be between 30 and 1000 kPa (0.3 and 10 bar). If the water pressure is lower than this, the water inlet fault message will appear in the display (see "Problem solving guide"). If the water pressure is too high, a pressure reducing valve must be fitted.

– The inlet hose is approx. 1.5 m long.

A 1.5 metre long flexible metal extension hose, pressure tested to 14000 kPa/ 140 bar, is available as an optional accessory if required.

–

A stopcock with a 3/4 " male thread must be provided on site.

–

This appliance is constructed to comply with IEC/EN/DIN 61770 // VDE 0700 Section 600, and may be connected to a suitable supply without an extra non-return valve if national regulations permit.

! The inlet hose must not be

shortened or damaged in any way as it contains electrical components (see illustration).

Page 67

Plumbing

Drainage

The appliance drainage system is

–

fitted with a non-return valve, which prevents dirty water from flowing back into the dishwasher via the drain hose.

The dishwasher is supplied with

–

approx. 1.5 m of flexible drain hose with an internal diameter of 22 mm.

The drain hose can be extended

–

using a connection piece to attach a further length of hose. The drainage length must not be longer than 4 m, and the delivery head must not exceed 1 m.

– If the hose is to be directly fitted to

the drainage outlet on site, use the hose clip supplied.

– The hose can be directed to the left

or the right of the appliance.

– The on-site connector for the drain

hose can be adapted to different widths of hose. If the connector protrudes too far into the drain hose, it will need to be shortened. Otherwise the drain hose may become blocked.

–

The drain hose must not be shortened.

Venting the drainage system

If the on-site drain connection is situated lower than the guide path for the bottom basket rollers in the open door the drainage system must be vented. Otherwise a siphoning effect during a programme can cause the appliance to empty itself of water.

To vent it:

Open the dishwasher door fully.

Pull the lower spray arm firmly

upwards to remove it.

Cut off the top of the vent valve in the wash cabinet.

–

Make sure that there are no kinks in the hose, and that it is not squashed or stretched.

Page 68

Technical data

Dishwasher model G 1XXX G 2XXX

Height 80.5 cm

(adjustable + 6.5 cm)

Height of building-in recess

Width 59.8 cm 59.8 cm Width of building-in

recess Depth 57 cm 57 cm Weight approx. 54.5 kg approx. 56.5 kg Voltage Connected load See data plate located on right hand side of door. Fuse rating See plug. Test certificates awarded KEMA, VDE, radio and

Water pressure (flow rate) 30 - 1000 kPa

Hot water connection up to max. 60 °C up to max. 60 °C Delivery head max. 1 m max. 1 m Drainage length max. 4 m max. 4 m Mains cable approx. 1.7 m approx. 1.7 m Capacity 12 place settings 14 place settings

min. 80.5 cm (+ 6.5 cm) min. 84.5 cm (+ 6.5 cm)

60 cm 60 cm

television suppressed

(0.3 - 10 bar)

84.5 cm (adjustable + 6.5 cm)

KEMA, VDE, radio and television suppressed

30 - 1000 kPa (0.3 - 10 bar)

Page 69

Settings menu J

"Settings menu J" for changing standard settings To open the "Settings J" menu

Switch the dishwasher on with the On button g, if it is

switched off.

The main menu will appear in the display. If the memory function is activated, the programme menu for the programme last selected will be displayed instead (see "Memory"). If this is the case, press the +C (Clear) button to switch to the main menu.

} Pre-wash d 30°C } Settings F

^ Select

Settings J.

Main menu

The display will change to show the "Settings J" menu.

} Language F } Time

Settings

^ Select the menu option you want to change.

Sub-menu options which have already been set will have a tick L beside them.

Page 70

Settings menu J

Language J

The display can be set to appear in one of several different languages.

You can change the language for the display via the

Select the language you want and

confirm this with

The flag after the word "Language J" acts as a guide if a language which you do not understand has been set. If this is the case, keep selecting the menu option which has a flag after it until you reach the sub-menu.

Language J sub-menu.

OK.

Language J

Time

Select either a 24 hour or 12 hour clock and then set the current time of day.

To select a 24 hour or 12 hour clock

Select the

Select either the 24 hour or 12 hour

option and confirm this with

To set the time of day

Select the

Set the hours with

with Then set the minutes.

After you have confirmed the minutes entry with back to the previous menu and you can press the +C (Clear) button to return to the "Settings J" menu.

Clock display option.

OK.

Set the time option.

+/- and confirm

OK.

OK, the display will change

Page 71

Settings menu J

Detergent type

For optimum results you can programme your dishwasher via the Detergent type menu for the type of detergent you are using. The options available are: normal dishwasher detergent, liquid dishwasher detergent, 2 in 1 tabs or 3 in 1 tabs. The programme sequence including durations will be adjusted for the type of detergent selected. The dishwasher is delivered with the normal detergent option set as the default. If you always use liquid detergent, 2 in 1 or 3 in 1 tabs you will need to go into the Detergent type menu, select the detergent type you want and confirm your selection with

OK.

Detergent type menu

Normal:

This is the factory default setting. "Normal" detergents do not contain added salt or rinse aid. When using "normal" detergent, you must add salt and rinse aid (see "Filling the salt reservoir" and "Adding rinse aid"). The rinse aid refill reminder is active with this setting.

When using 2 in 1 tabs you must still keep the salt reservoir replenished. See "Filling the salt reservoir".

3 in 1:

Select the "3 in 1" function if you always use "3 in 1" tabs (detergent containing rinse aid and salt substitutes) or "4 in 1" tabs (detergent containing rinse aid, salt substitutes and a glass protection agent). The programme sequence will be adjusted and rinse aid will not be dispensed in the programme. The "Rinse aid low" message is also deactivated.

When using 3 in 1 tabs you must still keep the salt reservoir replenished. See "Filling the salt reservoir". Salt consumption in the water softener is reduced to between normal amount.

Do not select the "3 in 1" function if: – using "2 in 1" tabs (detergent with

rinse aid)

–

your water hardness level is above

3.8 mmol/l or 21 °d. Follow the detergent manufacturer's instructions.

The washing and drying performance of these types of detergent can vary enormously.

/4and1/3of the

2 in 1:

Select the "2 in 1" function if you always use 2 in 1 tabs (detergent containing rinse aid). The programme sequence will be adjusted and rinse aid will not be dispensed in the programme. The "Rinse aid low" message is also deactivated.

Liquid detergent:

When using liquid detergent you must still add salt and rinse aid (see "Filling the salt reservoir" and "Adding rinse aid"). The rinse aid refill reminder is active with this setting.

Page 72

Settings menu J

Water hardness

Your dishwasher is fitted with a water softener sensor which determines the water hardness level of your local water supply automatically. After your dishwasher has been through one programme cycle (e.g. Pre-wash), you can call up the water hardness level measured by the water softener sensor via the "Water hardness" option.

OK will return you to the "Settings

menu J".

°d

(German

scale

1 2 3 4 5 6 7 8

9 10 11 12 13 14

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

37-45 46-60 61-70

mmol/l °f Value

0.2

0.4

0.5

0.7

0.9

1.1

1.3

1.4

1.6

1.8

2.0

2.2

2.3

2.5

2.7

2.9

3.1

3.2

3.4

3.6

3.8

4.0

4.1

4.3

4.5

4.7

4.9

5.0

5.2

5.4

5.6

5.8

5.9

6.1

6.3

6.5

6.7-8.1

8.3-10.8

11.0-12.6

2 4 5 7

9 11 13 14 16 18 20 22 23 25

29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65

66-80

82-107

109-125

displayed

1 2 3 4 5 6 7 8

9 10 11 12 13 14

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 45 60 70

Page 73

Settings menu J

External softener

If your dishwasher is connected to an external water softening system which uses salt to reactivate, to achieve good cleaning results you will still need to set the water hardness level of the water softening unit on the dishwasher to the water hardness level of the water supplied from the external water softening system. If you do not know what this is, then set the value at 1.4 mmol/l (8 °d - German scale).

Select the value which equates to the

water hardness level of the water supplied by the external water softening unit and confirm your selection with

If you disconnect the dishwasher from the external water softening system, select the

OK.

auto option.

Rinse aid

You can adjust the rinse aid dosage for best results. The rinse aid dosage can be set from approx. 0-6 ml.

It is set to a recommended setting of approx. 3 ml at the factory.

If spots appear on crockery and glassware:

Increase the rinse aid dosage.

– If clouding or smearing appears on

crockery and glassware:

Decrease the rinse aid dosage.

–

^ Use

+/- to select the rinse aid

dosage you want and confirm with

OK.

Check filters

You can adjust the interval at which the message to remind you to check the filters appears. You can set an interval of between 30 and 60 programme cycles.

The "Check filters" message is set at the factory to appear after every 40 programme cycles.

Select the interval you want and confirm this with

OK.

Adjust sensor wash

You can adjust the sensor wash programme so that it will remove stubborn soiling in a lightly soiled load.

Select the with

Yes option and confirm

OK.

Page 74

Settings menu J

Change the main menu

You can change the order of the programmes in the main menu and also enter your favourite programmes into the first two programme places.

} Sensor wash B } Cancel

Use the e button to find the programme that you would like

Set position 1 Continue }

to have as your first choice in the main menu, and then select it using the button next to the programme.

Confirm with

Continue.

^ Use the e button to find the programme that you would like

to have as your second choice in the main menu, and then select it using the button next to the programme.

^ Confirm with

Continue.

The programmes you have chosen will appear in the order you have chosen. If you want to change the position of another programme, select the

Back function until you reach the relevant menu

entry.

When you have finished making changes, confirm with

Finished.

Page 75

Settings menu J

Save extras

You can set additional functions e.g. a longer drying time, for individual programmes (see "Operation, Selecting an Extra").

You can use the save settings you have chosen for a particular programme so that they are automatically selected when you run the programme in the future.

The dishwasher is delivered with this function deactivated.

Select the option you want and

confirm this with

Save extras option to

OK.

Temperature

You can chose for the temperature to be displayed as °C/Celsius or °F/Fahrenheit.

The temperature is set at the factory to be displayed in °C.

Buzzer

When the buzzer is activated, an audible tone sounds at the end of a programme and when there is a fault.

The buzzer is activated as standard at the factory.

The buzzer will still sound if there is a fault, even if it has been deactivated.

Buzzer at the end of a programme

You will hear the buzzer at the end of a programme in bursts of five with a short pause in between. The buzzer will continue to sound for up to an hour if you do not switch the dishwasher off.

Buzzer when there is a fault

In the case of a fault, the buzzer will sound continuously for up to two minutes if you do not switch the dishwasher off or correct the fault.

Select the option you want and confirm this with

OK.

Page 76

Settings menu J

Setting the buzzer volume

You can select one of two options or deactivate the buzzer.

Off:

The buzzer at the end of a programme is deactivated.

Normal:

The buzzer sounds at a "normal" volume.

Loud:

The buzzer sounds louder. ^ Select the volume you want or

deactivate the buzzer.

^ Confirm with

OK.

Keypad tone

An audible tone sounds each time a button is pressed.

The key pad tone is activated as stan dard at the factory.

Select the option you want and

confirm this with

OK.

Brightness

There are seventeen different display brightness settings.

The dishwasher is delivered with the display brightness on setting 8.

^ Select the setting you want and

confirm this with

OK.

Memory

You can use the Memory function to save the last programme selected.

Instead of the main menu, the last programme selected will appear in the display when the dishwasher is switched off and back on again at the end of a programme or the door is opened and then closed.

The dishwasher is delivered with the Memory function activated.

Select the option you want and confirm this with

OK.

Page 77

Settings menu J

Miele{home

(the appliance must first be fitted with the Miele{home Communication module)

This communication enabled dishwasher can transmit programme data through the power lines to the Miele|home system. The dishwasher must be signed on to the Miele|home system.

Please read the separate operating instructions supplied with the Miele|home system before you sign on the dishwasher.

Signing on

q Sign on to Mieleqhome?

^ Confirm with

to the Miele|home system.

The signing on process will begin.

You can cancel the signing on process with Cancel.

Confirm the messages displayed with

Sign on is complete.

If signing on is unsuccessful:

Check that the Miele|home system is active.

Activate the signing on of a new appliance on the Miele|home system.

Repeat the signing on process on the dishwasher.

OK }

OK that the dishwasher should be signed on

Signing on. Please wait. Cancel }

OK.

Page 78

Settings menu J

Signing off

You can sign off the dishwasher if you no longer want the programme data to be transmitted.

Select the

Sign off option and confirm this with OK.

Synchronising the time of day (the appliance must first be signed on to the Miele{home system)

If your dishwasher is fitted with a Miele|home communication module and you have signed it on to the Miele|home system, the time of day in the dishwasher display will be automatically updated to match the time on the Miele|home system. You can turn this feature off if you want to set time on your dishwasher to be different from the time on the Miele|home system.

^ Select the

} Set the time } Synchronise

^ Select the

} On B } Off

Time option.

Time

Synchronise option.

Synchronise

OK }

Select the option you want and confirm this with

OK.

When you switch the function on, the time of day from the Miele|home system will be adopted automatically. You can alter the time of day again if you switch the option off or sign the dishwasher off from the Miele|home system.

Page 79

Settings menu J

Remote control

(the appliance must first be signed on to the Miele{home system)

If your dishwasher is signed on to the Miele|home system, you can alter settings or start a programme by remote control.

The dishwasher is delivered with this function deactivated.

} On B } Off

Select the option you want and confirm this with

Remote control

OK }

OK.

The ? symbol will appear in the top line of the display when

remote control has been activated.

} Language F } Time

Settings

Once a programme, which you started by remote control, is finished, you must then run one programme normally before you can use remote control again.

Page 80

Settings menu J

Demo. programme

For showrooms only

The dishwasher is fitted with three demonstration programmes for showroom use.

The "Demo programme" and "Demo in continuous loop" programmes demonstrate operation and functions.

Demo programme:

–

The programme is started by pressing any button. It will run through once and then has to be started again.

–

Demo in continuous loop:

This programme will begin as soon as you switch it on and then will play in a continuous loop until you switch it off.

–

Demo with sound:

This programme activates the pumps to demonstrate the sound of the dishwasher.

Switching off the Demo programme

Select the

with Confirm

off?

Off option and confirm this

OK.

Switch demo programme

with OK

Factory default

If you have altered any settings from the factory default, you can re-set them back to the factory default settings.

Confirm the question

default settings?

^ Confirm the message

reset to factory default.

Reset factory

with OK.

All settings

with OK.

To close the "Settings J" menu

Press the +C button to come out of the "Settings J" menu and return to the main menu.

Switching on a demo programme

Select the option you want and confirm this with

Confirm

on?

Press any button to start the Demo

Switch demo programme

with OK

OK.

programme you have selected.

To cancel it, press any button and confirm it with the OK button.

808182

Page 81

Page 82

Page 83

Page 84

Alteration rights reserved / G1870/G2870 / 1106

M.-Nr. 06 702 740 / 02

en-GB
