Miele G2834 Operating instructions

Operating instructions

for dishwashers

To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the
first time.

en - AU, NZ

M.-Nr. 07 600 680

Contents

Guide to the appliance .............................................5

Appliance overview .................................................5

Control panel ......................................................6

Display ...........................................................7

Warning and Safety instructions .....................................8

Caring for the environment.........................................13

Disposal of the packing material ......................................13

Disposal of your old appliance .......................................13

Energy saving washing .............................................14

Before using for the first time.......................................15

To open the door ..................................................15

To close the door ..................................................15

Safety lock .......................................................15

Setting the language.............................................16

Clock display ..................................................16

Setting the time of day ...........................................17

Display .......................................................17

Before using the appliance for the first time, you require:...................18

External water softening system ......................................18

Filling the salt reservoir .............................................18

Insufficient salt indication ...........................................20

Rinse aid ........................................................21

Adding rinse aid ..................................................21

Rinse aid indicator .................................................22

Loading the dishwasher ...........................................23

Items not suitable for dishwashers: ....................................24

Upper basket .....................................................25

Removable spiked insert .........................................25

Hinged cup rack ................................................26

Positioning rail (depending on model) ...............................26

Support rail ....................................................27

Adjusting the upper basket .......................................28

Lower basket .....................................................29

Vario inserts ...................................................29

Bottle holder ...................................................30

2

Contents

Cutlery ..........................................................31

Cutlery tray (depending on model)..................................31

Cutlery basket (depending on model) ...............................32

Operation .......................................................33

Detergent ........................................................33

Adding detergent..................................................35

Switching on .....................................................36

Select a programme ...............................................36

Selecting Extra options .............................................37

Start the programme ...............................................38

Display ..........................................................38

Programme finished................................................39

Switching off .....................................................39

Unloading the dishwasher ...........................................39

Interrupting a programme ...........................................39

Changing a programme ............................................40

Additional functions ..............................................41

Delay start .......................................................41

Cleaning and care ................................................43

Cleaning the wash cabinet ..........................................43

Cleaning the door and the door seal ...................................43

Cleaning the door front .............................................43

Checking the filters in the wash cabinet ................................44

Cleaning the filters .................................................44

Cleaning the spray arms ............................................46

Problem solving guide ............................................47

Technical problems ................................................47

The dishwasher does not fill/drain. ....................................49

General problems .................................................51

Noises ..........................................................53

Unsatisfactory washing result ........................................54

Maintenance .....................................................57

Cleaning the water inlet filter .........................................57

Cleaning the drain pump and non-return valve...........................58

Comparison tests.................................................59

Programme chart .................................................62

3

Contents

After sales service ................................................68

Repairs .......................................................68

Future updates .................................................68

Optional accessories..............................................69

Electrical connection..............................................70

Plumbing........................................................71

The Miele waterproof anti-leak system .................................71

Connection to the water supply .......................................71

Drainage ........................................................73

Technical data ...................................................74

Settings menu

To open the Settings
Language

Time of day ......................................................76

Detergent type ....................................................77

Drying plus.......................................................78

Water hardness ...................................................78

External water softening system ......................................79

Rinse aid ........................................................79

Check filters ......................................................79

Adjust Sensor wash ................................................79

Change main menu ................................................80

Save extras ......................................................81

System lock ......................................................82

Temperature .....................................................83

Volume ..........................................................83

Brightness .......................................................84

Contrast .........................................................84

Memory .........................................................84

Showroom programme .............................................85

Factory default setting ..............................................85

To close the Settings

! ..................................................75

! menu .........................................75

! ......................................................76

! menu.........................................85

4

Appliance overview

Guide to the appliance

a Upper spray arm (not visible)

b Cutlery tray (depending on model)

c Upper basket

d Middle spray arm

e Air inlet for drying

(depending on model)

f Lower spray arm

g Filter combination

h Data plate

i Child safety lock in door grip (not

visible)

j Rinse aid reservoir

k Dual compartment detergent

dispenser

l Salt reservoir

5

Guide to the appliance

Control panel

a Selector sensors

For selecting the option displayed
next to them.
For altering the values displayed
(+/-).
For navigating to further screens.
The selector sensors light up when
active.

b On/Off sensor K

For switching the appliance on and
off.

c Display

See next page for more information.

d Clear sensor U

For navigating back to the previous
menu or deleting values which have
been set previously.

This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1834 etc. = G 1XXX
G 2834 etc. = G 2XXX
The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.

e Information sensor :

For displaying additional information
about the menu being displayed.

f Stand-by indicator light

When the dishwasher is switched on,
the indicator light comes on if the
display is switched off.

g Service interface

Used by service technicians to run
diagnostic checks on your
appliance, or to update
programming data in the future.

6

Display

Guide to the appliance

The display is used to select the
following:

the programme

–

extras

–

the delay start time

–

the Settings menu

–

!

– information

During a programme, the display
shows the following:

– the name of the programme
– the current time of day
– the stage the programme is at
– the estimated time left for the

programme to run

– any relevant fault messages and

notes

To save energy the display goes out
after 10 minutes if you do not touch
any sensors during this time.
Touching any sensor will switch the
display back on again.

!

A dot in the display next to a selector
sensor pad indicates that a function
can be selected with that sensor. The
relevant sensor lights up.

n

The arrows on the right of the display
indicate that more options or more text
are available which can be displayed
by touching the relevant illuminated
selector sensor.

-----­A dotted line will appear after the last
option available.

OK

The OK function is used to confirm a
message or setting, and also to move
to the next menu or to another menu
level.

(

A tick will appear beside the option
which is currently selected.

The "Settings !" menu is used to alter
the dishwasher's electronics to suit
different requirements. See "Settings
menu" for more details.

7

Warning and Safety instructions

Safety with children

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place and pass them on to any
future owner.

Correct application

This dishwasher is intended

~

exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance, would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.

This dishwasher is not intended for

~

use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it or they
have been given instruction concerning
its use by a person responsible for their
safety.

This appliance is not a toy! To avoid

~

the risk of injury, keep children well
away and do not allow them to play in
or around the dishwasher, or to use the
controls. They will not understand the
potential dangers posed by it. They
should be supervised whenever you
are working in the kitchen. There is a
danger that children playing might shut
themselves in the dishwasher.

Older children may only use the

~

dishwasher when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.

Keep children away from

~

detergents. Dishwasher detergents
contain irritant and corrosive
ingredients which can cause burning in
the mouth, nose and throat if
swallowed, or inhibit breathing. Keep
children away from the dishwasher
when the door is open. There could still
be detergent residues in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.

8

Warning and Safety instructions

Technical safety

Before setting up the appliance,

~

check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.

The dishwasher must only be

~

plugged into the electricity supply via a
suitable switched socket. The electrical
socket must be easily accessible after
the dishwasher has been installed so
that it can be disconnected from the
electricity supply at any time. (See
"Electrical connection").

There must be no electrical sockets

~

behind the dishwasher. Danger of
overheating and fire risk if the
dishwasher were to be pushed up
against a plug.

The dishwasher must not be

~

installed under a cooktop. The high
radiant temperatures which are
sometimes generated by a cooktop
could damage the dishwasher. For the
same reason it should not be installed
next to open fires or other appliances
which give off heat, such as heaters
etc.

Do not connect the dishwasher to

~

the mains supply until it has been fully
installed.

Before connecting the appliance,

~

check that the connection data on the
data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.

The electrical safety of this

~

appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and regularly
tested and where there is any doubt the
electrical system in the house should
be checked by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).

Do not connect the appliance to the

~

mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).

9

Warning and Safety instructions

This equipment may only be

~

installed in mobile installations such as
ships if a risk assessment of the
installation has been carried out by a
suitably qualified engineer.

The plastic housing of the water

~

connection contains an electrical
component. The housing must not be
dipped in water.

There are live wires in the water inlet

~

hose. Never cut the water inlet hose,
even if it is too long.

The integrated Waterproof System

~

offers protection from water damage,
provided the following conditions are
met:

– The dishwasher is correctly installed

and plumbed in.

– The dishwasher is properly

maintained and parts are replaced
where it can be seen that this is
necessary.

–

The tap has been turned off when
the appliance is not used for a longer
period of time (e.g. during holidays).

The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.

A damaged appliance could be

~

dangerous. If the dishwasher gets
damaged, switch it off at the mains and
call your Miele Chartered Agent or the
Miele Customer Contact Centre.

Unauthorised repairs could result in

~

unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.

Faulty components must only be

~

replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.

Always disconnect the dishwasher

~

from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).

If the connection cable is damaged

~

it must be replaced with a Miele cable
by a Miele approved service technician
only.

In areas which may be subject to

~

infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.

10

Warning and Safety instructions

Installation

The dishwasher must be installed

~

and connected in compliance with the
installation instructions.

The dishwasher must be correctly

~

aligned to ensure problem-free
operation.

In order to ensure stability,

~

built-under and integrated dishwashers
must only be installed under a
continuous worktop which is secured to
adjacent cabinetry.

If you want to convert your

~

freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.

Correct use

Do not use solvents in the

~

dishwasher. Danger of explosion.

Do not inhale or ingest dishwasher

~

detergent. Dishwasher detergents
contain irritant or corrosive ingredients
which can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if detergent has been swallowed or
inhaled.

Avoid leaving the door open

~

unnecessarily, as you could trip over it.

Do not sit or lean on the opened

~

door. This could cause the dishwasher
to tip and be damaged, and you could
get injured.

Only use detergent and rinse aid

~

formulated for domestic dishwashers.
Do not use washing-up liquid.

Do not use commercial or industrial

~

detergents as these may cause
damage, and there is a risk of severe
chemical reaction.

-

Do not fill the rinse aid reservoir with

~

powder or liquid detergent. This will
cause serious damage to the reservoir.

11

Warning and Safety instructions

Inadvertently filling the salt reservoir

~

with powder or liquid dishwasher
detergent will damage the water
softener. Make sure you have bought
the correct packet of dishwasher salt
before filling the salt reservoir!

Please only use special coarse

~

grained dishwasher salt for reactivation,
as other salts may contain insoluble
additives which can impair the
functioning of the softener (see "Filling
the salt reservoir").

In an appliance with a cutlery basket

~

(depending on model) cutlery is
cleaned and dried more efficiently if
placed in the basket with the handles
downwards. However, to avoid the risk
of injury, place knives and forks etc.
with the handles upwards.

Plastic items which cannot withstand

~

being washed in hot water, such as
disposable plastic containers, or plastic
cutlery and crockery should not be
cleaned in the dishwasher. The high
temperatures in the dishwasher may
cause them to melt or lose shape.

Accessories

Only use genuine Miele spare parts

~

and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.

Disposal of your old
dishwasher

Make the door lock inoperative so

~

that children cannot accidentally shut
themselves in. Make appropriate
arrangements for the disposal of the
appliance.

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.

On models with "Delay start", make

~

sure that the dispenser is dry before
adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispersed.

12

Caring for the environment

Disposal of the packing
material

The packing material protects the dryer
from transport damages. The transport
and protective packing has been
selected from materials which are
environmentally friendly for disposal
and can normally be recycled.

The packaging consists of the following
materials:

Outer packaging:

Corrugated cardboard made from up

–

to 100% recyclable material:
or: Polyethylene (PE) protective wrap

– Polyproplylene (PP) strapping

Inner packaging:

– Chlorine and fluorine free expanded

polystyrene (EPS)

– Base, lid frame and support battens

made from untreated natural wood
from renewable forests

–

Polyethylene (PE) protective wrap

Rather than just throwing these
materials away, please ensure they are
offered for recycling.

Disposal of your old appliance

Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Therefore, please do not dispose of it
with your household waste.

Please dispose of it at your local
community waste collection/recycling
centre or contact you dealer for advice.
Ensure that it presents no danger to
children while being stored for
disposal. You can also contact your
Chartered Agent for advice.

It should be unplugged or
disconnected from the mains electricity
supply by a competent person.

To enable sorting by type of plastic for
recycling, all plastic parts of the
appliance are labelled with international
standard symbols.

13

Caring for the environment

Energy saving washing

This dishwasher is exceptionally
economical in its use of water and
electricity.
You can make the most of your
appliance by following these tips:

For most economical dishwashing,

^

make full use of the baskets without
overloading the dishwasher.

Choose the programme to suit the

^

type of crockery being washed and
the degree of soiling.

Select the

^

energy-saving dishwashing.

^ If your household water system is

suitable, this dishwasher can be
connected to a hot water supply.
Select
washing lightly to normally soiled
dishes.
The water will not be heated in this
programme. However, because the
water is not heated, drying results
may not match those of other
programmes.

Normal programme for

Without heater when

^

Follow the detergent manufacturer's
recommendations on detergent
dosage.

^

When using powder or liquid
detergent you can use

1

/3less

detergent if baskets are only half full.

14

Before using for the first time

To open the door

At the end of the programme, the door
will open automatically a little in order to
help the drying process.
This function can be deactivated (see
Settings menu, Drying plus).

^ Press the release catch inside the

door grip to open the door.

If the door is opened during operation
all functions are automatically
interrupted.

To close the door

Push the baskets right in.

^

Then raise the door upwards until the

^

catch engages.

The door will then close automatically.

Do not put your hand inside the

,

door as it is closing: you may catch
your fingers. Danger of injury.

Safety lock

Use the safety lock to prevent children
opening the dishwasher door.

,

Keep the area around the door

free of obstructions.

^

To lock the door, push the slide
underneath the door grip to the right.

^

To unlock the door, push the slide to
the left.

15

Before using for the first time

Welcome screen

Switch the dishwasher on using the K sensor.

^

If the dishwasher is being switched on for the first time, the
welcome screen will appear.

Setting the language

The display will then change automatically to the screen for
setting the language.

Clock display

Language !

\

$ èeština
# dansk

\

! deutsch (

\

^ Select the language you want and confirm this with

A tick

( will appear next to the language that has been set.

The display will then change to the screen for setting the
clock display.

Clock display

\

$ 12 h Clock
# 24 h Clock (

\

^

Select the clock display you require, and confirm this with

OK.

p

OK !

OK.

OK !

[
[
[

[

16

Setting the time of day

The display will then change to the screen for setting the
time.

Before using for the first time

Display

Time

+ $

10 :21

Set the hours with the

^

Then set the minutes, and confirm with

The display will then change to the screen for setting the
display for the time of day.

Display

\

$ On (
# On for 60 seconds

\

! Do not display

\

^ Select the display you require for the time of day, and

confirm this with

These settings will be saved in memory after the dishwasher
has been through one complete programme.

Finally, two prompts come up in the display.

+/- sensors and confirm with OK.

OK.

OK.

- #

OK !

OK !

[
[
[

[

After confirming these messages, the

Insufficient salt messages may then appear in the display to

remind you to fill the rinse aid and salt reservoirs. See
relevant sections on how to do this. After you have confirmed
these messages with
main menu.

You can now select a programme and start it, or switch the
dishwasher off.

OK, the display will change to show the

Rinse aid low and

17

Before using for the first time

Before using the appliance for
the first time, you require:

Approx. 1 kg dishwasher salt,

–

Domestic dishwasher detergent,

–

Rinse aid formulated for domestic

–

dishwashers.

Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been used
previously.

This dishwasher is fitted with a water
softener sensor which automatically
sets the water softener unit for the
local water hardness level.

External water softening
system

If your dishwasher is connected to an
external water softening system which
uses salt to reactivate, you will still need
to programme the dishwasher to the
correct water hardness level to achieve
good cleaning results.

^

Set the water softener unit of the
dishwasher to the water hardness
level of the water which is supplied
from the external water softening
system.
If you do not know what this is, then
set the value at 1.4 mmol/l (8 °d) (see
"Settings menu
softener").

!, External water

Filling the salt reservoir

In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d – German
scale) needs to be softened. This takes
place automatically in the integrated
softener unit.
The softener unit is suitable for a water
hardness level of up to 12.6 mmol/l
(70 °d).
It requires dishwasher salt.

If you use combination products
which have salt in them in your
dishwasher, such as "3 in 1" or
"4 in 1" products, you should still
add salt in order to achieve optimum
results and to ensure that the water
softener continues to function
correctly.
Selecting the
function reduces salt consumption
to between
amount. (See Settings menu J,
Detergent type).

Combination tabs

1

/4and1/3of the normal

18

Before using for the first time

You can check the water hardness level
measured by the water softener sensor
in the display (see Settings menu
Water hardness).

If the water hardness in your area is
constantly lower than 4 °d (= 0.7
mmol/l) you do not need to add
salt. The salt refill indicator will be
deactivated automatically.

Inadvertently filling the salt

,

reservoir with powder or liquid
dishwasher detergent will damage
the water softener.

Miele recommends using

,

specially designed dishwasher salt
to maximize the performance of your
dishwasher and to prevent build-up
of calcium and limescale in the
dishwasher cabinet, especially if you
live in hard water area.
Dishwasher salt can be purchased
online at www.miele-shop.com
(depending on country) or via the
Miele Spare Parts Department.

!,

When filling the salt reservoir only

^

open the door halfway to ensure
that all the salt gets into the reservoir.

^ Press the button on the lid of the salt

reservoir in the direction of the arrow
until the flap springs open.

^

Lift up the funnel.

19

Before using for the first time

Do not fill the reservoir with water.

Add salt only until the reservoir is full

^

Insufficient salt indication

Fill the salt reservoir with dishwasher

^

salt for reactivation when the

Insufficient salt message appears.

(If it appears during a programme,
wait until the end of the programme).

or until water runs out of the opening.
The salt reservoir holds approx. 1 kg
of salt.

Do not add any more than 1 kg of
salt.

As the salt reservoir is filled, displaced
water may overflow.

^

Clean any excess salt from around
the reservoir opening and then close
the flap.

^

After filling the salt reservoir, run the

Quick wash programme immediately

(without any crockery in the
dishwasher, and without selecting the

Turbo extra option) to remove any

traces of salt from the cabinet.

Confirm with

^

OK.

The "Replenish salt" message will go
out.

After the salt reservoir has been filled,
the "Insufficient salt" message may still
appear in the display if the salt
concentration has not yet reached the
correct level.
If this is the case, confirm again with

OK.

The salt indicator is deactivated when
the dishwasher registers a water
hardness level below 0.7 mmol/l (4 °d).

,

After filling the salt reservoir, run

the

Quick wash programme immedi-

ately (without any crockery in the
dishwasher, and without selecting
the

Turbo extra option) to remove

any traces of salt from the cabinet.

20

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.

Inadvertently filling the rinse aid

,

reservoir with powder or liquid
detergent will damage the reservoir.
Only pour rinse aid formulated for
domestic dishwashers into the
reservoir. Otherwise you will cause
serious damage to the reservoir.

Alternatively, it is possible to use

– household vinegar with a max. 5%

acid content

or

– liquid citric acid up to 10% acid

content.

Adding rinse aid

^ Press the button on the lid of the salt

reservoir in the direction of the arrow
until the flap springs open.

The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.

,

Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.

If you only ever use combination
products containing rinse aid in your
dishwasher, you do not need to add
rinse aid.

21

Before using for the first time

Rinse aid indicator

When the Rinse aid low

,

message appears, the reservoir
contains sufficient rinse aid for2-3
programmes only.

Add rinse aid in plenty of time.

^

If the 2 in 1 or Combi tab function has
been selected, the
message will not appear (see
Settings menu

Rinse aid low

!, Detergent type).

Add rinse aid only until it is visible in

^

the opening.

The rinse aid reservoir holds approx.
110 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water can enter
the rinse aid reservoir during a
programme.

^ Wipe up any spilled rinse aid. This

prevents over-foaming occurring
during the next programme.

You can adjust the rinse aid dosage
for best results (see Settings menu
Rinse aid).

Confirm with

^

OK.

The message Rinse aid low goes out.

!,

22

Loading the dishwasher

Note

Remove coarse food residues from
crockery.

There is no need to rinse items under
running water.

Do not wash items soiled with

,

ash, sand, wax, lubricating grease
or paint in the dishwasher.
These materials will cause damage
to the dishwasher.

Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:

– Do not place crockery and cutlery

inside other pieces where they may
be concealed.

– Load the crockery so that water can

access all surfaces. This ensures
that they get properly cleaned.

– Make sure that all items are securely

positioned.

–

Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.

Wide based items should be placed

–

at an angle so that water can run off
them freely.

The spray arms must not be blocked

–

by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.

Make sure that small items cannot

–

fall through the holders in the
baskets.
Small items, e.g. lids, should
therefore be placed in the cutlery
tray or cutlery basket (depending on
model).

Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
tomato sauce. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.

–

Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.

23

Loading the dishwasher

Items not suitable for
dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also
not suitable for dishwashers.

Plastic items which are not heat

–

resistant can melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze

may fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash
delicate glassware, or glassware
containing lead crystal in a
dishwasher.

We recommend:

When purchasing new crockery and

–

cutlery, make sure they are
dishwasher-proof.

If delicate glassware is washed in the

–

dishwasher ensure that only very low
temperatures are used (see
programme chart), or a special
glass-care programme is used
(depending on model). This will
reduce the risk of clouding.

Wash particularly delicate glassware

–

by hand

Please note

Silverware previously cleaned with a
silver polish may still be damp or

spotted at the end of a programme,
where water has not run off smoothly. It
may need to be rubbed dry with a soft
cloth. It may need to be rubbed dry
with a soft cloth.

Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.

24

,

Aluminium components (e.g.
grease filters) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage the material, or in
extreme cases, cause a severe
chemical reaction. See section
"Adding detergent" for information
on suitable detergents.

Loading the dishwasher

Upper basket

For safety reasons, do not

,

operate the dishwasher without the
upper and lower baskets in place
(except when using the

Tall items 65 °C program).

^ Use the upper basket for small,

lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc. Shallow pans or casserole
dishes can also be placed in the
upper basket.

^

Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.

Removable spiked insert

The spiked insert can be removed to
make more room for larger items such
as casserole dishes.

To remove the insert a:

^ Pull it upwards by the handle as

shown.

To replace the insert b:

^

Fit the insert into the lower basket
with the hooks going under the cross
piece as illustrated.

^

Press down on the handle until the
insert is held securely in position.

25

Loading the dishwasher

Hinged cup rack

To make room for tall items, raise the

^

rack upwards.

G 2XXX models:

You can set the cup rack at two
different heights.

^ Pull the cup rack upwards and click it

back into position at the required
height.

Positioning rail (depending on model)

Glasses can be arranged along the
positioning rail to give them some
support during the programme.

^ Raise the rail, and lean the glasses

against it.

The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.

26

Support rail

This support is designed to hold tall
glasses and glasses with stems
securely.

^ Lower the support and lean tall

glasses against it.

^ You can also remove a section of the

cutlery tray to make more room for
tall glasses.

Loading the dishwasher

27

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.

The upper basket can also be set at an
angle with one side high and the other
side low. This can be useful to help
prevent water collecting in deep dishes
etc. Ensure, however, that the basket
can be inserted smoothly into the
cabinet. It is better to adjust the basket
before loading it.

^ Pull out the upper basket.

Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.

Dishwasher with cutlery tray

(see data plate for model number)

Upper
basket

level

G1XXX G2XXX

Top 15 19 31

Middle 17 21 29

Bottom 19 23 27

Dishwasher with cutlery basket

(see data plate for model number)

Upper
basket

level

G1XXX G2XXX

Top 20 24 31

Plate C in cm

Upper basket Lower

basket

Plate C in cm

Upper basket Lower

basket

To raise the upper basket:

^

Pull the basket up until it clicks into
place.

To lower the upper basket:

^

Pull upwards on the levers at either
side of the upper basket.

^

Adjust the basket to the desired
height and then push the levers
securely back down into position.

28

Middle 22 26 29

Bottom 24 28 27

Loading the dishwasher

Lower basket

^ For larger and heavier items such as

plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers can also
be placed in the lower basket.
Do not place thin, delicate glassware
in the lower basket.

Vario inserts

The vario inserts are used for washing
cups, glasses, plates, saucers, pots
and pans.

^ The cup rack can be raised to make

more room for tall items.

^ Stem glassware e.g. wine glasses or

champagne flutes can be leaned
against the cup rack or suspended
from it.

29

Loading the dishwasher

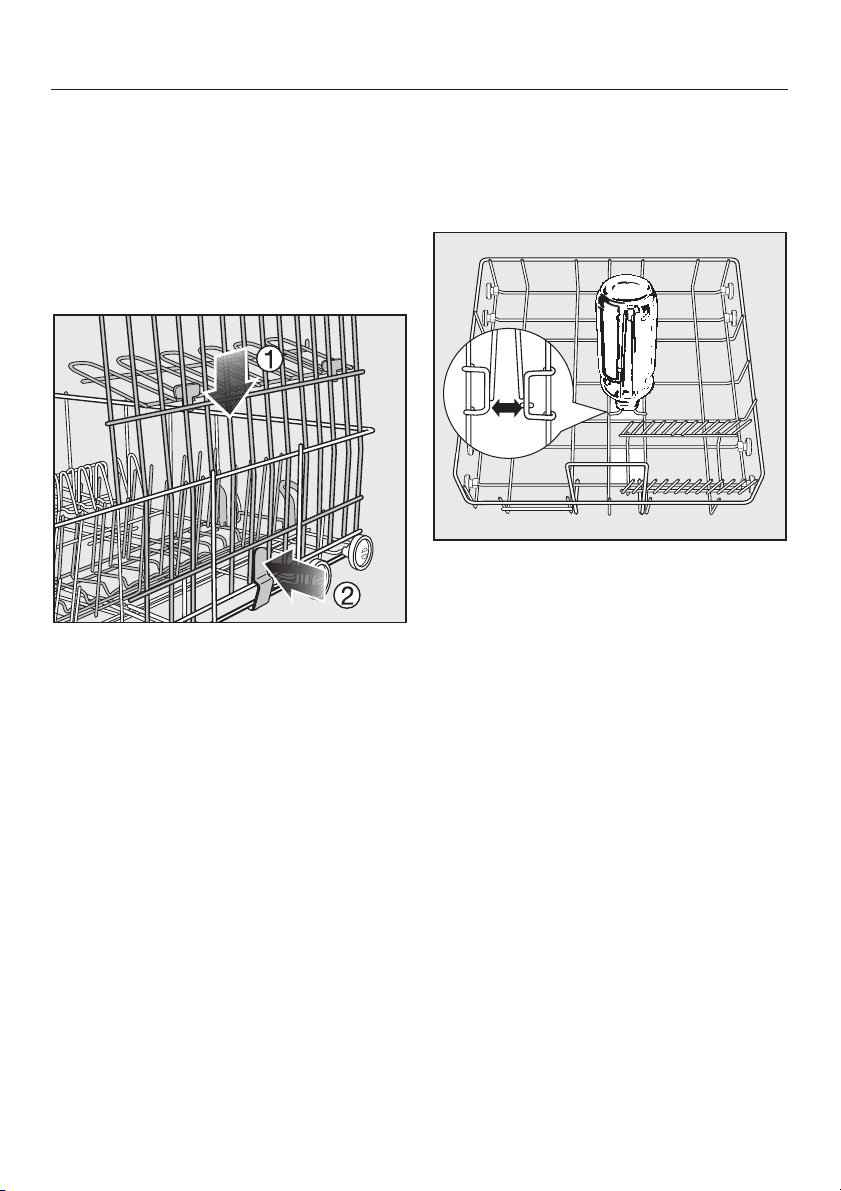

Narrow vario insert

You can remove the narrow vario insert
to make more room for larger items of
crockery, e.g. a large, flat pot, or
another type of insert:

To remove it:

^ Press the insert downwards a and

press the catch inwards at the same
time b.

To replace it:

Bottle holder

The bottle holder can be used to wash
narrow items, e.g. milk and baby
bottles.

^ It can be inserted into the bottom

basket in more than one place. See
the areas marked in white in the
illustration.
However, do not place a bottle holder
in the corners. Water will not be able
to access the bottles properly, and
they will not get clean.

^

Position the narrow vario insert in the
back right hand side of the lower
basket.

^

Fit the insert into the lower basket
with the hooks going under the long
cross-piece as illustrated.

^

Press down on the insert until it clicks
into position

30

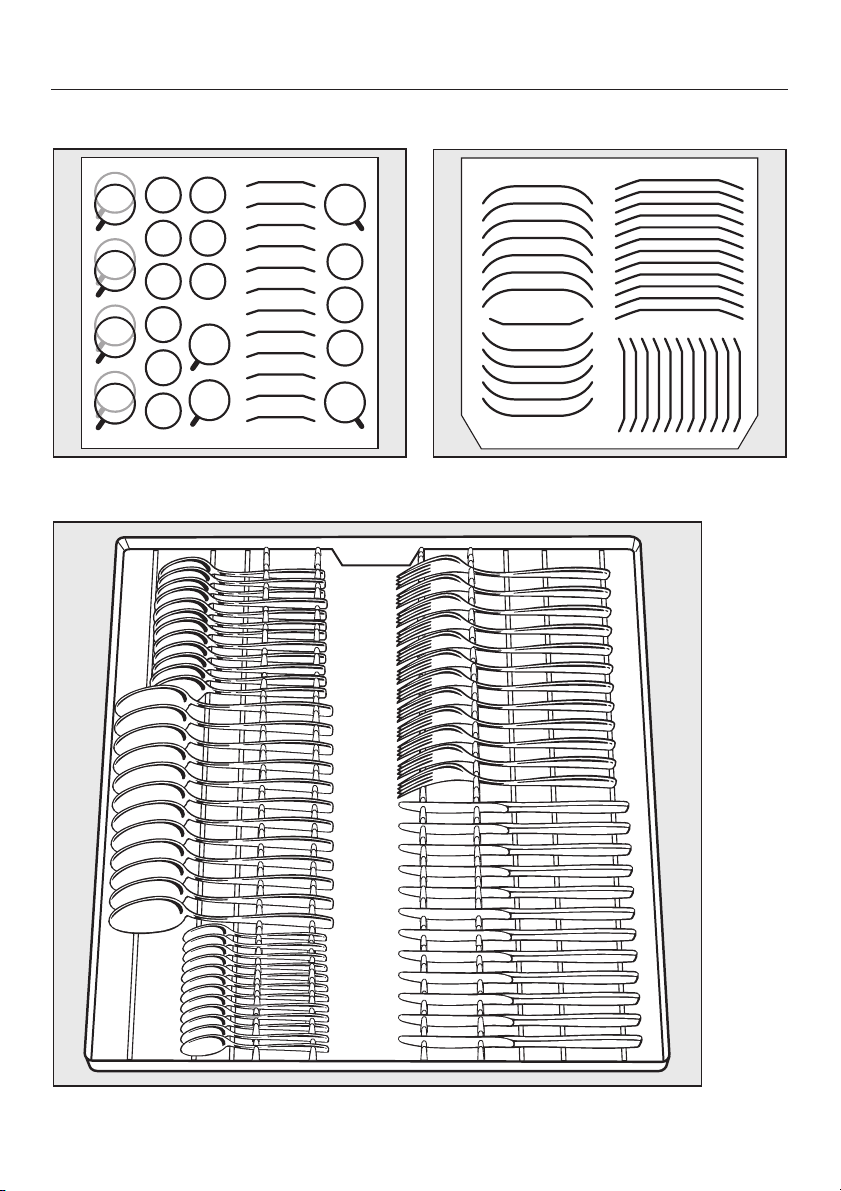

Cutlery

Cutlery tray (depending on model)

^ Arrange the cutlery in the tray as

shown.

To make unloading much easier,
cutlery should be grouped in zones,
one for knives, one for forks, one for
spoons, etc.

Loading the dishwasher

If spoon handles do not fit between the
holders, then lay them the other way
round.

Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them
freely.

The upper spray arm must not be
blocked by items which are too big.

The cutlery tray inserts are removable.
For example, you can remove one
insert to make room for larger items of
crockery in the upper basket.

31

Loading the dishwasher

Cutlery basket (depending on model)

^ To avoid the risk of injury, knives and

forks should be placed with the
handles upwards in the basket.
However, cutlery placed handle
down in the basket will come out
cleaner and drier.

^ Place small spoons in the individual

slots to either side of the cutlery
basket.

Fit it into the cutlery basket if

^

required.

Cutlery insert for the cutlery basket

Use the insert supplied for heavily
soiled spoons.
The insert separates the items so that
they can be more easily accessed by
water.

32

^

Insert cutlery with the handles facing
downwards, and distribute them
evenly along the insert.

Operation

Detergent

Only use detergents formulated

,

for domestic dishwashers. Do not
use washing-up liquid.

Miele branded dishwasher cleaning
products are available from the Miele
Spare Parts Department or via the
internet at www.miele-shop.com.

Active ingredients

Modern detergents contain various
active ingredients, the most important
of which are:

– Phosphates to prevent calcification.

– Alkalis to aid removal of dried on

soiling.

– Enzymes to break down starch and

loosen protein.

– Oxygen based bleaching agents to

remove coloured stains (e.g. tea,
coffee, tomato sauce).

Most dishwasher detergents contain
phosphate and are mildly alkaline with
enzymes and oxygen based bleaching
agents. Phosphate free products are
rare.

Types of detergent:

–

Powder and liquid gel detergents.
These detergents allow you to adjust
the amount dispensed according to
the amount of load and level of
soiling.

A variety of combination products is
also available (see "Settings
Detergent type").
In addition to detergent, combi tabs
contain rinse aid and salt substitutes.
Combi tabs are available as "3 in 1" or
when they also contain other
components such as glass and
stainless steel protective additives and
enhanced cleaning power, as "4 in 1",
"5 in 1" etc.
Refer to the manufacturer's packaging as
to whether the combi tabs are suitable for
the water hardness level in your area.
Please note that the cleaning and
drying results of tab detergents can
vary greatly.

For optimum cleaning and drying
results use Miele dishwasher
detergent and add Miele salt and
Miele rinse aid separately.

Under certain circumstances
unsatisfactory washing and drying
results might be noticed when using
combination dishwasher detergents.
These products contain a combination
of detergent and rinse aid or detergent
and salt (2 in 1) or detergent, rinse aid
and salt (3 in 1). Drying results might
not be as good as expected or
residues or flecks might be left on
crockery. If results are still
unsatisfactory, even after seeking
advice from the detergent
manufacturer, we suggest that you
change to a different product or use a
traditional dishwasher detergent.

!,

–

Tab detergents. These are suitable
for most levels of soiling.

33

Operation

Dispensing

^ Follow the dosage recommended by

the manufacturer on the packaging.

^ Unless directed otherwise, use one

detergent tab or add 20 to 30 ml in
compartment II, depending on the
level of soiling.
With very heavy soiling you can also
add a small amount of detergent to
compartment l (see "Programme
chart").

Do not use tabs with the

^

programme, as they will not dissolve
properly.

Failure to dispense the
recommended amount of detergent
may impair cleaning results.

Avoid inhalation of powder

,

detergents and do not ingest
dishwasher detergent. Dishwasher
detergents contain irritant or
corrosive ingredients which can
cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing. Consult a doctor immedi­ately if detergent has been
swallowed or inhaled.
Keep detergent and other household
agents out of the reach of children at
all times. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet. To avoid the danger of
children coming into contact with the
dishwasher detergent, only add
detergent just before starting the
programme and close the door,
activating the child safety lock (if your
dishwasher is fitted with one).

Quick wash

34

Operation

Adding detergent

Press the opening catch on the

^

detergent dispenser. The flap will
spring open.

The flap is always open at the end of a
programme.

Add the required amount of

^

detergent and close the flap.

Make sure that the detergent

^

packaging is properly closed after
use to avoid it getting damp and
becoming lumpy.

For information

Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.

There are markings in compartment II
to assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.

35

Operation

Switching on

Make sure the spray arms are not obstructed.

^

Close the door.

^

Open the tap, if it is closed.

^

Switch the dishwasher on using the K sensor.

^

The main menu will appear in the display.
If the memory function is activated, the programme menu for
the programme last selected will be displayed instead (see
Settings menu

!, Memory).

\
\
\

Select a programme

Choose your programme according to the type of load and
how dirty it is.

The different programmes and their uses are described in the
Programme chart later on in this booklet.

^ Select the programme you want.

The display will change to show the programme menu.

\
\

Pressing the : button will call up some information about
the programme currently selected.

Main menu

$ Sensor wash
# Quick wash d 40°C
! Sensor wash gentle e

Sensor wash

$ Extra option
# Start time

Finish at 13:32

12:00

m

1:32 h 12:00

Start !

[

[

[

36

To select a different programme,
touch the Clear sensor U to return to
the main menu.

Selecting Extra options

You can now select Extra options for
your chosen programme.

To do this, first select the

^

option in the menu.

The Extras available for your
programme will appear in the display.

The following extras are available:

Turbo:

– For shortening the programme

duration.
In order to achieve optimum results,
consumption rates increase with this
option.
When used together with the

wash

programme, the Turbo function

operates a cycle without heating to
rinse crockery if a complete
programme is not yet needed.

Extras

Quick

Operation

Soak:

For loosening very stubborn food

–

residues from pots, pans and
casserole dishes.
If you are using powder dishwasher
detergent, add approx.5gto
compartment I.

Longer drying:

For improved drying of awkwardly

–

shaped dishes and also plastic
items.

Select the Extra options you want.

^

A tick

( will appear beside the Extra to

show that it has been set.

^ To cancel the selection of an Extra,

touch the appropriate sensor again.

^ When you have finished selecting

Extras, confirm with

– The display will change back to the

programme menu.
The message
appear in the display.

OK.

Extras selected will

Pre-wash:

–

Adds a pre wash phase to the
selected programme.

You can now specify the type of
dishwasher detergent you use. You
can choose normal detergent,
2 in 1 tabs or Combi tabs (see
Settings menu

!, Detergent type).

37

Operation

Start the programme

Select the

^

The programme starts, and the

^

prompt
display.
As long as this prompt is showing,
crockery can be added without
compromising the wash results.

A programme can only be cancelled
in the first few minutes. Otherwise
the programme must continue to the
end so that important programme
stages (e.g. reactivating the water
softener) are not omitted.

Start option.

Add an item shows in the

Display

The duration of the programme
selected appears in hours and minutes
in the display before the programme
begins. During the programme, the
time left until the end of the programme
is displayed.

The time displayed may vary with the
same programme. This is partly
because of the water temperature at
each intake, the reactivation cycle and
partly because of the amount of
crockery and how dirty it is.

When a programme is selected for the
first time, the display shows an average
time for a cold water intake.

The times shown in the Programme
chart refer to standard test loads and
temperatures.

Each time a programme is run, the
electronic unit takes the new conditions
into account, and calculates the time
required.

38

To save energy the display goes out
after a few minutes if you do not
touch any sensors during this time.
Touching any sensor will switch the
display back on again (except for the
button K).

Operation

Programme finished

If the message

^

or Drying plus comes up in the
display, and the door has opened
slightly, this indicates that the
programme has finished.

You can now empty the dishwasher.

If you have deselected the auto

,

matic door opening function (see
Settings menu, Drying plus), but
would still like to open the door at
the end of the programme, then
make sure that you open the door
fully. Otherwise steam from the
dishwasher could damage the edge
of the worktop because the fan is no
longer running.

Programme finished

Switching off

At the end of a programme:

^ Switch the dishwasher off using the

K sensor.

The dishwasher will continue to use
electricity until it is switched off with
the K sensor.

If the dishwasher is not going to be
used for a longer period of time, e. g.
whilst on holiday, the tap should be
turned off.

Unloading the dishwasher

Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.

If you open the door fully after switching
off, the dishes will cool much faster.

­First unload the lower basket, then the

upper basket and finally the cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.

Interrupting a programme

Operation is interrupted as soon as the
door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.

,

Water in the dishwasher may be
hot. Danger of scalding.
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then raise the
door upwards until the catch
engages.

39

Operation

Changing a programme

If the detergent dispenser flap has already opened, do not
change the programme.

If a programme has already started and you wish to change
it, proceed as follows:

Sensor wash

8

Select the

^

^ Confirm

The programme will be cancelled.

Add-an-item

Time left 1:10 h

Cancel option.

Cancel programme? with OK.

Sensor wash

O

Programme finished

Main menu !

^ Select the

The display will revert to the main menu.

^

Select the programme you want, and then start it.

Main menu option.

12:21

Cancel !

12:22

[

[

40

Delay start

Additional functions

The start time of a programme can be delayed, e.g. to benefit
from economy rates of electricity. A delay start time of
between 15 minutes and 24 hours can be selected. The delay
start time is set in 15 minute steps.

When using the Delay start function, make sure that the
detergent compartment is dry before adding detergent.
Wipe dry with a cloth if necessary. If the compartment is
wet, powder detergent can become lumpy and stick to the
dispenser, with the result that it is not fully dispensed.
Do not use liquid detergent when selecting Delay start, as
it can run into the dishwasher before it is required.

^ Switch the dishwasher on using the K sensor.

^ Select the programme you want from the main menu.

^ Select the

The last start time selected will appear in the display.

\
\

^

Use
at.
If you continue to touch the sensor, the time will
automatically decrease or increase.

The end time alters automatically.

Start time option from the programme menu.

Sensor wash

$ Extras
# Start time 20:00

Finish at 21:32

+/- to select the time you want the programme to start

1:32 h 12:00

OK !

+ !

- !

[
[
[

41

Additional functions

Confirm the start time with

^

Select the

^

Start option.

Sensor wash

OK.

R

Start at 20:00

The programme name and the start time will appear in the
display.

When the set time is reached, the programme selected will
begin automatically.

To prevent children coming into contact with

,

dishwasher detergent, do not fill the detergent dispenser
until just before starting the programme, i.e. before
selecting

Starting a programme before the Delay start period has elapsed:

A programme can be started before the Delay start period
has elapsed. Proceed as follows:

^ Select

Start, and activate the child safety lock.

Cancel and confirm with OK.

12:00

Cancel !

[

42

^ Select the

The display will revert to the main menu.

^

You can now select and start a programme.

Main menu option.

Check your dishwasher regularly
(approx. every4-6months). This
way faults and problems can be
avoided.

The outer surfaces of the

,

dishwasher are susceptible to
scratching.
Contact with unsuitable cleaning
agents can alter or discolour the
outer surfaces.

Cleaning the wash cabinet

Cleaning and care

When the dishwasher is being loaded,

^

food and drink residues may drip onto
the sides of the dishwasher door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms. Any
soiling should be wiped off these
surfaces before the door is closed.

Cleaning the door front

Remove any soiling immediately.

,

If not, it might become impossible to
remove and could cause the outer
surface to alter or discolour.

The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.

If, however, there are limescale or
grease deposits in the cabinet, these
can be removed with a proprietary
dishwasher cleaner or conditioner.

Cleaning the door and the door
seal

^

Wipe the door seals regularly with a
damp cloth to remove food deposits.

^ Clean the front using a damp cloth or

a sponge and a solution of hot water
and washing-up liquid. Then dry with
a soft cloth.

^ To avoid damaging the outer

surface, do not use:

– cleaning agents containing soda,

ammonia, acids or chlorides,

–

cleaning agents containing
descaling agents,

–

abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,

–

solvent-based cleaning agents,

–

stainless steel cleaning agents,

–

dishwasher cleaner,

–

oven sprays,

–

glass cleaning agents,

–

hard, abrasive sponges and
brushes, e.g. pot scourers,

–

sharp metal scrapers.

43

Cleaning and care

Checking the filters in the
wash cabinet

The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.

This dishwasher must not be

,

used without all the filters in place.

Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.

^ The message

appear in the display after every 40
programme cycles (factory default
setting).

You can set the interval for this
message to appear to between 30
and 60 programme cycles (see
"Settings menu

Check filters will

!, Check filters").

Cleaning the filters

Switch the dishwasher off.

^

^ Turn the handle anti-clockwise to

release the filter combination a.

^ Take the filter combination out b,

remove any coarse particles and
rinse the filter well under running
water. Use a nylon brush if
necessary.

^

Check the filter combination.

^

Clean it, if necessary.

^

Then confirm the message with

The display will change to show the
programme selection menu.

44

OK.

Cleaning and care

To clean the inside of the filter, the flap
must be opened:

^ Press catches a together in the

direction of the arrows as shown, and
open the filter b.

^ Rinse all the filters under running

water.

^ Then close the flap so that the catch

engages.

Replace the filter combination so that

^

it lies flat in the base of the wash
cabinet.

^ Then turn the handle clockwise until

both arrows point towards each
other. The filter combination is locked
in place.

,

Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.

45

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).

Switch the dishwasher off.

^

Remove the spray arms as follows:

Take out the cutlery tray (if your

^

dishwasher is fitted with one).

Push the top spray arm upwards to

^

engage the inner ratchet. Then
unscrew the spray arm.

Remove the lower basket.

^

^ Pull the lower spray arm firmly

upwards to remove it.

^

Push the middle spray arms upwards
a to engage the ratchet. Then
unscrew the spray arm b.

46

^

Use a pointed object to push food
particles into the spray arm jets.

^

Rinse thoroughly under running
water.

^

Replace the spray arms and check
that they rotate freely.

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected
without calling in a Miele service technician, saving you both time and money.

The following guide may help you to find the reason for a fault, and to correct it.
You should, however, note the following:

Repairs should only be carried out by a suitably qualified and trained

,

person in strict accordance with current local and national safety regulations.
Unauthorised or incorrect repairs could cause personal injury or damage to the
appliance.

Technical problems

Problem Possible cause Remedy

The display remains
dark and the Standby
indicator light is not
flashing after the
dishwasher has been
switched on with the
On/Off sensor K.

The dishwasher stops
during a programme.

The appliance is not
plugged in.

The fuse is defective or
has tripped.

The fuse is defective or
has tripped.

Insert the plug and switch
on at the socket.

Reset or replace the fuse.
(Minimum fuse rating ­see data plate).

Reset or replace the fuse.
(Minimum fuse rating ­see data plate).

47

Problem solving guide

Problem Possible cause Remedy

The buzzer sounds.
The following fault
message appears in
the display:

Technical fault FXX
Call Service

Waterproof fault F70

Fault with auto. door
closing

Fault with auto. door
opening

There may be a
technical fault.

The Waterproof
system has reacted.

The door is sometimes
obstructed by an item
inside the appliance.

There may be a
technical fault.

Before rectifying the problem:

Switch the dishwasher off

–

using the On/Off sensor K.

First, clean the water inlet filter

–

and clean the drain pump and
non-return valve as described
in "Maintenance".

Switch the dishwasher back

–

on.
Select the programme you

–

want.
– Select
If the fault message appears

again, there is a technical fault.
Call the Miele Customer Contact
Centre.

– Close the tap.
– Call the Miele Customer

Contact Centre.

– If this is the case, remove the

item and switch the

dishwasher on again.
–

If the same message appears

again, call the Miele Customer

Contact Centre.

–

Open the door manually, and

switch the dishwasher on

again.
–

If the same message appears

again, call the Miele Customer

Contact Centre.

Start.

48

Problem solving guide

The dishwasher does not fill/drain.

Problem Possible cause Remedy

The buzzer sounds.
The following fault
message appears in
the display:

Water inlet fault
Please open the tap.

Water inlet fault FXX

The tap is closed. Open the tap fully.

Before rectifying the problem,
you must:

Switch the dishwasher off

–

using the On/Off sensor K.

Fault F12/F13:
Water intake is
restricted.

– Open the tap fully and start

the programme again.

– Clean the water inlet filter

(see "Maintenance").

– The water pressure at the

intake is lower than 30 kPa
(0.3 bar).
Seek professional advice.

49

Problem solving guide

Problem Possible cause Remedy

In the display for the
Without heater
programme, the
following fault
message appears:

Water intake temp. too
low

The buzzer sounds.
The following fault
message appears in
the display:

Drain fault F11

The intake water has not
reached the required
temperature of 45 °C (see
Connection to the
water supply).

Water outlet is restricted,
water remains in the wash
cabinet at the end of a
programme.

Start the programme

–

again.
If the fault message

–

appears again, select a
different programme.

Before rectifying the
problem:

Switch the dishwasher off

–

using the On/Off sensor
K.

Clean the filter

–

combination. See
"Cleaning and care".

– Clean the drain pump. See

"Maintenance".

– Clean the non-return valve.

See "Maintenance".

– Remove any kink in the

drain hose.

– Remove drain hose and

check for any blockages in
the drain pipe.

50

Problem solving guide

General problems

Problem Possible cause Remedy

The display is dark. The display has

switched off
automatically to save
energy (Standby
mode).

The buzzer sounds
during a programme.
The following fault

The salt reservoir has
not been closed
properly.

message appears in the
display:

Salt reservoir cover
Close the salt reservoir

The following fault
message appears in the
display:

Middle spray arm blocked

or

Bottom spray arm blocked

Items are blocking the
path of the middle or
the bottom spray arm.

The middle or bottom
spray arm jets are
blocked.

Touch any sensor.
Standby comes to an end.

Close the flap to the salt

–

reservoir properly.

If the salt reservoir flap has
come undone during a
programme, you must:

– Switch the dishwasher off

and then back on again
with the On/Off button K.

– Start the programme

again.

Open the dishwasher door
and rearrange the items
which are obstructing the
spray arm.

– Switch the dishwasher off

using the On/Off sensor K.

Then:
–

Clean the spray arm. See
Cleaning and care.

51

Problem solving guide

Problem Possible cause Remedy

Detergent residue is left
in the dispenser at the
end of a programme.

The detergent dispenser
lid cannot be closed
properly.

At the end of a
programme there is a
film of moisture on the
inside of the door and
the interior walls.

Water remains in the
wash cabinet at the end
of a programme.

The dispenser was still
damp when detergent
was added.

Clogged detergent
residue is blocking the
catch.

This is caused by the
drying system and does
not indicate a fault.

The filter combination in
the wash cabinet is
clogged.

The drain pump or
non-return valve may be
blocked.

The drain hose is kinked. Remove any kink from the

Make sure the dispenser
is dry before adding
detergent.

Clean the detergent from
the catch.

The moisture will dissipate
after a short while.

Before rectifying the
problem:

– Switch the dishwasher

off using the On/Off
sensor K.

Clean the filter
combination. See
"Cleaning and care".

Clean the drain pump or
the non-return valve. See
"Maintenance".

drain hose.

52

Problem solving guide

Noises

Problem Possible cause Remedy

Knocking noise in the
wash cabinet.

Rattling noise in the
wash cabinet.

Knocking noise in the
water pipes.

A spray arm is knocking
against an item in a
basket.

Items of crockery are
insecure in the wash
cabinet.

This may be caused by
the on-site installation or
the cross-section of the
piping.

Interrupt the programme,
and rearrange the items
which are obstructing the
spray arm.

Interrupt the programme,
and rearrange the items of
crockery.

This has no influence on
dishwasher function. If in
doubt, contact a suitably
qualified plumber.

53

Problem solving guide

Unsatisfactory washing result

Problem Possible cause Remedy

The dishes are not
clean.

Smearing appears
on glassware and
cutlery, there is a
bluish sheen on the
surface of
glassware; film can
be wiped off.

The dishes were not loaded
correctly.

The programme was not
powerful enough.

There is some stubborn
soiling although most of the
crockery is only lightly
soiled (e.g. with tea stains).

Not enough detergent was
dispensed.

Items are blocking the path
of the spray arms.

The filter combination in the
base of the wash cabinet is
not clean or is not correctly
fitted.
This may cause the spray
arm jets to get blocked.

The non-return valve is open
and blocked. Dirty water
has flowed back into the
wash cabinet.

The rinse aid dosage is set
too high.

See notes in "Loading the
dishwasher"

Select a more intensive
programme. See
Programme chart.

Use the Adjust Sensor wash
setting (see "Settings
menu J, Adjust Sensor
wash").

Use more detergent, or
change your detergent.

Rearrange the items so that
the spray arms can rotate
freely.

Clean and/or fit the filter
combination correctly.
Clean the spray arm jets.
See Cleaning and care.

Clean the drain pump and
the non-return valve. See
"Maintenance - Cleaning the
drain pump and non-return
valve".

Reduce the dosage (see
"Settings menu J, Rinse
aid").

54

Problem solving guide

Problem Possible cause Remedy

Dishes, cutlery and
glasses are not dry
or are flecked.

White residue is
visible on cutlery
and crockery,
clouding occurs
on glassware; film
can be wiped off.

The amount of rinse aid
may be insufficient, or the
rinse aid reservoir empty.

Crockery was taken out of
the cabinet too soon.

Combi tabs have been
used which have impaired
drying performance.

The dishwasher has been
set for 2 in 1 or Combi
tabs, even though this type
of detergent has not been
used.

Not enough rinse aid was
used.

There is no salt in the salt
reservoir.

An unsuitable combination
detergent has been used.

There is a fault with the
automatic water softening
system.

Replenish the reservoir,
increase the dosage or
change the brand of rinse aid.
See "Before using for the first
time".

Leave it in for longer. See
Operation.

Set the Detergent type to
Normal, and fill the rinse aid
reservoir with rinse aid. (See
"Settings menu J, Detergent
type".)

Set the Detergent type for the
product being used. (see
"Settings menu J, Detergent
type".)

Reduce the dosage (see
"Settings menu J, Rinse aid").

Fill the salt reservoir. See
"Before using for the first time ­Filling the salt reservoir".

Change your detergent. Use a
standard liquid, tablet or
powder detergent.

Call the Miele Customer
Contact Centre.

55

Problem solving guide

Problem Possible cause Remedy

Glassware has a
brown or blue tinge,
and film cannot be
wiped off.

Glassware is dull and
discoloured; film
cannot be wiped off.

Tea or lipstick stains
have not been
completely removed.

Plastic items are
discoloured.

There are rust stains
on cutlery.

This may be caused by the
detergent.

The glassware is not
dishwasher-proof. The
surfaces are affected.

The wash temperature of
the selected programme
was too low.

The bleaching effect of the
detergent used is too low.

Natural dyes e.g. from
carrots, tomatoes or tomato
sauce may be the cause.
The amount of detergent
used or its bleaching effect
was not sufficient to deal
with natural dyes.

The affected items are not
corrosion resistant.

A programme was not run
after dishwasher salt was
added. Traces of salt have
got into the wash cycle.

Change your detergent.

There is no remedy.
Purchase glassware which
is dishwasher-proof.

Select a programme with a
higher wash temperature.

Change your detergent.

Use more detergent. See
"Operation".
Discolouration is irreversi­ble.

There is no remedy.
Purchase cutlery which is
dishwasher-proof.

Always run the "Quick
wash" programme, without
any crockery in the
dishwasher and without
selecting the "Turbo"
function, after adding
dishwasher salt.

56

Cleaning the water inlet filter

A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.

The plastic housing of the water

,

connection contains an electrical
component. It must not be dipped in
water.

Recommendation

Maintenance

If the mains water contains a large
amount of insoluble substances, we
recommend fitting a large-area filter in
the connection between the tap and the
water inlet hose threaded union. This
filter is available from the Miele Spares
Parts Department.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply. Switch off at the mains
socket and withdraw the plug.

^

Close the tap.

^

Unscrew the inlet hose.

Carefully remove the seal.

^

^ Withdraw the filter using pointed

pliers and rinse clean under running
water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the tap,

making sure it goes on correctly and
is not cross-threaded.

^

Turn on the tap gradually to test for
leaks. If there is a leak, the inlet hose
might not be on securely, or it may
have been screwed on at an angle.
Unscrew and reconnect the water
inlet valve correctly.

57

Maintenance

Cleaning the drain pump and
non-return valve

If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean.

Disconnect the dishwasher from the

^

mains supply. Switch off at the mains
socket and withdraw the plug.

Take the filter combination out of the

^

wash cabinet (see "Cleaning and
care - Cleaning the filters in the wash
cabinet").

^ Scoop the water out of the cabinet

using a suitable container or utensil.

The drain pump is situated under the
non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions. You will feel a little
resistance when you turn the
impeller.

^

Press the catch for the non-return
valve inwards a.

^

Lift out the non-return valve b, and
rinse well under running water.

^

Remove all foreign objects from the
non-return valve.

58

^

Carefully replace the non-return valve
and secure it with the catch.

,

Ensure that the catch engages

correctly.

Comparison tests

Test standard: AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;

AS/NZS 6400:2005

Standard programme for
energy label comparison tests: Normal

Capacity: 12/14 place settings

(depending on model)

Amount of detergent: 12 place settings: 5 g in compartment I,

25 g in compartment II

14 place settings: 5 g in compartment I,

27,5 g in compartment II

Rinse aid dispensing: Setting 3 (approx. 3 ml)

Drying measurements: Door ajar using a block of approximately

50 mm upon completion of dry test.

Loading examples

Pictures illustrating how to load the dishwasher are shown on the following pages.

59

Comparison tests

Model types G 1xxx with a cutlery tray (12 place settings):

Upper basket

Lower basket

Cutlery tray

60

Comparison tests

Model types G 2xxx with a cutlery tray (14 place settings):

Upper basket

Lower basket

Cutlery tray

61

Programme chart

Crockery type Soiling Programme

mixed,

non-sensitive crockery

glasses and plastic

containers, sensitive to

high temperatures

mixed crockery

normal soiling

light soiling

normal,

lightly dried soiling

variable,

sensor controlled wash

shortened cycle

short cycle

variable,

sensor controlled wash

with glass care

average programme values

shortened cycle

water- and

energy-saving cycle

very high wash

performance

pots, pans,

non-sensitive crockery

and cutlery

1)

Potatoes, rice, noodles or stews can leave starchy soiling on crockery. Meat, fish, eggs or
casseroles can leave albuminous soiling on crockery.

heavyly soiled,

dried on soiling,

starchy or albuminous

food residues

1)

shortened cycle

maximum wash power

shortened cycle

62

Programme chart

Programme Detergent

2)

Compartment I

Compartment II

2)

Sensor wash

+ Turbo

Quick wash 40°C

Sensor wash gentle #

Light soiling 50 °C

+ Turbo

Energy save

Normal

25 ml

–

–

–

–

–

-

or

1 Tab

20 ml

or

1 Tab

20 ml

or

1 Tab

25 ml

or

1 Tab

25 ml

or

1 Tab

25 ml

or

1 Tab

3)

Intensive 65 °C

+ Turbo

Pots & pans 75 °C

+ Turbo

2)

see "Detergent"

3)

Sometimes tabs don't fully dissolve.

-

10 ml

25 ml

or

1 Tab

25 ml

or

1 Tab

63

Programme chart

Programme Programme sequence

Pre-wash Main wash

°C

Interim rinse Final rinse°CDrying

12

Sensor wash Variable programme sequence,

Quick wash 40 °C 40 X 45 X

Sensor wash
gentle #

Energy save 40 X 65 X

Light soiling 50 °C 50 X 65 X

1)

Normal

Intensive 65 °C X 65 X 65 X

Pots & pans 75 °C X 75 X 65 X

1) Standard programme for energy labelling

2) The drying phase continues for a further 20 minutes as long as the door is kept closed at the end
of the programme cycle.

sensor controlled adjustment to amount of crockery and soiling

if required 45-65 if required 65 X

Variable programme sequence with glass care,

sensor controlled adjustment to amount of crockery and soiling

if required 40-48 if required 55 X

X50 50X

2)

64

Programme chart

Consumption

Energy Water

Cold water

20 °C

kWh

0,95-1,35 0,70-1,00 8-17 1:30-2:38 1:18-2:21

0,55 0,20 10 0:38 0:27

0,70-0,95 0,40-0,50 10-17 1:26-2:02 1:17-1:43

1,10 0,75 10 2:06 1:55

1,05 0,75 10 1:36 1:23

0,84 0,41 12,7 2:32 2:18

1,25 0,95 13 2:19 2:06

1,50 1,10 13 2:38 2:27

The durations given can vary depending on individual circumstances.

Hot water

60 °C

kWh

1)

Litres Cold water

Duration

20 °C
h:min

1)

Hot water

60 °C
h:min

65

Programme chart

Programme When to use

Hygiene Programme with special parameters for hygienic removal of bacteria from

Pre-wash For rinsing crockery to avoid smells, if a complete cycle is not yet needed.

Without heater ! Only for use with hot water connection of at least 45 °C;

Pasta/Paella/Raclette For removing dried on soiling like pasta, paella or raclette; add 20% more

Plastics ! To gently wash dishwasher-proof plastic containers;

Tall items 65 °C For very large heat-resistant items,

Glasses warm ! For cleaning glassware without rinse aid and without detergent;

Glasses quick ! For rapid cleaning of glasses for immediate use again;

baby bottles, chopping boards, utensils etc.

for lightly to normally soiled crockery;
includes sensor controlled glass care system.

detergent than recommended for a full load.

includes sensor controlled glass care

e.g. tall vases.

includes sensor controlled glass care system.

without rinse aid or detergent;
includes sensor controlled glass care system.

66

Programme chart

Programme sequence Consumption

Energy Water

Hot
water
60 °C

kWh

°C

Drying Cold

water
20 °C

kWh

Pre-

wash

X 0,01 0,01 4 0:13 0:13

2X X X X X 0,05 26 1:26

X 75 X 65 X 1,40 1,15 13 2:29 2:16

X 45 X 65 X 0,85 0,60 13 2:07 1:55

X 65 X 65 X 1,00 0,65 13 1:52 1:39

The durations given can vary depending on individual circumstances.

Main

wash

°C

70 X 70 X 1,35 1,05 13 2:14 2:05

35 X 55 X 0,50 0,30 10 0:49 0:41

25 X X 0,20 10 0:17

Interim

rinse

12

Final

rinse

1)

Litres Cold

Duration

water
20 °C
h:min

1)

Hot
water
60 °C
h:min

67

After sales service

Repairs

In the event of any faults that you
cannot remedy yourself, please
contact:

Your Miele Chartered Agent, or

–

the Miele Customer Contact Centre

–

You find the telephone number of
the Miele Customer Contact Centre
on the back cover of the manual.

When contacting your Chartered

^

Agent or the Miele Customer Contact
Centre, please quote the model type
and number of your appliance, both
of which are shown on the data plate
on the right hand side of the door.

Future updates

The programme update function is
designed to enable a service
technician to update your appliance's
electronics in keeping with advances in
technology.

Information regarding programme
updates will be made known by the
Miele Company as and when such
developments become available.

68

Optional accessories

To make the most of your dishwasher

Optional accessories for particular purposes are available from your Miele
Chartered Agent or from the Spare Parts Department (some may be supplied as
standard, depending on model).

If you would like to … you will need to order …

… wash long-stemmed glassware … a glassware insert for the upper

basket

... wash a Miele Cappuccinatore … a Cappuccinatore insert for the

upper basket

... small plates, baby bottles and
small items in the upper basket

... different sized plates, cups and
glasses in the upper basket

... wash bottles,
e. g. milk or baby bottles

… wash additional items of cutlery … a small cutlery basket for the lower

... wash a lot of glasses … a glassware insert for the lower

... wash large plates ... an insert for plates up to:

… a multi-function basket for the
upper basket

… a vario insert for the upper basket

… a bottle holder

basket

basket

- 33 cm diameter

- 35 cm diameter

69

Electrical connection

Please follow the installation

,

instructions carefully.
All electrical work should be carried
out only by a suitably qualified and
competent person, in strict
accordance with national and local
safety regulations.
Ensure power is not supplied to the
appliance while installation work is
being carried out.

This dishwasher is supplied with a
mains cable and moulded plug ready
for connection to an a.c. single phase
supply, (230 -240 V 50 Hz for NZ and
Australia) via a fused plug and suitable
switched socket which is easily
accessible after installation.

^ The voltage, rated load and fuse

rating are given on the data plate
located above the door. Please
ensure that these match the
household mains supply.

For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA.

^

Do not connect via an extension lead.

The wires in the mains lead are
coloured in accordance with the
following code:

Green/yellow = earth

Blue = neutral

Brown = live

If the colours of the wires in the mains
lead of this appliance do not
correspond with the coloured markings
identifying the terminals of your plug,
proceed as follows:

^ The wire which is coloured green and

yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth
symbol z or coloured green, or
green and yellow.

^ The wire which is coloured blue must

be connected to the terminal in the
plug which is marked with the letter N
or coloured black.

^

The wire which is coloured brown
must be connected to the terminal in
the plug which is marked with the
letter A (AUSTRALIA).

,

If the connection cable is
damaged it must be replaced with a
complete connection box and cable
by a Miele approved service
technician only.

70

WARNING:
THIS APPLIANCE
MUST BE EARTHED

Plumbing

The Miele waterproof anti-leak
system

Providing your dishwasher has been
installed correctly, the Miele waterproof
anti-leak system will protect you from
water damage throughout its lifetime.

Connection to the water supply

Water in the dishwasher must

,

not be used as drinking water.

The dishwasher may be connected

–

to a cold or hot water supply, max.
60 °C. We would only recommend
connection to a hot water supply if it
is economical, e.g. a solar powered
supply. When connected to a hot
water supply all programme stages
which would otherwise be carried out
with cold water will be carried out
with hot water.

,

A warm water connection with
temperatures exceeding 60 °C may
cause damage to the unit, impair
wash results and affect the product
guarantee.

A tap with a 3/4 " male thread must

–

be provided on site.

The dishwasher is constructed to

–

comply with Australian regulations,
and may be connected to a suitable
supply without an extra non-return
valve if national regulations allow
this.

The water pressure (flow pressure at

–

the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar).
If the water pressure is lower than
this, the fault message

fault

will appear in the display (see
"Problem solving guide").
If the water pressure is too high, a
pressure reducer valve must be
fitted.

,

To avoid any damage to the
appliance, the dishwasher must only
be connected to a fully vented
plumbing system.

Water inlet

–

–

Without heater programme (if

The
available) requires a hot water
supply of between 45 °C (minimum)
and 60 °C (maximum).
The higher the water intake
temperature, the better the cleaning
and drying results.

The inlet hose is approx. 1.5 m long.
A 1.5 metre long flexible metal
extension hose, pressure tested to
14000 kPa/ 140 bar, is available as
an optional accessory if required.

71

Plumbing

! The inlet hose must not be

shortened or damaged in any way
as it contains electrical components
(see illustration).

This appliance incorporates back
flow protection complying with
AS/NZS 3500.1.2. No further
backflow protection required for
connection to the water supply.

-

72

Plumbing

Drainage

The appliance drainage system is

–

fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.

The dishwasher is supplied with

–

approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.

The drain hose can be extended

–

using a connection piece to attach a
further length of hose.
The drainage length must not be
longer than 4 m, and the delivery
head must not exceed 1 m.

– If the hose is to be directly fitted to

the drainage outlet on site, use the
hose clip supplied (see installation
diagram).

– The hose can be directed to the left

or the right of the appliance.

– The on-site connector for the drain

hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.

Venting the drainage system

If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door, the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.

To vent it:

Open the dishwasher door fully.

^

^

Pull the lower spray arm firmly
upwards to remove it.

^

Cut off the top of the vent valve in the
wash cabinet.

–

The drain hose must not be
shortened.

,

Make sure that there are no
kinks in the hose, and that it is not
squashed or stretched.

73

Technical data

Dishwasher model G 1XXX G 2XXX

Height freestanding 84.5 cm

(adjustable + 3.5 cm)

Height built-in 80.5 cm

(adjustable + 6.5 cm)

Height of building-in
recess

Width 59.8 cm 59.8 cm

Width of building-in recess 60 cm 60 cm

Depth:
Freestanding
Built-in

Weight Max. 66 kg Max. 58 kg

Voltage 230 V 230 V

Connected load 2300 W 2300 W

Fuse rating 10 A 10 A

Test certificates awarded Electrical safety, Typetest

Water pressure (flow rate) 30 - 1000 kPa

Hot water connection Up to max. 60 °C Up to max. 60 °C

Delivery head Max. 1 m Max. 1 m

Drainage length Max. 4 m Max. 4 m

Mains cable approx. 1.7 m approx. 1.7 m

Capacity 12/14 place settings* 12/14 place settings*

Min. 80.5 cm (+ 6.5 cm) Min. 84.5 cm (+ 6.5 cm)

60 cm
57 cm

Mark, C-Tick Mark

(0.3 - 10 bar)

-

84.5 cm
(adjustable + 6.5 cm)

­57 cm

Electrical safety, Typetest
Mark, C-Tick Mark

30 - 1000 kPa
(0.3 - 10 bar)

* depending on model

74

Settings menu ! for changing standard settings

Settings menu !

To open the Settings

Switch the dishwasher on with the On sensor K if it is

^

switched off.

The programme selection menu will appear in the display.
If the memory function is activated, the menu for the
programme last selected will be displayed instead (see
"Memory"). If this is the case, press the Clear sensor U to
switch to the main menu.

\
\
\

^ Select

The display will change to show the Settings

\
\
\

^

Select the option you want to change.

! menu

Main menu

$ Settings F
# Sensor wash
! Quick wash d 40°C

Settings !.

Settings

$ Language !
# Time
! Detergent type

12:00

! menu.

12:00

o

m

[

[

[

[

Pressing the : button will call up some information about
the programme currently selected.

Sub-menu options which have already been set will have a
tick

( beside them.

75

Settings menu !

Language !

The display can be set to appear in one
of several different languages.

You can change the language for the
display via the

Select the language you want and

^

confirm this with

The flag after the word Language
acts as a guide if a language which
you do not understand has already
been set.
If this is the case, keep selecting the
menu option which has a flag after it
until you reach the
sub-menu.

Language ! sub-menu.

OK.

Language !

Time of day

Select either a 24 hour or 12 hour clock
and then set the current time of day.

Display

Select the

^

Select the display you require for the

^

time of day, and confirm this with

Clock display

Select the

^

Select either the 24 hour or 12 hour

^

option and confirm with

To set the time of day

^ Select the

^ Set the hours with

with
Then set the minutes.

After you have confirmed the minute
entry with
back to the

Display option.

OK.

Format option.

OK.

Set the time option.

+/- and confirm

OK.

OK the display will change

Time menu.

76

^

Touch the sensor to return to the
Settings

! menu.

Settings menu !

Detergent type

To ensure excellent results you can
programme your dishwasher for the
type of detergent you are using.
You can choose normal detergent,
2 in 1 tabs or Combi tabs.
The programme sequence and duration
will be adjusted for the type of
detergent selected. Depending on the
programme, the duration can be
considerably longer.

Normal:

When using "normal" detergent, you
must add salt and rinse aid (see "Filling
the salt reservoir" and "Adding rinse
aid").
The rinse aid refill reminder is active
with this setting.

2in1:

Select the
using 2 in 1 tabs (detergent containing
rinse aid). The programme sequence
will be adjusted, and rinse aid will not
be dispensed in the programme.
The "Rinse aid low" message is also
deactivated.

2in1function if you are

Combination tabs:

Select the

Combination tabs function if

you are using Combi tabs (detergent
containing rinse aid and salt
substitutes, as well as other
components where applicable) e.g. 3 in
1 or 4 in 1 tabs. The programme
sequence will be adjusted, and rinse
aid will not be dispensed in the
programme. The "Rinse aid low"
message is also deactivated.

When using Combi tabs, you must still
keep the salt reservoir replenished. See
"Filling the salt reservoir".
Salt consumption in the water softener
is reduced to between

1

/3and1/4of the

normal amount.

Do not select the

Combination tabs

function if:

– using 2 in 1 tabs (detergent with

rinse aid)

– your water hardness level is above

3.8 mmol/l or 21°d.
Follow the detergent manufacturer's
instructions.

The cleaning and drying
performance of these types of
detergent can vary enormously.

The appliance is set at the factory for
using normal dishwasher detergent.

^

Select the detergent type you want
and confirm with

OK.

77

Settings menu !

Drying plus

At the end of a programme with a
drying phase (see "Programme chart"),
the door will open automatically a little
in order to help the drying process.

This function can be deactivated if
wished.

Select the option you want and

^

confirm with

Drying plus will not operate in the

Normal programme.

Water hardness

Your dishwasher is fitted with a water
softener sensor which determines the
water hardness level of your local water
supply automatically.
After your dishwasher has been
through one programme cycle (e.g.
Pre-wash), you can call up the water
hardness level measured by the water
softener sensor via the Water hardness
option.

^

OK will return you to the Settings

menu

OK.

!.

°d

(German

scale)

1
2
3
4
5
6
7
8

9
10
11
12
13
14

15

16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

37-45
46-60
61-70

mmol/l °f

0,2
0,4
0,5
0,7
0,9
1,1
1,3
1,4
1,6
1,8
2,0
2,2
2,3
2,5

2,7

2,9
3,1
3,2
3,4
3,6
3,8
4,0
4,1
4,3
4,5
4,7
4,9
5,0
5,2
5,4
5,6
5,8
5,9
6,1
6,3
6,5

6,7-8,1

8,3-10,8

11,0-12,6

83-108

110-126

2
4
5
7

9
11
13
14
16
18
20
22
23
25

27

29
31
32
34
36
38
40
41
43
45
47
49
50
52
54
56
58
59
61
63
65

67-81

Value
displayed in
time display

1
2
3
4
5
6
7
8

9
10
11
12
13
14

15

16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
45
60
70

78

Settings menu !

External water softening
system

If your dishwasher is connected to an
external water softening system which
uses salt to reactivate, to achieve good
cleaning results you will still need to set
the water hardness level of the water
softening unit on the dishwasher to the
water hardness level of the water
supplied from the external water
softening system.
If you do not know what this is, then set
the value at 1.4 mmol/l (8 °d - German
scale).

^ Select the value which equates to the

water hardness level of the water
supplied by the external water
softening unit and confirm your
selection with

If you disconnect the dishwasher
from the external water softening
system, select the

OK.

Automatic option.

Check filters

You can adjust the interval at which the
message to remind you to check the
filters appears.
You can set an interval of between 30
and 60 programme cycles.

The "Check filters" message is set at the
factory to appear after every 40
programme cycles.

Select the interval you want and

^

confirm this with

OK.

Adjust Sensor wash

You can adjust the Sensor wash
programme so that it will remove
stubborn soiling in a lightly soiled load.

^ Select

On and confirm with OK.

Rinse aid

You can adjust the rinse aid dosage for
best results.
The rinse aid dosage can be set from
approx. 0-6 ml.
The factory default setting is 3 ml.

If spots appear on crockery and
glassware:
–

Increase the rinse aid dosage.

If clouding or smearing appears on
crockery and glassware:
–

Decrease the rinse aid dosage.

^

Use

+/- to select the rinse aid dosage

you want and confirm with

OK.

79

Settings menu !

Change main menu

You can change the order of the programmes in the
programme selection menu and also enter your favourite
programmes into the first three programme places.

Set programme for position 1

\

$ Sensor wash (
# Quick wash d 40°C

\

! Cancel

\

Select the programme you want to place in the first position

^

of the programme selection menu.

^ Confirm with

^ Select the programme you want to place in the second

position of the programme selection menu.

^ Confirm with

^ Select the programme you want to place in the third

position of the programme selection menu.

^ Confirm with

The programmes you have selected will now appear in the
order you have chosen.
If you want to change the position of another programme,
select

Back until you reach the relevant menu entry.

Summary

Sensor wash
Quick wash d 40°C

! Back

\

^

When you have finished making changes, confirm with

Finished.

Continue.

Continue.

Continue.

12:00

m

Continue !

12:00

m

Finished !

[
[
[

[
[
[

80

Save extras

You can set additional functions, e.g.
Pre-wash, for individual programmes
(see "Operation, Selecting Extra
options").

Settings menu !

You can use the
save settings you have chosen for a
particular programme so that they are
automatically selected when you run
the programme in the future.

The dishwasher is delivered with this
function deactivated.

Select the option you want and

^

confirm with

Save extras option to

OK.

81

Settings menu !

System lock

The system lock prevents your dishwasher being used
without your knowledge.

If an attempt is made to switch the dishwasher on when the
system lock is activated
display.

The lock must be cancelled before the dishwasher can be
used.

The appliance will lock each time it is switched on while the
system lock is activated.

The dishwasher is delivered with the system lock deactivated.

To activate it, select the

^

To cancel the system lock

To unlock the dishwasher, proceed as follows:

^ Switch the dishwasher on using the K sensor.

Appliance locked will appear in the

On option and confirm with OK.

82

The message

^ Confirm with

! Yes

\

^

Select

System lock

W

The dishwasher is now unlocked and ready for use.

Appliance locked will appear in the display.

OK.

Deactivate system lock?

Yes.

Appliance unlocked

No !

[

Settings menu !

Temperature

The temperature can be displayed in
°C/Celsius or °F/Fahrenheit.

The factory default setting is °C.

Select the option you want and

^

confirm with

OK.

Volume

A buzzer sounds at the end of a
programme and when the machine has
a fault.

You will hear the buzzer at the end of

–

a programme in bursts of five with a
short pause in between.
The buzzer will continue to sound for
up to an hour if you do not switch the
dishwasher off.

The buzzer at the end of a
programme is deactivated as stan­dard at the factory.

Buzzer tone

The volume of the tone can be selected
in seven stages. If no volume is
selected, the buzzer is switched off.

The buzzer, which sounds when
there is a fault, cannot be
deactivated.

Select the volume you want or

^

deactivate the keypad tone using the

+/- sensors.

Confirm with

^

OK.

Night time buzzer tone

You can select a different buzzer
volume for the night time.

^ Select the volume you want or

deactivate the buzzer using the

+/-

sensors.

^ Confirm with

OK.

– Buzzer in case of fault:

The buzzer sounds continuously
without a pause.
The buzzer will continue to sound for
up to two minutes if you do not
switch the dishwasher off or correct
the fault.

The buzzer, which sounds when
there is a fault, cannot be
deactivated.

83

Settings menu !

Night time

You can select the times for night time
to begin and end.

Select the

^

Start at option in the

menu.

Set the start time for the night using

^

+/- sensors, and confirm with

the

OK.

Set the end time for the night using
the

+/- and confirm with OK.

Confirm the times you have set for

^

the night with

OK.

Keypad tone

An audible tone sounds each time a
button is pressed. The volume of the
tone can be selected in seven stages. If
no volume is selected, the keypad tone
is switched off.

^ Select the volume you want or

deactivate the keypad tone using the

+/- sensors.

^

Confirm with

OK.

Brightness

There are seven different display
brightness settings.

Select the brightness you want and

^

confirm this with

OK.

Contrast

There are seven different display
contrast settings.

Select the contrast you want and

^

confirm with

OK.

Memory

You can use the Memory function to
save the last programme selected.

Instead of the main menu, the last
programme selected will appear in the
display when the dishwasher is
switched off and back on again at the
end of a programme or the door is
opened and then closed.

The dishwasher is delivered with the
Memory function activated.

84

^

Select the option you want and
confirm this with

OK.

Settings menu !

Showroom programme

The programme is for display use
only.

The dishwasher is fitted with various
demonstration programmes for
showroom use.

The

Demo mode and Demo mode in

continuous loop

demonstrate the operation and
functions of the dishwasher:

Demo mode:

–

This programme is started by
pressing any button. It will run
through once and then has to be
started again.

–

Demo mode in continuous loop:

This programme will begin as soon
as you switch it on and then will play
in a continuous loop until you switch
it off.

–

Demo with sound:

This programme activates the pumps
to demonstrate the sound of the
dishwasher.

–

Demo programme:

Using for the first time is disabled in
the display.

–

Drying plus demo:

The door will open automatically.

programmes

To switch Demo mode on

Select the option you want and

^

confirm this with

Confirm the following questions with

^

OK.

If necessary, touch any sensor to

^

OK.

start the Demo mode you have
selected.

To cancel the Demo programme,

^

touch any sensor again and confirm it
with

OK.

To switch Demo mode off

^ Select

^ Confirm the question

mode off?

Off and confirm with OK.

Switch demo

with OK.

Factory default setting

If you have altered any settings from
the factory default, you can re-set them
back to the factory default settings.

^

Confirm the question

default settings?

^

Confirm

All settings reset with OK.

Reset factory

with OK.

To close the Settings ! menu

Touch the Clear sensor U to come out
of the Settings
main menu.

! menu and return to the

858687

Alteration rights reserved/
G2834 / 1409

M.-Nr. 07 600 680 / 00
