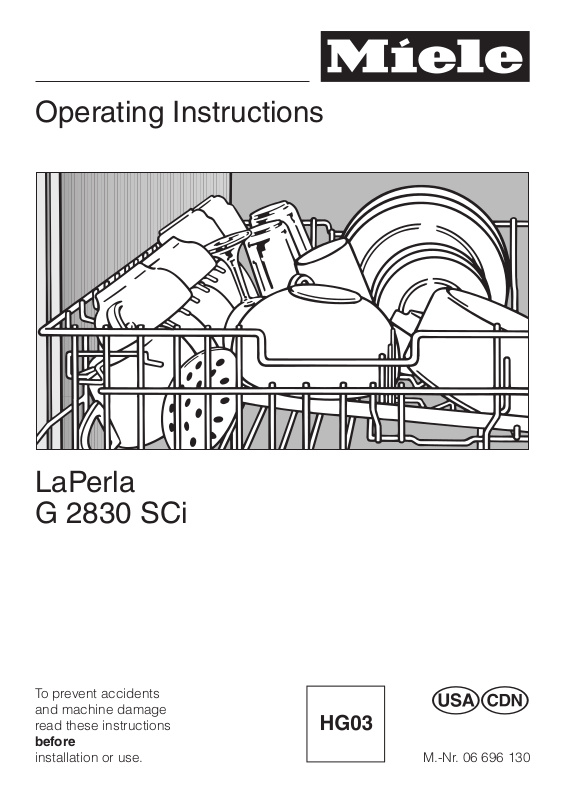

Operating Instructions
LaPerla
G 2830 SCi
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 696 130
Contents
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filling the salt container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Salt refill message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid refill message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Items not recommended for dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Split cutlery tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Basket accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Starting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Time display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2
Contents
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Delay start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Settings J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Technical faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Problems water intake/drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
General problems with the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Poor cleaning results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
User Maintenance Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Triple filter system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Help to protect the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read all instructions before
installation or use of the dishwasher
to prevent injury and machine
damage.
The manufacturer cannot be held
responsible for damage or injury
caused by improper use of this
appliance.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Electrical Safety
Before installation, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
Do not use an extension cord to
connect this appliance to
electricity. Extension cords do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Be certain your appliance is
properly installed and grounded by
a qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
4
IMPORTANT SAFETY INSTRUCTIONS
Installation
The dishwasher must be installed
and connected in compliance with
the installation instructions.
Installation and repair work should
be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
Do not install or use a damaged
dishwasher. A damaged appliance
is dangerous. Unplug the machine and
call your Miele dealer or the Miele
Technical Service Department.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely
and kept out of the reach of children.
Danger of suffocation!
This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
It is recommended that the
dishwasher only be connected to
the mains with the plug (no
hard-wiring). The outlet must be
accessible at all times after installation
to disconnect the dishwasher.
, WARNING - Fire hazard
Do not cover or crush the plug of
the appliance. Ensure that the cabinet
opening for the dishwasher provides
ample space for the plug. Installing the
dishwasher in a tight space may crimp
the power cord or put pressure on the
plug which could cause overheating.
This dishwasher should only be
installed under a continuous
counter top secured to adjacent
cabinetry.
Do not install this dishwasher
beneath a cooking surface, oven or
any appliance that radiates heat.
High temperatures from these units may
damage the dishwasher.
When installing the dishwasher
under a counter top and removing
the toekick, a build-under toekick must
be installed. Use the respective
installation kit. Danger of injuries.
Do not cut the intake hose or
submerge it in liquid. This hose
contains electrical components that
could cause injury or property damage
if cut or submerged.
Only connect the dishwasher to the
mains when all installation and
plumbing work is complete.
5
IMPORTANT SAFETY INSTRUCTIONS
Use
To reduce the risk of injury, do not
allow children to play in, on or near
the dishwasher.
Only use the dishwasher if all
panels are properly in place.
Do not tamper
with the controls.
Do not damage, sit or stand on the
door or baskets of the dishwasher.
Close the door when not in use.
Under certain conditions, hydrogen
gas may be produced in a hot
water system that has not been used
for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water
system has not been used for such a
period, turn on all hot water faucets and
let water flow from each for several
minutes before using the dishwasher.
This will release any accumulated
hydrogen gas. Do not smoke or use an
open flame during this time.
Only use detergents and rinse aids
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
Do not inhale or swallow
detergents. Dishwasher detergents
contain irritant and corrosive
ingredients. They can cause burning in
the mouth and throat if swallowed, or
inhibit breathing. Consult a doctor
immediately if detergent has been
swallowed or inhaled.
Do not drink water from the
dishwasher! Harmful residues
could be present.
Do not fill the rinse aid reservoir or
salt container with detergent. It will
destroy the rinse aid compartment and
water softener.
If the power cord is damaged it
must only be replaced by a Miele
Service technician with a genuine Miele
power cord.
Be sure that all items placed in the
dishwasher are "dishwasher safe".
For items not labeled, check the
manufacturer’s recommendations.
When loading tableware, place
sharp items away from the door to
prevent damage to the seal. Load
sharp items pointing downwards to
prevent injuries.
6
Disposal of an appliance
If the appliance is removed from its
installation site and will not be
used, remove the doorlock to the wash
cabinet to prevent children from locking
themselves in the machine.
SAVE THESE
INSTRUCTIONS
Guide to the dishwasher
a Upper spray arm (not visible)
b Cutlery tray (depending on model)
c Upper basket
d Middle spray arm
e Air inlet for drying
(depending on model)
f Lower spray arm
g Filter combination
h Data plate
i Child Safety Lock in the door handle
(not visible)
j Rinse aid reservoir
k Dual compartment detergent
dispenser
l Salt container
7
Guide to the dishwasher
Control panel
a K (Information) touch control
To display more info about the
displayed menu
b s (On/Off) touch control
To turn the dishwasher on and off
c Selection touch controls
To select a menu point displayed
next to the touch control.
To change the displayed value (+/-).
To browse between menus.
d Display
See the following pages for more
information
e Standby indicator
The indicator lights when the
dishwasher is turned on but the
display is turned off.
f + C (Clear) touch control
To switch back to the previous menu
level or to delete a selected setting.
g Technical Service interface
Allows a service technician to check
and update the machine when
applicable.
8
Display
Guide to the dishwasher
The following can be selected in the
display:
the wash program
–
the options
–
the start time
–
– the settings J menu
During a running program the display
shows:
– the program name
– the current time of day
– the program sequence
– the approximate remaining time
–
faults and messages
A bullet in the display next to the touch
control shows that a function can be
selected with this control.
The arrow on the right side in the
display shows that more selections or
text follow and can be displayed with
the respective control.
To confirm these messages or settings
touch
OK and the next menu or another
menu level will appear.
The "Settings J" menu allows you to
adjust the dishwasher to your
individual needs. See "Settings" for
more information.
9
Caring for the environment
Energy saving washing
This dishwasher is exceptionally
economical in the use of water and
electricity. For best results follow these
tips:
For lowest energy consumption and
^
the gentlest washing of china and
crystal, connect the dishwasher to a
cold water source.
For fastest possible wash times, yet
^
higher energy consumption, connect
the dishwasher to a hot water source.
If the dishwasher is connected to hot
^
water, select "Energy Saver" when
washing light to normally soiled
dishware. The water will not be
heated, therefore the dishes may be
more wet at the end of this program
than when using other programs.
^ Make full use of the baskets without
overloading for the most economical
washing.
^
Use the correct amount of detergent
and rinse aid.
^
When using powder or gel detergent
reduce the amount to
washing a small load.
^
Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^
For small loads select "Short".
10
2
/3when
Before using for the first time
To open the door
^ Press the release catch inside the
door grip.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
restart.
To close the door
Child Safety Lock
The Child Safety Lock is designed to
prevent children from opening the
dishwasher.
^ To lock the door, push the slider
below the door grip to the right.
^ To unlock the door, push the slider to
the left.
^ Push the baskets in.
^
Lift the door and push until it clicks
into place.
11
Before using for the first time
Welcome screen
Turn the dishwasher on with the sensor s.
^
The Welcome screen shows when the washer is turned on for
the first time.
Language setting
The display changes automatically to the language setting.
The selected language is marked with a L check.
Sprache F
°#eština
° deutsch B
^ Select the desired language and confirm with "OK".
Time of day setting
The display changes automatically to the time of day setting.
m° dansk
OK °
12
Time of day
12:00
Please set time of day OK °
^
Set the hours using the
Set the minutes and confirm.
The settings will be saved after the first wash program has
finished.
+/- controls and confirm with OK.
+ °
- °
Before using for the first time
After confirming the minutes, a message shows confirming
that the set-up of your machine has been successfully
completed.
After confirming this message, the two messages
and Insufficient rinse aid may show. Confirm with OK
salt
and the display changes to the main menu.
Main menu
° Normal
° Pots + Pans
° China + Crystal :
The dishwasher can now be used or turned off.
Insufficient
12:00
m
13
Before using for the first time
Water softener
Every dishwasher is tested before
leaving the factory. Any water
remaining in the machine is from the
final factory test and does not
indicate that the machine has been
used.
To achieve good cleaning results, the
dishwasher needs soft water. Hard
water results in calcium deposits on
dishware and in the dishwasher.
If your tap water hardness is above 4°d
(4 gr/gal [US]), the water should be
softened. This takes place
automatically in the unit’s integrated
water softener.
The water softener sets automatically to
the local water hardness.
If the hardness of your local supply
is constantly lower than 4°d (4 gr/gal
[US]), you do not need to add water
softener salt.
The "Insufficient salt" message will
turn off automatically.
Checking the water hardness
The water hardness measured by the
sensor can be displayed.
See "Settings J - Water hardness".
External water softener
If the dishwasher is connected to an
external water softener unit which is
regenerated with salt, the water
hadness must still be set in the
dishwasher.
Set the dishwasher to the water
^
hardness of the external water
softener. If you don't know the value,
set the dishwasher water hardness to
8°d (8 gr/gal [US]). See Settings J,
External water softener.
For best results use salt when using
3 in 1 tabs (these tabs contain
detergent, rinse aid and water
softener salt). When selecting the
"3 in 1" detergent setting, the salt
dosage is reduced to
14
1
/3to1/4.
Filling the salt container
Inadvertently filling the salt
,
container with dishwashing
detergent will damage the water
softener.
Only use water softener salt
,
specially formulated for
dishwashers. Other salts may
contain insoluble additives which
can impair the water softener.
When opening the salt container,
water will run out. Open the
container only to refill salt.
Important: The salt container must
be filled with 2 quarts (2 l) of water
before adding salt for the first
time. Water does not have to be
added with subsequent refills.
Before using for the first time
Press the button in the direction of
^
the arrow until the flap springs open.
^
To fill the salt, open the door and hold
it at an angle, so that the salt
container can be completely filled.
^
Open the funnel.
15
Before using for the first time
Salt refill message
Carefully fill with salt until water runs
^
out. The salt container holds approx.
2.2 lbs (1 kg) of salt.
Do not fill with more than 2.2 lb
(1 kg) salt.
As it is filled, water will run out.
^ Clean any excess salt from the
threads of the container opening.
Close the lid firmly.
^
If the dishwasher will not be used
immediately, run the "Short" program.
This will remove any traces of salt
from inside the wash cabinet.
When the display shows
^
salt
, refill the salt after the program
Insufficient
has finished.
Confirm with
^
OK.
The message will clear from the display.
After the container has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is started. The
message will show again during
salt
this process. Confirm again with
Insufficient
OK.
16
Before using for the first time
Rinse aid
Rinse aid helps to prevent spotting on
dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dosed.
Filling the rinse aid reservoir with
,
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "2 in 1" or "3 in 1"
detergents rinse aid is not needed.
"2 in 1" detergents contain detergent
and rinse aid. "3 in 1" detergents
contain detergent, rinse aid and
water softener salt.
Adding rinse aid
^ Press the button in the direction of
the arrow until the flap springs open.
17
Before using for the first time
Rinse aid refill message
When the Insufficient rinse aid
message first comes on, there will be
enough rinse aid left for 2 - 3 washes.
Refill rinse aid after the program has
^
finished.
If the "2 in 1" or "3 in 1" function is
selected, the
message will not come on. See
"Settings J - Detergent".
Insufficient rinse aid
Pour liquid rinse aid into the reservoir
^
until it its visible on the surface of the
screen.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^ Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^ Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
To optimize the wash result, the rinse
aid dosage can be adjusted. See
"Settings J - Rinse aid".
Confirm with
^
The
Insufficient rinse aid message will
OK.
clear from the display.
18
Do not wash items soiled with
,
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
Scrape food from dishes before
^
placing them in the dishwasher,
rinsing is not necessary.
^ Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.
^ All items can be placed anywhere in
the baskets.
^ Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
Loading the dishwasher
The spray arms must not be blocked
^
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
Place very small items in the cutlery
^
tray or basket so they do not fall to
the bottom of the wash cabinet.
Food residue and spilled liquids
^
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
^
Make sure that all items are securely
positioned.
^
Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^
To ensure good water coverage,
tall, narrow and hollow items,
i.e. vases or champagne glasses,
should be placed in the center of the
basket rather than in the corners.
^
Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
19
Loading the dishwasher
Items not recommended for
dishwashing
Cutlery with wooden handles
–
Wooden cutting boards
–
Glued items such as old knives with
–
handles glued together around the
shank of the blade
Handmade craft items, antique,
–
metal trimmed or decorative
glassware
Plastic items that are not heat
–
resistant
– Copper, brass, tin or aluminum
– Dishes with color painted over the
glaze. These dishes may fade over
time
– Fine glassware and crystal items
should only be washed using the
"China & Crystal" program*.
Otherwise clouding or etching may
occur after frequent washing.
–
Cast iron pots and pans
* depending on model
Glassware:
There are no standard guidelines for
–
washing glassware, when in doubt
wash by hand.
When purchasing new dishes,
–
glasses and cutlery, make sure they
are dishwasher safe. Only wash
items marked "dishwasher safe" in
the dishwasher.
If fine glassware is washed in the
–
dishwasher select the "China &
Crystal" program*. This will reduce
the risk of clouding.
Silver and aluminum:
– Silver or aluminum items may tarnish.
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
–
If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
20
–
Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
–
Clean aluminum items, e.g. grease
filters, with domestic dishwasher
detergent only.
Split cutlery tray
^ Arrange the cutlery as shown in the
cutlery tray.
For easier unloading cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.
Place knives with the cutting edge and
forks with the prongs between the
holders. Spoons should be placed in
the opposite direction with the handles
between the holders.
Loading the dishwasher
Spoons with thick handles may have to
be placed as knives and forks with their
heads in the holders
The upper spray arm must not be
blocked by tall cutlery items.
The inserts of the cutlery tray can be
removed.
Single inserts can be removed to make
room for tall items in the upper basket.
21
Loading the dishwasher
Upper basket
For safety reasons only use the
,
dishwasher with the upper and lower
basket inserted.
Exception: The programs "Large
items normal" and "Large items
soiled" are designed for use without
the upper basket.
^ Load the upper basket with small,
lightweight, or delicate items such as
cups, saucers, glasses, dessert
bowls and flat pans.
^
Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.
Removable spike insert
The spike insert can be removed to
create more space for larger items,
e.g. a saucepan.
Removing an insert a:
^ To remove an insert, gently pull on
the handle.
Inserting an insert b:
^ Slide the hitches of the insert under
the vertical struts of the lower basket.
^
Push down on the handle to snap the
insert into position.
22
Loading the dishwasher
Adjustable cup racks
Raise the rack to make room for tall
^
glasses. Lower it to double stack
smaller pieces.
The height of the cup rack can be
adjusted in two levels.
^ Pull the cup rack upwards and let it
engage at the desired height.
Coffee bar
(depending on model)
Glasses can be leaned against the
coffee bar for a secure stand.
^ The bar can also be used to separate
two rows of glasses.
^ To stack wide items, flip the bar to the
right.
23
Loading the dishwasher
Glassware rail
(depending on model)
The glassware rail is designed for a
secure stand of tall glasses and
stemmed glassware.
^ Flip the bar down to lean tall glasses
on it.
^ If necessary take out part of the
cutlery tray to make room for tall
glasses.
Multi-function basket
The multi-function basket is designed to
securely wash baby bottles, saucers
and small items, e.g. toys.
^ Remove the spike insert on the right
side of the upper basket and insert
the multi-function basket.
^ Close the flaps in the bottom of the
basket when washing saucers or
other small items.
24
To wash baby bottles
^ Insert the nipples under the hooks a.
^ Open the flaps b and insert the
bottle neck into the opening.
^ Small items like the rings and caps of
the bottles can be inserted in the
open spaces.
Loading the dishwasher
25
Loading the dishwasher
Adjusting the upper basket
The upper basket can be raised or
lowered to accommodate tall items.
The basket can also be angled to fit tall
items in both, the upper and lower
baskets. The angles should not be set
to opposite extremes. This will block the
middle spray arm. Take care when
sliding the basket in and out in this
position.
Slide out the upper basket.
^
Depending on the setting of the upper
basket, a variety of plate dimensions
can be accommodated.
For example: If the upper basket is in
its highest position a plate with a
diameter of 12
the lower basket.
3
/16" (31 cm) can be fit in
^
Pull up the levers at the sides of the
upper basket and adjust the basket
height.
^
Release the levers and the basket will
lock in place.
26
Lower basket
^ For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Loading the dishwasher
27
Loading the dishwasher
Comfort inserts
The comfort inserts are designed for
cups, glasses, plates, bowls, pots, etc.
^ To insert tall items, raise the cup rest.
^ Lean or hang stemmed glassware
such as wine or champagne glasses
in the cut outs of the cup rest.
PlateGuard Plus with StemGuard
Removing an insert a:
^ To remove an insert, gently pull up on
the handle.
Inserting an insert b:
^ Insert the long comfort insert on the
left and the short one in the rear right.
^ Slide the hitches of the insert under
the vertical struts of the lower basket.
28
^
Push down on the handle to snap the
insert into position.
Loading the dishwasher
Removable spike insert with
StemGuard
Removing:
^ Push the insert down, a and at the
same time push the latch towards the
basket, b.
Vase/Bottle holder
The vase/bottle holder, e.g. for vases
and baby bottles, can be inserted into
the lower basket as shown in the
illustration.
If placed anywhere else, water will not
reach all surfaces. The bottle will not be
properly cleaned.
Basket accessories
Additional inserts for the upper and
lower baskets may be purchased from
your Miele dealer or Miele.
29
Use
Detergent
Dishwasher detergents contain
,
irritant and corrosive ingredients.
Avoid inhaling or swallowing
dishwasher detergent.
Keep children away from detergent.
Fill the detergent dispenser only
when you are ready to start the
dishwasher.
Only use detergents formulated
,
for domestic dishwashers.
Use only the recommended amount
of detergent. Continued use of too
much detergent may cause machine
damage.
You can use powder, gel or tab
detergents. Follow the dosage
information on the detergent
packaging. See "Settings - Detergent"
for more information on detergent
usage.
Detergent tabs are not recommended
for use with the program "Short". The
tabs may not dissolve completely.
30
Adding detergent
^ To open, press the latch on the
detergent dispenser. The flap will
spring open.
The flap is always open at the end of a
program.
Use
Add detergent to compartment II and
^
close the flap.
^ If a Pre-rinse is desired, and available
for your chosen program, add
1 teaspoon (5 ml) of detergent to
compartment I.
The horizontal marks in compartment II
indicate the levels of approximately 1 ¼
and 2 tablespoons (20 and 30 ml)
respectively. Compartment I holds a
maximum of 2 teaspoons (10 ml).
31
Use
Turning on
Make sure the spray arms can rotate freely.
^
Close the door.
^
Open the water supply, if closed.
^
Turn the dishwasher on by touching the s control.
^
The main menu shows in the display.
If the memory function is selected, the last selected program
is displayed. See "Settings J - Memory".
° Normal
° Pots + Pans
° China + Crystal :
Selecting a program
Choose your program according to the type of load and
soiling.
See the "Program guide" for a description of the programs
and uses.
Information about the selected program can be displayed
by touching the K control.
^
Select the desired program.
The display changes to the program menu.
° Options
° Start time
End at 3:32
Main menu
Sensor Wash 1:32 h
12:00
m
12:00
Start °
32
Program guide
Program When to use Program sequence
rinse
12
Final
rinse
XX
XX
Normal For normally soiled dishware with dried on food
Pots +
Pans
China +
Crystal
Short "Quick program" for lightly soiled dishware, e.g.
Sensor
Wash
Economy For normally soiled dishware, energy saving
Heavy Soil For heavily soiled dishware with dried starchy
Energy
Saver
Rinse +
Hold
Water
Saver
Run-time 131 min
For normally soiled pots and pans with dried
on food, and heavily soiled dishware,
120% detergent recommended
Run-time 129 min
For temperature sensitive glassware and lightly
soiled dishware, 50% detergent recommended;
sensor controlled GlassCare program
Run-time 100 min
party dishware or to remove salt traces from the
wash cabinet after refilling salt, includes sensor
controlled GlassCare; not suitable for detergent
tabs
Run-time 30 min
Sensor controlled program
for normally soiled dishware
Run-time 123 min
program with a long soaking time and a low
temperature; includes sensor controlled
GlassCare
Run-time 95 min
food
Run-time 120 min
The water intake temperature must be a minimum
of 115°F (45°C);
for light to normally soiled dishware
Run-time 74 min
To rinse dishes when a complete program is not
needed.
Run-time 13 min
For light to normally soiled dishware without
dried food; water saving program
Run-time 87 min
Main
Pre-
rinse
12
XX X X X X
XX X XX
as re-
quired
as re-
quired
XX X XX
XX X X X X
X
Interim
wash
XXas
required
XXX
XXas
required
XXXX
XXXX
Drying
33
Program guide
Program When to use Program sequence
Pre-
Main
Interim
wash
rinse
12
XX XX X
XX X
XX X
Starch For dishware with dried on starchy food;
Cheese For dishware with dried on cheese;
Sani Wash To sanitize dishware, e.g. baby bottles,
Plastics To gently clean dishwasher safe plastics
Large items
soiled
Large items
normal
Glassware no
rinse aid
Glassware
cold
Plate Warming For plate warming; use without detergent
120% detergent recommended
Run-time 148 min
120% detergent recommended
Run-time 150 min
cutting boards and preparation dishware
Run-time 122 min
and plastic toys
Run-time 115 min
For extra large, heat-resistant items
e.g. large vases
Run-time 103 min
For extra large items sensitive to high
temperatures e.g. large plastics
Run-time 98 min
To wash glassware without detergent
and rinse aid; rinse cycle with warm water
Run-time 50 min
For a quick cleaning of glassware for
direct reuse; use without detergent and
rinse aid
Run-time 17 min
and rinse aid
Run-time 12 min
rinse
XXX XX
XXX XX
XXX XX
XXX XX
XXX XX
X
Final
rinse
Drying
Usage:
Electric: 0.01 - 1.3 kWh
Water: 1.06 - 6.6 gal (4 - 25 l)
34
Selecting Options
Options can be added to the selected program.
Use
^
Select
Options.
The display shows the available options for the selected
program.
Available options:
Pre-rinse:
For easily removable soiling
–
Soak:
To soak stubborn soiling.
–
When using powder detergent, fill approx. 1 teaspoon (5 g)
of detergent in the detergent compartment I.
Extended drying:
– To enhance drying of odd shaped dishware and plastic
items.
Options
°§Extend drying
^
Select the desired options.
12:00
OK °
The selected options are marked by a L check.
^
To deselect the selected options, touch the respective
control again.
^
When finished customizing the program, confirm with
The display changes back to the program menu.
The program menu shows
Options selected.
OK.
35
Use
You can now select the detergent
used. Availabe selections are:
Powder, Gel, "2 in 1" and "3 in 1"
tabs.
See "Settings J, Detergent".
Starting a program
Select
^
The program begins.
Cancel a program only in the first
5 minutes. Otherwise important
program steps (e.g. the water
softening) could be interrupted.
Start.
Time display
Before the program starts, the time
display shows the running time of the
selected program in hours and minutes.
During the running program the
remaining time shows in the time
display.
The running time for the same program
may vary depending on the intake
water temperature, the load size and
soiling.
When a program is selected for the first
time, a time is shown which equals an
average program running time with
cold water.
The program can be locked. To use this
function, see "Settings J - Program
lock".
The time values in the program guide
correspond to the program running
times with standard loads and standard
temperatures.
Each time a program is run, the
electronic adjusts the program running
time according to the water intake
temperature and the load size.
36
Use
At the end of a program
At the end of a program the display
shows
Dishes tends to chip if removed still hot
from the dishwasher.
Let the dishware cool.
After turning off the dishwasher open
the door slightly. The dishes will cool
much faster.
^
^
^ If the dishwasher is not used for a
Program finished.
Open the dishwasher and unload the
dishes.
Turn the dishwasher off by touching
the s control.
The dishwasher continues to use
electricity until turned off with the
s control.
longer period of time, e.g.
vacationing, turn off the water supply.
Interrupting a program
A program is interrupted as soon as the
door is opened. If the door is closed,
the program will continue from where it
was interrupted.
Open the door with care. The
,
water in the dishwasher is hot.
Danger of scalding. Before closing
the door again, leave it ajar for
approx. 20 secs. This will enable the
temperature in the wash cabinet to
settle. Close the door firmly until it
clicks into place.
37
Use
Changing a program
If the detergent flap is already open, do not change the
program.
If a program has already started and you wish to change it:
Sensor Wash
Pre-rinse
Time left 1:30 h
Select Cancel.
^
^ Confirm the message
Cancel program? with OK.
The program is canceled.
Sensor Wash
Program finished
^
Select
Main menu.
The display changes to the main menu.
^
Select and start the desired program.
12:00
Cancel °
12:00
Main menu °
38
Delay start
Additional options
The start time of a program can be delayed from 15 minutes
to 24 hours in 15-minute-increments.
When using the "Delay Start" function, make sure that the
detergent compartment is dry before adding detergent.
Wipe dry with a cloth if necessary. Otherwise the
detergent could stick together and not completely rinse
out.
Liquid detergent should not be used when selecting
"Delay Start", the detergent could leak.
It is recommended to add the detergent and lock the
,
dishwasher door to prevent children from coming in
contact with the detergent.
^ Turn the dishwasher on by touching the s control.
^ Select the desired program.
^ Select
Start time.
The most recent saved start time will be displayed.
Sensor Wash 1:32 h
° Options
° Start time 12:00
End at 1:32
^
Select the desired start time with the
+/- sensors.
Holding the touch control automatically increases or
decreases the time.
The end time is automatically adjusted.
^
Confirm with
^
Select
OK.
Start.
12:00
+ °
- °
OK °
39
Additional options
Sensor Wash
Start at 12:00
The program name and the start time are displayed.
The program starts automatically at the selected time.
Starting a program before the delay start has elapsed:
A program can be started before the delay start time has
elapsed. Proceed as follows:
^ Select
^ Select
Cancel and confirm with OK.
Main menu.
The display changes to the main menu.
^ A program can now be selected and started.
12:00
Cancel °
40
Settings J
The "Settings J" menu allows you to adjust standard settings
Open the Settings J menu
Turn the dishwasher on by touching the s control.
^
The main menu shows in the display.
If the memory function is selected, the last selected program
is displayed. See "Settings J - Memory". In this case, switch
to the main menu by touching + C (Clear).
Main menu
° Glass cold
° Plate warming
° Settings F
^ Select
The display changes into the menu "Settings J".
° Language F
° Time of day
° Detergent
^
Select the desired setting.
The selected options in the submenus are marked with a
check L.
Settings J.
Settings
12:00
m
12:00
m
41
Settings J
Language J
The display contents can be shown in
different languages.
The displayed language can be
changed by the submenu
"Language J".
Select the desired language and
^
confirm with
The flag behind the word
"Language J" serves as a guide
when an unfamiliar language is
selected.
Select the respective menu with a
flag until the submenu
appears.
OK.
Language J
Time of day
The selection allows the clock to be
shown as 24 or 12 hours and to set the
clock.
Setting the clock format
Select
^
Select the desired clock format and
^
confirm with
Set the time of day
Select
^
^ Set the hour with
with
The display changes back into the
"Time of day" menu.
^ Touch + C to get back into the
"Settings J" menu.
Format.
OK.
Set manually.
+/- and confirm
OK. Set the minutes and confirm.
42
Settings J
Detergent
To achieve the best results the used
detergent can be set on your
dishwasher. The selection allows
"Powder", "Gel", "2 in 1" and "3 in 1"
tabs. The program cycle sequence will
be adjusted for the selected detergent.
Depending on the program the
program running time may increase.
Powder
When using powder detergent, salt and
rinse aid must be added for best
results. See "Filling the salt container"
and "Rinse aid". The rinse aid refill
message is activated.
Gel
When using gel detergent, salt and
rinse aid should be added for best
results. See "Filling the salt container"
and "Rinse aid". The rinse aid refill
message is activated.
2 in 1 tabs
The function "2 in 1" adjusts the
program cycle to the use of "2 in 1"
detergent products (detergent with
rinse aid). The rinse aid dosage and the
rinse aid refill message are deactivated.
3 in 1 tabs
The function "3 in 1" adjusts the
program cycle to the use of "3 in 1"
detergent products (detergent with
rinse aid and water softener salt). The
rinse aid dosage and rinse aid refill
messages are deactivated. The salt
usage for the water softener will be
reduced to
1
/3and1/4.
Do not use this extra feature
when using "2 in 1" detergents
–
(detergent with rinse aid).
if your tab water has a water
–
hardness of over 21°dH (21 gr/gal
[US]). See also the information from
the detergent manufacturer.
The cleaning and drying
performance of these detergent
products vary.
The detergent selection is set by
default to powder detergent.
^
Select the detergent used and
confirm with
OK.
43
Settings J
Water hardness
The dishwasher is equipped with a
sensor softener, which automatically
detects the hardness of your tap water.
After plumbing the dishwasher and
finishing a program, e.g. "Rinse &
Hold", the water hardness is displayed
in the menu "Water hardness".
Touch
^
OK to go back to "Settings J".
External water softener
If the dishwasher is connected to an
external water softener unit which is
regenerated with salt, the water
hadness must still be set in the
dishwasher to the water hardness from
your water softener unit.
If you don't know the value, set the
dishwasher water hardness to 8°d
(8 gr/gal [US]).
^ Set the dishwasher to the water
hardness of the external water
softener and confirm with
If the dishwasher is not longer
connected to an external water
softener, set the setting to
OK.
Auto.
Rinse aid
For best results, the rinse aid dosage
can be adjusted.
The dosage can be set in steps from 0
to 6 ml.
The dosage set by default to 3 ml of
rinse aid per program.
Use a higher setting if spots appear
^
on dry glassware.
Use a lower setting if streaking
^
appears on dishes or glasses.
Select the desired rinse aid dosage
^
with the
OK.
+/- controls and confirm with
Filter check
This selection allows you to set the
number of cycles run before the filter
check message shows.
You can select between 30 and
60 cycles.
The filter check message is set by
default to 40 cycles.
^
Select the desired interval and
confirm with
OK.
44
Adjust Sensor Wash
The "Sensor Wash" program can be
adjusted to clean stubborn but normal
soiling.
^
Select
and confirm with
Yes to activate this function
OK.
Reorganize program list
The order of the programs in the program list can be
reorganized. Frequently used programs can be saved to the
first three positions.
Settings J
Select program for position 1
° Normal B
12:00
m° Pots + Pans
° Cancel
Select the program to be saved to the first program list
^
position.
^ Confirm with
Continue.
^ Repeat for the program to be saved to the second and third
program list position.
The selected programs are now shown.
To change a program position, select
Back until you reach the
respective program position.
Summary
Pasta
Continue °
12:00
mPlastics
° Back
^
When finished reorganizing the program list, confirm with
Finished.
Finished °
45
Settings J
Save options
Additional options can be selected for
some programs, e.g. extended drying.
See "Use - Selecting options".
Save options allows you to save the
selected options for future use with this
program.
The function is turned off by default.
Select the desired setting and
^
confirm with
OK.
46
Child Safety Lock
The Child Safety Lock protects the dishwasher from misuse.
If the dishwasher is turned on while the Child Safety Lock is
activated, the display shows
The lock must be deactivated before the dishwasher can be
used.
As long as the Child Safety Lock is activated, the dishwasher
is locked every time it is turned on.
The function is turned off by default.
Settings J
The appliance is locked.
^
Select
On to activate this function and confirm with OK.
Canceling the Child Safety Lock
Unlocking the dishwasher
^ Turn the dishwasher on by touching the s control.
The message
^ Confirm with
° Yes
^
Select the option
Child Safety Lock
W
The appliance is locked shows.
OK.
Deactivate Child Safety Lock?
No °
Yes.
The appliance is unlocked
The dishwasher is unlocked and ready to use.
47
Settings J
Program lock
The running program can be locked. This function prevents
accidentally changing a program during use.
You can select if the program lock should be activated or not.
The actual locking of the program is done when a program is
started.
The function is turned off by default.
Program lock
° Yes
° No B
^ Select
Yes to activate this function and confirm with OK.
^ Touch + C to go back to the main menu.
12:00
OK °
48
Locking a program
Settings J
To lock a program, a program must be started first.
Select a program and begin it with
^
° W
Select ).
^
^
Select
On to activate this function and confirm with OK.
The program is locked. It stays locked until the lock is
deactivated.
To cancel a running program, the program lock must be
deactivated first.
Once the program is finished, deactivate the lock or turn the
dishwasher off and on again before starting a new program
or selecting settings.
Deactivating the program lock
° X
Start.
Sensor Wash
Main wash
Time left 1:23 h
Sensor Wash
Main wash
Time left 1:04 h
12:00
Cancel °
12:00
^
Select $ and confirm with
^
Select
Off to deactivate this function and confirm with OK.
OK.
The program is unlocked. Any selections can be made.
49
Settings J
Temperature
The temperature can be displayed in
°C/Celsius or °F/Fahrenheit.
The temperatures are shown in
°C/Celsius by default.
Select the desired temperature unit
^
and confirm with
OK.
Buzzer
When the buzzer is activated, a tone
sounds at the end of a program and if a
fault occurs.
The buzzer at the end of a program is
turned off by default.
Buzzer at the end of a program
The buzzer at the end of a program
sounds five times in intervals with a
brief break. The buzzer sounds up to
one hour if the dishwasher in not turned
off.
Buzzer volume
Two buzzer volumes can be selected or
the buzzer can be deselected.
Off
The buzzer tone at the end of a
program is turned off.
Soft
The tone sounds in a soft volume.
Loud
The tone sounds in a loud volume.
^ Select the desired volume or
deactivate the buzzer.
^ Confirm with
OK.
Buzzer in case of a fault
The buzzer for a fault sounds
continuously. The buzzer sounds up to
two minutes if the dishwasher is not
turned off or the fault is fixed.
The buzzer for a fault cannot be
turned off.
50
Settings J
Keypad tone
A tone will sound when a control is
touched.
The keypad tone is turned on by
default.
Select the desired option and confirm
^
with
OK.
Brightness
The display brightness can be adjusted
in 17 levels.
The brightness is set to level 8 by
default.
^ Select the desired brightness and
confirm with
OK.
Contrast
The display contrast can be adjusted in
17 levels.
The contrast is set to level 8 by default.
^
Select the desired contrast and
confirm with
OK.
Standby
To save energy the display is turned off
10 minutes after a control is touched.
The standby indicator flashes.
To turn the display on again, touch any
control.
The function is turned off during a
running program by default.
Select the desired option and confirm
^
with
OK.
Memory
The memory function saves the last
selected program.
If you turn the dishwasher off and on
again or open and close the door after
a program has finished, the display
shows not the main menu but the last
selected program.
The function is turned on by default.
^ Select the desired option and confirm
with
OK.
51
Settings J
Dealer
Demo modes are only for
showrooms.
The dishwasher has three demo
programs for showrooms.
The programs "Demo mode" and
"Endless demo mode" show the use
and function range of the dishwasher.
Demo mode:
–
The program is started by touching a
control. It runs once and must be
started again.
–
Endless demo mode:
The program starts after it was
activated and runs in a loop until it is
turned off.
–
Demo wash sound:
The program activates the pumps to
demonstrate the wash sound.
Turning the demo mode on
Factory default
All settings can be reset to factory
default.
Confirm the message
^
factory default?
Confirm the information
^
are reset to factory default
OK.
Reset to
with OK.
All settings
with
Leaving the "Settings J menu"
To leave the "Settings J" touch the + C
control. The main menu shows.
^
Select the desired option and confirm
with
OK.
^
Confirm the message
demo mode?
^
Touch any control to start the
with OK.
Activate
selected demo mode.
^
To cancel the demo mode, touch any
control again and confirm with
OK.
Turning the demo mode off
^
Select
mode and confirm with
^
Confirm the message
demo mode?
52
Off to deactivate the demo
OK.
Deactivate
with OK.
Frequently asked questions
With the aid of the following guide, minor problems can be fixed without a service call.
Repairs should only be carried out by a qualified and trained person in
,
accordance with local and national safety regulations. Unauthorized repairs
could cause personal injury or machine damage.
Technical faults
Issue Possible fault Solution
After the dishwasher
was turned on the
display stays off and the
stand by indicator does
not flash.
The dishwasher stops
during a program.
The buzzer sounds.
The display shows the
following:
Technical fault FXX
Call Technical Service
The buzzer sounds. The
display shows the
following:
Fault Waterproof F70
The machine is not
Insert the plug.
plugged in.
The fuse has tripped. Reset the circuit breaker.
Make sure it is a 15 A
breaker.
The fuse has tripped. Reset the circuit breaker.
Make sure it is a 15 A
breaker.
There may be a technical
fault.
– Turn the dishwasher off
by touching the s
control.
After a few seconds:
– Turn the dishwasher
on.
–
Select the desired
program.
–
Select
Start.
If the problem persists,
call Technical Service.
The waterproof system
has activated.
–
Turn off the water
supply.
–
Call Miele Technical
Service.
53
Frequently asked questions
Problems water intake/drain
Issue Possible fault Solution
The buzzer sounds.
The display shows the
following:
No water intake
Open the water faucet
Fault water intake FXX
The water supply is
closed.
Fault F12/F13: Fault in
the water intake.
Open the water supply all the
way.
Before fixing the fault:
Turn the dishwasher off by
–
touching the s control.
Open the water supply all
–
the way and restart the
program.
– Clean the water intake filter,
see "User Maintenance
Instructions".
– The water pressure at the
water connection is lower
than 4.35 psi. Consult a
plumber.
54
Frequently asked questions
Issue Possible fault Solution
The program "Energy
Saver" displays the
fault:
Water intake temp. too
low
The buzzer sounds.
The display shows
the following:
Drain fault FXX
The intake water does not
have a minimum
temperature of 115°F
(45°C). See "Plumbing Connection to the water
supply".
Fault F11: Fault in the
water drain. There might
be water in the wash
cabinet.
Restart the program.
–
If the fault is displayed
–
again, use a different
program.
Before fixing the fault:
Turn the dishwasher off s.
–
Clean the triple filter.
–
Clean the drain pump and
–
the non-return valve.
Clean the drain pump and
–
the non-return valve.
See "User Maintenance
Instructions" for instructions
on the above.
– Remove any kinks in the
drain hose.
55
Frequently asked questions
General problems with the dishwasher
Issue Possible fault Solution
The display remains
off.
The buzzer sounds
during a running
program. The display
shows the following:
Salt container lid
Close the salt container lid
The display shows the
following:
Middle spray arm blocked
or
Lower spray arm blocked
The display has gone
into "Standby" mode to
save energy.
The salt container lid
was not closed
properly.
The middle or lower
spray arm is blocked
by dishware.
The spray arm jets of
the middle or lower
spray arm are clogged.
Touch any control.
See "Settings J - Standby" for
more info.
Close the salt container lid
–
If the salt container lid
opened during a running
program, also:
Turn the dishwasher off
–
and on again with the s
control.
– Restart the program.
Open the dishwasher door
and rearrange the items
blocking the spray arms.
– Turn the dishwasher off by
touching the s control.
Then:
– Clean the spray arms. See
"User Maintenance
Instructions".
56
Frequently asked questions
Issue Possible fault Solution
Detergent is left in the
dispenser at the end of a
program.
The detergent lid cannot
be closed properly.
The door and the
interior walls are still
wet after a program has
finished.
Water remains in the
wash cabinet at the end
of a program.
The dispenser was damp
when detergent was
added.
Detergent residue is
blocking the catch.
This is not a fault. It is the
normal operating mode of
the drying system.
The triple filter in the wash
cabinet is clogged.
The drain pump or the
non-return valve may be
blocked.
The drain hose is kinked. Remove any kinks from
Dry the dispenser before
adding detergent.
Remove the residue.
The moisture will
evaporate after a short
time.
Before fixing the fault:
Turn the dishwasher off
–
by touching the s
control.
Clean the triple filter. See
"User Maintenance
Instructions".
Clean the drain pump and
the non-return valve, see
maintenance instructions.
the drain hose.
57
Frequently asked questions
Sounds
Issue Possible fault Solution
There is a knocking
noise in the wash
cabinet.
There is a rattling
noise in the wash
cabinet.
There is a knocking
noise in the water
pipes.
The spray arm is hitting an
item in the basket.
Items are not secure in the
wash cabinet.
This may be caused by
the installation or the
diameter of the pipe.
Interrupt the program,
rearrange the items
blocking the spray arm.
Interrupt the program and
rearrange loose items.
This has no effect on the
dishwasher. If in doubt
contact a plumber.
58
Frequently asked questions
Poor cleaning results
Issue Possible fault Solution
The dishes are not
clean.
There are smears on
glasses and cutlery,
bluish sheen on the
surface of glasses
and a film that can
be wiped off.
The dishes were not loaded
correctly.
The program was not
powerful enough.
Stubborn but normal soiling
(e.g. tea).
Not enough detergent was
dispensed.
The spray arms are blocked
by items.
The triple filter is clogged or
not correctly inserted. The
spray arm jets may be
clogged.
The drain pump or the
non-return valve is blocked.
Wash water will run back
into the wash cabinet.
The rinse aid dosage is set
too high.
See "Loading the
dishwasher".
Select a more intensive
program, see "Program
Guide".
Use the function "Adjust
Sensor Wash".
See "Settings J - Adjust
Sensor Wash".
Use more detergent, see
"Adding detergent".
Turn the spray arm and
rearrange the dishes if
necessary.
Clean the filter and insert it
correctly, see "User
Maintenance Instructions".
Clean the drain pump and
the non-return valve. See
"User Maintenance
Instructions".
Reduce the dosage. See
"Settings J - Rinse aid".
59
Frequently asked questions
Issue Possible fault Solution
Dishes are not dry,
glasses and
cutlery are
spotted?
White residue is
visible on cutlery
and dishes,
clouding occurs on
glassware and film
can be wiped off.
The rinse aid setting may
be too low or the rinse aid
reservoir is empty.
Dishes were taken out too
soon.
"2 in 1" or "3 in 1" products
were used. These products
have a low drying effect.
The detergent "2 in 1" or
"3 in 1" is set, but another
product was used.
Not enough rinse aid was
used.
The salt container is empty. Refill salt, see "Before using
Unsuitable "2 in 1" or "3 in 1"
products were used.
The automatic water
softener unit is defective.
Increase the dosage, refill the
reservoir or switch the rinse
aid product when refilling, see
"Before using for the first
time".
Leave dishes in longer, see
"Use".
Set the detergent type to
"Powder" and insert rinse aid.
See "Settings J - Detergent".
Select the detergent setting to
the detergent used. See
"Settings J - Detergent".
Increase the dosage. See
"Settings J - Rinse aid".
for the first time".
Use a different detergent.
Try normal tabs or powder
detergent.
Call Miele Technical Service.
60
Frequently asked questions
Issue Possible fault Solution
Glasses are
discolored and the
film cannot be wiped
off.
Glasses are dull and
discolored and film
cannot be wiped off.
Tea or lipstick stains
have not been
completely removed.
Plastics are
discolored.
There are rust stains
on cutlery.
Detergent deposits. Use a different detergent.
Glasses are not
dishwasher safe.
The wash temperature of
the selected program was
too low.
The detergent has a low
bleaching effect.
Natural dyes e.g. from
vegetables may be the
cause. Not enough
detergent was used to
break down natural dyes.
The affected items are not
corrosion resistant.
No program was run after
refilling salt. Salt residuals
got in the wash cycle.
There is no remedy. Only
wash dishwasher safe
glasses in the dishwasher.
Select a program with a
higher temperature.
Use a different detergent.
Use more detergent, see
"Adding detergent".
Discoloration is permanent.
There is no remedy. Only
wash dishwasher safe
cutlery in the dishwasher.
Start the "Short" program
without a load after refilling
salt.
61
After sales service
Repairs
In the event of a fault which you cannot
correct yourself please contact the
Miele Service Department at the phone
number on the back of this booklet.
Please quote the model type and
^
number of your appliance.
These can be found on the data plate
along the right edge of the door.
PC Update
The Program Correction (PC) allows a
technician to update the dishwasher to
make use of new technology.
When, for example, technological
developments offer advanced
modifications to your existing program
cycles a service technician will be able
to input these into your machine
controls via the indicator light marked
PC. Miele will provide information when
such possibilities become available.
MieleCare
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5 years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
62
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
www.store.miele.com
To transport the dishwasher, e.g. when
moving to a new home, note the
following:
Empty the dishwasher.
–
Secure any loose parts, e.g. hoses,
–
cables, cutlery baskets.
Transport the dishwasher in the
–
upright position. If unavoidable it
may be transported on its back. Do
not transport it on its side or on the
door. Residual water in the machine
could leak and cause electrical
damage.
Transport
63
64
User Maintenance Instructions
To prevent accidents
and machine damage,
read these instructions
before installation or use.
Cleaning and Care
Check and clean your dishwasher
regularly (approx. every 4-6
months). This will help avoid
problems and faults.
Abrasive cleaning agents, glass
,
cleaning agents, all-purpose
cleaners, thinner or ammonium
cleaners should not be used on the
dishwasher. They will damage the
surface.
Wash cabinet
Generally, the wash cabinet is self
cleaning if the correct amount of
detergent is used.
The wash cabinet can be cleaned with
a dishwasher cleaner such as "Dis
Cleaner" available from your Miele
dealer, Miele or online at
www.store.miele.com.
Door and the door seal
Exterior
Only use a conditioner suitable for
^
your kitchen cabinetry.
Clean wood only with a damp cloth
^
and wipe dry.
Stainless steel surfaces can be
^
cleaned using a non-abrasive
stainless steel cleaner or with
dishwashing detergent and warm
water.
To help prevent resoiling, a
^
conditioner for stainless steel can
also be used. Apply sparingly with
even pressure.
Control panel
^ Plastic control panel should only be
wiped with a damp cloth or suitable
cleaning agent designed for use on
plastic.
^ For stainless steel panels see
information above.
^
Wipe the door seals regularly with a
damp cloth to remove food deposits.
^
Food residue and spilled liquids
should be wiped from the sides of the
dishwasher door. These are outside
of the wash cabinet and are not
cleaned by water from the spray
arms.
66
,
The stainless steel surfaces and
controls may become discolored or
damaged if not cleaned regularly.
The appliance front and controls are
not scratch proof.
Remove spills immediately.
Cleaning and Care
Triple filter system
The triple filter system in the base of the
wash cabinet prevents food from being
redeposited on dishes. It also protects
the circulation pump from damage
caused by foreign objects (e.g. broken
glass, bones, etc.).
The machine must not be used
,
without all the filters in place!
Check and clean the filter system every
4-6 months or whenever a foreign
object is trapped. The level of soiling
and time it takes before the filters need
cleaning will vary depending on
household.
The display shows
40 wash cycles (default setting).
The filter check frequency can be
set from 30 to 60 cycles. See
"Settings J - Filter check".
Filter check after
Cleaning the triple filter
Turn off the dishwasher before
^
cleaning.
^ Turn the handle counterclockwise to
release the triple filter system, a.
^ Remove the triple filter from the
machine. Clean any solid particles
and rinse under running water. Scrub
with a nylon brush if necessary.
^
Check and clean the triple filter.
^
Confirm with
The display changes to the program
menu.
OK.
67
Cleaning and Care
To clean the underside of the filter the
flap must be opened.
Return the filter so it lies flat in the
^
base of the wash cabinet.
^ Push the clips together a and open
the flap b.
^ Rinse under running water.
^ Close the flap so that the clip
engages.
^ Lock the filter by turning the handle
clockwise.
,The triple filter system must be
inserted and locked. Large particles
could get in the circulation system
and cause blockage.
68
Cleaning the spray arms
Sometimes particles of food get stuck
in the spray arm jets. The spray arms
should be inspected and cleaned every
4 - 6 months.
Turn off the dishwasher before
^
cleaning.
Removing the spray arms
Remove the cutlery tray (if present).
^
Press the top spray arm up to
^
engage the inner ratchet and
unscrew the spray arm.
Cleaning and Care
Pull the lower spray arm firmly
^
upwards to remove.
^
Lift up the middle spray arm, a, to
engage the ratchet and unscrew the
spray arm, b.
^
Remove the lower basket.
^
Use a pointed object such as a
toothpick to push food particles into
the spray arm jets.
^
Rinse thoroughly under running
water.
^
Return the spray arms and check
that they rotate freely.
69
Cleaning and Care
Cleaning the water inlet filter
A filter is incorporated into the intake
hose attached to the dishwasher’s shut
off valve. If your water is hard or the
pipes contain sediment, this filter may
clog and prevent enough water from
entering the wash cabinet.
The plastic housing of the water
,
connection contains electrical
wiring. Do not submerge the
housing in liquid.
Do not cut the intake hose or
submerge it in liquid.
Carefully remove the rubber seal.
^
Installing an in-line water filter
If your water contains a large number of
insoluble substances, a filter between
the water valve and the intake hose
connection is recommended. These
filters can be purchased from Miele.
Cleaning the filter
^ Turn off the dishwasher and pull the
plug.
^
Turn off the water supply.
^
Unscrew the intake hose.
^ Remove the filter using needle nose
pliers and rinse it under running
water.
^ Reinsert the filter and seal. Make sure
they are seated correctly.
^ Screw the intake hose back on the
water valve, checking that it is not
cross-threaded.
^
Slowly turn on the water supply and
test for leaks.
70
Cleaning the drain pump and
non-return valve
If the dishwasher is not completely
drained at the end of a program, the
drain pump or non-return valve may be
blocked.
Turn off the dishwasher and pull the
^
plug.
Remove the triple filter (see "Triple
^
filter system").
Use a jug or bowl to scoop water out
^
of the wash cabinet.
Cleaning and Care
The drain pump is beneath the
non-return valve (see arrow).
^ Remove all foreign objects from the
drain pump (glass or bone splinters).
^ Before returning the non-return valve,
check that the drain pump is not
blocked. Spin the propeller several
times in both directions to check for
obstructions.
^
Tilt the locking clamp to the side a.
^
Pull out the non-return valve b and
rinse it under running water.
^
Remove all foreign objects from the
non-return valve.
^ Carefully reinsert the non-return valve
and secure it with the locking clamp.
,
Make sure the locking clamp
clicks into place!
71
72
Installation Instructions
For installation of the dishwasher
please refer to the Installation Sheet
supplied with these instructions.
Help to protect the environment
Disposal of the packing
material
The cardboard box and packaging
protect the appliance during shipping.
These materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old machine
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet, cut
off its power cord and remove any
doors to prevent hazards.
74
Electrical connection
Installation, repairs and other
,
work by unqualified persons could
be dangerous. The manufacturer
cannot be held responsible for
unauthorized work.
Check that the voltage, frequency
and fuse rating shown on the data
plate match the household mains
supply.
The power outlet must be accessible
after installation. Do not use an
extension cord to connect the
dishwasher to the mains. Danger of
overheating! See data plate on the
right side of the door.
A damaged power cord must only
be replaced with a genuine Miele
cord by a Miele service technician.
GROUNDING INSTRUCTIONS
THIS APPLIANCE MUST BE
GROUNDED.
Improper connection of the
,
equipment grounding conductor
can result in electric shock. Do
not modify the plug provided with
the appliance; if it will not fit the
outlet, have a proper outlet
installed by a qualified electrician.
If there is any question
concerning the proper electrical
connection or grounding of this
appliance to the power supply,
please consult a licensed
electrician or call Miele’s
Technical Service Department:
U 1-800-999-1360
V 1-800-565-6435
Specifications
The dishwasher comes equipped with a
4 ft (1.2 m) power cord with a molded
plug for connection to 120 V, 60 Hz,
15 A grounded receptacle.
In the event of a malfunction or
breakdown, grounding will reduce the
risk of electric shock by providing a
path of least resistance for the electrical
current. This appliance is equipped
with a cord having an equipment
grounding conductor and a grounding
plug. The plug must be plugged into an
appropriate outlet that is installed and
grounded in accordance with all local
codes and ordinances.
75
Plumbing
Connection to the water supply
Do not drink water from the
,
dishwasher!
The dishwasher can heat its own
–
water to the temperature required by
the wash program. This allows for
connection of the machine to either a
hot or cold water source. For lowest
energy consumption connect the
dishwasher to a cold water source.
For fastest possible wash times, with
slightly higher energy consumption,
connect the dishwasher to a hot
water source. All programs use hot
water in the rinse cycles.
– To use the "Energy Saver" program, a
hot water connection of minimum
115°F / 45°C and maximum 140°F /
60°C (water intake temperature) is
necessary.
The higher the water intake
temperature, the better the cleaning
and drying results.
The water inlet hose comes
–
equipped with a 3/4" female hose
thread connector. This can be
directly connected to a water supply
with 3/4" MHT (male hose thread
ends).
Water pressure: Must be between
–
4.5 - 145 psi (0.3 - 10 bar).
If the water pressure is lower, the
display shows
see "Frequently asked questions".
Water intake
–
The inlet hose is approximately 5 ft.
(1.5m) long. A 5 ft. (1.5m) extension
hose is available from the Technical
Service Parts Department at the
phone number listed on the back of
this manual.
76
,
Do not cut the intake hose. It
contains electrical wiring. If the hose
is cut, the dishwasher will not work.
There will be a water leak and you
could be injured. If the hose is too
long, coil it neatly and place it
behind the machine.
Plumbing
Drainage
The machine comes equipped with a
–
built-in non-return valve on the
discharge side to prevent waste
water from flowing back into the
dishwasher.
The dishwasher is equipped with a
–
5 ft (1.5 m) flexible drain hose with an
internal diameter of 7/8" (22 mm).
Drain hose extensions and adapters
–
can be ordered from Miele.
The maximum drain hose length is
13 ft. (4 m), max. drain height: 39"
(1 m).
– If the hose is to be directly fitted to
the drainage outlet on site, use the
supplied hose clip.
– The hose can be installed to the left
or right side.
– The existing drain pipe for the drain
hose is designed for various hose
diameters. The drain pipe must be
shortened if the drain pipe extends
too far into the drain hose. The drain
hose could get clogged.
–
The drain hose must not be
shortened.
–
Make sure the hose is installed
without kinking, pressure or being
pulled.
Venting the drainage system
If the dishwasher drain hose is
connected to a floor drain or to a drain
pipe that is less than 8" (20 cm) above
the floor, the drain must be vented.
Otherwise the water inside the
dishwasher may siphon out during the
wash program.
Open the dishwasher door and
^
remove the lower basket.
Pull the lower spray arm firmly
^
upwards to remove.
^
Cut off the vent cap located at the
right rear of the triple filter system, as
illustrated.
777879
Alterations reserved/5006
G 2830 SCi /
M.-Nr. 06 696 130 / 02
en-US
Loading...
