Miele G 1530 Operating instructions

Operating instructions

for dishwashers

To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the first time.

G

M.-Nr. 06 702 760

Contents

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 13

To call up the water hardness level in the display . . . . . . . . . . . . . . . . . . . . . . . . . 14

External water softening system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Spiked insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hinged cup rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Positioning rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Support rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Variable inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Vario inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cutlery tray (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cutlery basket (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

2

Contents

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Glass care indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Programme sequence indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Tab function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Buzzer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Factory default setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Adjust sensor wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the door front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Checking the filters in the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

The dishwasher does not fill/drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Unsatisfactory washing result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

3

Contents

Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

For testing institutes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4

Appliance overview

Description of the appliance

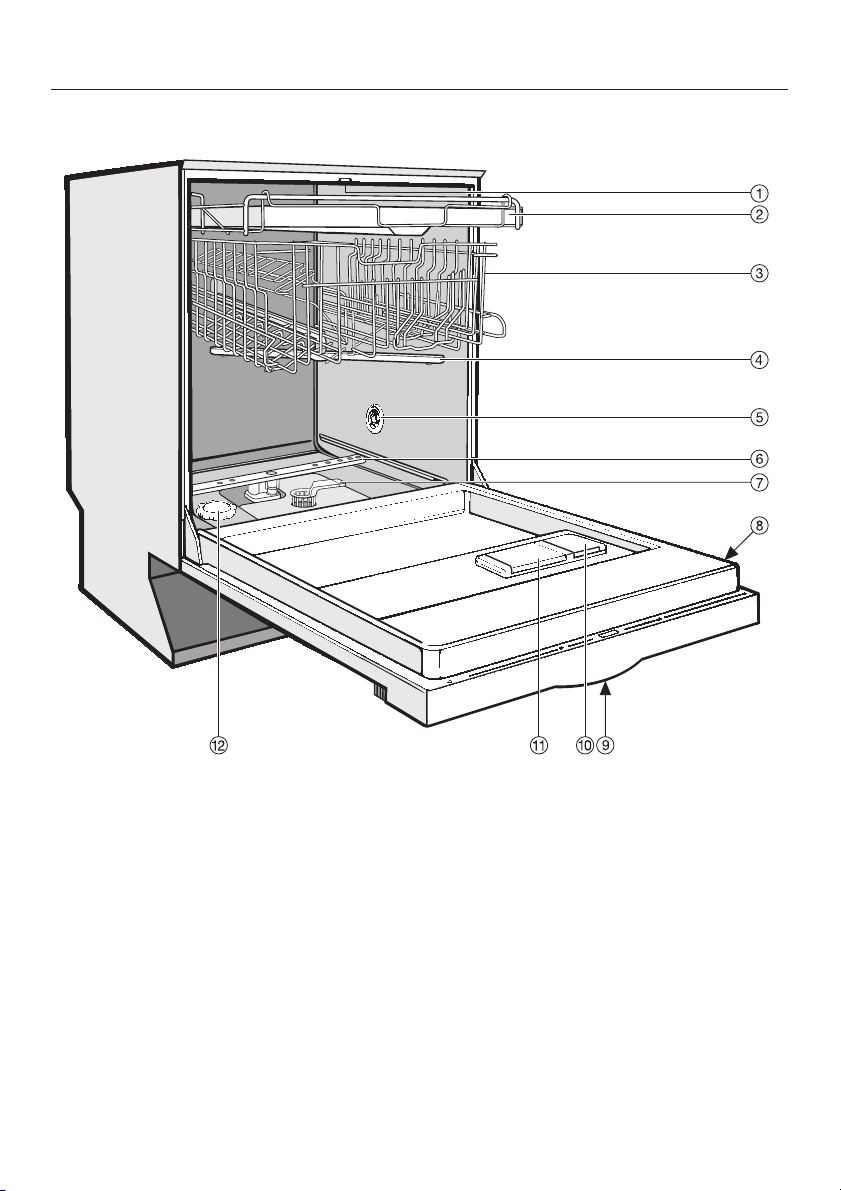

a Upper spray arm (not visible)
b Cutlery tray (depending on model)
c Upper basket
d Middle spray arm
e Air inlet for drying

(depending on model)

f Lower spray arm

g Filter combination
h Data plate
i Child safety lock in door grip (not

visible)

j Rinse aid reservoir
k Dual compartment detergent

dispenser

l Salt reservoir

5

Description of the appliance

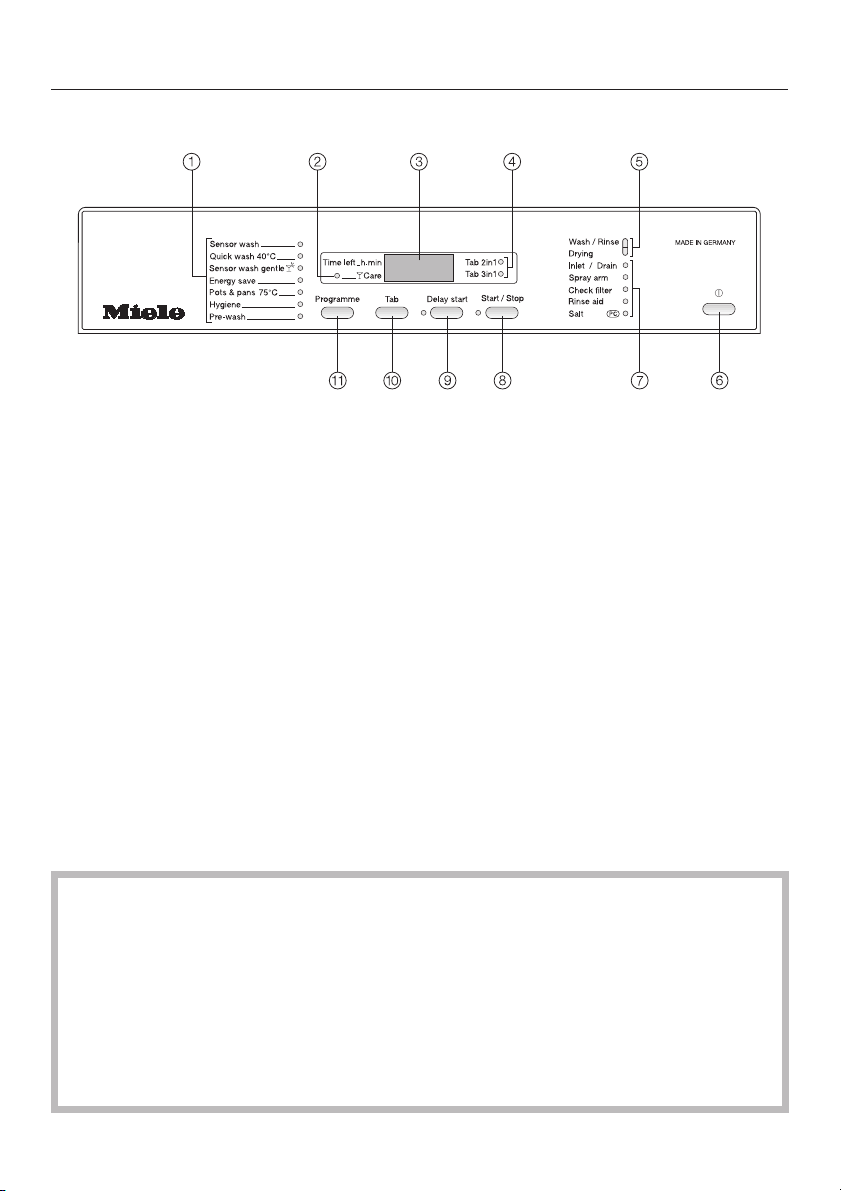

Control panel

a Programmes
b Glass care indicator
c Display
d Tab indicator
e Programme sequence indicators
f On/Off button s

This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1520 / G 1530 = G 1XXX
G 2520 / G 2530 = G 2XXX

g Check/Refill indicators
h Start/Stop button with indicator light
i Delay start button with indicator light
j Tab button
k Programme selector button

The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.

6

Warning and Safety instructions

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property. To
avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.

Correct usage

This dishwasher is intended

exclusively for cleaning domestic

crockery and cutlery in a domestic
household. Using it for purposes other

than those for which it was designed,
as well as any alterations or
conversions to the appliance would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.

Transport

Should you ever need to move the
dishwasher, e.g. when moving

house, note the following:
–

Empty the dishwasher,

–

Secure any loose parts, e. g. hoses,
mains cable, cutlery baskets, lower
basket

Delivery

Before setting up the appliance,

check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.

Please ensure that the packaging

material is offered for recycling.

Installation

The dishwasher must be installed

and connected in compliance with
the installation plan.

The dishwasher must only be

plugged into the electricity supply
via a suitable switched socket. The
electrical socket must be easily
accessible after the dishwasher is
installed so that it can be disconnected
from the electricity supply at any time.
(See "Electrical connection").

There must be no electrical

sockets behind the dishwasher.
Danger of overheating and fire risk if
the dishwasher were to be pushed up
against a plug.

In order to ensure stability,

built-under and integrated
dishwashers must only be installed
under a continuous worktop which is
secured to adjacent cabinetry.

–

Transport the dishwasher in the
upright position only.

7

Warning and Safety instructions

The dishwasher must not be

installed under a hob. The high
radiant temperatures which are
sometimes generated by a hob could
damage the dishwasher. For the same
reason it should not be installed next to
open fires or other appliances which
give off heat, such as heaters etc.

If you want to convert your

freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.

Do not connect the dishwasher to

the mains supply until it has been
fully installed.

Before connecting the appliance,

check that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.

The electrical safety of this

appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is most important that this
basic safety requirement is regularly
tested and where there is any doubt,
the electrical system in the house
should be checked by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).

This equipment may only be used

in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.

A damaged appliance could be

dangerous. Switch off at the mains
and call your Miele supplier or the Miele
Service Department.

The plastic housing of the water

connection contains an electrical
component. The housing must therefore
not be dipped in water.

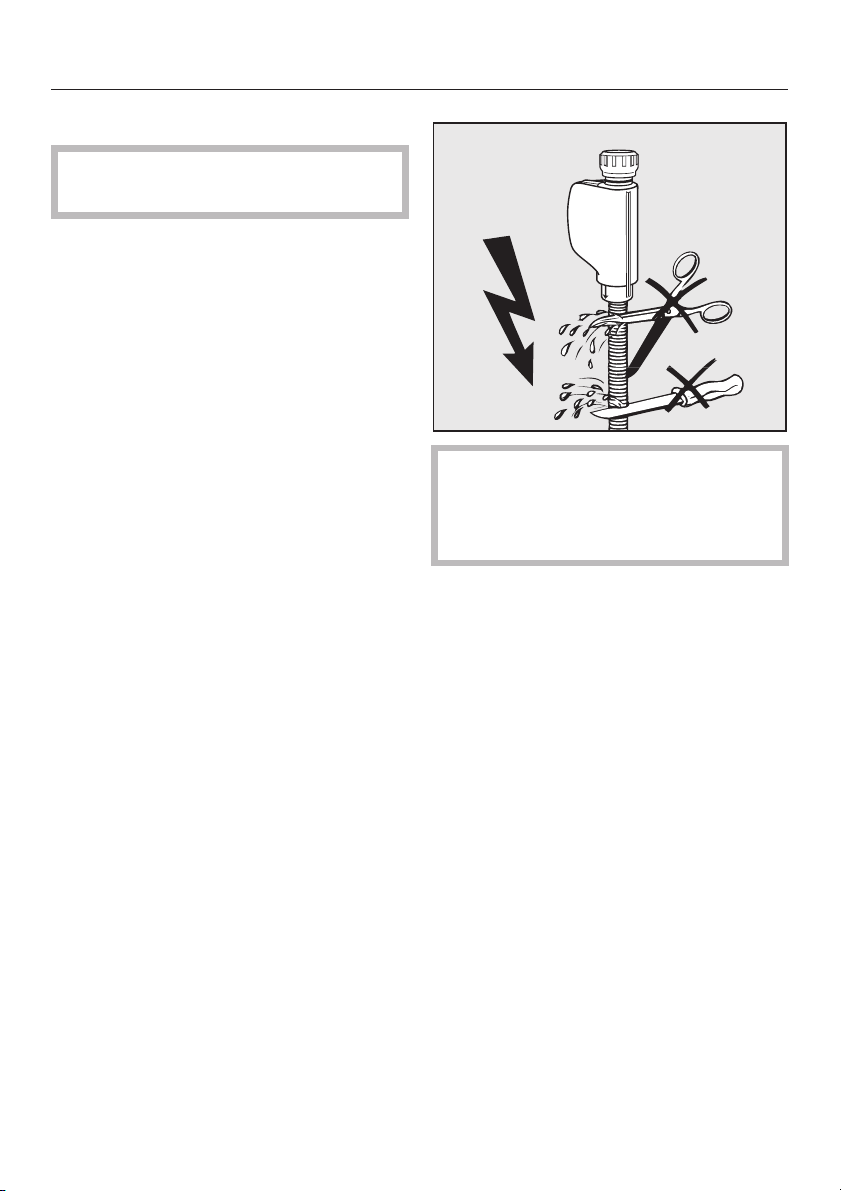

There are live wires in the water

inlet hose. Never cut the water inlet
hose, even if it is too long.

Do not connect the appliance to

the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).

Use

Do not use solvents in the

dishwasher. Danger of explosion.

Do not inhale or ingest dishwasher

detergent! Dishwasher detergents
can cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if detergent has been swallowed or
inhaled.

-

8

Warning and Safety instructions

Avoid leaving the door open
unnecessarily, as you could trip

over it.

Do not sit or lean on the opened

door. This could cause the
dishwasher to tip and be damaged and
you could get injured.

Only use detergent and rinse aid

formulated for domestic
dishwashers. Do not use washing-up
liquid.

In an appliance with a cutlery

basket (depending on model)
cutlery is cleaned and dried more
efficiently if placed in the basket with
the handles downwards. However, to
avoid the risk of injury place knives and
forks etc. with the handles upwards.

Please only use special coarse

grained dishwasher salt for
reactivation, as other salts may contain
insoluble additives which can impair
the functioning of the softener.

Plastic items which cannot

withstand being washed in hot
water, such as disposable plastic
containers, or plastic cutlery and
crockery should not be cleaned in the
dishwasher. The high temperatures in
the dishwasher may cause them to melt
or lose shape.

On models with "Delay start", make

sure that the dispenser is dry
before adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run into
the dishwasher before it is required.

Safety with children

This appliance is not a toy! To

avoid the risk of injury do not allow
children to play in or around the
dishwasher, or to operate it. There is
also a danger that children playing
might shut themselves in the
dishwasher.

Keep children away from

detergents. Dishwasher detergents
can cause burning in the mouth, nose
and throat if swallowed, or inhibit
breathing. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.

9

Warning and Safety instructions

To avoid damage to the
appliance and other materials

Do not fill the rinse aid reservoir

with powder or liquid detergent.
This will cause serious damage to the
reservoir.

Inadvertently filling the salt

reservoir with powder or liquid
dishwasher detergent always leads to
serious damage to the water softener.
Make sure you have picked up the
correct packet of dishwasher salt
before filling the salt reservoir!

Do not use commercial or industrial

detergents as these may damage
material and there is a risk of severe
chemical reaction.

The Miele Waterproof System offers

protection from water damage,
provided the following conditions are
met:

– The dishwasher is correctly installed

and plumbed in.

–

The dishwasher is properly
maintained and parts are replaced
where it can be seen that this is
necessary.

–

The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).

The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.

In countries where there are areas

which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.

Repairs and maintenance

Repairs may only be carried out by

suitably qualified and competent
technicians in accordance with current
local and national safety requirements.
Repairs and other work by unqualified
persons could be dangerous.

Always disconnect the appliance

from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).

If the connection cable is damaged

it must be replaced with a Miele
cable by a Miele approved service
technician only.

Disposal of your old appliance

When disposing of an old

dishwasher first make it unusable.
Disconnect, cut off the cable and the
plug from the cable. Make the door lock
inoperative by unscrewing the Torx
screw, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the
disposal of the appliance.

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.

10

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled. Ensure
that any plastic wrappings, bags etc.
are disposed of safely and kept out of
the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.

Disposal of your old appliance

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.

It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.

Energy saving washing

This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:

^ If your household water system is

suitable, this dishwasher can be
connected to a hot water supply, for
further economies. If the water is
heated by for example, solar panels,
this would be energy efficient.
However, if your water is heated by
electricity we would recommend
connection to cold water.

^

For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.

Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.

^

Choose the programme to suit the
type of crockery being washed and
the degree of soiling.

^

Select the Energy save programme
for energy-saving dishwashing.

^

Follow the detergent manufacturer’s
recommendations on detergent
dosage.

^

When using powder or liquid
detergent you can use
detergent if baskets are only half full.

1

/3less

11

Before using for the first time

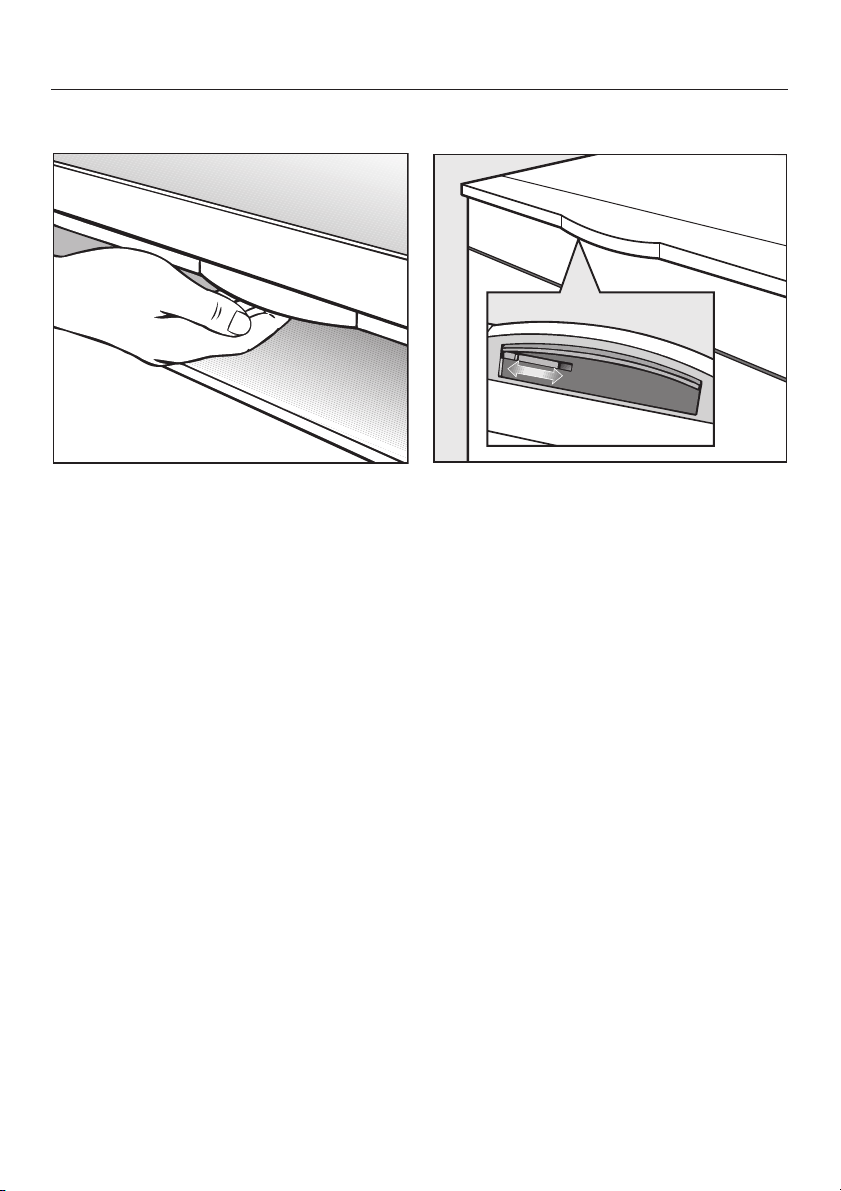

To open the door

^ Press the release catch inside the

door grip and pull forward.

If the door is opened during operation
all functions are automatically
interrupted.

To close the door

^ Push the baskets right in.

Child safety lock

Use the child safety lock to prevent
children opening the dishwasher door.

^ To lock the door, push the slide

underneath the door grip to the right.

^ To unlock the door, push the slide to

the left.

^

Then lift the door upwards and push
until it clicks into position.

12

Before using the appliance for
the first time you require:

approx. 2 litres of water,

–

approx. 2 kg dishwasher salt,

–

domestic dishwasher detergent,

–

rinse aid formulated for domestic

–

dishwashers.

Before using for the first time

Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been used
previously.

This dishwasher is fitted with a water
softener sensor which automatically
sets the water softener unit for the
local water hardness level.

13

Before using for the first time

To call up the water hardness
level in the display

After your dishwasher has been
through one programme cycle (e. g.
Pre-wash), you can check the water
hardness level measured by the water
softener sensor in the display.

This is shown in °d - German scale, and
can fluctuate depending on the quality
of the water.

Switch the dishwasher off with the

^

On/Off button s.

^ Press the Start/Stop button in and

whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Delay start button six times.
The "Delay start" indicator will flash

briefly six times at intervals.
The number after the p in the display is

the water hardness level in °d (see
chart).

^

Switch the dishwasher off with the
On/Off button s.

°d

German

scale

1
2
3
4
5
6
7
8

9
10
11
12
13
14

15

16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

37-50
51-60
61-70

mmol/l °f Value displayed

0.2

0.4

0.5

0.7

0.9

1.1

1.3

1.4

1.6

1.8

2.0

2.2

2.3

2.5

2.7

2.9

3.1

3.2

3.4

3.6

3.8

4.0

4.1

4.3

4.5

4.7

4.9

5.0

5.2

5.4

5.6

5.8

5.9

6.1

6.3

6.5

6.7-9.0

9.2-10.8

11.0-12.6

2
4
5
7

9
11
13
14
16
18
20
22
23
25

27

29
31
32
34
36
38
40
41
43
45
47
49
50
52
54
56
58
59
61
63
65

67-90

92-108

110-126

1
2
3
4
5
6
7
8

9
10
11
12
13
14

15

16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
50
60
70

14

Before using for the first time

External water softening
system

If your dishwasher is connected to an
external water softening system which
uses salt to reactivate, you will still need
to programme the dishwasher to the
correct water hardness level to achieve
good cleaning results.

Set the water softener unit of the
dishwasher to the water hardness level
of the water which is supplied from the
external water softening system. If you
do not know what this is, set the
dishwasher for 8°d (1.4 mmol/l).

^ Switch the dishwasher off with the

On/Off button s.

^ Press the Start/Stop button in and

whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.

The number after the p in the display is
the water hardness level in °d (see
chart).

Use the Start/Stop button to select

^

the value which equates to the water
hardness level of the water supplied
by the external water softening
system.
Each press on the button moves you
up a level. When the highest water
hardness level is reached, the setting
starts from the beginning again.

Switch the dishwasher off with the

^

On/Off button s.

If you disconnect the dishwasher
from the external water softening
system, set the value to P0.

If this does not happen, start the
procedure from the beginning again.

^

Press the Delay start button twice.

The "Delay start" indicator will flash
briefly twice at intervals.

15

Before using for the first time

Filling the salt reservoir

In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
softener unit.
The softener unit is suitable for a water
hardness level of up to 12.6 mmol/l
(70 °d). It requires dishwasher salt.

If you use "3 in 1" tabs in your
dishwasher you should still add salt
in order to achieve optimum results.
The amount of salt used is reduced
to between
amount if the "3 in 1" function is
selected.

1

/4and1/3of the normal

If the water in your area is very soft
and constantly lower than

0.7 mmol/l (4 °d) you do not need
to add dishwasher salt. The Salt

indicator light will come on the first
time you switch the dishwasher on. It
will go out automatically once the
sensor has detected that the water
is softer than 0.7 mmol/l.

Important: Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with
approx. 2 litres of water to enable
the salt to dissolve. Once the
dishwasher has been used, there is
always sufficient water in the
reservoir.

,

Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads
to serious damage to the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!

16

,

Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.

Before using for the first time

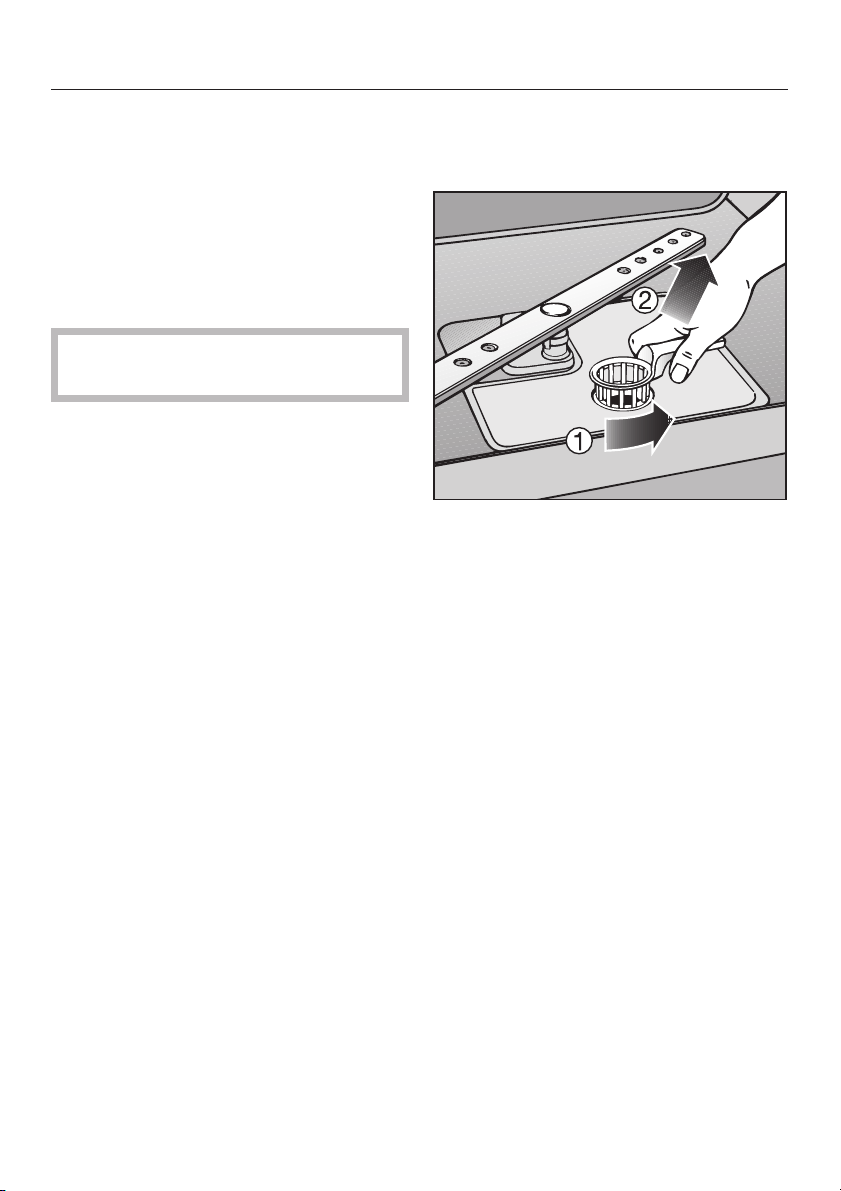

Remove the lower basket and

^

unscrew the salt reservoir cap.

Only open the salt reservoir when
you want to fill it with dishwasher salt
as water or salt solution will run out
of the reservoir when the cap is
removed.

Fill the reservoir with approx. 2 litres

^

of water (first use only).

^

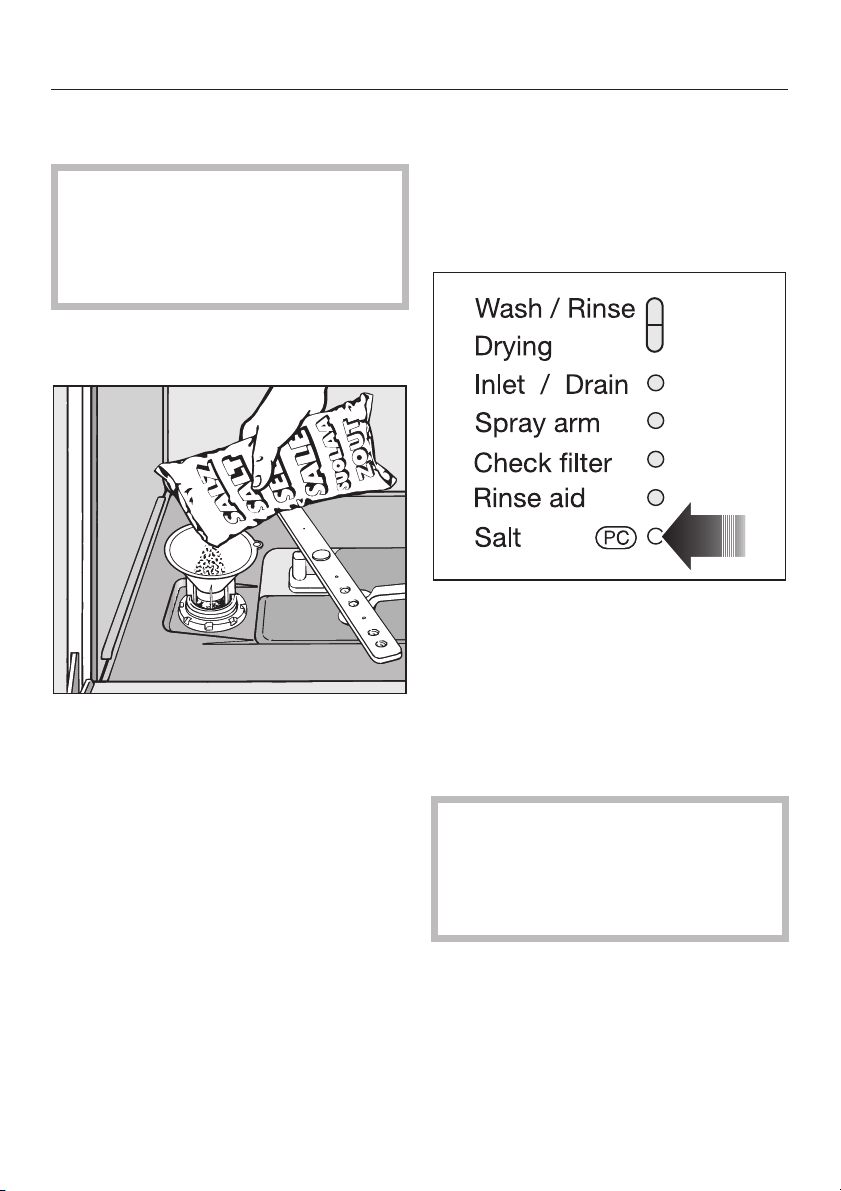

Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt
depending on the brand used.

As the salt reservoir is filled,
displaced water will overflow.

^

Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.

Salt indicator

Fill the salt reservoir with dishwasher

^

salt when the salt indicator light
comes on. (If it comes on during a
programme, wait until the end of the
programme).

After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.

,

After filling the salt reservoir, run
the Quick wash programme immedi
ately (without any crockery in the
dishwasher) to remove any traces of
salt water from the cabinet.

-

^

Run the Quick wash programme
immediately (without any crockery in
the dishwasher) to remove any traces
of salt water from the cabinet.

17

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.

Inadvertently filling the rinse aid

,

reservoir with powder or liquid
detergent always causes serious
damage to the reservoir. Only pour
rinse aid formulated for domestic
dishwashers into the reservoir.

Alternatively, it is possible to use
– Household vinegar with a max. 5%

acid content
or
– Liquid citric acid up to 50% acid

content.

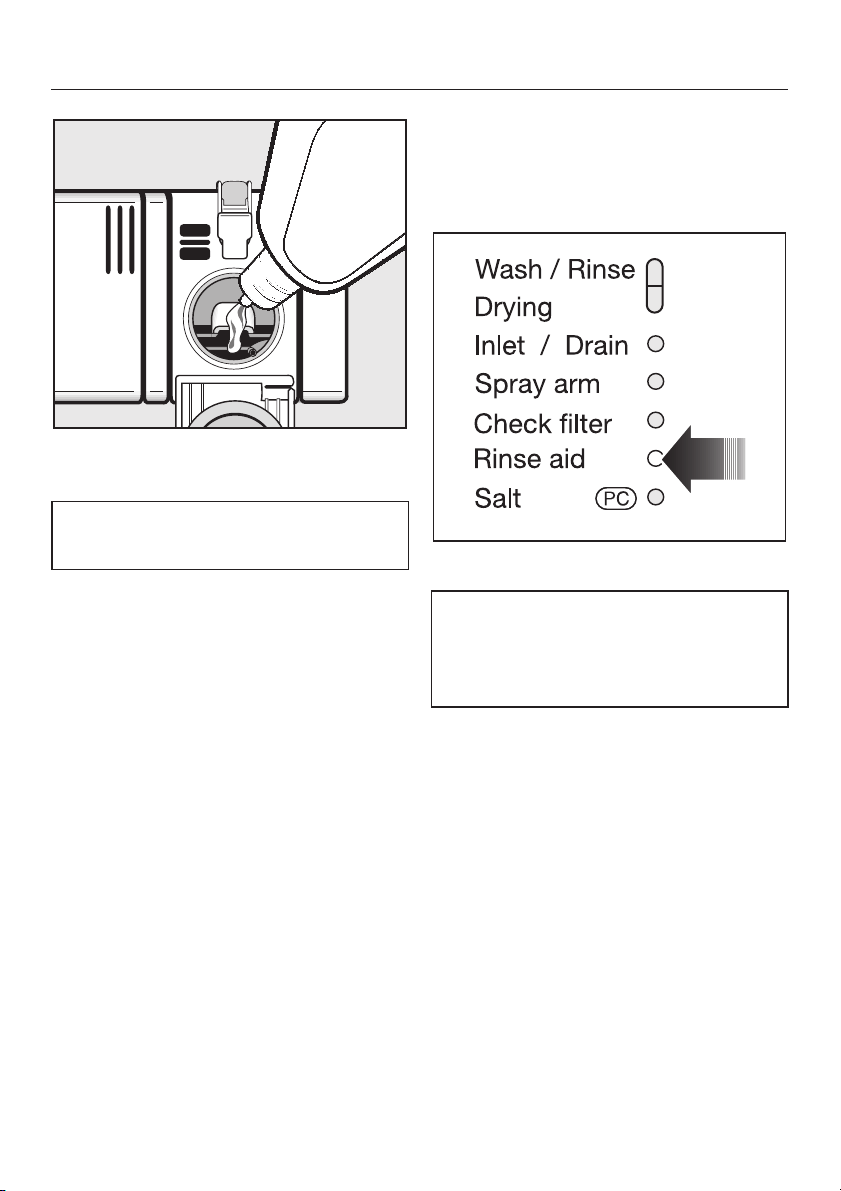

Adding rinse aid

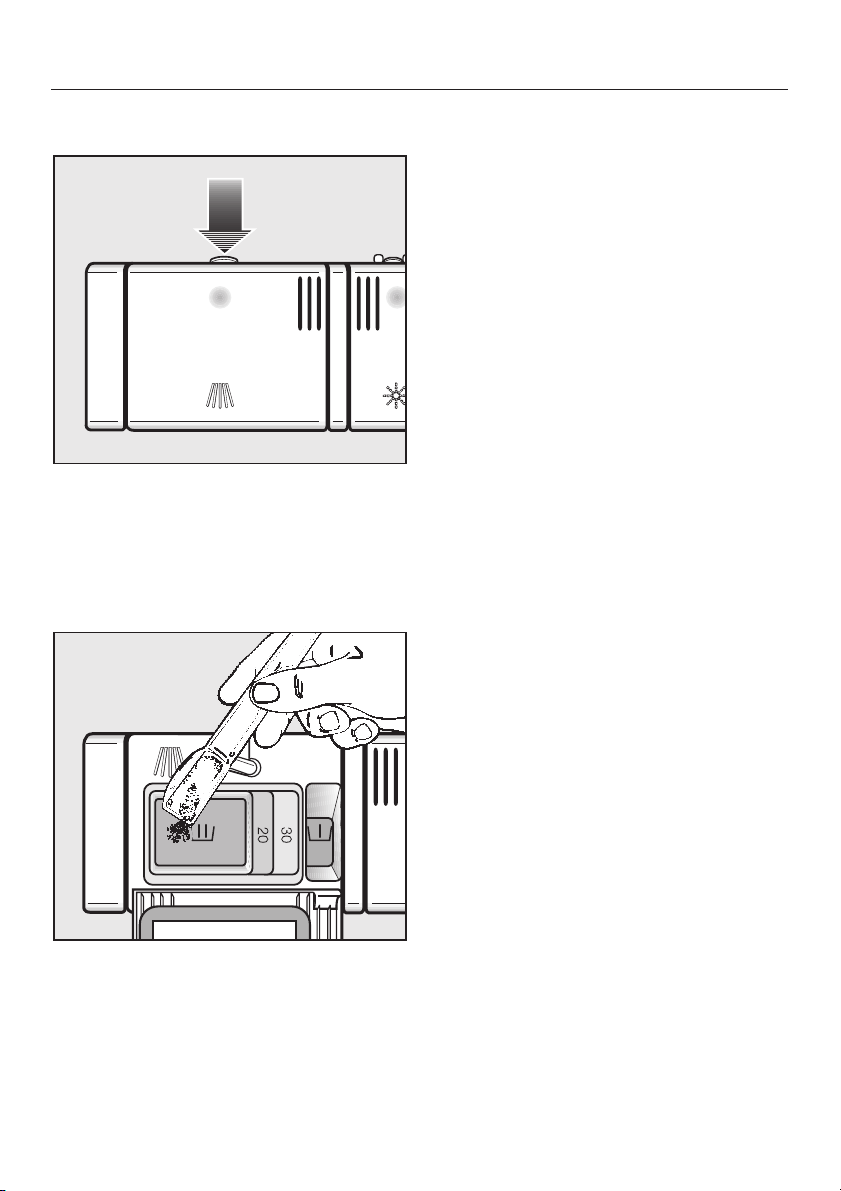

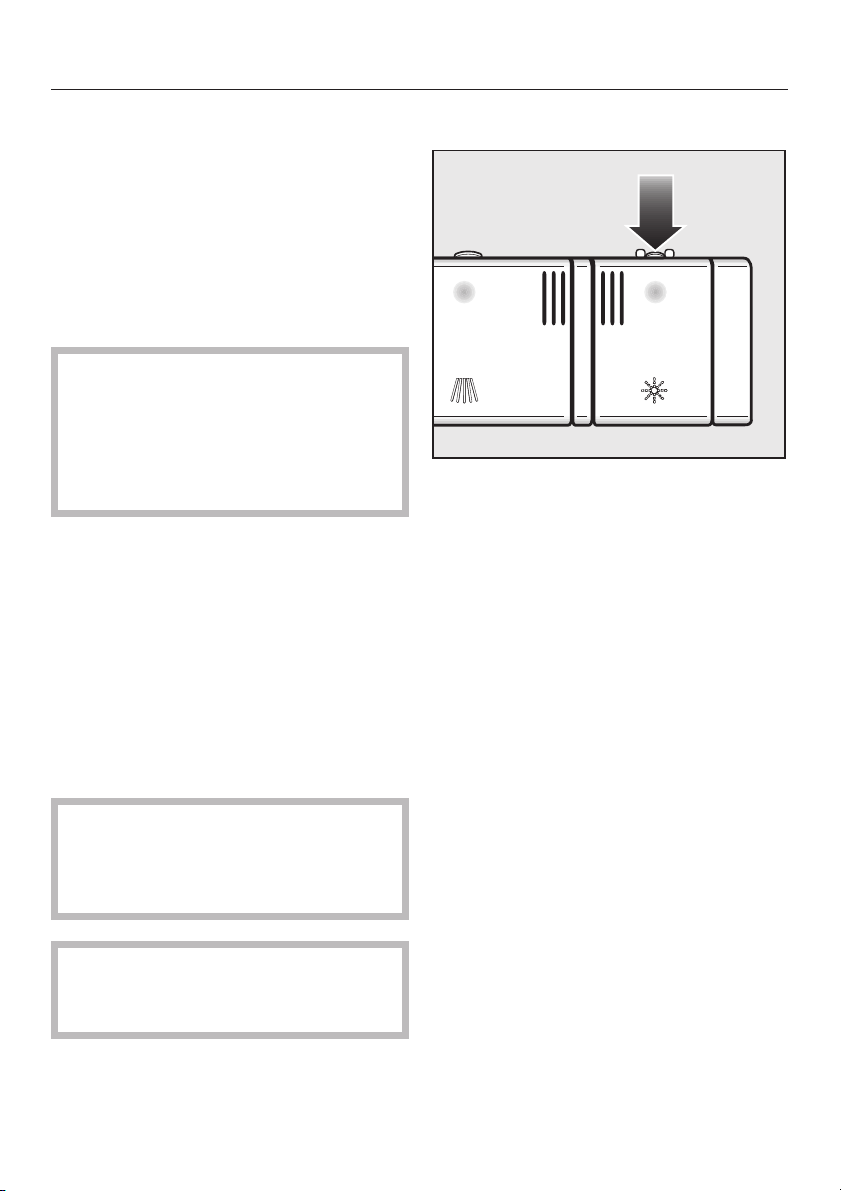

^ Press the button on the lid of the

rinse aid reservoir in the direction of
the arrow until the flap springs open.

The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.

,

Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.

If you only ever use "2 in 1" or "3 in 1"
products in your dishwasher you do
not need to add rinse aid.

18

Add rinse aid only until it is visible in

^

the opening.

The rinse aid reservoir holds approx.
110 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water would
enter the rinse aid reservoir during a
programme.

^ Wipe up any spilled rinse aid. This

prevents over-foaming occurring
during the next programme.

Before using for the first time

Rinse aid indicator

When the light comes on the reservoir
contains sufficient rinse aid for 2 - 3
programmes only.

^ Add rinse aid in plenty of time.

If the "2 in 1" or "3 in 1" function has
been selected, the Rinse aid
indicator does not light up (see
"Operation - Tab function").

19

Before using for the first time

Setting the rinse aid dosage

You can adjust the rinse aid dosage for
best results.

The rinse aid dosage can be set from
approx. 0-6 ml. It is set to a
recommended setting of approx. 3 ml
at the factory.

Press the Delay start button three

^

times.

The "Delay start" indicator will flash
briefly three times at intervals.

p 3 will flash in the display.
This means that the rinse aid dosage
has been set at 3 ml at the factory.

If spots appear on crockery and
glassware:

Increase the rinse aid dosage.

^

If clouding or smearing appears on
crockery and glassware:

^ Decrease the rinse aid dosage.

^ Switch the dishwasher off with the

On/Off button s.

^ Press the Start/Stop button in and

whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.

If this does not happen, start the
procedure from the beginning again.

The dosage set will show in the display
after the p.

Use the Start/Stop button to select

^

the rinse aid dosage you want.
The dosage amount alters each time
you press the button.

The programmed rinse aid dosage is
now stored in memory.

^ Switch the dishwasher off with the

On/Off button s.

20

Loading the dishwasher

Note

Remove coarse food residues from
crockery.

There is no need to rinse items under
running water.

Do not wash items soiled with

,

ash, sand, wax, lubricating grease
or paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, lubricating
grease and paint cause damage to
the dishwasher.

Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:

– Do not place crockery and cutlery

inside other pieces where they may
be concealed.

– Load the crockery so that water can

access all surfaces. This ensures
that it is properly cleaned.

–

Make sure that all items are securely
positioned.

Deep based items should be placed

–

at an angle so that water can run off
them freely.

The spray arms must not be blocked

–

by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.

Make sure that small items cannot

–

fall through the holders in the
baskets. Small items, e.g. lids,
should therefore be placed in the
cutlery tray or cutlery basket
(depending on model).

Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.

–

Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.

–

Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.

21

Loading the dishwasher

Items not suitable for
dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also
not suitable for dishwashers.

Plastic items which are not heat

–

resistant. The high temperatures in
the dishwasher may cause them to
melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze may

fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash
delicate glassware, or glassware
containing lead crystal in a
dishwasher.

We recommend:

When purchasing new crockery and

–

cutlery, make sure they are
dishwasher-proof.

If delicate glassware is washed in the

–

dishwasher ensure that only very low
temperatures are used (see
programme chart), or a special
glass-care programme is used
(depending on model). This will
reduce the risk of clouding.

Wash particularly delicate glassware

–

by hand.

Please note
Silverware previously cleaned with a

silver polish may still be damp or

spotted at the end of a programme,
where water has not run off smoothly. It
may need rubbing dry with a soft cloth.

Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.

,

Aluminium components (e.g.
grease filters) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage the material, or in
extreme cases, cause a severe
chemical reaction. See section
"Adding detergent" for information
on suitable detergents.

22

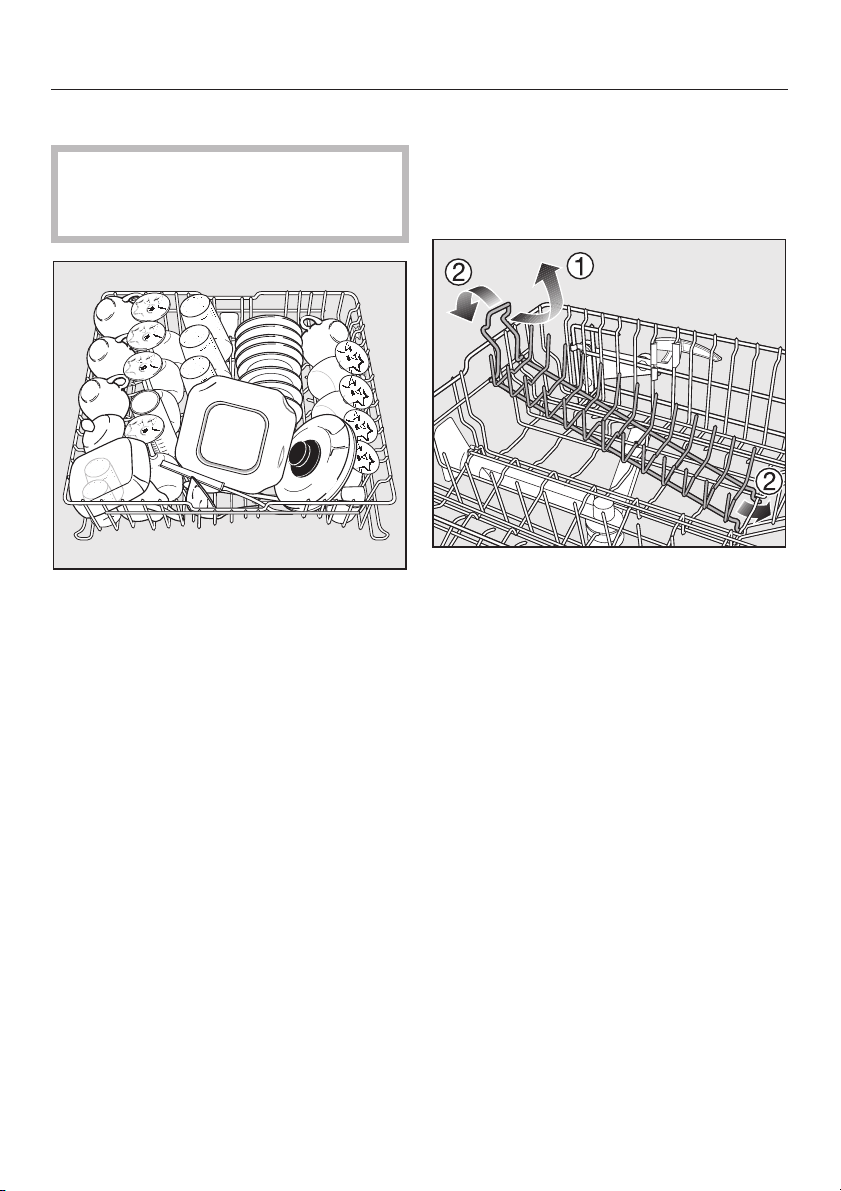

Loading the dishwasher

Upper basket

For safety reasons, do not

,

operate the dishwasher without the
upper and lower baskets in place.

^ Use the upper basket for small,

lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc. Shallow pans or casserole
dishes can also be placed in the
upper basket.

^

Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.

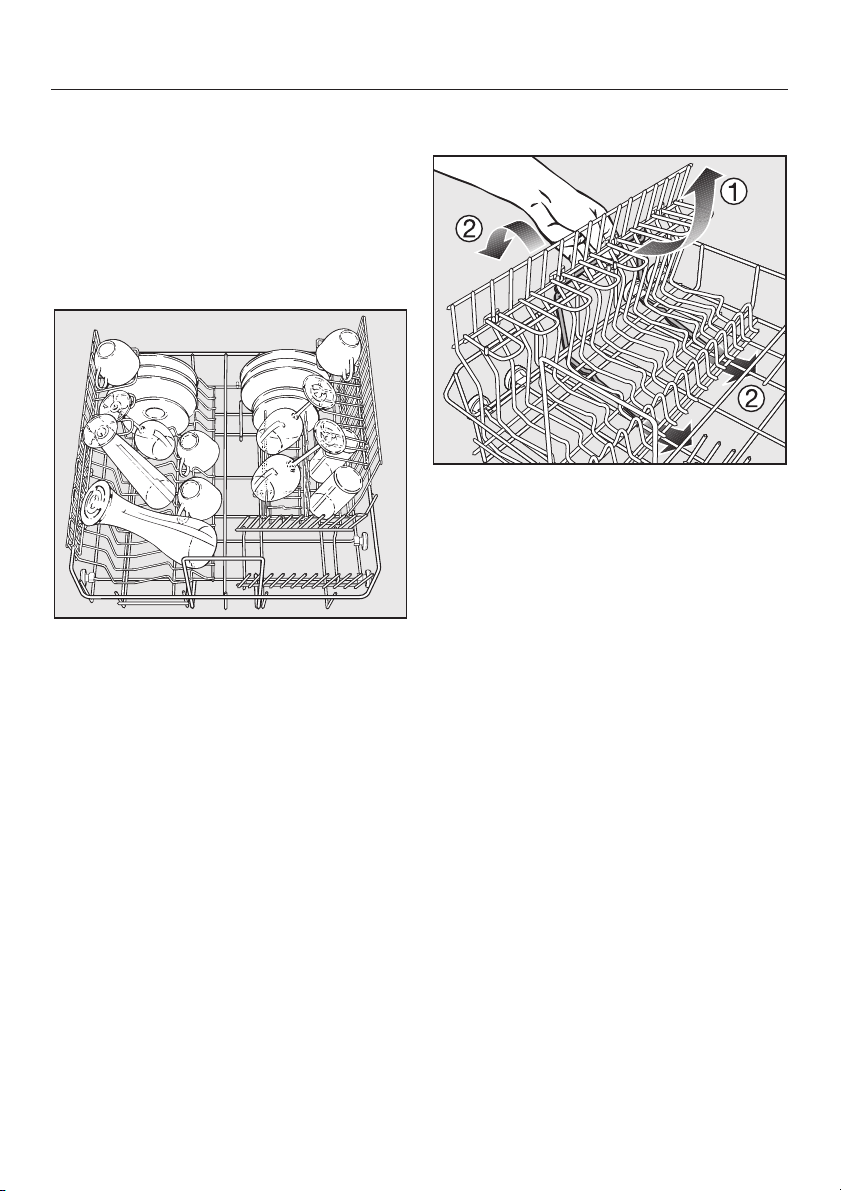

Spiked insert

The spiked insert can be removed to
make more room for larger items such
as casserole dishes.

To remove it a

^ Pull it upwards by the handle as

shown.

To refit it b

^

Fit the insert into the lower basket
with the hooks going under the cross
piece as illustrated.

^

Press down on the handle until the
insert is securely held in position.

23

Loading the dishwasher

Hinged cup rack

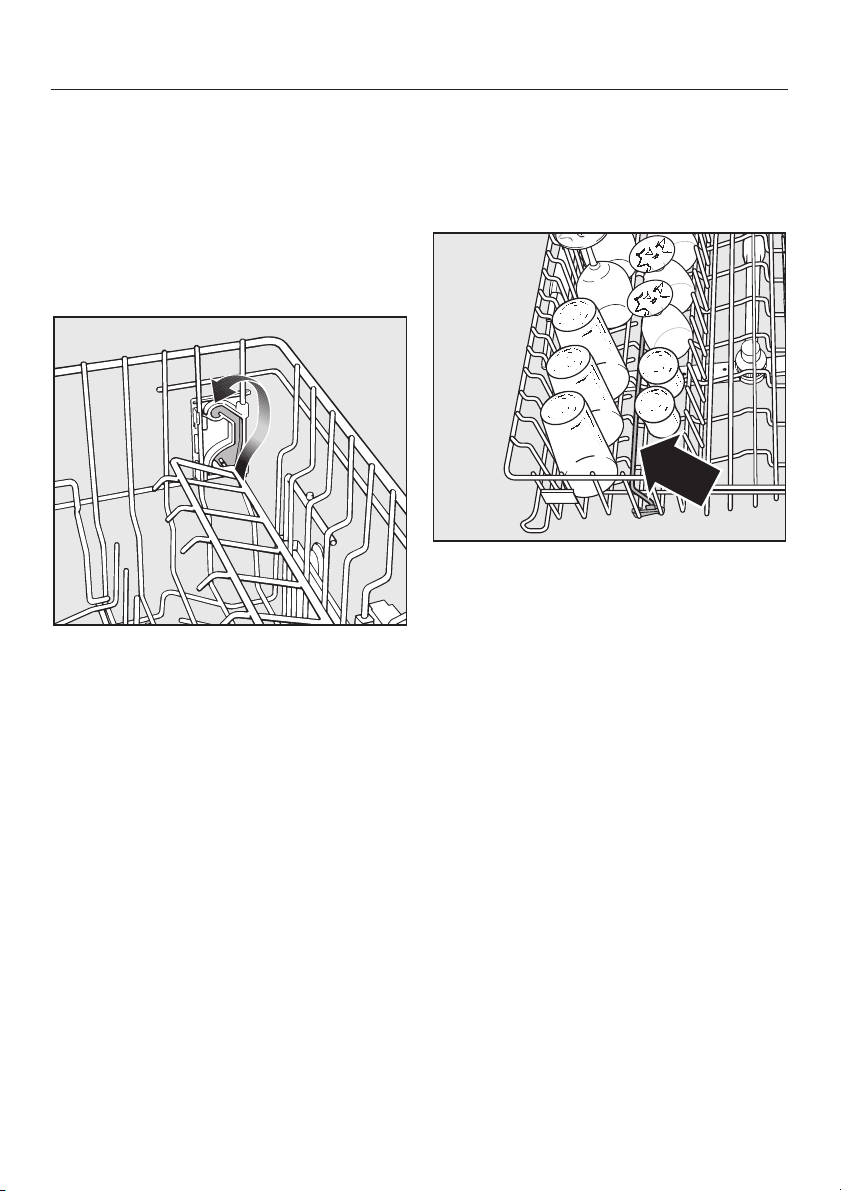

To make room for tall items raise the

^

rack upwards.

G 2XXX models:

You can set the cup rack at two
different heights.

^ Pull the cup rack upwards and click it

back into position at the required
height.

Positioning rail (depending on model)
Glasses can be arranged along the

positioning rail to give them some
support during the programme.

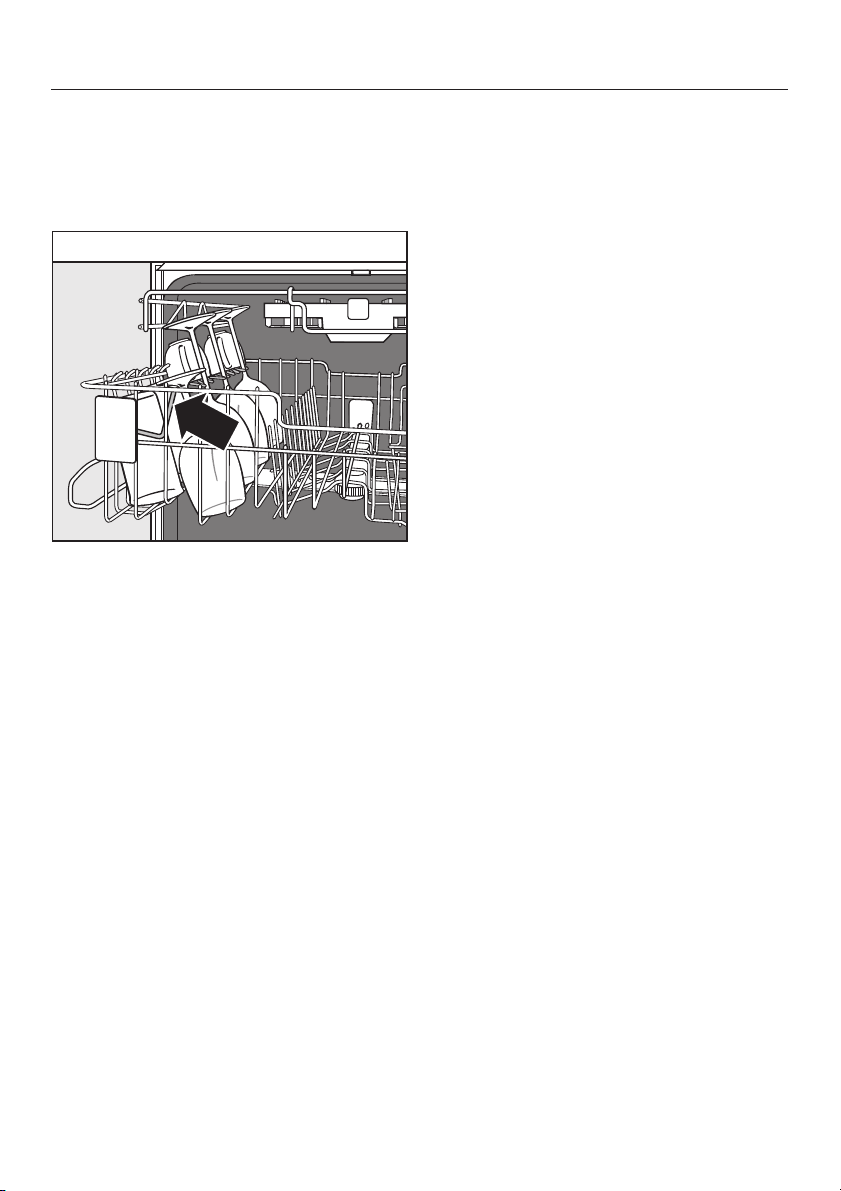

^ Raise the rail, and lean the glasses

against it.

The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.

24

Support rail (depending on model)
This support is designed to hold tall

glasses and glasses with stems
securely.

^ Lower the rail and lean tall glasses

against it.

^ You can also remove a section of the

cutlery tray to make more room for
tall glasses.

Loading the dishwasher

25

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.

The upper basket can also be set at an
angle with one side high and the other
side low. Ensure however, that the
basket can slide smoothly into the
cabinet. It is better to adjust the basket
before loading it.

Pull out the upper basket.

^

Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.

Dishwasher with cutlery tray

(see data plate for model number)

Upper
basket

level

G1XXX G2XXX

To p 1 5 1 9 3 1

Middle 17 21 29

Bottom 19 23 27

Dishwasher with cutlery basket

(see data plate for model number)

Upper
basket

level

G1XXX G2XXX

To p 2 0 2 4 3 1

Plate Ø in cm

Upper basket Lower

basket

Plate Ø in cm

Upper basket Lower

basket

^

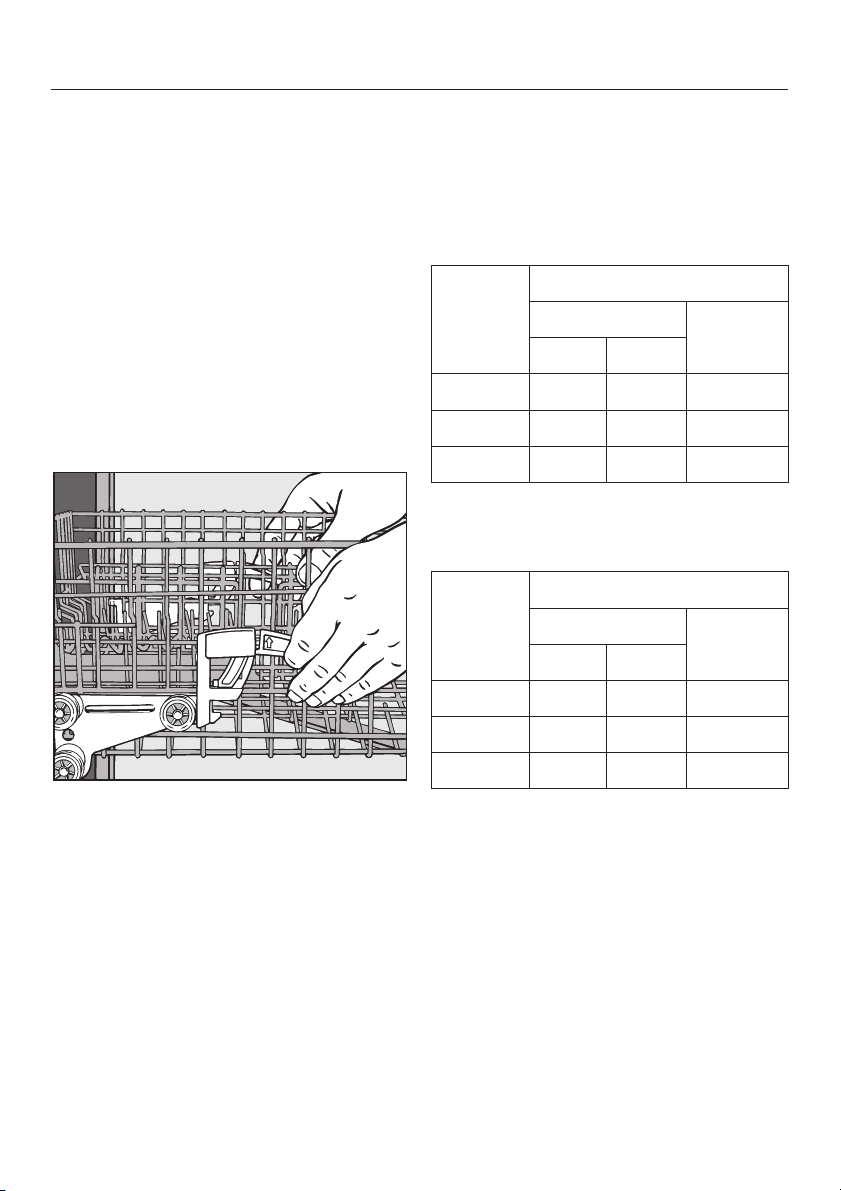

Pull upwards on the levers at either
side of the upper basket.

^

Adjust the basket to the desired
height.

^

Then push the levers securely back
down into position.

26

Middle 22 26 29
Bottom 24 28 27

Lower basket

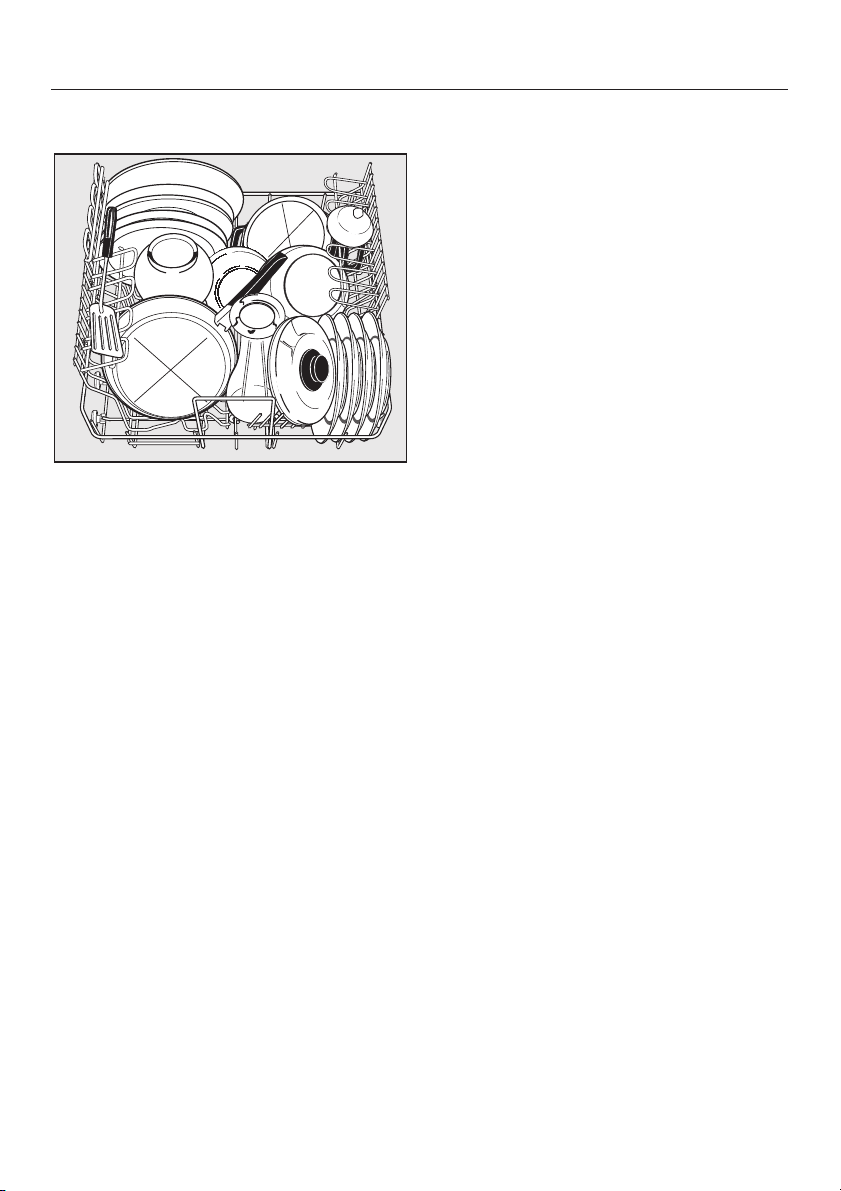

^ For larger and heavier items such as

plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers can also
be placed in the lower basket.
Do not place thin, delicate glassware
in the lower basket.

Loading the dishwasher

27

Loading the dishwasher

Variable inserts

A variety of inserts are available for
washing cups, glasses, plates,
saucers, pots and pans in the lower
basket.

Vario inserts

^ The cup rack can be raised to make

more room for tall items.

^ Stem glassware e.g. wine glasses or

champagne flutes can be leaned
against the cup rack or suspended
from it.

Wide vario insert

Removing the wide vario insert a

^ Pull upwards by the handle to

remove.

To fit an insert b

^ The wide vario insert fits in the area

at the left hand side of the lower
basket and the narrow vario insert fits
in the area at the back right hand
side.

^

Fit the insert into the lower basket
with the hooks going under the long
cross piece as illustrated.

28

^

Press down on the insert until it clicks
into position

Loading the dishwasher

Removing the narrow vario insert

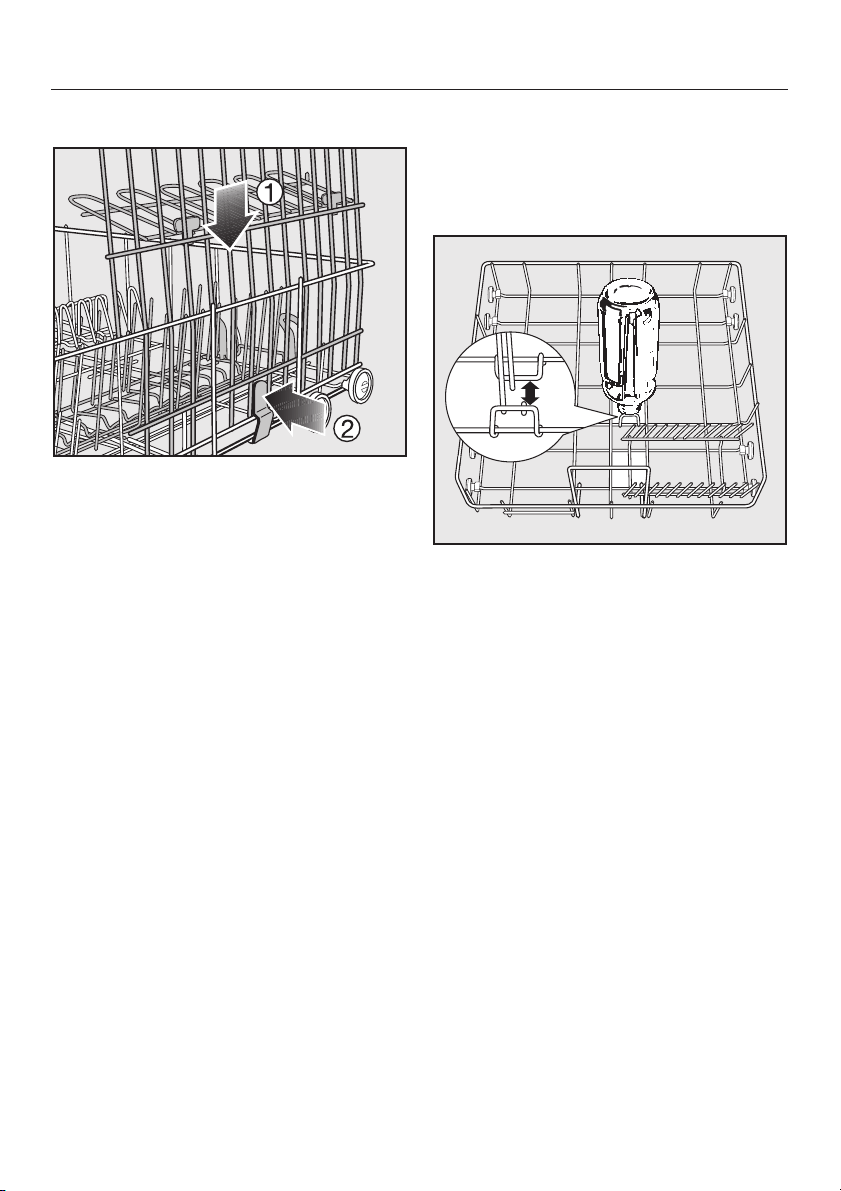

^ Press the insert downwards a and

the catch inwards b at the same
time.

Bottle holder

The bottle holder can be used to wash
narrow items, e.g. milk and baby
bottles.

^ Place the bottle holder as shown in

the bottom basket. If placed
anywhere else, water will not be able
to access the bottle properly, and
cleaning results will be impaired.

29

Loading the dishwasher

Cutlery

Cutlery tray (depending on model)

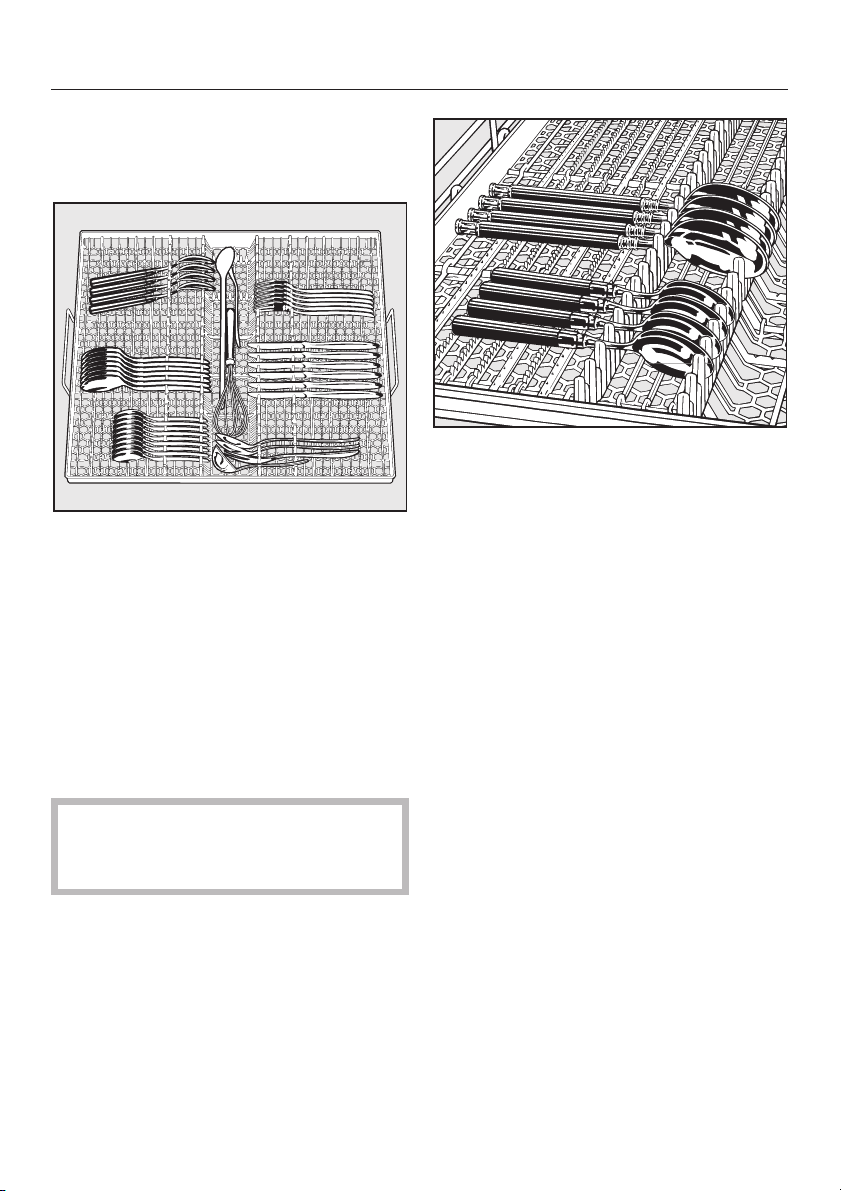

^ Arrange the cutlery in the tray as

shown.

To make unloading much easier, cutlery
should be grouped in zones, one for
knives, one for forks, one for spoons,
etc.

If spoon handles do not fit between the
holders, place them the other way
round.

Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them freely.

The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).

The cutlery tray inserts are removable.
For example, you can remove one
insert to make room for larger items of
crockery in the upper basket.

30

Cutlery basket (depending on model)

^ To avoid the risk of injury, knives and

forks should be placed with the
handles upwards in the basket.
However, cutlery placed handle
down in the basket will come out
cleaner and drier.

^ Place small spoons in the individual

slots to either side of the cutlery
basket.

Loading the dishwasher

Fit it into the cutlery basket if

^

required.

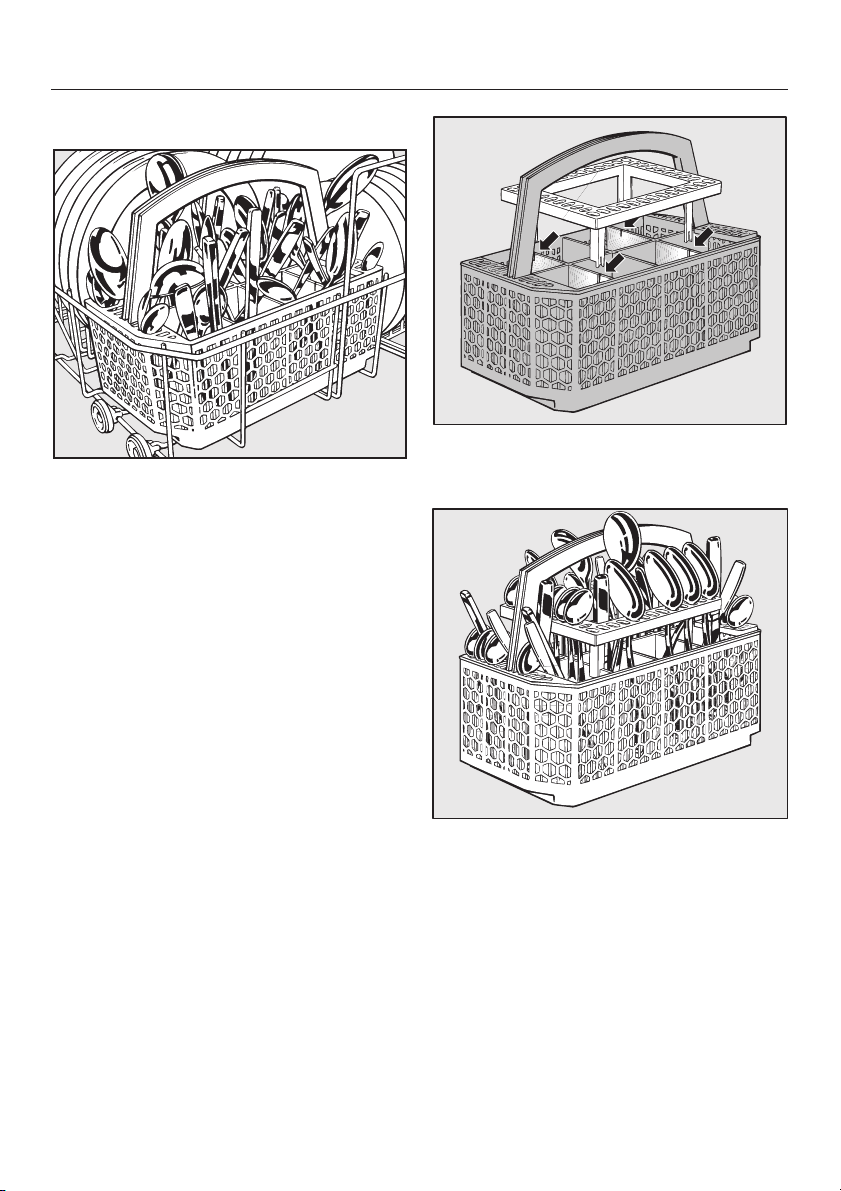

Cutlery insert for the cutlery basket

Use the insert supplied for heavily
soiled spoons.
The insert separates the items so that
they can be more easily accessed by
water.

^

Insert cutlery with the handles facing
downwards, and distribute them
evenly along the insert.

31

Operation

Detergent

Only use detergents formulated

,

for domestic dishwashers. Do not
use washing up liquid.

You can use conventional powder

^

detergent, tablets or liquid
dishwasher detergent.
Refer to the dosing instructions given
by the manufacturer on the
packaging.

Put powder or liquid detergent into

^

the dispenser compartment.

^ Detergent tablets should only be put

into compartment II if this is
recommended by the manufacturer. If
the manufacturer recommends
placing tablets in the cutlery basket,
do not do so. Instead place them on
the inside of the door or directly into
the wash cabinet to help them
dissolve properly.

Avoid inhalation of powder

,

detergents and do not ingest
dishwasher detergent. Dishwasher
detergents can cause burning in the
nose, mouth and throat if swallowed,
or inhibit breathing. Consult a doctor
immediately if detergent has been
swallowed or inhaled.
Keep detergent and other
household agents out of the reach of
children at all times. Keep children
away from the dishwasher when the
door is open. There could still be
detergent residues in the cabinet. To
avoid the danger of children coming
into contact with the dishwasher
detergent, only add detergent just
before starting the programme and
close the door, activating the child
safety lock (if your dishwasher is
fitted with one).

^ Do not use tablet detergent on the

"Quick" programme, as the tablets
will not dissolve properly.

Failure to dispense the
recommended amount of detergent
may impair cleaning results.

32

Operation

Adding detergent

^ Press the opening catch on the

detergent dispenser. The flap will
spring open.

The flap is always open at the end of a
programme.

For information

Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.

There are markings in compartment II
to assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.

^

Add the required amount of
detergent and close the flap.

^

Make sure that the detergent
packaging is properly closed after
use to avoid it getting damp and
becoming lumpy.

33

Operation

Switching on

Make sure the spray arms are not

^

obstructed.
Close the door.

^

Open the stopcock, if it is closed.

^

Switch the dishwasher on with the

^

On/Off button s.

The Start/Stop indicator light flashes
and the indicator light comes on next to
the last programme selected.

Selecting a programme

Choose your programme according to
the type of load and how dirty it is.

The different programmes and their
uses are described in the programme
chart later on in this booklet.

Starting a programme

Select the programme required with

^

the programme selector button.

The indicator light for the programme
selected comes on.
The programme duration will appear in
hours and minutes in the display.

You can now select an additional
function (see "Additional functions").

Press the Start/Stop button.

^

The programme cycle will begin. The
Start/Stop and Wash/Rinse indicators
and the indicator for the programme
selected will light up.
If the "2 in 1 Tab" or "3 in 1 Tab" function
has been selected, the corresponding
indicator will light up as well.

A programme can only be cancelled
in the first few minutes. Otherwise
the programme must continue to the
end so that important programme
stages (e.g. reactivating the water
softener) are not omitted.

34

Operation

Display

The duration of the programme
selected appears in hours and minutes
in the display before the programme
begins. During the programme, the
time left until the end of the programme
is displayed.

The time displayed may vary with the
same programme. This is partly
because of the water inlet temperature
at each intake, and partly because of
the amount and soiling level of the
crockery.

When a programme is selected for the
first time, the display shows an average
time for a cold water intake.

The times shown in the programme
chart refer to standard test loads and
temperatures.

Each time a programme is run, the
electronic unit takes the new conditions
into account, and calculates the time
required.

Programme sequence
indicators

After a programme has been started
the current stage of the programme is
indicated by the programme sequence
indicator lights.

At the end of a programme

0 appears in the display when the
programme has finished.

The dishwasher can now be opened
and unloaded (see "Unloading the
dishwasher").

To prevent the risk of steam

,

damage to the worktop edging
above the dishwasher, it is advisable
to leave the door closed until you are
ready to unload the crockery.
Alternatively you can open the door
fully until the crockery is cool
enough to unload. Do not leave the
door only partially open.

Glass care indicator

The green "Glass care" indicator light
will come on when you select a
programme that is suitable for
glassware.

35

Operation

Switching off

At the end of a programme:

Switch the dishwasher off with the

^

On/Off button s.

The dishwasher will continue to use
electricity until the On/Off button s
is switched off.

If the dishwasher is not to be used for a
longer period of time, e. g. whilst on
holiday, the stopcock should be turned
off.

Unloading the dishwasher

Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.

If you open the door fully after switching
off, the dishes will cool much faster.

^

First unload the lower basket, then
the upper basket and cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.

Interrupting a programme

A programme is interrupted as soon as
the door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.

Water in the dishwasher may be

,

hot. Danger of scalding!
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then close the
door firmly making sure that it clicks
into place.

Changing a programme

Important:
If the detergent dispenser flap has
already opened, do not change the
programme.

If a programme has already started and
you wish to change it, proceed as
follows:

^

Press the Start/Stop button for at
least one second.

36

The programme will be cancelled.

^

Select the programme you want and
then start it.

Operation

Additional functions

Tab function

You can programme your dishwasher to
ensure excellent results when using
tablet detergents by simply selecting
the "2 in 1" or "3 in 1" function using the
Tab button.
The programme sequence will be
adjusted to the type of detergent
selected. Depending on the
programme, the duration can be
considerably longer.

"2 in 1":

When the "2 in 1" function is selected,
the programme sequence is adjusted
for "2 in 1" tabs (detergent containing
rinse aid).
The dispensing of rinse aid and the
rinse aid refill indicator light are
deactivated.

"3 in 1":

When the "3 in 1" function is selected,
the programme sequence is adjusted
for "3 in 1" tabs (detergent containing
rinse aid and salt substitutes).

Do not select the "3 in 1" function if:

using "2 in 1" tabs (detergent with

–

rinse aid)
if your water hardness level is above

–

3.8 mmol or 21 °d.
Follow the detergent manufacturer's
instructions.

The washing and drying
performance of these types of
detergent can vary enormously.

Switch the dishwasher on with the

^

On/Off button s.
The Start/Stop indicator light will flash.
^ Press the Tab button until the

detergent type of your choice ("2 in 1"

or "3 in 1") lights up.
If neither of the indicators lights up, the

dishwasher is set for normal detergent.
The function selected is active on all

programmes until the setting is
changed.

^

You can now start a programme or

switch the dishwasher off using the

On/Off button s.

The dispensing of rinse aid and the
rinse aid refill indicator light are
deactivated.
Salt consumption in the water softener
is reduced to between 1/4 and 1/3 of
the normal amount.

37

Operation

Delay start

The start time of a programme can be
delayed, e.g. to benefit from economy
rates of electricity. A delay start time of
between 30 minutes and 24 hours can
be selected.

With a delay start time of between
30 minutes and 9 hours 30 minutes, the
time is set in 30 minute stages. For
10 hours or more it is set in one hour
stages.

When using the Delay start function,
make sure that the compartment is
dry before adding detergent. Wipe
dry with a cloth if necessary. If the
compartment is wet, powder
detergent can become lumpy and
stick to the dispenser, with the result
that it is not fully dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run
into the dishwasher before it is
required.

Switch the dishwasher on with the

^

On/Off button s.
The Start/Stop indicator light will flash.

Select the programme required with

^

the programme selector button.

Press the Delay start button.

^

The last Delay start time used will
appear in the display. The Delay Start
indicator light comes on.

Set the time required using the Delay

^

start button.

Press the Start/Stop button.

^

The Start/Stop indicator light will come
on.

38

Operation

The time starts counting down until the
programme start time: in 1 hour steps
for delay start periods of over 10 hours,
and in minutes for delay start periods of
under 10 hours.

At the end of the delay period, the
programme selected begins
automatically. The time left for a
programme to run then shows in the
display, the Delay start indicator light
goes out and the Start/Stop indicator
light comes on.

How the Delay start time is shown in
the display:

up to 59 minutes:
e.g. 30 minutes = 30

between 1 hour and 9 hours 30
minutes:
e.g. 5 hours = 5.00

10 hours and over:
e.g. 15 hours = 15^

Starting a programme before the
Delay start period has elapsed

A programme can be started before the
Delay start period has elapsed.
Proceed as follows:

Press the Start/Stop button for at

^

least one second.
The Delay start indicator light will go out

and the Start/Stop indicator light will
flash.

Press the Start/Stop button again.

^

The programme cycle will begin. The
Start/Stop indicator light will light up
constantly.

,

To prevent children coming into
contact with dishwasher detergent
do not fill the detergent dispenser

until just before starting the
programme, i.e. before pressing the

Start/Stop button, and activate the
child safety lock.

39

Operation

Buzzer

A buzzer sounds at the end of the
programme or if there is a fault.

You will hear the buzzer at the end of a
programme in bursts of five with a short
pause in between. The buzzer will
continue to sound for up to an hour if
you do not switch the dishwasher off.

In the case of a fault, the buzzer will
sound continuously for up to two
minutes if you do not switch the
dishwasher off or correct the fault.

The buzzer is activated as standard at
the factory.
You can deactivate the buzzer at the
end of a programme if you wish. The
buzzer will still sound if there is a fault,
even if it has been deactivated.

^ Switch the dishwasher off with the

On/Off button s.

Press the Delay start button four

^

times.

The Delay start indicator will flash
briefly four times at intervals.

The characters flashing in the display
show whether the buzzer at the end of
the programme is activated or
deactivated.

"p 1": the buzzer is activated

–

"p 0": the buzzer is deactivated

–

Press the Start/Stop button to alter

^

the setting.
The setting is now stored in memory.
^ Switch the dishwasher off with the

On/Off button s.

^ Press the Start/Stop button in and

whilst holding it in switch the
dishwasher on with the On/Off button
s.
Keep the Start/Stop button pressed in
for at least four seconds until the
Start/Stop indicator light comes on.

If this does not happen, start the
procedure from the beginning again.

40

Operation

Factory default setting

If you have altered any settings from
the factory default, you can re-set them
back to the factory default settings as
follows:

Switch the dishwasher off with the

^

On/Off button s.
Press the Start/Stop button in and

^

whilst holding it in switch the
dishwasher on with the On/Off button
s.
Keep the Start/Stop button pressed in
for at least four seconds until the
Start/Stop indicator light comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Delay start button twelve

times.

The Delay start indicator light will give
one long flash and two brief flashes at
intervals and "p 0" or "p 1" will flash in
the display.

The characters flashing in the display
show whether a setting other than the
factory default setting has been set.

"p 1": All settings are set to factory

–

default settings.
"p 0": At least one setting has been

–

changed.

Press the Start/Stop button if you

^

wish to re-set all the factory default

settings.

Switch the dishwasher off with the

^

On/Off button s.

41

Operation

Adjust sensor wash

You can adjust the sensor wash
programme so that it will remove
stubborn soiling in a lightly soiled load.

Switch the dishwasher off with the

^

On/Off button s.
Press the Start/Stop button in and

^

whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Delay start button five

times.

The "Delay start" indicator will flash
briefly five times at intervals.

The characters flashing in the display
show whether the "Adjust sensor wash"
function is activated or deactivated.

"p 1": The "Adjust sensor wash"

–

function is activated.
"p 0": The "Adjust sensor wash"

–

function is deactivated.

To change the setting, press the

^

Start/Stop button.
Switch the dishwasher off with the

On/Off button s.

42

Check your dishwasher regularly
(approx. every 4 - 6 months). This
way faults and problems can be
avoided.

Cleaning the wash cabinet

The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.

If, however, there are limescale or
grease deposits in the cabinet these
can be removed with a proprietary
dishwasher cleaner, such as the Miele
dishwasher cleaner (available from the
Miele UK Spare Parts Department).

Cleaning the door and the door
seal

^ Wipe the door seals regularly with a

damp cloth to remove food deposits.

^ When the dishwasher is being

loaded, food and drink residue may
drip onto the sides of the dishwasher
door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms. Any
soiling should be wiped off these
surfaces before the door is closed.

Cleaning and care

Cleaning the door front

Do not use any cleaning agents

,

containing ammonia or thinners.
These would damage the surface
structure.

Clean the front using a Miele E-cloth

^

or with suitable cleaning agent for the

type of material the front is made of.

Follow the manufacturer's

instructions.

Door fronts made from wood should

^

only be cleaned using a damp cloth,

and then dried with a soft cloth.
^ Door fronts made of stainless steel

should be cleaned using a damp

cloth and a little washing up liquid, or

a proprietary non-abrasive cleaning

agent designed specifically for use

on stainless steel.
^ To help prevent re-soiling, a

proprietary conditioning agent for

stainless steel, such as Neoblank

(available from the Miele UK Spare

Parts Department) can also be used.

Follow the manufacturer's instructions

on the label and apply sparingly with

an even pressure following the

direction of the grain.

E-Cloth

^

A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department, which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals.

43

Cleaning and care

Cleaning the control panel

Do not use abrasive cleaning

,

agents, glass cleaning agents or
all-purpose cleaners. Because of
their chemical composition they
could cause serious damage to
surfaces.

Plastic panels:

This type of control panel should only

^

be wiped with a damp cloth or
suitable cleaning agent designed for
use on plastic.

Stainless steel panels:
^ Control panels made of stainless

steel should be cleaned using a
damp cloth and a little washing up
liquid, or a proprietary non-abrasive
cleaning agent designed specifically
for use on stainless steel (do not use
it on the controls).

Stainless steel and aluminium

,

surfaces and controls are
susceptible to scratching and
abrasion, and must be treated with
due care. They may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling immediately.

^ To help prevent re-soiling, a

proprietary conditioning agent for
stainless steel, such as Neoblank
(available from the Miele UK Spare
Parts Department) can also be used.
Follow the manufacturer's instructions
on the label and apply sparingly with
an even pressure following the
direction of the grain.

Aluminium panels:

^

Clean aluminium panels with a damp
cloth and a little washing up liquid.

Aluminium is affected by the way that
light falls on it, by the surrounding
environment and by the angle you
observe it from.

44

Cleaning and care

Checking the filters in the
wash cabinet

The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.

The dishwasher must not be

,

used without all the filters in place.

Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.

You should check the filters regularly.
This dishwasher has a "Check filter"
indicator light which comes on after
every 40 programme cycles as a
reminder to check the filters in the wash
cabinet.

^ Check the filter combination

whenever the "Check filter" indicator
light comes on, and clean if
necessary.

Cleaning the filters

Switch the dishwasher off.

^

^ Turn the handle anti-clockwise to

release the filter combination a.
^ Lift the filter combination out of the

dishwasher b. Remove any coarse

particles and rinse the filter well

under running water. Use a nylon

brush if necessary.

The "Check filter" indicator light will go
out when the dishwasher is switched
off.

45

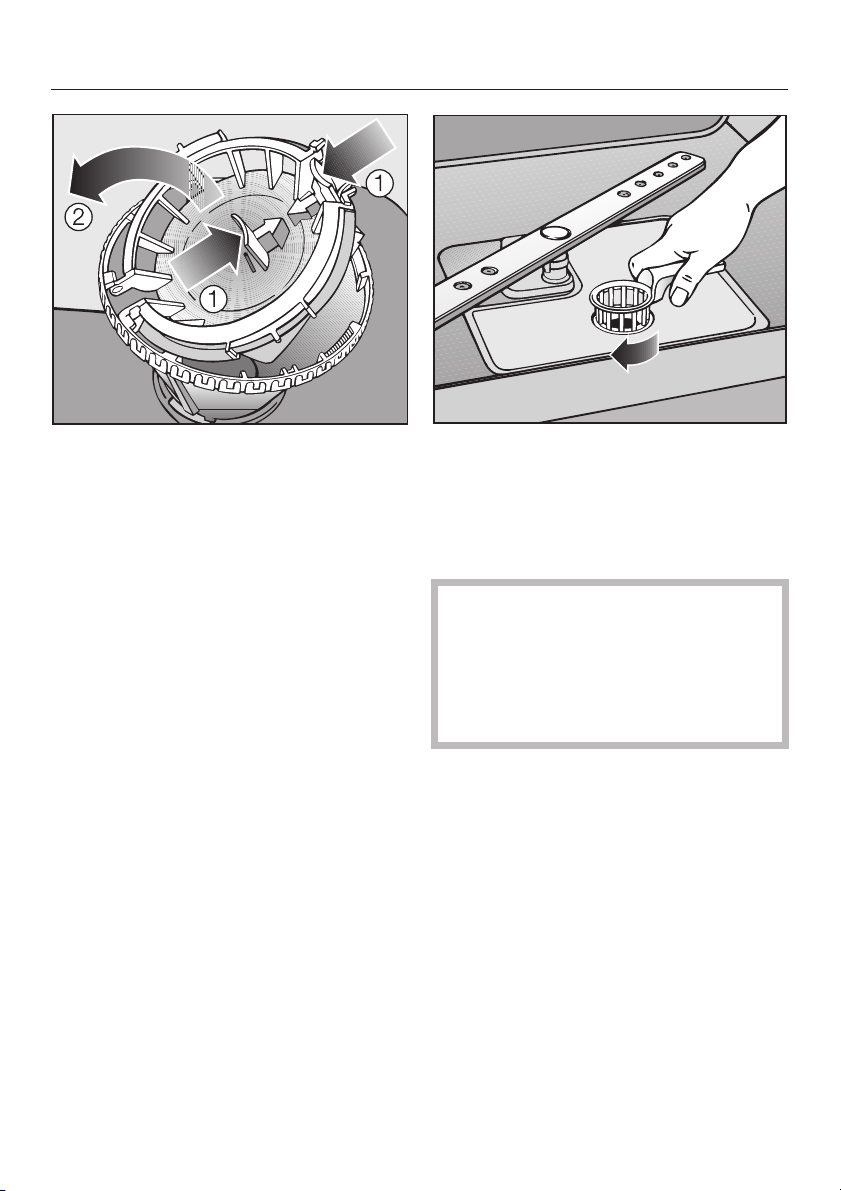

Cleaning and care

To clean the inside of the filter, the flap
must be opened:

^ Press together the catches in the

direction of the arrows a as shown,
and open the filter b.

^ Rinse all the filters under running

water.

^ Then close the flap so that the catch

engages.

Replace the filter combination so that

^

it lies flat in the base of the wash

cabinet.
^ Then turn the handle clockwise to

lock the filter combination in place.

,

Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.

46

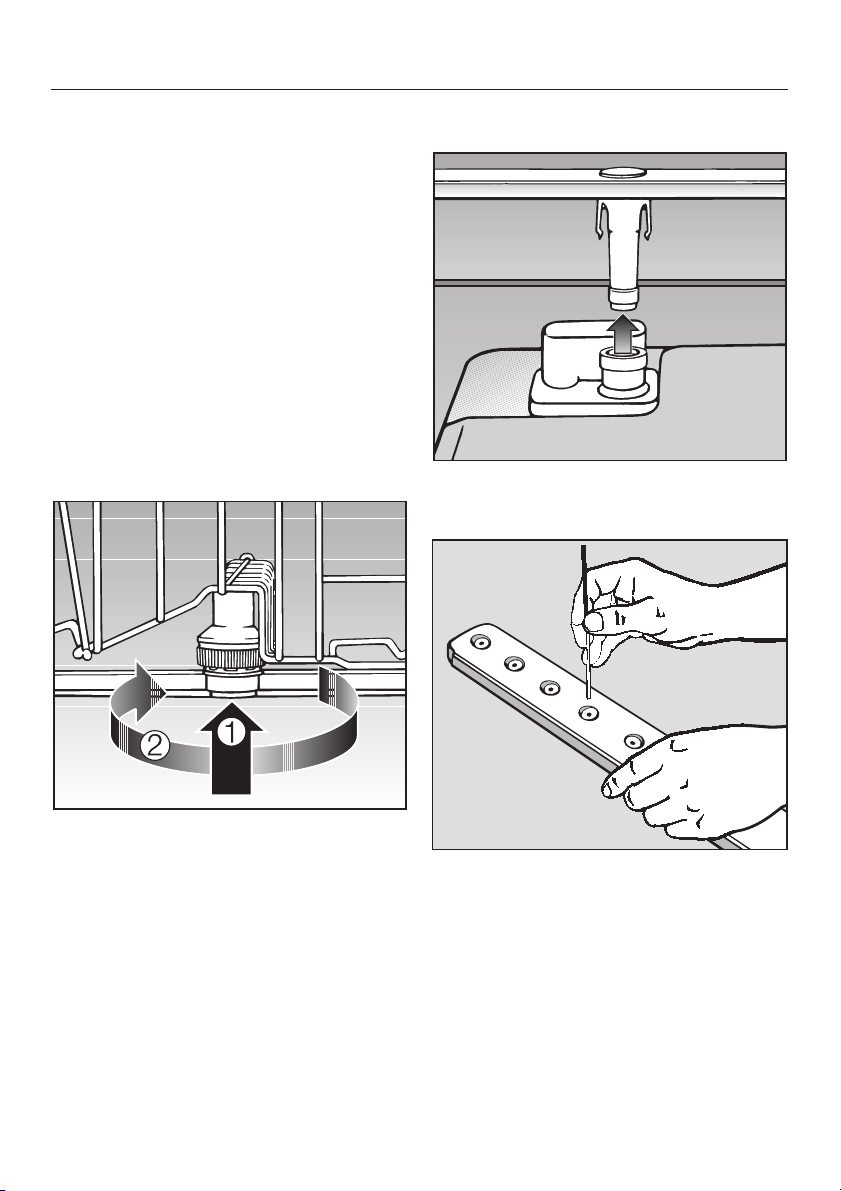

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).

Switch the dishwasher off.

^

Remove the spray arms as follows:

Take out the cutlery tray (if your

^

dishwasher is fitted with one).
Push the top spray arm upwards to

^

engage the inner ratchet. Then
unscrew the spray arm.

Remove the lower basket.

^

^ Pull the lower spray arm firmly

upwards to remove it.

^

Push the middle spray arm upwards
a to engage the ratchet. Then
unscrew the spray arm b.

^

Use a pointed object to push food
particles into the spray arm jets.

^

Rinse thoroughly under running
water.

^

Replace the spray arms and check
that they rotate freely.

47

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected
without calling in a Miele service technician, saving you both time and money.

The following guide may help you to find the reason for a fault, and to correct it.
You should, however, note the following:

Repairs should only be carried out by a suitably qualified and trained

,

person in accordance with current local and national safety regulations.
Unauthorised or incorrect repairs could cause personal injury or damage the
appliance.

Technical problems

Problem Possible cause Remedy
The Start/Stop indicator

does not flash after the
dishwasher has been
switched on using the
On/Off button s.

The dishwasher stops
during a programme.

The appliance is not
plugged in.

The fuse is defective or
has tripped.

The fuse is defective or
has tripped.

Insert the plug and switch
on at the socket.

Reset or replace the fuse.

Reset or replace the fuse.

48

Problem solving guide

Problem Possible cause Remedy
The buzzer sounds.

The Wash/Rinse and
Drying indicator lights
flash simultaneously.
Fault code FXX shows
in the display.

The drain pump works
even when the door is
open.

There may be a
technical fault.

Fault F70:
The Waterproof System
has reacted.

Switch the dishwasher off

–

with the On/Off button s.

After a few seconds:

Switch the dishwasher

–

back on.
Select the programme

–

required with the
programme selector
button.

Press the Start/Stop button.

–

If the programme sequence
indicator lights flash again,
there is a technical fault.

– Call the Service

Department.

– Turn off the stopcock.
– Call the Service

Department.

49

Problem solving guide

The dishwasher does not fill/drain

Problem Possible cause Remedy
The buzzer sounds.

The Inlet/Drain check
indicator flashes.

The buzzer sounds.
The dishwasher stops
during a programme.
The Inlet/Drain check
indicator flashes.
Fault code FXX shows
in the display.

The stopcock is
closed.

Fault F12/F13:
Water inlet restricted.

Fault F11:
Water outlet is
restricted, water
remains in the wash
cabinet at the end of a
programme.

Open the stopcock fully.

Before rectifying the problem
you must:

Switch the dishwasher off

–

with the On/Off button s.
Open the stopcock fully.

–

Clean the water inlet filter

–

(see "Problem solving").

– The water pressure at the

intake is lower than 30 kPa
(0.3 bar).
Seek professional advice.

– Clean the filter combination.

See "Cleaning and Care".

– Clean the drain pump. See

"Problem solving".

– Clean the non-return valve.

See "Problem solving".

–

Remove any kink in the drain
hose.

50

Problem solving guide

General problems

Problem Possible cause Remedy
The "Spray arm"

indicator light is
flashing.

Detergent residue is
left in the dispenser at
the end of a
programme.

The detergent lid
cannot be closed
properly.

At the end of a
programme there is a
film of moisture on the
inside of the door and
the interior walls.

Water remains in the
wash cabinet at the end
of a programme.

Items are blocking
the path of the
middle spray arm.

The middle spray
arm jets are blocked.

The dispenser was
still damp when
detergent was
added.

Clogged detergent
residue is blocking
the catch.

This is caused by the
drying system and
does not indicate a
fault.

The filter combination
in the wash cabinet
is clogged.

The drain pump or
non-return valve may
be blocked.

The drain hose is
kinked.

Open the dishwasher door and
rearrange the items which are
obstructing the spray arm.

Switch the dishwasher off

–

with the On/Off button s.

Then:

Clean the spray arm. See

–

"Cleaning and Care".

Make sure the dispenser is dry
before adding detergent.

Clean the detergent from the
catch.

The moisture will dissipate after
a short while.

Before rectifying the problem
you must:

–

Switch the dishwasher off
with the On/Off button s.

Clean the filter combination.
See "Cleaning and Care".

Clean the drain pump or the
non-return valve. See "Problem
solving".

Remove any kink from the drain
hose.

51

Problem solving guide

Noises

Problem Possible cause Remedy
Knocking noise in the

wash cabinet.

Rattling noise in the
wash cabinet.

Knocking noise in the
water pipes.

A spray arm is knocking
against an item in a
basket.

Items of crockery are
insecure in the wash
cabinet.

This may be caused by
the on-site installation or
the cross-section of the
piping.

Interrupt the programme,
and rearrange the items
which are obstructing the
spray arm.

Interrupt the programme,
and rearrange the items of
crockery.

This has no influence on
dishwasher function. If in
doubt, contact a suitably
qualified plumber.

52

Problem solving guide

Unsatisfactory washing result

Problem Possible cause Remedy
The dishes are not

clean.

Smearing appears
on glassware and
cutlery, there is a
bluish sheen on the
surface of
glassware; film can
be wiped off.

The dishes were not loaded
correctly.

The programme was not
powerful enough.

There is some stubborn
soiling although most of the
crockery is only lightly soiled
(e.g. with tea stains).

Not enough detergent was
dispensed.

Items are blocking the path
of the spray arms.

The filter combination in the
base of the wash cabinet is
not clean or is not correctly
fitted.
This may cause the spray
arm jets to get blocked.

The non-return valve is open
and blocked. Dirty water has
flowed back into the wash
cabinet.

The rinse aid dosage is set
too high.

See notes in "Loading the
dishwasher"

Select a more intensive
programme. See
"Programme chart".

Use the "Adjust sensor
wash" function (see
"Additional functions").

Use more detergent, or
change your detergent.

Rearrange the items so that
the spray arms can rotate
freely.

Clean and/or fit the filter
combination correctly. Clean
the spray arm jets. See
"Cleaning and care".

Clean the drain pump and
the non-return valve. See
"Cleaning the drain pump
and non-return valve".

Reduce the dosage. See
"Before using for the first
time".

53

Problem solving guide

Problem Possible cause Remedy
Dishes, cutlery and

glasses are not dry
or are flecked.

White residue is
visible on cutlery
and crockery,
clouding occurs on
glassware; film can
be wiped off.

The rinse aid amount may
be insufficient or the rinse
aid reservoir empty.

Crockery was taken out of
the cabinet too soon.

You are using "2 in 1" or
"3 in 1" tablets, which do not
have a strong enough
drying performance.

The "2 in 1/3 in 1 Tab"
function is switched on,
even though this type of
detergent has not been
used.

Not enough rinse aid was
used.

There is no salt in the salt
reservoir.

The salt reservoir cap has
not been screwed on
correctly.

An unsuitable "2 in 1" or
"3 in 1" tablet has been
used.

There is a fault with the auto
matic water softening
system.

Replenish the reservoir,
increase the dosage or
change the brand of rinse
aid. See "Before using for
the first time".

Leave it in for longer. See
"Operation".

Set the Tab function to
"Normal", and fill the rinse
aid reservoir with rinse aid.

Set the Tab function to the
detergent product being
used (see "Tab function").

Increase the dosage. See
"Before using for the first
time".

Fill the salt reservoir. See
"Before using for the first
time".

Replace it, making sure that
it screws back on correctly.

Change your detergent. Use
a standard liquid, tablet or
powder detergent, and refill
the salt and rinse aid
reservoirs in the dishwasher.

-

Call the Service Department.

54

Problem solving guide

Problem Possible cause Remedy
Glassware has a

brown or blue tinge,
and film cannot be
wiped off.

Glassware is dull
and discoloured;
film cannot be wiped
off.

Tea or lipstick stains
have not been
completely removed.

Plastic items are
discoloured.

There are rust stains
on cutlery.

This may be caused by the
detergent.

The glassware is not
dishwasher-proof. The
surfaces are affected.

The wash temperature of
the selected programme
was too low.

The bleaching effect of the
detergent used is too low.

Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the cause.
The amount of detergent
used or its bleaching effect
was not sufficient to deal
with natural dyes.

The affected items are not
corrosion resistant.

The "Quick wash"
programme was not run
after dishwasher salt was
added. Traces of salt have
got into the wash cycle.

The salt reservoir cap has
not been screwed on
correctly.

Change your detergent.

There is no remedy.
Purchase glassware which
is dishwasher-proof.

Select a programme with a
higher wash temperature.

Change your detergent.

Use more detergent. See
"Operation".
Discolouration is irrevers

-ible.

There is no remedy.
Purchase cutlery which is
dishwasher-proof.

Always run the "Quick wash"
programme, without any
crockery in the dishwasher,
after adding dishwasher
salt.

Replace it, making sure that
it screws back on correctly.

55

Problem solving

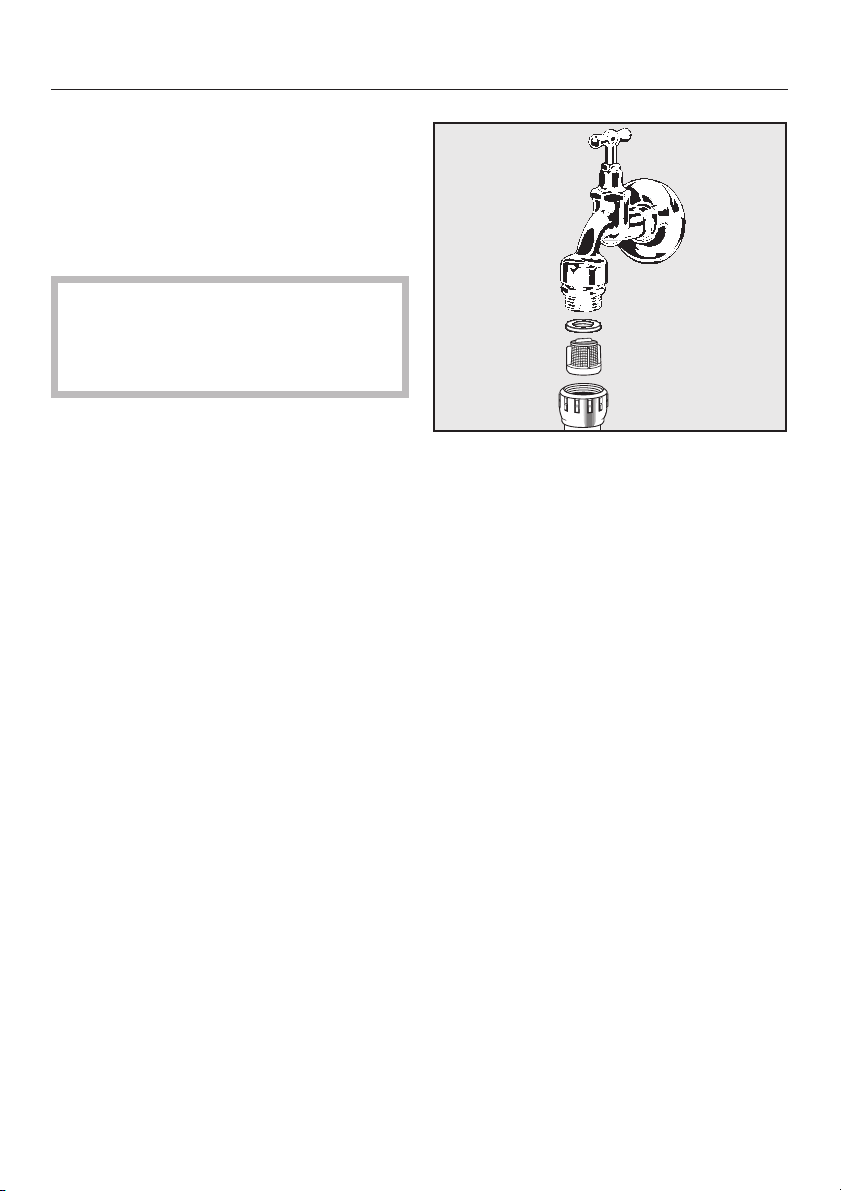

Cleaning the water inlet filter

A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.

The plastic housing of the water

,

connection contains an electrical
component. It must not be dipped in
water.

Recommendation

If the mains water contains a large
number of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded
union. This filter is available from the
Miele Spares Parts dept.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply. Switch off at the mains
socket and withdraw the plug.

^

Turn off the stopcock.

^

Unscrew the inlet hose.

Carefully remove the seal.

^
^ Withdraw the filter using pointed

pliers and rinse clean under running
water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the

stopcock, making sure it goes on
correctly and is not cross-threaded.

^

Turn on the stopcock gradually to test
for leaks. If there is a leak, the inlet
hose might not be on securely, or it
may have been screwed on at an
angle. Unscrew and reconnect the
water inlet valve correctly.

56

Cleaning the drain pump and
non-return valve

If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean. Watch out for glass or bone
splinters which could cause injury.

Disconnect the dishwasher from the

^

mains supply. Switch off at the mains
socket and withdraw the plug.

Take the filter combination out of the

^

wash cabinet (see "Cleaning and
care", "Cleaning the filters in the wash
cabinet").

^ Scoop the water out of the cabinet

using a suitable container or utensil.

Problem solving

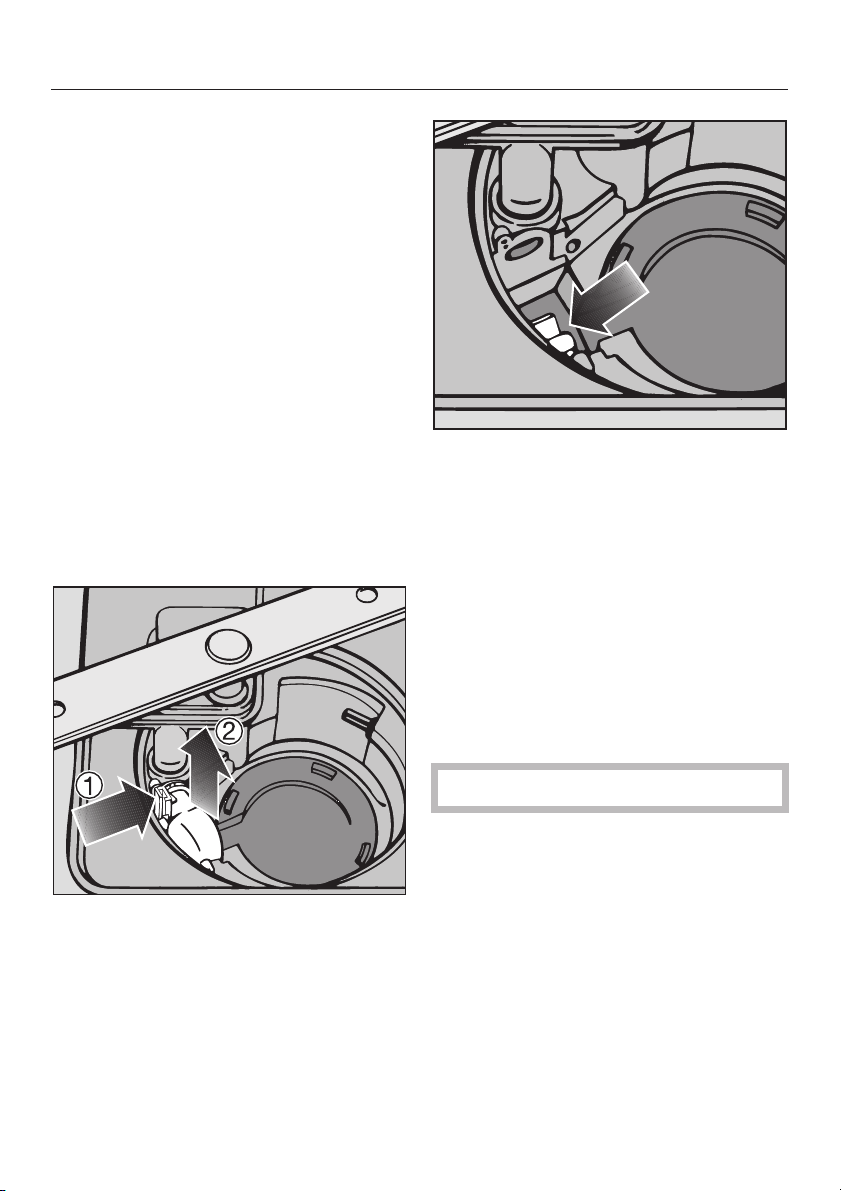

The drain pump is situated under the
non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions. You will feel a little
resistance when you turn the impeller.

^

Press the catch for the non-return
valve inwards a.

^

Lift out the non-return valve b and
rinse well under running water.

^

Remove all foreign objects from the
non-return valve.

^

Carefully replace the non-return
valve, and secure it with the catch.

,

Ensure that the catch engages.

57

Programme chart

Programme When to use

Sensor wash Sensor controlled programme

Quick wash
40 °C

Sensor wash
gentle :

Energy save

Pots & pans
75 °C

Hygiene for hygienically cleaning dishes with special programme parameters to destroy

Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet needed

1) Standard programme for energy labelling.

2) See "Operation, display".

for normally soiled crockery
"Quick programme" for lightly soiled crockery, e.g. party crockery;

for flushing out salt residues after replenishing the salt reservoir;
includes sensor controlled glass care;
not suitable for tablet detergents.

Sensor controlled gentle programme
for lightly soiled and temperature sensitive crockery and glassware;
reduce detergent by 50%

1)

for normal everyday loads,
energy saving programme which uses a low temperature and long programme
duration;
includes sensor controlled glass care

for normally soiled pots, pans, dishes etc with dried on soiling;
for very heavy soiling, add 20% more detergent than recommended

bacteria, e.g. on baby bottles, chopping boards, utensils, etc

58

Programme sequence Consumption Duration

Pre-

wash

12

if

requiredX45 °- 65 °ifrequiredX65 °

Main
wash

40 °

X

Interim

rinse

12

XX

Final
rinse

50 °

Programme chart

-

2)

connec

(55 °C)

Energy kWh Water h:min

Litres Cold

-

water

connec

tion

(15 °C)

-

Hot

water

connec

tion

(55 °C)

Drying Cold

water

connec

tion

(15 °C)

X 0.95-1.35 0.6-0.8 10-17 1:36-2:38 1:34-2:23

0.6 0.3 10 0:30 0:22

Hot

water

-

tion

if

requiredX37 °- 48 °ifrequiredX55 °

X

45 °

XX

75 °

X

70 °

X 0.01 0.01 4 0:13 0:13

On G 2XXX models (see data plate), the max. energy consumption is 0.1 kWh and the water
consumption is up to 1 litre higher, except in the Pre-wash programme.
The durations given can vary depending on individual circumstances.

Values quoted are in accordance with EN 50242. Results may differ, depending on individual
conditions and the level of soiling.

XX

60 °

XX

65 °

XX

70 °

X 0.7-0.95 0.4-0.5 10-17 1:26-2:02 1:17-1:43

X 1.05 0.7 10 2:54 2:37

X 1.6 1.1 13 2:44 2:31

X 1.5 1.15 13 2:18 2:07

59

After sales service

Repairs

In the event of any faults that you
cannot remedy yourself, please
contact:

your Miele dealer, or

–

the Miele Service Department

–

(see back cover for contact details).

When contacting your Dealer or the

^

Miele Service Department, please
quote the model type and number of
your appliance, both of which are
shown on the data plate on the right
hand side of the door.

Please note that telephone calls may
be monitored and recorded for
training purposes.

Future updates (PC)

The programme update function (PC) is
designed to enable a service
technician to update your appliance’s
electronics in keeping with advances in
technology.

The "PC" indicator light is used as the
interface for this programming.

For testing institutes

The "Comparison tests" document
gives information regarding loads and
programmes used for comparison
testing.
This document can be ordered by
e-mail from:

– testinfo|miele.de
^ Please give your postal address, as

well as the model type and number of
your dishwasher (see data plate).

60

Optional accessories

To make the most of your dishwasher

Optional accessories for particular purposes are available from your Miele dealer
or from the Spare Parts Department (some may be supplied as standard
depending on model).

If you would like to … you will need to order …

… wash long-stemmed glassware … a glassware insert for the upper

basket

... wash a Miele Cappuccinatore … a Cappuccinatore insert for the

upper basket

... small plates, baby bottles and
small items in the upper basket

... different sized plates, cups and
glasses in the upper basket

... wash bottles,
e. g. milk or baby bottles

… wash additional items of cutlery … a small cutlery basket for the lower

... wash a lot of glasses … a glassware insert for the bottom

... wash large plates ... an insert for plates up to:

… a multi-function basket for the
upper basket

… a vario insert for the upper basket

… a bottle holder

basket

basket

- 33 cm diameter

- 35 cm diameter

61

Electrical connection

Electrical connection U.K.

All electrical work must be

,

carried out by a suitably qualified
and competent person, in
accordance with current local and
national safety regulations (BS 7671
in the UK).

Ensure power is not supplied to the
appliance until after installation work
has been carried out.

The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. The voltage and connected

load are given on the data plate.

Please ensure these match the
household mains supply. The fuse
rating is quoted on the plug.

Connection should be made via a
suitable switched socket which is easily
accessible after installation.

Non-rewireable plugs BS 1363

The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).

Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING: THIS APPLIANCE
MUST BE EARTHED

For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section

739).
Do not connect via an extension lead.

Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

62

Connection to the water supply

Water in the dishwasher must

,

not be used as drinking water.

The dishwasher may be connected

–

to a cold or hot water supply, max.
60 °C. We would only recommend
connection to a hot water supply if it
is economical, e.g. a solar powered
supply. When connected to a hot
water supply all programme stages
which would otherwise be carried out
with cold water will be carried out
with hot water.

– The inlet hose is approx. 1.5 m long.

A 1.5 metre long flexible metal
extension hose, pressure tested to
14000 kPa/ 140 bar, is available as
an optional accessory if required.

– A stopcock with a 3/4 " male thread

must be provided on site.

Plumbing

!The inlet hose must not be

shortened or damaged in any way
as it contains electrical components
(see illustration).

– This appliance is constructed to

comply with IEC/EN/DIN 61770 //
VDE 0700 Section 600, and may be
connected to a suitable supply
without an extra non-return valve if
national regulations permit.

–

The water pressure (flow pressure at
the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar).
If the water pressure is too high, a
pressure reducing valve must be
fitted.

63

Plumbing

Drainage

The appliance drainage system is

–

fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.

The dishwasher is supplied with

–

approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.

The drain hose can be extended

–

using a connection piece to attach a
further length of hose.
The drainage length must not be
longer than 4 m, and the delivery
head must not exceed 1 m.

– If the hose is to be directly fitted to

the drainage outlet on site, use the
hose clip supplied.

– The hose can be directed to the left

or the right of the appliance.

– The on-site connector for the drain

hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.

–

The drain hose must not be
shortened.

Venting the drainage system

If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.

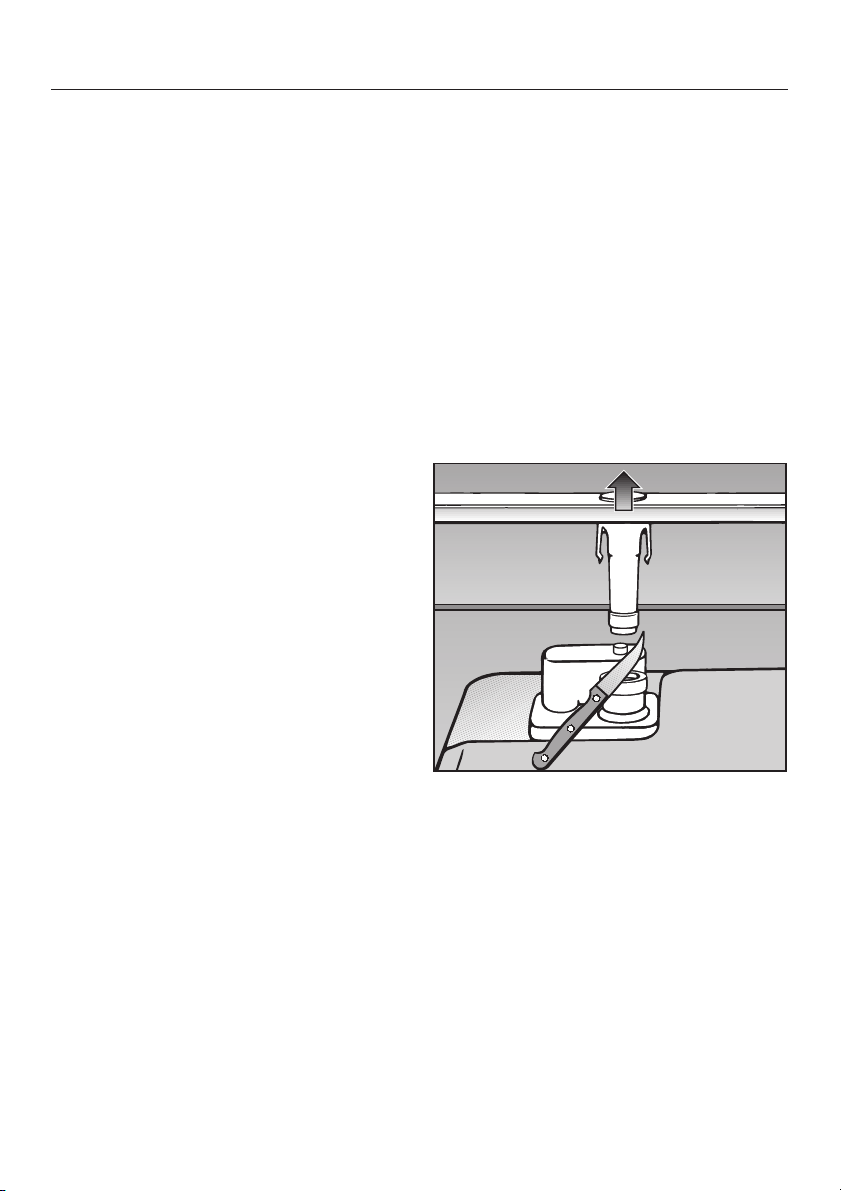

To vent it:

Open the dishwasher door fully.

^

Pull the lower spray arm firmly

^

upwards to remove it.

^

Cut off the top of the vent valve in the
wash cabinet.

–

Make sure that there are no kinks in
the hose, and that it is not squashed
or stretched.

64

Technical data

Dishwasher model G 1XXX G 2XXX

Height freestanding 84.5 cm

(adjustable +3.5 cm)

Height built-in 80.5 cm

(adjustable + 6.5 cm)

Height of building-in
recess

Width 59.8 cm 59.8 cm
Width of building-in

recess
Depth:

Freestanding
Built-in

Weight:
Freestanding
Built-under
Integrated

Voltage
Connected load See data plate on right hand side of door.
Fuse rating See plug.
Test certificates awarded KEMA, VDE, radio and

Water pressure (flow rate) 30 - 1000 kPa

Hot water connection up to max. 60 °C up to max. 60 °C
Delivery head max. 1 m max. 1 m
Drainage length max. 4 m max. 4 m
Mains cable approx. 1.7 m approx. 1.7 m
Capacity 12 place settings 14 place settings

min. 80.5 cm (+ 6.5 cm) min. 84.5 cm (+ 6.5 cm)

60 cm 60 cm

60 cm
57 cm

approx. 64.0 kg
approx. 58.0 kg
approx. 56.0 kg

television suppressed

(0.3 - 10 bar)

-

84.5 cm
(adjustable + 6.5 cm)

­57 cm

­approx. 60.0 kg
approx. 58.0 kg

KEMA, VDE, radio and
television suppressed

30 - 1000 kPa
(0.3 - 10 bar)

656667

Alteration rights reserved /
G1520/G1530/G1531/G2520/G2530/G2531 / 0806

M.-Nr. 06 702 760 / 01

en-GB
