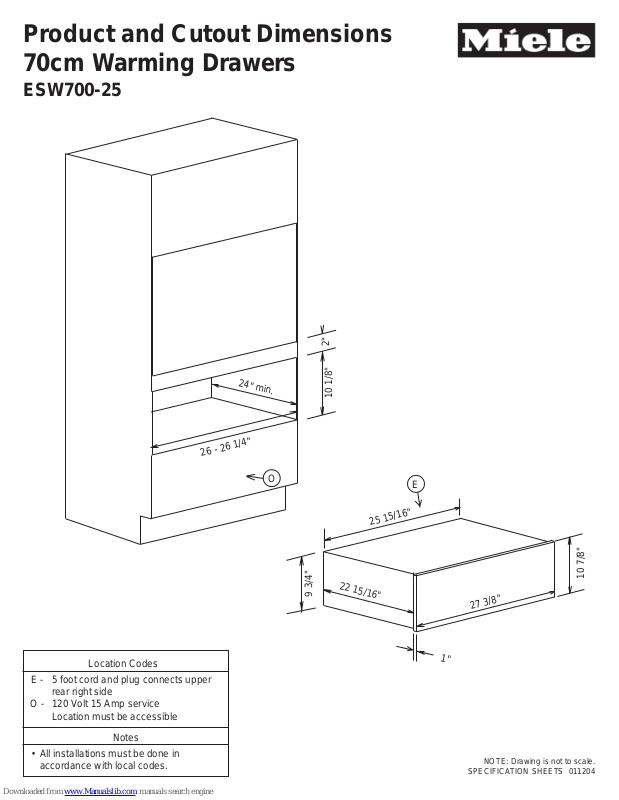

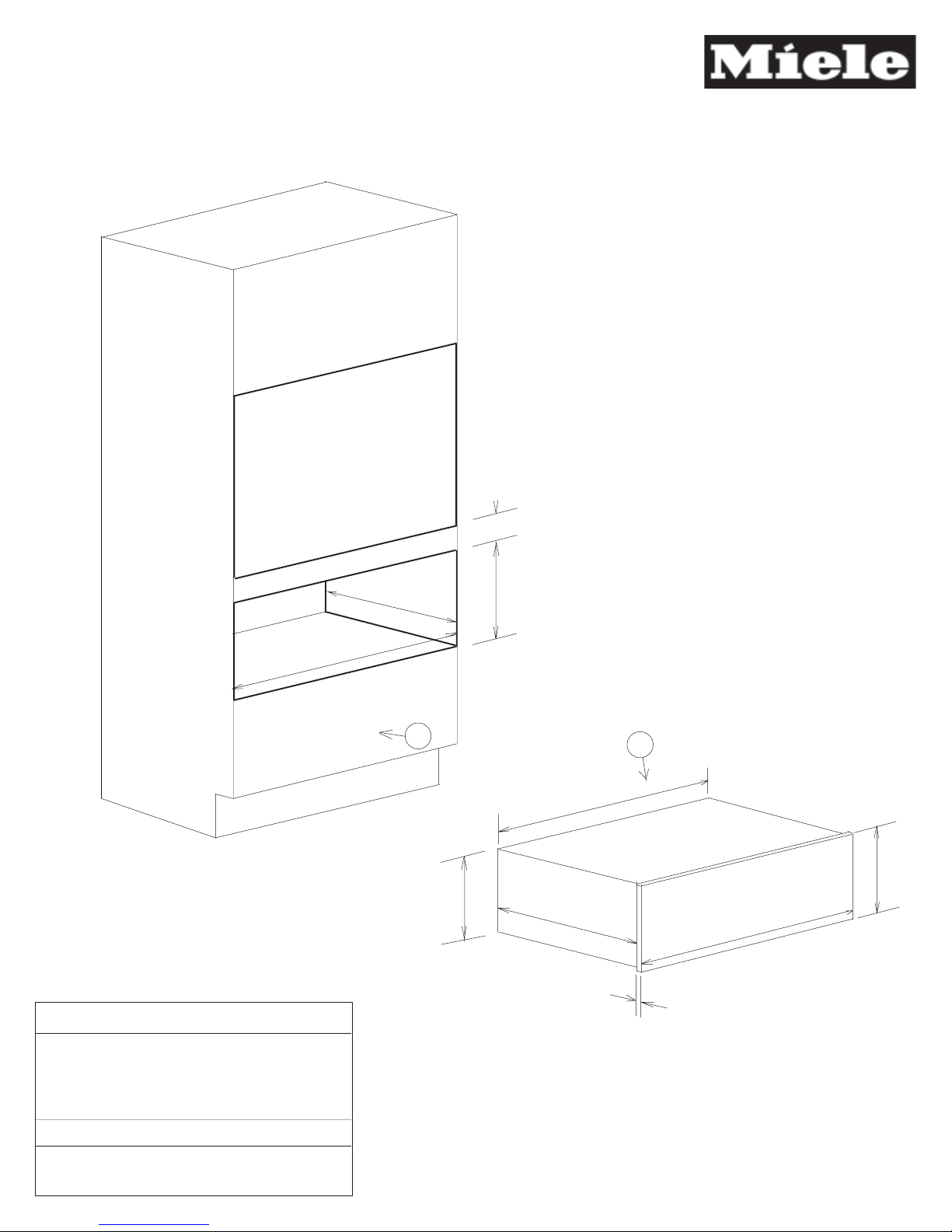

Product and Cutout Dimensions
70cm Warming Drawers
ESW700-25
24" min.
26 - 26 1/4"
2"
10 1/8"
O
25 15/16"
22 15/16"
9 3/4"
E
10 7/8"
27 3/8"
Location Codes
5 foot cord and plug connects upper
E -
rear right side
120 Volt 15 Amp service
O -
Location must be accessible
Notes
• All installations must be done in
accordance with local codes.
1"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 011204
Page 2
Product and Cutout Dimensions
70cm Warming Drawers
ESW700-25 FB
Profile Detail
24" min.
2"
10 1/8"
Unit
Frame
Unit
Housing
Note:
Custom front panel will stand
proud of the unit frame by 3/4"
E
Custom
Panel
Location Codes
5 foot cord and plug connects upper
E -
rear right side
120 Volt 15 Amp service
O -
Location must be accessible
Notes
• All installations must be done in
accordance with local codes.
26 - 28 1/2"
25 15/16"
O
10 7/8"
9 3/4"
22 15/16"
Must accept a custom front panel
27 3/8"
1"
10 7/8"
custom front panel
3/4" Thick
27 3/8" - 27 7/16"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 011204
