Page 1
Operating and Installation
Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 12 311 900
Page 2
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Caring for the environment .............................................................................. 13
Guide to the ventilation hood ........................................................................... 14
Description of functions ................................................................................... 16
Before using for the first time .......................................................................... 17
Selecting extraction mode or recirculation mode................................................ 17
Setting up Miele@home ...................................................................................... 17
Connecting via the app .................................................................................. 18
Connecting via WPS ...................................................................................... 19
Signing out of WiFi (reset to factory settings) ................................................ 20
Setting up Con@ctivity ........................................................................................ 21
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 22
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) ........................... 22
Reattempting the connection......................................................................... 23
Operation (Automatic mode) ............................................................................ 24
Cooking with Con@ctivity (Automatic mode) ...................................................... 24
Cooking process ................................................................................................. 25
Temporarily exiting Automatic mode................................................................... 26
Resuming Automatic mode............................................................................ 26
Operation (Manual mode) ................................................................................. 27
Cooking without Con@ctivity (Manual mode) ..................................................... 27
Turning on the fan................................................................................................ 27
Selecting the power level .................................................................................... 27
Selecting the delayed shutdown time ................................................................. 27
Turning off the fan ............................................................................................... 28
Dimming/switching the cooktop lighting on/off .................................................. 28
Power management ............................................................................................ 28
Safety shut-off..................................................................................................... 28
Energy-saving tips............................................................................................. 29
Changing settings ............................................................................................. 30
Adjusting the grease filter filter saturation indicator ............................................ 30
Adjusting or deactivating the filter saturation indicator for the charcoal filter..... 31
Deactivating power management ....................................................................... 31
Cleaning and care ............................................................................................. 32
Stainless steel housing........................................................................................ 32
2
Page 3
Contents
Filter saturation indicator..................................................................................... 33
Checking the filter saturation indicator .......................................................... 33
Grease filter ......................................................................................................... 33
Replacing the grease filter.............................................................................. 35
OdorFree Charcoal Filter ..................................................................................... 36
Resetting the filter saturation indicator for the charcoal filters....................... 37
Disposing of charcoal filters........................................................................... 37
Reactivatable charcoal filters ......................................................................... 37
Customer Service.............................................................................................. 38
Contact in the event of a fault ............................................................................. 38
Location of the data plate ................................................................................... 38
Appliance warranty and product registration ...................................................... 38
Installation.......................................................................................................... 39
Before installation................................................................................................ 39
Installation recommendations ............................................................................. 39
Installation materials............................................................................................ 39
Installation materials for recirculation mode .................................................. 40
Appliance dimensions ......................................................................................... 41
Distance between cooktop and ventilation hood (S)........................................... 44
Installing the depth stop (optional)...................................................................... 45
Air venting ........................................................................................................... 47
Non-return flap............................................................................................... 47
Condensate.................................................................................................... 48
Reducing Collar ............................................................................................. 48
Electrical connection ........................................................................................... 49
Technical data................................................................................................... 50
Optional accessories for recirculation mode....................................................... 50
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
Where a recirculation ventilation hood is installed above a gas
cooktop, please check that all local codes are observed to insure an
adequate supply of fresh air.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
4
Page 5
IMPORTANT SAFETY INSTRUCTIONS
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Children must not be allowed to clean or service the hood.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Avoid looking directly into the light for prolonged periods of time.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
5
Page 6
IMPORTANT SAFETY INSTRUCTIONS
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
6
Page 7
IMPORTANT SAFETY INSTRUCTIONS
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronized
with the grid power supply (e.g., island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
7
Page 8
IMPORTANT SAFETY INSTRUCTIONS
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE FIRE:
- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not permitted.
To avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the ventilation hood could draw flames into the
filter. Fat deposits could ignite, presenting a fire hazard.
8
Page 9
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
9
Page 10
IMPORTANT SAFETY INSTRUCTIONS
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
10
Page 11
IMPORTANT SAFETY INSTRUCTIONS
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance’s manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.

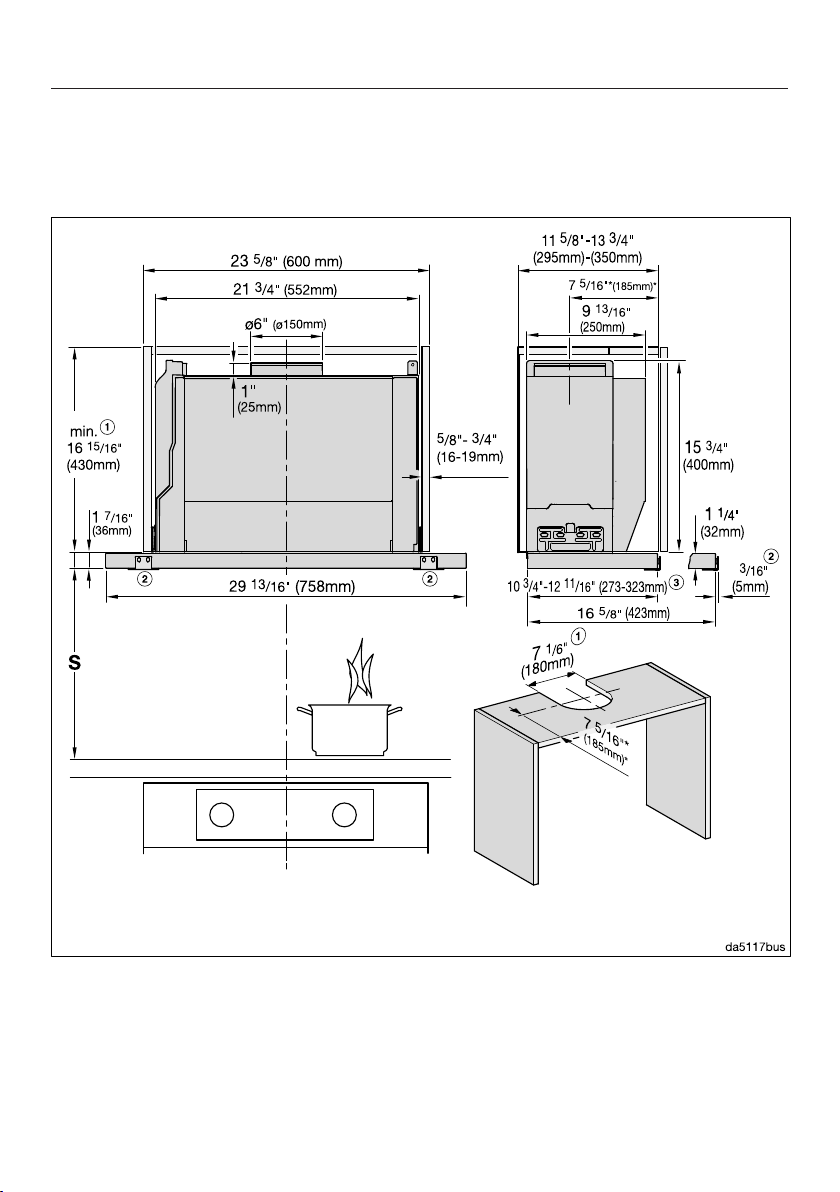

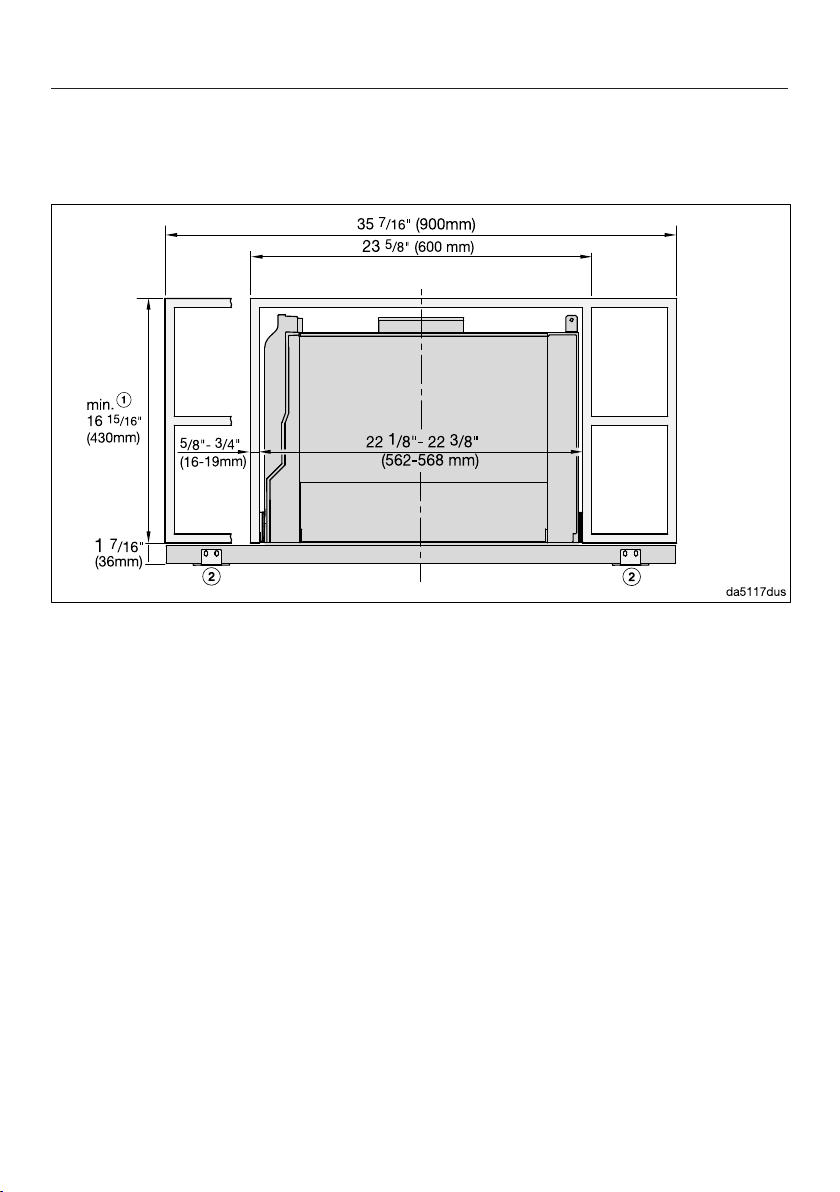

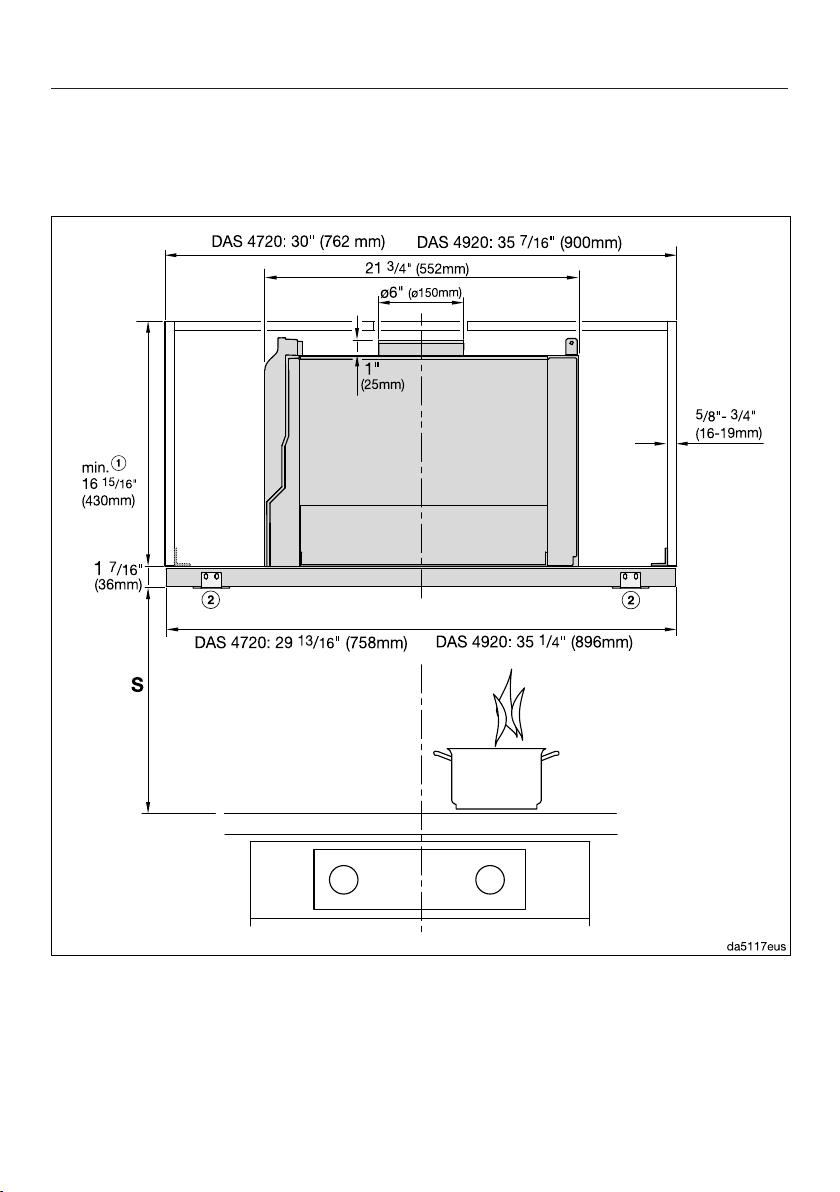

The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this manual must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
The information provided in “Installation” must be observed when
installing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service. Always observe local building
code requirements when selecting duct material.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
11
Page 12
IMPORTANT SAFETY INSTRUCTIONS
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories and parts
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become void.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
Miele will guarantee to supply functional parts for a minimum of
10years and up to 15years following the discontinuation of your
ventilation unit.
12
Page 13
Caring for the environment
Disposal of the packing material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
13
Page 14
Guide to the ventilation hood14Guide to the ventilation hood
Page 15

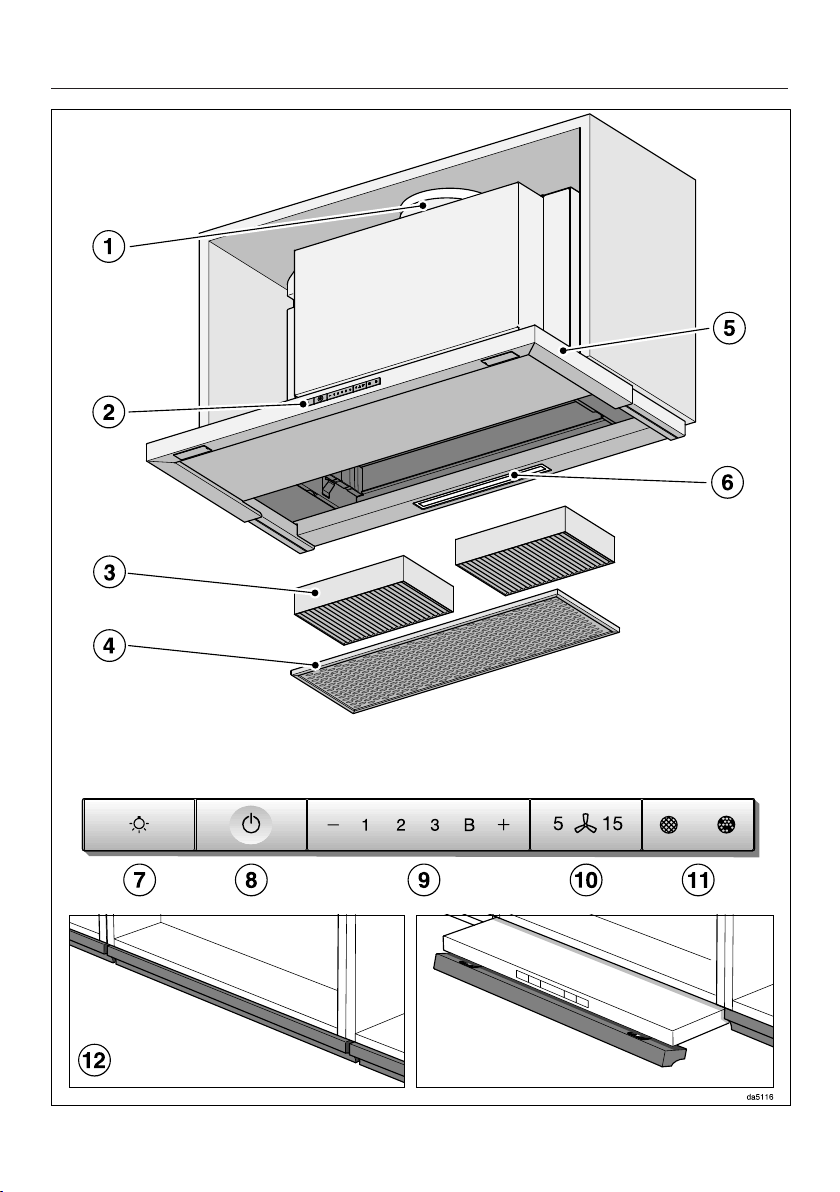

a
Vent collar
b
Controls
c
Charcoal filters
Optional accessories for recirculation mode
d
Grease filter
e
Pull-out canopy
f
Overhead lighting
g
Control for switching the lighting on and off and for dimming the lighting
h
Control for switching the blower on and off
i
Controls for setting the blower power
j
Control for the delayed shutdown function
k
Control for the filter saturation indicator
l
Drop-down front panel
The front panel of the pull-out canopy can be fitted with one that matches your
kitchen cabinetry instead (DML 2000 installation kit required).
15
Page 16
Description of functions

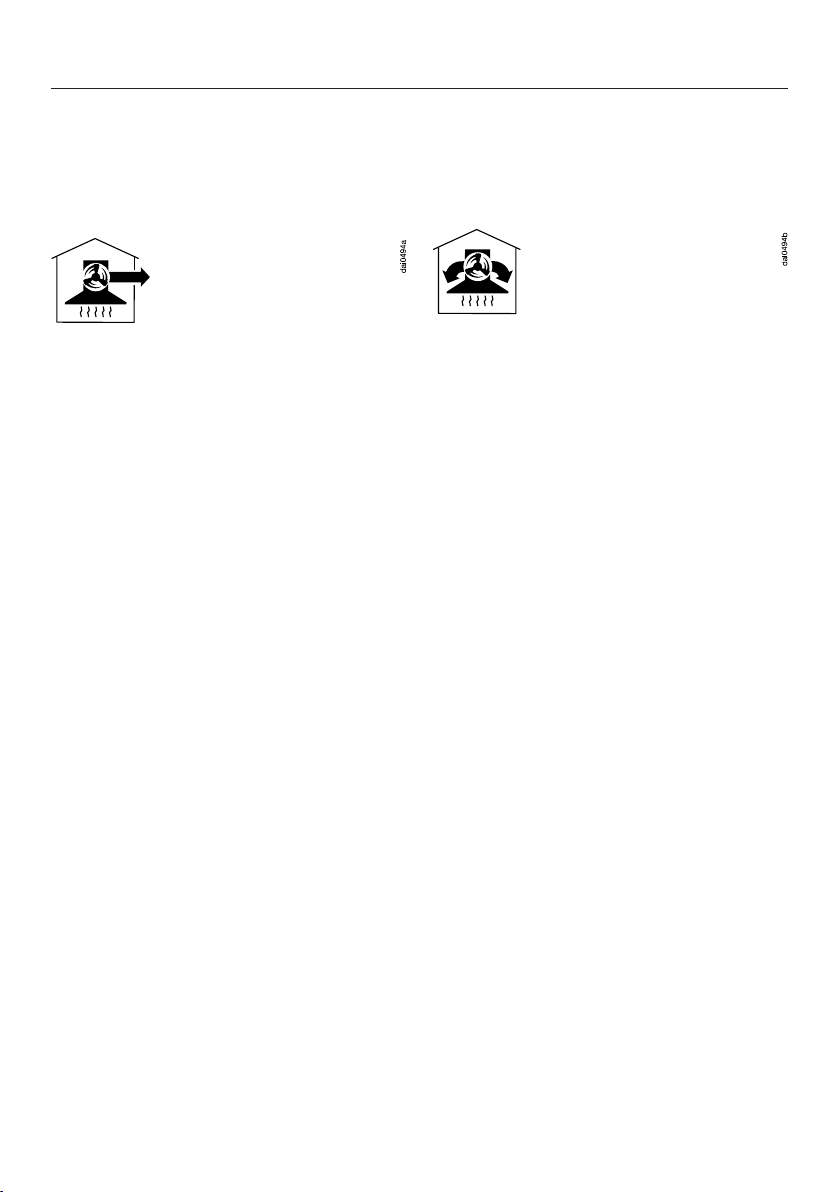

The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
Air entering through the intake is
cleaned by the grease filters and
conducted out of the building.
Recirculation mode
(only with conversion kit and charcoal
filters as optional accessories, see
“Technical data”)
The air is drawn in and cleaned first by
the grease filter and then by charcoal
filters. The air is then circulated back
into the kitchen.
16
Page 17
Before using for the first time
Selecting extraction mode or recirculation mode
The ventilation hood can be operated
with either extraction mode or
recirculation mode. The power of the
blower is adapted to suit the selected
mode of operation. The ventilation
hood is set up at the factory for
recirculation mode. The ventilation
hood has to be reset for extraction
mode.
To reset it for extraction mode, the filter
saturation indicator for the charcoal
filter(s) has to be deactivated.

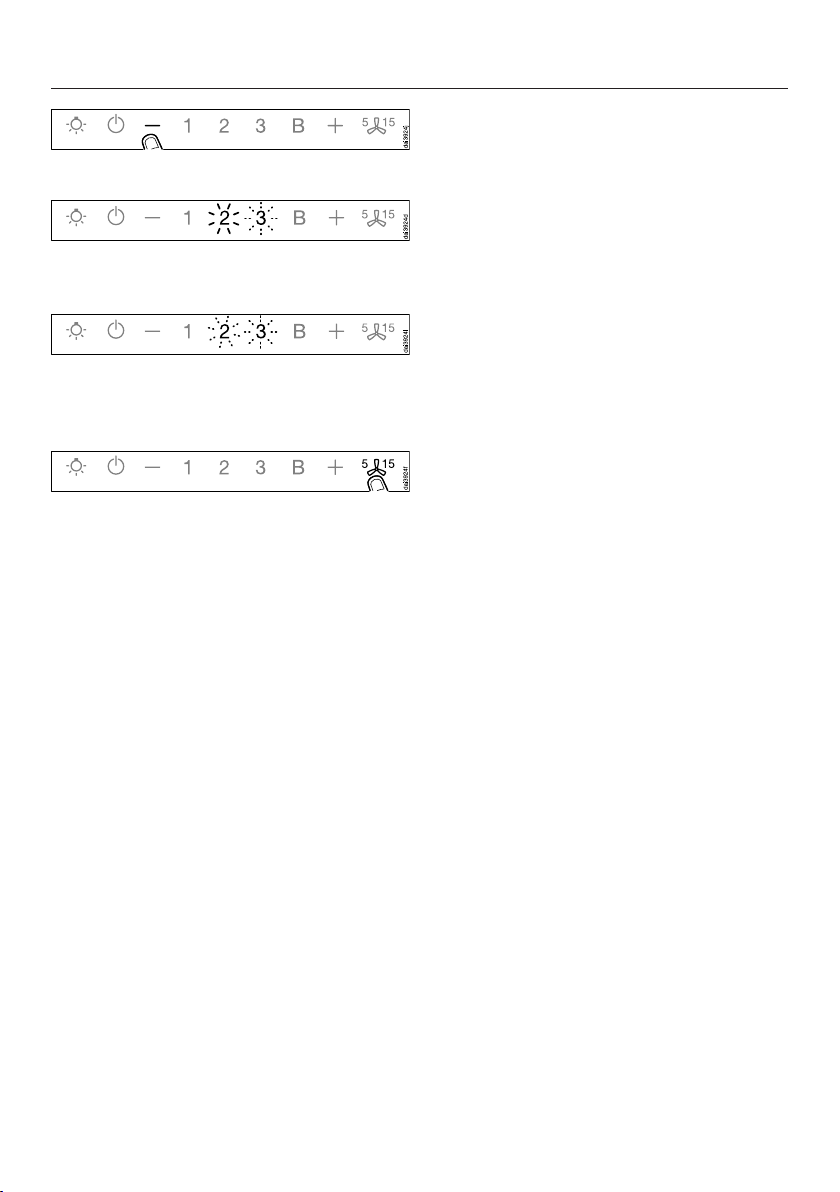

Switch off the blower and the lighting.
Press the control and the
operating-hours control at the
same time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
Press and hold the control until the
B indicator starts to flash.
Confirm the selection by pressing the
operating-hours control.

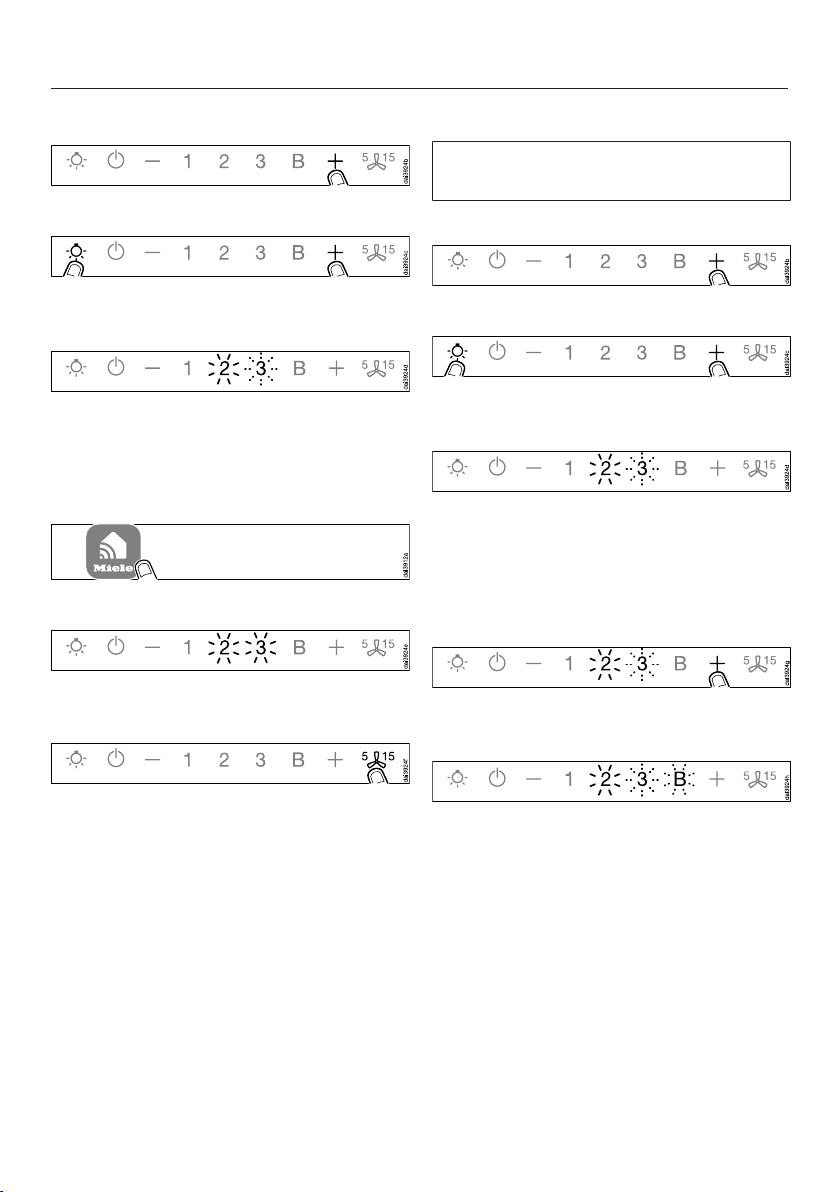

Setting up Miele@home
Required:
- a WiFi network
- the Miele app
- a Miele user account. You can
create a user account via the Miele
app.
Your ventilation hood is equipped with
an integrated WiFi module. Connect the
ventilation hood to your household WiFi
network. You will then be able to
operate the ventilation hood via the
Miele app.
If your Miele cooktop is connected to a
home WiFi network, you can control the
ventilation hood automatically via the
Con@ctivity function.
Before installing the ventilation hood
in its final location, ensure that the
signal of your WiFi network is strong
enough.
You can connect to the household WiFi
network via the Miele app or via WPS.
All the indicator lights will go out.
Extraction mode has now been set.
If the selection is not confirmed within
4minutes, the system will revert to the
previous setting.
17
Page 18
Before using for the first time
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.

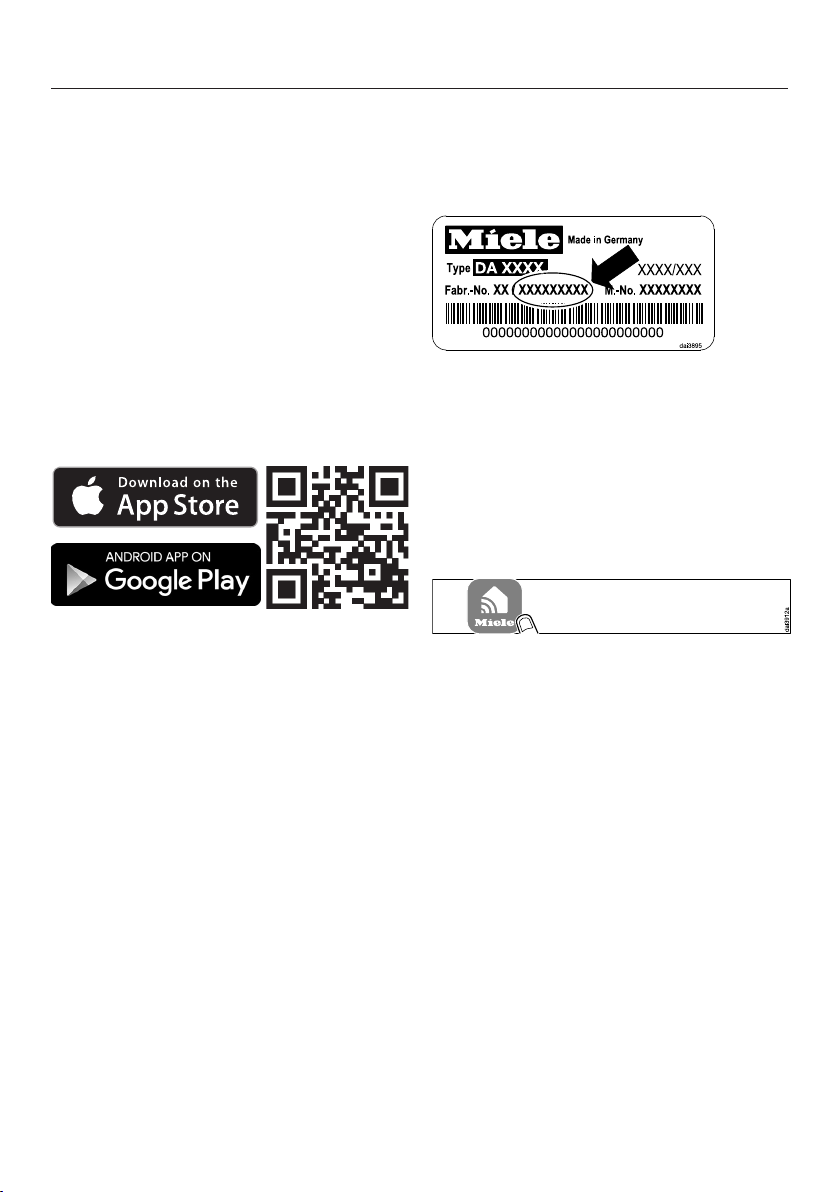

Miele App
The Miele App is available to download
free of charge from the Apple App
Store® or from the Google Play Store™.
Connecting via the app
The Miele app can be used to connect
to your network.
Install the Miele app on your mobile
device.
To log in you will need:
1. your WiFi network password
2. your ventilation hood password
The password for your ventilation hood
consists of the last 9digits of the serial
number. This can be found on the
appliance’s data tag.
The data plate is visible once you have
removed the grease filter and, in the
case of recirculation mode, the charcoal
filter.
Start signing the appliance on in the
app. Follow the signing in
instructions.
If requested to activate WiFi on the
ventilation hood, proceed as follows:
18
Page 19
Before using for the first time

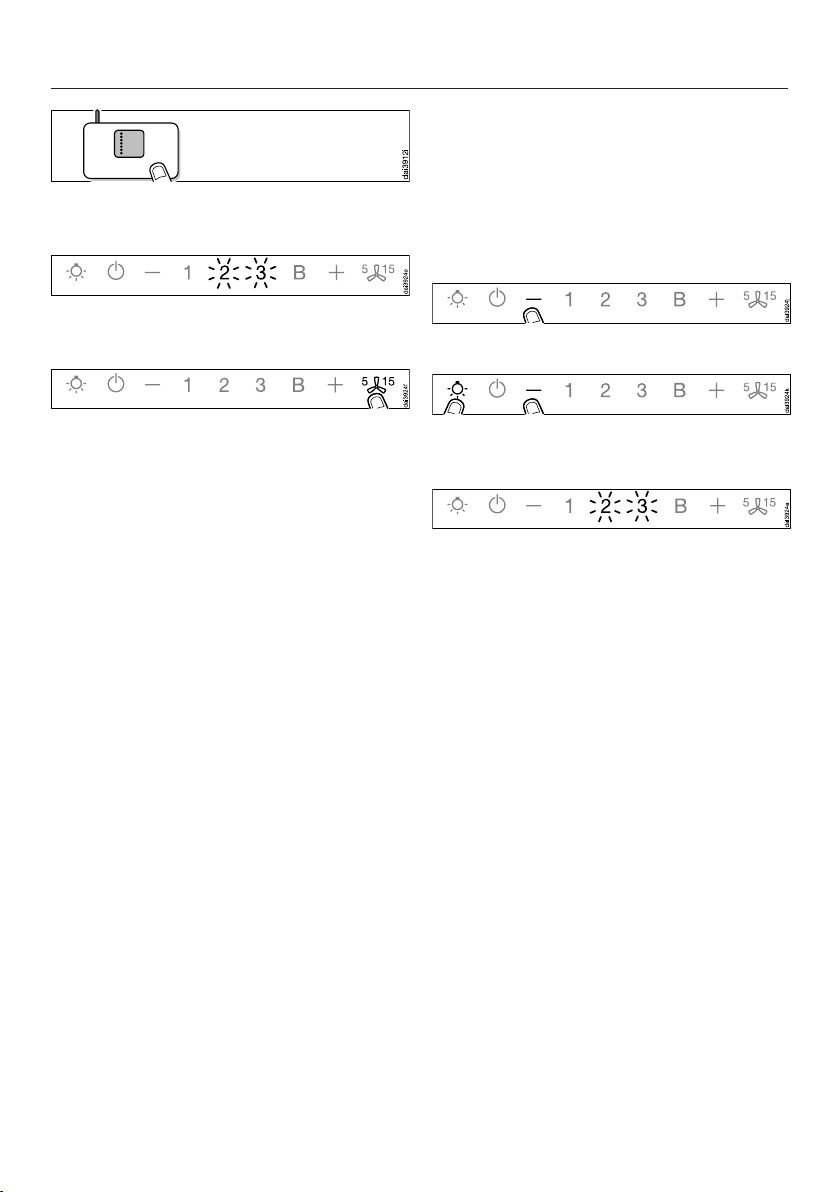

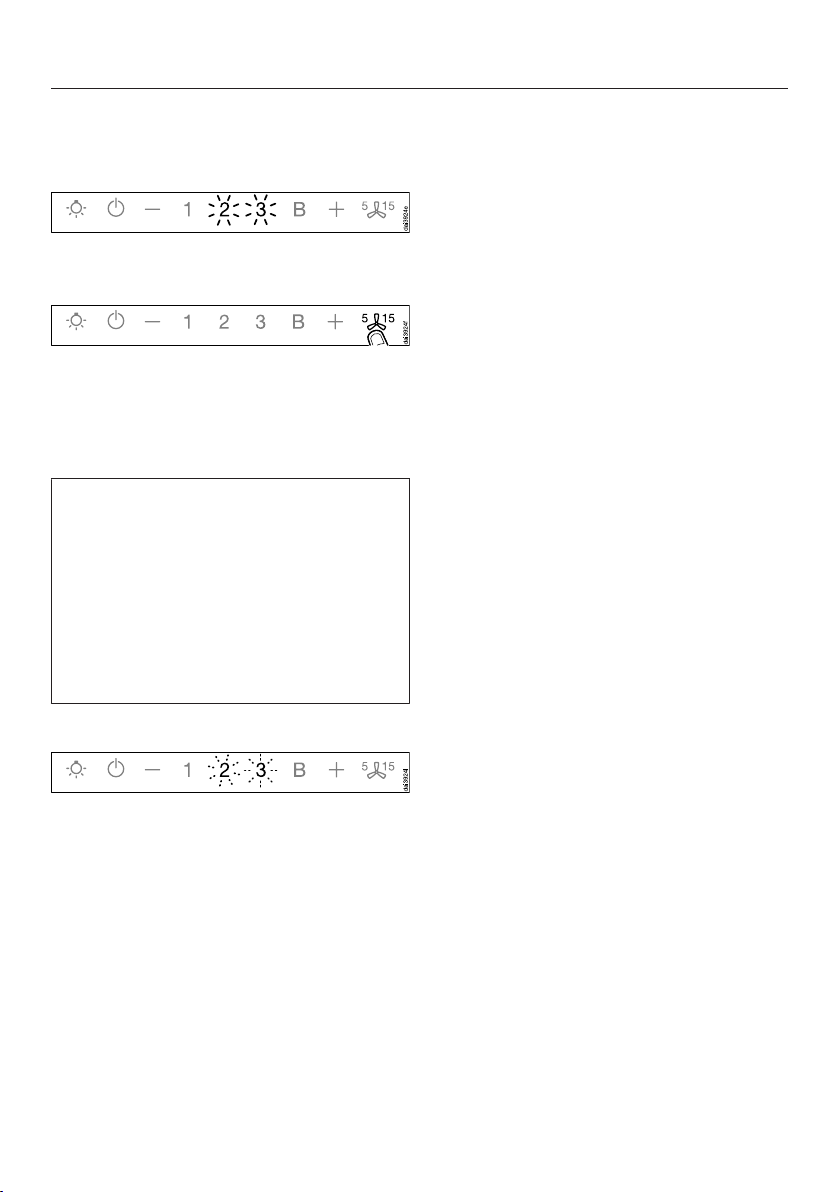

Switch the ventilation hood off.
Press and hold the control.
Press the lighting control at the
same time.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood will be ready for
connection in the next 2minutes.
Follow the instructions in the app.
When successfully connected, 2 and 3
will light up constantly.
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Switch the ventilation hood off.
Press and hold the control.
Press the lighting control at the
same time.
2 will light up constantly, 3 will flash on
and off.
The WiFi connection must be started on
the ventilation hood at the same time as
on the WiFi router.
Press the control on the ventilation
hood after a few seconds.
Exit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
After a short while, 2 will light up
constantly, and 3 and B will flash on
and off.
The ventilation hood is ready for
connection in the next two minutes.
19
Page 20
Before using for the first time
Start the WiFi connection on your
router.
When successfully connected, 2 and 3
will light up constantly.
Signing out of WiFi (reset to factory settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the ventilation hood off.
Press and hold the control.
Exit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
If the connection fails, you have
probably not connected WPS to your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the Miele app.
Touch the lighting control at the
same time.
With an existing WiFi connection, 2 and
3 will light up constantly.
The ventilation hood will be ready for
disconnection in the next 2minutes.
20
Page 21
Touch the control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Exit disconnection mode on the
ventilation hood by pressing the
delayed shutdown control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Before using for the first time
Setting up Con@ctivity
Con@ctivity is the direct communication
system between an induction Miele
cooktop and a Miele ventilation hood. It
enables the ventilation hood to operate
automatically depending on the
operational state of a Miele cooktop
with onset controls.
- When a burner is turned on, the
overhead lighting on the hood turns
on automatically. After a brief delay,
the ventilation hood blower also
comes on.
- The ventilation hood selects the
power setting automatically during
cooking. The power level selected by
the ventilation hood depends on the
number of cooking zones being used
and their power levels.
- After switching the cooktop off, the
blower and the overhead lighting will
switch off automatically after a
specified period of time.
Detailed information about this function
can be found under “Operation”.
21
Page 22
Before using for the first time
Con@ctivity via the home WiFi network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele cooktop
Connect the ventilation hood and
cooktop to your home WiFi network
(see “Setting up Miele@home”).
The Con@ctivity function will be
activated automatically.
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele cooktop
If you do not have a home network, you
can establish a direct connection
between the cooktop and the
ventilation hood.

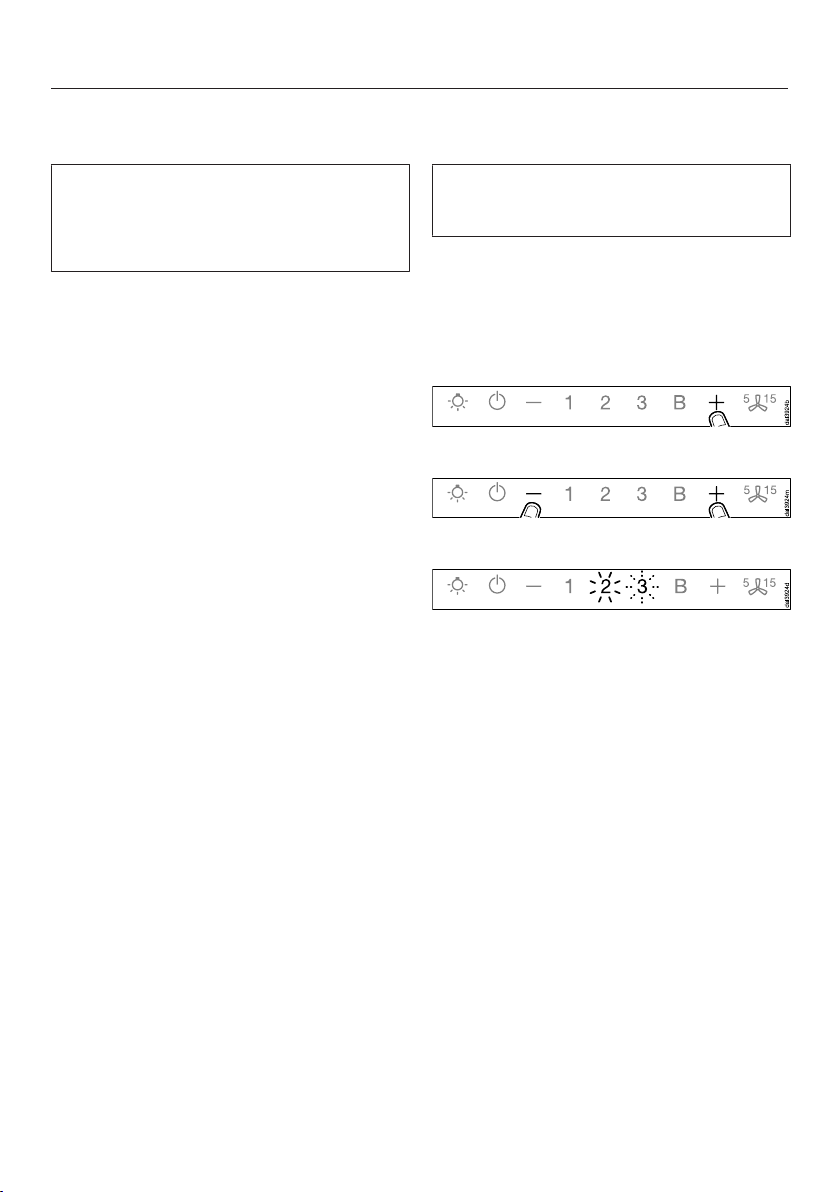

Switch the ventilation hood off.
Press and hold the control.
Press the control at the same time.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood will be ready for
connection in the next 2minutes.
22
Page 23
Start the WiFi connection on the
cooktop. For more details, see the
cooktop operating instructions.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
Con@ctivity has now been activated.
With a direct WiFi connection, it is not
possible to connect the cooktop and
the ventilation hood to a home
network. Should this be required at a
later date, the direct WiFi connection
between the cooktop and the
ventilation hood must be
disconnected first (see “Signing out of
WiFi”).
Before using for the first time
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the ventilation hood cancels the
process.
Disconnect the connection to the
ventilation hood (see “Signing out of
WiFi”) and to the cooktop.
Attempt to make the connection
again.
23
Page 24
Operation (Automatic mode)
When Con@ctivity is active, the
ventilation hood always operates in
automatic mode (see “Before using for
the first time – Setting up
Con@ctivity”).
If you wish to operate the ventilation
hood manually; see “Operation
(Manual mode) – Cooking without
Con@ctivity”.
Cooking with Con@ctivity (Automatic mode)
Turn on a burner to the desired power
setting.
The ventilation hood lighting will come
on.
Pull out the canopy.
The fan will come on at power level 2.
The ventilation hood selects the power
level automatically during cooking.

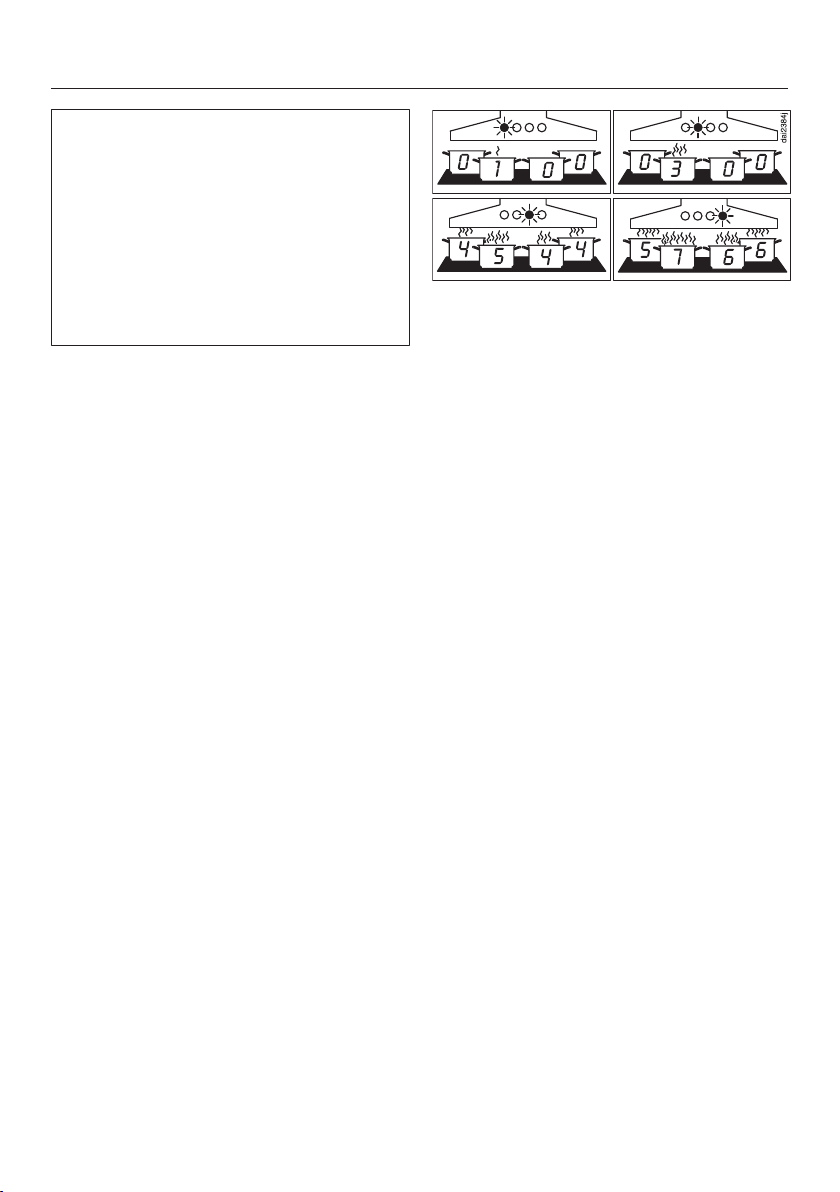

Examples for fan levels 1 to B
Reaction time
Changing the power setting on the
cooktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the cooktop transmits the information to
the hood in intervals.
The reaction time can vary from a few
seconds to a couple of minutes.
This level is determined by the total
output of the cooktop, i.e., the number
of burners in operation and the power
levels selected.
If you select a higher power level on
the cooktop or switch on multiple
burners, the ventilation hood will
switch to a higher fan level.
If you select a lower power level on
the cooktop or turn off a burner, the
ventilation hood will accordingly
switch to a lower fan level.
24
Page 25
Operation (Automatic mode)
Cooking process
For example, you switch on a burner
at the highest power level to heat
cookware for frying. After approx.
10seconds to 4minutes, you then
reduce the power level (60seconds
to 5minutes for a HiLight cooktop).
The ventilation hood recognizes a
cooking process.
The ventilation hood turns itself on and
when the cooktop power level has been
reduced, the ventilation hood switches
to power level 3 and remains at that
level for approx. 5minutes.
After this, the blower level is once again
determined by the Con@ctivity function.
You can also manually select a different
blower level before then.
Switching off
Turn off all burners.
Over the next few minutes, the
ventilation hood blower setting will
decrease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air.
- From the Booster setting, the blower
switches immediately to level3.
- From level 3, it will switch to level 2
after approx. 1minute.
- From level 2, it will switch to level 1
after 2minutes.
- After 2minutes at level 1, the blower
automatically turns off.
- After another 30seconds, the
overhead lighting turns off.
The cooking process is then finished.
If the canopy remains pulled out, the
ventilation hood will be switched on
automatically the next time the cooktop
is switched on:
The fan switches on a few seconds
after the cooktop switches on, initially
at level 2, before immediately changing
to level 1. Operation then continues
automatically.
25
Page 26
Operation (Automatic mode)
Temporarily exiting Automatic mode
To temporarily exit Automatic mode
when cooking:
Manually select a different blower
level; or
Manually turn the ventilation hood off;
or
Activate the delayed shutdown
function on the ventilation hood.
The blower will switch itself off after
the selected run-on time, and the
lighting will remain on.
The ventilation hood functions are now
operated manually (see “Operation
(Manual mode)”).
Resuming Automatic mode
The ventilation hood resumes
Automatic mode:
- If the ventilation hood has not been
used for a period of approx.
5minutes after the manual selection
of a blower level; or
You can also operate the ventilation
hood manually for a complete cooking
process.
To do so, switch the ventilation hood
blower on before the cooktop.
If the ventilation hood and the cooktop
have been switched off for at least
30seconds after cooking, Automatic
mode will resume next time the cooktop
is switched on.
- If the manually selected blower level
once again matches the automatic
setting; or
- The ventilation hood blower and the
cooktop have been switched off for
at least 30seconds.
Automatic mode will resume next
time the cooktop is switched on.
26
Page 27
Operation (Manual mode)
Cooking without Con@ctivity (Manual mode)
The ventilation hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Automatic mode) – Temporarily
exiting Automatic mode”).
Turning on the fan
Switch the fan on as soon as you start
cooking. This is to ensure that vapors
are captured right from the start.

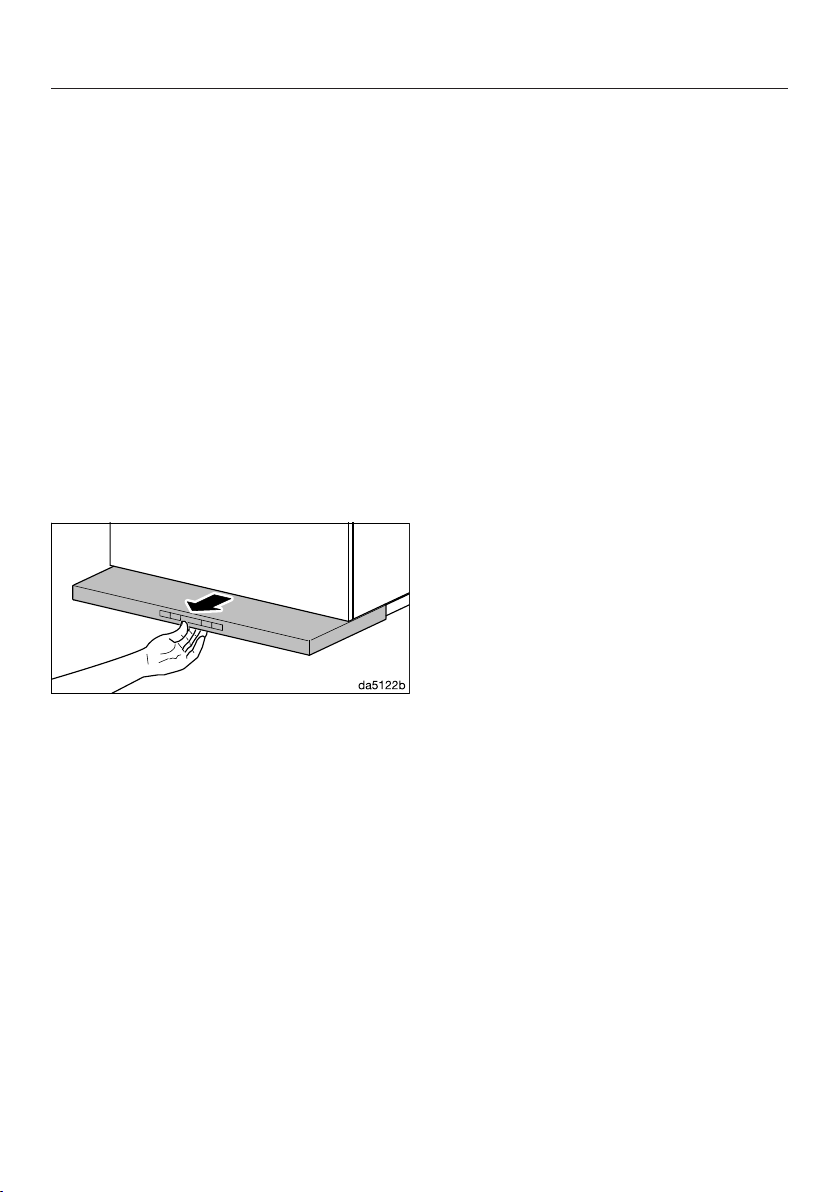

Pull out the canopy. To ensure
optimum extraction and a low noise
level, pull the canopy all the way out.
The fan switches on at power level 2.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Reducing power down from the Booster setting
If power management is activated
(default setting), the blower
automatically switches back to level 3
after 5minutes.
Selecting the delayed shutdown time
It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.
It also reduces the risk of odors and
residues accumulating in the ventilation
hood.
The delayed shutdown function enables
the blower to continue running for a
pre-determined time before switching
itself off automatically.
After you have finished cooking,
press the delayed shutdown
control while the blower is still
running.
- Once: blower turns off after
5minutes (5 lights up).
- Twice: blower turns off after
15minutes (15 lights up).
- If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).
Select the power level you want by
pressing the or control.
27
Page 28
Operation (Manual mode)
Turning off the fan
Push in the canopy.
The next time the canopy is pulled out,
the fan will operate at power level 2
again.
Or switch the fan off with the On/Off
control.
The symbol will go out.
Dimming/switching the cooktop lighting on/off
You can turn the cooktop lighting on
and off by pulling out the canopy and
pushing it in again or by pressing the
lighting control.
The lighting will switch on at maximum
brightness.
With the lighting switched on, press
and hold the lighting control. The
brightness will gradually dim until the
control is released.
To increase the brightness, press and
hold the lighting control again until
the desired level has been reached
and then release it.
Power management
The ventilation hood is equipped with a
power management system. Power
management helps to save energy. It
ensures that the blower power level is
reduced automatically and that the
lighting is switched off.
- If the booster level is selected, the
blower automatically switches to
level 3 after 5 minutes.
- If the blower is set to level 3, 2, or 1,
it switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.
- The overhead lighting will switch off
automatically after 12hours.
Safety shut-off
If power management has been
deactivated, the ventilation hood will
switch itself off automatically after
12hours if it has been left on (blower
and overhead lighting).
To switch it back on, press the On/
Off control or the lighting
control.
28
Page 29
Energy-saving tips
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
ventilation hood will switch on and off
automatically. The ventilation hood
will select the optimum power level
for the cooking you are doing, which
ensures low energy consumption.
- If you are operating the ventilation
hood manually, please note the
following:
– Check the power level selected on
the ventilation hood. A low power
level is usually sufficient. Only use
the Booster setting when
necessary.
– When a large volume of cooking
vapors are being produced, switch
to a high power level in good time.
This is more efficient than
operating the hood for longer to try
to capture cooking vapors that
have already been distributed
throughout the kitchen.
– Make sure that you switch off the
hood after use.
If cooking vapors and odors still
need to be removed from the
kitchen air after cooking, use the
delayed shutdown function. The
blower will switch off automatically
after the selected delayed
shutdown time.
29
Page 30
Changing settings
Adjusting the grease filter filter saturation indicator
The filter saturation indicator can be set
to suit the customer’s cooking habits.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter interval of 20hours if
food is fried regularly.
- A shorter cleaning interval is also
recommended if the customer only
cooks occasionally. This will prevent
grease buildup from hardening and
making cleaning more difficult.
- Select a longer cleaning interval of 40
or 50hours if the customer uses very
little fat when cooking.
Switch off the blower and the lighting.
Press the delayed shutdown
control and the filter saturation
control at the same time.
The grease filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1 .............................................. 20hours
2 .............................................. 30hours
3 .............................................. 40hours
B.............................................. 50hours
Press the control for a shorter
duration, or for a longer duration.
Confirm the selection by pressing the
filter saturation indicator.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
30
Page 31
Changing settings
Adjusting or deactivating the filter saturation indicator for the charcoal filter
Charcoal filters are needed for
recirculation mode.
The filter saturation indicator can be set
to suit the customer’s cooking habits.
It has to be deactivated for extraction
mode.
The factory default setting is an interval
of 180hours.
Switch off the blower and the lighting.
Press the “” button and the
operating-hours button at the
same time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
Indicator 1 ............................. 120hours
Indicator 2 ............................. 180hours
Indicator 3 ............................. 240hours
B ......................................... Deactivated
Press the “” or “” button to select
the required duration.
Confirm the selection by pressing the
operating-hours button.
All the indicator lights will go out.
If the selection is not confirmed within
4minutes, the system will revert to the
previous setting.
Deactivating power management
Keep in mind that this may increase
energy consumption.
Activating/deactivating power management
Switch off the blower and the lighting.
Press the delayed shutdown
control for approx. 10seconds
until the 1 indicator appears in the
blower level display.
Then press, in turn:
- the lighting control,
- the control, and then
- the lighting control.
When power management is turned on,
the 1 and B indicators will be
continuously lit.
When it is turned off, the 1 and B
indicators will flash.
Press the control to deactivate
power management.
The 1 and B indicators will flash.
Press the control to activate power
management.
The 1 and B indicators will be
continuously lit.
Confirm the setting by pressing the
delayed shutdown control.
All the indicator lights will go out.
If you do not confirm the new setting
within 4minutes, the ventilation hood
will revert to the previous setting.
31
Page 32
Cleaning and care
Before proceeding with any
maintenance or cleaning task, the
ventilation hood must be
disconnected from the power supply,
see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride, or
solvent.
Do not use any abrasive cleaning
agents, e.g., powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents
Moisture in the ventilation hood
can cause damage.
Make sure that water does not get
into the ventilation hood.
Important information for appliances with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for the controls
If soiling is not removed promptly, it
could cause the control elements to
alter or discolor.
Remove soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.
Clean all surfaces and control buttons
using a small amount of warm water
and liquid dish soap. Apply with a
sponge cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
32
Page 33
Cleaning and care
Filter saturation indicator
The ventilation hood registers the length
of time it has been operated.
Filter saturation indicators show when
the filters need to be cleaned or
changed by lighting up the grease filter
symbol or charcoal filter symbol.
You can set the filter saturation
indicator to suit the type of cooking you
do (see “Changing settings”).
Checking the filter saturation indicator
Before the set operating time has run
out, you can check what percentage of
the time has elapsed.
Press the On/Off control to turn the
blower on.
Press and hold the filter saturation
indicator.
- Once, to check the grease filter
operating time. The grease filter
symbol lights up.
The number of elapsed operating
hours remains stored in memory when
the ventilation hood is turned off or if
there is a power outage.
Grease filter
Risk of fire
An oversaturated grease filter is a fire
hazard.
Clean the grease filter at regular
intervals.
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapors (grease, dust, etc.),
preventing soiling of the ventilation
hood.
The grease filter must be cleaned at
regular intervals.
A heavily soiled grease filter hinders
air extraction and will lead to
increased levels of soiling in the
ventilation hood and in the kitchen.
- Twice, to check the charcoal filter
operating time. The charcoal filter
symbol lights up.
One or more of the blower power level
indicators will flash simultaneously.
The number of flashing indicators
shows the elapsed operating time as a
percentage.
Indicator 1 .................................... 25%
Indicators 1 and 2 ......................... 50%
Indicators 1 to 3 ........................... 75%
Indicators 1 toB ......................... 100%
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease filter
should therefore be cleaned at least
every 3 to 4 weeks.
The filter saturation indicator reminds
you to regularly clean the grease filter
by illuminating the grease filter
symbol.
33
Page 34
Cleaning and care

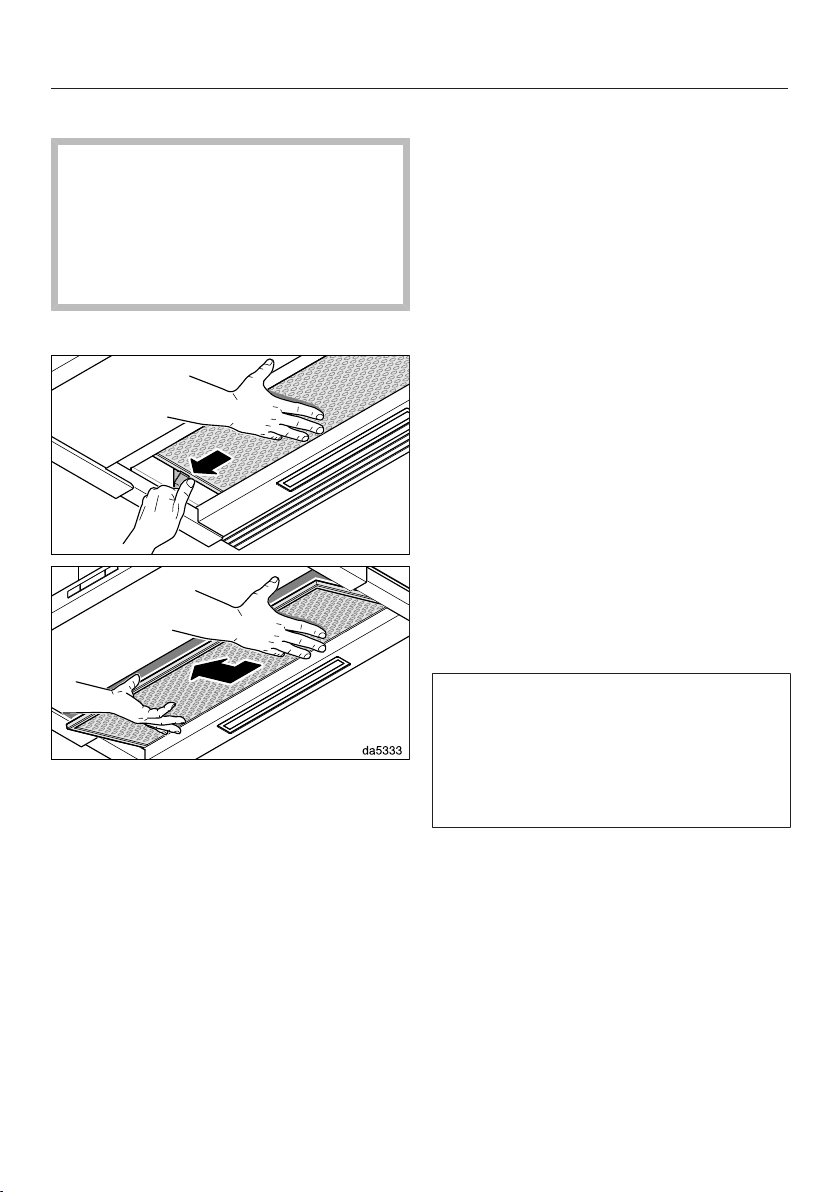

Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
Pull out the deflector plate.
Support the grease filter with your
right hand. Press down on the lock
on the left-hand side.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning the grease filter in a dishwasher
Place the grease filter upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filter in a dishwasher may
cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filter in any way.
Pull the grease filter down to remove
it.
Cleaning the grease filter by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
34
Page 35
Cleaning and care

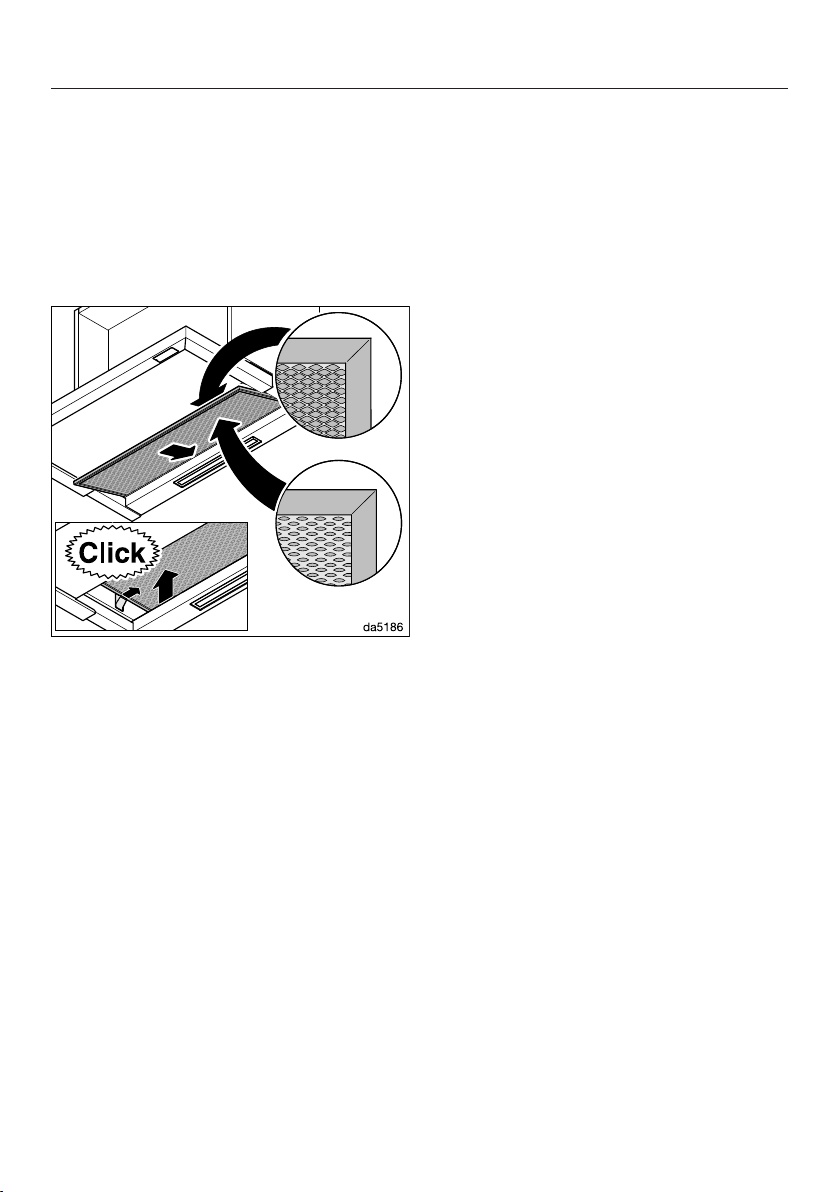

After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible casing to
prevent the risk of these catching fire.
Reinsert the grease filter.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filter.
Grease filters are available to order via
Miele Customer Service (see end of
these operating instructions for contact
details) or from your Miele dealer.
Resetting the filter saturation indicator for the grease filter
Once cleaning is complete, the filter
saturation indicator must be reset.
While the fan is turned on, press the
filter saturation indicator for
approx. 3seconds until 1 is the only
indicator flashing.
The grease filter symbol goes out.
When cleaning the grease filter before
the full operating time has elapsed:
Press the filter saturation
indicator for approx. 6seconds
until 1 is the only indicator flashing.
35
Page 36
Cleaning and care
OdorFree Charcoal Filter
With recirculation mode, two charcoal
filters must be inserted in addition to
the grease filter. These are designed to
absorb cooking odors.
The charcoal filters are fitted in the
canopy above the grease filter.
Charcoal filters are available to order via
the Miele website or from your Miele
dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.

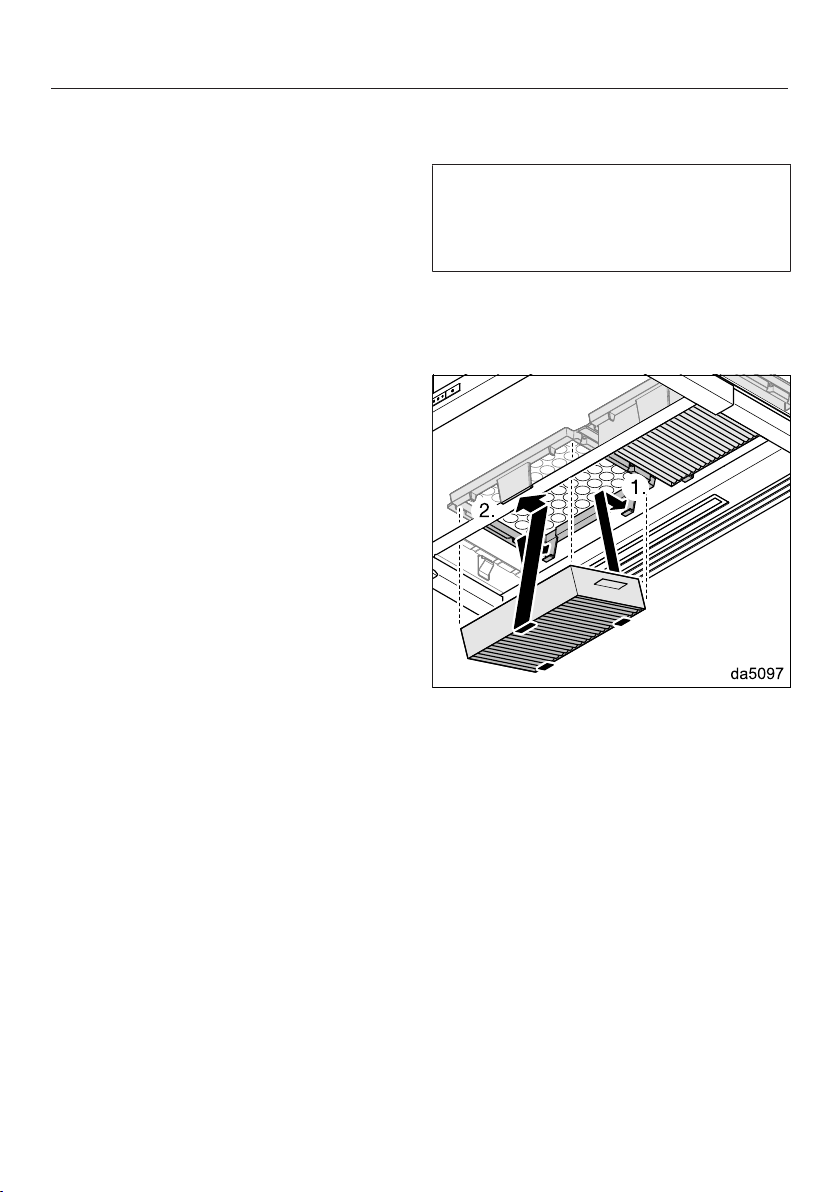

Installing/replacing the charcoal filters
The matching frames must be installed
in order to use the charcoal filter.
Follow the directions on the
installation sheet.
Remove the grease filter from the
ventilation hood.
Remove the charcoal filter packaging.
36
Push the charcoal filters into the
frames until they engage firmly.
Reinsert the grease filter.
To remove the charcoal filters, press
the holder clip forward slightly and
pull the filters down to remove them.
Page 37
When to change the OdorFree Charcoal Filter
Replace the charcoal filters when they
no longer absorb kitchen odors
effectively, and at least every 6months.
The filter saturation indicator reminds
you to regularly replace the charcoal
filters by illuminating the charcoal filter
symbol.
Resetting the filter saturation indicator for the charcoal filters
After changing the charcoal filters, the
filter saturation indicator must be reset.
To do this, press the filter saturation
indicator twice with the blower
turned on and hold it for approx.
3seconds until 1 is the only indicator
flashing.
The charcoal filter symbol will go
out.
Cleaning and care
If you want to replace the charcoal
filters before the full operating time
elapses:
Press the filter saturation
indicator twice and hold it for
approx. 6seconds until 1 is the only
indicator flashing.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filters
Reactivatable charcoal filters are
available for this ventilation hood. They
can be used several times after being
reactivated in the oven.
Please follow the operating instructions
supplied with the filters.
37
Page 38
Customer Service
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/
service.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filter and, in the
case of recirculation mode, the charcoal
filter.
Appliance warranty and product registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
38
Page 39
*INSTALLATION*
Installation
Before installation
Before installation, it is important
to read the information contained in
this chapter and in the “IMPORTANT
SAFETY INSTRUCTIONS” chapter.
Information is subject to change. Please
refer to our website to obtain the most
current product specification, technical
& warranty information.
Installation recommendations
- To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.

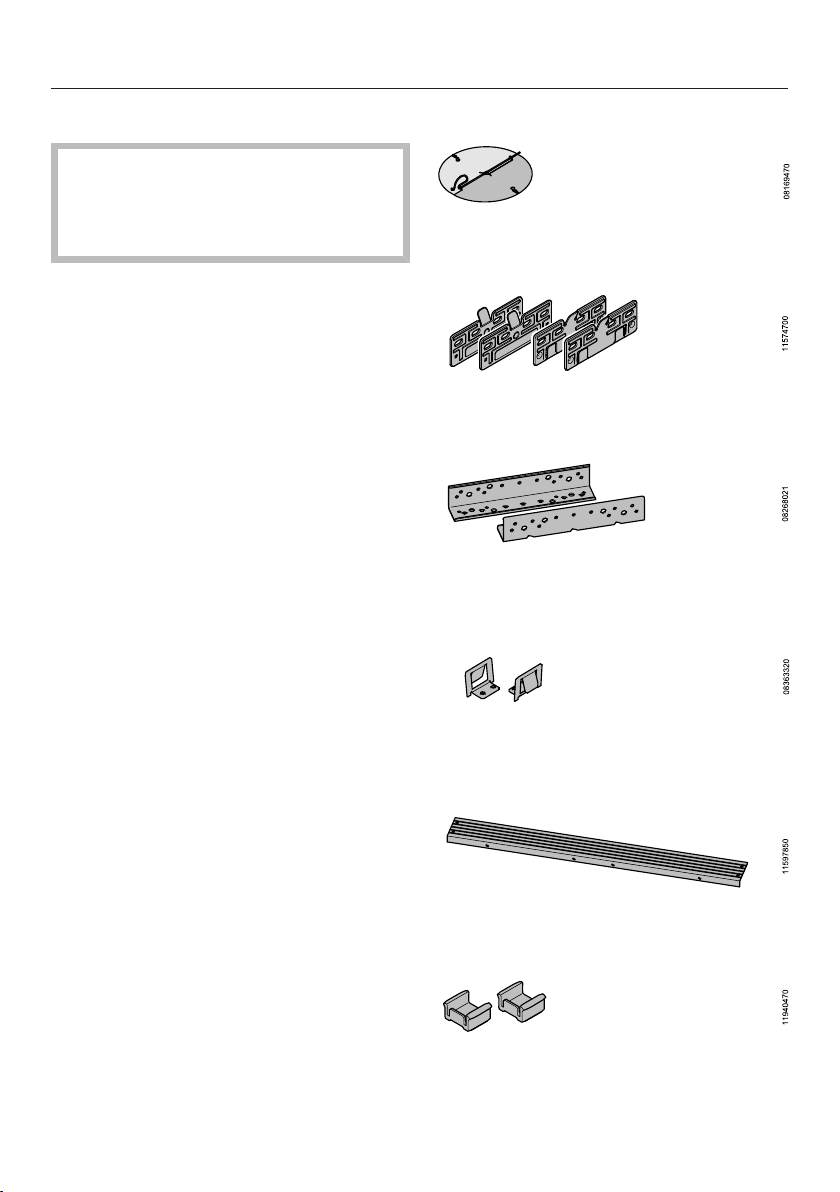

Installation materials
1non-return flap
for installation in the exhaust vent on the
motor (not needed for recirculation mode)
4mounting plates
for installation in a 23 ⁵/₈" (600mm)
wide cabinet
2brackets
for installation in a 35 ⁷/₁₆" (900mm)
wide cabinet (only for 35 ¹/₄" (896mm)
wide appliances)
2 spring clips
for installation in a 35 ⁷/₁₆" (900mm)
wide cabinet (only for 35 ¹/₄" (896mm)
wide appliances)
1 spacer strip
for concealing the gap between the
rear of the appliance and the wall
2 depth stops
to limit how far the canopy can be
pushed in
39
Page 40
*INSTALLATION*
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
11839970

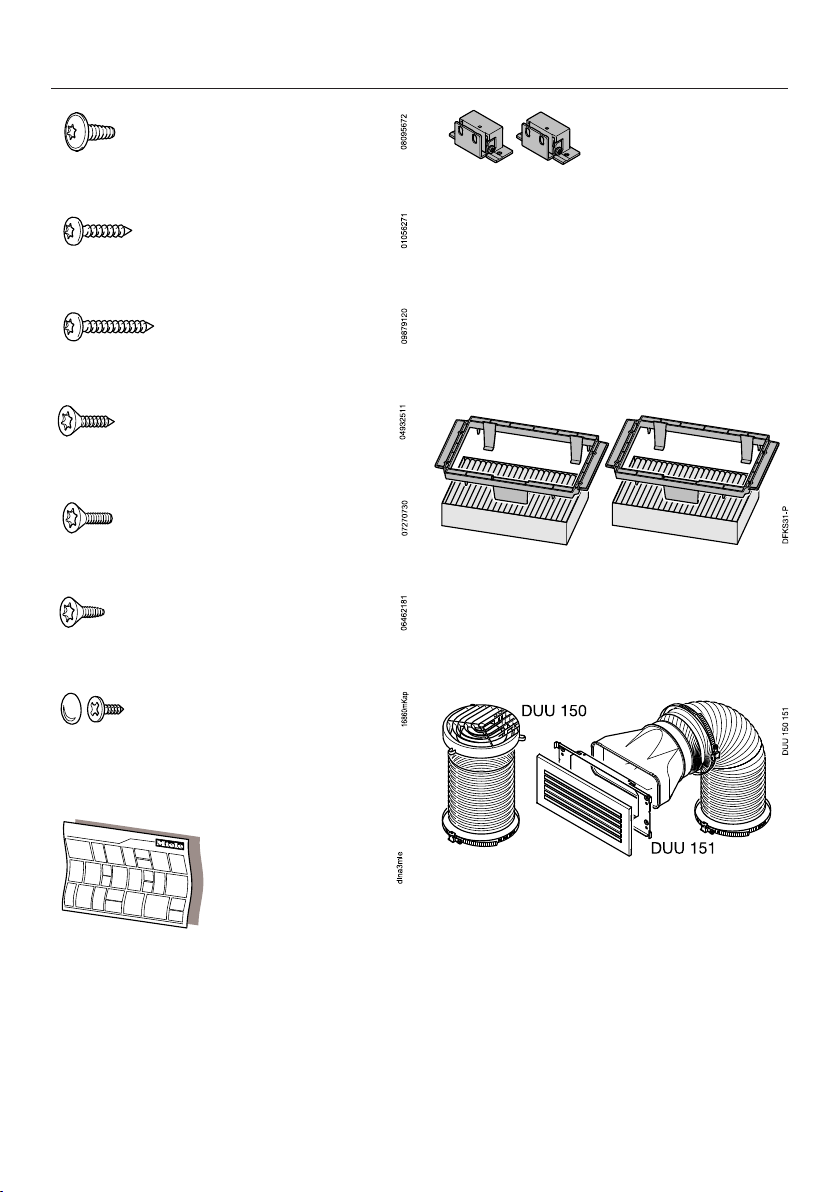

Installation
4 screws, M4x8mm
5 (9)* screws, 4x15mm
4screws, 4x30mm
8 (12)* screws, 4x15mm
4 screws, M4x12mm*
4 screws, M4x8.5mm*
2 screws, 3.9x7.5mm with cover caps
DML2000 installation kit
for installing a hinged front panel to
match kitchen cabinetry (not supplied;
available as an optional accessory)
Installation materials for recirculation mode
You need the following optional
accessories for recirculation mode.
DKFS31-x installation kit
contains 2holders and 2 charcoal
filters (DKFS31-900P with single-use
charcoal filters or DKFS31-R with
reactivatable charcoal filters)
* For 35 ¹/₄" (896mm) wide appliances
Installation plan
See the installation plan for details of
the individual steps involved in the
installation of this appliance.
Leave these instructions with the
appliance for the consumer/user.
40
DUU15x installation kit
contains a directional unit socket,
hose, and hose clips (DUU150 for the
top of the cabinet or DUU151 for the
sides or front of the cabinet).
Page 41
*INSTALLATION*
Appliance dimensions
Diagram1:
DAS4720 in a 23 5/8" (600mm) wide cabinet.
Installation
The drawing is not to scale.
41
Page 42
*INSTALLATION*
Installation
Diagram2:
DAS4720 in a 30" (762mm) wide cabinet
DAS4920 in a 35 7/16" (900mm) wide cabinet
The drawing is not to scale.
See diagram1 for side view.
42
Page 43
*INSTALLATION*
Diagram3:
DAS4920 in a 23 5/8" (600mm) wide cabinet or in a 35 7/16" (900mm) wide
cabinet with side compartments
Installation
The drawing is not to scale.
See diagram1 for side view.
Footnotes for diagrams1to3:
a
Vented or recirculation with DUU150 conversion kit
b
DML2000 bracket (accessory) for installing a front panel
c
Can be adjusted via depth stop
* In this installation situation, the deflector plate is flush with the front edge of the
cabinet niche. If you wish to position the ventilation hood further forward or further
back, you must adapt the dimensions accordingly (e.g., if you are using a front
panel).
The height of the cabinet and the cut-out dimensions must take into account any
accessories installed.
43
Page 44
*INSTALLATION*
Installation
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
26" (660mm) 30" (760mm)
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
Multiburner Gas Cooktops
30" (760mm)
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
Multiburner Gas Cooktops
Not possible
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Single Burner Gas Cooktops
26" (660mm) 30" (760mm)
≤ 20,500 BTU/hr (6 kW)
Single Burner Gas Cooktops
30" (760mm)
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
Single Burner Gas Cooktops
Not possible
> 27,600 BTU/hr (8.1 kW)
If you are installing a front panel made of wood or plastic to the hood, observe
the safety distances given by the cooktop manufacturer regarding the use of
easily flammable materials.
44
Page 45
*INSTALLATION*

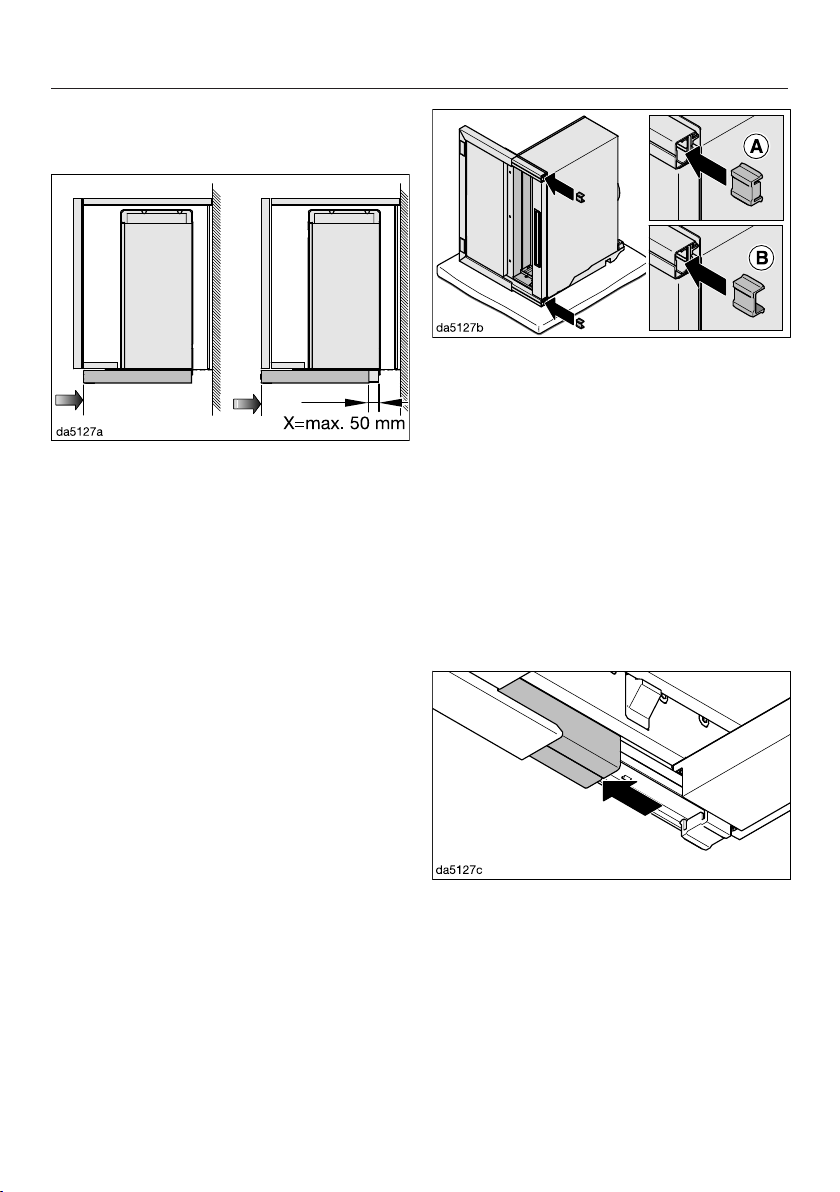

Installing the depth stop (optional)
You can limit how far the deflector plate
can be pushed in.
For example, if the deflector plate
should sit flush with the front edge of
the cabinet door when pushed in, rather
than with the front edge of the cabinet
housing, you can position the depth
stop accordingly.
You can move the stop forward by up to
2" (50mm).
Installation
Insert the depth stops into the
recesses of the deflector plate from
behind. The alignment is determined
by how far forward you wish to move
the stop.
- X = ¹/₁₆" to ¹¹/₁₆" (2 to 18mm):
depth stop lip facing backward
- X = ³/₄" to 2" (19 to 50mm): depth
stop lip facing forward
Install the ventilation hood.
Pull out the deflector plate.
You must insert the depth stops into the
recesses of the deflector plate prior to
installing the ventilation hood. You can
fix the depth stops in the required
position on completion of installation.
Slide the recess covers forward.
45
Page 46
*INSTALLATION*
Installation

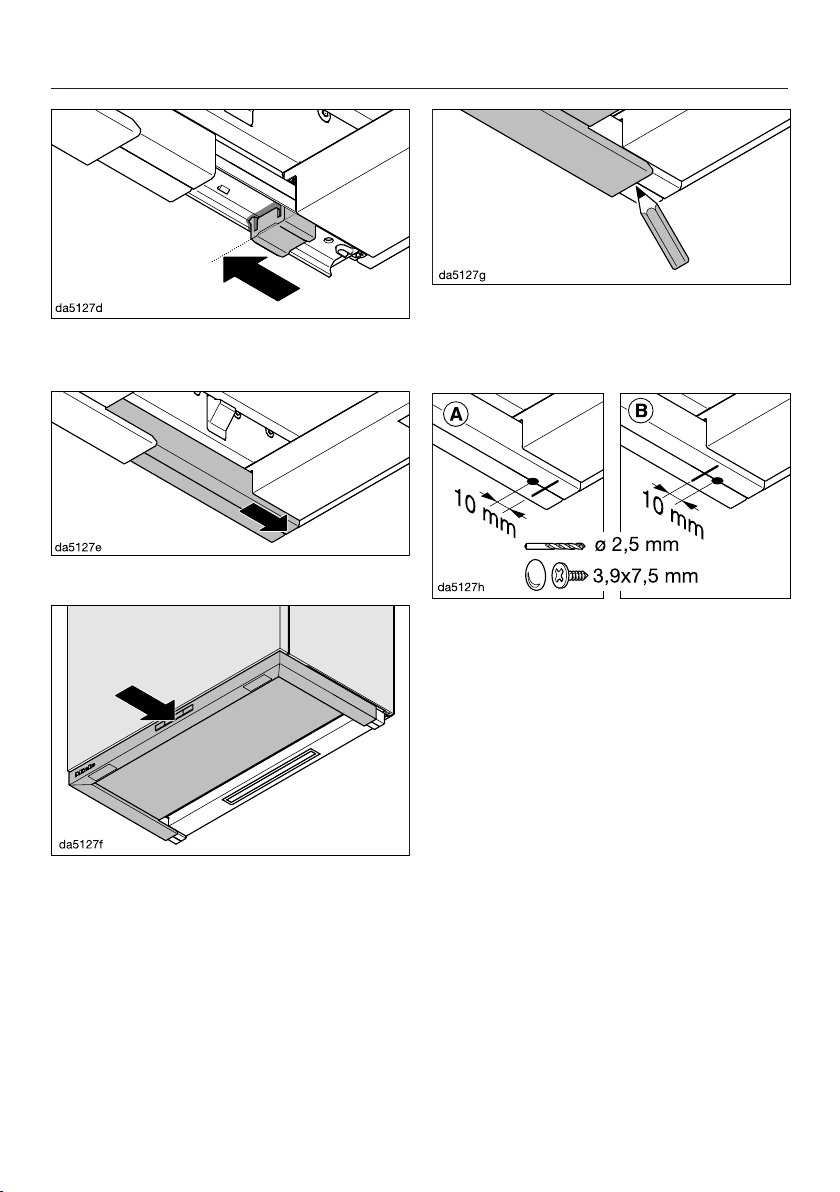

Slide the depth stops forward to the
position shown.
Use a pen to mark the back edge of
the deflector plate on the cover.
Pull out the deflector plate.
Slide the covers back again.
Carefully push in the deflector plate
as far as the required position.
This will push the depth stops into the
required position.
46
To fix the depth stops in place, screw
the 3.9x7.5mm screws through the
covers. The position of the screws is
determined by which way around the
depth stops have been inserted.
- Depth stop lip facing backward:
³/₈" (10mm) in front of the pen mark
- Depth stop lip facing forward:
³/₈" (10mm) behind the pen mark
Page 47
*INSTALLATION*
Installation
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk of
personal injury. Follow all local building
codes when installing the hood.
Only use smooth pipes or flexible
ducting made from approved nonflammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting
must not be smaller than the crosssection of the vent collar (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
- If the ducting has flaps, these must
be opened whenever the ventilation
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.

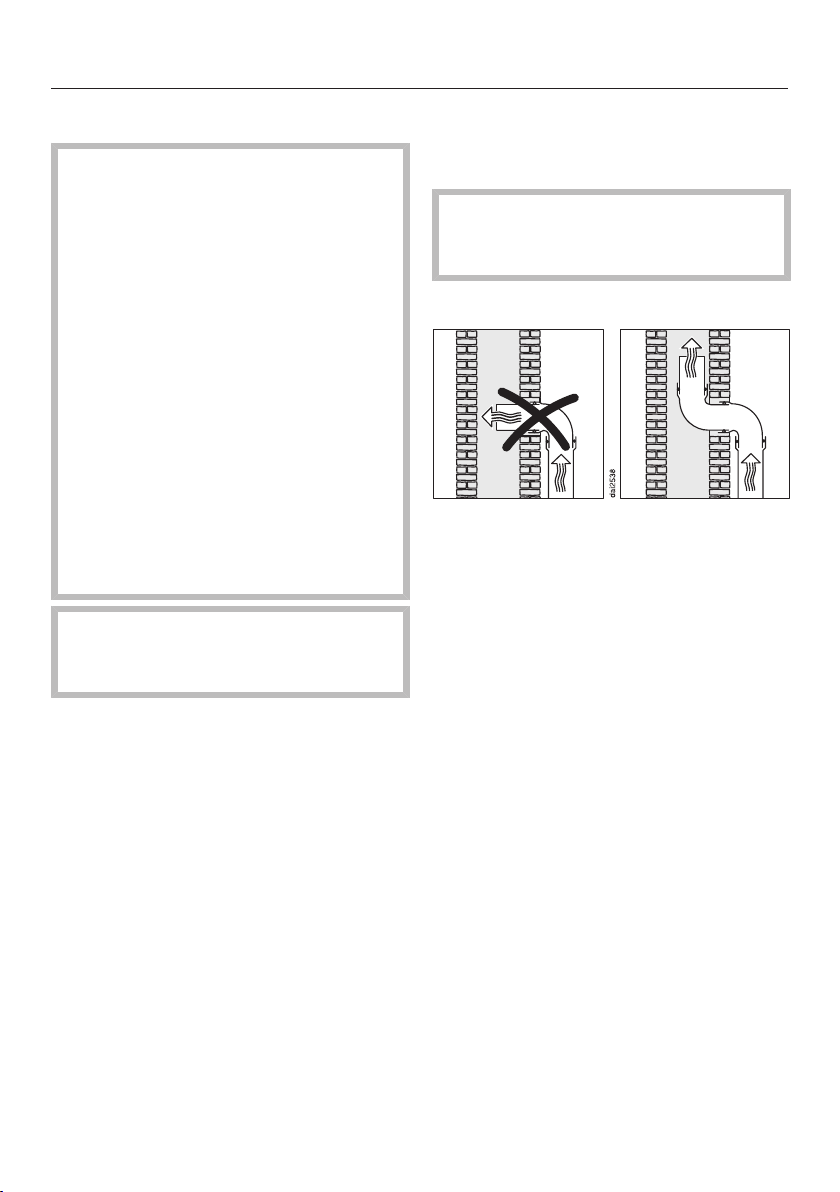

Ventilation stack
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the vent system.
A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
If the on-site vent system does not have
a non-return flap, one is supplied with
the ventilation hood.
The non-return flap is installed in the
exhaust socket of the fan.
47
Page 48
*INSTALLATION*
Installation

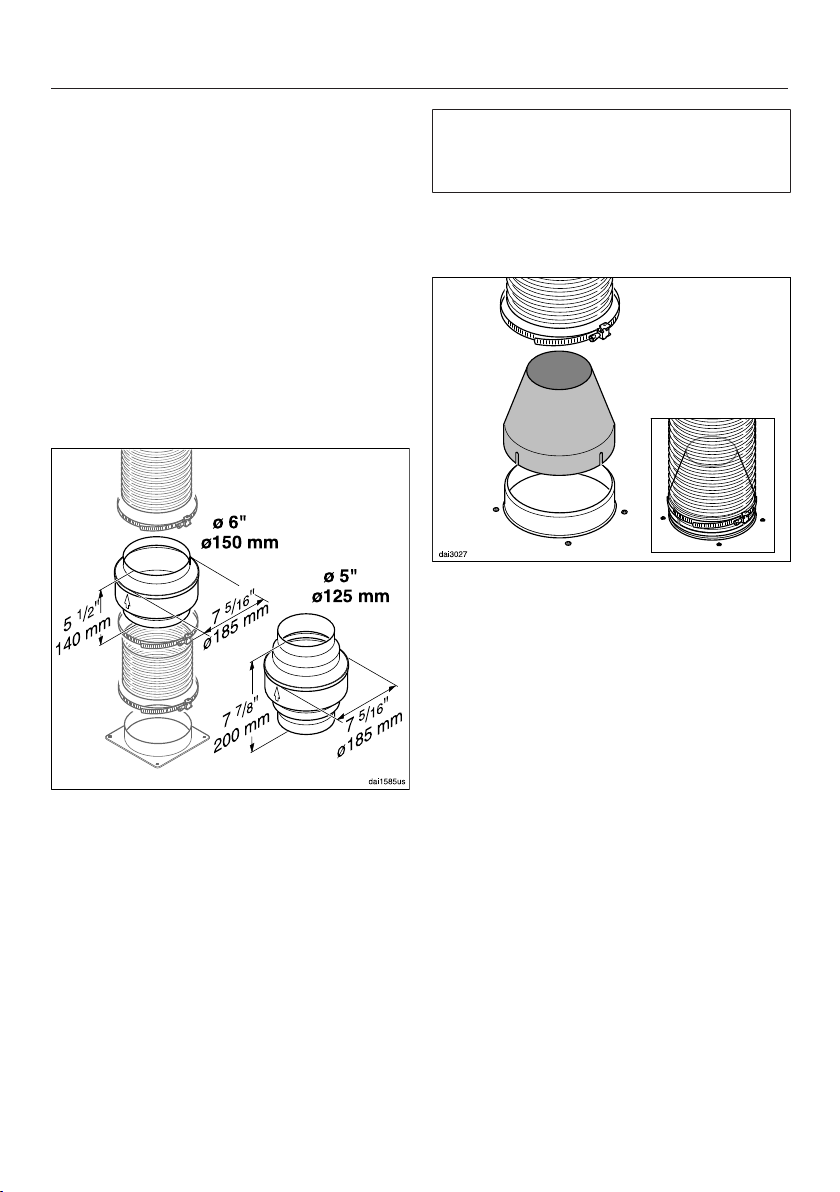

Condensate
If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.
If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per meter.
This is to ensure that condensate cannot
drain back into the ventilation hood.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
In addition to insulating the ducting, it is
advisable to also install a condensate
trap for collecting and evaporating any
potential condensate.
Condensate traps for 5" (125mm) or 6"
(150mm) diameter ducting are available
as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the
ventilation hood above the exhaust
vent. The arrow on the casing indicates
the direction of airflow.
48
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Page 49
*INSTALLATION*
Installation
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (see "Technical
Service"), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cordconnection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a groundingtype receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
49
Page 50
Technical data
Fan motor 350W
Overhead lighting 3W
Total connected load 353W
Supply voltage, frequency 120VAC, 60Hz
Fuse rating 15A
Power cord length 2.5ft (0.75m)
Weight
DAS4720 35.3lbs (16 kg)
DAS4920 37.5lbs (17 kg)
WiFi module
Frequency range 2.400–2.4835GHz
Maximum transmission power < 100mW
Optional accessories for recirculation mode
You need the following installation kits for recirculation mode:
- DUU150 or DUU151
- DKFS31-900P or DKFS31-R (reactivatable). The installation kits contain
2charcoal filters and the required original equipment installation frames.
Charcoal filters DKF31-900P or DKF31-R (reactivatable) must be purchased as
an optional accessory. The packs contain 2charcoal filters.
WiFi module EK037
FCC ID: 2ACUWEK037
IC: 5669C-EK037
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
50
Page 51
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
[email protected]
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
Page 52
DAS4720, DAS4920
M.-Nr. 12 311 900 / 03en-US
Loading...
