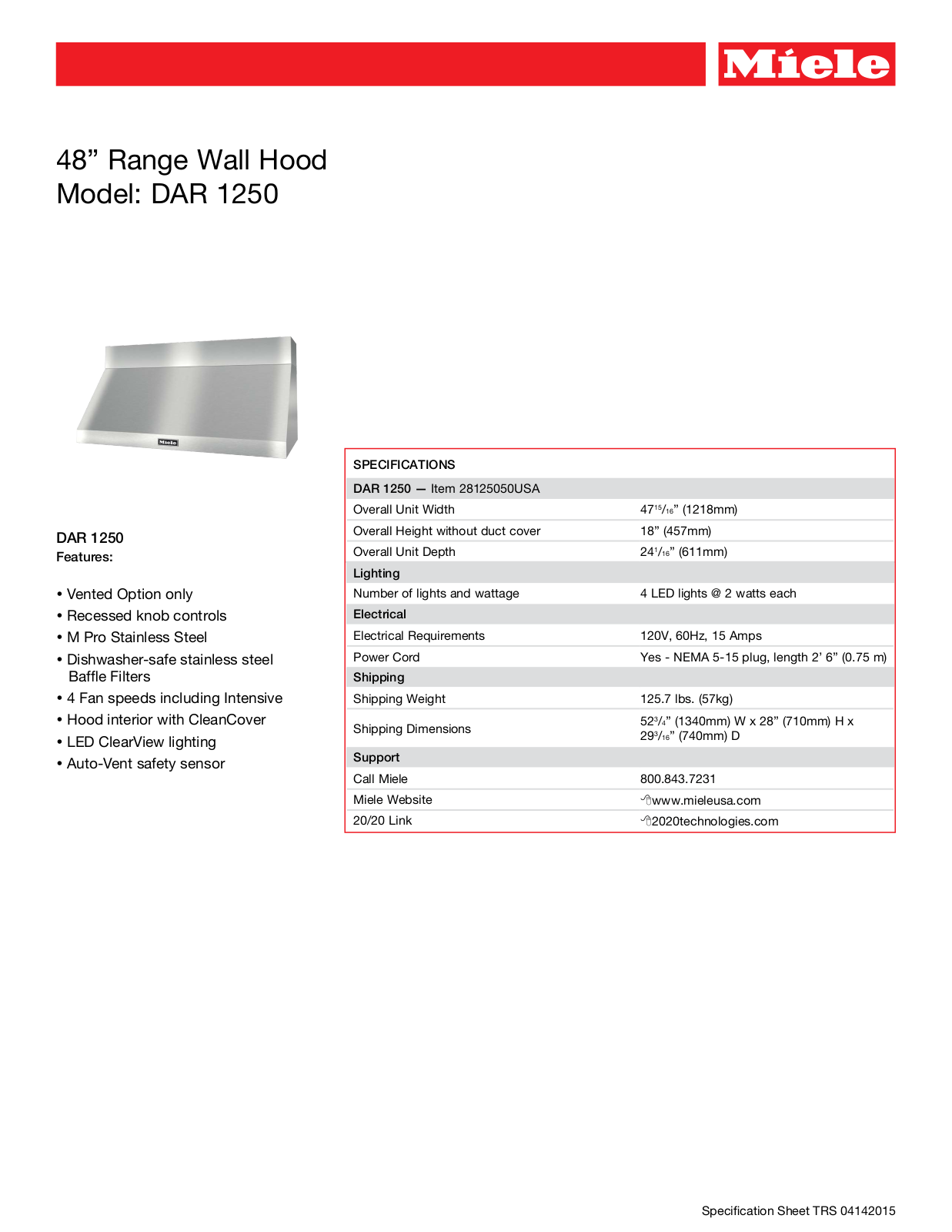

Miele DAR1250SSUB Specifications

48” Range Wall Hood
Model: DAR 1250

DAR 1250

Features:

 Vented Option only
 Recessed knob controls
 M Pro Stainless Steel
 Dishwasher-safe stainless steel

Bafe Filters

 4 Fan speeds including Intensive
 Hood interior with CleanCover
 LED ClearView lighting
 Auto-Vent safety sensor

SPECIFICATIONS

DAR 1250 — Item 28125050USA

Overall Unit Width 47

Overall Height without duct cover 18” (457mm)

Overall Unit Depth 24

Lighting

Number of lights and wattage 4 LED lights @ 2 watts each

Electrical

Electrical Requirements 120V, 60Hz, 15 Amps

Power Cord Yes - NEMA 5-15 plug, length 2’ 6” (0.75 m)

Shipping

Shipping Weight 125.7 lbs. (57kg)

Shipping Dimensions

Support

Call Miele 800.843.7231

Miele Website

20/20 Link

15

/16” (1218mm)

1

/16” (611mm)

3

/4” (1340mm) W x 28” (710mm) H x

52
293/16” (740mm) D

8www.mieleusa.com

82020technologies.com

Specication Sheet TRS 04142015

48” Range Wall Hood

Miele DAR 1250 USA

Model: DAR 1250

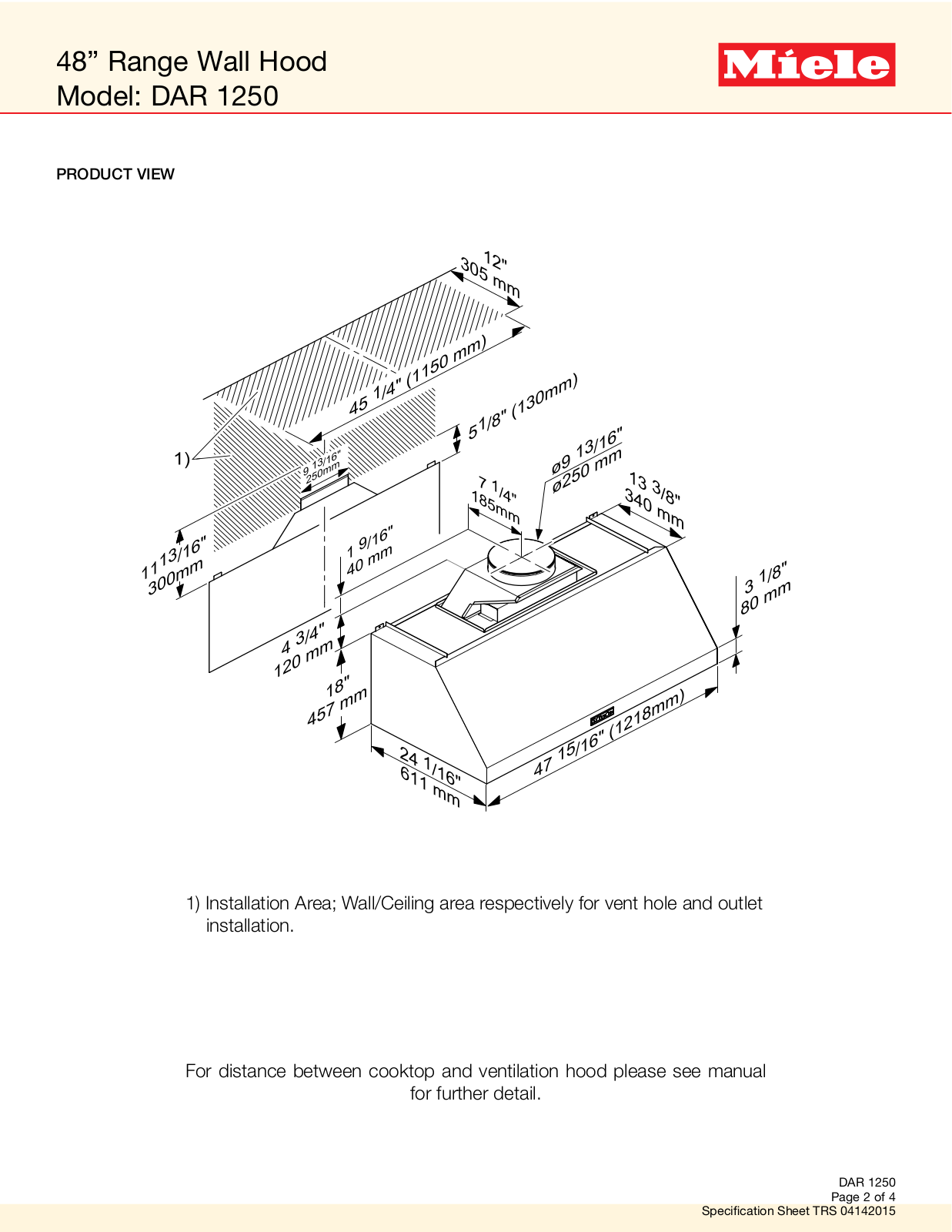

PRODUCT VIEW

1) Installation Area; Wall/Ceiling area respectively for vent hole and outlet
installation.

For distance between cooktop and ventilation hood please see manual

for further detail.

Specication Sheet TRS 04142015

DAR 1250

Page 2 of 4
