Page 1
Operating and Installation
Instructions
Range Wall / Insert Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 12 013 570
Page 2
Contents
Caring for the environment .............................................................................. 3
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Guide to the appliance...................................................................................... 12

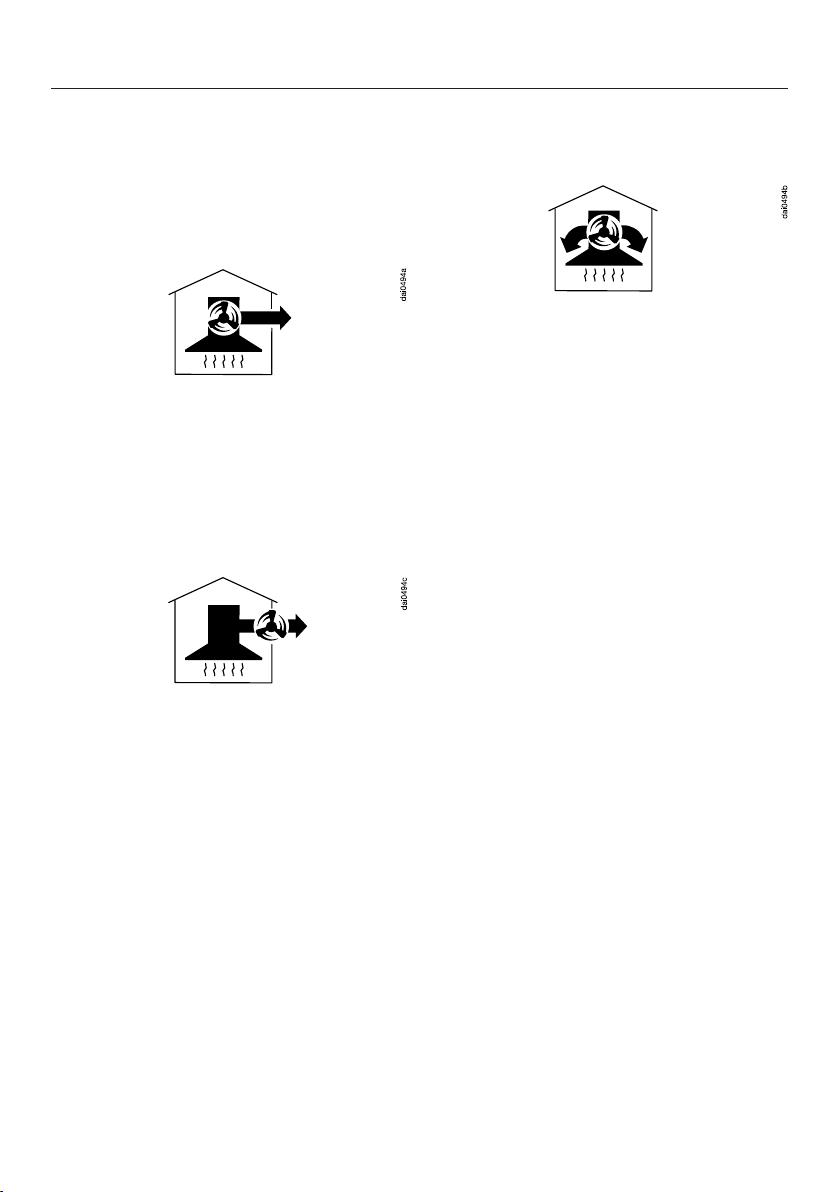

Description of functions ................................................................................... 14
Appliance combinations...................................................................................... 15
Operation............................................................................................................ 16
Switching the blower on and off ......................................................................... 16
Turning off the blower.......................................................................................... 17
Turning the overhead lighting on/off.................................................................... 17
Energy-saving tips............................................................................................. 18
Cleaning and care ............................................................................................. 19
Stainless steel housing........................................................................................ 19
Important information for appliances with stainless steel surfaces ............... 19

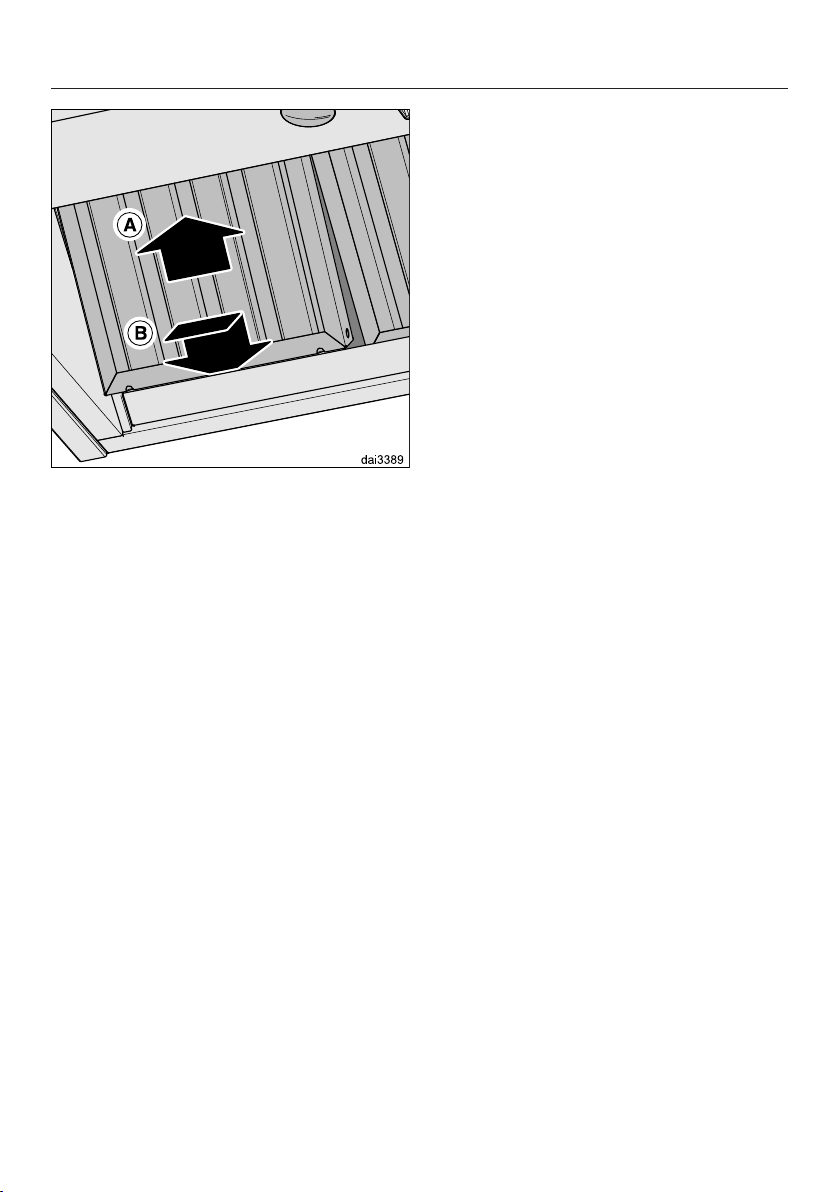

Baffle filter ........................................................................................................... 20

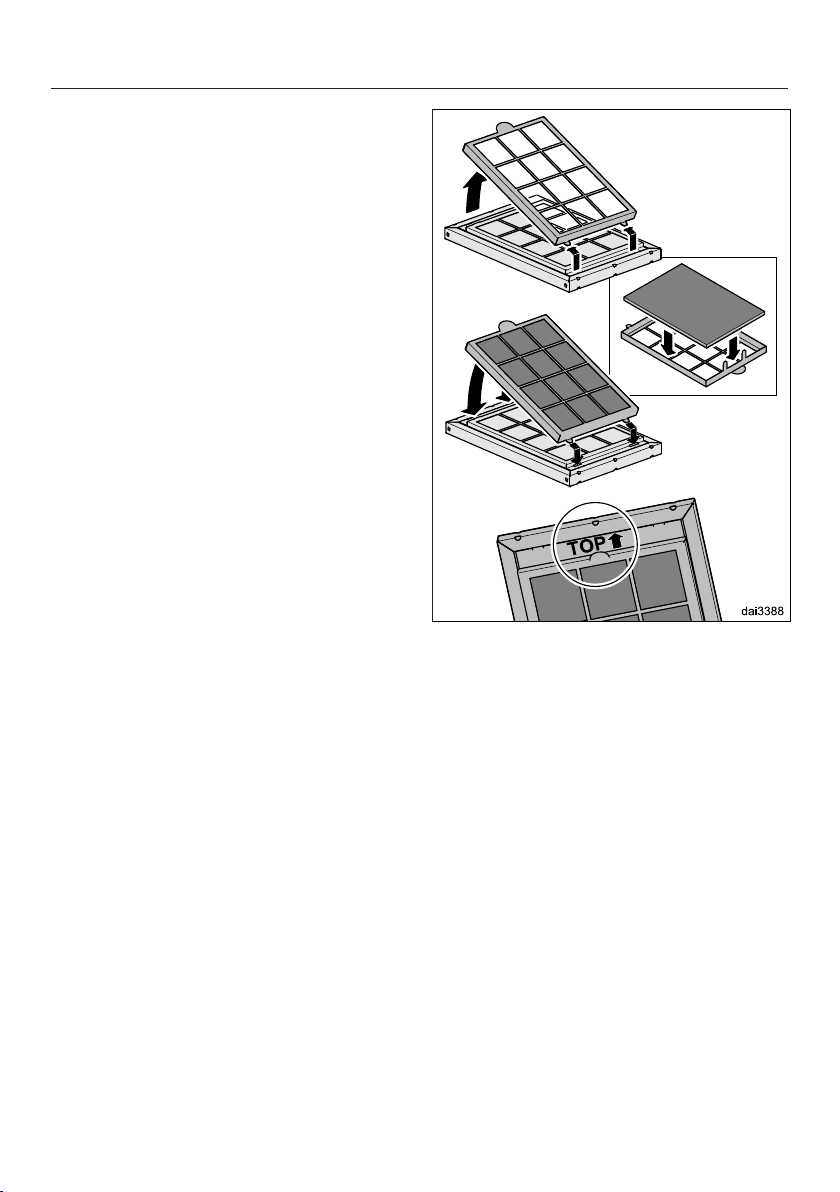

OdorFree Charcoal Filter ..................................................................................... 23
Disposing of charcoal filters........................................................................... 23
Service and warranty ........................................................................................ 24
Location of the data plate ................................................................................... 24
MieleCare ............................................................................................................ 24
Installation.......................................................................................................... 25
Before installation................................................................................................ 25
Removing the protective film............................................................................... 25
Installation Instructions ....................................................................................... 25

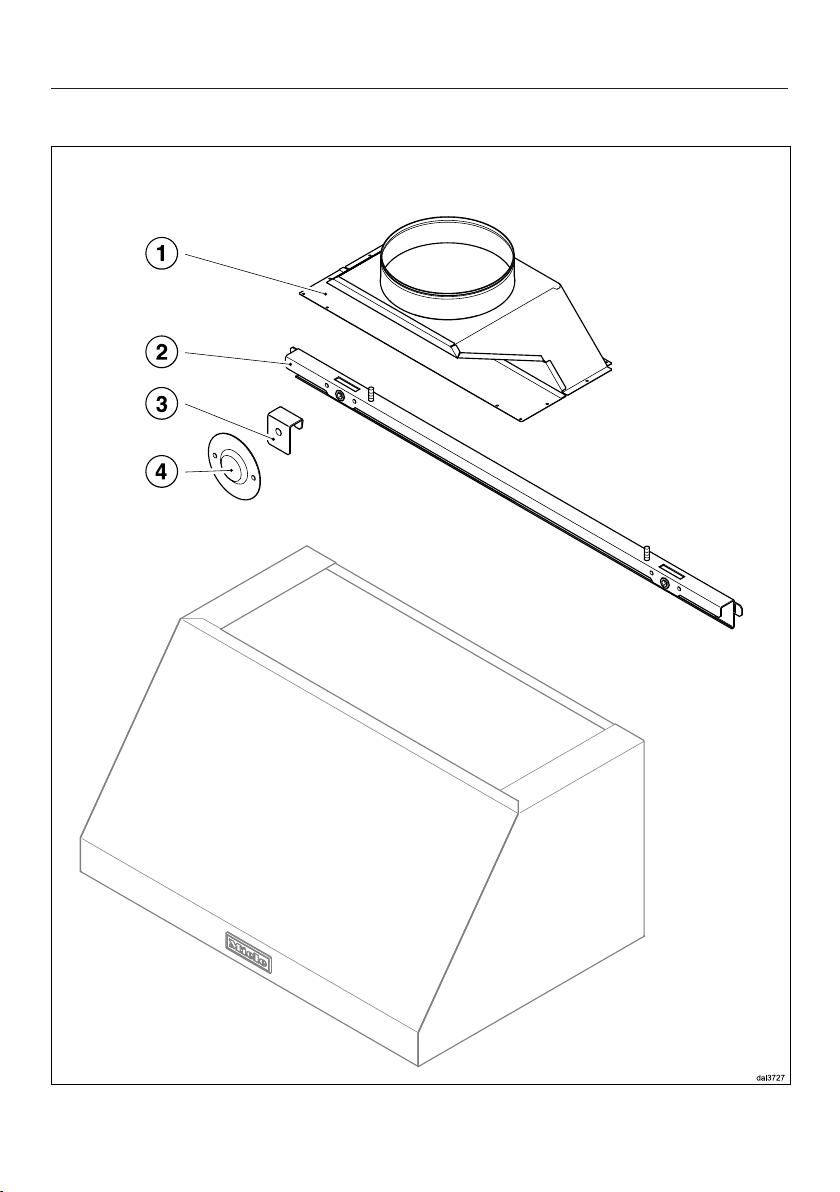

Installation parts .................................................................................................. 26

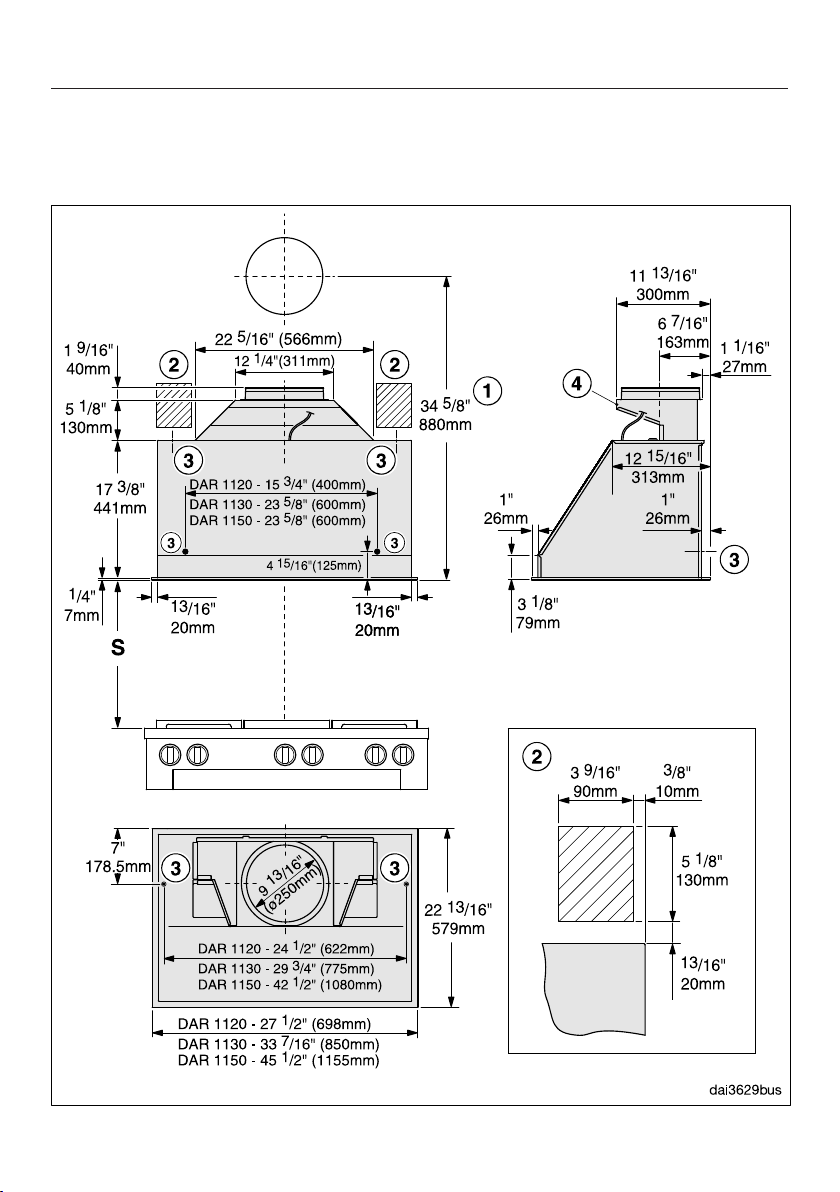

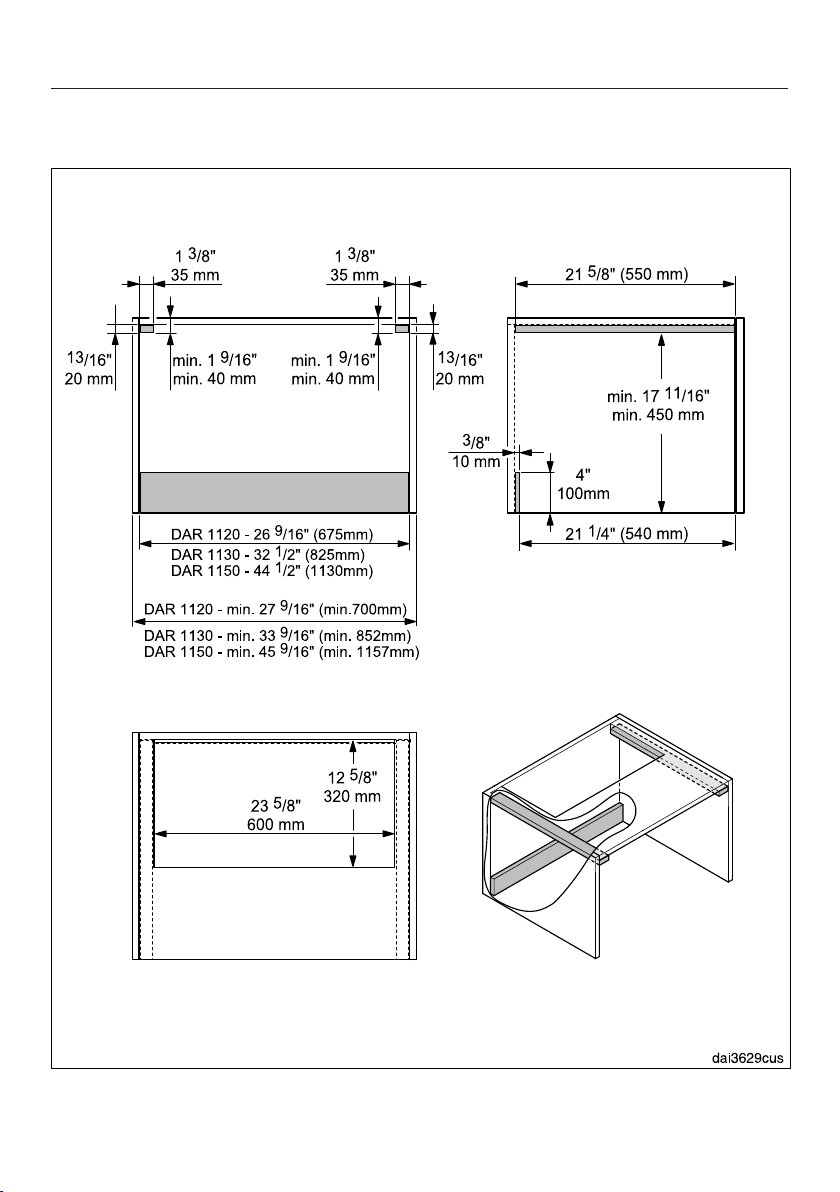

Appliance dimensions ......................................................................................... 28
Distance between cooktop and ventilation hood (S)........................................... 31
BTU-reducing kit
(M Pro Power, M Pro)........................................................................................... 33
Installation recommendations ............................................................................. 33
Plywood backing................................................................................................. 34
To install a plywood backing .............................................................................. 34
Air venting .......................................................................................................... 35
Electrical connection ........................................................................................ 37
Technical data................................................................................................... 38
2
Page 3
Caring for the environment
Disposal of the packing material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
4
Page 5
IMPORTANT SAFETY INSTRUCTIONS
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Please supervise children in the vicinity of the hood and do not let
them play with it.
Danger of suffocation. While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
5
Page 6
IMPORTANT SAFETY INSTRUCTIONS
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
6
Page 7
IMPORTANT SAFETY INSTRUCTIONS
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not
permitted. To avoid the danger of fire, do not flambé or grill over an
open flame. When switched on, the ventilation hood could draw
flames into the filter. Fat deposits could ignite, presenting a fire
hazard.
7
Page 8
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
8
Page 9
IMPORTANT SAFETY INSTRUCTIONS
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
9
Page 10
IMPORTANT SAFETY INSTRUCTIONS
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance’s manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.

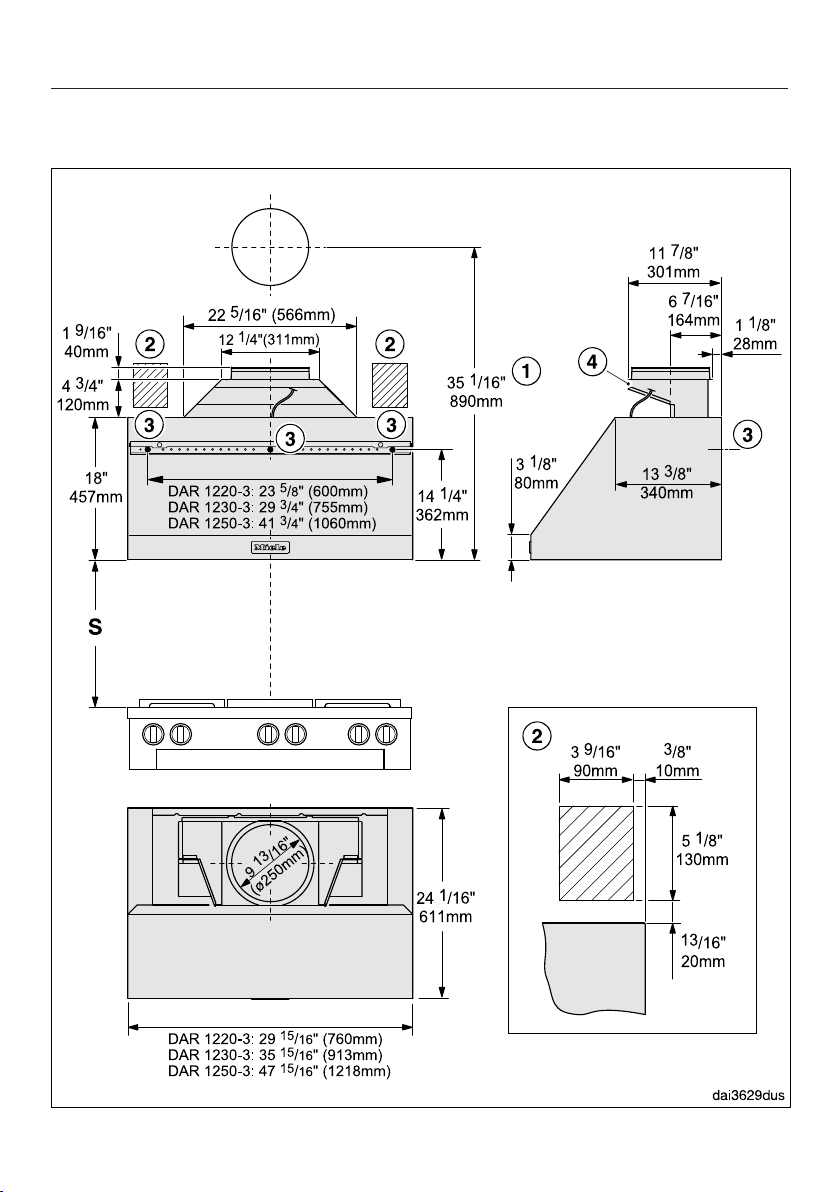

The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this booklet must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
10
Page 11
IMPORTANT SAFETY INSTRUCTIONS
Be sure to observe the information contained in the “Installation”
section when mounting the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service. Always observe local building
code requirements when selecting duct material.

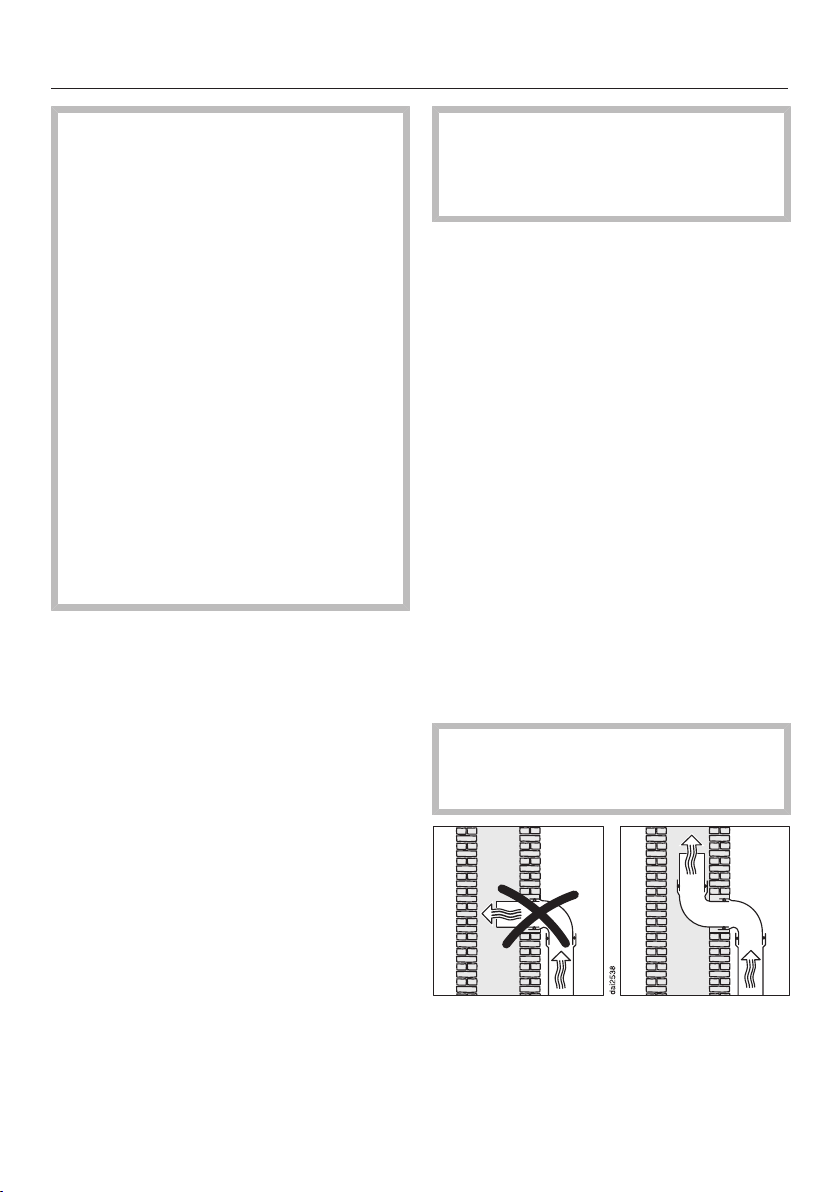

Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and maintenance
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become void.
11
Page 12

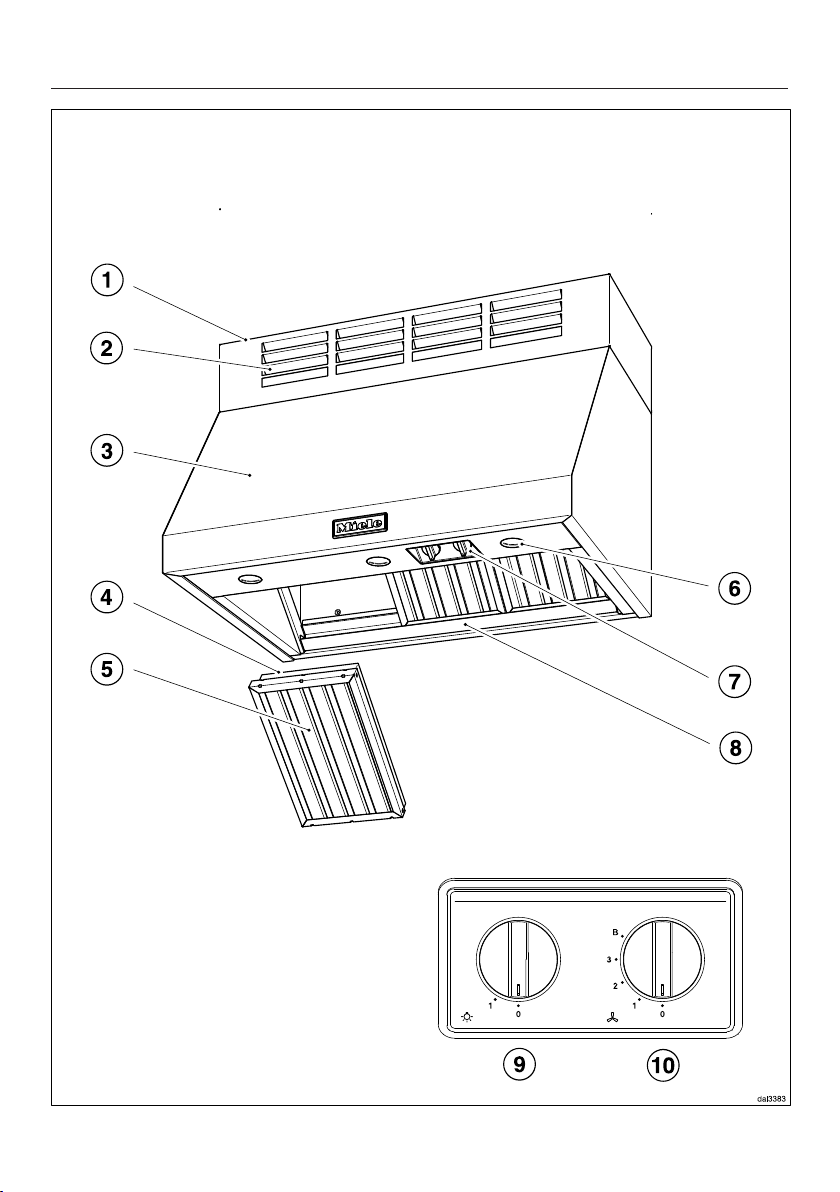

Guide to the appliance
12
Page 13
Guide to the appliance
a
Duct cover
Optional accessories DRDC in various heights. Cover will vary depending on
model.
b
Recirculation vents
Only in recirculation mode with conversion kit DRUU, optional accessory
c
Canopy
d
OdorFree Charcoal Filter
Optional accessories for recirculation mode.
The charcoal filters are mounted to the rear panel of the baffle filter.
e
Baffle filter
f
LED ClearView lighting
g
Control panel
h
Grease collecting tray
i
Overhead lighting knob
j
Blower control knob
13
Page 14
Description of functions
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode with internal blower DRIB
A blower mounted in the ventilation
hood draws in the air. The air is cleaned
by the baffle filter and conveyed out of
of the building.
Extraction mode with external blower DREB
Recirculating mode
(with conversion kit DRUU)
The baffle filter and the additional
additional charcoal filter clean the
indrawn air. Then the air is recirculated
to the kitchen.
The exhaust blower is mounted outside
the room in a location of your choice.
The external blower is connected to the
ventilation hood by a cable and is
controlled by the ventilation hood
controls. The indrawn air is cleaned by
the baffle filters and conveyed out of
the building.
14
Page 15
Description of functions
Appliance combinations
The following appliance combinations are possible:
Range Insert
DAR 1120 (30")
Range Insert
DAR 1130 (36")
Range Insert
DAR 1150 (48")
Range
Wall Hood
DAR 1220-3 (30")
Range
Wall Hood
DAR 1230-3 (36")
Range
Wall Hood
DAR 1250-3 (48")
Vented mode with
internal blower
Blower
DRIB XL or
DRIB XXL*
Blower
DRIB XL or
DRIB XXL
Blower
DRIB XXL
Blower
DRIB XL or
DRIB XXL*
Blower
DRIB XL or
DRIB XXL
Blower
DRIB XXL
Vented mode with
external blower
Blower
DREB XL or
DREB XXL*
Blower
DREB XL or
DREB XXL
Blower
DREB XXL
Blower
DREB XL or
DREB XXL*
Blower
DREB XL or
DREB XXL
Blower
DREB XXL
Recirculating
mode
- -
- -
- -
Blower DRIB XL
+ recirculation kit
DRUU 30**
Blower DRIB XL
+ recirculation kit
DRUU 36**

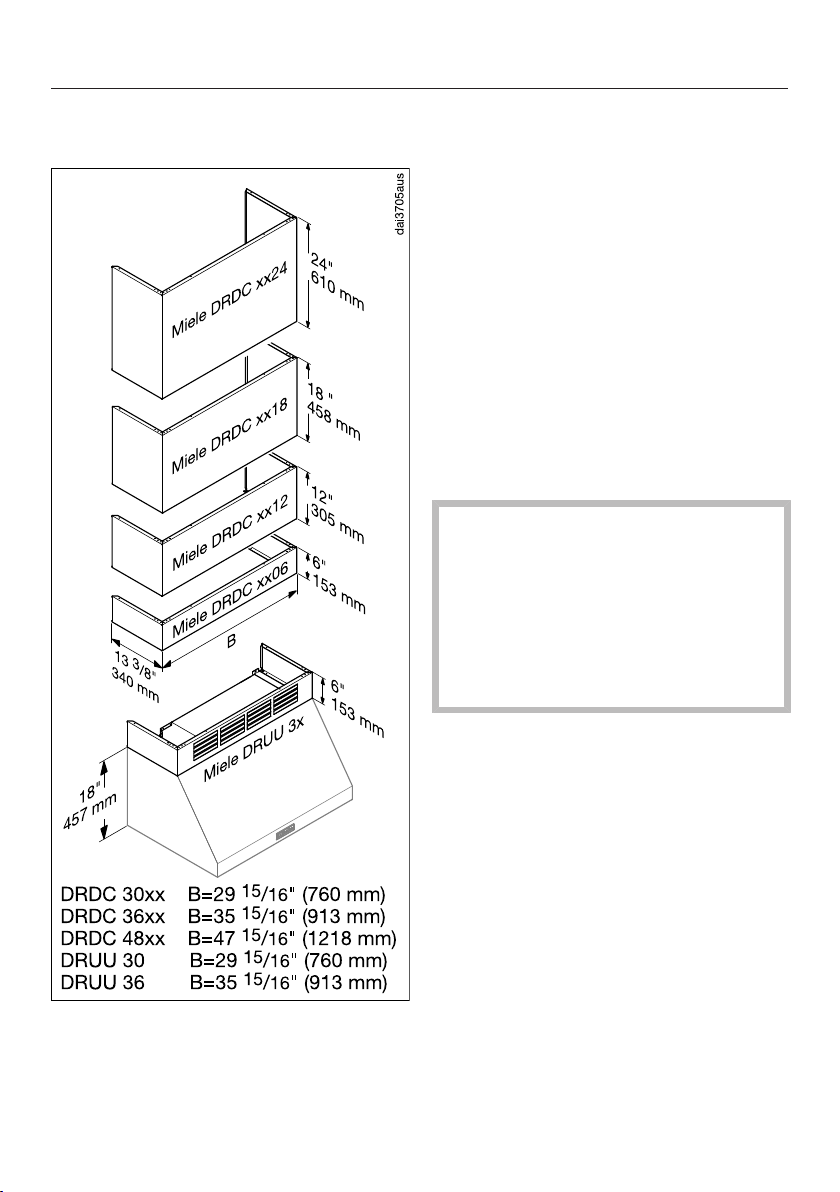

- DRDC 4806 (6“)
Duct cover
DRDC 3006 (6“)
DRDC 3012 (12”)
DRDC 3018 (18“)
DRDC 3024 (24”)
DRDC 3606 (6“)
DRDC 3612 (12”)
DRDC 3618 (18“)
DRDC 3624 (24”)
DRDC 4812 (12”)
DRDC 4818 (18“)
DRDC 4824 (24”)
*not recommended
**The DRDC duct cover can also be installed above the recirculation kit panel.
15
Page 16
Operation
Switching the blower on and off
Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Use the blower switch to turn on
the blower and select the appropriate
power level.
Cooking at a high setting causes
very high temperatures at the
ventilation hood.
Excessive temperatures may
damage the ventilation hood.
Always switch on the ventilation hood
when using the cooktop.
Particularly when using gas cooktops,
one of the following blower levels
should be selected depending on
which cooking level is selected.
Ventilation hood with blower DRIB/
DREBXL (700cfm)
Gas power level
switched on
from approx.
75,000BTU/h (22kW)
from approx.
105,800BTU/h
(31kW)
Ventilation hood with blower DRIB/
DREBXXL (1100cfm)
Gas power level
switched on
from approx.
105,800BTU/h
(31kW)
from approx.
136,500BTU/h
(40kW)
The ventilation hood is fitted with a
temperature sensor. If a blower level
that is too low is selected, the
ventilation hood automatically
switches temporarily to the booster
level. This occurs even if the
ventilation hood is switched off.
Minimum
blower level
2
3
Minimum
blower level
2
3
16
Page 17
Turning off the blower
It is advisable to run the blower for a
few minutes after cooking has finished
to neutralize any lingering vapors and
odors in the air.
To turn the blower off, turn the blower
switch to 0.
Turning the overhead lighting on/off
The overhead lighting can be turned on
and off independently from the blower.
Use the light switch to turn the
overhead lighting on (1) and off (0).
Operation
17
Page 18
Energy-saving tips
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
- When a large volume of cooking
vapors are being produced, switch to
a high power level in good time. This
is more efficient than operating the
hood for longer to try to capture
cooking vapors that have already
been distributed throughout the
kitchen.
- Make sure that you switch off the
hood after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
18
Page 19
Cleaning and care
WARNING: TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride, or
solvent.
Do not use any abrasive cleaning
agents, e.g., powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents
Important information for appliances with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for the controls
If soiling is not removed promptly, it
could cause the control elements to
alter or discolor.
Remove soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.
Do not use stainless steel cleaning
agents on the control elements.
Moisture in the ventilation hood
can cause damage.
Make sure that water does not get
into the ventilation hood.
Clean all surfaces and control buttons
using a small amount of warm water
and liquid dish soap. Apply with a
sponge cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
19
Page 20
Cleaning and care

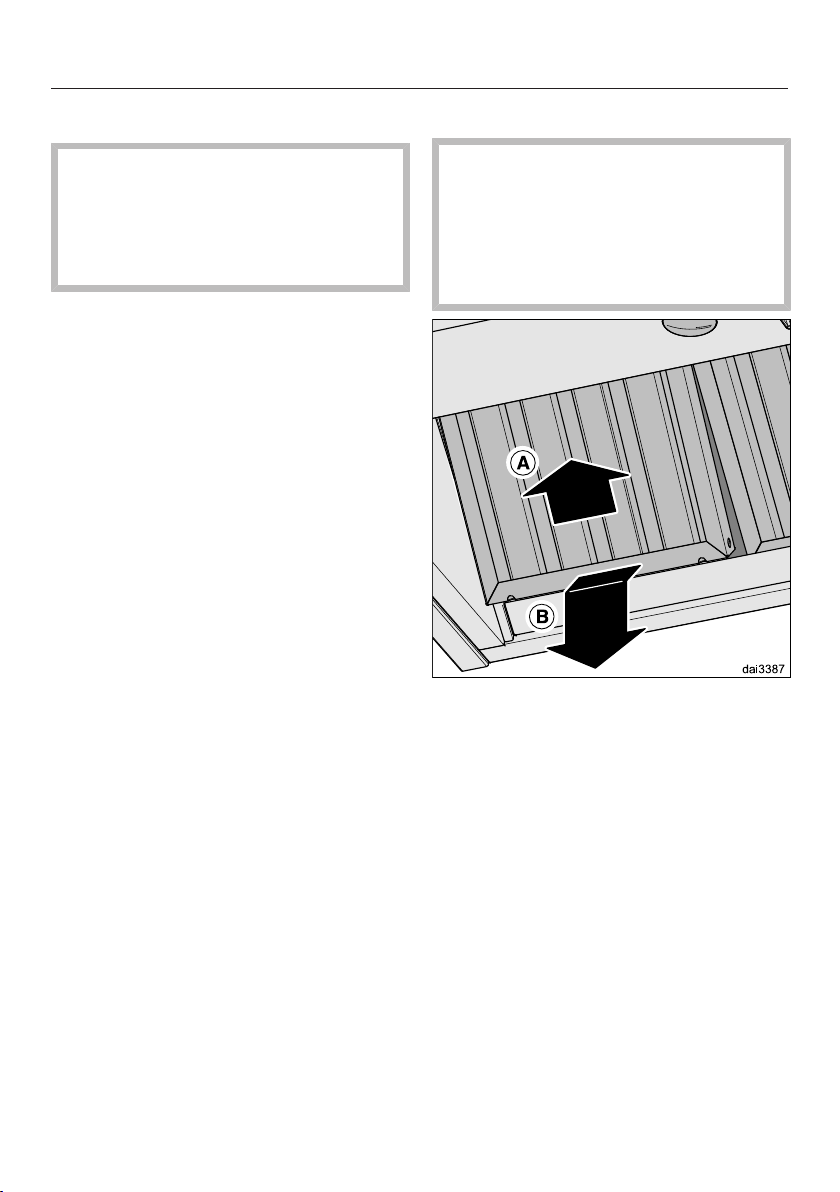

Baffle filter
Risk of fire
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The reusable stainless steel baffle
grease filters in the appliance absorb
the solid particles of kitchen vapors
(grease, dust, etc.) and prevent soiling
of the ventilation hood
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. It is therefore
recommended to clean the baffle filters
every 3-4 weeks.
Removing the baffle filter
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
20
Push the baffle filter upward , pivot
it down and remove the filter.
If charcoal filters are installed on the
back side of the baffle filter, remove
them prior to cleaning (see “Charcoal
filters”).
Page 21
Cleaning and care
Cleaning the baffle filters by hand
Use a sponge with a solution of warm
water and liquid dish soap. Do not
use concentrated dish soaps.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning the baffle filters in a dishwasher
If possible, place the baffle filter
vertically or inclined in the lower
basket. Ensure the spray arm is not
obstructed.
Use a common dishwashing
detergent.
In a Miele dishwasher user either the
“Normal” or “Grates and Filters”
programm.
After cleaning
After cleaning, leave the baffle filters
on an absorbent surface to dry.
When removing the baffle filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Grease tray
The lower support for the baffle filters
serves as a grease tray; it collects
dripped grease and can be removed for
cleaning.
Pull the grease tray upward and
remove it.
For cleaning purposes, observe the
information provided under “Stainless
steel housing”. The grease tray of the
30“-wide appliance can be cleaned in
the dishwasher.
21
Page 22
Cleaning and care

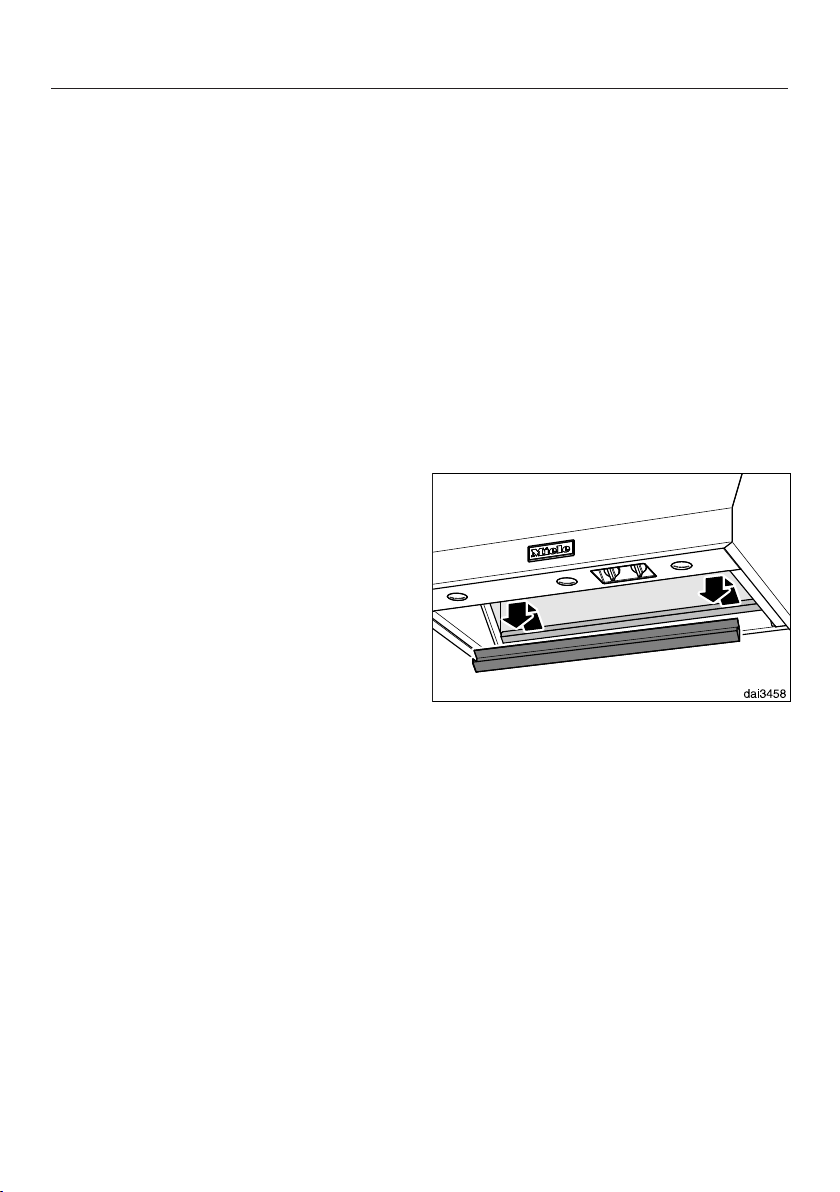

Reinsert the baffle filters by pushing
the filter upwards then pushing it
in .
22
Page 23
OdorFree Charcoal Filter
The following ventilation hoods can be
prepared for recirculation mode with the
specified conversion kit:
DAR 1220-3: conversion kit DRUU 30
DAR 1230-3: conversion kit DRUU 36
For recirculation mode, the baffle filters
are fitted with a charcoal filter which
traps odors during cooking.
The charcoal filters are installed on the
back side of the baffle filters.
You can purchase the OdorFree
Charcoal Filter from Miele. The type and
designation can be found in chapter
“Technical Data”.
How to install/replace the charcoal filter
To install or replace the charcoal filter,
first remove the baffle filters as
described above.
Remove the charcoal filter from its
packaging.
Cleaning and care
Open the charcoal filter cartridge.
Insert the charcoal filter and close the
cartridge again.
Reinstall the baffle filter
When to change the OdorFree Charcoal Filter
Replace the charcoal filters when they
no longer absorb kitchen odors
effectively, and at least every 6months.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
23
Page 24
Service and warranty
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Miele Technical Service.
The telephone number for Miele is listed
at the back of these instructions.
When contacting Miele, please state the
model and serial number of your
ventilation hood.
These can be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
MieleCare
This service is available in USA only.
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
24
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com
Page 25
*INSTALLATION*
Installation
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
“IMPORTANT SAFETY
INSTRUCTIONS” section.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from damage during transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation Instructions
Please refer to the accompanying
installation sheet for instructions on
how to install the appliance.
25
Page 26
*INSTALLATION*
Installation

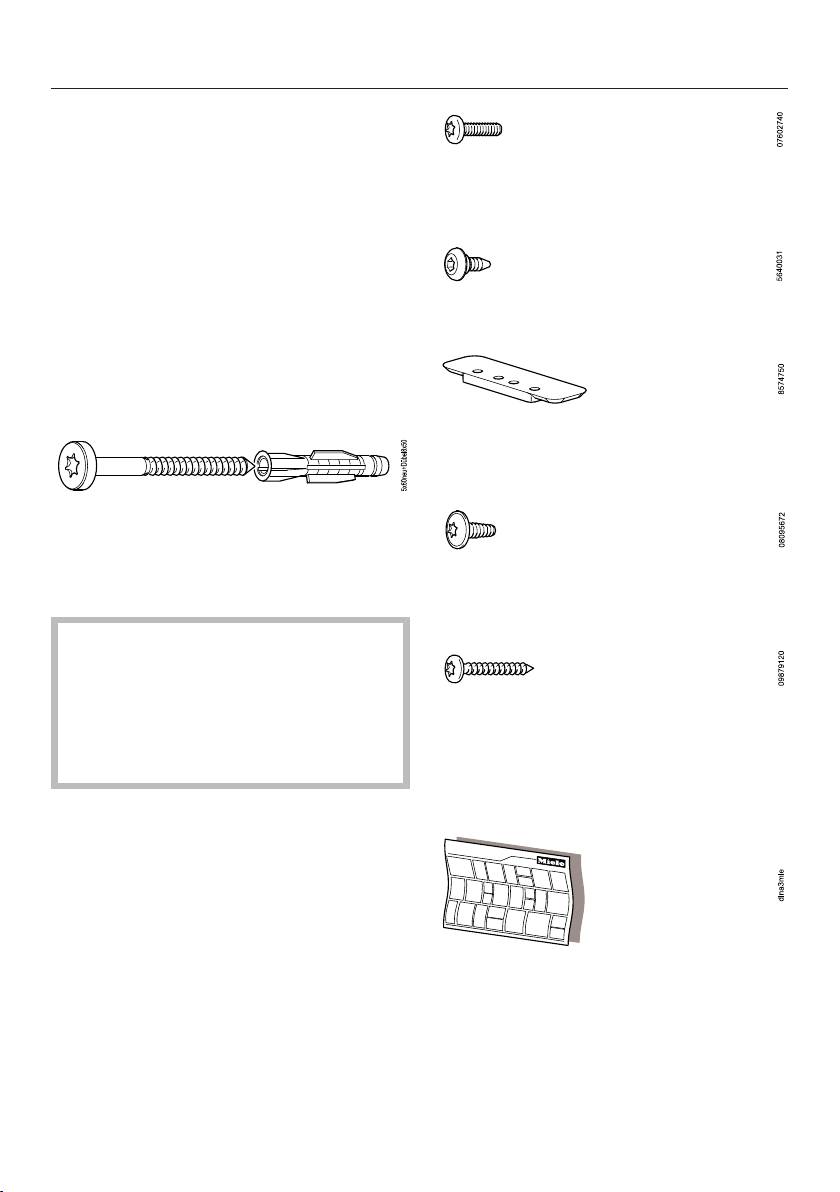

Installation parts
26
Page 27
*INSTALLATION*
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
a
1 vent collar
for exhaust duct 9 ³/₄" (250mm).
The vent collar is not used for
recirculation mode.
b
1mounting rail
for mounting the DAR 12xx-3 on a
wall
c
2mounting brackets
for mounting the DAR 12xx-3 on a
wall
d
2cover caps
3 screws, 5 x 60mm and
3 plugs, 8 x 50mm
for attaching to the wall (DAR12xx-3
only). Plugs not for use in USA / CDN.
The screws and plugs are
designed for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
Installation
2 self-locking screws, M6x16mm
for attaching the DAR 12xx-3 to the
mounting rail.
4 screws, M4x11mm with base and
2 clamps
for securing the DRDC and DRUU duct
Covers (DAR12xx-3 only).
10 screws, M4x8mm
for fastening the cover caps and the
clamps (DAR12xx-3 only).
4 screws, 5x35mm
for securing the DAR11xx Range
Hood.
Keep the following in a safe place:
Installation plan
27
Page 28
*INSTALLATION*
Installation
Appliance dimensions
Range Insert Hood
DAR 1120, DAR 1130, DAR 1150
28
Page 29
*INSTALLATION*
Cabinet dimensions for DAR 1120,
1130, 1150 (example)
Installation
29
Page 30
*INSTALLATION*
Installation
Range Wall Hoods
DAR 1220-3, 1230-3, 1250-3
30
Page 31
*INSTALLATION*
Installation
DRDC duct covers,
DRUU recirculation conversion kits
a
Minimum height required for exhaust
air penetration when using a vent
duct.
b
Recommended installation area for
the electrical connection.
c
Attachment points: there must be a
sub-construction capable of bearing
the load in the area of the
attachment point.
d
The vent collar is not used for
recirculation mode.
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and
the bottom of the hood.
Please also observe the information
contained in the “IMPORTANT
SAFETY INSTRUCTIONS” section.
Duct covers can also be mounted
above recirculation kit.
Also observe the manufacturer's
information regarding the distance
from combustible materials, e.g. to
wall units.
31
Page 32
*INSTALLATION*
Installation
cooktop and ventilation hood (S)
Miele ventilation hood DAR 1120,
Internal/external Miele blower DRIB/DREB
Miele electric/induction cooktops 24" (610mm)
Miele barbeque and fryer (electric) 26" (660mm)
Multi-burner Miele gas cooktop,
≤ 43,000 BTU/h (12.6 kW),
none of the burners
> 19,800 BTU/h (5.8 kW)
Multi-burner Miele gas cooktop,
> 43,000 BTU/h (12.6 kW) and
≤ 92,200 BTU/h (27.0 kW),
none of the burners
> 19,800 BTU/h (5.8 kW)
Multi-burner Miele gas cooktop,
> 92,200 BTU/h (27.0 kW) and
≤ 112,600 BTU (33.0 kW),
none of the burners
> 19,800 BTU/h (5.8 kW)
Multi-burner Miele gas cooktop,
> 112,200 BTU/h (33.0 kW) and
≤ 142,600 BTU (41.8 kW)
none of the burners
> 19,800 BTU/h (5.8 kW)
Multi-burner Miele gas cooktop,
> 142,600 BTU/h (41.8 kW)
Multi-burner Miele gas cooktop,
one of the burners
> 19,800 BTU/h (5.8 kW)
Miele single-burner gas cooktop (wok)
≤ 20,500 BTU/h (6.0 kW)
Miele single-burner gas cooktop (wok)
> 20,500 BTU/h, (6.0 kW),
≤ 27,600 BTU/h (8.1 kW)
Miele single-burner gas cooktop (wok)
> 27,600 BTU/h (8.1 kW)
DAR 1220-3
(30")
XL
(700 cfm)
not
possible
DAR 1130, DAR 1230-3
DRIB/DREB
(700 cfm)
(910mm)
not
possible
Distance between
(36")
XL
26" (660mm)
30" (760mm)
36"
26" (660mm)
30" (760mm)
DRIB/DREB
XXL
(1100 cfm)
not possible
not possible
not possible
DAR 1150,
DAR 1250-3
(48“)
DRIB/DREB
XXL
(1100 cfm)
30" (760mm)
36" (910mm)
32
Page 33
*INSTALLATION*
Installation
BTU-reducing kit (M Pro Power, M Pro)
If the BTU-reducing kit for Miele
Ranges/Rangetops is in use, the
distance between Range Wall/Insert
Hood and Range/Rangetop can get
reduced.
Please observe the conversion
instructions for the jet kits as well as
the operating and installation
instruction for the Range/Rangetop.
To identify the S distance please use
table on previous page.
Installation recommendations
- A distance of at least 26" (660mm) is
recommended above electric
cooktops to provide more workspace
and easier cooking under the hood.
- When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
- Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
- To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
33
Page 34
*INSTALLATION*
Installation

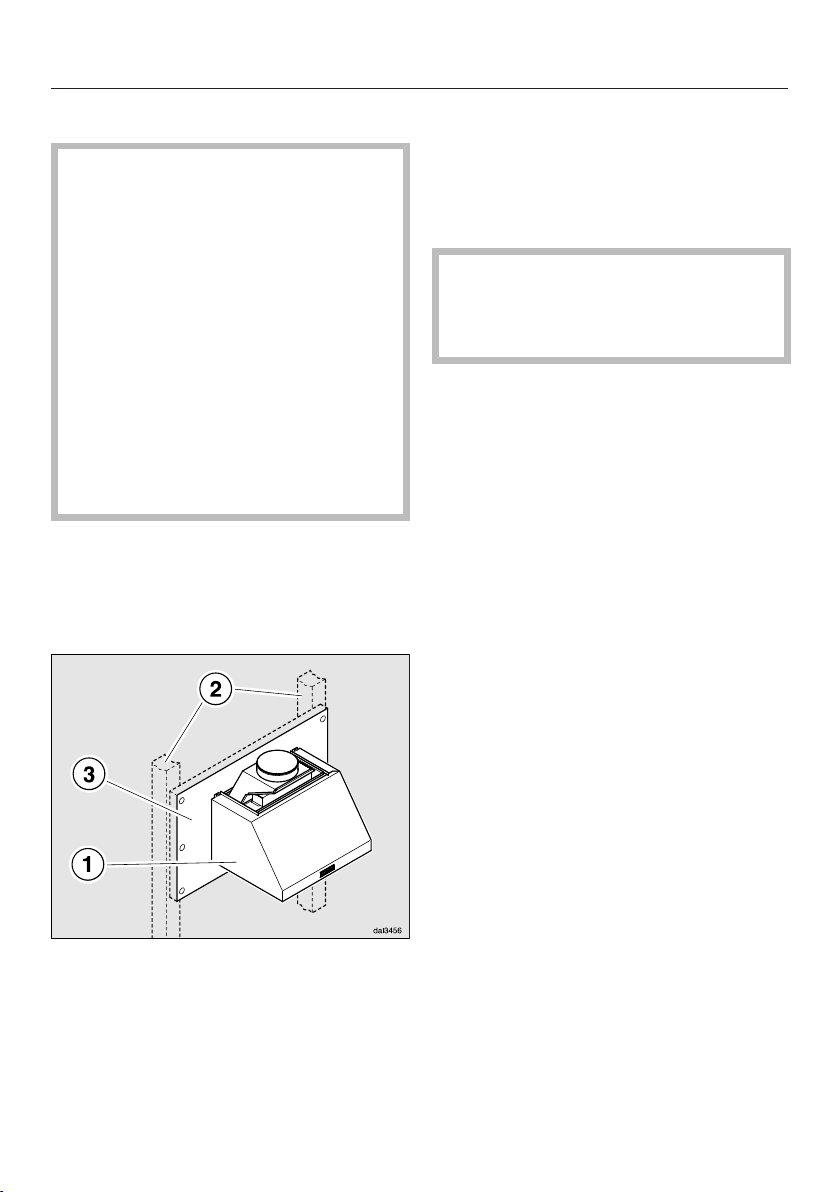

Plywood backing
The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13mm) thick)
spanning at least two studs must be
installed.
Failure to adequately support the
weight as stated may result in the
ventilation system falling off the wall,
causing personal injury and property
damage.
If plywood backing is not needed,
proceed to the included “Installation
diagram”.
To install a plywood backing
Find the studs to the left and right
of the mounting location by tapping
the wall or using a stud finder.
Mark a vertical cutting line along the
center of each stud.
CAUTION: When cutting or drilling
into the wall or ceiling, do not
damage electrical wiring and other
hidden utilities.
Remove the drywall between the
cutting lines and replace it with
plywood of a matching thickness
(min. ½" (13mm) thick). Tape the
joints and refinish the wall.
Proceed to the enclosed “Installation
diagram” to complete the installation.
Determine and mark the location for
the canopy as outlined in
“Appliance dimensions”.
Make a cutting line 3" (76mm) above
and 3" (76mm) below the outline of
the canopy.
34
Page 35
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
The exhaust air adapter of the
ventilation hood depends on the blower
used:
- DRIB/DREBXL:8"(203mm)
- DRIB/DREBXXL:10"(254mm)
Only use smooth pipes or flexible
duct hoses made from noncombustible materials for exhaust
duct.
To achieve the greatest possible air
extraction with the lowest noise levels,
please observe the following:
- The cross-section of the exhaust
duct must not be smaller than the
cross-section of the vent collar (see
appliance dimensions).
- The exhaust duct should be as short
and straight as possible.
- If elbows are needed, make sure they
have a large radius.
- The exhaust duct must not be kinked
or compressed. When selecting the
exhaust duct, ensure that it is rigid
enough to retain its shape during
operation.
- Make sure that all connections are
secure and airtight.
Any constriction of the airflow will
reduce extraction performance and
increase operating noise.
If the exhaust air is to be ducted into
a flue, the duct must be directed in
the flow direction of the flue.
35
Page 36
Air venting
When duct is horizontal it must be
laid to slope away at at least ¹/₈ inch
per foot. This is to ensure that
condensate cannot drain back into
the appliance.
If the exhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.
Installation of a non-return flap in the
exhaust duct is recommended. It
ensures that air, once ducted to the
outside, cannot get back into the
room again.
36
Page 37
*INSTALLATION*
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (see "Technical
Service"), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cordconnection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a groundingtype receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
37
Page 38
Technical data
Total connected load
DAR 1120, 1220-3 with blower DRIB XL or DREB XL 621W
DAR 1130, 1230-3 with blower DRIB XL or DREB XL 624W
DAR 1130, 1230-3 with blower DRIB XXL or DREB XXL 809W
DAR 1150, 1250-3 with blower DRIB XXL or DREB XXL 812W
Overhead lighting
DAR 1120, 1220-3 2 x 3W
DAR 1130, 1230-3 3 x 3W
DAR 1150, 1250-3 4 x 3W
Supply voltage, frequency 120V AC, 60Hz
Fuse rating 15A
Power cord length 2.5 ft (0.75m)
Weight
DAR 1120 (without blower) 35.2lbs (16.0kg)
DAR 1220-3 (without blower) 59.4lbs (27.0kg)
DAR 1130 (without blower) 41.8lbs (19.0kg)
DAR 1230-3 (without blower) 72.6lbs (33.0kg)
DAR 1150 (without blower) 55.0lbs (25.0kg)
DAR 1250-3 (without blower) 105.6lbs (48.0kg)
Blower DRIB XL 25.5lbs (11.6kg)
Blower DRIB XXL 24.9lbs (11.3kg)
Optional accessories for recirculation mode:
DAR 1220-3:
conversion kit DRUU30 and charcoal filter DKF23-1 (includes 2 charcoal filters).
DAR 1230-3:
conversion kit DRUU36 and charcoal filter DKF24-1 (includes 3 charcoal filters).
38
Page 39
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
[email protected]
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
Page 40
DAR 1120, DAR 1130, DAR 1150
DAR 1220-3, DAR 1230-3, DAR 1250-3
M.-Nr. 12 013 570 / 00en-US
Loading...
