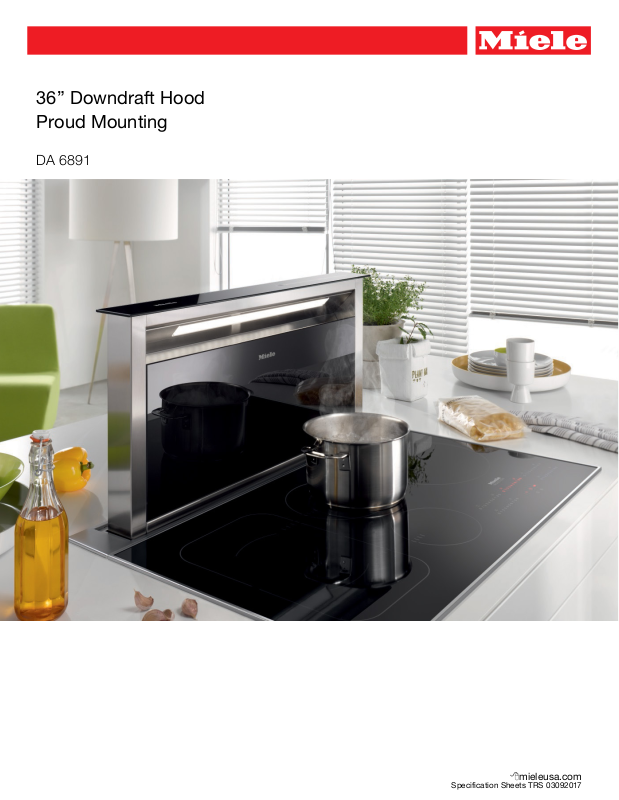

Miele DA6891 Installation Guide
36” Downdraft Hood
Proud Mounting
DA 6891
8mieleusa.com
Specification Sheets TRS 03092017
36” Downdraft Hood - Proud Installation
DA 6891 Levantar
DA 6891
Features:
•Very sleek and modern look
•Touch on glass controls
•LED ClearView lighting with dimmer functionality (1 x 6W)
•Telescopic downdraft system raises 16” over cooktop surface
•Four fan speeds (incl. intensive)
•Dishwasher-safe stainless steel filter hidden behind black glass panels
•Option of 500 CFM (DAG 600) internal blower or 1000 CFM (DAG 1000) external blower
•Vented or recirculating
•Delayed shutdown 5 or 15 minutes
STANDARD ACCESSORIES
Single Support Bracket for
One Cutout Installation
SPECIFICATIONS
DA 6891 w/DAG600 — Item DA6891+internal
|
DA 6891 w/DAG1000 — Item DA6891+external |
|
|
|
Overall Unit Width |
36” (915 mm) |
|
|
|
|
|
|
Overall Unit Height (Unextended) |
2511/16” (652 mm) |
|
|
Overall Unit Height (Extended) |
4111/16” (1,058 mm) |
|
|
Overall Canopy Height |
16” (406 mm) |
|
|
|
|
|
|
Overall Unit Depth |
43/4” (120 mm) |
|
|
Built-In |
|
|
|
|
|
|
|
Minimum Opening Width |
3115/16” (812 mm) |
|
|
Minimum Opening Depth |
41/4” (108 mm) |
|
|
Minimum Opening Height (Including Countertop) |
2513/16” (656 mm) |
|
|
Fan |
|
|
|
Fan Speeds |
4 |
|
|
|
|
|
|
Maximum CFM |
DA 6891 w/DAG 600 g 500 CFM |
|
|
DA 6891 w/DAG 1000 g 1000 CFM |
|
|
|
|
|
|
|
|
|
|
|
Duct |
|
|
|
Duct Diameter |
DAG 600 g 6” (150 mm) |
|
|
DAG 1000 g 10” (254 mm) |
|
|
|
|
|
|
|
|
|
|
|
Electrical |
|
|
|
Electrical Requirements |
120V, 60Hz,15A |
|
|
|
|
|
|
Power Cable |
Ventilation system must be hard wired |
|
|
Shipping |
|
|
|
Shipping Weight |
74 lbs (33.6 kg) |
|
|
|
|
|
|
Shipping Dimensions |
427/8” W x 305/8” H x 107/8” D |
|
|
Support |
|
|
|
Call Miele |
800.843.7231 |
|
|
|
|
|
|
Miele Website |
8www.mieleusa.com |
|
|
|
|
|
|
20/20 Link |
82020technologies.com |
|
Two Support Brackets for One or Two Cutout(s) Installation
DA 6891
Page 2 of 14
Specification Sheets TRS 03092017
36” Downdraft Hood - Proud Installation
DA 6891 Levantar
OPTIONAL ACCESSORIES
DAG 600
500 CFM Internal Blower
DUU 2900
Recirculation kit for use with DAG 600
DAG 1000 |
R1200 |
1000 CFM External Blower |
Reducing collar limits air |
|
flow to less than 300 CFM |
|
with DAG 600 |
DUU 150 |
DUU 151 |
Recirculation kit |
Recirculation kit |
for straight ductwork |
for curved or bending |
|
ductwork |
DKF18-1 |
DKF 22-1 |
Replacement OdorFree |
Replacement OdorFree |
charcoal filter for DUU 2900 |
charcoal filters for use with |
|
DUU 150 and DUU 151 |
DA 6891
Page 3 of 14
Specification Sheets TRS 03092017
36” Downdraft Hood - Proud Installation
DA 6891 Levantar
PRODUCT SPECIFICATIONS
DA 6891
Page 4 of 14
Specification Sheets TRS 03092017
36” Downdraft Hood - Proud Installation
DA 6891 Levantar
OPTION 1 |
|
- Proud Mount Installation |
|
ONE CUTOUT INSTALLATION SPECIFICATIONS |
|
|
|
Cutout Dimensions for One (1) Cutout |
|
DA 6891
Page 5 of 14
