Operating and Installation Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 09 968 630
read
Contents
IMPORTANT SAFETY INSTRUCTIONS................................................................. 4
FCC Declaration of Conformity.............................................................................. 12
FCC Radiation Exposure Statement...................................................................... 12
Industry Canada Statement................................................................................... 12
Caring for the environment.................................................................................
Description of functions......................................................................................
13
14
Con@ctivity 2.0 function ........................................................................................ 15
Guide to the appliance.........................................................................................
Operation (Automatic mode)...............................................................................
16
18
Cooking with Con@ctivity 2.0 (Automatic mode)................................................... 18
Temporarily exiting Automatic mode ..................................................................... 20
Resuming Automatic mode ................................................................................... 20
Operation (Manual mode)....................................................................................
21
Cooking without Con@ctivity 2.0 (Manual mode).................................................. 21
Turning on the fan .................................................................................................. 21
Selecting the power level....................................................................................... 21
Selecting the Delayed shut down time .................................................................. 21
Turning off the fan.................................................................................................. 21
Turning cooktop lighting On/Off............................................................................. 22
Power management............................................................................................... 22
Operation (Automatic and Manual modes)........................................................
23
Filter saturation indicator ....................................................................................... 23
Adjusting the filter saturation indicator for grease filters .................................. 23
Activating/changing the grease filter saturation counter.................................. 24
Checking the elapsed operating time............................................................... 24
Cleaning and care................................................................................................
25
Stainless steel housing .......................................................................................... 25
Panels and grease filters for edge extraction......................................................... 26
OdorFree Charcoal Filter........................................................................................ 29
Resetting the filter saturation counter for the filter ........................................... 30
Disposing of the OdorFree Charcoal Filter........................................................ 30
Installation ............................................................................................................
31
Before installation .................................................................................................. 31
Installation parts..................................................................................................... 31
Appliance dimensions............................................................................................ 32
Distance between cooktop and ventilation hood (S) ............................................. 33
Installation recommendations................................................................................ 34
2
Contents
Structural support.................................................................................................. 34
Removing the protective film ................................................................................. 34
Exhaust duct.........................................................................................................
Condensate trap .................................................................................................... 47
Electrical connection...........................................................................................
Grounding Instructions .......................................................................................... 48
Activating Con@ctivity 2.0................................................................................... 49
Installation of the Con@ctivity 2.0 stick ................................................................. 49
Activating the Con@ctivity 2.0 function ................................................................. 49
Activating the ventilation hood ......................................................................... 49
Activating the cooktop...................................................................................... 50
Activation failed ................................................................................................ 50
Deactivating Con@ctivity 2.0 ................................................................................. 50
Service and warranty...........................................................................................
Location of the data plate...................................................................................... 51
Technical data ..................................................................................................... 52
46
48
51
3
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Impr
oper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for
the first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Use
AUTION: For General Ventilating Use Only. Do Not Use To
C
Exhaust Hazardous Or Explosive Materials And Vapors.
This applianc
described in these operating instructions.
e is intended for residential use only. Use only as
This ventilation hood is designed for domestic use and for use in
ar residential environments.
simil
This venti
It
must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
lation hood is not intended for outdoor use.
This appliance is suitable for installation above gas or electric
king surfaces.
coo
P
ersons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
4
Children
IMPORTANT SAFETY INSTRUCTIONS
As w
by children.
Please super
them play with it.
Dange
etc. are disposed of safely and kept out of the reach of children.
ith any appliance, close supervision is necessary when used
vise children in the vicinity of the hood and do not let
r of suffocation! Ensure that any plastic wrappings, bags,
Technical safety
W
ARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
man
ufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at
the ser
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installatio
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
vice panel and lock the service disconnecting means to
n, repair and maintenance work should be performed by
A d
check for visible signs of damage. Never use a damaged ventilation
hood.
amaged ventilation hood oven can be dangerous. Always
5
IMPORTANT SAFETY INSTRUCTIONS
Be cer
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
T
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance. When in doubt, consult a qualified electrician.
Do not use a power bar or e
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
T
been properly installed.
tain your appliance is properly installed and grounded by a
o avoid damaging the ventilation hood, make sure that the
xtension cord to connect the
o ensure safe operation, only use the ventilation hood after it has
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Only open the housing as described in the enclosed "Installation
diagr
am" and in the "Cleaning and care" section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
6
IMPORTANT SAFETY INSTRUCTIONS
Defective co
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
During
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
r
– The power cable (if present) has been unplugged from the socket
(pull the plug no
installation, maintenance, and repair work, the ventilation
emoved.
mponents should be replaced by Miele original parts
t the cord).
Proper use
ARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
W
FIRE:
– a) Never leave surface units unattended at high settings.
lovers cause smoking and greasy spillovers may ignite. Heat
Boi
oils slowly on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
owed to accumulate on the fan or filter.
all
– d) Use the proper pan size. Always use cookware appropriate for
the siz
e of the cooking area.
Never use an open flame beneath the ventilation hood.
o avoid the risk of fire, do not flambé or grill over an open flame.
T
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
7
IMPORTANT SAFETY INSTRUCTIONS
ARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
W
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal
tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
The venti
lation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burne
rs in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
co
okware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventila
tion hood on whenever a burner is in use to
prevent damage from condensation.
8
IMPORTANT SAFETY INSTRUCTIONS
Overheat
on fire.
When cooking with oils or fats, do not leave pots, pans or fryers
unattended. Never leave an electric grill unattended when grilling.
F
at and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
A filt
The filters should be cleaned or replaced at regular intervals.
Please no
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
ed oils and fats can ignite and set the ventilation hood
er containing too much grease is a fire hazard!
te that the heat rising from the stovetop during cooking
9
IMPORTANT SAFETY INSTRUCTIONS
Proper installation
W
ARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by
quali
fied person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of
ses through the flue (chimney of fuel burning equipment to
ga
prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA) and
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
o determine whether a ventilation hood may be operated above
T
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety r
above solid fuel stoves.
egulations prohibit the installation of a ventilation hood
Insufficient distance between the cooking appliance and the
ventil
ation hood can result in damage to the hood.
The minimum safety distances between the appliance and the
bottom of the ventilation hood specified in the "Installation" section
must be maintained, unless the appliance's manufacturer has
indicated that a greater distance is required.
If more than one cooking appliance is used beneath the ventilation
hood, and if different minimum safety distances apply for these
appliances, you should use the greater distance.
10
IMPORTANT SAFETY INSTRUCTIONS
Be sur
section when mounting the ventilation hood.
Metal par
Wear gloves to protect your hands from being cut.
e to observe the information contained in the "Installation"
ts can have sharp edges which may cause injury.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air shou
which is otherwise in use and should not be channeled into ducting
which ventilates rooms with fuel-burning installations.
exhaust air is to be extracted into a chimney or vent flue no
If
longer used for other purposes, be sure to comply with all applicable
regulations.
ARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
W
DUCTWORK.
ld not be vented into a chimney or vent flue
11
IMPORTANT SAFETY INSTRUCTIONS
Cleaning and care
Never use a st
The steam can reach the electrical components and cause a short
circuit.
eam cleaner to clean the ventilation hood.
Accessories
Use only ge
other manufacturers are used, the warranty will become void.
nuine original Miele parts. If parts or accessories from
FCC Declaration of Conformity
These device
has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
s comply with FCC Rules Part 15. This equipment
FCC Radiation Exposure Statement
This equipment co
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20 cm) between
the radiator and your body.
mplies with FCC radiation exposure limits set
Industry Canada Statement
This digi
Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
12
tal apparatus does not exceed the Class B limits for
Caring for the environment
Disposal of the packing
mat
erial
The cardboard box and packing
erials protect the appliance during
mat
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bag
s, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your ho
Old appliances may contain materials
that can be r
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensur
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
usehold waste.
ecycled. Please contact
e that it presents no danger to
13
Description of functions
The following functions are available on
your ventilation hood, depending on the
model:
Vented mode
The air is drawn into the ventilation
hood. It is then cleaned by the edge
e
xtraction panels and the grease filters
and directed outside.
Non-return flap
A non-return flap in the ducting
events the exchange of inside and
pr
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
Recirculation mode
(Only DA 6596 D requires a
culation kit and OdorFree Charcoal
Recir
Filter (available as optional
accessories); see "Technical data" for
more information.)
The air is drawn in and cleaned first by
the edge e
grease filters, and then by an OdorFree
Charcoal Filter. The cleaned air is then
recirculated back into the kitchen.
xtraction panels and the
A non-return flap has been provided
with the hood in case your ducting
does not have o
the outlet duct collar of the fan.
14
ne. It is inserted into
Description of functions
Con@ctivity 2.0 function
Automatic control
This hood features a communication
fun
ction which enables the automatic
control of the hood based on the
operational status of a Miele cooktop.
To enable the communication function,
e cooktop must be equipped with the
th
corresponding Con@ctivity 2.0 stick .
Please refer to the installation
instructions for the Con@ctivity 2.0
stick t
o determine whether connection
to your cooktop is possible.
The cooktop transmits information
about its oper
using a radio signal.
– When a burner is turned on, the
coo
ktop lighting on the hood turns
on automatically. After a brief delay,
the ventilation hood fan also comes
on.
– During cooking, the hood
automatically selects the fan level
based on the number of burners in
operation and their power levels.
– Once you have turned off the
coo
ktop, the fan and the lighting will
turn off automatically after a
predetermined delay.
Detailed information about this function
can be found under "Operation."
ational status to the hood
There must be radio contact between
the cooktop and the hood for you to be
able to use the Con@ctivity 2.0 function
(see "Activating Con@ctivity 2.0").
15
Guide to the appliance
16
Guide to the appliance
a
Telescopic chimney
b
Chimney
c
Canopy
d
Control panel
e
Grease filter
f
Spacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The hood can be installed with or without the spacer frame.
g
Recirculation vent
(only for recirculation mode, DA 6596 only)
h
Cooktop lighting
i
OdorFree Charcoal Filter
Optional accessory for recirculation mode (DA 6596 D only)
j
Edge extraction panels
Optional accessories
DRP 6590 D glass (3 elements)
DRP 6590
DRP 6520 D glass (4 elements)
DRP 6520 D stainless steel (4 elements)
k
Button for cooktop lighting
l
On/Off button for fan
m
Buttons for setting the fan power
n
Button for delayed shut-down function
o
Filter saturation indicator
D stainless steel (3 elements)
17
Operation (Automatic mode)
When Con@ctivity 2.0 is active, the
hoo
d always operates in Automatic
mode (see "Activating Con@ctivity
2.0").
See "Cooking without Con@ctivity 2.0"
for informa
the hood.
tion on manually operating
Cooking with Con@ctivity 2.0
tomatic mode)
(Au
Turn on a burner to the desired power
setting.
The hood lighting will come on.
After a few seconds, the fan will come
on, briefly oper
before immediately switching to level 1.
The hood selects the fan level
aut
omatically during cooking.
This level is determined by the total
output of the coo
of burners in operation and the power
settings selected.
ating at power level 2
ktop, i.e. the number
Reaction time
Changing the power setting on the
ktop does not lead to an immediate
coo
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the coo
to the hood in intervals.
The reaction time can vary from a few
secon
ktop transmits the information
ds to a couple of minutes.
If you select a higher power setting
cooktop or switch on multiple
on the
burners, the hood will switch to a
higher fan level.
If you select a lower power setting on
the cooktop or turn off a burner, the
hood will accordingly switch to a
lower fan level.
Examples for fan levels 1 t
18
o 4
Operation (Automatic mode)
Cooking process
for example, you switch on a
If,
burner at the highest power setting to
heat cookware in preparation for
searing and then reduce the power
level after approx. 60 to 90 seconds*,
a cooking process is recognized.
The hood turns on automatically and,
after the cooktop power level has been
reduced, switches back to fan level 3,
where it remains for approx. 5 minutes.
After this, the fan level is once again
det
ermined by the Con@ctivity function.
Y
ou can also manually select a
different fan level before then.
Turning off
urn off all burners.
T
Over the next few minutes, the
ventilation hood fan setting will
decr
ease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air
– From the intensive setting IS, the fan
immedia
– If the fan is operating at level 3, it will
switch t
minute.
– From level 2, the fan switches to level
1 aft
– After 2 minutes at level 1, the fan
aut
– After another 30 seconds, the lighting
turns off.
The cooking process is now finished.
tely switches to level 3.
o level 2 after approx. 1
er 2 minutes.
omatically turns off.
.
19
Operation (Automatic mode)
Temporarily exiting Automatic mode
To temporarily exit the Automatic mode
when cooking:
Manu
Manually turn the hood off, or
Activat
The ventilation hood functions can now
be oper
without Con@ctivity 2.0").
ally select a different fan level,
or
e the Delayed shut down
function on the ventilation hood.
The fan turns off after the delay time
selected, and the lighting will remain
on.
ated manually (see "Cooking
Resuming Automatic mode
The ventilation hood resumes
omatic mode:
Aut
If the ventilation hood has not been
used for a period of app
minutes after the manual selection of
a fan level, or
If the manuall
once again matches the automatic
setting, or
If the ventilation hood fan and the
coo
ktop have been turned off for at
least 30 seconds.
Automatic mode will resume the next
time the cooktop is turned on.
If you wish to manually operate the
ventilation hood for a complete
cooking process, turn on the
ventilation hood fan before turning
on the cooktop.
If the ventilation hood and the
cooktop have been turned off for at
least 30 seconds after you have
finished cooking, Automatic mode
will resume the next time the cooktop
is turned on.
y selected fan level
rox. 5
20
Operation (Manual mode)
Cooking without Con@ctivity
2.0 (Manual mode)
The hood can be operated manually if:
– The Con@ctivity 2.0 function is not
activated.
– You have temporarily deactivated the
Con@ctivity 2.0 function (see
"T
emporarily exiting Automatic
mode").
Turning on the fan
ress the On/Off button .
P
The fan turns on at level 2. The
symbol and 2 will light up in the fan
level
display.
Selecting the power level
Power levels 1 t
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g. during searing, select the IS level
as an intensive setting.
o 3 can be used for light
odors in the air.
W
ith the Delayed shut down function, it
is possible to have the fan automatically
shut off after a predetermined period of
time.
er you have finished cooking,
Aft
press the Delayed shut down button
5 15
– Once: fan turns off after 5 minutes (5
lights up).
– Twice: fan turns off after 15 minutes
(15 lights up).
– If you press the Delayed shut down
on 515 again, the fan remains
butt
turned on (515 goes out).
Turning off the fan
ress the On/Off button to turn the
P
fan off.
The symbol will go out.
ress the "" button for a lower
P
power level or the "" button to
select a higher level.
Reducing power of the intensive setting
If power management is activated
(
default setting), the fan automatically
switches back to level 3 after 5
minutes.
Selecting the Delayed shut down time
It is a good idea to let the fan run for a
few more minutes after cooking in order
to neutralize any lingering vapors and
21
Operation (Manual mode)
Turning cooktop lighting On/Off
The cooktop lighting can be turned on
nd off separately from the fan.
a
T
o do so, press the button.
The symbol is lit when the co
lighting is turned on.
oktop
Power management
The ventilation hood features a power
manag
the lighting and reducing the fan power
setting automatically.
– If the intensive setting is selected, the
– If the fan is set to level 3, 2 or 1, it
ement system for switching off
fan aut
after 5 minutes.
switches t
setting after 2 hours and then in 30minute intervals until the fan
eventually switches off.
omatically switches to level 3
o the next-highest fan
If power management is switched on,
the 1 and IS indicat
continuously lit.
If it is turned off, 1 and IS will flash.
ress the "" button to turn power
P
management off.
The 1 and IS indicat
o turn it on, press the "" button.
T
The 1 and IS indicat
lit.
Co
nfirm the setting by pressing the
Delayed shut down button 5 15.
All the indicator lights will go out.
If the setting is not confirmed within 4
minu
tes, the ventilation hood
automatically reverts to the old setting.
ors will be
ors will flash.
ors are constantly
– If the cooktop lighting is on, it
automatically turns off after 12 hours.
Turning power management On/Off
urn off the fan and the lighting.
T
P
ress the Delayed shut down button
5 15 for approx. 10 seconds until 1
appears in the fan level display.
n, press the following buttons in
The
order:
– The lighting button ,
– Followed by the "" button and then
– The lighting button again.
22
Operation (Automatic and Manual modes)
Filter saturation indicator
The number of hours the hood has
been in oper
memory.
The filter saturation indicators show
when the filt
changed by lighting up the grease filter
symbol or OdorFree Charcoal Filter
symbol . Additional information on
cleaning and changing the filters and
resetting the filter saturation counters
can be found under "Cleaning and
care."
Adjusting the filter saturation
icator for grease filters
ind
You can set the filter saturation
indicat
The factory default setting is an interval
of 30 hours.
– Select a shorter time (20 hours) if you
oft
en fry foods.
ation is stored in appliance
ers need to be cleaned or
or to suit your cooking habits.
Fan power level indicators 1 t
the current time setting:
Indicator 1................................
Indicator 2................................
Indicator 3................................
Indicator IS ..............................
ress the "" symbol for a shorter
P
operating time, or the "" symbol to
select a longer operating time.
nfirm the selection by pressing the
Co
filter saturation indicator .
All the indicator lights will go out.
If the setting is not confirmed within 4
minutes, the ventilation hood
automatically reverts to the old setting.
o IS show
20 hours
30 hours
40 hours
50 hours
– We also recommend a shorter
cleaning interval if you only cook
occasionally. This will prevent grease
buildup from hardening and making
cleaning more difficult.
– Select a longer cleaning interval of 40
hours if you use very little fat
or 50
when cooking.
Press the On/Off button to turn the
fan off.
ress the Delayed shut down button
P
515 and the filter saturation button
at the same time.
The grease filter symbol on the filt
saturation button and one of the fan
power level indicators will flash.
er
23
Operation (Automatic and Manual modes)
Activating/changing the grease filter
ation counter
satur
The OdorFree Charcoal Filter is required
ecirculation mode.
for r
The filter saturation counter for the
OdorF
ree Charcoal Filter requires onetime activation and must be set to
match your cooking habits.
Press the On/Off button to turn the
fan off.
ress the "" symbol and the filter
P
saturation indicator at the same
time.
The OdorFree Charcoal Filter symbol
and one of the fan power level
indicat
ors will flash.
Fan power level indicators 1 t
the current time setting:
Indicator 1 .............................
Indicator 2..............................
Indicator 3..............................
o IS show
120 hours
180 hours
240 hours
Checking the elapsed operating time
Before the set operating time interval
has been r
percentage of the time has elapsed.
ress the On/Off button to switch
P
the fan on.
P
ress and hold the filter saturation
indicator :
– Once, to check the grease filter
oper
symbol lights up.
– Twice, to check the charcoal filter
satur
Filter symbol lights up.
One or more of the fan power level
indicat
The number of flashing indicators
shows the elapsed oper
percentage.
Indicator 1
Indicators 1 and 2
eached, you can check what
ating time. The grease filter
ation. The OdorFree Charcoal
ors will flash simultaneously.
ating time as a
..................................... 25%
......................... 50%
Indicator IS..........................
ress the "" symbol for a shorter
P
operating time, or the "" symbol to
select a longer operating time.
nfirm the selection by pressing the
Co
filter saturation indicator .
All the indicator lights go out.
If the setting is not confirmed within 4
minutes, the ventilation hood
automatically reverts to the old setting.
24
deactivated
Indicators 1 t
Indicators 1 t
The elapsed operating time remains
ored in the memory when the
st
ventilation hood is turned off or if
power to the appliance is lost.
o 3 ............................ 75%
o IS ......................... 100%
Cleaning and care
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Befor
e cleaning or servicing the
hood, disconnect it from the power
supply.
Stainless steel housing
General
The surfaces and control buttons are
susce
ptible to scratching and
chipping.
Observe the following cleaning
instructions.
an all surfaces and control
Cle
buttons using warm water and liquid
dish soap only, applying the mixture
with a sponge cloth.
Make sure that no water gets into
the interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
Special instructions for stainless
eel surfaces
st
(does not apply to control buttons)
S
tainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner, available from
Miele.
o prevent the surfaces from quickly
T
becoming dirty again, we
recommend treating them with a
stainless steel care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Special instructions for RAL color finish housing
(special order)
Obser
Minor scratches on the surface are
inevitable when cleaning the housing.
Depending on the lighting in the
kitchen, this may negatively affect the
app
ve the general cleaning
instructions contained in this chapter.
liance's appearance.
Aft
er cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive cleaners such as scouring
powder
sponges such as pot scourers, or
used sponges that still contain
residues from abrasive cleaners
, scouring liquid, abrasive
25
Cleaning and care
Special instructions for control
ons
butt
Do not leave dirt and debris on the
ons for any length of time.
butt
Otherwise they may become
ored or damaged.
discol
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
o clean the control buttons.
t
Panels and grease filters for
edge e
The edge extraction panels and the
eusable metal grease filters in the
r
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the hood.
A
Cleaning intervals
Over longer periods of time, fat buildup
on the gr
cleaning more difficult. Therefore, we
recommend cleaning the grease filters
once every 3-4 weeks.
By illuminating the grease filter symbol,
the filter saturation counter reminds
you to regularly clean the grease filters.
Y
xtraction
dirty filter is a fire hazard!
ease filter hardens and makes
ou can adjust the interval of the filter
saturation counter to match your
cooking habits (see "Operation").
26
Removing the panels and grease
ers
filt
The grease filters and panels can fall
t when you are handling them.
ou
This can result in damage.
Make sure you hold the filters and
s securely at all times when
panel
handling them.
DA 6596 D: Pull the front edge of the
panels down out of the lock, lower
them slightly, unhook them at the
back, and take them out.
Cleaning and care
T
o remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning the panels by hand
ollow the instructions under
F
"Housing."
Cleaning the grease filters by hand
an the filters with a soft nylon
Cle
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
A 6526 D: Pull the outer edge of the
D
panels down out of the lock, lower
them slightly, unhook them in the
middle, and take them out.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
t
o the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degr
easer sprays
– Oven sprays
27
Cleaning and care
Cleaning the panels and grease
ers in the dishwasher
filt
Place
Use a household dishwasher
Selec
Depending on the detergent used,
clean
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the filters
in any way.
After cleaning
Aft
When r
the panels and filters as upright
or inclined as possible in the lower
basket. Ensure that the spray arm is
not obstructed.
det
ergent.
t a program with a wash
temperature between 122°F (50°C)
and 149°F (65°C).
ing the filters in a dishwasher
er cleaning, leave the filters on an
absorbent surface to dry.
emoving the panels and
grease filters for cleaning, also clean
off any accessible oil or grease
buildup from the housing. Doing so
will prevent a fire hazard.
If the filt
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Ho
rod.
Lift up the fr
push them into the lock until they
engage.
ers have been installed
ok the panels onto the support
ont of the panels and
Rein
stall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.
28
Resetting the filter saturation
er for the grease filters
count
Once cleaning is complete, the filter
ation counter must be reset.
satur
Cleaning and care
While
The grease filter symbol goes out.
When cleaning the grease filters before
the full oper
P
the fan is turned on, press the
filter saturation indicator for
approx. 3 seconds until 1 is the only
indicator flashing.
ating time has elapsed:
ress the filter saturation indicator
for approx. 6 seconds until 1 is
the only indicator flashing.
OdorFree Charcoal Filter
If the hood is equipped for recirculation,
an OdorF
installed in addition to the grease filters.
This filter is designed to absorb odorcausing agents and is mounted in the
canopy above the grease filters.
OdorFree Charcoal Filters are available
fr
om your Miele dealer or from Miele.
See "Technical data" for the type and
reference number.
Installing/replacing the OdorFree
Char
T
Charcoal Filter, the grease filters must
first be removed as described above.
Remo
from its packaging.
ree Charcoal Filter must be
coal Filter
o install or replace the OdorFree
ve the OdorFree Charcoal Filter
P
ress the OdorFree Charcoal Filter
into the frame.
Rein
When insta
When to change the OdorFree
Char
Always r
The OdorFree Charcoal Filter saturation
coun
change the charcoal filter regularly.
The
sert the grease filters and the
panels.
lling the filter for the first
time, activate the filter saturation
counter (see "Operation").
coal Filter
eplace the OdorFree
Charcoal Filter whenever it no longer
absorbs kitchen odors effectively.
Replace the filter at least once every
6 months.
ter will light up to remind you to
OdorFree Charcoal Filter
saturation counter requires one-time
activation before use (see the
"Operation" chapter).
29
Cleaning and care
Resetting the filter saturation
er for the filter
count
If the filter saturation counter is
ed, it must be reset each time
activat
the filter is changed.
o do this, press the filter saturation
T
indicator twice with the fan
turned on and hold it for approx. 3
seconds until 1 is the only indicator
flashing. The OdorFree Charcoal
Filter symbol will go out.
If you replace the OdorFree Charcoal
Fil
ter before the full operating time
elapses:
P
ress the filter saturation indicator
twice and hold it for approx. 6
seconds until 1 is the only indicator
flashing.
Disposing of the OdorFree Charcoal
Fil
ter
Used OdorF
be disposed of with normal
household waste.
ree Charcoal Filters can
30
Before installation
Installation
Befor
read all of the information contained
in this chapter and also in the
"IMPORTANT SAFETY
INSTRUCTIONS" section.
e installing the appliance,
Installation parts
4 screws, 6 9/16" x 4 5/16"
(7 x 110 mm) and
4 plugs, 3/8" x 3 1/8" (10 x 80 mm)
for securing the ventilation hood to the
ceiling (not for use in USA / CDN).
The screws and plugs are designed
for use in
Use different fasteners for other
cei
sure that the ceiling can support the
load.
solid ceilings only.
ling construction types. Make
4 extension piece holders
for aligning and securing the telescopic
chimney
4 screws M3/16" x 5/16"
(M4 x 8.5 mm)
for securing the extension piece
holders.
14 screws M3/16" x 5/16"
(M4 x 8 mm)
for securing the spacer frame and
sec
uring the hood to the installation
frame.
1 screw M3/16" x 5/8" (M4 x 16 mm)
for securing the chimney.
DUI 32 recirculation kit for
r
ecirculation mode
(not supplied, available as an optional
accesso
directional unit, aluminum hose, and
hose clips.
ry). The kit includes a
31
Installation
Appliance dimensions
a
Mounting area for the exhaust ducting and power cable. In recirculation mode,
onl
y the power cord is required.
b
Possible height range for appliance in vented mode
c
Possible height range for appliance in recirculation mode
d
Alternative installation with spacer frame
e
Air vent positioned at the top for recirculation
32
Installation
f
A power cord is required to connect the hood to the socket in the ceiling. With
e
xtraction mode flexible ducting is also required.
Exhaust connection 6" (150 mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
ow the minimum safety distances between a cooktop and the bottom of the
foll
hood.
Please also observe the information contained in the "IMPORTANT SAFETY
INS
TRUCTIONS" section.
Minimum distance S
Cooking appliance Miele
appliance
Electric/Induction cooktop 24" (610 mm)
Electric grill, deep fat fryer (electric) 26" (660 mm)
Multi-burner gas cooktop
≤ 43,000 B
no burner > 15,000 BTU/hr (4.5 kW).
Multi-burner gas cooktop
≤ 73,800 B
no burner > 16,500 BTU/hr (4.8 kW)
Multi-burner gas cooktop
> 73,800 B
or one of the burners > 16,500 BTU/hr (4.8 kW)
Single-burner gas cooktop
≤ 20,500 B
Single-burner gas cooktop
≤ 27,600 B
Single-burner gas cooktop
> 27,600 B
TU/hr (12.6 W),
TU/hr (21.6 W),
TU/hr (21.6 W),
TU/hr (6 kW)
TU/hr (8.1 kW)
TU/hr (8.1 kW)
26" (660 mm) 30" (760 mm)
30" (760 mm)
Not possible
26" (660 mm) 30" (760 mm)
30" (760 mm)
Not possible
Non-Miele
appliance
33
Installation
Installation recommendations
– We also recommend a distance of at
least 25 1/2" (650 mm) above electric
coo
ktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always tak
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance
effective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
mak
cooktop. The hood should be
positioned centrally over the
cooktop, not to the side or rear.
– The cooktop should be no wider than
the ho
narrower.
– The mounting area must be easily
accessible. The ventilation hood
sho
uld be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
e the user height into
from the cooktop, the less
e sure that the hood covers the
od. Preferably, it should be
Structural support
The hood must be attached to rigid
structur
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
al framing that is supported
Removing the protective film
The housing components are covered
by a p
rotective film to prevent them
from becoming damaged during
transport.
Please
remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
34
8
5
/
8
"
220 mm
8
5
/
8
"
220 mm
dai3435aus

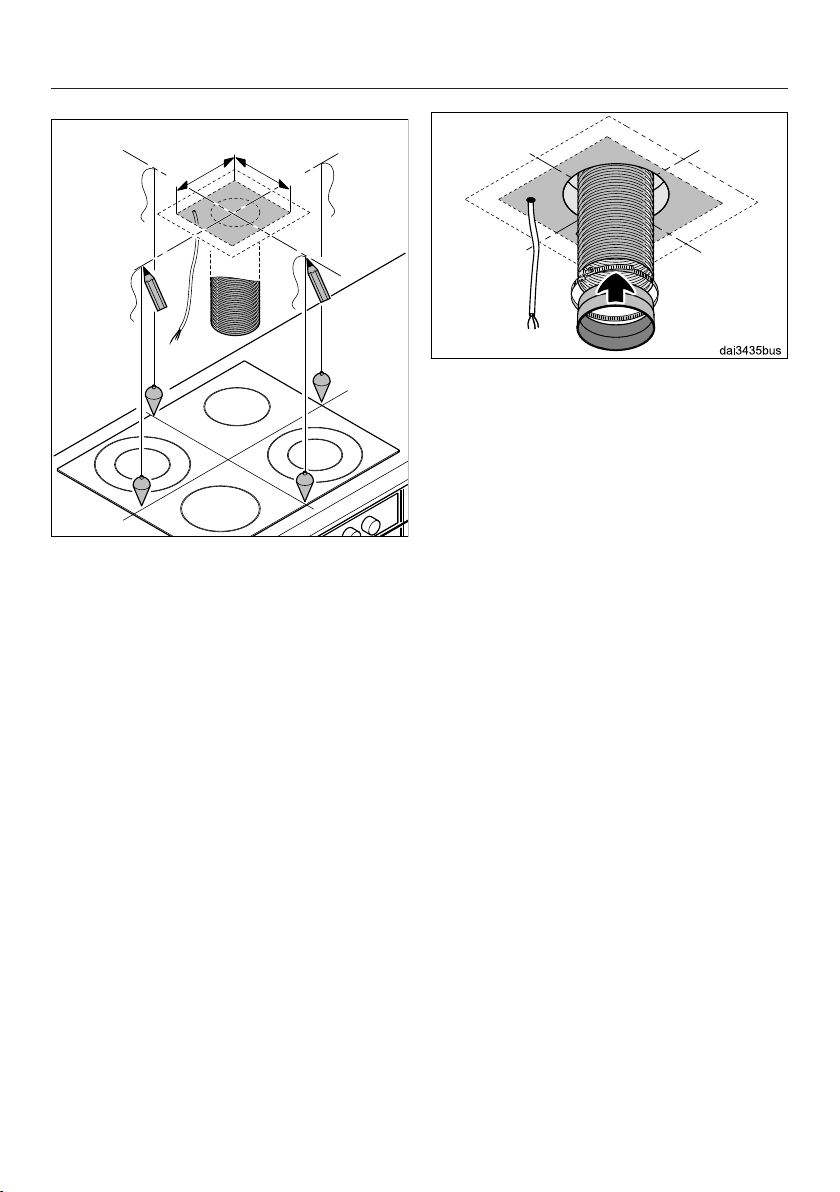

aw two intersecting lines on the
Dr
ceiling.
Installation
or vented mode:
F
– Place a section of the exhaust
ducting in the ceiling and feed it
down thr
area as illustrated. Exhaust ducting of
approx. 27 9/16" (700 mm) length is
required between the ceiling and the
hood exhaust socket.
– Secure the exhaust ducting to the
xhaust socket, e.g. with a hose clip
e
(available as an optional accessory)
on flexible ducting.
ough the cross-sectional
Place
the power cord and guide it
through the ceiling in the area shown.
A power cord approx. 27 9/16" (700
mm) in length is required between the
ceiling and the hood connectors.
35
Installation
Use a kni
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
fe to release the four
Drill four holes 3/8" (10 mm),
ox. 4 1/2" (115 mm) deep for the
appr
plugs supplied.
Place the four plugs in the holes and
ew in the four screws so that they
scr
protrude by approx. 1 3/16" (30 mm).
36
Installation
The spac
between the chimney and the ceiling.
This creates a shadow which gives the
illusion of a gap between the ceiling
and the chimney. This is useful if the
ceiling is not level or is uneven. The
hood is aligned vertically with the
spacers supplied. Visual irregularities
between the chimney and the ceiling
are then concealed by the shadow.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
er frame can be installed
Mou
nt the spacer frame onto the
installation frame.
37
Installation
Han
g the installation frame on the
four screws. The front of the frame is
marked with a "V."
If using the spacer fr
two covers into the fixing holes.
38
ame, place the
n the installation frame and
Alig
secure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood
vertically.
Ho
lding the installation frame
securely, remove the two fixing
screws and extend the installation
frame to its maximum length.
Installation
Replace
The directional unit from recirculation
kit DUI 32 (optional
installed for recirculation mode (RM):
Bend the four r
installation frame outwards.
Place
installation frame.
the screws.
accessory) is
etaining tabs on the
the power cord inside the
Fi
t the directional unit as shown,
noting the marking on the front.
Bend the r
approx. 45° inwards to hold the
directional unit in place.
etaining tabs back and
39
Installation
Secur
Secur
Che
e the exhaust socket to the
hose using a hose clip.
e the hose to the directional
unit socket using a hose clip.
ck that the hose is held securely.
ush the telescopic chimney over the
P
installation frame:
– with the recirculation grilles at the
bott
om for vented mode (AE),
– with the recirculation grilles at the top
for r
ecirculation mode (RM).
Bend the two r
to prevent the telescopic chimney
from slipping down again.
etaining tabs outwards
40
Installation
t the four telescopic chimney
Fi
clamps. When the screws are
tightened, the clamps spread out and
push the telescopic expansion piece
upwards.
Tighten the screws only until the top
edge of the t
evenly aligned with the ceiling or the
spacer frame.
elescopic chimney is
Bend back the two retaining tabs.
ush the chimney over the telescopic
P
chimney and bend the retaining tabs
outwards again to prevent the
chimney from slipping down again.
41
Installation
A non-return flap is supplied with the
hoo
d or is already fitted in the exhaust
socket of the motor unit (depending on
model).
W
ith vented mode (AE) insert the
non-return flap in the exhaust socket
if your ducting system is not
equipped with one.
Recirculation mode (RM) does not
require the non-return flap to be
inserted. If there is one present, it
should be removed.
Han
g the hood on the brackets,
making sure that the controls are at
the front.
42
Secur
supplied.
e the hood with the screws
nnect the power cord. See
Co
"Electrical connection."
Installation
Place
the exhaust ducting onto the
exhaust socket.
Unsc
The canopy can now be adjusted to the
desir
permissible height ranges:
– With vented mode: upwards as far as
– With recirculation mode: upwards as
rew both screws from the
installation frame again.
ed height, observing the
it will go
marking.
far as the "U",
will go.
Follow the instructions in "Appliance
dimensions." Safety distances
between the coo
hood must be observed.
, downwards only to the "A"
downwards as far as it
ktop and ventilation
43
Installation
Raise the canopy to the desired
height and secure it with the screws.
44
Ho
ld the chimney securely, bend
back the retaining tabs and carefully
lower it.
The chimney will locate in the cut-out in
the cano
py.
Installation
W
ith recirculation mode (RM)
ventilation hoods, insert the OdorFree
Charcoal Filter.
Remo
Insert the safety screw on the inside.
ve the grease filters from the
hood.
arefully remove the protective foil
C
from the grease filters.
Rein
sert the grease filters.
45
Exhaust duct
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
operly exhaust air, the exhaust
pr
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
cr
awl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPOR
INSTRUCTIONS" to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smoo
duct hoses made from nonflammable materials for exhaust
ductwork.
T
extraction with the lowest noise
levels, please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150 mm).
TANT SAFETY
th pipes or flexible
o achieve the greatest possible air
– Make sure that all connections are
secu
re and airtight.
Remember that any constriction of
rflow will reduce extraction
the ai
performance and increase operating
noise.
If the e
If the e
When installing the exhaust duct
xhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent (available
as an optional accessory).
xhaust air is to be conducted
into a vent flue, the intake piece must
be aligned with the flow direction of
the flue.
horizontally, you must slope it away
from the source by at least 1 cm per
meter (3/8" per 3 1/4'). This ensures
that condensate cannot drain back
into the ventilation hood.
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and str
– If elbows are needed, make sure they
have
– The exhaust duct itself must not be
kin
46
aight as possible.
a large radius.
ked or compressed.
If the e
xhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.
Condensate trap
In addition to insulating the exhaust
duct, w
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of 5"
(125 mm) or 6" (150 mm).
e recommend installing a
Exhaust duct
When insta
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
lling a condensate trap,
47
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
formed by a qualified electrician
per
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF whil
is performed.
Verify that the voltage, load and
cir
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cordconnection kits that have been
in
vestigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
applianc
please consult a licensed electrician
or call Miele’s Technical Service
Department.
e installation or repair work
cuit rating information found on
e to your power supply,
Grounding Instructions
WARNING - Improper grounding can
r
esult in a risk of electric shock.
This appliance must be grounded. In
the even
circuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the
electrical system of the house
checked by a qualified electrician.
To increase security before the
machine is installed, it is
r
ecommended to install a protective
switch(30mA).
The
accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
t of an electrical short
hood must be hard wired
WARNING: THIS APPLIANCE MUST
BE GROUNDED
48
Activating Con@ctivity 2.0
Installation of the Con@ctivity
2.0 stick
In order for you to be able to use the
Con@ctivity 2.0 function, the cookt
must be equipped with a Con@ctivity
2.0 stick.
See the r
instructions of the Con@ctivity 2.0
stick.
elevant installation
op
Activating the Con@ctivity 2.0 function
To use the Con@ctivity 2.0 function, the
adio link between the cooktop and the
r
ventilation hood must be activated.
Both appliances must be installed and
ational.
oper
Wireless connection must be activated
on the ven
at the same time. Activation on the
ventilation hood is described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.
tilation hood and the cooktop
Activating the ventilation hood
Th
e cooktop and hood must be
switched off.
P
ress the delayed shut-down button
515 for approx. 10 seconds until
the 1 indicator appears in the fan
level display.
n, press the following buttons in
The
order:
– The "" butt
– Followed by the "" button,
– And then the lighting button .
The hood is in log on / log off mode.
If the wireless connection is already
activat
same time.
If there is no wireless connection, 2 and
3 will flash constantly (Con@ctivity 2.0
is already activated or a remote control
is logged on).
T
The search for a wireless connection
will star
As this is happening, begin activation
ed, 2 and 3 will light up at the
o activate Con@ctivity 2.0, press the
"" button.
t.
on the
on,
cooktop.
49
Activating Con@ctivity 2.0
Activating the cooktop
While the ventilation hood is
sear
ching for a wireless connection,
start activation on the cooktop.
More information can be found in the
operating instructions for the
cooktop.
When the co
connection has been established,
confirm activation on the ventilation
hood with the delayed shut-down
button 515. All indicators will go
out.
nfirm activation on the cooktop.
Co
The Con@ctivity 2.0 function is now
r
eady for use.
If you do not confirm within 4 minutes,
activation will be canceled.
You only need to carry out the
activati
appliances are disconnected from the
electricity supply, for example during
a loss of power, they will still remain
activated.
on procedure once. If the
oktop registers that
Activation failed
If a wir
eless connection cannot be
established despite activation of the
Con@ctivity function on the
ventilation hood and cooktop, the
function must first be deactivated
and then reactivated on both
appliances.
Deactivating Con@ctivity 2.0
Deac
T
tivation on the hood is similar to
the activation procedure. Select the
"" button instead of the "" button.
o deactivate the cooktop, please
refer to the corresponding operating
instructions.
Please keep in mind that disabling the
connection will also disable any
r
emote control function being used.
The remote control must then be
reactivated.
50
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Mie
The telephone number for the Technical
Ser
vice Department is listed at the back
of these instructions.
When contacting Miele, please state
the model and serial number of your
ventilation hood.
These
can be found on the data plate.
le Technical Service.
Location of the data plate
The data plate is visible once you have
emoved the grease filters.
r
Warranty
The warranty period for this appliance
is 2 years.
For further information, please refer to
your warr
anty booklet.
Service and warranty
51
Technical data
Fan motor 350 W
Cooktop lighting 4 x 3 W
Total connected load 362 W
Voltage, Frequency 120 V AC, 60 Hz
Fuse rating 15 A
Weight 74.8 lbs (34 kg)
Optional accessories for recirculation mode:
Recir
culation kit DUI 32 and OdorFree Charcoal Filter DKF 12
Contains
FCC
ID: 2ACUWEI8800
IC: 5669C-EI8800
This device complies with Part 15 of the FCC Rules and with Industry Canada
lice
nce-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
52
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
echnicalService@mieleusa.com
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
customercare@miele.ca
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
53
DA 6596 D
M.-Nr. 09 968 630 / 01en-US
Loading...
