Miele DA 6526 W Operating instructions

Operating and Installation
Instructions

Ventilation Hood

To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.

en-US M.-Nr. 11 743 460

Contents

IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4

Caring for the environment .............................................................................. 13

Description of functions ................................................................................... 14

Con@ctivity 2.0 function...................................................................................... 15

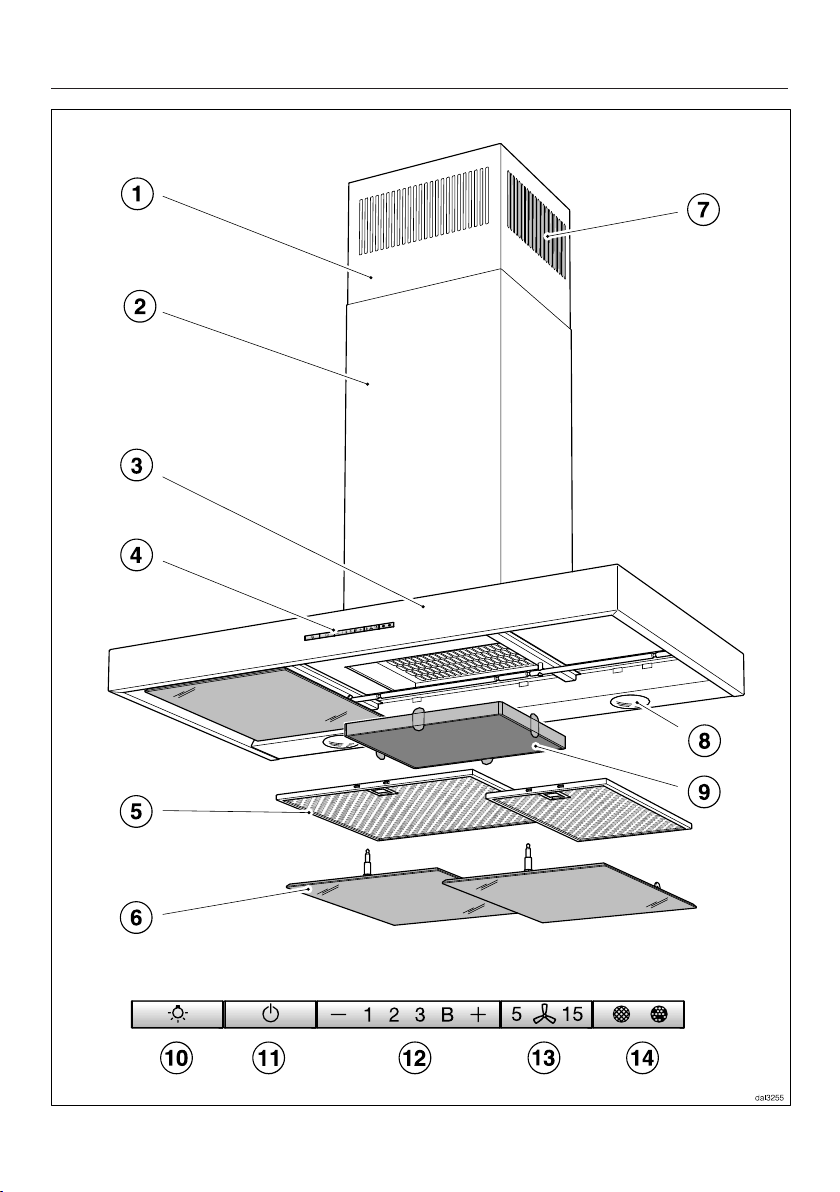

Guide to the appliance...................................................................................... 16

Operation (Automatic mode) ............................................................................ 18

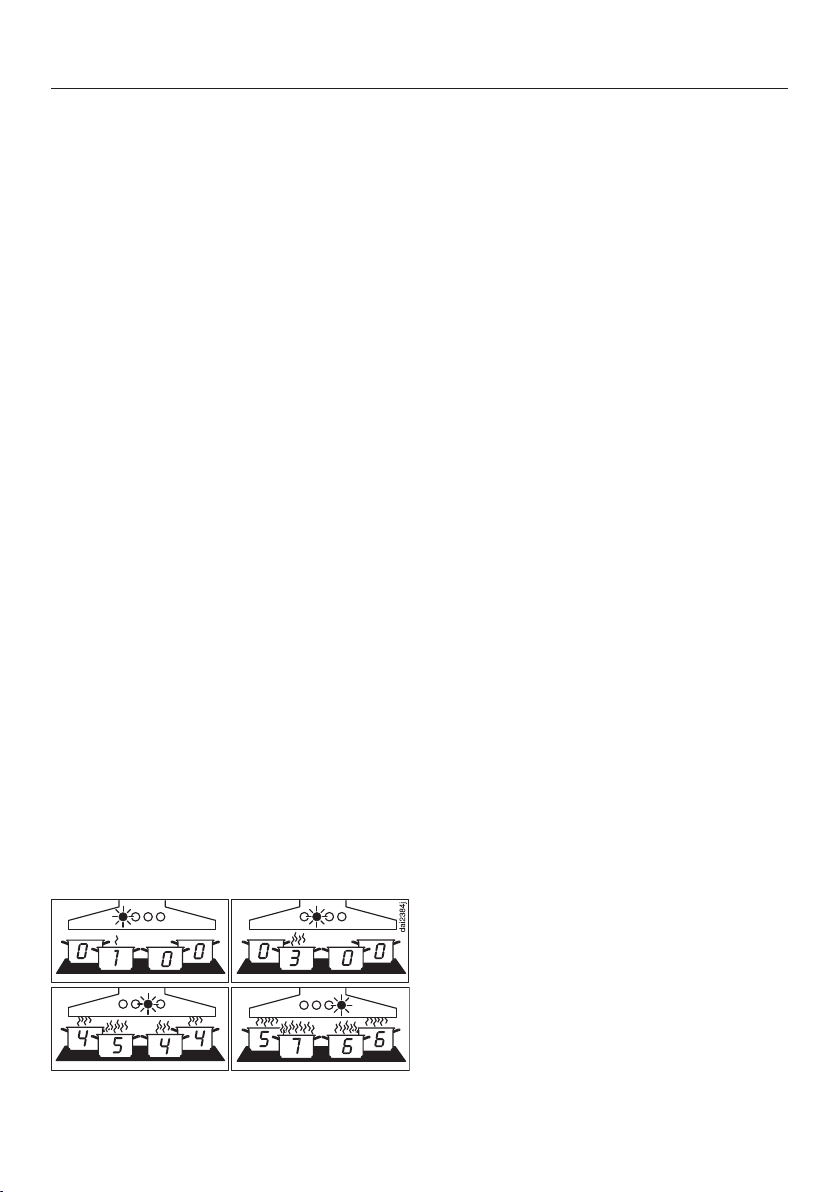

Cooking with Con@ctivity 2.0 (Automatic mode) ................................................ 18

Temporarily exiting Automatic mode................................................................... 20

Resuming Automatic mode................................................................................. 20

Operation (Manual mode) ................................................................................. 21

Cooking without Con@ctivity 2.0 (Manual mode) ............................................... 21

Turning on the blower.......................................................................................... 21

Selecting the power level .................................................................................... 21

Selecting the delayed shutdown time ................................................................. 21

Turning off the blower.......................................................................................... 21

Turning the overhead lighting on/off.................................................................... 21

Power management ............................................................................................ 22

Safety shut-off..................................................................................................... 23

Operation (Automatic and Manual modes) ..................................................... 24

Filter saturation indicator..................................................................................... 24

Adjusting the grease filter filter saturation indicator ....................................... 24

Activating/changing the charcoal filter saturation indicator........................... 25

Checking the filter saturation indicator........................................................... 25

Cleaning and care ............................................................................................. 26

Stainless steel housing........................................................................................ 26

Important information for appliances with lacquered casing......................... 26

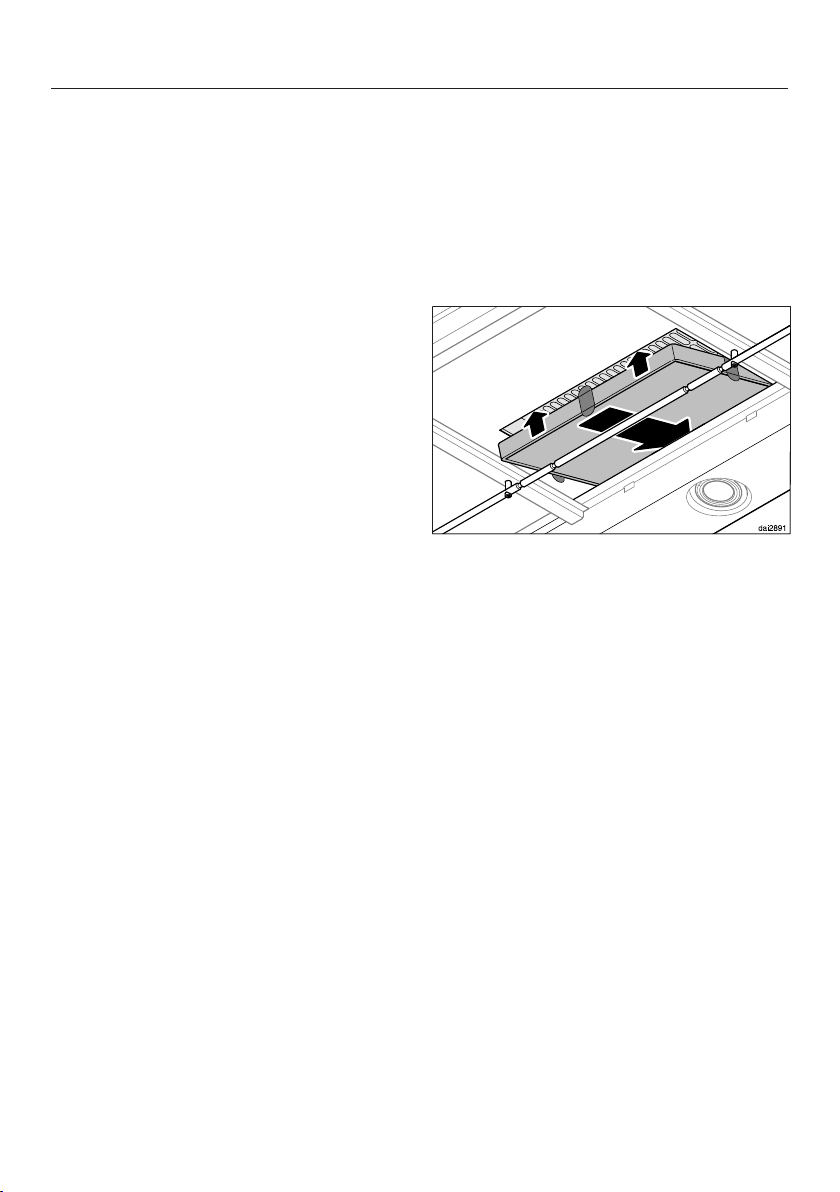

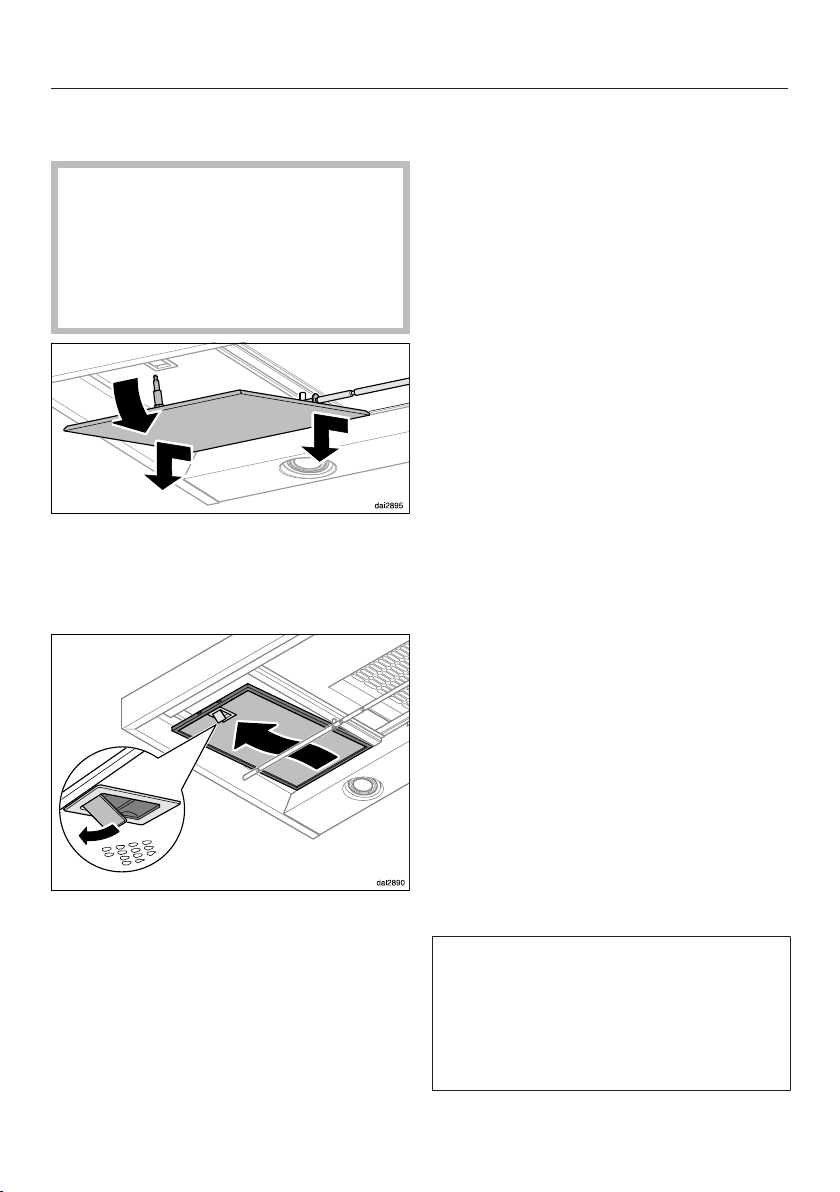

Panels and grease filters for edge extraction ...................................................... 27

OdorFree Charcoal Filter ..................................................................................... 30

Resetting the filter saturation counter for the filter......................................... 31

Disposing of charcoal filters........................................................................... 31

Installation.......................................................................................................... 32

Before installation................................................................................................ 32

Removing the protective film............................................................................... 32

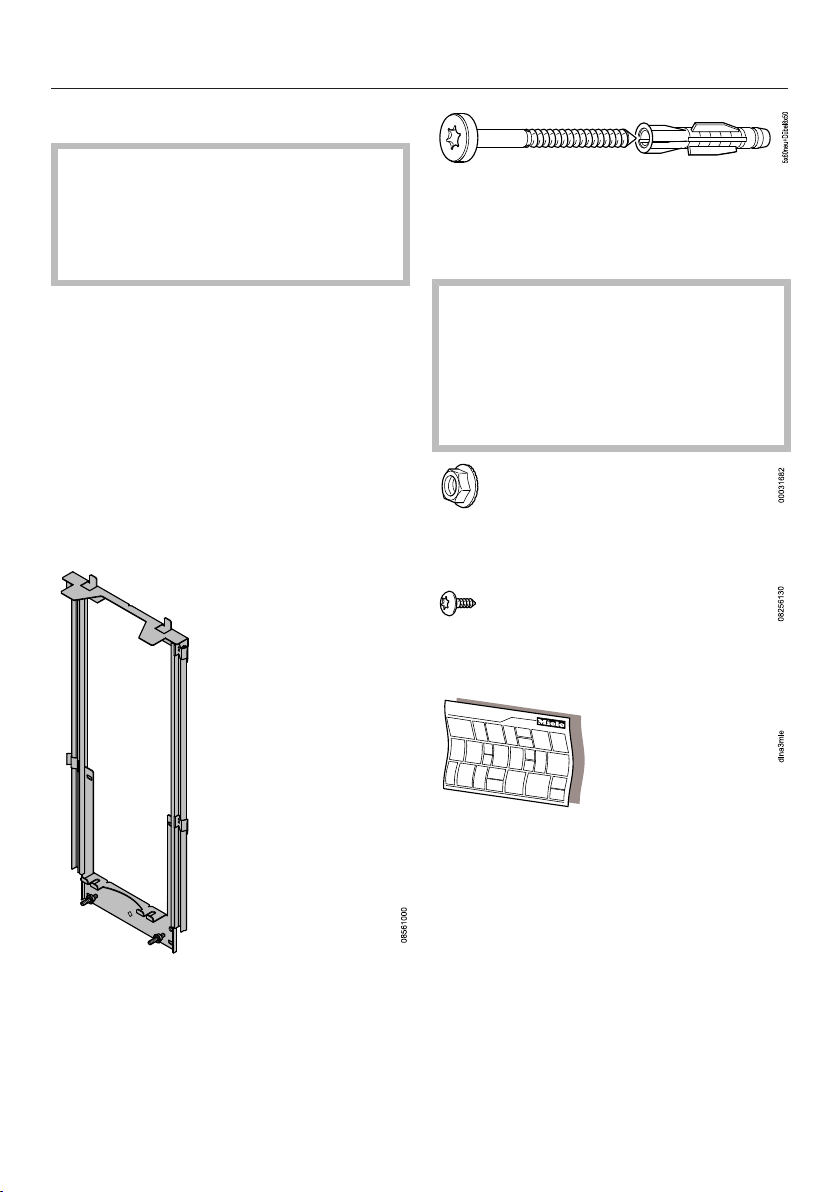

Installation materials............................................................................................ 32

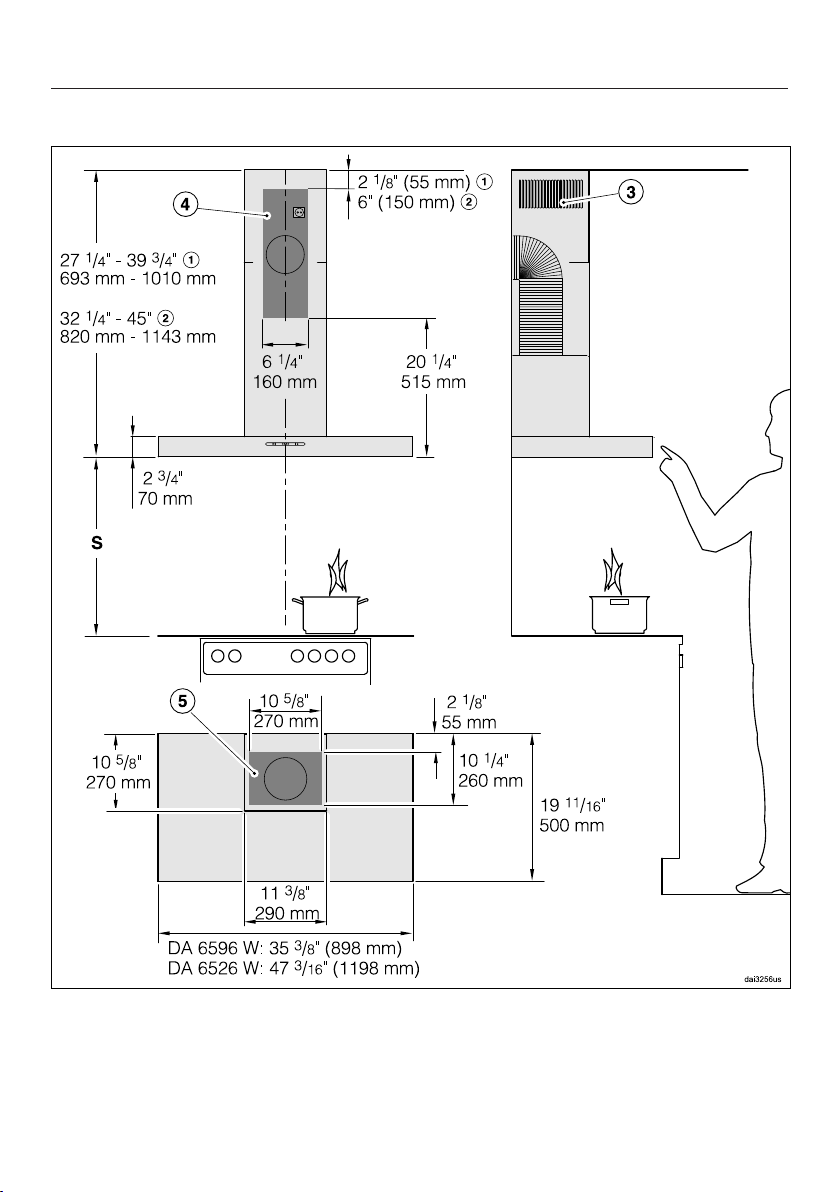

Appliance dimensions ......................................................................................... 34

Distance between cooktop and ventilation hood (S)........................................... 35

Installation recommendations ............................................................................. 36

2

Contents

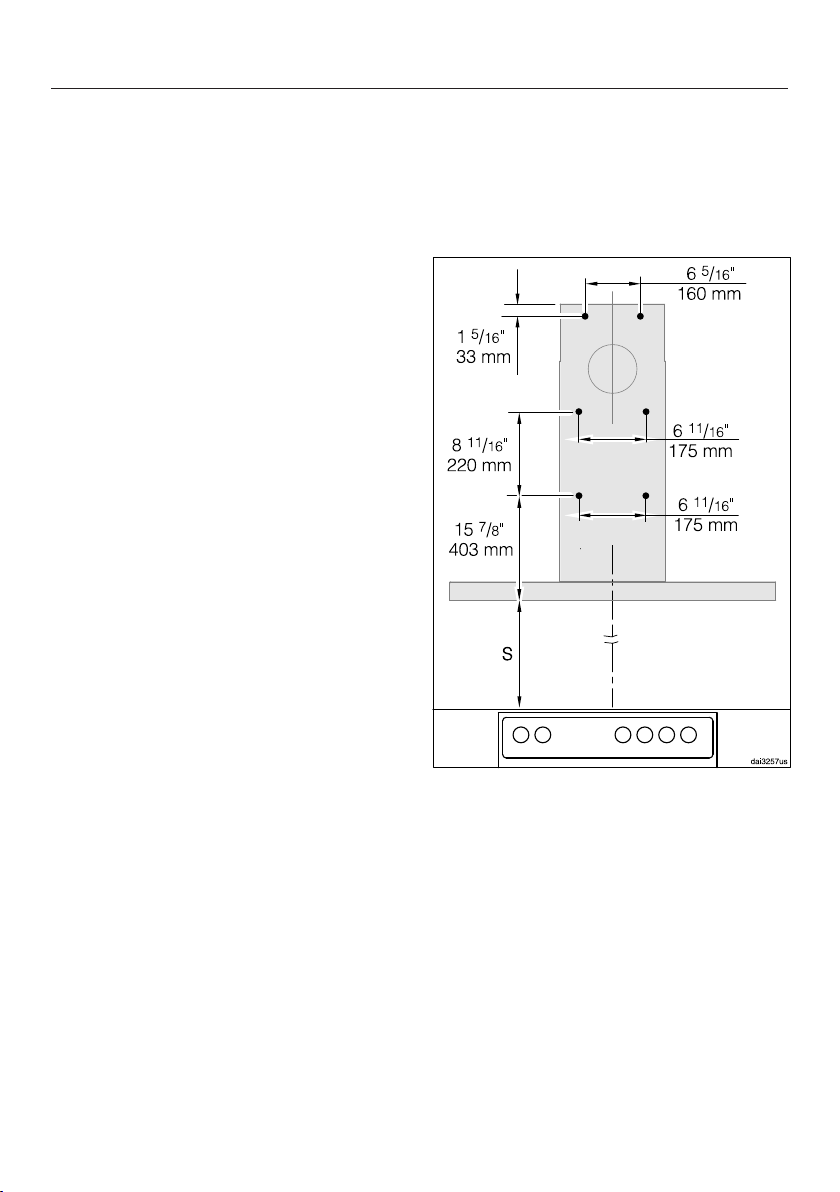

Drilling diagram for wall mounting....................................................................... 36

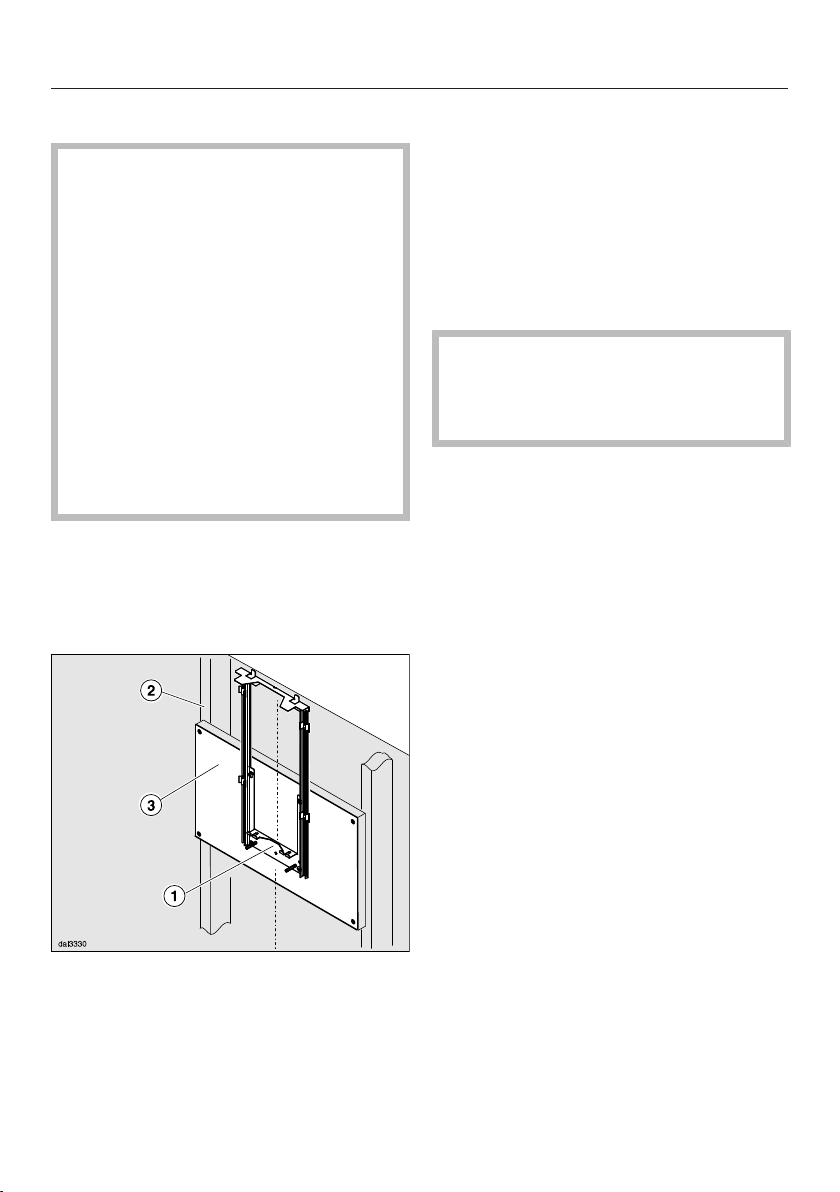

Plywood backing ................................................................................................ 37

To install a plywood backing .............................................................................. 37

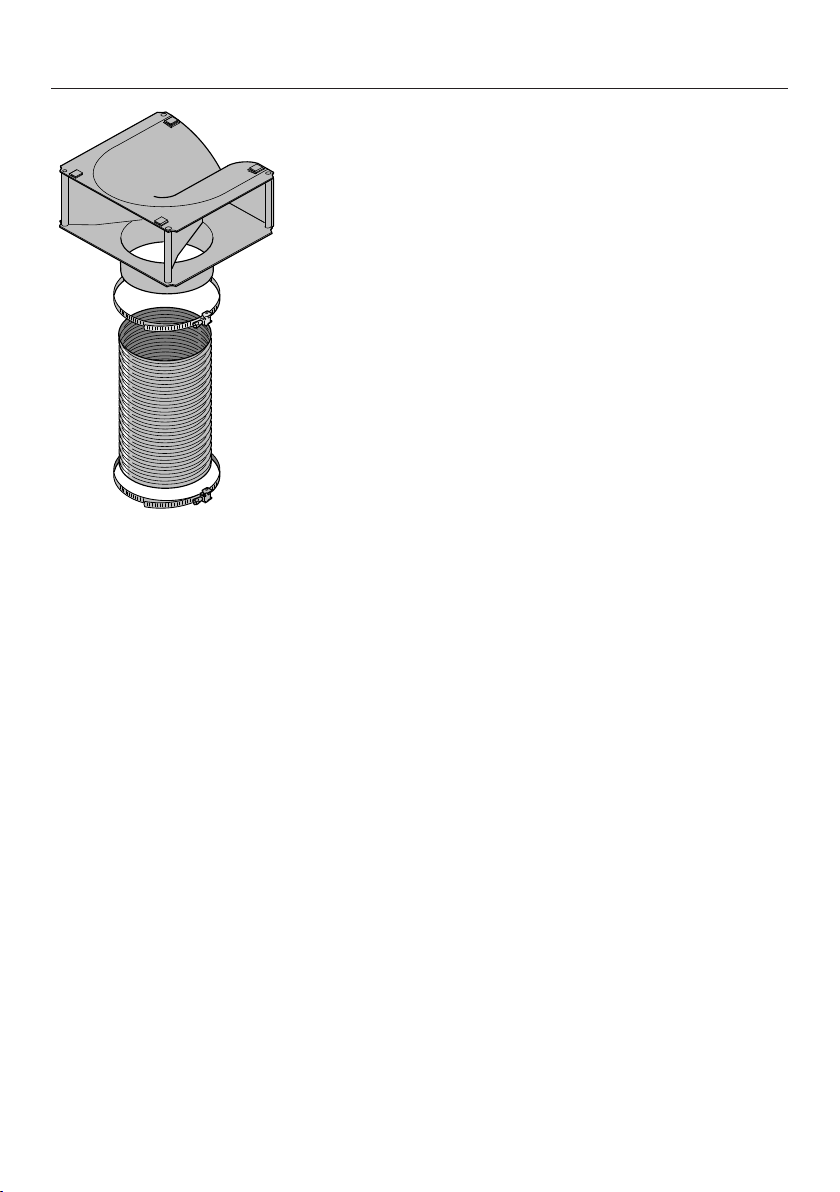

Air venting .......................................................................................................... 38

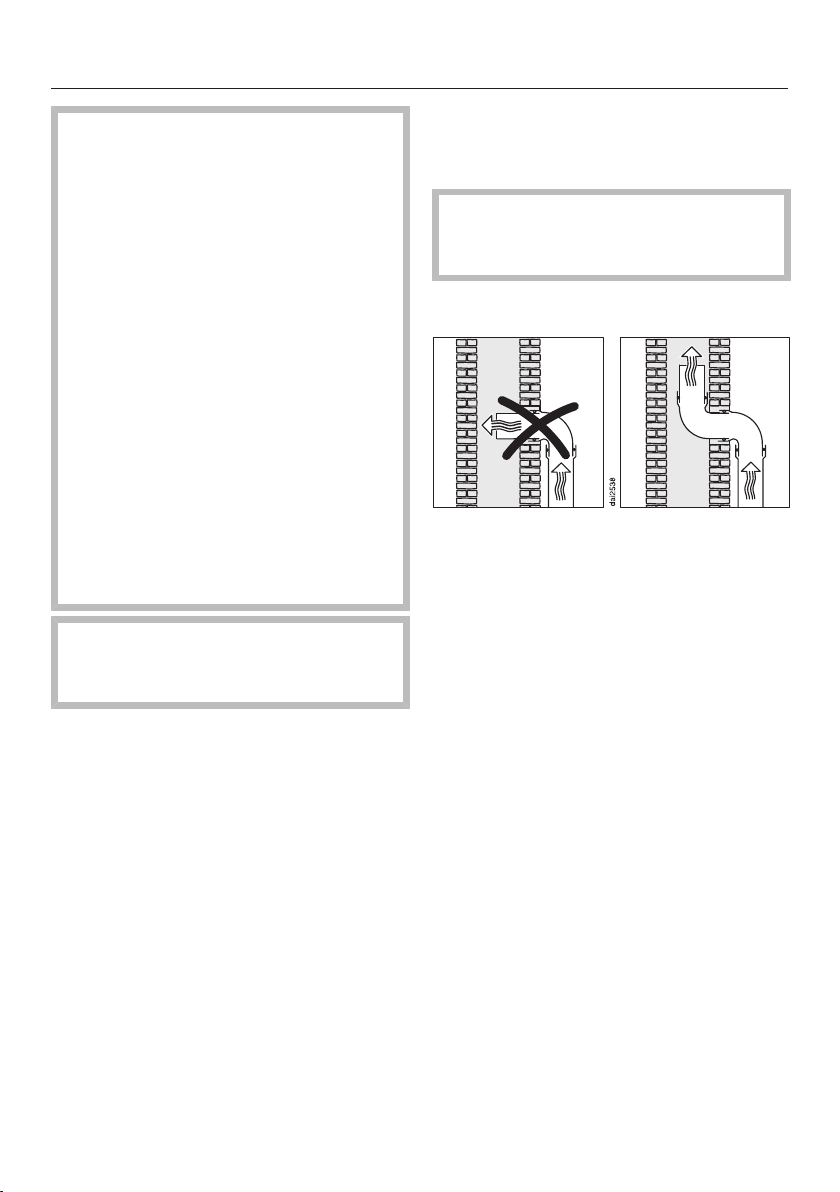

Non-return flap .................................................................................................... 38

Condensate ......................................................................................................... 39

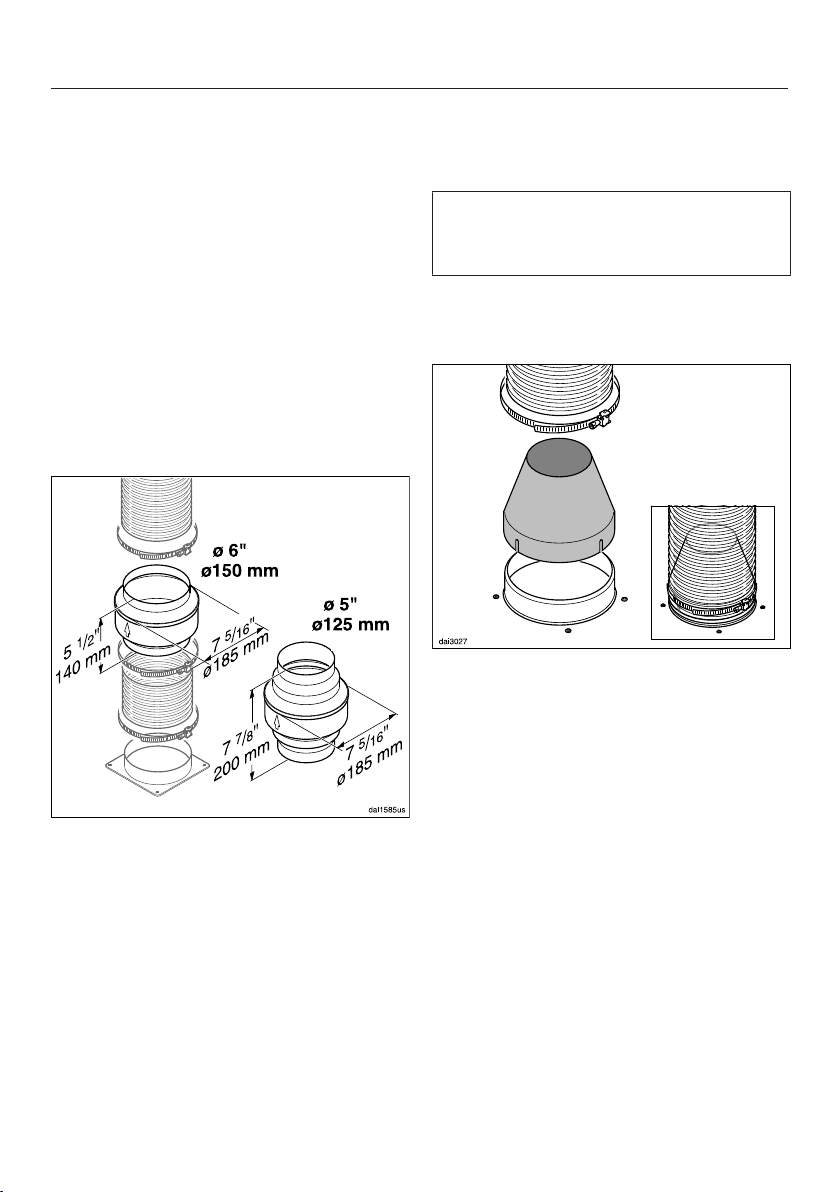

Reducing Collar .................................................................................................. 39

Electrical connection ........................................................................................ 40

Activating Con@ctivity 2.0 ................................................................................ 41

Installation of the Con@ctivity 2.0 stick............................................................... 41

Activating the Con@ctivity 2.0 function............................................................... 41

Activating the ventilation hood....................................................................... 41

Activating the cooktop ................................................................................... 42

Activation failed.............................................................................................. 42

Deactivating Con@ctivity 2.0............................................................................... 42

Customer Service.............................................................................................. 43

Contact in the event of a fault ............................................................................. 43

Location of the data plate ................................................................................... 43

MieleCare ............................................................................................................ 43

Technical data................................................................................................... 44

Optional accessories for recirculation mode....................................................... 44

3

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.

Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.

Keep these operating instructions in a safe place and pass them
on to any future user.

Appropriate use

 CAUTION: For General Ventilating Use Only. Do Not Use To

Exhaust Hazardous Or Explosive Materials And Vapors.

 This appliance is intended for residential use only. Use only as

described in these operating instructions.

 This ventilation hood is not intended for outdoor use.
 It must only be used to extract and clean vapors produced during

cooking. Any other use occurs at the owner's own risk.

 This appliance is suitable for installation above gas or electric

cooking surfaces.

 Persons who lack physical, sensory or mental abilities, or

experience with the appliance should not use it without supervision
or instruction by a responsible person.

4

IMPORTANT SAFETY INSTRUCTIONS

Safety with children

 Children must be kept away from the ventilation hood unless they

are constantly supervised.

 Please supervise children in the vicinity of the hood and do not let

them play with it.

 Danger of suffocation. While playing, children may become

entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.

Technical safety

 WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.

- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.

 Unauthorized installation, maintenance, and repairs can cause

considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.

 A damaged ventilation hood can be dangerous. Always check for

visible signs of damage. Never use a damaged ventilation hood.

 Be certain your appliance is properly installed and grounded by a

qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.

5

IMPORTANT SAFETY INSTRUCTIONS

 Reliable and safe operation of this hood can only be guaranteed if

it has been connected to the electrical supply.

 To avoid damaging the ventilation hood, make sure that the

connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.

 Do not use a power bar or extension cord to connect the

ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.

 To ensure safe operation, only use the ventilation hood after it has

been properly installed.

 This ventilation hood may not be used in non-stationary locations

(e.g. on a ship).

 Adequate ventilation must be provided when the hood is operated

simultaneously with devices that burn gas or other fuels.

 Only open the housing as described in the enclosed “Installation

diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.

 Defective components should be replaced by Miele original parts

only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.

 If the power cord is damaged, it must only be replaced by a

qualified service technician.

6

IMPORTANT SAFETY INSTRUCTIONS

 During installation, maintenance, and repair work, the ventilation

hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:

- The circuit breakers on the electrical service panel are tripped.

- The screw-type fuses on the electrical service panel have been
removed.

- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).

Correct use

 WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE

FIRE:

- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.

- b) Always turn the hood on when cooking at a high heat.

- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.

- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.

 Open flames are a fire hazard.

The use of an open flame under the ventilation hood is not
permitted. To avoid the danger of fire, do not flambé or grill over an
open flame. When switched on, the ventilation hood could draw
flames into the filter. Fat deposits could ignite, presenting a fire
hazard.

7

IMPORTANT SAFETY INSTRUCTIONS

 WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN

THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:

- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.

- b) NEVER PICK UP A FLAMING PAN - You may be burned.

- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.

- d) Use a fire extinguisher ONLY if:

– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.

*Based on “Kitchen Fire Safety Tips” published by NFPA.

 The ventilation hood may become damaged if exposed to

excessive heat from a gas cooktop.

- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.

- Select cookware that is suitable for the size of the burner.

- Adjust the flame so that it never extends up the sides of the
cookware.

- Avoid overheating the cookware (e.g., when cooking with a wok).

 Always turn the ventilation hood on whenever a burner is in use to

prevent damage from condensation.

8

IMPORTANT SAFETY INSTRUCTIONS

 Overheated oil and fat can ignite, causing fire damage to the

ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.

 Fat and debris deposits impair the proper functioning of the

ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.

 There is a risk of fire if cleaning is not completed according to the

instructions in this manual.

 Please note that the heat rising from the stovetop during cooking

can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.

9

IMPORTANT SAFETY INSTRUCTIONS

Proper installation

 WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.

- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.

- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.

- d) Ducted hoods must always be vented to the outdoors.

- e) Do not use this hood with any solid-state speed control device.

 To determine whether a ventilation hood may be operated above

your cooking appliance, please refer to the information provided by
the appliance's manufacturer.

 Safety regulations prohibit the installation of a ventilation hood

over solid fuel stoves.

 An insufficient safety distance between the cooktop and the

ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this booklet must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.

10

IMPORTANT SAFETY INSTRUCTIONS

 Be sure to observe the information contained in the “Installation”

section when mounting the ventilation hood.

 Components can have sharp edges which may cause injury.

Wear gloves to protect your hands.

 When installing the exhaust duct, only use pipes or tubes made of

non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.

 Exhaust air should not be vented into a chimney or vent flue which

is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.

 If exhaust air is to be extracted into a chimney or ventilation duct

no longer used for other purposes, seek professional advice.

 WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL

DUCTWORK.

Cleaning and maintenance

 Never use a steam cleaner to clean the ventilation hood.

The steam can reach the electrical components and cause a short
circuit.

Accessories

 Use only genuine original Miele parts. If parts or accessories from

other manufacturers are used, the warranty will become void.

11

IMPORTANT SAFETY INSTRUCTIONS

FCC Declaration of Conformity

 These devices comply with FCC Rules Part 15. This equipment

has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.

FCC Radiation Exposure Statement

 This equipment complies with FCC radiation exposure limits set

forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20cm) between
the radiator and your body.

Industry Canada Statement

 This digital apparatus does not exceed the Class B limits for

Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.

Complies with Canadian ICES-003 Class B specifications.

12

Caring for the environment

Disposal of the packing material

The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.

Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!

Disposal of your old appliance

Do not dispose of this appliance with
your household waste.

Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.

Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.

13

Description of functions

The following functions are available on
your ventilation hood, depending on the
model:

Extraction mode

The air is drawn into the ventilation
hood. It is then cleaned by the edge
extraction panels and the grease filters
and directed outside.

Recirculation mode

(Only DA 6596W requires a
Recirculation kit and OdorFree Charcoal
Filter (available as optional
accessories); see “Technical data” for
more information.)

The air is drawn in and cleaned first by
the edge extraction panels and the
grease filters, and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen.

14

Description of functions

Con@ctivity 2.0 function

Automatic control

This hood features a communication
function which enables the automatic
control of the hood based on the
operational status of a Miele induction
cooktop.

To enable the communication function,
the cooktop must be equipped with the
corresponding Con@ctivity 2.0 stick .

The cooktop transmits information
about its operational status to the hood
using a radio signal.

- When a burner is turned on, the
cooktop lighting on the hood turns on
automatically. After a brief delay, the
ventilation hood fan also comes on.

- During cooking, the hood
automatically selects the fan level
based on the number of burners in
operation and their power levels.

- Once you have turned off the
cooktop, the fan and the lighting will
turn off automatically after a
predetermined delay.

Detailed information about this function
can be found under “Operation.”

Please refer to the installation
instructions for the Con@ctivity 2.0
stick to determine whether connection
to your cooktop is possible.

There must be radio contact between
the cooktop and the hood for you to be
able to use the Con@ctivity 2.0 function
(see “Activating Con@ctivity 2.0”).

15

Guide to the appliance

16

a

Telescopic chimney

b

Chimney

c

Canopy

d

Control panel

e

Grease filter

f

Edge extraction panels
Optional accessories
DRP 6590W glass (3 elements)
DRP 6590W stainless steel (3 elements)
DRP 6520W glass (4 elements)
DRP 6520W stainless steel (4 elements)

g

Recirculation vent
(only for recirculation mode)

h

Cooktop lighting

i

OdorFree Charcoal Filter
Optional accessory for recirculation mode

j

Button for cooktop lighting

k

On/Off button for fan

l

Buttons for setting the fan power

m

Button for delayed shut-down function

n

Filter saturation indicator

Guide to the appliance

17

Operation (Automatic mode)

When Con@ctivity 2.0 is active, the
hood always operates in Automatic
mode (see “Activating Con@ctivity 2.0”).

See “Cooking without Con@ctivity 2.0”
for information on manually operating
the hood.

Cooking with Con@ctivity 2.0 (Automatic mode)

 Turn on a burner to the desired power

setting.

Overhead cooktop lighting.

After a few seconds, the fan will come
on, briefly operating at power level 2
before immediately switching to level 1.

The hood selects the fan level
automatically during cooking.

This level is determined by the total
output of the cooktop, i.e. the number
of burners in operation and the power
settings selected.

 If you select a higher power setting

on the cooktop or switch on multiple
burners, the hood will switch to a
higher fan level.

Reaction time

Changing the power setting on the
cooktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.

Delays can also result from the fact that
the cooktop transmits the information to
the hood in intervals.

The reaction time can vary from a few
seconds to a couple of minutes.

 If you select a lower power setting on

the cooktop or turn off a burner, the
hood will accordingly switch to a
lower fan level.

Examples for fan levels 1 to 4

18

Operation (Automatic mode)

Cooking process

 If, for example, you switch on a

burner at the highest power setting to
heat cookware in preparation for
searing and then reduce the power
level after approx. 60 to 90 seconds,
a cooking process is recognized.

The hood turns on automatically and,
after the cooktop power level has been
reduced, switches back to fan level 3,
where it remains for approx. 5minutes.

After this, the fan level is once again
determined by the Con@ctivity function.

 You can also manually select a

different fan level before then.

Switching off

 Turn off all burners.

Over the next few minutes, the
ventilation hood blower setting will
decrease one level at a time until the
hood eventually turns off.

This helps to neutralize any lingering
vapors and odors in the air.

- From the Booster setting, the blower
switches immediately to level3.

- From level 3, it will switch to level 2
after approx. 1minute.

- From level 2, it will switch to level 1
after 2minutes.

- After 2minutes at level 1, the blower
automatically turns off.

- After another 30seconds, the
overhead lighting turns off.

The cooking process is then finished.

19

Operation (Automatic mode)

Temporarily exiting Automatic mode

To temporarily exit the Automatic mode
when cooking:

 Manually select a different fan level,

or

 Manually turn the hood off, or
 Activate the Delayed shut down

function  on the ventilation hood.
The fan turns off after the delay time
selected, and the lighting will remain
on.

The ventilation hood functions can now
be operated manually (see “Cooking
without Con@ctivity 2.0”).

Resuming Automatic mode

The ventilation hood resumes
Automatic mode:

 If the ventilation hood has not been

used for a period of approx.
5minutes after the manual selection
of a fan level, or

 If the manually selected fan level

once again matches the automatic
setting, or

 If the ventilation hood fan and the

cooktop have been turned off for at
least 30 seconds.
Automatic mode will resume the next
time the cooktop is turned on.

 If you wish to manually operate the

ventilation hood for a complete
cooking process, turn on the
ventilation hood fan before turning
on the cooktop.
If the ventilation hood and the
cooktop have been turned off for at
least 30 seconds after you have
finished cooking, Automatic mode
will resume the next time the cooktop
is turned on.

20

Operation (Manual mode)

Cooking without Con@ctivity

2.0 (Manual mode)

The hood can be operated manually if:

- The Con@ctivity 2.0 function is not
activated.

- You have temporarily deactivated the
Con@ctivity 2.0 function (see
“Temporarily exiting Automatic
mode”).

Turning on the blower

Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.

 Press the On/Off control.
The blower turns on at level 2. The 

symbol and 2 will light up in the blower
level display.

Selecting the power level

Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.

For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.

 Select the power level you want by

pressing the  or  control.

Selecting the delayed shutdown time

It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.

It also reduces the risk of odors and
residues accumulating in the ventilation
hood.

The delayed shutdown function enables
the blower to continue running for a
pre-determined time before switching
itself off automatically.

 After you have finished cooking, press

the delayed shutdown control
while the blower is still running.

- Once: blower turns off after
5minutes (5 lights up).

- Twice: blower turns off after
15minutes (15 lights up).

- If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).

Turning off the blower

 Press the On/Off control to turn

the blower off.

The  symbol will go out.

Reducing power down from the Booster setting

If power management is activated
(default setting), the blower
automatically switches back to level 3
after 5minutes.

Turning the overhead lighting on/off

The overhead lighting can be turned on
and off separately from the blower.

 To do this, press the lighting

control.

The symbol will light up when the
overhead lighting is turned on.

21

Operation (Manual mode)

Power management

The ventilation hood is equipped with a
power management system. Power
management helps to save energy. It
ensures that the blower power level is
reduced automatically and that the
lighting is switched off.

- If the booster level is selected, the
blower automatically switches to
level 3 after 5 minutes.

- If the blower is set to level 3, 2, or 1,
it switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.

- The overhead lighting will switch off
automatically after 12hours.

You can deactivate power
management.
Keep in mind that this may increase
energy consumption.

Activating/deactivating power management

 Switch off the blower and the lighting.
 Press the delayed shutdown

control for approx. 10seconds
until the 1 indicator appears in the
blower level display.

 Then press, in turn:

- the lighting control,

- the  control, and then

- the lighting control.

When power management is turned on,
the 1 and B indicators will be
continuously lit.
When it is turned off, the 1 and B
indicators will flash.

 Press the control to deactivate

power management.

The 1 and B indicators will flash.
 Press the control to activate power

management.

22

The 1 and B indicators will be
continuously lit.

 Confirm the setting by pressing the

delayed shutdown control.

All the indicator lights will go out.

If you do not confirm the new setting
within 4minutes, the ventilation hood
will revert to the previous setting.

Safety shut-off

If power management has been
deactivated, the ventilation hood will
switch itself off automatically after
12hours if it has been left on (blower
and overhead lighting).

 To switch it back on, press the On/

Off control or the lighting
control.

Operation (Manual mode)

23

Operation (Automatic and Manual modes)

Filter saturation indicator

The ventilation hood registers the length
of time it has been operated.

The filter saturation indicators show
when the filters need to be cleaned or
changed by lighting up the grease filter
symbol  or charcoal filter symbol .
Additional information on cleaning and
changing the filters and resetting the
filter saturation indicators can be found
under “Cleaning and care”.

Adjusting the grease filter filter saturation indicator

The filter saturation indicator can be set
to suit the customer’s cooking habits.

The factory default setting is a cleaning
interval of 30hours.

- Select a shorter interval of 20hours if
food is fried regularly.

- A shorter cleaning interval is also
recommended if the customer only
cooks occasionally. This will prevent
grease buildup from hardening and
making cleaning more difficult.

 Switch off the blower and the lighting.
 Press the delayed shutdown

control and the filter saturation
control at the same time.

The grease filter symbol and one of
the blower power level indicators will
flash.

The indicators 1 to B show the current
time setting:

1............................................... 20hours

2............................................... 30hours

3............................................... 40hours

B .............................................. 50hours

 Press the  control for a shorter

duration, or  for a longer duration.

 Confirm the selection by pressing the

filter saturation indicator.

All the indicator lights will go out.

If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.

- Select a longer cleaning interval of 40
or 50hours if the customer uses very
little fat when cooking.

24

Operation (Automatic and Manual modes)

Activating/changing the charcoal filter saturation indicator

The charcoal filter is required for the
recirculation mode.

The filter saturation indicator for the
charcoal filter must be activated once
and should be set to match your
cooking habits.

 Press the On/Off button  to turn the

blower off.

 Press the “” symbol and the filter

saturation indicator  at the same
time.

The charcoal filter symbol  and one of
the blower power level indicators will
flash.

The indicators 1 to B show the current
time setting:

Indicator 1 ............................ 120 hours

Indicator 2 ............................ 180 hours

Indicator 3 ............................ 240 hours

Indicator B.......................... deactivated

 Press the “” symbol for a shorter

operating time, or the “” symbol to
select a longer operating time.

 Confirm the selection by pressing the

filter saturation indicator .

All the indicator lights go out.

Checking the filter saturation indicator

Before the set operating time has run
out, you can check what percentage of
the time has elapsed.

 Press the On/Off control to turn the

blower on.

 Press and hold the filter saturation

indicator.

- Once, to check the grease filter
operating time. The grease filter
symbol lights up.

- Twice, to check the charcoal filter
operating time. The charcoal filter
symbol lights up.

One or more of the blower power level
indicators will flash simultaneously.

The number of flashing indicators
shows the elapsed operating time as a
percentage.

Indicator 1 .................................... 25%

Indicators 1 and 2 ......................... 50%

Indicators 1 to 3 ........................... 75%

Indicators 1 toB ......................... 100%

The number of elapsed operating
hours remains stored in memory when
the ventilation hood is turned off or if
there is a power outage.

If the new setting is not confirmed
within 4minutes, the hood reverts to
the previous setting.

25

Cleaning and care

 WARNING: TO REDUCE THE

RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:

 Before cleaning or servicing the

hood, disconnect it from the power
supply, see “IMPORTANT SAFETY
INSTRUCTIONS”.

Stainless steel housing

General information

Unsuitable cleaning agents can
damage the surfaces and control
elements.

Do not use any cleaning agents
containing soda, acid, chloride, or
solvent.

Do not use any abrasive cleaning
agents, e.g., powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents

Important information for appliances with stainless steel surfaces

This information does not apply to the
control buttons.

Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.

To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).

Important information for appliances with lacquered casing

(Customization on request)

Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.

 Moisture in the ventilation hood

can cause damage.
Make sure that water does not get

into the ventilation hood.

 Clean all surfaces and control buttons

using a small amount of warm water
and liquid dish soap. Apply with a
sponge cloth.

 After cleaning, wipe the surfaces dry

using a soft cloth.

26

Cleaning and care

Important information for the controls

If soiling is not removed promptly, it
could cause the control elements to
alter or discolor.

Remove soiling immediately.

The surface of the control elements
can become damaged if they are
cleaned using stainless steel
cleaning agents.

Do not use stainless steel cleaning
agents on the control elements.

Panels and grease filters for edge extraction

The edge extraction panels and the
reusable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the hood.

 Risk of fire

Oversaturated grease filters are a fire
hazard.

Clean the grease filters at regular
intervals.

Cleaning intervals

The grease filters and panels should be
cleaned regularly (at least every 3-4
weeks) to avoid a buildup of grease.

Clean the edge extraction panels and
grease filter immediately if the grease
filter symbol  on the filter saturation
indicator lights up.

 You can adjust the interval of the filter

saturation indicator to match your
cooking habits (see “Operation”).

27

Cleaning and care

Removing the panels and grease filters

 The grease filters and panels can

fall out when you are handling them.
This can result in damage.
Make sure you hold the filters and

panels securely at all times when
handling them.

 Pull the front edge of the panels

down out of the lock, lower them
slightly, unhook them at the back,
and take them out.

Cleaning the panels by hand

 Follow the instructions under

“Housing.”

Cleaning the grease filters by hand

 Clean the filters with a soft nylon

brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.

Unsuitable cleaning agents

Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:

- Lime removers

- Abrasive powders or abrasive liquids

- Aggressive all-purpose cleaners and
degreaser sprays

- Oven sprays

Cleaning the panels and grease filters in the dishwasher

 Place the panels and filters as upright

or inclined as possible in the lower
basket. Ensure that the spray arm is
not obstructed.

 To remove a grease filter, release the

locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.

28

 Use a household dishwasher

detergent.

 Select a program with a wash

temperature between 122°F (50°C)
and 149°F (65°C).

Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the filters
in any way.

Cleaning and care

After cleaning

 After cleaning, leave the filters on an

absorbent surface to dry.

 When removing the panels and

grease filters for cleaning, also clean
off any accessible oil or grease
buildup from the housing. Doing so
will prevent a fire hazard.

 Reinstall the grease filters. When

inserting the filters, make sure that
the locking clip is facing down.

 If the filters have been installed

incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.

Resetting the filter saturation indicator for the grease filters

Once cleaning is complete, the filter
saturation indicator must be reset.

 While the blower is turned on, press

the filter saturation indicator for
approx. 3seconds until 1 is the only
indicator flashing.

The grease filter symbol goes out.

When cleaning the grease filters before
the full operating time has elapsed:

 Press the filter saturation

indicator for approx. 6seconds
until 1 is the only indicator flashing.

 Hook the panels onto the support

rod.

 Lift up the front of the panels and

push them into the lock until they
engage.

29

Cleaning and care

OdorFree Charcoal Filter

With recirculation mode, a charcoal
filter must be installed in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odors.

The charcoal filter is installed in the
canopy above the grease filters.

Charcoal filters are available to order via
the Miele Web Store, Miele Technical
Service (see end of this manual for
contact details), or from your Miele
dealer. The model designations are
listed in the “Technical data” chapter.

Installing/replacing the OdorFree Charcoal Filter

 To install or replace the OdorFree

Charcoal Filter, the grease filters must
first be removed as described above.

 Remove the OdorFree Charcoal Filter

from its packaging.

 Slide the filter into the back of the

intake frame, then push the front of
the filter up into the frame.

 Reinsert the grease filters and the

panels.

30

 When installing the filter for the first

time, activate the filter saturation
counter (see “Operation”).

When to change the OdorFree Charcoal Filter

 Replace the charcoal filter when it no

longer absorbs kitchen odors
effectively.
It should be replaced at least every 6
months.

The OdorFree Charcoal Filter saturation
counter  will light up to remind you to
change the charcoal filter regularly.

 The OdorFree Charcoal Filter

saturation counter requires one-time
activation before use (see the
“Operation” chapter).

Resetting the filter saturation counter for the filter

If the filter saturation counter is
activated, it must be reset each time the
filter is changed.

 To do this, press the filter saturation

indicator  twice with the fan
turned on and hold it for approx. 3
seconds until 1 is the only indicator
flashing. The OdorFree Charcoal Filter
symbol  will go out.

If you replace the OdorFree Charcoal
Filter before the full operating time
elapses:

 Press the filter saturation indicator

 twice and hold it for approx. 6
seconds until 1 is the only indicator
flashing.

Cleaning and care

Disposing of charcoal filters

 Used charcoal filters can be disposed

of with normal household waste.

31

*INSTALLATION*

Montage

Installation

Montaje

Montaggio

Montering

Montagem

Asennus

Installation

Before installation

 Before installing the appliance,

read all of the information contained
in this chapter and also in the
“IMPORTANT SAFETY
INSTRUCTIONS” section.

6 screws 5x60mm and
6 plugs 8x50mm

for securing the ventilation hood on the
wall.

Removing the protective film

The housing components are covered
by a protective film to prevent them
from damage during transport.

 Please remove this film before

installing the housing components. It
can be peeled off easily without any
additional tools.

Installation materials

 The screws and plugs are

designed for use in solid walls only.
Use different fasteners for other wall

construction types.
Make sure that the wall can support

the load.

2M6locknuts

for mounting the appliance unit

2 screws 3.9x7.5mm

for securing the duct cover

Installation plan

See the installation plan for details of
the individual steps involved in the
installation of this appliance.

Telescopic wall bracket

for securing the ventilation system on
the wall.

32

*INSTALLATION*

DUW20

Conversion kit for recirculation
mode

The conversion kit contains an exhaust
grille, hose, and hose clips (not
supplied, but available as an optional
accessory. See “Technical data”).

Installation

33

*INSTALLATION*

Installation

Appliance dimensions

The drawing is not to scale.

a

Extraction

b

Recirculation (only DA 6596W)

c

Air vent positioned at the top for recirculation

34

*INSTALLATION*

de

Installation area (only d is required for recirculation ventilation hoods). Wall
and ceiling area for exhaust duct opening and for wall socket installation.
Only the wall socket installation is required for recirculation hoods.

Vent collar  6“ (150mm)

Distance between cooktop and ventilation hood (S)

Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.

Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.

Installation

Minimum distance S

Cooking appliance Miele

appliance

Non-Miele

appliance

Electric Cooktops 24" (610mm)

Electric Barbeques and Fryers 26" (660mm)

Multiburner Gas Cooktops

26" (660mm) 30" (760mm)

≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).

Multiburner Gas Cooktops

30" (760mm)

≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)

Multiburner Gas Cooktops

Not possible

> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)

Single Burner Gas Cooktops

26" (660mm) 30" (760mm)

≤ 20,500 BTU/hr (6 kW)

Single Burner Gas Cooktops

30" (760mm)

> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)

Single Burner Gas Cooktops

Not possible

> 27,600 BTU/hr (8.1 kW)

35

*INSTALLATION*

Installation

Installation recommendations

- A distance of at least 26" (660mm) is
recommended above electric
cooktops to provide more workspace
and easier cooking under the hood.

- When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.

- Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.

- To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.

- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.

- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.

Drilling diagram for wall mounting

 Please follow the directions given in

the installation instructions supplied
for drilling.

 When installing a custom back wall

with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws  ³/₁₆" (5mm)).

36

*INSTALLATION*

Installation

Plywood backing

The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13mm) thick)
spanning at least two studs must be
installed.

Failure to adequately support the
weight as stated may result in the
ventilation system falling off the wall,
causing personal injury and property
damage.

If plywood backing is not needed,
proceed to the included “Installation
diagram”.

To install a plywood backing

 Make a cutting line 3“ (76mm) above

and 3” (76mm) below the outline of
the retaining plate.

 Find the studs  to the left and right

of the mounting location by tapping
the wall or using a stud finder.

 Mark a vertical cutting line along the

center of each stud.

CAUTION: When cutting or drilling
into the wall or ceiling, do not
damage electrical wiring and other
hidden utilities.

 Remove the drywall between the

cutting lines and replace it with
plywood  of a matching thickness
(min. ½" (13mm) thick). Tape the
joints and refinish the wall.

 Proceed to the enclosed “Installation

diagram” to complete the installation.

 Determine and mark the location of

the retaining plate  for the canopy
as outlined on the “Installation
diagram”.

37

Air venting

WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.

To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.

Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.

To reduce the risk of fire, only use
metal ductwork.

Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.

Only use smooth pipes or flexible
ducting made from approved non­flammable materials for ducting.

To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:

- The diameter of the vent ducting
must not be smaller than the cross­section of the vent collar (see
“Appliance dimensions”). This applies
in particular when using flat ducting.

- The ducting should be as short and
straight as possible.

- Only use wide radius bends.

- The ducting must not be kinked or
compressed.

- All connections must be strong and
airtight.

38

- If the ducting has flaps, these must
be opened whenever the ventilation
hood is switched on.

Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.

Ventilation stack

If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.

If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.

Non-return flap

 Use a non-return flap in the vent

system.

A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.

If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.

If the on-site vent system does not have
a non-return flap, you can purchase one
as an optional accessory.

Air venting

Condensate

If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.

If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per meter.
This is to ensure that condensate
cannot drain back into the ventilation
hood.

In addition to insulating the ducting, it is
advisable to also install a condensate
trap for collecting and evaporating any
potential condensate.

Condensate traps for 5" (125mm) or
6" (150mm) diameter ducting are
available as optional accessories.

ventilation hood above the exhaust
vent. The arrow on the casing indicates
the direction of airflow.

Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.

Reducing Collar

(optional accessory)

If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.

 Push the Reducing Collar on the

exhaust port of the blower.

 Push the exhaust hose over it.
 Secure both with a hose clamp.

When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the

39

*INSTALLATION*

Electrical connection

WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:

All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.

Ensure that power to the appliance is
OFF while installation or repair work
is performed.

Verify that the voltage, load and
circuit rating information found on
the data plate (see "Technical
Service"), match the household
electrical supply before installing the
hood.

Use only with ventilation hood cord­connection kits that have been
investigated and found acceptable
for use with this model hood.

If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.

Grounding Instructions

WARNING - Improper grounding can
result in a risk of electric shock.

This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.

If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.

Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.

 The plug must be plugged into an

outlet that is properly installed and
grounded.

WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding­type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.

WARNING: THIS APPLIANCE MUST
BE GROUNDED

40

Activating Con@ctivity 2.0

Installation of the Con@ctivity

2.0 stick

In order for you to be able to use the
Con@ctivity 2.0 function, the cooktop
must be equipped with a Con@ctivity

2.0 stick.
 See the relevant installation

instructions of the Con@ctivity 2.0
stick.

Activating the Con@ctivity 2.0 function

To use the Con@ctivity 2.0 function, the
radio link between the cooktop and the
ventilation hood must be activated.

Both appliances must be installed and
operational.

Wireless connection must be activated
on the ventilation hood and the cooktop
at the same time. Activation on the
ventilation hood is described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.

Activating the ventilation hood

 The cooktop and ventilation hood

must be turned off.

 Press and hold the delayed shutdown

button 515 for approx. 10 seconds
until the 1 indicator appears in the fan
level display.

 Then, press the following buttons in

order:

- The  button

- Followed by the  button

- And then the lighting button .

The hood is in log on / log off mode.

If the wireless connection is activated, 2
and 3 will light up at the same time.
If there is no wireless connection, 2 and
3 will flash constantly (Con@ctivity 2.0
is already activated or a remote control
is logged on).

 To activate Con@ctivity 2.0, press the

“” button.

The search for a wireless connection
will start.

 As this is happening, activate the

cooktop.

41

Activating Con@ctivity 2.0

Activating the cooktop

 While the ventilation hood is

searching for a wireless connection,
start activation on the cooktop.
More information can be found in the
operating instructions for the
cooktop.

 When the cooktop registers that

connection has been established,
confirm activation on the ventilation
hood with the delayed shut-down
button 515. All indicators will go
out.

 Confirm activation on the cooktop.

The Con@ctivity 2.0 function is now
ready for use.

If you do not confirm within 4minutes,
activation will be canceled.

You only need to carry out the
activation procedure once. If the
appliances are disconnected from the
electricity supply, for example during a
loss of power, they will still remain
activated.

Activation failed

If a wireless connection cannot be
established despite activation of the
Con@ctivity function on the ventilation
hood and cooktop, the function must
first be deactivated and then
reactivated on both appliances.

Deactivating Con@ctivity 2.0

 Deactivation on the ventilation hood

is carried out in the same way as
activation, by selecting  instead of
.

 To deactivate the burner, please refer

to the corresponding operating
instructions.

Please keep in mind that disabling the
connection will also disable any
remote control function being used.
The remote control must then be
reactivated.

42

Customer Service

Contact in the event of a fault

In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.

You can book a Miele Service Call
online at www.miele.com/service.

Contact information for Miele
Customer Service can be found at the
end of this document.

Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.

Location of the data plate

The data plate is visible once you have
removed the grease filters.

MieleCare

This service is available in USA only.

MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.

Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.

To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com

43

Technical data

Fan motor 350W

Cooktop lighting 3 x 3W

Total connected load 359W

Voltage, Frequency 120V AC, 60Hz

Fuse rating 15A

Power cord length 2.5 ft (0.75m)

Weight

DA 6596W 55lbs (25kg)

DA 6526W 61.6lbs (28kg)

Optional accessories for recirculation mode

DUW20 conversion kit and DKF12-900 charcoal filter

Contains
FCC ID: 2ACUWEI8800
IC: 5669C-EI8800

This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.

44

9 Independence Way
Princeton, NJ 08540

U.S.A.

Miele, Inc.

National Headquarters

Please have the model and serial number
of your appliance available when
contacting Customer Service.

Canada

Importer
Miele Limited

Headquarters and Miele Centre

Customer Service & Support

Phone: 888-99-MIELE(64353)
[e-mail]
www.mieleusa.com

161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca

Customer Care Centre

Phone:

[e-mail]

800-565-6435
905-532-2272

International Headquarters

Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany

DA 6596 W, DA 6526 W

M.-Nr. 11 743 460 / 00en-US
