36” Pure Wall
Ventilation Hood
DA 6498 W
Specification Sheets TRS 03162018
8mieleusa.com
Page 2
36” Pure Wall Ventilation Hood

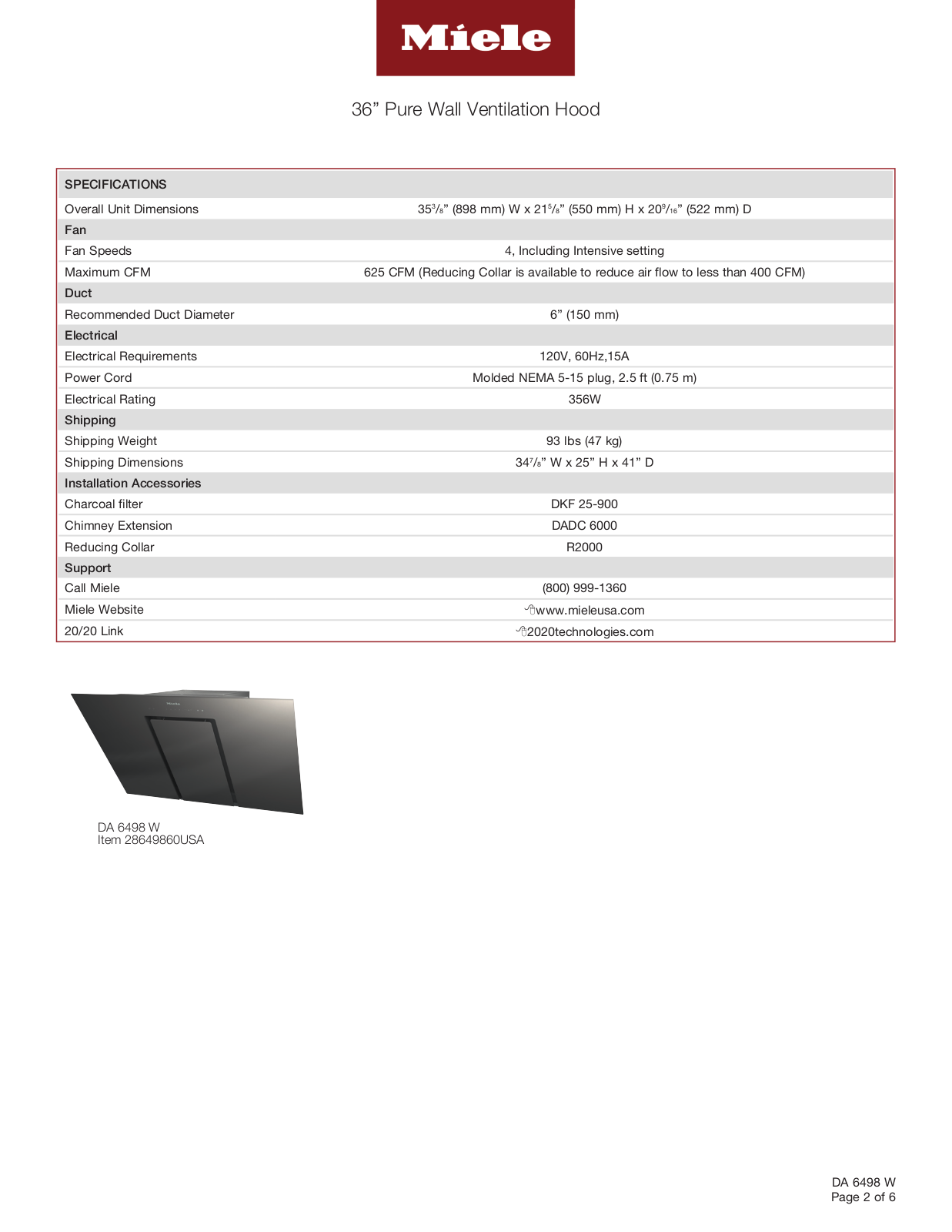

SPECIFICATIONS
Overall Unit Dimensions 353/8” (898 mm) W x 215/8” (550 mm) H x 209/16” (522 mm) D
Fan
Fan Speeds 4, Including Intensive setting
Maximum CFM 625 CFM (Reducing Collar is available to reduce air flow to less than 400 CFM)
Duct
Recommended Duct Diameter 6” (150 mm)
Electrical
Electrical Requirements 120V, 60Hz,15A
Power Cord Molded NEMA 5-15 plug, 2.5 ft (0.75 m)
Electrical Rating 356W
Shipping
Shipping Weight 93 lbs (47 kg)
Shipping Dimensions 347/8” W x 25” H x 41” D
Installation Accessories
Charcoal filter DKF 25-900
Chimney Extension DADC 6000
Reducing Collar R2000
Support
Call Miele (800) 999-1360
Miele Website
20/20 Link
8www.mieleusa.com
82020technologies.com
DA 6498 W
Item 28649860USA
DA 6498 W
Page 2 of 6
Page 3

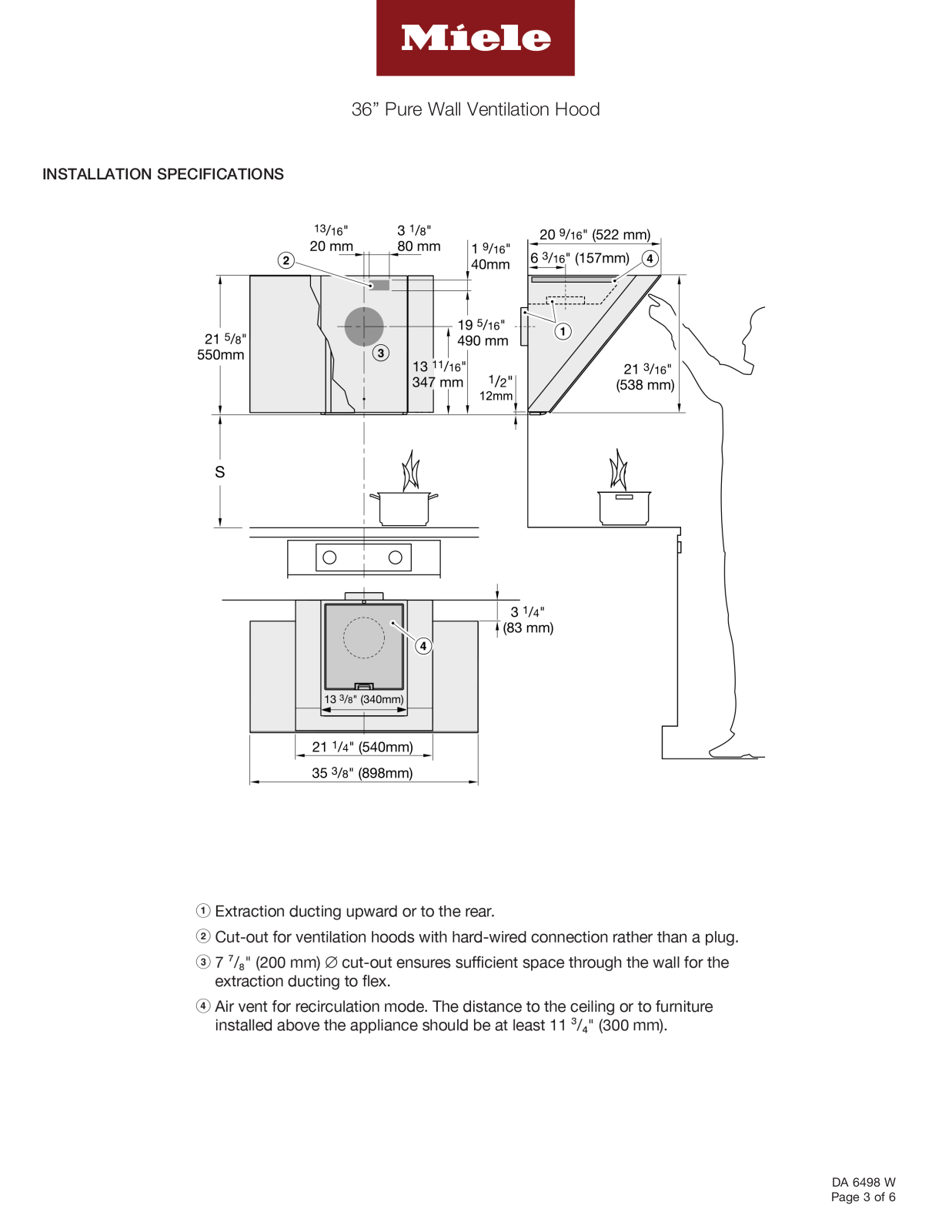

INSTALLATION SPECIFICATIONS
36” Pure Wall Ventilation Hood
DA 6498 W
Page 3 of 6
Page 4
INSTALLATION SPECIFICATIONS

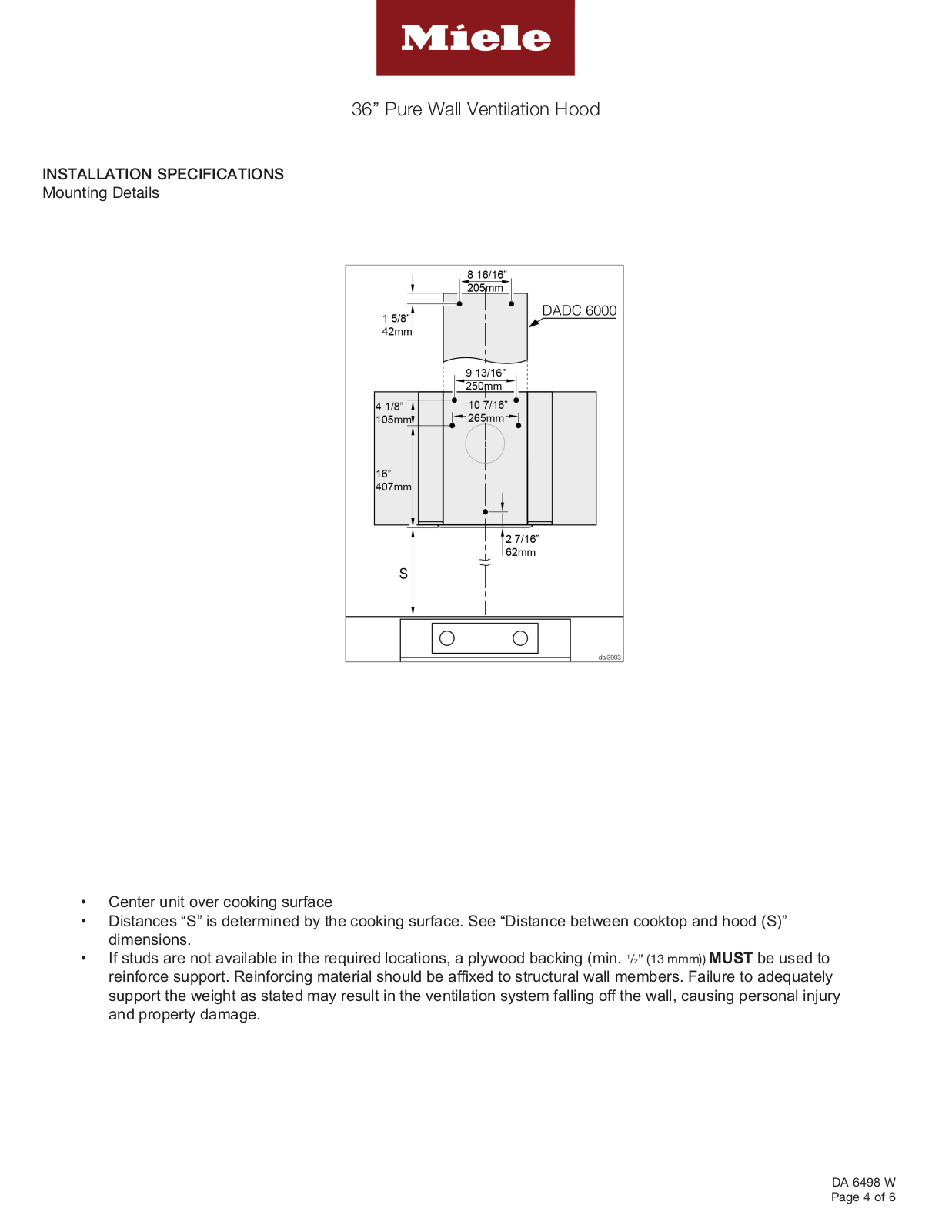

Mounting Details
36” Pure Wall Ventilation Hood
• Center unit over cooking surface
• Distances “S” is determined by the cooking surface. See “Distance between cooktop and hood (S)”
dimensions.
• If studs are not available in the required locations, a plywood backing (min.
1
/2” (13 mmm)) MUST be used to
reinforce support. Reinforcing material should be axed to structural wall members. Failure to adequately
support the weight as stated may result in the ventilation system falling o the wall, causing personal injury
and property damage.
DA 6498 W
Page 4 of 6
Page 5
INSTALLATION SPECIFICATIONS

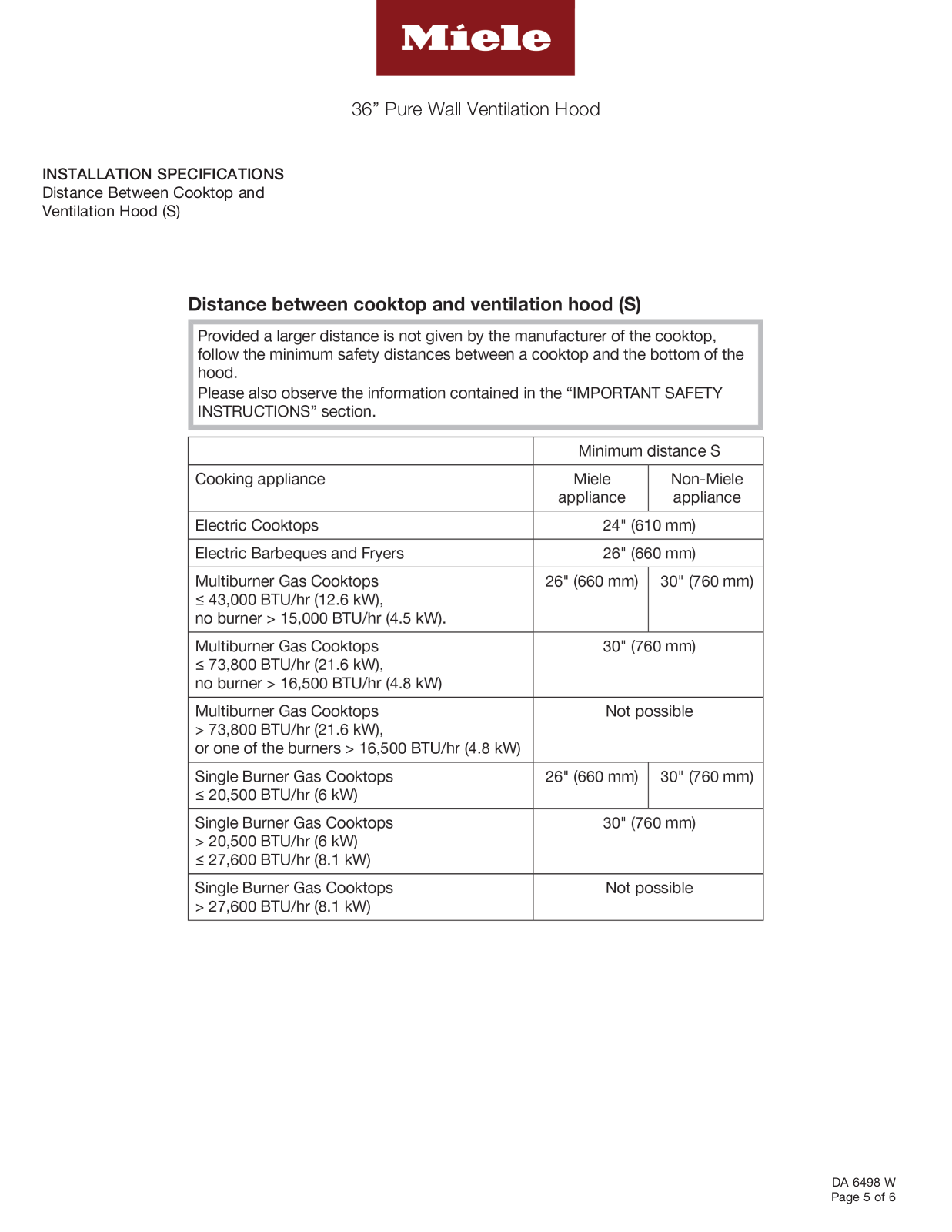

Distance Between Cooktop and
Ventilation Hood (S)
36” Pure Wall Ventilation Hood
DA 6498 W
Page 5 of 6
Page 6
INSTALLATION SPECIFICATIONS

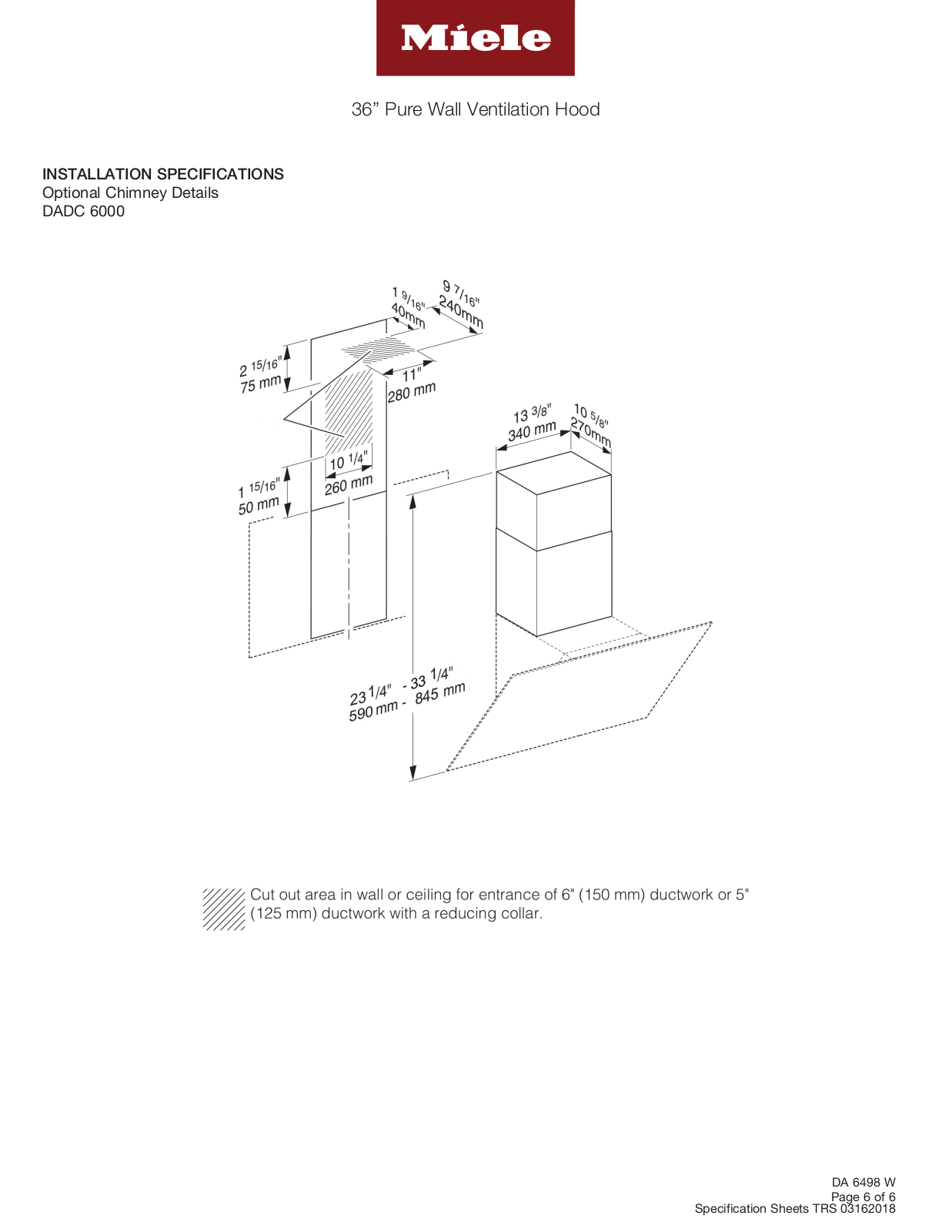

Optional Chimney Details
DADC 6000
36” Pure Wall Ventilation Hood
DA 6498 W
