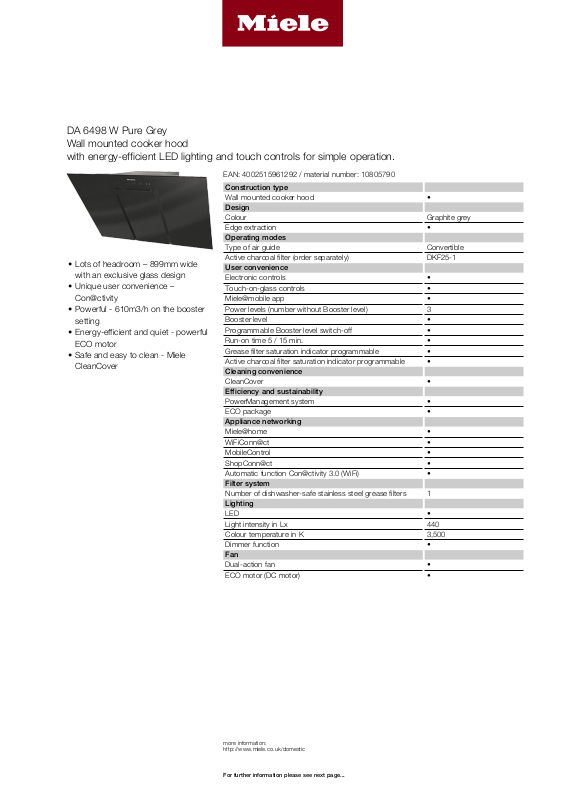

Page 1
DA 6498 W Pure Grey
Wall mounted cooker hood
with energy-efficient LED lighting and touch controls for simple operation.
EAN: 4002515961292 / material number: 10805790
Construction type
Wall mounted cooker hood •
Design
Colour Graphite grey
Edge extraction •
Operating modes
Type of air guide Convertible
• Lots of headroom –899mmwide
with an exclusive glass design
• Unique user convenience –
Con@ctivity
• Powerful - 610m3/h on the booster
setting
• Energy-efficient and quiet - powerful
ECO motor
• Safe and easy to clean - Miele
CleanCover
Active charcoal filter (order separately) DKF25-1
User convenience
Electronic controls •
Touch-on-glass controls •
Miele@mobile app •
Power levels (number without Booster level) 3
Booster level •
Programmable Booster level switch-off •
Run-on time 5 / 15min. •
Grease filter saturation indicator programmable •
Active charcoal filter saturation indicator programmable •
Cleaning convenience
CleanCover •
Efficiency and sustainability
PowerManagement system •
ECO package •
Appliance networking
Miele@home •
WiFiConn@ct •
MobileControl •
ShopConn@ct •
Automatic function Con@ctivity 3.0 (WiFi) •
Filter system
Number of dishwasher-safe stainless steel grease filters 1
Lighting
LED •
Light intensity in Lx 440
Colour temperature in K 3,500
Dimmer function •
Fan
Dual-action fan •
ECO motor (DC motor) •
more information:
http://www.miele.co.uk/domestic
For further information please see next page...
Page 2
DA 6498 W Pure Grey
Wall mounted cooker hood
with energy-efficient LED lighting and touch controls for simple operation.
Air throughput with max. duct diameter in extraction
mode (not for external version)
Air throughput in Level 1 (m³/h) 180
Air throughput in Level 2 (m³/h) 280
Air throughput in Level 3 (m³/h) 380
Air throughput in Booster level (m³/h) 610
Sound power in Level 1 (dB(A) re 1 pW) 37
Sound power in Level 2 (dB(A) re 1 pW) 45
Sound power in Level 3 (dB(A) re 1 pW) 53
Sound power in Booster level (dB(A) re 1 pW) 64
Sound pressure in Level 1 (dB(A) re 20 µPa) 22
Sound pressure in Level 2 (dB(A) re 20 µPa) 31
Sound pressure in Level 3 (dB(A) re 20 µPa) 38
Sound pressure in Booster level (dB(A) re 20 µPa) 49
Air throughput in recirculation mode
Air throughput in Level 1 (m³/h) 110
Air throughput in Level 2 (m³/h) 190
Air throughput in Level 3 (m³/h) 330
Air throughput in Booster level (m³/h) 490
Sound power in Level 1 (dB(A) re 1 pW) 42
Sound power in Level 2 (dB(A) re 1 pW) 51
Sound power in Level 3 (dB(A) re 1 pW) 60
Sound power in Booster level (dB(A) re 1 pW) 69
Sound pressure in Level 1 (dB(A) re 20 µPa) 28
Sound pressure in Level 2 (dB(A) re 20 µPa) 36
Sound pressure in Level 3 (dB(A) re 20 µPa) 46
Sound power in Booster level (dB(A) re 1 pW) 54
Safety
Safety switch-off •
Single pane tempered glass •
Technical data
Overall height for extraction mode and external mode
cooker hoods in mm
Overall height for recirculation mode cooker hoods in mm 550
Canopy width in mm 899
Canopy height in mm 550
Canopy depth in mm 530
Minimum height above electric hobs in mm 450
Minimum height above gas hobs (max. 12.6kW total
power, burner ≤ 4.5kW) in mm
Net weight in kg 25.0
Length of supply lead in m 1.5
Standard plug fitted •
Hard-wired connection •
Total rated load in kW 0.09
Voltage in V 230
Fuse rating in A 10
Number of phases 1
Installation notes
Extraction ducting connection at top •
Extraction connection at top and rear •
Diameter of extraction ducting connection in mm 150
550
650
For further information please see next page...
Page 3
DA 6498 W Pure Grey
Wall mounted cooker hood
with energy-efficient LED lighting and touch controls for simple operation.
Standard accessories
Non-return flap •
Adapter to reduce ducting diameter from 150 mm to 125
mm Ø
•
For further information please see next page...
Page 4
DA 6498 W Pure Grey
Wall mounted cooker hood
with energy-efficient LED lighting and touch controls for simple operation.

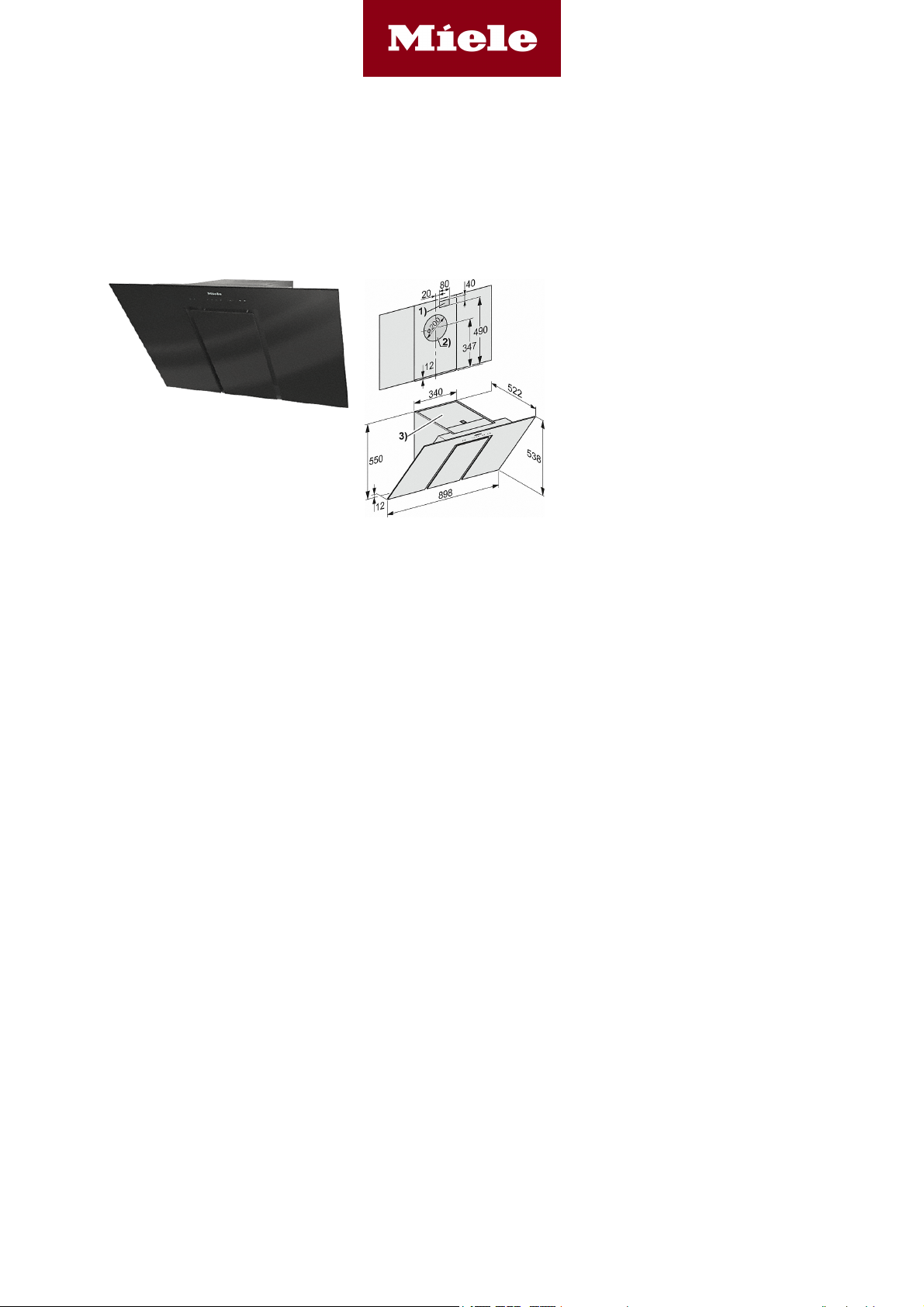

DA 6498 W (installation drawing)
1) Cut-out for cooker hoods with hard-wired connection
rather than a plug. 2) Opening for ducting connection at the
back. Vent Connection alternatively to the top. 3) Ventilation
grille positioned at the top for recirculation. A distance of at
least 300 mm must be maintained between the top of the
appliance and the ceiling or any furniture units installed
above the appliance.
