Operating and installation instructions
Cooker hood
DA 2900
DA 2900 EXT
To avoid the risk of accidents
or damage to this appliance,
it is essential to read these
instructions before it is installed
and used for the first time.
en-GB
M.-Nr. 09 725 030
Page 2
Contents
Caring for the environment..........................................3
Warning and Safety instructions .....................................4
Guide to the appliance ............................................10
Description of the functions ........................................12
Miele|home .....................................................13
Con|ctivity ......................................................13
Operation .......................................................14
Remote control....................................................14
To switch the fan on K .............................................14
To select a power level - / +.........................................14
Intensive setting ................................................14
Run-on option 5 ¢15...............................................15
Hob lighting I....................................................15
Power management................................................16
Filter operating hours counter [ ....................................17
Cleaning and care ................................................19
Housing .........................................................19
Panels and grease filters ............................................20
Resetting the grease filter operating hours counter ....................23
Fitting and replacing the charcoal filters ................................24
Resetting the charcoal filter operating hours counter ...................24
Remote control....................................................25
Installation ......................................................26
Appliance dimensions ..............................................26
Safety distance between hob and cooker hood (S) .....................28
Installation instructions .............................................29
Connection for air extraction .......................................30
Condensate trap ..................................................31
Silencer .........................................................32
Electrical connection .............................................33
Operation with Control module DSM 400 .............................34
Potential free connection .........................................34
Connection to a push button switch .................................34
After Sales Service ...............................................35
Technical data ...................................................36
Declaration of Conformity .........................................36
2
Page 3
Caring for the environment
Disposal of the packing material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Recycling packaging reduces the use
of raw materials in the manufacturing
process and also reduces the amount
of waste in landfill sites.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
3
Page 4
Warning and Safety instructions
Any other usage is not supported by
This appliance complies with all
relevant safety requirements.
Improper use can, however, present
a risk of both personal injury and
damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on its safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
This appliance is intended for use in
~
domestic households and in similar
working and residential environments
such as:
–
Shops
–
Offices and showrooms
and by residents in establishments
such as:
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation.
The cooker hood is not intended for
~
outdoor use.
This appliance can only be used by
~
people with reduced physical, sensory
or mental capabilities, or lack of
experience or knowledge, if they are
supervised whilst using it or have been
shown how to use it in a safe way and
understand the hazards involved.
Safety with children
The appliance is not a toy! To avoid
~
the risk of injury, do not allow children
to play with the appliance or the remote
control.
Children under 8 years of age must
~
be kept away from the cooker hood
unless they are constantly supervised.
Children 8 years and older may use
~
the cooker hood only if they have been
shown how to use it in a safe way and
understand the hazards involved.
Keep the battery in the remote
~
control out of the reach of children.
–
Hostels and guest houses.
It must only be used as a domestic
~
appliance to extract vapours and
remove odours from cooking.
4
Page 5
Warning and Safety instructions
Technical safety
Before installation, check the cooker
~
hood for visible signs of damage. Do
not install and use a damaged
appliance. It could be dangerous.
Before connecting the appliance to
~
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
household electricity supply, otherwise
the appliance could be damaged.
Consult a qualified electrician if in any
doubt.
The electrical safety of this
~
appliance can only be guaranteed if it
is correctly earthed. It is most important
that this basic safety requirement is
observed and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
For safety reasons, this appliance
~
may only be used when it has been
fully installed.
Only open the housing as described
~
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
Installation, maintenance and
~
repairs may only be carried out by a
Miele authorised person in strict
accordance with current national and
local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
Faulty components must only be
~
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
5
Page 6
Warning and Safety instructions
During installation, maintenance and
~
repair work, the appliance must be
disconnected from the mains electricity
supply.
Do not connect the appliance to the
~
mains electricity supply by a
multi-socket adapter or an extension
lead. These do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
For appliances with an external fan
~
motor (...EXT models) the connection of
the two units must be made using the
connection cable and the plug
connectors.
These models may only be combined
with a Miele external motor.
The appliance must not be used in a
~
non-stationary location (e.g. on a ship).
In areas which may be subject to
~
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
Great care should be taken when
~
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
6
Page 7
Warning and Safety instructions
This also applies to recirculation mode
if the air is being directed out of the
kitchen.
In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure of
0.04 mbar (4 pa) is the maximum
permissible in the room.
Ventilation can be maintained by air
inlets which must not be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
If the hood is being operated in
recirculation mode and the air is being
directed back into the kitchen, the
above restrictions do not apply.
,
The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter (GasSafe
registered in the UK) must be
sought.
7
Page 8
Warning and Safety instructions
Correct use
Do not use an open flame beneath
~
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
When using the cooker hood over a
~
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
Always switch the cooker hood on
~
when using the hob, otherwise
condensation may collect in the hood,
which could cause corrosion.
When cooking with oil or fat, chip
~
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood without
~
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
The filters should be regularly
~
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
The cooker hood can get very hot
~
during cooking due to heat rising from
the hob.
Do not touch the housing or the grease
filters until the cooker hood has cooled
down.
Do not use a steam-cleaner to clean
~
this appliance. Steam could reach
electrical components and cause a
short circuit.
Important information on the
~
handling of the battery in the remote
control:
– Do not short circuit or recharge the
battery, or throw it into a fire. Danger
of explosion.
–
Dispose of the used battery in your
recycling bin. Do not dispose of it
with the normal household waste.
8
Page 9
Warning and Safety instructions
Correct installation
Refer to the cooker or hob
~
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.

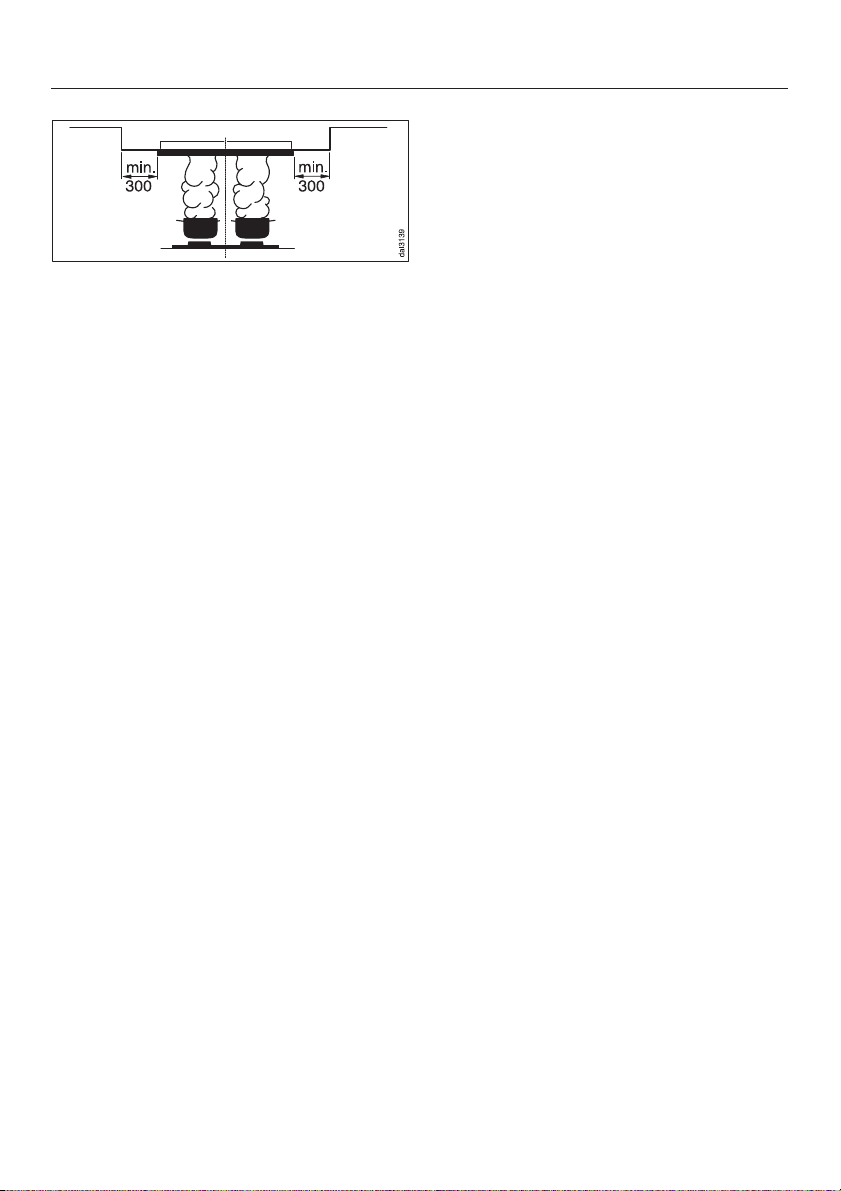

The minimum safety distances
~
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one cooking appliance is
fitted beneath the cooker hood, and
they have different minimum safety
distances to the cooker hood, select
the greater distance.
Safety regulations prohibit the fitting
~
of a cooker hood over solid fuel stoves.
All ducting, pipework and fittings
~
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
Accessories
Only use genuine Miele original
~
spare parts and accessories with this
appliance. If spare parts or accessories
from other manufacturers are used, this
will invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
The appliance must not be
~
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
~
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
9
Page 10
Guide to the appliance
10
Page 11
Guide to the appliance
a Edge extraction panels
DRP 2900 Glass (4 panels) or
DRP 2900 Stainless steel (4 panels)
b Hob lighting
c Controls
d Grease filter
e Indicator light
The indicator light will light up briefly
when a function is selected using the
remote control.
f Hob lighting button
g Buttons for selecting
the fan power level
On the remote control, these buttons
can also be used to switch the fan on
and off.
h Button for the run-on option
The fan can be set to switch off
automatically after either 5 or
15 minutes.
k Operating hours button
The grease filter symbol l for the
operating hours button lights up when
the grease filters need to be cleaned.
The charcoal filter symbol lights up
when the charcoal filters used in
recirculation mode need to be
replaced. For this to happen, the
operating hours counter needs to be
activated before the appliance is used
for the first time (only applies if the
cooker hood has been fitted with
DUU 2900 conversion kit for
recirculation).
This button is used to reset the
appropriate operating hours counter
each time the grease filters are cleaned
or the charcoal filters have been
replaced (see "Cleaning and care").
It can also be used to check and alter
the operating hours counter.
i These buttons have no allocated
function for this cooker hood
j On/Off button for the fan
For information about using the
appliance, see "Operation".
11
Page 12
Description of the functions
The cooker hood works with
. . . air extraction:
The cooker hood draws in the cooking
vapours. First, the air is drawn in via the
edge extraction panels. It is then
guided through and cleaned by the
grease filters before being directed
outside.
The cooker hood operates with a
non-return flap.
This flap is closed when the cooker
hood is switched off, so that no
exchange of room air and outside air
can take place.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
. . . air recirculation:
(DUU 2900 conversion kit for
recirculation required)
The air is drawn in through the edge
extraction panels and then cleaned by
the grease filters. It is then directed into
the recirculation unit where it is also
cleaned by the charcoal filters. The
cleaned air is then recirculated back
into the kitchen.
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filters are in place. See
Cleaning and care.

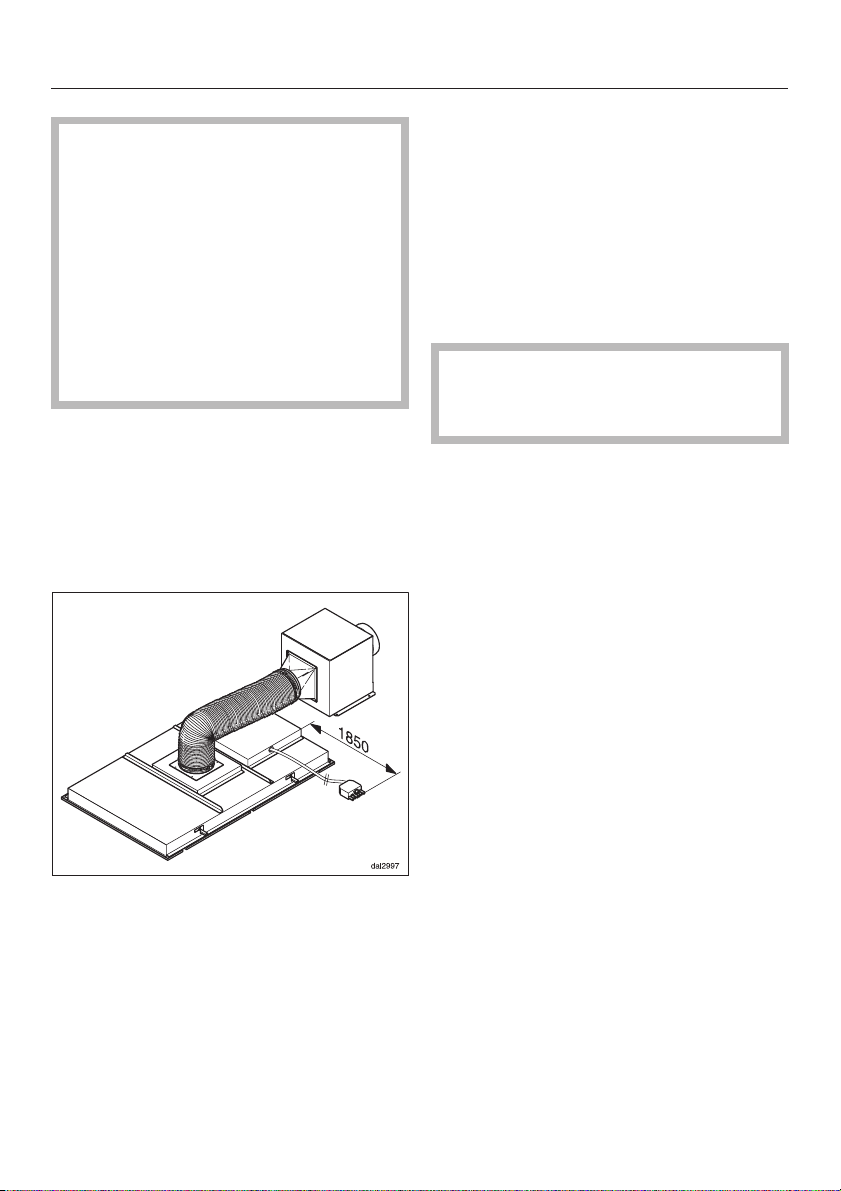

...anexternal motor:
(EXT models only)
EXT models are designed to be
connected to an external motor located
outside the room.
12
The external motor is connected to the
cooker hood by means of a control
cable, and is operated by the controls
on the cooker hood.
Page 13
Miele|home
Con|ctivity
This cooker hood is communication
enabled.
Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the cooker
hood to be automatically controlled by
the operating status of a Miele electric
hob with onset controls.

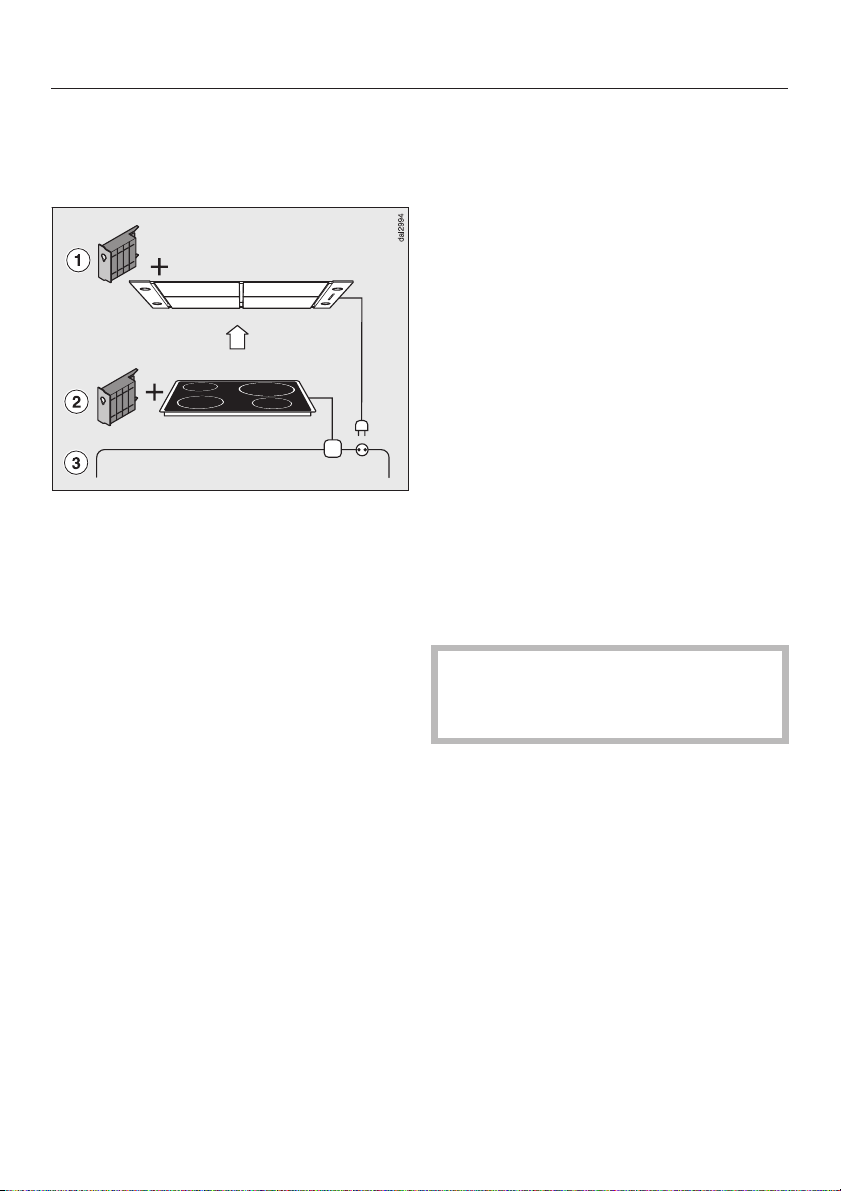

For communication to take place, the
hob must be fitted with the appropriate
communication module b.
When the hob is switched on the
–
cooker hood hob lighting also comes
on and then after a short time the fan
switches on.
During cooking the cooker hood
–
automatically sets its power level
according to the number of cooking
zones in operation and their power
levels.
After switching the hob off the fan
–
and the hob lighting will switch off
automatically after a period of time.
For detailed information about this
function please read the separate
instruction booklet supplied with the
XKM 2000 DA communication module.
The communication module is fitted to
the cooker hood in the area of the
motor and is connected to the controls
of the cooker hood.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
The hob transmits information about its
operating status to the cooker hood via
the household power supply
(Powerline) c.
13
Page 14
Operation
Remote control
The main functions can be selected via
the cooker hood or by remote control.
The indicator light on the remote control
unit will light up briefly when a function
is selected by remote control.
The maximum operating range of the
remote control is approx. 10 m.
However, this may be less depending
on the physical conditions present in
the room (e.g. furniture, walls).
The back of the remote control unit is
magnetic which allows it to be attached
to various metal surfaces.
Interaction with other remote control
systems
In instances where the remote control is
affected by the remote control of a
similar type of cooker hood in the immediate vicinity, the remote control
coding can be altered.
To switch the fan on K
Press the + button on the remote
^
control.
or
Press the On/Off button K on the
^
cooker hood.
The fan will switch on at power level 2.
The K symbol and 2 will light up on the
control panel of the cooker hood.
To select a power level - / +
The power level for the fan can be
selected either on the cooker hood or
by using the remote control.
^ Press the – symbol to select a lower
power level or the + symbol to select
a higher power level.
Depending on the intensity of the
cooking vapours, levels 1 to 3 are
usually sufficient for normal cooking.
Please contact the Miele Service
Department (see "After Sales Service").
14
Intensive setting
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, you may wish
to select level IS, the Intensive setting.
Page 15
Operation
Run-on option 5 ¢15
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after 5 or 15 minutes.
The Run-on option can be selected
either on the cooker hood or by using
the remote control.
After cooking has finished, press the
^
Run-on button 5 ¢15 whilst the fan is
still running
– Press once = The fan will switch off
after 5 minutes (5 ¢ will light up).
– Press twice = The fan will switch off
after 15 minutes (¢15 will light up).
If you press the Run-on button 5 ¢15
again, the fan remains on (5 ¢15 will go
out).
To switch the fan off K
Reduce the power level by pressing
^
the – button on the remote control
until the fan switches off,
or
Press the On/Off button K on the
^
cooker hood to switch the fan off.
The K symbol will go out.
Hob lighting I
The hob lighting can be switched on
and off independently of the fan.
^ Press the lighting button I on the
remote control or on the cooker hood.
The I symbol lights up when the
lighting is switched on.
15
Page 16
Operation
Power management
The cooker hood features a power
management system for switching off
the lighting and reducing the fan power
level automatically.
The lighting will switch off
–
automatically after 12 hours.
If the Intensive setting is selected,
–
the fan will automatically revert to
level 3 after 10 minutes, to level 2
after 2 hours and then after a further
30 minutes to level 1. Finally, after a
further 30 minutes the fan will switch
off.
– If power level 2 or 3 is selected, the
fan will revert to a lower setting after
2 hours and then in 30-minute stages
until it switches off.
– If level 1 is selected, the fan will
switch off after 2 hours.
Power management can be
deactivated. This can only be done via
the control panel on the cooker hood. It
cannot be deactivated using the remote
control.
Press the Run-on option button
^
5 ¢15 for approx. 10 seconds until 1
lights up in the power level display.
Then press in turn –
^
the lighting button I,
–
the – button, and
–
the lighting button I again.
–
If Power management is activated,
1 and IS will light up constantly.
^ Press the – button to deactivate
Power management.
1 and IS will flash.
Press + if you want to activate it
again.
^ Confirm your selection by pressing
the Run-on option button 5 ¢15.
16
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
Page 17
Operation
Filter operating hours
counter [
The number of hours the cooker hood
has been in operation is stored in
memory.
The Grease filter symbol [ or the
Charcoal filter symbol will light up to
tell you that the filters need to cleaned
or changed.
See "Cleaning and care" for further
information about cleaning and
changing the filters and resetting the
operating hours counters.
Altering the grease filter operating
hours counter [
You can set the operating hours
counter for the grease filter to suit the
type of cooking you do.
– Select a short time if you roast or fry
a lot.
– If you use very little fat for cooking,
select a longer time.
–
If you only cook occasionally, we still
recommend selecting a short time
because grease which has built up
gradually over a long period of time
will harden on the filter and make
cleaning more difficult.
The grease filter operating hours
counter is set at the factory for
30 hours. This can be lengthened or
shortened. You can choose 20, 30, 40
or 50 hours.
Switch the fan off by pressing the
^
On/Off button K.
Press the Run-on option button
^
5 ¢15 and the operating hours
button [ on the control panel on
the cooker hood at the same time.
The Grease filter symbol [ of the
operating hours button and one of the
fan power levels will flash.
Fan power level indicator lights 1 to IS
show the time set:
1........................20hours
2........................30hours
3........................40hours
IS .......................50hours
^ Press the – symbol to select a shorter
operating time or the + symbol to
select a longer operating time.
^
Confirm your selection by pressing
the operating hours button [.
All the indicator lights will go out.
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
17
Page 18
Operation
Activating and altering the charcoal
filter operating hours counter
(recirculation mode with conversion kit
fitted)
The charcoal filter is needed for
recirculation mode.
On delivery, the operating hours counter
for the charcoal filter is deactivated.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do.
Switch the fan off by pressing the
^
On/Off button K.
^ Press the + symbol and the
operating hours button [ on the
control panel on the cooker hood at
the same time.
The Charcoal filter symbol of the
operating hours button and one of the
fan power levels will flash.
Fan power level indicator lights 1 to IS
show the time set:
1.......................120hours
2.......................180hours
3.......................240hours
IS ....................Deactivated
^
Press the – symbol to select a shorter
operating time or the + symbol to
select a longer operating time.
Checking the filter operating hours
counter
To check the percentage of time set
already used:
Switch the fan on with the On/Off
^
button K.
Press and hold the operating hours
^
button [ on the cooker hood
control panel:
Once, to read the grease filter
–
operating hours. The Grease filter
symbol [ will light up.
– Twice, to read the charcoal filter
operating hours. The Charcoal filter
symbol will light up.
One or more of the power level
indicators will flash at the same time.
The number of flashing indicator lights
shows the percentage of the operating
time which has already been used up:
1...........................25%
1 and 2 .....................50%
1 to 3 .......................75%
1 to IS .....................100%
The number of operating hours used
remains in the memory, even when the
cooker hood is switched off or there is a
power cut.
^
Confirm your selection by pressing
the operating hours button [.
All the indicator lights will go out.
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
18
Page 19
Cleaning and care
Before any cleaning or
,
maintenance work is carried out,
disconnect the cooker hood from
the mains supply.
Housing
General
The surfaces and controls are
susceptible to scratches and
abrasion. Please observe the
following cleaning instructions.
^ All external surfaces and controls can
be cleaned using a Miele E-Cloth or
with warm water and a little
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Wipe the surfaces dry using a soft
^
cloth.
Avoid:
cleaning agents containing soda,
–
acids, chlorides or solvents,
abrasive cleaning agents, e.g.
–
powder cleaners or cream cleaners,
and abrasive sponges, as well as pot
scourers or sponges which have
been previously used with abrasive
cleaning agents. These will damage
the surface material.
– sharp metal scrapers,
– oven sprays.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
using Miele's non-abrasive cleaning
agent for stainless steel, following the
instructions on the packaging.
To help prevent re-soiling, Miele
conditioning agent for stainless steel
can also be used. Follow the
instructions on the packaging.
19
Page 20
Cleaning and care
Important for appliances with glass
surfaces
Glass surfaces can be cleaned using a
proprietary non-abrasive cleaning
agent designed specifically for use on
glass.
Important for appliances with
lacquered housing
(Special order finish)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colours and if there is halogen lighting
in the kitchen.
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling straight away.
Panels and grease filters
The edge extraction panels and the
re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
Clean the panels and grease filters
regularly but always clean them imme
diately if the Grease filter symbol [ of
the operating hours button lights up.
We recommend cleaning them at least
every 3-4 weeks. Otherwise grease
which builds up on the panels and
grease filters over a long period of time
can harden, making cleaning more
difficult.
,An oversaturated filter is a fire
hazard.
-
Please observe the General notes on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
20
Page 21
The panels and grease filters need to
^
be removed for cleaning.
During cooking condensation forms
on the panels, which evaporates after
cooking. To avoid this dripping on
you, do not remove the panels for
approximately two hours after
cooking has finished.
Before removing the panels,
,
please note the following if the
cooker hood is installed in the
ceiling:
– Make sure that you use a stable
and secure ladder.
– Make sure that you stand on the
ladder in a safe way.
– Do not lean over the hob.
– Do not stand on the worktop or
the hob.
Cleaning and care
To avoid damaging the filters,
panels or the hob below, make sure
you hold the filters and panels
securely at all times when handling
them.
^ To remove a panel, hold it at the
sides, as shown. Pull it downwards
out of the front locking clip, unhook it
at the back and remove it.
^
To take out a grease filter, release the
locking clip on the filter, lower the
filter slightly, unhook it at the back
and remove it.
21
Page 22
Cleaning and care
Cleaning the panels by hand
See the notes under "Housing".
^
Cleaning the grease filters by hand
Clean the filters with a soft nylon
^
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing-up liquid.
Avoid:
cleaning agents containing
–
descaling agents,
powder cleaners, cream cleaners or
–
abrasive all-purpose cleaners.
– oven sprays.
Cleaning the grease filters and
panels in the dishwasher
^ Place the filters and panels as
upright as possible in the lower
basket, with the short sides upright.
Make sure that the spray arm can
move freely.
After cleaning, leave the filters to dry
^
on an absorbent surface before
replacing them.
When removing the panels and
^
grease filters for cleaning, also clean
off any residues of oil or fat from the
now accessible housing to prevent
the risk of these catching fire.
Replace the grease filters, making
^
sure that the locking clips are facing
down towards the hob.

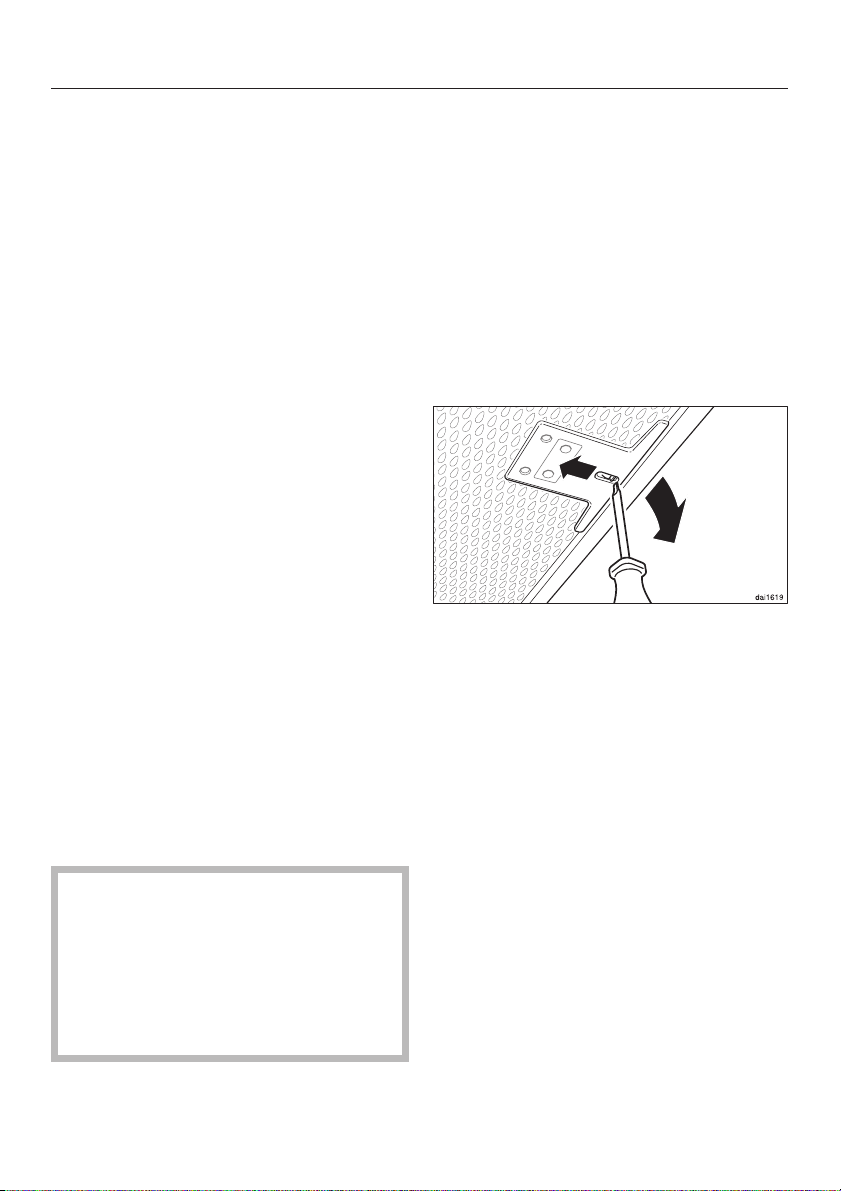

^ If a grease filter is inadvertently
replaced upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
^
Select a programme with a maximum
temperature of 65° C. If a Miele
dishwasher is being used, select the
Sensor wash programme.
^
Use a mild dishwasher detergent.
Depending on the dishwasher
detergent used, cleaning the filters
in a dishwasher can cause
permanent discolouration to the
surface.
However, this will not affect the
functioning of the filters in any way.
22
Page 23

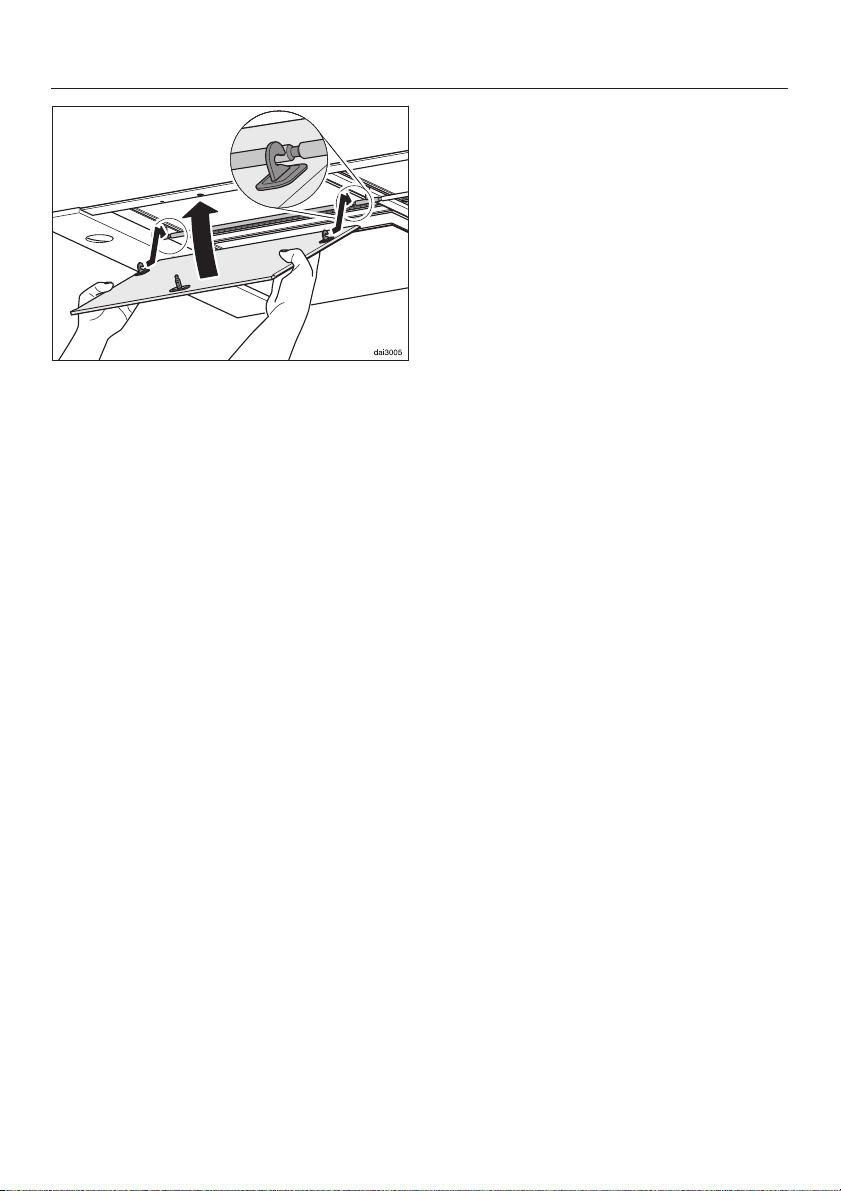

To replace a panel, hold it firmly with
^
both hands, hook it over the retaining
bar (see detail in the illustration), tilt
the panel upwards and press it into
the locking clip at the front until you
hear it click into position.
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset.
Cleaning and care
^ Whilst the fan is switched on, press
the operating hours button [ for
approx. 3 seconds until only the 1 is
flashing.
The Grease filter symbol [ goes out.
If you want to clean the grease filters
before the operating hours counter has
reached its maximum:
^
Press the operating hours
button [ for approx. 6 seconds
until only the 1 is flashing.
23
Page 24
Cleaning and care
Fitting and replacing the
charcoal filters
If the cooker hood is connected for
recirculation, two active charcoal filters
must be inserted in the separate
recirculation unit.
When fitting for the first time:
Activate the operating hours counter
^
(see "Operation").
Always replace the charcoal filters im
mediately if
the Charcoal filter symbol of the
–
operating hours button lights up,
or
they are no longer effective at
–
absorbing kitchen odours.
They should, however, be replaced at
least every 6 months.
Used charcoal filters can be disposed
of with normal household waste.

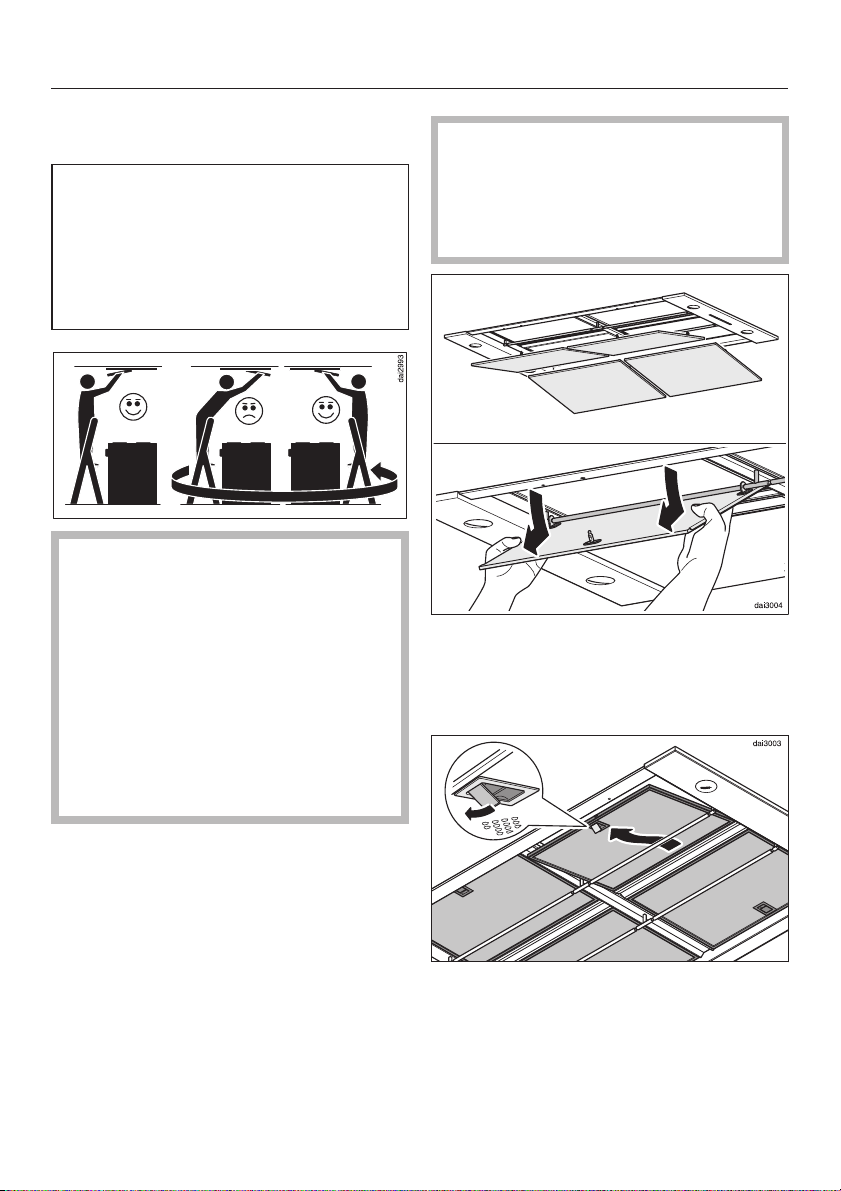

Resetting the charcoal filter
operating hours counter
After replacing the charcoal filters, the
operating hours counter needs to be
reset.
-
24
^ To do this, with the fan switched on,
press the operating hours button [
twice. Hold the second press for
approx. 3 seconds until only the 1 is
flashing.
The Charcoal filter symbol will go
out.
If you want to replace the charcoal
filters before the operating hours
counter has reached its maximum:
^
Press the operating hours button [
twice and hold the second press for
approx. 6 seconds until only the 1 is
flashing.
Page 25
Remote control
The surface should be wiped with a
damp cloth only. Only use a damp cloth
as water could get into the unit and
cause damage.
Replacing the battery
The remote control uses one 3 V, CR
2032 battery.
Only use a battery of the type
quoted above.
Rechargeable batteries must not be
used.
The battery needs to be replaced if you
can no longer use the remote control to
select cooker hood functions.
The battery should also be replaced if
the indicator light on the remote control
unit no longer lights up or only lights up
very dimly when you press one of the
buttons.
Cleaning and care

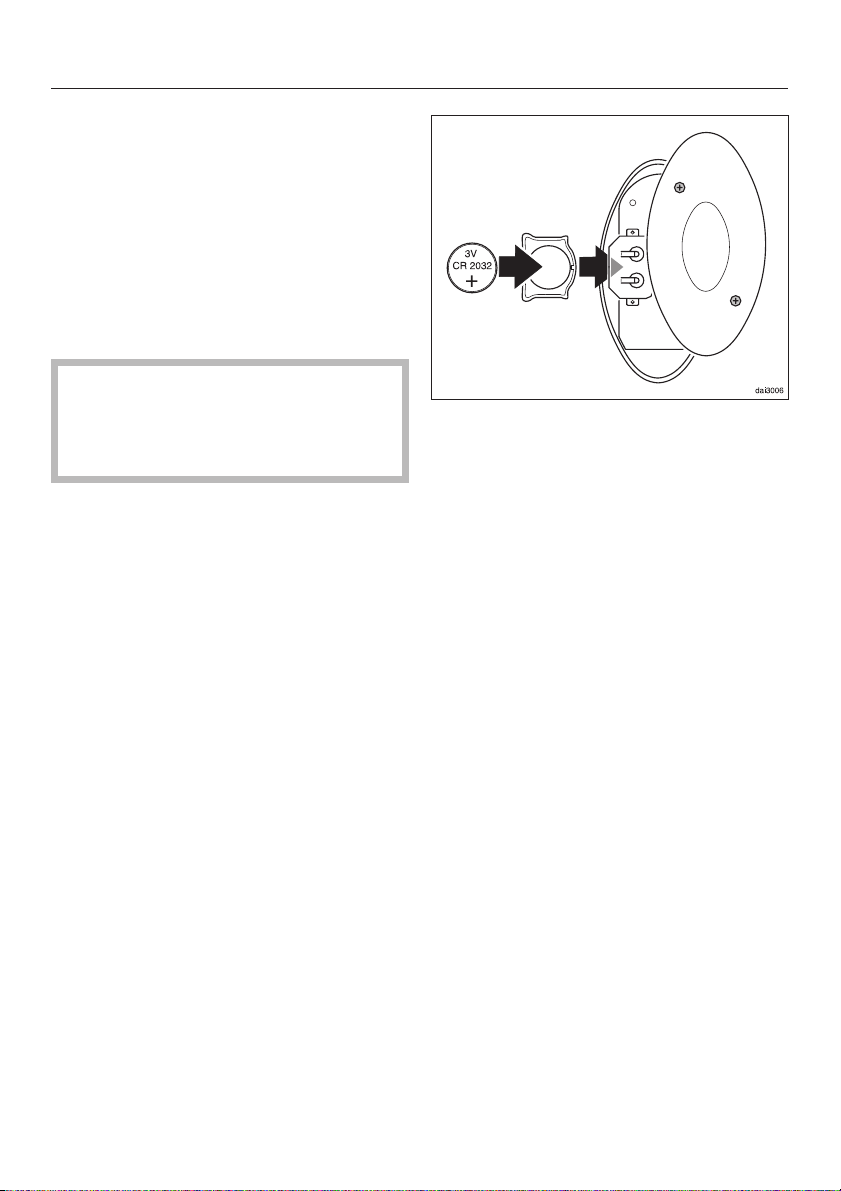

Use a suitable screwdriver to undo
^
the two screws on the back of the
remote control unit and remove the
cover.
^ Take out the battery and replace it
with a new one, making sure the
polarity is correct.
^ Dispose of the used battery in your
recycling bin.
You will still be able to use the control
panel on the cooker hood to select
functions.
25
Page 26
Installation
Appliance dimensions
Please see the following pages for more details on the diagrams.
26
Page 27
Before installation, it is important
,
to read the information given on the
following pages as well as the
"Warning and Safety instructions" at
the beginning of this booklet.
This is particularly crucial when
using the cooker hood at the same
time as a heating appliance that
relies on oxygen from the same
room to avoid the danger of toxic
fumes building up.

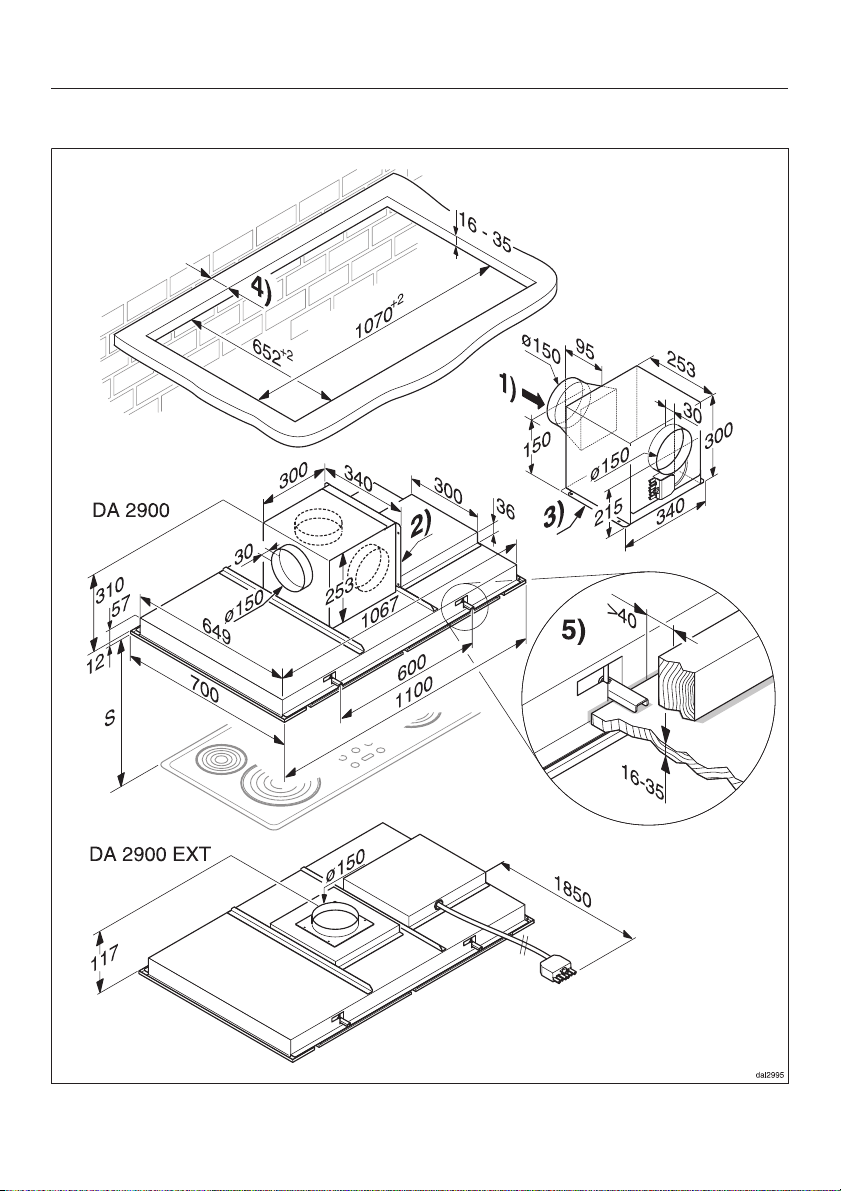

Notes on the Appliance dimension
drawing:
1) Suction side
2) Motor can be rotated. Exhaust
socket can be fitted at the top or the
sides in any direction.
Installation
4) If the cooker hood is being installed
near to a wall, a minimum distance of at
least 50 mm must be observed so that
the edge extraction panels and the
grease filters can be removed easily.
5) The cooker hood is secured in the
cut-out by clamps.
This requires that the ceiling is made of
a solid material, such as wood.
Make sure the material is strong
,
enough to bear the weight of the
cooker hood.
There must be a minimum distance of
40 mm between the areas around the
clamps and any structures or
components, such as struts or cables.
3) The motor unit can be freely
positioned. Connection to the appliance
is via the exhaust ducting and the
connection cable.
Please take the length of the
connection cable into account when
selecting the installation location.
The installation location must be easily
accessible. This is also important if the
appliance needs to be serviced.
27
Page 28
Installation

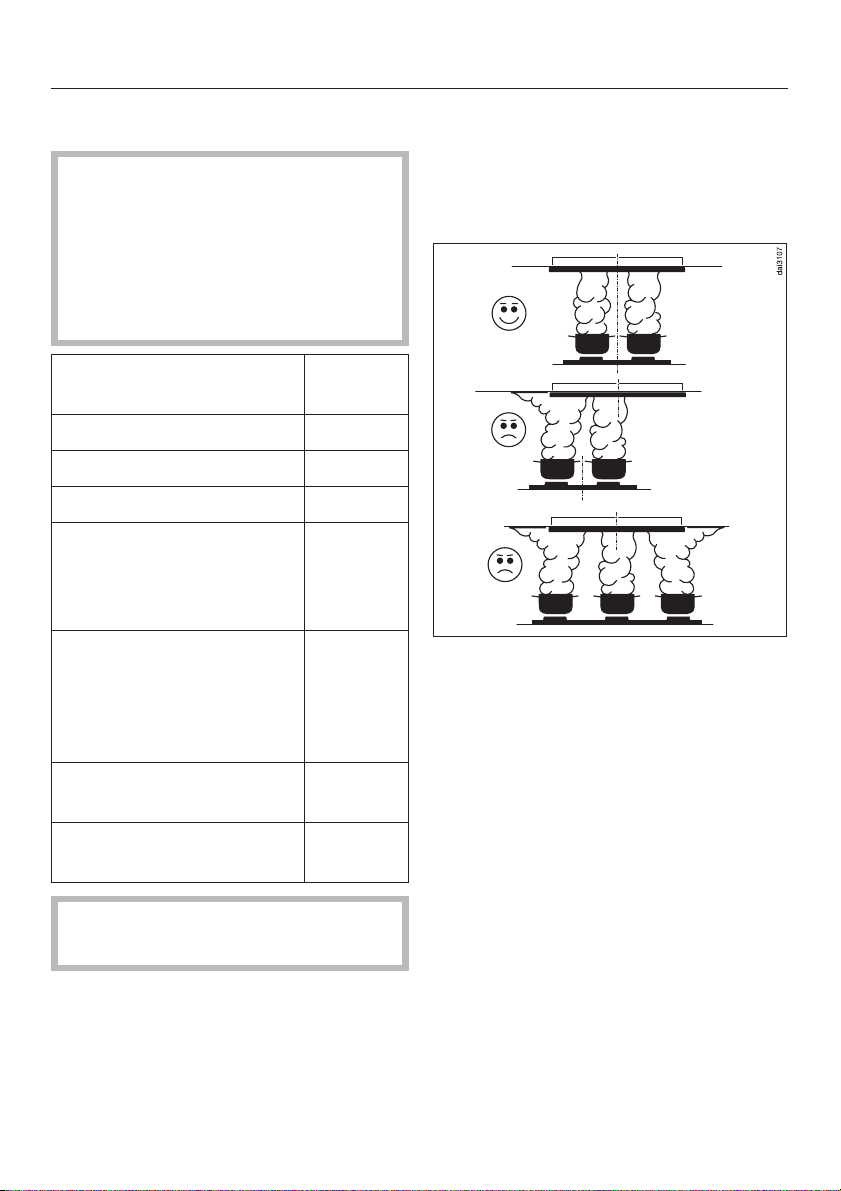

Safety distance between hob and
cooker hood (S)
The following minimum safety
distance must be maintained
between the top of the cooker/hob
and the bottom of the cooker hood
unless a greater distance is
specified by the manufacturer of the
cooker or hob:
Cooking appliance Distance
S
Electric hob 450 mm
Open Grill 650 mm
Deep fat fryer (electric) 650 mm
However, we recommend a minimum
–
distance of 700 mm and a maximum
distance of 1300 mm.
Please be aware that if positioned too
high, extraction will be inefficient.
Multi-burner gas hob with
a maximum total output of
12.6 kW, no burner
exceeding 4.5 kW.
Multi-burner gas hob with
a total output of more than
12.6 kW, or a multi-burner
gas hob where one burner
exceeds 4.5 kW.
Single gas burner with a
maximum output of 6 kW.
Single gas burner with
output exceeding 6 kW.
See "Warning and Safety"
instructions for further information.
650 mm
760 mm
650 mm
760 mm
The cooker hood must cover the hob to
ensure optimum extraction of cooking
vapours:
–
The cooker hood should be
positioned centrally over the hob, not
offset to one side or to the rear.
–
The hob should be smaller than the
cooker hood if possible, and no
larger than equal size.
28
Page 29
If the cooker hood is being installed
–
in a suspended ceiling, the
installation surface all around the
cooker hood must be at least 300
mm larger than the cooker hood
itself.
Installation instructions
– See the enclosed Installation sheet
for instructions on how to install this
appliance.
Installation
29
Page 30
Connection for air extraction
Important: To avoid the danger of
toxic fumes, please observe the
Warning and Safety instructions.
This is especially crucial when using
the cooker hood at the same time as
another heating appliance which
relies on air from the same room.
The cooker hood should be installed
according to local building
regulations. Seek approval from the
building inspector where necessary.
Only use smooth pipes or flexible
–
hoses made from non-flammable
materials for the extraction ducting.
When using an external motor, make
–
sure that the exhaust ducting is
sufficiently rigid. The external motor
can cause an underpressure which
could result in the exhaust ducting
distorting.
To achieve the greatest possible air
extraction with the lowest noise level,
please note the following:
To ensure efficient air extraction, the
–
diameter of the exhaust ducting
should not be less than 150 mm.
– If flat ducting is being used, the
cross-sectional area must not be
smaller than the cross-sectional area
of the exhaust connection.
– All ducting, pipework and fittings
must be of non-flammable materials.
30
– The exhaust ducting should be as
short and straight as possible.
–
Only use wide radius bends.
–
The exhaust ducting should not be
kinked or compressed.
–
Ensure that all connections are
strong and airtight.
–
Where ducting is horizontal, it must
be laid to slope away by at least
1 cm per metre. This is to ensure that
condensate cannot drain back into
the cooker hood.
Page 31
Connection for air extraction
If the exhaust air is to be ducted into
–
the open air, the installation of a
telescopic wall vent or roof vent is
recommended.
If the exhaust air is to be ducted into
–
a vent flue, the ducting must be
directed in the flow direction of the
flue.
Important
If the exhaust ducting is to run through
rooms, ceiling space etc. where there
may be great variations in temperature
between the different areas, the
problem of condensation will need to
be addressed. The exhaust ducting will
need to be suitably insulated.
Condensate trap
(optional accessory)
In addition to insulating the exhaust
ducting, we recommend that a suitable
condensate trap is also installed to
collect and evaporate any condensate
which may occur. Condensate traps

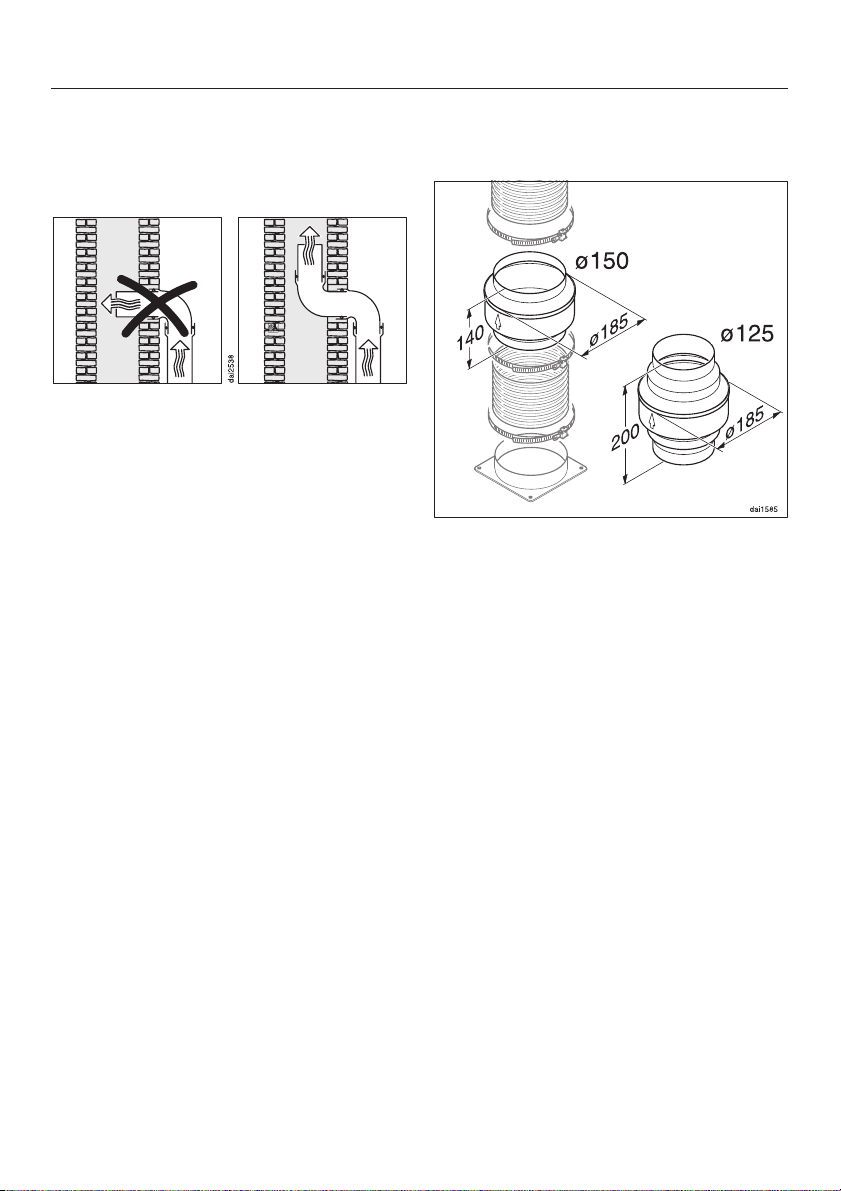

are available for C 125 mm or
C 150 mm ducting.
When installing a condensate trap,
ensure that it is positioned vertically
and if possible directly above the
exhaust connection. The arrow on the
housing indicates the direction of
air-flow.
31
Page 32
Connection for air extraction
Silencer
(optional accessory)

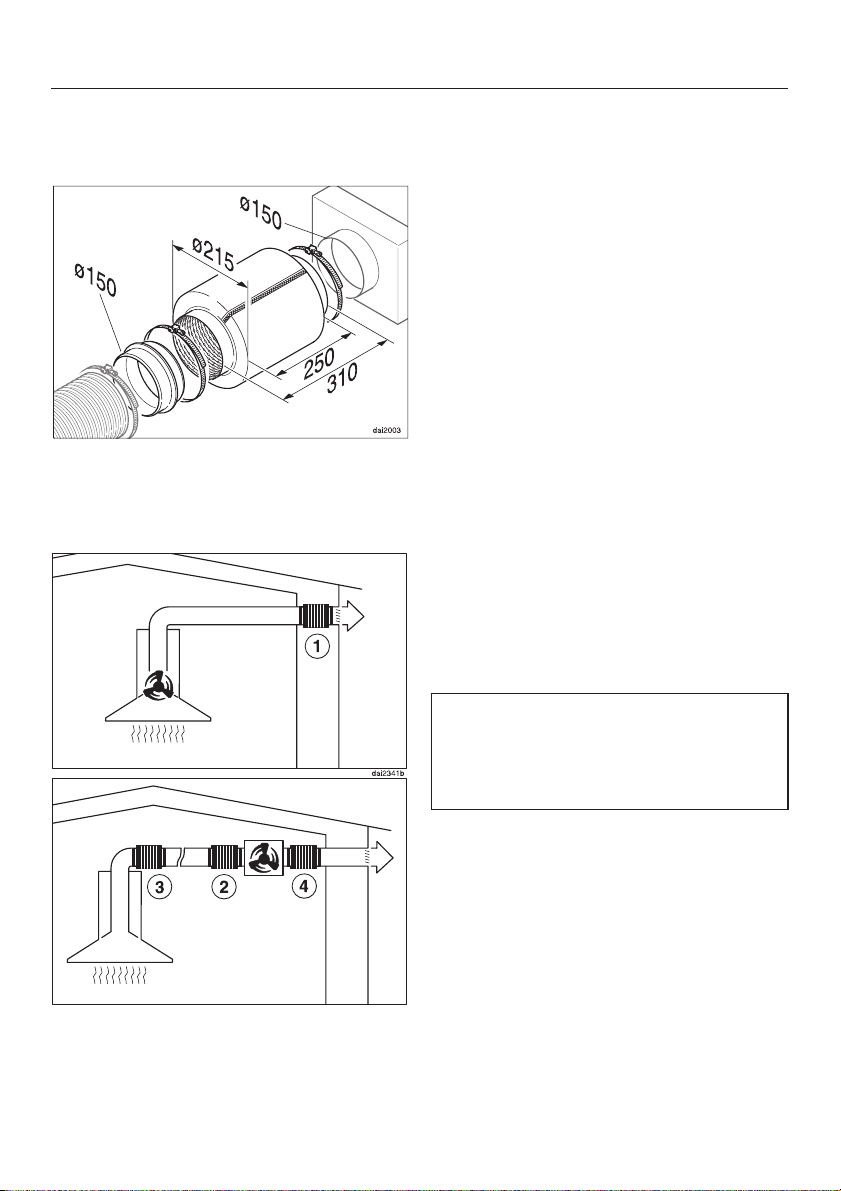

To achieve even further reductions in
noise levels, a special silencer can be
fitted in the ducting system.
...with air extraction:
The silencer not only reduces noise
from the fan, but also sounds from
outside (e.g. traffic noise).
For this reason the silencer must be
positioned as close as possible to the
ducting exit a.
...with air extraction with external
motor:
To minimise noise from the motor in the
kitchen, the silencer should be
positioned in front of the external motor
b if possible, or if the ducting is long,
then in the ducting above the cooker
hood itself c.
In the case of an external motor located
inside the house, fitting a silencer
behind the external motor d reduces
the noise of the motor outside the
house.
32
In all modes of operation, the most
effective noise reductions are
achieved if two silencers are fitted
one behind the other in the system.
Page 33
All electrical work should be
,
undertaken by a suitably qualified
and competent person in strict
accordance with current national
and local safety regulations
(BS 7671 in the UK).
Electrical connection
If the switch is not accessible after
installation (depending on country), an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD).
Installation, repairs and other work
by unqualified persons could be
dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
The connection data is given on the
data plate. (See "After Sales Service").
Ensure that this data matches the
household mains supply.
Connection of this appliance should be
made via a suitable isolator or a double
pole fused spur connection unit which
complies with national and local safety
regulations and the On-Off switch
should be easily accessible after the
appliance has been built in.
When switched off there must be an
all-pole contact gap of 3 mm in the
switch (including switch, fuses and
relays according to EN 60335).
Important
This appliance is supplied for
connection to an a.c. 230 V single
phase 50 Hz supply.
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING:
THIS APPLIANCE MUST BE
EARTHED
33
Page 34

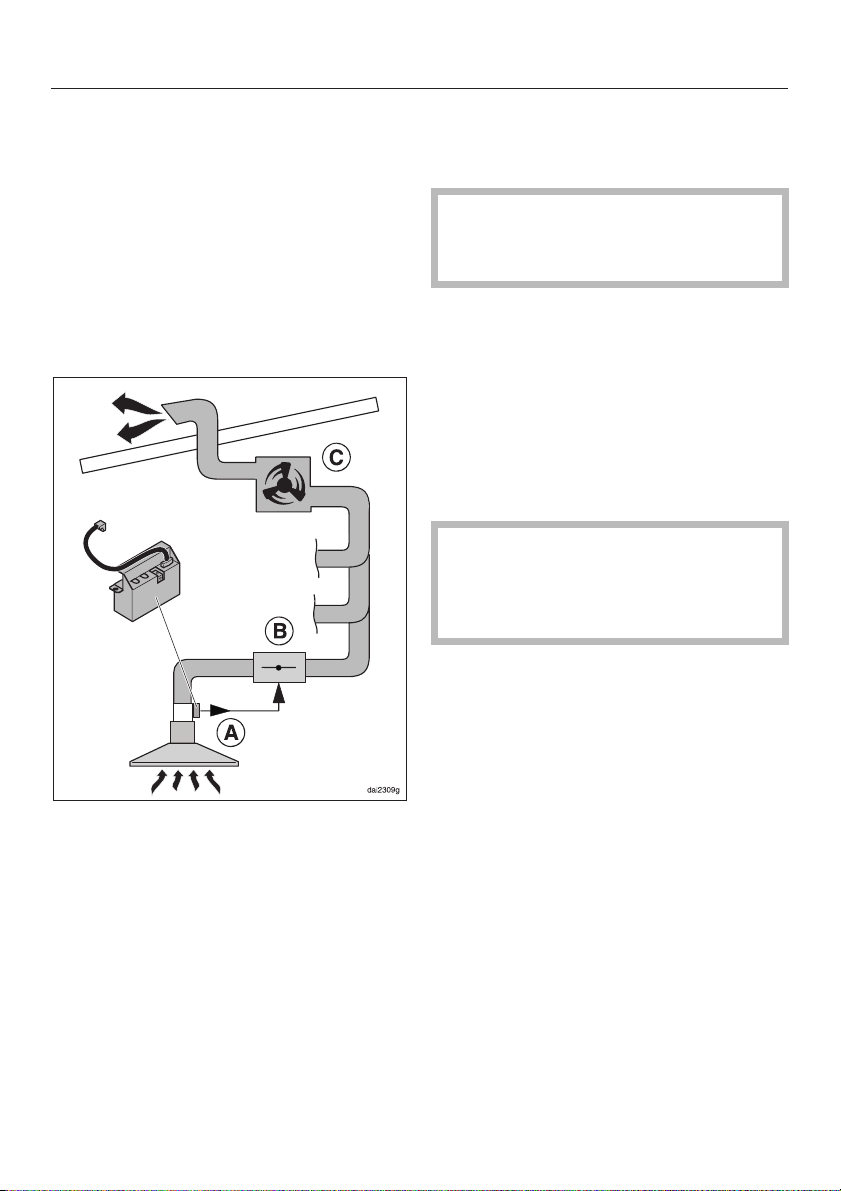

Operation with Control module DSM 400
The Miele DSM 400 control module
(optional accessory) can be used to
combine the cooker hood with other
components.
It enables the following:
Potential free connection
This can be used to operate a further
appliance via the On/Off button s of
the cooker hood.
Components used in the central
ducting system are not supplied by
Miele.
If in any doubt, the advice of a
competent builder or, for gas, a Gas
Safe installer must be sought.
Connection to a push button switch
The control module can be used to
switch on the cooker hood lighting via a
push button switch in the house.
Installation
The control module is fitted onto the
cooker hood housing.
The electrical connection of
components to the control module
must be carried out by a suitably
qualified and competent person.
The potential free contact on the
DSM 400 a can, for example, be used
in a cooker hood with an external motor
...EXT, which is connected to a central
ducting system.
The contact can then be used to
operate an electrically driven non-return
flap b which is connected to the
central extraction unit c.
34
Page 35
After Sales Service
In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee, please contact:
Your Miele Dealer / Chartered Agent
–
or
The Miele Service Department (see
–
back cover for address).
When contacting your Dealer or Miele,
please quote the model and serial
number of your appliance. These are
shown on the data plate which is visible
when the grease filter is removed.
For the U.K.: Please note that
telephone calls may be monitored
and recorded for training purposes.
N.B. A call-out charge will be applied
for service visits where the problem
could have been resolved as described
in these instructions.
Guarantee
For information on the appliance
guarantee specific to your country
please contact Miele. See back cover
for contact details.
In the U.K. your appliance is
guaranteed for 2 years from the date of
purchase. However, you must activate
your cover by calling 0845 365 6640 or
registering online at www.miele.co.uk
35
Page 36
Technical data
Total connected load * ........138W
– Fan motor * ................130W
– Hob lighting ..............4x2W
Voltage ..................AC230V
Frequency ..................50Hz
Fuse rating ....................5A
Weight
DA 2900...................24.9 kg
DA 2900 EXT ...............19.0 kg
Edge extraction panels
DRP 2900 Glass .............8.6kg
DRP 2900 Stainless steel.......4.5kg
Fan performance* according to
EN 61591
Extraction power with Edge extraction
panels, C 150 mm air extraction
ducting:
Level I ...................190m
Level 2...................290m
Level 3...................390m
Intensive setting ...........620m
3
/h
3
/h
3
/h
3
/h
Declaration of Conformity
Miele hereby declares that the cooker
hoods listed on the front of this booklet
comply with the basic requirements
and other relevant regulations of
Guideline 1999/5/EC.
A copy of the full Declaration of
Conformity can be obtained from the
address on the back page.
* For ...EXT models the connected load
and extraction power will depend on
the type of external motor fitted.
Length of connection cable to external
motor......................1.85 m
363738
Page 37
Page 38
Page 39
39
Page 40
Alteration rights reserved / 2613
M.-Nr. 09 725 030 / 00
Loading...
