Miele 5856, KM 5854, KM 5864 User Manual

Operating and installation instructions

Ceramic hobs
KM 5854 / 5856
KM 5864

To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed and used for the
first time.

en-GB

M.-Nr. 07 570 930

2

Contents

Guide to the appliance .............................................5

Models ...........................................................5

KM 5854 .......................................................5

KM 5856 .......................................................6

KM 5864 .......................................................7

Control panel ......................................................8

Cooking zones ....................................................10

Special feature....................................................10

Warning and Safety instructions ....................................11

Caring for the environment.........................................17

Before using for the first time.......................................18

Cleaning for the first time............................................18

Before using for the first time.........................................18

How the cooking zones work .......................................19

Operation .......................................................20

How the hob is operated ............................................20

Switching on .....................................................21

Power level range .................................................22

Auto heat-up .....................................................23

Switching on the extended cooking area ...............................25

Switching off and residual heat indicators...............................27

Suitable pans ....................................................28

Tips on saving energy ............................................29

Timer ...........................................................30

Minute minder ....................................................31

To switch a cooking zone off automatically ..............................34

To use both timer functions at the same time ............................35

3

Contents

Safety features ...................................................36

Safety lock / System lock ...........................................36

Stop and Go......................................................37

Safety switch-off...................................................38

Overheating protection .............................................39

Cleaning and care ................................................40

Programming ....................................................42

Problem solving guide ............................................45

To test the power level ............................................49

Optional accessories..............................................51

Con|ctivity and Miele|home.......................................55

Signing on the hob.................................................55

Signing off the hob.................................................56

Safety instructions for installation...................................57

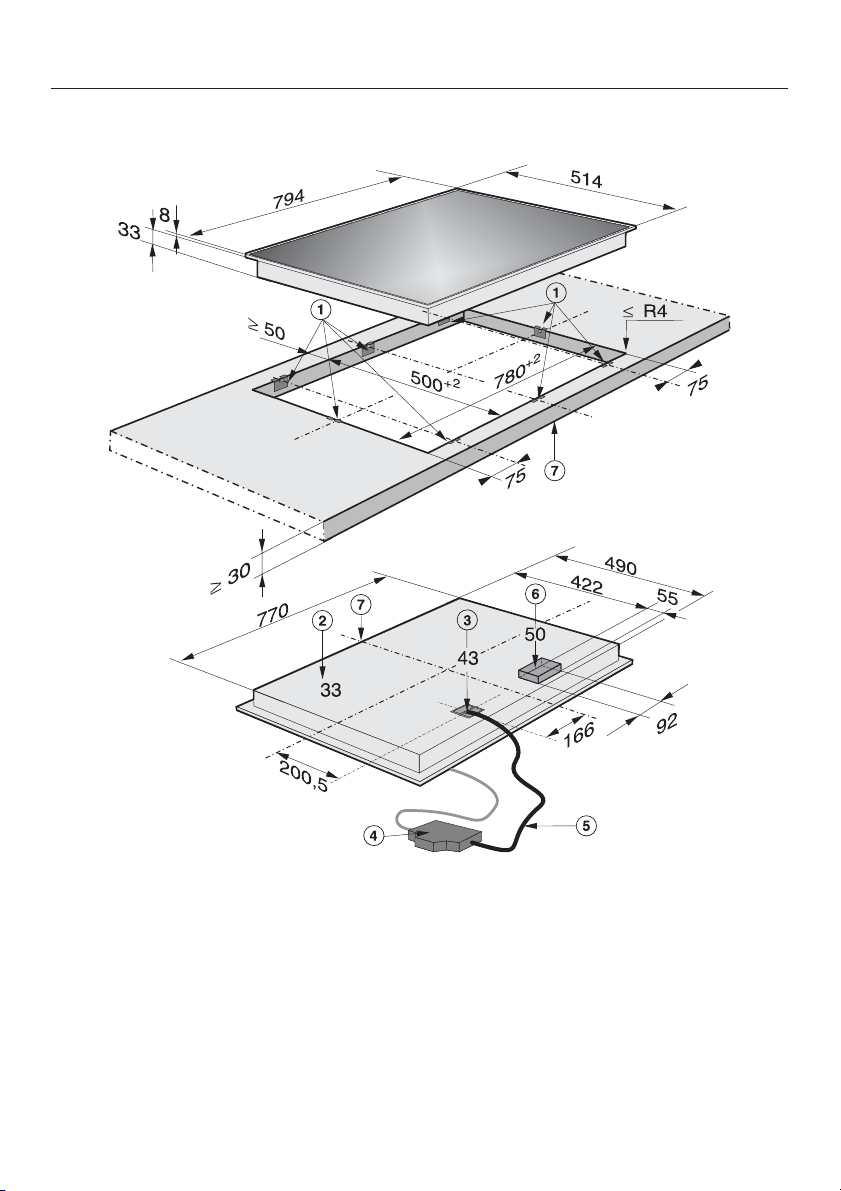

Building-in dimensions ...........................................62

KM 5854.........................................................62

KM 5856.........................................................63

KM 5864.........................................................64

Installation ......................................................65

External mains connection box .....................................68

Electrical connection..............................................69

Wiring diagram ...................................................70

After sales service, data plate ......................................71

4

Models

KM 5854

Guide to the appliance

ac Double circle zones

bd Single circle zones

e Single circle zone, can link with

d to make a combination extended zone

f Control panel

5

Guide to the appliance

KM 5856

ac Double circle zones

bd Single circle zones

e Single circle zone, can link with

d to make a combination extended zone

f Control panel

6

KM 5864

Guide to the appliance

bd Single circle zones

b Double circle zone

c Triple circle zone

e Single circle zone, can link with

d to make a combination extended zone

f Control panel

7

Guide to the appliance

h

Control panel

m

k
h

b
l

b

0

0

12

12

88

j

f
g

0

12

5

3

6

4

8

7

5

3

9

6

4

0

12

9

8

7

5

3

6

4

9

8

7

e

b
d

5

3

6

4

9

8

7

c

a

i

0

12

5

3

6

4

9

8

7

b

8

Guide to the appliance

Sensors for

a Switching the hob on and off

b Setting the power level

c Safety lock

d Switching on the extended cooking area

e - Setting the time

- Setting the power level for the middle rear cooking zone, if present

f Stop and Go

g - Selecting the timer

- Switching between the timer functions

- Selecting the switch off time (see "Switching off a cooking zone automatically")

h Hour function

Indicator lamps

i Safety lock

j Indicator lamp for relevant zone, e.g. the rear right cooking zone

k Indicator lamp for half hours with a minute minder time of more than 99 minutes

l Residual heat indicators

m Timer display

00 to 99 = Time in minutes

0.^ to 9^ = Time in hours
PS = Programming (see "Programming")

9

Guide to the appliance

Cooking zones

Zone KM 5856 KM 5854

C in cm Rating in

watts for 230

V

y 10.0 / 18.0 600 / 1800 12.0 / 21.0 750 / 2200

w 14.5 1200 14.5 1200

b 12.0 / 21.0 750 / 2200 14.5 / 23.0 1500 / 3200

x 18.0 1800 18.0 1800

z 18.0 1800 18.0 1800

z + x 18.0 x 41.0 4000 18.0 x 41.0 3900

Total: 9200 Total: 10500

Zone KM 5864

C in cm Rating in watts for 230 V

y 12.0 / 21.0 750 / 2200

w 14.5 1200

b 14.5 / 21.0 / 27.0 1050 / 2050 / 3200

x 18.0 1800

C in cm Rating in

watts for 230

V

z 18.0 1800

z + x 18.0 x 41.0 3900

Total: 10500

Special feature

Hobs bearing the < symbol in the top left-hand corner are suitable for connecting
to the Miele|home system (see "Optional accessories").

10

Warning and Safety instructions

This hob complies with all relevant
local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.

To avoid the risk of accidents and
damage to the hob, please read
these instructions carefully before
installation and before using it for
the first time. They contain important
notes on installation, safety, use and
maintenance.

Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

Correct application

This hob is not designed for

~

commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:

Shops

–

Offices and showrooms

–

and by residents in establishments
such as:

Hostels and guest houses.

–

This hob is intended for domestic

~

use only to cook food and keep it warm.
Any other use is not supported by the
manufacturer and could be dangerous.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.

This hob is not intended for outdoor

~

use.

This hob is not intended for use by

~

people with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it by a person
responsible for their safety.

11

Warning and Safety instructions

Safety with children

Use the safety lock to prevent

~

children operating the hob or altering
the settings.

Keep children away from the hob at

~

all times. It is not a toy! To avoid the risk
of injury, do not allow them to play with
it or use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.

Older children may use the hob only

~

when its operation has been clearly
explained to them and they are able to
use it safely, recognising the dangers
of misuse.

The hob gets hot when in use and

~

remains hot for quite a while after being
switched off. To safeguard against
burning, keep children well away from
the appliance at all times.

Packaging, e.g. cling film,

~

polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.

Do not store anything which might

~

arouse a child's interest in storage
areas above or next to the hob.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.

Keep all pans out of reach of

~

children. Turn pan handles inwards
away from the edge of the hob. Danger
of burning or scalding. Special hob
guards are available from good retail
outlets.

12

Warning and Safety instructions

Technical safety

Before installation, check the hob for

~

visible signs of damage. Do not install
and use a damaged appliance. It could
be dangerous.

The electrical safety of this hob can

~

only be guaranteed if correctly earthed.
It is most important that this basic
safety requirement is observed and
regularly tested, and where there is any
doubt, the electrical system in the
house should be inspected by a
qualified electrician. Miele cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).

Before connecting the hob, make

~

sure that the connection data on the
data plate (voltage and frequency)
match the mains electricity supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.

For safety reasons, this hob may

~

only be used after it has been built in.

Do not open the casing of the hob.

~

Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.

Installation, maintenance and

~

repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. Miele
cannot be held liable for unauthorised
work.

During installation, maintenance and

~

repair work, the hob must be
disconnected from the mains electricity
supply.
Ensure that power is not supplied to the
appliance until after it has been
installed or until after any maintenance
or repair work has been carried out.

If the hob is fitted with a

~

communication module, in addition to
disconnecting the hob, this module
must also be disconnected from the
mains electricity during installation and
maintenance of the hob as well as while
any repair work is being carried out.
Ensure that power is not supplied to the
hob or the communication module until
the hob has been installed or until after
any maintenance or repair work has
been carried out.

While the hob is under guarantee,

~

repairs should only be undertaken by a
service technician authorised by Miele.
Otherwise the guarantee is invalidated.

13

Warning and Safety instructions

Faulty components must only be

~

replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the hob when
Miele replacement parts are used.

If the connection cable is damaged,

~

it must be replaced by a suitably
qualified electrician with a specialist
connection cable of type H 05 V V-F
(pvc insulated), available from Miele.

Do not connect the hob to the mains

~

electricity supply by a multi-socket
adapter or an extension lead. These do
not guarantee the required safety of the
appliance (e.g. danger of overheating).

Do not use the hob if it is faulty, or if

~

the ceramic surface is cracked,
chipped or damaged in any way.
Switch it off immediately, and
disconnect it from the mains electricity
supply. Danger of electric shock.

In areas which may be subject to

~

infestation by cockroaches or other
vermin, pay particular attention to
keeping the hob and its surroundings in
a clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.

Correct use

The hob gets hot when in use and

~

remains hot for quite a while after being
switched off. There is a danger of
burning until the residual heat
indicators go out.

Do not leave the hob unattended

~

whilst it is in use.
Pans that have boiled dry can cause
damage to the ceramic surface for
which Miele cannot be held liable.
Boiling fat or oil could ignite and cause
a fire.

If oil or fat does catch fire, do not

~

attempt to put out the flames with water.
Use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the
flames.

Do not use the hob to heat up the

~

room. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.

The control panel and the hob frame

~

or hob edges (on hobs with bevelled
edges) can become hot due to the
influence of the following factors:
operating duration, high power level(s),
large pans and the number of cooking
zones being used.

14

Use heat-resistant pot holders or

~

gloves when using the hob. Do not let
them get damp or wet, as this causes
heat to transfer through the material
more quickly with the risk of scalding or
burning yourself.

Warning and Safety instructions

Do not flambé under a cooker hood.

~

The flames could set the cooker hood
on fire.

Do not use the hob as a resting

~

place for anything. When the appliance
is switched on either deliberately or by
mistake, or when there is residual heat
present, there is the risk of metal
objects heating up, with a danger of
burning.
Depending on the material, other
objects left on the hob could also melt
or catch fire.
Damp pan lids might adhere to the
ceramic surface and be difficult to
dislodge.
Switch the cooking zones off after use.

Do not cover the hob, e. g. with a

~

hob cover, a cloth or protective foil.
This could present a fire hazard if the
appliance is switched on by mistake or
it is still warm.

Do not use plastic or aluminium foil

~

containers. These melt at high
temperatures and could catch fire.

Do not heat up unopened tins of

~

food on the hob, as pressure will build
up in the tin, causing it to explode. This
could result in injury and scalding or
damage.

Do not use pots and pans on the

~

ceramic hob with bases with
pronounced edges or ridges, e.g. cast
iron pans. These could scratch or scour
the hob surface permanently.

Aluminium pans or pans with an

~

aluminium base can cause metallic,
shiny marks to appear on the ceramic
surface. These marks can be removed

using a ceramic and stainless steel hob
cleaner (see "Cleaning and care").

Never heat an empty pan unless the

~

manufacturer of the pan expressly
states that you can do so. This could
damage the hob.

Keep the hob clean. Grains of salt,

~

sugar and sand (e.g. from cleaning
vegetables) can cause scratches.

Never place hot pans on the area

~

around the controls. The electronic unit
underneath could get damaged.

Do not drop anything on the ceramic

~

surface. Even a light object could
cause damage in certain
circumstances.

To prevent the risk of spillages etc.

~

burning on, remove any soiling as
quickly as possible and ensure that pan
bases are clean, dry and free of
grease.

Do not allow either solid or liquid

~

sugar, or pieces of plastic or aluminium
foil to get onto the cooking zones when
they are hot. If this should occur, switch
off the hob, and carefully scrape off all
the sugar, plastic or aluminium residues
from the hob whilst they are still hot,
using a shielded scraper blade.
Take care not to burn yourself.
If residues are allowed to cool before
being removed, the ceramic surface
would be susceptible to pitting or even
cracking.
Clean the appliance once it has cooled
down.

15

Warning and Safety instructions

When using an electrical appliance,

~

e.g. a hand-held food blender, near the
hob, ensure that the cable of the
electrical appliance cannot come into
contact with the hot hob. The insulation
on the cable could become damaged,
giving rise to an electric shock hazard.

Spray canisters, aerosols and other

~

inflammable substances should not be
stored in a drawer under the hob.
Cutlery inserts must be heat-resistant.

Always ensure that food is

~

sufficiently cooked or reheated. Some
foods may contain micro-organisms
which are only destroyed by thorough
cooking at a sufficiently high
temperature for long enough.
Therefore, when cooking or reheating
food such as poultry, it is particularly
important that the food is completely
cooked through. If in doubt, select a
longer cooking or reheating time.

If the hob is installed behind a

~

kitchen furniture door, it may only be
used with the furniture door open.
Only close the door when the appliance
is switched off and the residual heat
indicators have gone out.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

16

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.

Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.

Disposal of your old appliance

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.

Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

17

Before using for the first time

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service, data plate" section of this booklet.

Cleaning for the first time

Remove any protective wrapping and adhesive labels.

^

Before using for the first time, clean the appliance with a

^

damp cloth only and then wipe dry.

Before using for the first time

On hobs with bevelled glass edges, a small gap may be
visible between the hob and the worktop during the first
few days after installation. This gap will reduce with time as
the appliance is used and will not affect the electrical
safety of your appliance.

The metal components have a protective coating which may
give off a slight smell when heated up for the first time.

The smell and any vapours given off do not indicate a faulty
connection or appliance, and they are not harmful to health.

18

Single circle zone

How the cooking zones work

Single circle cooking zones have one heating element, whilst
double circle (vario) cooking zones and extended zones have
two. Depending on model, the heating elements may be
separated by an isolating ring.

Each cooking zone has overheating protection (a
temperature limiter), which stops the ceramic surface from
becoming too hot (see "Overheating protection").

When a power level is selected, the heat switches on and the
element can be seen through the ceramic surface.

The temperature of the cooking zones depends on the power
level selected, and is electronically regulated. This controls
the "timing" of a cooking zone, switching the element on and
off.

a Overheating protection

b Heating element

Double circle zone

a Intentional gap

b Overheating protection

c Outer heating element

d Isolating ring

e Inner heating element

19

Operation

How the hob is operated

The hob is equipped with electronic sensor controls which
react to finger contact.

When the hob is switched off only the symbols for the sensors
for switching the hob on and off and the safety lock are
visible. When the hob is switched on all the other sensors
light up as well. The "0" on the numerical keypad lights up
more brightly than the other numbers.

To operate the hob, touch the relevant sensor. Each time you
touch a sensor, an audible tone sounds.

Take care to keep the control panel clean and do not
place anything on top of it. The sensors may fail to react or
they could mistake the article or any dirt for a fingertip
contact, thereby activating a function or even causing the
hob to switch off automatically (see "Safety switch-off".)

Never place hot pans on the sensors. The electronic unit
underneath could get damaged.

20

Switching on

The hob must be switched on before any of the zones can be
used.

Do not leave the appliance unattended whilst it is being
used.

To switch the hob on

Touch the s sensor.

^

All the sensors will light up. The "0" on the numerical keypad
will light up more brightly than the other numbers. If no further
entry is made, the hob will switch itself off after a few seconds
for safety reasons.

Activating the cooking zones

A cooking zone is not active if only the "0" is lit up in the
numerical keypad. Touch the "0" to activate the zone. All the
power levels will light up.

Setting the power level

Operation

Standard power level range

^ Touch the appropriate number on the numerical keypad of

the cooking zone you wish to use.

For example, if you have selected power level 7, the numbers
0 to 7 will light up more brightly than the other numbers.

Extended power level range

(see "Power level range")

^

Touch the area between the numbers.

For example, if you have selected power level 7+, the
numbers 7 and 8 will light up more brightly than the other
numbers.

Altering the power level

^

Touch the appropriate number on the numerical keypad of
the cooking zone you wish to use.

21

Operation

Power level range

The appliance is delivered with 9 power levels programmed in. If you wish to fine
tune a setting, you can extend the power level range (see "Programming").

Cooking process Power levels*

Standard
factory settings
(9 power levels)

Melting butter, chocolate etc.
Dissolving gelatine
Preparing yoghurt

Thickening sauces containing egg yolk and butter
Warming small quantities of food/liquid
Keeping warm food which sticks easily
Cooking rice

Warming liquid and semi-solid foods
Thickening sauces, e.g. Hollandaise
Making porridge
Preparing omelettes, lightly fried eggs
Steaming fruit

Defrosting deep frozen food
Steaming vegetables, fish
Cooking dumplings, potatoes, pulses
Cooking broths, pulse soups

Bringing to the boil and continued cooking of large quantities
of food

Gentle braising (without overheating the fat) of meat, fish,
vegetables, fried eggs etc.

Frying pancakes etc. 7 to 8 7 to 8+

Boiling large quantities of water
Bringing to the boil

1to2 1to2+

1to3 1to2+

2to4 2to4+

3to5 3to5+

55+

6to7 6to7+

8 to 9 8+ to 9

Extended

settings

(17 power levels)

* These power levels, which envisage approx. 4 servings, should only be taken as a guide.

With deep pans, larger quantities or when cooking without a lid, a higher setting is required.
For smaller quantities, select a lower setting.

22

Auto heat-up

Activating

Operation

When Auto heat-up has been activated, the cooking zone
switches on automatically at the highest power setting and
then switches to the continued cooking setting selected. The
heat-up time depends on which continued cooking setting
has been chosen (see chart).

As the higher continued cooking settings are generally used
for frying food, only a relatively short heat-up time is needed
to heat up the pan initially.

Touch the number of the continued cooking setting you

^

require until a tone sounds and the continued cooking
setting selected starts flashing.

The continued cooking setting selected will flash during the
heat-up time.

Altering the continued cooking setting will deactivate auto
heat-up.

If the range of power settings has been extended (see
"Programming") and one of the intermediate continued
cooking settings has been selected (e.g. 3+) the power level
before and after the intermediate setting will flash (e.g. 3 and

4).

Deactivating

You can switch off auto heat-up before the auto heat-up time
has finished.

^

Touch the continued cooking setting which has been
selected until the display lights up constantly or select a
different power level.

23

Operation

Continued

cooking setting*

1 1:20

1+ 2:00

2 2:45

2+ 3:25

3 4:05

3+ 4:45

4 5:30

4+ 6:10

5 6:50

5+ 7:10

6 1:20

6+ 2:00

7 2:45

7+ 2:45

8 2:45

Heat-up time

in minutes and seconds (approx.)

24

8+ 2:45

9-

* *The continued cooking settings with + after the number

are only available if the power level range has been
extended (see "Programming").

Switching on the extended cooking area

When cooking with larger pans, the outer circle of a double
circle/extended zone (see "Guide to the appliance") can be
switched on to provide an extended cooking area.
For hobs with a combination extended zone, two cooking
zones (one behind the other) are switched on together with
the heating element located between them. The combination
extended zone is operated via the front right cooking zone.

When the outer circle is switched on the sensor for the
extended cooking area lights up more brightly than normal.
For hobs with a triple circle zone (depending on model), no
distinction is made in the display between the second and
third heating element.

The extended cooking area will switch off when the cooking
zone is switched off.

Double circle zone / Extended zone

^ Touch the "0" on the numerical keypad for the cooking zone

you wish to use.

^ Set the power level you want by touching the appropriate

number.

Operation

^ Touch the sensor for the double circle / extended zone.

Combination extended zone (depending on model)

^

Touch the "0" on the numerical keypad for the front right
cooking zone.

^

Set the power level you want by touching the appropriate
number.

^

Touch the sensor for the extended zone.

The power level set will appear in the numerical keypad for
the front right zone. The numerical keypad for the rear right
zone will go out.

25

Operation

Triple circle zone (depending on model)

Touch the "0" on the numerical keypad for the cooking zone

^

you wish to use.

Set the power level you want by touching the appropriate

^

number.

Touch the sensor for the extended zone repeatedly until the

^

number of circles you want is switched on.

Switching off the extended cooking area

Touch the sensor for the extended area repeatedly until the

^

indicator lamp goes out.

26

Switching off and residual heat indicators

Switching off a cooking zone

Touch the "0" on the numerical keypad for the cooking zone

^

you wish to use.

The numbers 1 to 9 will go out after a few seconds. If the
cooking zone is still hot, residual heat will then be indicated in
the display.

Switching off the hob

Touch the s sensor.

^

This switches off all cooking zones. The numbers 1 to 9 will
go out after a few seconds. The residual heat indicator will
appear in the display of any cooking zone which is still hot.

The lines of the residual heat indicator go out one after
another as the cooking zone cools down. The last horizontal
line only goes out when the cooking zone is safe to touch.

Do not touch or place any heat-sensitive objects on the
cooking zones while the residual heat indicators are on.
Danger of burning and fire hazard.

Operation

If there is an interruption to the power supply, the residual
heat indicators will flash on and off.

27

Suitable pans

Most suitable

–

The best pans for use on a ceramic hob are those with a
thick base which is very slightly concave when cold. When
heated, the base flattens to rest evenly on the hob,
optimising the conduction of the heat.

cold hot

Less suitable

–

Pans made of glass, ceramic or stoneware are less
suitable, as they do not conduct the heat so well.

– Not suitable

Dishes or containers made from plastic or aluminium foil
must not be used as these melt at high temperatures.

– Aluminium pans or pans with an aluminium base can

cause metallic, shiny marks to appear on the ceramic
surface. These marks can be removed using a ceramic
and stainless steel hob cleaner (see "Cleaning and care").

28

– Do not use pots and pans on the ceramic hob with bases

with pronounced edges or ridges, e.g. cast iron pans.
These could scratch or scour the hob surface permanently.

–

Lift pans into position on the hob. Sliding them into place
can cause scuffs and scratches.

–

Often the maximum diameter quoted by manufacturers
refers to the diameter of the top rim of the pot or pan. The
diameter of the base (generally smaller) is more important.

Tips on saving energy

Check that the diameter of the pan base is wide enough

–

for the cooking zone so that heat is not lost unnecessarily.

too small suitable

Use a pan lid whenever possible to minimise heat loss.

–

uncovered covered

– Select a smaller pan when cooking small quantities. A

small pan on a small cooking zone uses less energy than a
large, partially filled pan on a large cooking zone.

– Cook with as little water as possible.

– Once food has come to the boil or the oil in the pan is hot

enough for frying, reduce the heat to a lower setting.

–

When cooking for a long time, switch the cooking zone off
about 5 to 10 minutes before the end of the cooking time.
In this way, use is made of the residual heat.

–

Cooking times are greatly reduced when using a pressure
cooker.

29

Timer

h

The hob must be switched on to use the timer.

The timer can be used for two different functions:

to set the minute minder

–

to set a cooking zone to switch off automatically.

–

You can select a time from 1 minute (01) to 9 hours (9^).

A time of up to 99 minutes is set and displayed in minutes.
Example:

To set a time of more than 99 minutes, the timer must be set
to hours (h). The time is then set in half hour stages. The half
hour is indicated by a dot after the number.
Example (2 h 30 min):

When the set time has elapsed 00 will appear in the timer
display. At the same time an audible tone will sound for a few
seconds.

30

Minute minder

h

h

h

To set the minute minder time

Minutes

Example: You want to set 15 minutes.

Switch the hob on.

^

Touch the m sensor.

^

The m indicator lamp will flash. 00 will appear in the timer
display. The 0 on the right will flash.

Enter the tens first and then the units.

^ Touch the number on the numerical keypad which

corresponds to the tens position (1 in this case).

The timer display will change and 1 will start flashing.

Timer

^

Touch the number on the numerical keypad which
corresponds to the units position (5 in this case).

The timer display will change. The 1 moves to the left and 5
appears on the right.

After a few seconds the m sensor will light up constantly and
the minute minder time will begin to count down.

31

Timer

hhh

Hours

Whole hours are set by touching the relevant number on the
numerical keypad.
Half hours are set by touching the area between the relevant
two numbers.
Example: You want to set 2 hours 30 minutes.

Switch the hob on.

^

Touch the m sensor.

^

The m indicator lamp will flash. 00 will appear in the timer
display. The 0 on the right will flash.

^ Touch the h sensor, to change the display to show the

hours.

^

Touch the area between the numbers 2 and 3 on the
numerical keypad.

After a few seconds the m sensor and the timer display will
light up constantly. The minute minder time will begin to count
down.

32

To change the minute minder time

Touch the m sensor.

^

Set the time you want, as described above.

^

To delete the minute minder time

Touch the m sensor.

^

Touch 0 on the numerical keypad.

^

Timer

33

Timer

To switch a cooking zone off automatically

You can set a time at the end of which a cooking zone will
switch off automatically.
All the cooking zones can be programmed at the same time.

If the time programmed is longer than the maximum
operational time allowed, the cooking zone will switch off
after the maximum time allowed (see "Safety switch-off").

Select a power level for the cooking zone you want.

^

Touch the m sensor repeatedly until the indicator lamp for

^

this cooking zone flashes.

If more than one cooking zone is switched on, the indicator
lamps will flash clockwise beginning with the front left zone.

^ Set the time you want.

The time set will then count down in minutes. The time
remaining will be shown in the timer display. You can change
this at any time.

If you want to set another cooking zone to switch off
automatically, follow the same steps as described above.

34

If more than one switch-off time is programmed, the shortest
time remaining will show in the display, and the
corresponding indicator lamp will flash. All the other indicator
lamps will light up constantly. If you want to check on the time
remaining for another zone, touch the m sensor repeatedly
until the indicator lamp for the zone you want flashes.

To use both timer functions at the same time

The minute minder and automatic switch-off functions can be
used at the same time.

If you have programmed in one or more switch-off times, and
would like to use the minute minder as well:
Touch the m sensor repeatedly until the indicator lamps for
the cooking zones you have programmed light up constantly
and 00 appears in the timer display.

If you are using the minute minder, and would like to
programme in one or more switch-off times as well:
Touch the m sensor repeatedly until the indicator lamp for
the cooking zone you want flashes.

Shortly after the last entry, the timer display switches to the
function with the shortest remaining time.
If you want to show the times remaining which are counting
down in the background, touch the m repeatedly until

- the indicator lamp for the cooking zone you want flashes
(automatic switch-off).

- only the timer display is flashing (minute minder).

Starting with the shortest time remaining which is shown in
the display, all cooking zones which are switched on and the
minute minder are selected clockwise.

Timer

35

Safety features

Safety lock / System lock

Keep children away from the hob for their own safety.

Your appliance is equipped with a safety lock to prevent the
hob and the cooking zones being switched on or any settings
being altered.

The safety lock is activated when the hob is switched on. If
the safety lock is activated:

The cooking zone power levels and the timer settings

–

cannot be changed.

The cooking zones, the hob and the timer can be switched

–

off, but once switched off cannot be switched on again.

The system lock is activated when the hob is switched off. If
the system lock is activated, the hob cannot be switched on
and the timer cannot be used.

The hob is programmed in such a way that activating the
system lock has to be done manually. The setting can be
changed so that the system lock is activated automatically
five minutes after the hob has been switched off, providing it
is not activated manually (see "Programming").

Activating

Deactivating

36

If an unavailable sensor is touched whilst the Safety lock or
System lock are activated, the indicator lamp will come.

If there is an interruption to the power supply, the safety
lock and the system lock will be deactivated.

^

Touch the $ sensor until the relevant indicator lamp comes
on.

The indicator lamp will go out after a short while.

You can alter the setting from one-finger to three-finger
operation (see "Programming") to make it harder for children
to operate the appliance.

^

Touch the $ sensor until the indicator lamp goes out.

Stop and Go

Activating

Safety features

Your appliance has a Stop and Go feature which, when
activated, reduces the power of all cooking zones in use to
power level 1. When Stop and Go activated, the cooking zone
power levels and the setting of the timer cannot be altered
and the hob can only be switched off.

When Stop and Go is deactivated, the cooking zones resume
at the power level which was last set.
If Stop and Go is not deactivated, the hob switches off after 1
hour.

When Stop and Go is activated

- the countdown of a time programmed in for automatic

switch-off will be interrupted. When deactivated, the time
will continue to run.

- the minute minder will continue without interruption.

^ Touch the  sensor.

The power of the cooking zones in use will be reduced to
power level 1.

Deactivating

^ Touch the  sensor.

The cooking zones will resume operating at the power levels
previously set.

37

Safety features

Safety switch-off

Safety switch-off with an over-long cooking time

If one of the cooking zones is heated for an unusually long
period of time (see chart) and the power level is not altered,
the hob will switch itself off automatically and the relevant
residual heat indicator will light up.

To use the cooking zone again, switch it back on in the usual
way.

Power level* Maximum operating time in hours

1/1+ 10

2/2+ 5

3/3+ 5

4/4+ 4

5/5+ 3

6/6+ 2

7/7+ 2

8/8+ 2

91

* The continued cooking settings with + after the number are

only available if the power level range has been extended
(see "Programming").

Safety switch-off if the sensors are covered

Your hob will switch off automatically if one or several of the
sensors remain covered for more than about 10 seconds, for
example by finger contact, food boiling over, or by an object
such as an oven glove or a tea towel.
An F will flash in the timer display. At the same time a tone will
sound every 30 seconds (for a maximum of 10 minutes).

^

Clean the control panel or remove the obstruction.

This will turn off the tone and the F will go out. You can now
use the hob again.

38

Overheating protection

Each zone is equipped with overheating protection (internal
temperature limiter). This switches off the heating elements in
the cooking zone before the ceramic surface overheats.

If the heating element switches on and off even when the
highest power level is selected, this indicates that the
overheating protection mechanism has triggered.

Once the ceramic surface has cooled down to a safe level,
the heating element will automatically switch back on again.

Overheating can be caused by:

a cooking zone being switched on without a pan on it.

–

heating up an empty pan.

–

– the base of a pan not sitting evenly on the cooking zone.

– the pan not conducting heat properly.

Safety features

39

Cleaning and care

For Miele branded cleaning and conditioning products see
"Optional accessories".

,

appliance. The steam could reach electrical components
and cause a short circuit.

The appliance should be cleaned after each use. Let it cool
down to room temperature before cleaning.
To avoid water marks and limescale deposits, use a soft cloth
to dry surfaces that have been cleaned with water.

To avoid damaging the surface of your appliance, do not
use:

washing-up liquid,

–

– cleaning agents containing soda, alkalines, ammonia,

acids or chlorides,

– cleaning agents containing descaling agents,

– stain or rust removers,

– abrasive cleaning agents, e.g. powder cleaners and cream

cleaners,

Do not use a steam cleaning appliance to clean this

40

– solvent-based cleaning agents,

–

dishwasher cleaner,

–

grill and oven cleaners,

–

glass cleaning agents,

–

hard, abrasive brushes or sponges, e.g. pot scourers,
brushes or sponges which have been previously used with
abrasive cleaning agents,

–

melamine eraser blocks,

–

sharp, pointed objects which could damage the seal
between the ceramic surface and the surrounding frame,
and between the frame and the worktop.

Cleaning and care

Do not use washing-up liquid to clean the ceramic surface.
Washing-up liquid will not remove all soiling and deposits.
It will form an invisible coating which will cause permanent
discolouration of the ceramic surface.
Clean the hob regularly with a suitable ceramic hob
cleaner.

Wipe all coarse soiling off using a damp cloth. Stubborn
soiling may need to be removed with a shielded scraper
blade.

Then clean the hob with Miele ceramic and stainless steel
hob cleaner (see "Optional accessories") applied with kitchen
paper or a clean cloth. Do not apply cleaner whilst the hob is
still hot, as this could result in marking. Please follow the
manufacturer's instructions.

Finally, wipe the hob with a damp cloth, then polish with a
soft, dry cloth. Ensure that all cleaner residues are removed.
Residues can burn onto the hob the next time it is used, and
cause damage to the ceramic surface.

Spots caused by limescale, water and aluminium residues
(spots with a metallic appearance) can be removed using
Miele's ceramic and stainless steel hob cleaner.

Should any sugar, plastic or aluminium foil spill or fall onto
a hot cooking zone while it is in use, first switch off the
appliance. Then carefully scrape off all the sugar, plastic or
aluminium residues from the hob whilst they are still hot,
using a shielded scraper blade. Take care not to burn
yourself.
Allow the appliance to cool down, and then clean as
described above.

41

Programming

You can change the default settings of programme options
(see chart). Several settings can be altered in succession.

After programming mode has been called up, P (Programme)
and S (Status) will appear in the timer display. On hobs with 3
cooking zones, an additional indicator will appear at the rear
left.

The programme is shown in the numerical keypad displays at
the front left and rear left. Example:
Programme 3 = front left 3, rear left 0
Programme 14 = front left 4, rear left 1

The status is shown in the numerical keypad display at the
rear right.

To call up programming mode

^ With the hob switched off, touch the s and $ sensors at

the same time until the safety lock indicator lamp flashes.

To set the programme setting

^ To set the units position touch the relevant number on the

front left numerical keypad.

^ To set the tens position touch the relevant number on the

rear left numerical keypad.

To set the status setting

^

Touch the appropriate number on the front right numerical
keypad.

To save settings

^

Touch the s sensor until all the displays go out.

To not save settings

^

Touch the $ sensor until all the displays go out.

42

Programme* Status** Setting

Programming

P0Demonstration mode and

factory default settings

P2Power level range S0 9 power levels/settings

P4Keypad tone when a

sensor is touched

P5Audible tone for the timer S 0 Off

P6Safety lock S0 One-finger locking using $

S 0 Demonstration mode on

S1 Demonstration mode off

S 9 Factory default settings reinstated

(1, 2, 3 ... to 9)

S 1 17 power levels/settings

(1, 1+, 2, 2+, 3 ... to 9)

S 0 Off

S 1 Quiet

S2 Medium

S 3 Loud

S 1 Quiet audible tone on for 10

seconds

S2 Medium audible tone on for 10

seconds

S 3 Loud audible tone on for 10

seconds

S 1 Three-finger locking using $ and

"0" on the two right-hand cooking
zones

P7System lock S0 Manual activation of the system

lock

S 1 Automatic activation of the

system lock

* Programme /Status numbers not shown here have no allocation.

** The factory default settings are shown in bold.

43

Programming

Programme* Status** Setting

P8 Auto heat-up S 0 Off

S1 On

P10Miele|home

- only on
communication-enabled
appliances fitted with a
communication module.

P11Outer circle of the front

left cooking zone

P12Outer circle of the front

right cooking zone

P13Outer circle of the rear

right cooking zone

P14Outer circle of the rear

middle cooking zone

P16Sensor reaction speed S 0 Slow

S0 Feature not fitted

S 1 Signed off

S 2 Signed on

S0 Not switched on at the same time

S 1 Always switched on at the same

time

S0 Not switched on at the same time

S 1 Always switched on at the same

time

S0 Not switched on at the same time

S 1 Always switched on at the same

time

S0 Not switched on at the same time

S 1 Always switched on at the same

time

S1 Normal (300 ms)

S 2 Rapid

* Programmes not shown here have no allocation.

** The factory default settings are shown in bold.

44

Problem solving guide

With the help of the following notes, minor faults in the performance of the
appliance, some of which may result from incorrect operation can be put right
without contacting the Service Department.

Installation work and repairs to electrical appliances must only be carried

,

out by a suitably qualified and competent person in strict accordance with
current local and national safety regulations (BS 7671 in the UK). Repairs and
other work by unqualified persons could be dangerous. The manufacturer
cannot be held liable for unauthorised work.

Problem Possible cause Remedy

The hob or cooking
zones cannot be
switched on.

The system lock is
activated.

The mains fuse has tripped. Reset the trip switch in the

There may be a technical
fault.

Deactivate the system lock
(see "Safety lock / System
lock").

mains fuse box (minimum
fuse rating - see data
plate).

Disconnect the appliance
from the electricity supply
for approx. 1 minute.

– switch off at the wall

socket and withdraw the
plug, or

–

switch off at the isolator,
or

–

disconnect the mains
fuse.

Reset the trip switch in the
mains fuse box, and switch
the appliance back on. If it
still will not switch on,
contact a qualified
electrician or the Miele
Service Department.

45

Problem solving guide

Problem Possible cause Remedy

After the hob is
switched on "dE"
appears in the timer
display for a few
seconds.
The cooking zones do
not heat up.

The hob switches off
while it is use.

The heating element for
one of the cooking
zones switches on and
off.

The appliance is in
demonstration mode.

One of the cooking zones
has probably been on for
too long.

Power levels 1 to 8: This
is not a fault.

Power level 9:
This indicates a fault. The
overheating protection
mechanism has
triggered.

Deactivate demonstration
mode (see
"Programming").

No remedy necessary.
You can use the cooking
zones again by switching
them back on (see
"Safety switch-off").

No remedy necessary.
This is quite normal, and
due to the electronic
regulation of the
temperature (see "How
the cooking zones work").

No remedy necessary.
The overheating
protection mechanism
switches the cooking
zone off automatically
before the ceramic
surface overheats. Once
the ceramic surface has
cooled down to a safe
level, the heating element
will automatically switch
back on again (see
"Overheating protection").

46

Problem solving guide

Problem Possible cause Remedy

The hob switches off
while it is in use, an F
flashes in the timer
display and a tone
sounds.

The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched
on.

One or more residual
heat indicators are
flashing.

One or more of the
sensors have been
covered, e.g. by finger
contact, food boiling
over or by an object
such as an oven glove.

There is too much food
in the pan.

The pan is not
conducting heat
properly.

There was an
interruption to the
power supply during
operation, and the hob
has switched itself off.

The residual heat
indicators have lit up
while the programming
mode was being called
up.

Clean the control panel or
remove the obstruction (see
"Safety switch-off").

Start cooking at the highest
power level and then turn
down to a lower one
manually later on.

Use a different pan.

No remedy necessary.
The hob can be used again.
Check how well the food is
cooked and if it has been
affected by the power failure
before switching the cooking
zone(s) back on again.

No remedy necessary.
The indicators will flash until
the maximum residual heat
time has elapsed or the
cooking zone is selected and
activated.

It is taking too long for
the contents of the pan
to come to the boil.

You can test the power level
of the cooking zone (see "To
test the power level").

47

Problem solving guide

Problem Possible cause Remedy

The sensors are
over-sensitive or do not
react at all.

FE flashes alternately
with numbers in the
timer display.

The sensitivity level of
the sensors has
changed.

A fault with the
electronics has
occurred.

Make sure that there is no
direct light (from the sun or
from an artificial source)
falling onto the hob and that
the surrounding area is not
too dark.

Make sure that there is
nothing covering the sensors
or the hob. Take any pans off
the hob and wipe away any
food deposits.

Interrupt the power supply to
the hob for approx. 1 minute.

If this does not solve the
problem, please call the
Miele Service department.

Interrupt the power supply to
the hob for approx. 1 minute.

If the problem persists after
reconnecting the appliance
to the power supply, please
contact the Miele Service
department.

48

To test the power level

You can test the power level of a cooking zone by measuring
how long it takes to bring a specific amount of water to the
boil.

The pan (and lid) must be stainless steel or enamel. The
diameter of the pan must match the cooking zone, and be
flat-bottomed or slightly concave.

Take a note of the diameter and wattage of the cooking

^

zone to be tested (see "Guide to the appliance - Cooking
zones").

Fill the pan with the quantity of water given in the table. The

^

temperature of the water should be approx. 20°C.

Put the lid on the pan and place the pan on the cooking

^

zone.

^ Switch on the cooking zone at the highest power level.

^ Note the time it takes for the water to boil.

The power level for the cooking zone is correct if the water
boils within the time given in the table.

The time can vary if:

- there is low or excess voltage.

- very cold water is used.

- an unsuitable pan is used.

- the pan is not covered.

49

To test the power level

C Cooking zone

in cm

10.0 600 0.5 11.0

12.0 700 / 750 1.0 13.0

12.0 1200** 1.0 11.0

14.5 1000 / 1100 1.0 9.0

14.5 1200 1.0 8.5

14.5 1500** 1.0 7.0

17.0 1500 1.5 9.5

18.0 1700 / 1800 1.5 9.0

21.0 2000 2.0 10.5

21.0 2200 / 2300 2.0 9.5

21.0 2900** 2.0 8.0

23.0 2500 2.0 9.0

23.0 3200** 2.0 7.5

27.0 2700 3.0 13.0

27.0 3200 3.0 12.0

Rating in watts for

230 V

Quantity of water

in litres

Time* in
minutes

27.0 3400** 3.0 11.5

* Max. time under unfavourable conditions

** ExtraSpeed cooking zone

50

Miele offer a comprehensive range of useful accessories as
well as cleaning and conditioning products for your
appliance.

These can be ordered online at:

or from Miele (see back cover for contact details)

Cleaning products

Ceramic and stainless steel hob cleaner
250 ml

Removes heavy soiling, limescale deposits and aluminium
residues.

Optional accessories

E-cloth (microfibre cloth)

Removes finger marks and light soiling.

51

Optional accessories

Miele|home system

The Miele{home system allows communication-enabled
appliances to send operating and status information to a
display appliance via the household electrical supply system
(Powerline Technology).

SuperVision appliances can display status information from
other domestic appliances. For your hob, the main status
displayed is: On, Off, Fault

Status information for domestic appliances can be displayed
and some controls operated within the home network area on
a PC, Notebook or iPod* / iPhone* (mobile terminals) via a
Miele|home Gateway.
For your hob, for example, the following information is
displayed: Setting of each cooking zone, minute minder,
switching off time for each cooking zone. The only available
control command is "switch hob off".

* * iPod und iPhone are registered trade marks of Apple Inc.

Con{ctivity is the communication between the hob and the
cooker hood. Operation of the cooker hood occurs
automatically in conjunction with the hob.
The hob sends information on its operating status via the
household electrical supply.

XKM 2100 KM

XGW 2000

52

To enjoy the benefits of this feature, your appliance needs to
be fitted with a communication module.

Please contact your dealer for detailed information about the
Miele|home system.

Communication module including installation accessories

- for Miele hobs -

Miele|home Gateway
The gateway is the bridge between the Powerline
communication of the appliances and your home network.

Miele|home

Optional accessories

a Communication enabled appliances (examples)

b Communication module

c SuperVision appliance

d Electrical supply (Powerline)

e Miele|home Gateway

f (WLAN) Router

Possible connections (optional)

g PC, Notebook

h iPod* or iPhone*

i Connection with a domestic bus system display

j Possible internet connection

* iPod und iPhone are registered trade marks of Apple Inc.

53

Optional accessories

Con|ctivity

a Communication module XKM 2000 DA

b Communication module XKM 2100 KM

c Electrical supply (Powerline)

54

Signing on the hob

If you want to sign the hob

–

–

^

After programming mode has been called up, P (Programme)
and S (Status) will appear in the timer display.

The programme number will appear on the left of the
numerical keypads and the status currently set will appear on
the right of the numerical keypads.

^ Touch number 1 on the rear left numerical keypad (set

^ Touch number 2 on the front right numerical keypad (set

Con|ctivity and Miele|home

on to the Miele{home system, first prepare the signing on
procedure on the master appliance (see the "Miele|home"
fitting and installation instructions)

on to the Con|ctivity system, first sign on the cooker
hood (see the "Con|ctivity" fitting and installation
instructions).

With the hob switched off, touch the s and $ sensors at
the same time until the safety lock indicator lamp flashes.

Programme 10).

Status 2 = Signed on).

The signing on process will begin and the number 2 will flash
in the front right numerical keypad. The signing on process
will take a few minutes. The number 2 will light up constantly
when the process has been completely successfully.

^

To save the setting, touch the s sensor until all the
displays go out.

^

Proceed as described in the "Miele|home" or Con|ctivity
fitting and installation instructions.

55

Con|ctivity and Miele|home

Signing off the hob

If you want to sign off from the Miele{home system, first
prepare the signing off procedure on the master appliance
(see the "Miele|home" fitting and installation instructions).

With the hob switched off, touch the s and $ sensors at

^

the same time until the safety lock indicator lamp flashes.

After programming mode has been called up, P (Programme)
and S (Status) will appear in the timer display.

The programme number will appear on the left of the
numerical keypads and the status currently set will appear on
the right of the numerical keypads.

Touch number 1 on the rear left numerical keypad (set

^

Programme 10).

^ Touch number 1 on the front right numerical keypad (set

Status 1 = Signed off).

The signing off process will begin and the number 1 will flash
in the front right numerical keypad. The signing off process
will take a few minutes. The number 1 will light up constantly
when the process has been completely successfully.

56

^ To save the setting, touch the s sensor until all the

displays go out.

^

Proceed as described in the "Miele|home" or Con|ctivity
fitting and installation instructions.

Safety instructions for installation

The appliance must only be installed
and connected to the electricity
supply by a suitably qualified and
competent person in strict
accordance with current national
and local safety regulations.

Fit the wall units and extractor hood
before fitting the hob to avoid
damaging the appliance.

The veneer or laminate coatings of

~

worktops (or adjacent kitchen units)
must be treated with 100 °C
heat-resistant adhesive which will not
dissolve or distort.
Any backmoulds must be of
heat-resistant material.

This appliance must not be used in

~

a non-stationary location (e.g. on a
ship).

After installing the hob, ensure that

~

the connection cable cannot come into
contact with the underside of the
appliance. Make sure that there is no
mechanical obstruction, such as a
drawer, which could damage it.

Observe carefully the safety

~

distances given on the following pages.

All dimensions in this instruction booklet
are given in mm.

The hob may not be built in over a

~

fridge, fridge freezer, freezer,
dishwasher, washing machine or
tumble dryer.

57

Safety instructions for installation

Safety distance above an interim
shelf

It is not necessary to fit an interim shelf
underneath the hob.

If an interim shelf is fitted underneath
the hob, a minimum safety distance of
110 mm must be maintained between
the top of the worktop and the top of
the interim shelf.

A gap of at least 10 mm must be
provided between the rear edge of the
interim shelf and the back panel of the
housing unit to allow the mains cable to
be fed through.
If the hob has an external mains
connection box, this gap must be at
least 30 mm.

Safety distance above the hob

A minimum safety distance must be
maintained between the appliance and
the cooker hood above it. See the
cooker hood manufacturer's operating
and installation instructions for details.

If the manufacturer's instructions are
not available for the cooker hood, a
minimum safety distance of at least
760 mm must be maintained. For any
flammable objects, e.g. utensil rails,
wall units etc. a minimum distance of at
least 760 mm must be maintained
between them and the appliance
below.

58

When two or more appliances are
installed together below a cooker
hood, e.g. a gas wok and a ceramic
hob, which have different safety
distances given in the installation
instructions, you should select the
greater distance of the two.

Safety instructions for installation

Safety distances to the sides and
back of the hob

Ideally the hob should be installed with
plenty of space on either side. There
may be a wall at the rear and a tall unit
or wall on one side (right or left) (see
illustrations).

a Minimum distance of 50 mm

between the back of the worktop
cut-out and the rear edge of the
worktop.

b Minimum distance of 70 mm

between the right of the worktop
cut-out and the nearest piece of
furniture (e.g. tall unit) or a wall.

c Minimum distance between the left

of the worktop cut-out and the
nearest piece of furniture (e.g. tall
unit) or wall:

50 mm = KM 5854

KM 5864

70 mm = KM 5856

Not allowed

Recommended

Not recommended

Not recommended

59

Safety instructions for installation

Safety distance when installing the appliance near a wall with additional
niche cladding

A minimum safety distance must be maintained between the worktop cut-out and
any niche cladding to protect it from heat damage.

If the niche cladding is made from a combustible material (e. g. wood) a
minimum safety distance e of 50 mm must be maintained between the cut-out
and the cladding.

If the niche cladding is made from a non-combustible material (e. g. metal,
natural stone, ceramic tiles) a minimum safety distance e of 50 mm less the
thickness of the cladding must be maintained between the cut-out and the
cladding.
Example: 15 mm niche cladding
50 mm - 15 mm = minimum safety distance of 35 mm

Flush-fitted hobs Hob with frame or bevelled edges

a Masonry

b Niche cladding

Dimension x = thickness of niche cladding material

c Worktop

d Worktop cut-out

e Minimum safety distance

for combustible materials is 50 mm
for non-combustible materials is 50 mm less dimension x

60

Safety instructions for installation

Hob with frame or bevelled
edges

Seal between the hob and the
worktop

The sealing strip under the edge of the
top part of the appliance provides a
sufficient seal for the worktop.

The hob must not be sealed with
sealant (e.g. silicone).
This could result in damage to the
hob or the worktop if the hob ever
needs to be removed for servicing.

Tiled worktop

Grout lines a and the hatched area
underneath the hob frame must be
smooth and even. If they are not the
hob will not sit flush with the worktop
and the sealing strip underneath the
hob will not provide a good seal
between the hob and the worktop.

61

Building-in dimensions

KM 5854

a Spring clamps

b Casing depth

c Building-in depth including cable exit

d Mains connection box. Mains connection cable, L = 1440 mm

e Wiring harness, L = 1550 mm

f Building-in depth, including Miele|home connection box

g Front

62

KM 5856

Building-in dimensions

a Spring clamps

b Casing depth

c Building-in depth including cable exit

d Mains connection box. Mains connection cable, L = 1440 mm

e Wiring harness, L= 1550 mm

f Building-in depth, including Miele|home connection box

g Front

h Safety brackets

63

Building-in dimensions

KM 5864

a Spring clamps

b Casing depth

c Building-in depth including cable exit

d Mains connection box. Mains connection cable, L = 1440 mm

e Wiring harness, L = 1550 mm

f Building-in depth, including Miele|home connection box

g Front

64

The exact positions of the spring
clamps, and the safety brackets for
hobs with bevelled edges, are shown
in the building-in dimensions for the
particular hob.

Hobs with bevelled edges:
The sealing strip will ensure that the
hob sits securely in the cut-out. Any
gap between the frame and worktop
will reduce with time.

Make the worktop cut-out according

^

to the dimensions given in the
building-in dimensions. Remember to
maintain the minimum safety
distances (see "Safety instructions
for installation").

Installation

Worktops made of wood

Seal the cut surfaces with a suitable

^

heat-resistant sealant to avoid
swelling caused by moisture.

Make sure that the sealant does not
come into contact with the top of the
worktop.

^

Depending on model, place spring
clamps a (supplied) on the upper
edge of the cut-out or for hobs with
bevelled edges, safety brackets b
(supplied) flush with the upper edge
of the cut-out.

^

Secure the spring clamps a or
safety brackets b using the

3.5 x 25 mm wood screws supplied.

65

Installation

Granite and marble worktops

You will require double-sided tape
and silicone (not supplied).

^ Apply silcone to the side edges and

the lower edges of the spring clamps
and safety brackets.

^

Fix the spring clamps (or safety
brackets for hobs with bevelled
edges) in place using double-sided
tape c.

The spring clamps must rest on the
top edge of the cut-out and the safety
brackets must be flush with the top
edge of the cut-out.

66

Installing the hob

Feed the hob connection cable down

^

through the cut-out.

Position the hob on the spring

^

clamps.

Using both hands, press down

^

evenly on the sides of the hob until it
clicks into position. When doing this,
make sure that the seal under the
hob sits flush with the worktop on all
sides. This is important to ensure an
effective seal all round.
Do not use sealant (e.g. silicone).

If the corners of the frame are not
flush with the worktop surface, the
corner radius (ß R4) can be carefully
scribed to fit.

^ Connect the hob to the mains.

^ Check that the hob works.

Installation

The hob can now only be removed
with a special tool.

67

External mains connection box

A minimum safety distance of
150 mm must be maintained
between the connection box and the
hob and also any other source of
heat (cooker, oven etc).

The connection box can be sited as
follows:

placed in a base unit underneath the

–

hob

on the side wall of a base unit

–

underneath the hob

– on the wall behind the base unit

– in a neighbouring unit.

If an interim shelf is fitted beneath
the hob, the connection box must
not be sited between the hob and
the interim shelf.

68

All electrical work should be carried
out by a suitably qualified and
competent person, in strict
accordance with current local and
national safety regulations (BS 7671
in the UK).

Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer
cannot be held liable for
unauthorised work.

A damaged cable must be replaced
by a suitably qualified electrician
with a special connection cable of
type H 05 VV-F, available from
Miele.

Electrical connection

Connection should be made via a
suitable isolator which complies with
national and local safety regulations,
and the On/Off switch should be easily
accessible after the appliance has
been built in.

If the switch is not accessible after
installation (depending on country) an
additional means of disconnection must
be provided for all poles.

For extra safety it is advisable to protect
the appliance with a residual current
device (RCD). Please contact a
qualified electrician for advice.

When switched off there must be an
all-pole contact gap of at least 3 mm in
the isolator switch (including switch,
fuses and relays).

Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.

The appliance must only be
operated when built-in. This is to
ensure that all electrical parts are
shielded. Live parts must not be
exposed.

Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.

Please make sure that the connection
data quoted on the data plate match
the household mains supply.

Important U.K.

The appliance is supplied for
connection to a 230-240 V, 50 Hz
supply with a 3-core cable.

The wires in the mains lead are
coloured in accordance with the
following code:

Green/yellow = earth

Blue = neutral

Brown = live

WARNING
THIS APPLIANCE MUST BE
EARTHED

69

Electrical connection

The electrical safety of this appliance
can only be guaranteed when
continuity is complete between it and
an effective earthing system, which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt, the electrical wiring
in the home should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system such as an electric
shock.

The manufacturer cannot be held
liable for damage which is the direct
or indirect result of incorrect
installation or connection.

Wiring diagram

N.B. This appliance is supplied
single phase only in the U.K. / AUS /
NZ

70

After sales service, data plate

In the event of any faults which you cannot remedy yourself, or if the appliance is
under guarantee, please contact:

Your Miele dealer, or

–

the Miele Service Department (see back cover for address).

–

Please note that telephone calls may be monitored and recorded to improve
our service.

When contacting Miele, please quote the model and serial number of your
appliance. These are given on the data plate.

N.B. A call-out charge will be applied for service visits where the problem
could have been resolved as described in these instructions.

Space in which to stick the extra data plate supplied with the appliance. Ensure
that the model number is the same as the one on the front of these instructions.

71

Alteration rights reserved / 3911

M.-Nr. 07 570 930 / 03
