Operating and installation instructions
Cooker hoods
DA 279, 279 EXT
To avoid the risk of accidents
or damage to the machine
it is essential to read these
instructions before it is installed or
used for the first time. M.-Nr. 05 609 730
Q
W
ä
Page 2
Contents
Contents
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Functional description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation
Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To switch the fan on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Run-on option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To switch the fan off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the hob lighting on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To dim the hob lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching the hob lighting off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Glass edge feature lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reading the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting/Altering the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fitting / replacing the active charcoal filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Changing a halogen light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation
Assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation instruction sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Page 3
Caring for the environment
Disposal of packing material
Caring for the environment
Disposal of your old appliance
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed safely and kept
out of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Old appliances may contain material
which can be reclaimed or recycled.
Please contact your dealer, your local
waste collection centre or scrap merchant about potential recycling
schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
3
Page 4
Warning and Safety instructions
Warning and Safety instructions
This appliance conforms to current
safety requirements. Incorrect use
can lead to injury and damage to
the appliance.
Before installation and before using
for the first time read the operating
instructions carefully. They contain
important information on safety, use
and maintenance of the appliance.
This way you will avoid the risk of
accidents and damage to the appliance.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct usage
The appliance is intended for
domestic use only.
The manufacturer cannot be held
responsible for damage caused by
improper use of the appliance.
Technical safety
Before connecting the appliance
to the mains supply, make sure
that the voltage and frequency details
on the data plate correspond with the
on-site electricity supply. This data
must correspond in order to avoid risk
of damage to the appliance. Consult a
qualified electrician if in doubt.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most important that this basic safety requirement is
tested by a qualified electrician. The
manufacturer cannot be held responsible for the consequences of an inadequate earthing system (e.g. electric
shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to ensure safety. Repairs and other work by
unqualified persons could be dangerous and the manufacturer will not
be held responsible.
This equipment is not designed for
maritime use or for use in mobile installations such as caravans, aircraft
etc. However, it may be suitable for
such usage subject to a risk assessment of the installation being carried
out by a suitably qualified engineer.
4
Page 5
Warning and Safety instructions
The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket
and the plug removed. (Do not pull
on the cable, only on the plug), or
– the fuse from the fused spur connec-
tion unit is withdrawn or,
– the mains fuse is withdrawn, or
– the screw-out fuse is removed in
countries where this is applicable.
Ensure power is not supplied to
the appliance while maintenance
or repair work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Use
Otherwise flames could be drawn up
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when using the hob, otherwise condensation may collect in the hood,
which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can ignite and could set the cooker hood on
fire.
Do not use the cooker hood with-
out the grease filters in place.
This way you will avoid the risk of
grease and dirt getting into the appliance and hindering its smooth operation.
The filters should be regularly
cleaned or changed as appropriate. Saturated filters are a fire hazard.
Do not let small children play with
the appliance or its controls or
operate it. Supervise its use by the elderly or infirm.
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire, do not flambé or grill
over an open flame.
When switched on, the cooker hood
could draw flames into the filter. Fat particles drawn into the cooker hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Under no circumstances use a
steam cleaner to clean this appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be
covered by the appliance guarantee.
5
Page 6
Warning and Safety instructions
Installation
The distance between the top of
the cooker/hob and the bottom of
the cooker hood must measure at least:
– 450 mm above electric hobs and
cookers
– 650 mm above gas hobs and
cookers
– 650 mm above an open grill from our
range
When fitted above an open grill the
cooker hood must not be used in recirculation mode.
For non-Miele cooking appliances
maintain the safety distance as recommended by the manufacturer in their
Installation and Operating instructions.
If more than one appliance is fitted beneath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the greater
distance.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
Safety regulations prohibit the
fitting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material. These can be obtained from the
Miele Spare Parts department or from
builders’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
6
Page 7
Warning and Safety instructions
When using the cooker hood in
extraction mode at the same time
as another heating appliance which depends on the air in the room, (e.g. gas,
oil or coal fired heaters, continuous flow
or other water heaters, gas cooker, gas
hob or gas oven) special care must be
taken, as the action of the cooker hood
extracts air from the room, which these
types of heater need for combustion.
They could also draw exhaust air back
in from chimneys or ducting in contravention of fire safety regulations.
In order to ensure safe operation, and to
prevent gases given off by the heating
appliances from being drawn back into
the room when the extractor and the
heater are in operation simultaneously,
an underpressure in the room of 0.04
mbar (4 pa) is the maximum permissible.
Ventilation can be maintained by air inlets which cannot be blocked, in windows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating appliance is switched off or vice-versa.
Appliances with external fans
For appliances with an external fan
motor fitted (EXT models) the connection of the two units must be made
using the connection cable and the
plug connectors. Make sure the correct
combination of the two appliances has
been selected.
Separate instructions are supplied with
the external fan.
Disposal of your old appliance
Before discarding an old ap-
pliance, switch off and disconnect
it from the power supply. Cut off and
render any plug useless. Cut off the
cable directly behind the appliance to
prevent misuse.
This should be done by a competent
person.
The manufacturer cannot be held
liable for damage caused by noncompliance with these Warning and
Safety instructions.
N.B: The overall ventilation condition of
the dwelling must be taken into account. If in any doubt, the advice of a
competent builder or, for gas, a "Corgi"
installer must be sought.
If the cooker hood is operated in recirculation mode (with active charcoal
filter) then the above restrictions do not
apply.
7
Page 8
Description of the appliance

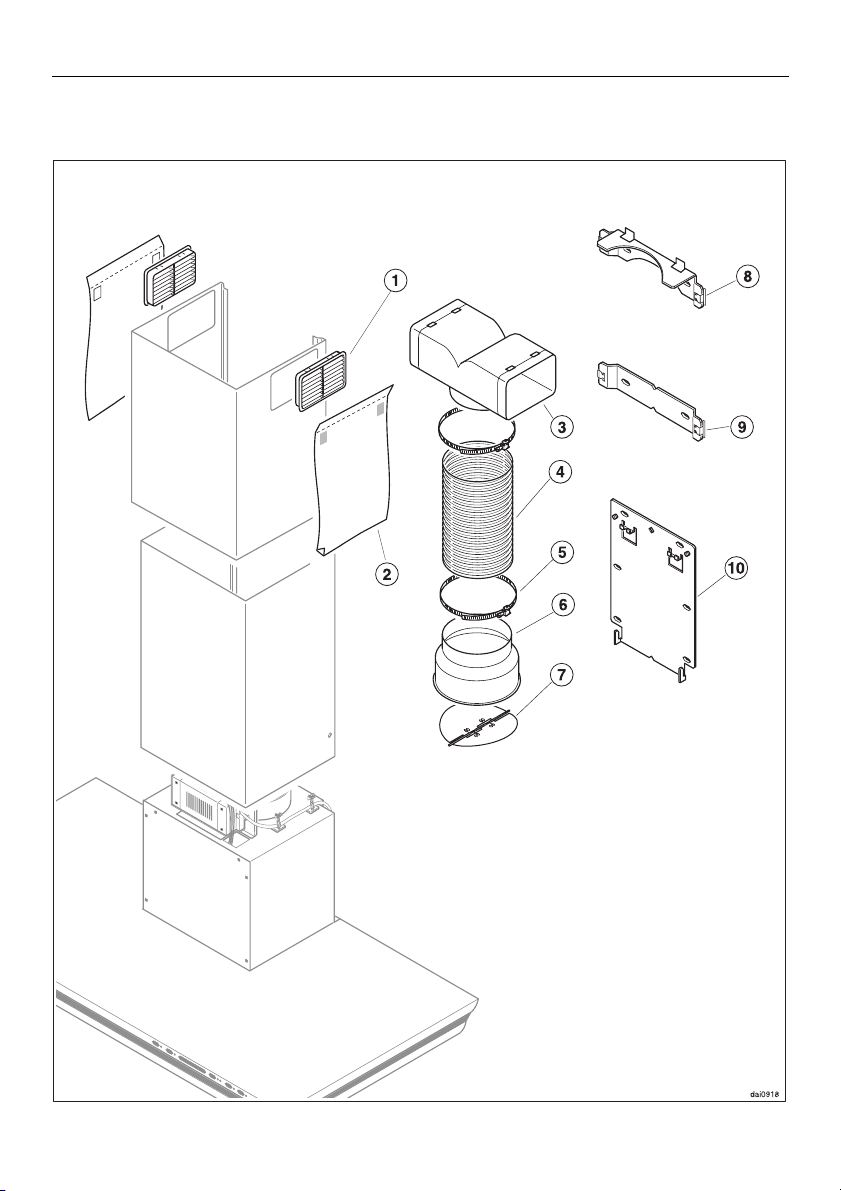

Description of the appliance
8
Page 9
Description of the appliance
b Extension piece
c Tower
d Canopy
e Feature lighting
f Grease filters
g Lighting for hob
h Recirculation grilles
for recirculation mode only
i Main switch
j On/Off switch for
Glass edge feature lighting
k Touch control for the
hob lighting
This control switches the lighting on
and off and is also a dimmer switch.
On/Off-switch for the fan
l
m Controls to select the
Fan power level
n Touch control for the run-on
function
The fan can be set to continue running
for 5 to 15 minutes The fan is switched
off automatically after either 5 or 15
minutes.
o Touch control for the
grease filters
The indicator lamp for the grease filter
touch control lights up when the grease
filters need to be cleaned.
The touch control is used:
– to reset the operating hours counter
after cleaning the grease filters (see
"Cleaning and Care").
– to show how long the grease filters
have been in use (see "Operation /
Filter operating hours counter")
– to alter the number of hours counted
by the filter operating hours counter
(see "Operation / Altering the filter
operating hours counter").
Touch control for the
p
active charcoal filters
The indicator lamp for the active charcoal filter touch control lights up when
the recirculation mode active charcoal
filters need to be replaced.
The touch control is used:
– to reset the operating hours counter
after replacing the active charcoal filters (see "Cleaning and Care").
– to show how long the active charcoal
filters have been in use (see "Operation / Filter operating hours counter")
– to alter the number of hours counted
by the filter operating hours counter
(see "Operation / Altering the filter
operating hours counter").
9
Page 10
Functional description
Functional description
The cooker hood works with
. . . air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The cooker hood is fitted with a
non-return flap.
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on, the non-return flap opens
for the cooking vapours to be blown directly outside.
. . . air recirculation:
The air is drawn in and cleaned first by
grease filters and then cleaned by active charcoal filters. The cleaned air is
then recirculated back into the kitchen
through a vent in the top of the cooker
hood extension piece.
Before using the cooker hood for
the first time, ensure that the active
charcoal filters are in place, see
section on "Cleaning and care".
. . . an external fan
10
The EXT models are designed to be
connected to an external fan located
outside the room.
The external fan is connected to the
cooker hood by means of a control
cable and is operated by the control
panel on the cooker hood.
Page 11
Operation
Main switch
Operation
Depending on the intensity of cooking
vapours, levels "I" to "III" (green indicator lamps) are usually sufficient for
normal cooking.
Switch the main switch to "I". The fan
and the lighting can now be operated.
If the appliance is not going to be used
for a longer period of time (e.g. whilst
on holiday) switch the appliance off by
turning the main switch to "0".
The next time it is switched on the
cooker hood will operate at the level
previously used.

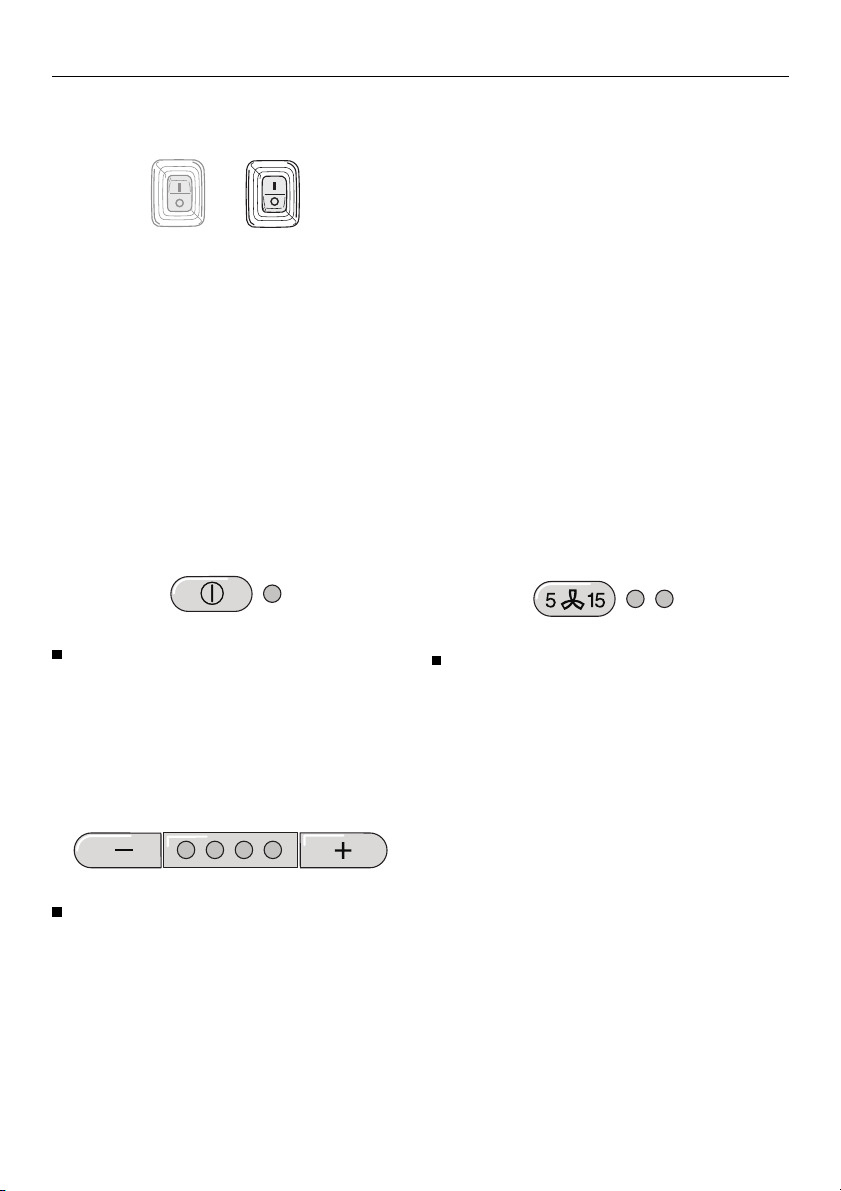

To switch the fan on
Press the On/Off touch control.
The fan runs at power level “lI”.
The indicator lamp for the touch control
comes on.
Selecting the power level
Intensive setting
When frying or cooking food with a
strong aroma you may wish to select
the Intensive setting (yellow indicator
lamp) for a short period.
Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
The fan is switched off automatically
after either 5 or 15 minutes.
Press the run-on option touch control
whilst the fan is still running.
Press once = The fan switches off
after 5 minutes.
(left hand indicator lamp)
Press twice = The fan switches off
after 15 minutes.
(right hand indicator lamp)
Use the – /+ controls to select the
power level required.
Touch control + = higher setting
Touch control – = lower setting
To switch the run-on option off, press
the run-on option touch control again.
11
Page 12
Operation
To switch the fan off

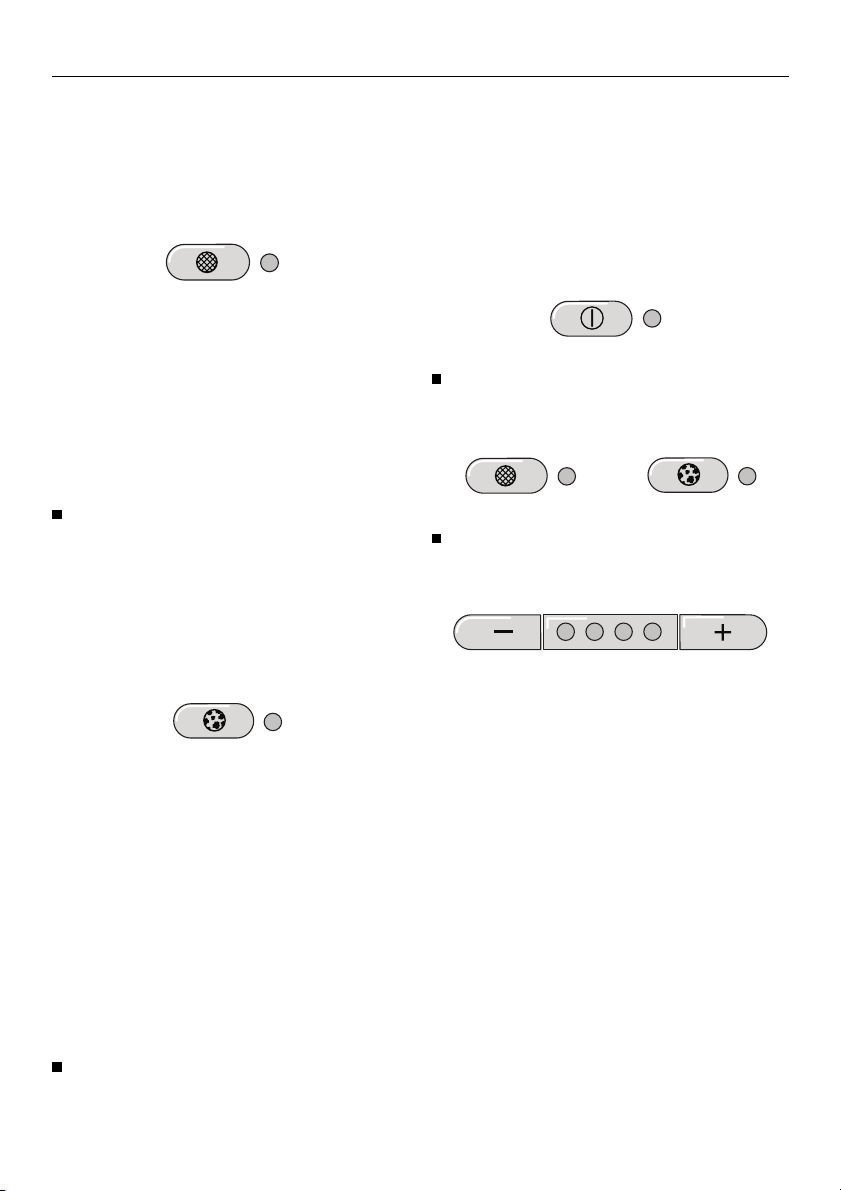

Use the On/Off touch control to
switch the fan off.
The indicator lamp for the control goes
out.

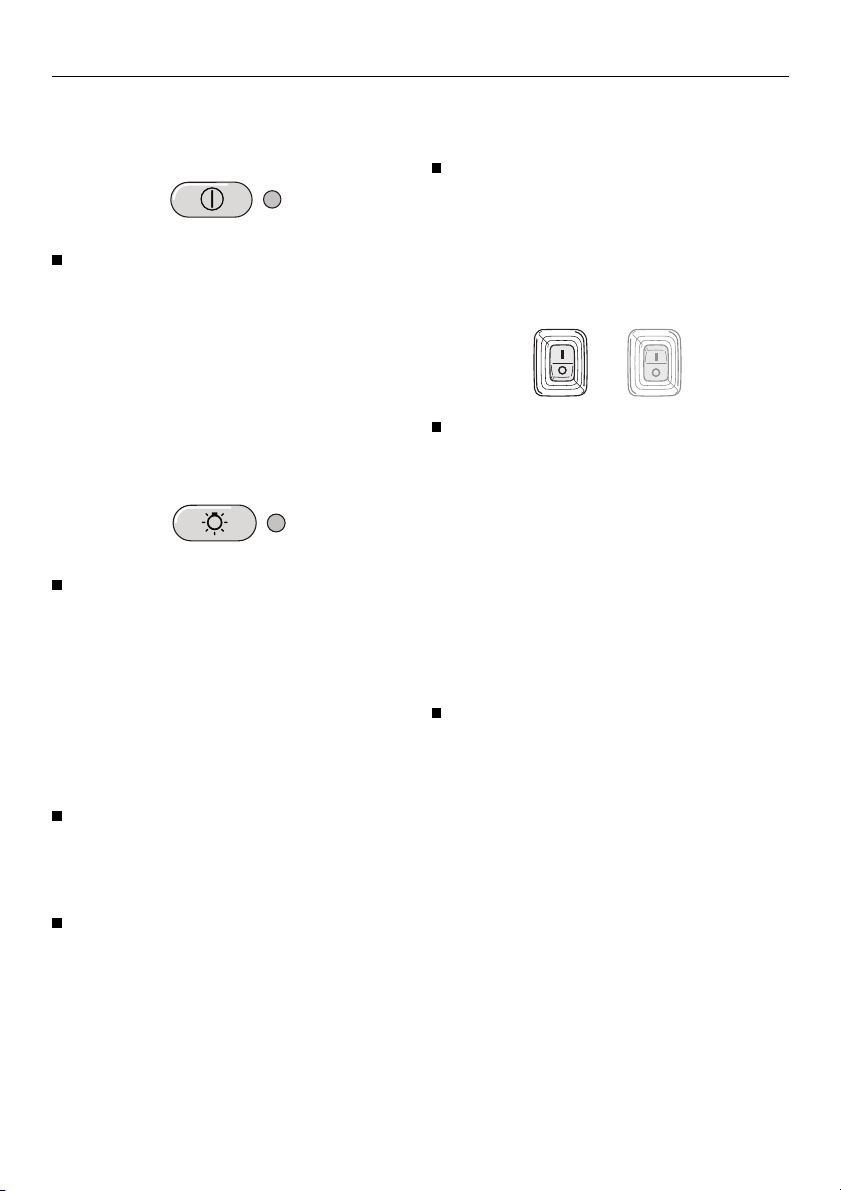

Switching the hob lighting on
The hob lighting can be switched on
and off independently of the fan.
Briefly press the lighting touch control to switch on the hob lighting.
The indicator lamp for the touch control
comes on.
The lighting will come on at maximum
brightness.
Switching the hob lighting off
Briefly press the hob lighting control
to switch the lighting off.
The indicator lamp for the control goes
out.
Glass edge feature lighting
Set the switch to position "I".
The feature lighting can be switched on
even when the main switch is turned off.
Safety cut-out
Should the cooker hood have been left
switched on, the fan will switch off automatically after 10 hours. The lighting
remains on.
Pressing the On/Off touch control will
switch the fan back on again.
To dim the hob lighting
With the lighting switched on press
and hold the hob lighting control in.
The brightness will gradually dim
until you release the control.
Press the control in again to increase
the brightness to the level required
and then release it.
If you keep the control pressed in, the
brightness will continually go brighter
and then dimmer.
12
Page 13
Operation
Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The indicator lamp for the grease filter
control will light up after 30 hours of
operation. The grease filters must then
be cleaned.
After the grease filters have been
cleaned and put in place, the filter
operating hours counter must be re-set.
To do this, press the grease filter
touch control and hold for about
3 seconds.
The indicator lamp will go out.
With recirculation mode:
The indicator lamp will go out.
Reading the filter operating hours
counter

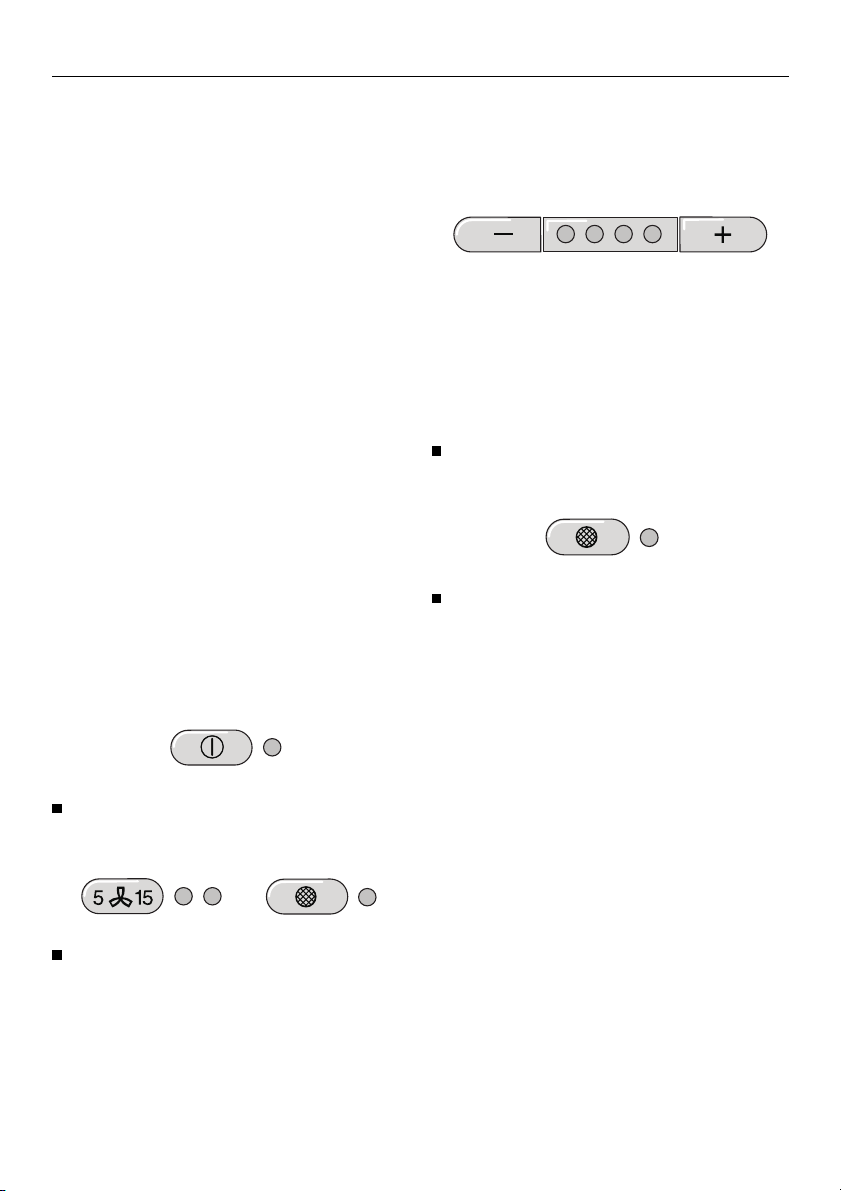

To check the percentage of time set
already used:
Use the On/Off touch control to
switch the fan on.
Press the grease filter / active charcoal filter touch control.
One or several of the indicator lamps
for the – /+ touch controls will flash.
For recirculation mode the operating
hours counter needs to be set to the required time:
The indicator lamp for the active charcoal filter control will light up after the
cooker hood has operated for the number of hours set. The active charcoal
filters must then be replaced with new
ones.
The filter operating hours counter must
be re-set.
Press the active charcoal filter touch
control for about 3 seconds.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
13
Page 14
Operation
Setting/Altering the filter operating
hours counter
You can set the operating hours
counter to suit the type of cooking you
do.
– Select a short time if you roast or fry
a lot.
– If you use very little fat for cooking,
select a longer time.
– If you only cook occasionally we
recommend that you select a short
time because grease which has built
up gradually over a long period of
time will harden on the grease filters
and make cleaning more difficult.
Altering the grease filter operating
hours
The operating hours counter for the
grease filters is set at 30 hours. This
can be lengthened or shortened. You
can choose from 20, 30, 40 or 50 hours.

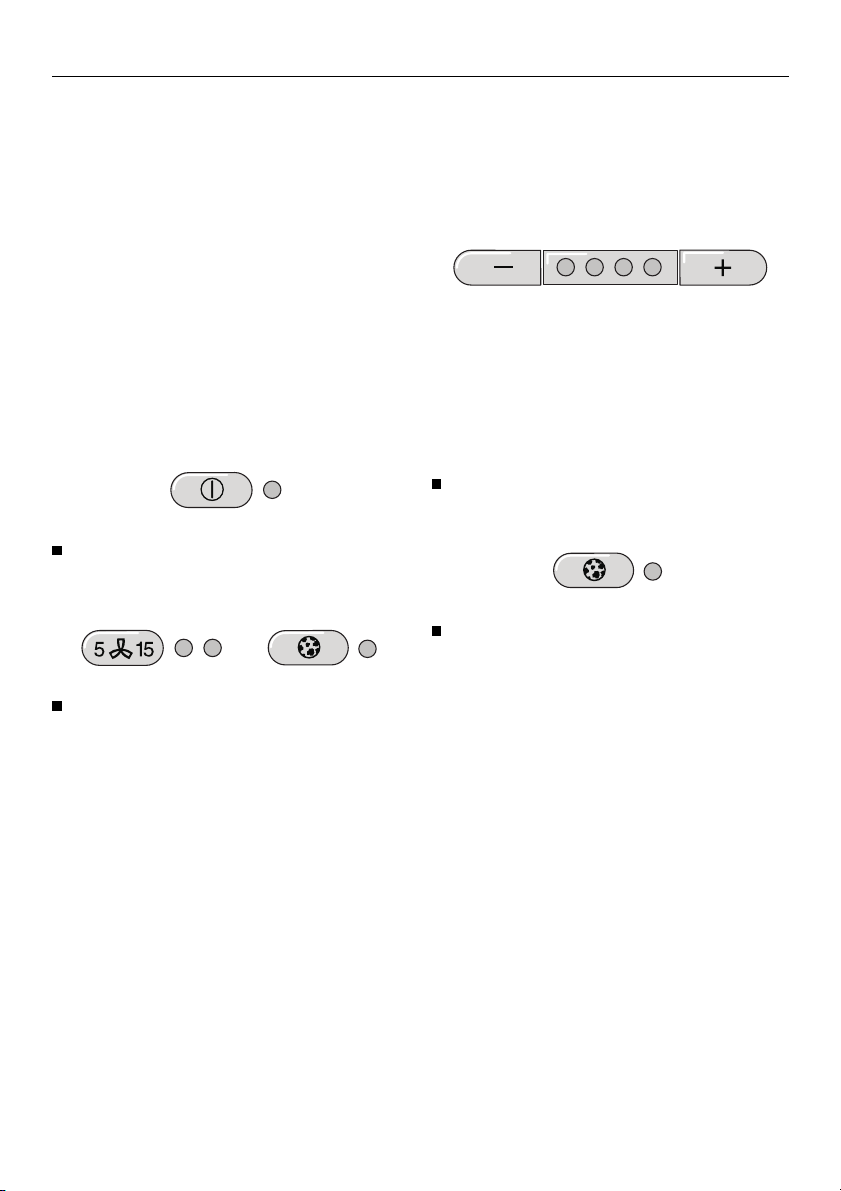

The indicator lamp for the grease filter
touch control and one of the – /+ touch
control lamps will flash.
The – /+ touch control lamps show the
time which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
Use the – /+ touch controls to select
the desired time.
Confirm the selection by pressing
the grease filter touch control.
If the procedure is not confirmed within
4 minutes of programming the steps,
the cooker hood will automatically
revert to the "old" data.
Use the On/Off touch control to
switch the fan off.
Press the run-on option touch control
and the grease filter touch control at
the same time.
14
Page 15
Operation
Setting/altering the active charcoal
filter operating hours counter
(with recirculation mode)
They are not used for vented extraction.
The cooker hood is set at the factory
for extraction mode. On delivery the
operating hours counter for the active
charcoal filters is set to unlimited.
For recirculation mode the operating
hours counter needs to be set to the required time:
Use the On/Off touch control to
switch the fan off.
Press the run-on option touch control
and the active charcoal filter touch
control at the same time.
The indicator lamp for the active charcoal filter touch control and one of the
lamps for the – /+ touch controls will
flash.
The – /+ touch control lamps show the
time which has been set:
1st lamp from left = 120 hours
2nd lamp from left = 180 hours
3rd lamp from left = 240 hours
4th lamp from left = unlimited
Use the – /+ touch controls to select
the desired time.
Confirm the procedure by pressing
the active charcoal filter touch control.
If the procedure is not confirmed within
4 minutes of programming the steps,
the cooker hood will automatically
revert to the "old" data.
15
Page 16
Cleaning and care
Cleaning and care
Before any cleaning or maintenance
work, the cooker hood must be disconnected from the mains supply.
Ensure that:
– it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on
the plug), or
– the fuse has been withdrawn from
the fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Housing
Warning: The surfaces and controls
are susceptible to scratches and abrasion. Please observe the following
cleaning instructions:
All external surfaces and controls
can be cleaned using warm water
with a little washing up liquid applied
with a well wrung out soft sponge or
cloth.
Wipe dry using a soft cloth.
agents.
These will damage the surface
material.
Stainless steel
Stainless steel surfaces can be
cleaned using a proprietary non-abrasive cleaning agent designed specifically for use on stainless steel.
To help prevent re-soiling, proprietary
conditioning agents for stainless steel
can also be used.
Apply sparingly with an even pressure.
Stainless steel coloured controls
These controls are made of stainless steel coloured lacquered plastic and may suffer discolouration or
damage if soiling is left on them for
too long.
Remove any soiling straight away.
Do not use stainless steel cleaning
agents on these types of controls.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Avoid:
– cleaning agents containing soda,
acids or chlorides,
– abrasive cleaning agents e.g. pow-
der cleaners or cream cleaners and
sponges, e.g. pot scourers or
sponges which have been previously used with abrasive cleaning
16
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part number 98013530, which is suitable for cleaning surfaces such as
stainless steel, glass, plastic and
chrome without the use of chemicals.
Page 17
Cleaning and care
Grease filters
Re-usable metal filters are fitted which
remove solid particles (oil, dust, etc.)
from the kitchen vapours, preventing
soiling of the cooker hood.
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a built-up of fat, but always clean
as soon as the grease filter touch
control lamp comes on.
An over saturated filter is a fire
hazard.

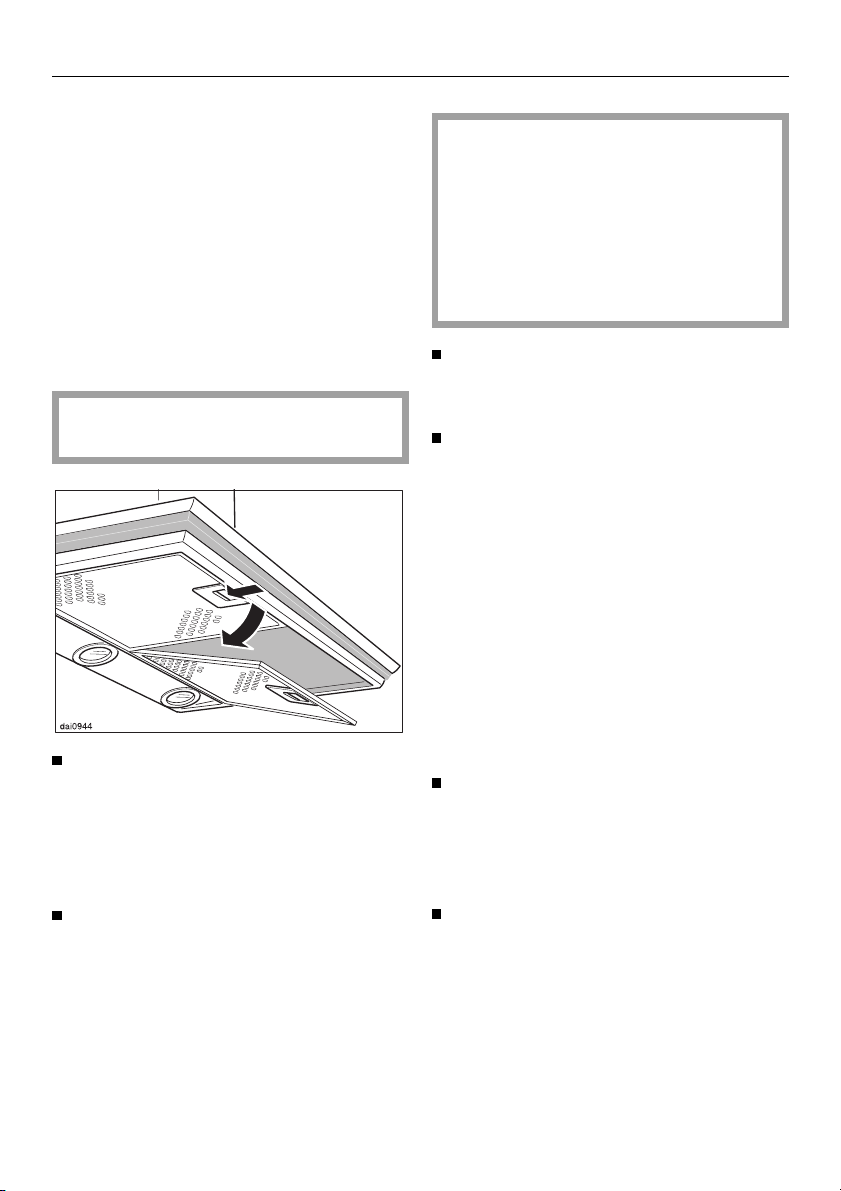

To take out the grease filters press
the locking clips in towards the
middle of the filter. Holding carefully,
lower and remove the filter. Take
care not to let the grease filter fall
onto the hob.
Depending on the cleaning agent
used, cleaning the grease filters in
a dishwasher can cause permanent
discolouration to the surface of the
filters.
However, this will not affect the
functioning of the grease filters in
any way.
After cleaning, leave the filters to dry
on an absorbent surface before putting them back in place.
When removing the filters for cleaning also clean off any residues of oil
or fat from the now accessible housing to prevent the risk of these catching fire.
When putting the grease filters back
in position, ensure that the locking
clips are visible facing down towards
the hob.
Should the grease filters be put back
upside down:
insert a small screwdriver into the
slits to disengage them. Do not let
them drop on to the hob below.
After replacing the grease filters,
press the grease filter touch control
for approx. 3 seconds to re-set the
operating hours counter.
The indicator lamp will go out.
Clean the filters
– by hand: with a nylon brush, warm
water with a little washing up liquid.
– in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray arm
is not obstructed.
If the grease filters are cleaned before the operating hours counter has
reached its maximum, the grease filter touch control should be pressed
for approx. 6 seconds to reset the
counter to zero.
17
Page 18
Cleaning and care
Fitting / replacing the active
charcoal filters
If the cooker hood is connected for
recirculation, two active charcoal filters
must be inserted in addition to the
grease filters. These filters absorb
normal kitchen odours.

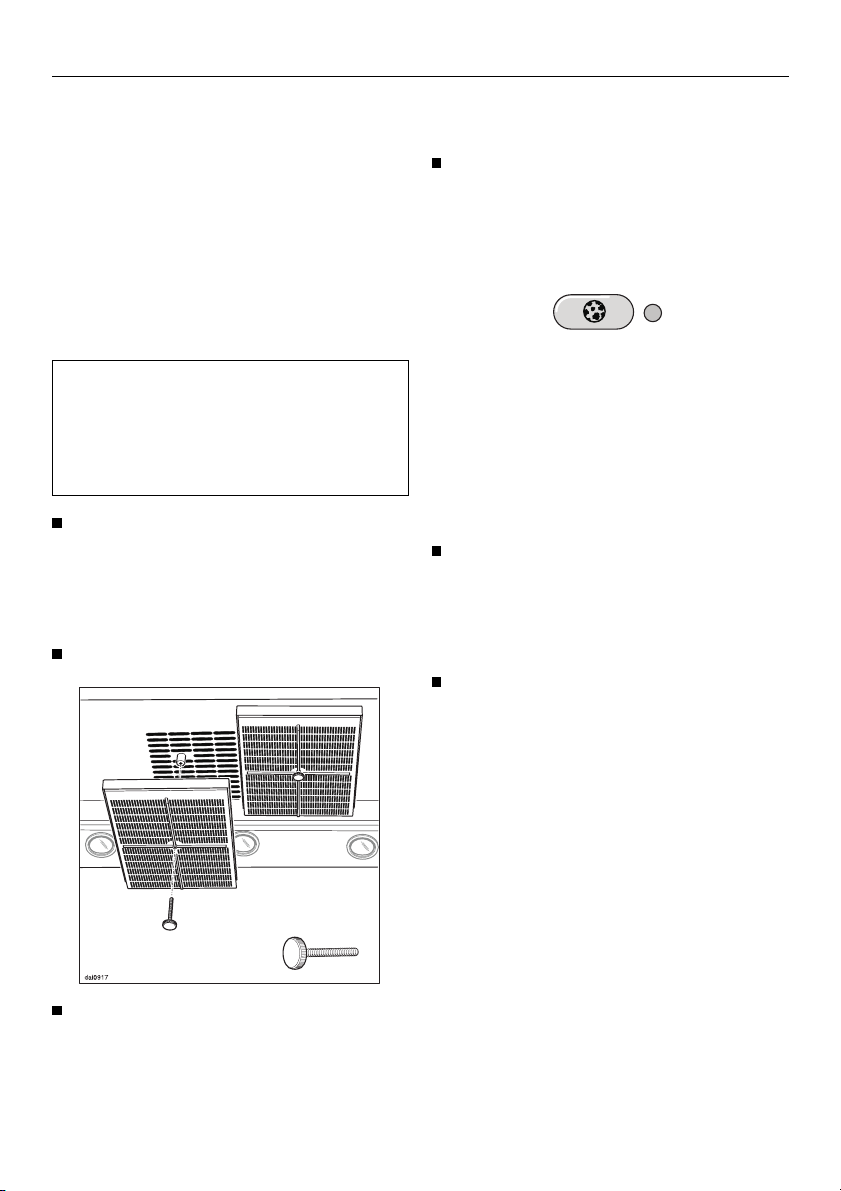

They are fitted in the canopy above the
grease filters.
Active charcoal filters can be obtained from your dealer or the Miele
Spare Parts Department.
Refer to the section "Technical data"
for type and reference number.
Before fitting or replacing the active
charcoal filters, the grease filters
must first be taken out (see previous
section for instructions on how to do
this).
Unwrap the active charcoal filters.
When fitting for the first time:
Set the operating hours counter to
suit your requirements, (see "Operation – Setting / Altering the filter
operating hours counter").
Always replace the filters as soon as
the lamp for the active charcoal filter
touch control comes on, or if they are
no longer effective in absorbing kitchen
odours.
They should, however, be replaced at
least every 6 months.
After fitting new active charcoal filters, press the active charcoal filter
touch control for approx. 3 seconds
to re-set the operating hours counter.
The indicator lamp will go out.
If the active charcoal filters are
replaced before the operating hours
counter has reached its maximum,
the active charcoal filter touch
control should be pressed for
approx. 6 seconds to reset the
counter to zero.
Secure the active charcoal filters
using the screws enclosed.
18
Page 19
Changing a halogen light bulb
Before any cleaning or maintenance
work the cooker hood must be disconnected from the mains supply.
Ensure that:
– it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on
the plug), or
– the fuse has been withdrawn from
the fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Exercise caution when changing halogen lamps. They get very hot during use and remain hot for some
time after being switched off.
Do not touch the surface directly
when changing a lamp, as grease
particles from your fingers will adhere to the surface and damage it.
Please follow the manufacturer’s instructions.
Cleaning and care

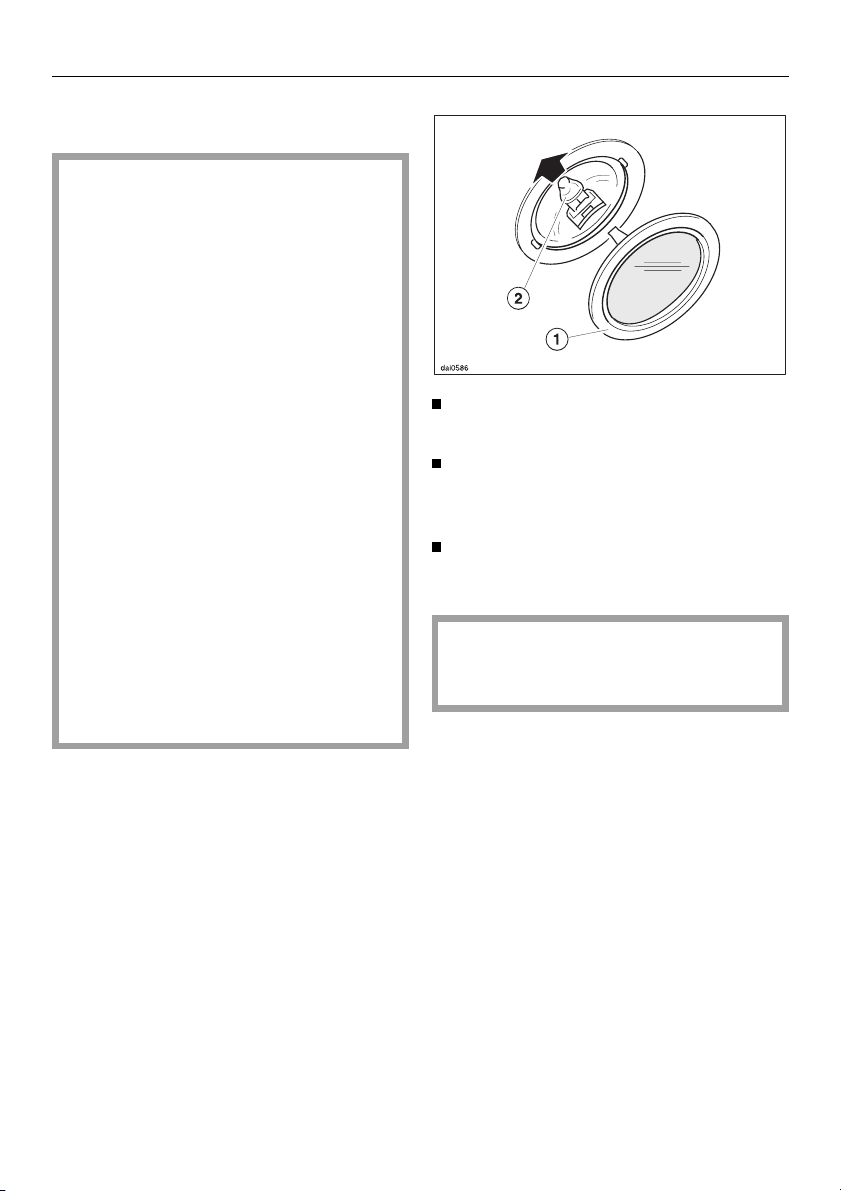

To access the halogen light bulb first
remove the lamp cover
Pull the old halogen light bulb c out
of the connection socket and replace it with a new one.
Replace the lamp cover b carefully,
making sure it engages securely in
position.
Never use the lighting without the
lamp cover
designed to cut out harmful rays.
. It has a filter
b
b
.
19
Page 20

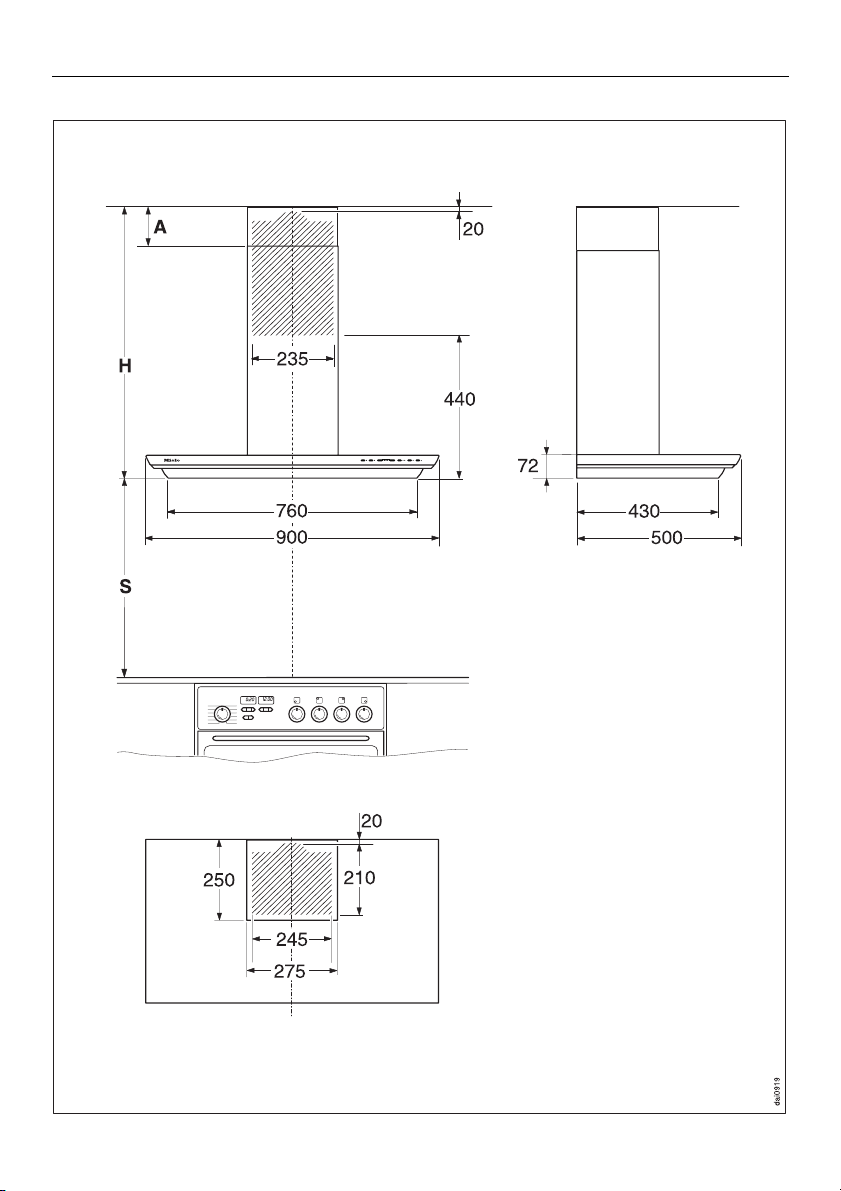

Appliance dimensions
Appliance dimensions
20
Page 21
Appliance dimensions
Safety regulations prohibit the fitting
of this cooker hood over a solid fuel
stove.
The minimum safety distance between the top of the cooker / hob
and the bottom of the cooker hood
should be at least
– 450 mm above an electric hob or
cooker,
– 650 mm above a gas hob or cooker,
– 650 mm above an open grill from
our range
See “Warning and Safety instructions” for further information.
A distance of 650 mm above electric
cookers / hobs may be preferable to
give more working space.
Care should be taken when selecting
the distance S to heed the minimum
distance to the hob, and when installing on the ceiling, that height to ceiling
H is neither too great nor too little.
To fit the tower, distance A between
the top of the tower and the ceiling
must be at least 20 mm.
The shaded area represents
the wall or ceiling area for the
vent cut-out, for feeding the
connection cable through to an external fan and for fitting the connection
socket.
(For recirculation mode the connection
socket may only be fitted in a wall area).
Connection for air extraction
ø 150 mm or ø 125 mm with reducing
collar.
Recirculation
H = 820 – 1100 mm
Extraction
H = 730 – 1015 mm
21
Page 22
Installation
Installation
Assembly parts
22
Page 23
2 recirculation grilles
b
(for recirculation mode only)
2 protective sheets
c
for use when fitting the tower.
1 directional unit
d
(for recirculation mode only)
1 flexible aluminium hose for
e
connecting the directional unit to the
exhaust socket on the motor unit (not
on EXT models).
2 hose clips for securing the
f
exhaust ducting.
1 reducing collar
g
for exhaust ducting ø 125 mm (not on
EXT models).
1 non-return valve for fitting into the
h
exhaust socket on the motor unit (for
extraction mode only, not on EXT
models).
Upper retaining plate for securing
i
the extension piece.
Installation

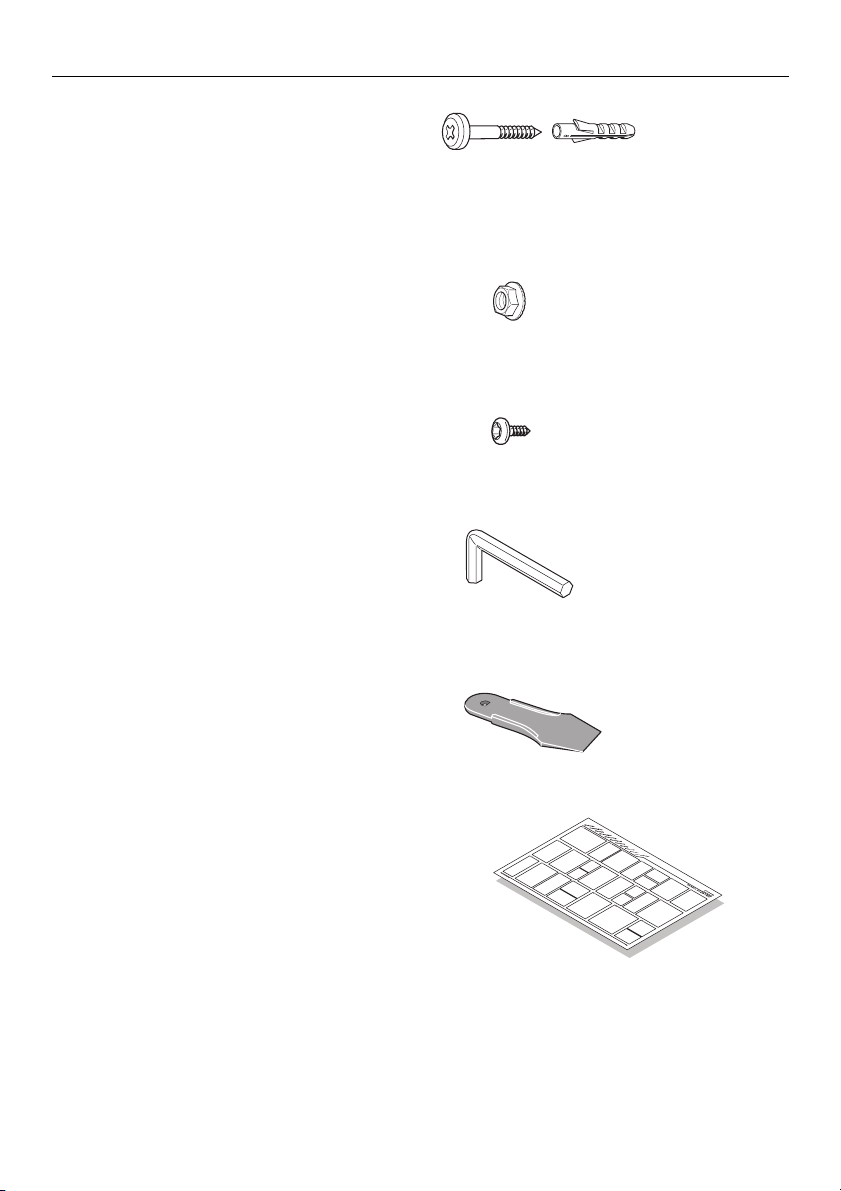

8 large headed screws 5 x 40 mm
and
8 x S 8 plugs for securing the retaining
plates.
2 x M 6 self-tapping nuts for securing
the appliance unit.
2 screws 3.9 x 7.5 mm for securing
the tower.
1 hexagonal (Allen) key
for adjusting the appliance height.
Middle retaining plate for securing
j
the extension piece.
Lower retaining plate for securing
k
the appliance unit.
1 lever for removing the tower.
Installation sheet DIN A3
23
Page 24
Installation
Installation instruction sheet
See enclosed installation sheet for
instructions on how to install this
appliance.
Before installation it is important to read
the information given on the following
pages as well as the "Appliance dimensions" and "Warning and Safety instructions" at the beginning of this book.
Dismantling
Should the appliance ever need to be
dismantled, follow the installation instructions in reverse order as described on the installation sheet.

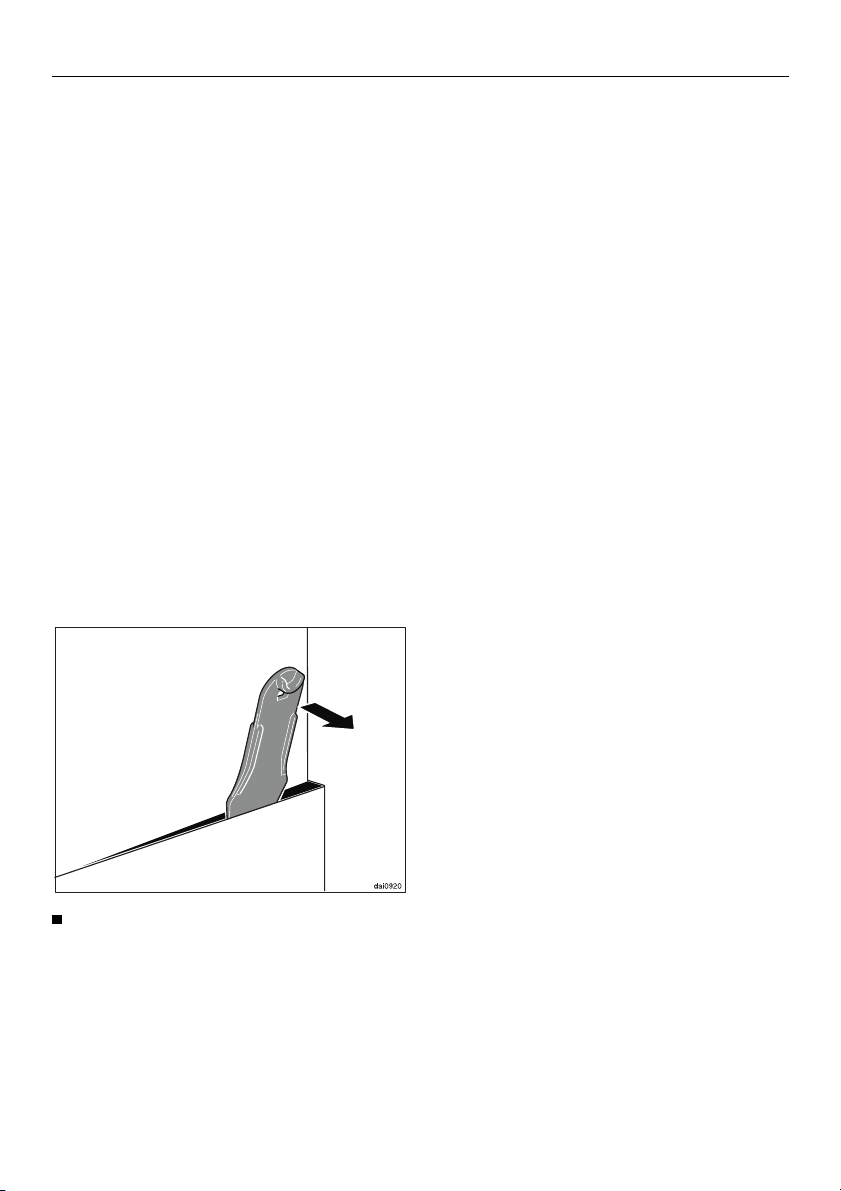

A lever is supplied to assist with the
removal of the tower.
After loosening the fixing screws on
the tower push the lever between the
tower and the extension piece to
lever the tower out of its fixings.
24
Page 25
Connection for air extraction
Connection for air extraction
Danger of toxic fumes.
Please heed the "Warning and
Safety instructions" to avoid the
danger of toxic fumes.
The cooker hood should be installed according to local building
regulations. Seek approval from the
building inspector where necessary.
– All ducting, pipework and fittings
must be of non-flammable material.
– The extraction ducting should be as
short and straight as possible.
– To ensure efficient air extraction the
diameter of the exhaust ducting
should not be less than 150 mm.
If exhaust ducting with a diameter
of less than 150 mm or flat ducting
were to be used, the noise level of
the cooker hood would increase
and extraction would be less efficient.
Only reduce the diameter of the ducting if absolutely necessary, e.g.
where narrower ducting has already
been installed.
– Where ducting is horizontal it must
be laid to slope away at at least
1 cm per metre.
This is to ensure that condensate cannot drain back into the cooker hood.
– If the exhaust air is to be ducted into
the open air, the installation of a telescopic wall vent is recommended.
– If the exhaust air is to be ducted into
a vent flue, the ducting must be directed in the flow direction of the flue.

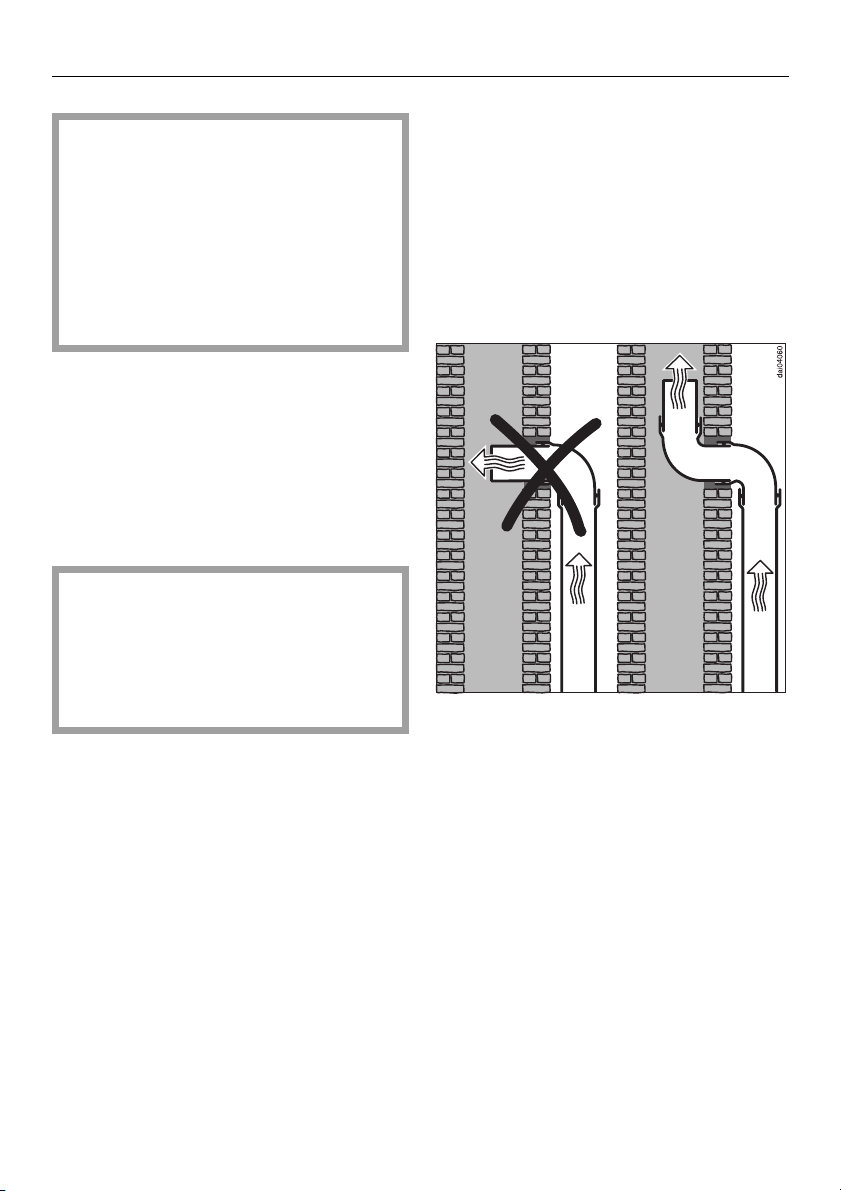

– Only use wide radius bends. Tight
bends reduce the air throughput of
the cooker hood.
– Only use smooth pipes or flexible
hoses made from non-flammable
materials for extraction connection.
25
Page 26
Connection for air extraction
Important:
If the exhaust ducting is to run through
rooms, ceiling space etc. where there
may be great variations in temperature
between the different areas, the problem of sweating or condensation will
need to be addressed. The exhaust
ducting will need to be suitably insulated.
Condensate trap
In addition to insulating the exhaust
ducting we recommend that a suitable
condensate trap is also installed to
collect and evaporate any condensate
which may occur.
When installing a condensate trap
ensure that it is positioned vertically
and if possible directly above the
exhaust connection.
26
Page 27
Electrical connection
Electrical connection
All electrical work should be undertaken by a suitably qualified and
competent person in strict accordance with national and local safety
regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer can
not be held responsible for unauthorised work.
Ensure power is not supplied to the
appliance while installation or repair
work is being carried out.
U.K., IRL, NZ, ZA: The cooker hood is
supplied for connection to an a.c.
230 V single phase 50 Hz supply.
AUS: The cooker hood is supplied for
connection to an a.c. single phase
240 V, 50 Hz supply.
The voltage, rated load and fusing are
given on the data plate. This is visible
when the grease filters have been
removed. Ensure that these match the
household mains supply.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
Do not connect via an extension lead.
Important UK
If the appliance is fitted with a non-rewireable plug (BS 1363 UK) and the
socket outlets are not suitable for the
plug supplied, or if the existing plug
needs to be replaced by a new one,
the old plug will need to be cut off and
an appropriate plug fitted. The fuse carrier and the fuse should be removed
from the old plug and disposed of. The
plug cut from the cable should then be
disposed of, and on no account be inserted into any socket elsewhere in the
house (electric shock hazard).
The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.
For U.K.: Connection should be made
either by a double pole fused spur connection unit, or a fused plug and a suitable switched socket. The On-Off
switch should be easily accessible
after the appliance has been built in.
When switched off there must be an allpole contact gap of 3 mm in the switch
(including switch, fuses and relays according to EN 60 335).
If the socket is not accessible after installation (depending on country) an additional means of disconnection must
be provided for all poles.
The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug or the colour that
is embossed in words in the base of
the plug (as applicable to the design of
plug fitted).
The correct fuse rating of the replacement fuses that are ASTA approved to
BS 1362 should be fitted. Replacement
fuse covers may be purchased from
your local electrical suppliers or
Service agent.
27
Page 28
Electrical connection
Important
The wires in the mains lead are coloured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live
If the appliance is to be connected via
a plug and socket, please note the following:
As the colours of the wires in the mains
lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
The wire which is coloured green
and yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth symbol z or coloured green or green
and yellow.
The wire which is coloured blue must
be connected to the terminal which
is marked with the letter N or coloured black.
For U.K., IRL, ZA: The wire which is
coloured brown must be connected
to the terminal which is marked with
the letter L or coloured red.
For Australia / New Zealand: The
wire which is coloured brown must
be connected to the terminal which
is marked with the letter A or coloured red.
WARNING:
THIS APPLIANCE MUST BE
EARTHED
28
Page 29
After Sales Service
In the event of a fault which you cannot
correct yourself please contact:
– Your Miele Dealer
or
– The Miele Service Department
(see back cover for address).
When contacting the Service Department, please quote the model and serial number of your appliance. These
are shown on the data plate which is
visible when the grease filters are
removed.
Please note that telephone calls
may be monitored and recorded to
improve our service.
After Sales Service
29
Page 30
Technical data
Technical data
Rated load
DA 279 . . . . . . . . . . . . . . . . . . . 270 W
Lighting
Hob lighting . . . . . . . . . . . . . . 3 x 20 W
Glass edge feature lighting . . . . . 10 W
Voltage
UK, NZ . . . . . . . . . . . . . . . . . . . . . 230 V
AUS . . . . . . . . . . . . . . . . . . . . . . . 240 V
Frequency . . . . . . . . . . . . . . . . ~ 50 Hz
Fuse rating (UK). . . . . . . . . . . . . . . 13 A
AUS, NZ:
Plug rating . . . . . . . . . . . . . . . . . . . 10 A
Test marks . . . . . . . . . . Electrical safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to AS/NZS 1044
Fan power level
Extraction power according to
EN 61591
Extraction system ø 150 mm:
Level I . . . . . . . . . . . . . . . . . . . 220 m
Level II. . . . . . . . . . . . . . . . . . . 320 m
Level III . . . . . . . . . . . . . . . . . . 420 m
Intensive level . . . . . . . . . . . . . 640 m
Extraction system ø 125 mm:
Level I . . . . . . . . . . . . . . . . . . . 210 m
Level II. . . . . . . . . . . . . . . . . . . 300 m
Level III . . . . . . . . . . . . . . . . . . 400 m
Intensive level . . . . . . . . . . . . . 550 m
Unrestricted. . . . . . . . . . . . . . . 690 m
Recirculation with charcoal filter:
Level I . . . . . . . . . . . . . . . . . . . 160 m
Level II. . . . . . . . . . . . . . . . . . . 240 m
Level III . . . . . . . . . . . . . . . . . . 320 m
Intensive level . . . . . . . . . . . . . 430 m
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
30
Charcoal filters:
Miele Active charcoal filter DKF 2
For EXT models the rated load and extraction power will depend on the type
of external fan fitted.
Page 31
Page 32
Alteration rights reserved / 44 / 000 GB / AUS / NZ - 1601
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
