Midmark Way™
Platform Scale
It’s a Better Way to Weigh!
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specifications .......................... 2
Parts Identification ...................... 3
Assembly & Installation ................ 3-4
Post Mounted Display ................... 5
Features/Operation. . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting ........................ 7
Care & Cleaning........................ 7
Product Warranty ....................... 8
User’s Guide
Table of Contents
Rev. AA1 (7/24/17)
TP202 20-42-FO-00014 Rev A1 C2169
Page 2
Pre-Installation
Note
Save all packaging until certain you are satisfied with the product.
Thank you for purchasing The Midmark Way ™ Scale!
Open packages carefully. Inspect the shipping cartons and contents for any visible
damage. This is important in the event that any breakage has occurred during transit.
Below is a list of everything you should receive:
• The Midmark Way™ platform scale base
• 1 ribbed vinyl platform mat
• The Midmark Way™ display/readout box with mounting bracket
• 1 AC adapter power cord
• 1 stainless steel scale cover
Refer to the drawing on the next page to identify parts.
Platform Size: 44" x 22" x 2 5/8" tall
Maximum Capacity: 300 pounds
Accuracy: Within 0.2% at 300 pounds
Electrical: Operates on standard 110 VAC
or one 9-volt DC battery
Shipping Weight: 45 pounds
Display Mount Post Height: 36"
Midmark Way™ Platform Scale
Specifications
2
© Midmark Corporation 2017 TP202 20-42-FO-00014 Rev A1 C2169
Page 3
THIS
SIDE
UP
Wall Mount Bracket
No. 310-0110-00
Display Support Post
(Optional)
No. 210-0117-02
Parts Identification
Display/Readout
No. 735-0001-00
Ribbed Vinyl Platform Mat
No. 210-0117-01
Platform Scale Top
No.619-0032-00
AC Adapter
No. 703-0000-20
Assembly & Installation
If assembling a scale purchased with the optional post mount
for the display panel, go to “Post Mounted Displays”, page 5,
for Post Mount installation instructions.
1. Place the scale on a flat, level surface
with no less than 1" clearance on
each side. We do not recommend
recessing the scale into the floor.
Tip the scale on end and locate the
phone jack, with phone cord coming
out of the side.
Platform Scale Base
No.310-2110-02
Phone Jack
2. The side of the scale with the display
cord plug-in should be placed nearest
to the wall. Be sure the scale is level
Midmark Way™ Platform Scale
continued
3
© Midmark Corporation 2017 TP202 20-42-FO-00014 Rev A1 C2169
Page 4
Assembly & Installation continued
after positioning. Screw-in feet on
the bottom of the scale base may be
adjusted as necessary.

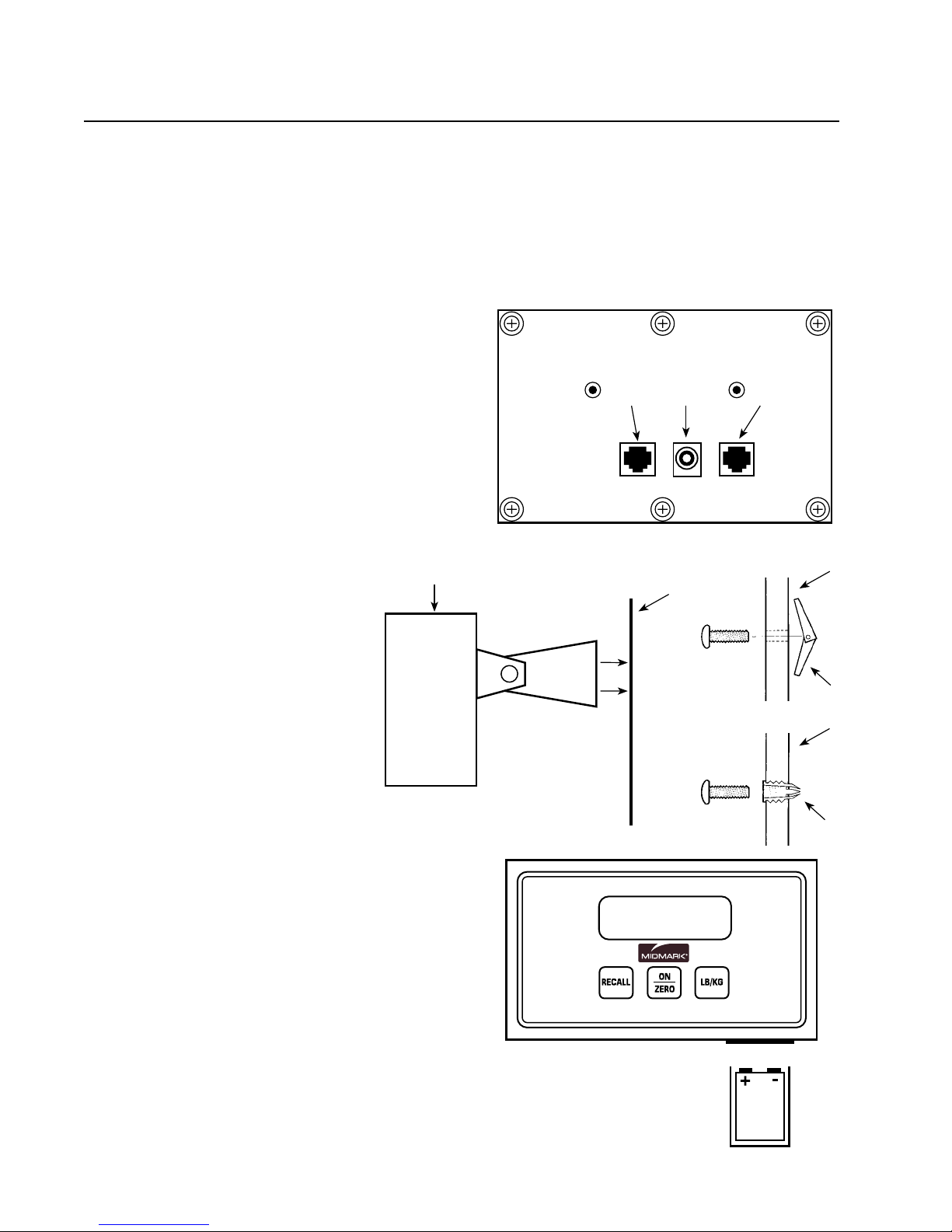

3. Plug the end of the phone jack cord
into the jack marked “Base” on the
back side of the scale display.
back side of the scale display.
4. If you are using AC power to operate
the scale, you may now plug the
power cord into the back of the
display panel, and plug the AC
adapter into a standard wall outlet.
5. Mount the wall bracket securely to
the wall (or counter) with appropriate
hardware (not supplied). See sug
gestions for mounting hardware at
right. Suggested height for the
Display
mounting bracket is 48” to 60"
from the floor.
Note: Always keep the readout display
matched to its proper base. If
multiple scales have been pur chased, match the serial number
that is on the back of the display
with the same serial number
found on the bottom of scale base.
Remote
Cord
Plug-In
Back view of Display/Readout
A/C
Adapter
Plug-In
Wall
Base
Cord
Plug-In
Wall
6. Press the “ON/ZERO” button.
Operating The Midmark Way™
scale with battery power requires
one 9-volt battery. The scale
ships with a battery installed.
To replace the battery, refer to
the drawing at right. To perform
an AC/DC switch see page 6.
Toggle
Wall
Anchor
Midmark Way™ Platform Scale
4
© Midmark Corporation 2017 TP202 20-42-FO-00014 Rev A1 C2169
Page 5

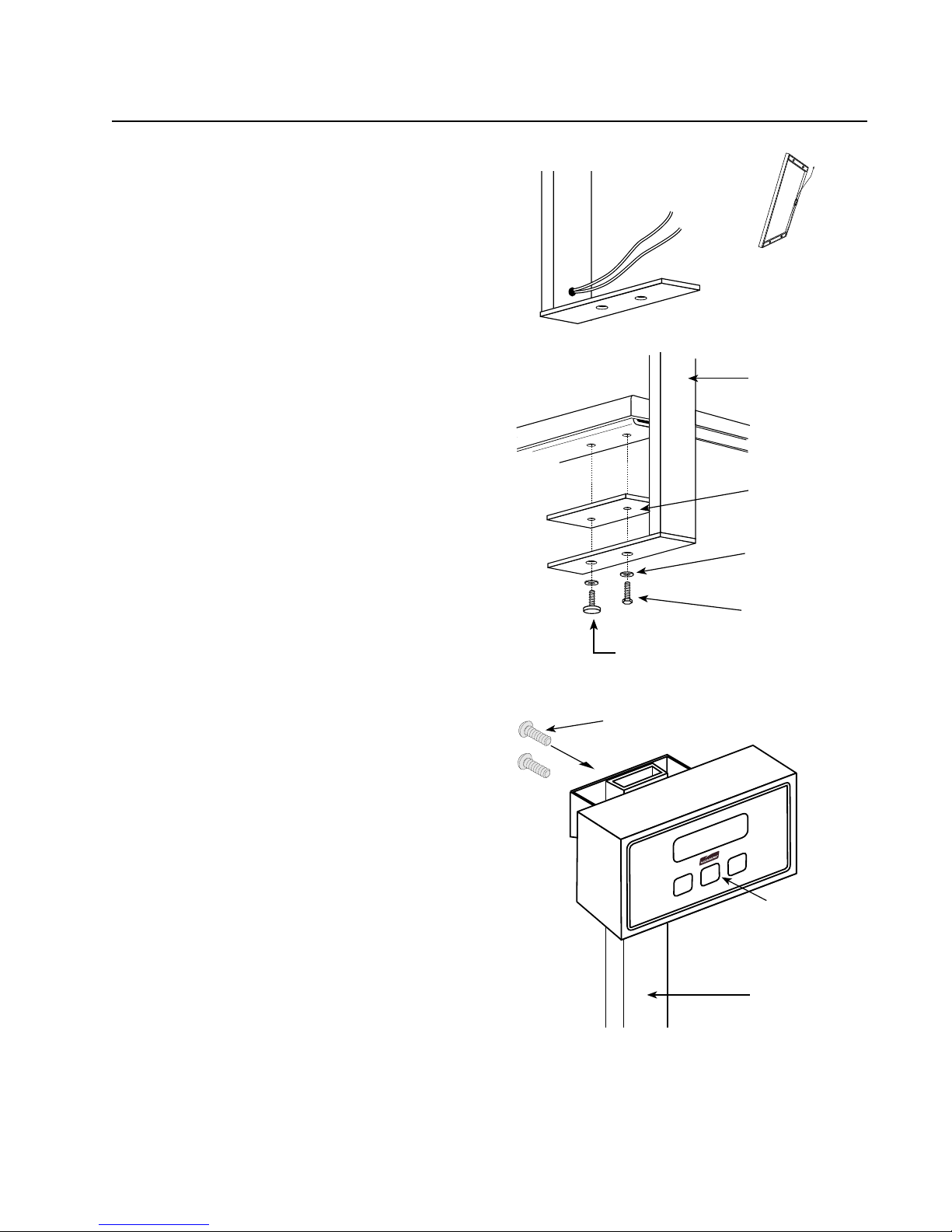

Post Mounted Displays
1. The display cord and AC adapter
cord should be threaded through the
post mount column. Start at the
bottom of the column and thread the
cords up through the top.
2. Place the scale base in the desired
location. Tip the scale up and locate
the corner you wish to install the
post mount on.
3. Next install the post mount as shown
at right by first removing the leveling
foot. Use the leveling foot and hex
bolt provided to attach the post
mount to the scale platform.
Note: The scale will now be uneven.
The remaining three feet must be
adjusted to match the foot inserted
in the post mount.
Display
Support Post
Spacer Plate
No. 610-0392-00
Washer
No. 819-2500-01
4. Fasten the scale display box to the
top of the mount post with the two
Phillips head screws. Plug the
display connector cord and AC
adapter cord coming from the top
of the mount post into the back of
the display. (See page 4)
Note: Always keep the display matched
to its proper base. If multiple
scales have been purchased,
match the serial number on
the back of the display with
the same serial number found
on the bottom of scale base.
6. If using AC power to operate the
scale, plug the power cord into the
back of the display panel, and plug
the AC adapter into a standard wall
outlet. If operating the scale with
battery power see pages 4 and 6.
Hex Head Bolt
No. 816-2510-02
Leveling Foot
No. 810-0000-00
Phillips Head Screw (2 places)
No. 815-1005-00
The Midmark Way™
Display/Readout
Display
Support Post
7. Press the “ON/ZERO” button.
Midmark Way™ Platform Scale
5
© Midmark Corporation 2017 TP202 20-42-FO-00014 Rev A1 C2169
Page 6
Scale Features/Operation
Using The Control Panel:
Push to turn unit on. Display
ON
shows the following:
ZERO
vssi – checks display segments
u 1.7 – software revision
b xx.x – battery voltage
(varies with AC plug
in and internal 9v
battery.) A reading of
6.0v indicates the need
for battery replacement;
the unit will shut off at
a reading of 5.5v.
0.0 – ready to weigh
Push and hold for 4 seconds until
LB/KG
display indicates unit shift.
Display will show “ conv ” until
the conversion is complete.
Push the RECALL button –
RECALL
The display will show the
message “rECL” then alternately
flash between the last stable
weight and the “ rECL ” message.
Press ON/ZERO button to return
to normal weighing. Works only
with hold function active.
– self test
^^^^
Features:
Tare Function:
Any weight within the scale capacity can
be zeroed out by pressing the ON/ZERO
button. When the weight is removed, the
display flashes the tared weight. Press
ON/ZERO button to return to normal
weighing.
Weighing Function:
Display will blank out until a close range
of the weight is reached. With the hold
function active, the display will show the
stable weight and the “hold” indication.
The displayed weight will lock until the
weight is removed.
Weight Hold:
Press and hold the ON/ZERO button.
While holding the ON/ZERO button,
press and hold the RECALL button.
Display will show “zero” then “h on” or
“h off”. Release buttons when selection
is made. Default setting is “h on”.
Automatic Shut Off:
In AC mode, the indicator will shut
off in one hour. In battery mode, the
indicator will shut off in one minute.
Calibration:
To calibrate, install fresh 9 volt battery
in indicator and unplug indicator’s AC
adapter from back of indicator.
Press and hold the ON/ZERO button.
While holding the ON/ZERO button,
press and hold the LG/KG button.
After approximately 3 seconds, the
message on the display will change
from “zero” to “CAL0”.
Make sure the platform is empty and
press the ON/ZERO button. The indicator
will show a countdown from “16” to “1”.
Then it will show “C50”. Place a 50 lb.
weight on the platform and press the ON/
ZERO button. The indicator will show a
countdown from “16” to “1”. Then will
show “50”. Remove the 50 lb. weight and
press the ON/ZERO button. The scale is
now calibrated and has automatically
returned to normal weight mode.
Re-plug indicator’s AC adapter into back
of indicator.
Switching from AC to DC:
Unplug the AC power cord from the
display. Then press the ON/ZERO
button to turn the indicator back on.
Switching from DC to AC:
Plug the AC adapter into a standard wall
socket and the cord into the AC outlet
on the back of the display. Then press
the ON/ZERO button to turn the
indicator back on.
Midmark Way™ Platform Scale
6
© Midmark Corporation 2017 TP202 20-42-FO-00014 Rev A1 C2169
Page 7
Troubleshooting
Indicators:
Messages on the readout indicate
operating condition:
Indicates weight on scale
OL exceeds capacity.
OPEN of cable, or the scale needs
to be calibrated.
Indicates battery is
discharged.
Indicates malfunctioning
Midmark Technical Support: 1-800-299-9525
Care & Cleaning
In The Event Of A Problem:
In the event that a problem occurs,
Midmark Technical Support is ready to
assist you. In order to save time, please
check the following items before calling:
• Does the readout display have a
message that indicates what the
problem is? Refer to “Indicators”
at left for descriptions.
• Check all cables/connections.
• Unplug AC power and battery, then
plug-in again to reset the scale.
The Midmark Way™ scale platform
may be cleaned with any commercially
available product recommended for use
on stainless steel. Frequent cleaning
will prolong the life and help maintain
the natural luster of the stainless steel.
To prevent scratching, use a soft cloth
to clean the scale. If scrubbing is necessary, use a nylon or plastic type
scrubber. When cleaning, always rub in
the direction of the “grain” of the metal.
To remove minor scratches, we recommend using a 3M ScotchBrite® scouring pad rubbed lightly in the direction of
the “grain” of the metal.
Never use steel wool or steel
brushes when cleaning your plat-
form scale. Steel particles may become
embedded into the stainless steel and
cause rust.
Avoid use of chlorine bleach
for cleaning. Chlorides, bromides,
iodides and thiocyanates will cause
pitting, corrosion and discoloration of
the metal. If using bleach, clean thoroughly with water to completely remove
bleach residue.
Avoid excessive moisture.
The Midmark Way™ platform scale
contains electronic components that
may be damaged by excessive exposure to moisture. When cleaning or
mopping the floor, do not leave the
scale in standing water. For thorough
cleaning, the stainless steel platform
cover may be lifted off the scale base
and cleaned separately, away from electronic components.
Midmark Way™ Platform Scale
7
© Midmark Corporation 2017 TP202 20-42-FO-00014 Rev A1 C2169
Page 8
Product Warranty
This product is warrantied for 2 years from the date of delivery to the original purchaser only. The warranty is only applicable if customer complies with all instructions and specifications furnished by Midmark relating to installation, care, and
application. The customer agrees not to modify, misapply, or misuse product in any
manner which deviates from the Midmark instructions. Any repairs, alterations, or
services provided by parties other than Midmark or its authorized representatives
may void warranty. The buyer is responsible for all freight charges on returned
items.
Product Satisfaction Policy
In the event that the customer is not fully satisfied with the products purchased,
Midmark may, at its own discretion, arrange for the customer’s account to be credited
(excluding shipping charges) or replace the product. The customer must notify Midmark
of any claim of nonconformity or defect in writing within 30 days from the date of
receipt. The product must be returned to Midmark in its original packaging, undamaged
and showing no unusual wear within 20 days of the customer’s written notice.
To return an item, follow these simple instructions:
•CallMidmarkforcompleteinstructions(800-299-9525)
•AsalesrepresentativewillgiveyouaReturnAuthorizationNumber
•IfaRestockingFeeapplies,youwillbeinformedatthistime
•LabeltheboxeswiththeReturnAuthorizationNumber
(All items must have a Return Authorization Number)
•Returntheitems,postage/freightprepaid
If necessary, the Midmark sales representative will assist you with freight arrangements.
Note: Custom orders and/or custom colors may not be returned.
Midmark Corporation - Carthage Facilities
1000 Civil War Road
Area 5
Carthage, MO 64836
1-800-299-9525
8
Loading...
