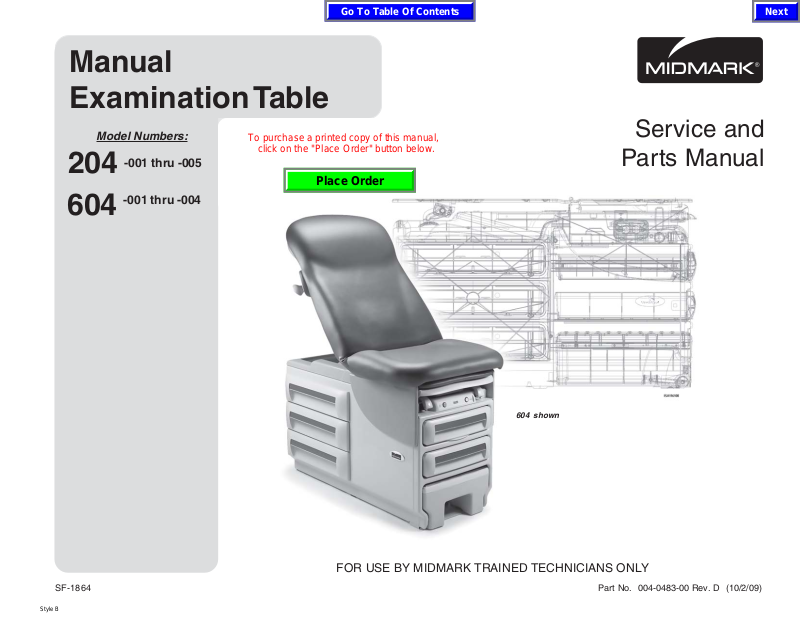

Midmark 204, 604 Service manual

Manual

Go To Table Of Contents

Place Order

To purchase a printed copy of this manual,

click on the "Place Order" button below.

Style B

Examination Table

Model Numbers:

204

604

-001 thru -005

-001 thru -004

Service and

Parts Manual

604 shown

SF-1864 Part No. 004-0483-00 Rev. D (10/2/09)

FOR USE BY MIDMARK TRAINED TECHNICIANS ONLY

GENERAL INFORMATION

Back

Symbols ....................................iii

Ordering Parts ......................... iii

Serial Number Location .......... iii

Specifications ........................... iv

Model Identification /

Compliance Charts:

204 ..................................................

604 ..................................................

Warranty Information............... vii

General Information

v vi

TESTING & REPAIR - continued

Upholstery Heater System .. B-14

cont.

Section B -

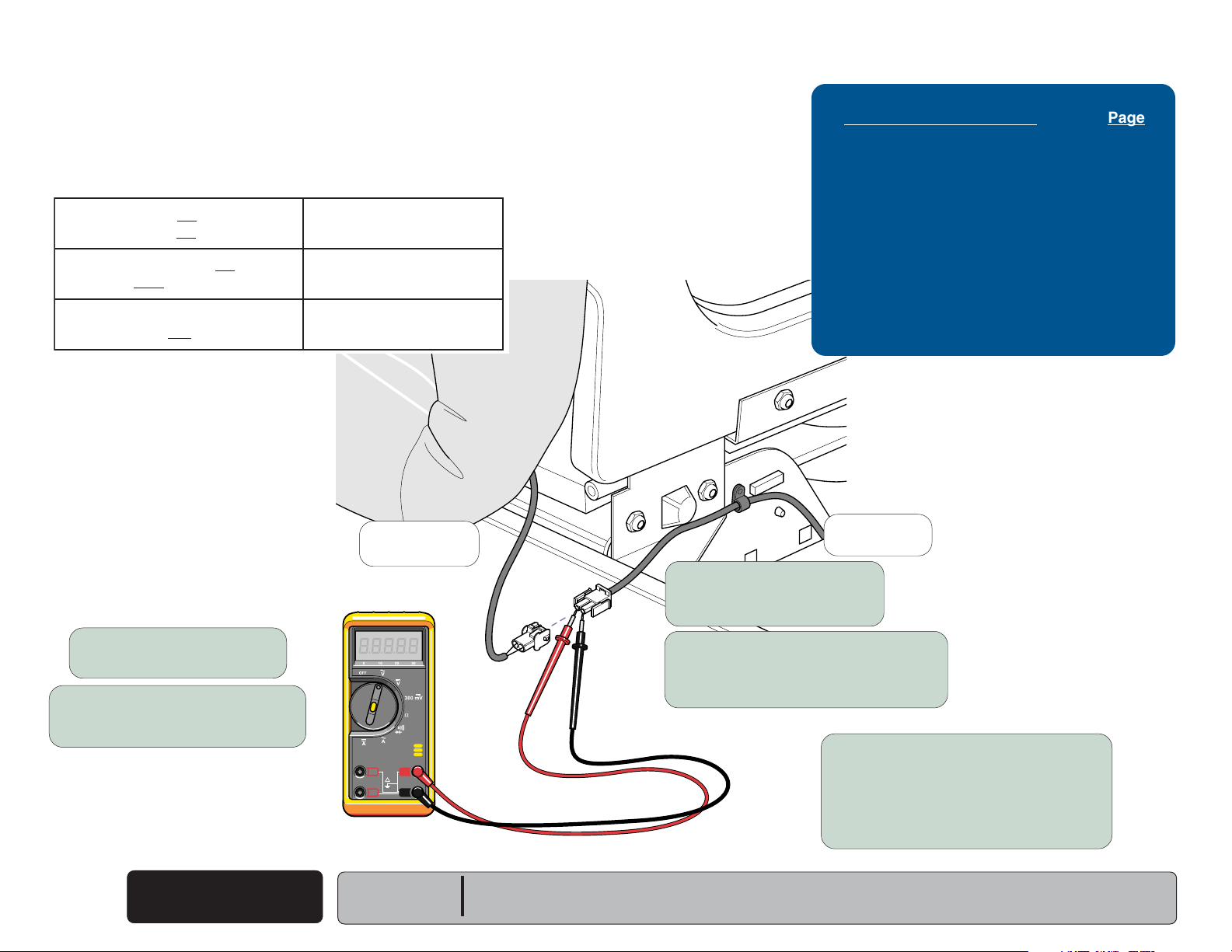

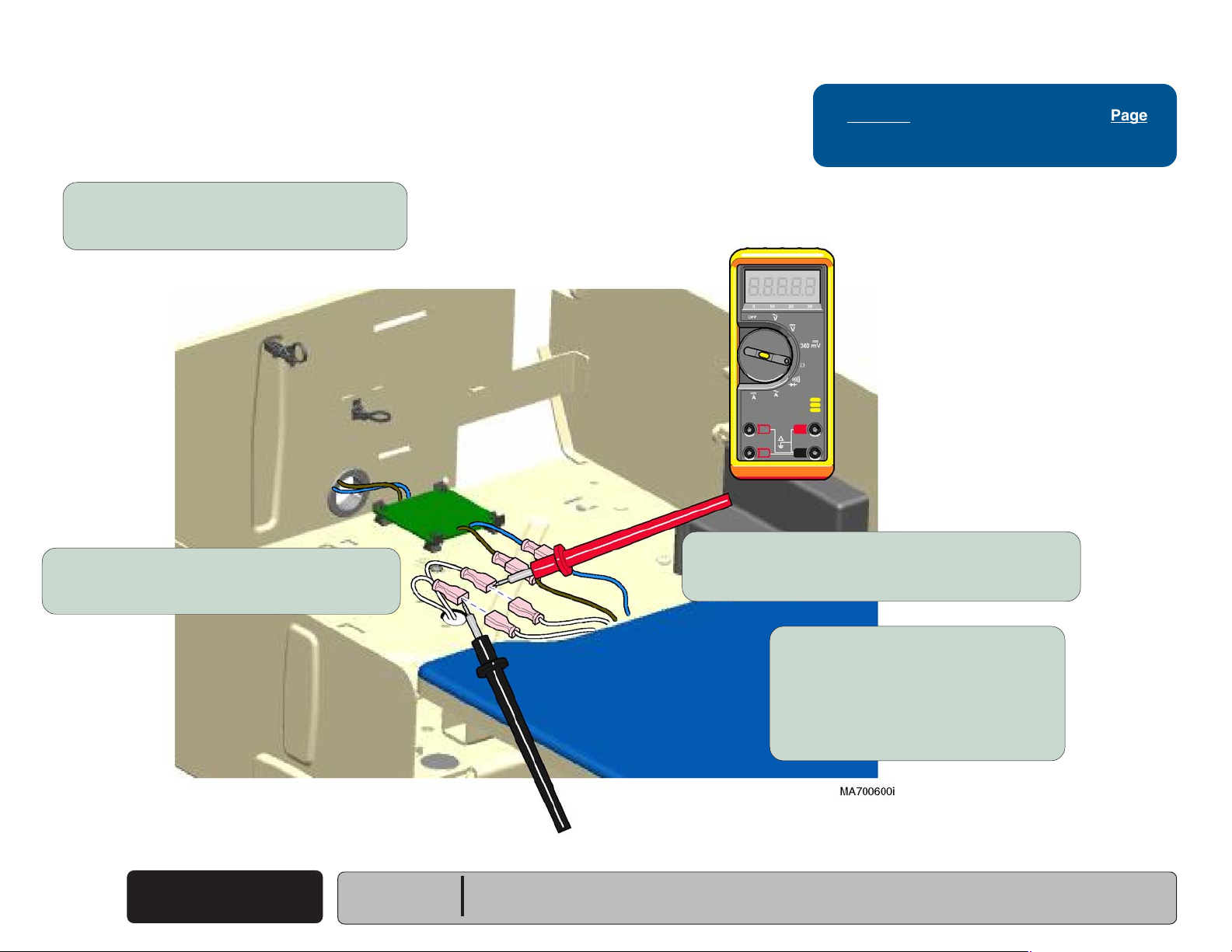

Output Voltage Test ..........................

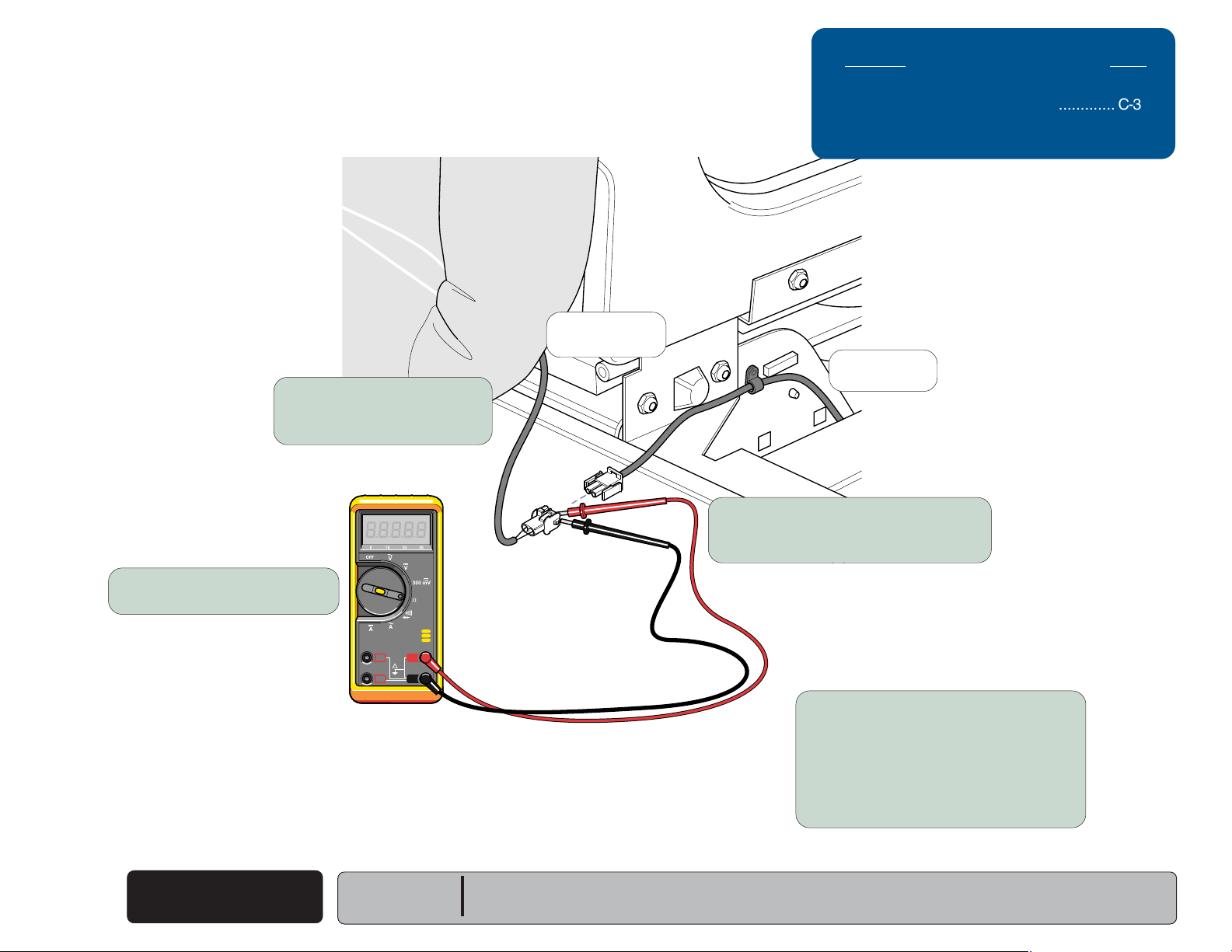

Supply Voltage Test .........................

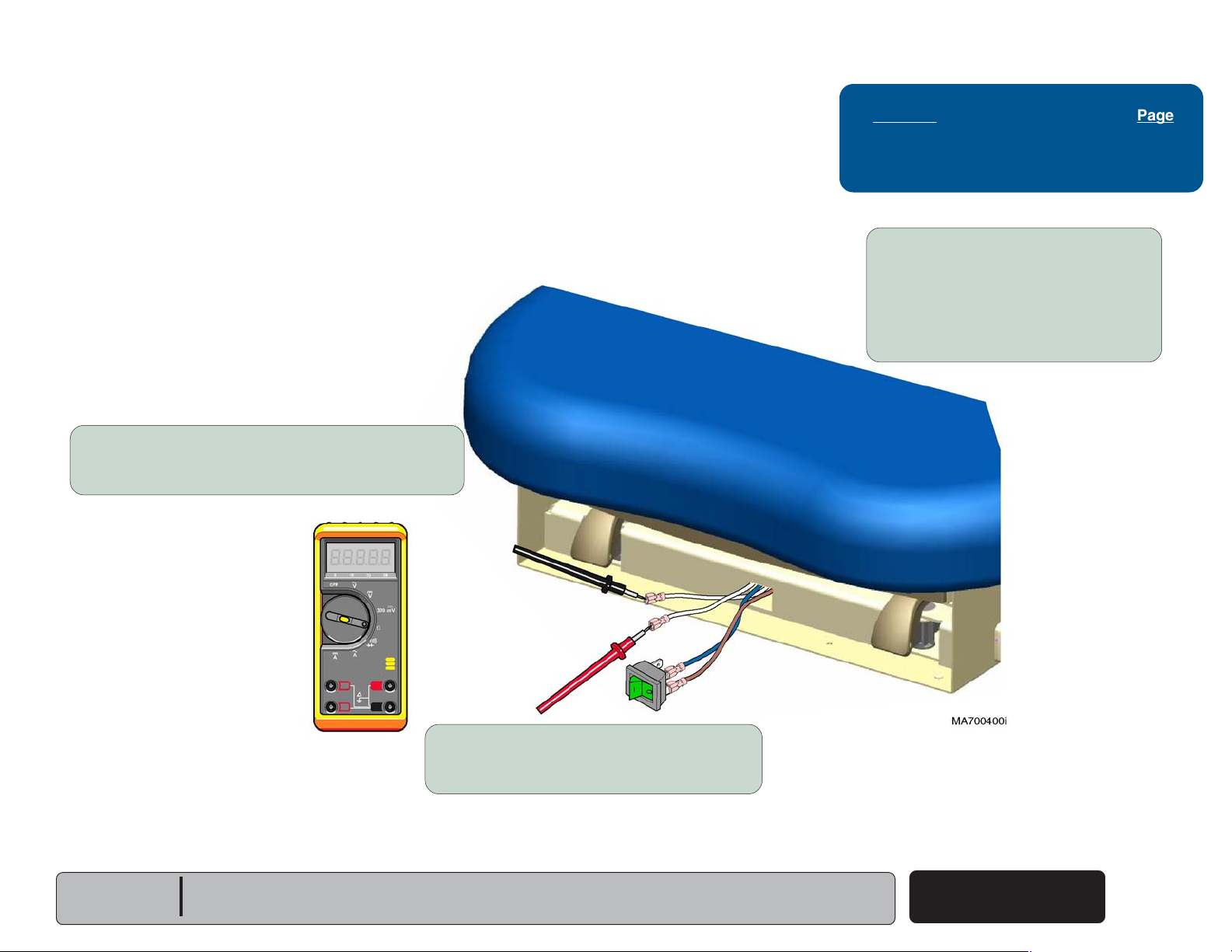

Uph. Heater Resistance Test ...........

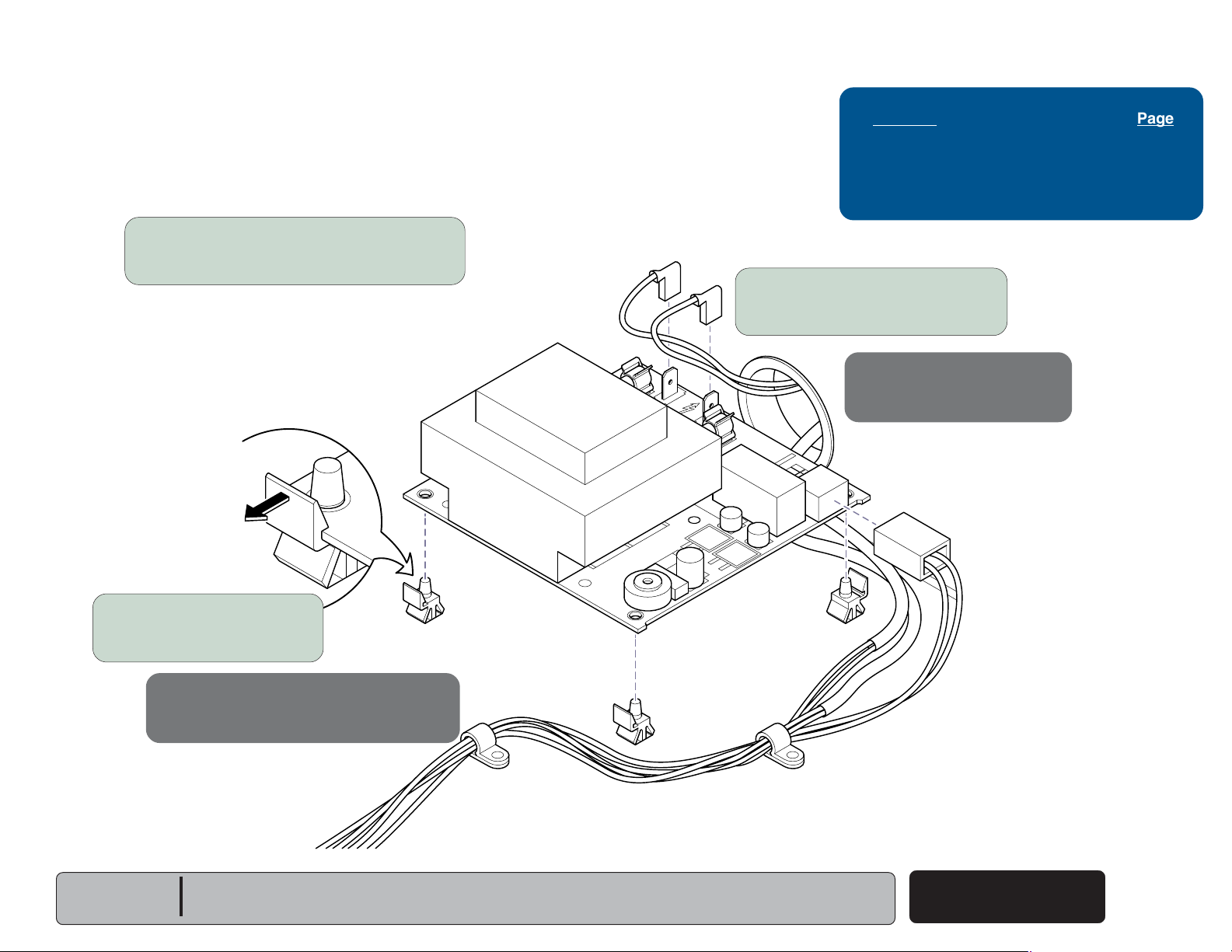

Uph. PC Board Replacement ..........

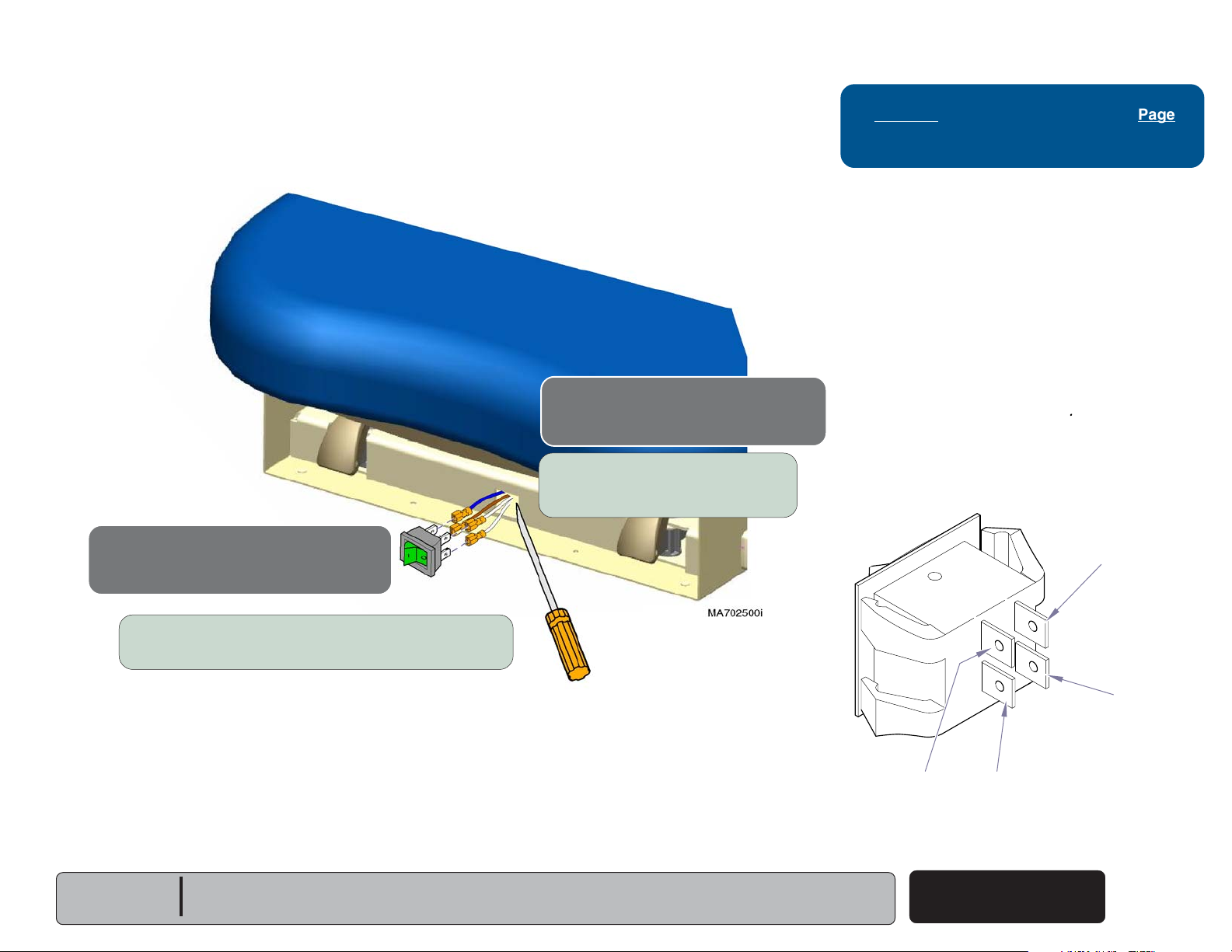

Heater Switch Replacement ...........

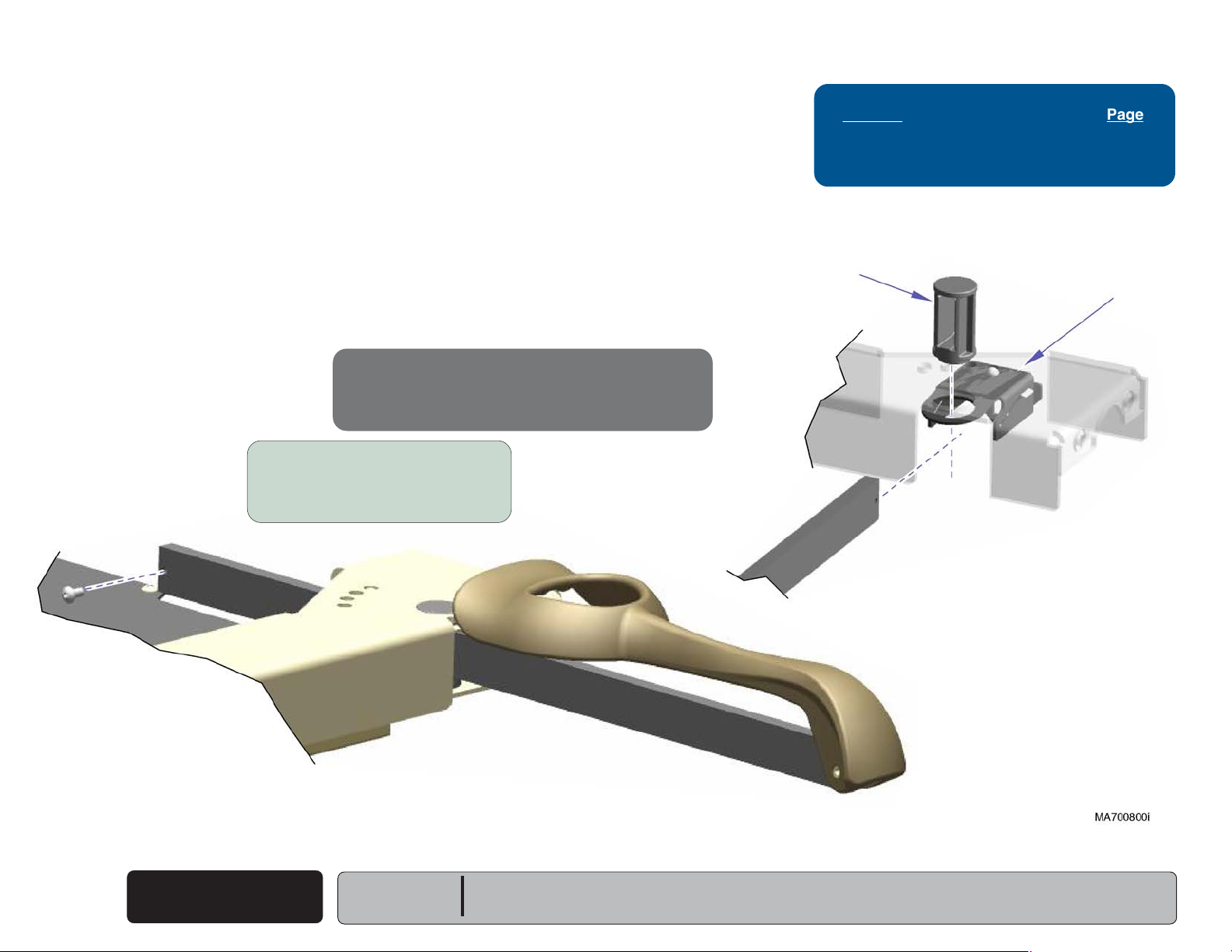

Stirrup Replacement............ B-20

Footrest Extension

Replacement ...................... B-21

Foot Step Replacement ....... B-22

B-14 B-15 B-16 B-17 B-18

TROUBLESHOOTING

Back Section Positioning ........ A-2

Table Receptacle System ........ A-5

Drawer Heater System ............ A-7

Upholstery Heater System ...... A-11

Removing & Installing:

Section A

ACCESS PROCEDURES

TESTING & REPAIR

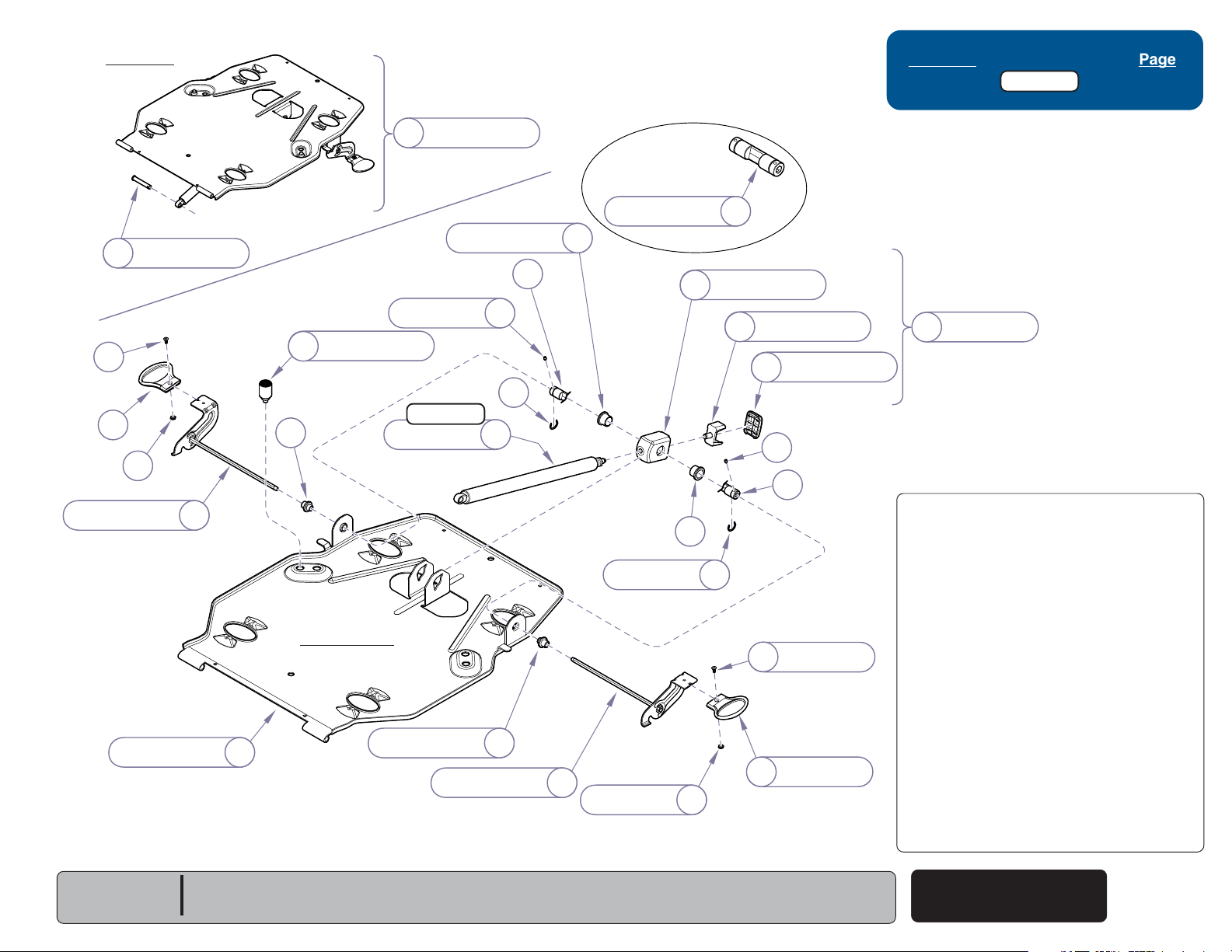

Back Release Mechanism ....... B-2

Gas Cylinder Adjustment ...................

Gas Cylinder Replacement ................

Table Receptacle System ........ B-4

Circuit Breakers ..................................

Section B

Table Of Contents

Supply Voltage Test ............................

Drawer Heater System ............ B-6

Distribution Board Fuses ...................

Supply Voltage Test:

204 ..................................................

604 ..................................................

Heater Switch Replacement:

204 ..................................................

604 ..................................................

Heater Plate Test:

204 ..................................................

604 ..................................................

Heater Plate Replacement ................

FOR USE BY MIDMARK TRAINED TECHNICIANS ONLY

B-2 B-3

B-4 B-5

B-6

B-7 B-8

B-9 B-10

B-11 B-12 B-13

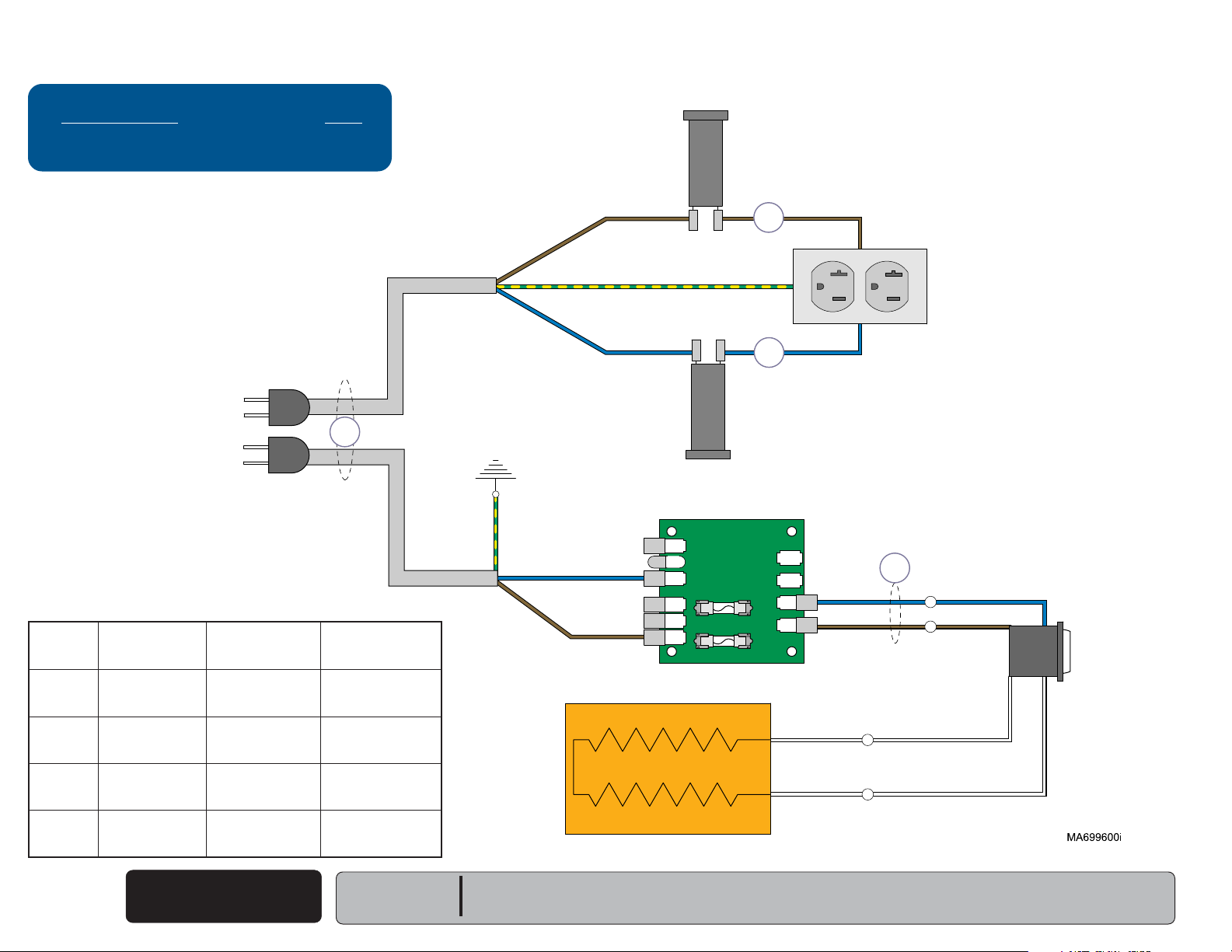

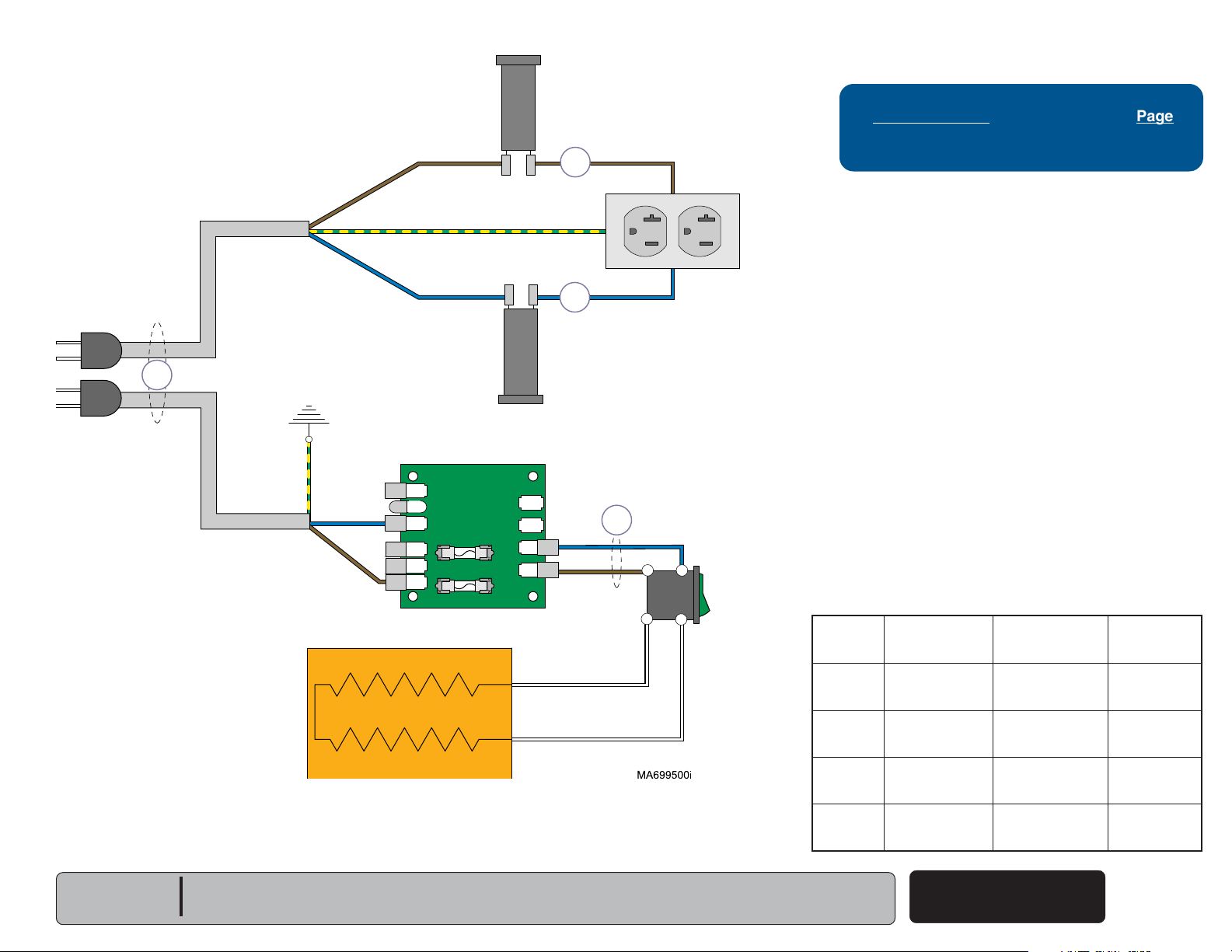

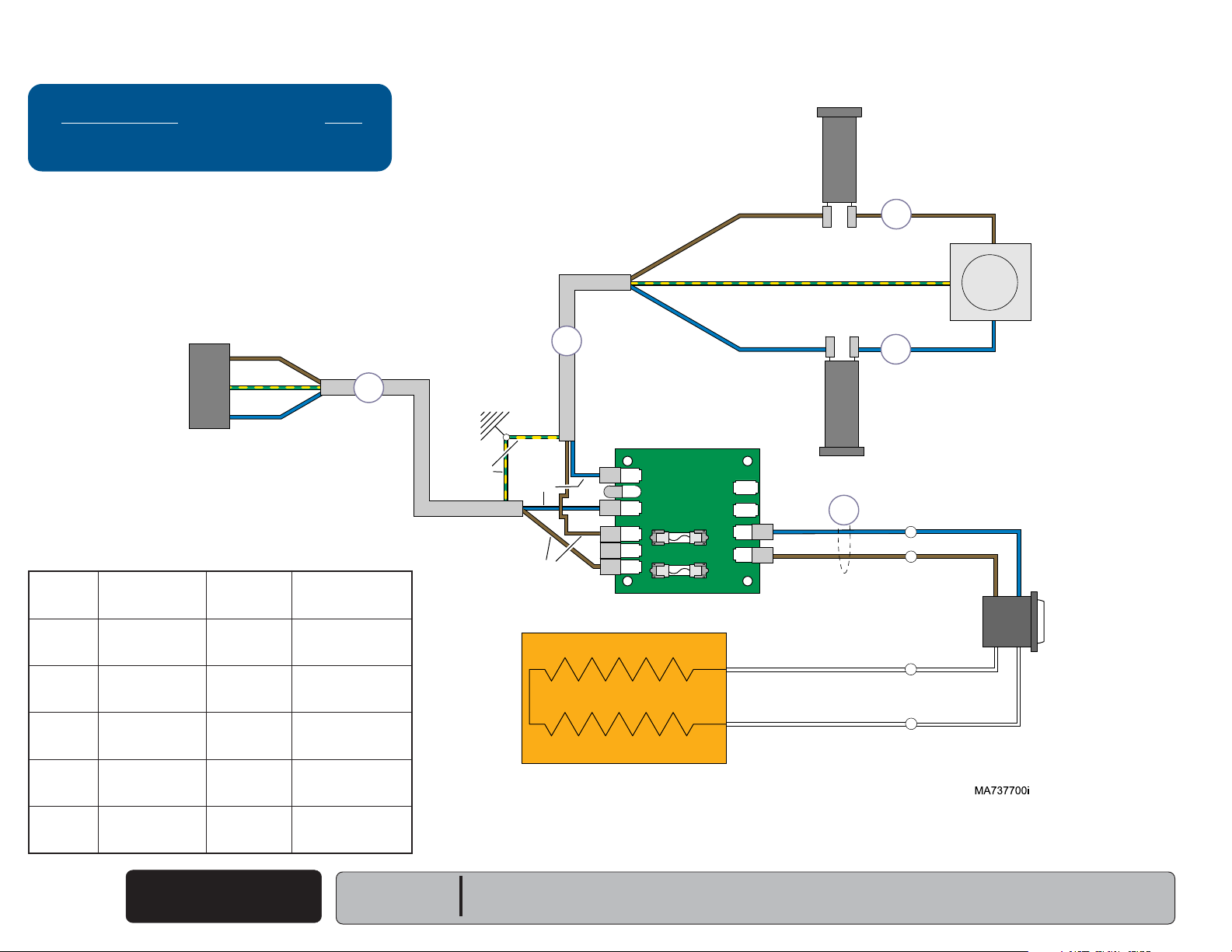

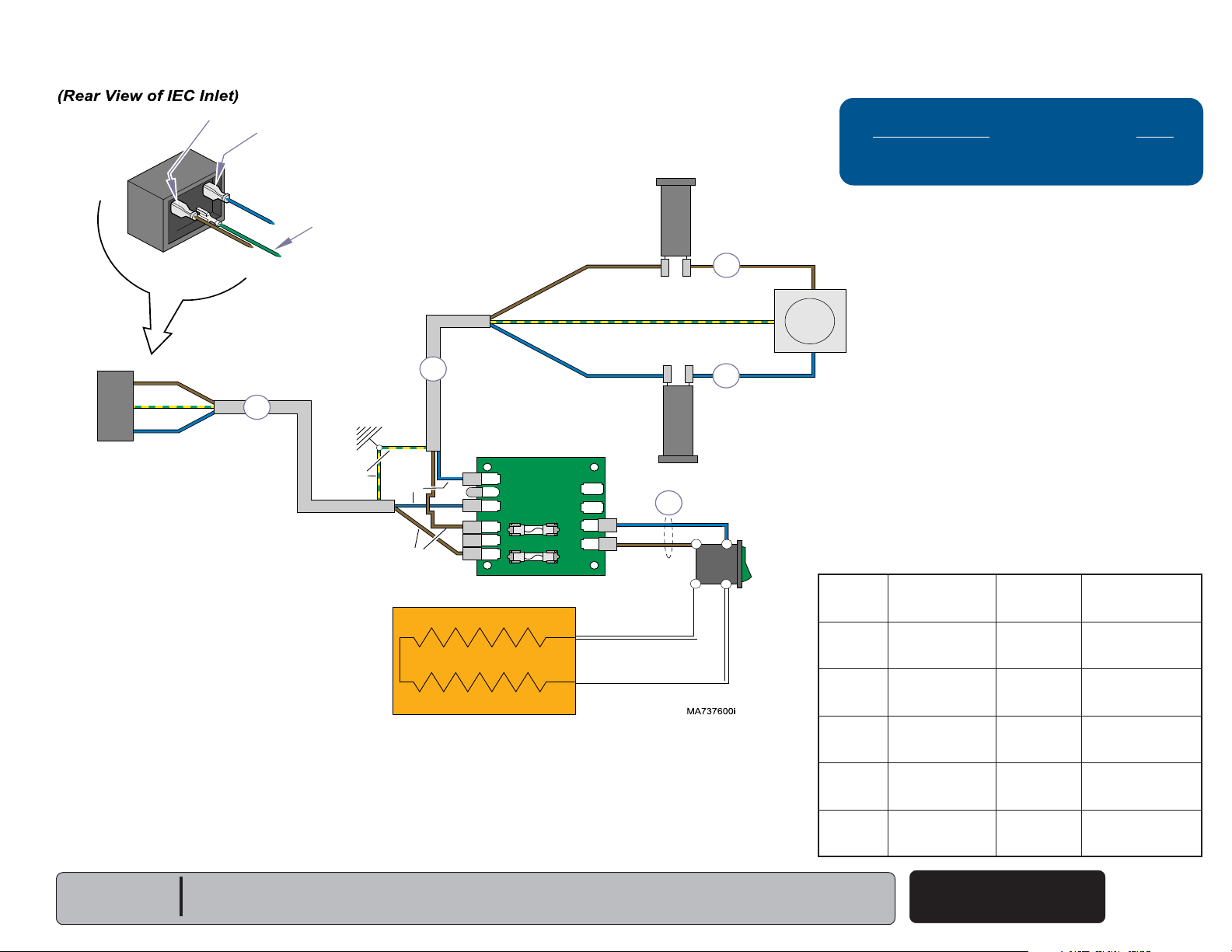

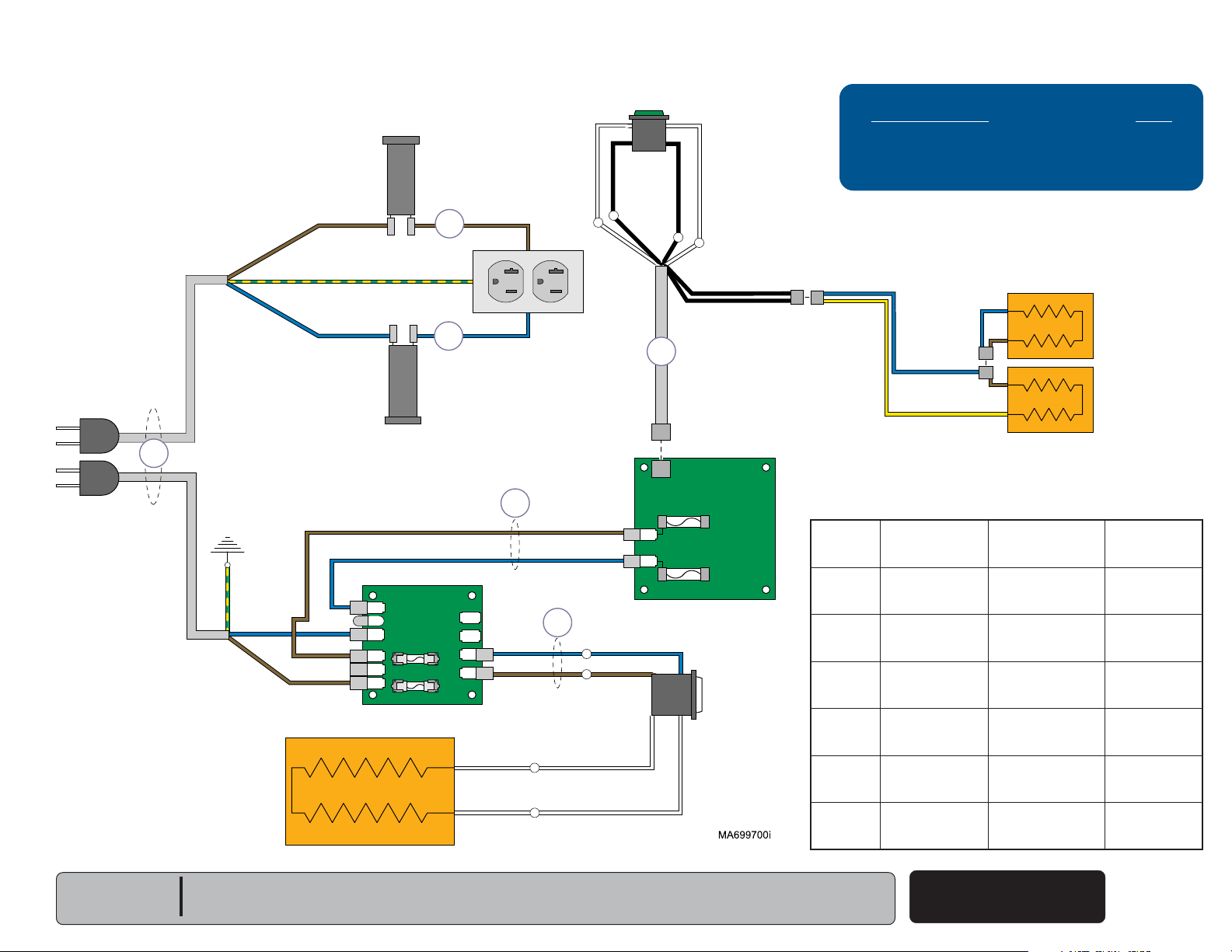

WIRING DIAGRAMS

Section D Section C

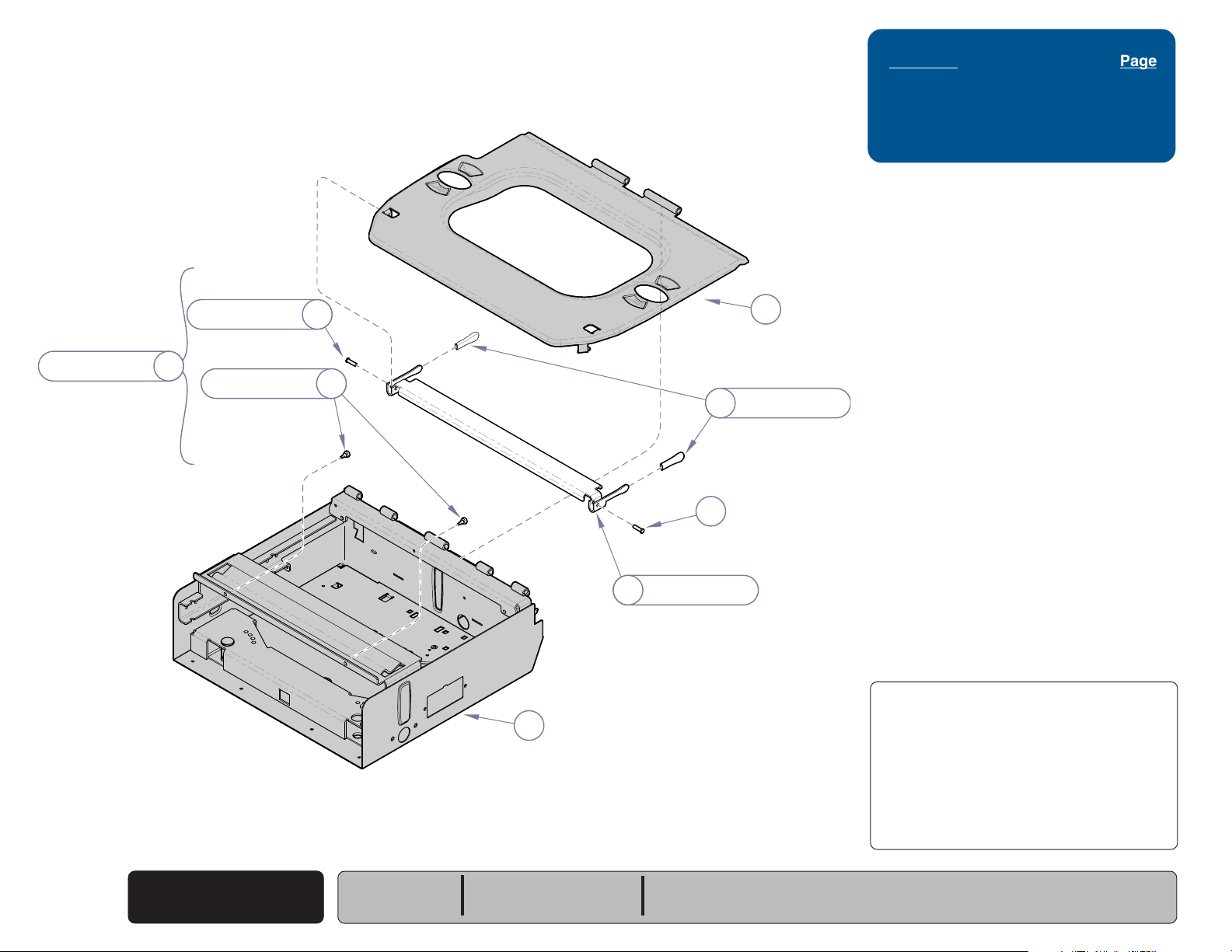

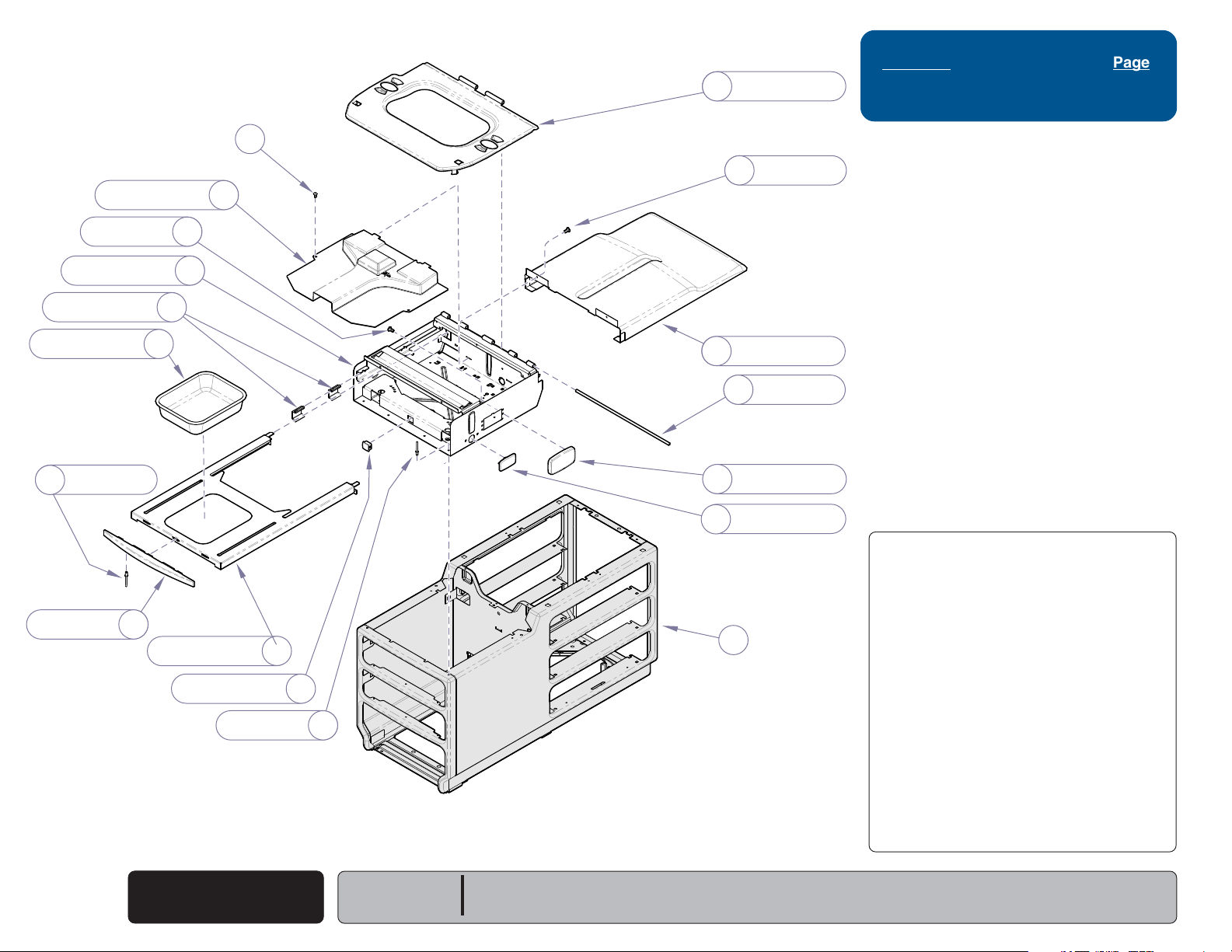

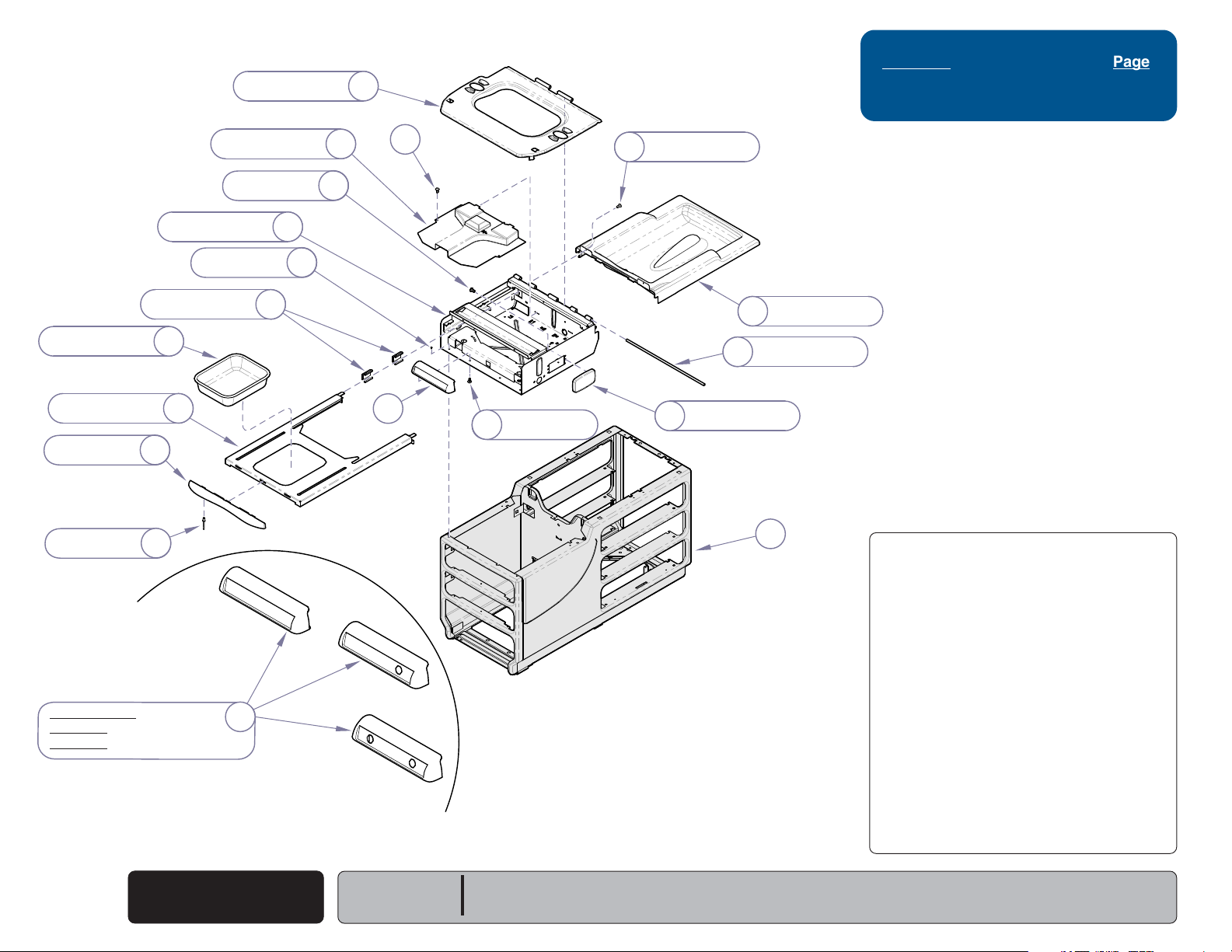

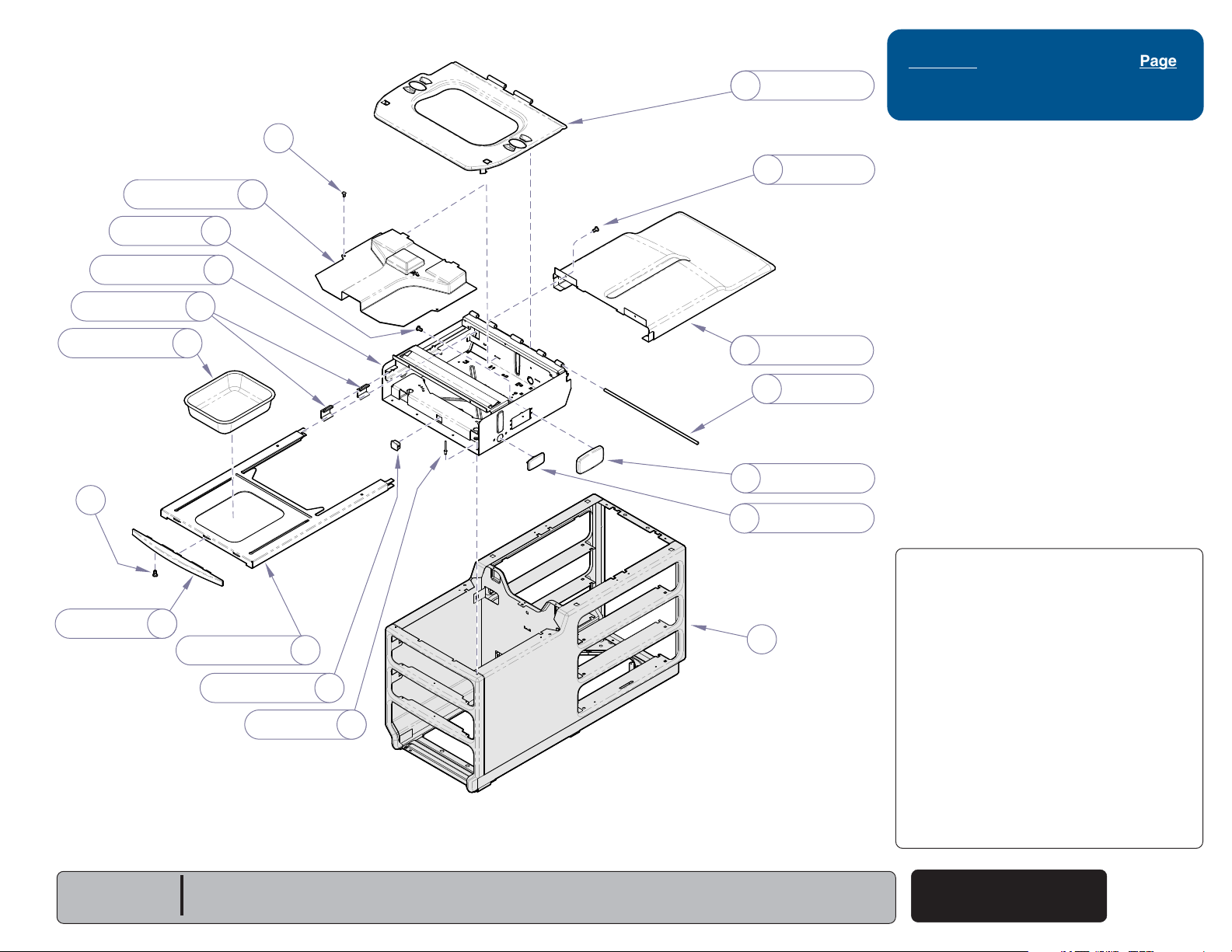

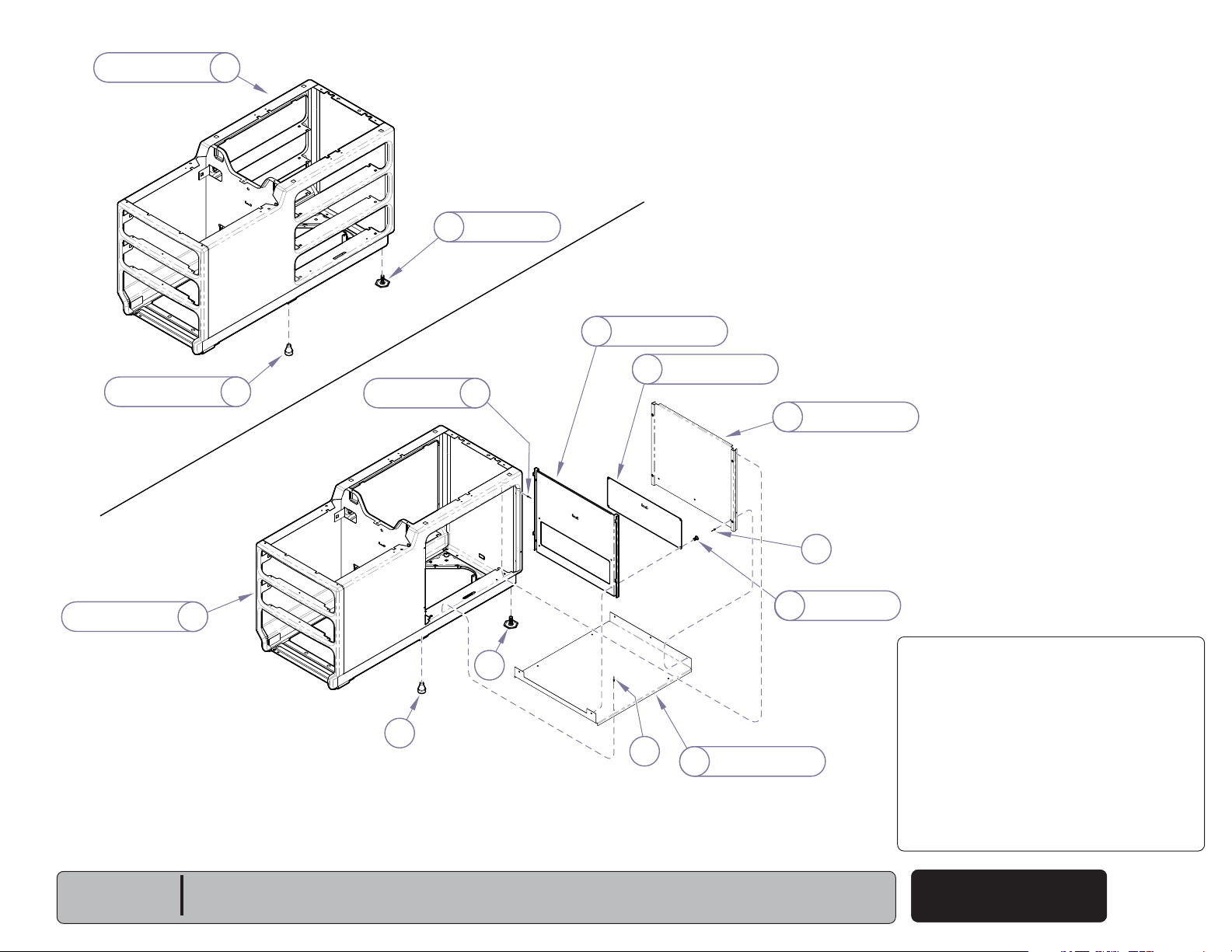

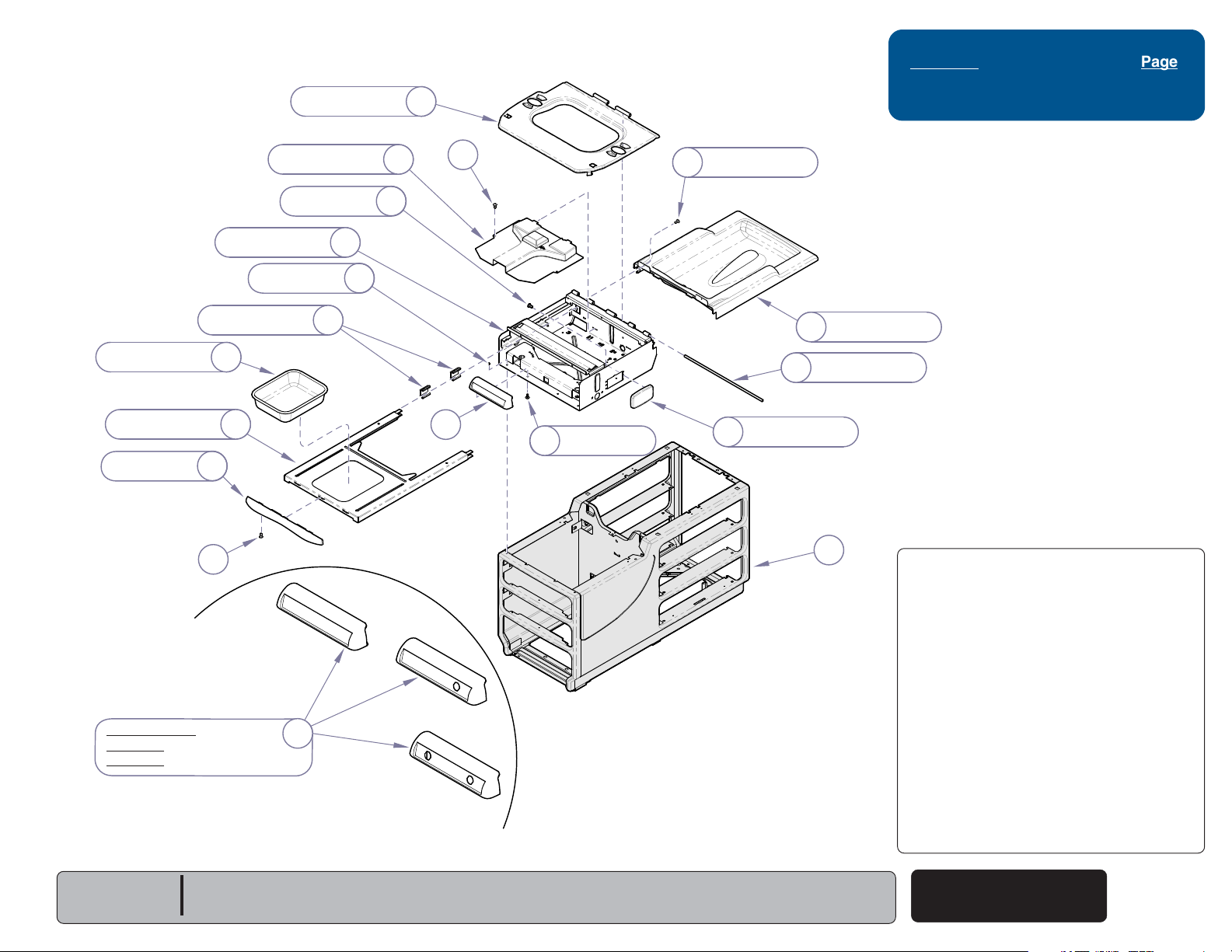

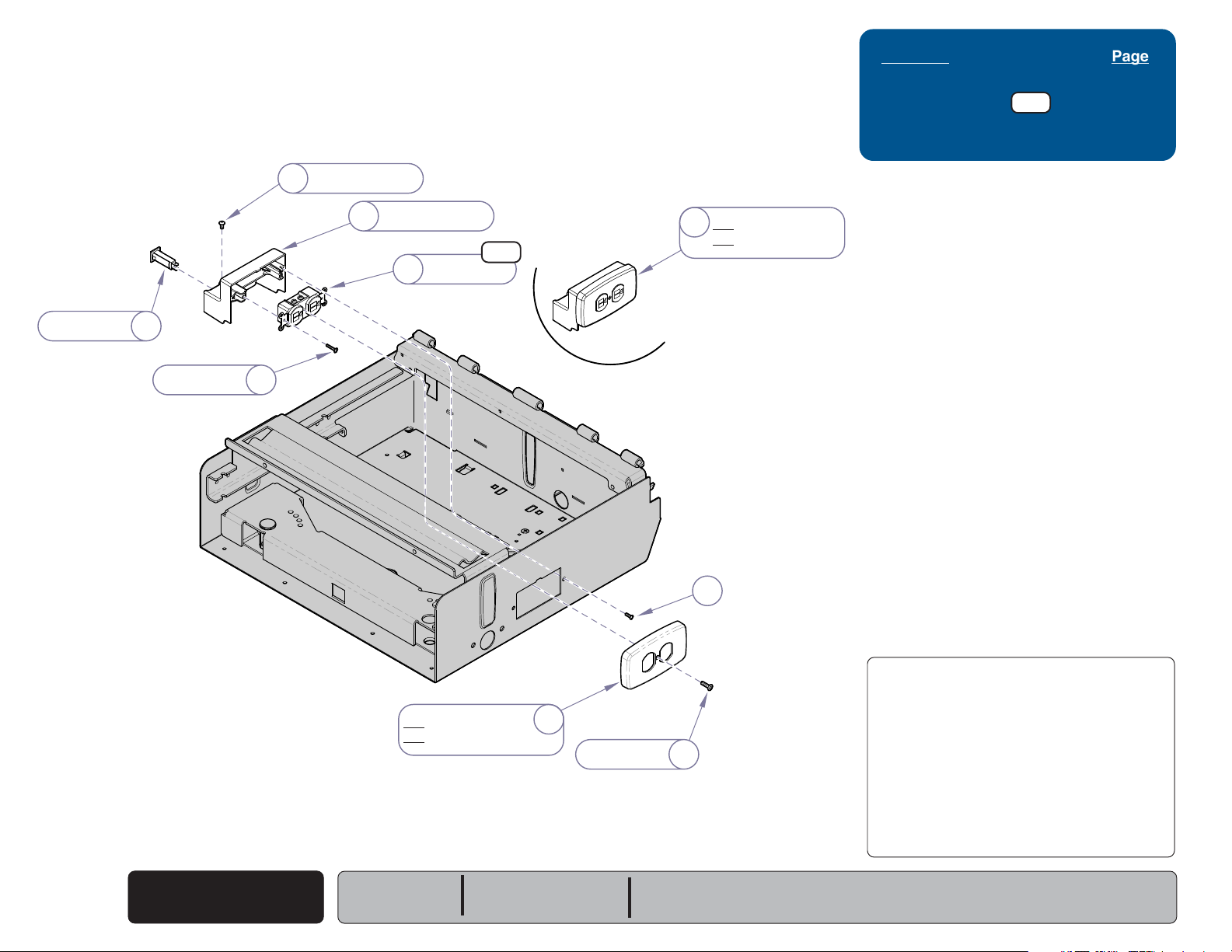

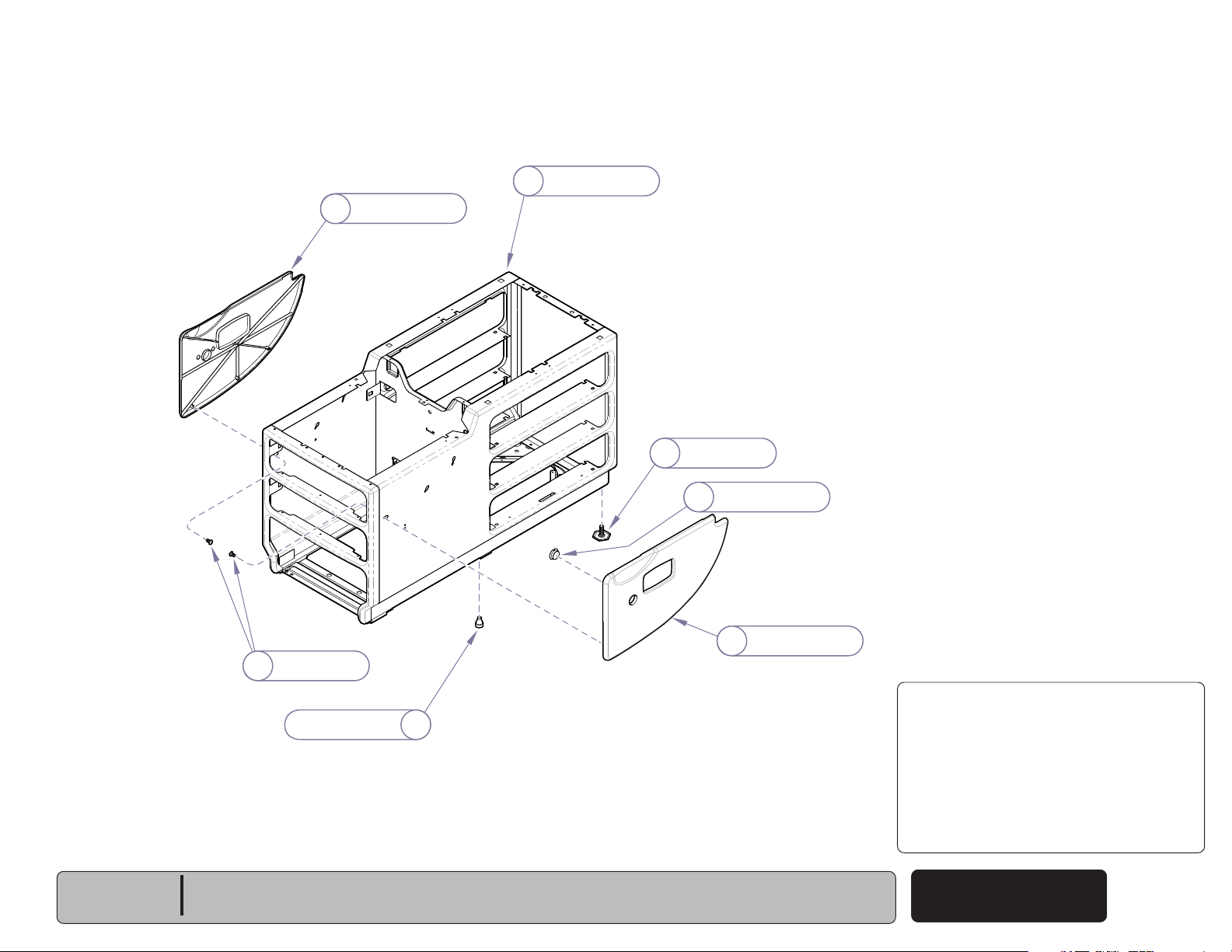

EXPLODED VIEWS / PARTS LISTS

Section E

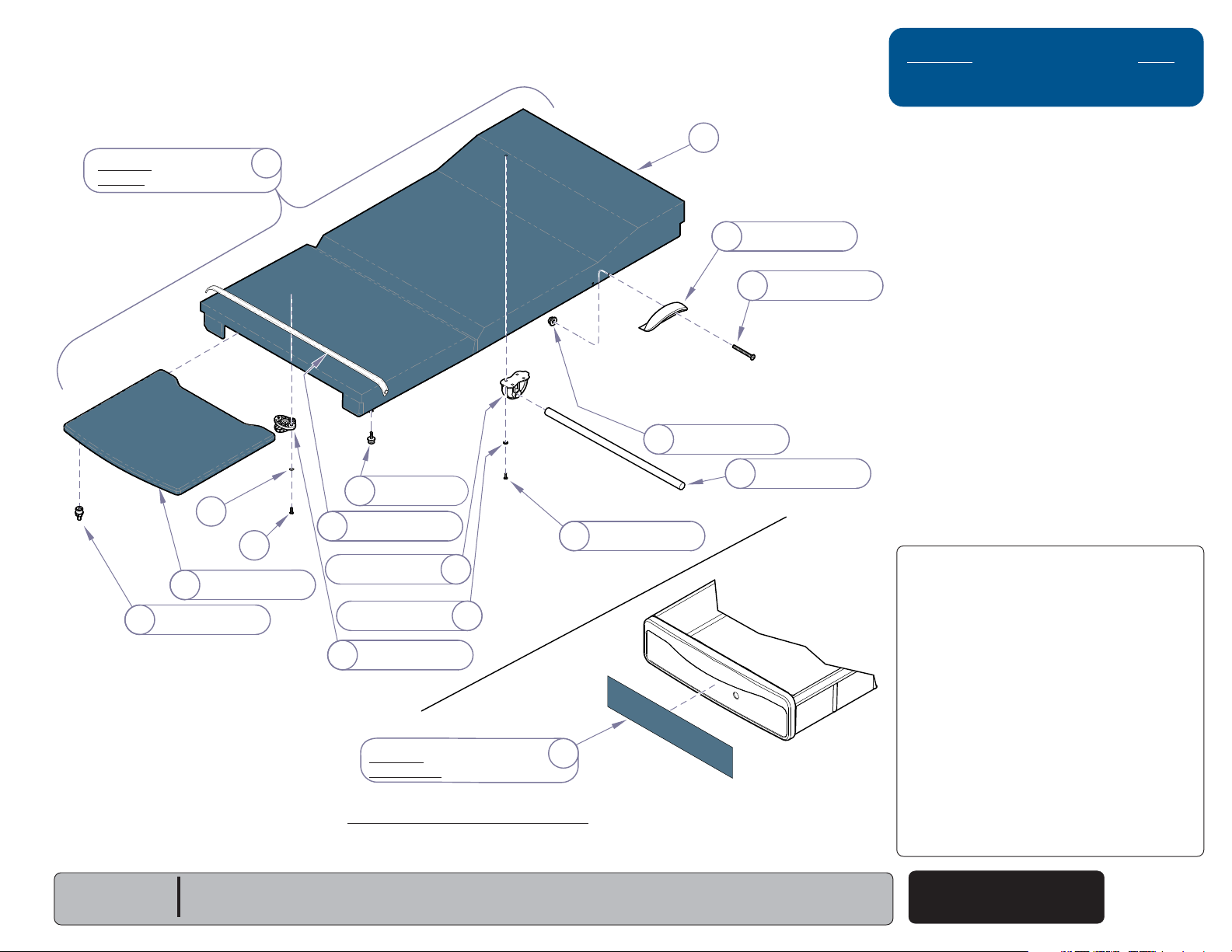

Upholstery:

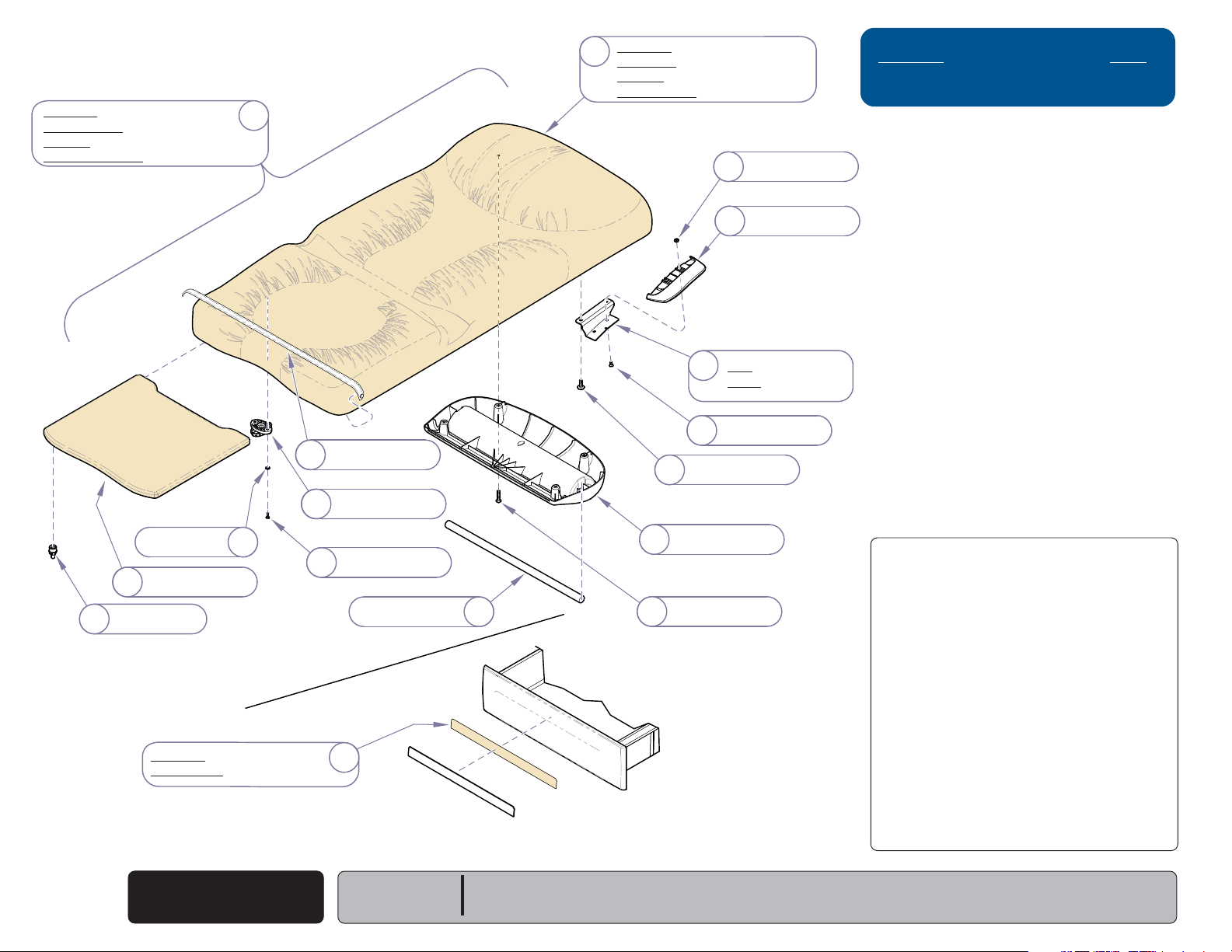

204 (Ritter) .......................................

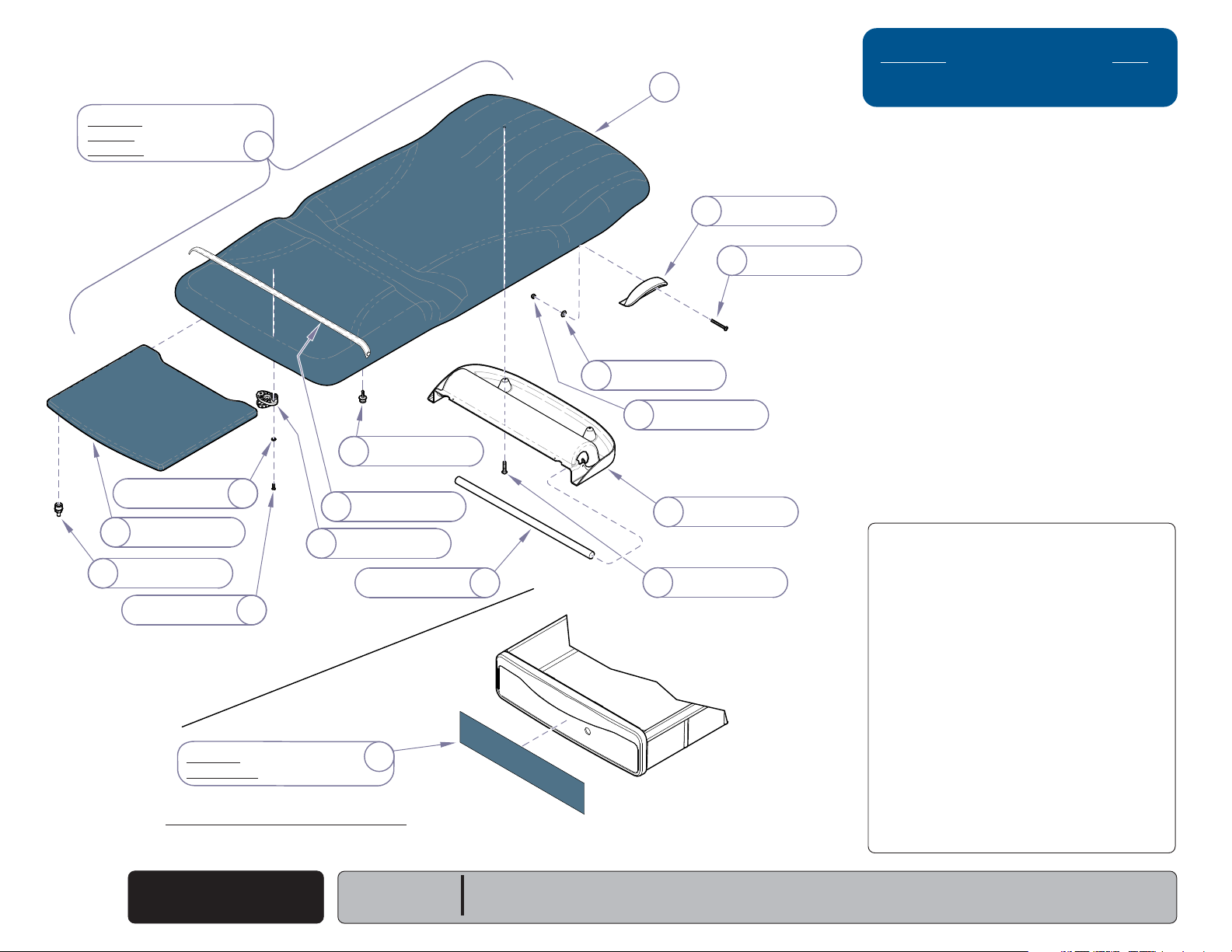

604 (Midmark) ..................................

Stirrup Guide.......................... C-4

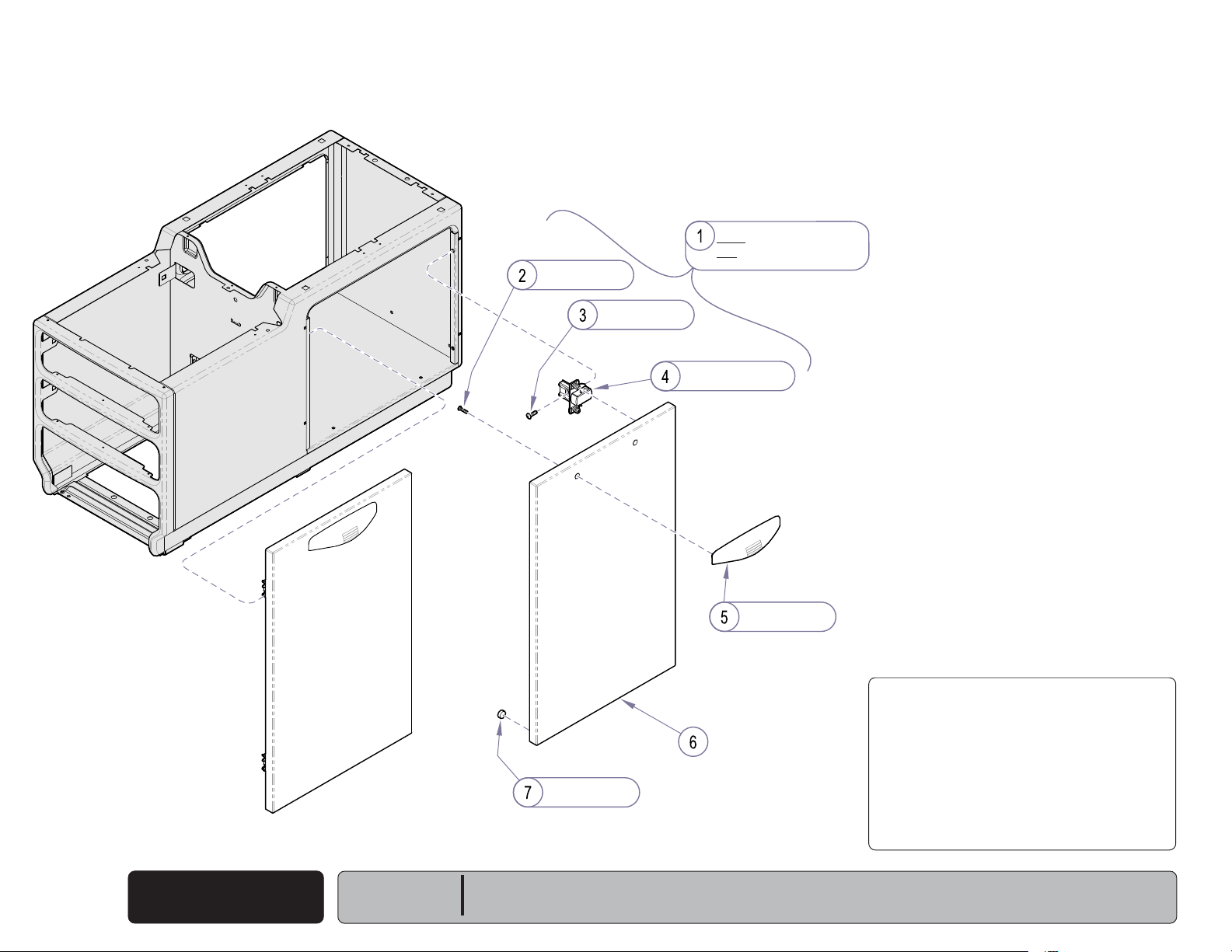

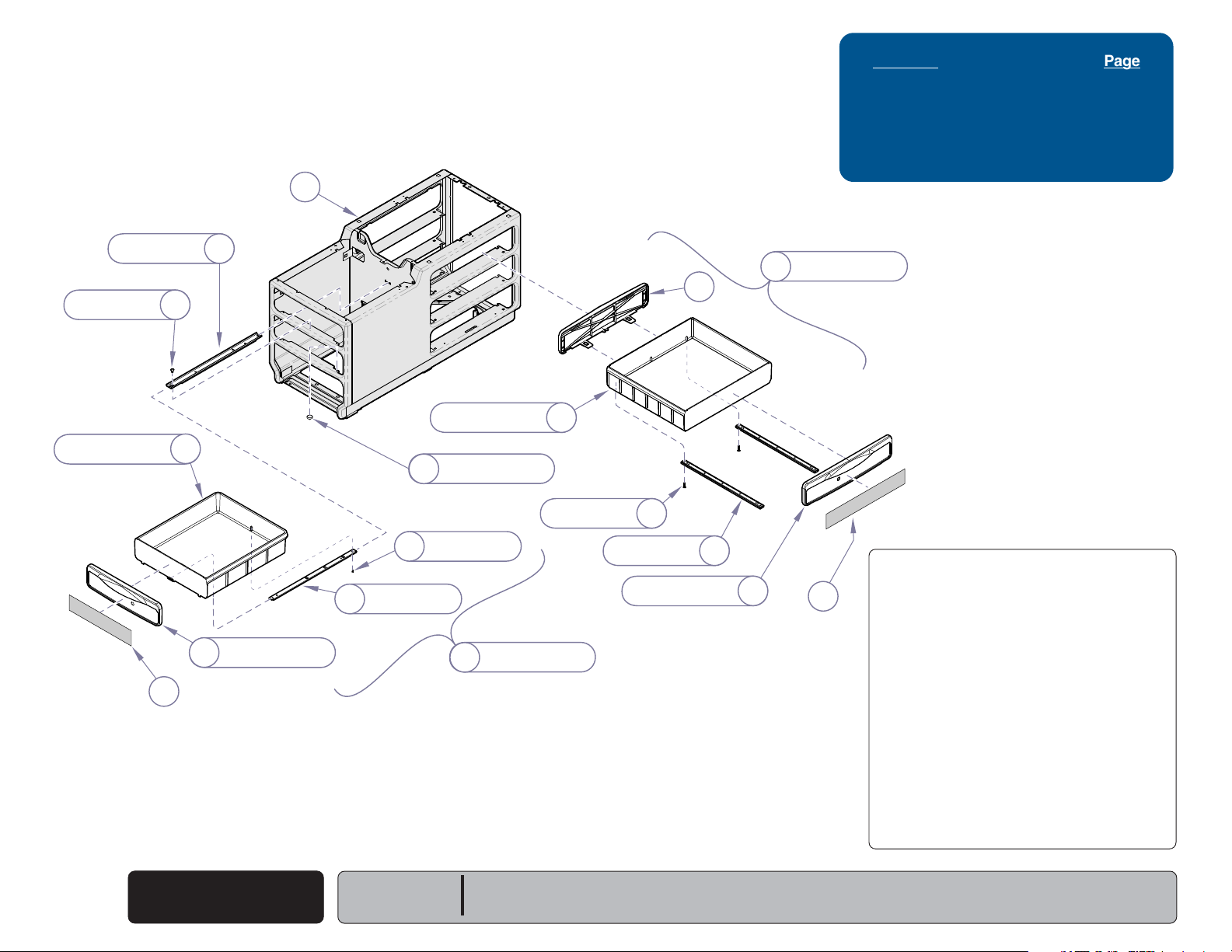

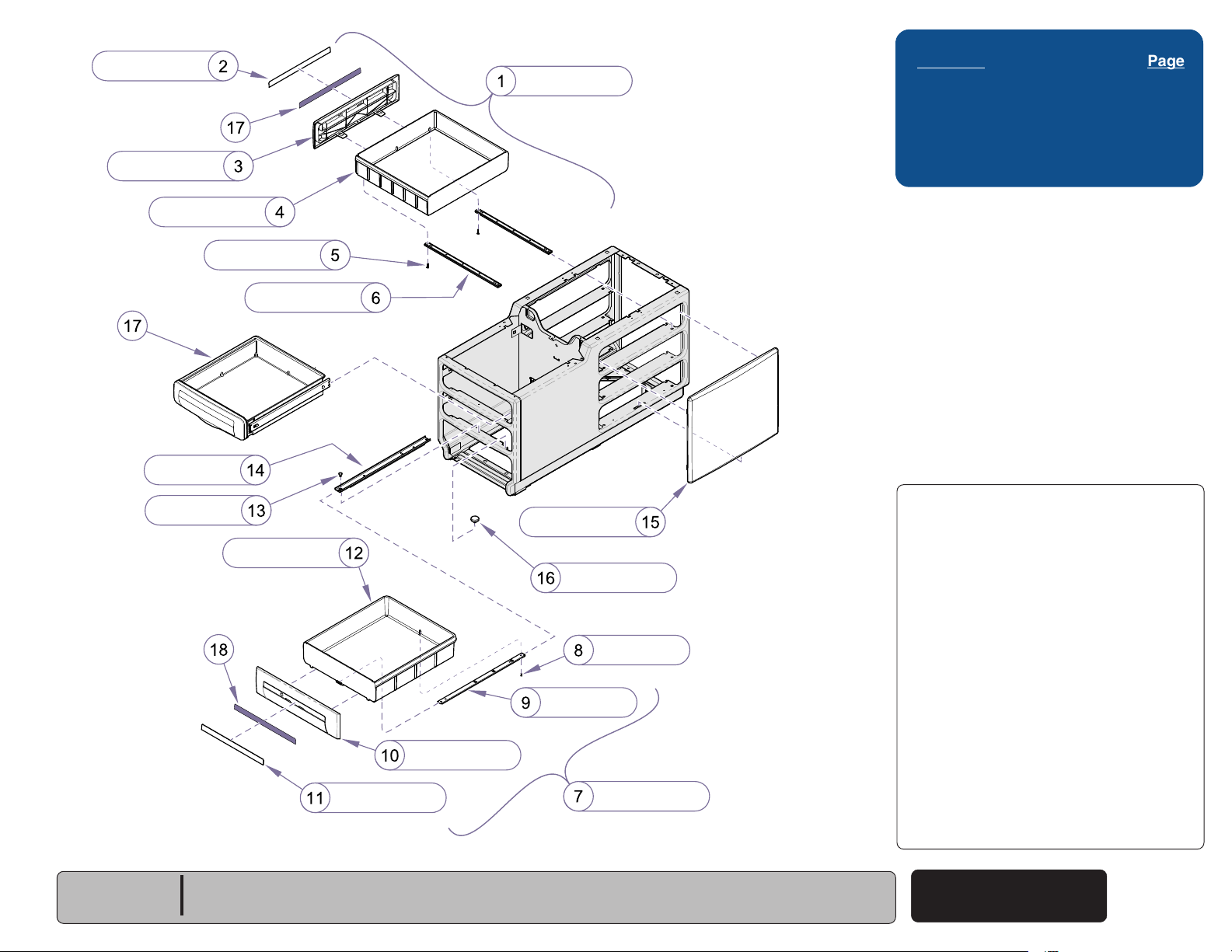

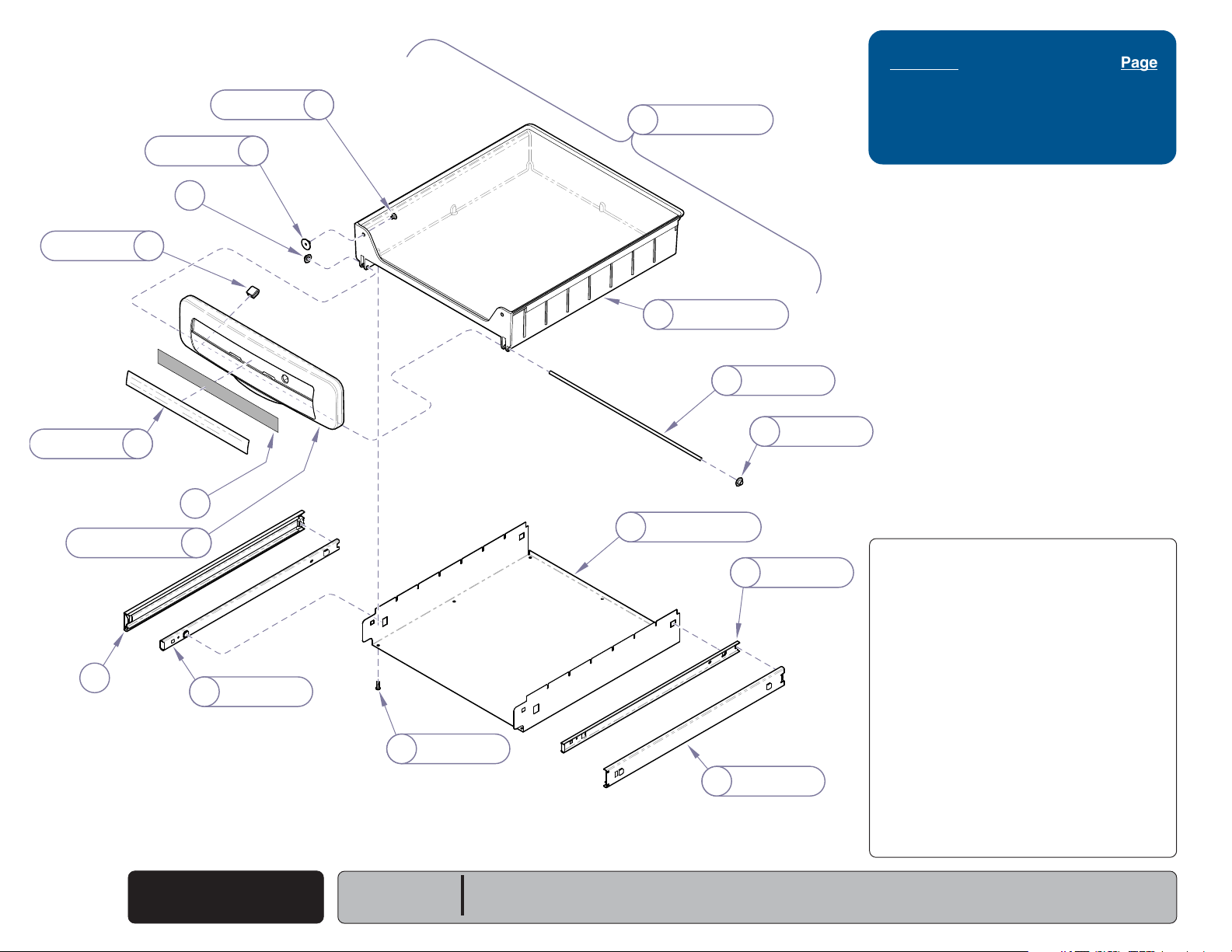

Drawers .................................. C-5

204:

(-001 & -003) ....................................

(-002 & -004) ....................................

604:

(-001) ................................................

(-002) ................................................

(-003) ................................................

204:

(-001 / -002 / -005) ...........................

(-003 / -005) ......................................

604

(all) ..............................................

C-2 C-3

D-2 D-3

D-2 D-4 D-5

E-2 E-3 E-4

Rev. 1/08

Symbols

Back

Go To Table Of Contents

General Information

Ordering Parts

Caution

Indicates a potentially hazardous situation which could result in injury if not avoided.

Equipment Alert

Indicates a potentially hazardous situation which could result in equipment damage if not avoided.

Note

Amplifies a procedure, practice, or condition.

In Section A, test the components in the order indicated. (ex.

1st

then,

These symbols are used throughout this manual to represent the operational status of table functions and components.

Refer to Section B for component testing procedures.

Indicates the function / component is working properly. No action required.

2nd

)

The following information is required when ordering parts:

• Serial number & model number

• Part number for desired part.

[Refer to Exploded Views / Parts Lists section]

Non-warranty parts orders may be faxed to Midmark using the Fax Order Form in the back of this manual.

For warranty parts orders, call Midmark's Technical Service Department with the required information.

Hours: 8:00 am until 5:00 pm EST [Monday - Friday] Phone: 1-(800)-Midmark

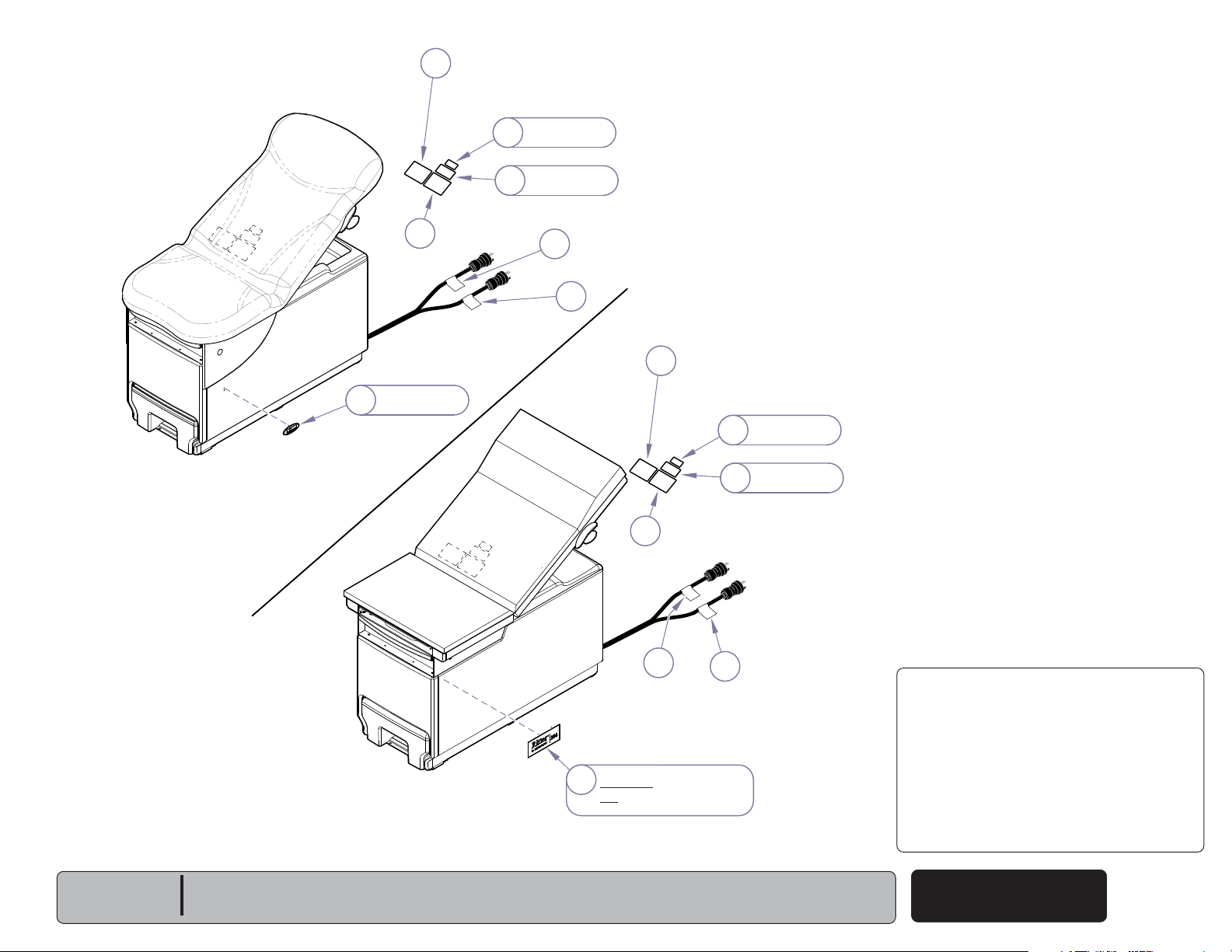

Model / Serial Number Location

General Information

Indicates the function / component is working, but a problem exists.

Indicates the function / component is not working at all.

Serial / Model

Number

iii

General Information

Back

Go To Table Of Contents

Specifications

Maximum Patient Weight: .................................. 500 lbs (226 kg)

Electrical Supply Requirements: ...................... [See

Paper Roll (maximum size): .............................. 21 in. wide x 3.5 in. diameter

(53 cm x 9 cm)

Range of Motion &

Dimensions .......................................................(See illustrations)

Weight of Table: ..................................................220 lbs (99.8 kg)

w/packaging & skid .............................................273 lbs (123.8 kg)

Receptacle Power Cord: .................................... 6 ft. (1.8 m) long

Drawer / Uph. Heater Power Cord: ...................6 ft. (1.8 m) long

Side Drawer

19.7 in. (50 cm)

Foot-End Drawer

20.8 in. (52.8 cm)

Side Drawer

22 in. (55.8 cm)

Foot-End Drawer

18 in. (45.7 cm)

Model Identification Chart

20.5 in. (52 cm)

]

30.2 in. (52 cm)

18 in.

(45.7 cm)

Max.

70° +5°

Max.

7° +2°

Depth

4.25 in. (10.8 cm)

(all)

Rev. 7/09

9 in.

(23 cm)

Min.

1.5°

16.5 in.

(42 cm)

Midmark

604

46.4 in.

(117.8 cm)

Ritter

204

Min.

0°

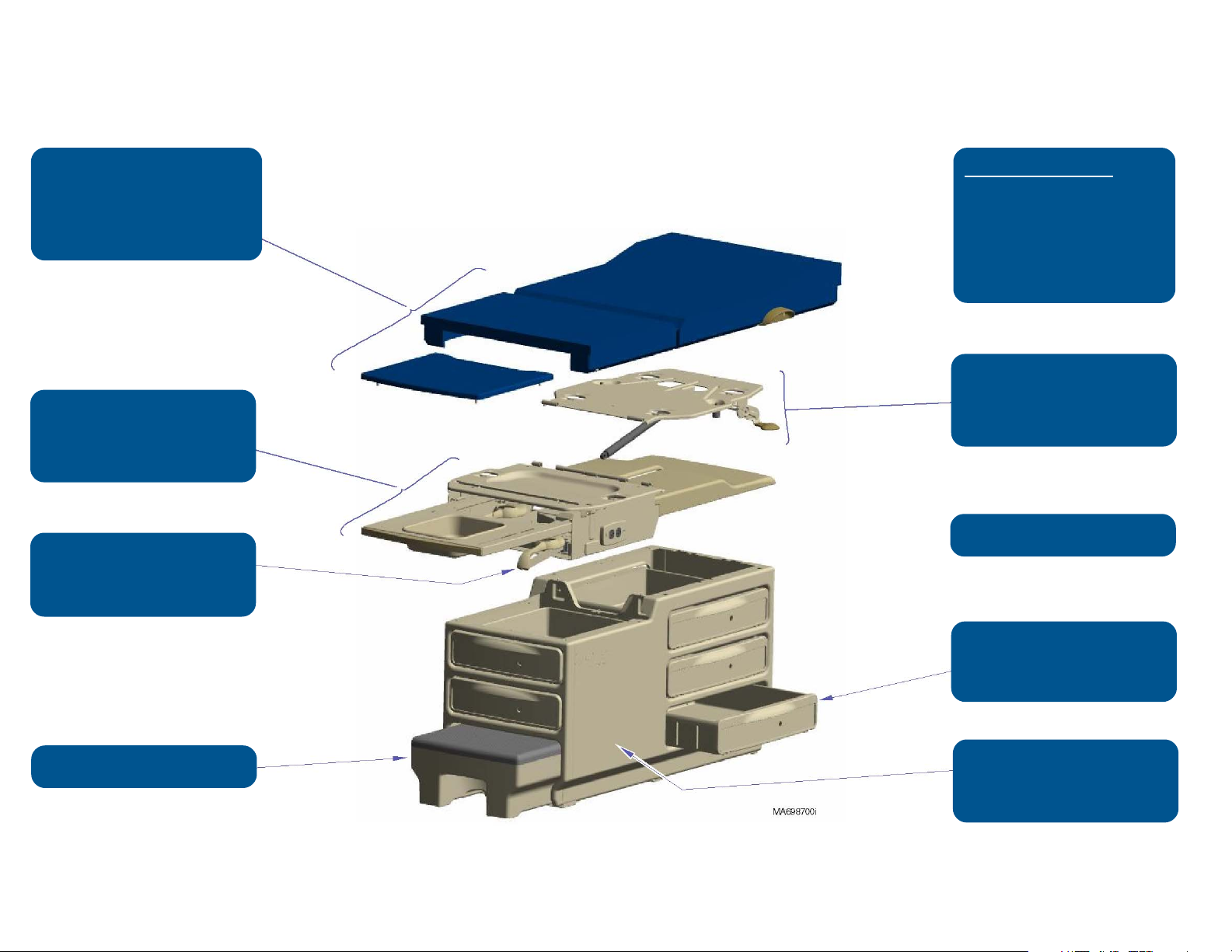

Model Identification Chart - 204

Back

Go To Table Of Contents

(or click on button below)

Compliance Info.

Fire Code Ratings

All standard upholstery sets comply with: California Bureau of Home Furnishing Technical Bulletin 117 Optional upholstery sets are available that comply with:California Bureau of Home Furnishing

ylppuSlacirtcelE

:stnemeriuqeR

ledoM noitpircseD

CAV

%01-/+

elbaTmaxErettiR

100-402

200-402

300-402

)srewarDurht-ssaP(

elcatpeceR/w

elbaTmaxErettiR

)srewarDurht-ssaP(

retaeHrewarD&,tliTcivleP,elcatpeceR/w

elbaTmaxErettiR

)egarotSkluB(

elcatpeceR/w

5115 06/05

511 5.5 06/05

5115 06/05

spmA

Technical Bulletin 133.

selcyC

)zH(

General Information

Regulatory compliance information is available online: Go to:

www.documark.com (Use the Find feature to locate: 077-0489-00)

400-402

500-402

600-402

700-402

elbaTmaxErettiR

)egarotSkluB(

retaeHrewarD&,tliTcivleP,elcatpeceR/w

tropxE-elbaTmaxErettiR

)srewarDurht-ssaP(

tliTcivleP/w

elbaTmaxErettiR -- tropxE

)srewarDurht-ssaP(

tliTcivleP&,elcatpeceR/w

elbaTmaxErettiR -- tropxE

)srewarDurht-ssaP(

retaeHrewarD&,tliTcivleP,elcatpeceR/w

511 5.5 06/05

-- -

032 5 06/05

0325.506/05

General Information

Back

Go To Table Of Contents

(or click on button below)

Compliance Info.

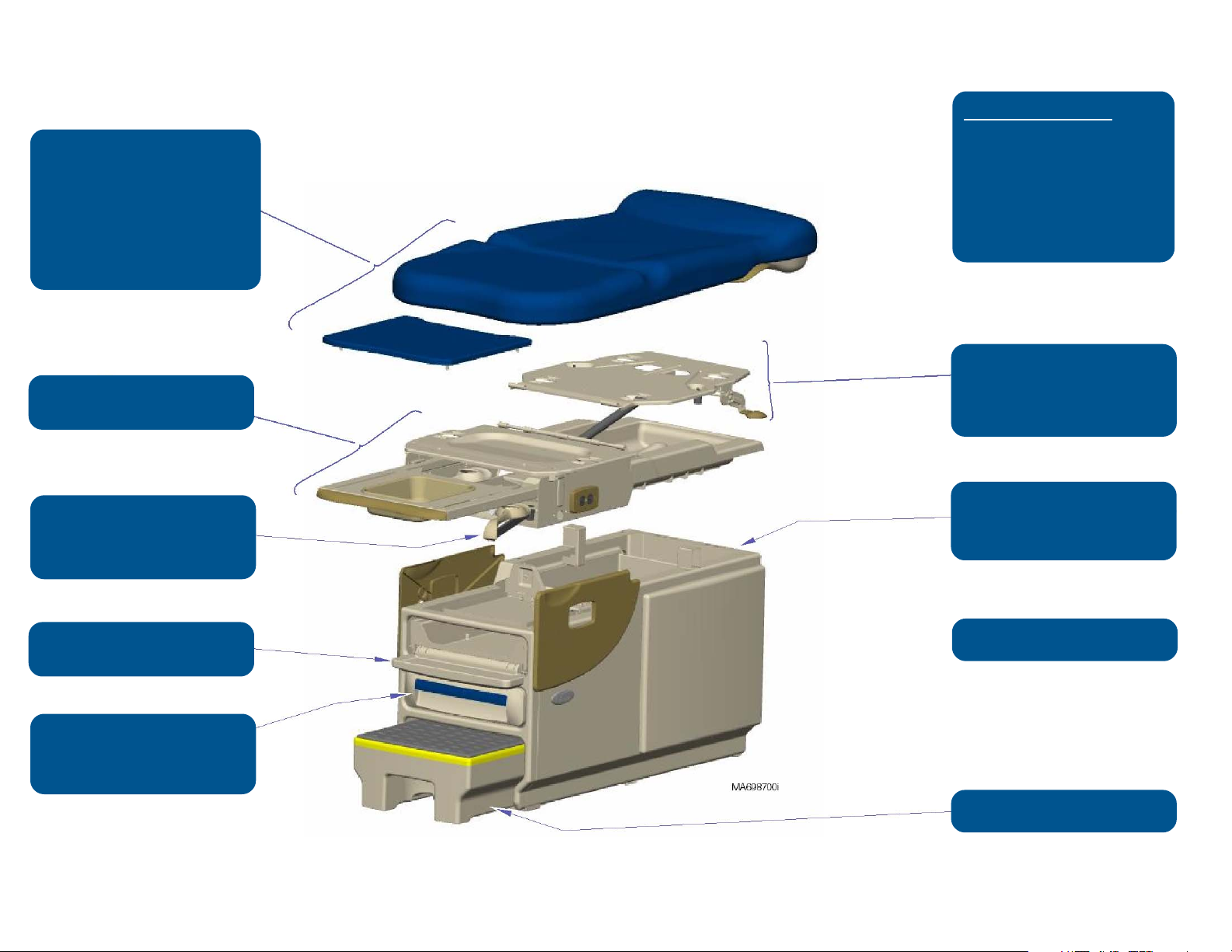

Model Identification Chart - 604

Fire Code Ratings

All standard upholstery sets comply with: California Bureau of Home Furnishing Technical Bulletin 117 Optional upholstery sets are available that comply with:California Bureau of Home Furnishing

ylppuSlacirtcelE

ledoM noitpircseD

CAV

%01-/+

:stnemeriuqeR

spmA

selcyC

)zH(

Technical Bulletin 133.

Regulatory compliance information is available online: Go to:

www.documark.com (Use the Find feature to locate: 077-0489-00)

100-406

200-406

300-406

400-406

500-406

600-406

elcatpeceR/w

tliTcivleP/w

elbaTmaxEkramdiM

retaeHrewarD&,tliTcivleP,elcatpeceR/w

elbaTmaxEkramdiM

&,retaeHrewarD,tliTcivleP,elcatpeceR/w

yretslohpUdetaeH

tropxE-elbaTmaxEkramdiM

tliTcivleP&,elcatpeceR/w

elbaTmaxEkramdiMtropxE-

retaeHrewarD&,tliTcivleP,elcatpeceR/w

5115 06/05

511 5.5 06/05

5115.606/05

- - -

0325 06/05

032 5.5 06/05

Warranty Information

Back

Go To Table Of Contents

General Information

SCOPE OF WARRANTY

Midmark Corporation (“Midmark”) warrants to the original purchaser its new Alternate Care products and components (except for components not warranted under “Exclusions”) manufactured by Midmark to be free from defects in material and workmanship under normal use and service. Midmark’s obligation under this warranty is limited to the repair or replacement, at Midmark’s option, of the parts or the products the defects of which are reported to Midmark within the applicable warranty period and which, upon examination by Midmark, prove to be defective.

APPLICABLE WARRANTY PERIOD

The applicable warranty period, measured from the date of delivery to the original user, shall be one (1) year for all warranted products and components.

EXCLUSIONS

This warranty does not cover and Midmark shall not be liable for the following: (1) repairs and replacements because of misuse, abuse, negligence, alteration, accident, freight damage, or tampering; (2) products which are not installed, used, and properly cleaned as required in the Midmark “Installation” and or “Installation / Operation Manual for this applicable product. (3) products considered to be of a consumable nature; (4) accessories or parts not manufactured by Midmark; (5) charges by anyone for adjustments, repairs, replacement parts, installation, or other work performed upon or in connection with such products which is not expressly authorized in writing in advance by Midmark.

EXCLUSIVE REMEDY

Midmark’s only obligation under this warranty is the repair or replacement of defective parts. Midmark shall not be liable for any direct, special, indirect, incidental, exemplary, or consequential damages or delay, including, but not limited to, damages for loss of profits or loss of use.

NO AUTHORIZATION

No person or firm is authorized to create for Midmark any other obligation or liability in connection with the products.

Additional Information

Failure to follow the guidelines listed below will void the warranty and/or render the table unsafe for use.

• If a malfunction is detected, do not use the table until

necessary repairs are made.

• Do not attempt to disassemble table, replace

components, or perform adjustments unless you are a Midmark authorized service technician.

• Do not use another manufacturer's parts to replace

malfunctioning components. Use only Midmark replacement parts

THIS WARRANTY IS MIDMARK’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. MIDMARK MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS.

SF-1487 REV. A1

vii

Back

Go To Table Of Contents

Troubleshooting

Back

Go To Table Of Contents

Click on the Go To Page button and enter the

desired page number.

(Note: Letters are case sensitve ex. A-2, not a-2)

Go To Page:

Troubleshooting

Function / System Page

Back Section Positioning ...................... A-2

Table Receptacle.................................. A-5

Drawer Heater ...................................... A-7

Upholstery Heater................................. A-11

Section A

Models:

Serial Numbers:

A-1

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Back Section Positioning

Back Section Release Mechanism

When either back release handle is squeezed, linkage rotates the cam. The rotating cam pushes the plunger down, compressing the cylinder pin. When the cylinder pin is compressed, the pressure inside the cylinder is released, allowing the back section to be repositioned.

When the back handle is released, the cam and plunger return to their normal position. This removes pressure from the cylinder pin allowing the cylinder to pressurize and lock the back section in place.

Problem Page

Back drifts up or down ......................... A-3

Back locked in place ............................ A-4

Difficult to position ............................... A-4

Back Release Handle

A-2

Plunger

Back Section

Positioning

Cam

Models:

Serial Numbers:

Cylinder Pin

All

Back Section Positioning

Back

Go To Table Of Contents

Go To Page:

- continued

Troubleshooting

Problem: Back section drifts up or down.

Jam Nut

Refer To: Page

Gas Cylinder Replacement ................... B-3

Gas cylinder screwed in too far.

A. Loosen jam nut. B. Unscrew cylinder slightly. C. Tighten jam nut, then test.

Replace gas cylinder.

Refer to: Section B - Back Release Mechanism

1st

2nd

Models:

Serial Numbers:

All

Back Section

Positioning

A-3

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Back Section Positioning

- continued

Refer To: Page

Gas Cylinder Replacement ................... B-3

Jam Nut

Problem: Back section is "locked" in place. -or-

Back section is difficult to position.

Gas cylinder is not screwed in far enough.

A. Loosen jam nut. B. Screw cylinder in slightly. C. Tighten jam nut, then test.

2nd

Replace gas cylinder.

Refer to: Section B - Back Release Mechanism

1st

A-4

Back Section

Positioning

Models:

Serial Numbers:

All

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

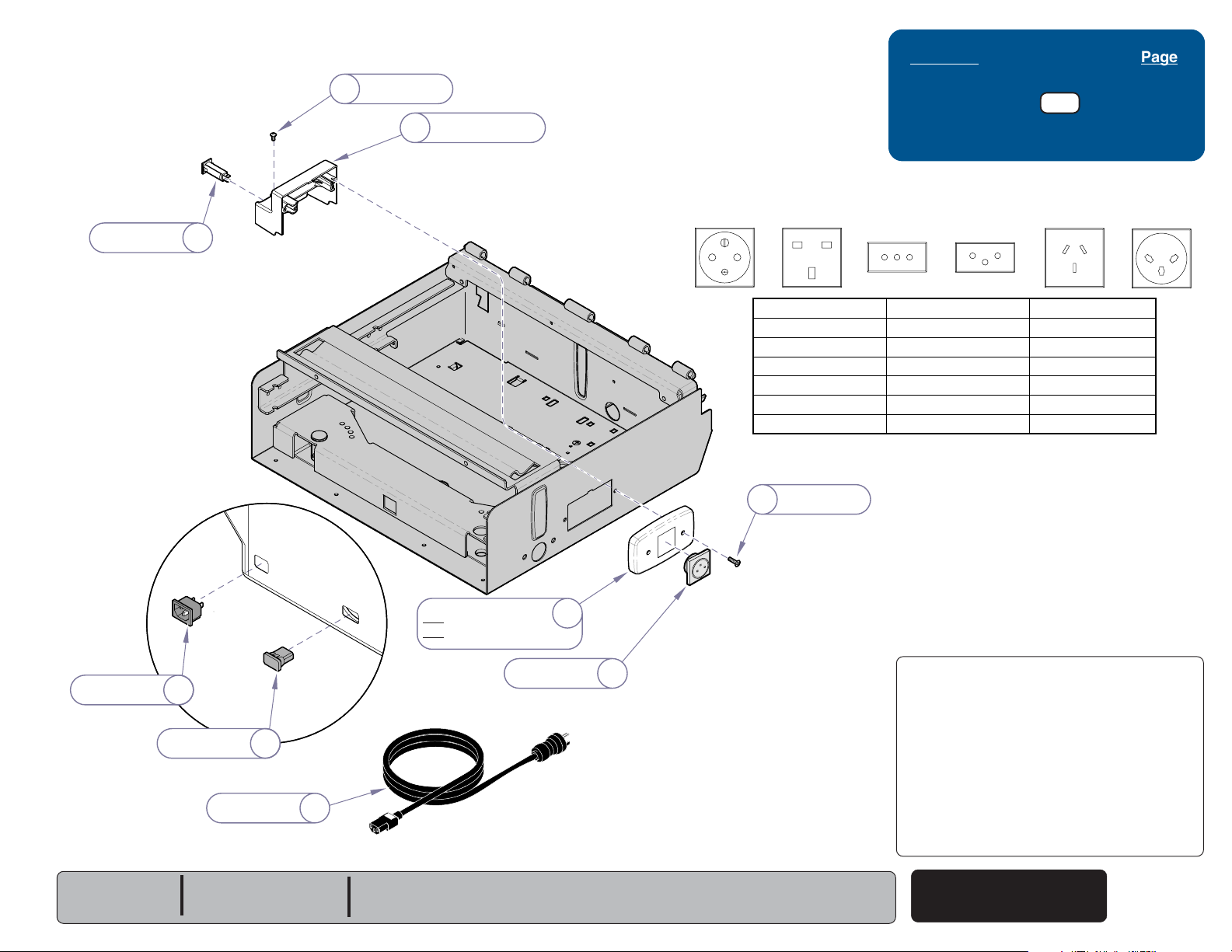

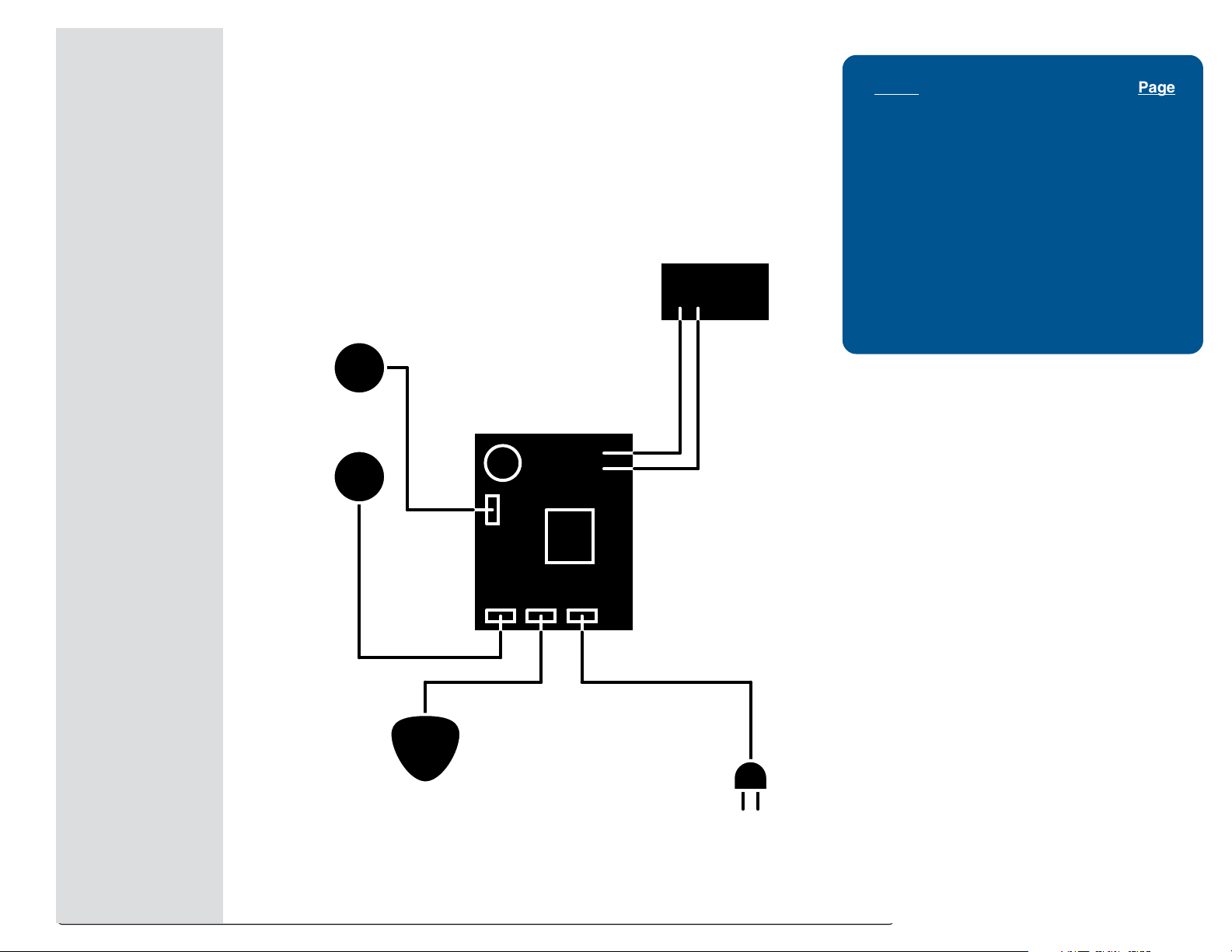

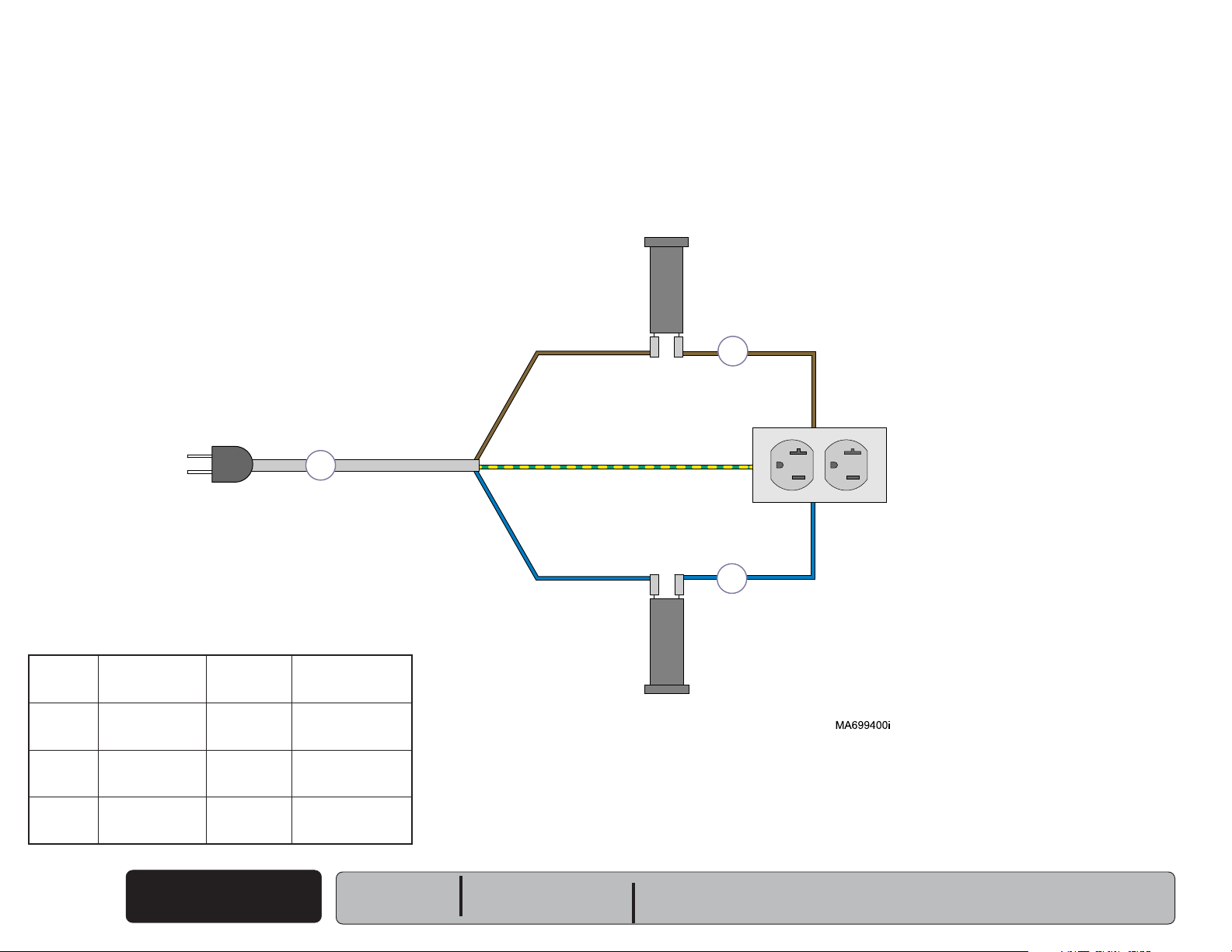

Table Receptacle System

Table Receptacle Operation

With the receptacle power cord properly connected, line voltage receptacle circuit breakers.

115 VAC flows thru the two circuit breakers to the receptacle. If the receptacle's maximum load is exceeded, the circuit breakers interrupt power to the receptacle.

Maximum Load (both outlets combined) ........... 115 VAC, 5 amps

(115 VAC)

is supplied directly to the two

- optional

Table Receptacle System

Problem Page

No power at receptacle ........................ A-6

Circuit Breakers

Models:

Serial Numbers:

204 (-001 thru -004)

All

604 (-001 thru -003)

All

Table Receptacle

System

A-5

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Table Receptacle System

- continued

Refer To: Page

Receptacle Supply Voltage Test ........... B-5

Wiring Diagrams ................................... D-1

Are circuit breakers tripped?

Push toggle switches inward to reset.

Tripped

(no power to outlet)

Reset

(power to outlet)

1st

Problem: No power at receptacle.

Loose / disconnected wire connections.

Check the following connections:

• Receptacle power cord to supply source

• Receptacle power cord to circuit breakers

• Circuit breakers to receptacle

Circuit Breakers

2nd

Perform

Refer to: Section B - Table Receptacle System

A-6

Receptacle Supply Voltage Test

Table Receptacle

System

Models:

Serial Numbers:

3rd

204 (-001 thru -004)

All

604 (-001 thru -003)

All

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Drawer Heater System

Drawer Heater Operation

With the heater system's power cord properly connected, 115 VAC is supplied to the drawer heater switch thru two fuses on the distribution board.

When pressed ON, the switch illuminates and current flows to the heater plate. When the heater plate is energized, it warms the contents of the drawer to approximately 98° F (37° C).

Distribution Board

(two fuses)

- optional

Drawer Heater System

Problem Page

Heater does not warm up:

Switch does not illuminate ................

Switch illuminates .............................

Heater works properly,

Switch does not illuminate ................

[Midmark model shown has green switch for optional upholstery heater]

but...

A-8

A-9

A-10

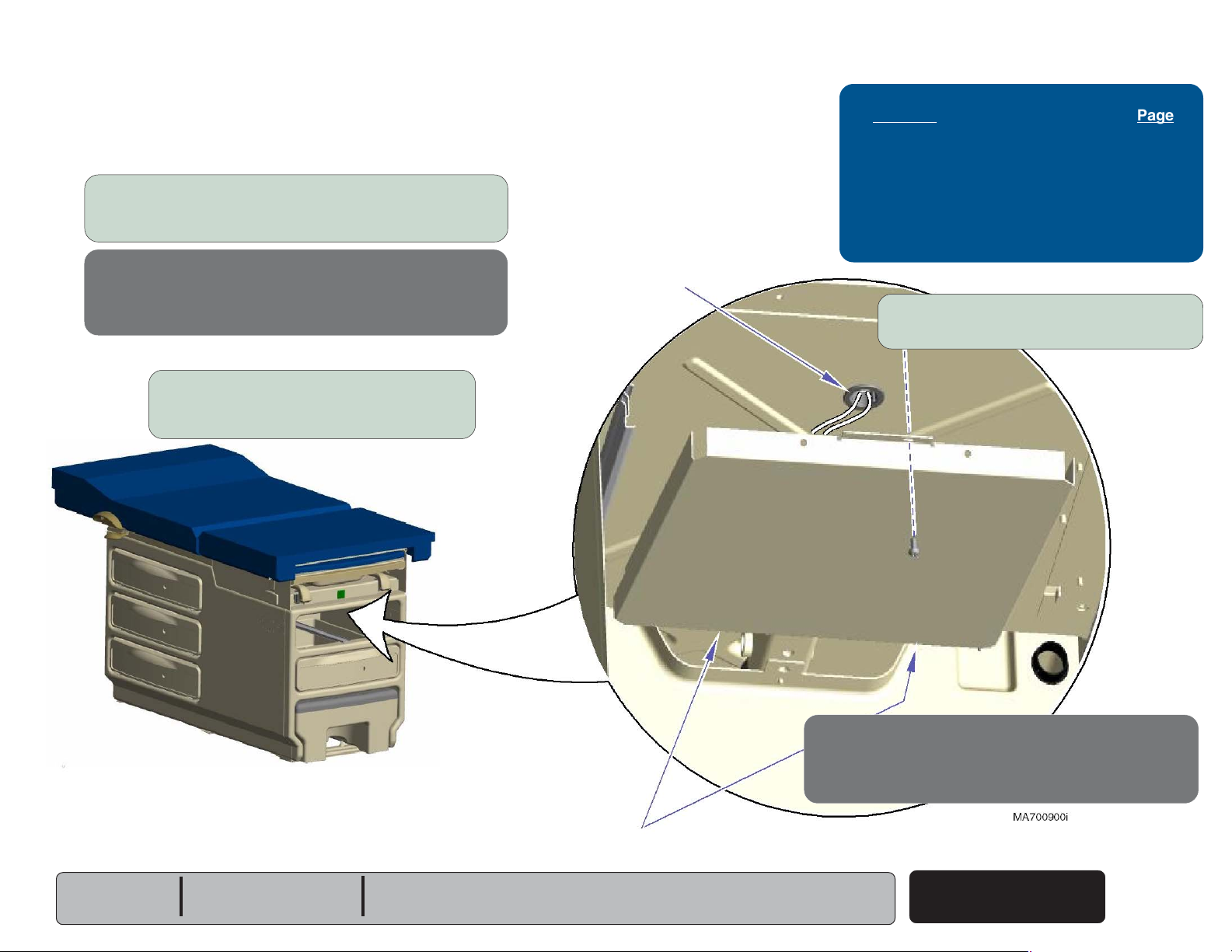

Heater Plate

Models:

Serial Numbers:

204 (-002 & -004)

All

604 (-002 & -003)

All

Drawer Heater Switch

(Ritter models)

Drawer Heater Switch - white

(Midmark models)

Drawer Heater

System

A-7

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Drawer Heater System

- continued

Refer To: Page

Supply Voltage Test:

204 (Ritter) ........................................

604 (Midmark) ...................................

Wiring Diagrams ................................... D-1

Check fuses on distribution board

If either fuse is blown, replace both fuses.

Distribution Board

(two fuses)

B-7

B-8

1st

Problem: Drawer heater does not warm up - and

Drawer heater switch does not illuminate.

[Midmark model shown has green switch for optional upholstery heater]

Drawer Heater Switch - white

(Midmark models)

Loose / disconnected wire connections.

Check the following connections:

• Heater system power cord to supply source

• Heater system power cord to distribution board

• Distribution board to heater switch

A-8

Drawer Heater

System

Models:

Serial Numbers:

2nd

204 (-002 & -004)

All

Drawer Heater Switch

(Ritter models)

604 (-002 & -003)

All

Perform

Refer to: Section B - Drawer Heater System

Supply Voltage Test

3rd

Drawer Heater System

Back

Go To Table Of Contents

Go To Page:

- continued

Troubleshooting

Problem: Drawer heater does not warm up - but

Drawer heater switch does illuminate,

Refer To: Page

Heater Plate Test:

204 (Ritter) ........................................

604 (Midmark) ...................................

Wiring Diagrams ................................... D-1

[Midmark model shown has green switch for optional upholstery heater]

Drawer Heater Switch - white

(Midmark models)

B-11

B-12

Heater Plate

Models:

Serial Numbers:

Perform

Refer to: Section B - Drawer Heater System

Heater Plate Test

204 (-002 & -004)

All

604 (-002 & -003)

2nd

All

Loose / disconnected wire connections.

Check the following connections:

Drawer Heater Switch

(Ritter models)

• Heater switch to heater plate

Drawer Heater

System

1st

A-9

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Drawer Heater System

- continued

Refer To: Page

Heater Switch Replacement:

204 (Ritter) ........................................

604 (Midmark) ...................................

Wiring Diagrams ................................... D-1

B-9

B-10

Problem: Drawer heater warms up - but

Drawer heater switch does not illuminate.

[Midmark model shown has green switch for optional upholstery heater]

Drawer Heater Switch - white

(Midmark models)

A-10

Drawer Heater

System

Models:

Serial Numbers:

Drawer Heater Switch

204 (-002 & -004)

All

(Ritter models)

604 (-002 & -003)

All

Replace drawer heater switch

Refer to: Section B - Drawer Heater System

1st

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

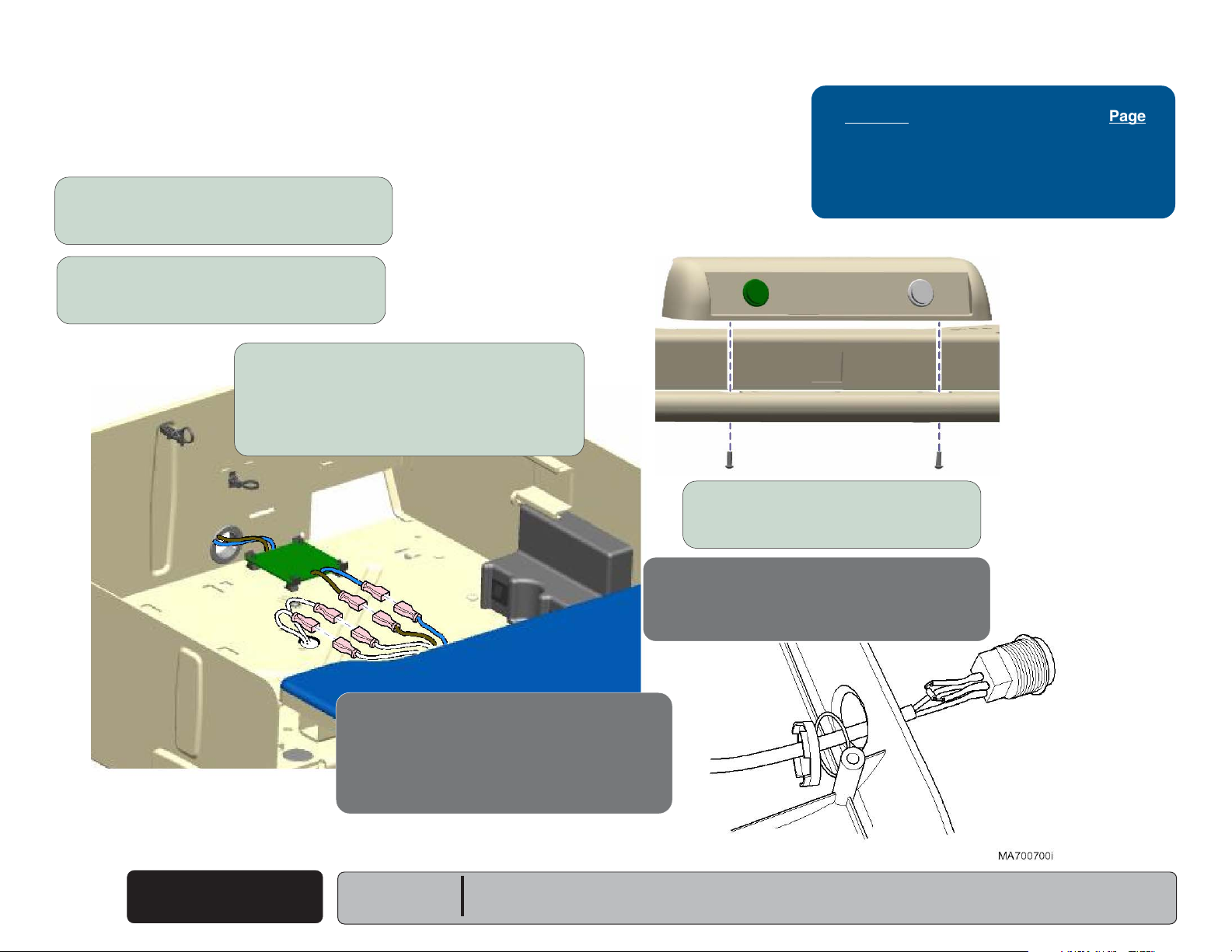

Upholstery Heater System

Upholstery Heater Operation

With the heater system's power cord properly connected, 115 VAC is supplied to the upholstery heater PC board thru the distribution board.

Note

Current does not flow thru the two fuses on the distribution board. The distribution board is merely a connection point for the upholstery heater system.

The two fuses (F1 & F2) on the uph. heater PC board protect this system from excessive current.

Circuitry on the upholstery heater PC board reduces the line voltage, and supplies approximately 12 VAC to the upholstery heater switch.

When the upholstery heater switch is pressed ON, the switch illuminates and 12 VAC is supplied to the two upholstery heating elements. When the heating elements are energized, they warm the back & seat sections of the upholstered top. Pressing the heater button again, turns the heater system OFF.

- optional

Temperature Adjustment

Knob

Upholstery Heater System

Problem Page

Switch does not illuminate,

Heater does not work .......................

Heater does work .............................

Switch does illuminate,

Heater does not work ....................... A-14

Switch & heater both work,

shut off prematurely.......................... A-15

Upholstery Heater

PC Board

(two fuses)

Distribution

Board

but

and...

...

but...

A-12

A-13

Note

The upholstery temperature can be adjusted. Refer to Section B: Upholstery Heater System.

A timer on the upholstery heater PC board automatically turns the heater OFF after 8 hours. The timer is initiated when the upholstery heater switch is pressed ON.

Models:

Serial Numbers:

604 (-003)

All

Upholstery Heater Switch - green

Upholstery Heater

System

Heating

Element

Heating

Element

A-11

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Refer To: Page

Supply Voltage Test ............................. B-15

Wiring Diagrams ................................... D-1

Upholstery Heater System

Problem: Uph. heater switch does not illuminate - and

Upholstery heater does not work.

Check fuses on upholstery heater PC board.

If either fuse is blown, replace both fuses.

1st

- continued

Upholstery Heater

PC Board

(two fuses)

Distribution

Board

Loose / disconnected wire connections.

Check the following connections:

• Heater system power cord to supply source

• Heater system power cord to distribution board

• Distribution board to uph. PC board

• Uph. PC board to uph. heater switch

Perform

Refer to: Section B - Upholstery Heater System

Supply Voltage Test

3rd

2nd

Upholstery Heater

A-12

System

Models:

Serial Numbers:

604 (-003)

All

Upholstery Heater System

Back

Go To Table Of Contents

Go To Page:

Problem: Uph. heater switch does not illuminate - but

Upholstery heater does work.

- continued

Replace upholstery heater switch.

Refer to: Section B - Upholstery Heater System

1st

Troubleshooting

Refer To: Page

Uph. Heater Switch Replacement ......... B-18

Wiring Diagrams ................................... D-1

Models:

Serial Numbers:

604 (-003)

All

Upholstery Heater

System

A-13

Troubleshooting

Back

Go To Table Of Contents

Go To Page:

Refer To: Page

Heating Element Test ........................... B-17

Wiring Diagrams ................................... D-1

Upholstery Heater System

Problem: Uph. heater switch does illuminate - but

Upholstery heater does not work.

Loose / disconnected wire connections.

Check the following connections:

• Seat section heating element to uph. PC board

• Back section htg. element to seat section htg. element

Perform

Refer to: Section B - Upholstery Heater System

Heating Element Test

1st

2nd

- continued

Upholstery Heater

A-14

System

Models:

Serial Numbers:

604 (-003)

All

Upholstery Heater System

Back

Go To Table Of Contents

Go To Page:

Problem: Uph. heater & switch both work but shut off prematurely.

Timed cycle has expired.

Upholstery heater shuts OFF automatically after 8 hours. Press uph. heater switch to turn heater back ON.

- continued

1st

Troubleshooting

Refer To: Page

Heating Element Test ........................... B-17

Wiring Diagrams ................................... D-1

Perform

Refer to: Section B - Upholstery Heater System

Heating Element Test

2nd

Upholstery Heater Switch

Models:

Serial Numbers:

604 (-003)

All

Upholstery Heater

System

A-15

Back

Go To Table Of Contents

Testing & Repair

Back

Go To Table Of Contents

Go To Page:

Click on the Go To Page button and enter the

desired page number.

(Note: Letters are case sensitve ex. A-2, not a-2)

Testing & Repair

Components Page

Back Release Mechanism .................... B-2

Table Receptacle System ..................... B-4

Drawer Heater System ......................... B-6

Upholstery Heater System .................... B-14

Stirrups ............................................... B-20

Footrest Extension Replacement .......... B-21

Footstep Replacement:

204 (Ritter models) ............................

604 (Midmark models) .......................

B-22

B-23

Section B

Models:

Serial Numbers:

Rev. 5/06

B-1

Testing & Repair

Back

Go To Table Of Contents

Go To Page:

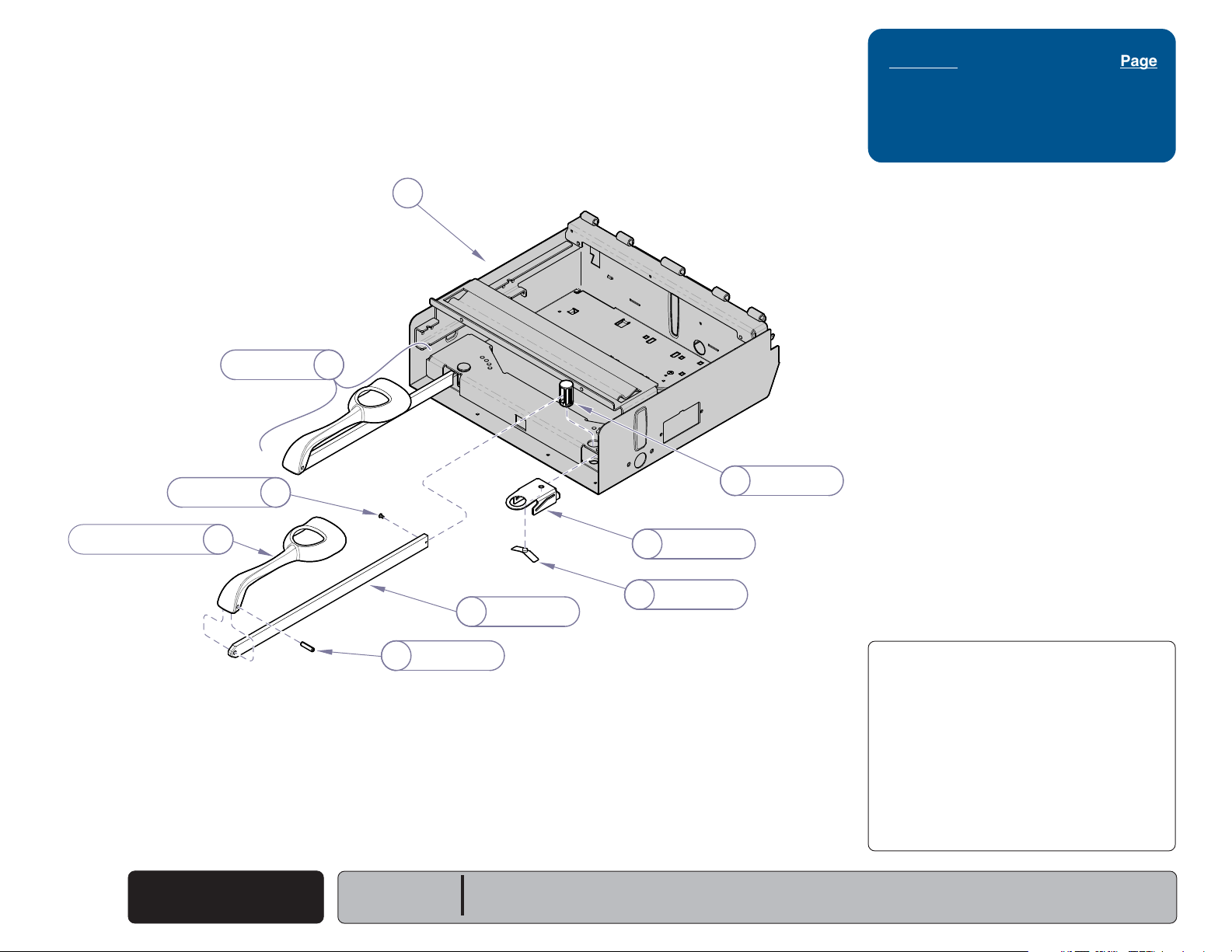

Back Release Mechanism

Gas Cylinder Adjustment

Back Release Mechanism Page

Gas Cylinder Adjustment ...................... B-2

Gas Cylinder Replacement ................... B-3

Exploded Views / Part Numbers ........... E-9

Attention:

If problem persists after performing the appropriate adjustment, replace gas cylinder.

Jam Nut

If back section drifts up or down...

A. Remove clevis pin from bottom of cylinder.

(Refer to Gas Cyliner Replacement).

B. Loosen jam nut. C. Unscrew cylinder slightly. D. Tighten jam nut / replace clevis pin / test.

If back section is 'locked up',

or difficult to position...

A. Remove clevis pin from bottom of cylinder.

(Refer to Gas Cyliner Replacement).

B. Loosen jam nut. C. Screw cylinder in slightly. D. Tighten jam nut / replace clevis pin / test.

Back Release

B-2

Mechanism

Rev. 1/06

Models:

Serial Numbers:

All

Testing & Repair

Back

Go To Table Of Contents

Go To Page:

Back Release Mechanism

Gas Cylinder Replacement

Removal

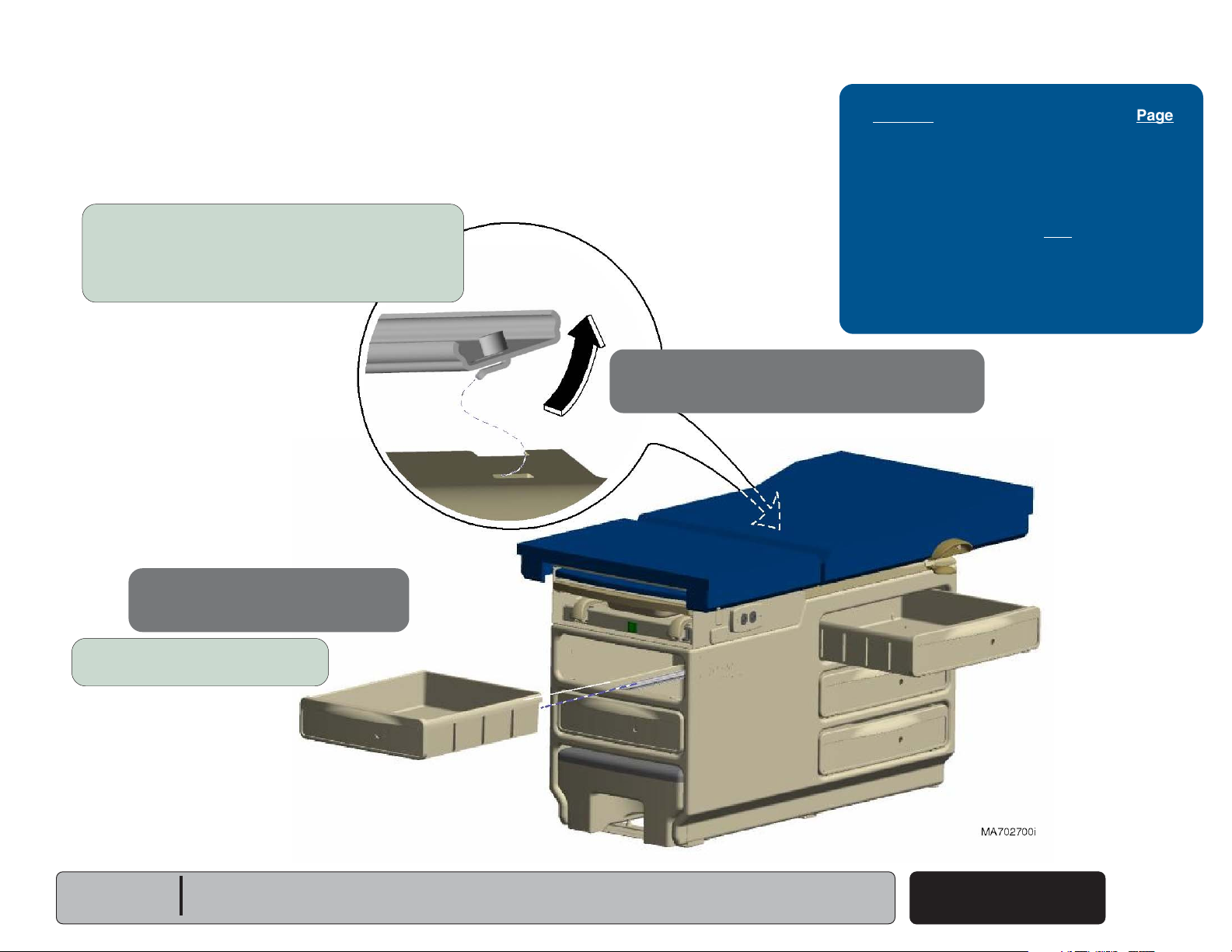

Step 1: Remove top drawer.

(Refer to: Section C - Drawers)

Removal

Step 2: Remove clevis pin.

Note: Press the plunger on the clevis pin,

then push pin thru spring & bracket.

- continued

Plunger

Refer to: Page

Gas Cylinder Adjustment ...................... B-2

Installation

Step 3: Perform

(Refer to: previous page)

Gas Cylinder Adjustment

Models:

Serial Numbers:

All

Installation

Step 2: Install clevis pin.

Removal

Step 3: Raise back section, then

unscrew gas cylinder.

Installation

Step 1: Thread gas cylinder into housing.

Back Release

Mechanism

B-3

Testing & Repair

Back

Go To Table Of Contents

Go To Page:

Table Receptacle System

Circuit Breakers

There are two receptacle circuit breakers to protect the system. If the receptacle's maximum load is exceeded, the circuit breakers interrupt power to the receptacle.

Maximum Load (both outlets combined) ................. 5 amps

Tripped

(no power to outlet)

Table Receptacle System Page

Circuit Breakers .................................... B-4

Supply Voltage Test ............................. B-5

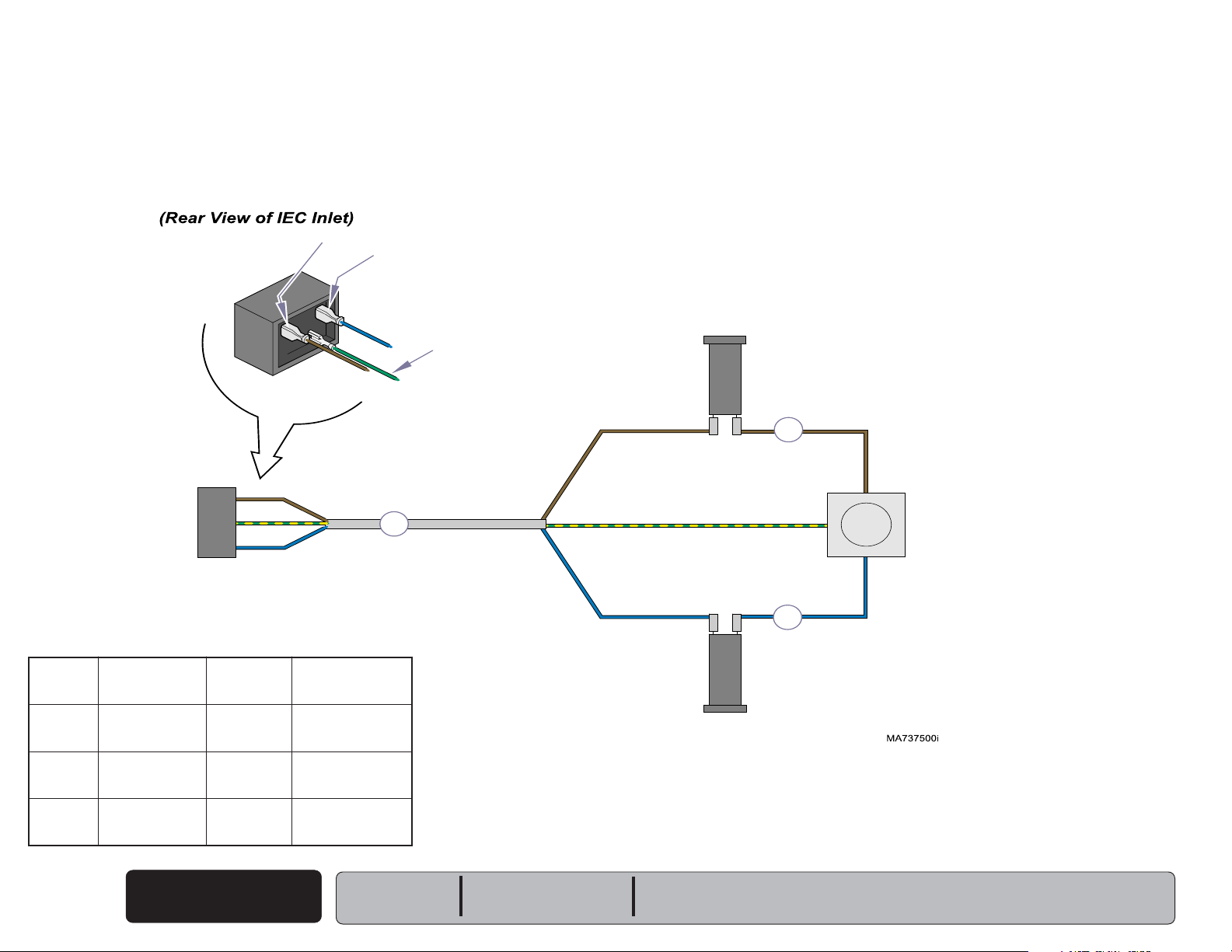

Wiring Diagrams ................................... D-1

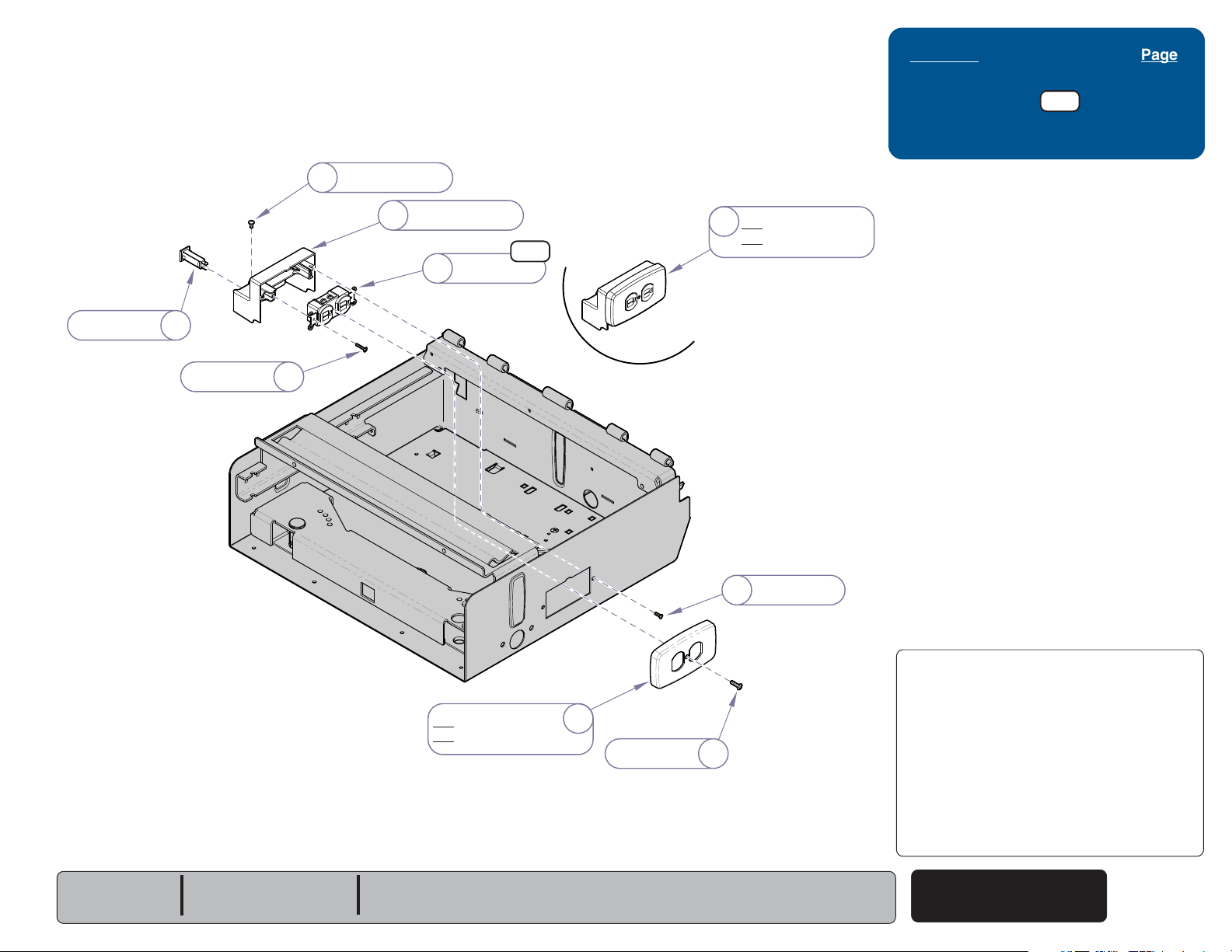

Exploded Views / Part Numbers:

120 V 230 V

Circuit Breakers

............................................... E-19*

............................................... E-20

To reset circuit breaker(s)...

Push toggle switch inward.

B-4

Reset

(power to outlet)

Table Receptacle

System

Rev. 3/06

Models:

Serial Numbers:

204 (-001 thru -004, -006 & -007)

All

604 (-001 thru -003, -005 & -006)

All

Testing & Repair

Back

Go To Table Of Contents

Go To Page:

Table Receptacle System

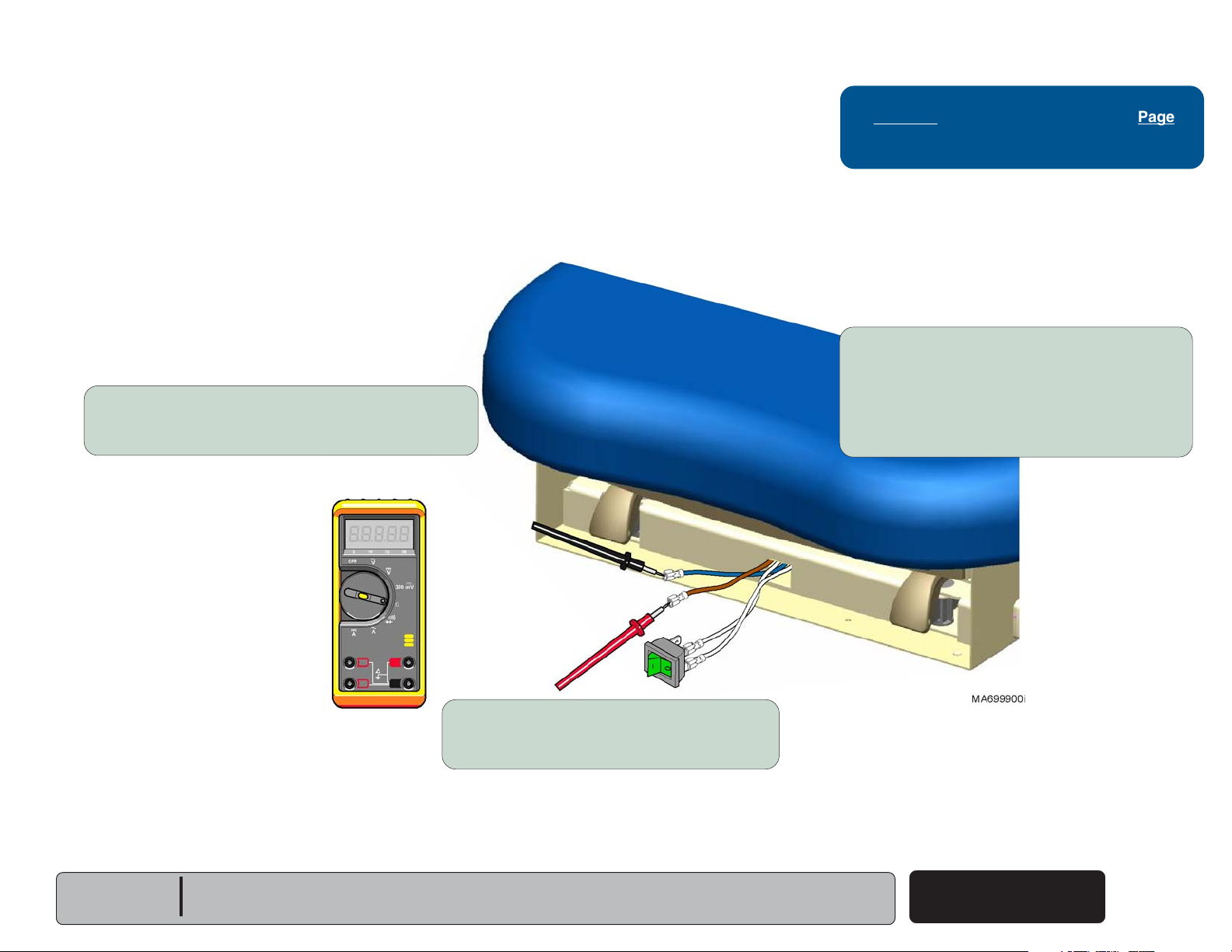

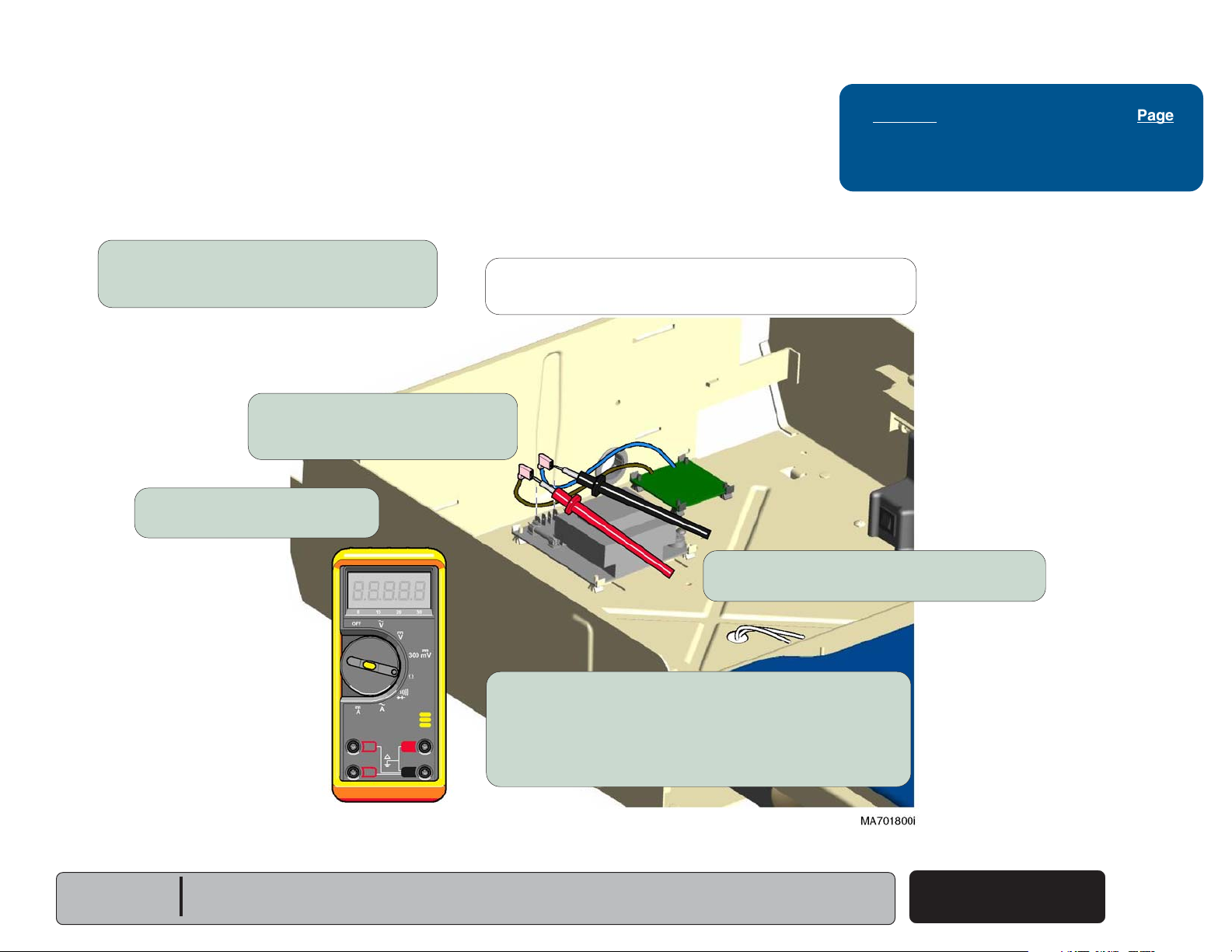

Supply Voltage Test

Step 3: Place meter probes on wire

connection screws of receptacle.

Supply Voltage Test

Step 2: Set meter to read VAC.

- continued

Refer to: Page

Wiring Diagrams ................................... D-1

Supply Voltage Test

Step 1: Remove receptacle cover.

Models:

Serial Numbers:

204 (-001 thru -004, -006 & -007)

All

Supply Voltage Test

If reading is approx. 115 / 230 VAC (line voltage)...

Replace receptacle.

If there is no voltage present...

Check all wire connections from receptacle to supply source

604 (-001 thru -003, -005 & -006)

All

Table Receptacle

System

Rev. 3/06

B-5

Testing & Repair

Back

Go To Table Of Contents

Go To Page:

Drawer Heater System

Use the table below to determine the required action:

melborPnoitcAderiuqeR

Drawer heater does not warm up, Check

and

switch does not illuminate. Perform

Drawer heater does not warm up, Perform

but

switch does illuminate.

Drawer heater works properly, Replace

but

switch does not illuminate.

Distribution Board Fuses

The power to the drawer heater switch flows thru the two distribution board fuses.

Drawer Heater Plate Test

Drawer Heater Switch

Distr. Board Fuses

Supply Voltage Test

Drawer Heater System Page

Distribution Board Fuses ...................... B-6

Supply Voltage Test:

204 (Ritter) ........................................

604 (Midmark) ..................................

Heater Switch Replacement:

204 (Ritter) ........................................

604 (Midmark) ..................................

Heater Plate Test:

204 (Ritter) ........................................

604 (Midmark) ..................................

Heater Plate Replacement .................... B-13

Wiring Diagrams ................................... D-1

Exploded Views / Part Numbers:

120 V 230 V

............................................... E-22

............................................... E-23

B-7

B-8

B-9

B-10

B-11

B-12

If either of these fuses are faulty, the switch will not illuminate & the heater will not function.

B-6

Drawer Heater

System

Rev. 3/06

Models:

Serial Numbers:

204 (-002 & -004)

All

Distribution Board Fuses (2)

[Ritter model shown. Location for Midmark models is the same.]

604 (-002 & -003)

All
