Midland Radio NT1 Users manual

Model NT1, Nautico
Front Cover

(Make sure photo of radios is high resolution before printing)..

Model NT1, Nautico

Page 2 www.midlandradio.com

(Please re-number Table of Contents page numbers as needed

TABLE OF CONTENTS 2
Introduction 3
Important Notice, FCC Licensing 4
LCD Display 5
Controls 5
Battery Installation 6
Installing the Belt Clip 6
Charging the Optional Battery Pack 7
Operating Your Radio 8 - 13
External Speaker/Microphone Jack 14
Troubleshooting Guide 15
Use and Care 15
Specifications and Frequency Charts 16
Warranty Information 17
MIDLAND Family of Products 18
Accessories 19

Model NT1, Nautico

Page 3 www.midlandradio.com

Welcome to the world of Midland electronics

Congratulations on your purchase of a high quality MIDLAND product.
Your 2-way radio represents the state-of-the-art in high-tech
engineering. Designed for VHF Marine Service operation,
this compact package is big on performance. It is a quality piece of
electronic equipment, skillfully constructed with the finest components.
The circuitry is all solid-state and mounted on a rugged printed circuit
board. Your 2-way radio is designed to give you reliable and trouble-free
performance for years to come.

Features

- Marine Channels, 57 US, 61 CAN, 57 INT, grouped by area

- Instant Channel 16

- eVOX

- Selectable CALL Tone

- Weather (WX) Band Receiver

- SCAN Function

- MONITOR Function

- Roger Beep Tone

- Key Pad Lock

- Power High / Power Low Settings

- Speaker / Microphone Jacks

- Battery Indicator

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device does not cause harmful
interference, and (2) this radio must accept any interference that may cause
undesired operation.

To maintain compliance with FCC’s RF exposure guidelines, for body-worn
operation, this radio has been tested and meets the FCC RF exposure
guidelines when used with Midland Radio Corp. accessories supplied or
designated for this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.

Model NT1, Nautico

Page 4 www.midlandradio.com

The Nautico operates on VHF Marine Radio Service frequencies, in compliance
with Federal Communications Commission (FCC) requirements. Recreational
boaters are not currently required to have a Ship Radio License. The USCG
recommends that the boat’s registration number and state be used for the radio
call sign.

FCC License

A ship station license is not required for any vessel traveling in U.S. waters which
is under 20 meters in length. However, any vessel required to carry an HF SSB
radiotelephone or marine satellite terminal is required to have a ship station
license. FCC license forms can be downloaded at www.fcc.gov/forms. You may
also obtain a form from the FCC by calling [phone].

This needs to be first item in manual

Exposure To Radio Frequency Energy

Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human being to
radio frequency electromagnetic energy:

- United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J

- American National Standards Institute (ANSI)/Institute of Electrical &
Electronic Engineers (IEEE) C95. 1-1992

- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition

- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986

- International Commission on Non-Ionizing Radiation Protection (ICNIRP)
1998
To control your exposure and ensure compliance with the general population
or uncontrolled environment exposure limits, transmit no more than 50% of the
time. The radio generates measurable RF energy exposure only when
transmitting.

Icom page >>>

Model NT1, Nautico

Page 5 www.midlandradio.com

LCD DISPLAY

1. LOW BATTERY ICON – Indicates battery level is low.

2. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal.

3. VOX – Indicates when eVOX mode is active.

4. CHANNEL NUMBER – Changes from 1~88a on VHF Marine band (1~10 on

WX band).

5. RECEIVE (RX) ICON – Indicates radio is receiving a transmission.

6. KEY LOCK ICON – Indicates KEY LOCK mode is on.

7. WX BAND ICON – Indicates when the radio is in Weather Band mode

8. TRANSMIT POWER LEVEL(LO) ICON – Indicates TX Low Power setting.

9. USA/CAN/INT CHANNEL ICONS

(Diagram -- Please re-number these so 11-15 are on the left side of the diagram
and 16-20 go down the right side in numerical order)

CONTROLS

11. POWER/VOLUME KNOB – Turn clock-wise to turn the power on and

increase the volume level. Turn counter-clockwise to decrease the volume level
and turn the power off.

12. PTT Button – Press and hold to transmit voice communication. Press twice

quickly to send a call tone.

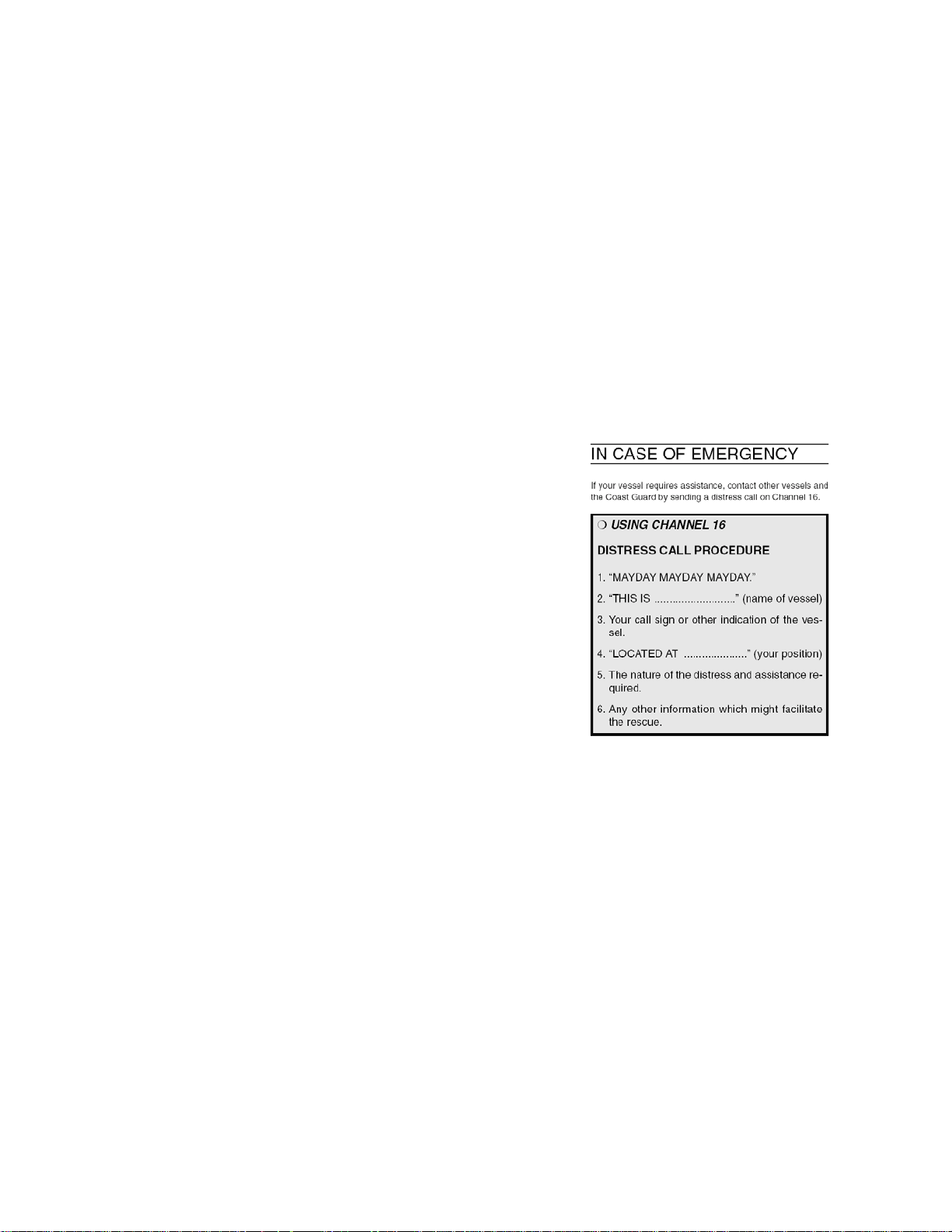

13. CH 16 Button – Press to switch immediately to emergency channel 16.

Press and hold to switch to Channel 9.

14. MIC – Built-in microphone.

15. SPEAKER – Built-in speaker.

16. ANTENNA.

17. EXTERNAL SPEAKER/MIC JACK.

18. MENU Button – Press to access MENU mode. Press and hold to go to WX

Band Receiver mode.

19. MONITOR/SCAN Button – Press to enter SCAN mode. Press and hold to
enter MONITOR mode.

20. UP and DOWN Button – Make adjustments in MENU mode.

Model NT1, Nautico

Page 6 www.midlandradio.com

BATTERY INSTALLATION

Your Nautico radio operates with either 4 AA
alkaline batteries or an optional NiMH battery pack. The belt clip
should be removed (see below) to ease installation or removal of the
batteries.

To install the batteries:

1. With the back of the radio facing you, remove the belt clip (see diagram below)
for easy access, then remove the Battery Cover
by pressing down on the top center and sliding it down from the radio.

2. Insert 4 AA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the unit from operating or
may damage the unit.

3. Return the battery cover by sliding it up on the radio. Replace the belt clip,
making sure it locks into place.

1. Battery inserted in this slot

BATTERY COMPARTMENT

BATTERY COMPARTMENT COVER

Press here and push down to open

(Diagram - Place the Belt Clip Installation diagram from page 13 next to the

Battery Installation diagram on this page).

INSTALLING THE BELT CLIP

To install the BELT CLIP, slide the clip down into the slot on the back of the
radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, press the
LOCK TAB down, then gently pull the belt clip up toward the top of the radio.

BELT CLIP
LOCK TAB
BELT CLIP
LATCH
