Midland Radio GXT555 Users manual

Model GXT555

Page 2 www.midlandradio.com

TABLE OF CONTENTS 2

Introduction 3 Important Notice, FCC Licensing 4 LCD Display 5 Controls 5 Battery Installation 6 Installing the Belt Clip 6 Charging the Optional Battery Pack 7 Operating Your Radio 8 - 10 External Speaker/Microphone Jack 10 Troubleshooting Guide 11 Use and Care 11 Specifications and Frequency Charts 12 Warranty Information 13 MIDLAND Family Products 14 Accessories 14 Accessories Order Form 15

Page 3 www.midlandradio.com

Welcome to the world of Midland electronics

Congratulations on your purchase of a high quality MIDLAND product. Your 2-way radio represents the state-of-the-art in high-tech engineering. Designed for GMRS (General Mobile Radio Service) operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your two-way radio is designed for reliable and trouble-free performance for years to come.

Features

- 22 GMRS/FRS Channel

- eVOX

- Silent Operation

- Power High / Power Low Settings

- Speaker / Microphone Jacks

- Battery Low Indicator

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation.

To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (Tested with Headset Model: AVP-1)

Model GXT555

Page 4 www.midlandradio.com

IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION

The GXT555 operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the GXT555. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act's Sections 501 and 502 (amended).

You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time.

To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website: www

.fcc.gov/services/personal/generalmobile/licensing.html

Exposure To Radio Frequency Energy

Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human being to radio frequency electromagnetic energy:

- United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J

- American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992

- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition

- National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986

- International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998

To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting.

Model GXT555

Page 5 www.midlandradio.com

CONTROLS

LCD DISPLAY

1. LOW BATTERY ICON – Indicates the battery level is low.

2. eVOX – Indicates when eVOX mode is active.

3. CHANNEL NUMBER – Changes from 1~22 on GMRS/FRS band .

4. RECEIVE (RX) ICON – Indicates radio is receiving a transmission.

5. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal.

6. TRANSMIT POWER LEVEL ICON – Indicates TX Power setting (H/L).

7. POWER/VOLUME KNOB – Turn clock wise to turn the power on and increase the volume level. Turn counter-clockwise to decrease the volume level and turn the power off.

8. PTT Button – Press and hold to transmit voice communication.

9. TX POWER HI/LO Button – Press to toggle between HI and LO TX Power setting.

10. MIC – Built-in microphone.

11. SPEAKER – Built-in speaker.

12. ANTENNA.

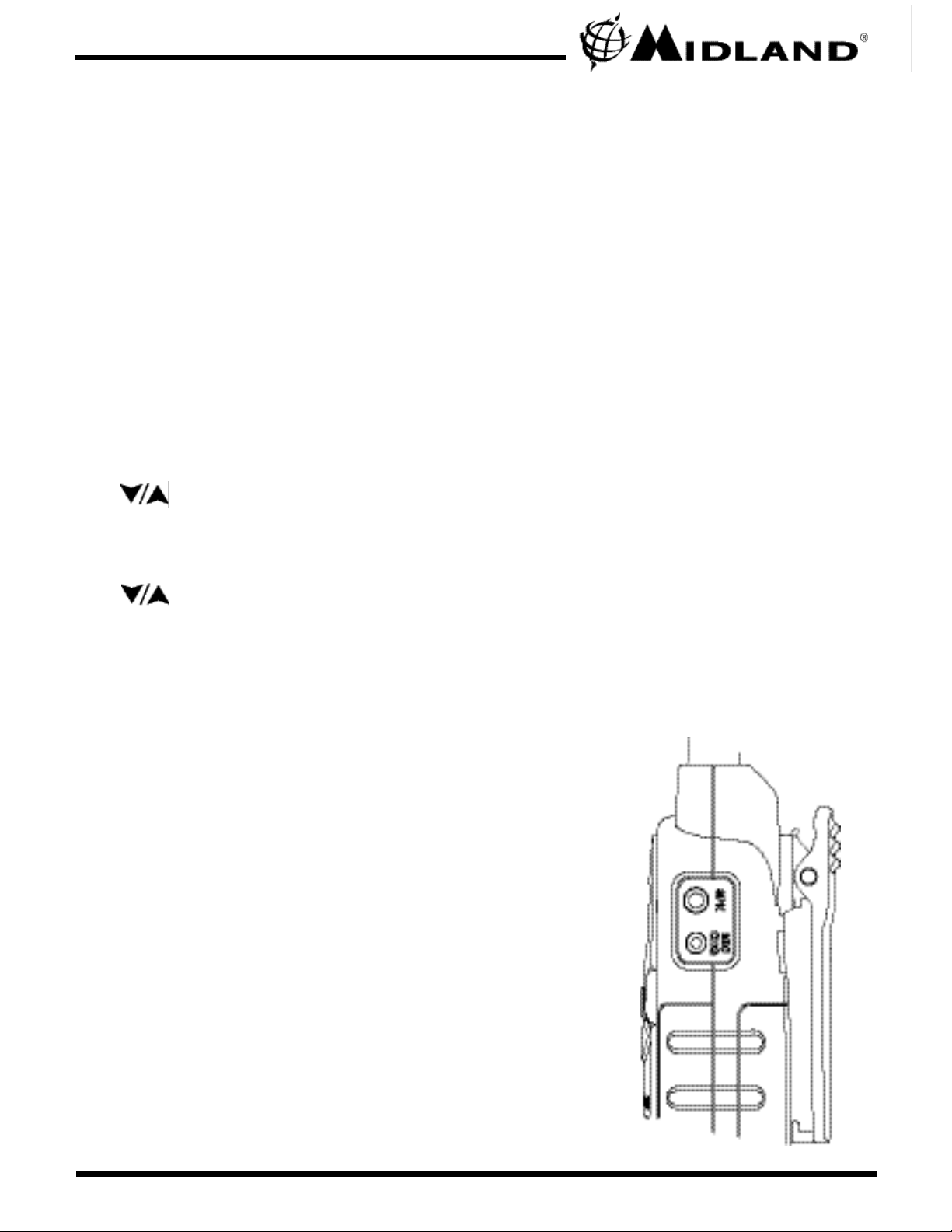

13. EXTERNAL SPEAKER/MIC JACK.

14. MENU Button – Press to access Menu

mode.

15. eVOX Button – Press to activate / deactivate the eVOX function.

16. UP and DOWN Button – Make adjustments in MENU mode.

1 2

5 6

Model GXT555

Page 6 www.midlandradio.com

BATTERY INSTALLATION

Your GXT555 radio operates with either 4 AA alkaline batteries or an optional NiMH battery pack. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries:

1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio.

2. Insert 4 AA batteries observing the polarity as shown. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit.

3. Return the Battery Cover by sliding it up on the radio. Replace the

belt clip, making sure it locks into place.

BATTERY COMPARTMENT

BATTERY COMPARTMENT COVER

One Battery inserted in this slot

Press here and push down to open

Model GXT555

INSTALLING THE BELT CLIP

To install the BELT CLIP, slide the clip down into the slot on the back of the radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, press the LOCK TAB down , then gently pull the belt clip up toward the top of the radio.
