Midland CT590S User guide

CT590S
DUAL BAND VHF/UHF TRANSCEIVER
› USER MANUAL
SPECIAL FEATURES
Voice
announcement
FM radio 3 colors
display
Content of the packaging 1
Maintenance 1
Main features 2
Main controls and parts of the radio 3
LCD Display 3
Buttons and controls of the radio 5
Programming software (optional) 6
Installing the antenna 7
Installing the belt clip 7
Installing the pattery pack 7
Releasing the battery pack 7
Main keypad controls 8
Basic operations 9
Power/volume switch 9
Transmitting and receiving 9
CALL button 9
Monitor key 9
Band Key 9
Scan function 9
key 10
Working modes 10
Menu setting 10
Menu operations 11
Functions and operations 15
Squelch level (SQL) - MENU No.0 15
Step frequency (STEP) - MENU No.1 15
Output power (TXP) - MENU No.2 15
Battery save (SAVE) - MENU No.3 15
VOX Function (VOX) - MENU No.4 15
Wide/Narrow bandwidth (W/N) - MENU No.5 16
Backlight (ABR) - MENU No. 6 16
Dual Watch Operation (TDR) - MENU No. 7 16
Keypad beep (BEEP) - MENU No. 8 16
Time-Out-Timer (TOT) - MENU No.9 16
Receiving DCS (R-DCS) - MENU No.10 16
Receiving CTCSS (R-CTCSS) - MENU No.11 17
Transmitting DCS - (T-DCS) - MENU No.12 17
Transmitting CTCSS (T-CTCSS) - MENU No.13 17
Voice function (VOICE) - MENU No. 14 17
ANI-ID (ANI-ID) - MENU No.15 17
SCAN Resume Mode (SC-REV) - MENU No.16 17
PTT ID delay (PTT-LT) - MENU No.18 18
Memory A Display Mode (MDF-A) - MENU No.19 18
Memory B Display Mode (MDF-B) - MENU No.20 18
Busy Channel Lock (BCL) - MENU No. 21 18
Auto Keypad Lock (AUTOLK) - MENU No.22 18
Frequency oset direction (SFT-D) - MENU No.23 19
Frequency oset (OFFSET) - MENU No. 24 19
Channel store - (MEM-CH) - MENU No. 25 19
Channel Delete (DEL-CH) - MENU No.26 19
Standby backlight (WT-LED) - MENU No.27 19
TX backlight (TX-LED) - MENU No.29 20
Alarm Mode (AL-MOD) - MENU No.30 20
Frequency band (BAND) - Menu No.31 20
Side tone elimination (STE) - Menu No. 33 21
Display mode at the turning on (PONMSG) Menu No.34 21
Roger beep (ROGER) - Menu No. 35 21
Reset (RESET) - Menu No.36 21
Keypad lock 21
FM Radio (FM) 22
Rapid Alarm (ALARM) 22
Flashlight 22
Monitor (MON) 22
Cloning function (COPING) 22
Memory/Frequency Mode conversion (VFO/MR) 23
TX 1750Hz Call Tone 23
TX/RX Reverse function (R) 23
Frequency scanning 23
Channel scanning 23
Automatic search FM Radio (FM) 24
Cursors Conversion (A/B) 24
High/low power selection 24
Technical specifications 25

Content of the packaging

• 1 CT590S transceiver with belt clip
• 1 Li-Ion battery pack 1500mAh 7.4V
• 1 fast desktop charger
• 1 wall adaptor
• Antenna If any item is missing, please verify with your Midland dealer.

Maintenance

Your Two Way Radio is an electronic product of exact design and should be treated with care. The suggestions below will help you to fulfill any warranty obligations and to enjoy this product for many years.
• Do not attempt to open the radio for any reason! The radio’s precision mechanics and electronics require experience and specialized equipment; for the same reason, the radio should under no circumstances be realigned as it has already been calibrated for maximum performance. Unauthorized opening of the transceiver will void the warranty.
• Do not store the Radio under the sunshine or in hot areas.
• High temperatures can shorten the life of electronic devices, and warp or melt certain plastics.
• Do not store the radio in dusty and dirty areas.
• Keep the Radio dry. Rainwater or damp will corrode electronic circuits.
• If it appears that the Radio diuses peculiar smell or smoke, please shut o its power immediately and take o the charger or battery from the radio.
• Do not transmit without antenna.
CT590S user’s manual | 1

Main features

• VHF and UHF bands and channel name displayed
• Operating modes: UHF/VHF, UHF/UHF, VHF/VHF
• Output power: 5W UHF/VHF
• Up to 128 memory channels
• 50 CTCSS tones and 208 DCS codes
• 1750Hz tone for repeaters
• SOS Emergency function
• LCD display with backlight adjustable in 3 colors
• FM radio receiver (88-108MHz)
• VOX, Scan, Dual Watch functions
• Channel spacing: 25KHz/12.5KHz
• Channel or frequency mode selection
• TOT (Time out timer)
• DTMF function
• Reverse function
• Alarm function
• CTCSS and DCS codes research
• Setting and storing of channel names
• PTT-ID
• Busy Channel Lockout function (BCL)
• High/low power selection
• Frequency step: 2.5/5/6.25/10/12.5/25KHz
• Frequency oset (adjustable): 0-38.000MHz
• Repeater shift
• Squelch adjustable in 9 levels
• VOICE: vocal indication of the function selected
• Keypad lock
• Power Save
• Li-Ion 1500mAh battery pack
• 2pin Kenwood accessory jack
2 | CT590S user’s manual

Main controls and parts of the radio

2 3 4 5 6 7 8 9 10 11
14 1
15
12 13
12 13
14
15

LCD Display

1. These symbols show that you set a DCS or CTCSS code in tx or rx. In tx
mode it appears while you are transmitting , while in rx mode it is shown also in stand-by condition.
2. Received signal strength.
3. Low power selection
4. This letter is displayed when the Dual Watch function is active.
5. VOX function enabled.
6. Appears when a positive shift is activated.
7. Appears when a negative shift is enabled.
8. Reverse frequency
9. Narrow bandwidth: N = narrow. When the wide (W) bandwidth is activa-
ted, no icon is displayed.
10. This icon indicates the keypad lock. To unlock it press #/
11. Battery level indicator. When the battery is almost used up, the icon starts
blinking and the transmission is blocked. Charge the radio.
12. Indicates the channel number that you stored
13. When the radio is in reception mode, this icon is displayed
14. Depending on the setting, it will show the frequency in use, the channel
name, the menu setting, etc
15. Indicates the VFO in use and the current menu or function setting. This icon is displayed close to the band in use or to the menu settings.
.
CT590S user’s manual | 3
SP
MIC
SP
PTT
MON
CALL
MIC
MIC
A
B
C
D
SP
Q
P
O
N
G
J
K
L
U
MIC
V
E
F
M
H
I
4 | CT590S user’s manual
PTT
MON
CALL
R
S
T

Buttons and controls of the radio

A. Antenna B. Flashlight C. Power / Switch / Volume control: Rotate to switch on/o the radio and
adjust the volume
D. LCD display E. Speaker F. Microphone G. Alphanumerical keypad H. UP/DOWN keys: to select the functions/menu I. EXIT: Push it to exit the menu and functions
/SCAN: Reverse frequency/SCAN. Press to activate the Reverse fre-
J.
quency; keep it pressed to activate the SCAN function
K. 0 / SQL: quick selection of the squelch setting
: Keypad lock. Long pressure: the keypad will be locked. Short pres-
L. #/
sure: high or low power selection. L is displayed when you activate the low power.
M. MENU: enter the MENU functions and confirms the selection. N. Led: transmission (red) ; reception (green). O. VFO/MR: to change the frequency or the channel mode P. A/B. This control is useful to select the desired frequency, VHF or UHF. Q. BAND: to switch from VHF to UHF band or viceversa. R. PTT S. MON. Long press: to activate the Monitor function. Short press: turns the
flashlight on. Press it again to issue an emergency light.
T. CALL: press it activate the FM radio. If you keep it pressed for 5 seconds
you will hear an alarm note and the radio will switch to alarm mode (see paragraph 30).
U. MIC/SP: External speaker/mike jacks. V. 1500mAh Li-Ion battery pack
CT590S user’s manual | 5

Programming software (optional)

Thanks to Midland Programming software PRG-G10, it is possible to increase the performance of your radio or to reduce its functionality by enabling or disabling some features. For further information, please consult the Programming software manual.
Recharge
The battery pack is not charged, charge it before use. Initially charging the battery pack after purchase or extended storage (longer than 2 months) will not bring the battery pack to its greatest or its normal capacity.
1. Plug the power cable of the desktop charger into city electric power.
2. Slide the Li-ion battery pack or radio with a Li-ion battery pack into the
charger.
Make sure the battery pack is connected with the charging terminals. When charging starts, the led lights up red on the desktop charger. When the battery pack is completely charged, the led turns green. Remove the battery or the radio from the charger.
CHARGING NOTES
After the battery is charged to its highest capacity, don’t charge anymore.
Do not short-circuit the battery terminals or throw the battery into fire.
Never attempt to remove the casing from the battery pack.
Please turn the power o before charging. It will aect the battery life when
charging the power-on radio.
If the radio still shows low power after the normal charge, please change the battery.
The average usage time of battery pack is 13 hours. Average usage time is 5% for transmitting, 5% for receiving and 90% for standby.
6 | CT590S user’s manual

Installing the antenna

1 2 3 A
4 5 6
*
7 8 9 C
B
0 D
PTT
MON
CALL
PTT
MON
CALL
Screw the antenna as shown in the picture.

Installing the belt clip

Attach the belt clip with the supplied screws by a phillips screw driver.
PTT
MON
CALL

Installing the pattery pack

Slide the battery pack into the back of the radio, then lock it with the battery release button; you will hear a click.

Releasing the battery pack

Turn o the radio before releasing the battery pack. Hold the radio face down. Push the battery release button and slide the battery pack towards you.
CT590S user’s manual | 7

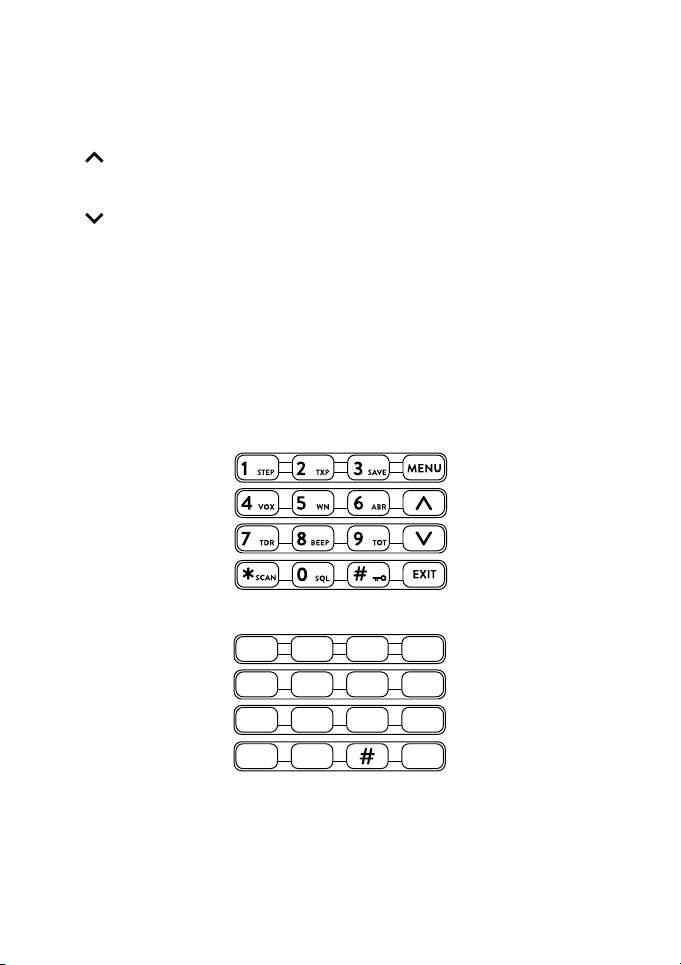

Main keypad controls

*
PTT
MON
CALL
1 2 3 A
4 5 6
*
7 8 9 C
B
0 D
MENU key: it is used for activating the MENU, choose each MENU selection and confirm the parameter.
key: press it for more than 2 seconds, the channel and frequency will move
upwards rapidly; in SCAN mode, press this control to move the scanning upwards.
key: Keep it pressed it for more than 2 seconds, the channel and frequency
will move downwards rapidly; in SCAN mode, press this control to move the scanning downwards.
EXIT key: push this button to exit the functions and settings.
Number keys
With these keys you can input the information or your selections on the radio. In tx mode, push the number keys to send a corresponding DTMF code.
1 2 3 A
4 5 6
B
7 8 9 C
0 D
8 | CT590S user’s manual

Basic operations

Power/volume switch

Turn the Power/Volume switch clockwise to switch on the radio; turn it counter-clockwise to switch it o. Turn the knob to about half way to adjust the volume to a comfortable level.

Transmitting and receiving

Press the PTT to transmit and speak into the microphone. The display and the led will light up red. Release the PTT and the radio switches to reception mode. Now the display and the led will turn green.

CALL button

Press it for a short time to turn on the FM radio. Press it again to turn it o. If you press it for a long time you will activate the alarm function. Press it again to turn o this feature.

Monitor key

Press it for a short time to light up the flashlight. If you push this button again, the flashlight will light up to strobo mode. Press MON a third time to turn o the flashlight.
To activate the Monitor function press the button for a long time .

Band Key

It allows you to change the frequency band shift (VHF or UHF); In transmitting mode, push it to send a 1750Hz call tone.

Scan function

Push the SCAN key for a short time to activate the RX/TX reverse function. If you press this button for more than 2 seconds, you activate the frequency or channel scanning. In FM radio mode, press it to automatically search FM stations. In CTCSS/DCS mode, press this key to start the CTCSS/DCS code scanning.
CT590S user’s manual | 9
key
CALL
MON
PTT
SP
MIC
A B C D
1 2 3
*
4 5 6 0
7 8 9
#
CALL
MON
PTT
SP
MIC
A B C D
1 2 3
*
4 5 6 0
7 8 9
#
If you press shortly If you press this button for more than 2 seconds you will lock/unlock the keypad.
you will switch to High or Low output power.

Working modes

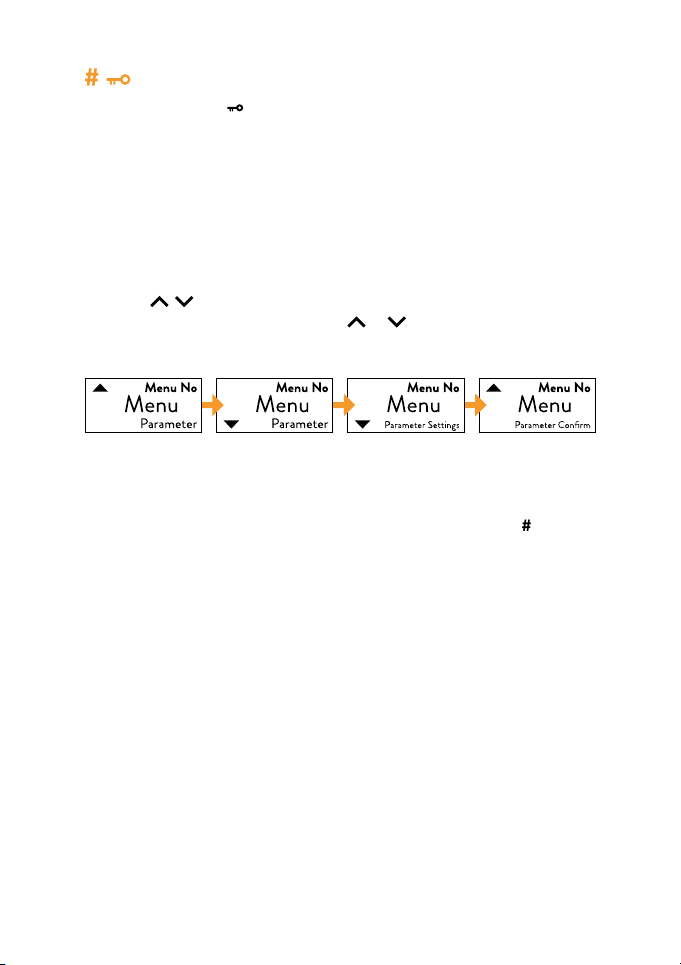

Menu setting

The functions and settings are usually activated in the following way: Press the MENU key Press the Push it again to enter the function. Use Press MENU to confirm your selection or the EXIT key to exit
Note1: in channel mode, the setting of these features is not possible: CTCSS/ DCS tones, wide/narrow bandwidth, PTT-ID, Busy channel lock out, channel name edit.
Note2: High/low power can only be changed by pressing the fast key
/
buttons to select the desired MENU
or
to change the setting.
.
10 | CT590S user’s manual
0
SQL 6
14
VOICE OFF
14
VOICE ON
26
DEL-CH 000
26
DEL-CH 006
FM
100.700
14
VOICE OFF
14
VOICE ON
26
DEL-CH 000
26
DEL-CH 006
FM
100.700
0
1
SQL 5
0
1
SQL 6
STEP
12.5K
14
15
VOICE OFF
ANI-ID *****
14
15
VOICE ON
ANI-ID *****
26
27
DEL-CH 000
WT-LED OFF
26
27
DEL-CH 006
WT-LED BLUE
FM
100.700
ALARM
138.625
0
1
SQL 6
14
15
VOICE OFF
ANI-ID *****
14
15
VOICE ON
ANI-ID *****
26
27
DEL-CH 000
WT-LED OFF
26
27
DEL-CH 006
WT-LED BLUE
FM
100.700
ALARM
138.625
0
1
SQL 5
STEP
25.0K
0
1
2
SQL 6
STEP
12.5K
TXP LOW
14
15
16
VOICE OFF
ANI-ID *****
DTMFST OFF
14
15
16
VOICE ON
ANI-ID *****
DTMFST DT-ST
26
27
28
DEL-CH 000
WT-LED OFF
RX-LED OFF
26
27
28
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
FM
100.700
ALARM
138.625
COPING
0
1
SQL 6
STEP
12.5K
14
15
16
VOICE OFF
ANI-ID *****
DTMFST OFF
14
15
16
VOICE ON
ANI-ID *****
DTMFST DT-ST
26
27
28
DEL-CH 000
WT-LED OFF
RX-LED OFF
26
27
28
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
FM
100.700
ALARM
138.625
COPING
0
1
2
3
SQL 5
STEP
25.0K
TXP HIGH
0
1
2
3
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
FM
100.700
ALARM
138.625
COPING
400.875
136.225
3 4
400.875
136.225
0
1
2
3
SQL 6
STEP
12.5K
TXP LOW
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
FM
100.700
ALARM
138.625
COPING
400.875
136.225
3 4
400.875
136.225
0
1
2
3
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
0
1
2
3
4
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
SC-REV TO
16
SC-REV SE
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
AL-MOD OFF
30
AL-MOD SITE
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
0
1
2
3
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
SC-REV TO
16
SC-REV SE
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
AL-MOD OFF
30
AL-MOD SITE
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
0
1
2
3
4
5
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WIDE
0
1
2
3
4
5
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
SC-REV TO
PTT-ID OFF
16
17
SC-REV SE
PTT-ID BOT
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
AL-MOD OFF
BAND UHF
30
31
AL-MOD SITE
BAND VHF
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
0
1
2
3
4
5
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
NARR
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
SC-REV TO
PTT-ID OFF
16
17
SC-REV SE
PTT-ID BOT
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
AL-MOD OFF
BAND UHF
30
31
AL-MOD SITE
BAND VHF
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
0
1
2
3
4
5
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
0
1
2
3
4
5
6
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
SC-REV TO
PTT-ID OFF
PTT-LT 0
16
17
18
SC-REV SE
PTT-ID BOT
PTT-LT 1
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
AL-MOD OFF
BAND UHF
TDR-AB OFF
30
31
32
AL-MOD SITE
BAND VHF
TDR-AB A
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
0
1
2
3
4
5
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
SC-REV TO
PTT-ID OFF
PTT-LT 0
16
17
18
SC-REV SE
PTT-ID BOT
PTT-LT 1
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
AL-MOD OFF
BAND UHF
TDR-AB OFF
30
31
32
AL-MOD SITE
BAND VHF
TDR-AB A
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
0
1
2
3
4
5
6
7
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
OFF
0
1
2
3
4
5
6
7
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
0
1
2
3
4
5
6
7
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
ON
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
0
1
2
3
4
5
6
7
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
TDR OFF
0
1
2
3
4
5
6
7
8
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
MDF-B FREQ
20
MDF-B CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
RP-STE OFF
36
RP-STE 5
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
MDF-B FREQ
20
MDF-B CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
RP-STE OFF
36
RP-STE 5
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
TDR OFF
BEEP OFF
15
0
1
2
3
4
5
6
7
8
9
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
MDF-B FREQ
BCL OFF
20
21
MDF-B CH
BCL ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
RP-STE OFF
RPT-RL OFF
36
37
RP-STE 5
RPT-RL 5
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
600
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
MDF-B FREQ
BCL OFF
20
21
MDF-B CH
BCL ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
RP-STE OFF
RPT-RL OFF
36
37
RP-STE 5
RPT-RL 5
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
TDR OFF
BEEP OFF
TOT 15
0
1
2
3
4
5
6
7
8
9
10
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
MDF-B FREQ
BCL OFF
AUTOLK OFF
20
21
22
MDF-B CH
BCL ON
AUTOLK ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
RP-STE OFF
RPT-RL OFF
PONMSG FULL
36
37
34
RP-STE 5
RPT-RL 5
PONMSG MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
MDF-B FREQ
BCL OFF
AUTOLK OFF
20
21
22
MDF-B CH
BCL ON
AUTOLK ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
RP-STE OFF
RPT-RL OFF
PONMSG FULL
36
37
34
RP-STE 5
RPT-RL 5
PONMSG MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
10
11
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
TDR OFF
BEEP OFF
TOT 15
R-DCS OFF
OFF
0
1
2
3
4
5
6
7
8
9
10
11
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
R-CTCS
67.0HZ
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
10
11
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
67.0HZ
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
10
11
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
TDR OFF
BEEP OFF
TOT 15
R-DCS OFF
R-CTCS OFF
0
1
2
3
4
5
6
7
8
9
10
11
12
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
R-CTCS
67.0HZ
T-DCS D023N
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
OFFSET
00.000
24
OFFSET
05.000
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
36
RESET VFO
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
10
11
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
R-CTCS
67.0HZ
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
OFFSET
00.000
24
OFFSET
05.000
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
36
RESET VFO
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225

Menu operations

No. Feature Function
0 Squelch Level SQL MENU+0
1 Step Frequency STEP MENU+1
2 Output Power TXP MENU+2
3 Battery Saving SAVE MENU+3
4 VOX VOX MENU+4
5 Wide/Narrow
6 Auto Backlight ABR MENU+6
7 Dual-watch Operation TDR MENU+7
8 Keypad Beep BEEP MENU+8
9 Time-Out-Timer TOT MENU+9
10 Receive DCS R-DCS MENU+10
11 Receive CTCSS R-CTCS MENU+11
12 Transmit DCS T-DCS MENU+12
Bandwidth
character
W/N MENU+5
Function set LCD display Parameter LCD display Selectable Confirm key Back key
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN
ABR OFF
TDR
BEEP OFF
TOT
R-DCS OFF
R-CTCS
T-DCS OFF
0
2
4
6
8
10
12
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN
ABR NARR
TDR
BEEP ON
TOT
R-DCS D023N
R-CTCS
T-DCS D023N
0
2
4
6
8
10
12
0-9 levels
0:Lowest
9:Highest
2.5/5.0/6.25 /10.0/12.5/
25.0KHZ
LOW: 1W
OFF
1:1 - 2:2
3:3 - 4:4
1: Highest Sensitivity 9: Lowest Sensitivity
W: 25.0K
N: 12.5K
OFF
1-5s
ON
OFF
ON
OFF
OFF
15,30······
600S
OFF
OFF
OFF
HIGH: 5W
OFF: OFF
D023N-D754N
D023I-D754I
67.0-254.1HZ
D023N-D754N
D023I-D754I
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
CT590S user’s manual | 11
0
1
2
3
4
5
6
7
8
9
10
11
12
13
SQL 5
STEP
25.0K
TXP HIGH
SAVE 1
VOX OFF
WN WIDE
ABR OFF
TDR OFF
BEEP OFF
TOT 15
R-DCS OFF
R-CTCS OFF
T-DCS OFF
0
1
2
3
4
5
6
7
8
9
10
11
12
13
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
R-CTCS
67.0HZ
T-DCS D023N
T-CTCS
67.0HZ
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
25
OFFSET
00.000
MEM-CH 000
24
25
OFFSET
05.000
MEM-CH 036
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
400.875
136.225
36
RESET VFO
400.875
136.225
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
0
1
2
3
4
5
6
7
8
9
10
11
12
13
SQL 6
STEP
12.5K
TXP LOW
SAVE 2
VOX 9
WN NARR
ABR NARR
TDR ON
BEEP ON
TOT 600
R-DCS D023N
R-CTCS
67.0HZ
T-DCS D023N
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
25
OFFSET
00.000
MEM-CH 000
24
25
OFFSET
05.000
MEM-CH 036
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
400.875
136.225
36
RESET VFO
400.875
136.225
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
OFF
14
VOICE ON
26
DEL-CH 000
26
DEL-CH 006
FM
100.700
14
ON
26
DEL-CH 000
26
DEL-CH 006
FM
100.700
14
15
VOICE OFF
*****
14
15
VOICE ON
ANI-ID *****
26
27
DEL-CH 000
WT-LED OFF
26
27
DEL-CH 006
WT-LED BLUE
FM
100.700
ALARM
138.625
14
15
VOICE ON
*****
26
27
DEL-CH 000
WT-LED OFF
26
27
DEL-CH 006
WT-LED BLUE
FM
100.700
ALARM
138.625
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
TO
16
SC-REV SE
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
AL-MOD OFF
30
AL-MOD SITE
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
SE
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
AL-MOD OFF
30
AL-MOD SITE
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
SC-REV TO
OFF
16
17
SC-REV SE
PTT-ID BOT
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
AL-MOD OFF
BAND UHF
30
31
AL-MOD SITE
BAND VHF
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
SC-REV SE
BOT
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
AL-MOD OFF
BAND UHF
30
31
AL-MOD SITE
BAND VHF
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
SC-REV TO
PTT-ID OFF
0
16
17
18
SC-REV SE
PTT-ID BOT
PTT-LT 1
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
AL-MOD OFF
BAND UHF
TDR-AB OFF
30
31
32
AL-MOD SITE
BAND VHF
TDR-AB A
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
SC-REV SE
PTT-ID BOT
1
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
AL-MOD OFF
BAND UHF
TDR-AB OFF
30
31
32
AL-MOD SITE
BAND VHF
TDR-AB A
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
FREQ
20
MDF-B CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
RP-STE OFF
36
RP-STE 5
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
RP-STE OFF
36
RP-STE 5
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
MDF-B FREQ
20
21
MDF-B CH
BCL ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
RP-STE OFF
RPT-RL OFF
36
37
RP-STE 5
RPT-RL 5
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
MDF-B CH
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
RP-STE OFF
RPT-RL OFF
36
37
RP-STE 5
RPT-RL 5
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
MDF-B FREQ
BCL OFF
OFF
20
21
22
MDF-B CH
BCL ON
AUTOLK ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
RP-STE OFF
RPT-RL OFF
PONMSG FULL
36
37
34
RP-STE 5
RPT-RL 5
PONMSG MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
MDF-B CH
BCL ON
ON
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
RP-STE OFF
RPT-RL OFF
PONMSG FULL
36
37
34
RP-STE 5
RPT-RL 5
PONMSG MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
+
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
00.000
24
OFFSET
05.000
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
36
RESET VFO
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
05.000
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
36
RESET VFO
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
No. Feature Function
13 Transmit CTCSS T-CTCS MENU+13
14 Voice Reminding VOICE MENU+14
15 ANI-ID ANI-ID MENU+15
16 Scan Resume Mode SC-REV MENU+16
17 PTT ID PTT-ID MENU+17
18 PTT ID delay P TT-LT MENU+18
19 Memory A Display Mode MDF-A MENU+19
20 Memory B Display Mode MDF-B MENU+20
21 Busy Channel Lock BCL MENU+21
22 Auto Keypad Lock AUTOLK MENU+22
23 Frequency oset direction SFT-D MENU+23
24 Frequency of Dierent
Frequency
character
OFFSET MENU+24
Function set LCD display Parameter LCD display Selectable Confirm key Back key
T-CTCS OFF
VOICE
ANI-ID
SC-REV
PTT-ID
PTT-LT
MDF-A
MDF-B
BCL OFF
AUTOLK
SFT-D
OFFSET
22
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key,and then press
Press Menu key and then input
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
/ key to choose
numbers directly.
T-CTCS
67.0HZ
VOICE
ANI-ID
SC-REV
PTT-ID
PTT-LT
MDF-A
MDF-B
BCL ON
AUTOLK
SFT-D
OFFSET
22
67.0-254.1HZ
It can be programmed
by software
TO: Time scanning
CO: Carrier wave scanning
SE: Search scanning
OFF: PTT ID is not sent
BOT: PTT ID is sent when you
start transmitting
EOT: PTT ID is sent at the end
of transmission
BOTH: Press or release PTT
FREQ: Channel+
CH: Channel number
NAME: Channel
name(It can be programmed
by software)
FREQ: Channel + frequency
CH: Channel number
NAME: Channel name(It can
be programmed by software)
+:TX frequency >RX frequency
-:TX frequency <RX frequency
00.000-38.000MHZ MENU PTT/EXIT
OFF
OFF
CHI
ENG
to send
0,1,2······
30ms
frequency
ON
OFF
ON
OFF
OFF
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
PTT/EXIT
12 | CT590S user’s manual
14
15
16
17
VOICE OFF
ANI-ID *****
DTMFST OFF
S-CODE 1
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV TO
PTT-ID OFF
PTT-LT 0
MDF-A FREQ
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B FREQ
BCL OFF
AUTOLK OFF
SFT-D OFF
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
25
OFFSET
00.000
000
24
25
OFFSET
05.000
MEM-CH 036
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
400.875
136.225
36
RESET VFO
400.875
136.225
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
14
15
16
17
VOICE ON
ANI-ID *****
DTMFST DT-ST
S-CODE 13
16
17
18
19
SC-REV SE
PTT-ID BOT
PTT-LT 1
MDF-A CH
20
21
22
23
MDF-B CH
BCL ON
AUTOLK ON
SFT-D +
24
25
OFFSET
05.000
036
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
400.875
136.225
36
RESET VFO
400.875
136.225
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
000
26
DEL-CH 006
FM
100.700
26
006
FM
100.700
26
27
DEL-CH 000
OFF
26
27
DEL-CH 006
WT-LED BLUE
FM
100.700
ALARM
138.625
26
27
DEL-CH 006
BLUE
FM
100.700
ALARM
138.625
26
27
28
DEL-CH 000
WT-LED OFF
OFF
26
27
28
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
FM
100.700
ALARM
138.625
COPING
26
27
28
DEL-CH 006
WT-LED BLUE
GREEN
FM
100.700
ALARM
138.625
COPING
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
FM
100.700
ALARM
138.625
COPING
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
FM
100.700
ALARM
138.625
COPING
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
OFF
30
AL-MOD SITE
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
SITE
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
AL-MOD OFF
UHF
30
31
AL-MOD SITE
BAND VHF
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
AL-MOD SITE
VHF
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
AL-MOD OFF
BAND UHF
OFF
30
31
32
AL-MOD SITE
BAND VHF
TDR-AB A
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
AL-MOD SITE
BAND VHF
A
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
ON
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
RP-STE OFF
RPT-RL OFF
FULL
36
37
34
RP-STE 5
RPT-RL 5
PONMSG MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
RP-STE 5
RPT-RL 5
MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
36
RESET VFO
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
VFO
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 000
WT-LED OFF
RX-LED OFF
TX-LED OFF
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD OFF
BAND UHF
TDR-AB OFF
STE OFF
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE OFF
RPT-RL OFF
PONMSG FULL
ROGER OFF
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET ALL
136.225
36
RESET VFO
400.875
136.225
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
26
27
28
29
DEL-CH 006
WT-LED BLUE
RX-LED GREEN
TX-LED GREEN
30
31
32
33
AL-MOD SITE
BAND VHF
TDR-AB A
STE ON
36
37
34
35
RP-STE 5
RPT-RL 5
PONMSG MSG
ROGER ON
36
RESET VFO
136.225
FM
100.700
ALARM
138.625
COPING
R-CTCSS or R-DCS
400.875
136.225
R
400.875
136.225
H
400.875
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
3 4
400.875
136.225
100.700
No. Feature Function
25 Channel Store MEM-CH MENU+25
26 Channel Delete DEL-CH MENU+26
27 Standby Backlight WT-LED MENU+27
28 RX Backlight RX-LED MENU+28
29 TX Backlight TX-LED MENU+29
30 Alarm Mode AL-MOD MENU+30
31 Frequency Band BAND MENU+31
32 Dual-watch Operation
33 Tail Tone Elimination STE MENU+33
34 Displays Mode at the
35 Roger Beep ROGER MENU+35
36 Reset RESET MENU+36
(Cross Band TX/RX)
Turning On
Keypad Lock Press key
PONMSG MENU+34
FM Radio FM Slightly press
character
TDR-AB MENU+32
Function set LCD display Parameter LCD display Selectable Confirm key Back key
“#”for
more than 2s
Call key
MEM-CH
DEL-CH
WT-LED
RX-LED
TX-LED OFF
AL-MOD
BAND
TDR-AB
STE
PONMSG
ROGER
RESET ALL
400.875
FM
Press Menu,and then press
/key to choose. Or input
three numbers directly.
Press Menu,and then press
/key to choose. Or input
three numbers directly.
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
Press Menu key,and then press
/ key to choose
MEM-CH
DEL-CH
WT-LED
RX-LED
TX-LED GREEN
AL-MOD
BAND
TDR-AB
STE
PONMSG
ROGER ON
RESET
400.875
001-128 Channels
Any one of the stored channels MENU PTT/EXIT
OFF Green Purple
Sky blue
OFF Green Purple
Sky blue
OFF Green Purple
Sky blue
SITE: Site alarm
TONE: Sending alarm tone
CODE: Sending alarm code
UHF: 400-480MHz
VHF: 136-174MHz
A band transmit (Upper row
B band transmit (Bottom row
FULL: All display segments are
MSG: MIDLAND CT590S
more than 2s to lock or unlock.
OFF
frequency)
frequency)
ON
OFF
displayed
ON
OFF
VFO: Menu initialization ALL: Menu and channel
initialization
Repeatedly press key“#”for
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
MENU PTT/EXIT
Auto Auto
Auto PTT or tap call
key
CT590S user’s manual | 13
FM
100.700
FM
100.700
ALARM
138.625
FM
100.700
ALARM
138.625
COPING
136.225
3 4
400.875
136.225
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
3 4
400.875
136.225
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
3 4
400.875
136.225
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
4
136.225
3 4
400.875
136.225
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
3 4
400.875
136.225
3 4
400.875
136.225
400.875
136.225
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
400.875
136.225
4
3 4
400.875
136.225
3 4
400.875
136.225
FM
100.700
ALARM
138.625
COPING
400.875
136.225
R
400.875
136.225
H
136.225
L
400.875
136.225
400.875
136.225
FM
100.700
3 4
400.875
136.225
3 4
400.875
136.225
3 4
4
400.875
136.225
L
136.225
3 4
400.875
136.225
4
400.875
136.225
No. Feature Function
Rapid Alert ALARM Press CALL key
Flashlight Tap MON key Repeatedly tap MON key to
Monitor MON Press key MON
Cloning Function COPING Turn on the radio
Memory/Frequency Mode
Conversion
character
VFO/MR Press the
Function set LCD display Parameter LCD display Selectable Confirm key Back key
for more than 2s.
for more than 2s.
Press key MON
to turn the power
on
VFO/MR key
ALARM
138.625
COPING
400.875
turn it on or o
Press key MON for more than
2s to turn it on.
Release key MON to turn it o
Display channel mode accor-
ding to menu21 and 22
Auto PTT
Auto Auto
Auto Auto
Auto Auto
Auto Auto
TX 1750Hz Call Tone Press key
Reverse Function R Tap * key
Frequency Scanning In frequency
Channel Scanning In channel mode,
Auto Search FM Radio In FM Radio
Research CTCSS/DCS
Code
Important1: CT590S has a dual-frequency display function. In frequency mode, you will see on the display the operating frequency; while in memory mode the frequency and memory will be
Cursors ▲▼
Conversion
High/low Power Fast
Selection
A/B Tap key AB
H/L In Channel
PTT+BAND
mode, press key * for more than 2s.
press key * for
more than 2s.
mode, press key *
MENU+10
or MENU+11
mode, tap
key #
400.875
136.225
400.875
136.225
400.875
FM
100.700
R-CTCS
or R-DCS
400.875
136.225
400.875
Repeatedly tap key * to turn it
Press /key to change the
scanning direction
Press /key to change the
3
3
3
scanning direction
Repeatedly press key * FM Radio band:
Press * key Automatcally research
Repeatedly press key AB
Repeatedly press key #
400.875
136.225
400.875
according to the set channels
3
on or o
Scan upwards or downwards
according to the set step
frequency
Scan upwards or downwards
65-108MHz
CTCSS/DCS code
A: Upper row
B: Bottom row
H:5W
L:1W
Auto Release PTT
Auto Auto
Auto PTT/EXIT
Auto PTT/EXIT
Auto PTT or tap call
MENU PTT/EXIT
Auto Auto
Auto Auto
key
displayed.
Important2: In frequency or memory mode, press the A/B control to shift between memory/frequency A and memory/frequency B. /on the display indicate on which channel (main channel A or sub channel B) you are operating. The icons are displayed next to the channel.
14 | CT590S user’s manual

Functions and operations

Squelch level (SQL) - MENU No.0

Thanks to this function you can adjust the squelch in 10 dierent levels:
level 0: opened squelch. With this setting, CT590S will detect all signals,
also the weakest ones, but will also receive the background noise or unde­sired signals.
levels 1- 9: level 1 (lowest squelch level), level 9 (highest squelch level). If the squelch is set to the highest level, the radio will receive the strongest signals only.

Step frequency (STEP) - MENU No.1

This function lets you select the desired frequency step. The selectable steps are the following:
2.5/5/6.25/10.0/12.5/25 KHz
Note: in channel mode, this function cannot be modified.

Output power (TXP) - MENU No.2

In this MENU you can select the high/low output power. Low power = 1W; High power = VHF 5W / UHF 5W
Note: select the output power can improve the quality of the call, while the low output power can reduce the radiation and the battery capacity loss. Press the fast key “#” to switch between the high or low output power.

Battery save (SAVE) - MENU No.3

The power save feature enables a reduction in the consumption of the battery when the radio is in standby. You have 5 selections available: OFF / 1:1 / 1:2 / 1:3 / 1:4. For example: 1:1 = 1s’ working and 1s’ battery saving. 1:2 = 1s’ working and 2s’ battery saving.

VOX Function (VOX) - MENU No.4

This function allows hands-free conversations: just speak in the direction of the microphone and the communication will be automatically activated. You can choose amongst 11 levels: OFF-10. 1 is the highest level, 10 is the lowest one.
CT590S user’s manual | 15

Wide/Narrow bandwidth (W/N) - MENU No.5

This function is used to set the working bandwidth of the radio. you can choose between wide or narrow bandwidth. WIDE: 25KHz NARROW12.5 KHz
Note: In channel mode, this function cannot be modified.

Backlight (ABR) - MENU No. 6

With this function you can adjust the auto o time of the display backlight (1-5s).
Note: we suggest you setting 4-5s levels.

Dual Watch Operation (TDR) - MENU No. 7

When this function is activated, you can receive the frequency of channel A and channel B at the same time. If a signal is detected, ▼/▲ will blink on the corresponding channel or fre­quency.

Keypad beep (BEEP) - MENU No. 8

When this function is enabled, everytime a button is pressed, you will hear a beep tone.

Time-Out-Timer (TOT) - MENU No.9

The TOT function is used to prevent a too long transmission and limits the tx time: TOT temporarily stops the transmssion if the radio has been used beyond the max pre-set time (for example 15s, 30s, 45s, etc).

Receiving DCS (R-DCS) - MENU No.10

DCS codes are similar to access codes and can be added to channels, so as to create a sort of personal channel. They enable the radio to communicate with the users that are tuned on the same channel and have set the same DCS code. You can choose amongst:
OFF: OFF R-DCS: D023N-D754N (Normal DCS) R-DCS: D023I-D754I (Inverse DCS)
16 | CT590S user’s manual

Receiving CTCSS (R-CTCSS) - MENU No.11

As DCS codes, the CTCSS codes can be added to the channels for creating new private channels.

Transmitting DCS - (T-DCS) - MENU No.12

In this Menu you activate DCS codes in tx mode. You can choose between normal R-DCS (D023N-D754N) and inverted R-DCS (D023I-D754I)

Transmitting CTCSS (T-CTCSS) - MENU No.13

In this Menu you can set a CTCSS tone in tx mode. You can choose: OFF or CTCSS (67.0 to 254.1 Hz)

Voice function (VOICE) - MENU No. 14

With this function, you activate a voice that informs you about any operation/ selection you are doing.

ANI-ID (ANI-ID) - MENU No.15

With this function you can set your ID-code. It can be programmed by the proper programming software. You can edit up to 5 digits.

SCAN Resume Mode (SC-REV) - MENU No.16

Thanks to this function, CT590S can SCAN in frequency or channel mode. You can choose amongst three options:
TO - Time-operated SCAN
Whenever a signal is detected, the radio will suspend the SCAN for 5 seconds, and then will continue to SCAN even if the signal is still present.
CO: Carrier-operated SCAN
Whenever a signal is detected, the radio will stop scanning. It will resume to
SCAN once the signal will disappear. SE: Search SCAN
The radio will stop scanning once a signal is detected.
CT590S user’s manual | 17
PTT-ID (PTT-ID) - MENU No.17
With this function you can decide when sending the ANI-ID code in tx mode. You can choose amongst 4 possibilities.
OFF: No PTT ID sent BOT: the code is sent when you press the PTT EOT: the code is sent when the PTT is released BOTH: the code is sent when you press and release the PTT

PTT ID delay (PTT-LT) - MENU No.18

In this MENU you can set the delay time (0-30ms) sending the PTT-ID.
Note: select ‘0’ in normal using.

Memory A Display Mode (MDF-A) - MENU No.19

This function is used to set the display mode of memory A.
Display modes: FREQ.: Frequency + memory CH: Channel number NAME: Channel name
Note: Channel name mode can be set by the programming software.

Memory B Display Mode (MDF-B) - MENU No.20

This function is used to set the display mode of memory B.
Display modes: FREQ.: Frequency + memory CH: Channel number NAME: Channel name
Note: Channel name mode can be set by the programming software.

Busy Channel Lock (BCL) - MENU No. 21

When this function is on, it will inhinibir the transmission when a signal is de­tected. If the selected frequency is being used by other radios, when you press key PTT, your radio cannot transmit. Release the PTT and transmit as soon as the frequency is no longer busy.

Auto Keypad Lock (AUTOLK) - MENU No.22

When this feature is activated, the keypad will be automatically locked after 15s; this prevents accidental pressure of any keys .
18 | CT590S user’s manual
Frequency oset direction (SFT-D) - MENU No.23
Using this function, you can set the direction of the frequency oset in rx and tx. You have the following options:
+: Positive oset;
-: Negative oset; OFF: no oset
Note: you should set dierent frequency deviation according to the repeaters se­lected.
Frequency oset (OFFSET) - MENU No. 24
In this MENU you can set the deviation between tx and rx. The frequency oset of this radio is 0-38.000MHz.

Channel store - (MEM-CH) - MENU No. 25

When the radio is in frequency working mode or standby mode, you can store frequencies or parameters directly. The memories available are 128. To set a CTCSS tone or a DCS code in tx or rx on the stored channel, refer to MENU 10-13
Note: You cannot overwrite a stored channel, you have to delete it first. See fol­lowing paragraph No.26.

Channel Delete (DEL-CH) - MENU No.26

In this menu you can delete a channel of the radio.

Standby backlight (WT-LED) - MENU No.27

In this MENU you can choose the color of the backlight when the radio is in standby mode. You can choose amongst :
OFF (backlight o) GREEN PURPLE SKY BLUE
CT590S user’s manual | 19
RX backlight (RX-LED) - MENU No. 28
In this MENU you can choose the backlight color when the radio is receiving. You can choose amongst :
OFF (backlight o) GREEN PURPLE SKY BLUE

TX backlight (TX-LED) - MENU No.29

You can choose the backlight color when the radio is transmitting. Available colors:
OFF (backlight o) GREEN PURPLE SKY BLUE

Alarm Mode (AL-MOD) - MENU No.30

This function can set the tone alarm/code alarm/site alarm of the radio. Keep pressed the CALL button for 3 seconds to start the alarm tone. The following three options can be selected: SITE ALARM: the speaker emits an alarm tone but the radio doesn’t tra-
smit;
TONE ALARM: the speaker emits an alarm tone and the radio transmits it; CODE ALARM: the speaker emits an alarm tone and the radio transmits it
followed by ANI-ID code.

Frequency band (BAND) - Menu No.31

In frequency mode, push the BAND button to choose the desired frequency band.
VHF: 144 - 146MHz UHF: 430 - 440MHz
20 | CT590S user’s manual
Dual Watch (TDR-AB) - Menu No.32
When this function is on, you may receive signals on both frequencies A and B. It can also be used for cross band receiving and transmitting. You can choose amongst the following settings: OFF: CT590S can receive in both frequencies (not simultaneously); or
will appear on the transmitting frequency band
A: the radio can receive in both frequencies (not simultaneously) but can
transmit in frequency A only.
B: CT590S can receive in both frequencies (not simultaneously) but can
transmit in frequency B only.

Side tone elimination (STE) - Menu No. 33

This feature is helpful to eliminate the annoying audio tone after the transmis­sion is finished (end transmission noise muer).

Display mode at the turning on (PONMSG) Menu No.34

With this function you can set the display mode when the radio is turned on. Available options:
FULL: all display segments are displayed. MSG: MIDLAND CT590S is displayed.

Roger beep (ROGER) - Menu No. 35

When the PTT is released, the radio will beep to confirm to other users that you have finished your transmission and that they can start talking.

Reset (RESET) - Menu No.36

With this function you can reset the transceiver to the factory-programmed settings and parameters. After that, you can set the desired functions. There are two types of reset:
VFO: Menu Reset ALL: Menu and channel Reset

Keypad lock

This function locks the keypad to prevent accidental pressure of the controls. To unlock the keypad, press # for more than 2 seconds.
CT590S user’s manual | 21

FM Radio (FM)

The frequency range to listen to the radio is 88-108MHz. In frequency or channel mode, push CALL Select the desired radio frequency with the or keys or input the fre­quency. Press * to automatically search a radio station Press CALL to exit FM radio.
Note: while you are listening to the radio, the frequency or channel of A/B recei­ving signal will automatically switch to the frequency or channel mode for normal transmitting and receiving.
When the signal disappears the radio will automatically switch again to FM radio mode.

Rapid Alarm (ALARM)

In frequency or channel mode, press CALL for more than 2 seconds: you will hear an alarm note. Press PTT to stop it.
Note: see Menu No.30 for Alarm mode.

Flashlight

This function is very useful for night illumination. To turn it on press MON; push it again , the flash light will be strobo; push it again: it will turn o.

Monitor (MON)

The Monitor function excludes (opens) the squelch in order to listen to signals that are too weak to keep the squelch permanently opened. Press MON for 2 seconds to turn it on and release it to deactivate the monitor.

Cloning function (COPING)

This function allows you to copy/transfer all data and settings from one radio to another one; the procedure is very simple and does not need a PC: just insert the two plugs of the cloning cable into the jack of the two radios.
1. Connect the optional cable (cod. R73727) to both radios
2. To enter the channel clone condition, press and hold the MON button whi- le turning on the main radio; the LCD shows ‘COPING’.
3. Turn on the sub-radio (radio to program).
22 | CT590S user’s manual
4. Press 1 on the main radio. The red led of the main radio and the green led of the sub-radio will blink. ‘CL-OUT’ will appear on the display.
5. When the two leds do not blink anymore, the LCD of the main radio shows ‘COPING’ and the sub-radio reboots: this means that cloning is finished.
Before using the radios, turn them o and then on.

Memory/Frequency Mode conversion (VFO/MR)

To switch between memory and frequency mode push VFO/MR.

TX 1750Hz Call Tone

Press PTT + BAND to send 1750Hz call tone. This function is useful for com­munications through repeaters.

TX/RX Reverse function (R)

The reverse frequency function interchanges the TX frequency with RX. This function is very helpful when you operate with a repeater; you can check whe­ther it is possible to receive the communication from the other part without the use of the repeater.
Note: Briefly press * to enable/disable this function.

Frequency scanning

This function can scan the frequency.
1. In frequency mode , press * key for more than 2 seconds. The radio will start scanning the frequency according to the set frequency step.
2. You can change the scanning direction with the / keys.
3. Press any key to stop the scanning.
Note: for Scan mode, see Menu No.16.

Channel scanning

This function can scan the channels.
1. In frequency mode, press * key for more than 2 seconds. The radio will start scanning according to the channel you set.
2. You can change the scanning direction with the / keys.
3. Press any key to stop scanning.
Note: for Scan mode, see Menu No.16.
CT590S user’s manual | 23

Automatic search FM Radio (FM)

This feature automatically searches the FM radio frequency. The frequency range is 88-108MHz.
1. In frequency or memory mode, press CALL.
2. Repeatedly press * to automatically seach the FM Radio frequency.
3. To exit FM, push CALL again.
Note: while you are listening to the radio, the frequency or channel of A/B recei­ving signal will automatically switch to the frequency or channel mode for normal transmitting and receiving.
When the signal disappears the radio will automatically switch again to FM radio mode.
Search CTCSS/DCS Code
With this function you can search and store the CTCSS/DCS code used by other radios. Procedure:
1. In frequency mode enter MENU+10 (for DCS codes) or 11 (for CTCSS tones).
2. Push MENU.
3. Push *; CT or DCS will blink on the display and the radio will scan CTCSS/
DCS tones.
4. If another radio is transmitting on a CTCSS/DCS tone, the radio will beep, stop scanning and the display will show the TX CTCSS/DCS tone.

Cursors Conversion (A/B)

Directly press AB to move the cursor up and down. Then, you can modify or confirm the parameters indicated by the cursor.

High/low power selection

In channel mode, press # to shift between high and low power.
24 | CT590S user’s manual
Technical specifications
Frequency band ............................ VHF 144-146MHz / UHF 430-440MHz;
Rated voltage .......................................7.4V (Rechargeable Li-Ion battery pack)
Memory channels ...............................................................................................128
Working mode ....................................................................... monoband/dualband
Output power .................................................................................5W VHF/UHF
CTCSS tones........................................................................................................50
DCS codes ........................................................................................................ 208
Working temperature .........................................................................-20° +50°C
Battery capacity ......................................................................................1500mAh
Frequency step ......................................................... 2.5/5/6.25/10/12.5/25KHz
Frequency oset ..........................................................................0 - 38.000KHz
Duty cycle ............................................................... TX 5%, RX 5%, Stan-by 90%
Antenna impedance ................................................................................. 50 Ohm
Spurious radiation ........................................................................................ <7.5μV
Sensitivity ........................................................................-122dBm (12dB SINAD)
Weight ...........................................................................................................203 gr.
Dimensions ............................................................................... 100 x 58 x 33 mm
Connection for accessories ....................................................2 pin Kenwood jack
Specifications are subject to change without notice.
WARNING. Direct plug-in ac/dc power supply must be used for disconnecting the transceiver from the mains; the desktop charger must be positioned close to the unit and easily accessible.
CT590S user’s manual | 25
All articles displaying this symbol on the body, packaging or instruction ma­nual of same, must not be thrown away into normal disposal bins but brought to specialised waste disposal centres. Here, the various materials will be divi­ded by characteristics and recycles, thus making an important contribution to environmental protection.
26 | CT590S user’s manual
Prodotto o importato da: CTE INTERNATIONAL s.r.l. Via R. Sevardi 7- 42124 Reggio Emilia Italia www.midlandreurope.com L’uso di questo apparato può essere soggetto a restrizioni nazionali. Prima dell’uso leggere attentamente le istruzioni.
Produced or imported by: CTE INTERNATIONAL s.r.l. Via R. Sevardi 7 - 42124 Mancasale Reggio Emilia Italy
Imported by: ALAN - NEVADA UK Unit 1 Fitzherbert Spur Farlington Portsmouth Hants. P06 1TT - United Kingdom www.nevada.co.uk The use of this transceiver can be subject to national restrictions. Read the instructions carefully before installation and use.
Importado por: MIDLAND IBERIA, SA C/Cobalt, 48 - 08940 Cornellà de Llobregat (Barcelona - España) www.midland.es El uso de este equipo puede estar sujeto a la obtención de la correspondiente autorización administrativa. Lea atentamente las instrucciones antes de usar el equipo.
Vertrieb durch: ALAN ELECTRONICS GmbH Daimlerstraße 1K - D-63303 Dreieich Deutschland www.alan-electronics.de Die Benutzung dieses Handfunkgerätes ist von den landesspezifischen Bestimmungen abhängig. Vor Be­nutzung Bedienungsanleitung beachten.
Importé par: ALAN FRANCE S.A.R.L. 5, Rue Ferrie, Zac les Portes du Vexin 95300 Ennery - France www.alan-midland.fr L’utilisation de cet appareil peut être sujet à des restrictions nationales. Avant l’utilisation, lire les instruc­tions.
Loading...
