MIDLAND BTX2 User Manual

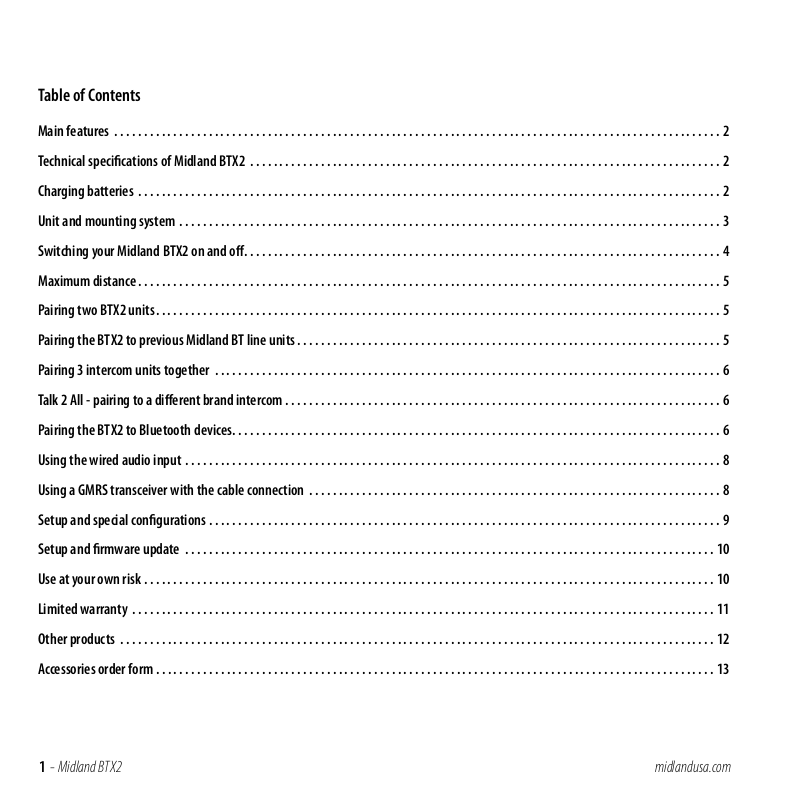

Table of Contents
Main features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Technical specications of Midland BTX2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Charging batteries � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Unit and mounting system � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Switching your Midland BTX2 on and o � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Maximum distance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Pairing two BTX2 units � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Pairing the BTX2 to previous Midland BT line units � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Pairing 3 intercom units together � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Talk 2 All - pairing to a dierent brand intercom � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Pairing the BTX2 to Bluetooth devices � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Using the wired audio input � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Using a GMRS transceiver with the cable connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Setup and special congurations � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Setup and rmware update � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Use at your own risk � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Limited warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Other products � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Accessories order form � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
1 - Midland BTX2
midlandusa.com
MIDLAND BTX2
Advanced Intercom System
BTX2 is an intercom communication system solution for motorcyclists. The design is slim, aerodynamic, and all the main functions are easy to operate thanks to the three large buttons placed on the front of the unit. BTX2 is mounted on the helmet using the adhesive plate or the screw mounting clamp. Thanks to the audio kit with ultra slim speakers, you can enjoy high quality stereo music while riding.

Main features

› Intercom driver - passenger or bike to bike 0.5 mile range › Connect up to three people for intercom communication (using Talk 2 All -
Universal Intercom) › Connect your phone to receive/place phone calls and listen to stereo music › Connect your GPS for turn by turn directions › AUX wired connection for MP3 player and GMRS radio › Setup and Firmware update via USB connection to a PC
Midland BTX2 is available in two versions:
› Single BTX2 Intercom kit with one unit only › Twin BTX2 Intercom kit with two units
Depending on the model purchased, the package contains the following parts:
BTX2 single
› 1 BTX2 communication unit › 1 audio kit with two stereo speakers, microphone with boom and wired mi-
crophone › 1 plate with bi-adhesive strip to mount the unit onto the helmet › 1 clamp to mount the unit onto the helmet › 1 stereo audio cable for iPod or other MP3 players › 1 mini USB wall-mounting power supply
BTX2 Twin
› 2 BTX2 communication units › 2 audio kits with two stereo speakers, microphone with boom and wired mi-
crophone › 2 plates with bi-adhesive strip to mount the unit onto the helmet › 2 clamps to mount the unit onto the helmet › 2 stereo audio cables for iPod or other MP3 players › 1 mini USB wall-mounting power supply with double plug
The units included in the TWIN kit are already paired and can therefore be immedi­ately used in Intercom mode.
Technical specications of Midland BTX2
General:
› Bluetooth ver� 3�0 stereo (Headset/Handsfree/A2DP protocol)
› AGC system automatically controls the volume in relation to background noise › Voice (VOX) or manual communications activation › Manual controls to enable telephone, intercom and wire connection › Fully waterproof › Lithium battery with 10 hours talk time › Recharge time: Approximately 6 hours
Bluetooth connections:
With identical device for Driver to Passenger or Bike to Bike Intercom
Bluetooth devices:
› Mobile phone with MP3 player Stereo (A2DP protocol), GPS (Garmin Zumo and
TomTom Rider 1 and 2)
Wire connections:
› For stereo audio input from iPod/MP3 player (with optional cable) › For GMRS transceivers (with optional cable)
Attention: Midland BTX2 is designed to withstand rain and water. However, if it is raining, always verify that the rubber caps protecting the sockets are fully tted.

Charging batteries

Attention: Make sure that the unit is fully charged before use. Allow at least 8 hours for a full charge before using the unit for the rst time.
Charge the unit by inserting the wall-charger into the charging socket (lift the rubber cover to insert the plug). The Red LED on the unit will start ashing when charging begins. Allow the headset to charge until the unit stops ashing or the Blue LED turns on. When the charge is complete (the Red LED is not ashing), release the headset from the charger.
2 - Midland BTX2
midlandusa.com
Normally, after the rst time, it takes 6 hours for a full charge.
Attention: Every time the mini USB recharging plug is inserted (or detached), the device is automatically turned o. To use it while it is in charge, you should turn the device on with the plug already inserted.

Unit and mounting system description

BTX2 description
The BTX2 has ve buttons on the front; the main three big button are multi func­tion buttons: “Forward” (on the left), “Middle” button and “Back” (on the right). The two small rounded buttons are the “Volume +” and “Volume -” buttons.
Volume -Volume +
In addition the BTX2 has a ip up antenna on the top for maximum distance per­formance. To lift the antenna, press gently backward and the antenna will automatically lift up.
To close the antenna just press it down and be sure to move it back into the closed position.
Forward button Back button
Middle button
Description of the wired connections
On the bottom of the unit you can nd three wired connections:
Charger jack: recharges the unit using a standard mini USB power supply Audio kit jack: connects an audio kit (stereo headset and microphone) Auxiliary audio jack (AUX) 2�5mm: can be used to connect an audio source, like
a stereo iPod/MP3 player or GMRS transceiver
Charger jack
Audio kit jack
Auxiliary audio jack (AUX)
3 - Midland BTX2
Description of the audio kit
The audio system includes two ultra-at stereo speakers and two interchangeable microphones, which are both supplied with a bracket and wired connection.
Mounting the stereo speakers
The two stereo speakers have a Velcro/adhesive strip that aids their mounting into your helmet. Beware not to completely cover your ear with the speakers, you must always be able to listen to the trac sound and your indicators. The microphone can be mounted onto the helmet in two ways:
midlandusa.com
Boom Microphone
Place the section with the Velcro/adhesive strip between the padding and the rigid cover of the helmet so that the microphone is correctly positioned in front of your mouth and that the white symbol is facing your mouth. This type of micro­phone is suited for Open Faced and Flip Front helmets.
Wired microphone
Using the Velcro/adhesive strip, place the microphone inside the helmet in front of your mouth. This type of microphone is more suited for Full Faced helmets. The mini connector on the microphone allows you to choose the microphone that best suits the helmet you are using.
Audio kit jack
The audio kit must then be connected to the central jack of the Midland BTX2 unit using the “L” shaped connector.
Description of the installation brackets
The Midland BTX2 can be mounted onto the helmet in two dierent ways: By either using the plate with bi-adhesive strip, or the clamp. These methods allow you to safely “mount” the BTX2 unit onto your helmet and to remove it at any time in order to recharge or store it.
Plate with bi-adhesive strip
The mounting plate has a bi-adhesive strip on one of its sides. To mount the plate in place, clean the application area on the helmet surface, remove the bi-adhesive lm and place the mounting plate on the helmet by applying pressure for a few seconds to ensure it bonds with the helmet’s surface.
Screw Clamp
Using the Allen Key, loosen the two screws on the clamp and place the rear plate between the helmet padding and the external rigid protection. Then, tighten the two screws in order to rmly mount the clamp in place. Inside the clamp is a small plastic spacer that can be removed to give a tighter t if required.
Fitting and removing your Midland BTX2
The BTX2 can be easily tted onto the helmet by sliding it downwards so that it ts into the slot of the selected mounting device (plate with bi-adhesive strip or clamp). BTX2 is maintained in position thanks to the mounting clip located on the upper section (A). To detach the BTX2, simply press the mounting clip and push the unit upwards.
Switching your Midland BTX2 on and o
Switching the unit on:
Press and hold the “Middle” button down for approximately 3 seconds until the BLUE indicator lights.
Switching the unit o:
Press and hold both “Middle” and “Back” buttons together for approximately 3 seconds until the Red indicator ashes 3 times, thus lessening the chances that you might turn o the unit accidentally (especially while wearing gloves).
4 - Midland BTX2
midlandusa.com
