Midland BT mini Twin User Manual
BT MINI
PREMIUM ESSENTIAL INTERCOM
MANUALE D’USO
INSTRUCTION GUIDE
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
GUIDE D’UTILISATION
UPORABNIŠKI PRIROČNIK
NÁVOD K OBSLUZE
Per informazioni sulla garanzia visitate il sito www.midlandeurope.com
For information about the warranty please visit www.midlandeurope.com
Für allen Informationen über die Garantie der Artikel, besuchen Sie bitte unsere www.midlandeurope.com
Para mayor información sobre la garantía, visite la web www.midland.es
Pour des informations sur la garantie, s’il vous plaît visitez le site www.midlandeurope.com
Για να “κατεβάσετε” το πλήρες εγχειρίδιο χρήσης και πληροφορίες σχετικά με την εγγύηση του προϊόντος, παρακαλούμε επισκεφτείτε την ιστοσελίδα www.midlandeurope.com
SOMMARIO
MIDLAND BT MINI......................................................................................................................................................................................................1
CARATTERISTICHE PRINCIPALI ........................................................................................................................................................................................ 1
NELLA CONFEZIONE ............................................................................................................................................................................................................ 1
DESCRIZIONE BT MINI ......................................................................................................................................................................................................... 1
INSTALLAZIONE BT MINI .................................................................................................................................................................................................... 2
RICARICA .................................................................................................................................................................................................................................. 2
FUNZIONALITÀ BT MINI ...................................................................................................................................................................................................... 3
Abilitare risposta automatica ............................................................................................................................................................................................................ 3
Disabilitare risposta automatica ........................................................................................................................................................................................................ 3
Funzionalità base ................................................................................................................................................................................................................................. 3
Abbinamento ad un telefono /GPS .................................................................................................................................................................................................. 3
Come usare il telefono ....................................................................................................................................................................................................................... 3
Come usare il player musicale ........................................................................................................................................................................................................... 4
Abbinamento Intercom con un altro dispositivo BT Mini ...............................................................................................................................................................4
Come usare la funzione Intercom .....................................................................................................................................................................................................4
Abbinamento intercom con altri dispositivi .....................................................................................................................................................................................4
Come usare la funzione Universal Intercom ....................................................................................................................................................................................4
Azioni Speciali ...................................................................................................................................................................................................................................... 4
Voci/Beep/Luci ....................................................................................................................................................................................................................................5
Garanzia ............................................................................................................................................................................................................................................... 6
CERTIFICAZIONI E CONFORMITÀ DI SICUREZZA................................................................................................................................................... 6
CE/Informazioni generali ................................................................................................................................................................................................................... 6
MIDLAND BT MINI
Grazie per aver scelto Midland BT Mini il sistema di comunicazione
semplice e facile da installare per la tua moto o scooter.
Con BT Mini puoi ascoltare/gestire la musica in stereo, eettuare e
ricevere telefonate, parlare con il passeggero o moto a moto fino a
400 mt.
DESCRIZIONE BT MINI
Il BT Mini è molto semplice da usare perchè tutte le principali
funzionalità sono eettuate grazie al tasto centrale Control:
1. Apertura/chiusura dell’intercom
2. Rispondere alle telefonate
3. Play/pausa della musica
I
CARATTERISTICHE PRINCIPALI
•
Bluetooth con il supporto per i seguenti protocolli:
Headset profile, Hands Free Profile (HFP), A2DP, AVRCP.
•
Frequenza: 2.402 ÷ 2.480 GHz
•
Potenza: 2.5 mW
•
Intercom Pilota-Passeggero
•
Moto a Moto fino a 400 mt (in condizioni ottimali).
•
Connessione al telefono per eettuare e ricevere telefonate
•
Musica in Stereo (A2DP)
•
Connessione al GPS per le indicazioni stradali
•
Batteria al litio per garantire fino a 8 ore di conversazione
•
Tempo di ricarica: circa 2 ore
•
Resistente all’acqua
•
Tecnologia DSP per la soppressione del rumore
NELLA CONFEZIONE
BT Mini è disponibile in due versioni:
•
Singola cod. C1410
•
Twin (doppia) cod. C1410.01
La confezione singola comprende:
dispositivo BT Mini, audio kit completo di due speaker 36 mm,
microfono a filo per caschi integrali, microfono a braccetto per caschi
modulari, cavo di ricarica USB-C, spugna di ricambio per microfono,
pad in velcro per fissaggio degli altoparlanti e microfono, aggancio
biadesivo.
La confezione twin comprende gli stessi accessori in versione doppia.
Control
Presa USB-C
La presa USB-C permette sia la connessione dell’audio kit che la
ricarica del dispositivo (non contemporaneamente).
Volume +
Volume -
midlandeurope.com 1
I

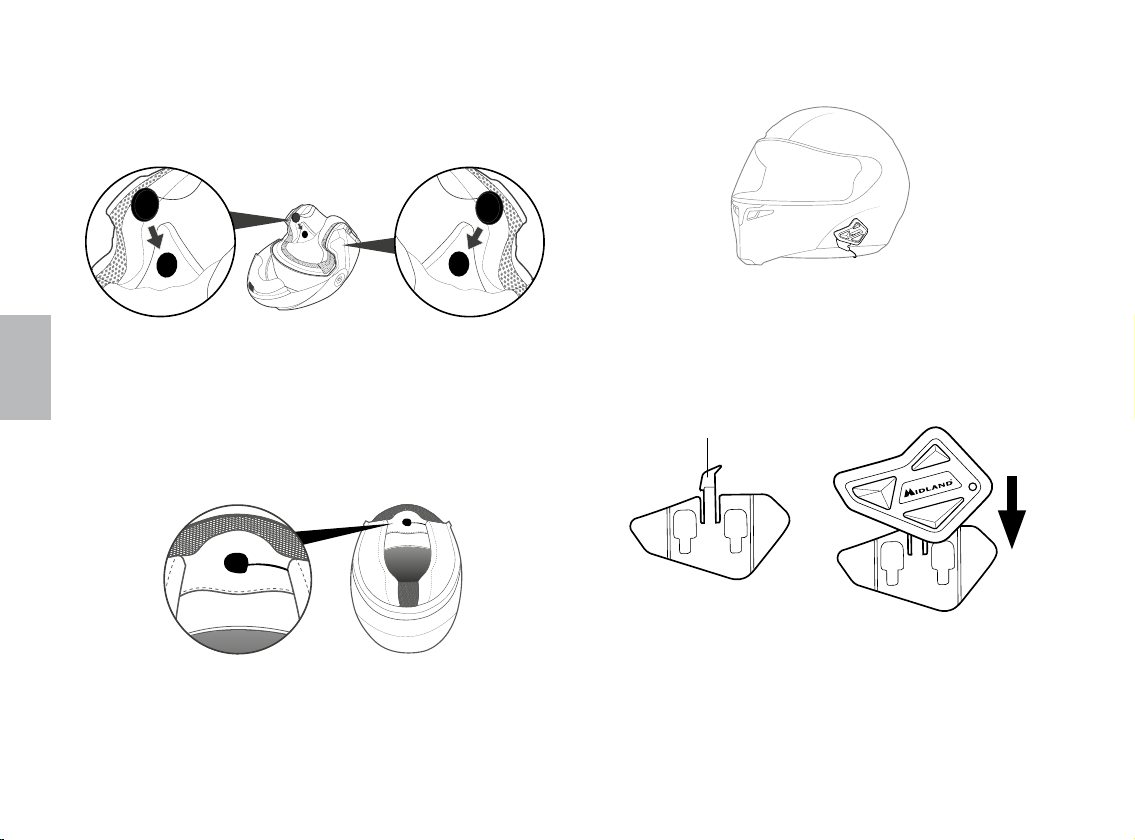

INSTALLAZIONE BT MINI
Fissare entrambi gli altoparlanti nell’apposito alloggiamento (se
possibile). Nella confezione trovate anche il velcro adesivo per gli
altoparlanti se necessario.
Fissate il dispositivo sul lato sinistro all’esterno del casco utilizzando il
supporto biadesivo presente nella confezione.
Tenete lo speaker centrato e il più vicino possibile alle vostre orecchie.
Se utilizzate il microfono a filo per i caschi integrali, fissatelo al casco
davanti alla bocca.
Se utilizzate il microfono a braccetto, fissatelo sul lato sinistro, sotto
l’imbottitura in modo che sporga fino alla bocca.Ricordatevi di tenere
la spugna del microfono più possibile vicino alla vostra bocca quando
indosserete il casco (la freccia bianca deve essere rivolta verso la
bocca).
Il dispositivo si fissa al supporto facendolo scorrere verso il basso.
Per sganciare il BT Mini è suciente premere sulla clip di aggancio (A)
e spingere il dispositivo verso l’alto.
A
Supporto biadesivo
I cavi degli altoparlanti e possono essere nascosti sotto l’imbottitura
del casco.
RICARICA
E’ possibile ricaricare il BT Mini con un qualunque caricatore USB
standard . Nella confezione è incluso solo il cavo di ricarica USB type C
Il tempo di ricarica è di circa 2 ore.
midlandeurope.com2
FUNZIONALITÀ BT MINI
Il dispositivo Midland BT Mini permette la comunicazione intercom
(in modalità full duplex) con il passeggero o con un’altra moto, fino ad
una distanza di 400 mt (la massima distanza dipende dalla condizione
di utilizzo e ambiente). In aggiunta è possibile ascoltare la musica in
stereo, fare e rispondere alle telefonate o ricevere le indicazioni vocali
da un GPS.
Se, durante l’ascolto della musica si riceve una telefonata o
l’intercom viene aperto, la musica verrà messa in pausa e riprenderà
automaticamente alla fine della conversazione.
Se, durante la comunicazione intercom si riceve una telefonata,
la comunicazione verrà momentaneamente chiusa e riprenderà
automaticamente alla fine della telefonata.
ATTENZIONE: quando si riceve una telefonata, il dispositivo BT Mini
risponde automaticamente dopo 8 sec. Questa opzione può essere
disabilitata e la risposta alla telefonata può avvenire solo manualmente.
Abilitare risposta automatica:
Vol+ e Vol- per 5 sec. Voce: “Enable”
Disabilitare risposta automatica:
Vol+ e Vol- per 5 sec. Voce: “Disable”
Funzionalità base
Accensione Pressione 1 sec. su pulsante Control
e Vol-. Voce: “Power on” e “Battery
status”
Spegnimento Pressione 1 sec. su pulsante Control e
Vol-. Voce: “Power o”
Regolazione VOL Pressione veloce su Vol+ o Vol- o
tenere premuto
Abbinamento ad un telefono /GPS
Avvio abbinamento
dal BT Mini
Avvio abbinamento sul
dispositivo Bluetooth
(telefono/GPS/MP3)
PIN (se richiesto) 0000
A unit spenta Control per 5 sec.
Lampeggio luce rossa e blu alternata
Voce: “Paring “ all’avvio, “Paring
successful” in conclusione
Ricerca di un dispositivo Bluetooth dal
telefono o GPS
Selezionare “Midland BT Mini” dalla
lista
Come usare il telefono
Rispondere alla chiamata
Chiudere la chiamata
Rifiutare la chiamata
Chiamata vocale
Pressione veloce sul pulsante Control
durante lo squillo
Pressione veloce sul pulsante Control
Control per 3 sec durante lo squillo
Doppio click sul pulsante Control o su
Vol+
I
midlandeurope.com 3
I
Richiamo ultimo numero
Annulla richiamo ultimo
numero
Risposta automatica
Vol- doppio click (Voce: Redial)
Pressione veloce sul pulsante Control
BT Mini risponde automaticamente ad
una telefonata dopo 8 sec. Per default
è attiva.
Come usare il player musicale
Play/Pausa musica
Avanti una canzone
Indietro una canzone
Pressione per 3 sec sul pulsante
Control
Vol+ doppio click
Vol- doppio click
Abbinamento Intercom con un altro dispositivo BT Mini
Avvio abbinamento su
entrambi i BT Mini
A unit accesa, premere su entrambe le
unit Vol- per 5 sec
Lampeggio: luce rossa e blu alternata
Voce:“Paring successful” al termine
Come usare la funzione Intercom
Apri/Chiudi Intercom
Pressione veloce sul pulsante Control
Abbinamento intercom con altri dispositivi
É possibile abbinare il BT Mini ad un intercom di modello o marca
dierente. Per poterlo abbinare, l’altra unit deve supportare la funzione
Universal Intercom. Il BT Mini utilizza il pairing del telefono per
collegarsi all’universal intercom dell’altra unit.
Avvio abbinamento dal
BT Mini
Avvio abbinamento su altri
dispositivi
A unit spenta: Control per 5 sec.
Lampeggio luce blu e rossa alternata.
Seguire sul manuale dell’altro
dispositivo, le istruzioni per
l’abbinamento Universal Intercom
Come usare la funzione Universal Intercom
Apri/Chiudi Intercom Doppio click Control/Un click Control
Attenzione: è necessario ripetere due volte il comando: dopo la voce
“Device connected”, premere ancora Control con doppio click.
Azioni Speciali
Reset dei paring
Annulla pairing
Abilitare risposta automatica
Disabilitare risposta
automatica
Da spento: Vol- e Control per 7 sec
(Luce blu acceso per 3 sec)
Mentre il pairing è in progress, doppio
click sul Vol+ , Vol- o Control
Vol+ e Vol- insieme per 5 sec (voce
“Enable”)
Vol+ e Vol- insieme per 5 sec (voce
“Disable”)
midlandeurope.com4
Voci/Beep/Luci
AZIONE VOCE BEEP LUCI
Accensione dispositivo Power ON + battery status Lampeggio luce blu
Spegnimento Power OFF Lampeggio luce rossa 3 volte
Avvio abbinamento Pairing Rossa/Blu alternata
Fine abbinamento Pairing successful
Risposta ad una chiamata 1 Beep
Fine chiamata 1 Beep
Rifiuto chiamata 2 Beep
Chiamata vocale 1 Beep
Richiamo ultimo numero Redial
Play/Pausa 1 Beep
Canzone avanti 1 Beep
Canzone Indietro 1 Beep
Apri Intercom 1 Beep
Chiudi Intercom 2 Beep
Regola volume 1 Beep
I
In ricarica Lampeggio luce rossa
Fine ricarica Luce Blu fissa
Abilita risposta automatica Enable
Disabilita risposta automatica Disable
midlandeurope.com 5
I
GARANZIA
La durata della garanzia è di 24 mesi per l’apparato e di 6 mesi per gli
accessori (batterie, caricatori, antenne, auricolari, microfoni).
Per maggiori informazioni visitate il sito
www.midlandeurope.com
CERTIFICAZIONI E CONFORMITÀ DI SICUREZZA
CE/Informazioni generali
Questo prodotto è conforme alla Direttiva 2014/53/UE e può essere
liberamente utilizzato nei paesi dell’UE.
Agli utenti non è permesso eettuare variazioni o modifiche di qualsiasi
tipo all’apparecchio. Queste ultime, se non espressamente approvate
dal produttore, annullano la possibilità di utilizzo dell’apparecchio ed
invalidano la garanzia.
Per ulteriori informazioni, fate riferimento al nostro sito web: www.
midlandeurope.com
midlandeurope.com6
INDEX
MIDLAND BT MINI......................................................................................................................................................................................................1
Main features ........................................................................................................................................................................................................................................1
WHAT’S IN THE BOX ............................................................................................................................................................................................................... 1
DESCRIPTION OF BT MINI .................................................................................................................................................................................................. 1
The USB type C plug allows both Audio kit and recharging of the unit (but not at the same time) . ......................................................................................1
BT MINI INSTALLATION ........................................................................................................................................................................................................2
CHARGING ............................................................................................................................................................................................................................... 2
BT MINI MAIN FUNCTIONALITY ....................................................................................................................................................................................... 3
Enable auto answer ............................................................................................................................................................................................................................. 3
Disable auto answer ............................................................................................................................................................................................................................ 3
Basic Functionalities ........................................................................................................................................................................................................................... 3
Pairing to a phone/GPS .....................................................................................................................................................................................................................3
How to use a phone ............................................................................................................................................................................................................................ 3
How to use a music player .................................................................................................................................................................................................................4
Pairing to another BT Mini Unit ........................................................................................................................................................................................................4
How to use the intercom ...................................................................................................................................................................................................................4
Pairing to another Intercom ..............................................................................................................................................................................................................4
How to use the Universal Intercom ..................................................................................................................................................................................................4
Special Action......................................................................................................................................................................................................................................4
Voice prompt/Beep/Light .................................................................................................................................................................................................................. 5
WARRANTY ............................................................................................................................................................................................................................... 6
EUROPEAN CE NOTICE CERTIFICATION AND SAFETY APPROVAL INFORMATION .............................................................................. 6
MIDLAND BT MINI
Thank you for choosing the Midland BT Mini, the most simple Intercom
for Scooters and Motorbikes.
With your BT Mini you can listen to stereo music and GPS navigation
voice, place and answer to phone calls, talk with your friends in full
duplex intercom up to a distance of 400 m.
DESCRIPTION OF BT MINI
BT Mini is very easy to operate, because all the main features are
managed by the Control button:
1. Open/Close the intercom
2. Answer to incoming phone calls
3. Play/pause the music
UK
MAIN FEATURES
•
Bluetooth with support for the following protocols:
Headset profile, Hands Free Profile (HFP), A2DP, AVRCP.
•
Frequency: 2.402 ÷ 2.480 GHz
•
Max power: 2.5 mW
•
Intercom Driver – Passenger
•
Intercom Bike to Bike 400 mt (depending on terrain conditions)
•
Connect your phone to receive/place phone calls
•
Listen to Stereo music (A2DP)
•
Connect your GPS for voice street indications
•
Lithium battery with 8 hours talk time
•
Recharge time: app. 2 hours
•
Waterproof
•
DSP Noise cancelling technology
WHAT’S IN THE BOX
BT Mini is available in two dierent versions:
•
Single cod. C1410
•
Twin cod. C1410.01
The single packing includes:
BT Mini unit, audio kit with two 36 mm speakers, wired microphone for
full helmets, book microphone for open helmets, USB-C recharging
cable, spare microphone sponge, velcro pad for speakers and
microphones, bi-adhesive mount.
The twin package includes the same accessories in double version.
Control
USB-C plug
The USB type C plug allows both Audio kit and recharging of the unit
(but not at the same time) .
Volume +
Volume -
midlandeurope.com 1
BT MINI INSTALLATION
Place both speakers in the deep ear pocket of your helmet. You can fix
the speakers using the velcro pad provided in the box.
UK
Place both speakers as much as possible close and centered to your
ears. Place the wired microphone in front of your mouth using the
adhesive Velcro pad.
Place the BT Mini unit on the left side of your helmet using the
adhesive mount available inside the box.
The BT Mini can be easily fitted onto the helmet by sliding it downwards
so that it fits into the slot of the adhesive Mount.
The BTMini is maintained in position thanks to the fixing clip located on
the upper section (A).
To detach BT Mini, simply press the fixing clip (A) and push the unit
upwards.
A
Bi-adhesive mount
If you are using the half-boom microphone, fix the boom on the left
side and keep the sponge as closely as possible to your mouth when
wearing the helmet. Be sure the white arrow is facing your mouth.
You can hide the speaker wires under the helmet padding.
CHARGING
Only the USB-C cable is supplied inside the box.
You can charge your BT Mini using any standard USB wall adapter or
PC port. In the box you can find only the USB type C recharging cable.
It takes about 2 hours to fully charge.
midlandeurope.com2
BT MINI MAIN FUNCTIONALITY
Midland BT Mini is a full duplex intercom communication system
Driver to Passenger and Bike to Bike communication up to a maximum
distance of 400 mt. (depending on terrain conditions).
In addition you can listen to Stereo music, place and answer to phone
calls or receive voice street indications from the GPS.
If you receive a phone call during an intercom communication, the
intercom is closed and reopens as soon as the phone call is over.
If the intercom communication is open while you are listening to music,
the music will be paused. When the intercom is closed, the music is
automatically resumed.
If you receive a phone call while you are listening to music, the music
will be paused. When the phone call is closed, the music is automatically
resumed.
ATTENTION: Midland BT Mini automatically answers to an incoming
phone call after 8 sec. You can disable this feature and manually answer
to the incoming calls.
Enable auto answer
Vol+ and Vol- for 5 sec. Voice: “Enable”
Disable auto answer
Vol+ and Vol- for 5 sec. Voice: “Disable”
Basic Functionalities
Turn ON Press 1 sec. on Control and Vol- buttons
Voice prompt: “Power on” and “Battery
status”
Turn OFF Press 1 sec. on Control and Vol- buttons
Voice prompt: “Power o”
Volume adjustment Short press on Vol+ or Vol- or keep
pressed
Pairing to a phone/GPS
Start pairing on BT Mini Unit is o: Control for 5 sec
Red and blue LED blink alternately
Voice: “Pairing” when starts,
“Pairing successful” when finished
Start pairing on Bluetooth
devices (phone/GPS/MP3)
PIN (if requested) “0000”
Searches for Bluetooth device from the
phone or GPS and select “Midland BT
Mini” from the list
How to use a phone
Answer call Short press on Control button during
incoming call
UK
End call Short press on Control
Reject call Control for 3 sec when ringing
Voice dial Double click on Control button or Vol+
midlandeurope.com 3
Redial Double click on Vol- button
(voice: “Redial”)
Cancel redial Short press on Control
Auto answer feature By default the “Auto answer” is
UK
active, that means the BT Mini will
automatically answer to an incoming
call after 8 sec.
Pairing to another Intercom
It is possible to pair the BT Mini to another model/brand intercom, only
if the other unit supports the Universal Intercom feature.
The BT Mini will use the phone pairing to connect to the Universal
Intercom of the other unit.
Start pairing on
BT Mini Unit
Unit is power o
Control for 5 sec
Red and blue LED blink alternate
How to use a music player
Play/Pause music Press 3 sec on Control button
FWD song Vol+ double click
BWD song Vol- double clilck
Pairing to another BT Mini Unit
Start pairing on both
BT Mini units
Unit is in stand by mode, press Vol- for
5 sec on both units, red and blue LED
blink alternately
Voice prompt: “Pairing successful”
when finished
How to use the intercom
Open/Close intercom Short press on Control button
Start pairing on other
Intercom
Follow the manual for “Universal
intercom pairing” on the other unit
How to use the Universal Intercom
Open/Close
Universal Intercom
Attention: you need to repeat twice the Open command: after you
hear the voice “Device connected”, double click Control again.
Control double click/Control short
press
Special Action
Reset all pairing Unit is power o: Vol- and Control for
7 sec (LED full blue for 3 sec)
Cancel Pairing When pairing is in progress, double click
on Vol+ , Vol- or Control
Enable auto answer Vol+ and Vol- for 5 sec (voice
“Enable”)
Disable auto answer Vol+ and Vol- for 5 sec (voice
“Diseable”)
midlandeurope.com4
Voice prompt/Beep/Light
ACTION VOICE PROMPT BEEP LED LIGHT
When you turn on the unit Power ON + battery status Blinking Blue
When you turn o the unit Power OFF Blinking Red 3 times
Start pairing Pairing Red /Blue alternate
After pairing Pairing successful
Answer phone call 1 Beep
End phone call 1 Beep
Reject phone call 2 Beep
Voice command 1 Beep
Redial Redial
Play/Pause 1 Beep
FWD 1 Beep
BWD 1 Beep
Intercom open 1 Beep
Intercom close 2 Beep
Adjust volume 1 Beep
Charging Blinking red
Full charge Full blue
Enable auto answer Enable
UK
Disable auto answer Disable
midlandeurope.com 5
WARRANTY
The warranty lasts 24 months for the main device and 6 months for the
accessories (batteries, chargers, antennas, headsets, microphones).
For further information about the warranty, please visit:
www.midlandeurope.com
UK
EUROPEAN CE NOTICE CERTIFICATION
AND SAFETY APPROVAL INFORMATION
This product is CE marked according to the RED directive 2014/53/UE
and is free use in all the EU countries.
Users are not permitted to make any changes or modifications to the
device.
Modifications which are not expressly approved by the producer
invalidate the warranty card.
For further information, please go to our website:
www.midlandeurope.com
midlandeurope.com6
INHALT
MIDLAND BT MINI.......................................................................................................................................................................................... 1
Haupteigenschaften ................................................................................................................................................................................................................1
LIEFERUMFANG ..........................................................................................................................................................................................................1
ÜBERSICHT DES BT MINI .........................................................................................................................................................................................1
BT MINI INSTALLATION ............................................................................................................................................................................................2
LADEN ............................................................................................................................................................................................................................2
BT MINI HAUPTFUNKTIONEN ..............................................................................................................................................................................3
Automatische Beantwortung aktivieren ..............................................................................................................................................................................3
Automatische Beantwortung deaktivieren ..........................................................................................................................................................................3
Allgemeine Funktionen ..........................................................................................................................................................................................................3
Kopplung mit Telefon/GPS ...................................................................................................................................................................................................3
Verwendung mit Telefon ........................................................................................................................................................................................................3
Verwendung der Musikwiedergabe.......................................................................................................................................................................................4
Kopplung mit einem anderen BT Mini Einheit ....................................................................................................................................................................4
Verwendung des Intercom ....................................................................................................................................................................................................4
Koppeln mit anderer Gegensprechanlage ...........................................................................................................................................................................4
Bedienungshinweise Universal-Gegensprechanlage .........................................................................................................................................................4
Besondere Funktionen ..........................................................................................................................................................................................................4
Ansage/Signalton/LED ..........................................................................................................................................................................................................5
GEWÄHRLEISTUNG...................................................................................................................................................................................................6
Loading...
