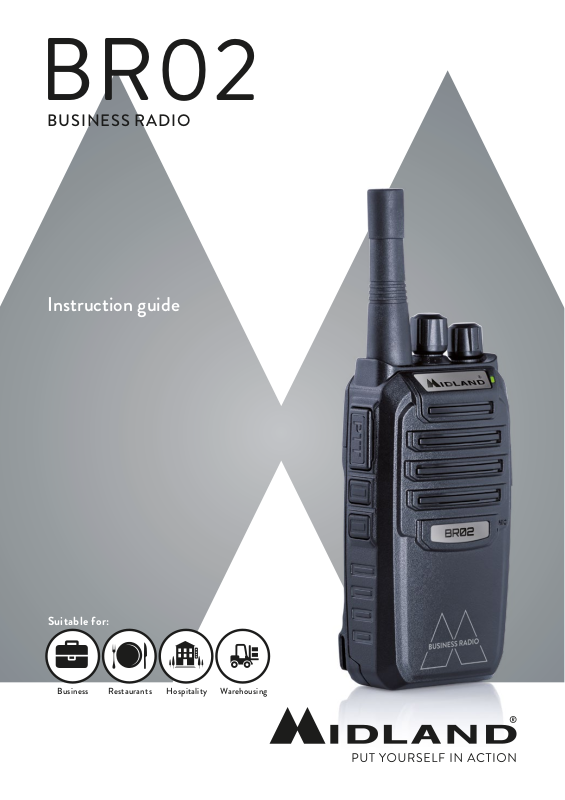

Midland BR02 INSTRUCTION GUIDE
BR02
BUSINESS RADIO
Suitable f or:
Business Resta urants Hospita lity Ware ho usi ng
Instruction guide
Index
Programming software (optional) 2
Content 3
Main characteristics 3
Coverage/Range 3
Main controls and parts of the radio 4
Operations 5
Power on/o and volume adjustment 5
Transmission 5
Monitor 6
Scan 6
Squelch 7
Battery recharge 7
Maintenance 8
Technical specifications 9
Troubleshooting 11
BR02 instruction guide | 1
Thanks for choosing Midland! BR02 is a portable transceiver that is free use
in almost all European countries. For further information, we suggest you look
at the “Restrictions on the use” chart.
Programming software (optional)
Thanks to Midland Programming software PRG-10, it is possible to incre-
ase the performance of your radio or to reduce its functionality by disabling some of the default features (CTCSS, DCS, Squelch...)
For further information, please consult the Programming software manual.
Any attempt to change frequencies of the radio invalidates the approval.
2 | BR02 instruction guide
Content
• 1 BR02 transceiver
• 1 belt clip
• 1 wall adaptor
• 1 1800mAh Li-ion rechargeable battery pack
• 1 desktop charger
Main characteristics
• PMR446 Transceiver
• 16 PMR446 channels: 8+8 pre-programmed
• 38 CTCSS tones/104 DCS codes
• Output power: ≤ 500mW ERP
• Channel spacing: 12.5KHz
• Scan
• Vocal tuning
• Battery save
• Monitor
• Squelch with 10 selectable levels
• Battery life up to 21 hours
Li-Ion battery pack 1800mAh 3.7V
• PC programmable
Coverage/Range
The maximum range depends on terrain condition and is obtained during
use in an open space.
The only limitation to maximum possible range are environmental factors
such as blockage caused by trees,buildings, or other obstructions. Inside a
car or a metallic constructions, the range can be reduced. Normally the
coverage in the city, with buildings or other obstructions is about 1 or 2
Km. In open space but with obstructions like trees, leaves or houses the
maximum possible range is about 4-6 Km. In open space, without obstruc-
tions and in sight, like for example in mountain, the coverage can be more
than 12 Km.
BR02 instruction guide | 3
