Midland Alan48 ExcelMulti Parts

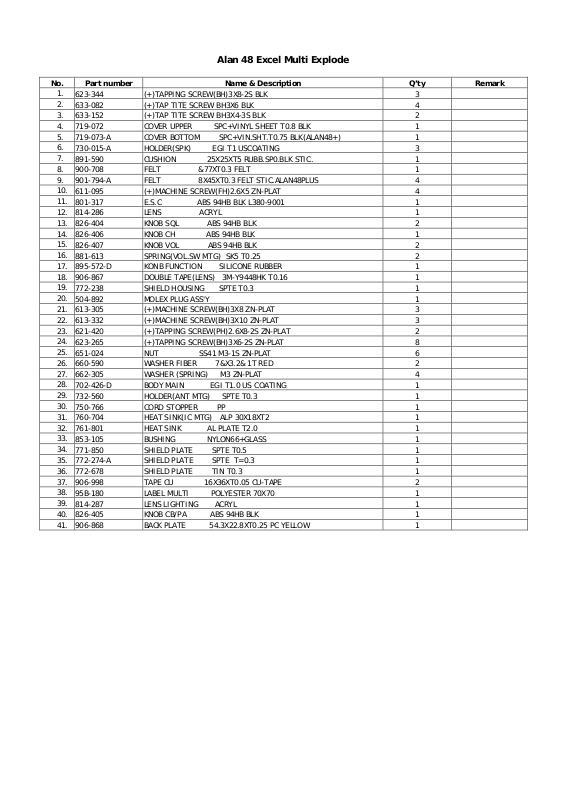

Alan 48 Excel Multi Explode

No.

Part number Name & Description Q’ty

1.

623-344 (+)TAPPING SCREW(BH)3X8-2S BLK 3

2.

633-082 (+)TAP TITE SCREW BH3X6 BLK 4

3.

633-152 (+)TAP TITE SCREW BH3X4-3S BLK 2

4.

719-072 COVER UPPER SPC+VINYL SHEET T0.8 BLK 1

5.

719-073-A COVER BOTTOM SPC+VIN.SHT.T0.75 BLK(ALAN48+) 1

6.

730-015-A HOLDER(SPK) EGI T1 USCOATING 3

7.

891-590 CUSHION 25X25XT5 RUBB.SP0.BLK STIC. 1

8.

900-708 FELT &77XT0.3 FELT 1

9.

901-794-A FELT 8X45XT0.3 FELT STIC.ALAN48PLUS 4

10.

611-095 (+)MACHINE SCREW(FH)2.6X5 ZN-PLAT 4

11.

801-317 E.S.C ABS 94HB BLK L380-9001 1

12.

814-286 LENS ACRYL 1

13.

826-404 KNOB SQL ABS 94HB BLK 2

14.

826-406 KNOB CH ABS 94HB BLK 1

15.

826-407 KNOB VOL ABS 94HB BLK 2

16.

881-613 SPRING(VOL.SW MTG) SK5 T0.25 2

17.

895-572-D KONB FUNCTION SILICONE RUBBER 1

18.

906-867 DOUBLE TAPE(LENS) 3M-Y9448HK T0.16 1

19.

772-238 SHIELD HOUSING SPTE T0.3 1

20.

504-892 MOLEX PLUG ASS'Y 1

21.

613-305 (+)MACHINE SCREW(BH)3X8 ZN-PLAT 3

22.

613-332 (+)MACHINE SCREW(BH)3X10 ZN-PLAT 3

23.

621-420 (+)TAPPING SCREW(PH)2.6X8-2S ZN-PLAT 2

24.

623-265 (+)TAPPING SCREW(BH)3X6-2S ZN-PLAT 8

25.

651-024 NUT SS41 M3-1S ZN-PLAT 6

26.

660-590 WASHER FIBER 7&X3.2& 1T RED 2

27.

662-305 WASHER (SPRING) M3 ZN-PLAT 4

28.

702-426-D BODY MAIN EGI T1.0 US COATING 1

29.

732-560 HOLDER(ANT MTG) SPTE T0.3 1

30.

750-766 CORD STOPPER PP 1

31.

760-704 HEAT SINK(IC MTG) ALP 30X18XT2 1

32.

761-801 HEAT SINK AL PLATE T2.0 1

33.

853-105 BUSHING NYLON66+GLASS 1

34.

771-850 SHIELD PLATE SPTE T0.5 1

35.

772-274-A SHIELD PLATE SPTE T=0.3 1

36.

772-678 SHIELD PLATE TIN T0.3 1

37.

906-998 TAPE CU 16X36XT0.05 CU-TAPE 2

38.

95B-180 LABEL MULTI POLYESTER 70X70 1

39.

814-287 LENS LIGHTING ACRYL 1

40.

826-405 KNOB CB/PA ABS 94HB BLK 1

41.

906-868 BACK PLATE 54.3X22.8XT0.25 PC YELLOW 1

Remark
