Read these instructions carefully before using your oven,and keep it
carefully. If you follow the instructions, your oven will provide you with many years
SAVE THESE INSTRUCTIONS CAREFULLY
of good service.
ACKNOWLEDGMENT
Thank you for purchasing our product. We hope you enjoy using the many features and benets it
provides. Before using this product please study this entire Instruction Manual carefully. Keep this
manual in a safe place for future reference. Ensure that other people using the product are familiar
with these instructions as well.
WARNING
● When the oven is rst switched on, it may give off
an unpleasant smell. This is due to the bonding
agent used for the insulating panels within the oven.
This is completely normal, if it does occur, you
merely need to wait the smell to disappear before
putting food into the oven.
● The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching
heating elements.
● Children less than 8 years of age shall be kept
away from the oven unless being continuously
supervised.
● This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
2
● Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass of the oven.
This can scratch the surface and may result in
permanent damage to the glass.
● Do not allow children to go near the oven when it is
operating, especially when the grill is on.
● Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of
electric shock.
● The means for disconnection must be incorporated
in the xed wiring in accordance with the wiring
specications.
3
SAFETY HINTS
Do not use the oven unless you are wearing something on your feet. Do not touch the oven with
wet or damp hands or feet.
For oven: Oven door should not be kept open often during the cooking period.
The appliance must be installed by an authorized technician to put into use. The producer is not
responsible for any damage that might be caused by defective placement, and installation by
unauthorized personnel.
When the door or drawer of oven is open do not leave anything on it, you may unbalance your
appliance or break the door.
Some parts of appliance may be kept heat for a long time; it is required to wait for it to cool down
before touching onto the points that are exposed to the heat directly.
If you will not use the appliance for a long time, it is advised to turn it off at the power source.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
Excess spillage must be removed before cleaning.
Only use the temperature probe recommended for this oven.
A steam cleaner shall not be used.
FITTING THE OVEN INTO THE KITCHEN UNIT
Fit the oven into the space provided in the kitchen unit; it may be tted underneath a worktop or
into an upright cupboard. Fix the oven in position by screwing into place, using the two xing holes
in the frame. To locate the xing holes, open the oven door and look inside. To allow adequate
ventilation, the measurements and distances shall be adhered to when xing the oven.
IMPORTANT
Ensure that cabinetry can withstand temperatures of at least 120 degrees. Materials that cannot
withstand such temperatures may melt and deform the unit.
Once the oven has been positioned inside the cabinet electrical wiring must be completely
insulated. This is a legal safety requirement. Ensure sufcient space at the rear of the cabinet to
allow an air ow clearance of at least 45mm.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged in any
way. If you have any doubts at all, do not use it: contact a professionally qualied
person. Keep packing materials such as plastic bags, polystyrene, or nails out of the
reach of children because these are dangerous to children.
4
HOW TO USE
Stay on: For the oven to be used in the “ ”, the food may catch re if the cooking time is set
too long. Close supervision is necessary during toasting and the time should not be set too long.
Note: For cooking times which are under sixty minutes, rst set to a longer time and then turn
the switch back to the time you require.
To set functions by turning the function knob to desired level.
The oven will automatically start cooking after function, time and temperature are set.
To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
After the cooking time is up, the unit will "Dong" to stop.
To set the temperature by turning the temperature knob.
If the uni t is not in use, always set the knobs to "0".
PRODUCT DESCRIPTION
Cooking function
Decreasing control Time function
Symbol Function description
Oven Lamp: It enables the user to observe the progress of cooking without
opening the door.
Defrost: The circulation of air at room temperature enables quicker thawing of
frozen food, (without the use of any heat). It's a gentle but quick way to speed up
the defrosting time and thawing of ready-made dishes and cream lled produce
etc.
Convectional with fan: Combination of the fan and back element provides more
even heat penetration, saving up to 30-40% of energy. Dishes are lightly browned
on the outside and still moist on the inside. Note: This function is suitable for
grilling or roasting big pieces of meat at a higher temperature.
Radiant grilling: The inner grill element switches on and off to maintain
temperature. Best results can be obtained from using the top shelf for small items
and lower shelves for large items.
Grilling with fan: The inner grill element work with fan.
Increasing control Temperture knob
5
OPERATION INSTRUCTIONS
When the oven is rst connected to the electrical supply, wait for the display automatically show
"12.30", a beep sound once and the "12" "." ash. Ensure the correct time of the day is set before
using the oven. please note: that is 24 hour clock, for example 2PM shown as 14.00.
To set the correct time of day
1> Press " " " " button to adjust the hour setting.
2> Press "
3> Press " " " " button to adjust the minute setting.
4> Press "
Note: If the display does not ash, pressing the " " and " " buttons at the same time for more
than 3 seconds.
" to conrm the hour setting.
" to conrm the minute setting and the timer will be in standby mode.
Oven On and Off
If the timer is in standby mode, press " " for more than 3 seconds, the timer will enter into
manual mode and the symbol "
1> Set the desired cooking function and the temperature degree.
2> Set the time function, then the oven will start cooking.
If you set Dur or End , after cooking, the oven will automatically turn off.
If you set manual or minute minder, after cooking, turn the cooking function and oven
temperature knob to " 0 " position. Press "
return to standby mode.
" will light up continuously.
" and " " buttons for more than 3 seconds to
Time function setting
In manual mode, pressing " " can enter the time function setting, the sequence of the function
setting is Manual mode - Minute minder-Dur-End-Manual mode. Then select cooking function
and adjust the cooking, temperature if needed.
Manual mode :
In manual mode, only the day's time and the symbol "
be controlled by the user.
Notes: In manual mode, to ensure the oven is not left on accidentally, after 5 hours, if there is no
any button pressed, the timer will ash once a second to warn you the oven will enter into standby
mode. Then after 10 hours, the timer will enter into standby mode.
When the timer is ashing in manual mode, press any button to reset the timer if you intend to
continue using the oven. Or press "
standby mode if oven will not be used.
" and " " together for more than 3 seconds to enter into
" lights up. The cooking duration has to
6
Audible warning time adjustment:
This function can be used to receive audible warning at the completion of the adjusted time
period.
1> Press "
" button to select the minute minder function. The relevant "
" " . " symbol will
ash.
2> Use " " " " button to adjust minute minder. (Refer to the instructions for setting the
correct time o f da y.) Press "
continuously. When the "
" button to conrm, the " " symbol will begin to light
" symbol begins to light continuously, the audible warning time
adjustment is done.
3> When the time is up, the timer gives an audible warning and the "
" symbol begins to
ash on the screen. Press any button less than 3 seconds, it will stop the audible warning
and the "
" symbol disappears on the screen. Audible warning time adjustment is for
warning purposes only.
Press "
" and " " together for more than 3 seconds to enter into standby mode if oven
will not be used.
Semi-automatic programming according to cooking period:
This function is used to cook in the desired time range, Put the food into the oven, and the
oven is adjusted to the desired cooking function and temperature degree.
The maximum setting of cooking period is 10 hours.
1> Press "
" button until you see " Dur " on the timer screen.(Before setting cooking period.)
2> Use " " " " button to adjust cooking period for the food you wish to cook. (Refer to the
instructions for setting the correct time of day.) Press "
will appear on the screen and the symbols " A" "
" button to conrm the day s time
" will light on the screen While doing
thi,s the oven will also start to operate.
3> At the completion of the set duration, the timer will stop the oven and give an audible
warning. Also, the symbol "A" will begin to ash on the screen. After turning the cooking
function and oven temperature knob to position Pressing any butt on les s th an 3 sec on
ds it will stop the audible warning.
Pressing "
" for more than 3 seconds set the oven to Manual mode again to use the
oven.
Semi-automatic programming according to nishing time:
This function is used to cook according to the desired nishing time. Put the food into the
oven. The food to be cooked is put into the oven.The oven is adjusted to the desired cooking
function and temperature degree.
1> Press "
" button until you see " End " on the timer screen.(Before setting nished time).
2> Use button to adjust nishing time. (Refer to the instructions for setting the correct time of
day.)
3> Press "
symbols "A" "
" button to conrm, the day 's time will appear on the screen and the
" will light on the screen. While doing this, the oven will also start to
operate.
4> At the completion of the set duration, the timer will stop the oven and give an audible
warning Also, the symbol"A"will begin to ash on the screen. After bringing the cooking
function and oven temperature knob to " 0 " position Pressing any button less than 3
seconds, it will stop the audible warning.
Pressing "
" for more than 3 seconds set the oven to Manual mode again to use the
oven.
7
Full-automatic programming:
This function is used to cook after a certain period of time with a certain duration, The food to
be cooked is put into the oven The oven is adjusted to the desired cooking function. The oven
temperature is adjusted to the desired degree depending on the food to be cooked.
First: Press "
cooking period for the food you wish to cook. Press "
appear on the screen and the symbols " A " will begin to continuously light on the screen.
Second: keep pressing on "
" End " on the timer screen, Use " " " " button to adjust nishing time, Press "
conrm, the day's time will appear on the screen and the symbol " A " will begin to continuously light
on the screen.The symbol "
You can set a time which can be up 23.59 hours after the time obtained by adding the cooking
period to the day's time.
The oven will start operating at the time calculated by deducting the cooking period from the set
nishing time, and will stop at the set nishing time. The timer will give an audible warning and the
symbol "A" will begin to ash .After bringing the cooking function and oven temperature to " 0 "
position. any button less than 3 seconds, it will stop the audible warning.
Pressing "
Please note Once setting full:-automatic mode all the, time can no t be changed Change. time
means cancle automatice progamme and enter into corresponding mode If you need to reset
automatic mode, need to stop setting the current mode to set the automatice mode according to the
above steps again.
" button until you see " Dur " on the timer screen. Use " " " " button to adjust
" button to conrm, the day's time will
" button until you see " End " on the timer screen. When you see
" disappears until the time cooking starts.
" for more than 3 seconds set the oven to Manual mode again to use the oven.
" button to
Spectication
1> When setting the date of each function, long press on " " or " " for more than 3 seconds the
date will progressively and rapidly increase or decrease.
2> When setting each of the time function, if there is none operation for 5 minutes then it will return
to manual mode.
3> When setting each of the time function, pressing on "
current setting and enter manual mode.
4> During time function setting, pressing on " + " and "
sounds it can cancle the curent time function setting and enter standby mode.
5> We suggest that you run the oven elements for 15 minutes at 200 degrees to burn off any
residuce from their surfaces.
" for more than 3 seconds can cancel
" for more than 3 seconds, a beep
8
ACCESSORIES

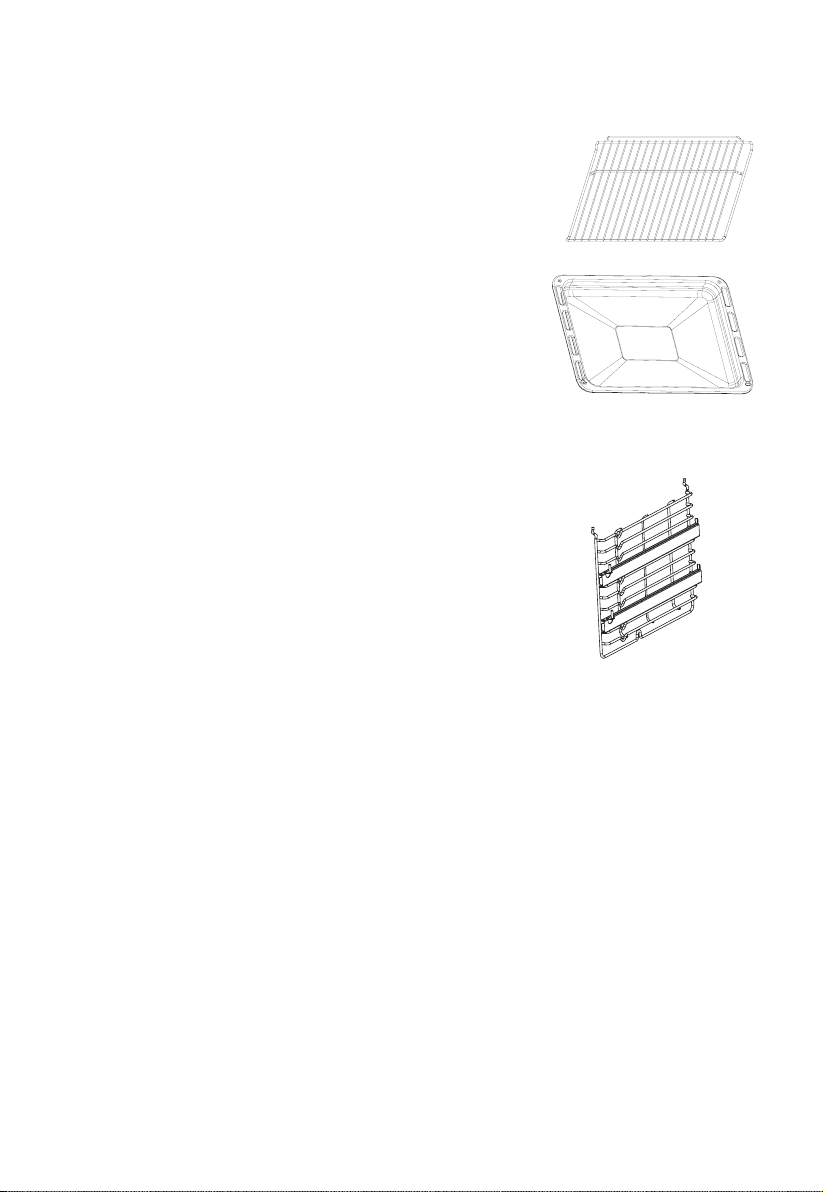

Wire shelves: For grill. dishes, cake pan with items for roasting and
grilling.
Universal pan: For cooking large quantities of food such as moist
cakes, pastries, frozen food etc, or for collecting fat/spillage and meat
juices.
Telescopic runner: Some models may be supplied with telescopic
. These telescopic runners and slider
runners
disassembled by unscrewing the screws used
After disassembled, dishes and tray can be put on the side racks,
using functions as Radiant grilling, Double grilling, Double grill
with fan.
NOTE: When placing dishes on the oven oor, please DO NOT use
functions with bottom heater to prevent heat gathering at bottom.
(only for specic models)
brackets could
to x it.
be
9
SHELF PLACEMENT WARNING
To ensure the oven shelves operate safely, correct placement of the shelves between the side rails
is imperative. Shelves and the pan only can be used between the rst and fth layers.
The shelves should use with the right direction, which will ensure that during careful removal of the
shelf or tray, hot food items should not slide out.
SECURING THE OVEN TO THE CABINET
1. Fit oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabinet with two distance holders
"A" which t the holes in the oven frame and t the two wood
screws "B".
BULB REPLACEMENT
For replacement, process as follows:
1 > Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
2 > Unscrew the glass lamp cover by turning it counter-clockwise (Note, it may be stiff) and replace
the bulb with a new one of the same type.
3 > Screw the glass lamp cover back in place.
Note: Only use 25-40W/220V-240V, T300°C halogen lamps.
10
VENTILATING OPENINGS
When cooking is nished, the cavity temperature is over 70 degree. The ventilating opening will
continue working for 15 minutes after the oven stop cooking.
Ventilating openings
CONNECTION OF THE OVEN
INSTALLATION
Remark:
1. The cabinet does not include the power switch or socket dimensions.
NOTE: The number of accessories included depends on the particular appliance model purchased.
11
REMOVING THE DOOR FROM OVEN (OPTIONAL)
Disassembly of oven door components

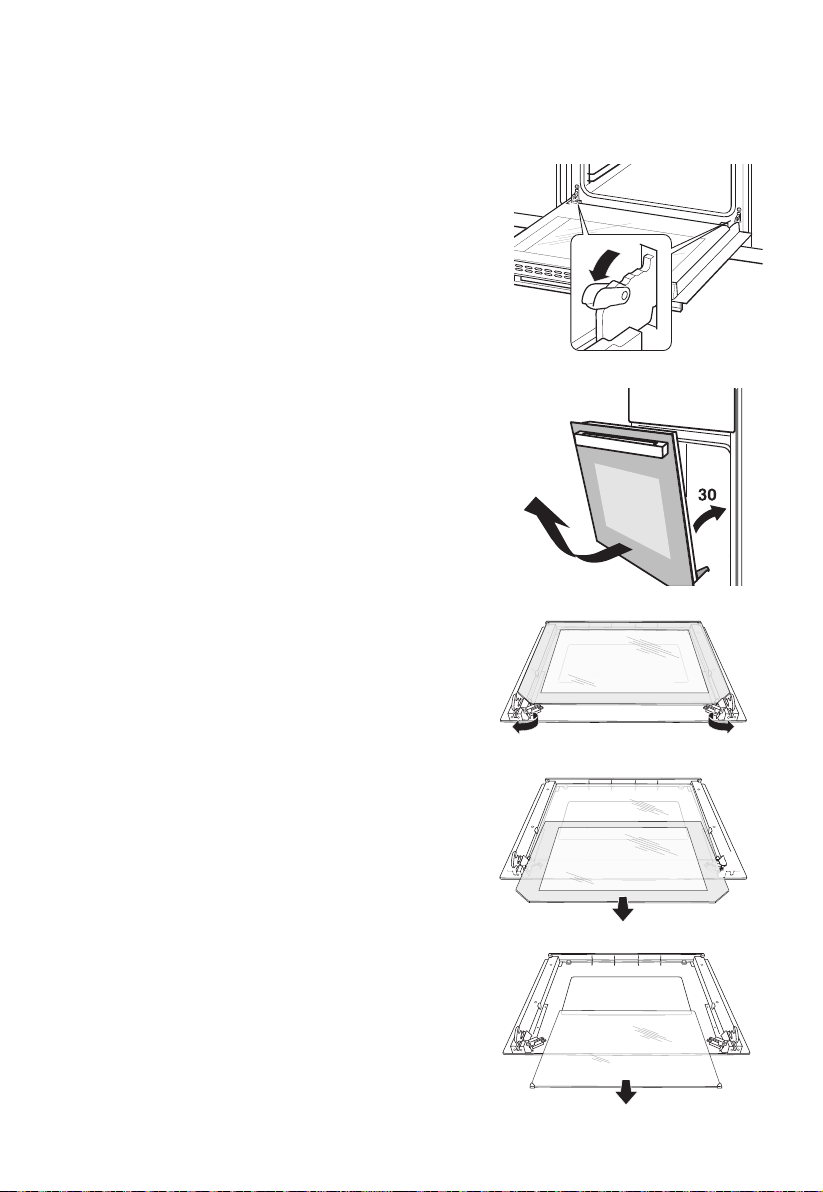

1. To remove the door, open the door to the maximum
angle. Then pull the buckle at the door hinge backward.
2. Close the door to an angle approximately 30°. Hold the
door with one hand on each side. Lift up and slowly pull
the door out from the oven.
3. Open the door rotation bracket assembly. Refer the
action in the following picture.
4.
Lift up the inner glass door outer glass and pull it out,
then take the
middle glass door out in the same way.
˚
WARNING:
Don't forcibly pull out the door and take care with glass
door panels during the dismantling process.
WARNING:
Ensure the hinge springs do not become loose,
causing potential injury.
WARNING:
Do not lift or carry the oven door by the door handle.
12
CLEANING AND MAINTENANCE
For the sake of a good appearance and reliability, keep the unit clean. The modern design of the
unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food
have to be cleaned regularly.
Before any maintenance and cleaning, disconnect the power.
Set all controls in the OFF position.
Wait until the inside of the unit is not hot but only slightly warm - cleaning is easier than that
when it is warm.
Clean the surface of the unit with a damp cloth, soft brush or ne sponge and then wipe dry. In
case of heavy soiling, use hot water with non- abrasive cleaning product.
For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers,
which can scratch the surface or damage the glass.
Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
Do not use a high pressure cleaner for cleaning the unit . The baking pans may be washed in
mild detergent.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this product
may not be treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. Disposal must be carried out in
accordance with local environmental regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please contact your local city ofce, your
household waste disposal service or the shop where you purchased the product.
13
To ensure the appliance continues to operate at peak performance, we recommend a routine
service call every 3 years for the life of the appliance.
Maintenance schedule:
FOR SPARE PARTS OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA
MIDEA HOME APPLIANCES AUSTRALIA PTY LTD
11/75 Lorimer Street, Docklands, Melbourne, 3008
After-sales service No.: 1800 88 60 10
Loading...
