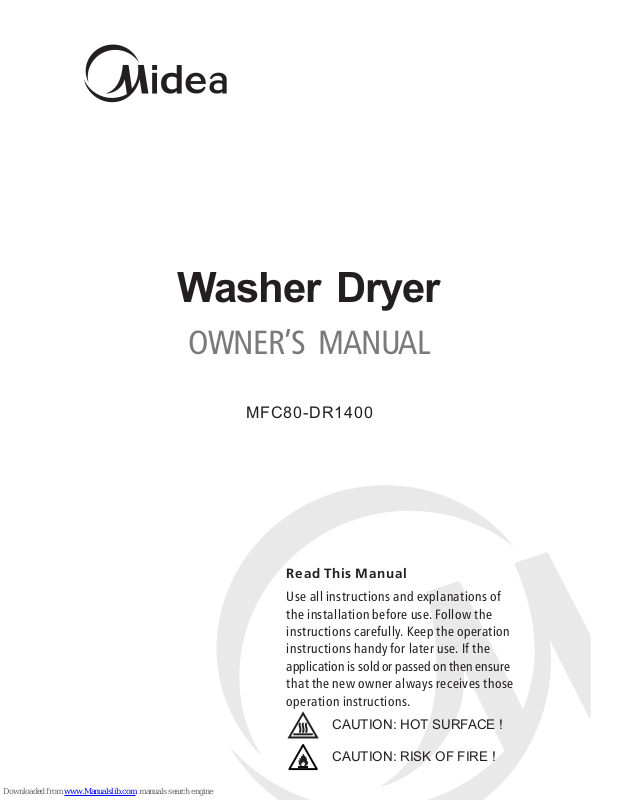

OWNER’S MANUAL

Read This Manual

Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.

Washer Dryer

CAUTION: HOT SURFACE !

CAUTION: RISK OF FIRE !

MFC80-DR1400

1

SAFETY INSTRUCTIONS

Safety Instructions ..................................................

INSTALLATION

Product Description ................................................

Installation ...........................................................

OPERATIONS

Quick Start .............................................................

Before Each Washing ..............................................

Detergent Dispenser ...............................................

Control Panel .........................................................

Option....................................................................

Other Functions ......................................................

Programmes............................................................

Washing Programmes Table .....................................

MAINTENANCES

Cleaning And Care .................................................

Trouble Shooting ....................................................

Technical Specifications .........................................

2

8
9

12
13
14
15
16
18
21
22

23
26
27

CONTENTS

For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:

manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

• If the supply cord is damaged, it must be replaced by the

• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.

• Before any maintenance the device, unplug the
appliance from the mains.

The electric shock!

2

SAFETY INSTRUCTIONS

Safety Instructions

This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.

Warning!

！

This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.

Note!

This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.

Caution!

Warning!

！

3

• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.

•

• Do not use any socket with rated current less than that
of appliance. Never pull out power plug with wet hand.

• Please remember to disconnect water and power supply
immediately after the clothes are washed.

• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.

• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.

Pull out its plug from the power socket before cleaning

or maintenance.

Risk to children!

• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.

• Children of less than 3years should be supervised to
ensure that they do not play with appliance.

• Animals and children may climb into the machine. Check
the machine before every operation.

• Kids should be supervised that they do not play with
the appliance.

SAFETY INSTRUCTIONS

• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.

• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.

Risk of explosion!

• Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.

• The washer dryer is not to be used if industrial chemicals
have been used for cleaning.

• The exhaust air must not be discharged into a flue which is

for exhausting fumes from appliances burning gas or
other fuels.

• Before hand thoroughly rinse items of washing by hand.

Installing the product!

4

• This appliance is for indoor use only.

• It isn't intended to be built-in using.

• The openings must not be obstructed by a carpet.

• The appliance shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.

• The appliance with single inlet valve only can be
connected to the cold water supply. The appliance with
double inlet valves should be correctly connected to the

SAFETY INSTRUCTIONS

Caution!

5

hot water and cold water supply.

• Plug must be accessible after installation.

• The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the washer dryer.

• The appliance shall not be installed at a humid place.

• The household appliance isn't intended to be built-in.

• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• The product is only for home use and is only designed for
the textiles suitable for machine washing and drying.

• Do not climb up and sit on top cover of the machine.

• Do not lean against machine door.

• Cautions during Handling Machine:

1.Transport bolts shall be reinstalled to the machine by
a specialized person.

2.The accumulated water shall be drained out of the
machine.

3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.

4.This appliance is heavy. Transport with care.

5. That the hands shall not be inserted into running
water extracting tub.

• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.

• It is forbidden to wash carpets.

SAFETY INSTRUCTIONS

Operating the appliance!

6

• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.

• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.

• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.

• Please check whether the water inside the drum has
been drained before opening its door. Please do not
open he door if there is any water visible.

• Be careful of burning when the product drains hot
washing water.

• After the program is completed, Please wait for two
minutes to open the door(Some model).

• Never refill the water by hand during washing.

• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products. it be placed in a tumble dryer they should first
be washed in hot water with extra detergent , this will
reduce, but not eliminate, the hazard.

• Adequate ventilation has to be provided to avoid the
back flow of gases into the room from appliances
burning other fuels, including open fires.

• Do not dry unwashed items in the appliance.

• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers,turpentine,waxes and wax removers should be
washed in hot with an extra amount of detergent before
being dried in the appliance.

SAFETY INSTRUCTIONS

7

• Items such as foam rubber (latex foam), shower caps,
water proof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the machine.

• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.

• The machine whose lid can be opended during water
extraction,that it takes 15s or more for complete stop of
water extracting chamber tub.

• The final part of a washer dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.

• Remove all objects from pockets such as lighters and

This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or

human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of

material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.

Packaging/Old appliance

matches before use the appliance.

• WARNING: Never stop a washer dryer before the end of
the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.

SAFETY INSTRUCTIONS

Accessories

Transport

plughole

Supply hose hot
water (optional)

Supply hose
cold water

Drain hose

(optional

support

)

• The product line chart is for reference only, please refer to real product as
standard.

Note!

8

Drum

Power supply cord

Control panel

Detergent dispenser

Service filter

Door

Water supply hose

Top cover

Drain hose

Owner’s manual

Product Description

INSTALLATION

9

INSTALLATION

Installation

Before installing the machine, the location characterized

follows shall be selected:

1.Rigid, dry, and level surface

2.Avoid direct sunlight

3.Sufficient ventilation

4.Room temperature is above 0°C

5.Keep far away from the heat resources such as coal or gas.

as

Unpacking the washing machine

1. Remove the cardboard box and styrofoam packing.

2. Lift the washer dryer and remove the base packing.

3. Remove the tape securing the power supply cord and drain hose.

4. Remove the inlet hose from the drum.

Make sure the small triangle

foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.

Please take the following steps to remove the bolts:

1.Loosen 4 bolts with spanner and then remove them.

2.Stop the holes with transport hole plugs.

3.Keep the transport bolts properly for future use.

Remove transport bolts

•

•

Stability is important to prevent the product from

wandering!

Make sure that the product should not stand on

the power cord.

Warning!

！

•

•

Packaging material (e.g. Films, Styrofoam) can be

dangerous for children.

There is a risk of suffocation ! Keep all packaging

well away from children.

Warning!

！

•

• product
you

You must remove the transport bolts from the backside before using the product.

You’ll need the transport bolts again if you move the , so make sure

keep them in a safe place.

Warning!

！

w

w

W> 2 0m m

Installation area

9

10

INSTALLATION

1.Check if the legs are closely attached to the cabinet. If not, please turn them to

their original positions tighten the nuts.

2.Loosen the lock nut turn the feet until it closely contacts with the floor.

3.Adjust the legs and lock them with a spanner, make sure the machine is steady.

Levelling the washer dryer

• The lock nuts on all four feet must be screwed tightly against the housing.

Connect Water Supply Hose

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.

1.Connection between ordinary tap and inlet hose.

• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .

!

• water inlet hose

• For the model equips hot valve,connect it to hot water tap with hot water supply

hose. Energy consumption will decrease automatically for some program.

2

3

4

1

Raise

Lower

Lock nut

foot

Warning!

！

Warning!

！

Loosen clamp nut and
four bolts

Tighten clamp nut Press slide bushing,

insert inlet hose into
connecting base

slide bushing

2

3

41

Connection finished

clamp nut

Tap with threads and inlet hose

Special tap for washer dryer

2.Connection between screw tap and inlet hose.

slide bushing

10

11

INSTALLATION

Warning!

！

Drain Hose

There are two ways to place the end of drain hose:

1.Put it into the water trough.

2.Connect it to the branch drain pipe of
the trough.

•

• If drain hose is too long, do not force it into washing machine as it will cause

abnormal noises.

When installing drain hose, fix it properly with a rope.

•

• Position drain hose properly ,otherwise damage might result of water leakage.

Do not kink or protract the drain hose.

Water
trough

Mi

n.

6

0c

m

1

0

0c

m

Max

.

Trough

Hos e Retai ner

B

i

n

d

Max .100c m
Min .60cm

Min .60cm

Max .100c m

If the machine has • drain hose support, please install it like the following .

Warning!

！

Warning!

！

Note!

water supply hose

water Inlet valve

Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

10

12

Before washing, please make sure it’s installed properly.
Before washing at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.

•

•

round

1. Before Washing

Buzzer beep or “End” on display.

Open tap

Load

Close door

Plug in

Add detergent

Quick Start

3. After Washing

• Detergent only need to be added in "case I “after selecting pre-washing for

machines with this function.

1 2 3 4 5

2. Washing

Power On

Select Programme

Select function or
default

Start up

1 2 3 4

• 1.

2.The function button line chart is for reference only, please refer to real product

as standard.

If default is selected, step 3 can be skipped.

Note!

Note!

Caution!

OPERATIONS

Main
wash

Prewash

Softener

10

13

Knot the long strips,zip or
button

• When washing a single clothes, it may easily cause great eccentricity and give

alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.

• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.

• The working condition of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under

condition of 0°Cor less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen

before use.

• Please check the labels and the explanation of using detergent before wash. Use

non-foaming or less-foaming detergent suitable for machine washing properly.

Take out the items out of
the pockets

Put small clothes into the
pillow slip

Check the label

Before Each Washing

Turn easy-pilling and
long-pile fabric inside out

Separate clothes with
different textures

Warning!

！

OPERATIONS

10

14

Programme

Cotton

Cotton ECO

1 Hour W/D

Jeans

Colors

Mix

Wool

Rinse&Spin

Means must ○　Means optional

Programme

Dry Only

Spin Only

Delicate

Quick

Sportwear

Baby Care

Synthetic

Detergent Dispenser

Pre wash detergent
Main wash detergent
Softener

II

I

Pull out the dispenser

Liquid detergent

Powder detergent

Caution!

• Detergent only need to be added in "case I “after selecting pre-washing

for machines with this function.

OPERATIONS

Dam-board

Dam-board

Control Panel

On/Off

Product is switched on or off.

Start/Pause

Press the button to start or pause the
washing cycle.

Programmes

Available according to the laundry type.

Option

This allows you to select an additional
function and will light when selected.

1

1

3

1

2

4

Display

The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.

5

10

15

1

2

1

3

1

4

1

1

1

1

5

Extra Rinse

M

Delay

A

Door Lock

B

Child Lock

C

D

Reload

E

Speed

F

G

Anti-crease

K

L

Prewash-Wash-Rinse-Spin

I

Wash Time Delay Time

Error End

H

Temp.

Select

J

N

A B C D E

F

K

L

M

N

O

G

H

I J

Extra Wash

O

Perwash

Speed Wash

Air Dry-Gentle Dry-Normal Dry­Extra Dry

OPERATIONS

Note!

The chart is for reference only, Please refer to real product as standard.•

• The programme with can be choose speed wash function.

Pre Wash

The Prewash function can get an extra wash before main wash,it is suitable for
washing the dust rises to surface of the clothes;You need to put detergent into
the Case (I) when select it.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

Speed Wash

The function can decrease the washing time.

Option

Delay

Set the Delay function:

1. Select a programme

2.Press the Delay button to choose the time(the delaying time is 0-24 H.)

3.Press [Start/Pause] to commence the delay operation

Choose the Programme

Start

On/Off

Setting time

Delay

Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before
starting the programme. If the programme already started, should press the
[On/Off] button to reset the programme.

Caution!

•

On/Off

If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, press the [ ]button the program will continues.

10

16

Extra Wash

Very dirty clothes can choose it, select it can increase the washing time and
intensity to increase the washing effect.

Anti-crease

Anti-crease function can be used to reduce the wrinkles of clothes.

Soak

When water reaches the target level,sock for 20 minutes and then the motor do
not rotate.

OPERATIONS

/

10

17

Perwash

Delay

Programme Option

Speed Wash

Extra Rinse

Anti-crease

○　Means optional

Cotton ECO
Sport Wear
Quick
Delicate
Wool
Colors
Jeans
Spin Only
Rinse&Spin
Dry Only
Mix
Baby Care
Synthetic
Cotton
1 Hour W/D

Extra Wash Soak

OPERATIONS

10

18

OPERATIONS

Cut off the power supply , the kid’s protection is to be released.

• Press the two button 3sec. also to be released the function.

• The “Child Lock” will lock all buttons except [On/Off].

•

• The child lock will remain effective when the power is resumed for some models.

Caution!

My Cycle

Memory the frequently used programmes
Press [ ]3sec. to memory the running programme. The default is
cotton.

Child Lock

To avoid mis operation by children.

Start/Pause

Press [Function] and [Select]
3 sec. till buzzer beep.

On/Off

Function

Select

/

/

/

• Don't use the Reload function when the water level over the edge of the
inner tub or the temperature is higher.

Reload

This operation can be executed during the washing progress. When the drum is
still rolling and there is large amount of water with high temperature in the drum.
The state is unsafe and the door cannot be opened forcefully. To press
[Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway
function. Please follow the steps as bellow:

1.Wait until the drum stops rotation.

2.The door lock is unlocked.

3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.

Start

P 3sress[Start/Pause] ec.

Clothes

Reload the clothes

Caution!

Other functions

/

OPERATIONS

Temp.

℃,Press the button to regulate the temperature(Cold,20 30℃, 40℃,60℃,90℃)

Speed

Press the button to change the spin speed.

1000

1400

Programme Default Speed(rpm)

Cotton ECO

Sport Wear

Quick

Delicate

Wool

Colors

Jeans

Spin Only

Programme Default Speed(rpm)

Rinse&Spin

Dry Only

Mix

Baby Care

Synthetic

Cotton

1 Hour W/D

800

1400

800

1400

800

800

1600

800

600

600

1400

1200

1000

1000

1400

800

1400

1200

1600

800

800

800

1600

1200

1200

800

800

1600

800

Speed

800

1200

800

• When the lights of speed are off means the spin speed is 0.

Caution!

10

19

10

20

Press the [Temp.]&[Spin] or button
for 3sec.the buzzer is mute.

[Dry]&[Temp.]

Mute the buzzer

Temp.

Spin

To act the buzzer function, press the two buttons again for 3 seconds. The setting

until the next reset.

will be kept

Start/Pause

On/Off

• MuAfter ting the buzzer function, the sounds will not be activated any more.

Caution!

Dry

Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry/
Gentle Dry/Air Dry.

Extra Dry:Need to wear clothes immediately ,we can choose this function
Normal Dry: The normal dry procedure
Gentle Dry:Only to dry slightly and then is just ok .
Air Dry: Clothes is roated to remove peculiar smell without water in high
temperature.

Note!

• Drying hints

- Clothes could be dried after spinning

- To ensure quality dry the textiles,please classify them according to their
kinds and the drying temperature.

- Synthetic should be set the proper drying time .

- If you want to iron the clothes after drying,please put them for a while.

• Clothes not suitable for drying

- Particularly delicate items such as synthetic curtains,woolen and silk,
clothes with metal inserts,nylon stockings,bulky clothes,such as
anoraks,bedcovers,quilts,sleeping bags and duvets must not be dried.

- Clothes padded with foam-rubber or materials similar to foam-rubber
must not be machine dried.

- Fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to avoid
the formation of harmful vapours.

Option Confirm

Confirm the selection of the Pre Wash,Extra Rinse,Extra Wash,Night Wash or
Anti-crease function.

OPERATIONS

/

Temp.

Dry

or

Programmes are available according to thelaundry type.

Quick(Quick15')

Wool

Mix

Hard-wearing textiles, heat-resistant textiles made of cotton or linen.

To increase the washing effects, washing time is increased.

Wash synthetic articles, for example: shirts, coats, blending. While

washing the knitting textiles, detergent quantity shall be reduced

due to its loose string construction and easily forming bubbles.

Washing the baby’s clothes, it can make the baby's wear cleaner.

and make the rinse performance better to protect the baby skin.

Specially for jeans.

Mixed load consisting of textiles made of cotton and synthetics.

Washing brightly colored clothes, it can protect the colors better .

Washing the activewear.

Extra short programme approx, suitable for lightly soiled washing as

a small amounts of laundry.

For delicate, washable textiles, e.g. made of silk, satin, synthetic

fibres or blended fabrics.

Hand or machine-washable wool or richwool textiles.Especially

gentle wash programme to prevent shrinkage, longer programme

pauses (textiles rest in wash liquor).

Extra spin with selectable spin speed.

Extra rinse with spin.

For small synthetic clothes or shirts, load limitation is 1 kg (about 4

shirts). When you have an urgent appointment but no more clean shirt

left in your cupboard, this program will help you.Time duration is only

1 hour including wash and dry. Remark: Big towels or jeans is not

suitable for this program, they will enlarge the time duration and

affect the moisture content.

Select it to dry clothes, the temperature is different .The drying time

according to the load .

Washing few and not very dirty clothes quickly.

Spin Only

Rinse&Spin

Baby Care

Sport Wear

Synthetic

Jeans

Delicate

Dry Only

Colors

1Hour W/D

Programmes

10

21

OPERATIONS

Rapid45'

• Reference to your product to select the programmes.

Note!

Programme

Washing/Drying

(kg)

Load

Default Time (H)

Washing Programmes Table

10

22

Cotton ECO

Sport Wear

Quick

Delicate

Wool

Colors

Jeans

Spin Only

Rinse&Spin

Dry Only

Mix

Baby Care

Synthetic

Cotton

1 Hour W/D

12.0

1.0/1.0

6.0/6.0

6.0

/7.0

12.0

2.0

2.5

2.0

12.0

12.0

12.0

12.0

12.0/8.0

12.0/6.0

12.0/8.0

8.0

2.5

1.0/1.0

4.0/4.0

4.0

8.0

2.0

2.0

8.0

8.0

8.0

8.0

8.0/6.0

8.0/4.0

8.0/6.0

10.0

2.5

1.0/1.0

5.0/5.0

5.0

/7.0

10.0

2.0

2.0

10.0

10.0

10.0

10.0

10.0/7.0

10.0/5.0

10.0/7.0

Default

30

40

40

40

40

Cold

30

40

Temp.(°C)

60

Cold

60

Cold

0:50

0:15

2:40

1:40

1:07

0:45

1:45

0:12

0:20

1:10

1:20

3:28

1:13

4:52

8.0

1400

0:59

10.0

1600

0:50

0:15

2:40

1:40

1:17

0:45

1:45

0:12

0:20

1:10

1:20

4:39

1:13

3:59

0:59

12.0

1400

0:50

0:15

2:40

1:40

1:17

0:45

1:45

0:12

0:20

1:10

1:20

5:39

1:13

4:29

0:59

• “Cotton Eco 60°C/40°C” is the standard washing program and “Dry only ”is the standard
drying programs to which the information in the label and the fiche relates, and they are
suitable to clean normally soiled cotton laundry and that they are the most efficient
programmes in terms of combined energy and water consumptions for washing that type
of cotton laundry,that the actual water temperature may differ from the declared cycle
temperature.

Speed: the highest speed; Other as the default.

•

Half load for 8.0/10.0/12.0Kg machine:4.0/5.0/6.0Kg.

The energy class is B Energy test program: Cotton ECO 60°C

OPERATIONS

•

•

The parameters in this table are only for user's reference. The actual parameters

maybe different with the parameters in above mentioned table.

Note!

The programme with can be choose dry function.

/6.0

• Before your maintenance starts, please unplug the machine and close the tap.

Cleaning The Cabinet

Cleaning The Drum

Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.

•

alcohol,

• Don’t put laundry in the washing machine during the drum cleaning.

Cleaning The Door Seal And Glass

Warning!

！

Note!

Note!

10

23

Cleaning And Care

The rusts left inside the drum by the metal articles shall be removed immediately
with chlorine-free detergents.
Never use steel wool.

Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.

Wipe the glass and seal after each wash
to remove lint and stains. If lint builds up it
can cause leaks.
Remove any coins, buttons and other objects
from the seal after each wash.

MAINTENANCES

Washing the filter in the tap

1.Close the tap.

2.Remove the water supply hose from the tap.

3.clean the filter.

4.Reconnect the .water supply hose

Cleaning The Inlet Filter

• Inlet filter must be cleaned if there is less water.

• If the brush is not clean, you can pull out the filter washed separately;

• Reconnect, turn on the tap.

Washing the filter in washer dryer:

1.Screw off the inlet pipe from the backside
of the machine.

2.Pull out the filter with long nose pliers
and reinstall it back after being washed.

3.Use to clean the filter.

4.Reconnect the inlet pipe.

the brush

Clean Detergent Dispenser

Do not use alcohol,solvents or chemical products to clean the machine.•

A

Pull out the dispenser
drawer with press the A

Clean the dispenser
drawer under water

Clean inside the recess
with an old toothbrush

Insert the dispenser
drawer

1

2

3

4

Note!

Note!

Note!

10

24

1.Press down the arrow location on softener cover inside the dispenser drawer.

2.Lift the clip up and take out softener cover and wash all grooves with water.

3.Restore the softener cover and push the drawer into position.

MAINTENANCES

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak;

• Some machines don’t have emergency drain hose, so step 2 and step 3 can be skipped.
Rotate lower cover cap directly to make water run into basin.

• When the appliance is in use and depending on the programme selected there can

be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the

cover, ensure it is securely re-tightened.

Cleaning Drain Pump Filter

Be careful of the hot water!
Allow detergent solution to cool down.

•

•

• Unplug the machine to avoid electrical shock before washing.

• Drain pump filter can filter the yarns and small foreign matters from the
washing.

• Clean the filter periodically to ensure the normal operation of washing
machine.

Open the lower cover cap

Rotate 90°C and pull out
the emergency drain hose,
and take off the hose cap

Open the filter by turning
to the counter clockwise

Remove extraneous matter

1

2

3

Close the lower cover cap

6

5

4

Emergency

drain hose

After water runs out,reset
the drain hose

Warning!

！

10

25

Caution!

MAINTENANCES

Trouble Shooting

• or the display
shows other alarm codes

After the check, activate the appliance. If the problem occurs

again, contact the service.

The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, If not, contact the service centre.

Note!

Description

Reason

Solution

Restart after the door is closed
Check if the clothes is stuck

Door is not closed properly

Door can’t be
opened

Washer's safety
protection design is working

Disconnect the power, restart
the product

Water leakage

The connection between inlet
pipe or outlet hose is not tight

Check and fasten water pipes
Clean up outlet hose

Clean and wipe the detergent
box

Abnormal noise

Check if the fixing (bolts) have
been removed

it’s installed on a solid

and level floor

Check

Indicator or display

does not light

Disconnect the power
PC board or harness has
connection problem

Check if the power is shut
down and the power plug is

connected correctly

Washer dryer

cannot start up

Detergent residues

in the box

Detergent is dampened
or agglomerated

Description

Reason

Solution

Check if the water pressure is
too low
Straighten the water pipe

Check if the inlet valve filter is blocked

Check if the drain hose is blocked

Water injecting
problem while
washing

Overtime water draining

Please try again first, call up
service line if there are still
troubles

Others

Water overflow

Restart the washer

Restart after the door is closed
Check if the clothes is stuck

Door is not closed properly

10

26

MAINTENANCES

Technical Specifications

MAX.Current

Standard Water Pressure

10A

0.05MPa~1MPa

D

10241027

Model
Power Supply
Washing Capacity
Drying Capacity
Dimension(W*D*H)
Weight
Rated Power
Drying Power

MFC80-DR1400

220-240V~,50Hz

8.0kg

6.0kg

595*470*850

64kg

2050/1900W

1350/1300W

MAINTENANCES

W

H
