Midas Consoles DM16 Quick Start Guide

DM16/DM12

16/12 Input Analogue Live and Studio Mixer with MIDAS
Microphone Preampli ers

Quick Start Guide

2 DM16 /DM12 Quick Start Guide 3

Important Safety
Instructions

LEGAL DISCLAIMER

Instrucciones de
seguridad

NEGACIÓN LEGAL

GARANTÍA LIMITADA

LIMITED WARRANTY

Terminals marked with this symbol carry
electrical current of su cient magnitude

to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modi cation should be performed only
by quali edpersonnel.

This symbol, wherever it appears,

alertsyou to the presence of uninsulated

dangerous voltage inside the
enclosure-voltage that may be su cient to constitute a
risk ofshock.

This symbol, wherever it appears,

alertsyou to important operating and

maintenance instructions in the
accompanying literature. Please read the manual.

Caution

To reduce the risk of electric shock, donot

remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.

Caution

To reduce the risk of  re or electric shock,

do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects  lled with liquids,
suchas vases, shall be placed on the apparatus.

Caution

These service instructions are for use

by quali ed service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.

9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not  t into your outlet, consult an
electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

11. Use only attachments/accessories speci ed by
themanufacturer.

12. Use only with the
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14. Refer all servicing to quali ed service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.

15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.

17. Correct disposal of this
product: This symbol indicates that
this product must not be disposed
of with household waste,
according to the WEEE Directive
(2012/19/EU) and your national

law. This product should be taken
to a collection center licensed for the recycling of waste
electrical and electronic equipment (EEE). The
mishandling of this type of waste could have a possible
negative impact on the environment and human health
due to potentially hazardous substances that are generally
associated with EEE. At the same time, your cooperation
in the correct disposal of this product will contribute to
the e cient use of natural resources. For more
information about where you can take your waste
equipment for recycling, please contact your local city
o ce, or your household waste collection service.

18. Do not install in a con ned space, such as a book
case or similar unit.

19. Do not place naked  ame sources, such as lighted
candles, on the apparatus.

20. Please keep the environmental aspects of battery
disposal in mind. Batteries must be disposed-of at a
battery collection point.

21. Use this apparatus in tropical and/or
moderate climates.

MUSIC Group accepts no liability for any loss which
may be su ered by any person who relies either
wholly or in part upon any description, photograph,
or statement contained herein. Technical speci cations,
appearances and other information are subject to
change without notice. All trademarks are the property
of their respective owners. MIDAS, KLARK TEKNIK,
LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA
and DDA are trademarks or registered trademarks
of MUSIC Group IP Ltd. © MUSIC Group IP Ltd.
2016 All rights reserved.

For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
Limited Warranty, please see complete details online at
music-group.com/warranty.

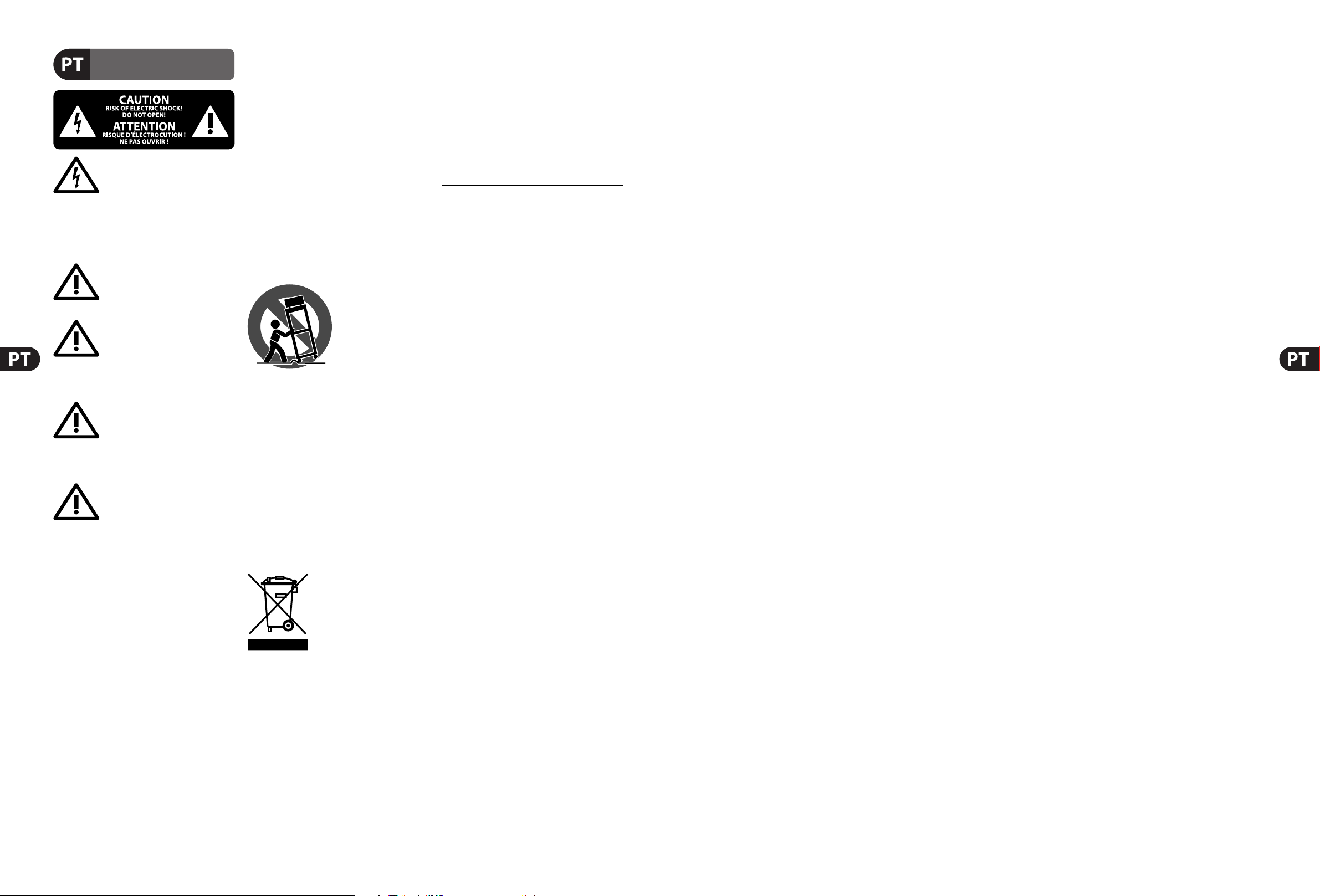

Las terminales marcadas con este símbolo
transportan corriente eléctrica de

magnitud su ciente como para constituir
un riesgo de descarga eléctrica. Utilice solo cables de
altavoz profesionales y de alta calidad con conectores
TS de 6,3 mm o de bayoneta pre jados. Cualquier otra
instalación o modi cación debe ser realizada únicamente
por un técnico cuali cado.

Este símbolo, siempre que aparece,

leadvierte de la presencia de voltaje

peligroso sin aislar dentro de la caja;
estevoltaje puede ser su ciente para constituir un riesgo
dedescarga.

Este símbolo, siempre que aparece,

leadvierte sobre instrucciones operativas

y de mantenimiento que aparecen en la
documentación adjunta. Por favor, lea el manual.

Atención

Para reducir el riesgo de descarga

eléctrica, no quite la tapa (o la parte
posterior). No hay piezas en el interior del equipo que
puedan ser reparadas por el usuario. Si es necesario,
póngase en contacto con personal cuali cado.

Atención

Para reducir el riesgo de incendio o

descarga eléctrica, no exponga este
aparato a la lluvia, humedad o alguna otra fuente que
pueda salpicar o derramar algún líquido sobre el aparato.
Nocoloque ningún tipo de recipiente para líquidos sobre
el aparato.

Atención

Las instrucciones de servicio deben

llevarlas a cabo exclusivamente personal
cuali cado. Para evitar el riesgo de una descarga eléctrica,
no realice reparaciones que no se encuentren descritas
en el manual de operaciones. Lasreparaciones deben ser
realizadas exclusivamente por personalcuali cado.

1. Lea las instrucciones.

2. Conserve estas instrucciones.

3. Preste atención a todas las advertencias.

4. Siga todas las instrucciones.

5. No use este aparato cerca del agua.

6. Limpie este aparato con un paño seco.

7. No bloquee las aberturas de ventilación. Instale el

equipo de acuerdo con las instrucciones del fabricante.

8. No instale este equipo cerca de fuentes de calor
tales como radiadores, acumuladores de calor, estufas u
otros aparatos (incluyendo ampli cadores) que puedan
producir calor.

9. No elimine o deshabilite nunca la conexión a tierra
del aparato o del cable de alimentación de corriente.
Unenchufe polarizado tiene dos polos, uno de los cuales
tiene un contacto más ancho que el otro. Una clavija con
puesta a tierra dispone de tres contactos: dos polos y la
puesta a tierra. El contacto ancho y el tercer contacto,
respectivamente, son los que garantizan una mayor
seguridad. Si el enchufe suministrado con el equipo no
concuerda con la toma de corriente, consulte con un
electricista para cambiar la toma de corriente obsoleta.

10. Coloque el cable de suministro de energía de manera
que no pueda ser pisado y que esté protegido de objetos
a lados. Asegúrese de que el cable de suministro de
energía esté protegido, especialmente en la zona de la
clavija y en el punto donde sale del aparato.

11. Use únicamente los dispositivos o accesorios
especi cados por el fabricante.

12. Use únicamente la
carretilla, plataforma,
trípode, soporte o mesa
especi cados por el
fabricante o suministrados
junto con el equipo.
Altransportar el equipo,
tenga cuidado para evitar

daños y caídas al tropezar con algún obstáculo.

13. Desenchufe el equipo durante tormentas o si no va a
utilizarlo durante un periodo largo.

14. Confíe las reparaciones únicamente a servicios
técnicos cuali cados. La unidad requiere mantenimiento
siempre que haya sufrido algún daño, si el cable de
suministro de energía o el enchufe presentaran daños,
sehubiera derramado un líquido o hubieran caído objetos
dentro del equipo, si el aparato hubiera estado expuesto
a la humedad o la lluvia, si ha dejado de funcionar de
manera normal o si ha sufrido algún golpe o caída.

15. Al conectar la unidad a la toma de corriente eléctrica
asegúrese de que la conexión disponga de una unión
atierra.

16. Si el enchufe o conector de red sirve como único
medio de desconexión, éste debe ser accesiblefácilmente.

17. Cómo debe deshacerse de
este aparato: Este símbolo indica
que este aparato no debe ser
tratado como basura orgánica,
según lo indicado en la Directiva
WEEE (2012/19/EU) y a las

normativas aplicables en su país.
En lugar de ello deberá llevarlo al punto limpio más
cercano para el reciclaje de sus elementos eléctricos/
electrónicos (EEE). Al hacer esto estará ayudando a
prevenir las posibles consecuencias negativas para el
medio ambiente y la salud que podrían ser provocadas por
una gestión inadecuada de este tipo de aparatos. Además,
el reciclaje de materiales ayudará a conservar los recursos
naturales. Para más información acerca del reciclaje de
este aparato, póngase en contacto con el Ayuntamiento
de su ciudad o con el punto limpio local.

18. No instale esta unidad en un espacio muy reducido,
tal como encastrada en una librería o similar.

19. No coloque objetos con llama, como una vela
encendida, sobre este aparato.

20. Tenga presentes todas las advertencias relativas
al reciclaje y correcta eliminación de las pilas. Las pilas
deben ser siempre eliminadas en un punto limpio y nunca
con el resto de la basura orgánica.

21. Use este aparato en rangos de temperatura
moderados y/o tropicales.

MUSIC Group no admite ningún tipo de responsabilidad
por cualquier daño o pérdida que pudiera sufrir
cualquier persona por con ar total o parcialmente en la
descripciones, fotografías o a rmaciones contenidas en
este documento. Las especi caciones técnicas, imágenes
y otras informaciones contenidas en este documento
están sujetas a modi caciones sin previo aviso. Todas las
marcas comerciales que aparecen aquí son propiedad
de sus respectivos dueños. MIDAS, KLARK TEKNIK,
LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA
y DDA son marcas comerciales o marcas registradas
de MUSIC Group IP Ltd. © MUSIC Group IP Ltd.
2016 Reservados todos los derechos.

Si quiere conocer los detalles y condiciones aplicables
de la garantía así como información adicional sobre la
Garantía limitada de MUSIC Group, consulte online toda la
información en la web music-group.com/warranty.

4 DM16 /DM12 Quick Start Guide 5

Consignes de sécurité

DÉNI LÉGAL

GARANTIE LIMITÉE

Wichtige
Sicherheitshinweise

HAFTUNGSAUSSCHLUSS

BESCHRÄNKTE GARANTIE

Les points repérés par ce symbole portent
une tension électrique su sante pour

constituer un risque d’électrocution.
Utilisez uniquement des câbles d’enceintes professionnels
de haute qualité avec  ches Jack mono 6,35 mm ou  ches
à verrouillages déjà installées. Touteautre installation ou
modi cation doit être e ectuée uniquement par un
personnel quali é.

Ce symbole avertit de la présence d’une

tension dangereuse et non isolée à

l’intérieur de l’appareil - elle peut
provoquer des chocs électriques.

Attention

Ce symbol signale les consignes

d’utilisation et d’entre ! Tien importantes
dans la documentation fournie. Lisez les consignes de
sécurité du manuel d’utilisation de l’appareil.

Attention

Pour éviter tout risque de choc électrique,

ne pas ouvrir le capot de l’appareil ni
démonter le panneau arrière. L’intérieur de l’appareil
ne possède aucun élément réparable par l’utilisateur.
Laissertoute réparation à un professionnel quali é.

Attention

Pour réduire les risques de feu et de choc

électrique, n’exposez pas cet appareil à la
pluie, à la moisissure, aux gouttes ou aux éclaboussures.
Ne posez pas de récipient contenant un liquide sur
l’appareil (un vase par exemple).

Attention

Ces consignes de sécurité et d’entretien

sont destinées à un personnel quali é.
Pouréviter tout risque de choc électrique, n’e ectuez
aucune réparation sur l’appareil qui ne soit décrite par le
manuel d’utilisation. Les éventuelles réparations doivent
être e ectuées uniquement par un technicien spécialisé.

1. Lisez ces consignes.

2. Conservez ces consignes.

3. Respectez tous les avertissements.

4. Respectez toutes les consignes d’utilisation.

5. N’utilisez jamais l’appareil à proximité d’un liquide.

6. Nettoyez l’appareil avec un chi on sec.

7. Veillez à ne pas empêcher la bonne ventilation de

l’appareil via ses ouïes de ventilation. Respectezles
consignes du fabricant concernant l’installation
del’appareil.

8. Ne placez pas l’appareil à proximité d’une source
de chaleur telle qu’un chau age, une cuisinière ou tout
appareil dégageant de la chaleur (y compris un ampli
depuissance).

9. Ne supprimez jamais la sécurité des prises bipolaires
ou des prises terre. Les prises bipolaires possèdent deux
contacts de largeur di érente. Leplus large est le contact
de sécurité. Les prises terre possèdent deux contacts plus
une mise à la terre servant de sécurité. Si la prise du bloc
d’alimentation ou du cordon d’ali-mentation fourni ne
correspond pas à celles de votre installation électrique,
faites appel à un électricien pour e ectuer le changement
de prise.

10. Installez le cordon d’alimentation de telle façon
que personne ne puisse marcher dessus et qu’il soit
protégé d’arêtes coupantes. Assurez-vous que le cordon
d’alimentation est sufsamment protégé, notamment au
niveau de sa prise électrique et de l’endroit où il est relié à
l’appareil; cela est également valable pour une éventuelle
rallonge électrique.

11. Utilisez exclusivement des accessoires et des
appareils supplémentaires recommandés par lefabricant.

12. Utilisez
exclusivement des
chariots, des diables,
desprésentoirs, despieds
et des surfaces de
travail recommandés
par le fabricant ou

livrés avec le produit.
Déplacezprécautionneusement tout chariot ou diable
chargé pour éviter d’éventuelles blessures en cas dechute.

13. Débranchez l’appareil de la tension secteur en cas
d’orage ou si l’appareil reste inutilisé pendant une longue
période de temps.

14. Les travaux d’entretien de l’appareil doivent
être e ectués uniquement par du personnel qualié.
Aucunentretien n’est nécessaire sauf si l’appareil est
endommagé de quelque façon que ce soit (dommagessur
le cordon d’alimentation ou la prise par exemple), siun
liquide ou un objet a pénétré à l’intérieur du châssis,
si l’appareil a été exposé à la pluie ou à l’humidité, s’il ne
fonctionne pas correctement ou à la suite d’une chute.

15. L’appareil doit être connecté à une prise secteur
dotée d’une protection par mise à la terre.

16. La prise électrique ou la prise IEC de tout appareil
dénué de bouton marche/arrêt doit rester accessible
enpermanence.

17. Mise au rebut appropriée de
ce produit: Ce symbole indique
qu’en accord avec la directive DEEE
(2012/19/EU) et les lois en vigueur
dans votre pays, ce produit ne doit
pas être jeté avec les déchets

ménagers. Ce produit doit être
déposé dans un point de collecte agréé pour le recyclage
des déchets d’équipements électriques et électroniques
(EEE). Une mauvaise manipulation de ce type de déchets
pourrait avoir un impact négatif sur l’environnement et la
santé à cause des substances potentiellement
dangereuses généralement associées à ces équipements.
En même temps, votre coopération dans la mise au rebut
de ce produit contribuera à l’utilisation e cace des
ressources naturelles. Pour plus d’informations sur
l’endroit où vous pouvez déposer vos déchets

d’équipements pour le recyclage, veuillez contacter votre
mairie ou votre centre local de collecte des déchets.

18. N’installez pas l’appareil dans un espace con né tel
qu’une bibliothèque ou meuble similaire.

19. Ne placez jamais d’objets en ammés, tels que des
bougies allumées, sur l’appareil.

20. Gardez à l’esprit l’impact environnemental lorsque
vous mettez des piles au rebus. Les piles usées doivent
être déposées dans un point de collecte adapté.

21. Utilisez l’appareil dans un climat tropical
et/ou modéré.

MUSIC Group ne peut être tenu pour responsable pour
toute perte pouvant être subie par toute personne
se  ant en partie ou en totalité à toute description,
photographie ou a rmation contenue dans ce
document. Les caractéristiques, l’apparence et d’autres
informations peuvent faire l’objet de modi cations
sans noti cation. Toutes les marques appartiennent à
leurs propriétaires respectifs. MIDAS, KL ARK TEKNIK,
LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA
et DDA sont des marques ou marques déposées
de MUSIC Group IP Ltd. © MUSIC Group IP Ltd.
2016 Tous droits réservés.

Pour connaître les termes et conditions de garantie
applicables, ainsi que les informations supplémentaires
et détaillées sur la Garantie Limitée de MUSIC Group,
consultez le site Internet music-group.com/warranty.

Vorsicht

Die mit dem Symbol markierten

Anschlüsse führen so viel Spannung,
dassdie Gefahr eines Stromschlags besteht.
Verwenden Sie nur hochwertige, professionelle
Lautsprecherkabel mit vorinstallierten 6,35 mm
MONO-Klinkensteckern oder Lautsprecherstecker
mit Drehverriegelung. Alle anderen Installationen
oder Modi kationen sollten nur von quali ziertem
Fachpersonal ausgeführt werden.

Achtung

Um eine Gefährdung durch Stromschlag

auszuschließen, darf die Geräteabdeckung
bzw. Geräterückwand nicht abgenommen werden.
ImInnern des Geräts be nden sich keine vom Benutzer
reparierbaren Teile. Reparaturarbeiten dürfen nur von
quali zier tem Personal ausgeführt werden.

Achtung

Um eine Gefährdung durch Feuer bzw.

Stromschlag auszuschließen, darf dieses
Gerät weder Regen oder Feuchtigkeit ausgesetzt werden
noch sollten Spritzwasser oder tropfende Flüssigkeiten
in das Gerät gelangen können. Stellen Sie keine mit
Flüssigkeit gefüllten Gegenstände, wie z. B. Vasen,
aufdasGerät.

Achtung

Die Service-Hinweise sind nur durch

quali zier tes Personal zu befolgen.
Umeine Gefährdung durch Stromschlag zu vermeiden,
führen Sie bitte keinerlei Reparaturen an dem Gerät
durch, die nicht in der Bedienungsanleitung beschrieben
sind. Reparaturen sind nur von quali ziertem
Fachpersonaldurchzuführen.

1. Lesen Sie diese Hinweise.

2. Bewahren Sie diese Hinweise auf.

3. Beachten Sie alle Warnhinweise.

4. Befolgen Sie alle Bedienungshinweise.

5. Betreiben Sie das Gerät nicht in der Nähe vonWasser.

6. Reinigen Sie das Gerät mit einem trockenen Tuch.

7. Blockieren Sie nicht die Belüftungsschlitze. Beachten

Sie beim Einbau des Gerätes die Herstellerhinweise.

8. Stellen Sie das Gerät nicht in der Nähe von
Wärmequellen auf. Solche Wärmequellen sind z. B.
Heizkörper, Herde oder andere Wärme erzeugende Geräte
(auch Verstärker).

9. Entfernen Sie in keinem Fall die
Sicherheitsvorrichtung von Zweipol- oder geerdeten
Steckern. Ein Zweipolstecker hat zwei unterschiedlich
breite Steckkontakte. Ein geerdeter Stecker hat zwei
Steckkontakte und einen dritten Erdungskontakt.
Derbreitere Steckkontakt oder der zusätzliche

Erdungskontakt dient Ihrer Sicherheit. Falls das
mitgelieferte Steckerformat nicht zu Ihrer Steckdose
passt, wenden Sie sich bitte an einen Elektriker, damit die
Steckdose entsprechend ausgetauscht wird.

10. Verlegen Sie das Netzkabel so, dass es vor
Tritten und scharfen Kanten geschützt ist und nicht
beschädigt werden kann. Achten Sie bitte insbesondere
im Bereich der Stecker, Verlängerungskabel und an
der Stelle, an der das Netzkabel das Gerät verlässt,
aufausreichendenSchutz.

11. Das Gerät muss jederzeit mit intaktem Schutzleiter
an das Stromnetz angeschlossen sein.

12. Sollte der Hauptnetzstecker oder eine
Gerätesteckdose die Funktionseinheit zum Abschalten
sein, muss diese immer zugänglich sein.

13. Verwenden Sie nur Zusatzgeräte/Zubehörteile,
dielaut Hersteller geeignet sind.

14. Verwenden
Sie nur Wagen,
Standvorrichtungen,
Stative, Halter oder Tische,
die vom Hersteller benannt
oder im Lieferumfang
des Geräts enthalten

sind. Falls Sie einen
Wagen benutzen, seien Sie vorsichtig beim Bewegen
der Wagen- Gerätkombination, umVerletzungen durch
Stolpern zuvermeiden.

15. Ziehen Sie den Netzstecker bei Gewitter oder wenn
Sie das Gerät längere Zeit nicht benutzen.

16. Lassen Sie alle Wartungsarbeiten nur von
quali zier tem Service-Personal ausführen. EineWartung
ist notwendig, wenn das Gerät in irgendeiner Weise
beschädigt wurde (z. B. Beschädigung des Netzkabels oder
Steckers), Gegenstände oder Flüssigkeit in das Geräteinnere
gelangt sind, das Gerät Regen oder Feuchtigkeit ausgesetzt
wurde, das Gerät nicht ordnungsgemäß funktioniert oder
auf den Boden gefallen ist.

17. Korrekte Entsorgung dieses
Produkts: Dieses Symbol weist
darauf hin, das Produkt
entsprechend der WEEE Direktive
(2012/19/EU) und der jeweiligen
nationalen Gesetze nicht

zusammen mit Ihren
Haushaltsabfällen zu entsorgen. DiesesProdukt sollte bei
einer autorisierten Sammelstelle für Recycling elektrischer
und elektronischer Geräte (EEE) abgegeben werden.
Wegen bedenklicher Substanzen, diegenerell mit
elektrischen und elektronischen Geräten in Verbindung
stehen, könnte eine unsachgemäße Behandlung dieser
Abfallart eine negative Auswirkung auf Umwelt und
Gesundheit haben. Gleichzeitig gewährleistet Ihr Beitrag
zur richtigen Entsorgung dieses Produkts die e ektive
Nutzung natürlicher Ressourcen. Fürweitere
Informationen zur Entsorgung Ihrer Geräte bei einer
Recycling-Stelle nehmen Sie bitte Kontakt zum
zuständigen städtischen Büro, Entsorgungsamt oder zu
Ihrem Haushaltsabfallentsorgerauf.

18. Installieren Sie das Gerät nicht in einer beengten
Umgebung, zum Beispiel Bücherregal oder ähnliches.

19. Stellen Sie keine Gegenstände mit o enen
Flammen, etwa brennende Kerzen, auf das Gerät.

20. Beachten Sie bei der Entsorgung von Batterien
den Umweltschutz-Aspekt. Batterien müssen bei einer
Batterie-Sammelstelle entsorgt werden.

21. Verwenden Sie das Gerät in tropischen und/oder
gemäßigten Klimazonen.

MUSIC Group übernimmt keine Haftung für Verluste,
die Personen entstanden sind, die sich ganz oder
teilweise auf hier enthaltene Beschreibungen,
Fotos oder Aussagen verlassen haben. Technische Daten,
Erscheinungsbild und andere Informationen können
ohne vorherige Ankündigung geändert werden.
Alle Warenzeichen sind Eigentum der jeweiligen
Inhaber. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE,
TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON,
BEHRINGER, BUGERA und DDA sind Warenzeichen oder
eingetragene Warenzeichen der MUSIC Group IP Ltd.
© MUSIC Group IP Ltd. 2016 Alle Rechte vorbehalten.

Die geltenden Garantiebedingungen und zusätzliche
Informationen bezüglich der von MUSIC Group
gewährten beschränkten Garantie  nden Sie online unter
music-group.com/warranty.

6 DM16 /DM12 Quick Start Guide 7

Instruções de Segurança
Importantes

LEGAL RENUNCIANTE

GARANTIA LIMITADA

Aviso!

Terminais marcados com o símbolo

carregam corrente elétrica de magnitude
su ciente para constituir um risco de choque elétrico.
Use apenas cabos de alto-falantes de alta qualidade
com plugues TS de ¼" ou plugues com trava de torção
pré-instalados. Todas as outras instalações e modi cações
devem ser efetuadas por pessoasquali cadas.

Este símbolo, onde quer que o encontre,

alerta-o para a leitura das instruções de

manuseamento que acompanham o
equipamento. Por favor leia o manual de instruções.

Atenção

De forma a diminuir o risco de choque

eléctrico, não remover a cobertura
(ouasecção de trás). Não existem peças substituíveis por
parte do utilizador no seu interior. Para esse efeito recorrer
a um técnico quali cado.

Atenção

Para reduzir o risco de incêndios ou

choques eléctricos o aparelho não deve ser
exposto à chuva nem à humidade. Além disso, não deve
ser sujeito a salpicos, nem devem ser colocados em cima
do aparelho objectos contendo líquidos, tais como jarras.

Atenção

Estas instruções de operação devem ser

utilizadas, em exclusivo, por técnicos de
assistência quali cados. Para evitar choques eléctricos
não proceda a reparações ou intervenções, que não as
indicadas nas instruções de operação, salvo se possuir as
quali -cações necessárias. Para evitar choques eléctricos
não proceda a reparações ou intervenções, que não as
indicadas nas instruções de operação. Só o deverá fazer se
possuir as quali cações necessárias.

1. Leia estas instruções.

2. Guarde estas instruções.

3. Preste atenção a todos os avisos.

4. Siga todas as instruções.

5. Não utilize este dispositivo perto de água.

6. Limpe apenas com um pano seco.

7. Não obstrua as entradas de ventilação. Instale de

acordo com as instruções do fabricante.

8. Não instale perto de quaisquer fontes de calor
tais como radiadores, bocas de ar quente, fogões de
sala ou outros aparelhos (incluindo ampli cadores)
que produzam calor.

9. Não anule o objectivo de segurança das  chas
polarizadas ou do tipo de ligação à terra. Uma  cha
polarizada dispõe de duas palhetas sendo uma mais larga
do que a outra. Uma  cha do tipo ligação à terra dispõe

de duas palhetas e um terceiro dente de ligação à terra.
A palheta larga ou o terceiro dente são fornecidos para
sua segurança. Se a  cha fornecida não encaixar na sua
tomada, consulte um electricista para a substituição da
tomada obsoleta.

10. Proteja o cabo de alimentação de pisadelas ou
apertos, especialmente nas  chas, extensões, e no local
de saída da unidade. Certi que-se de que o cabo eléc trico
está protegido. Veri que particularmente nas  chas, nos
receptáculos e no ponto em que o cabo sai doaparelho.

11. O aparelho tem de estar sempre conectado à rede
eléctrica com o condutor de protecção intacto.

12. Se utilizar uma  cha de rede principal ou uma
tomada de aparelhos para desligar a unidade de
funcionamento, esta deve estar sempre acessível.

13. Utilize apenas ligações/acessórios especi cados
pelofabricante.

14. Utilize apenas com
o carrinho, estrutura,
tripé, suporte, ou mesa
especi cados pelo
fabricante ou vendidos
com o dispositivo.
Quandoutilizar um

carrinho, tenha cuidado ao
mover o conjunto carrinho/dispositivo para evitar danos
provocados pela terpidação.

15. Desligue este dispositivo durante as trovoadas
ou quando não for utilizado durante longos períodos
detempo.

16. Qualquer tipo de reparação deve ser sempre
efectuado por pessoal quali cado. É necessária uma
reparação sempre que a unidade tiver sido de alguma
forma dani cada, como por exemplo: no caso do cabo
de alimentação ou  cha se encontrarem dani cados;
naeventualidade de líquido ter sido derramado ou
objectos terem caído para dentro do dispositivo; no caso
da unidade ter estado exposta à chuva ou à humidade;
seesta não funcionar normalmente, ou se tiver caído.

17. Correcta eliminação deste
produto: este símbolo indica que
o produto não deve ser eliminado
juntamente com os resíduos
domésticos, segundo a Directiva
REEE (2012/19/EU) e a legislação

nacional. Este produto deverá
ser levado para um centro de recolha licenciado para a
reciclagem de resíduos de equipamentos eléctricos e
electrónicos (EEE). O tratamento incorrecto deste tipo
de resíduos pode ter um eventual impacto negativo
no ambiente e na saúde humana devido a substâncias
potencialmente perigosas que estão geralmente
associadas aos EEE. Ao mesmo tempo, a sua colaboração
para a eliminação correcta deste produto irá contribuir
para a utilização e ciente dos recursos naturais. Paramais
informação acerca dos locais onde poderá deixar o seu
equipamento usado para reciclagem, é favor contactar
os serviços municipais locais, a entidade de gestão de
resíduos ou os serviços de recolha de resíduosdomésticos.

18. Não instale em lugares con nados, tais como
estantes ou unidades similares.

19. Não coloque fontes de chama, tais como velas
acesas, sobre o aparelho.

20. Favor, obedecer os aspectos ambientais de descarte
de bateria. Baterias devem ser descartadas em um ponto
de coletas de baterias.

21. Use este aparelho em climas tropicais
e/ou moderados.

O MUSIC Group não se responsabiliza por perda alguma
que possa ser sofrida por qualquer pessoa que dependa,
seja de maneira completa ou parcial, de qualquer
descrição, fotogra a, ou declaração aqui contidas.
Dados técnicos, aparências e outras informações
estão sujeitas a modi cações sem aviso prévio.
Todas as marcas são propriedade de seus respectivos
donos. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE,
TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON,
BEHRINGER, BUGERA e DDA são marcas ou marcas
registradas do MUSIC Group IP Ltd. © MUSIC Group
IP Ltd. 2016 Todos direitos reservados.

Para obter os termos de garantia aplicáveis e condições e
informações adicionais a respeito da garantia limitada do
MUSIC Group, favor veri car detalhes na íntegra através
do website music-group.com/warranty.

8 9DM16 /DM12 Quick Start Guide

1. Introduction

Welcome!

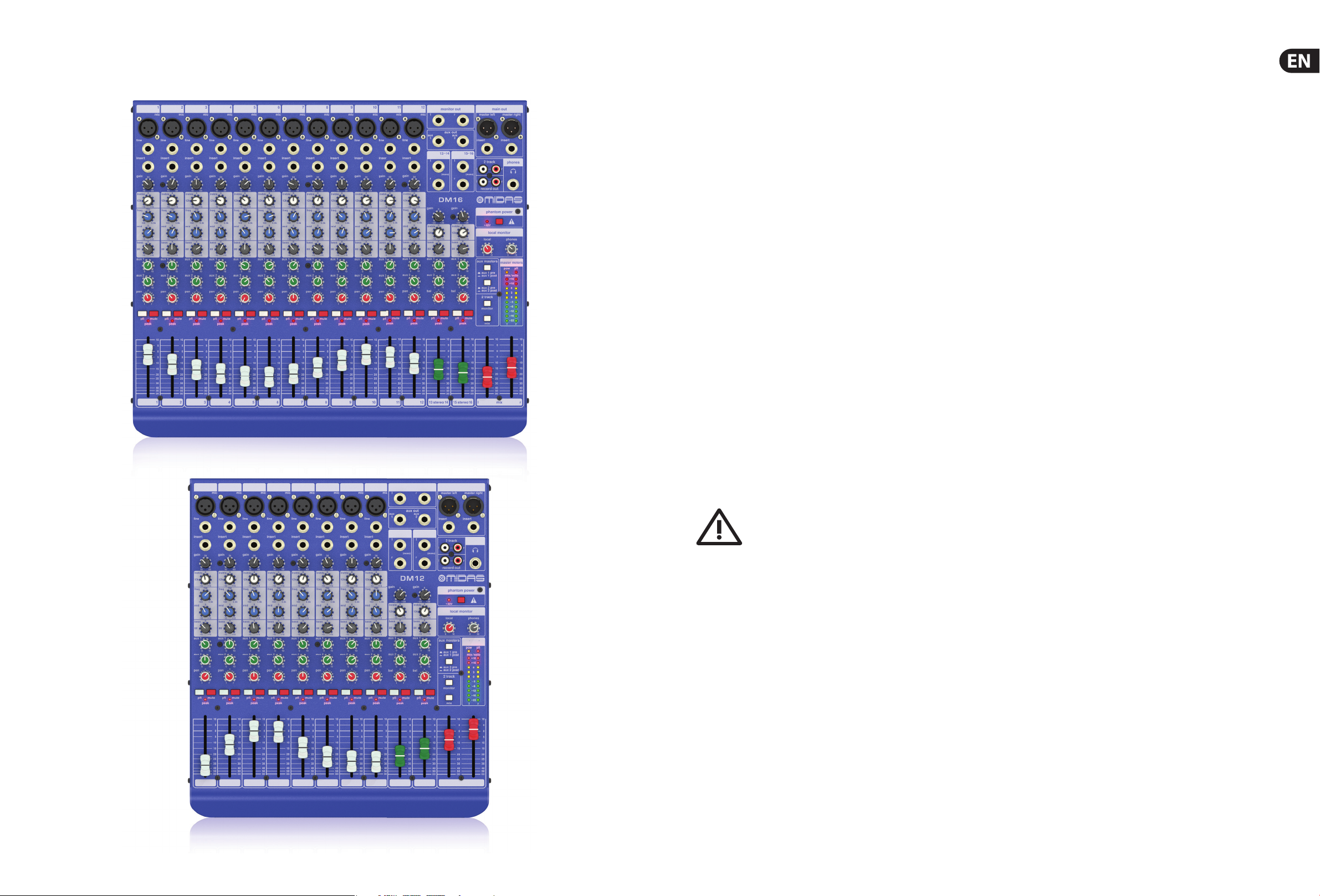

Thank you for purchasing the DM16/DM12 analogue mixing console.
The DM12 and DM16 are classic analogue consoles with plenty of routing options,

musical EQ and the smooth, professional sound pioneered by MIDAS.
These consoles o er plenty of versatility for both studio and live applications,

and with proper care and maintenance, you can expect your MIDAS console to
perform faithfully for many years to come.

Features

• • Live performance and studio recording analogue mixer with

16/12 input channels

• • 12/8 mono input channels with award-winning MIDAS

microphone preampli ers

• • 2 electronically balanced stereo line input channels on ¼ " TRS connectors

• • 3 band EQ on mono channels with swept mid band

• • 2 aux sends with pre/post fade switching

• • 60 mm precision long-life faders

• • Rugged chassis construction for durability in portable applications

• • Auto-ranging universal switch-mode power supply

• • 3-Year Warranty Program

• • Designed and engineered in England

About this manual

This is the operation manual for the DM16 and DM12 analogue mixing consoles.
This manual is intended to help get your unit installed and in operation as quickly
as possible by giving you unpacking, installation, connection, setting up and
operating instructions. To help familiarise you with the DM16 and DM12, there is
a description of the controls, along with easy-to-follow user instructions.

2. Getting Started

This section shows you how to unpack, install, connect up, switch on and
con gure the DM16/DM12 analogue mixing console.

This equipment is supplied by a mains voltage that can
cause elec tric shock injury.

Before installing, setting up or operating this equipment, make sure
that you have read and fully understand all of this section and the
“Important safety instructions” at the front of this manual. Refer to
additional safety information on the top cover of the unit.

Unpacking

Carefully unpack your DM16/DM12 analogue mixing console. Then, inspect the
console carefully for any signs of damage that may have occurred during transit
and notify the courier immediately if you discover any.

Check the contents of your DM16/DM12 equipment package. If there are any
parts missing, incorrect or faulty, please contact your local distributor or MIDAS.

Please retain the original packing in case you should need to return the
equipment to the manufacturer or supplier, or transport or ship the unit later.

Installation

The position of the console will vary from venue to venue. When installing the
console, take the following into consideration:

• • Before installing and operating this Class 1 equipment, make sure it is

correctly connected to the protec tive earth conductor of the mains voltage
supply socket outlet through the mains lead.

• • When positioning the console for FOH (Front Of House) use it is worth

placing the console in a position where the sound system used can be heard
properly from the mix position. Try to avoid placing the console behind
pillars or large objects, or mixing from a level above the speaker position (for
example, from a balcony).

• • The console should be located in a convenient space commensurate with the

use to which the console is being put.

• • Ideally a cool area is preferred, away from power distribution equipment or

other potential sources of interference.

• • Do not install the equipment in places of poor ventilation.

• • Do not install this equipment in a location subjected to excessive heat,

dust or mechanical vibration. Allow for adequate ventilation around
the equipment, making sure that its fans and vents are not obstructed.
Whenever possible, keep the equipment out of direct sunlight.

• • Do not place the equipment in an unstable condition where it might

accidentally fall over.

• • Provision should be made for some  at surface surrounding the console to

prevent people using the console as a table top.

Power

The internal power supply is of the switch mode type that automatically senses
the incoming mains voltage and will work where the nominal voltage is in the
range 100 VAC to 240 VAC.

The correct leads for connection in the area to which the unit was shipped are
supplied with the unit. The equipment should only be plugged into the mains
outlets using the supplied leads.

Make sure the plug  tted on the supplied mains cable is securely  tted to the
mains IEC connector on the unit. When  tting or removing a plug, always hold
the plug itself and never use the cable, as this may damage the cable. Never
insert or remove an electric plug with wet hands.

Handling the equipment

When lifting or moving the equipment, always take its size and weight into
consideration. If necessary, use suitable lifting equipment or transpor ting gear,
or su cient additional personnel.

Completely isolate the equipment electrically and disconnect all cables from the
equipment before moving it.

Do not insert your  ngers or hands in any gaps or openings on the equipment, for
example, vents.

Electric  elds

In accordance with Part 15 of the FCC Rules & Regulations, “… changes or
modi cations not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.”

Should this product be used in an electromagnetic  eld that is amplitude
modulated by an audio frequency signal (20 Hz to 20 kHz), the signal to noise
ratio may be degraded. Degradation of up to 60 dB at a frequency corresponding
to the modulation signal may be experienced under extreme conditions (3 V/m,
90% modulation).

DM16

DM12

Quick Start Guide 1110 DM16/ DM12

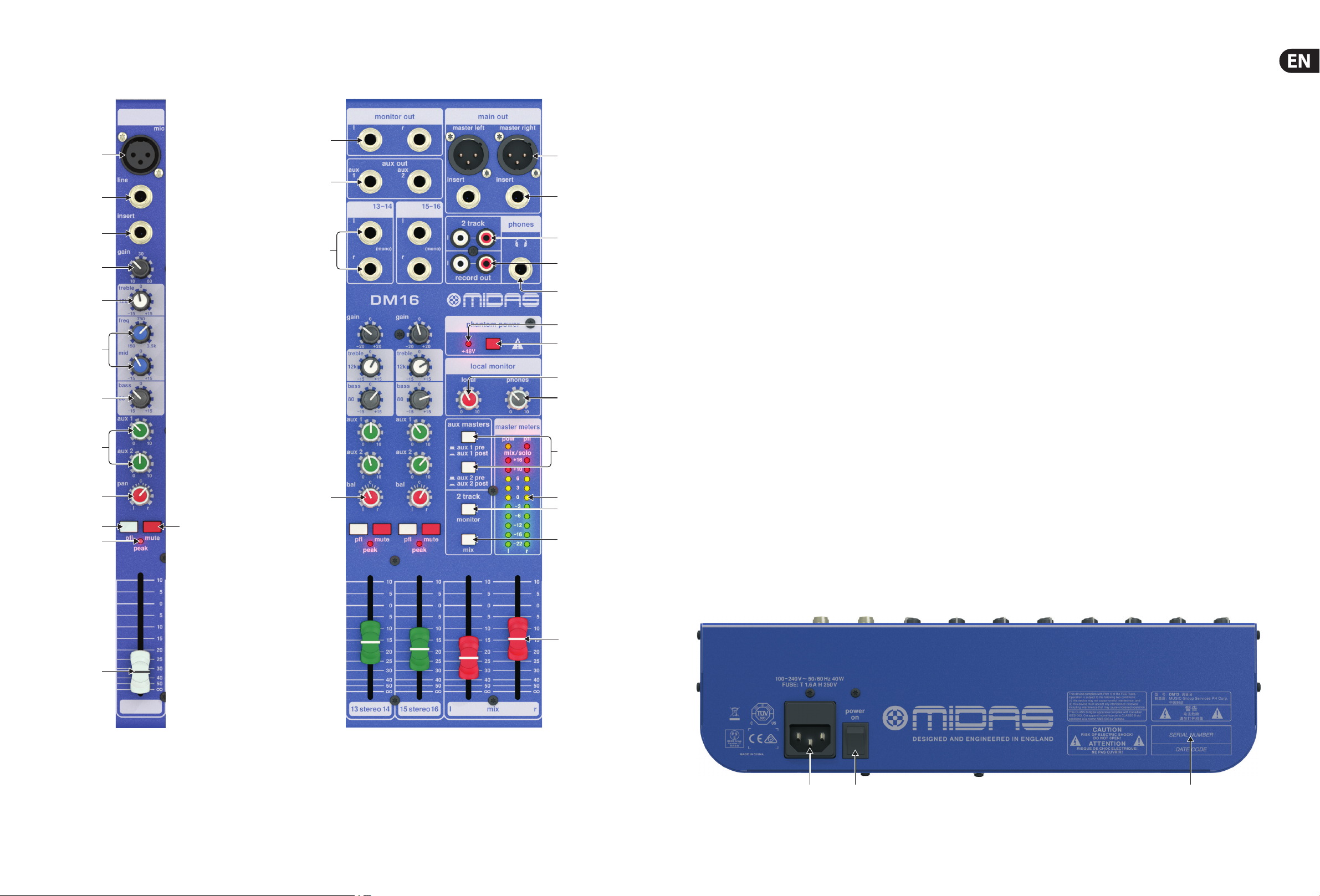

3. Top Panel

(1) MIC input connects microphones and other balanced signals using

XLR connectors.

(2) LINE input uses a ¼" TRS plug to connect either balanced or line-level

unbalanced signals.

(3) INSERT jack uses a ¼" TRS plug to bring external e ects processing

(typically compression) into the channel’s signal path. This jack requires
specialised insert cables that split into two plugs (either ¼ " TS or XLR) to
access the external unit’s in and out connections.

(4) GAIN knob adjusts the sensitivity of the MIC and/or LINE inputs.
(5) TREBLE knob adjusts the high frequencies.
(6) MID and FREQ knobs adjust midrange frequencies. Adjust the FREQ knob to

select the speci c frequency adjusted by the MID knob.

(7) BASS knob adjusts the low frequencies.
(8) AUX 1 and AUX 2 knobs controls the amount of signal sent from each

channel to the AUX OUT jacks for monitoring or external e ects processing.
Use the AUX MASTERS buttons to control whether the AUX channels send a
pre-fader signal (PRE) or a post-fader signal (POST).

(9) PAN knobs control the left-right stereo placement for each channel.
(10) PFL (Pre Fader Listen) button, when pressed, solos the channel and

sends the input signal to the MASTER METERS section for more precise
gain-setting. In PFL mode, the soloed signal routes to the MONITOR OUT
and PHONES outputs, and the PFL LED in the MASTER METERS section will
light up.

(11) PEAK LED lights when the channel signal overloads.
(12) MUTE button mutes the channel.
(13) CHANNEL FADERS control the  nal level for each channel within the

overall mix.

(14) BAL knob controls the relative left-right balance for stereo signals coming in

through the STEREO 1 and STEREO 2 inputs.

(15) STEREO 1 and STEREO 2 inputs can be used to route left-right stereo

signals into the mix, such as stereo returns from external e ects processors.
For mono signals, use the L (MONO) input of each pair of stereo inputs.

(16) AUX OUT jacks can be used to route AUX mixes out to external e ects

processors or to stage monitors. For send-and-return e ects processing, use
the STEREO 1 and STEREO 2 inputs to route the e ected “wet” signals back
into the overall mix.

(17) MONITOR OUT jacks use ¼" TRS plugs to route a copy of the  nal mix out

to local or studio monitors. Control the MONITOR OUT level by using the
LOCAL knob in the LOCAL MONITOR section. In PFL (Pre Fader Listen) mode,
the soloed PFL signal will override and replace the main mix signal in the
MONITOR OUT output.

(18) MASTER LEFT and MASTER RIGHT jacks use XLR connectors to send the  nal

stereo mix out to monitors or the main house mix (live sound).

(19) MAIN OUT INSERT jacks use a ¼" TRS plugs to apply external e ects

processing to the  nal mix before the signal goes out through the MASTER
outputs (e.g., to compress the entire  nal mix). This jack requires specialised
insert cables that split into two plugs (either ¼ " TS or XLR) to access the
external processor’s in and out jacks.

(20) 2 TRACK uses RCA jacks to route an additional line-level stereo signal into

the main mix (MIX button) and/or the MONITOR OUT mix (MONITOR button).
Control the level of the 2 TRACK signal by using the volume control on your
stereo sound source.

(21) RECORD OUT uses RCA jacks to send a line-level copy of the  nal mix signal

out to external recording devices.

(22) PHONES jack connects headphones using a ¼" TRS plug. Control the output

level by using the PHONES knob in the LOCAL MONITOR section. The PHONES
source signal comes from the main mix, except in PFL mode, when the
soloed PFL signal will override and replace the main mix signal.

(23) +48 V LED lights up to indicate that phantom power has been activated.
(24) PHANTOM POWER button turns phantom power on and o .
(25) LOCAL knob controls the output level for the MONITOR OUT jacks.
(26) PHONES knob controls the output level for the PHONES jack.
(27) AUX MASTERS buttons control the pre-fader (PRE) and post-fader (POST)

settings for the AUX 1 and AUX 2 knobs.

(28) MASTER METERS display levels for the main mix, as well as soloed channels

with the PFL (Pre-Fader Listen) function activated for detailed gain-setting.
The POW LED lights to indicate that the unit has been powered up. The PFL
LED lights up to indicate that the meter is being used for PFL gain setting.

(29) 2 TRACK MONITOR button routes the stereo 2 TRACK signal into the

MONITOR OUT mix.

(30) 2 TRACK MIX button routes the stereo 2 TRACK signal into the main mix.
(31) MIX faders adjust the overall output of the mixer at the MASTER LEFT and

MASTER RIGHT jacks.

4. Rear Panel

(32) AC IN accepts the included power cable for connection to a mains outlet.
(33) POWER ON switch turns the mixer on and o .
(34) SERIAL NUMBER for Warranty registration.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(9)

(10)

(11)

(13)

(8)

(12)

)

(17)

(16)

(15)

(14)

(18)

(19)

(20)

(21)

(22)

(23)
(24)

(25)
(26)

(27)

(28)
(29)

(30)

(31

(32) (33) (34)

12 13D M16/D M12 Quick Start Guide

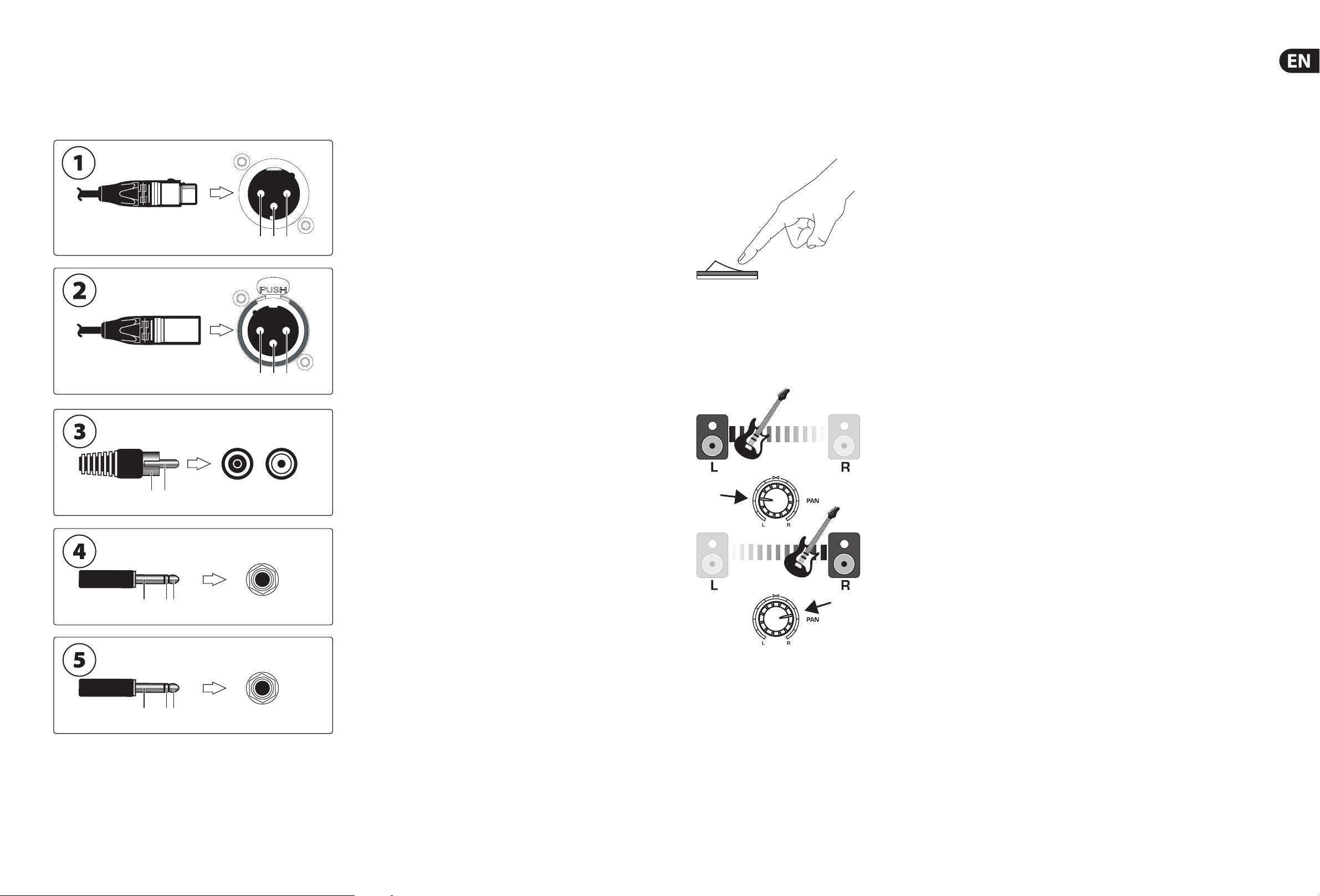

5. Connectors

To ensure the correct and reliable operation of the equipment, only high quality
balanced, screened, twisted pair audio cable should be used. XLR connector
shells should be of metal construction so that they provide a screen when
connected to the console/snake and, where appropriate, they should have Pin 1
connected to the cable screen.

1. Line output audio connector. Female XLR plug and male XLR chassis
connector with the following pinouts: 1 = ground; 2 = hot; and 3 = cold.

2. Mic/line input audio connector. Male XLR plug and female XLR chassis
connector with the following pinouts: 1 = ground; 2 = hot; and 3 = cold.

3. RCA connectors (2 track/record out). Male RCA plug and female RCA
chassis connector with the following pinouts: 1 = ground; 2 = signal.

4. ¼" TRS jack plug (inserts). Male ¼" TRS plug and female TRS chassis
connector with the following pinouts: 1 (tip) = send; 2 (ring) = return;
3 (sleeve) = ground.

5. ¼" TRS jack plug (input, output, phones). Male ¼" TRS plug and
female TRS chassis connector with the following pinouts: 1 (tip) = hot;
2 (ring) = cold; 3 (sleeve) = ground.

6. Operation

Basic Operation

1. Make sure the power to all devices is turned o !

2. Connect all appropriate power and audio cables to the mixer.

3. Set the controls with all knobs centered and all faders down/o .

4. Turn the mixer on.

5. Set the GAIN for each channel. (See the Gain Setting sec tion for details.)

6. With the MAIN MIX faders and LOCAL MONITOR knobs all the way down, turn
on your PA system or monitors.

7. Slowly raise the MAIN MIX faders or LOCAL MONITOR knob to the
desired level.

8. Adjust the relative level of each channel by raising each CHANNEL FADER.

9. Adjust the lef t-right position of a channel in the stereo  eld if necessary by
turning the channel’s PAN or BAL knob.

10. For live applications, adjust the overall output from the mixer to the power
amp or powered speakers by raising the MIX faders. If the red +10 or +16
LEDs on the MASTER METERS light, lower the MIX faders.

11. Use the AUX 1 and AUX 2 knobs to send the channel signals out to an e ects
processor or stage monitor connected to the AUX OUT jacks. If used for
e ects, route the signal back from the processor to the STEREO 1 or STEREO
2 inputs.

Gain Setting

1. Press the Channel 1 PFL (Pre-Fader Listen) button to solo the channel for
gain setting using the MASTER METERS. The PFL LED in the MASTER METERS
section will light up.

2. Sing, speak or play at a normal level through the microphone or instrument
connected to Channel 1.

3. While singing or playing, turn Channel 1’s GAIN control. The MASTER METERS
will display the signal level. Set the GAIN control so that the loudest peaks
reach 0 on the MASTER METERS.

4. Press the Channel 1 PFL button again to deactivate Pre-Fade Listen mode for
that channel.

5. Repeat Steps 1-4 for any other channels that will be used.

132

231

12

3 2 1

3 2 1

14 15D M16/D M12 Quick Start Guide

7. Technical Speci cations

DM16 DM12

Mono Inputs

Mic inputs (MIDAS mic preamp) 8 12
Typ e XLR, balanced
Mic EIN @ 60 dB gain, 50 Ω source at insert send -131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB gain, 150 Ω source at insert send -128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10dB Gain, at ins ert send -97 dBu, unweighted, 20 Hz to 20 kHz
Frequency response (-1 dB) at main output 20 Hz to 20 kHz (-1 dB)
Frequency response (-3 dB) at main output 70 kHz (-3 dB)
Mic Gain range +10 dB to +60 dB
Max. input level +11 dBu @ +10 dB gain
CMRR @ +60dB gain Typically -90 dB
Impedance 2 kΩ, balanced
Distortion (THD+N) at 0 dBu 0.005% @ 1kHz
Phantom power Switchable, +48 V

Line Input

Typ e ¼ " TRS, balanced
Impedance 20 kΩ balanced / unbalanced
Line Gain range -10 dB to +40 dB
Max. input level +30 dBu

Stereo In puts

Type 4 x ¼ " TRS connector, balanced
Impedance 20 kΩ balanced / unbalanced
Gain range -20 dB to +20 dB
Max. input level +21 dBu

Equaliser

Low ±15 dB @ 80 Hz, shelving
Mid (mono inputs only) ±15 dB @ 150 Hz to 3.5 kHz, variable s emi-parametric
High ±15 dB @ 12 kHz, shelving

Channe l Inserts

Typ e ¼ " TRS connector, unbalanced
Max. input / ou tput level +21 dBu

Aux Send s

Type 2 x ¼ " TRS connector, balanced
Impedance 240 Ω balanced, 120 Ω unbalanced
Max. outpu t level +21 dBu

Monitor O ut

Type 2 x ¼ " TRS connector, balanced
Impedance 240 Ω balanced, 120 Ω unbalanced
Max. outpu t level +21 dBu

Main Out

Type 2 x XLR, elect ronically balanced
Impedance 100 Ω balanced, 50 Ω unbalanced
Max. outpu t level +21 dBu

Main Out I nserts

Type 2 x ¼ " TRS connector, unbalanced
Max. input / ou tput level +21 dBu

DM16 DM12

Phones Output

Typ e ¼ " TRS connector, unbalanced
Impedance 25 Ω
Max. outpu t level +21 dBu

2-Track Input

Type 2 x RCA, unbalanced
Impedance 20 kΩ
Max. input level +21 dBu

Record Out

Type 2 x RCA, unbalanced
Impedance 1 kΩ
Max. outpu t level +21 dBu

Main Mix Sy stem Noise

Main mix @ -∞, channel fader @ -∞ -104 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ -∞ -91 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ 0 dB -84 dBu, unweighted, 20 Hz to 20 kHz

Power Supp ly / Voltage (Fuses)

Switch mode power supply 100-240 V~ 50/60 Hz, switchable (T 1.6 A H 250 V)
Power consumption 40 W
Mains connection Standard IEC receptacle

Dimensions / Weight

Dimensions (H x W x D) 95 x 438 x 370 mm (3.7 x 17.2 x 14.6") 95 x 328 x 370 mm (3.7 x 12.9 x 14.6")
Weight 5 kg (2.3 lbs) 3.9 kg (1.8 lbs)

16 D M16/D M12 Quick Start Guide 17

FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION

Responsible Part y Name: MUSIC Group Research

UK Limited

Address: Klark Industrial Park,

Walter Nash Road,
Kidderminster. Worcestershire.
DY11 7HJ. England.

Phone Number: [phone]

DM16/DM12

complies with the FCC rules as mentioned in the following paragraph:

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

Important information:

Changes or modi cations to the equipment not expressly approved by MUSIC Group
can void the user’s authority to use the equipment.

DM16/DM12

Other important information

1. Register online. Please register your new

MUSIC Group equipment right af ter you purchase it by
visiting midasconsoles.com. Registering your purchase
using our simple online form helps us to process your repair
claims more quick ly and e ciently. Also, read the ter ms and
conditions of our warrant y, ifapplicable.

2. Malfunction. Should your MUSICGroup
Authorized Re seller not be located in your vicinity, you
may contact the MUSI C Group Authorized Ful ller for your
country listed under “Suppor t” at midasconsoles.com.
Shouldyour countr y not be listed, please check if your
problem can be dealt with by our “OnlineSuppor t” which
may also be found under “Support” at midasconsoles.com.
Alternatively, please submit an online warrant y claim at
midasconsoles.com BEFORE returning theproduct.

3. Power Connections. B efore plugging the unit
into a power socket, please make sure you are using the
correct mains voltage for your particular model. Fault yfuses
must be replaced with fuses of the same typeand rating
without exception.

Important information

midasconsoles.com
