Midas consoles DL351 Operator Manual
DL351 Modular I/O
Operator Manual
Midas Klark Teknik Limited,
Klark Industrial Park,
Walter Nash Road,
Kidderminster.
Worcestershire.
DY11 7HJ.
England.
Tel: +44 1562 741515
Fax: +44 1562 745371
Email: info@midasklarkteknik.com
Website: www.midasconsoles.com
DL351 Modular I/O — Operator Manual
DOC02-DL351 Issue C — July 2010
© Red Chip Company Ltd.
In line with the company’s policy of continual improvement, specifications and function may be
subject to change without notice. This Operator Manual was correct at the time of writing. E&OE.
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with a dry cloth.
7 Do not block any of the ventilation
openings. Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
10 Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles and the point
where they exit from the apparatus.
11 Only use attachments/accessories
specified by the manufacturer.
12 Unplug this apparatus during lightning
storms or when unused for long periods of
time.
13 Refer all servicing to qualified personnel.
Servicing is required when the apparatus
has been damaged in any way, such as
power-supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus, the apparatus
has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
14 Use the mains plug to disconnect the
apparatus from the mains.
15 Warning: To reduce the risk of fire or
electric shock, do not expose this
apparatus to rain or moisture.
16 Warning: Do not expose this
equipment to dripping or splashing
and ensure that no objects filled with
liquids, such as vases, are placed on
the equipment.
17 Warning: The mains plug of the power
supply cord shall remain readily
operable.
Midas
DOC04-DL351ECDOC Rev. B
EC-Declaration of Conformity
The undersigned, representing the following manufacturer
Manufacturer: Address:
Midas Klark Teknik Ltd. Klark Industrial Park, Walter Nash Road,
Kidderminster. Worcestershire. DY11 7HJ.
hereby declares that the following product
Product Type Number Product Description Nominal Voltage(s) Current Freq.
DL351 Audio System Modular I/O
115V AC
230V AC
0.93A
0.58A
50/60Hz
is in conformity with the regulations of the following marked EC-directives and bears the
-mark accordingly
reference number title
2004/108/EC EMC Directive (EMC)
2006/95/EC Low-Voltage Directive (LVD)
The conformity of the product with EC Directives for use in environment E4 is provided by compliance with
the following standards:
Standards/date:
Applied Electrical Safety test standards:
reference number title
EN 60065:2002
Audio, video and similar electronic apparatus. Safety requirements.
Applied EMC emission test standards:
ref. no. title
EN 55103-1:1996
Class A
EN 55103-1 Annex A: Radiated
magnetic disturbance, 50Hz-50kHz
CISPR 22: Radiated disturbance,
30-1000MHz
CISPR 22: Conducted disturbance,
ac & signal ports
CISPR 16: Discontinuous
disturbance
EN 61000-3-2:2000 Mains
harmonics
EN 61000-3-3:1995 Mains voltage
flicker
Applied EMC immunity test standards:
ref. no. title
EN 61000-4-2:1995 Electrostatic
discharge
EN 55103-2:1996
Class A
EN 61000-4-3:1996: Radiated RF
disturbance, 80-1000MHz
EN 55103-2 Annex A: Magnetic LF
disturbance, 50Hz–10kHz
EN 61000-4-4:1995: Fast transient
bursts, ac & signal ports
EN 61000-4-5:1995: Surge, ac port
EN 61000-4-6:1996: Conducted RF
field, ac & signal ports
EN 61000-4-11:1994: Mains voltage
dips and interruptions
Place, date: Kidderminster, UK
14th June 2010
General Manager AVP, Product Development
Printed name: John Oakley Printed name: Alex Cooper
Licences
The following are the license agreements applicable to the Midas Digital Equipment.
End-User Licence Agreement for Midas™ and Klark Teknik™ Software
IMPORTANT - Please read this document carefully before using this Midas™ or
Klark Teknik™ Product. This is an agreement governing your use of software or
other machine instructions already installed on this Midas™ or Klark Teknik™
Product, as well as other software that we provide for installation on this Product.
The Midas™ or Klark Teknik™ Product will not operate in accordance with its
documentation without this software.
THIS AGREEMENT ("AGREEMENT" OR "LICENCE") STATES THE TERMS AND CONDITIONS UPON WHICH
MIDAS KLARK TEKNIK LIMITED ("COMPANY") OFFERS TO LICENSE THE INSTALLED FIRMWARE,
SOFTWARE AND/OR PROGRAMS ("the SOFTWARE") WITH THE MIDAS™ OR KLARK TEKNIK™ CONSOLE
OR SIGNAL PROCESSING PRODUCT ("PRODUCT") IN WHICH IT HAS BEEN INSTALLED BY, OR FOR
WHICH IT IS PROVIDED BY, THE COMPANY. BY USING THIS PRODUCT YOU WILL BE AGREEING TO
BECOME BOUND BY THE TERMS OF THIS LICENCE. IF YOU DO NOT AGREE TO THE TERMS OF THIS
LICENCE, DO NOT USE THIS PRODUCT AND PROMPTLY RETURN THE PRODUCT TO THE PLACE WHERE
YOU OBTAINED IT FOR A FULL REFUND. You agree to notify any persons whom you permit to operate
this Product of the terms of this Licence, and to require them to comply with these terms.
The Software is licensed, not sold, to you for use only under the terms of this Licence, and the
Company reserves all rights not expressly granted to you. The Company retains ownership of all copies
of the Software itself, and all proprietary parts of it, including those stored on or in the Product.
1. Licence: Subject to the terms and conditions of this agreement, the Company grants you, and
other persons you permit to operate the Product, a personal, limited, non-exclusive,
non-transferable licence to use the Software only on the single Product unit in which it has been
installed.
2. Restrictions: (a) The Software, and the accompanying written materials, are copyrighted and
contain trade secrets and other proprietary matter, including confidential information relating to
the specifications and performance characteristics of this Product. Save for such elements as
may be licensed to the Company, as described in paragraph 5, all rights to copyrights, trade
marks and trade secrets in the Software, or any modifications to it, are owned by the Company.
Unauthorised use or copying of the Company's proprietary Software, or any portion thereof, or
copying of those written materials, is prohibited. (b) You may not create, market, distribute, or
transfer copies of the Company's proprietary Software, or any part of it, to others, or duplicate,
rent, lease or loan that Software, or any part of it, except that you may transfer that Software
installed in this Product in conjunction with the sale, transfer, loan, rent or lease of this Product,
and subject at all times to this Licence. YOU MAY NOT REVERSE ENGINEER, DECOMPILE,
DISASSEMBLE, EXTRACT OR SEPARAT E OUT, MODIFY, ADAPT, PORT, OR TRANSLATE THE
SOFTWARE, DERIVE THE SOURCE CODE OF THE SOFTWARE OR CREATE DERIVATIVE WORKS
BASED ON THE SOFTWARE OR ANY ACCOMPANYING WRITTEN MA TERIALS, save as is allowed by
licences pertaining to component parts of the Software which are licensed by third parties, as
described under paragraph 5, or otherwise by law. (c) In the event you violate any term of this
Licence, all rights granted herein will automatically and immediately terminate and you must stop
using the Software and destroy any copies of the Software.
3. Limited Warranty: Subject to your installation of any Software updates issued by the Compan y
as described herein, and the condition below, the Company warrants that the Software will
operate in compliance with the Software's material specifications and documentation for a period
of 90 days from your purchase of this Product. The Software is provided "as is" and the Company
does not warrant that the operation of the Software will meet your requirements or operate free
from error. To the greatest extent permissible by law, the Company DISCLAIMS ALL
WARRANTIES AND CONDITIONS, EITHER EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT OF THIRD
PARTY RIGHTS OR CAPABILITY OF CORRECTLY PROCESSING PROVIDING AND/OR RECEIVING
DATE INFORMATION. You understand that the Company may update or revise the Software but
in so doing incurs no obligation to furnish such updates to you. However , the Company may in its
discretion make updates available from time to time upon such terms and conditions as it shall
determine. It is a condition of the above warranty that you install any such Software updates, as
may be issued from time to time by the Company for the Software, in accordance with the
Company's instructions, and if you do not do so such warranty will cease to apply. You may view
current Software updates at http://www.klarkteknik.com and http://www.midasconsoles.com.
4. Limited Liability: THE ENTIRE RISK ARISING OUT OF YOUR USE OR PERFORMANCE OF THE
SOFTWARE REMAINS WITH YOU. THE LIABILITY OF THE COMPANY FOR ANY CLAIMS ARISING
OUT OF THIS LICENCE AND/OR BASED UPON THE SOFTWARE, REGARDLESS OF THE FORM OF
ACTION, AND INCLUDING WORK STOPPAGE, PRODUCT FAILURE OF MALFUNCTION OR ANY
OTHER COMMERCIAL LOSS OR DAMAGE, SHALL NOT EXCEED THE COST OF THE LICENCE FEE
FOR THE SOFTWARE OR THE COST OF THIS PRODUCT. SUBJECT TO THE PROVISIONS OF
APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY LOSS OF DATA, LOST
OPPORTUNITY OR PROFITS, COST OF COVER OR SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR
INDIRECT DAMAGES, EVEN IF YOU ADVISE THE COMPANY OF THE POSSIBILITY OF SUCH
DAMAGES. THIS IS A FUNDAMENTAL TERM OF THIS AGREEMENT AND YOU ACKNOWLEDGE
THAT THE AMOUNT YOU PAID FOR THE SOFTWARE AND/OR THE PRODUCT REFLECTS THIS
ALLOCATION OF RISK. NOTHING IN THIS PARAGRAPH PURPORTS TO EXCLUDE OR LIMIT THE
COMPANY'S LIABILITY FOR DEATH OR PERSONAL INJURY CAUSED BY NEGLIGENCE OR ANY
OTHER LIABILITY WHICH CANNOT BE EXCLUDED OR LIMITED BY LAW.
5. Other Third-Party Computer Programs: As referred to herein, the term "Software" refers
only to proprietary Midas™ or Klark Teknik™ software, owned by the Company, that has been
provided to you for installation on, or already installed in, a Product. In addition to the Softw are,
you may have also been provided, at no additional charge, with a version of the widely-available
GNU Linux Operating System, which is a modular operating system made up of hundreds of
individual software components, each of which was written, and the copyright and other rights in
which are owned individually, by various parties (collectively, "the GNU Linux Programs"). Each
component has its own applicable end user li cence agreement, and many of these agreements
permit you to copy, modify, and redistribute the applicable software, but you must review the
on-line documentation that shares a directory or otherwise accompanies each of the GNU Linux
Programs provided to you for the specific terms and conditions. Nothing in this Licence limits
your rights under, or grants you rights that supersede, the terms of any other applicable end user
licence agreement. If you wish to receive a computer-readable copy of the source code for any
of the GNU Linux Programs that have been provided with your Midas™ or Klark Teknik™ Product,
send a cheque or money order (no cash accepted), your address and [£10.00] to cover the cost
of optical media, postage and handling, to:
Midas Klark Teknik Limited
ATTN: Linux Programs CD for Midas™/Klark Teknik™
Walter Nash Road,
Kidderminster.
Worcestershire.
DY11 7HJ.
England.
In your request, indicate your Product's name and model number, serial number and
version/release information. In your request, also indicate the relevant Software version/release
information. This offer, made pursuant to the GNU Linux Programs' end user licence agreements,
may expire according to the terms of those agreements, in which case your cheque will be
returned to you or destroyed at our option. Please note that the GNU Linux Programs that may
be available to you under this offer consists of the GNU Linux Operating System components only
and none of the proprietary application software developed by Midas or Klark Teknik is included.
Other updated Linux distributions containing application software are widely available from a
variety of Internet sources, and are often available at minimal or no cost.
6. Termination: This Licence will terminate immediately if you violate any of the Licence terms.
Upon termination you must discontinue use of the Software, and either destroy, erase or return
to Company all copies of the Software in your possession, custody or control, including those in
or on the Product.
7. General: This Licence constitutes the entire agreement between you and the Company with
respect to this Software and, save in the case of fraud, supersedes any other communication
(including advertising). Company reserves all rights not expressly granted to y ou in this licence.
If any provision of this Licence is held unenforceable, that provision shall be enforced to the
maximum extent permissible so as to give effect the intent of this Licence, and the remainder of
this Licence shall continue in full force and effect. This Licence shall be governed by English law
and the Courts of England and Wales will have exclusive jurisdiction to hear and decide any
dispute concerning it or its formation. No breach by you of any provision of this Licence shall be
waived or discharged except with the express written consent of the Company and no failure or
delay by the Company to exercise any of its rights under this Licence shall operate as a waiver
thereof and no single or partial exercise of any such right shall prevent any other or further
exercise of that or any other right. You acknowledge that the Company could be irreparably
damaged if the terms of this Licence were not specifically enforced, and agree that the Company
may seek appropriate equitable remedies with respect to breaches of this Licence, including
injunctive relief, in addition to such other remedies as the Company may otherwise have
available to it under applicable laws.
GNU General Public License (GPL)
For details of the Third Party Software License Attribution, Copyright and Terms and Conditions and
Notices, and the GNU LESSER GENERAL PUBLIC LICENSE, see the Midas Digital Equipment GNU
General Public License (GPL) Booklet part number DOC04-GPL issue A.
xi
Precautions
Before installing, setting up or operating this equipment make sure you have read and
fully understand all of this section and the “IMPORTANT SAFETY INSTRUCTIONS” at the
front of this manual.
This equipment is supplied by a mains voltage that can cause electric shock injury!
The following must be observed in order to maintain safety and electromagnetic compatibility (EMC)
performance.
Safety warnings
Signal 0V is connected internally to the
chassis.
To electrically isolate this equipment, while
observing full safety precautions (see
“Power” below), switch off the two isolator
switches (above the mains sockets on the
rear panel of the unit) one at a time and
then switch off the mains at the two mains
outlets. Isolate the unit by unplugging the
two mains leads from rear panel.
To avoid electrical shock do not remove
covers.
General precautions
In the event of ground loop problems,
disconnect the signal screen at one end of the
connecting cables. Note that this can only be
done when the equipment is used within a
balanced system.
Do not remove, hide or deface any warnings or
cautions.
Power
distributed so as to meet local safety
regulations.
A Volex locking type plug is fitted on each
supplied mains cable, which plugs into a mains
IEC connector on the unit. When fitted properly
the Volex plug locks into place, preventing it
from working loose, or being inadvertently
knocked loose or pulled out. To fit a Volex plug,
insert it into the mains IEC connector and push
it in until it locks in place. Then, check to make
sure it is locked in place. To remove it, release
its locking device and then pull it out. When
fitting or removing a Volex plug, always hold the
plug itself and never use the cable, as this may
damage it.
When removing the equipment’s electric plugs
from the outlets, always hold the plug itself and
not the cable. Pulling out the plug by the cable
can damage it.
Never insert or remove an electric plug with wet
hands.
Do not connect/disconnect a mains power
connector to/from the unit while power is being
applied to it. Switch the power off first.
Switch the mains isolator switches on/off one at
a time. Do not switch them both on/off
simultaneously.
The power supplies contain LETHAL VOLTAGES
greatly in excess of the mains voltage and its
rails can produce extremely large currents that
could burn out equipment and wiring if shorted.
The internal power supplies are of the switch
mode type that automatically sense the
incoming mains voltage and will work where the
nominal voltage is in the range 100VAC to
240VAC.
Each mains inlet is to be sourced from its own
separate wall-mounted mains outlet socket.
Otherwise, their mains sources must be suitably
DL351 Modular I/O
Operator Manual
Handling the equipment
Completely isolate the equipment electrically
and disconnect all cables from the equipment
before moving it.
When lifting or moving the equipment, always
take its size and weight into consideration. If
necessary, use suitable lifting equipment or
transporting gear, or sufficient additional
personnel.
xii Precautions
Do not insert your fingers or hands in any gaps
or openings on the equipment, for example,
vents.
Installation
Before installing the equipment:
• Make sure the equipment is correctly
connected to the protective earth conductor
of the mains voltage supply of the system
installation through the mains leads.
• Power to the equipment must be via a fused
spur(s).
• Power plugs must be inserted in socket
outlets provided with protective earth
contacts. The electrical supply at the socket
outlets must provide appropriate
over-current protection.
• Both the mains supply and the quality of
earthing must be adequate for the
equipment.
• Before connecting up the equipment, check
that the mains power supply voltage rating
corresponds with the local mains power
supply . The rating of the mains power supply
voltage is printed on the equipment.
XLR connector shells should be of metal
construction so that they provide a screen when
connected to the control centre and, where
appropriate, they should have Pin 1 connected
to the cable screen.
Radio frequency interference—Class A device
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
is likely to cause harmful interference in which
case the user will be required to correct the
interference at his own expense.
Electric fields
Location
Ideally a cool area is preferred, away from
power distribution equipment or other potential
sources of interference.
Do not install the equipment in places of poor
ventilation.
Do not install this equipment in a location
subjected to excessive heat, dust or mechanical
vibration. Allow for adequate ventilation around
the equipment, making sure that its fans and
vents are not obstructed. Whenever possible,
keep the equipment out of direct sunlight.
Do not place the equipment in an unstable
condition where it might accidentally fall over.
Make sure that the mains voltage and fuse
rating information of the equipment will be
visible after installation.
Audio connections
To ensure the correct and reliable operation of
your equipment, only high quality, balanced,
screened, twisted pair audio cable should be
used.
Caution:
In accordance with Part 15 of the FCC
Rules & Regulations, “… changes or
modifications not expressly approved by
the party responsible for compliance could
void the user's authority to operate the
equipment.”
Should this product be used in an
electromagnetic field that is amplitude
modulated by an audio frequency signal (20Hz
to 20kHz), the signal to noise ratio may be
degraded. Degradation of up to 60dB at a
frequency corresponding to the modulation
signal may be experienced under extreme
conditions (3V/m, 90% modulation).
Safety equipment
Never remove, for example, covers, housings or
any other safety guards. Do not operate the
equipment or any of its parts if safety guards
are ineffective or their effectiveness has been
reduced.
DL351 Modular I/O
Operator Manual
Precautions xiii
Optional equipment
Unless advised otherwise, optional equipment
must only be installed by service personnel and
in accordance with the appropriate assembly
and usage regulations.
Special accessories
To comply with part 15 of the FCC Rules, any
special accessories (that is, items that cannot be
readily obtained from multiple retail outlets)
supplied with this equipment must be used with
this equipment; do not use any alternatives as
they may not fulfil the RF requirement.
DL351 Modular I/O
Operator Manual
xiv Precautions
DL351 Modular I/O
Operator Manual
xv
Contents
Chapter 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty and registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Chapter 2 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
psu panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Ethernet control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
AES50 audio panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 3 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Mains input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connector panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 4 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Connecting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Powering the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Chapter 5 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
About the main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

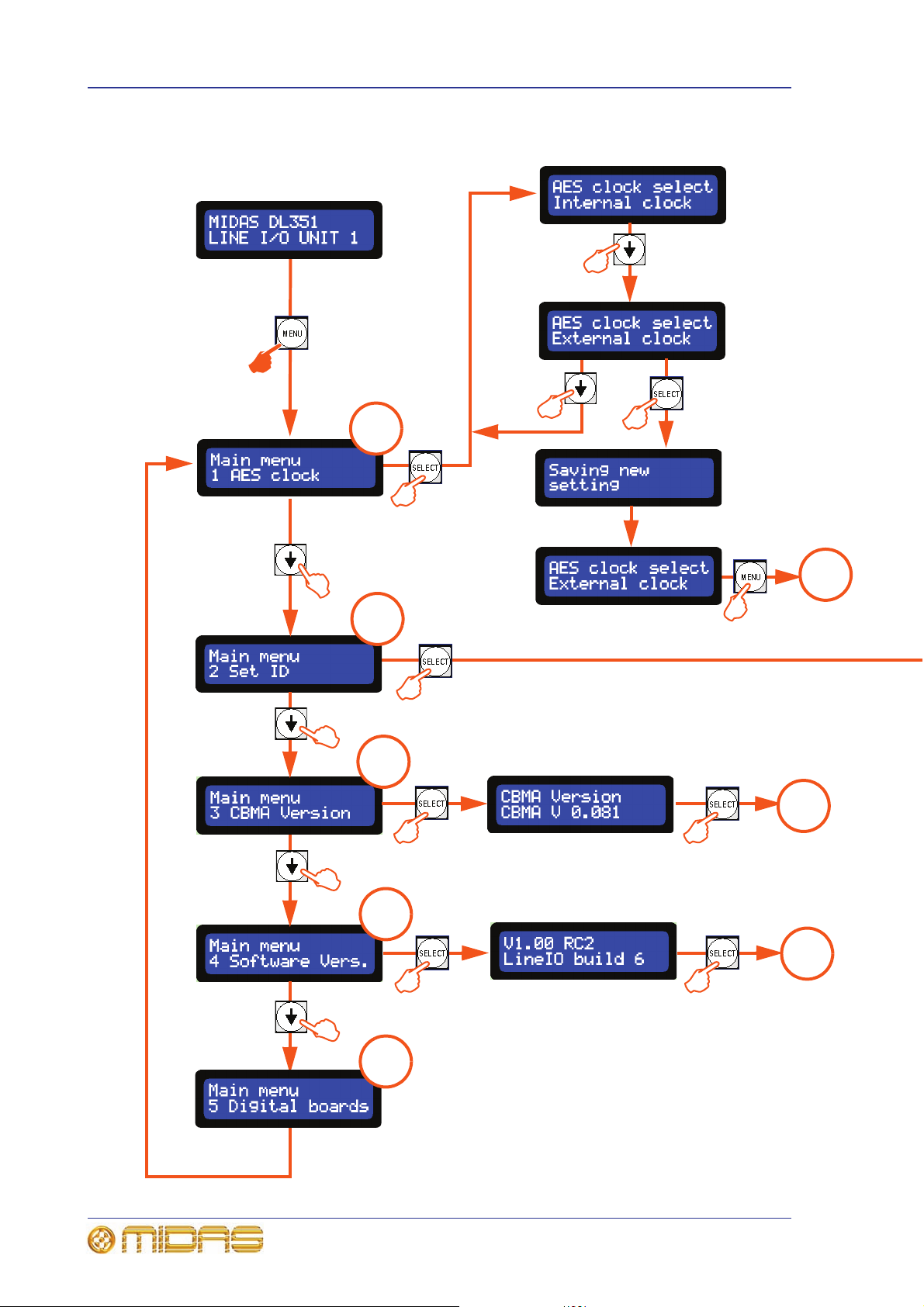

Main menu flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Main menu options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Default screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Checking the CBMA/software versions . . . . . . . . . . . . . . . . . . . . . . . 21

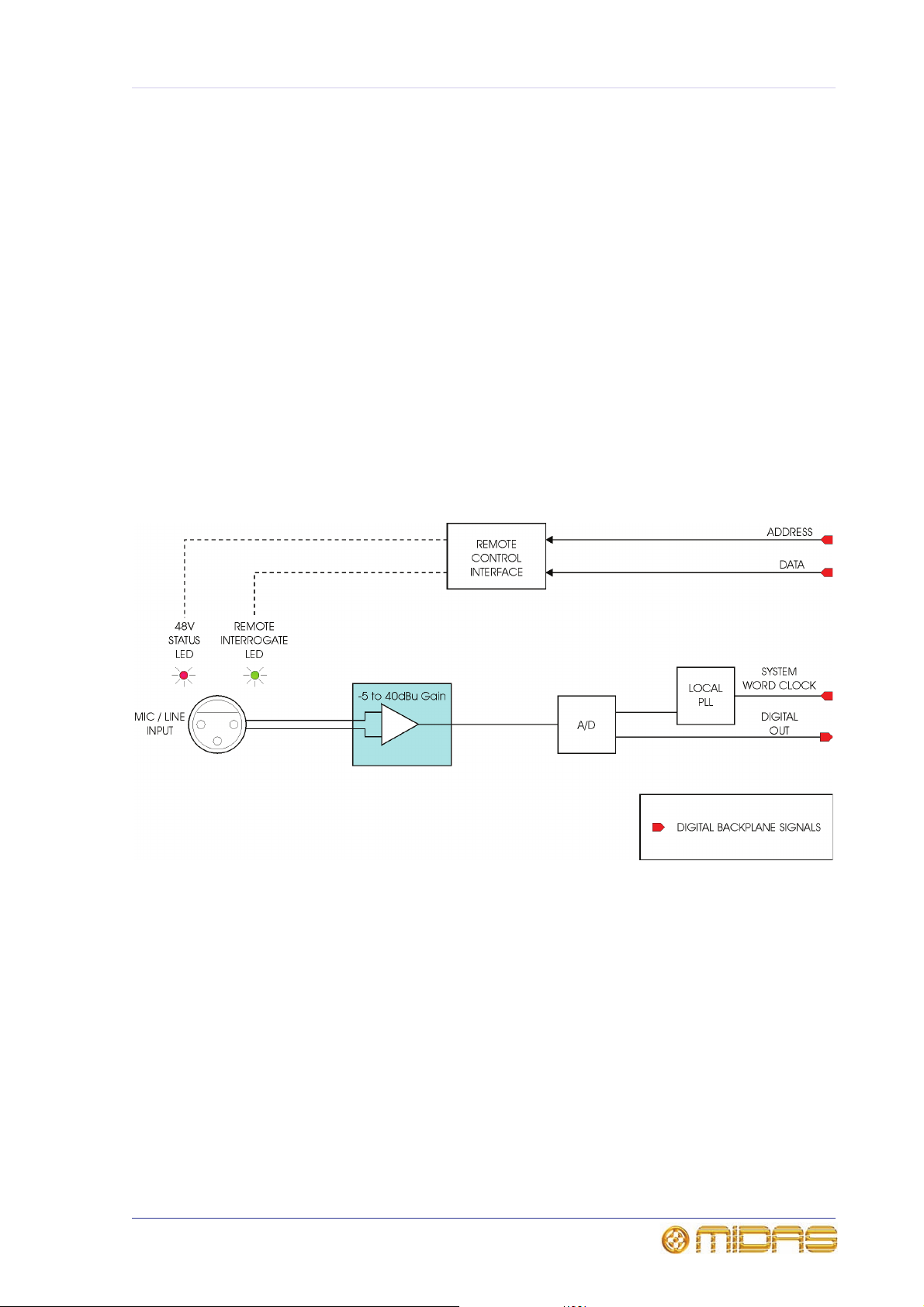

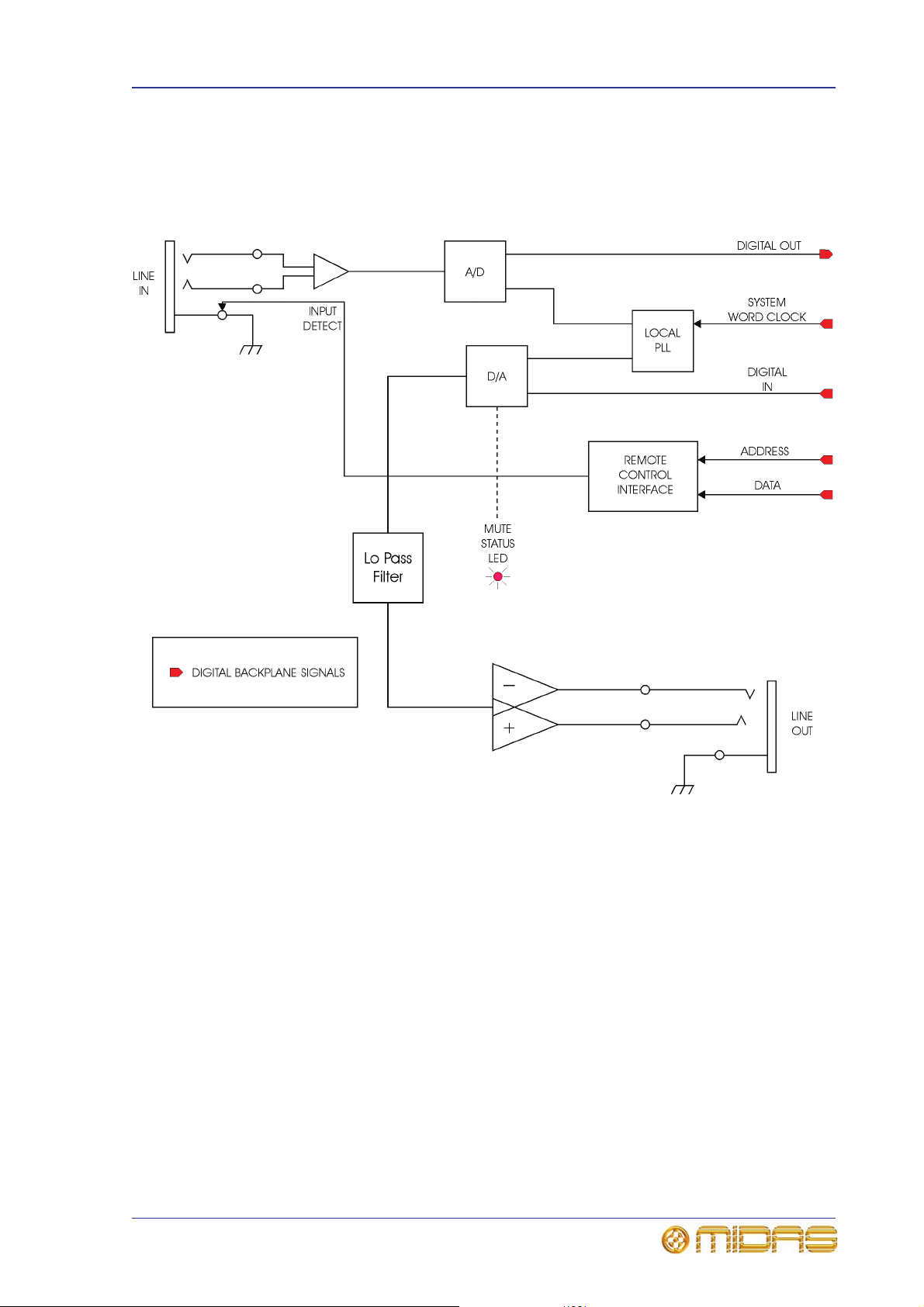

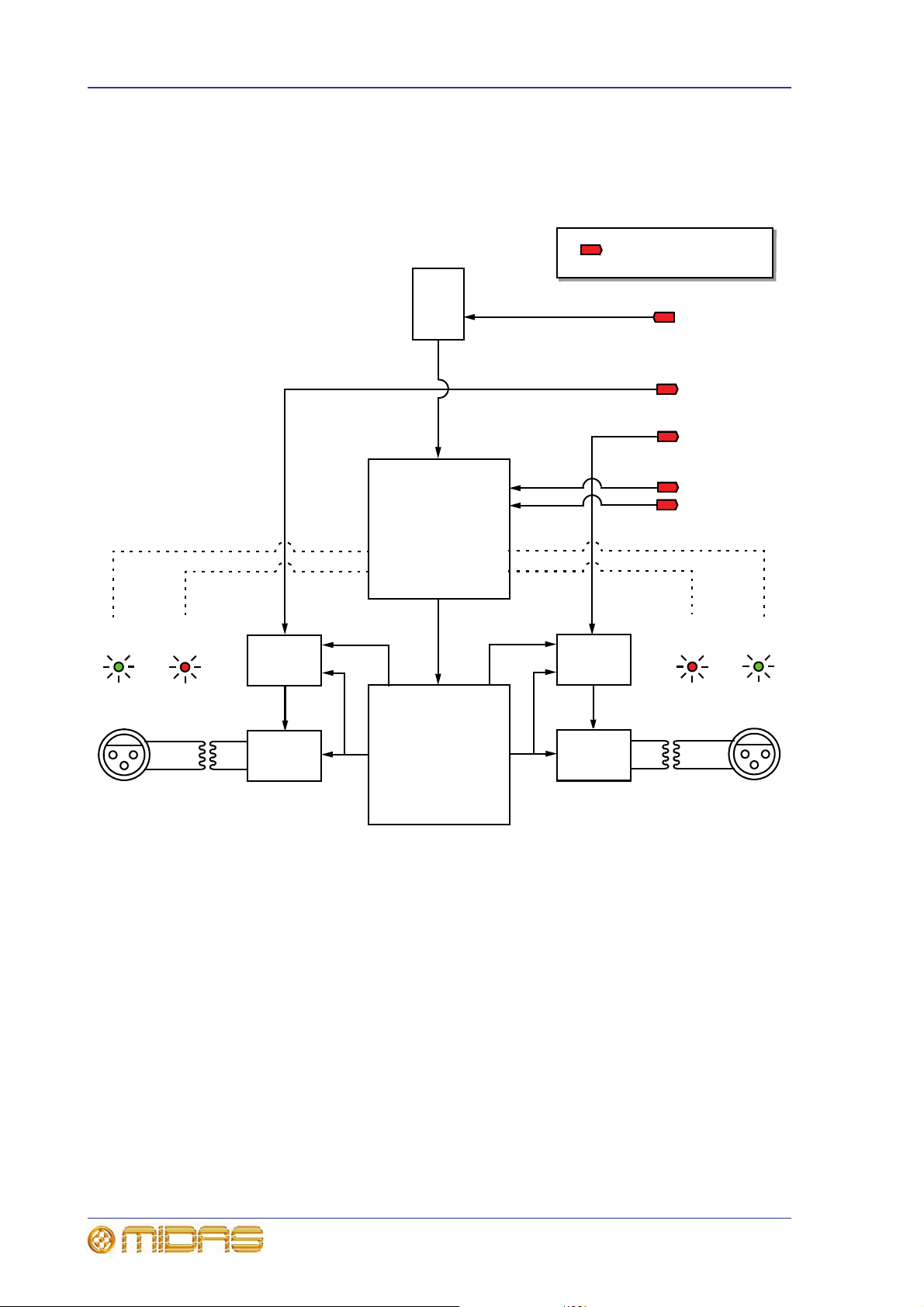

Appendix A Functional Block Diagrams. . . . . . . . . . . . . . . . . . . . .23
Analogue input module (DL441) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Analogue output module (DL442) . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Analogue Jack I/O module (DL443) . . . . . . . . . . . . . . . . . . . . . . . . . 25
AES/EBU digital I/O module (DL452) . . . . . . . . . . . . . . . . . . . . . . . . 26
Appendix B Technical Specification. . . . . . . . . . . . . . . . . . . . . . . .27
General specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Inputs and outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DL351 Modular I/O
Operator Manual
xvi Contents
Appendix C I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DL441 analogue input module . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
DL442 analogue output module . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
DL443 analogue Jack I/O module . . . . . . . . . . . . . . . . . . . . . . . . . . .30
DL452 digital I/O module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Appendix D Replacing An I/O Module . . . . . . . . . . . . . . . . . . . . . 33
Replacing a module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Appendix E Service Information . . . . . . . . . . . . . . . . . . . . . . . . . 35
Routine maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Equipment disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Appendix F PRO6 Live Audio System . . . . . . . . . . . . . . . . . . . . . . 37
Standard system configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
System components (standard supply) . . . . . . . . . . . . . . . . . . . . . . .40
FOH and MON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
System buses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Mix matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Audio physical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Surround capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Reliability (redundancy) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Control software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
System card expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Console linking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Integration of third party hardware/software . . . . . . . . . . . . . . . . . . .46
Appendix G Setting Up A PRO6 System . . . . . . . . . . . . . . . . . . . . 49
Initial set-up procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Unpacking the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Making up a rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Wiring instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Powering the PRO6 system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Switching the PRO6 Control Centre on/off . . . . . . . . . . . . . . . . . . . . .52
DL351 Modular I/O
Operator Manual
Chapter 1: Introduction
Front panel Rear panel
(standard configuration)
Thank you for purchasing a Midas DL351 Modular I/O. Your DL351 Modular I/O was
conceived by Midas to offer audio professionals high-performance audio equipment,
designed to provide no-compromise sonic quality with a feature set that offers all
essential facilities and functions. It represents the very best of British design and
engineering combined with contemporary, efficient manufacturing methods, and will
give you many years of reliable service.
So, to obtain the best results with a minimum of effort, please read this operator
manual and, finally, enjoy your Midas DL351 Modular I/O!
Overview
The DL351 Modular I/O is a 64-channel I/O unit, which is housed in a 7U, 19” rack
mount box. The DL351 Modular I/O can be configured to provide 64 channels of
analogue input, analogue output, analogue insert (jack) in and out or 64 AES EBU
inputs and outputs. It is of user-configurable
mixing of I/O type, selectable from analogue input, analogue output and AES
digital—and utilises the same module cards as used for the DL451 Modular I/O
24-channel unit.
1
sub-modular construction—allowing the
1
The standard configuration for use with the PRO6 Live Performance System comprises
seven 8-channel mic/line analogue input cards and one 8-channel line analogue output
card.
1. It is envisaged that new modules will be developed to service market requirements as they continue
to evolve.
DL351 Modular I/O
Operator Manual
2 Chapter 1: Introduction
Features
The DL351 Modular I/O has the following features:
• Up to 64 analogue/digital audio inputs or outputs.
• Sub-modular construction provides user-configurable 8 x 8-channel format.
• The front panel has minimal controls, which are used in conjunction with a standard
16-column x 2-row LCD display.
• Fully isolated GPIO in and out connections supplied as standard, via 25-pin
D-type connectors.
• in, out and thru MIDI sockets supplied as standard, via 5-pin DIN connectors.
• N+1 redundant AES50 connections provided at the digital audio interface.
•USB host and slave ports provide additional communications interfacing.
• System interconnection is via four AES50 (24 bi-directional digital audio channels)
on EtherCon® XLRs (connection is to the router module), which provides N+1
capability.
• All AES EBU connections, analogue inputs and analogue outputs are provided by
3-pin XLR chassis connectors.
• Remote interrogate LEDs are adjacent to the physical XLRs. These are controlled
ultimately from the digital console control surface and serve as a visual aid when
seeking a particular connector.
• The analogue inputs incorporate remotely controlled, 5dB step analogue gain
adjustment from –5dB to +40dB and Phantom power (with LED status).
• The analogue signal maximum incorporates “Clean Clipping” to ensure A/Ds are
never clipped.
• The A/D and D/A converters are 24-bit and sampled primarily at 96kHz.
• The A/D inputs take a maximum signal level that represents external +22dBu, that
is, 0dBFS (0dB full scale).
• Each of the DC rails is fitted with suitable fusing elements, such that a single board
failure will not bring the whole rack down.
• The unit offers the facility of universal input, dual redundant power supplies with two
latching mains connectors.
• The unit is force air cooled by means of 80 mm fans. These produce low noise,
which is suitable for concert sound. However, racking in separate “amp rooms” is
advised for theatre use.
Warranty and registration
Midas has total confidence in the quality and reliability of this product. To back this up,
this product comes with the standard Midas and Klark Teknik three year warranty.
Please take the time to register your product by completing and returning the
registration card or registering on our website at www.midasconsoles.com.
DL351 Modular I/O
Operator Manual
About this manual 3
About this manual
This is the operation manual for the DL351 Modular I/O. It is intended to help get your
DL351 Modular I/O installed and in operation as quickly as possible by giving you
unpacking, installation, connection, setting up and operating instructions. To help
familiarise you with the PRO6 Control Centre there is a description of the front and rear
panels, along with easy-to-follow user instructions.
This manual is aimed at professionals, such as front of house (FOH) and monitor (MON)
engineers who will be using this equipment in a live performance environment. It is
assumed that the reader has prior experience of using professional audio equipment
and has, most likely, undergone training on the PRO6 system.
Details in this manual, such as configuration, setting up, connecting up etc., refer only
to the unit connected in a standard PRO6 Live Performance System. Should you wish to
connect this unit in any other configuration, contact Midas Technical Support for details.
The appendices include a brief overview of the PRO6 Live Performance System.
However, if you want to learn more about the PRO6 Live Performance System, please
go on to read its owner’s manual (part number DOC02-DL3), which provides a full and
comprehensive guide.
Unpacking
Carefully unpack your DL351 Modular I/O equipment package.
Inspect the DL351 Modular I/O unit carefully for any signs of damage that may have
occurred during transit and notify the courier immediately if any is discovered.
Check the contents of your DL351 Modular I/O equipment package and, if there are any
parts missing, incorrect or faulty, please contact your local distributor or Midas at the
address shown in the front of this manual.
Please retain the original packing in case you should need to return the equipment to
the manufacturer or supplier, or transport or ship the unit later.
DL351 Modular I/O
Operator Manual
4 Chapter 1: Introduction
DL351 Modular I/O
Operator Manual
3
6
7
2
4
5
1
1 Four ventilation panels. Do not
obstruct.
2 Power supply unit mo nitoring panel; see
“psu panel” on page 5.
3 Ethernet control panel; see “Ethernet
control panel” on page 5.
4 AES50 audio panel monitors; see “AES50
audio panel” on page 6.
5 Control panel; see “Control panel” on
page 6.
6 Eight rows of eight write-on strips for
manually marking the analogue/digital channel
assignments for modules A to H.
7 Cut-outs for rack mounting fixings.
Chapter 2: Front Panel
The front panel of the DL351 Modular I/O comprises the following:
5
psu panel
This panel monitors the voltage rails of the two
power supplies. The two sets of panel LEDs
illuminate to show that the voltage rails are active.
There are five yellow LEDs per supply voltage, each
representing a specific voltage rail (+18V,
-18V, +5V, +3.3V and +48V).
Ethernet control panel
The Ethernet control panel has a green LED, which has three states
DL351 Modular I/O
Operator Manual
of illumination to indicate the following:
• Off = not connected.
• On = connected.
• Flashing = active communications.
