MT550 Cat M1/NB1 GPS Tracker
User Manual V2.0
Preface
Congratulations on choosing the Mictrack MT550 Cat M1/NB1 GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to
read this manual carefully before using this product, so as to avoid delays or confusion
without notice to facilitate product improvement. Updates and changes will be integrated
into the latest release. The manufacturer assumes no responsibility for any errors or
omissions in outdated documents.
Page 2
MT550 User Manual
http://www.mictrack.com
Contents
1. Overview
2. Application
3. Specifications..................................................................................................................................... 1
4. MT550 and Accessories..................................................................................................................2
5. Unit Diagram...................................................................................................................................... 3
6. Installation
6.1 SIM Card installation
6.2 Power ON:
6.3 LED Indications............................................................................................................................... 4
6.3.1 CHG-Charge indicator (RED)................................................................................................... 4
6.3.2 SYS-System indicator (BLUE)..................................................................................................4
6.3.3 GPS-GPS indicator (GREEN)
6.4 Device Button Instruction
6.5 Connection of supplied wiring loom
6.6 Install the SOS switch.................................................................................................................. 5
6.7 Optimum locations for unit Installation......................................................................................5
6.7.1 Caution........................................................................................................................................... 6
7. Configuration & Functions
7.1 SOS Alarm
7.2 Geo-fence Alarm
7.3 External power cut off alarm.......................................................................................................7
7.4 Towing alarm................................................................................................................................... 7
7.5 Low battery Alarm (internal backup battery)........................................................................... 7
7.6 Low battery Alarm (Vehicle Battery)
7.7 High Temperature Alarm
7.8 Over-Speed alarm (Alerts that the unit is exceeding a preset speed)
7.9 ACC ON (Upload default status is AUTO).............................................................................. 7
7.10 Vehicle Towed Alarm (vehicle moves whilst ACC is OFF)............................................... 7
7.11 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW)....................................... 7
8. Appendix
.............................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
.....................................................................................................................
.......................................................................................................................................
..................................................................................................
..............................................................................................................
..........................................................................................
..............................................................................................................
.......................................................................................................................................
.............................................................................................................................
..........................................................................................
...............................................................................................................
...........................
..............................................................................................................................................
1
1
3
3
4
4
4
5
7
7
7
7
7
7
8
Page 3
MT550 User Manual
http://www.mictrack.com
1
1. Overview
The MT550 is the world’s first LTE Cat M1/NB1 GPS tracker, supporting LTE
2. Application
LTE Cat.M1/Cat.NB1/EGPRS Support
Real-time traffic
Vehicle trip history and mileage data on web tracking platform
SOS alarm button and real time reporting (optional)
ACC switch status alarm
Geo-Fence alarm and reporting
External power cut off alarm
Remote cut off fuel / ignition (optional)
Vehicle towing / Movement alarm
Over-Speed alarm and reporting
Backup battery low power alarm
Car battery low power alarm
High temperature alarm
Power saving / sleep mode
3. Specifications
Item

Specifications

Dimension
94(L)*51(W)*17(H)mm
Weight
61g
Input Voltage
12V-24V
Backup battery
130mAh/3.7v
Power consumption
60mA standby current
Working temperature
-20°C to 70°C
GPS Chip
U-BLOX7
GPS Sensitivity
-162dBm
Cat.M1/Cat.NB1/EGPRS networks. This device can be used locate, track and monitor any
remote target via PC Computer or Mobile APP. It is commonly used to track and locate
individual vehicles, motorbikes or boats, and is a valuable tool for enhanced fleet
management. The user also can remotely check the historical route travelled and other
vehicle data.
The MT550 has an excellent track record for stable performance and possesses a
wide variety of features.
Page 4
MT550 User Manual
http://www.mictrack.com
2
Item
Specifications
Frequency bands
FDD LTE: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/
B19/B20/ B26/ B28
TDD LTE: B39 (for Cat.M1 only)
GSM: 850/900/1800/1900Mhz
Positioning Accuracy
10m
Channel
56 Channel
Hot start
1s on average
Warm start
15s on average
Cold start
30s on average
Humidity
5%~95% non-concretion
Antennas
Internal LTE CAT M1/NB1 & GPS antennas
Sensor
3D acceleration/movement sensor/ temperature sensor
LED
CHG/GPS/SYS
SIM Card interface
Micro Size SIM
4. MT550 and Accessories
Page 5
MT550 User Manual
http://www.mictrack.com
3

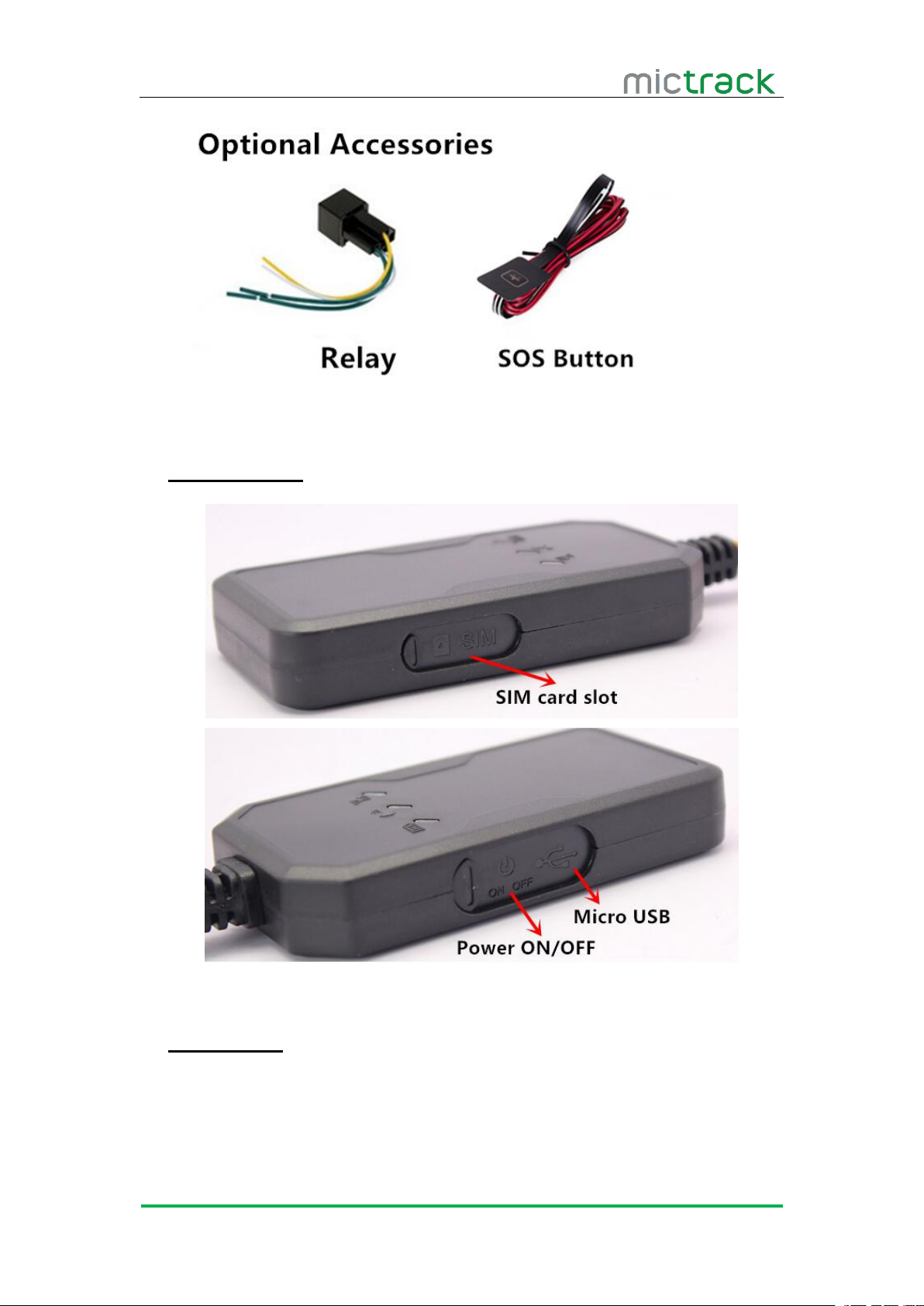

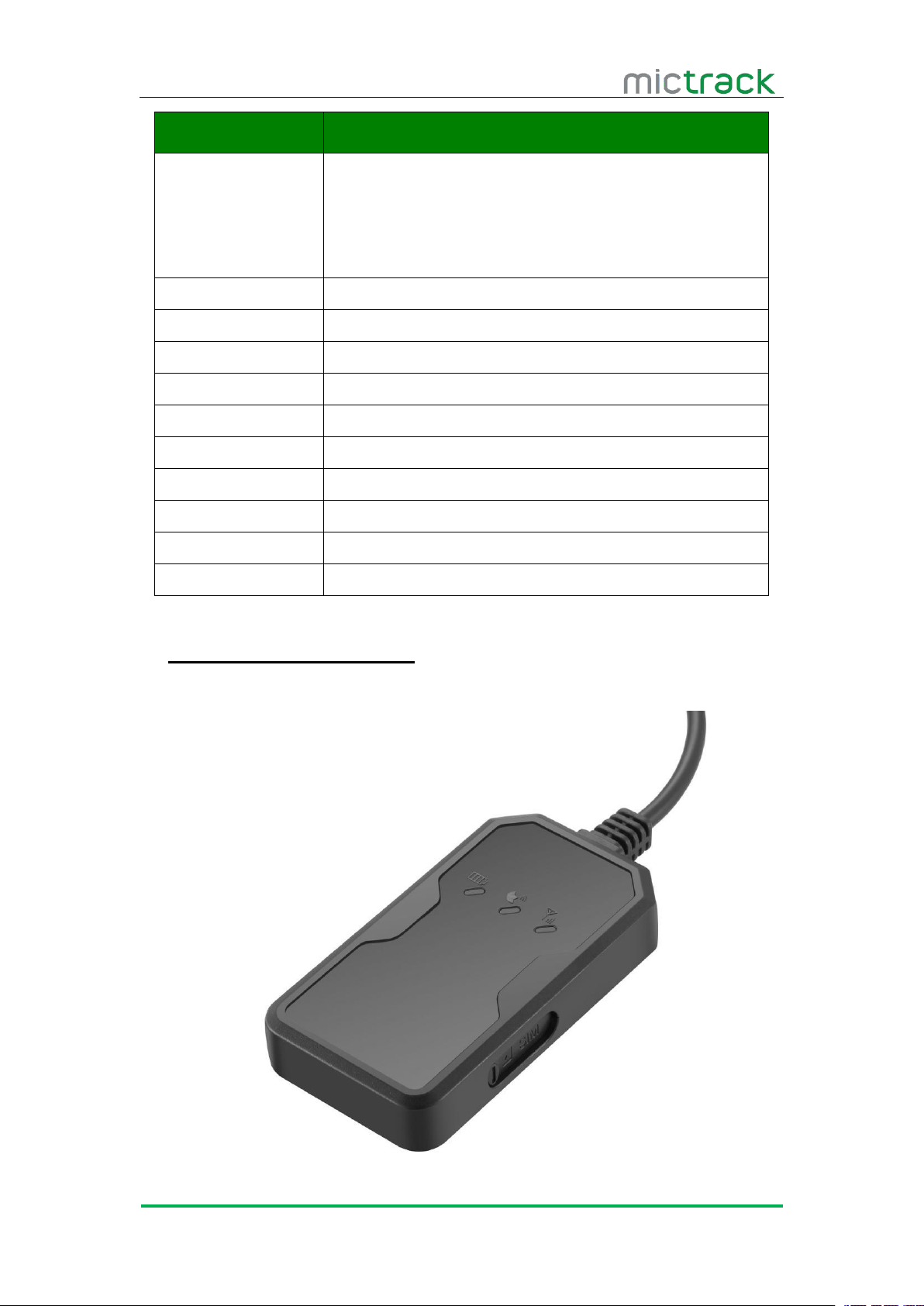

5. Unit Diagram
6. Installation
6.1 SIM Card installation
Please read the following before installing the SIM card:
Ensure the SIM card has minimum balance
Ensure the SIM card has caller ID and HSPA functions enabled
Page 6
MT550 User Manual
http://www.mictrack.com
4
Ensure the SIM card PIN is disabled, and call forwarding not active
Power off the device before installing the SIM card
To install the SIM card, perform the following operations:
1. Ensure the SIM card has metal contacts facing down.
2. Insert the SIM card into the SIM card slot.
6.2 Power ON:
Make the Power button to ON, and the device will turn on.
The device only supports Micro Size SIM card;
To remove SIM card, use paperclip to press the SIM card to eject the SIM card .
6.3 LED Indications
6.3.1 CHG-Charge indicator (RED)
6.3.2 SYS-System indicator (BLUE)
Status
Description
Constant ON
No SIM Card (or) No Network Reception
OFF
Vehicle Parked – ACC Power OFF
Quick flash
Normal Working Mode
6.3.3 GPS-GPS indicator (GREEN)
6.4 Device Button Instruction
Button
Description
Power
ON/OFF
Make button to ON to POWER ON
Make button to OFF to POWER OFF
Status
Description
Constant ON
Currently Charging
OFF
Charging Complete or Battery Voltage is high
(Note: it will auto-charging when backup battery voltage is
low and LED light, or LED will no light.)
Status
Description
OFF
GPS / Satellites Unavailable – Out of Range
Quick flash
GPS/Satellite Locked – Normal Mode
Note:
Page 7
MT550 User Manual
http://www.mictrack.com
5
SOS Button
(Optional)
Press and hold the button for 3x seconds, the unit will send
position data to authorized phone numbers and Web Tracking
Platform.

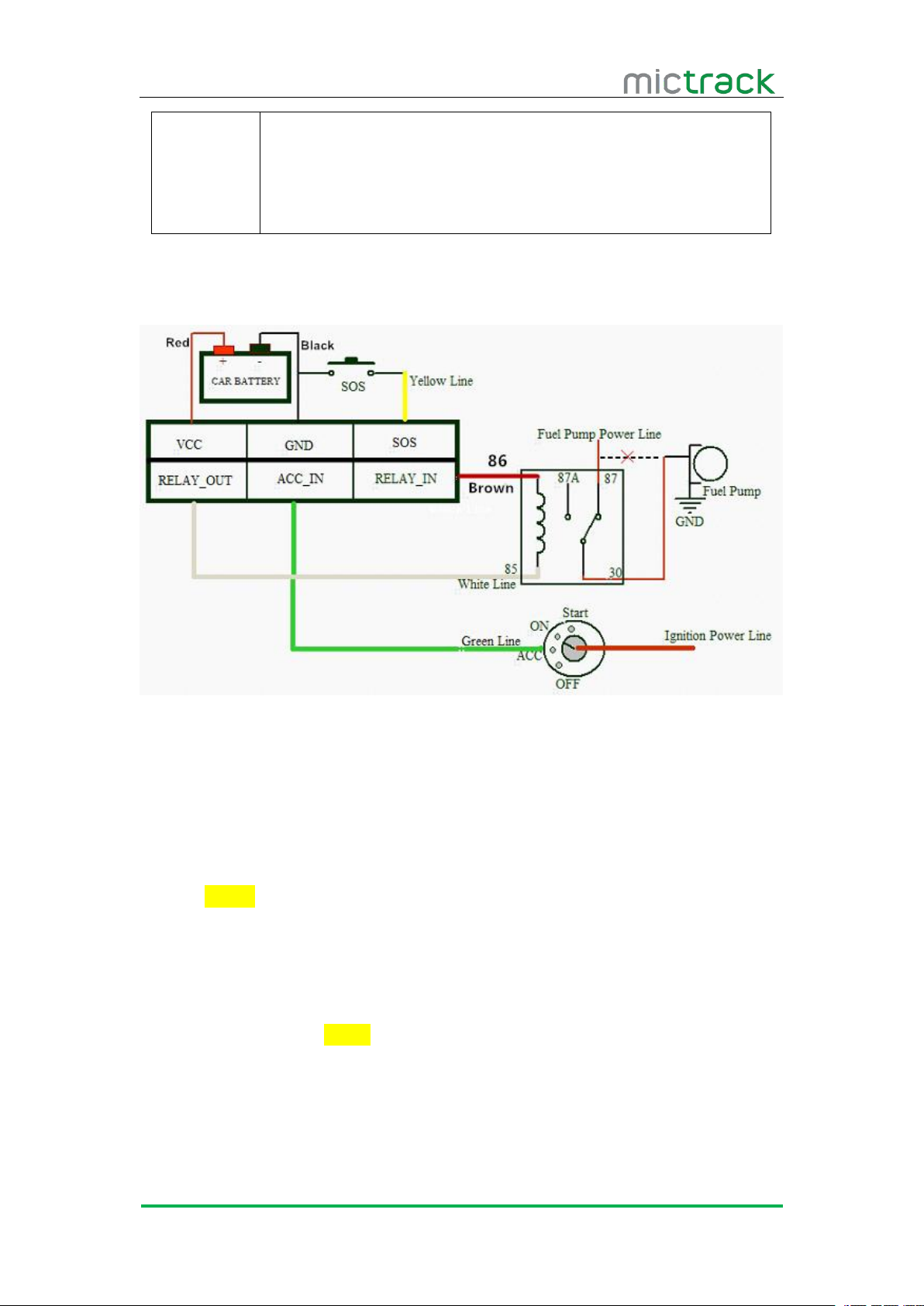

6.5 Connection of supplied wiring loom
When installing the device, please connect supplied wiring loom as follows: (or
Red: Connect to constant 12V Car Battery(+)
Black: Connect to Earth (Chassis) Car battery(-)
Green: Connect to ACC switched 12V Power
Yellow: Connect to red wire of supplied SOS switch
White: Connect to Relay terminal (85)
Brown: Connect to Relay terminal (86)
6.6 Install the SOS switch
Red: connect to Yellow wire from the wiring loom
Black: connect to Earth (Chassis) Car battery(-)
6.7 Optimum locations for unit Installation
contact our sales team for help)
Note: Relay is optional for fuel / ignition shut-off.
Note:SOS button is optional.

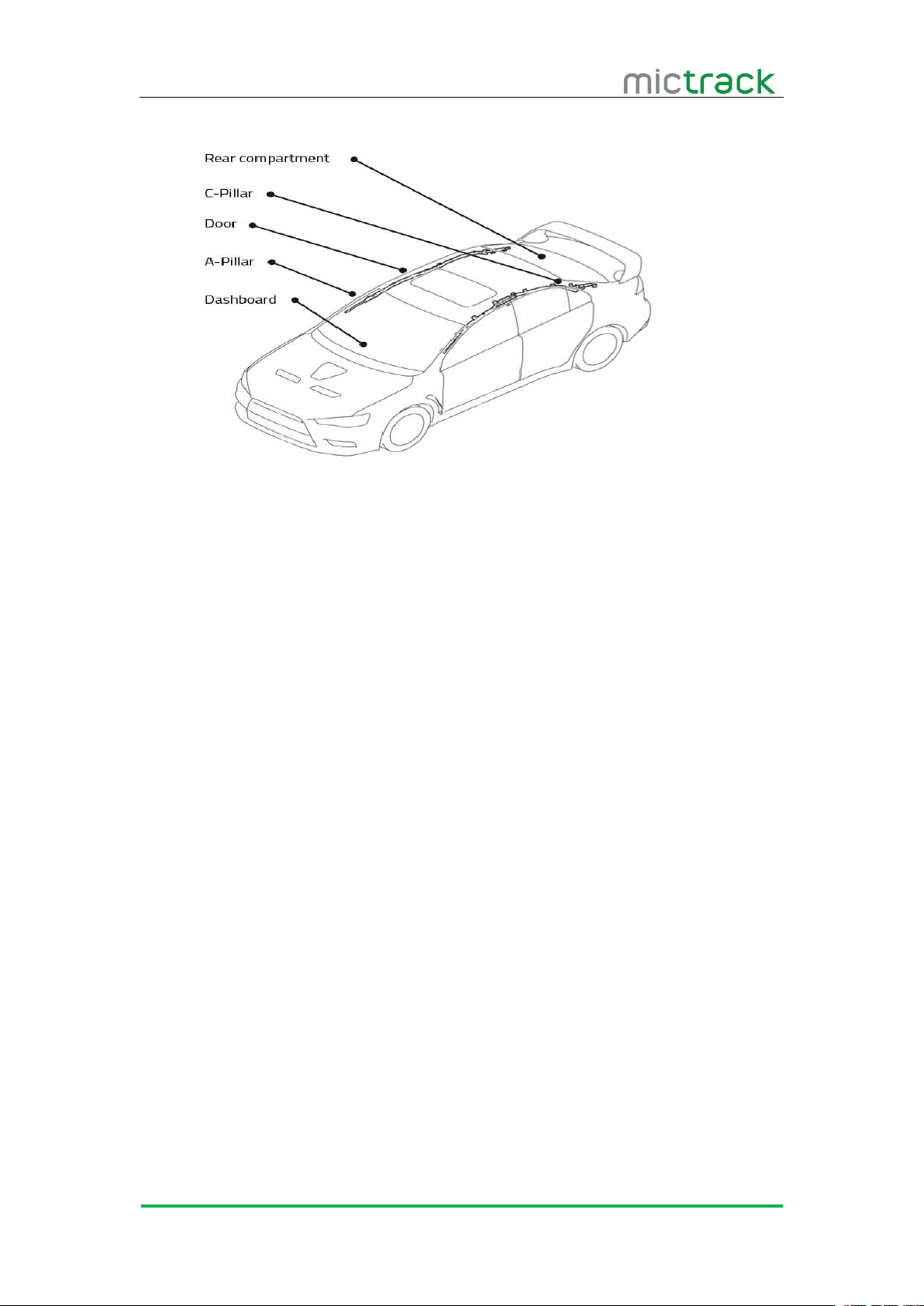

Below are the recommended areas available within a vehicle for unit installation.
These are suggestions only, as depending on the vehicle type, there may be many
Page 8
MT550 User Manual
http://www.mictrack.com
6
possible locations to hide/install the unit.
6.7.1 Caution
Avoid placing GPS Antenna (or units with internal GPS antenna) under any metal
Do not install unit right next to stereo, CB radio, heater, speakers or alarm
Unit must be firmly mounted or cable tied to a surface, not hanging by wiring
Do not place the unit next to steering column or any moving parts.
It is recommended to place the GPS Antenna (or units with internal GPS antenna)
Device can be placed in other areas or storage compartments of the vehicle
surfaces, as this may affect satellite lock and functionality.
systems.
loom etc.
in locations that are exposed to the sky (i.e. under plastic dashboard, under rear
parcel shelf, at base of rear windscreen, inside C-Pillar areas or doors, etc)
(internally or externally) depending on the vehicle, truck, boat or motorcycle, as
long as there is access to power and a clear signal from satellites.
Page 9
MT550 User Manual
http://www.mictrack.com
7
7. Configuration & Functions
The LTE CAT M1/NB1 device DO not support SMS and voice function. It only can be

7.1 SOS Alarm

7.2 Geo-fence Alarm
7.3 External power cut off alarm

7.4 Towing alarm

7.5 Low battery Alarm (internal backup battery)

7.6 Low battery Alarm (Vehicle Battery)

7.7 High Temperature Alarm
7.8 Over-Speed alarm (Alerts that the unit is exceeding a preset speed)

7.9 ACC ON (Upload default status is AUTO)

7.10 Vehicle Towed Alarm (vehicle moves whilst ACC is OFF)
7.11 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW)
config by USB Cable.All the USB configuration instruction please refer to Appendix
When the SOS/Duress switch is pressed for 3 seconds, the unit will automatically
upload location data to the Web Tracking Platform server along with the status description
“SOS”
When the device out of the specified Geo-fence the unit will upload location data to
the Web Tracking Platform server along with the status description “OG_G1”
If the external power to the unit is disconnected, [i.e. unit tampering or vehicle battery
removal] the unit will upload location data to the Web Tracking Platform server along with
the status description “DEF”
If the vehicle was be moved or towed when ACC is turned OFF, it will upload location
data to the Web Tracking Platform server along with the status description “TOWED”
When the unit’s internal backup battery is low, it will upload location data to the Web
Tracking Platform server along with the status description “BLP”
When the vehicle battery is low, it will SMS the authorized phone number, and upload
location data to the Web Tracking Platform server along with the status description “CLP”
When the devices internal temperature is high [preset value] it will upload location
data to the Web Tracking Platform server along with the status description “HT”
When the vehicle speed is high [preset value] it will upload location data to the Web
Tracking Platform server along with the status description “OVERSPEED”
Interval time maximum [10,65535]seconds
Interval time maximum [10,65535]seconds
interval time maximum [2,1440] minutes
Page 10
MT550 User Manual
http://www.mictrack.com
8
8. Appendix
Mictrack Config Tool
1. Download the Config Tools and USB Driver:
2. Install the USB Driver ” PL-2303 Vista_Win7 Driver Installer”;
3. Connect the “USB CABLE” between PC and Tracker;

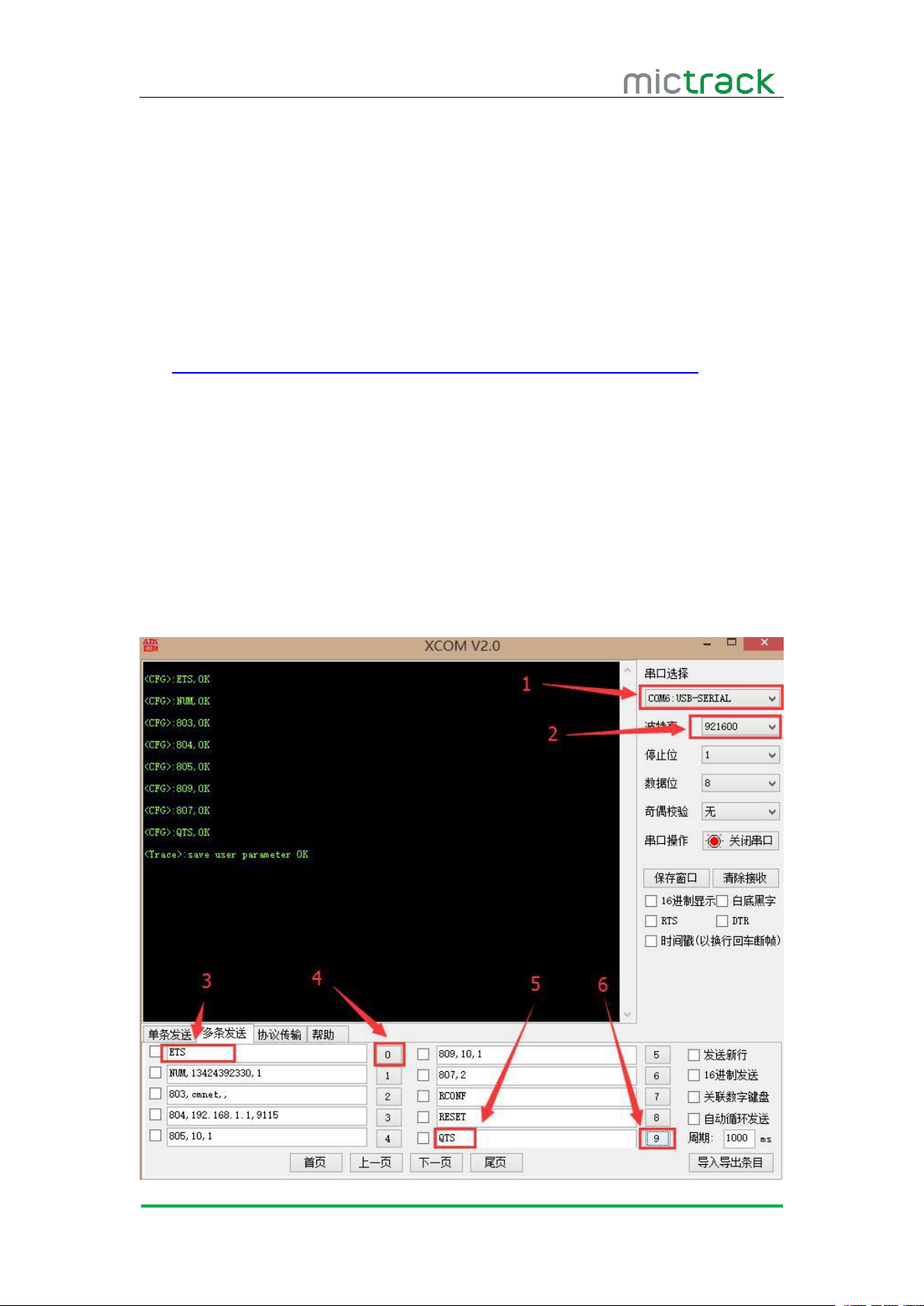

4. Open the Tool” XCOM V2.0” and operate it as follow:
5. Select the correct COM PORT (step 1 in follow picture);
6. Select the correct Baud rate as” 921600” (Step 2 in picture);
7. Ensure Tracker “ POWER ON”;
8. Input” ETS” (step 3 in picture) and then click ”0”(step 4 in picture) to Start the Config;
9. Input any other commands and then click the number on the right(1-8).
10. Input “QTS”(step 5 in picture) and then click “9” (step 6 in picture) to Save the
User Guide V2.0
The guide is only show how to to Config the Mictrack devices with the tools, the process are:
https://drive.google.com/drive/folders/0B32J3VHnO7UOcHRHbm1LU3p2RlE
configuration and Exit.
Page 11
MT550 User Manual
http://www.mictrack.com
9
Commands list:
Item
Command format
Example
Start
ETS
ETS
Pre-set number
NUM,cell number,1~3
NUM,13424392330,1
Delete pre-set number
NUM,,1~3
NUM,,1
Change password
777,new password
777,1234
Call OFF
150
150
Call ON
151
151
SMS OFF
160
160
SMS ON
161
161
Invalid upload OFF
080
080
Invalid upload ON
081
081
GPRS user name
801,gprs user name
801,mictrack
GPRS user password
802, gprs user password
802,2017
APN
803,apn,apn user, apn password
803,telstra.internet,,
804
804,IP,Port
804,112.95.164.248,7700
805
805,interval time, 1,
805,10,1
809
809,interval time,1
809,1800,1
Read Config
RCONF
RCONF
RESET
RESET
RESET
Save and Exit
QTS
QTS
Tips:
How to setup APN: https://www.mictrack.com/apn-settings-for-mictrack-gps-trackers
How to use Mictrack Server: https://www.mictrack.com/how-to-use-mictrack-server
Global Frequency bands check: https://www.mictrack.com/4g-lte-frequency-bands-list
Note: Please remember to monitor the credit balance of your SIM card, to
avoid confusion or delays in setting up your new unit. This can be a common issue,
especially when initially setting up a new unit, and the unit fails to reply to a correct
SMS command sequence.
If you have any questions please do not hesitate to contact us [email protected].
Loading...
