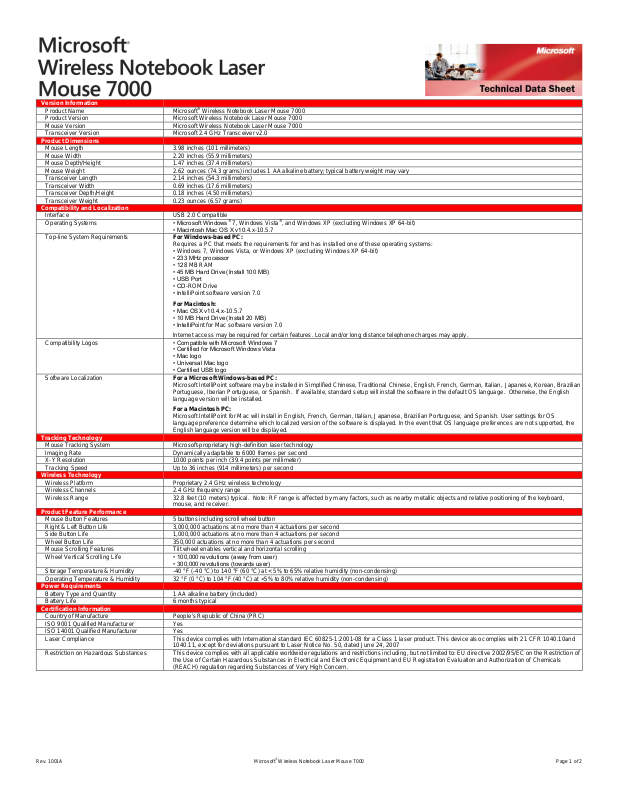

Microsoft WIRELESS NOTEBOOK LASER MOUSE 7000 DATASHEET
Version Information
Product Name
Microsoft® Wireless Notebook Laser Mouse 7000
Product Version
Microsoft Wireless Notebook Laser Mouse 7000
Mouse Version
Microsoft Wireless Notebook Laser Mouse 7000
Transceiver Version
Microsoft 2.4 GHz Transceiver v2.0
Product Dimensions
Mouse Length
3.98 inches (101 millimeters)
Mouse Width
2.20 inches (55.9 millimeters)
Mouse Depth/Height
1.47 inches (37.4 millimeters)
Mouse Weight
2.62 ounces (74.3 grams) includes 1 AA alkaline battery; typical battery weight may vary
Transceiver Length
2.14 inches (54.3 millimeters)
Transceiver Width
0.69 inches (17.6 millimeters)
Transceiver Depth/Height
0.18 inches (4.50 millimeters)
Transceiver Weight
0.23 ounces (6.57 grams)
Compatibility and Localization
Interface
USB 2.0 Compatible
Operating Systems
• Microsoft Windows
®
7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)
• Macintosh Mac OS X v10.4.x-10.5.7
Top-line System Requirements
For Windows-based PC:
Requires a PC that meets the requirements for and has installed one of these operating systems:
• Windows 7, Windows Vista, or Windows XP (excluding Windows XP 64-bit)
• 233 MHz processor
• 128 MB RAM
• 45 MB Hard Drive (Install 100 MB)
• USB Port
• CD-ROM Drive
• IntelliPoint software version 7.0
For Macintosh:
• Mac OSX v10.4.x-10.5.7
• 10 MB Hard Drive (Install 20 MB)
• IntelliPoint for Mac software version 7.0
Internet access may be required for certain features. Local and/or long distance telephone charges may apply.
Compatibility Logos
• Compatible with Microsoft Windows 7
• Certified for Microsoft Windows Vista
• Mac logo
• Universal Mac logo
• Certified USB logo
Software Localization
For a Microsoft Windows-based PC:
Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian
Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English
language version will be installed.
For a Macintosh PC:
Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS
language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the
English language version will be displayed.
Tracking Technology
Mouse Tracking System
Microsoft-proprietary high-definition laser technology
Imaging Rate
Dynamically adaptable to 6000 frames per second
X-Y Resolution
1000 points per inch (39.4 points per millimeter)
Tracking Speed
Up to 36 inches (914 millimeters) per second
Wireless Technology
Wireless Platform
Proprietary 2.4 GHz wireless technology
Wireless Channels
2.4 GHz frequency range
Wireless Range
32.8 feet (10 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the keyboard,
mouse, and receiver.
Product Feature Performance
Mouse Button Features
5 buttons including scroll wheel button
Right & Left Button Life
3,000,000 actuations at no more than 4 actuations per second
Side Button Life
1,000,000 actuations at no more than 4 actuations per second
Wheel Button Life
350,000 actuations at no more than 4 actuations per second
Mouse Scrolling Features
Tilt wheel enables vertical and horizontal scrolling
Wheel Vertical Scrolling Life
• 100,000 revolutions (away from user)
• 300,000 revolutions (towards user)
Storage Temperature & Humidity
-40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing)
Operating Temperature & Humidity
32 °F (0 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)
Power Requirements
Battery Type and Quantity
1 AA alkaline battery (included)
Battery Life
6 months typical
Certification Information
Country of Manufacture
People's Republic of China (PRC)
ISO 9001 Qualified Manufacturer
Yes
ISO 14001 Qualified Manufacturer
Yes
Laser Compliance
This device complies with International standard IEC 60825-1:2001-08 for a Class 1 laser product. This device also complies with 21 CFR 1040.10and
1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Restriction on Hazardous Substances
This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals
(REACH) regulation regarding Substances of Very High Concern.
Rev. 1001A Microsoft® Wireless Notebook Laser Mouse 7000 Page 1 of 2
Certification Information
FCC ID
This device complies with part 15 of the FCC Rules and Industry Canada RSS-210. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Tested to comply with FCC standards. For home and office use. 1122, Wireless Notebook Laser Mouse 7000 and 1123, 2.4 GHz Transceiver
v2.0 FCC IDs: C3K1122 and C3K1123.
Agency and Regulatory Marks
• FCC Declaration of Conformity (USA)
• UL and cUL Listed Accessory (USA and Canada)
• RSS-210 and ICES-003 data on file (Canada)
• TUV-T Certificate (European Union)
• R&TTE Declaration of Conformity, Safety and EMC (European Union)
• GOST and FAC Certificates (Russia)
• VCCI and Telec Certificates (Japan)
• ACA/MED Declaration of Conformity (Australia and New Zealand)
• BSMI and NCC Certificates (Taiwan)
• MIC Certificate (Korea)
• MIC Certificate (Israel)
• ETA Certificate (India)
• SUBTEL Certificate (Chile)
• WPC-ETA Certificate (India)
• COFETEL Certificate (Mexico)
• NTC Certificate (Philippines)
• CITC Letter (Kingdom of Saudi Arabia)
• CMII Certificate (China)
• CNC Certificate (Argentina)
• MTC Certificate (Peru)
• ICASA Certificate (South Africa)
• NTC SDoC Certificate(Thailand)
• CONATEL Certificate (Venezuela);
• SIRIM Certificate (Malaysia)
• IDA Approval (Singapore)
• WEEE (European Union)
• EIP Pollution Control Mark, EPUP (China)
• CB Scheme Certificate (International)
Windows Hardware Quality Labs (WHQL)
ID: 1360179 Microsoft Windows 7
Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change
without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
©2010 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners.
Rev. 1001A Microsoft® Wireless Notebook Laser Mouse 7000 Page 2 of 2
