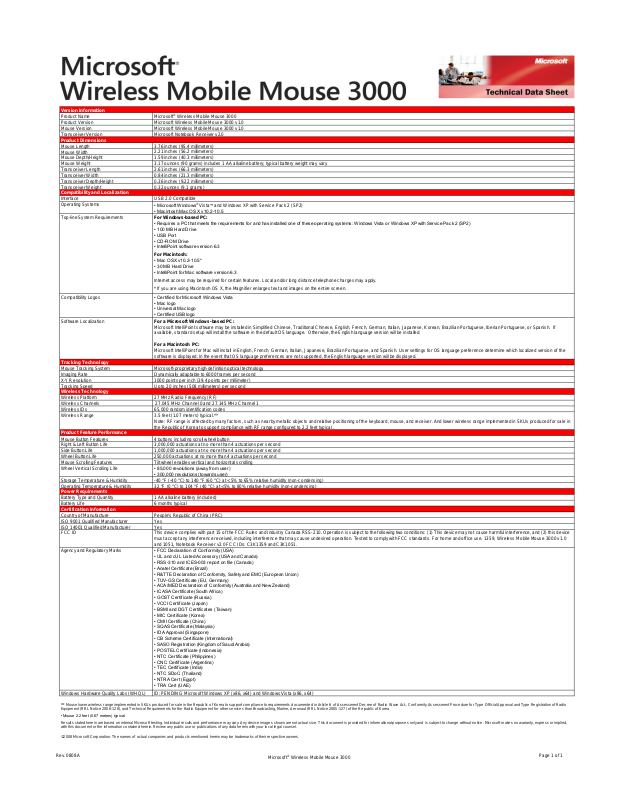

Microsoft WIRELESS MOBILE MOUSE 3000 SPECIAL EDITION DATASHEET

Version Information

Product Name

Microsoft® Wireless Mobile Mouse 3000

Product Version

Microsoft Wireless Mobile Mouse 3000 v1.0

Mouse Version

Microsoft Wireless Mobile Mouse 3000 v1.0

Transceiver Version

Microsoft Notebook Receiver v2.0

Product Dimensions

Mouse Length

3.76 inches (95.4 millimeters)

Mouse Width

2.21 inches (56.2 millimeters)

Mouse Depth/Height

1.59 inches (40.3 millimeters)

Mouse Weight

3.17 ounces (90 grams) includes 1 AA alkaline battery; typical battery weight may vary

Transceiver Length

2.61 inches (66.3 millimeters)

Transceiver Width

0.84 inches (21.3 millimeters)

Transceiver Depth/Height

0.36 inches (9.22 millimeters)

Transceiver Weight

0.32 ounces (9.1 grams)

Compatibility and Localization

Interface

USB 2.0 Compatible

Operating Systems

• Microsoft Windows® Vista™ and Windows XP with Service Pack 2 (SP2)

• Macintosh Mac OS X v10.2-10.5

Top-line System Requirements

For Windows-based PC:

• Requires a PC that meets the requirements for and has installed one of these operating systems: Windows Vista or Windows XP with Service Pack 2 (SP2)

• 100 MB Hard Drive

• USB Port

• CD-ROM Drive

• IntelliPoint software version 6.3

For Macintosh:

• Mac OSX v10.2-10.5*

• 30 MB Hard Drive

• IntelliPoint for Mac software version 6.3

Internet access may be required for certain features. Local and/or long distance telephone charges may apply. * If you are using Macintosh OS X, the Magnifier enlarges text and images on the entire screen.

Compatibility Logos • Certified for Microsoft Windows Vista

• Mac logo

• Universal Mac logo

• Certified USB logo

Software Localization

For a Microsoft Windows-based PC:

Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

For a Macintosh PC:

Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version will be displayed.

Tracking Technology

Mouse Tracking System Microsoft-proprietary high-definition optical technology

Imaging Rate Dynamically adaptable to 6000 frames per second

X-Y Resolution 1000 points per inch (39.4 points per millimeter)

Tracking Speed Up to 20 inches (508 millimeters) per second

Wireless Technology

Wireless Platform 27 MHz Radio Frequency (RF)

Wireless Channels

27.045 MHz Channel 0 and 27.145 MHz Channel 1

Wireless IDs

65,000 random identification codes

Wireless Range

3.5 feet (1.07 meters) typical.** Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the keyboard, mouse, and receiver. And lower wireless range implemented in SKUs produced for sale in the Republic of Korea to support compliance with RF range configured to 2.2 feet typical .

Product Feature Performance

Mouse Button Features 4 buttons including scroll wheel button

Right & Left Button Life 3,000,000 actuations at no more than 4 actuations per second

Side Button Life 1,000,000 actuations at no more than 4 actuations per second

Wheel Button Life 250,000 actuations at no more than 4 actuations per second

Mouse Scrolling Features Tilt wheel enables vertical and horizontal scrolling

Wheel Vertical Scrolling Life • 85,000 revolutions (away from user)

• 300,000 revolutions (towards user)

Storage Temperature & Humidity -40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing)

Operating Temperature & Humidity 32 °F (0 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)

Power Requirements

Battery Type and Quantity

1 AA alkaline battery (included)

Battery Life

6 months typical

Certification Information

Country of Manufacture

People's Republic of China (PRC)

ISO 9001 Qualified Manufacturer Yes

ISO 14001 Qualified Manufacturer Yes

FCC ID

This device complies with part 15 of the FCC Rules and Industry Canada RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. 1359, Wireless Mobile Mouse 3000 v1.0 and 1051, Notebook Receiver v2.0 FCC IDs: C3K1359 and C3K1051.

Agency and Regulatory Marks

• FCC Declaration of Conformity (USA)

• UL and cUL Listed Accessory (USA and Canada)

• RSS-310 and ICES-003 report on file (Canada)

• Anatel Certificate (Brazil)

• R&TTE Declaration of Conformity, Safety and EMC (European Union)

• TUV-GS Certificate (EU, Germany)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• ICASA Certificate (South Africa)

• GOST Certificate (Russia)

• VCCI Certificate (Japan)

• BSMI and DGT Certificates (Taiwan)

• MIC Certificate (Korea)

• CMII Certificate (China)

• SQAS Certificate (Malaysia)

• IDA Approval (Singapore)

• CB Scheme Certificate (International)

• SASO Registration (Kingdom of Saudi Arabia)

• POSTEL Certificate (Indonesia)

• NTC Certificate (Philippines)

• CNC Certificate (Argentina)

• TEC Certificate (India)

• NTC SDoC (Thailand)

• NTRA Cert (Egypt)

• TRA Cert (UAE)

Windows Hardware Quality Labs (WHQL)

ID: PENDING Microsoft Windows XP (x86, x64) and Windows Vista (x86, x64)

*** Mouse lower wireless range implemented in SKUs produced for sale in the Republic of Korea to support compliance to requirements documented in Article 6 of Assessment Decree of Radio Wave Act., Conformity Assessment Procedure for Type Official Approval and Type Registration of Radio Equipment (RRL Notice 2006-128), and Technical Requirements for the Radio Equipment for other services than Broadcasting, Marine, Aeronaut (RRL Notice 2005-127) of the Republic of Korea

• Mouse 2.2 feet (0.67 meters) typical.

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.

Rev. 0808A

Microsoft® Wireless Mobile Mouse 3000

Page 1 of 1
