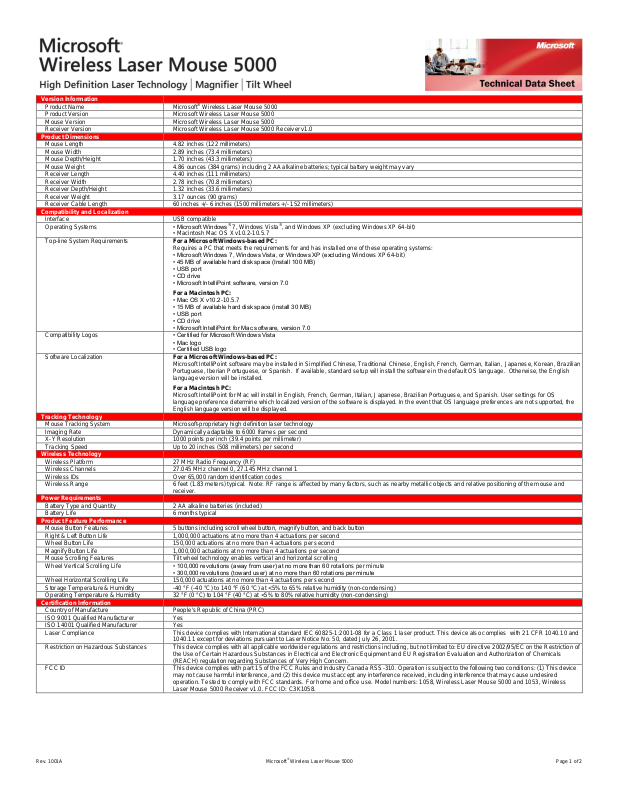

Microsoft WIRELESS LASER MOUSE 5000 DATASHEET

Version Information

Product Name

Microsoft® Wireless Laser Mouse 5000

Product Version

Microsoft Wireless Laser Mouse 5000

Mouse Version

Microsoft Wireless Laser Mouse 5000

Receiver Version

Microsoft Wireless Laser Mouse 5000 Receiver v1.0

Product Dimensions

Mouse Length

4.82 inches (122 millimeters)

Mouse Width

2.89 inches (73.4 millimeters)

Mouse Depth/Height

1.70 inches (43.3 millimeters)

Mouse Weight

4.86 ounces (384 grams) including 2 AA alkaline batteries; typical battery weight may vary

Receiver Length

4.40 inches (111 millimeters)

Receiver Width

2.78 inches (70.8 millimeters)

Receiver Depth/Height

1.32 inches (33.6 millimeters)

Receiver Weight

3.17 ounces (90 grams)

Receiver Cable Length

60 inches +/- 6 inches (1500 millimeters +/- 152 millimeters)

Compatibility and Localization

Interface

USB compatible

Operating Systems

• Microsoft Windows

7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)

• Macintosh Mac OS X v10.2-10.5.7

Top-line System Requirements

For a Microsoft Windows-based PC: Requires a PC that meets the requirements for and has installed one of these operating systems:

• Microsoft Windows 7, Windows Vista, or Windows XP (excluding Windows XP 64-bit)

• 45 MB of available hard disk space (Install 100 MB)

• USB port

• CD drive

• Microsoft IntelliPoint software, version 7.0

For a Macintosh PC:

• Mac OS X v10.2-10.5.7

• 15 MB of available hard disk space (install 30 MB)

• USB port

• CD drive

• Microsoft IntelliPoint for Mac software, version 7.0

Compatibility Logos

• Certified for Microsoft Windows Vista

• Mac logo

• Certified USB logo

Software Localization

For a Microsoft Windows-based PC: Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.

For a Macintosh PC: Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version will be displayed.

Tracking Technology

Mouse Tracking System

Microsoft-proprietary high definition laser technology

Imaging Rate

Dynamically adaptable to 6000 frames per second

X-Y Resolution

1000 points per inch (39.4 points per millimeter)

Tracking Speed

Up to 20 inches (508 millimeters) per second

Wireless Technology

Wireless Platform

27 MHz Radio Frequency (RF)

Wireless Channels

27.045 MHz channel 0, 27.145 MHz channel 1

Wireless IDs

Over 65,000 random identification codes

Wireless Range

6 feet (1.83 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and receiver.

Power Requirements

Battery Type and Quantity

2 AA alkaline batteries (included)

Battery Life

6 months typical

Product Feature Performance

Mouse Button Features

5 buttons including scroll wheel button, magnify button, and back button

Right & Left Button Life

1,000,000 actuations at no more than 4 actuations per second

Wheel Button Life

150,000 actuations at no more than 4 actuations per second

Magnify Button Life

1,000,000 actuations at no more than 4 actuations per second

Mouse Scrolling Features

Tilt wheel technology enables vertical and horizontal scrolling

Wheel Vertical Scrolling Life

• 100,000 revolutions (away from user) at no more than 60 rotations per minute

• 300,000 revolutions (toward user) at no more than 60 rotations per minute

Wheel Horizontal Scrolling Life

150,000 actuations at no more than 4 actuations per second

Storage Temperature & Humidity

-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)

Operating Temperature & Humidity

32 °F (0 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)

Certification Information

Country of Manufacture

People's Republic of China (PRC)

ISO 9001 Qualified Manufacturer

Yes

ISO 14001 Qualified Manufacturer

Yes

Laser Compliance

This device complies with International standard IEC 60825-1:2001-08 for a Class 1 laser product. This device also complies with 21 CFR 1040.10 and

1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.

Restriction on Hazardous Substances

This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.

FCC ID

This device complies with part 15 of the FCC Rules and Industry Canada RSS-310. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1058, Wireless Laser Mouse 5000 and 1053, Wireless Laser Mouse 5000 Receiver v1.0. FCC ID: C3K1058.

Rev. 1001A Microsoft® Wireless Laser Mouse 5000 Page 1 of 2

Certification Information

Agency and Regulatory Marks

• FCC Declaration of Conformity (USA)

• UL and cUL Listed Accessory (USA and Canada)

• RSS-310 and ICES-003 report on file (Canada)

• R&TTE Declaration of Conformity, Safety and EMC (European Union)

• TUV-GS Certificate (European Union)

• GOST and FAC Certificates (Russia)

• VCCI Certificate (Japan)

• ACA/MED Declaration of Conformity (Australia and New Zealand)

• BSMI and DGT Certificates (Taiwan)

• MIC Certificate (Korea)

• CNC Certificate (Argentina)

• NTRA Certificate (Egypt)

• POSTEL Certificate (Indonesia)

• NTC Certificate (Philippines)

• IDA Approval (Singapore)

• CONATEL Certificate (Venezuela)

• CMII Certificate (China)

• ICASA Certificate (South Africa)

• WEEE (European Union)

• EIP Pollution Control Mark, EPUP (China)

• CB Scheme Certificate (International)

Windows Hardware Quality Labs (WHQL)

ID: 1359699 Microsoft Windows 7

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
