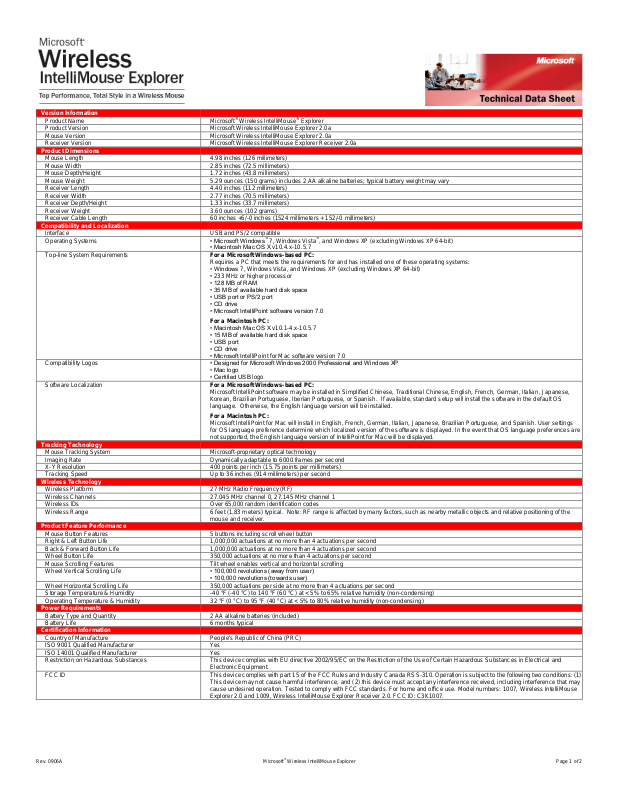

Microsoft WIRELESS INTELLIMOUSE EXPLORER 2.0A DATASHEET

Version Information
Microsoft® Wireless IntelliMouse® Explorer
Microsoft Wireless IntelliMouse Explorer 2.0a
Microsoft Wireless IntelliMouse Explorer 2.0a
Microsoft Wireless IntelliMouse Explorer Receiver 2.0a
Product Dimensions
4.98 inches (126 millimeters)
2.85 inches (72.5 millimeters)
1.72 inches (43.8 millimeters)
5.29 ounces (150 grams) includes 2 AA alkaline batteries; typical battery weight may vary
4.40 inches (112 millimeters)
2.77 inches (70.5 millimeters)
1.33 inches (33.7 millimeters)
3.60 ounces (102 grams)
60 inches +6/-0 inches (1524 millimeters + 152/-0 millimeters)
Compatibility and Localization
USB and PS/2 compatible
• Microsoft Windows
®
7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit)
• Macintosh Mac OS X v10.4.x-10.5.7
For a Microsoft Windows-based PC: Requires a PC that meets the requirements for and has installed one of these operating systems:
• Windows 7, Windows Vista, and Windows XP (excluding Windows XP 64-bit)
233 MHz or higher processor
• 128 MB of RAM
• 35 MB of available hard disk space
• USB port or PS/2 port
• CD drive
• Microsoft IntelliPoint software version 7.0
For a Macintosh PC:
• Macintosh Mac OS X v10.1-4.x-10.5.7
• 15 MB of available hard disk space
• USB port
• CD drive
• Microsoft IntelliPoint for Mac software version 7.0
• Designed for Microsoft Windows 2000 Professional and Windows XP
• Mac logo
• Certified USB logo
For a Microsoft Windows-based PC: Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.
For a Macintosh PC: Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version of IntelliPoint for Mac will be displayed.
Tracking Technology
Microsoft-proprietary optical technology
Dynamically adaptable to 6000 frames per second
400 points per inch (15.75 points per millimeters)
Up to 36 inches (914 millimeters) per second
Wireless Technology
27 MHz Radio Frequency (RF)
27.045 MHz channel 0, 27.145 MHz channel 1
Over 65,000 random identification codes
6 feet (1.83 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and receiver.
Product Feature Performance
5 buttons including scroll wheel button
1,000,000 actuations at no more than 4 actuations per second
1,000,000 actuations at no more than 4 actuations per second
350,000 actuations at no more than 4 actuations per second
Tilt wheel enables vertical and horizontal scrolling
• 100,000 revolutions (away from user)
• 100,000 revolutions (towards user)
350,000 actuations per side at no more than 4 actuations per second
-40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing)
32 °F (0 °C) to 95 °F (40 °C) at < 5% to 80% relative humidity (non-condensing)
Power Requirements
2 AA alkaline batteries (included)
6 months typical
Certification Information
People's Republic of China (PRC)
Yes
Yes
This device complies with EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
This device complies with part 15 of the FCC Rules and Industry Canada RSS-310. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1007, Wireless IntelliMouse Explorer 2.0 and 1009, Wireless IntelliMouse Explorer Receiver 2.0. FCC ID: C3K1007.
Rev. 0906A Microsoft® Wireless IntelliMouse Explorer Page 1 of 2
Certification Information
• FCC Declaration of Conformity (USA)
• UL and cUL Listed Accessory (USA and Canada)
• RSS-310 and ICES-003 data on file (Canada)
• R&TTE Declaration of Conformity, Safety and EMC (European Union)
• GOST Certificate (Russia)
• VCCI Certificate (Japan)
• ACA/MED Declaration of Conformity (Australia and New Zealand)
• BSMI and DGT Certificates (Taiwan)
• MIC Certificate (Korea)
• MIC Certificate (Israel)
TRA SDoC Certificate (Philippines)
• CMII Certificate (China)
ICASA Certificate (South Africa)
• Anatel Certificate (Brazil)
• SIRIM Certificate (Malaysia)
WEEE (European Union)
EIP Pollution Control Mark, EPUP (China)
• CB Scheme Certificate (International)
Keyboard ID: 867307Microsoft Vista (x86, x64) and Windows XP (x86) Keyboard ID: PENDING Microsoft Windows 7
Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.
©2009 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners. Rev. 0906A Microsoft® Wireless IntelliMouse Explorer Page 2 of 2
